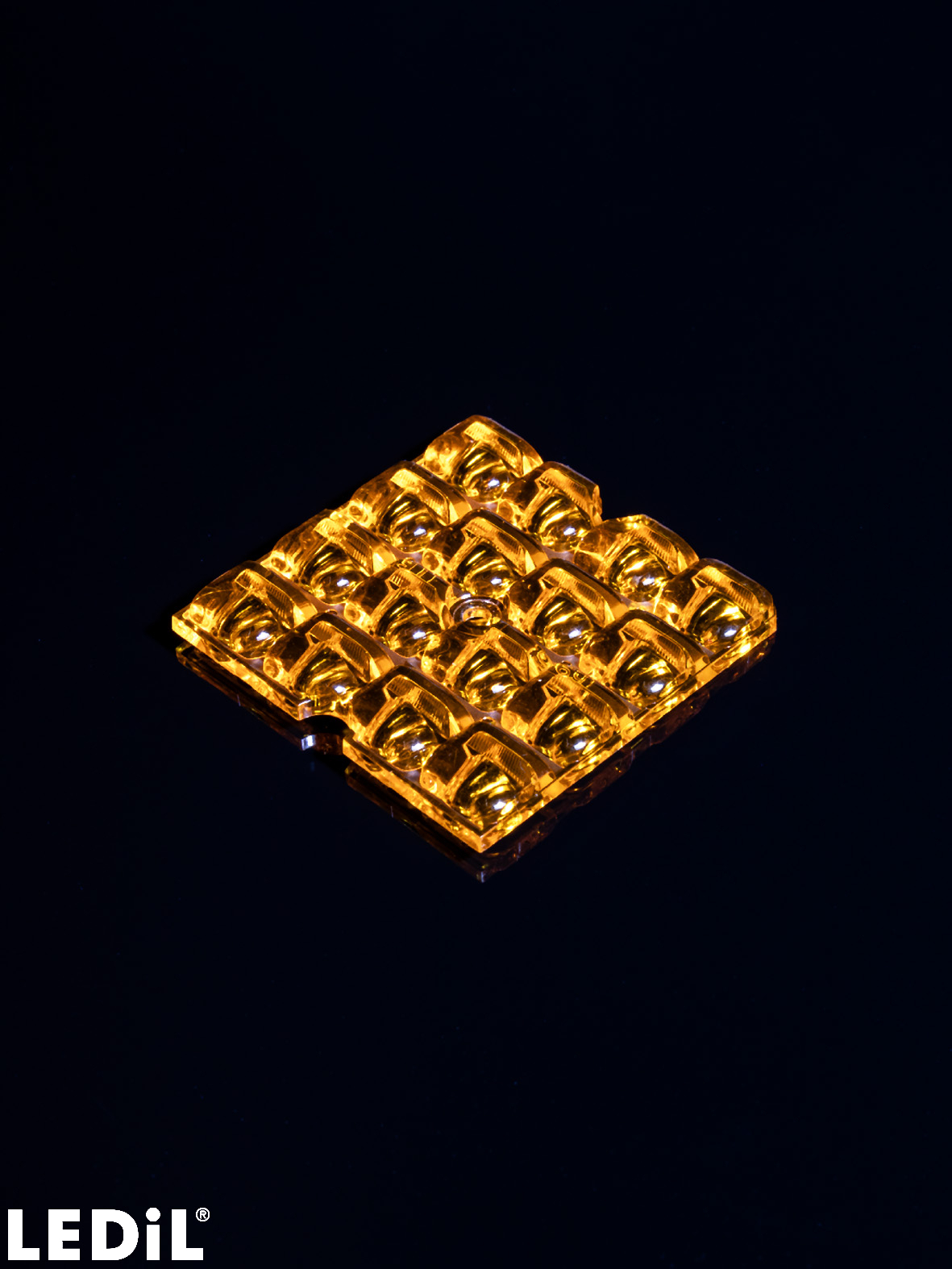

C19699_AMBER-16-ME
Print
Beam with excellent longitudinal luminance uniformity fulfilling EN13201 M-class requirements where road width is equal to or less the pole height.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

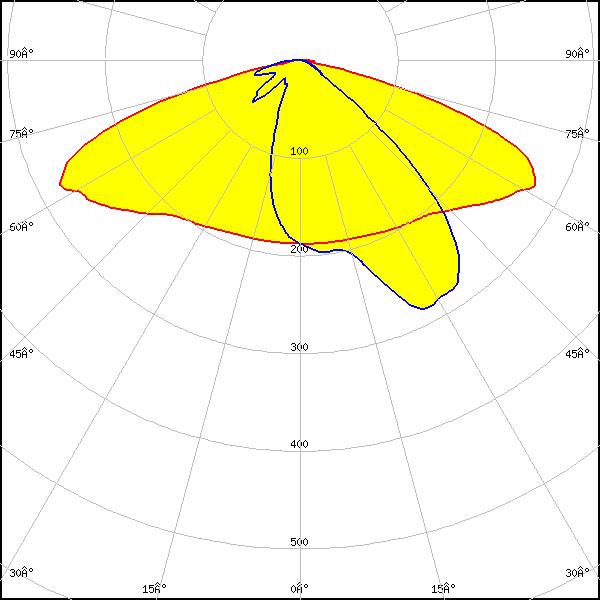

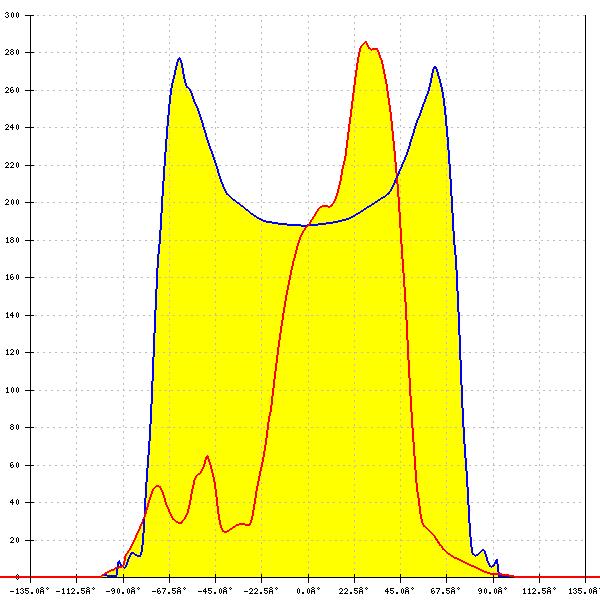

LED:
J Series 3030
FWHM: asymmetric
Peak intensity:
0.449 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

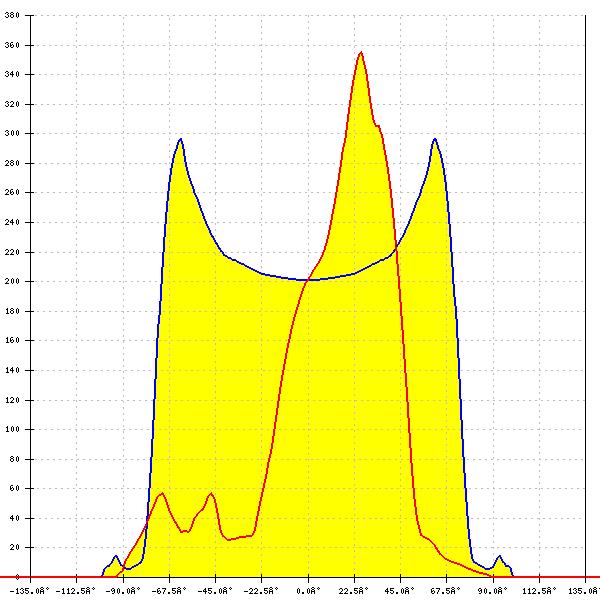

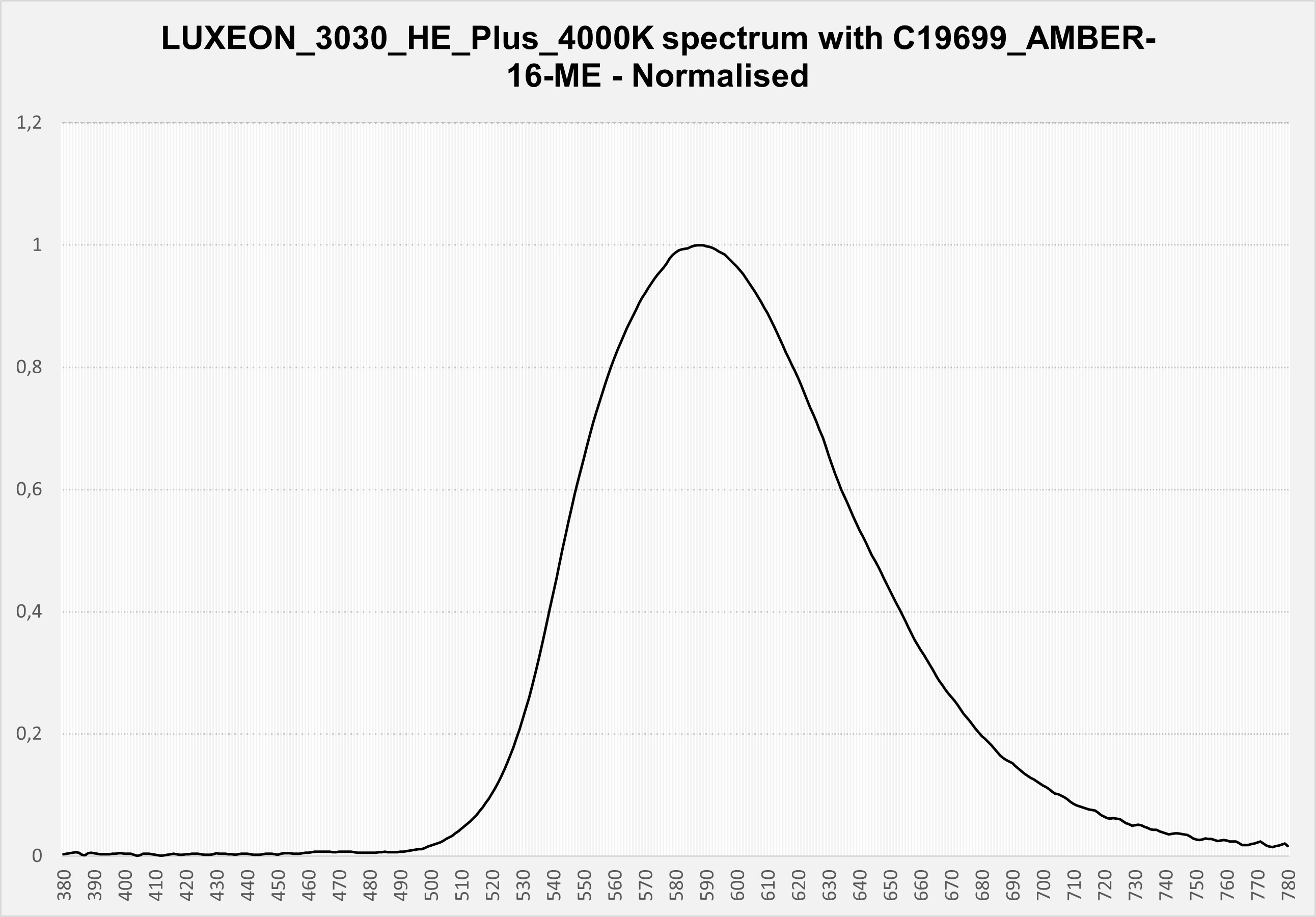

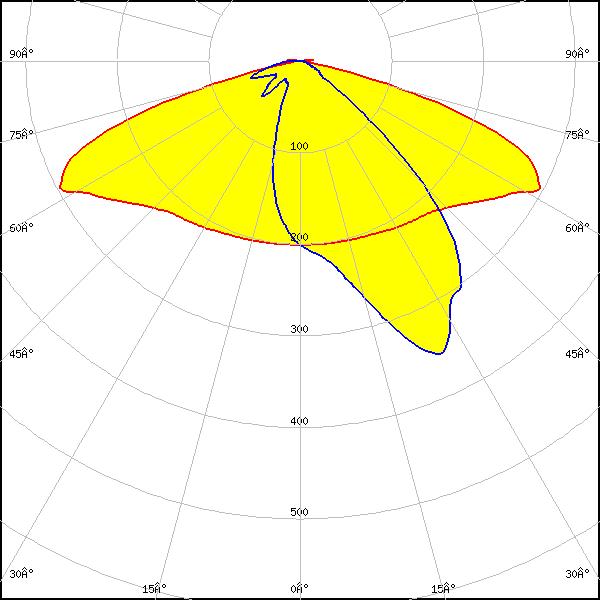

LED:
LUXEON 3030 HE Plus
FWHM: asymmetric
Peak intensity:
0.504 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.5%
CCT (LED/with lens)*:
3900 K/ 2500 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

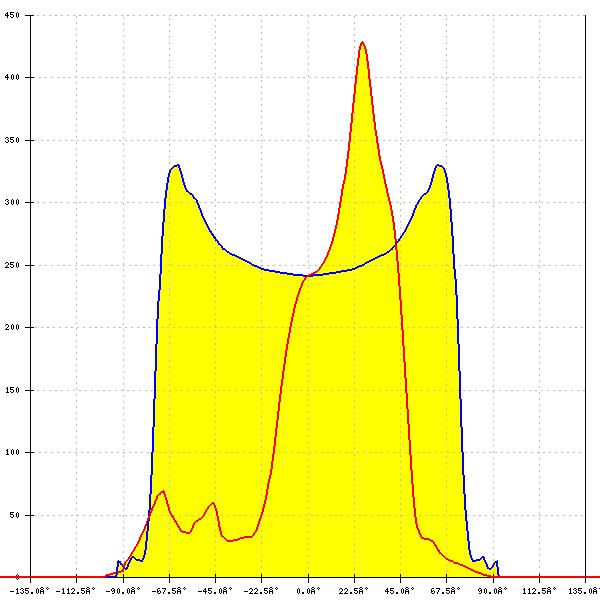

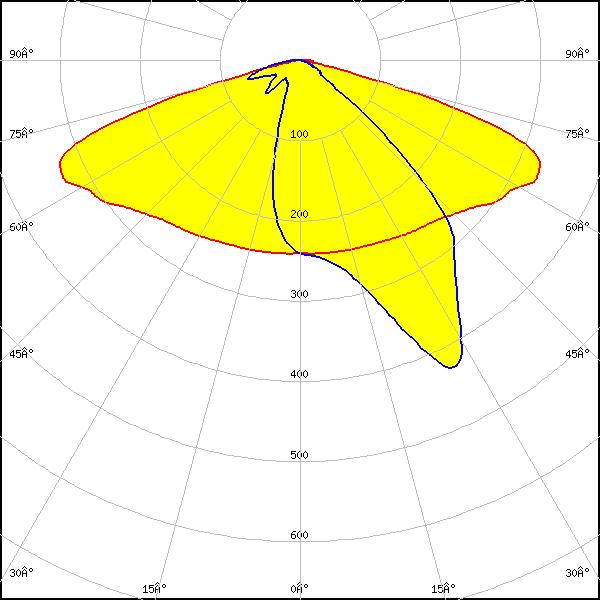

LED:
LUXEON 3030 HE Plus
FWHM: asymmetric
Peak intensity:
0.719 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.2%

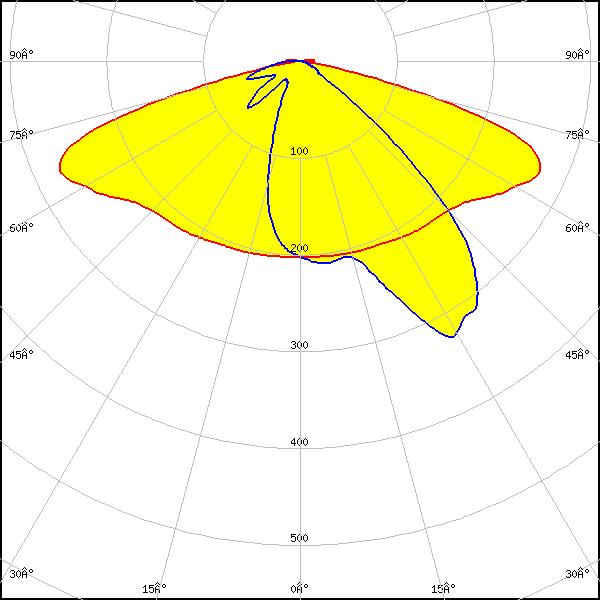

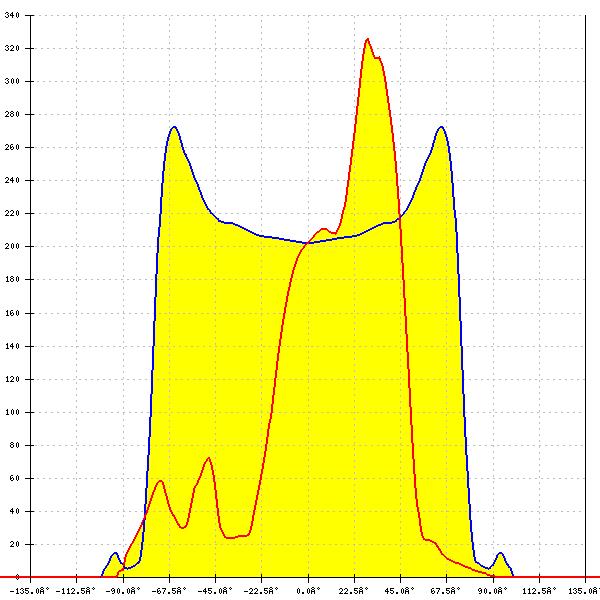

LED:
OSCONIQ S 3030 (QSLMS2.HM)
FWHM: asymmetric
Peak intensity:
0.525 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.5%
CCT (LED/with lens)*:
3900 K/ 2400 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

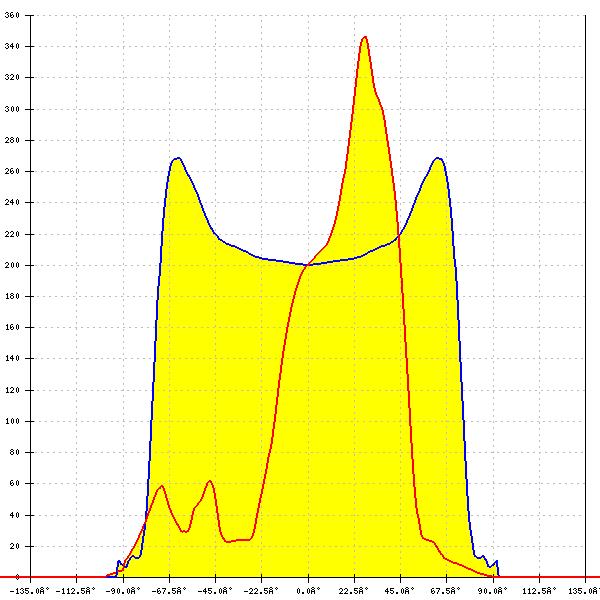

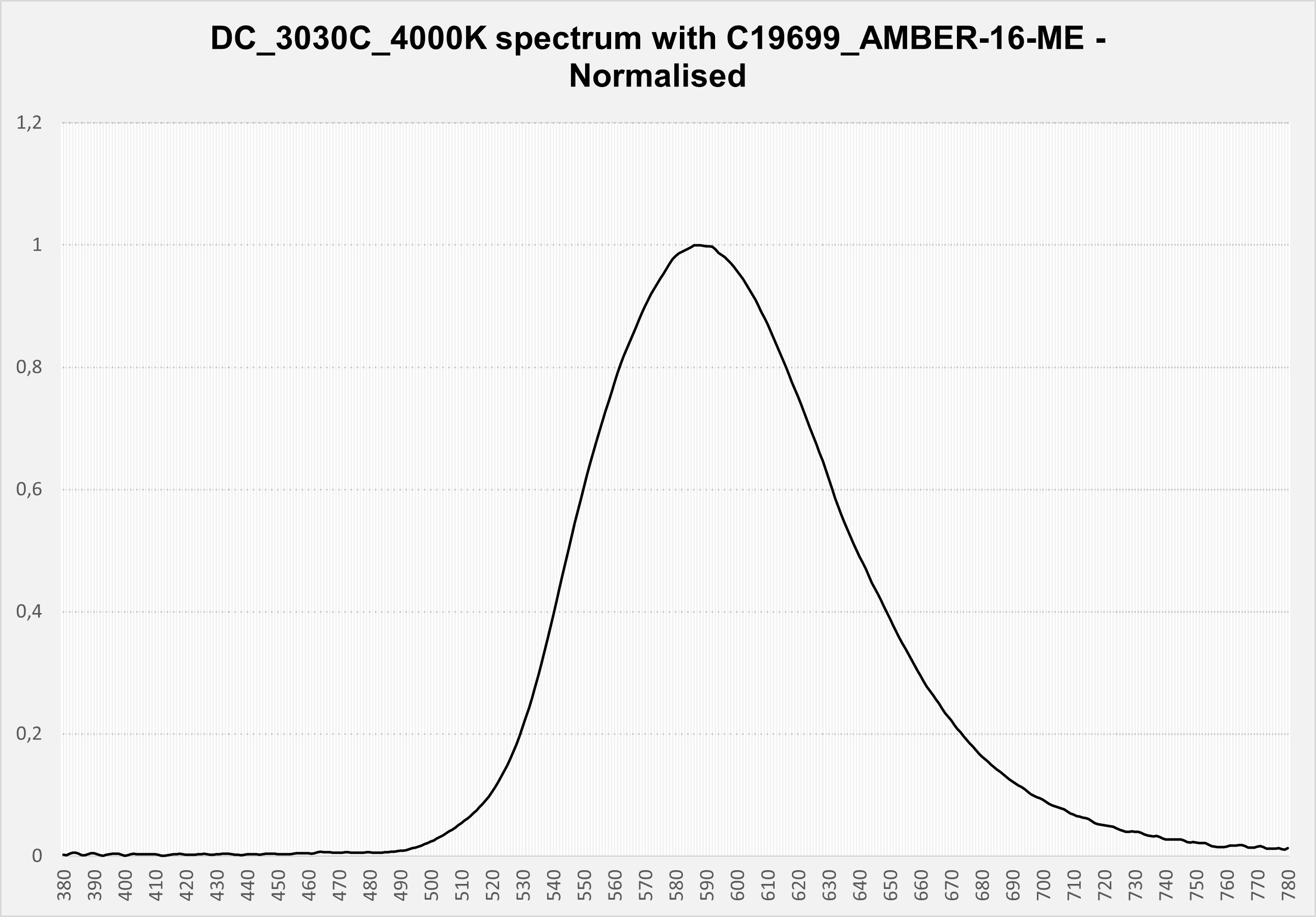

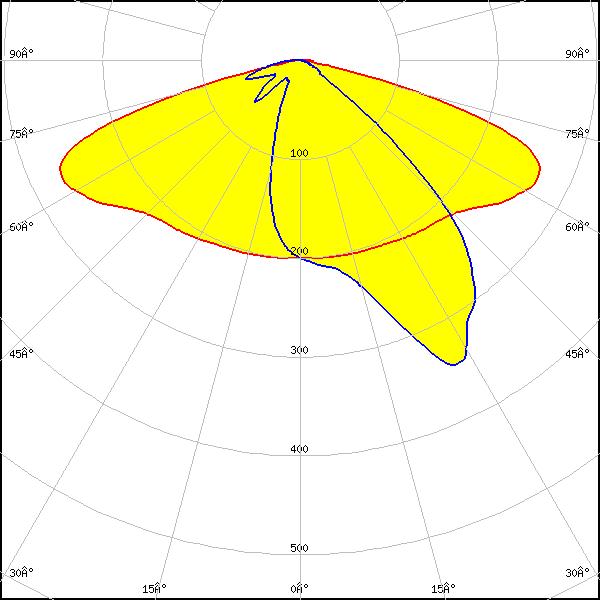

LED:
SEOUL DC 3030C
FWHM: asymmetric
Peak intensity:
0.528 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.6%
CCT (LED/with lens)*:
3900 K/ 2400 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
