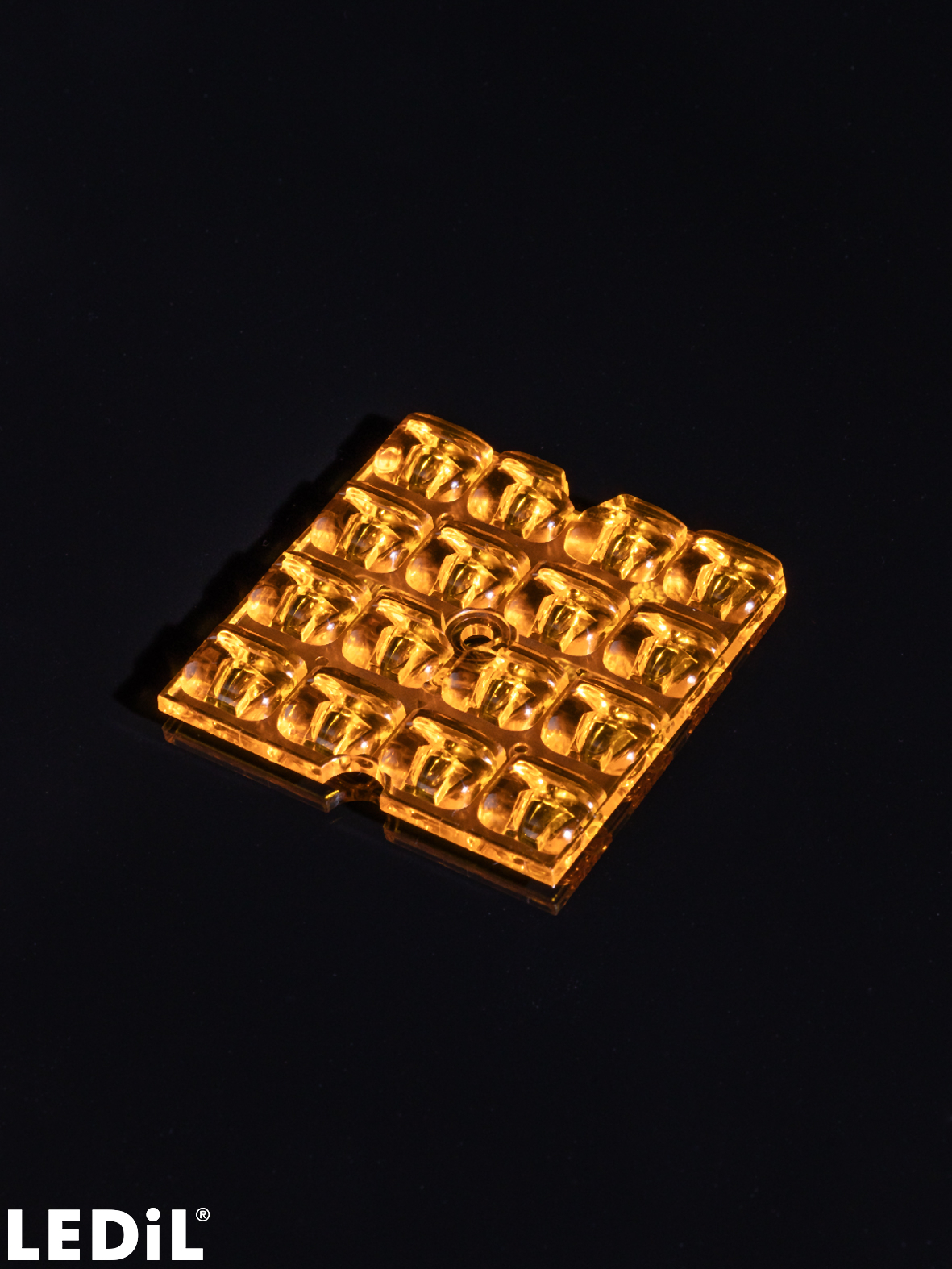

C19682_AMBER-16-SCL
Print
Type II/III (long) beam for very wide pole to pole distances. Ideal for pedestrian paths and residential roads. EN13201 P-classes.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

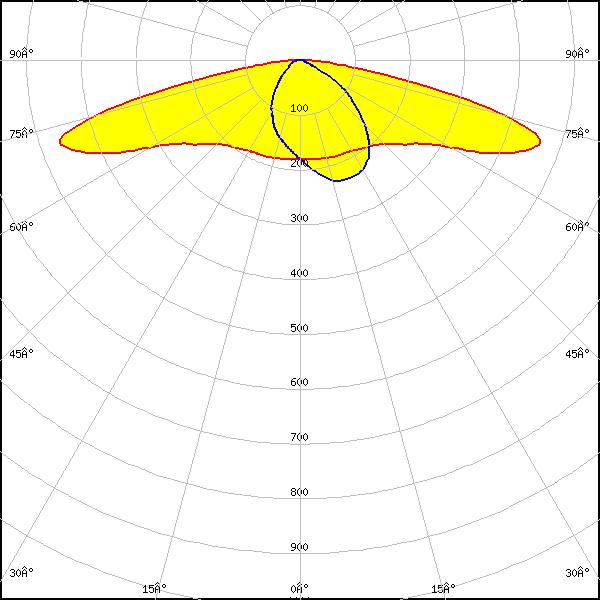

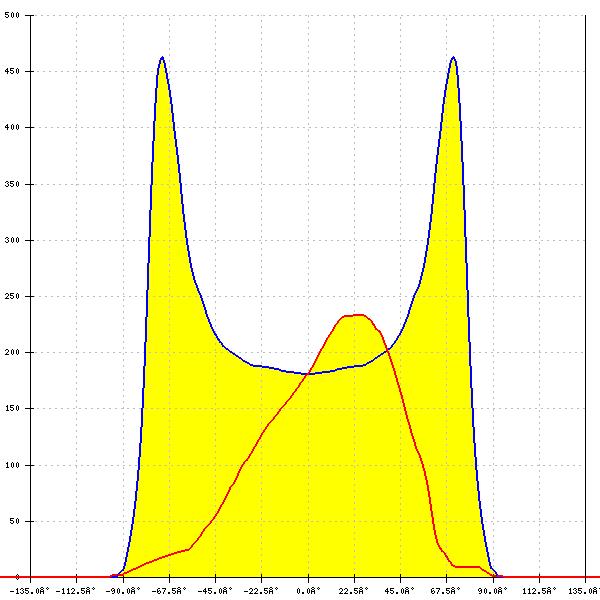

Optical results

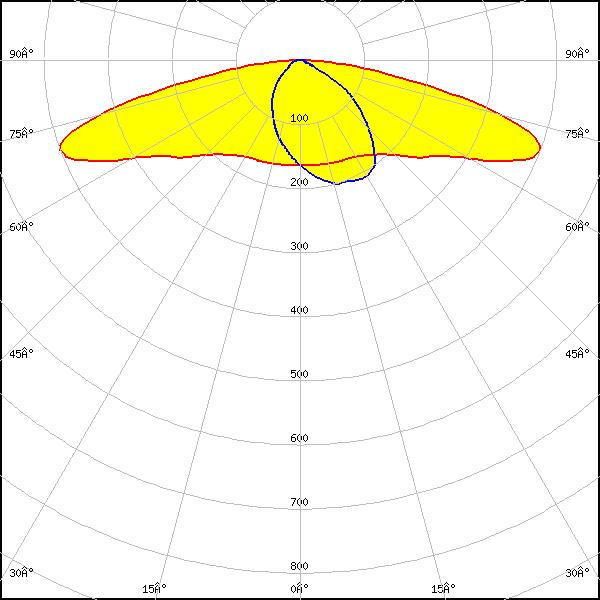

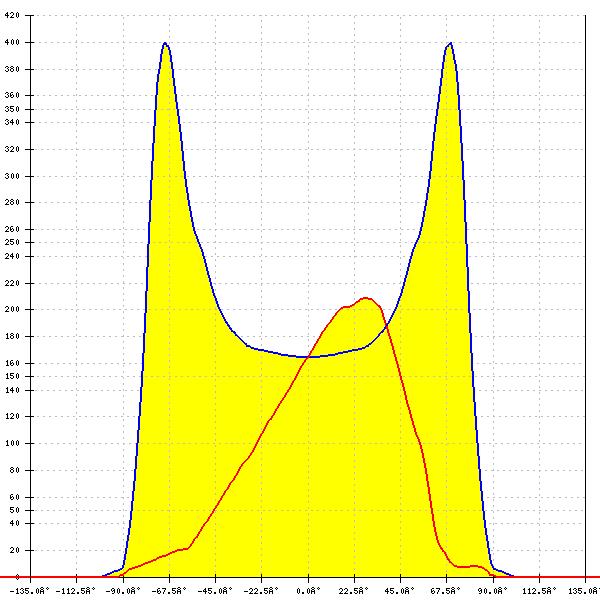

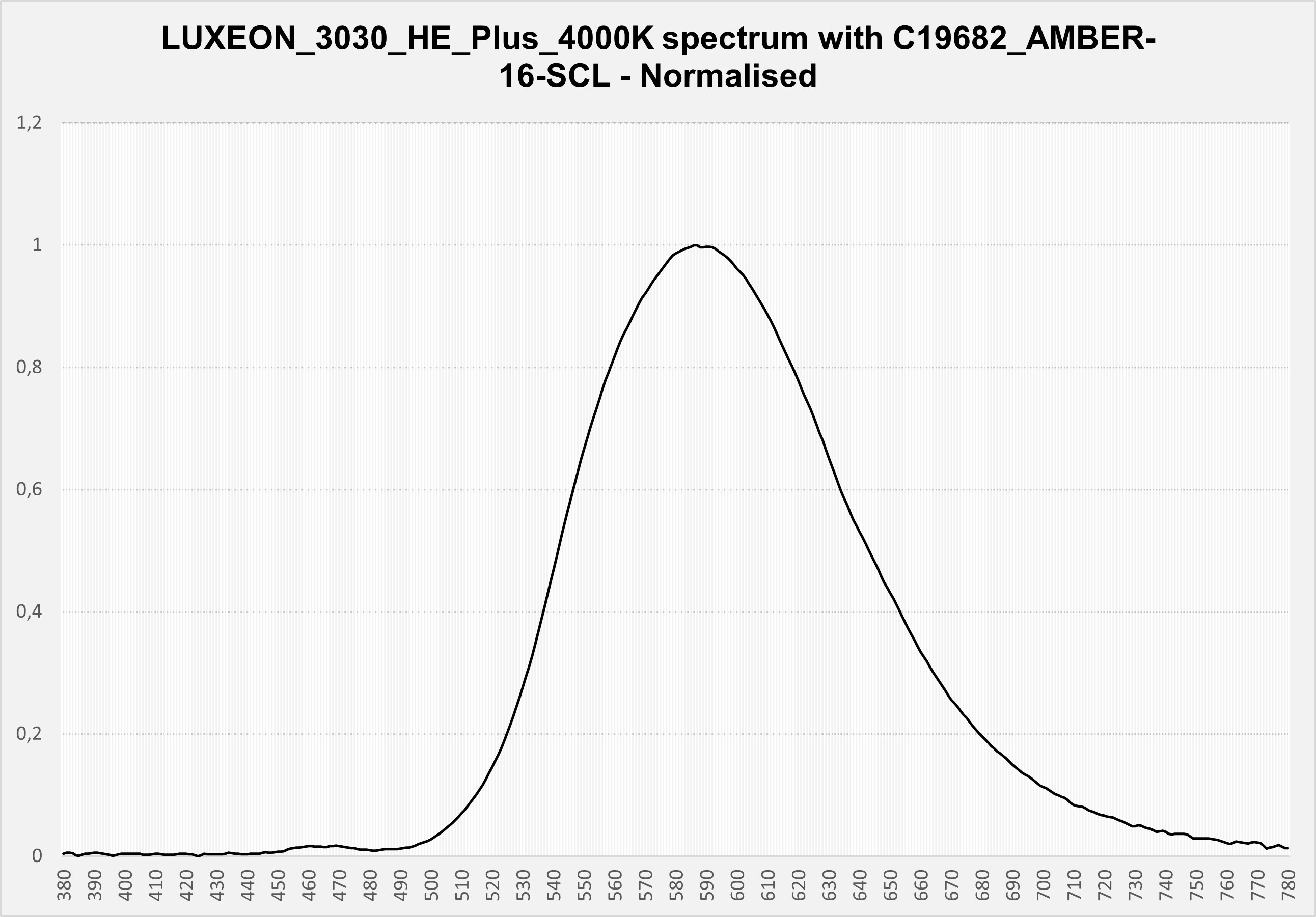

LED:
LUXEON 3030 HE Plus
FWHM: asymmetric
Peak intensity:
0.552 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.9%
CCT (LED/with lens)*:
3900 K/ 2500 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

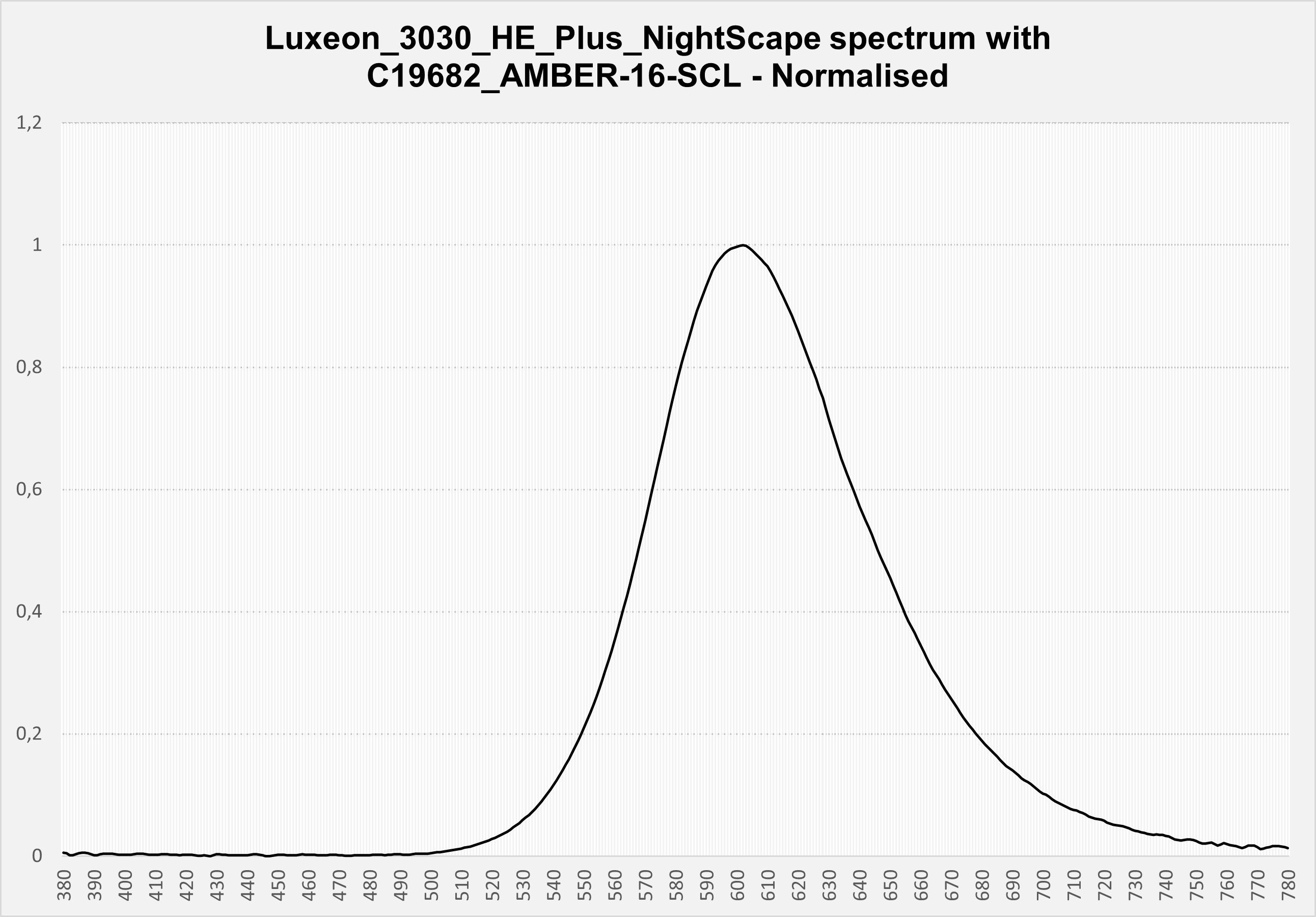

LED:
LUXEON 3030 HE Plus
FWHM: asymmetric
Peak intensity:
0.768 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
1900 K/ 1700 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

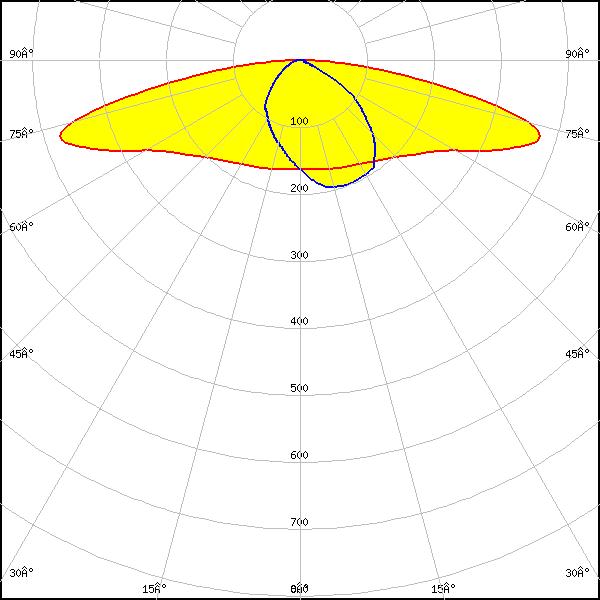

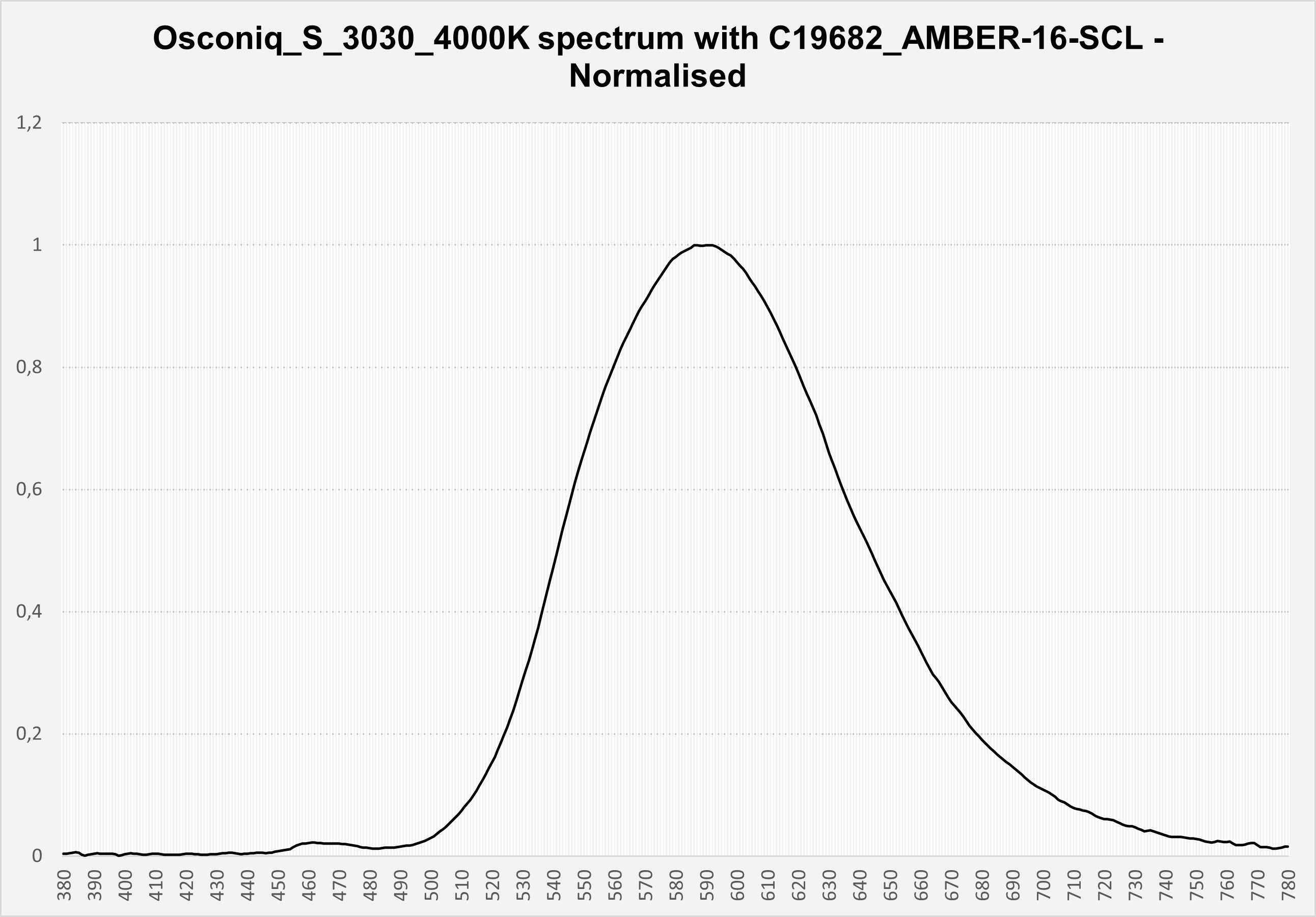

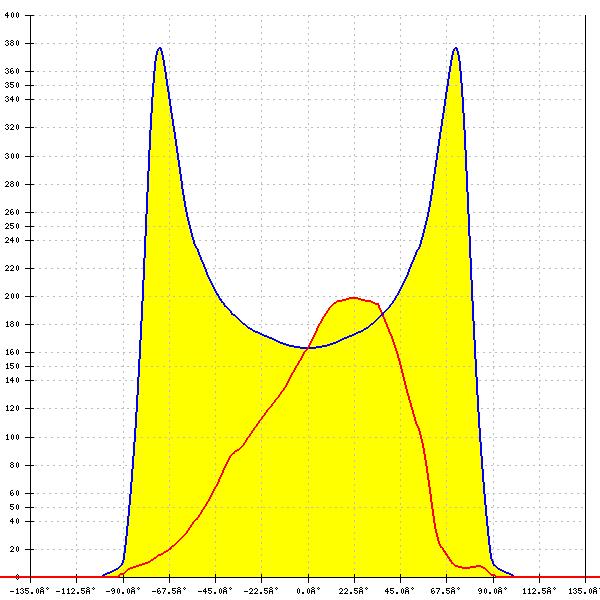

LED:
OSCONIQ S 3030 (QSLMS2.HM)
FWHM: asymmetric
Peak intensity:
0.517 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
1.0%
CCT (LED/with lens)*:
3900 K/ 2500 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

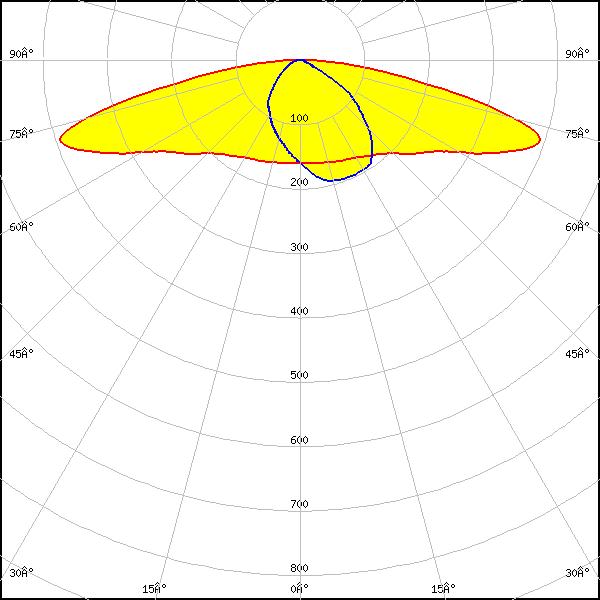

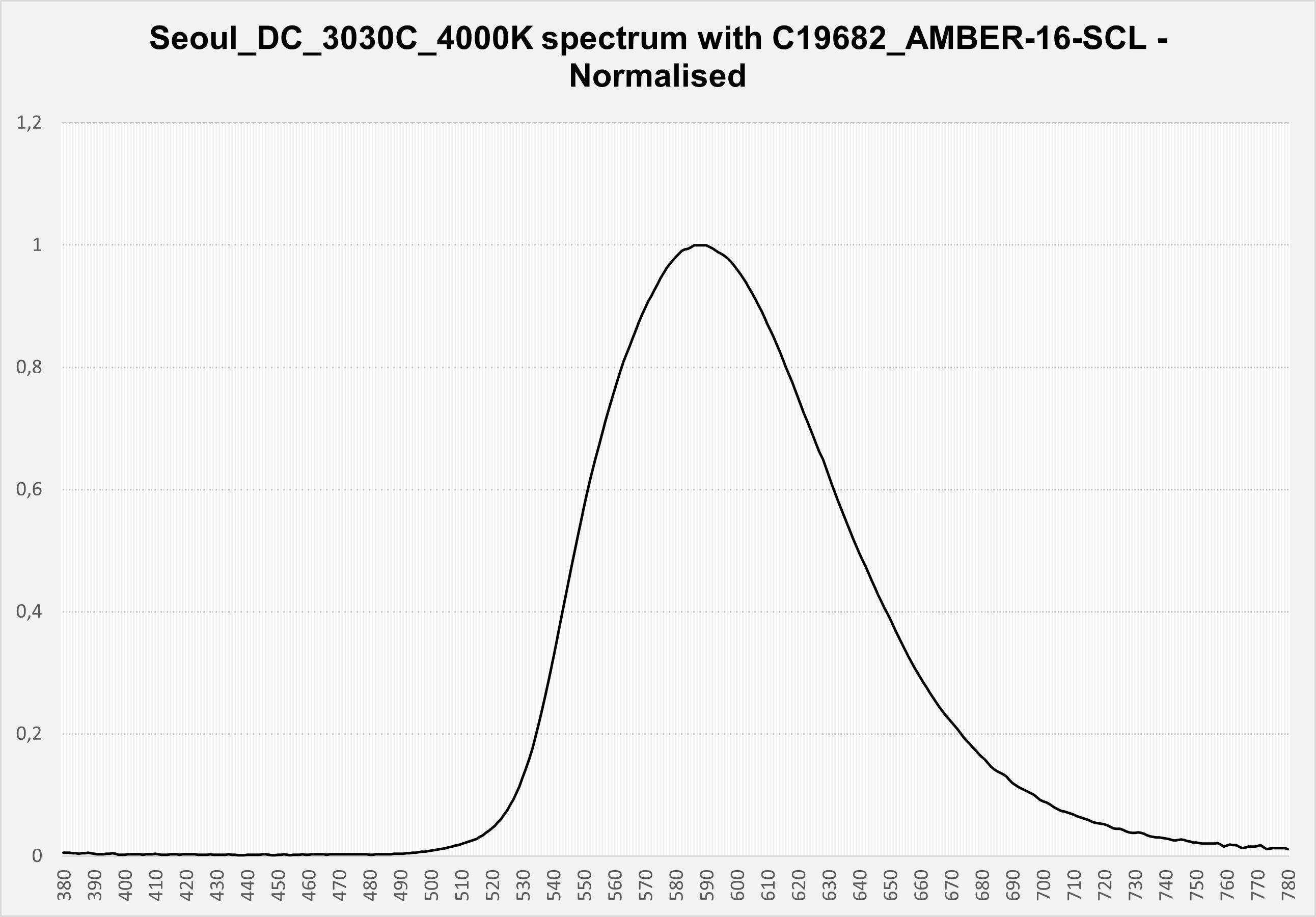

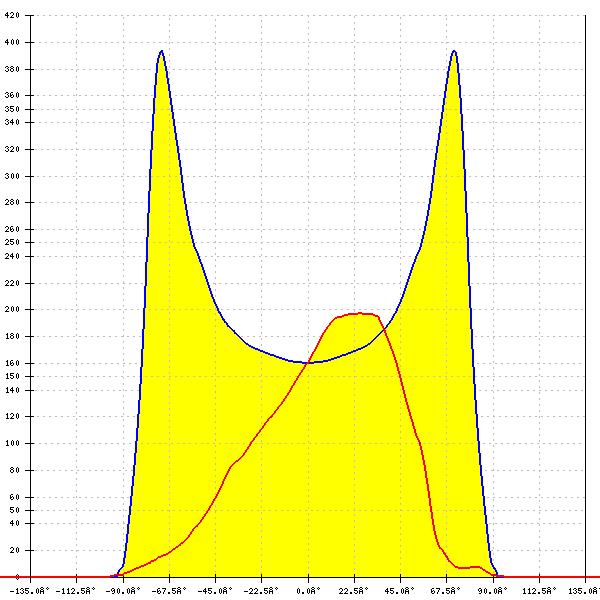

LED:
SEOUL DC 3030C
FWHM: asymmetric
Peak intensity:
0.533 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.4%
CCT (LED/with lens)*:
4000 K/ 2300 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
