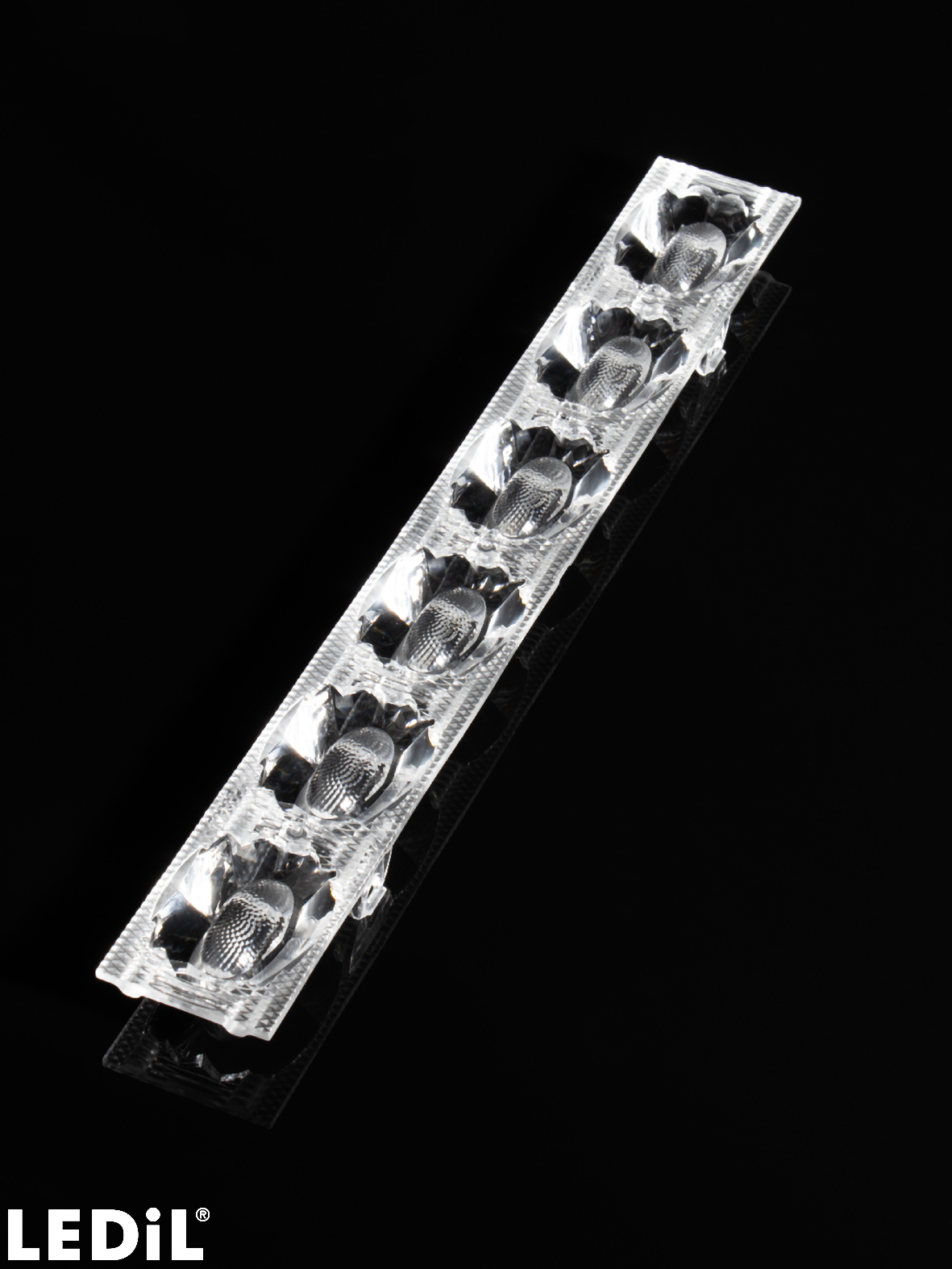

C19298_ISLA-6X1-OA

~25 + 80° assymmetric oval beam

Specification

Dimensions:

276 x 36 mm
Height:

14.20 mm
Fastening:

snaps, clips
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

144 pcs
Box size:

400 x 300 x 300 mm
Box weight:

11.4 kg
MPQ:

144 pcs
MOQ:

288 pcs
MOQ size:

400 x 300 x 300 mm
MOQ weight:

11.4 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: C19298_ISLA-6X1-OA

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting>
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PCB drawing

PRODUCT NAME(S):

C19298_ISLA-6X1-OA

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

Catalogue

LEDiL Latest products catalogue

News

New beams and products – August 2024

News

ISLA ‒ The most efficient aisle lighting solution on the market

AVAILABLE LEDiL ACCESSORIES

BRIANNA-CLIP-A

Installation clip for fastening BRIANNA lenses with screws.

BRIANNA-CLIP-B

Installation clip for fastening BRIANNA lenses.

ISLA-6X1-SHD

Black shade for ISLA-6X1

ISLA-6X1-SHD-MET

Metal shade for ISLA-6X1

ISLA-6X1-SHD-WHT

White shade for ISLA-6X1

Optical results

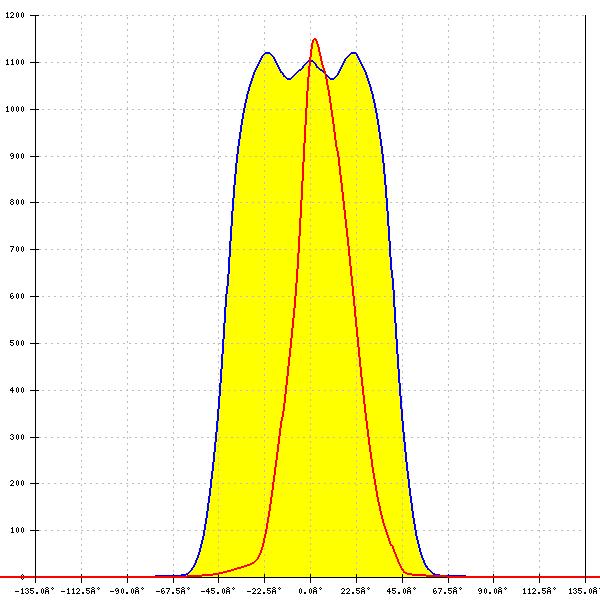

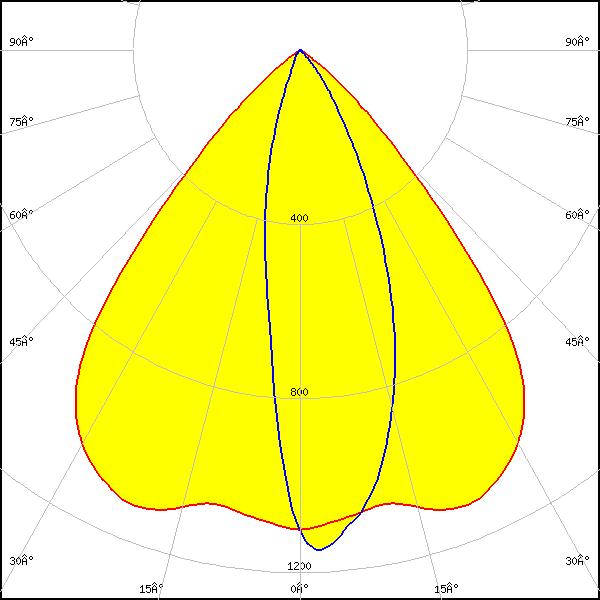

LED: LUXEON 5050 HE

Required components:

C19299_ISLA-6X1-SHD

FWHM: asymmetric

Peak intensity: 1.229 cd/lm

Efficiency: 86 %

LEDs/each optic: 2

Light colour/type: White

Datasheet

Light distribution files

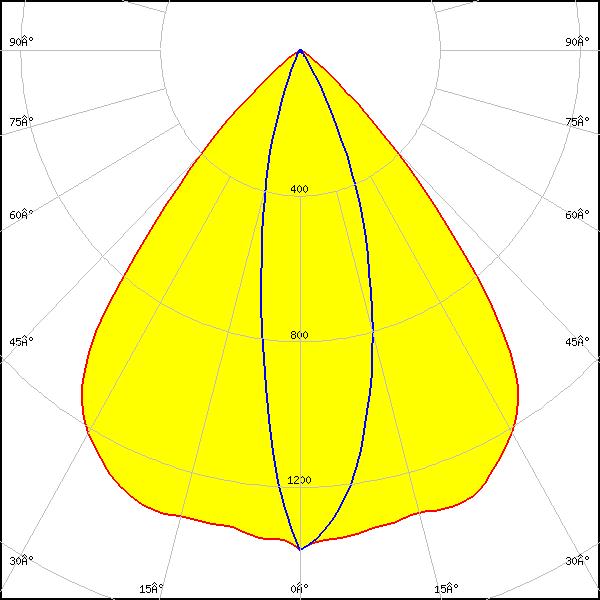

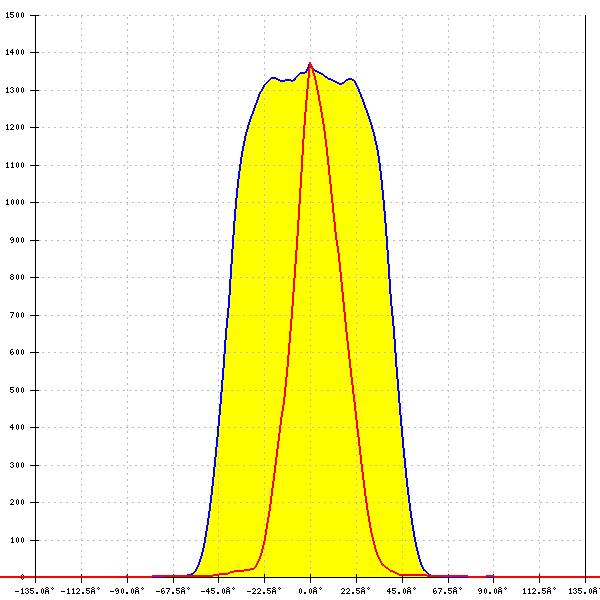

LED: LUXEON 5050 Round LES

Required components:

C19299_ISLA-6X1-SHD

FWHM: asymmetric

Peak intensity: 1.377 cd/lm

Efficiency: 89 %

LEDs/each optic: 2

Light colour/type: White

Datasheet

Light distribution files

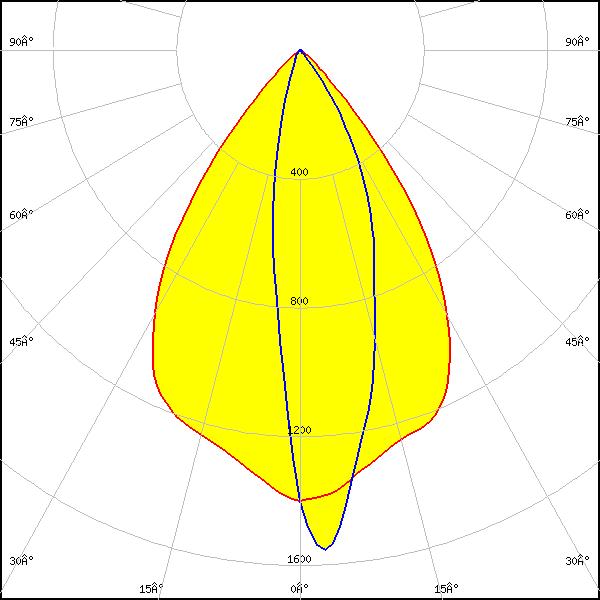

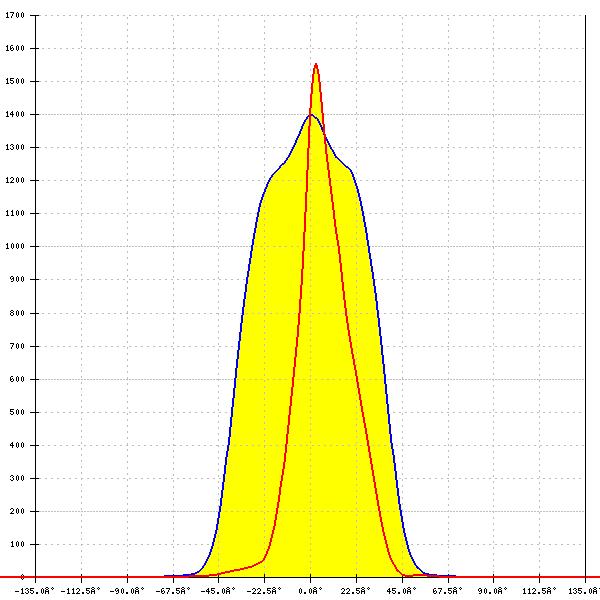

LED: LUXEON 5050 Square LES

Required components:

C19299_ISLA-6X1-SHD

FWHM: asymmetric

Peak intensity: 1.564 cd/lm

Efficiency: 88 %

LEDs/each optic: 2

Light colour/type: White

Datasheet

Photometric Files
