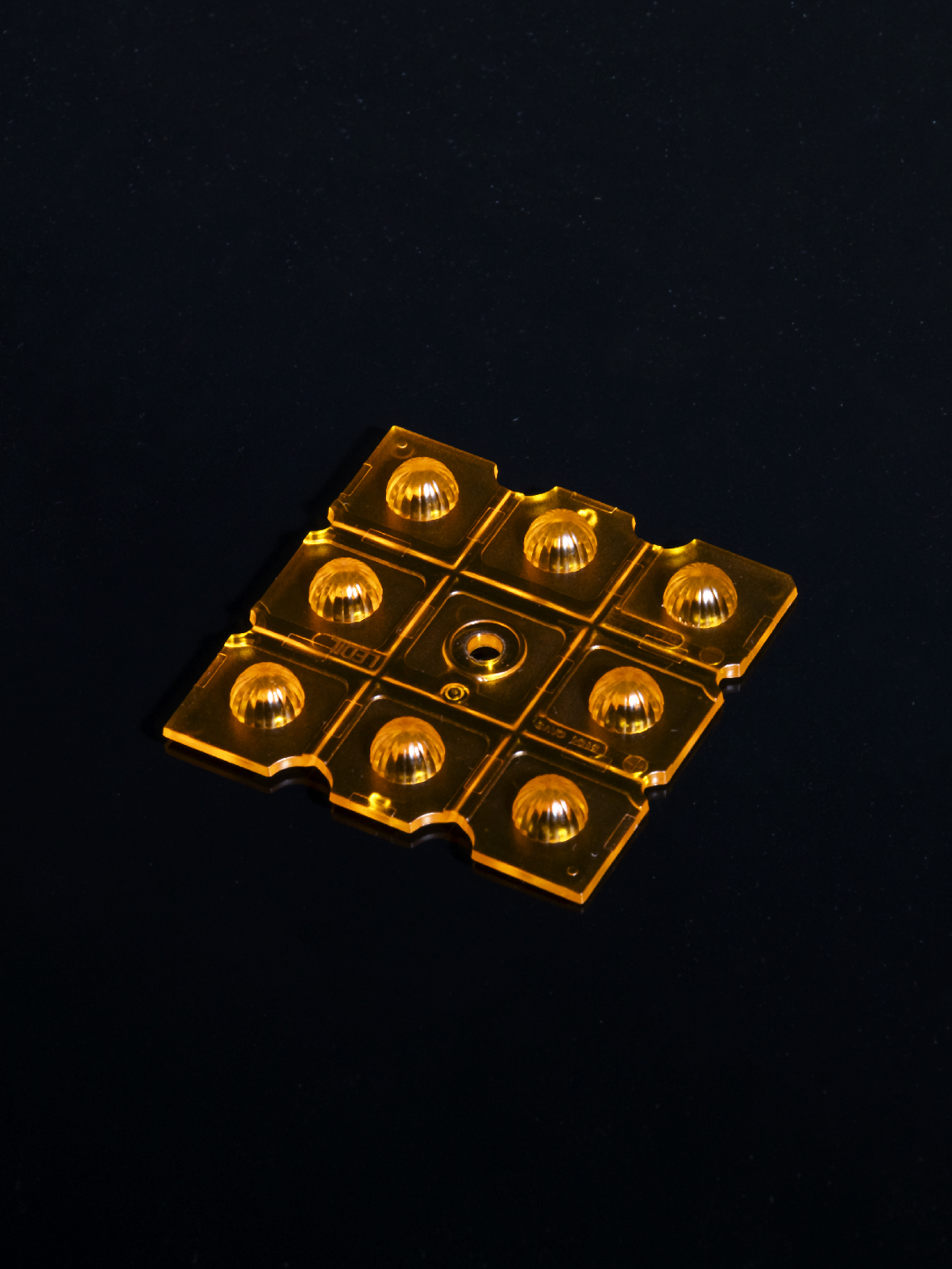

C19208_AMBER-8-HB-M
Print
~60° medium beam for industrial applications
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

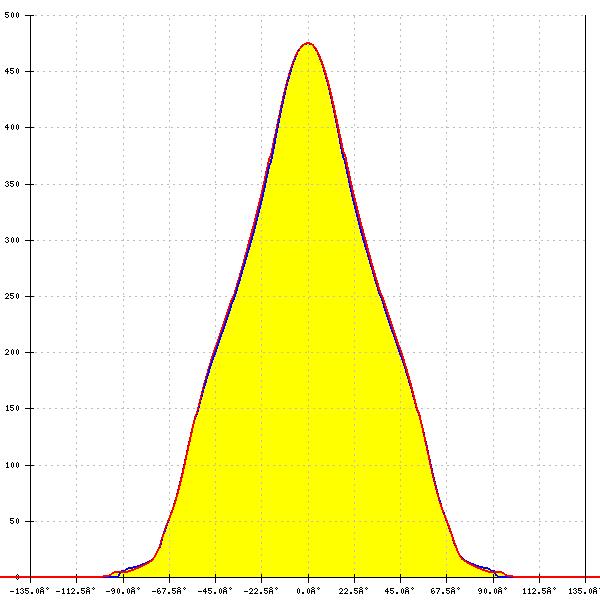

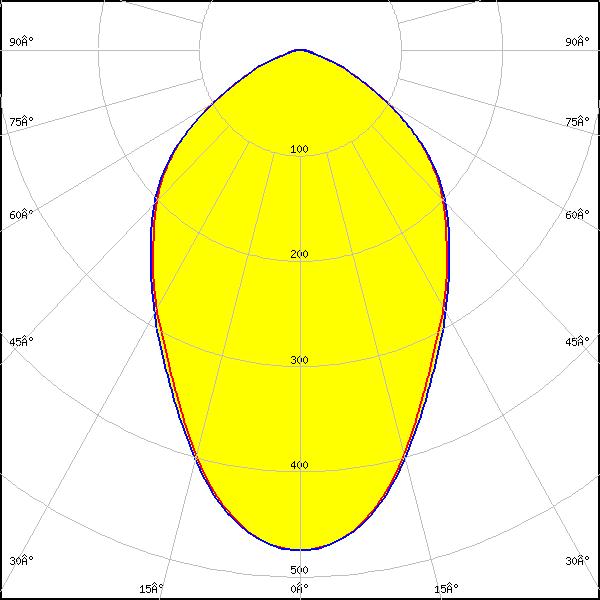

LED:
XP-G3
FWHM:
76°
FWTM:
137°
Peak intensity:
0.475 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
1.2%
CCT (LED/with lens)*:
3800 K/ 2700 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

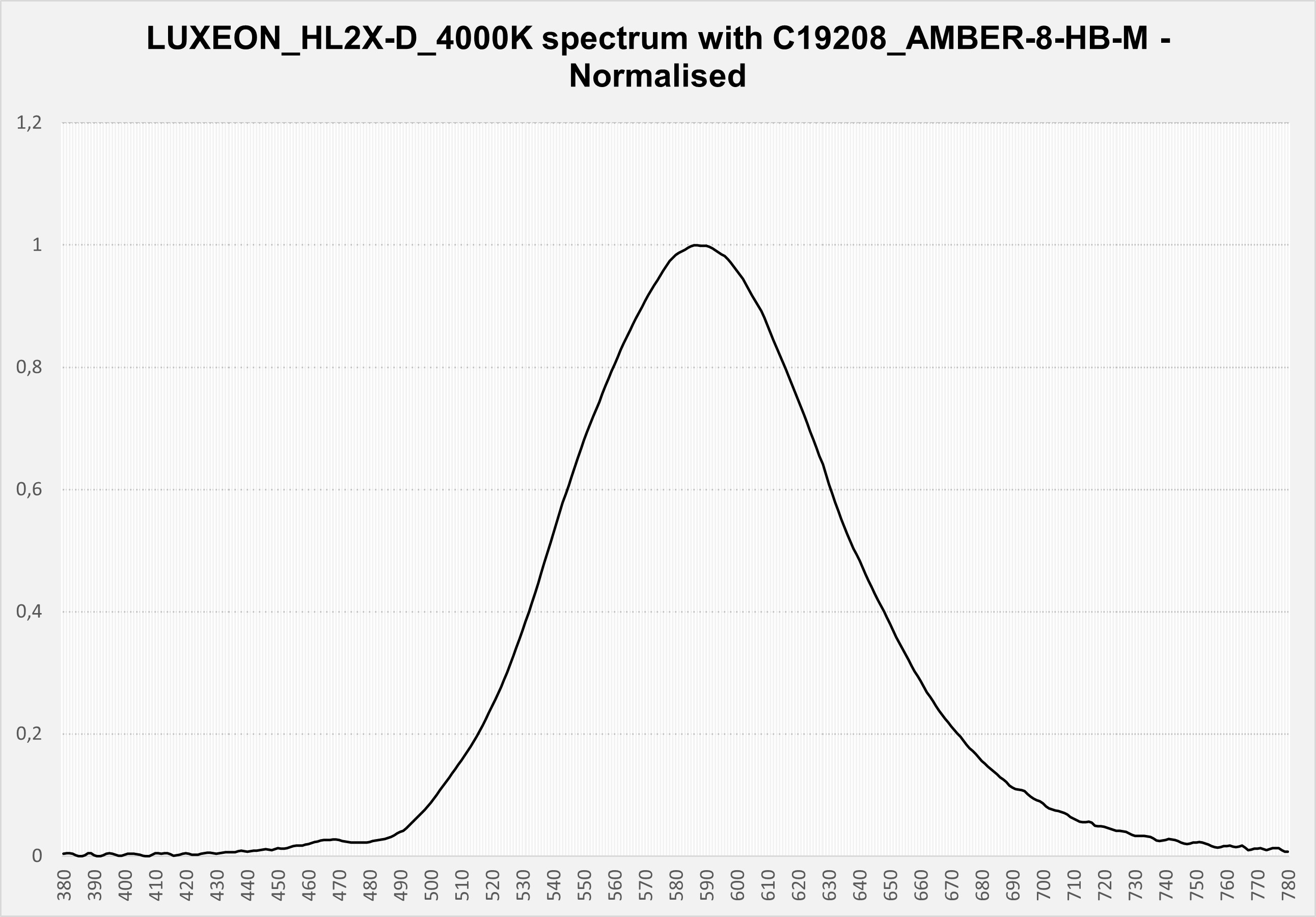

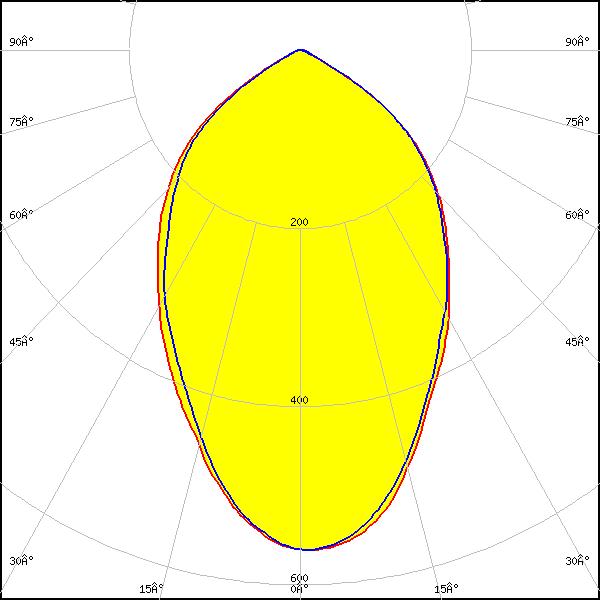

LED:

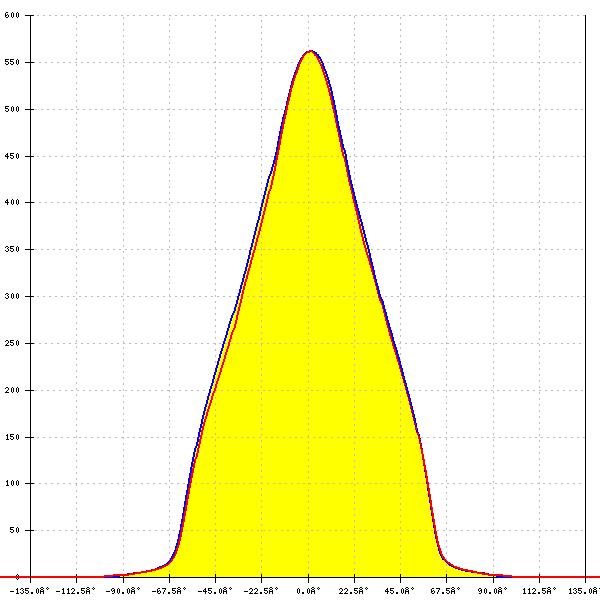

LUXEON HL2X-D
FWHM:
73°
FWTM:
122°
Peak intensity:
0.562 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
1.7%
CCT (LED/with lens)*:
3900 K/ 2700 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

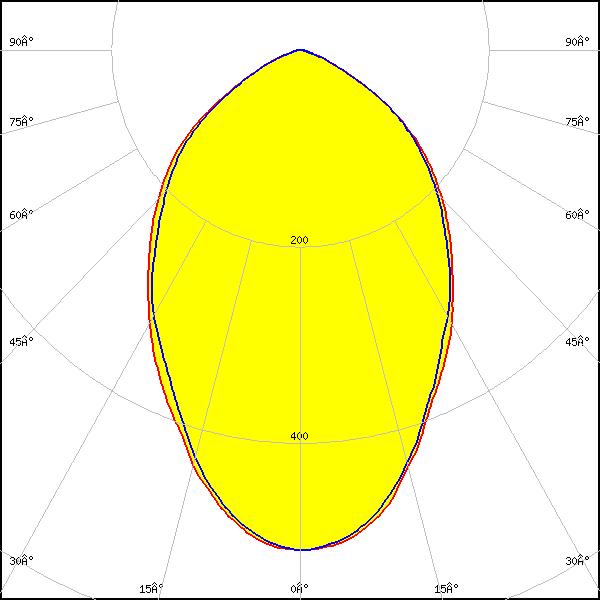

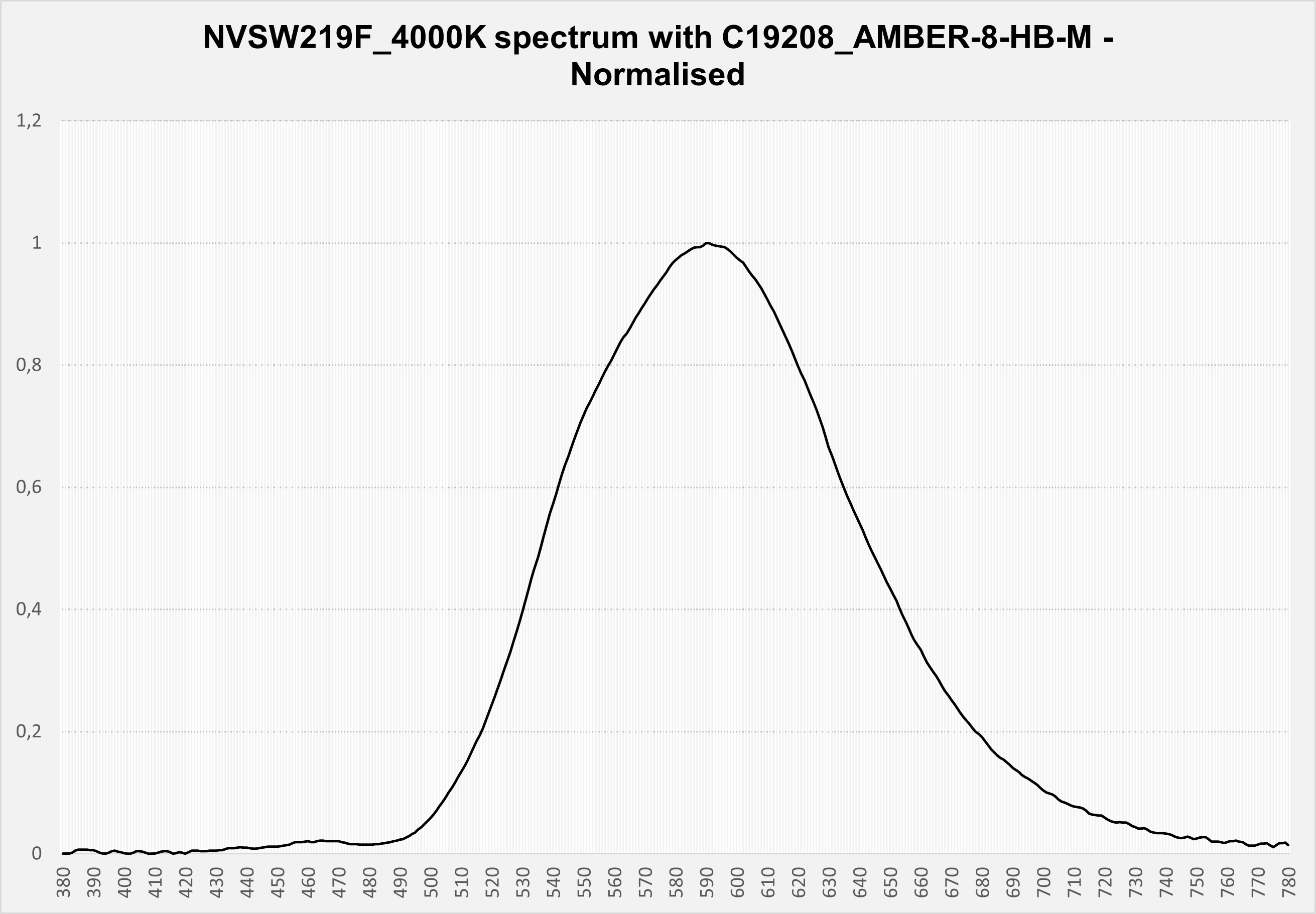

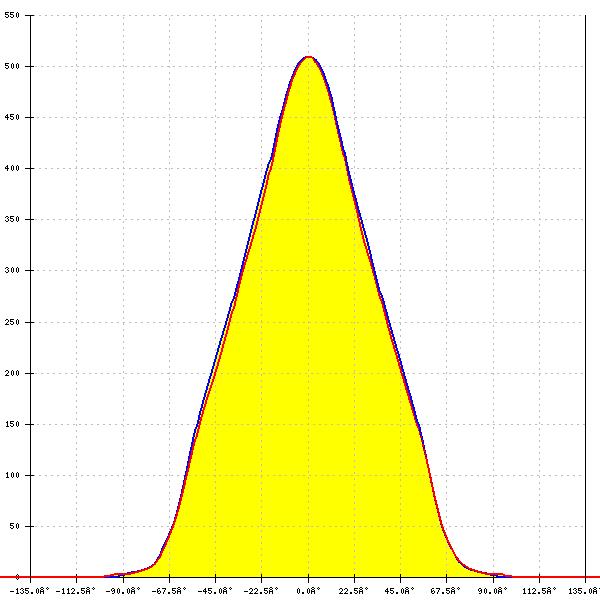

LED:
NVSW219F
FWHM:
76°
FWTM:
131°
Peak intensity:
0.509 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
1.2%
CCT (LED/with lens)*:
3800 K/ 2700 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

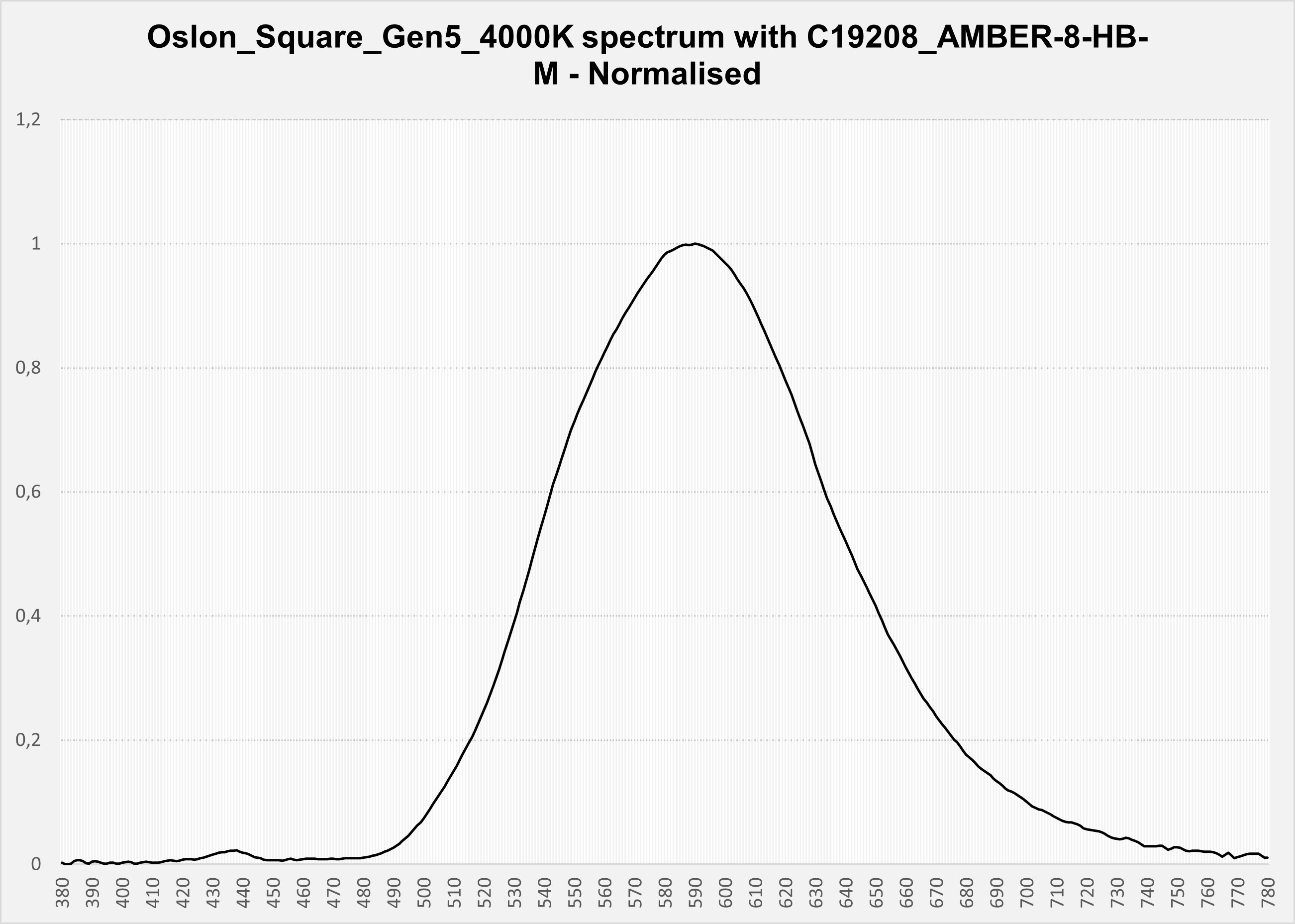

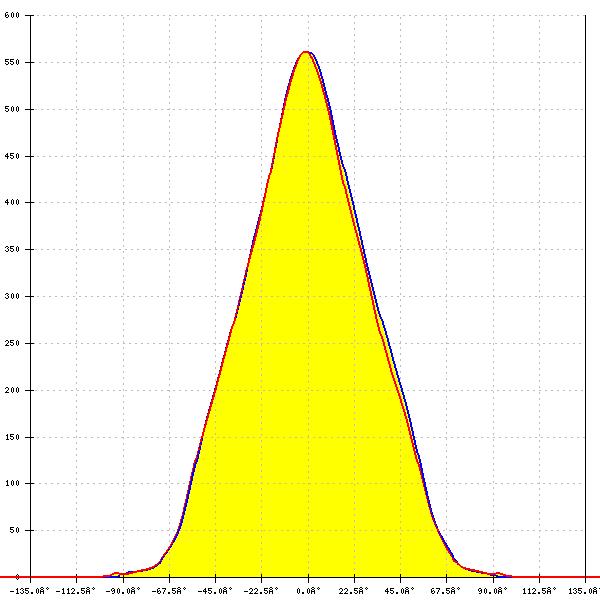

LED:

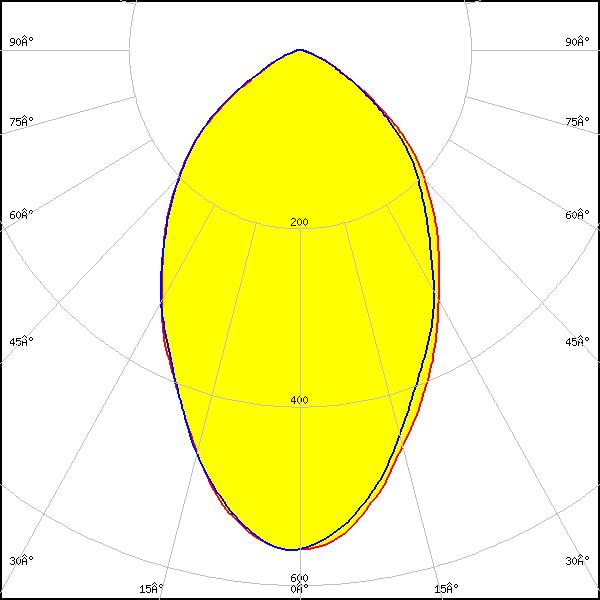

OSLON Square CSSRM2/CSSRM3
FWHM:
70°
FWTM:
124°
Peak intensity:
0.562 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
1.3%
CCT (LED/with lens)*:
3900 K/ 2700 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
LED:

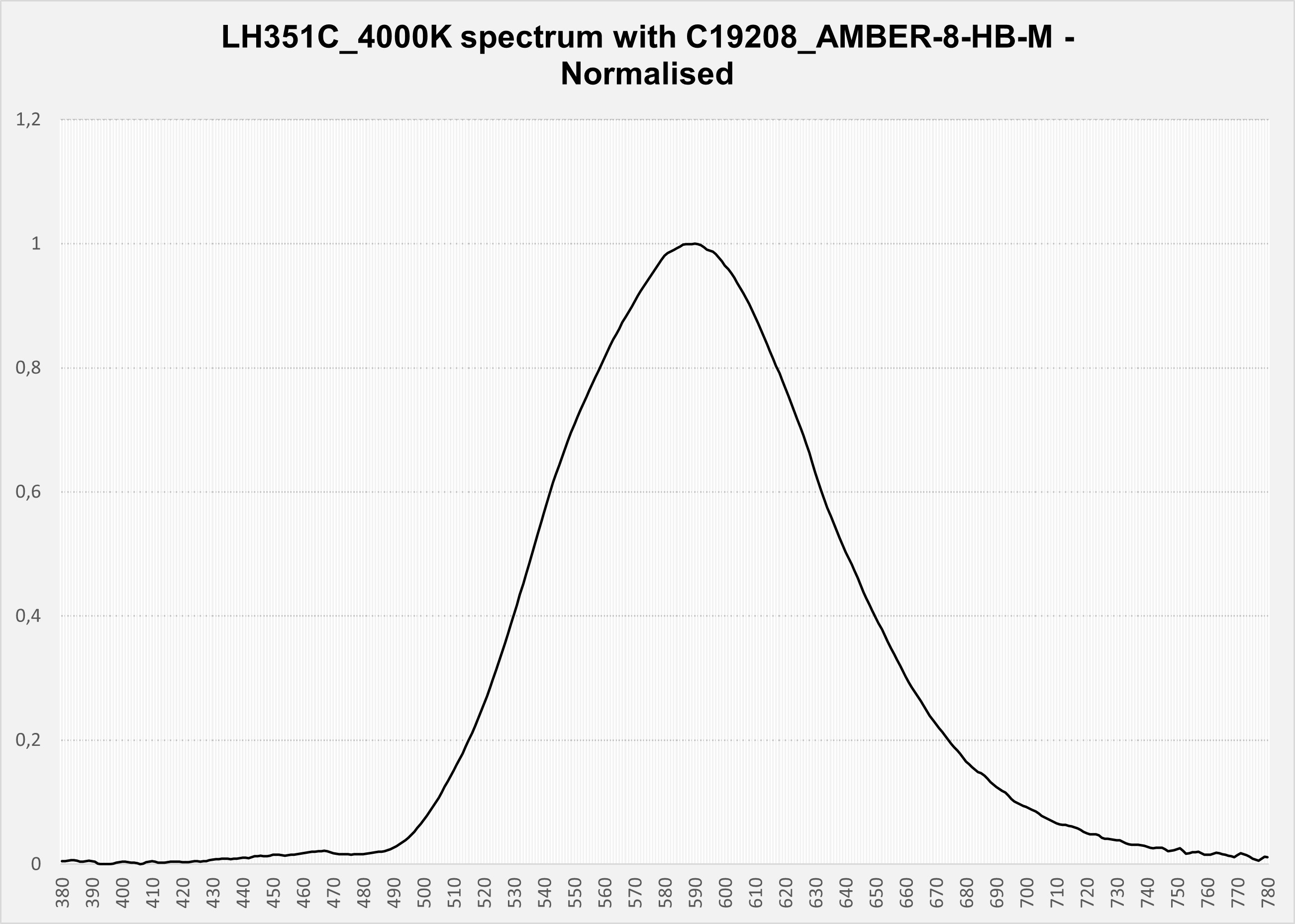

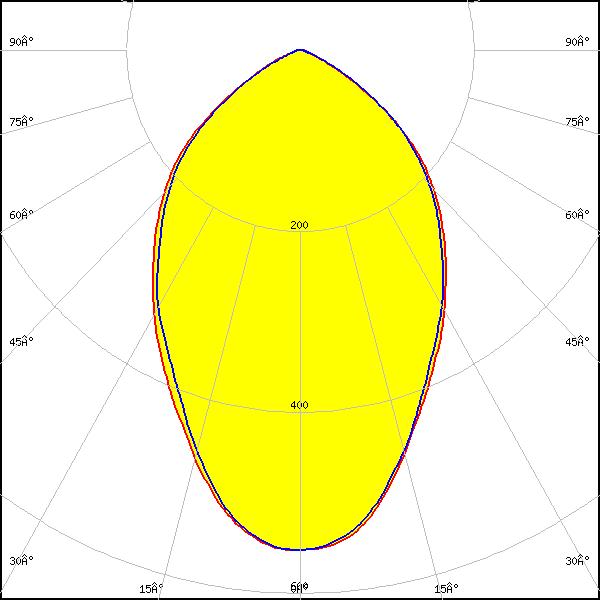

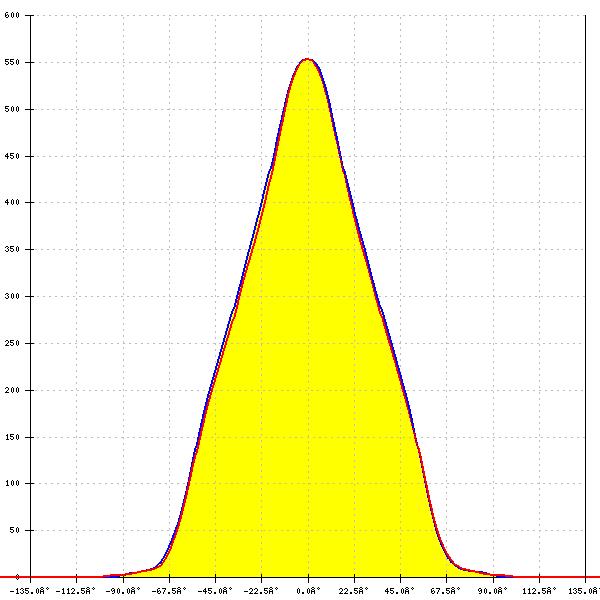

LH351C
FWHM:
73°
FWTM:
126°
Peak intensity:
0.553 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
1.4%
CCT (LED/with lens)*:
3800 K/ 2800 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

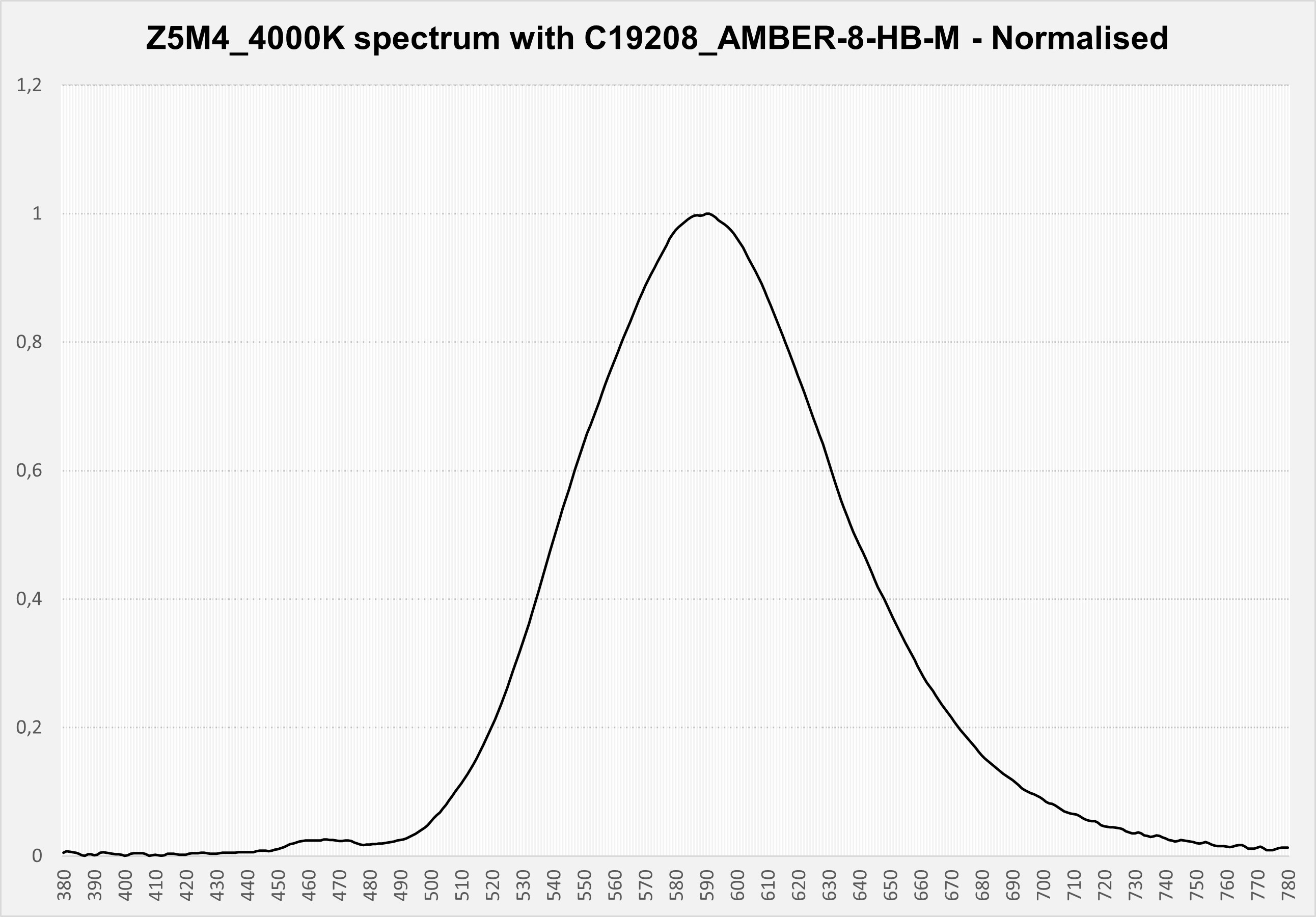

LED:

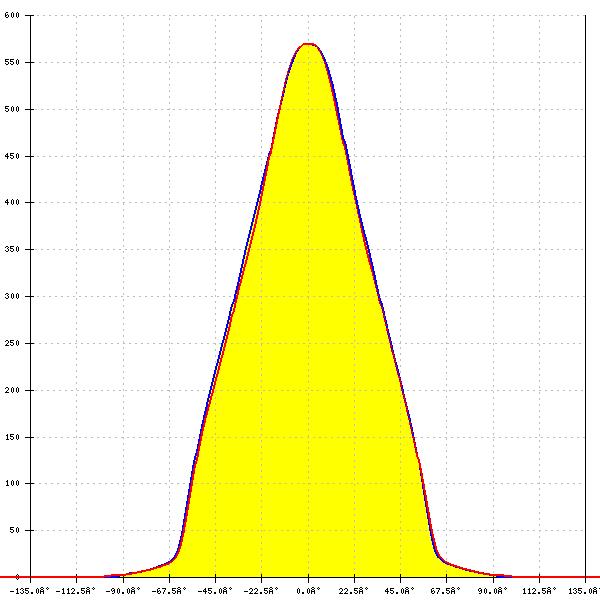

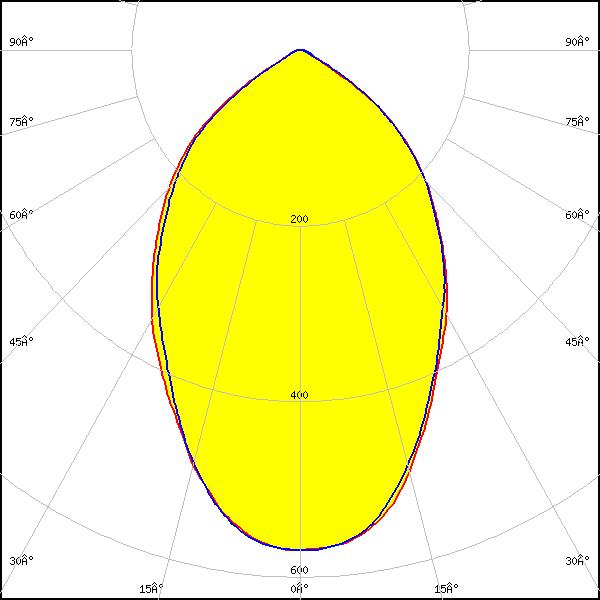

Z5M4
FWHM:
73°
FWTM:
119°
Peak intensity:
0.570 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
1.4%
CCT (LED/with lens)*:
3600 K/ 2600 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
