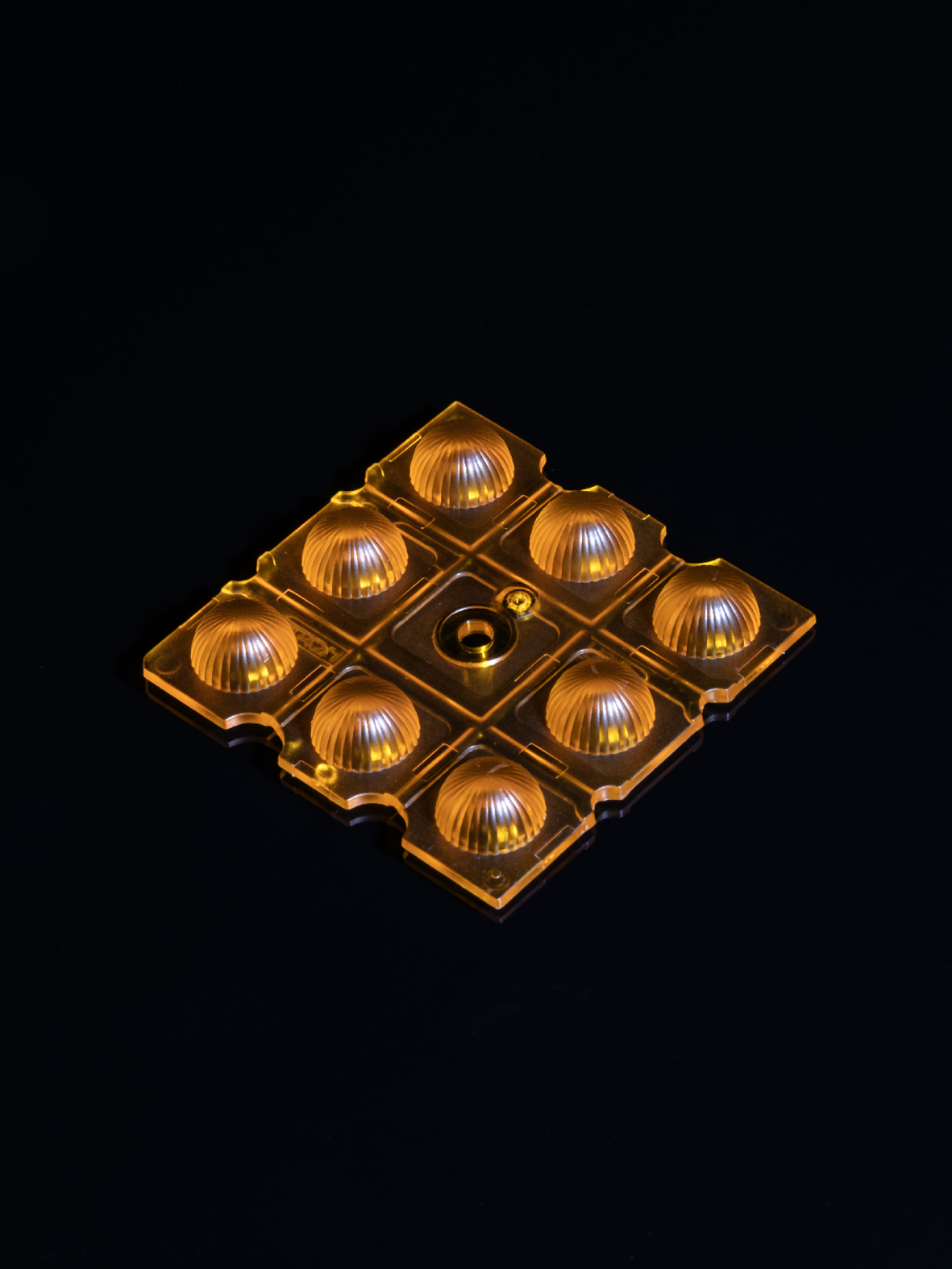

C19207_AMBER-8-HB-W

Print

~90° wide beam for industrial applications

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    7.12 mm
  • Fastening:
    pin, screw
  • Colour:
    amber
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.1 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C19207_AMBER-8-HB-W

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

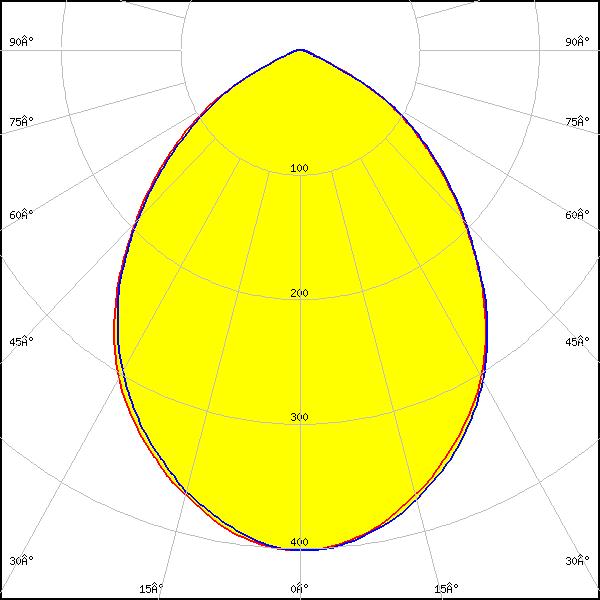

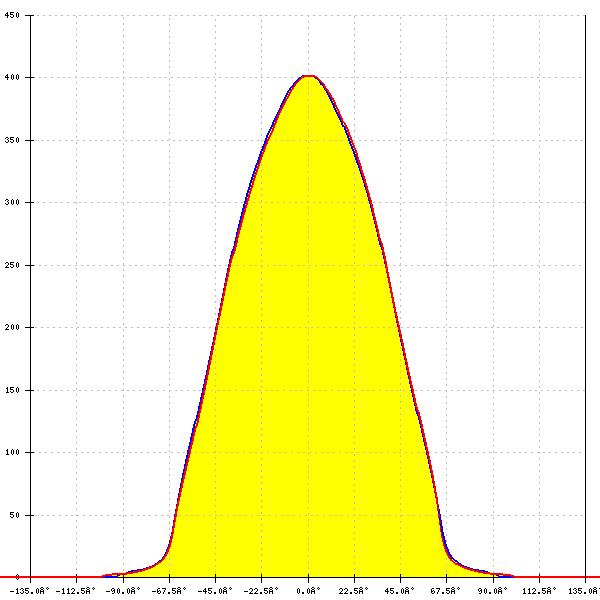

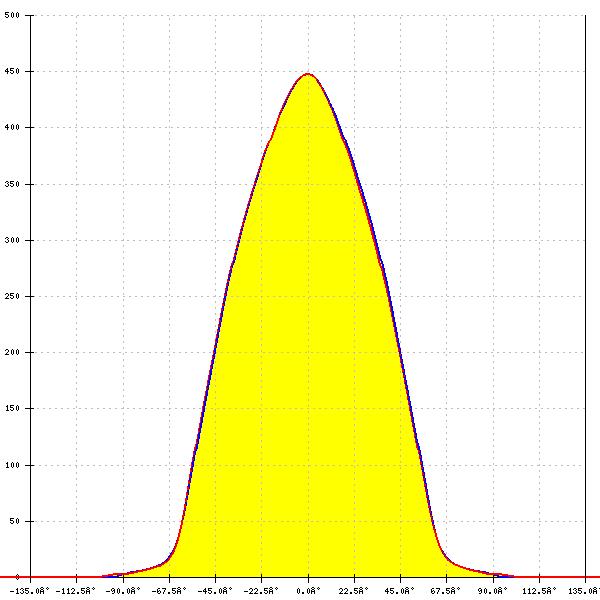

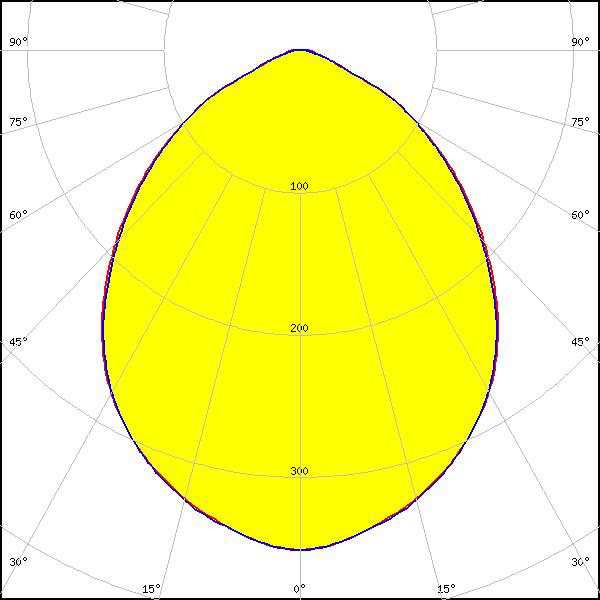

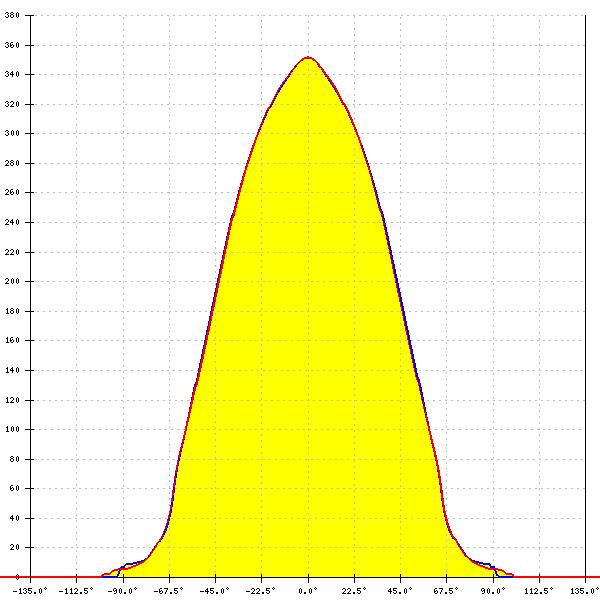

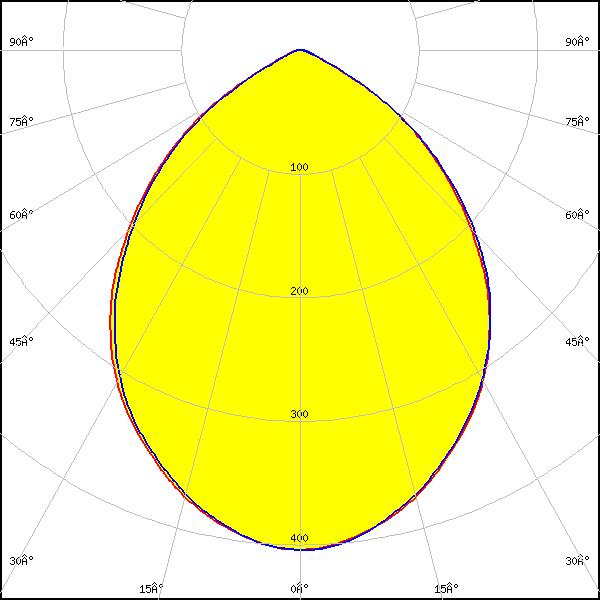

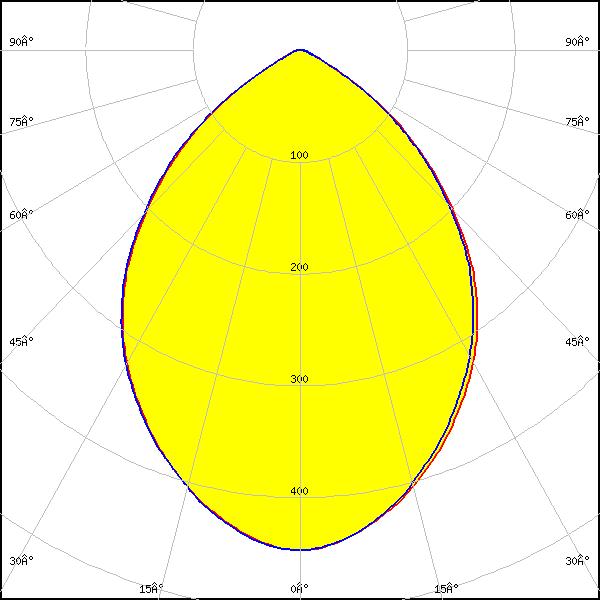

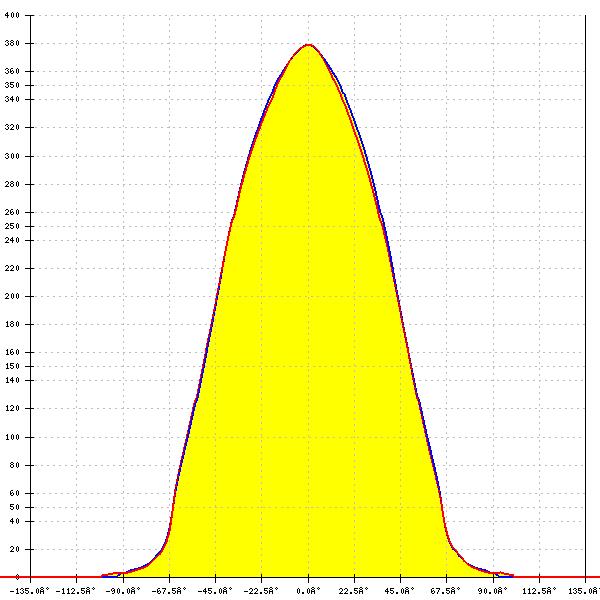

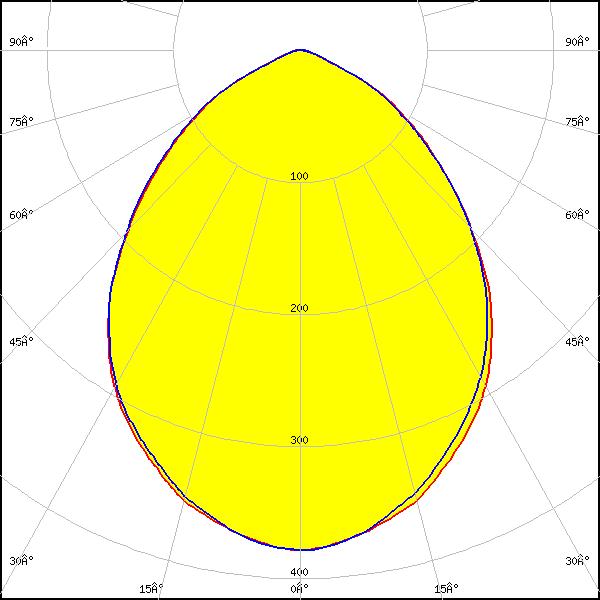

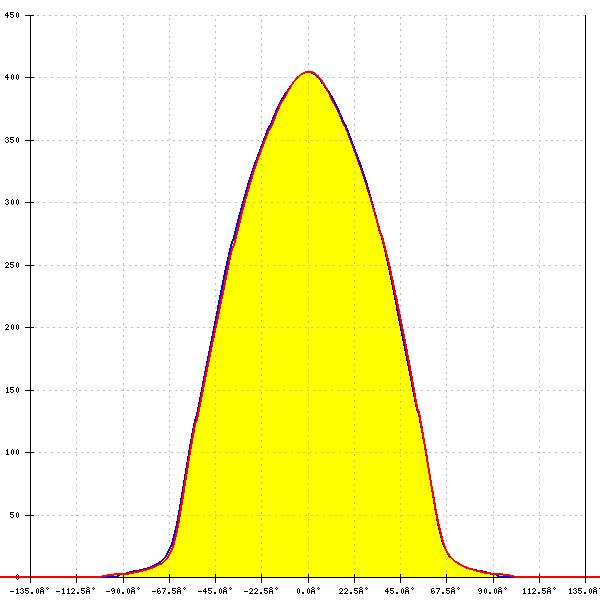

Optical results

LED: XP-G3
FWHM: 94°
FWTM: 137°
Peak intensity: 0.351 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

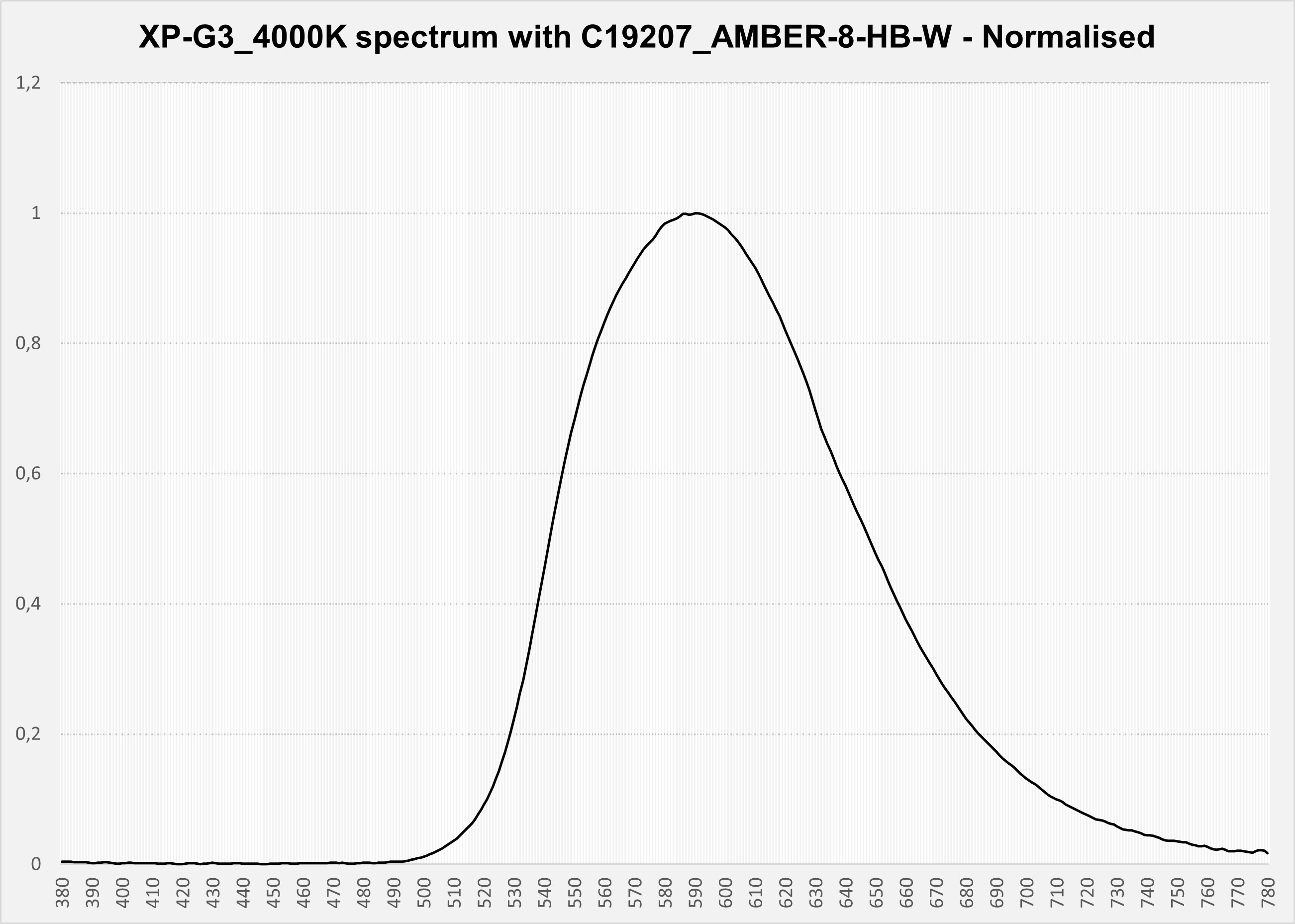

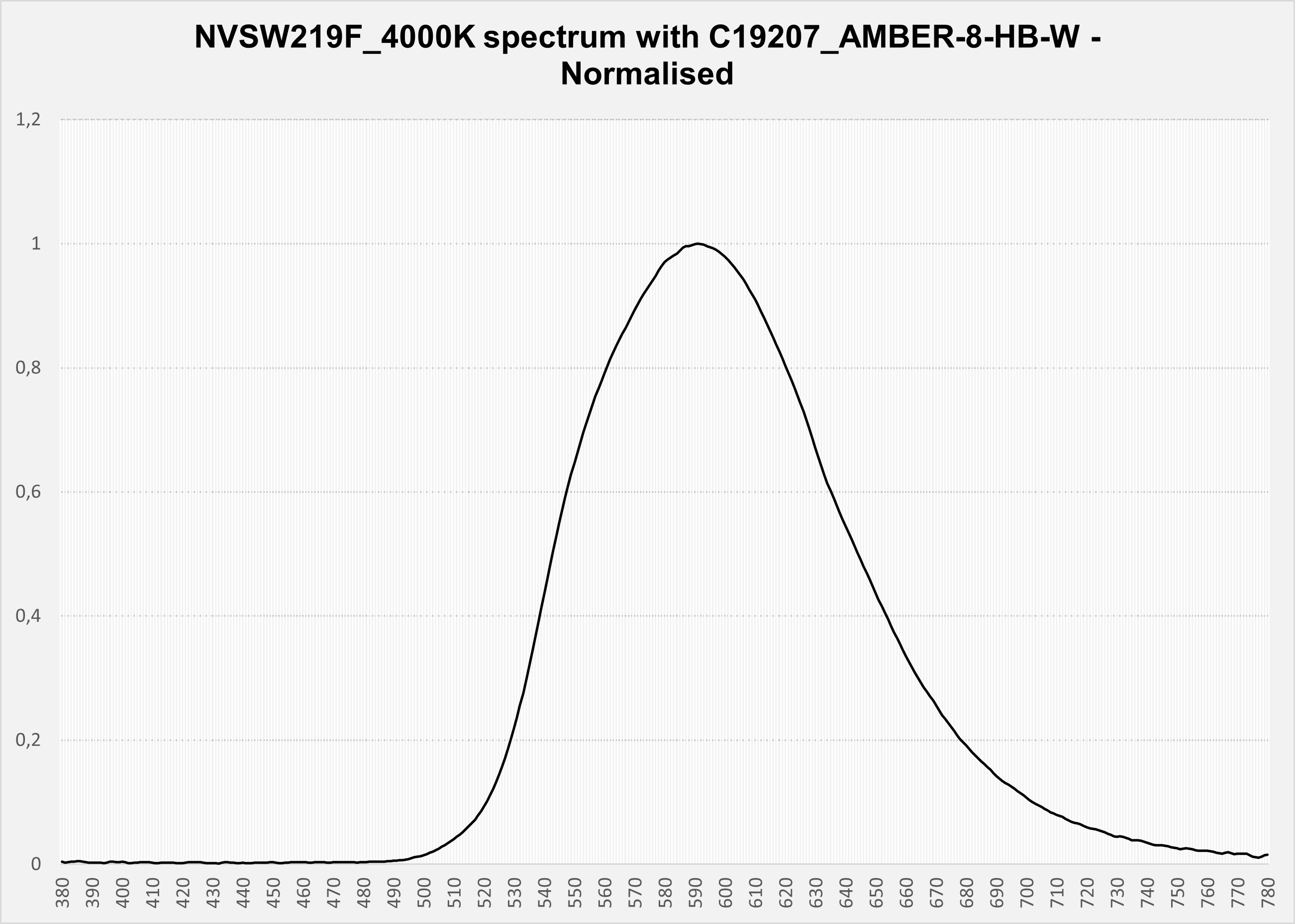

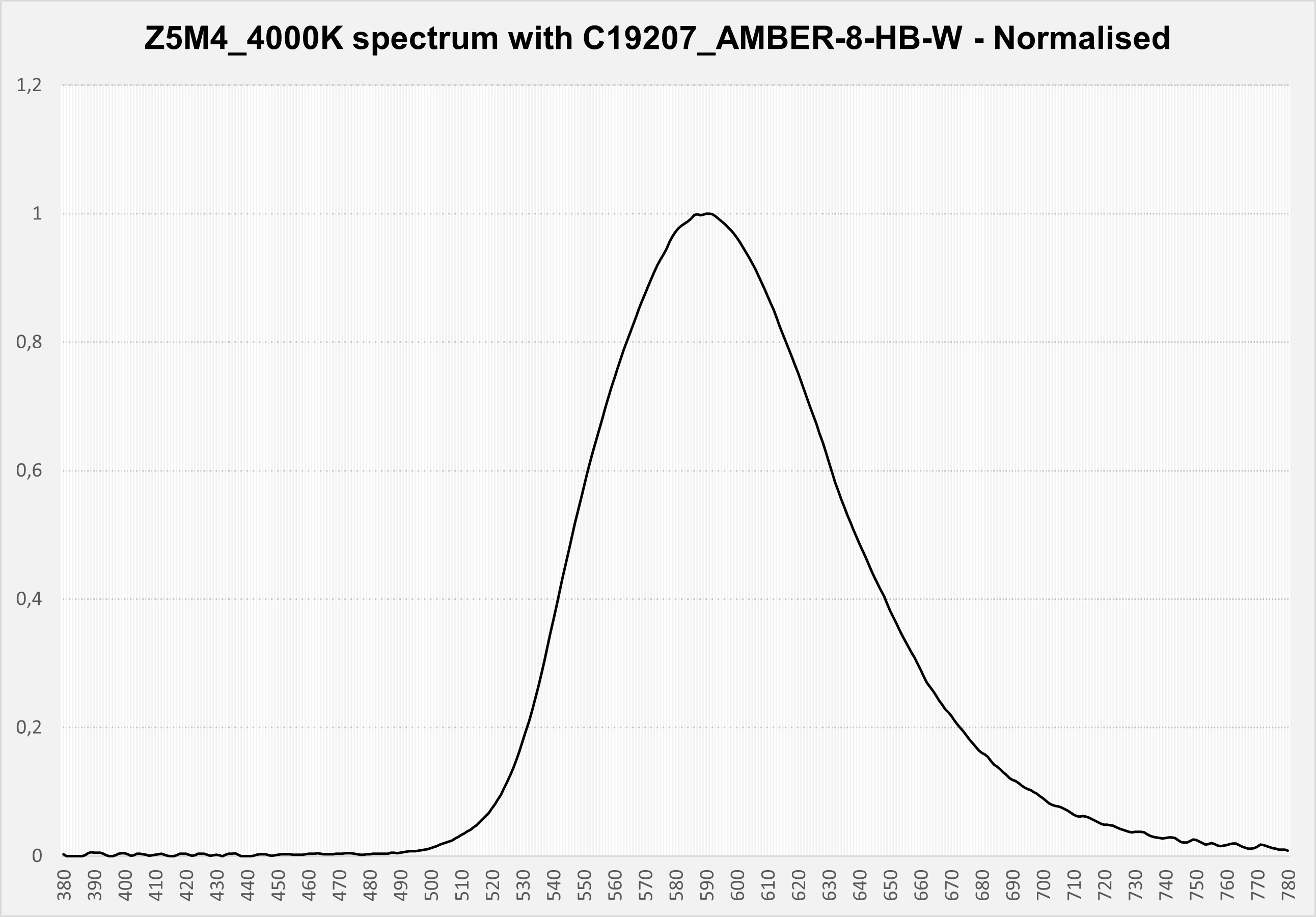

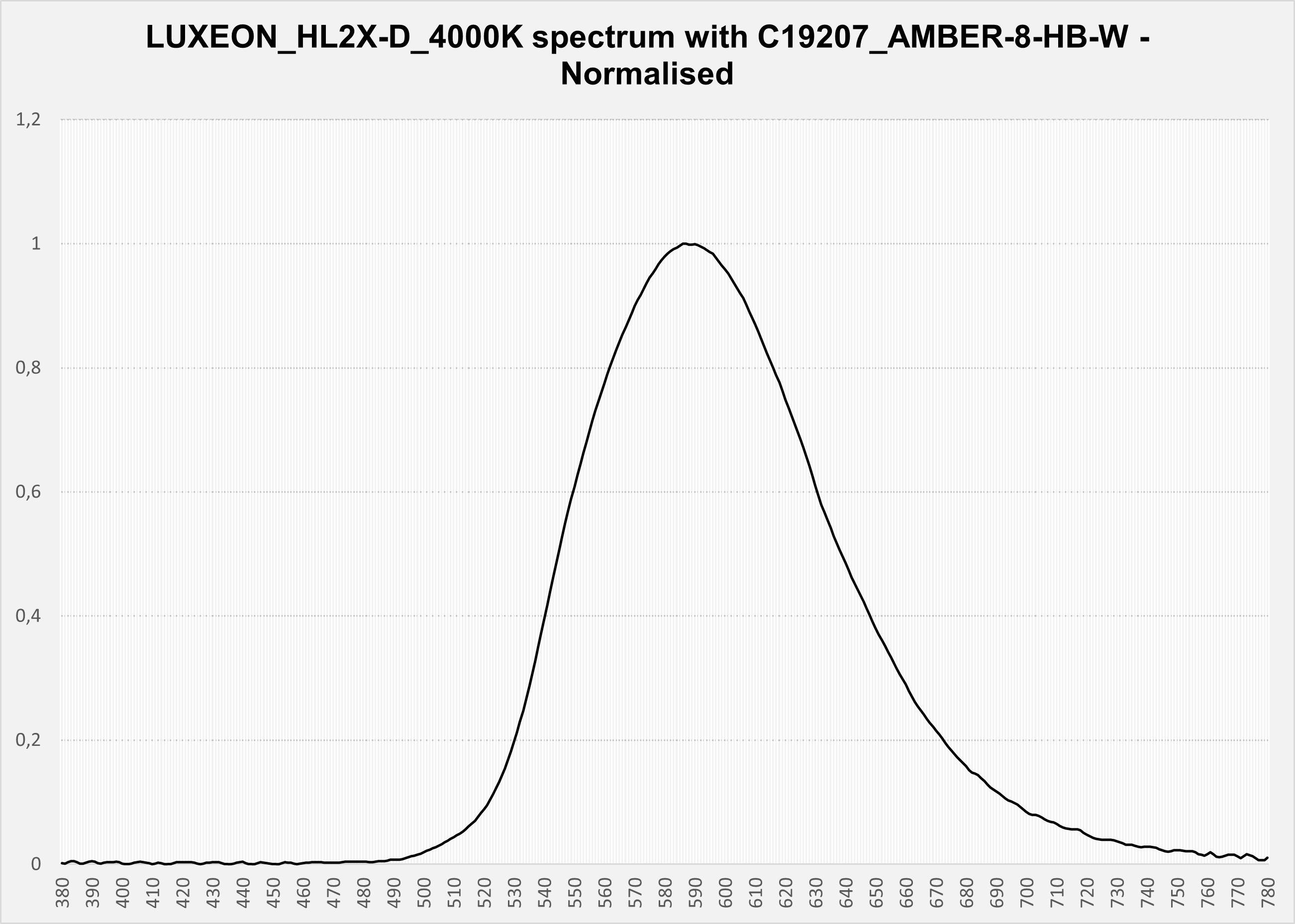

Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3800 K/ 2400 K

*the measured CCT with lens doesn’t follow the Black Body Locus line
