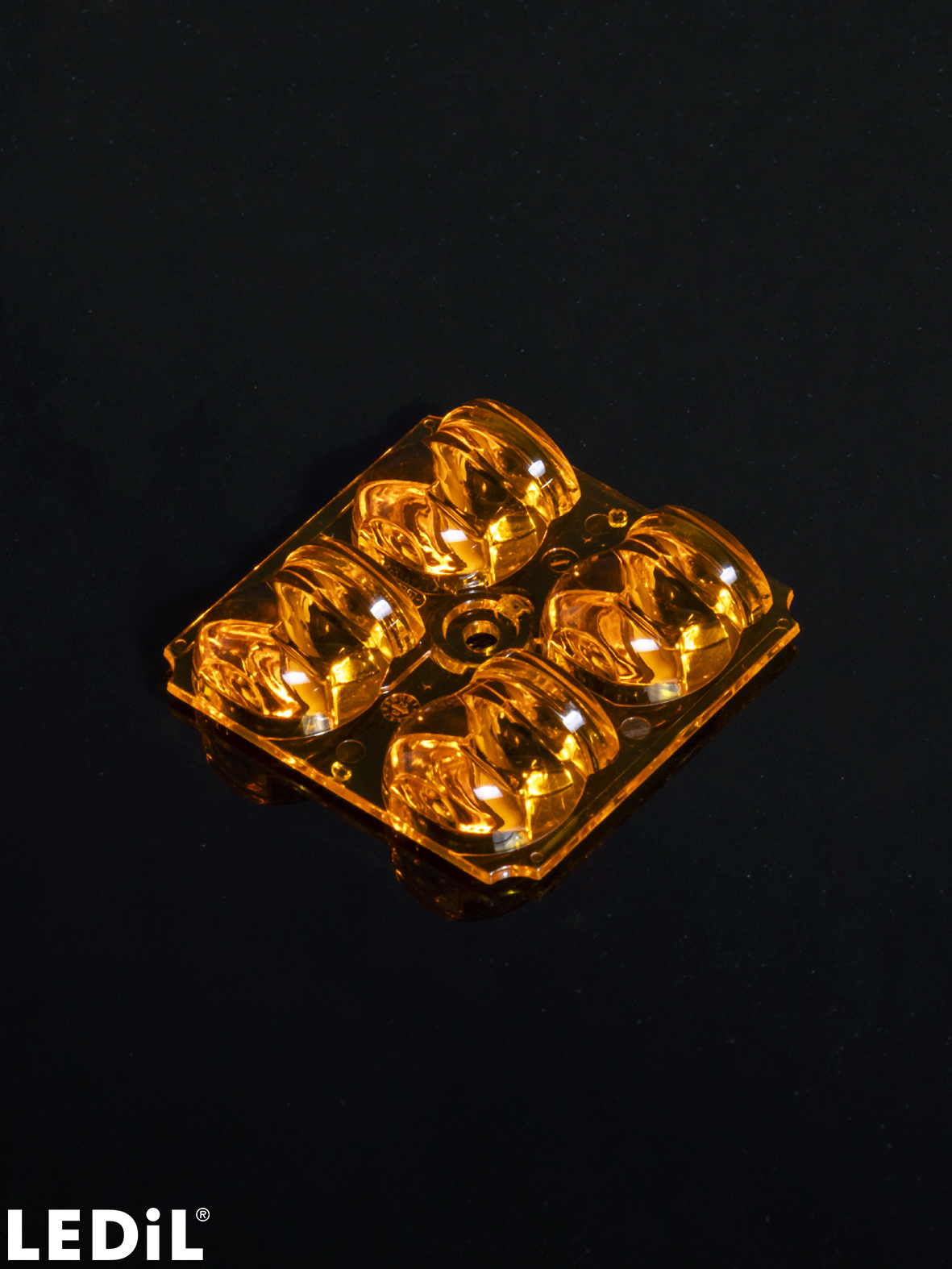

C19181_AMBER-2X2-FT6

Print

Narrow forward throw beam with optimized cut-off for high masts

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    11.00 mm
  • Fastening:
    screw
  • Colour:
    amber
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    640 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.0 kg
  • MPQ:
    128 pcs
  • MOQ:
    128 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C19181_AMBER-2X2-FT6

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

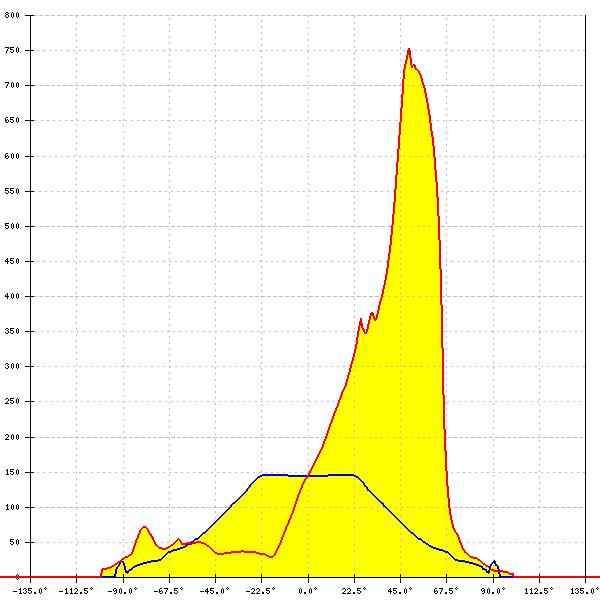

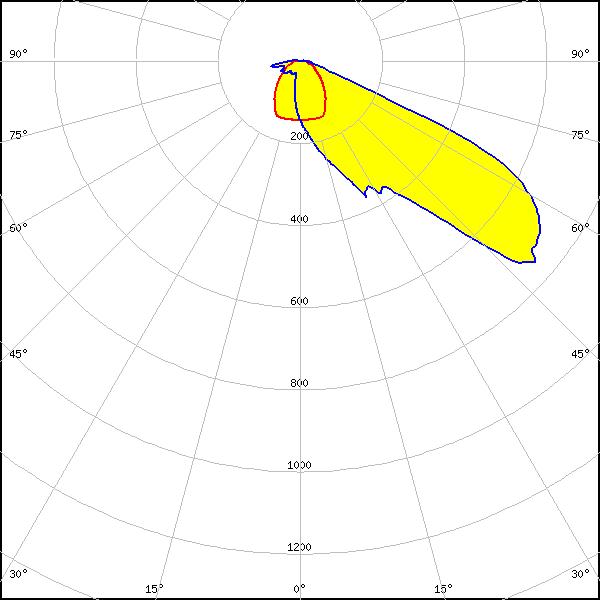

LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 0.753 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3800 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

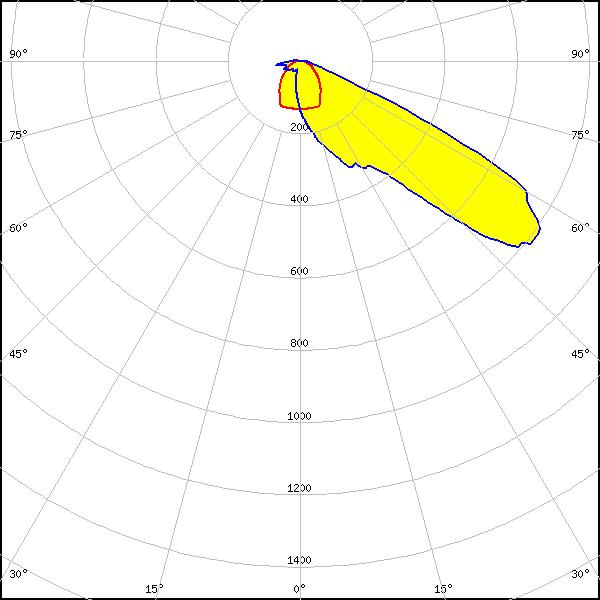

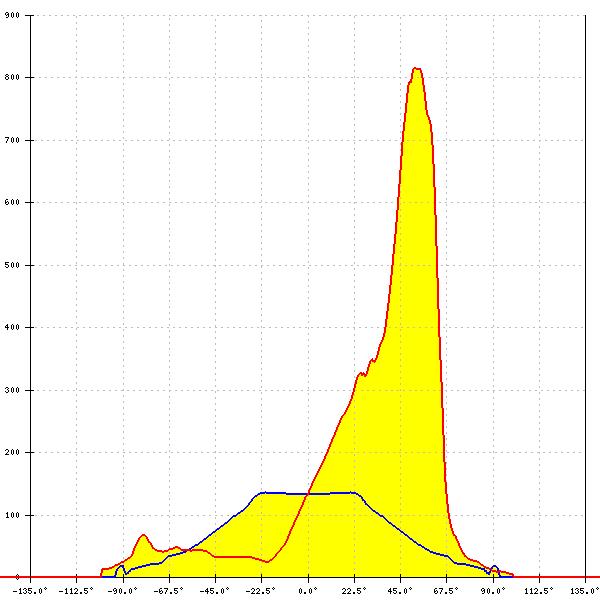

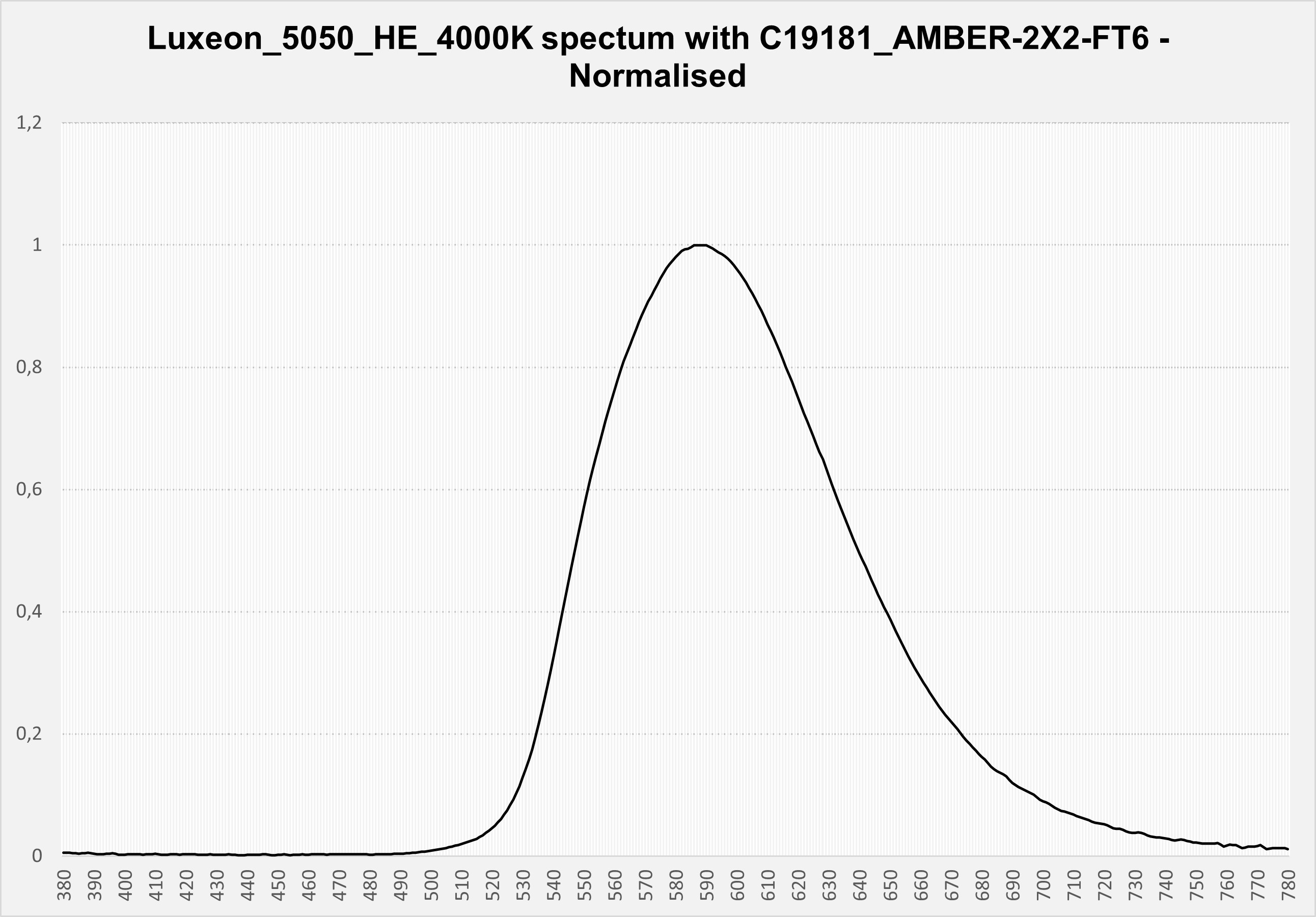

LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.815 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3900 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

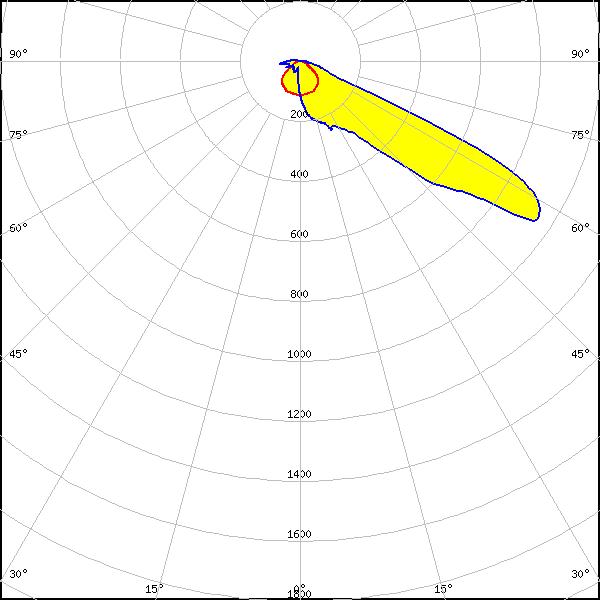

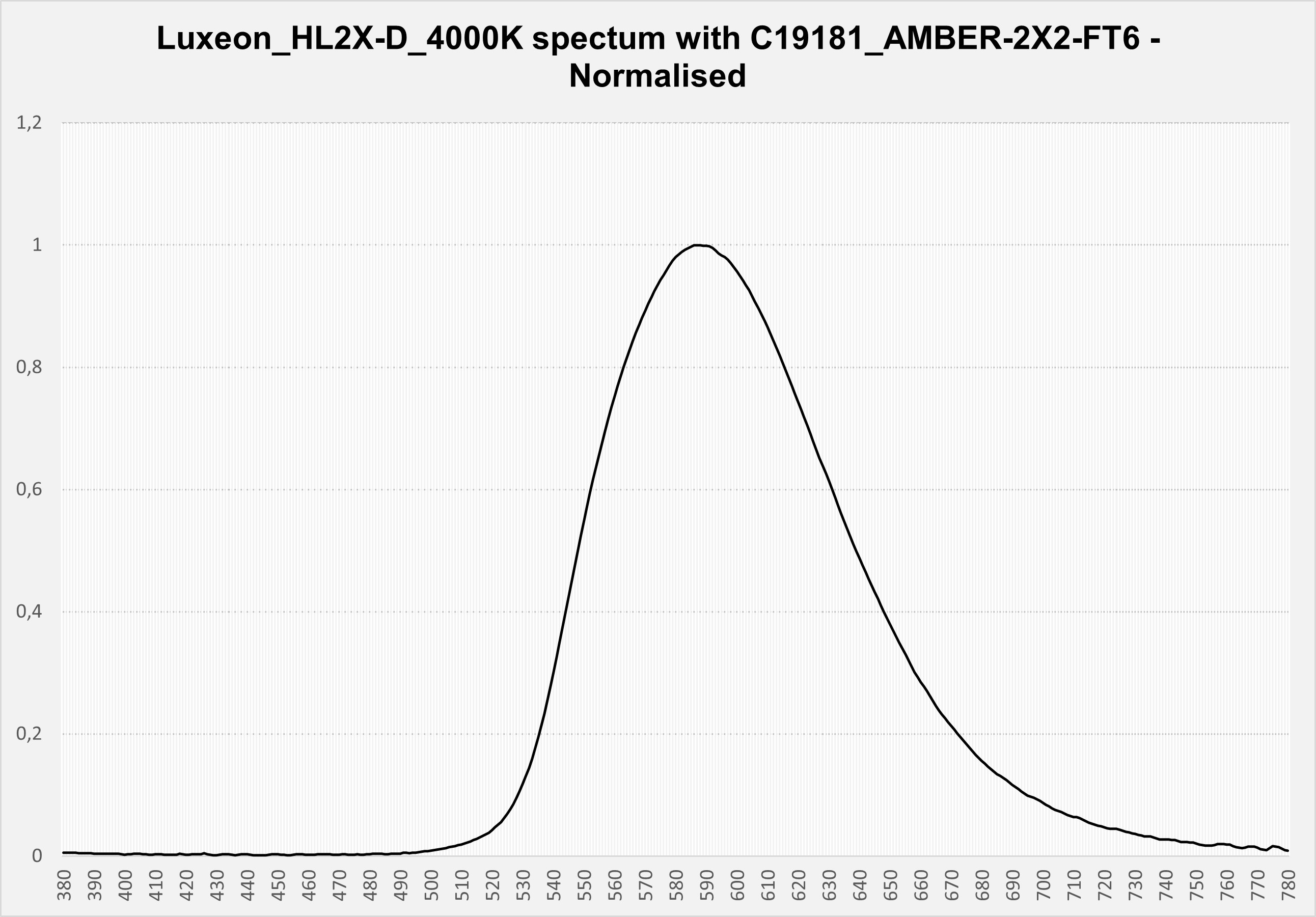

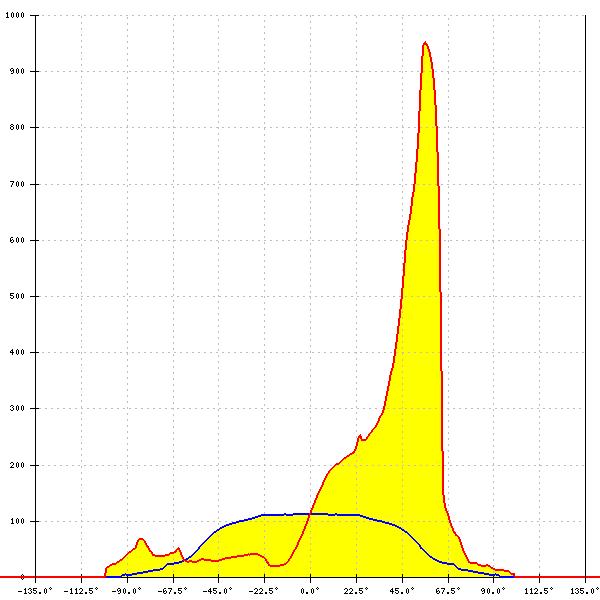

LED: LUXEON HL2X-D
FWHM: asymmetric
Peak intensity: 0.985 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3900 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

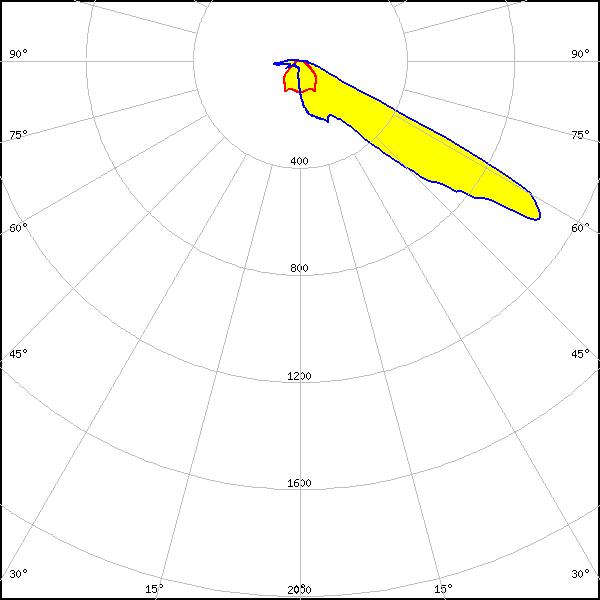

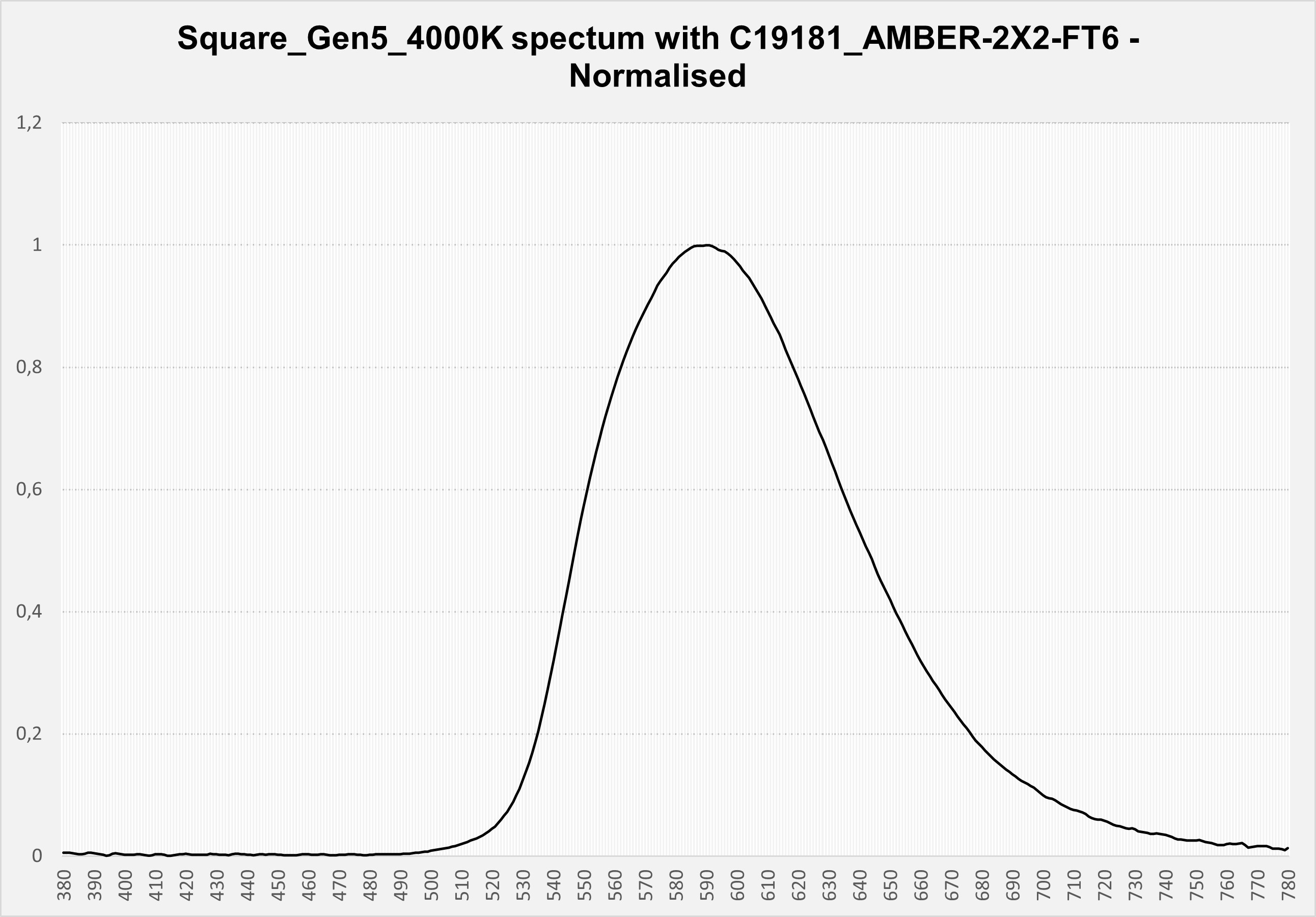

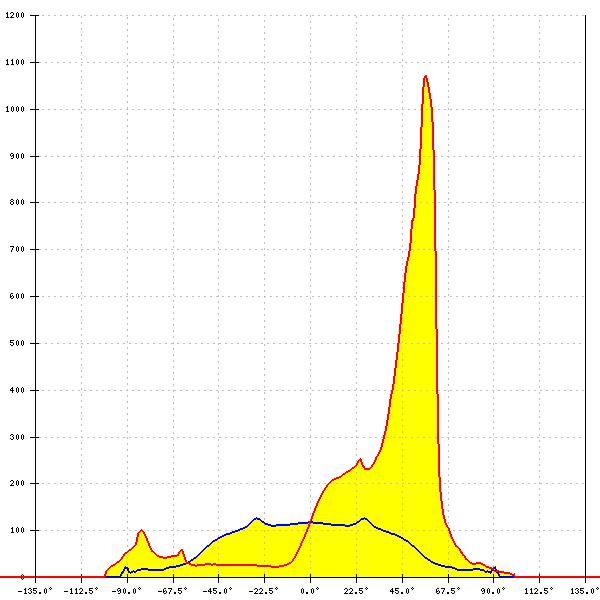

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 1.140 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3900 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

LED: LH351C
FWHM: asymmetric
Peak intensity: 1.108 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3800 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

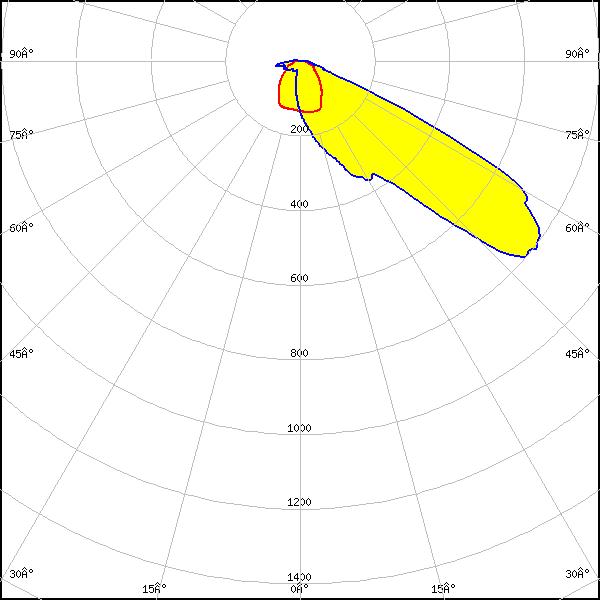

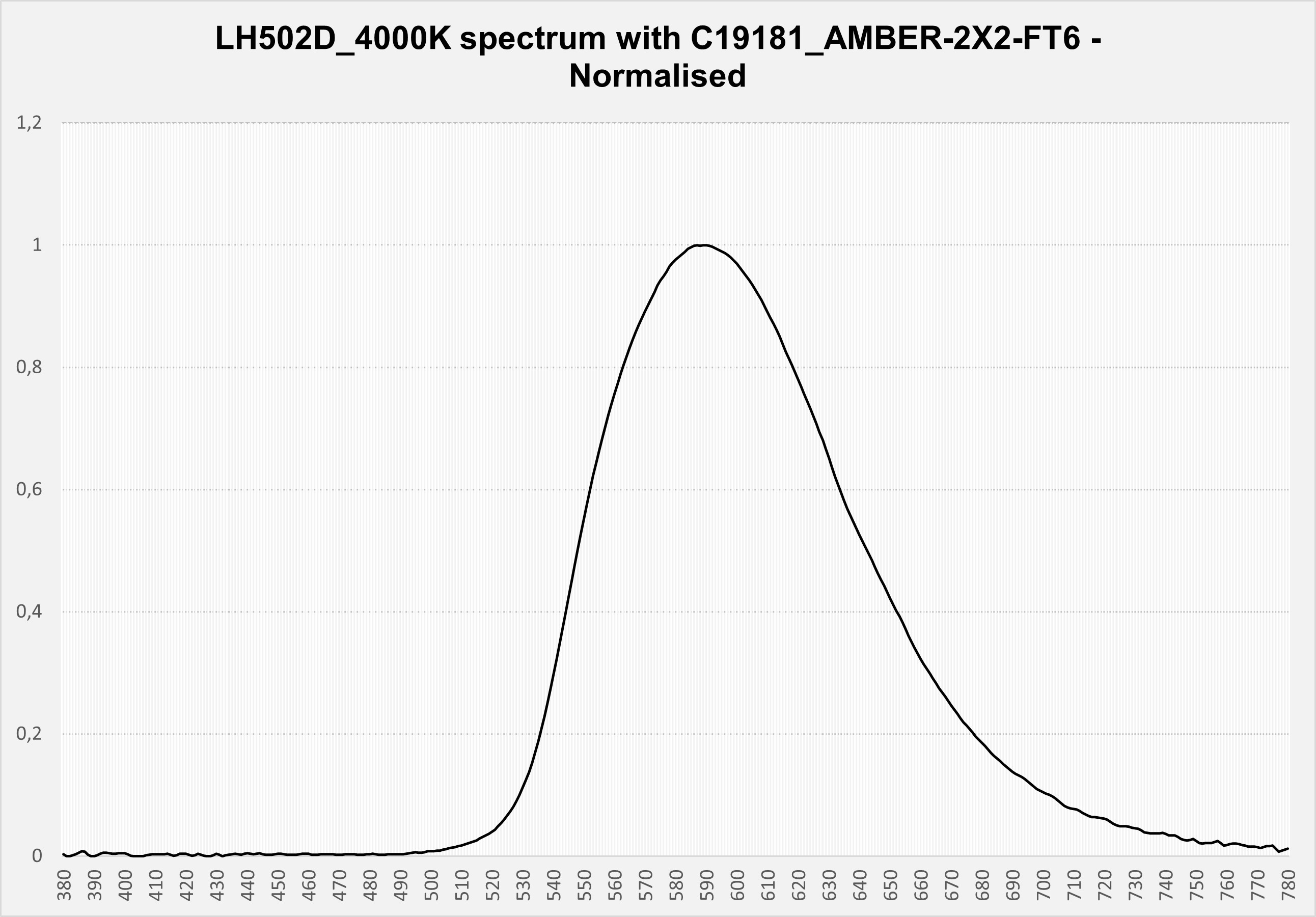

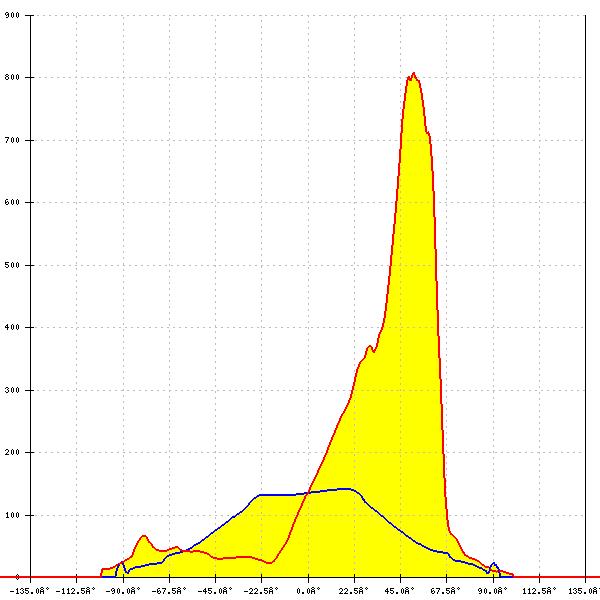

LED: LH502D
FWHM: asymmetric
Peak intensity: 0.808 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3800 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

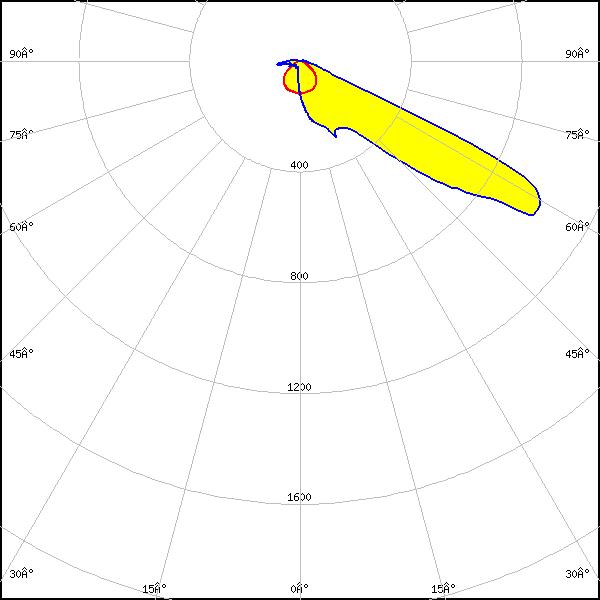

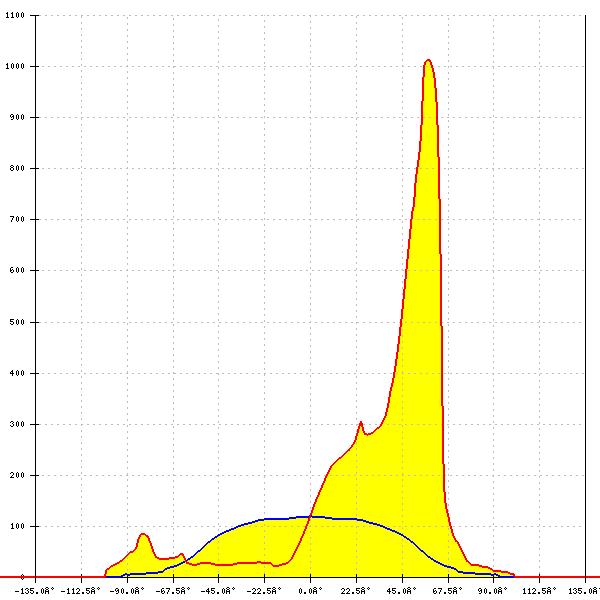

LED: Z5M4
FWHM: asymmetric
Peak intensity: 1.044 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3600 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line
