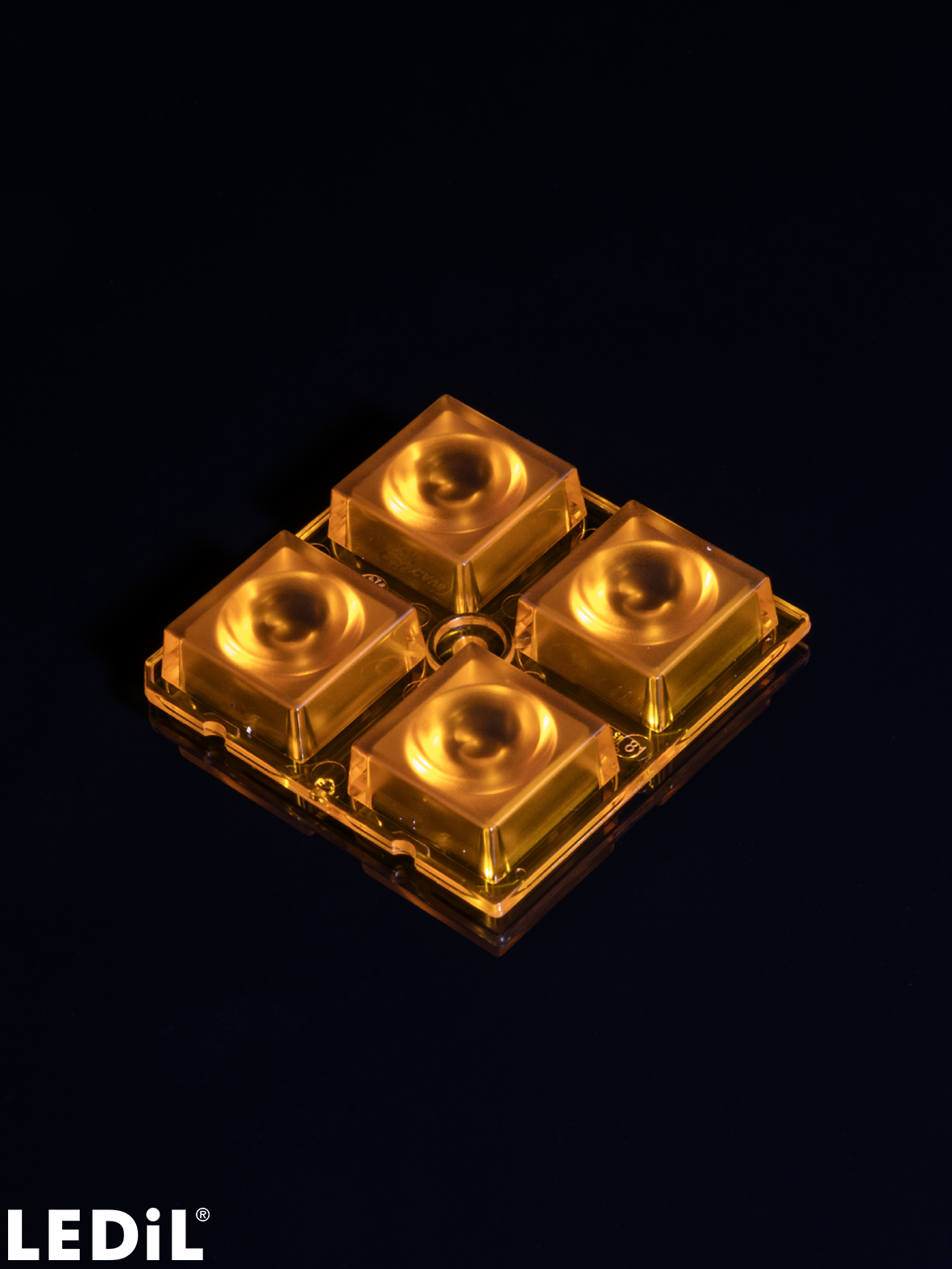

C19178_AMBER-2X2-M
Print
~25° medium beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
J Series 5050B 6V K Class
FWHM:
34°
FWTM:
77°
Peak intensity:
1.219 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3800 K/ 2200 K
*the measured CCT with lens doesn’t follow the Black Body Locus line

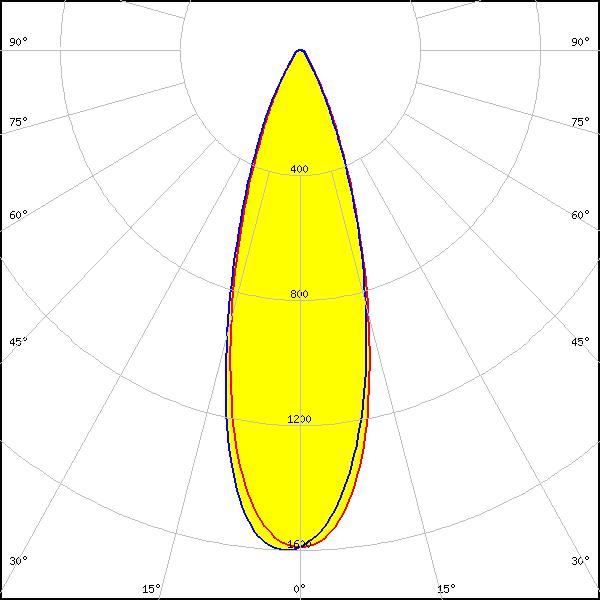

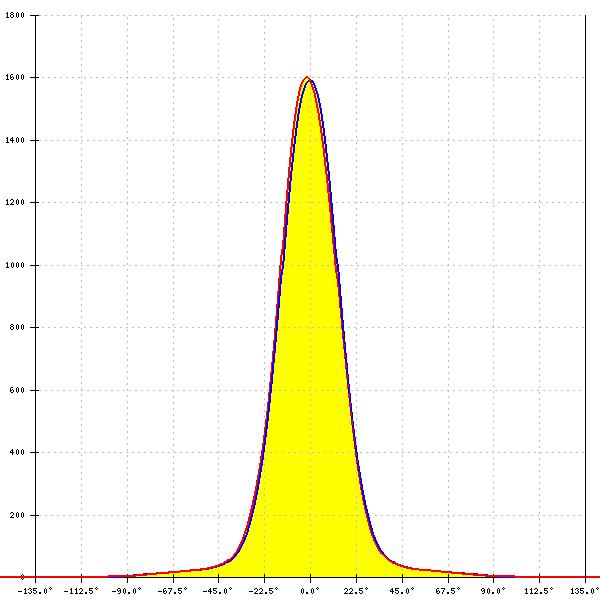

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
32°
FWTM:
60°
Peak intensity:
1.601 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

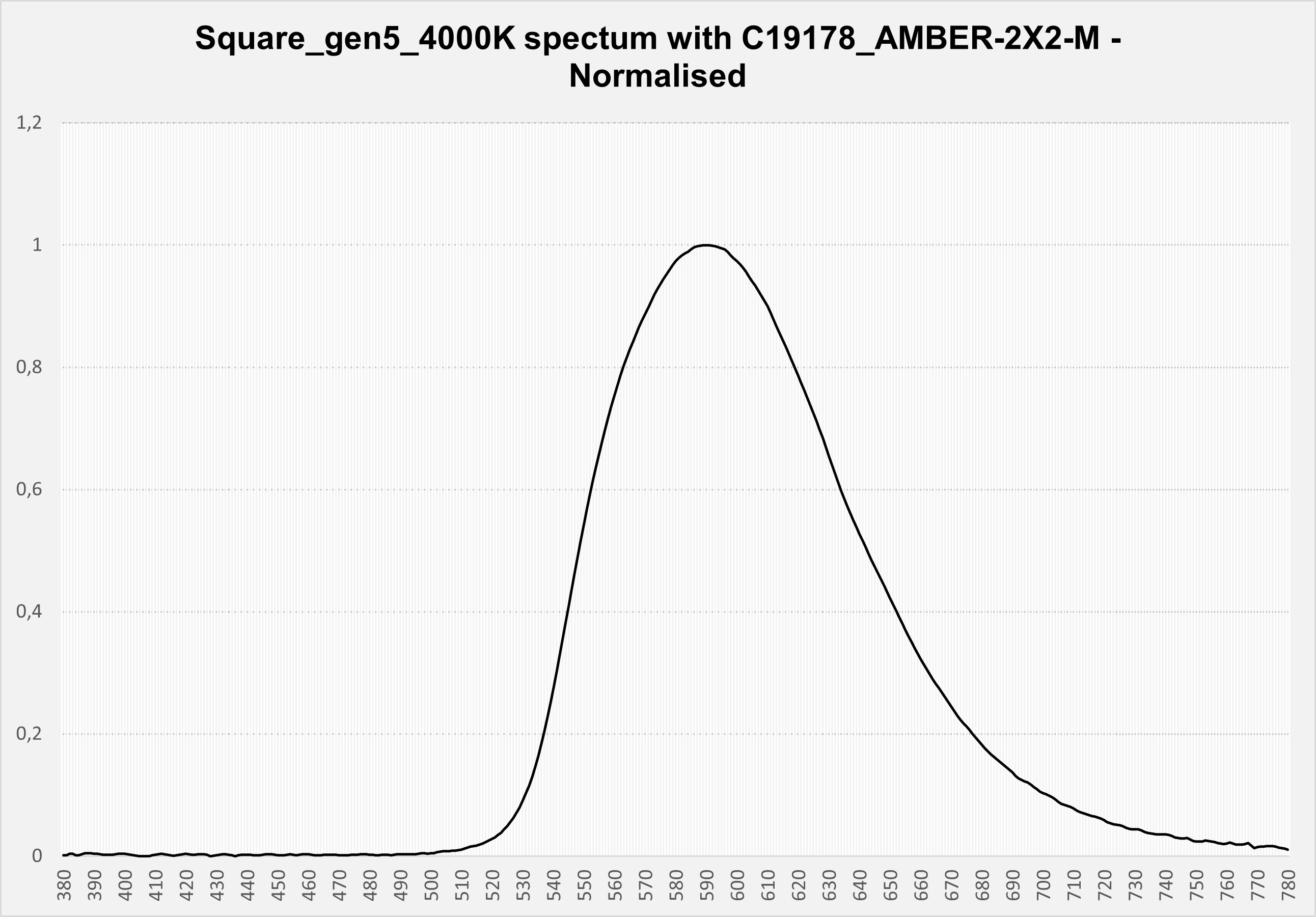

Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3900 K/ 2200 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
LED:
LH351C
FWHM:
32°
FWTM:
61°
Peak intensity:
1.622 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3800 K/ 2200 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
LED:
LH502D
FWHM:
34°
FWTM:
74°
Peak intensity:
1.123 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3800 K/ 2200 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
LED:
Z5M4
FWHM:
34°
FWTM:
68°
Peak intensity:
1.422 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
Amount of blue light (380-500 nm):
0.3%
CCT (LED/with lens)*:
3600 K/ 2200 K
*the measured CCT with lens doesn’t follow the Black Body Locus line
