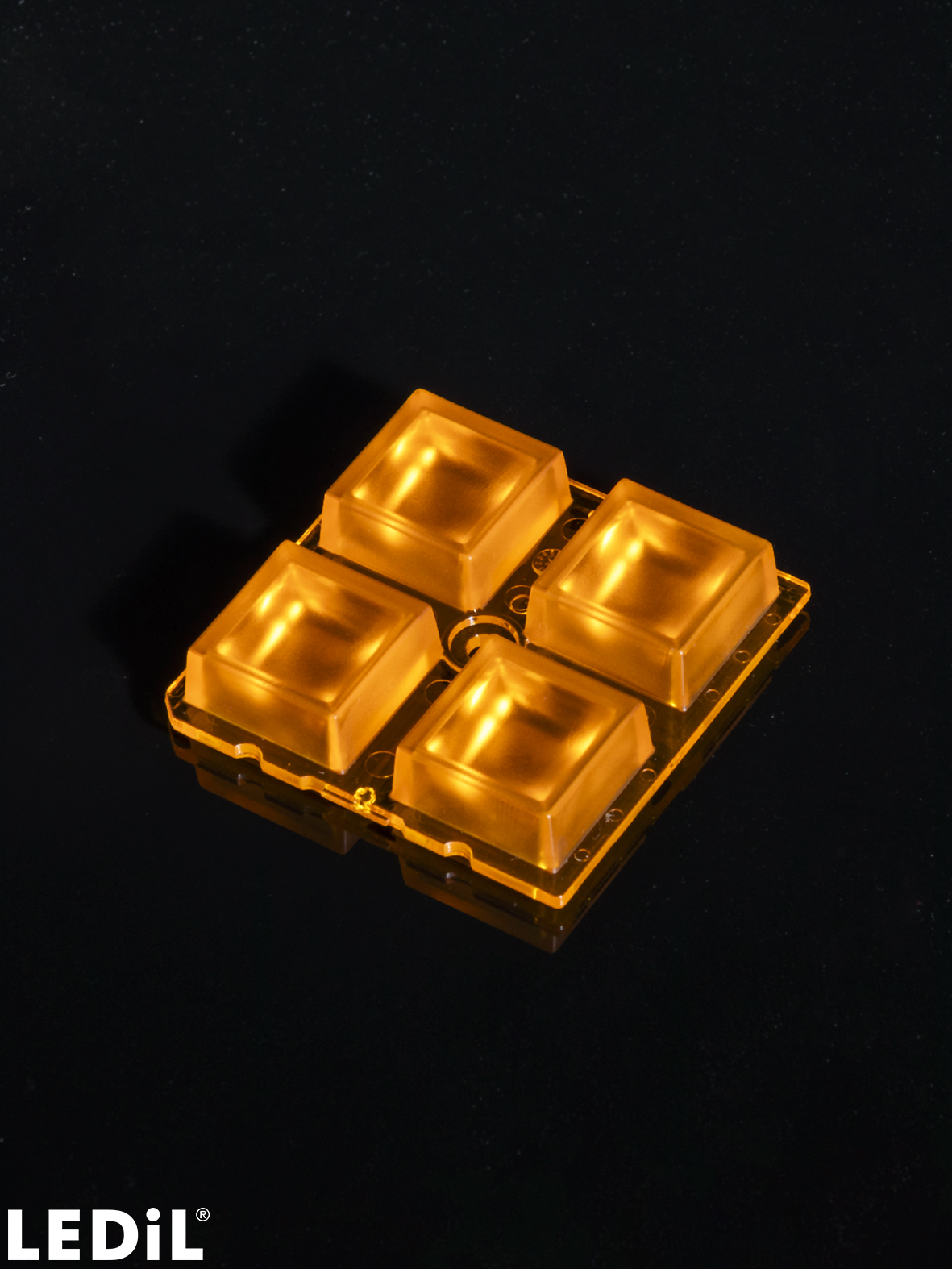

C19177_AMBER-2X2-WWW

Print

~100° wide beam

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    10.00 mm
  • Fastening:
    tape, screw
  • Colour:
    amber
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    12.1 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    2.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C19177_AMBER-2X2-WWW

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

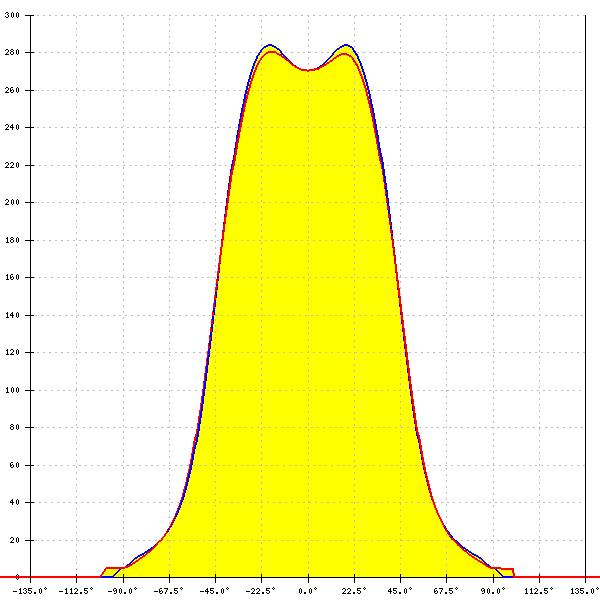

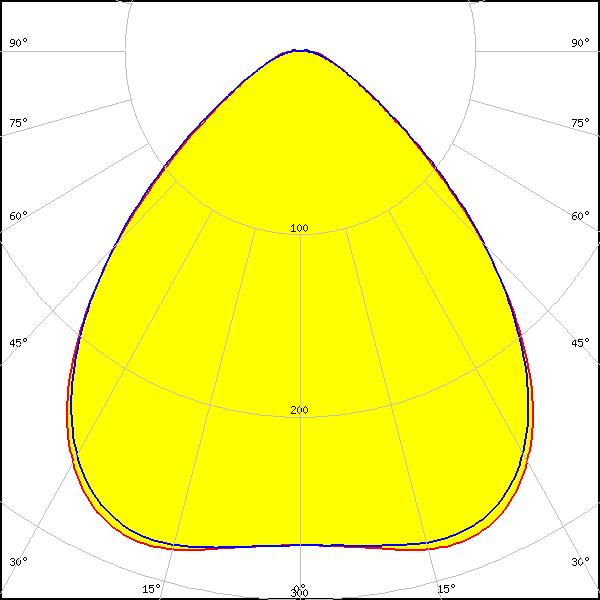

LED: J Series 5050B 6V K Class
FWHM: 91°
FWTM: 131°
Peak intensity: 0.298 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3800 K/ 2100 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

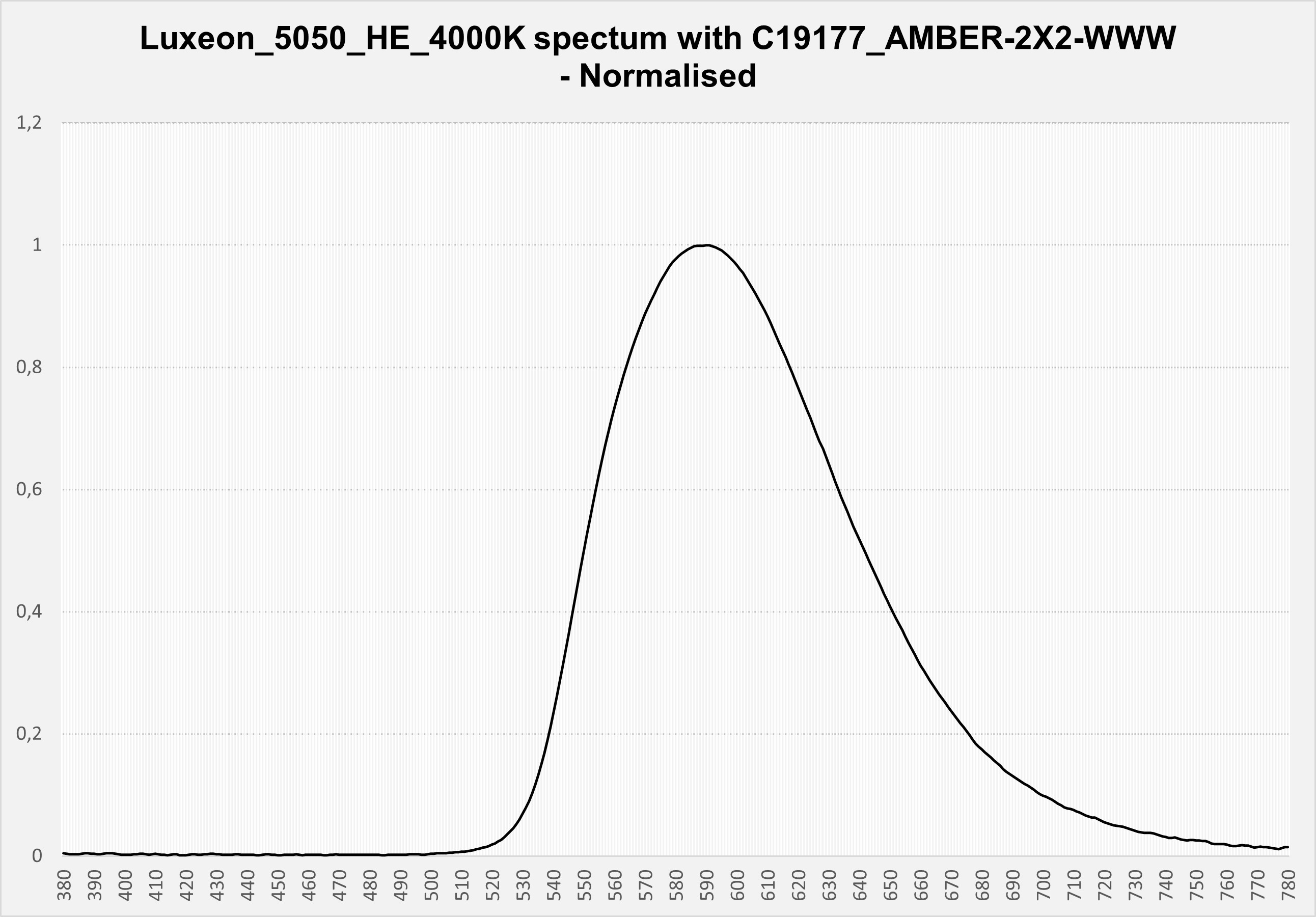

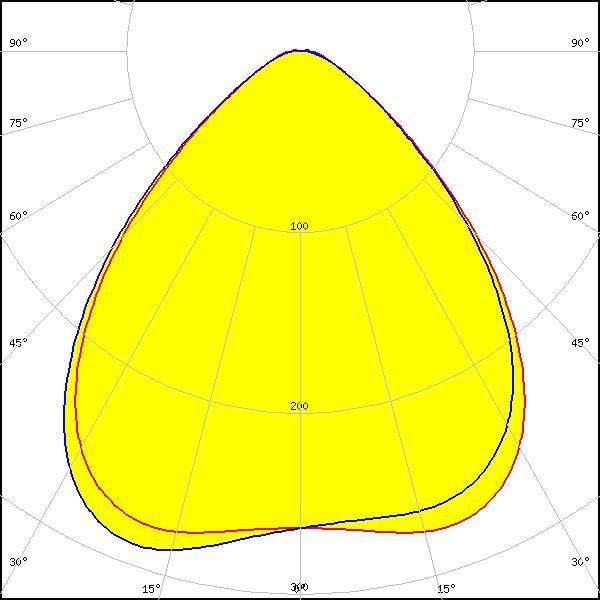

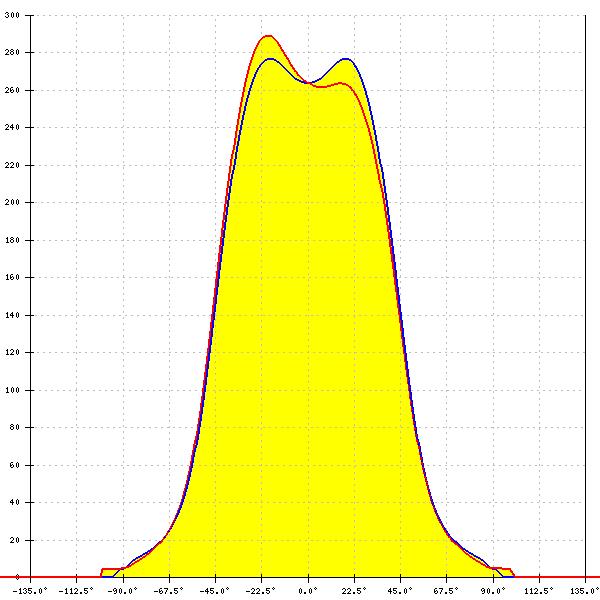

LED: LUXEON 5050 HE
FWHM: 90°
FWTM: 131°
Peak intensity: 0.302 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3900 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

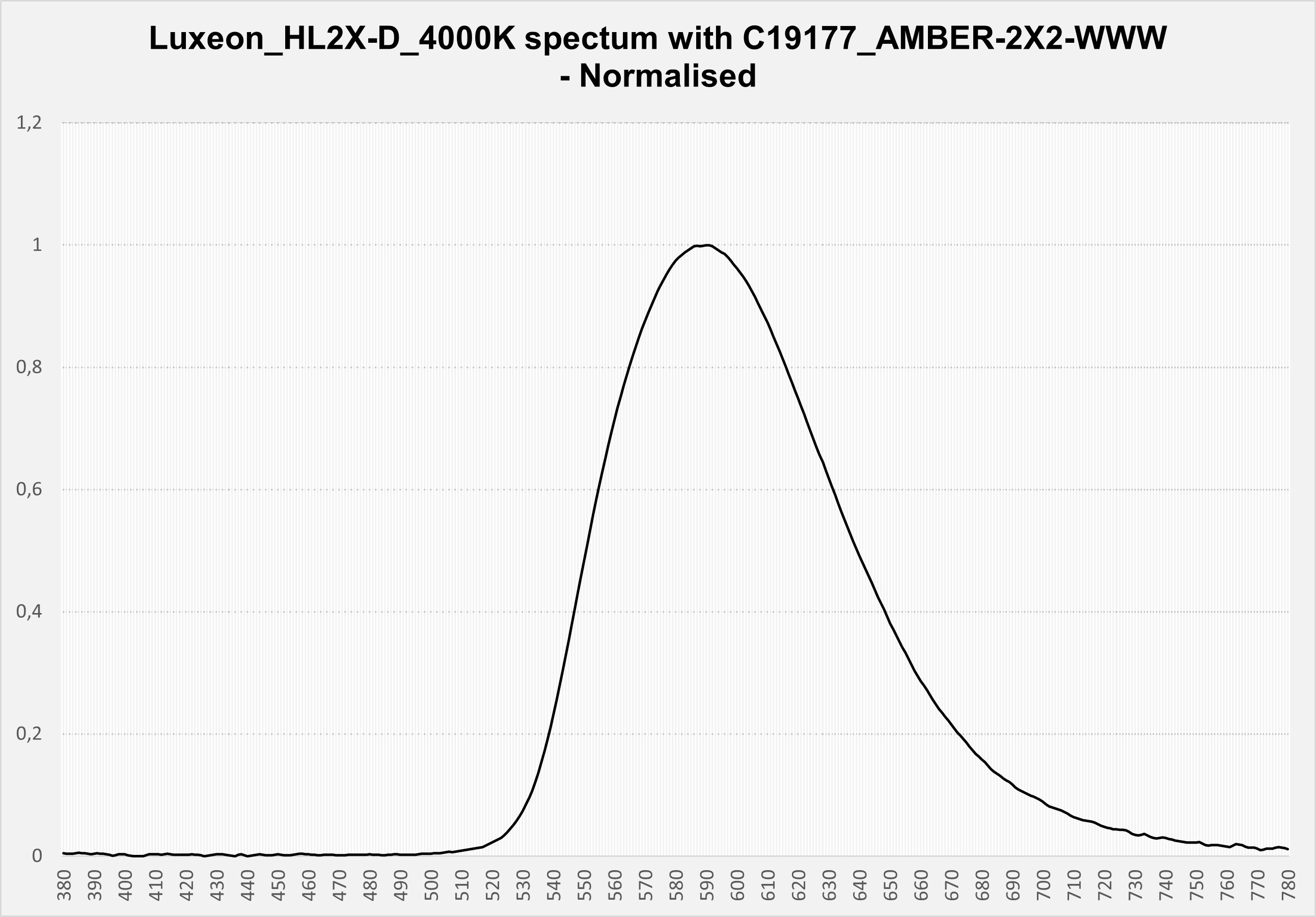

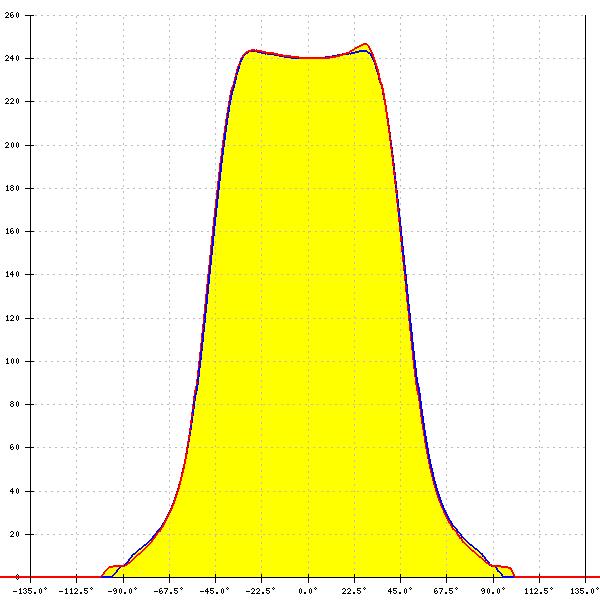

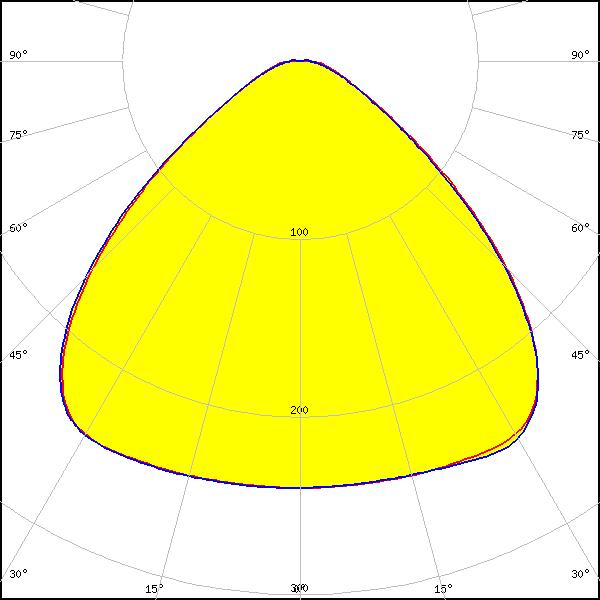

LED: LUXEON HL2X-D
FWHM: 99°
FWTM: 140°
Peak intensity: 0.246 cd/lm
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3900 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

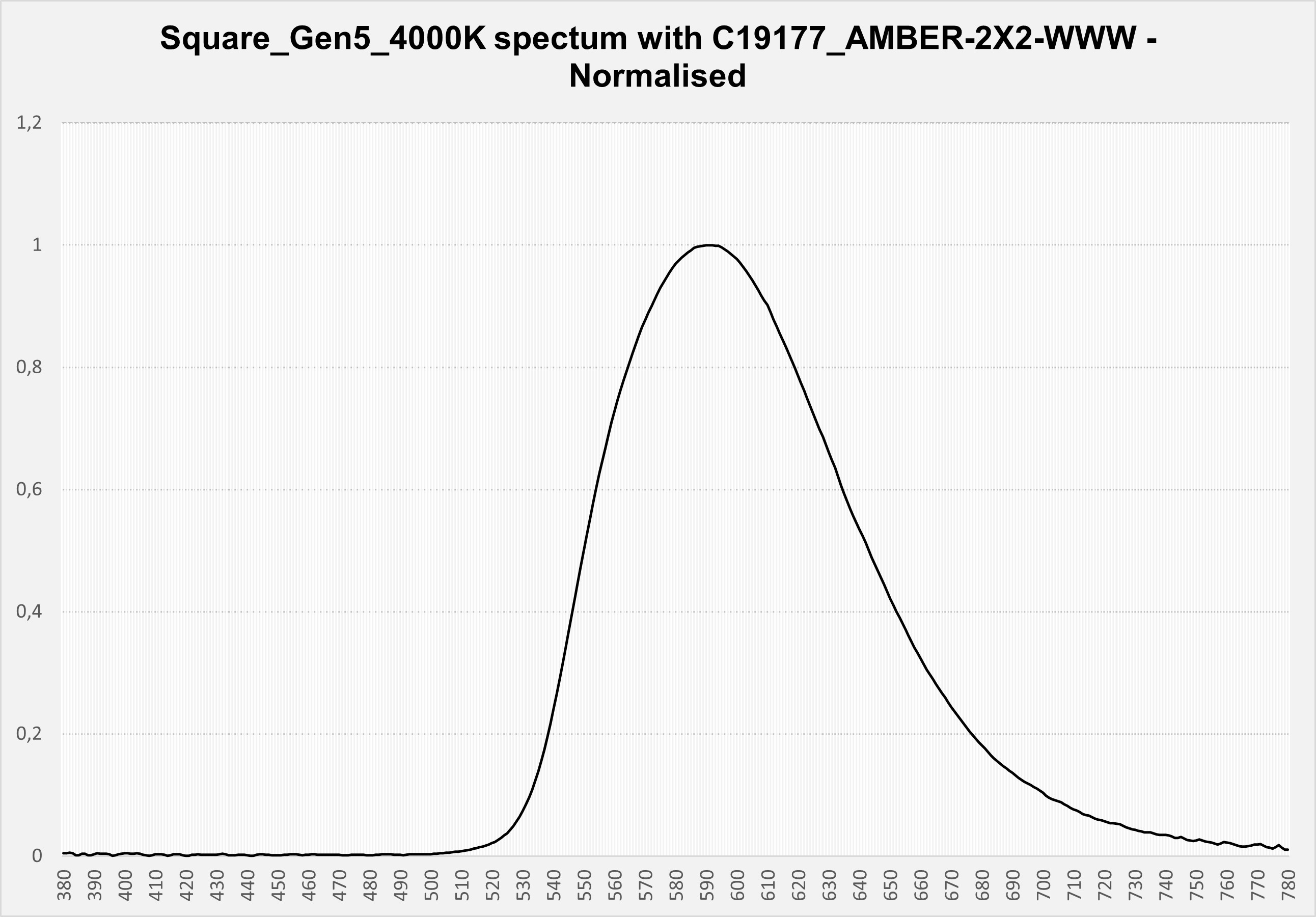

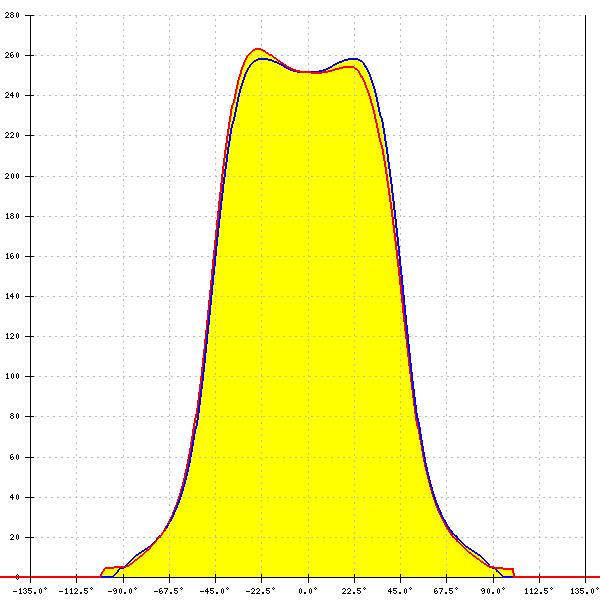

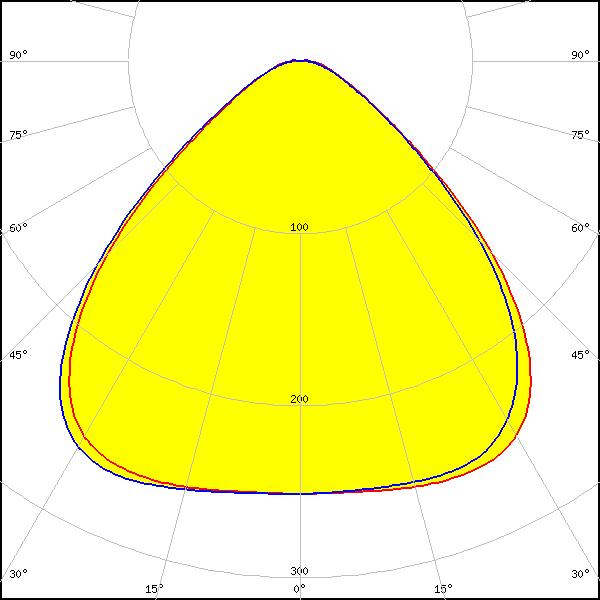

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 96°
FWTM: 135°
Peak intensity: 0.266 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3900 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

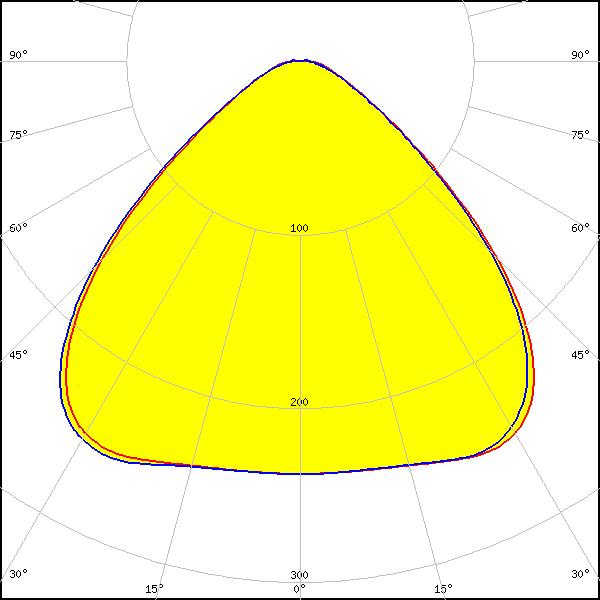

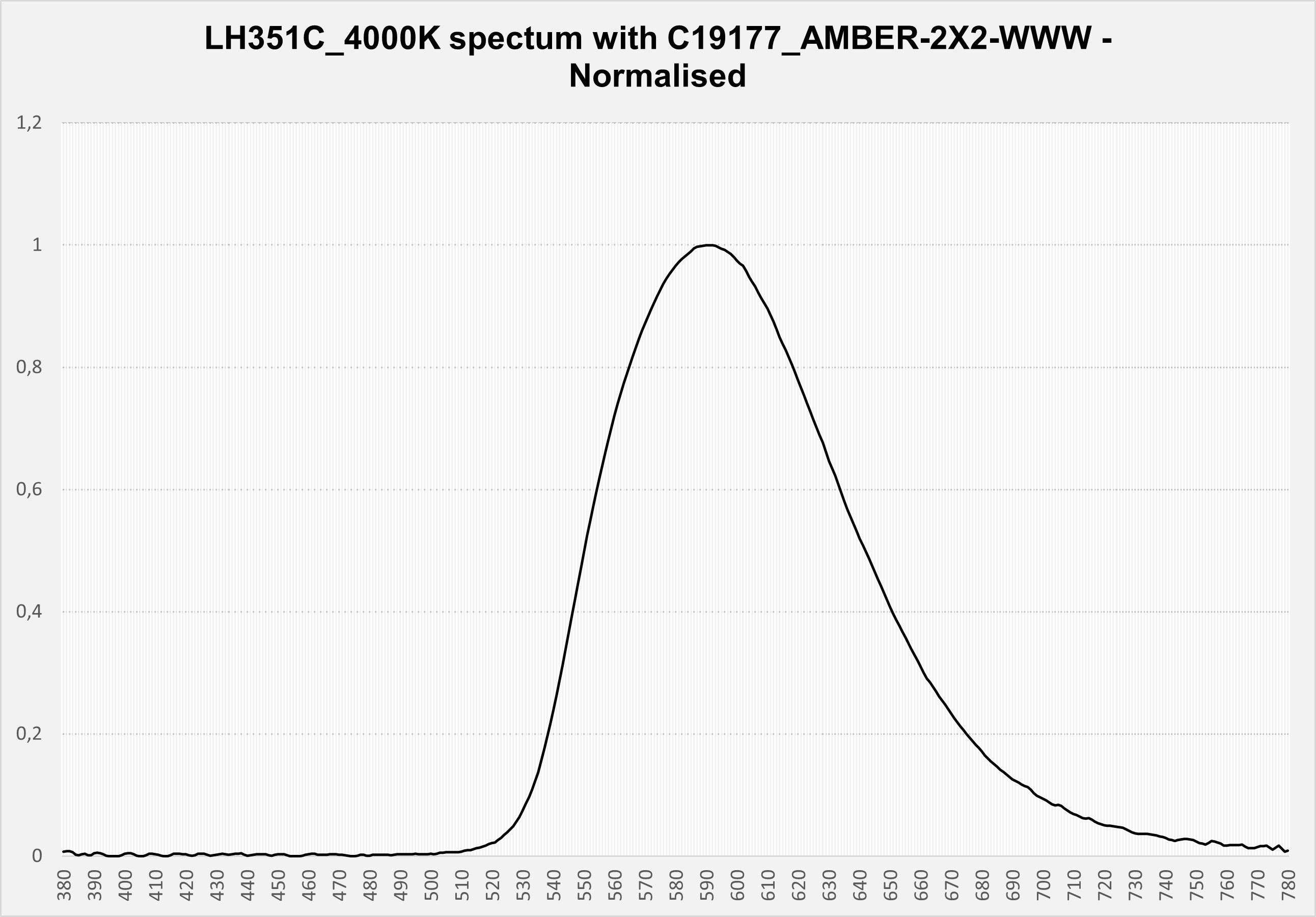

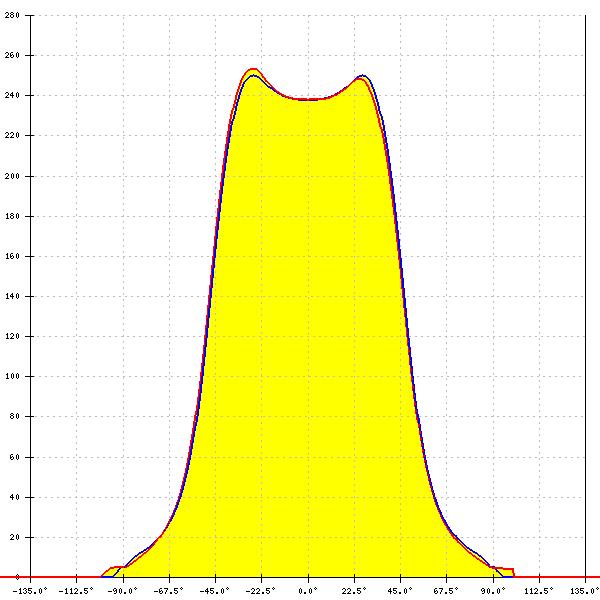

LED: LH351C
FWHM: 97°
FWTM: 137°
Peak intensity: 0.253 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3800 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

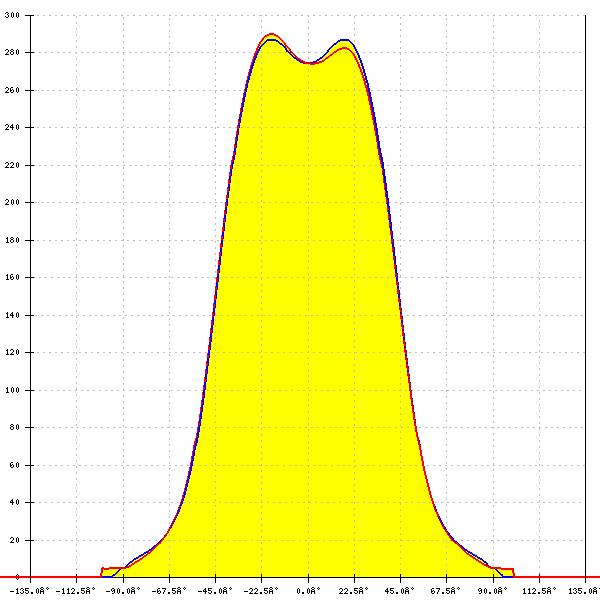

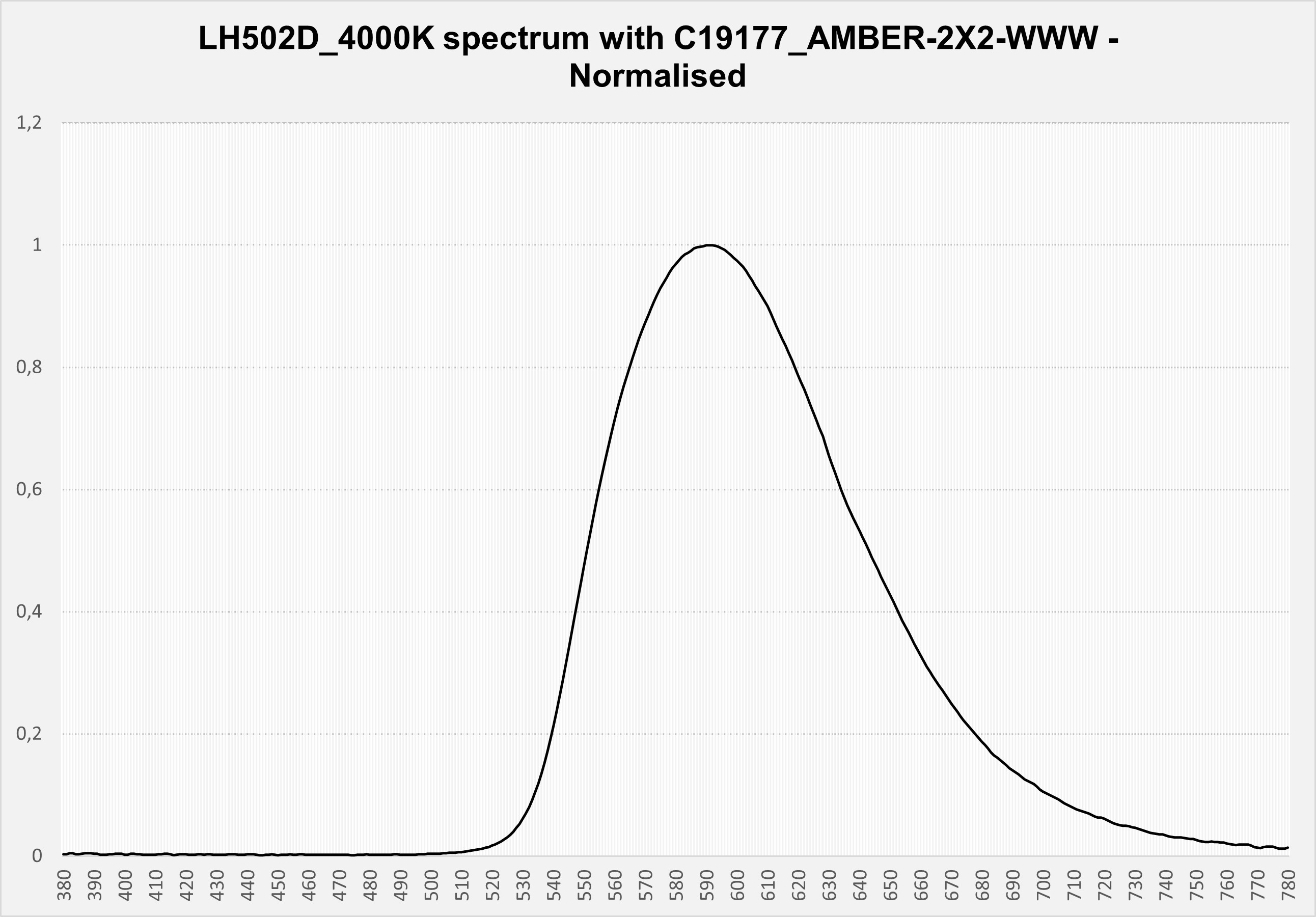

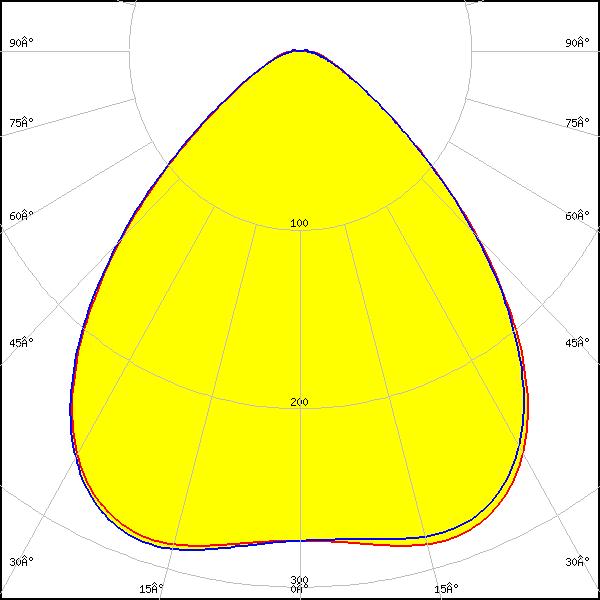

LED: LH502D
FWHM: 90°
FWTM: 131°
Peak intensity: 0.301 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3900 K/ 2100 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

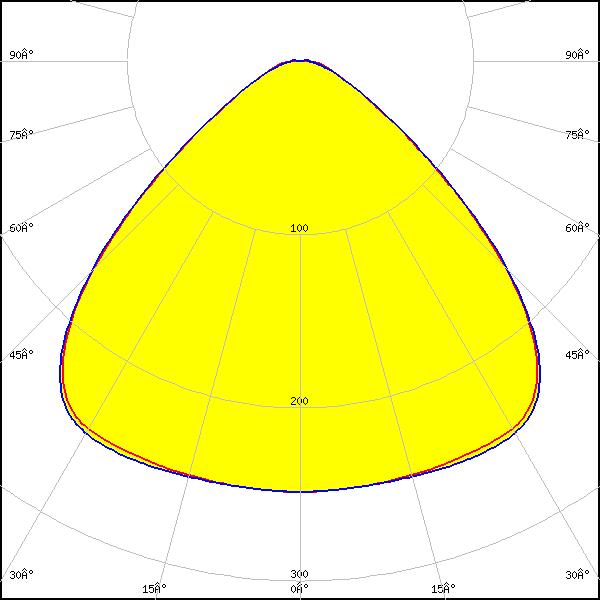

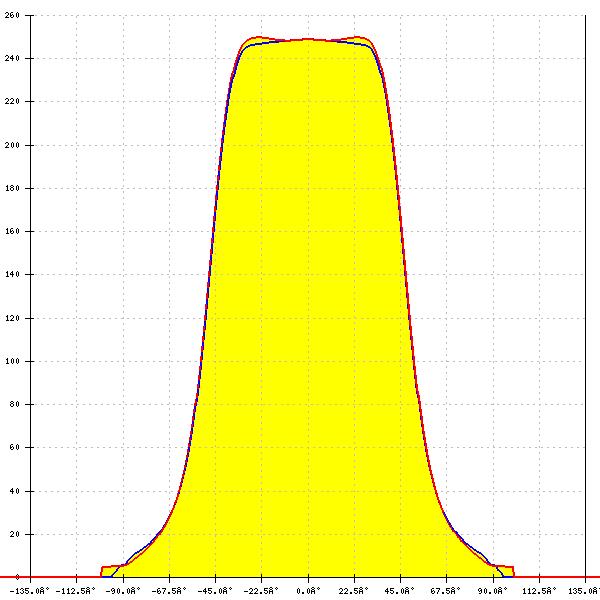

LED: Z5M4
FWHM: 99°
FWTM: 138°
Peak intensity: 0.252 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.2%
CCT (LED/with lens)*: 3600 K/ 2100 K

*the measured CCT with lens doesn’t follow the Black Body Locus line
