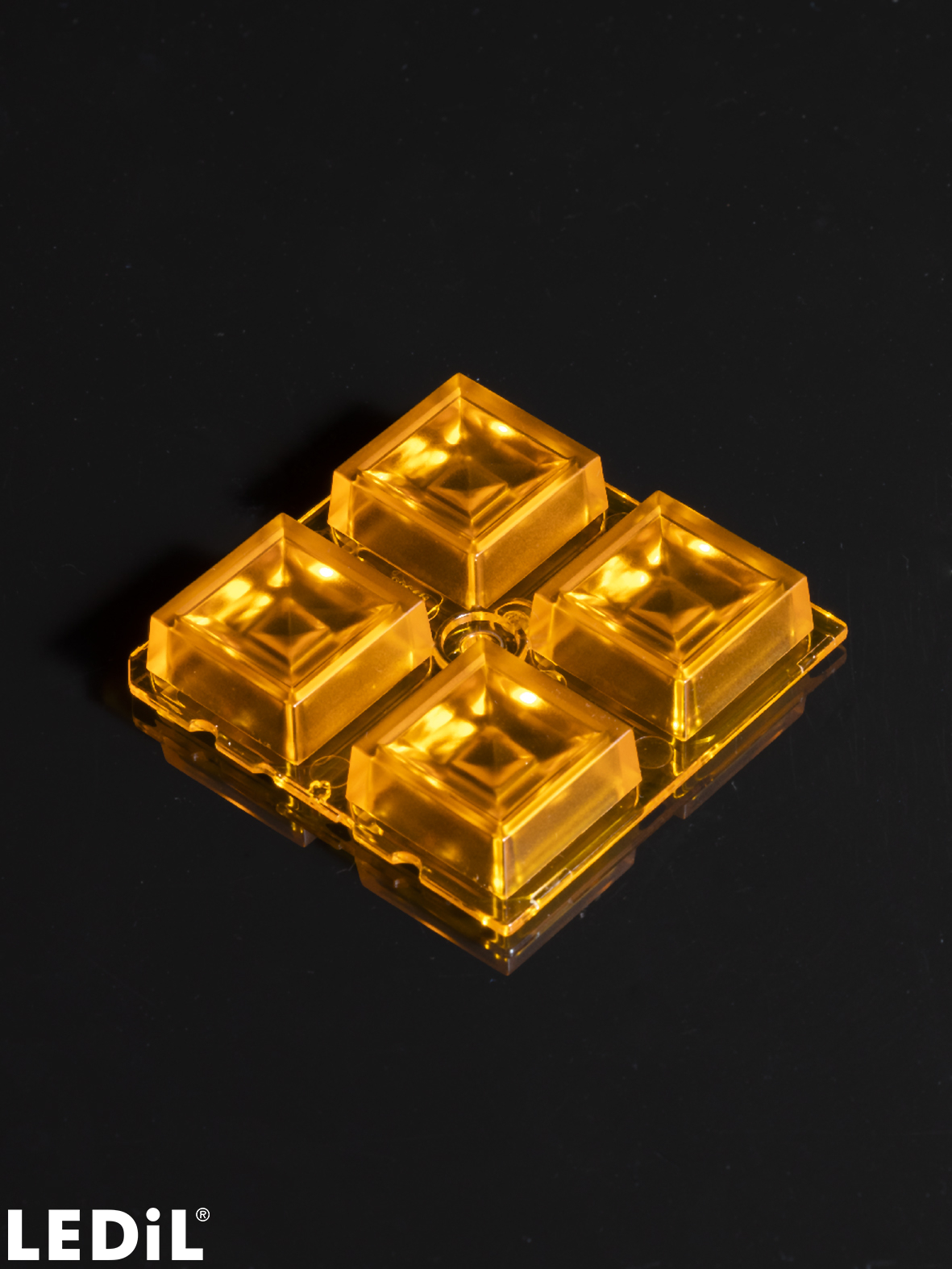

C19175_AMBER-2X2-W

Print

~50° wide beam

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    8.50 mm
  • Fastening:
    glue, pin, screw
  • Colour:
    amber
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C19175_AMBER-2X2-W

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

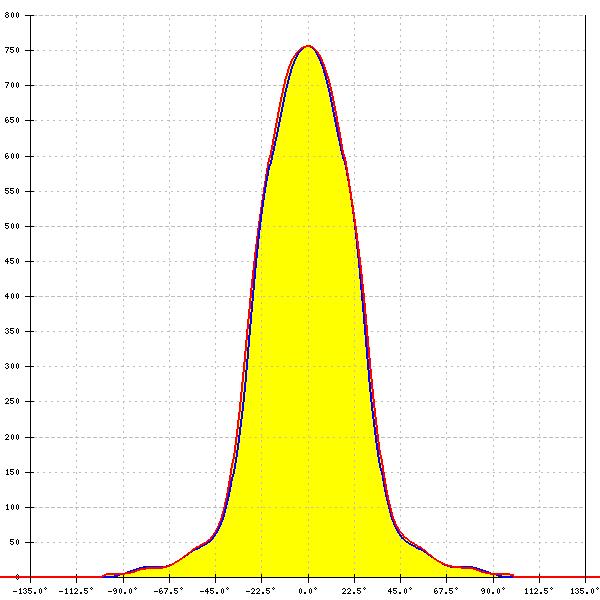

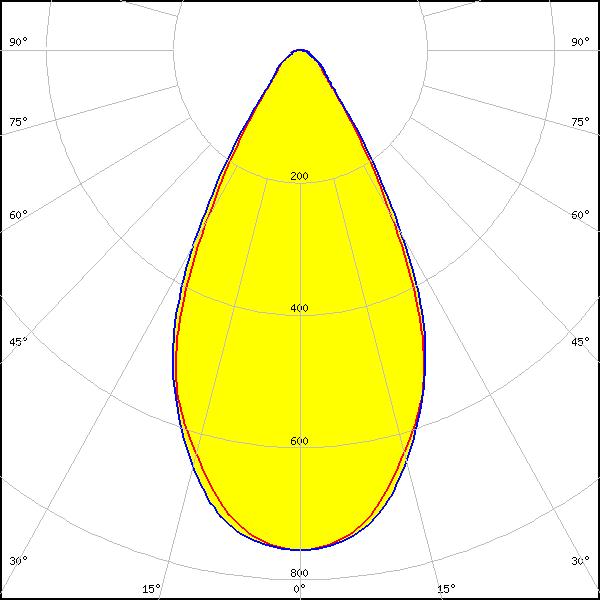

LED: J Series 5050B 6V K Class
FWHM: 55°
FWTM: 85°
Peak intensity: 0.757 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3800 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

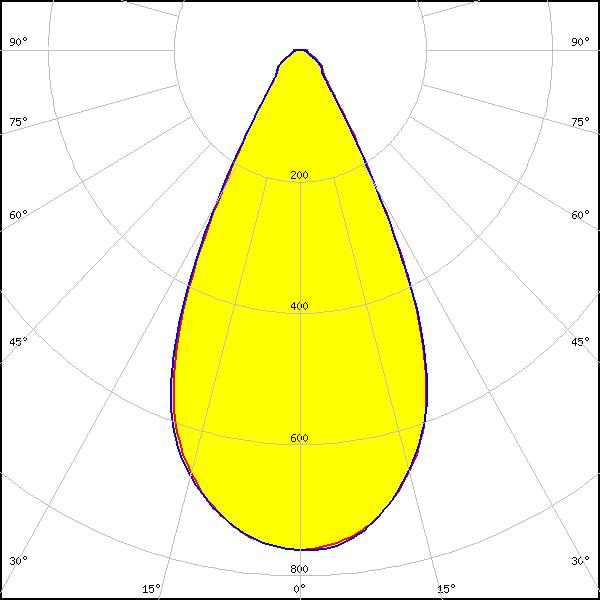

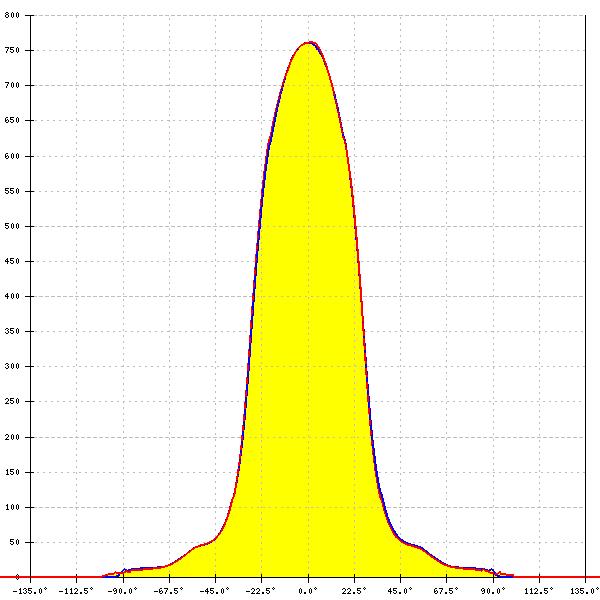

LED: XP-G3
FWHM: 53°
FWTM: 80°
Peak intensity: 0.761 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3900 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

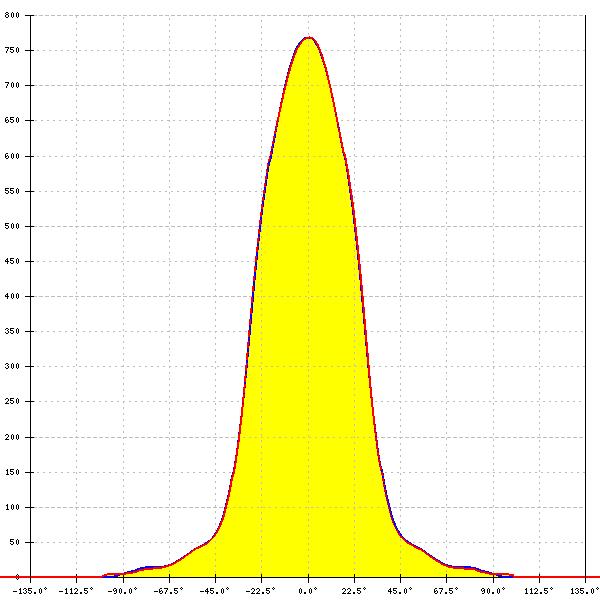

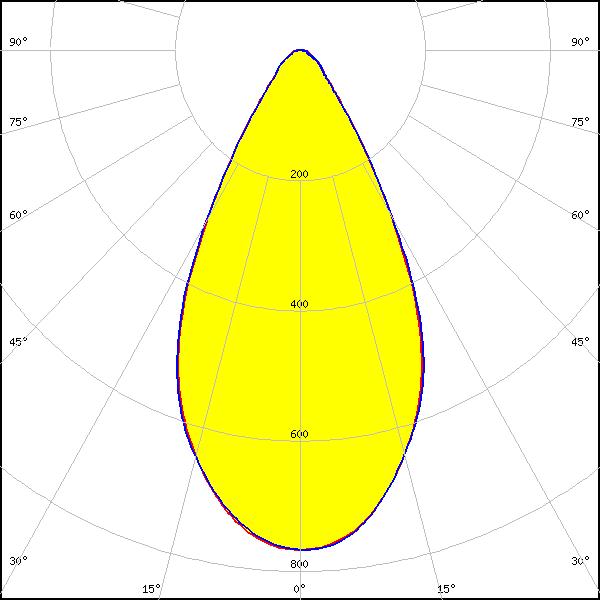

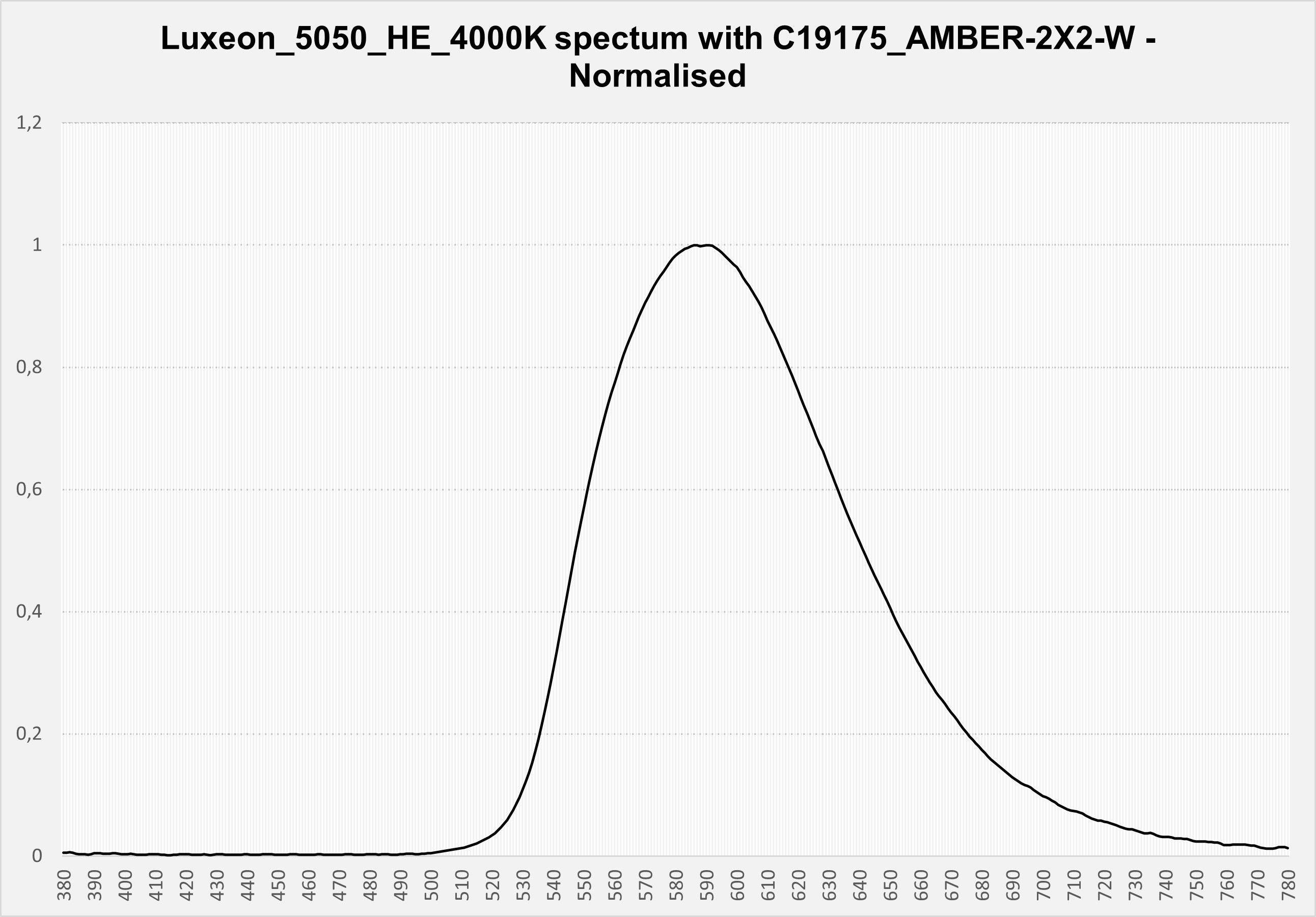

LED: LUXEON 5050 HE
FWHM: 55°
FWTM: 84°
Peak intensity: 0.770 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3900 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

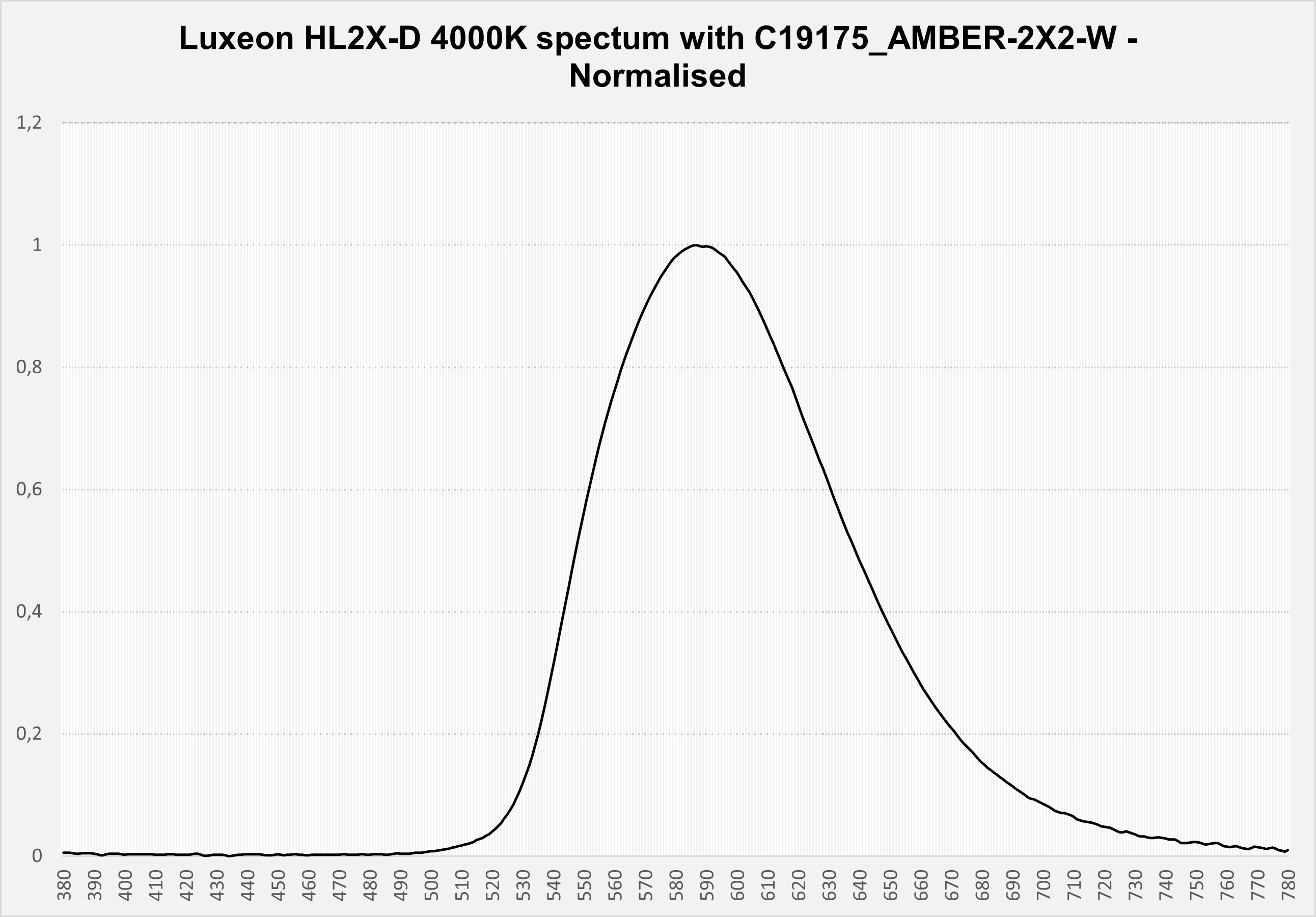

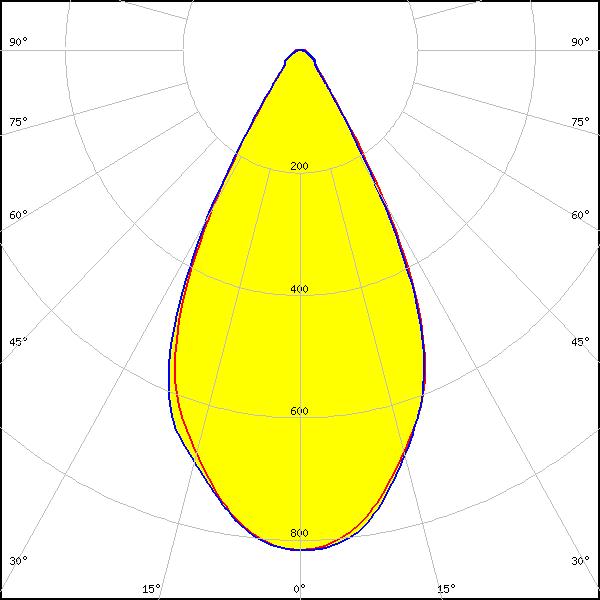

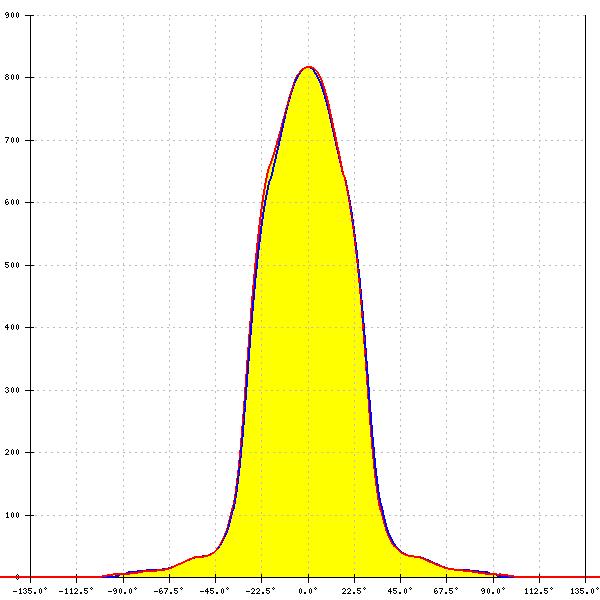

LED: LUXEON HL2X-D
FWHM: 55°
FWTM: 76°
Peak intensity: 0.817 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 4000 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

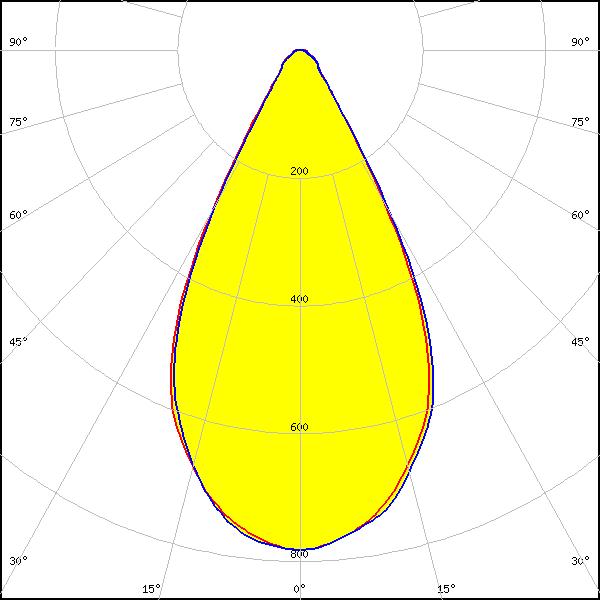

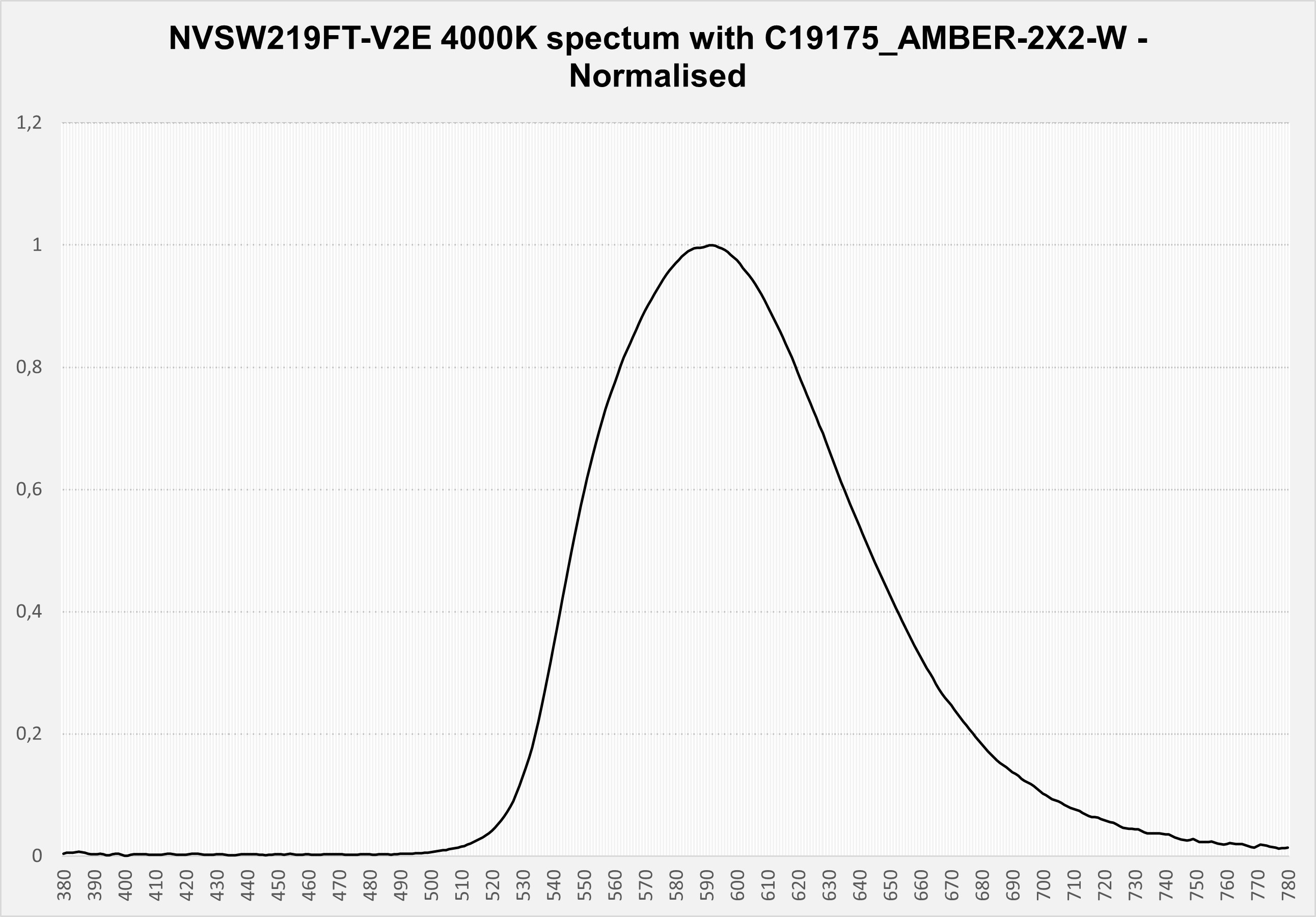

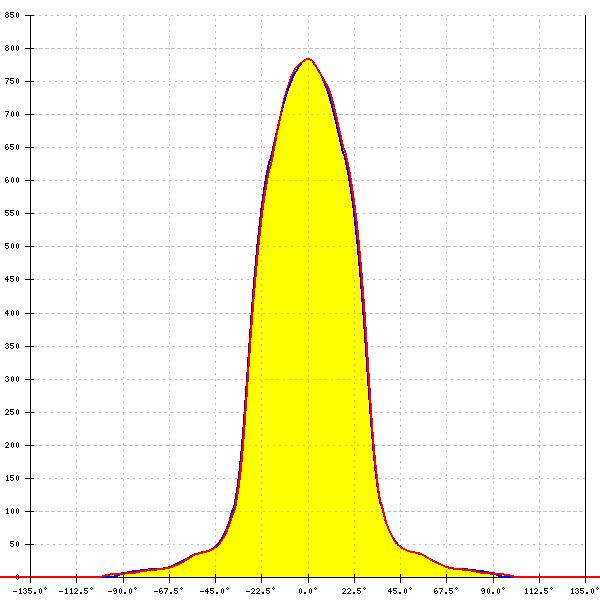

LED: NVSW219F
FWHM: 55°
FWTM: 77°
Peak intensity: 0.783 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3900 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

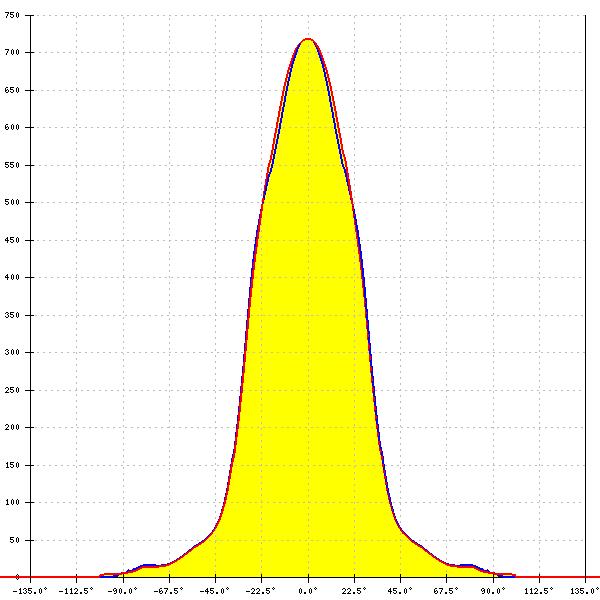

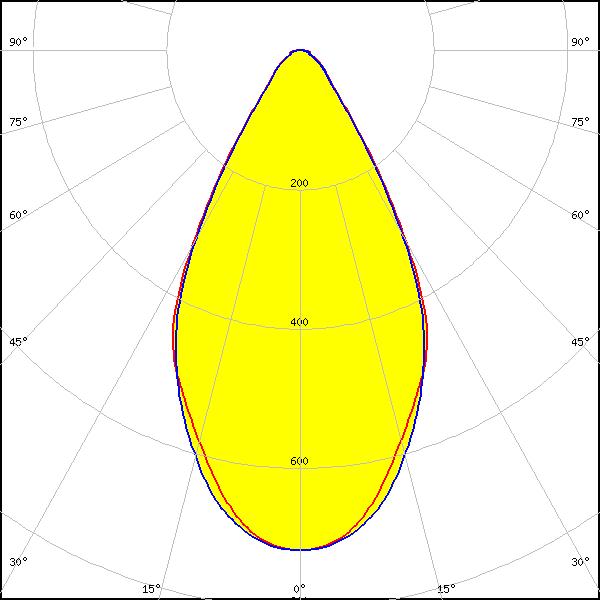

LED: Duris S8
FWHM: 57°
FWTM: 88°
Peak intensity: 0.719 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour/type: White

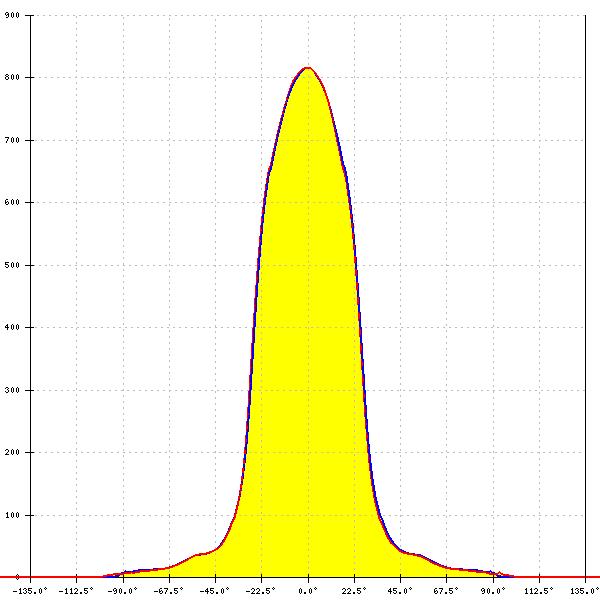

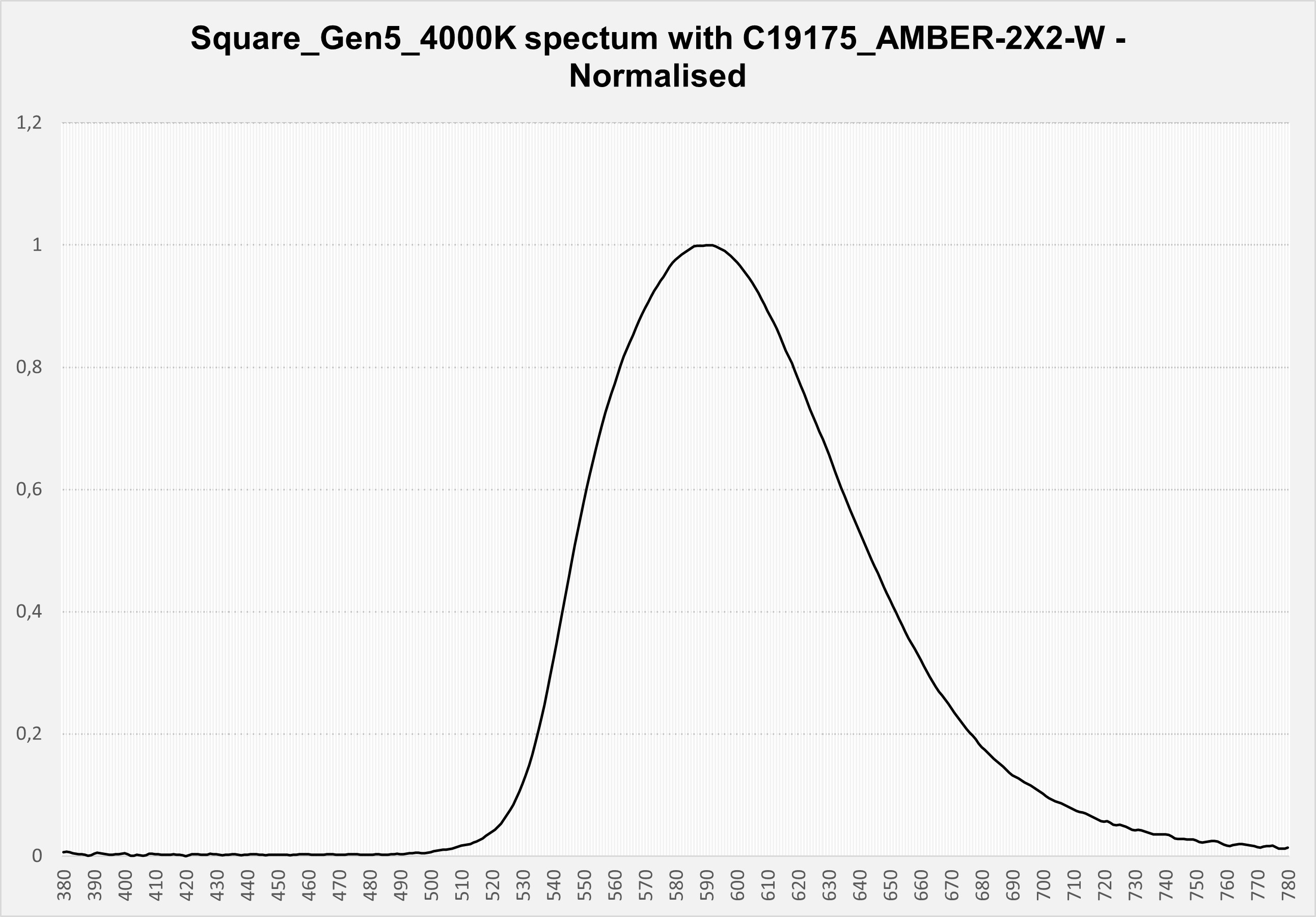

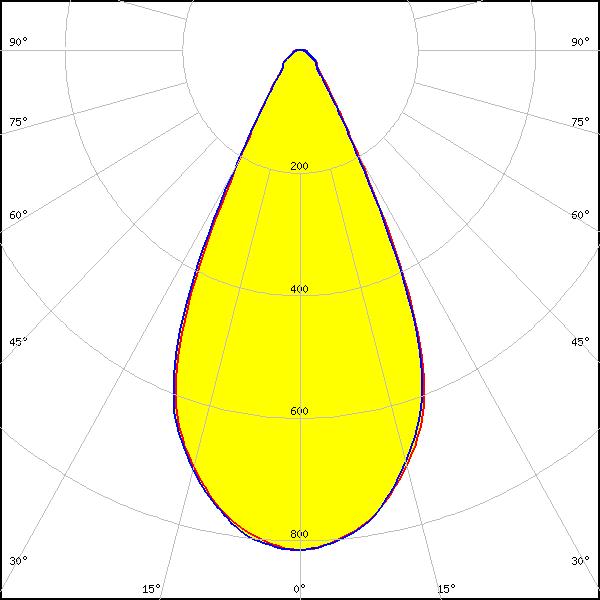

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 52°
FWTM: 74°
Peak intensity: 0.816 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3900 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

LED: Fortimo FastFlex LED 2x8 DA G4+
FWHM: 54°
FWTM: 80°
Peak intensity: 0.712 cd/lm
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: White

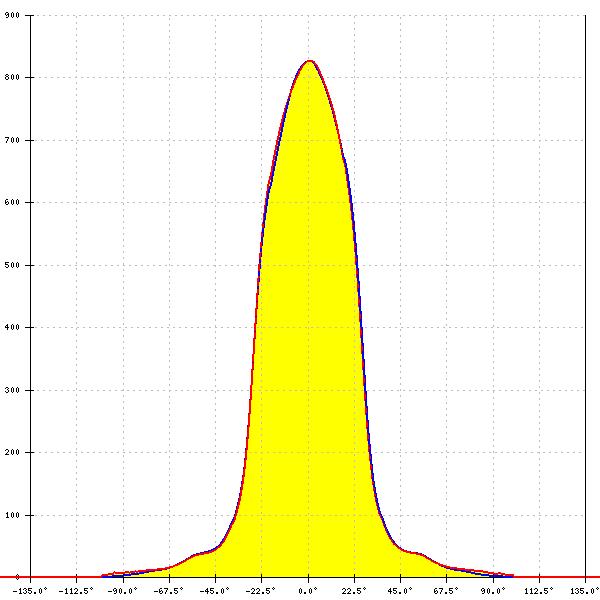

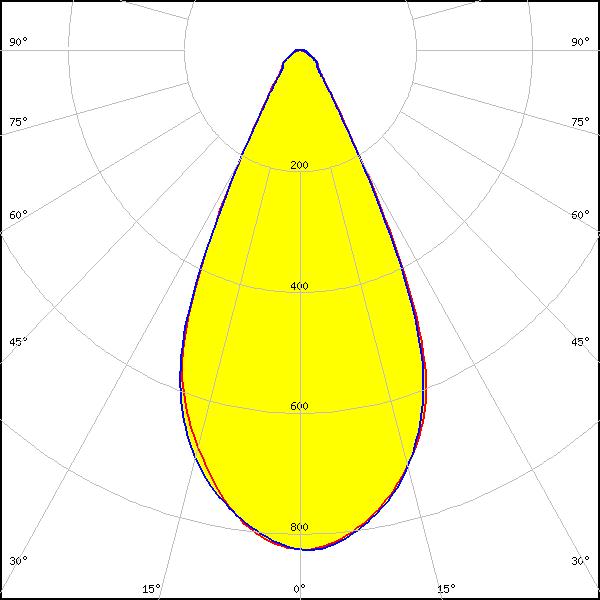

LED: Fortimo FastFlex LED 2x8 DA G5
FWHM: 51°
FWTM: 75°
Peak intensity: 0.828 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

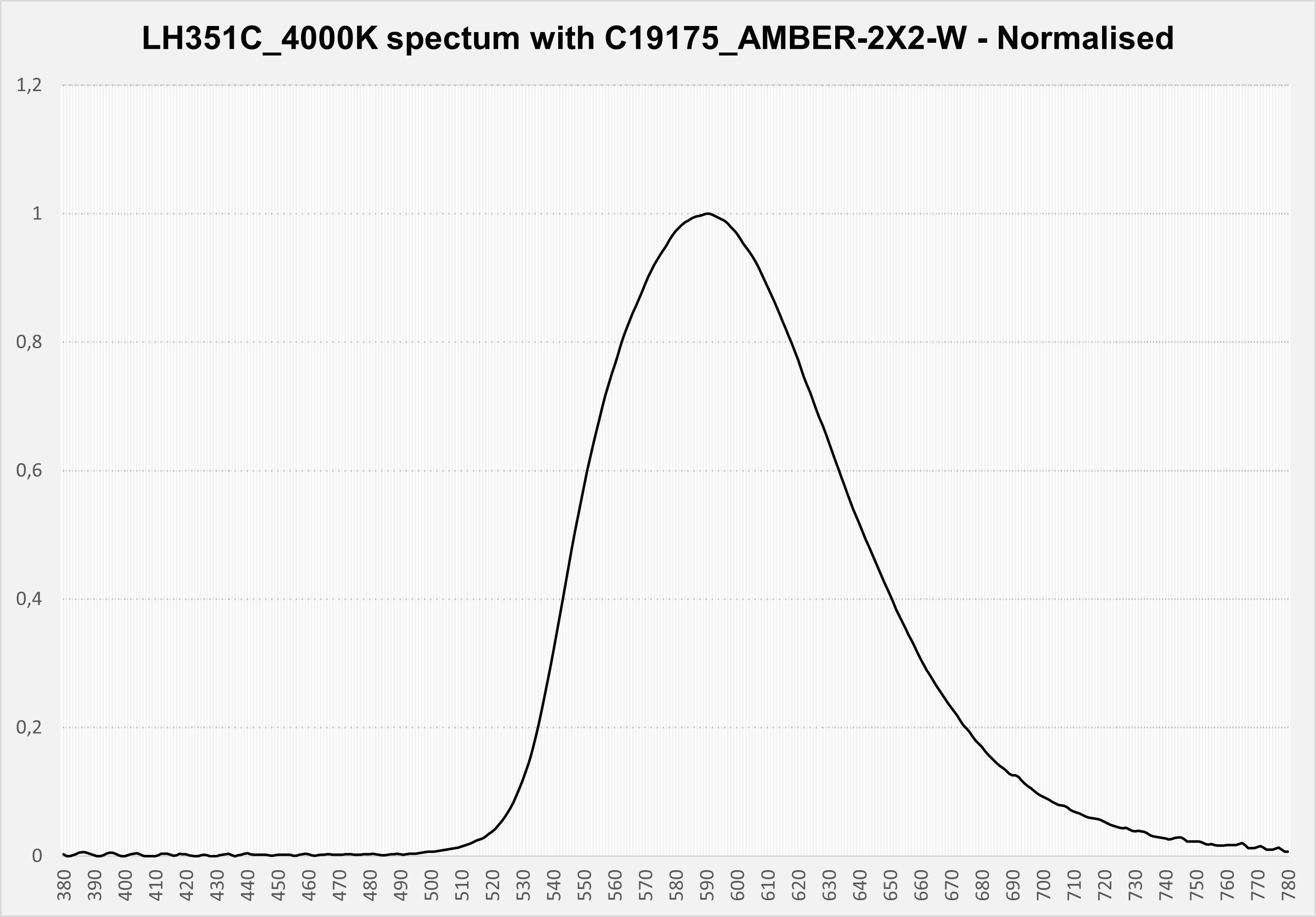

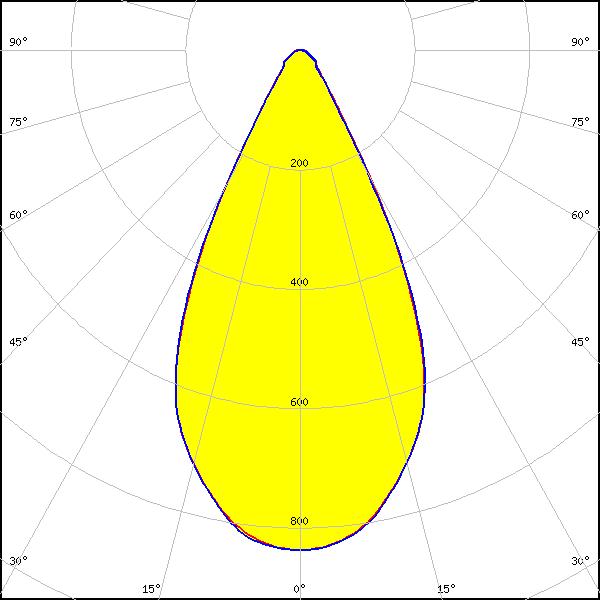

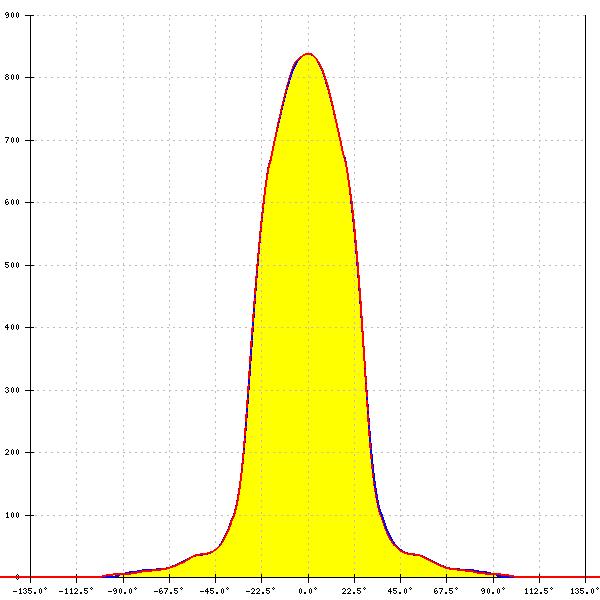

LED: LH351C
FWHM: 52°
FWTM: 75°
Peak intensity: 0.838 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3800 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

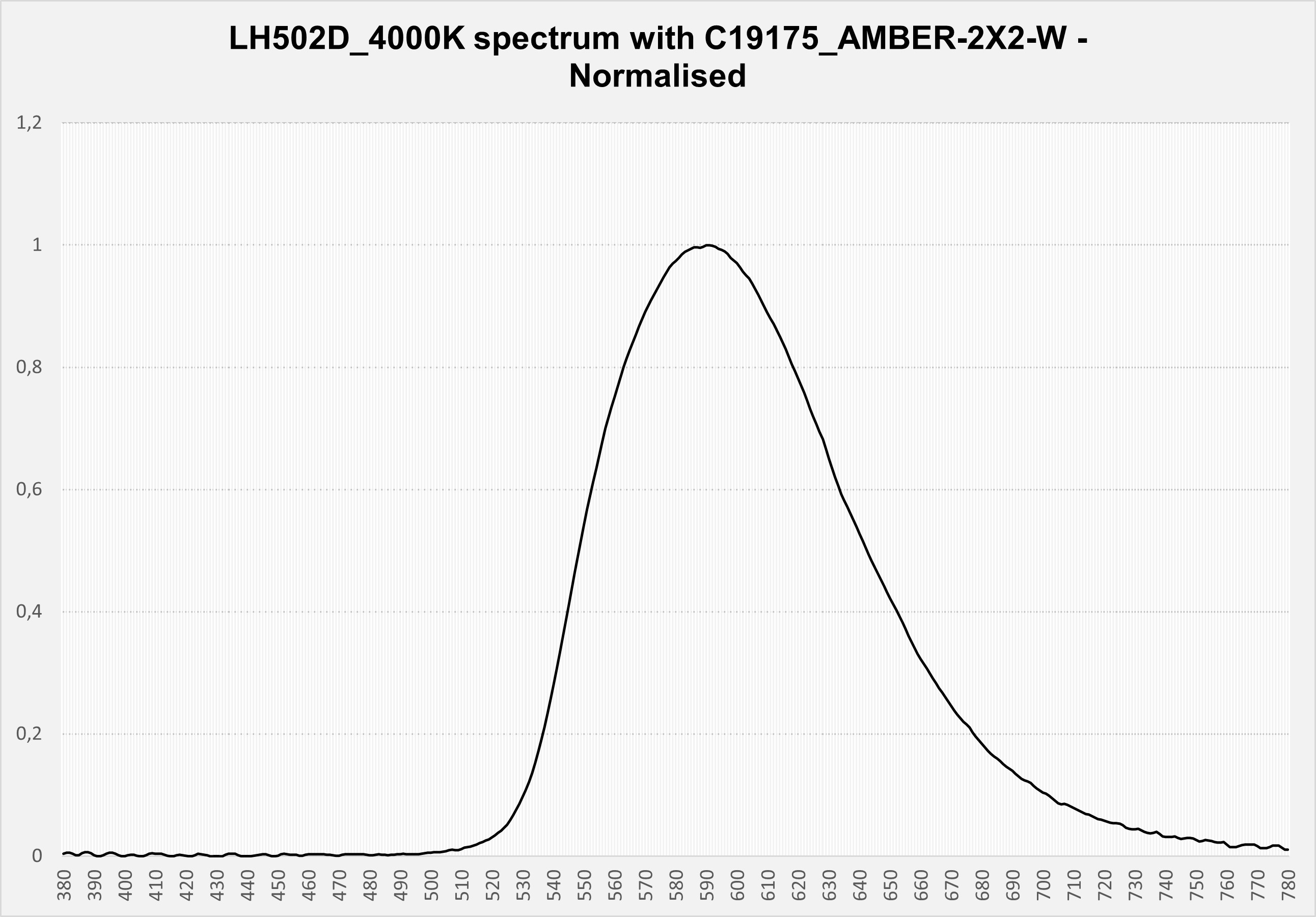

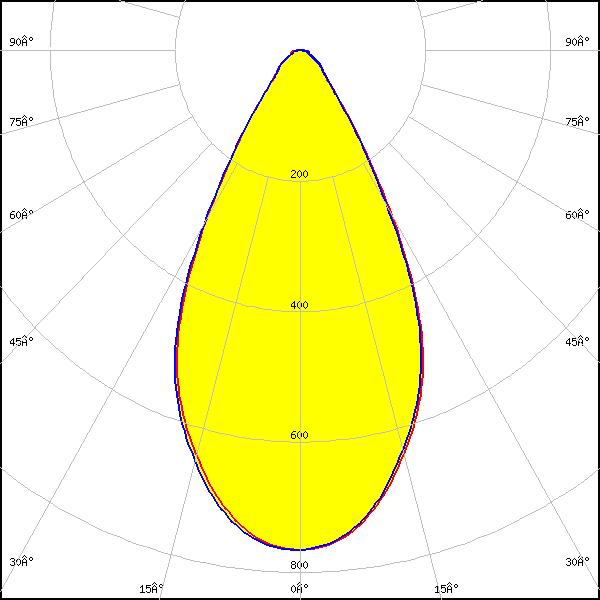

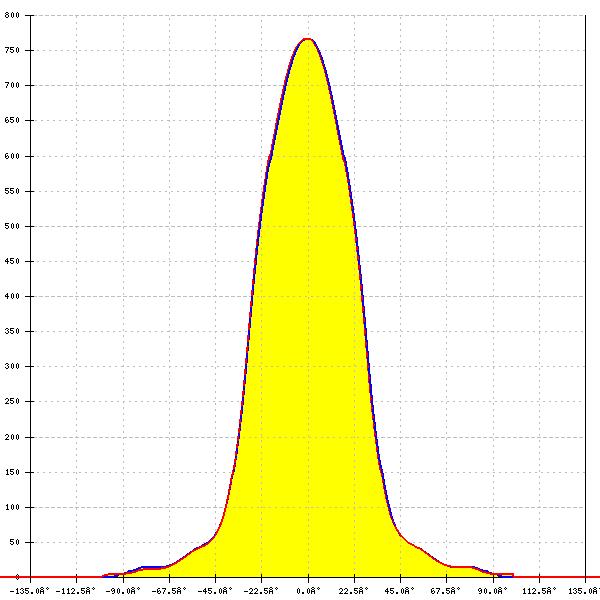

LED: LH502D
FWHM: 55°
FWTM: 84°
Peak intensity: 0.767 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3800 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

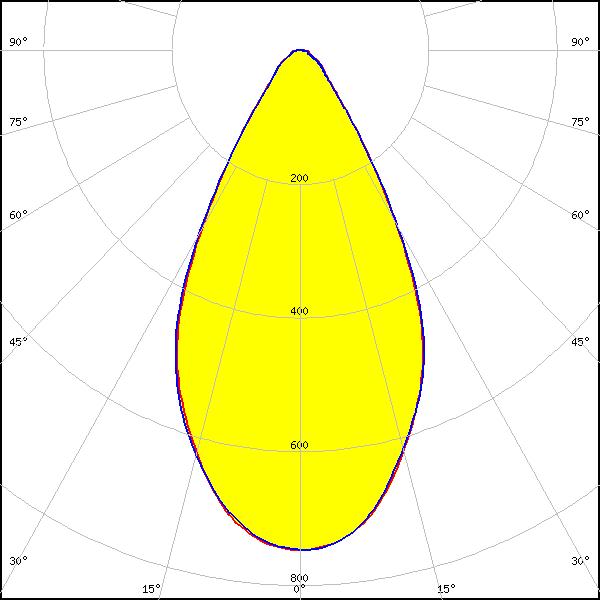

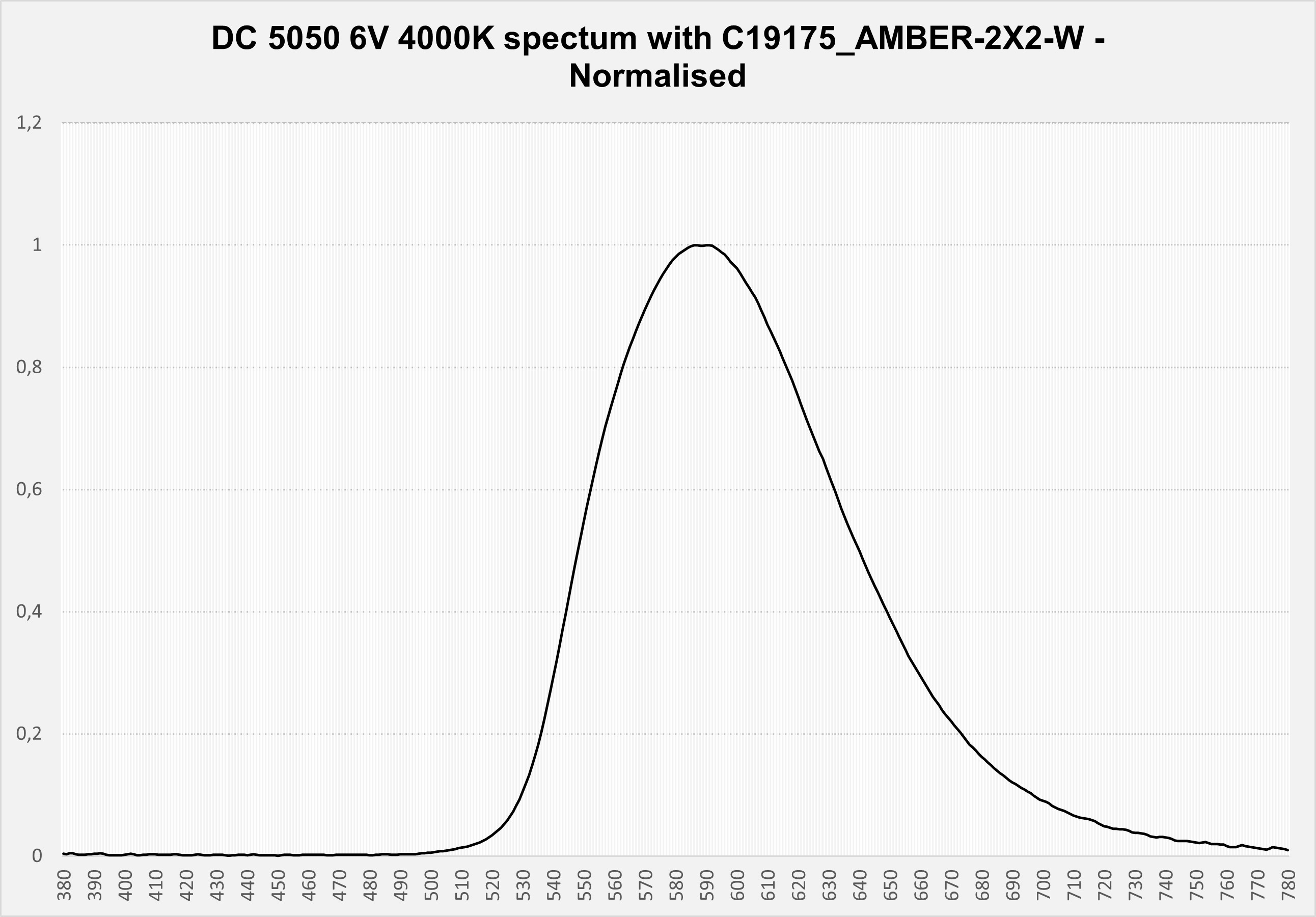

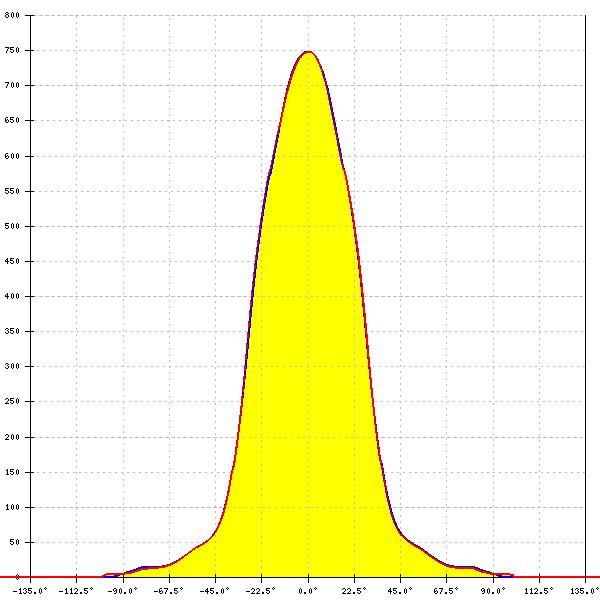

LED: SEOUL DC 5050 6V
FWHM: 56°
FWTM: 86°
Peak intensity: 0.748 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 4000 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

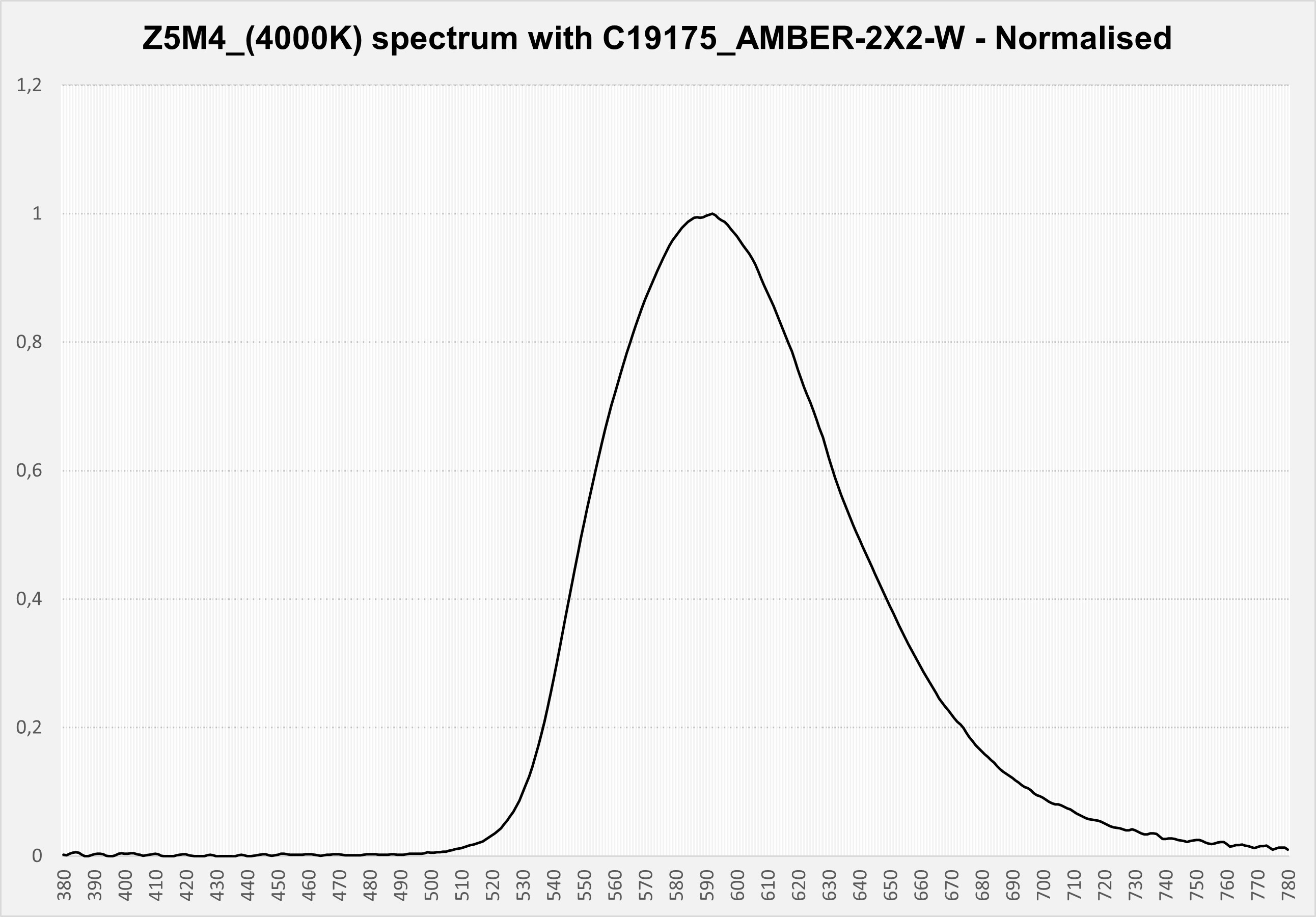

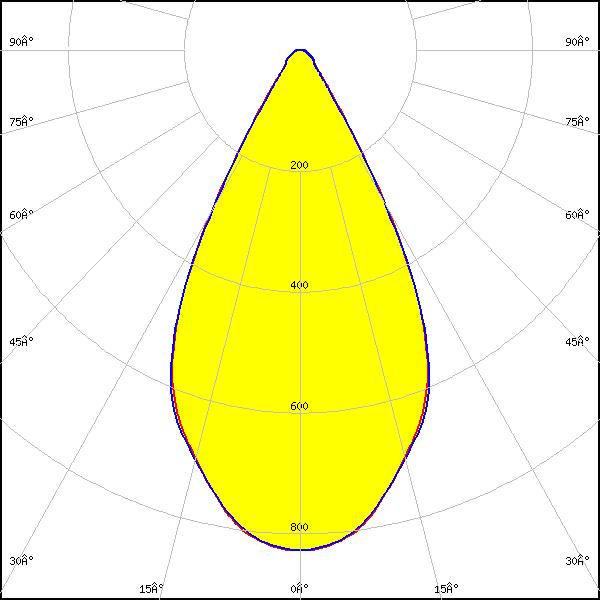

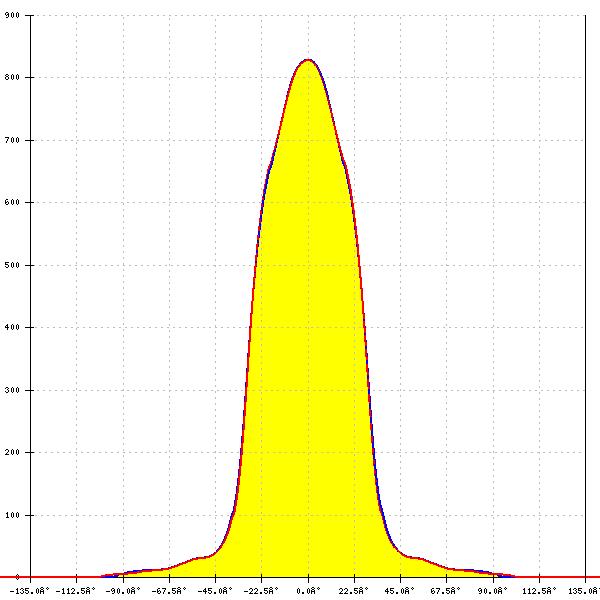

LED: Z5M4
FWHM: 55°
FWTM: 76°
Peak intensity: 0.828 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3600 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line
