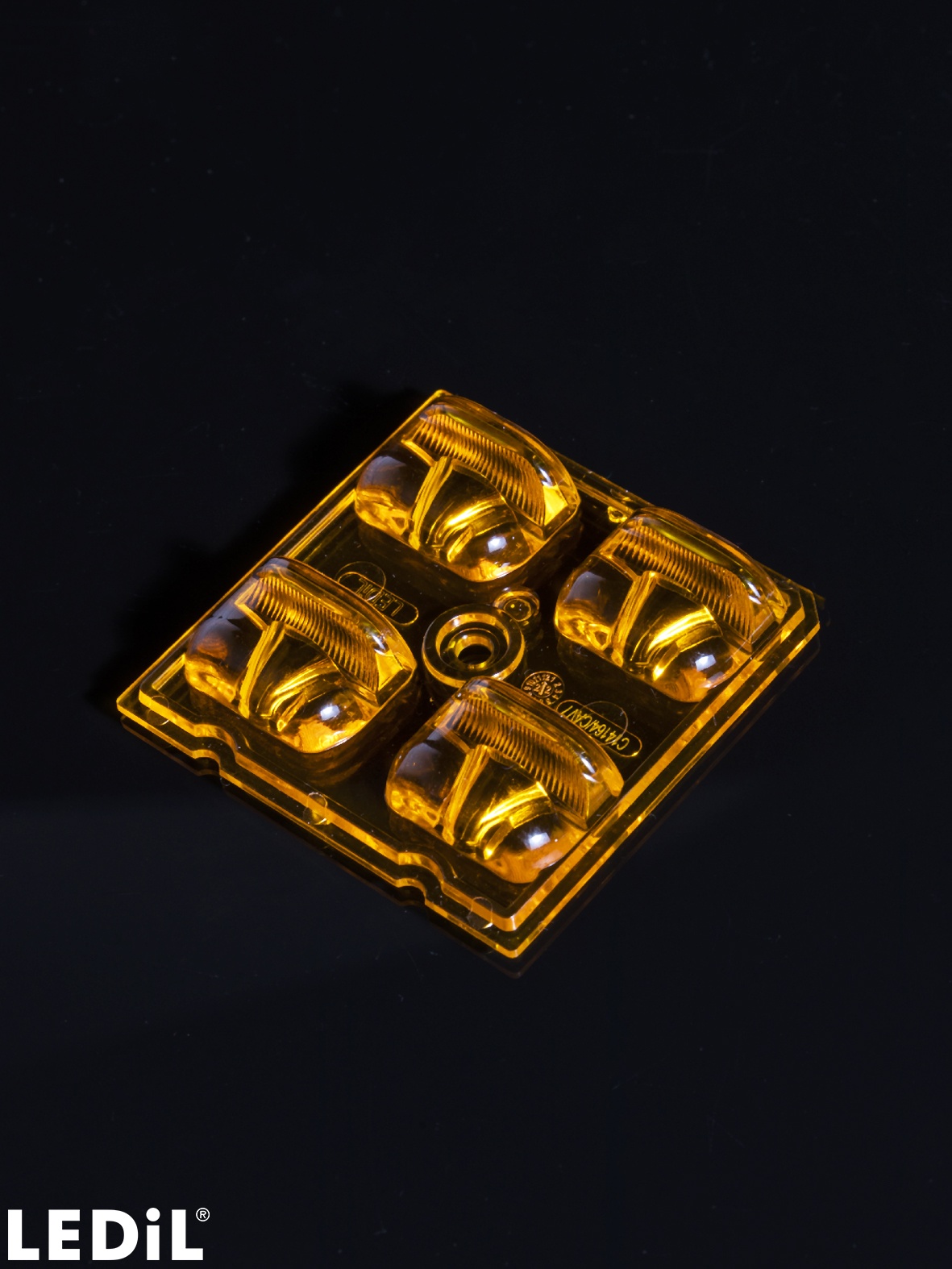

C19005_AMBER-2X2-ME-WIDE1

Print

Beam with excellent longitudinal luminance uniformity fulfilling EN13201 M-class requirements where road width is equal to or less than the pole height. Added house-side backlight.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    8.90 mm
  • Fastening:
    glue, pin, screw
  • Colour:
    amber
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.3 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C19005_AMBER-2X2-ME-WIDE1

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

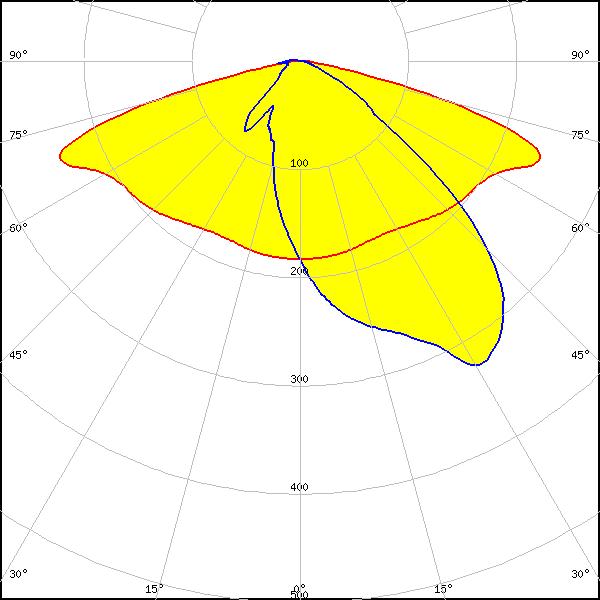

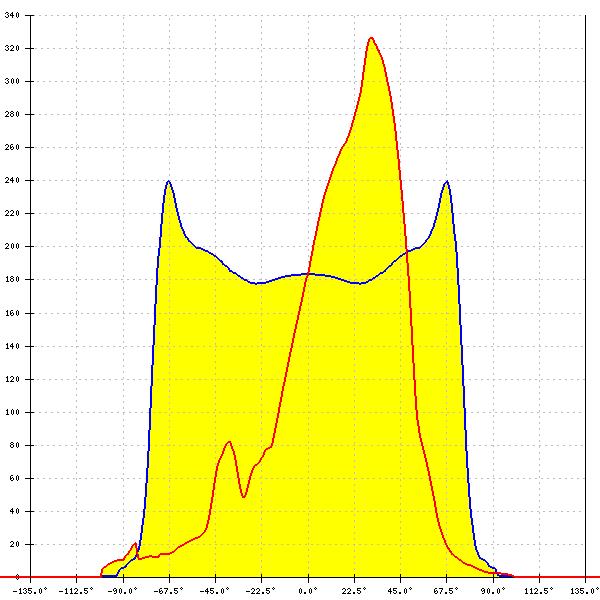

LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 0.468 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3800 K/ 2400 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

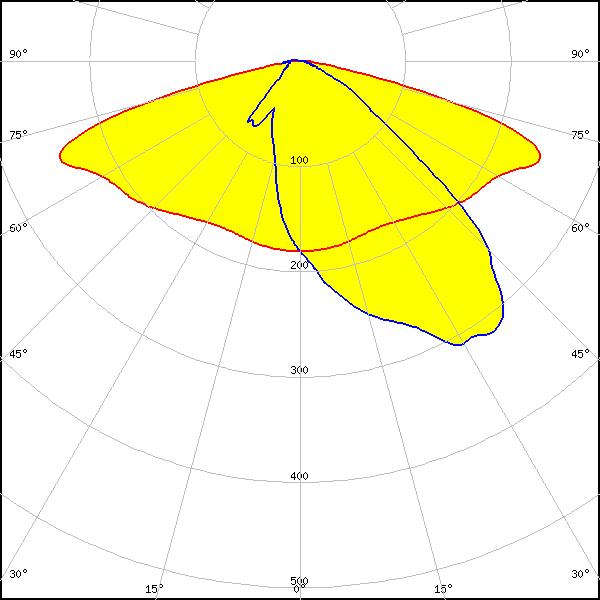

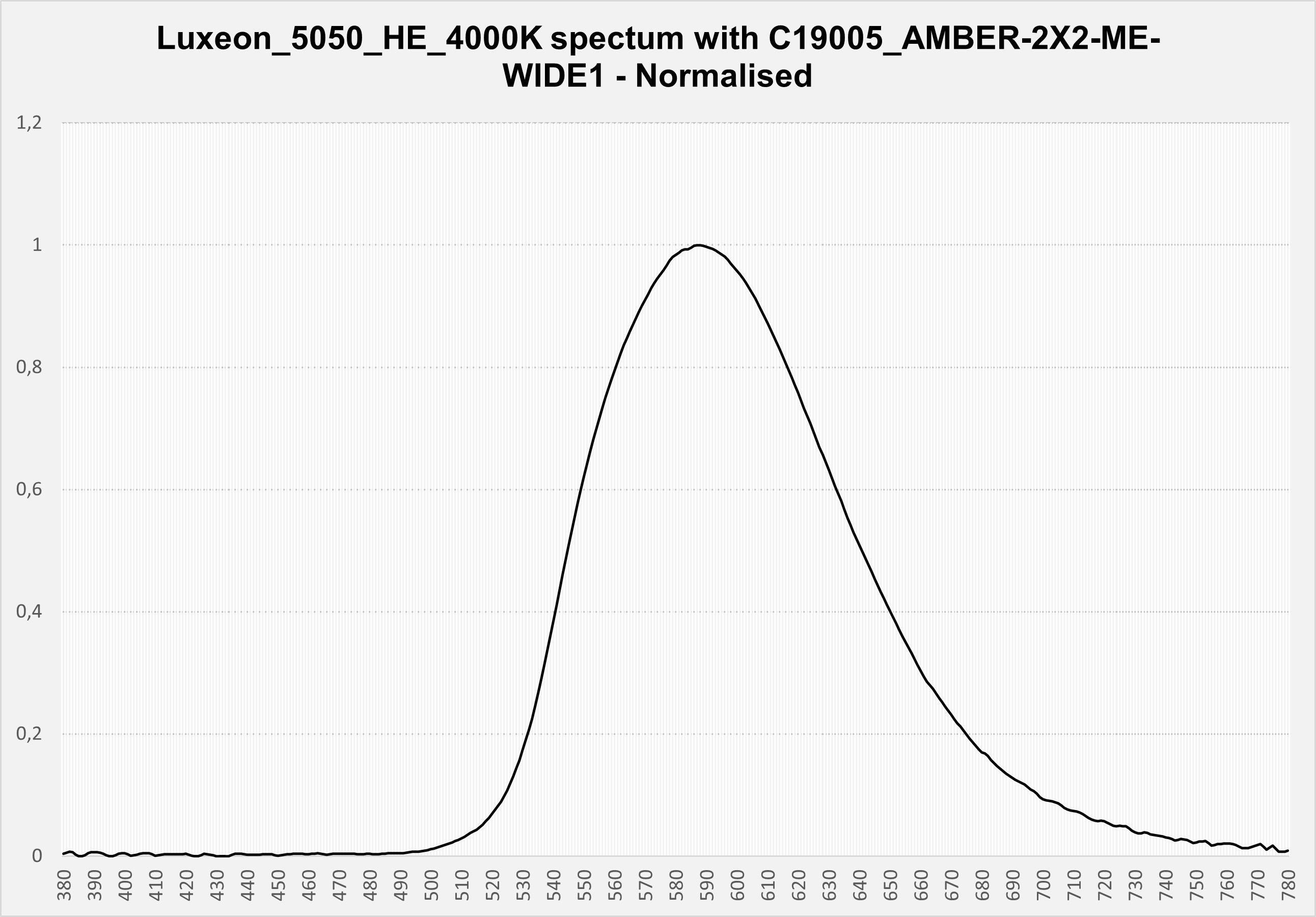

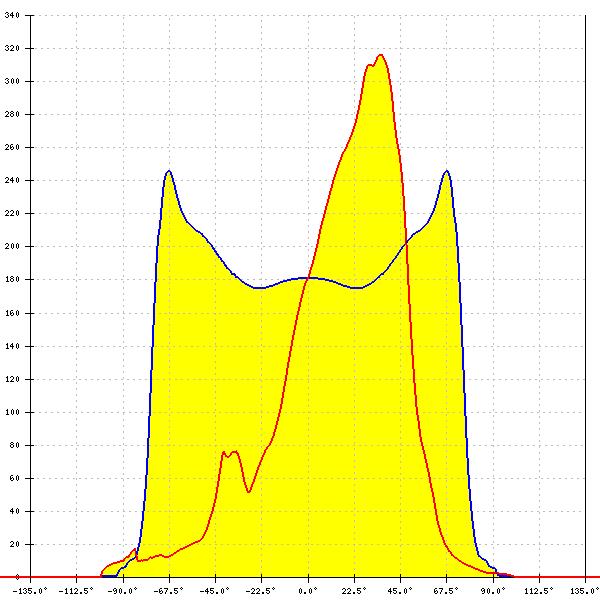

LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.493 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3900 K/ 2400 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

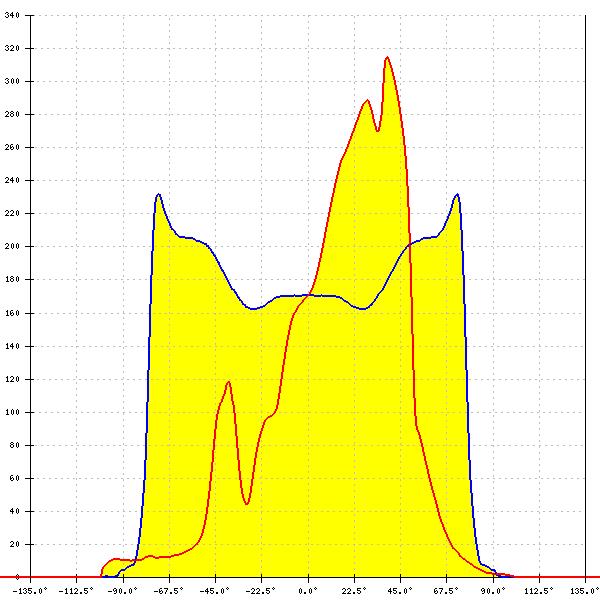

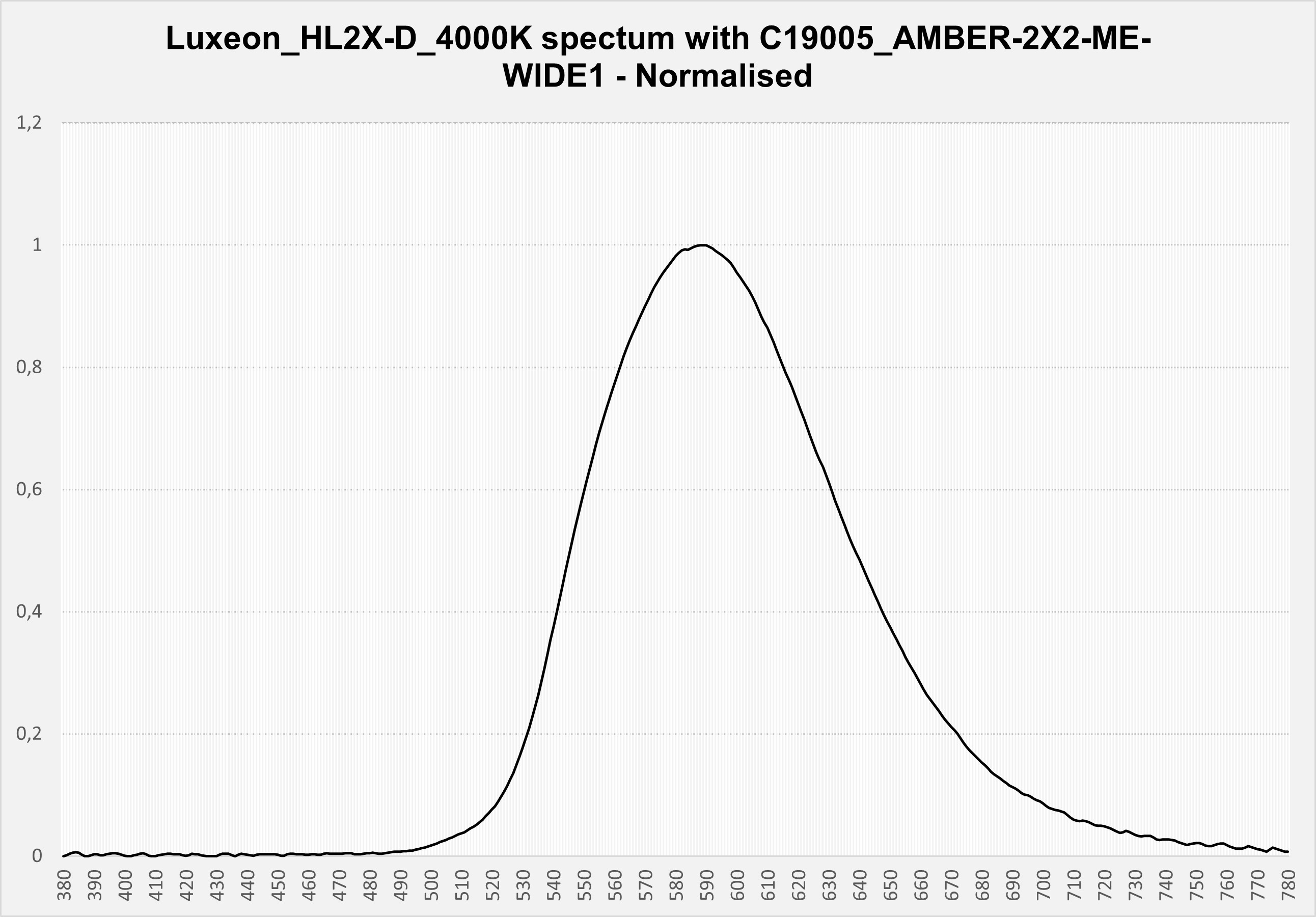

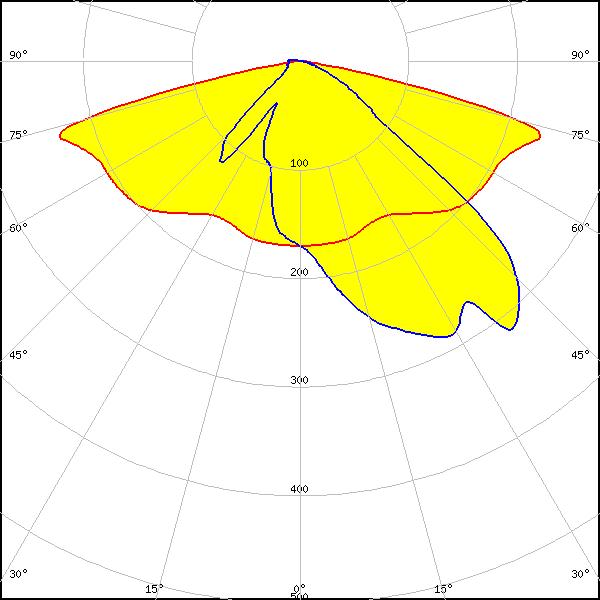

LED: LUXEON HL2X-D
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3900 K/ 2400 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

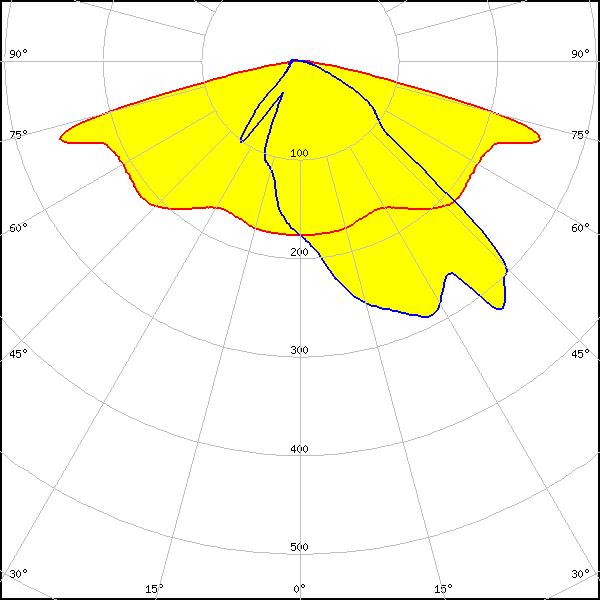

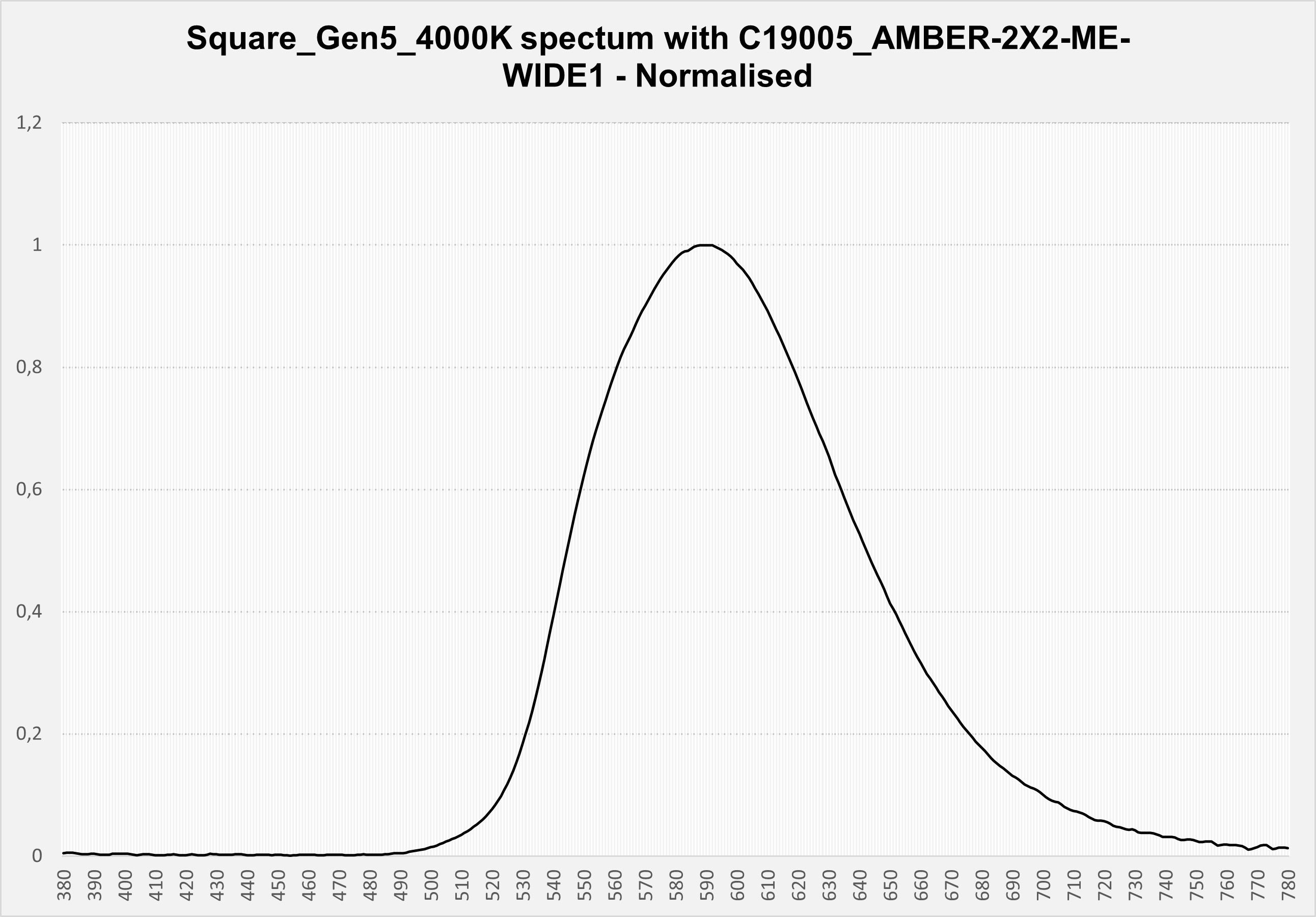

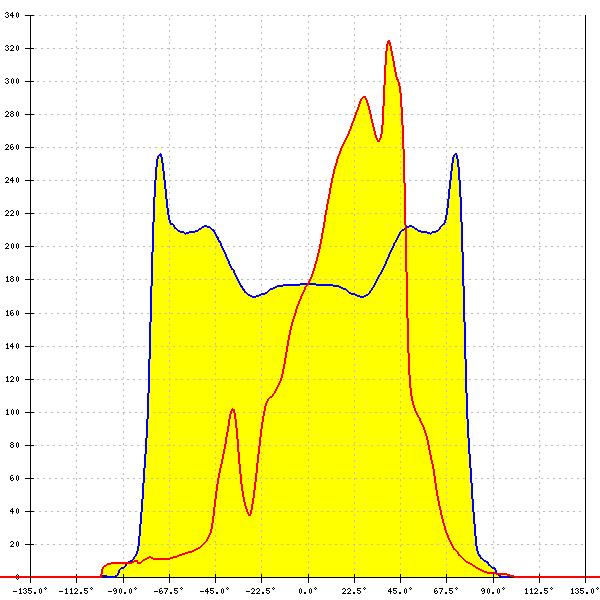

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.831 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3900 K/ 2400 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

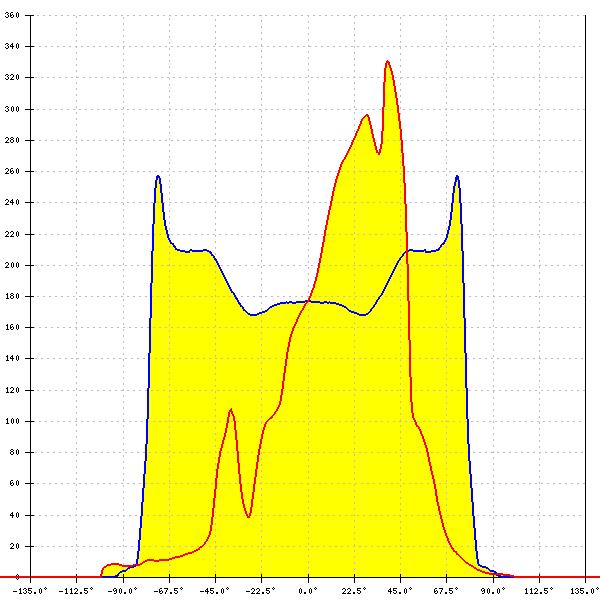

LED: LH351C
FWHM: asymmetric
Peak intensity: 0.767 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3800 K/ 2400 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

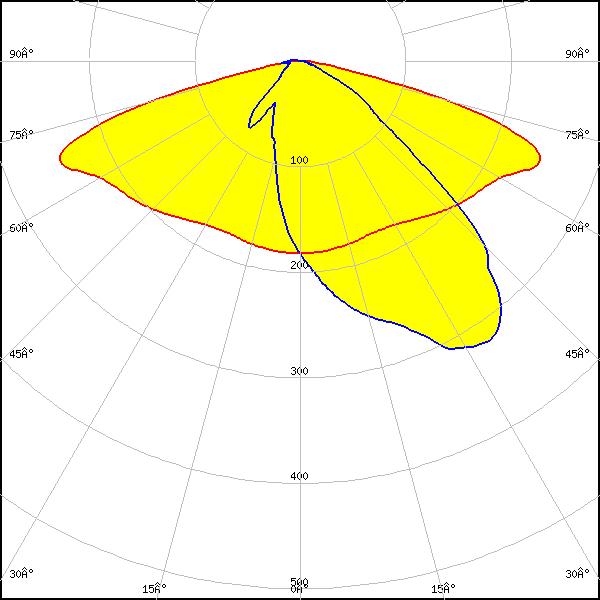

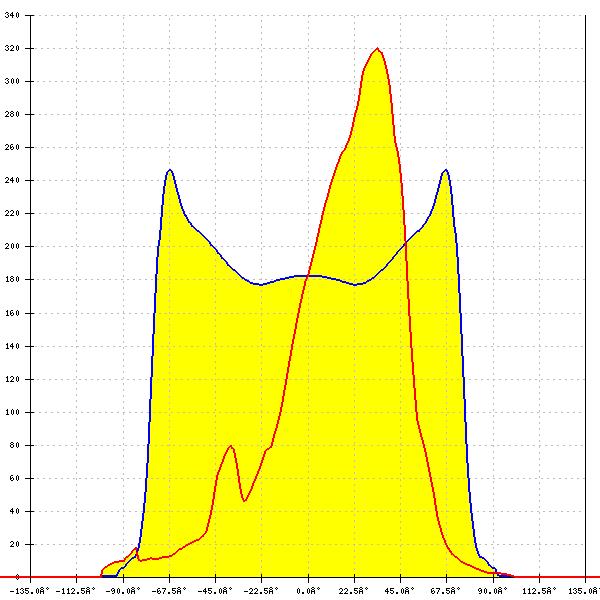

LED: LH502D
FWHM: asymmetric
Peak intensity: 0.482 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3800 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

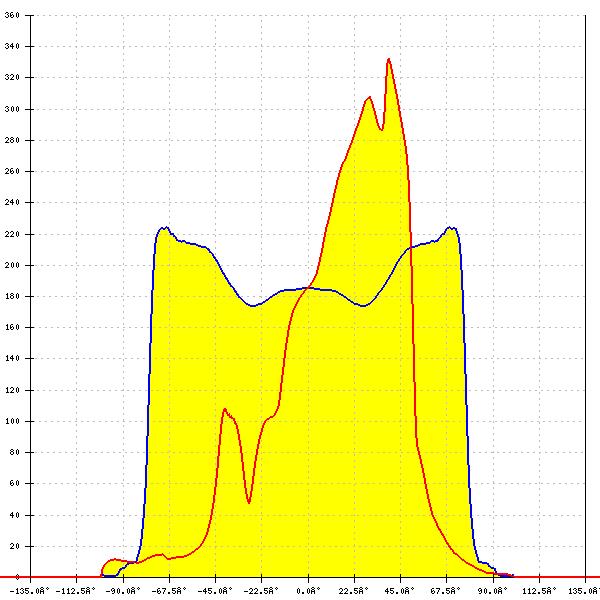

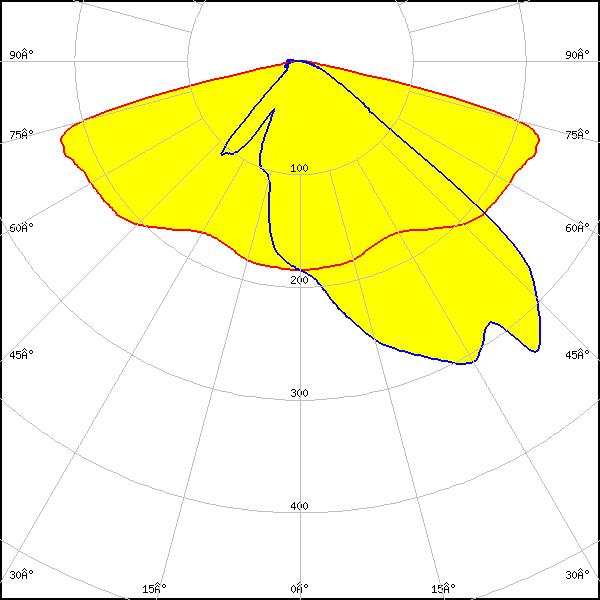

LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.629 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3600 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line
