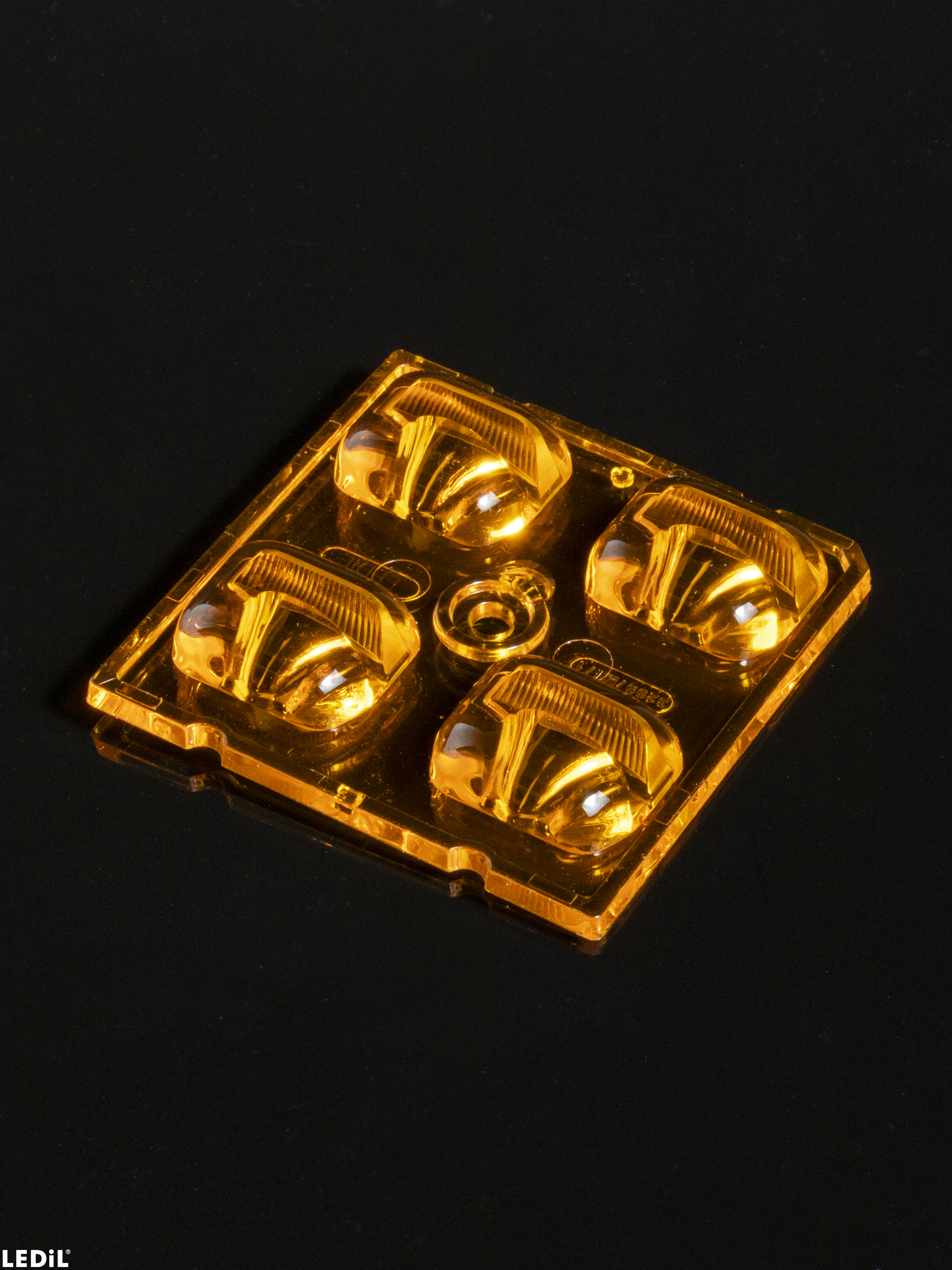

C18604_AMBER-2X2-ME

Print

Beam with excellent longitudinal luminance uniformity fulfilling EN13201 M-class requirements where road width is equal to or less the pole height.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    7.10 mm
  • Fastening:
    glue, pin, screw
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    7.9 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.8 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C18604_AMBER-2X2-ME

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

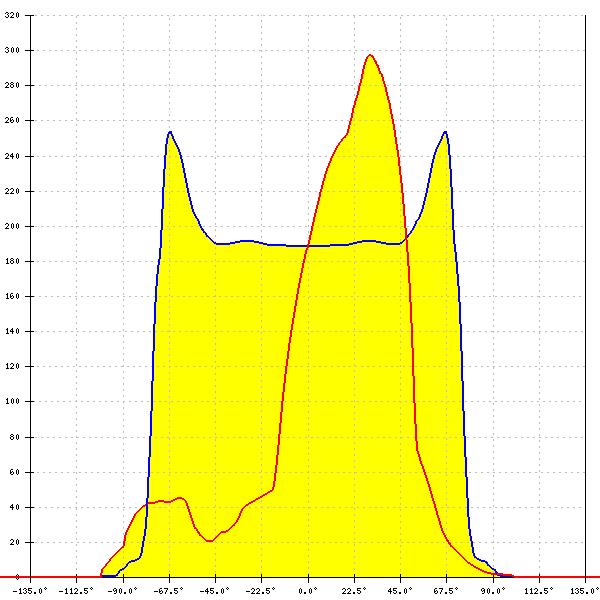

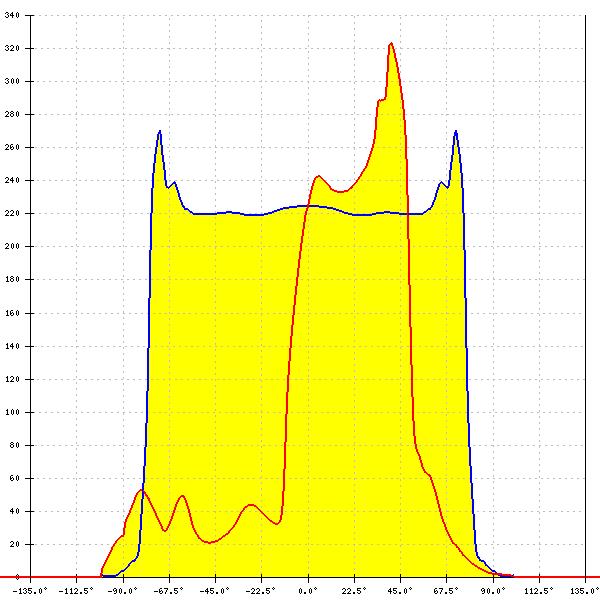

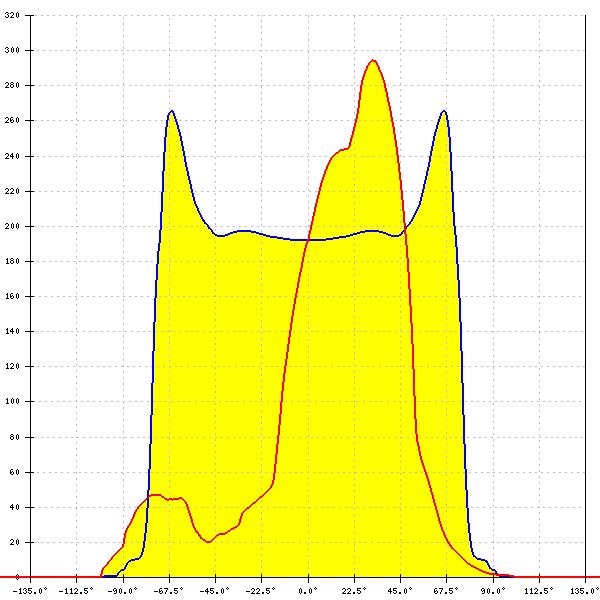

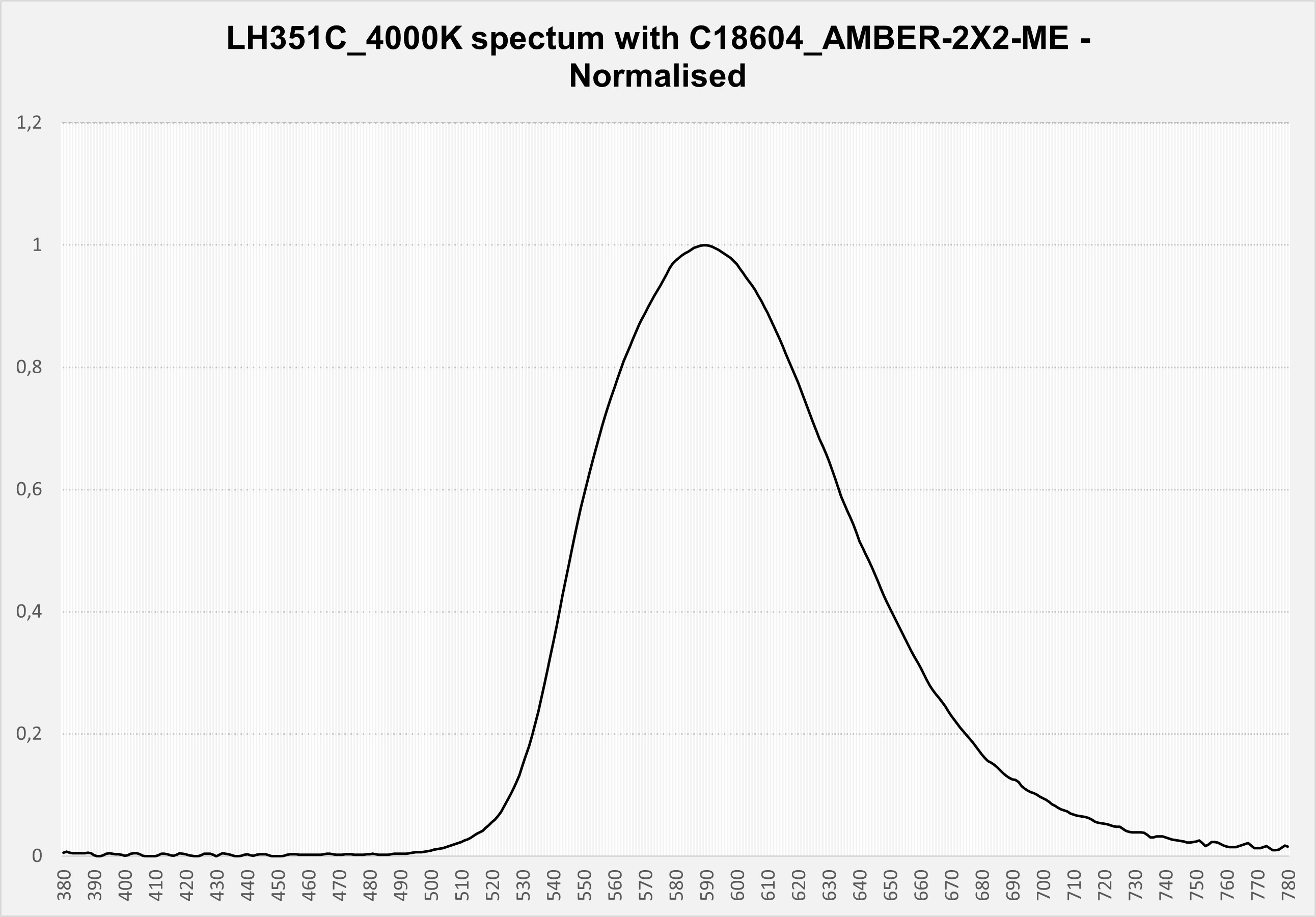

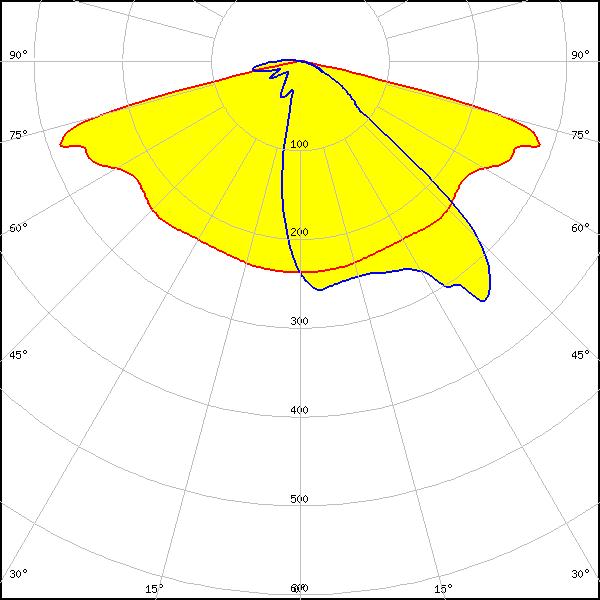

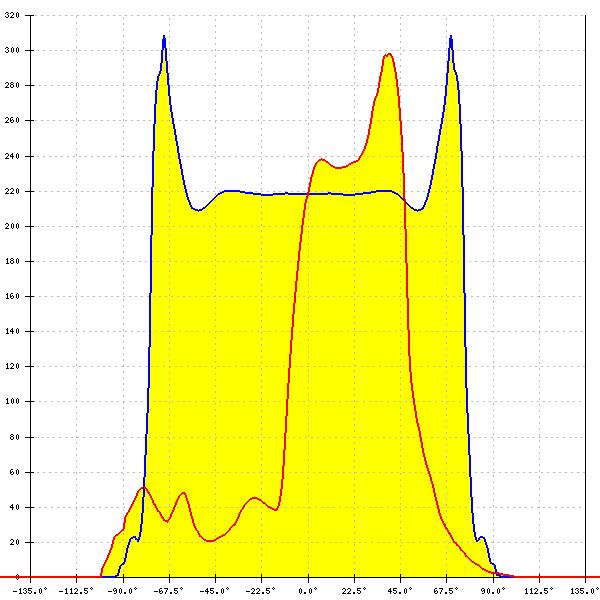

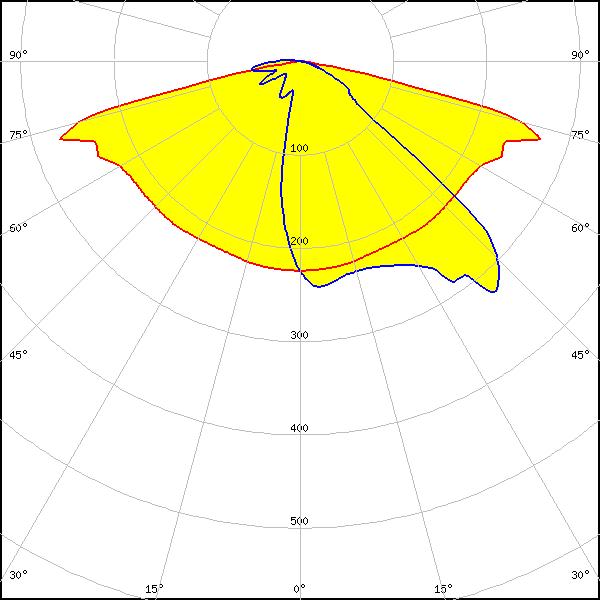

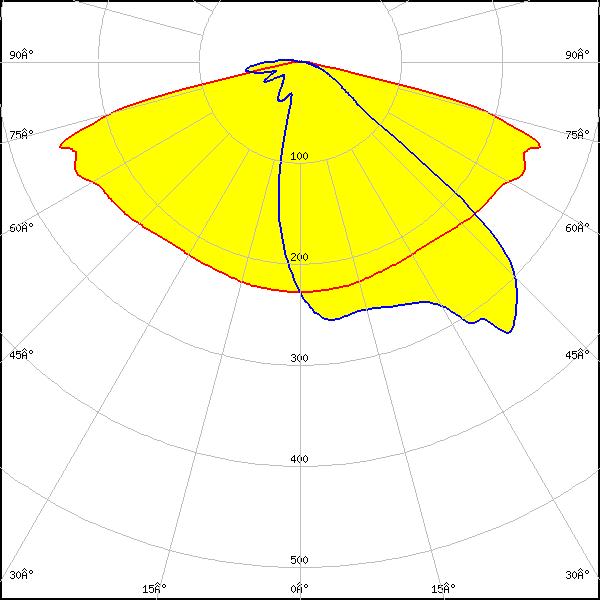

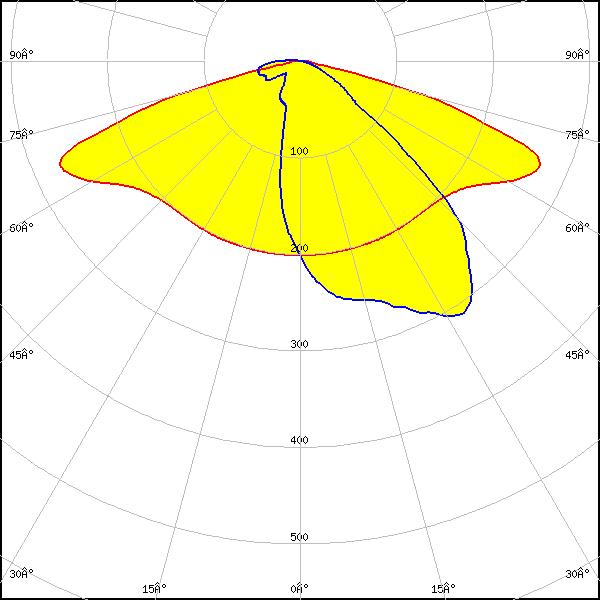

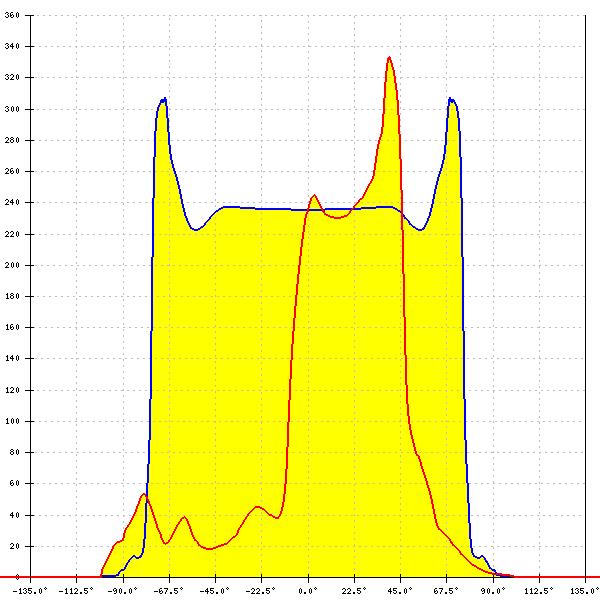

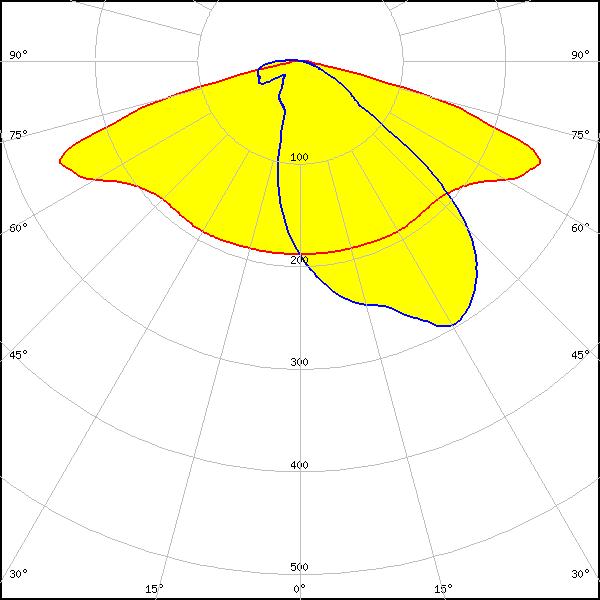

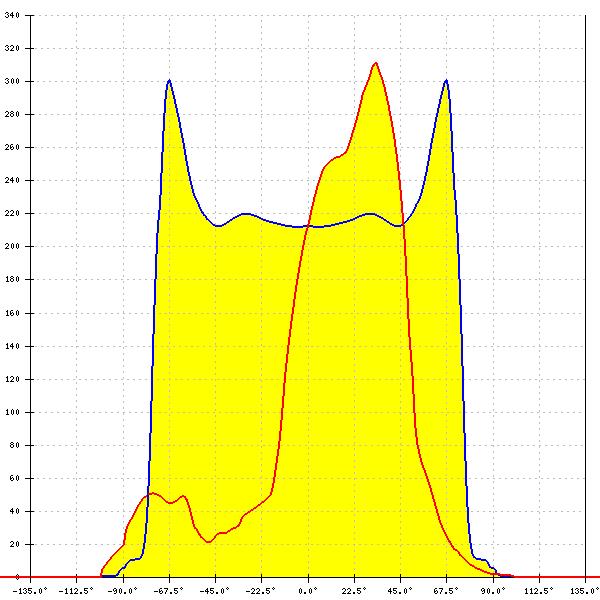

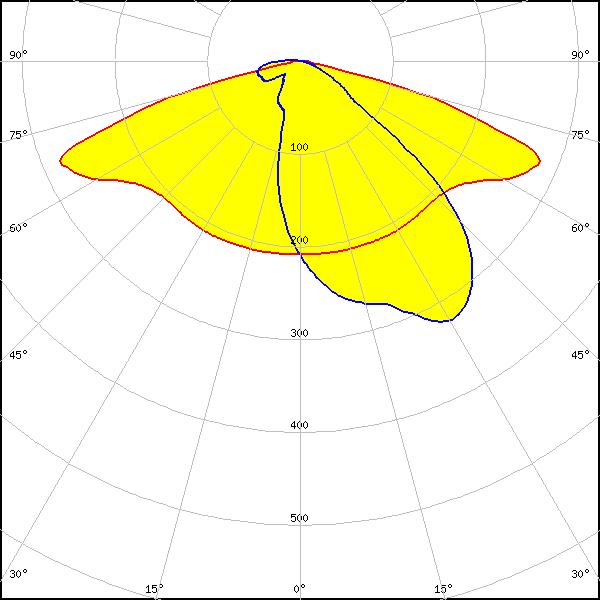

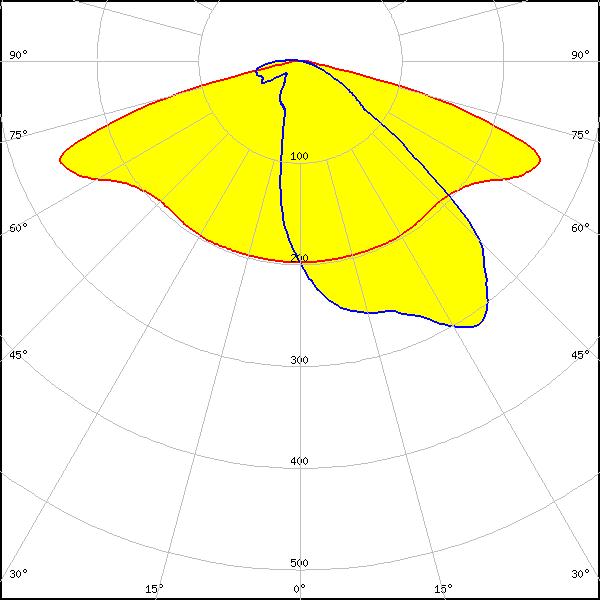

Optical results

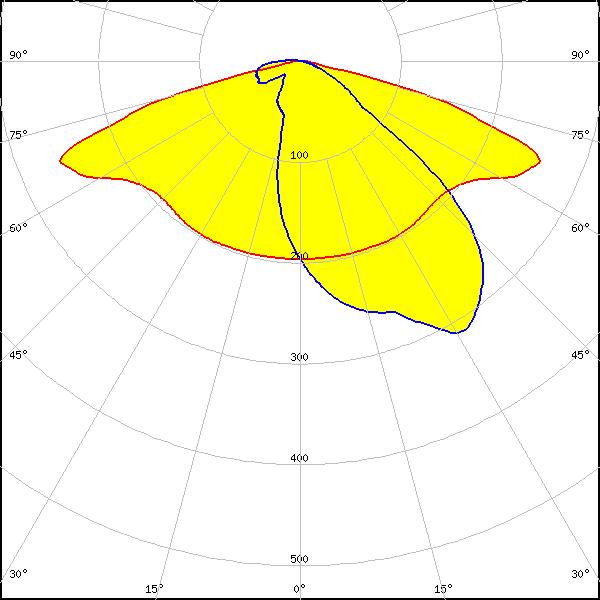

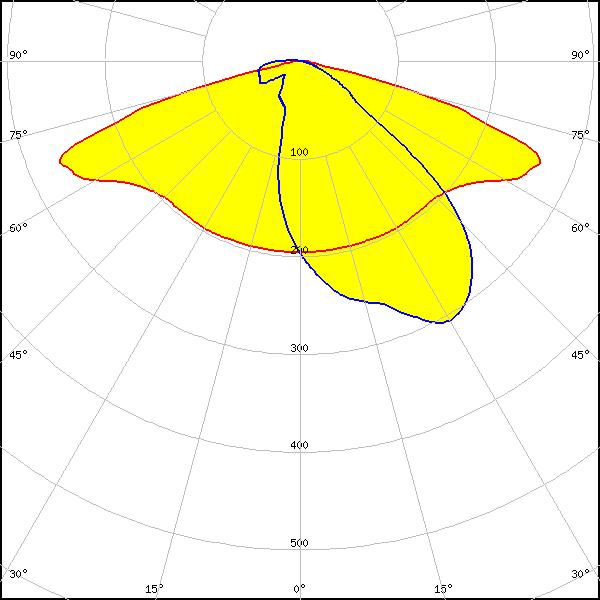

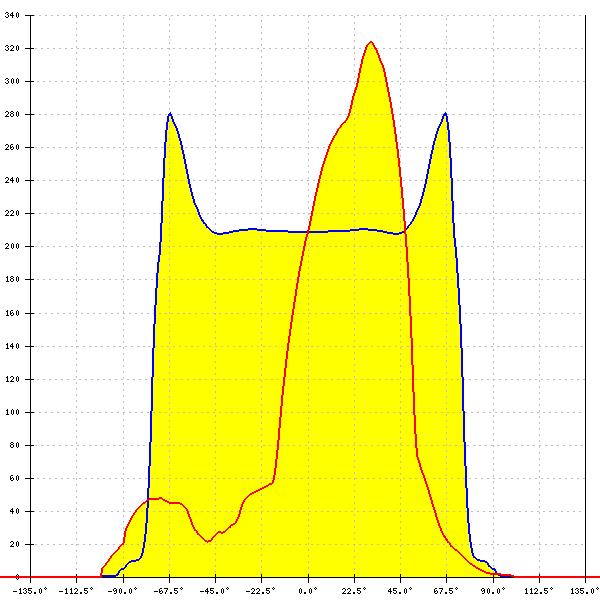

LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 0.457 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 0.434 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 0.478 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 0.444 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3800 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 0.490 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity: 0.478 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity: 0.430 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity: 0.516 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

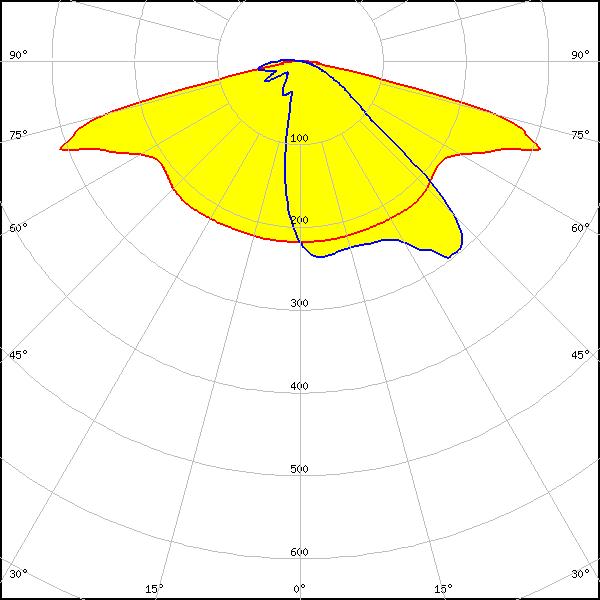

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.675 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3900 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

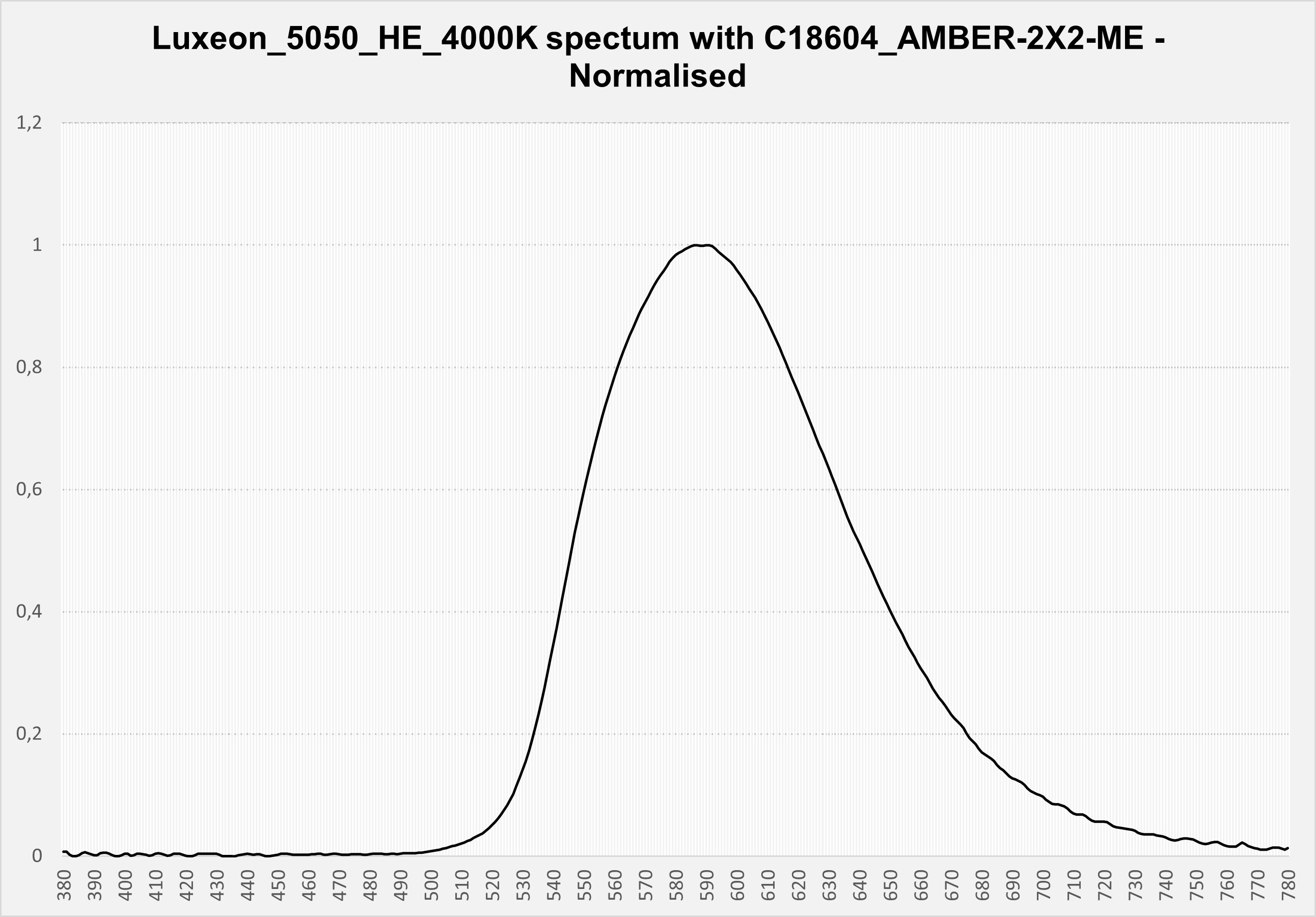

LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.478 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3900 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

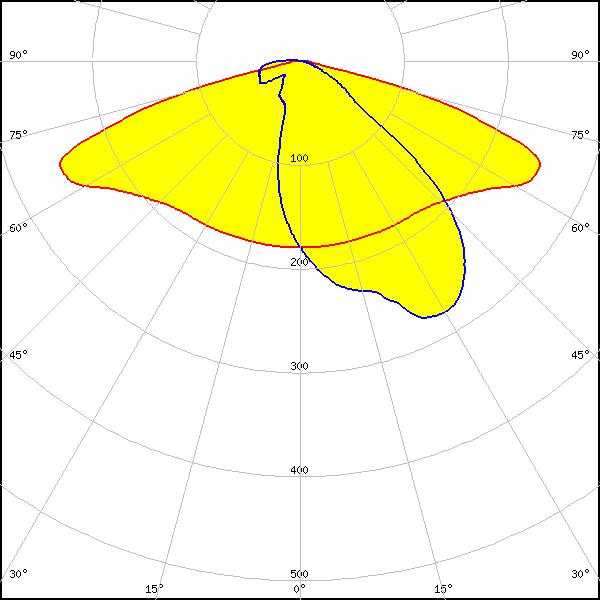

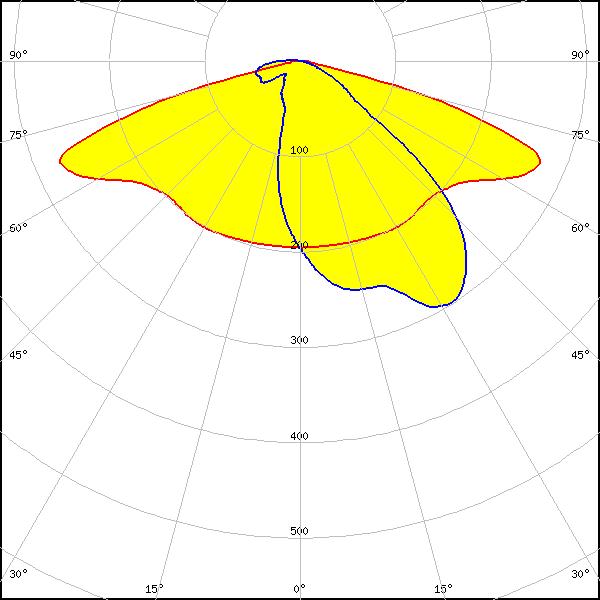

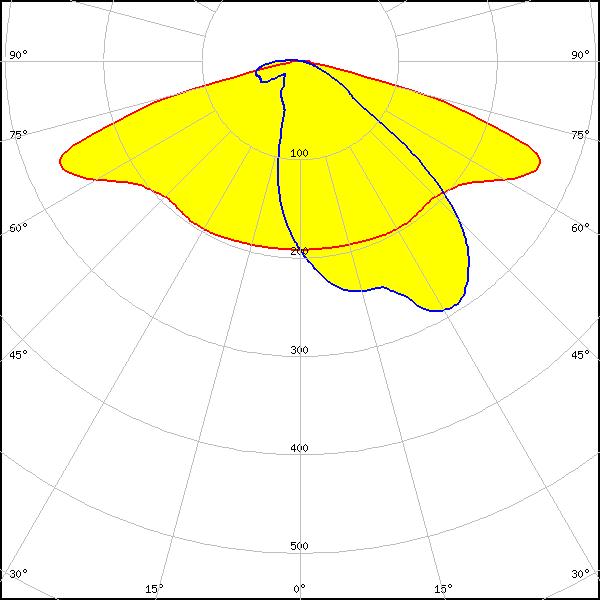

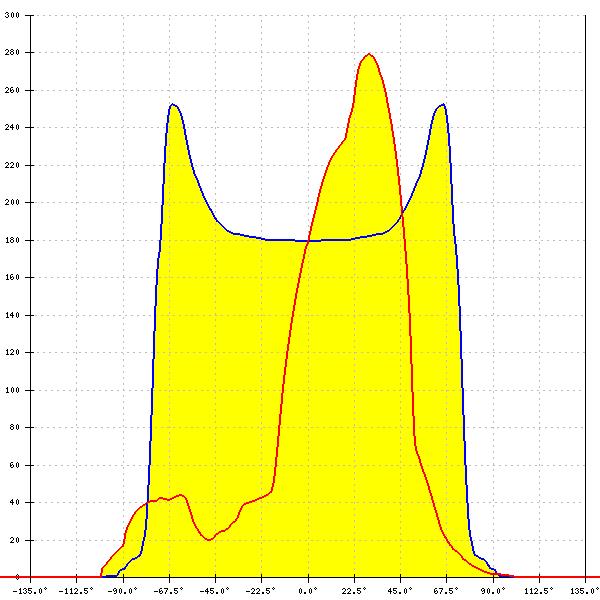

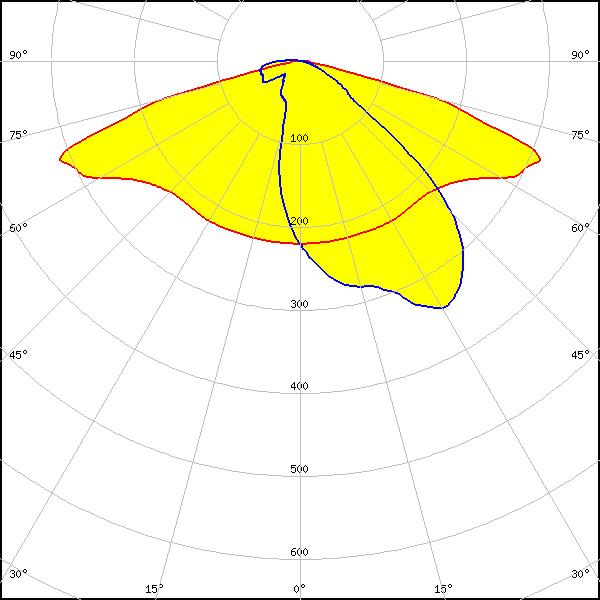

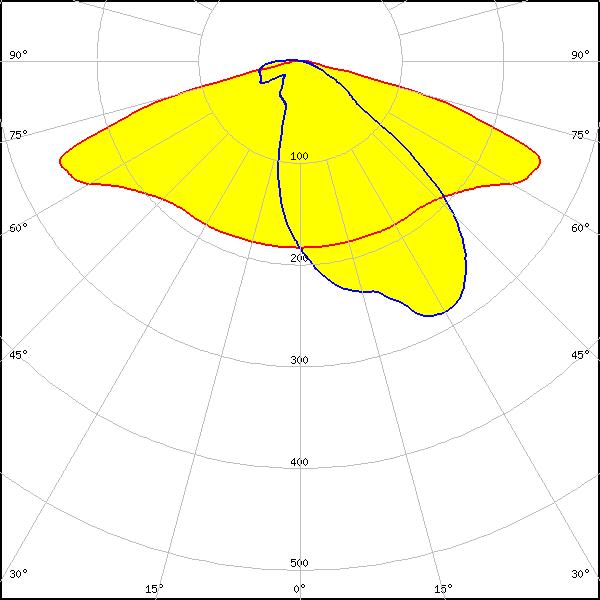

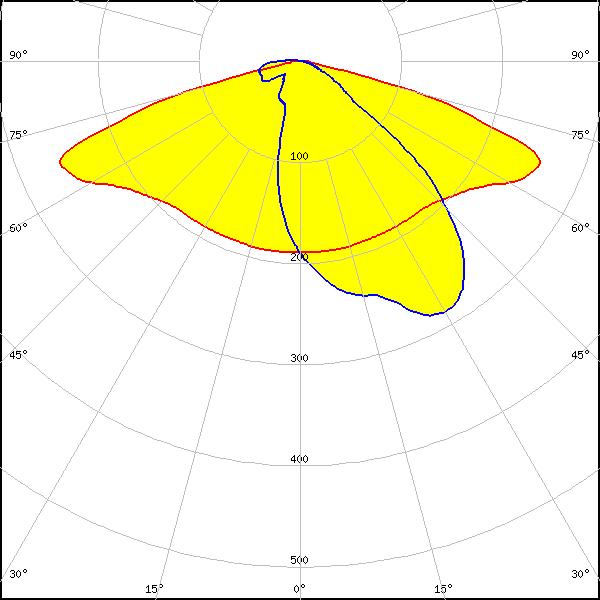

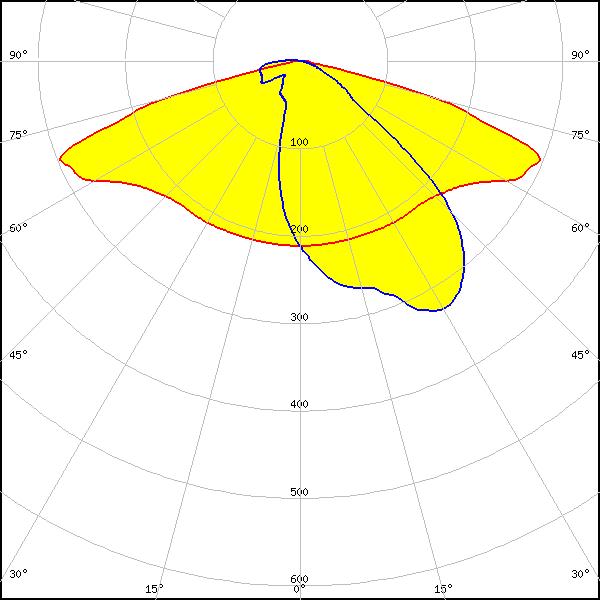

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.415 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White

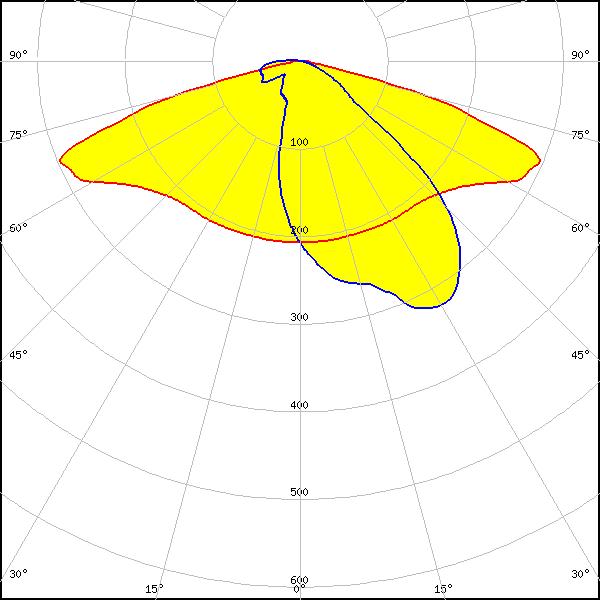

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.444 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.418 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.417 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.522 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.435 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.485 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.476 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.494 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

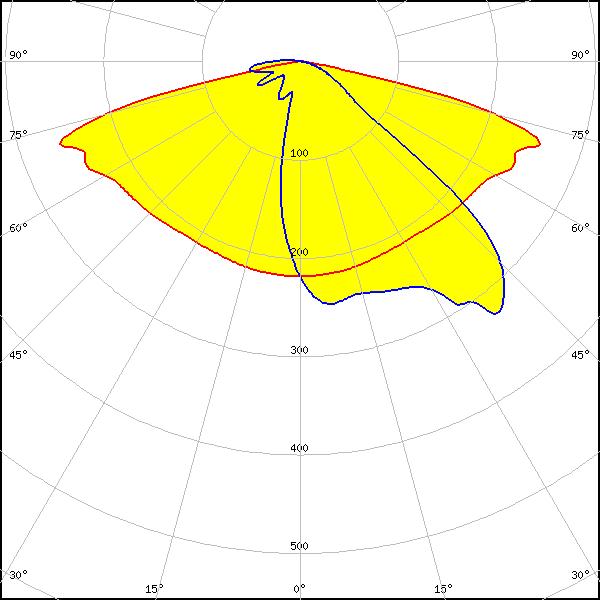

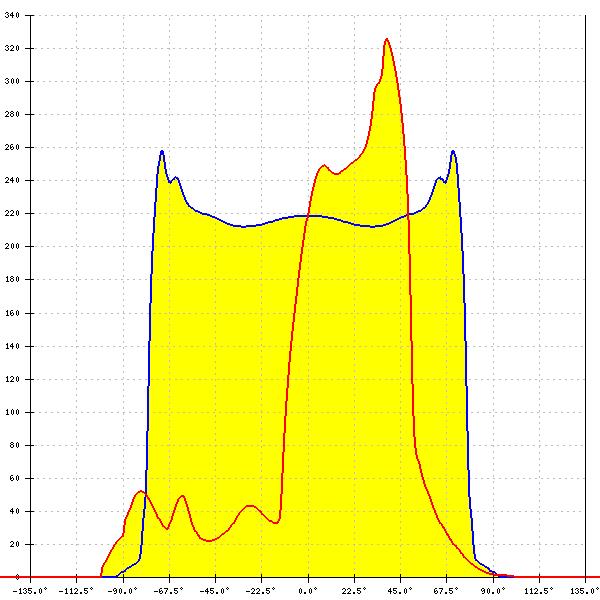

LED: LUXEON HL2X-D
FWHM: asymmetric
Peak intensity: 0.570 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

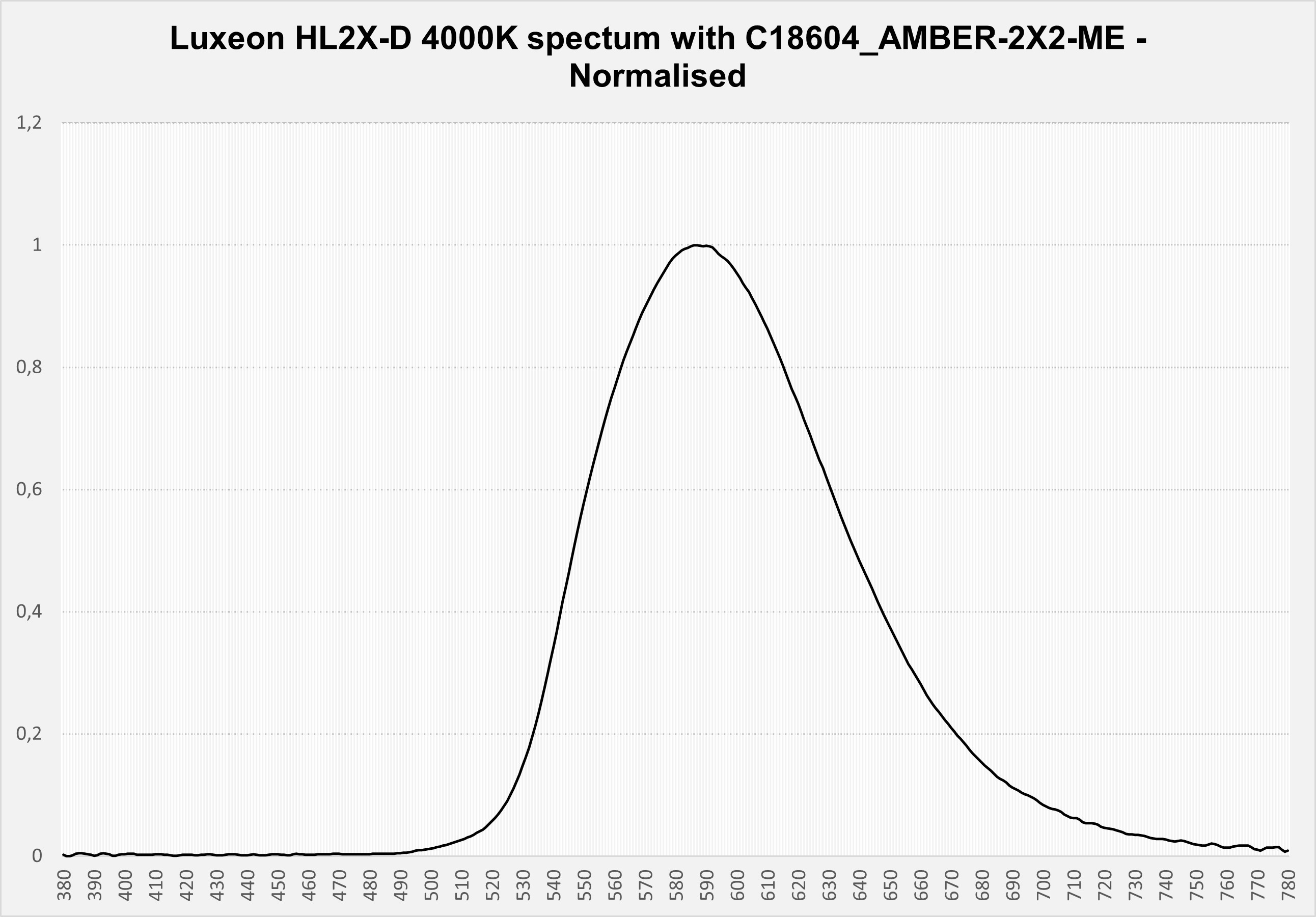

Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 4000 K/ 2400 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.699 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

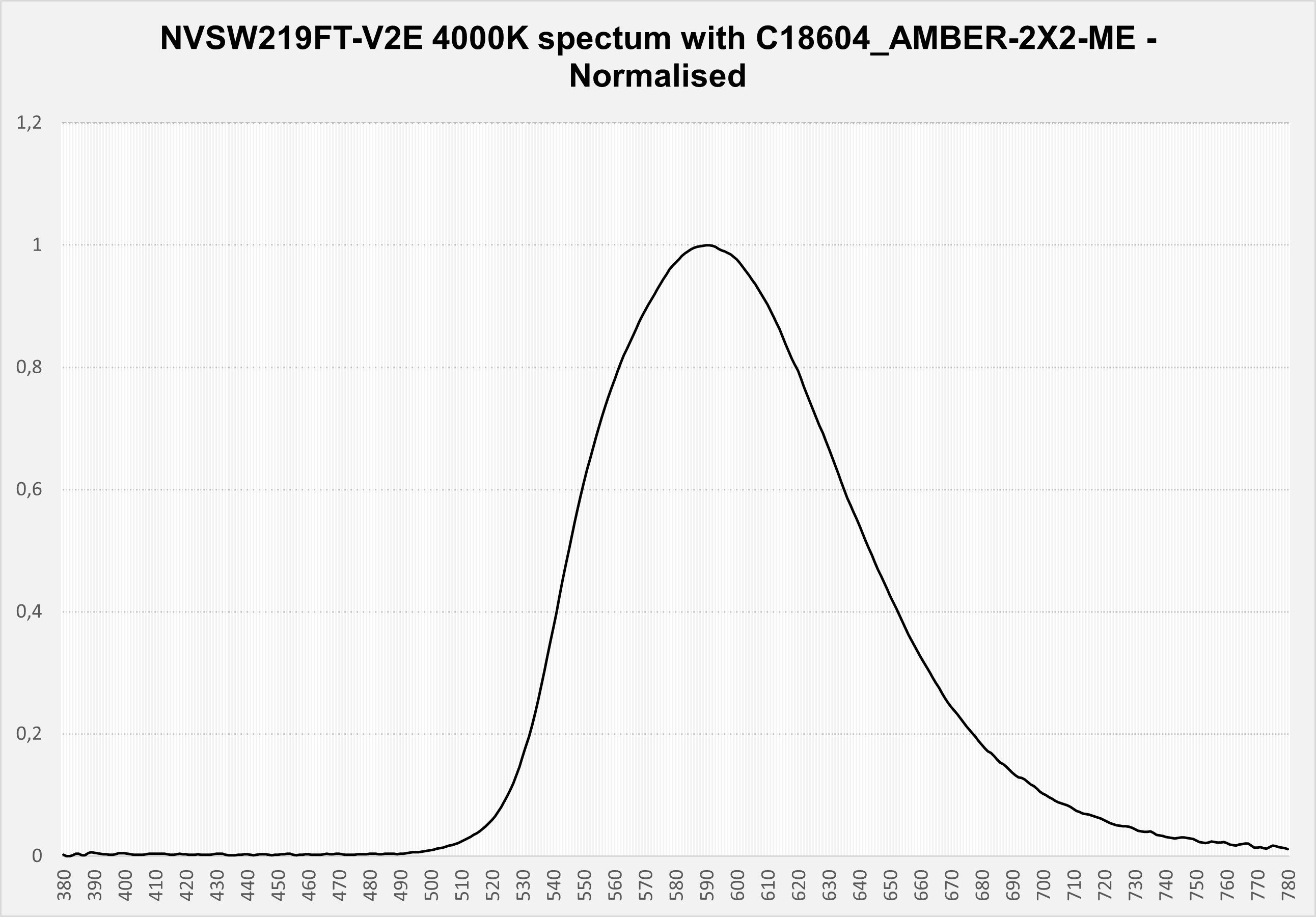

Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3900 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

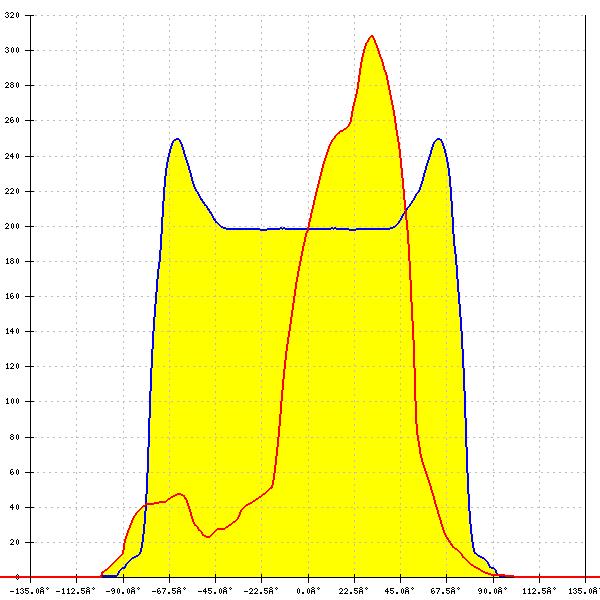

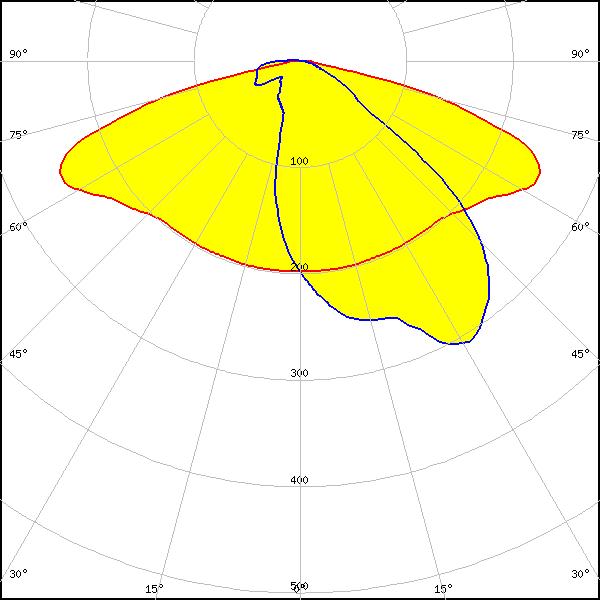

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.416 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

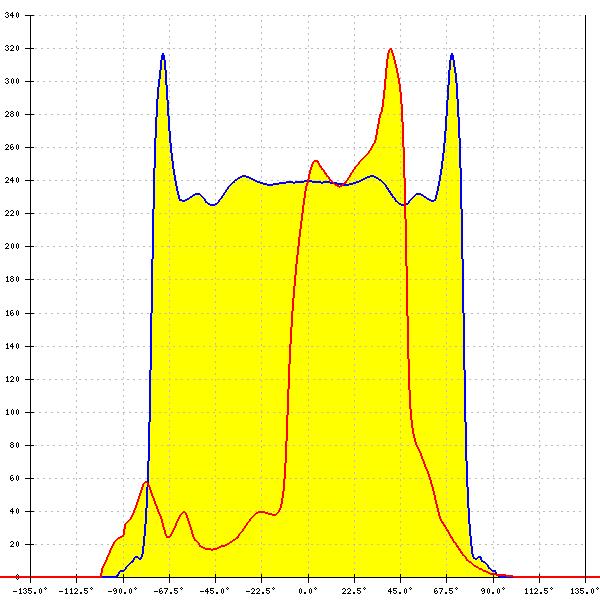

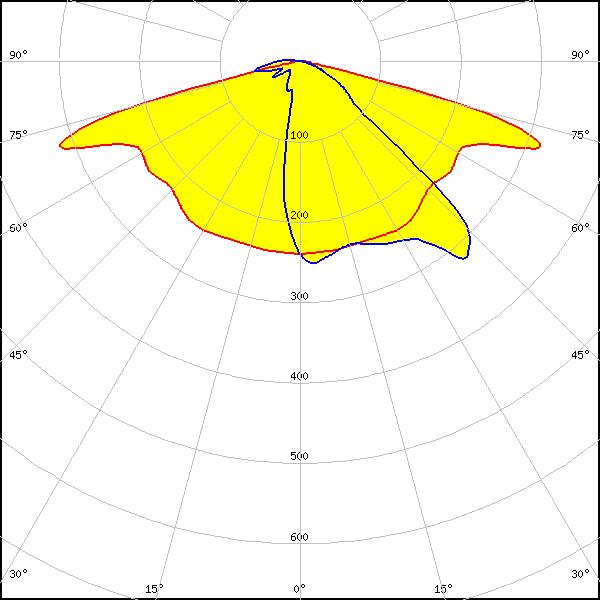

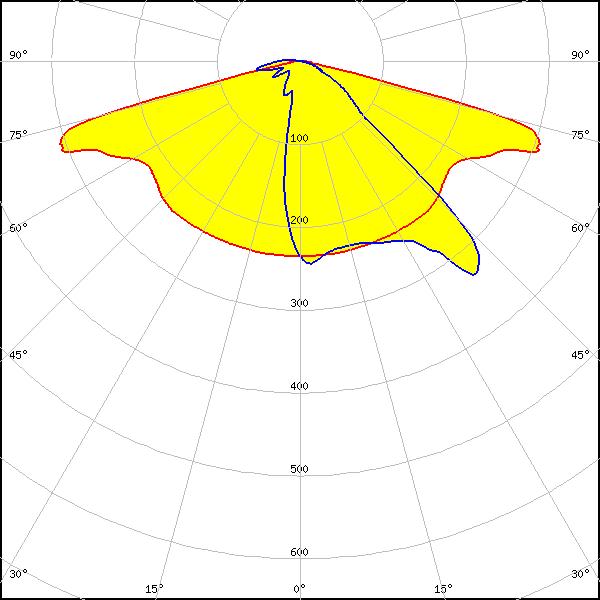

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.801 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.750 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

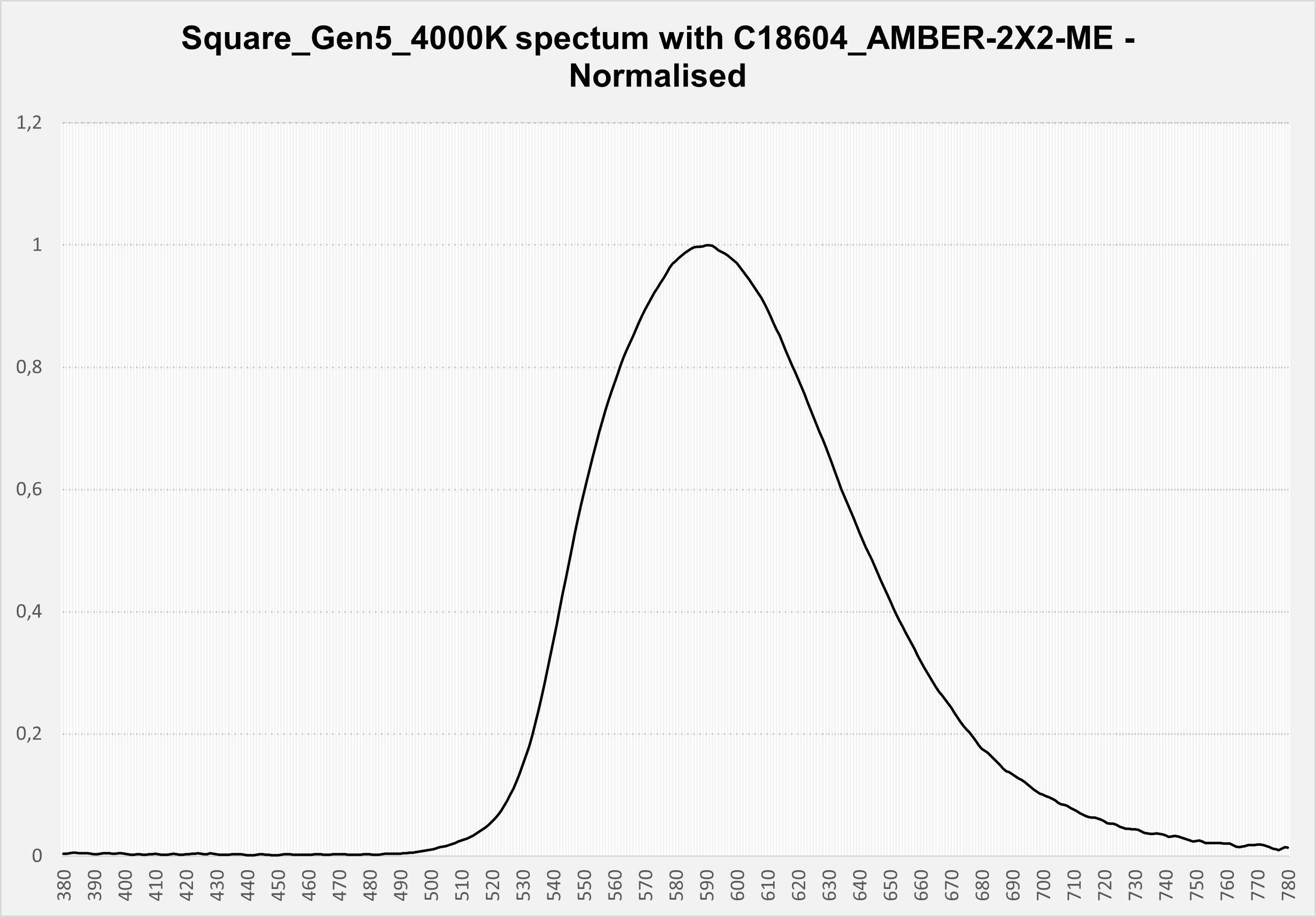

Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3900 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

LED: Fortimo FastFlex LED 2x8 DA G4+
FWHM: asymmetric
Peak intensity: 0.598 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G5
FWHM: asymmetric
Peak intensity: 0.726 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

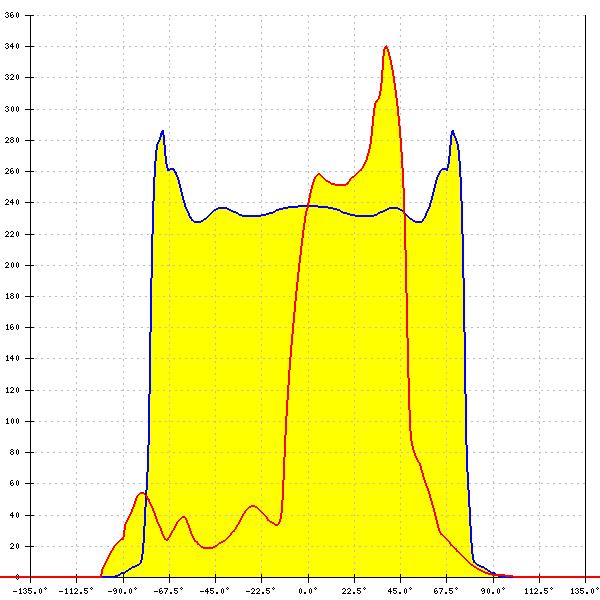

LED: LH351C
FWHM: asymmetric
Peak intensity: 0.691 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3800 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

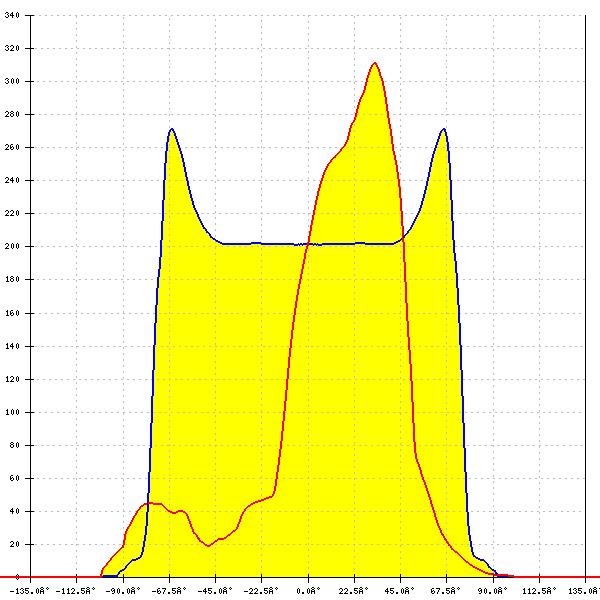

LED: LH502D
FWHM: asymmetric
Peak intensity: 0.466 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

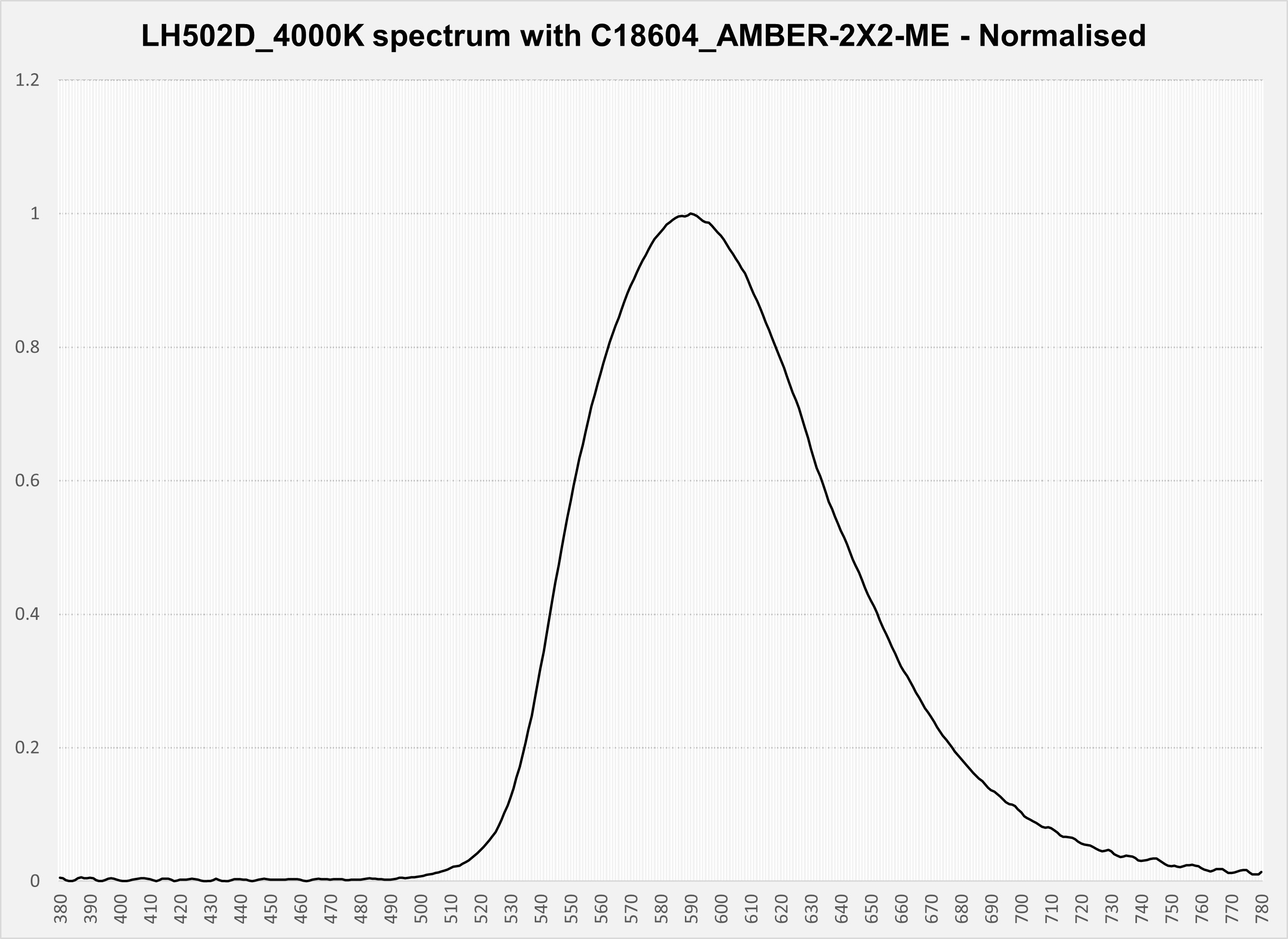

Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3800 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

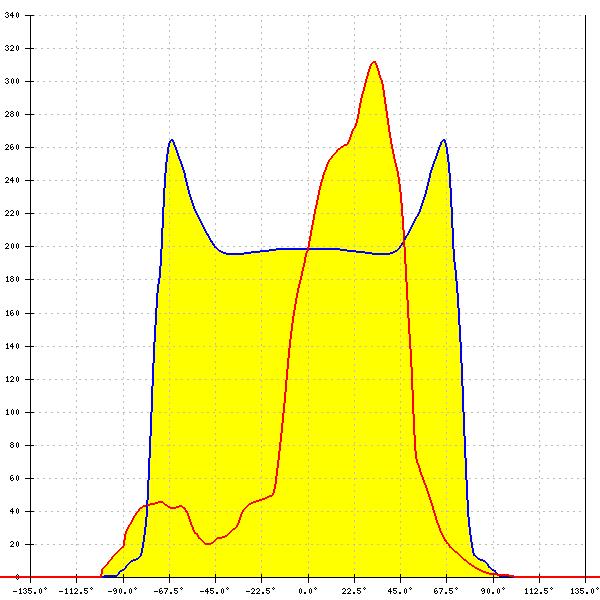

LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.443 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

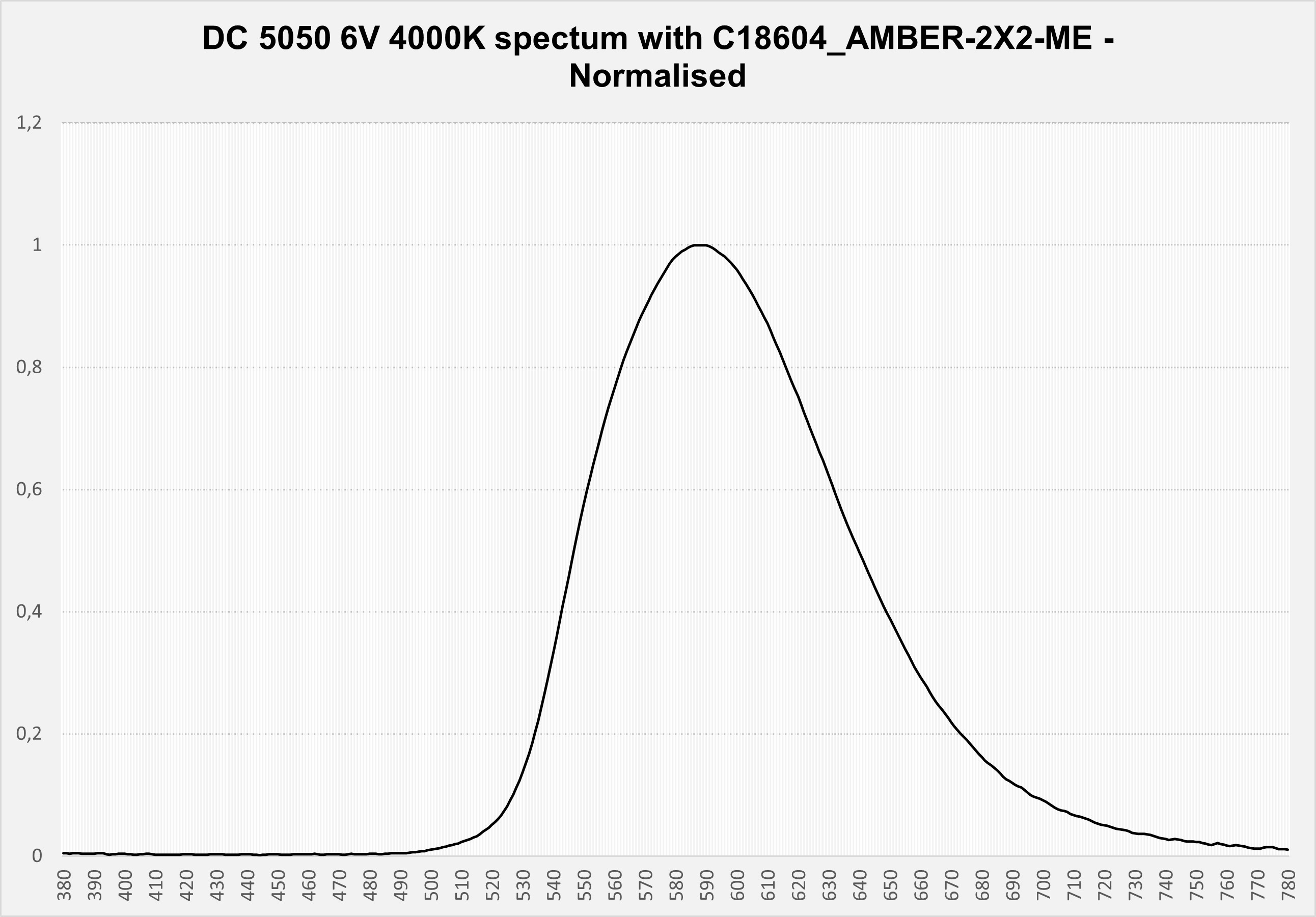

Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 4000 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

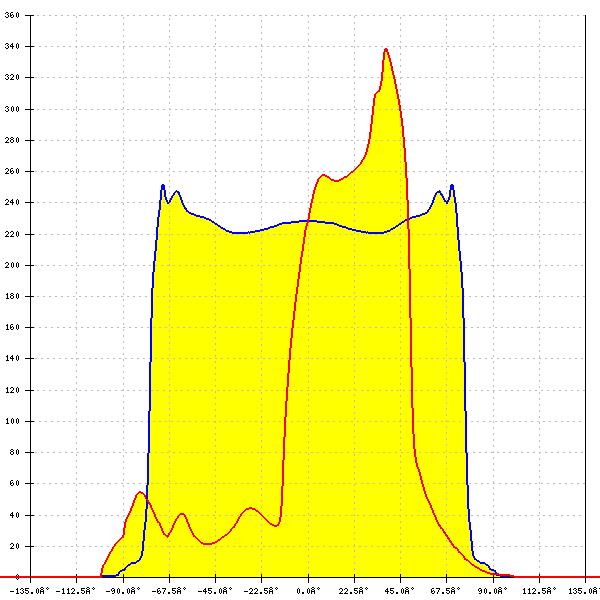

LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.569 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3600 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line
