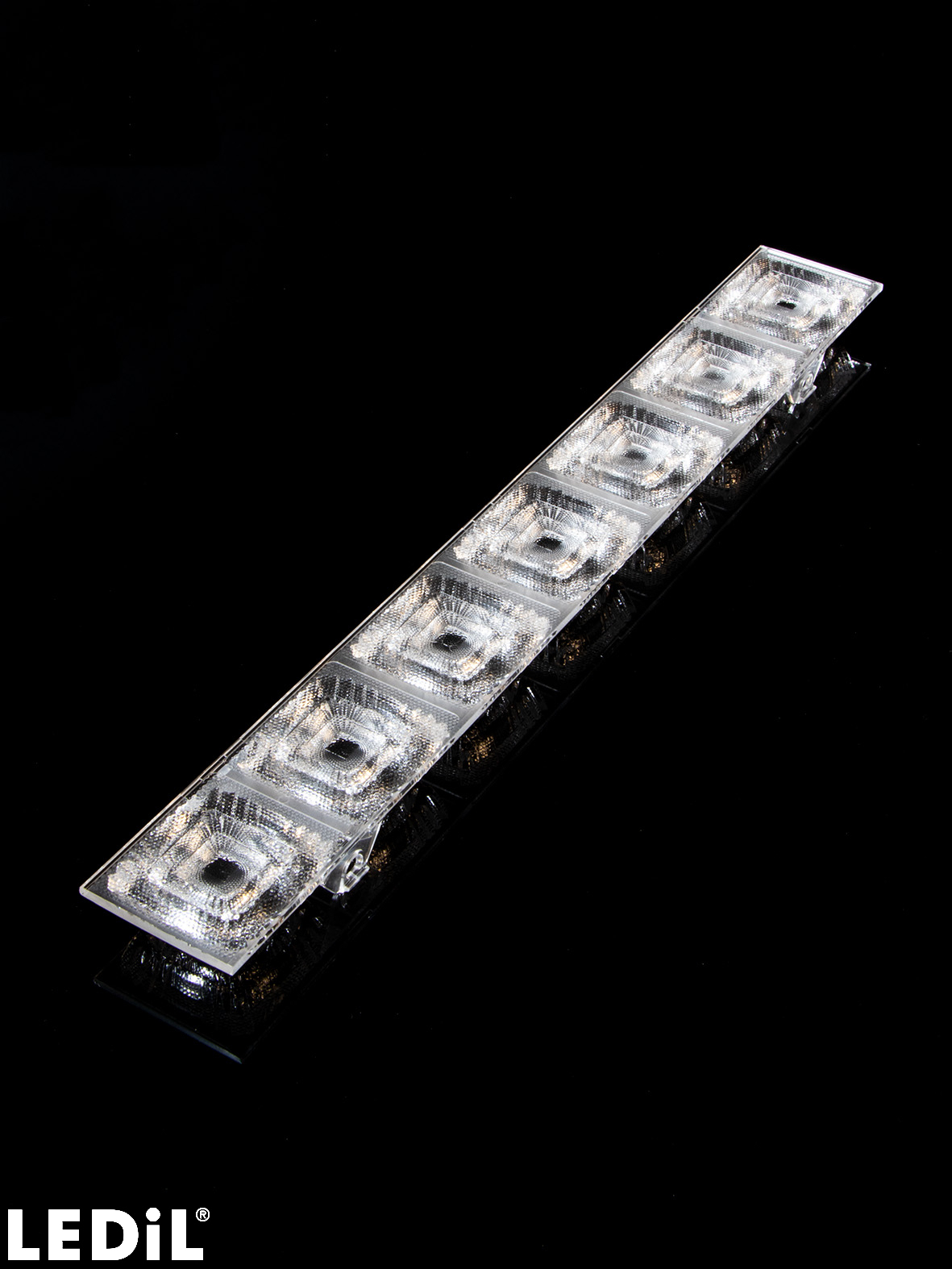

    C18328_BRIANNA-7X1-WW

    Print

    ~75° wide beam. Variant with 7X1 lens.

    Specification
    • Dimensions:
      280 x  36 mm
    • Height:
      13.40 mm
    • Fastening:
      snaps, clips
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      80 pcs
    • Box size:
      595 x 260 x 205 mm
    • Box weight:
      5.4 kg
    • MPQ:
      80 pcs
    • MOQ:
      80 pcs
    • MOQ size:
      595 x 260 x 205 mm
    • MOQ weight:
      5.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C18328_BRIANNA-7X1-WW
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New beams and products - August 2024, part 2

    Application example

    Office lighting with BRIANNA-28X1-WW and LINDA-UP

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    New products – June, 2023

    Catalogue

    LEDiL Latest products catalogue

    News

    Enjoy the lighter side of office life with BRIANNA

    Application guide

    LEDiL guide for office lighting optics

    Application area

    Office Lighting

    AVAILABLE LEDiL ACCESSORIES

    BRIANNA-CLIP-A

    Installation clip for fastening BRIANNA lenses with screws.

    BRIANNA-CLIP-B

    Installation clip for fastening BRIANNA lenses.

    BRIANNA-7X1-SHD-MATT

    Black matt shade for BRIANNA-7X1 lens

    BRIANNA-14X1-SHD-MATT

    Black matt shade for BRIANNA-14X1 lens

    BRIANNA-28X1-SHD-MATT

    Black matt shade for BRIANNA-28X1 lens

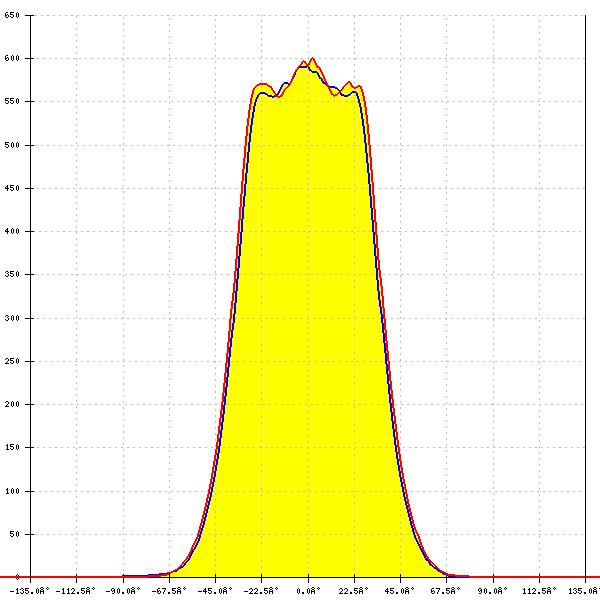

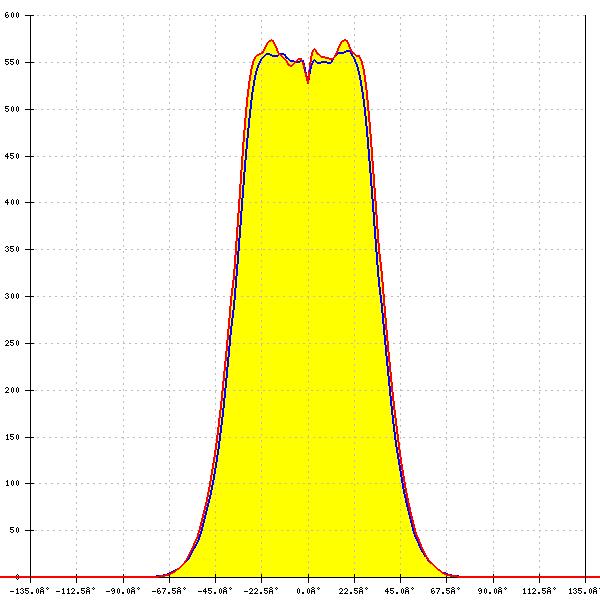

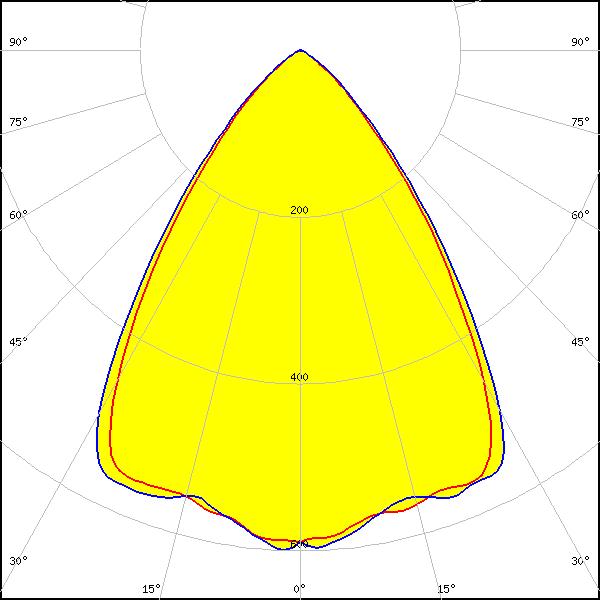

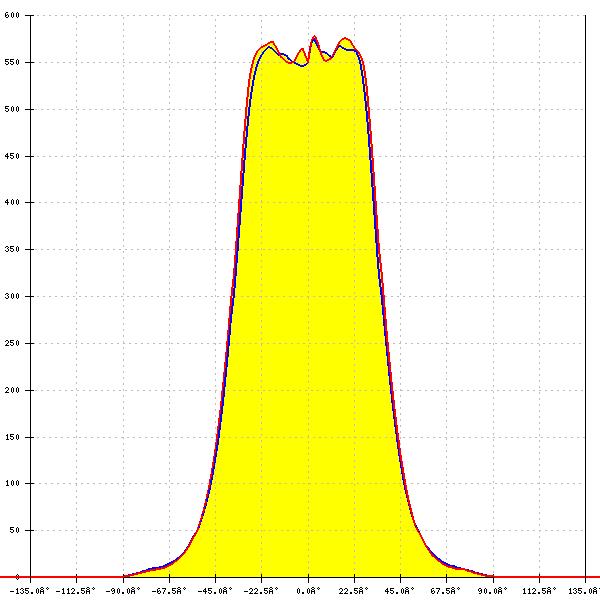

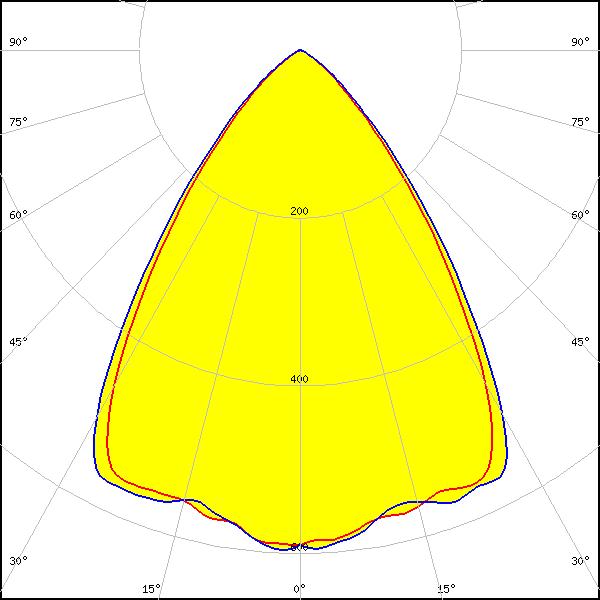

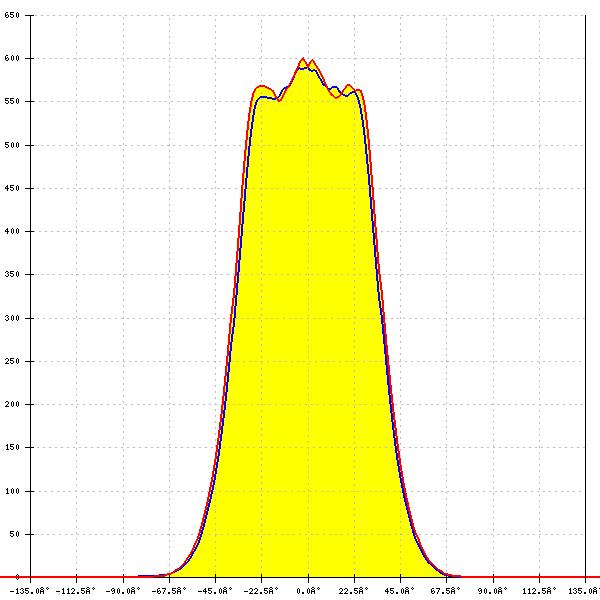

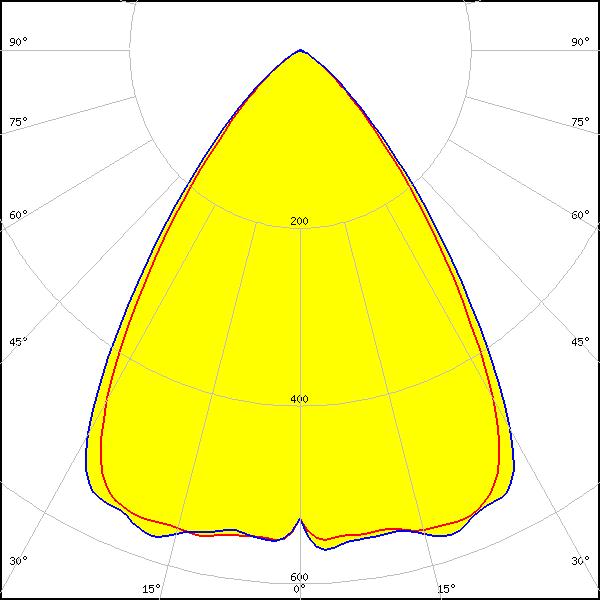

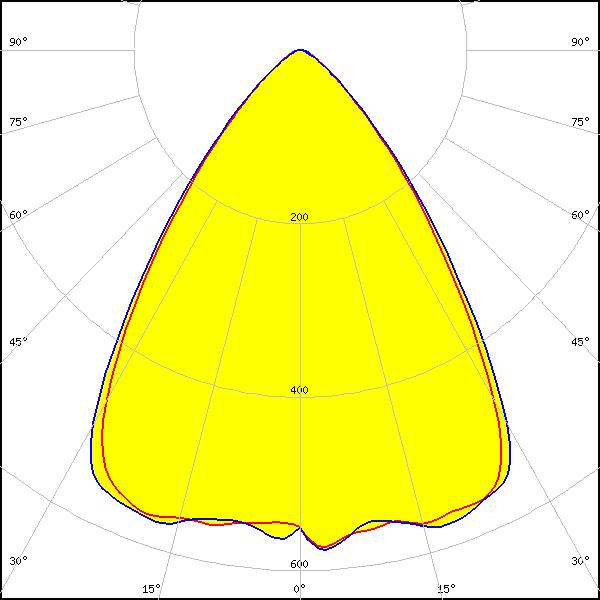

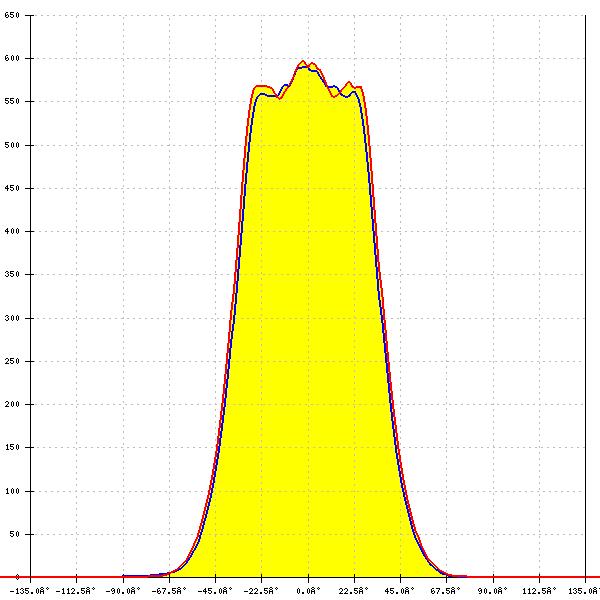

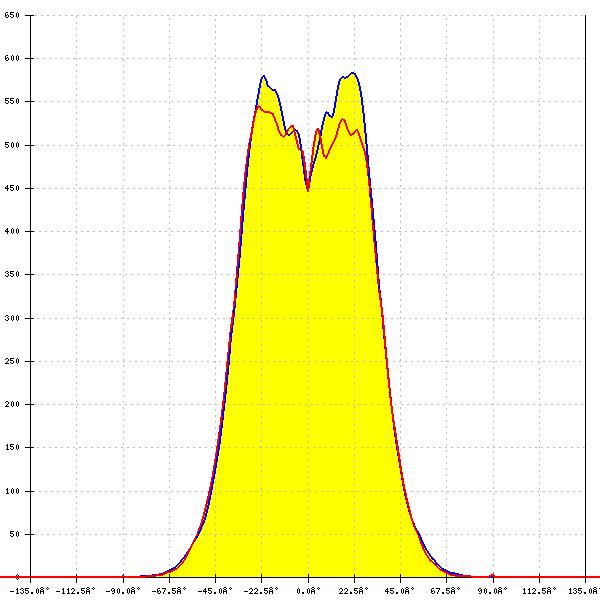

    Optical results

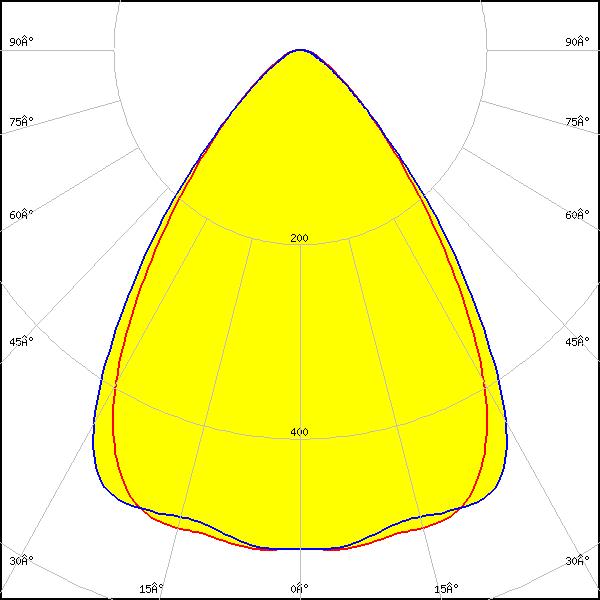

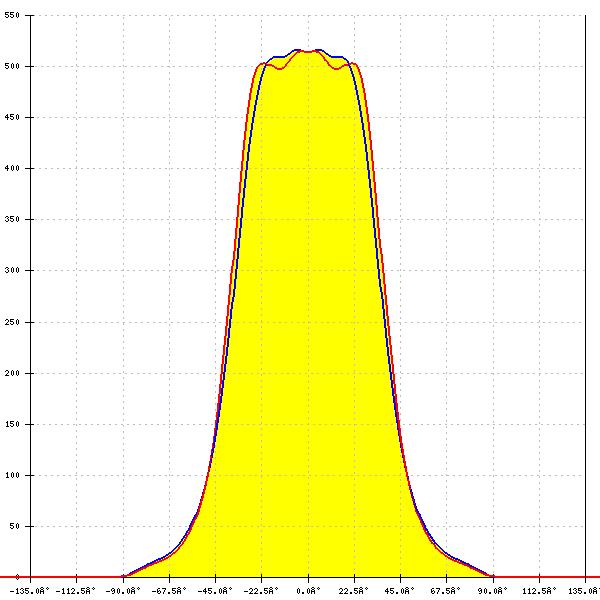

    LED: Opticus Daisy M L28W2
    Required components:
    C18497_BRIANNA-7X1-SHD-MATT
    FWHM: 75°
    FWTM: 112°
    Peak intensity: 0.562 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

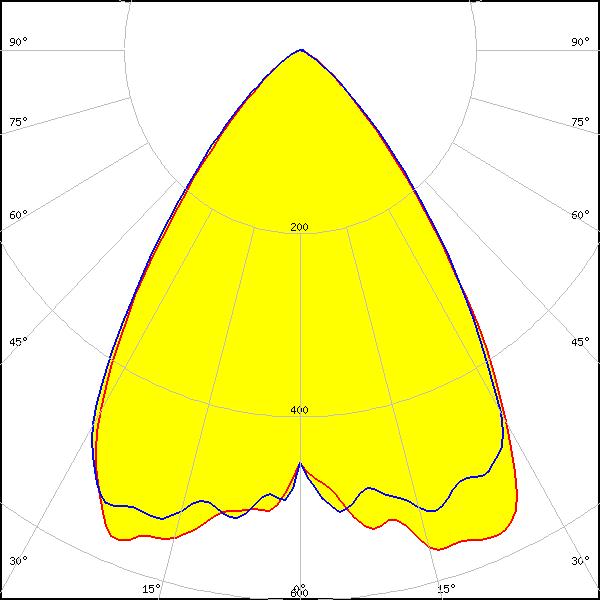

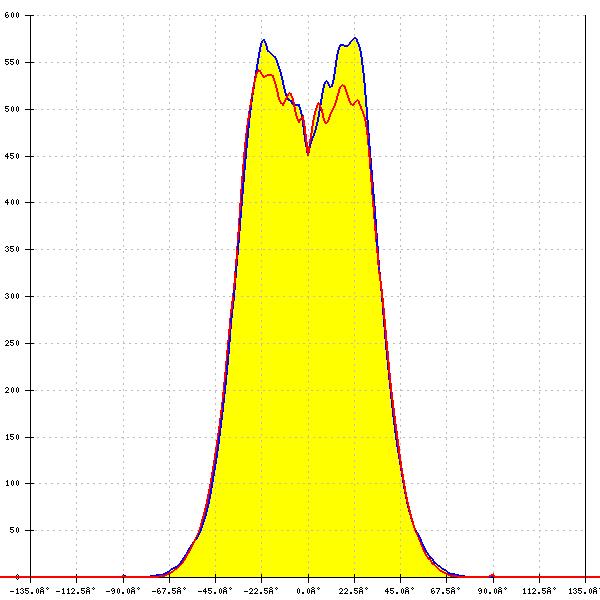

    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C18497_BRIANNA-7X1-SHD-MATT
    FWHM: 74°
    FWTM: 103°
    Peak intensity: 0.584 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 4
    Light colour/type: White

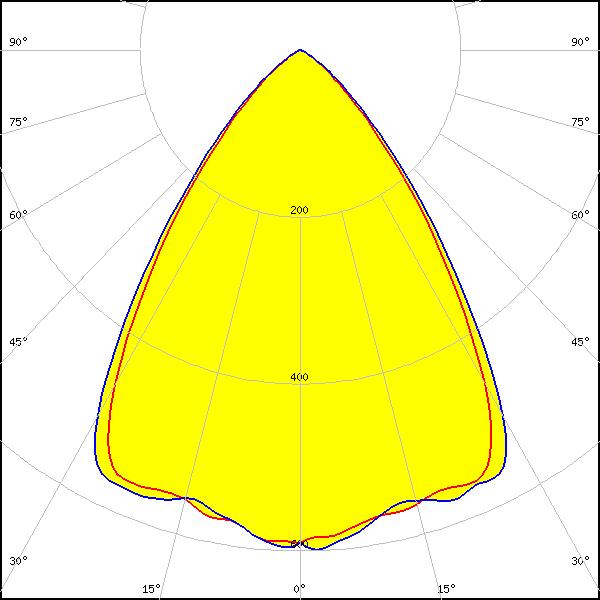

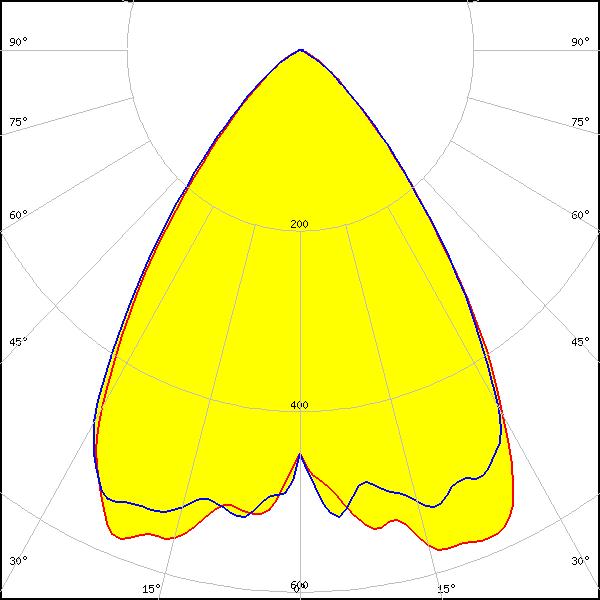

    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C19448_BRIANNA-7X1-SHD-WHT-MATT
    FWHM: 75°
    FWTM: 103°
    Peak intensity: 0.587 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 4
    Light colour/type: White

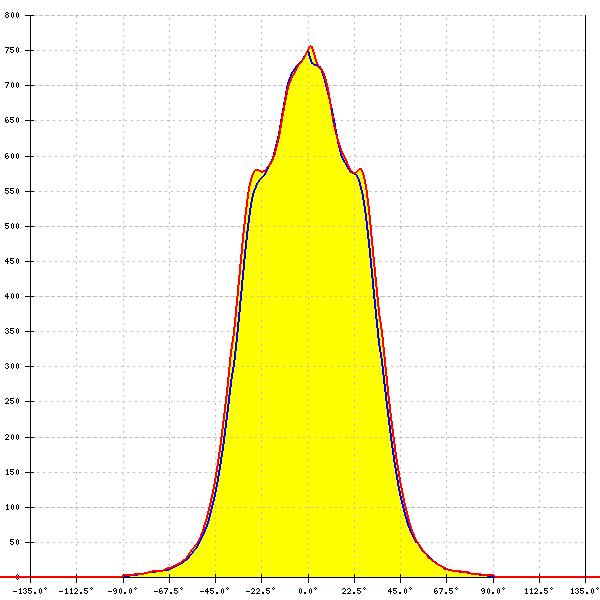

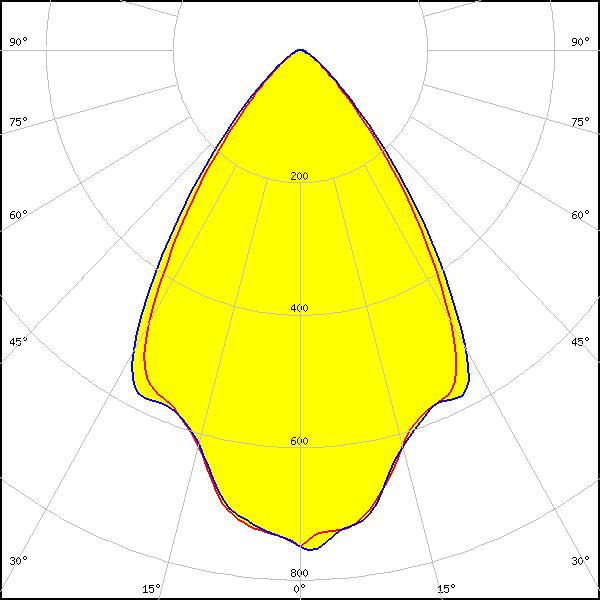

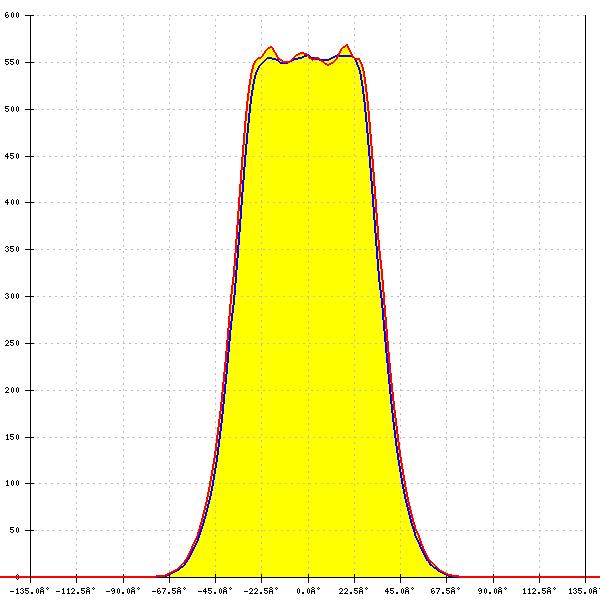

    LED: Duris E 2835
    FWHM: 69°
    FWTM: 99°
    Peak intensity: 0.760 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White
