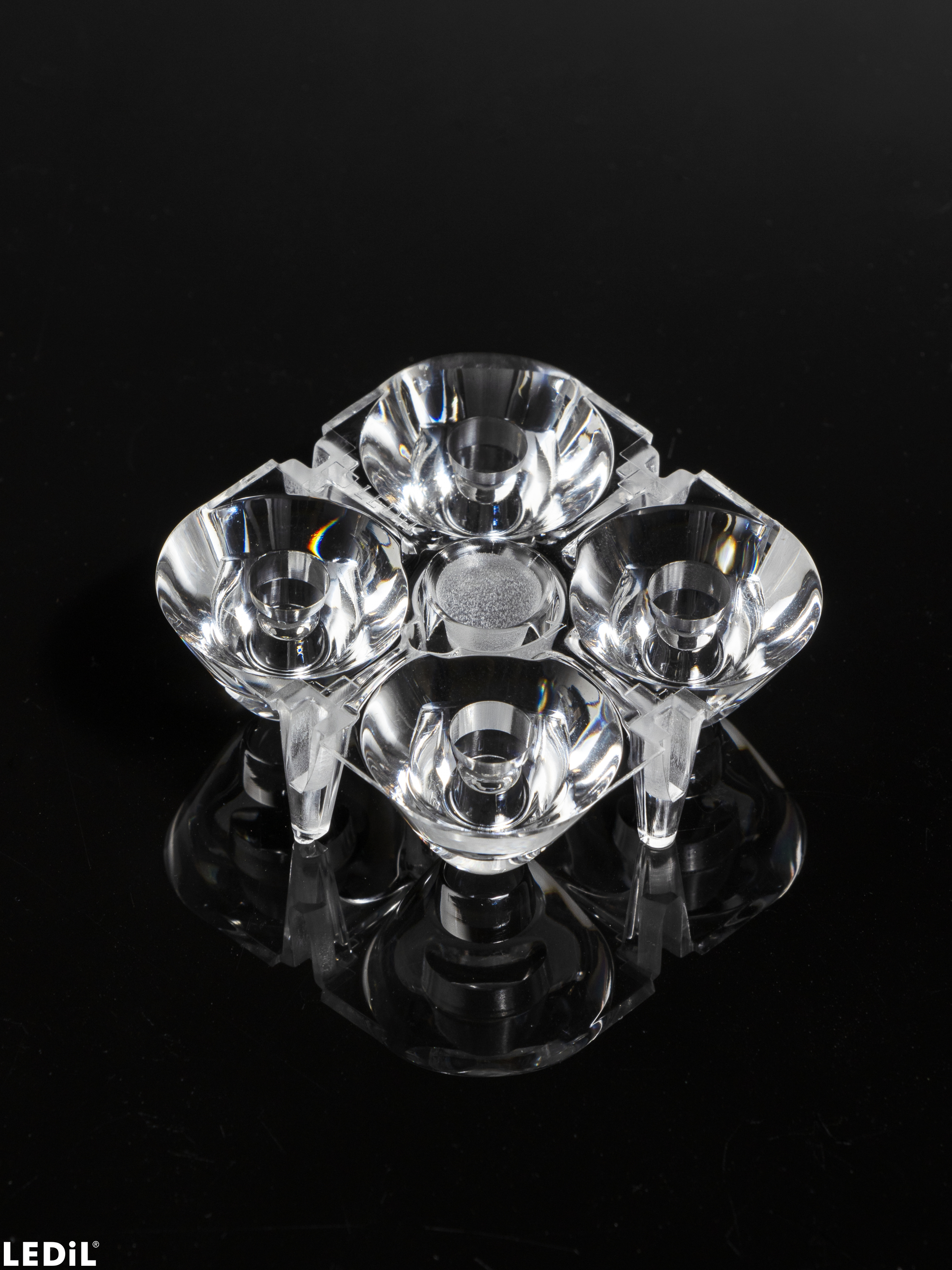

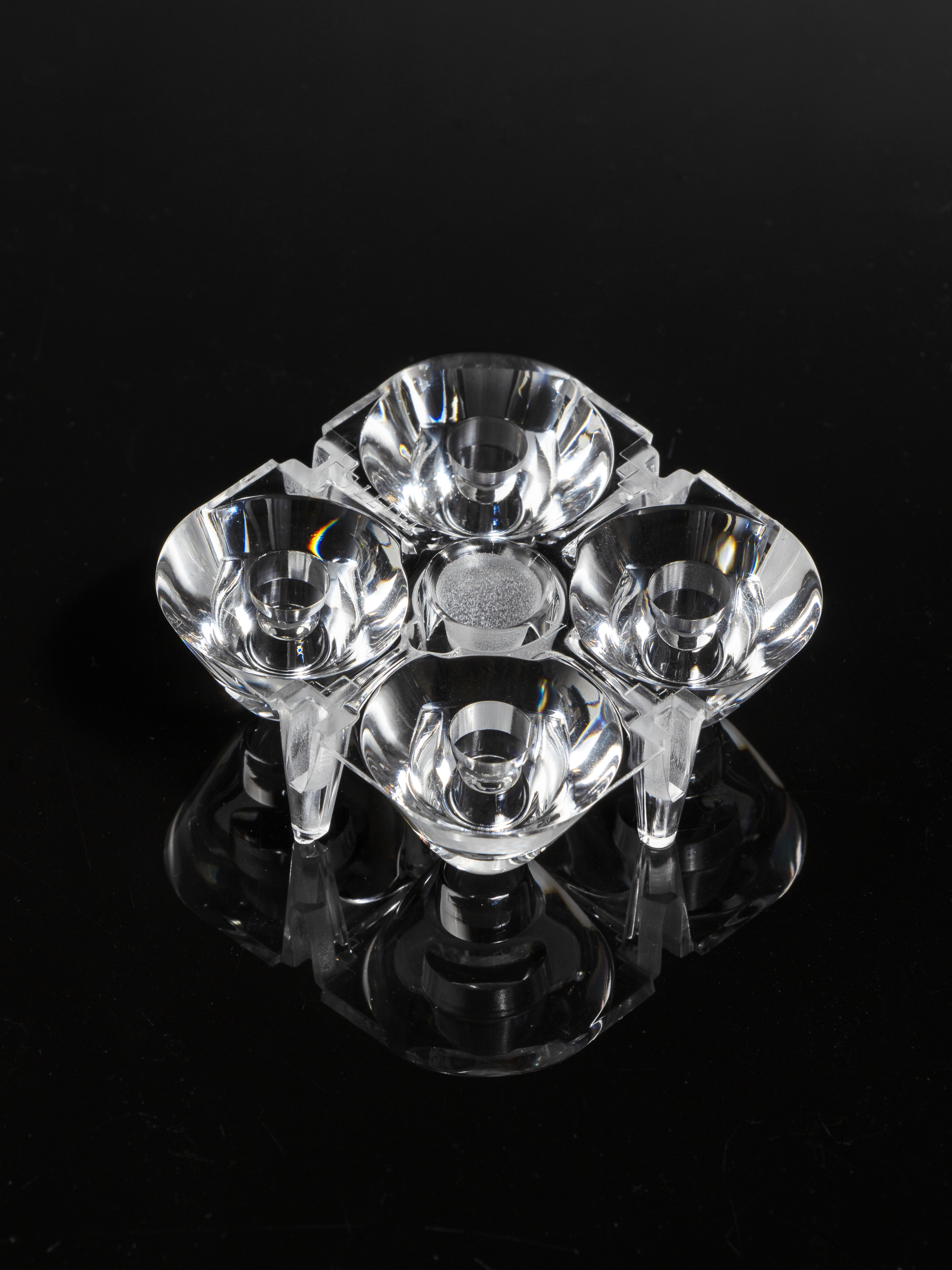

C18293_SPORT-2X2-S1-HT

Print

~10° spot beam. Variant from High Temperature PMMA.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    16.01 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    512 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    10.9 kg
  • MPQ:
    32 pcs
  • MOQ:
    128 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    2.8 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C18293_SPORT-2X2-S1-HT

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

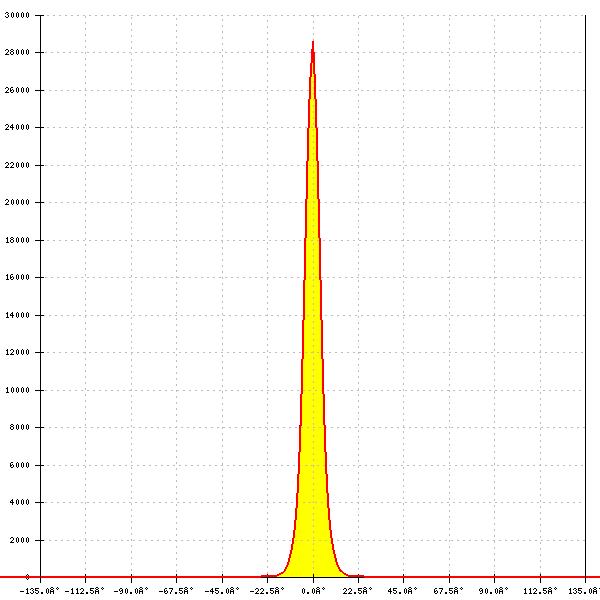

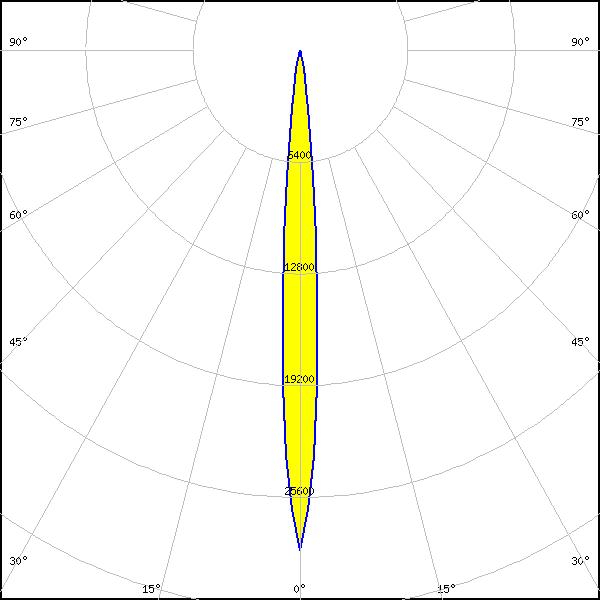

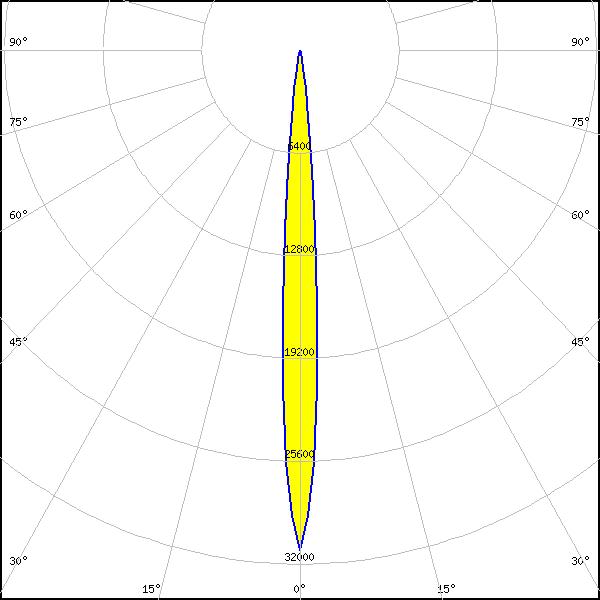

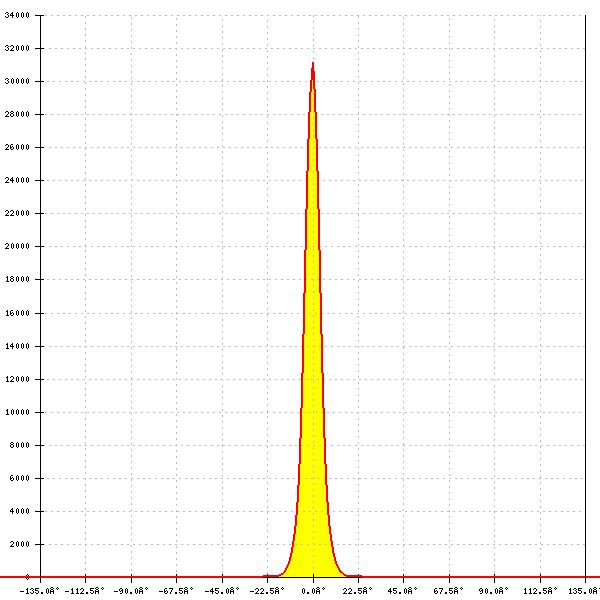

Optical results

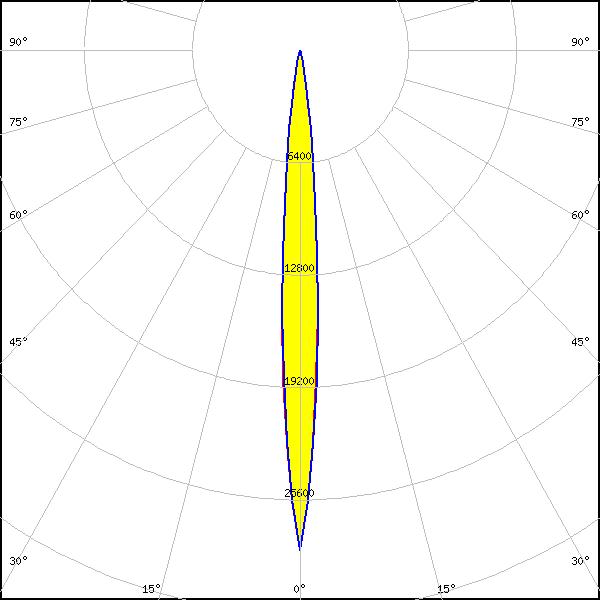

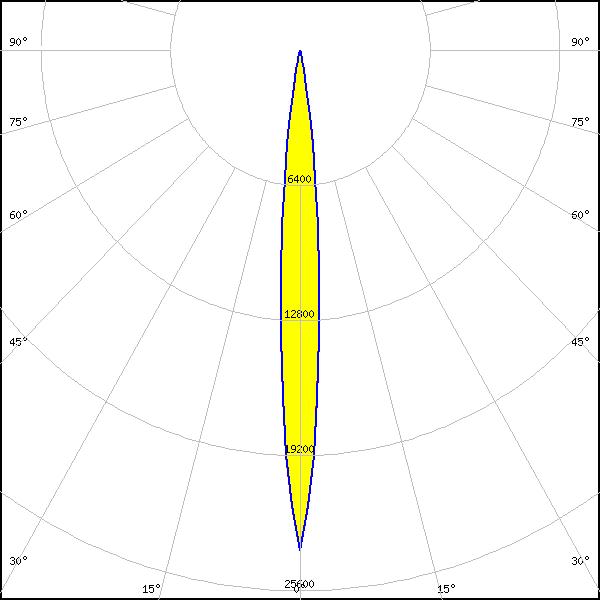

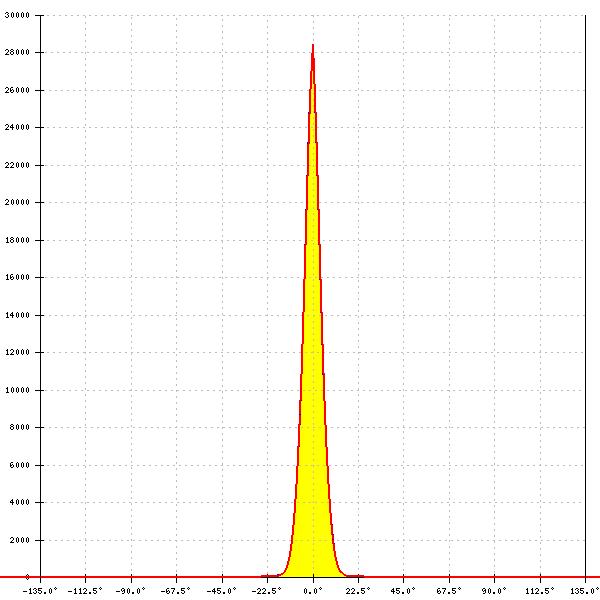

LED: XP-G2 HE
FWHM: 8°
FWTM: 18°
Peak intensity: 28.470 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

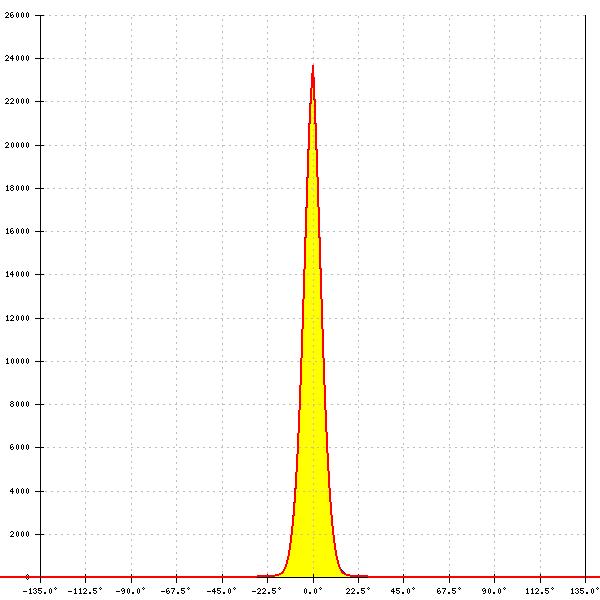

LED: XP-G2 HE
FWHM: 10°
FWTM: 20°
Peak intensity: 23.689 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

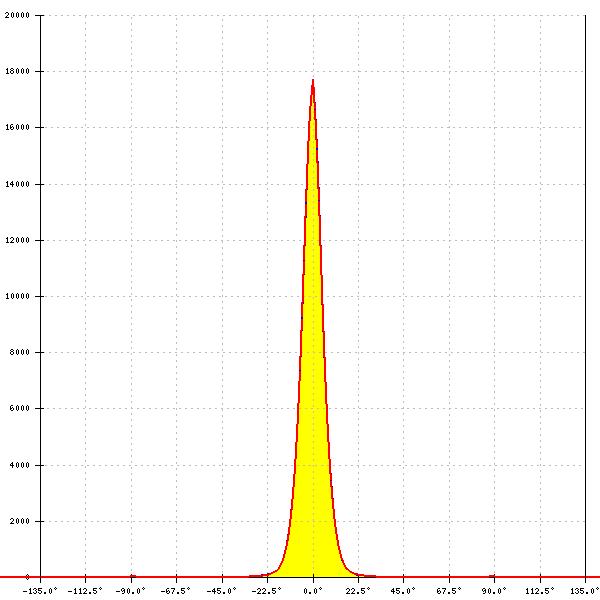

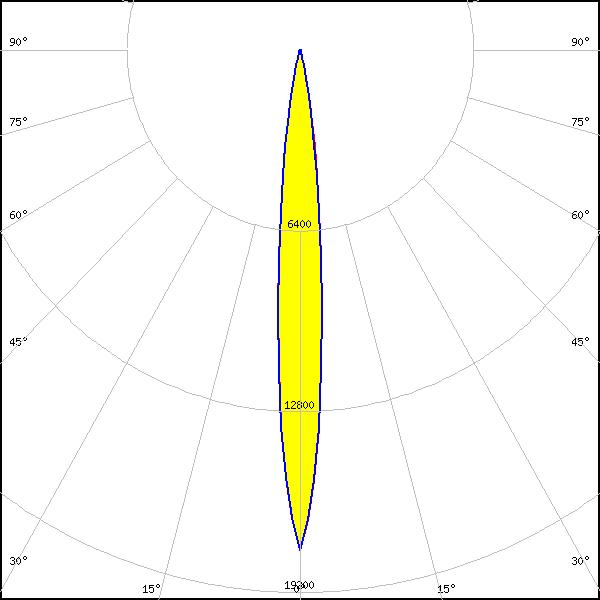

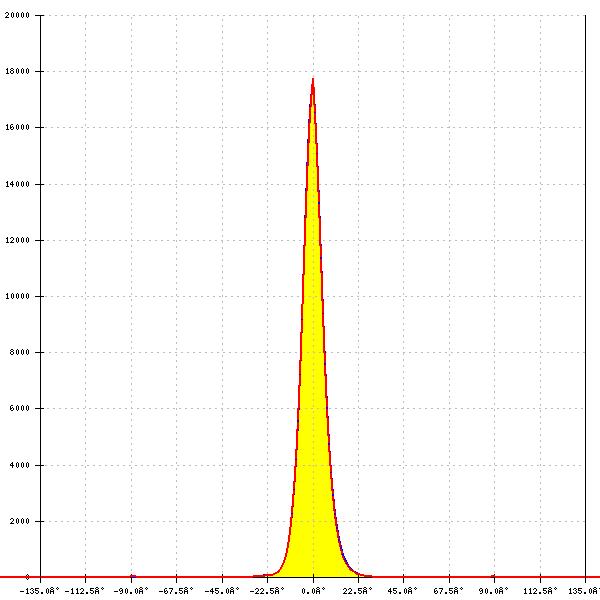

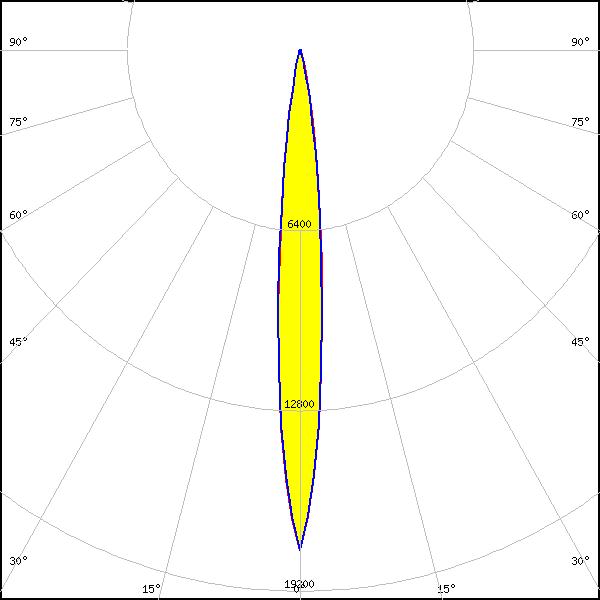

LED: XP-G3
FWHM: 10°
FWTM: 22°
Peak intensity: 17.716 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

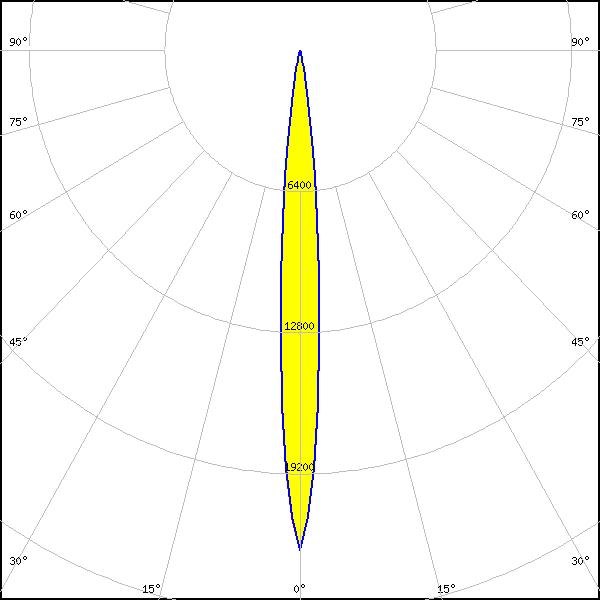

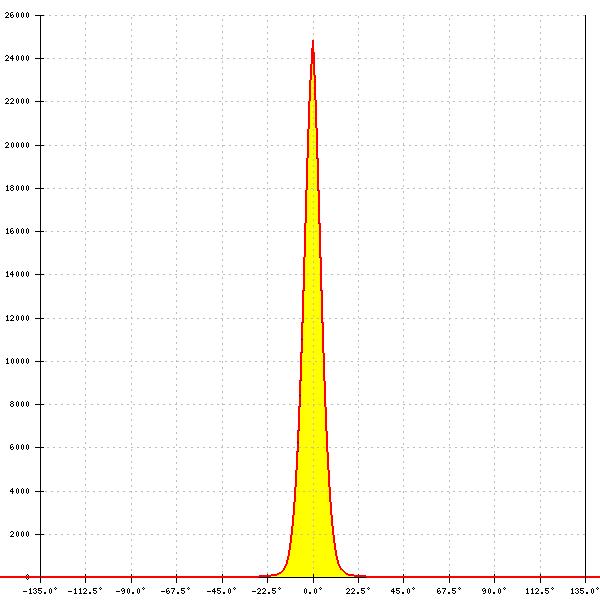

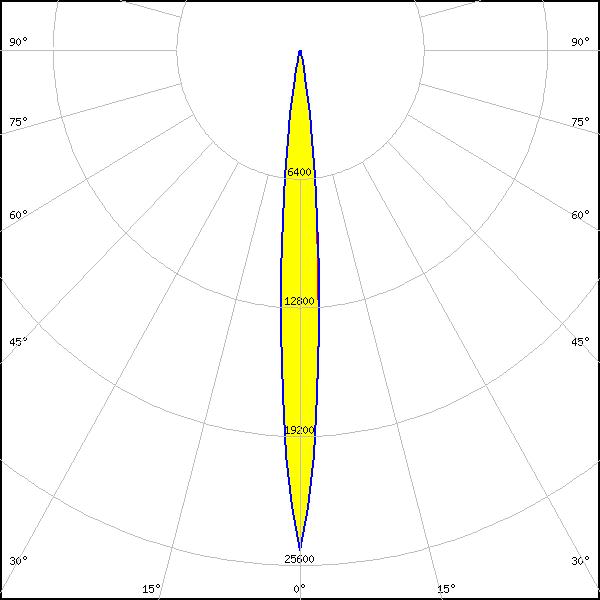

LED: XP-L HI
FWHM: 10°
FWTM: 20°
Peak intensity: 24.854 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HI
FWHM: 10°
FWTM: 20°
Peak intensity: 22.662 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

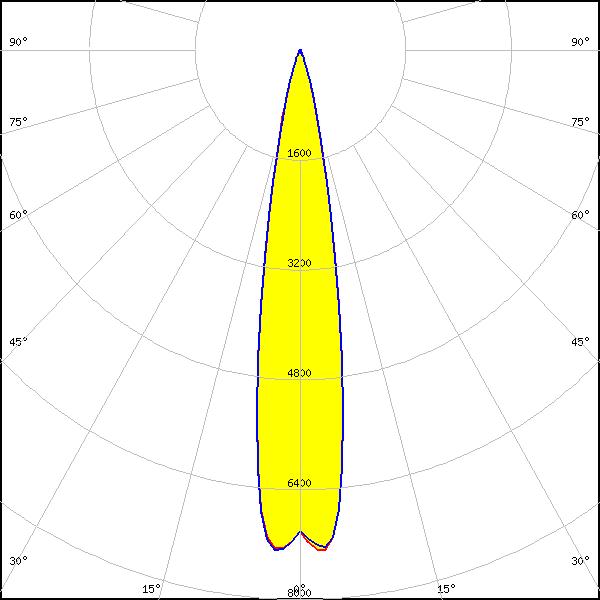

LED: LUXEON 5050 Round LES
FWHM: 18°
FWTM: 34°
Peak intensity: 7.300 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

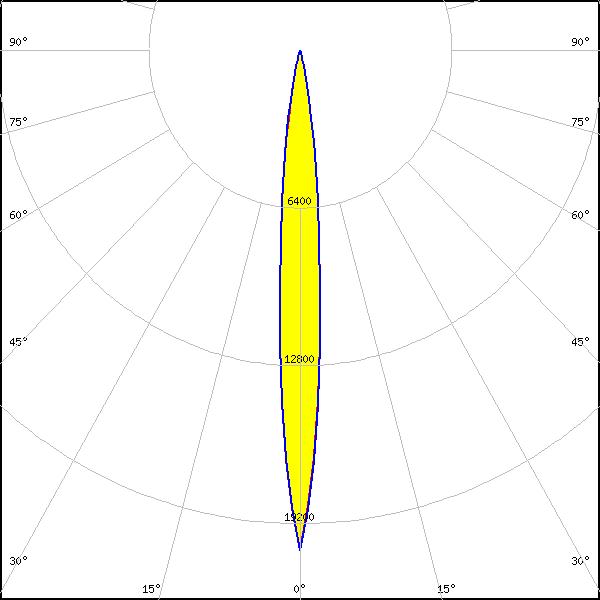

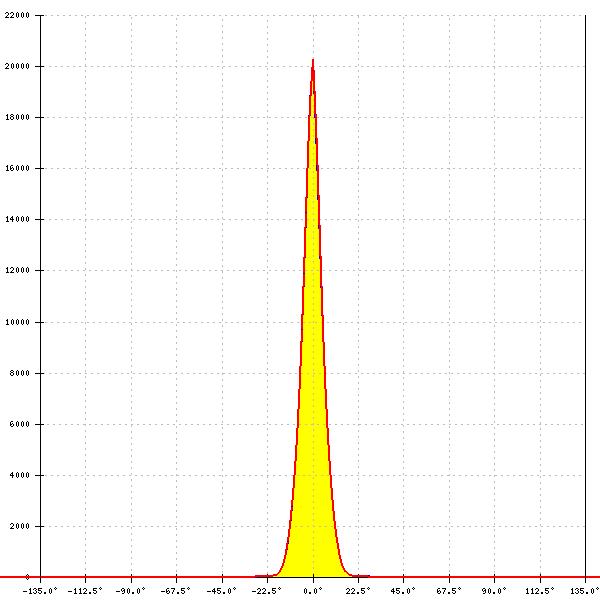

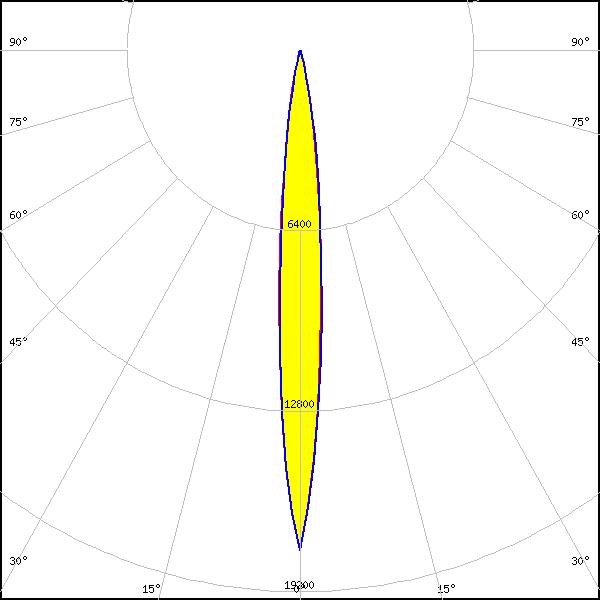

LED: LUXEON HL2X
FWHM: 10°
FWTM: 22°
Peak intensity: 20.291 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

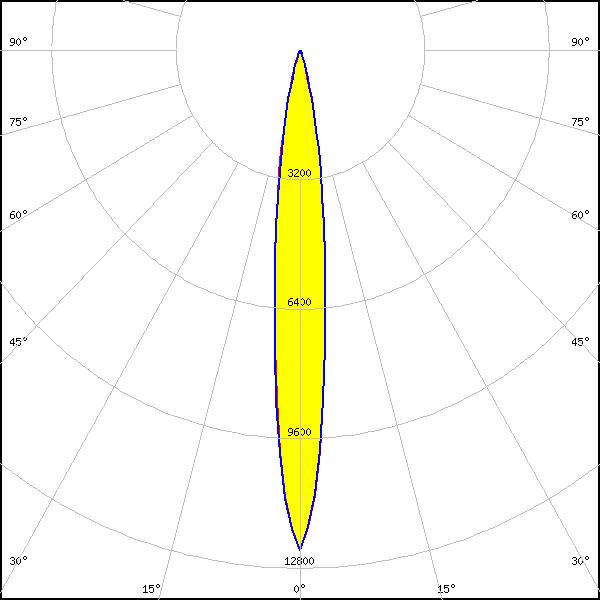

LED: SST-40
FWHM: 12°
FWTM: 28°
Peak intensity: 12.360 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

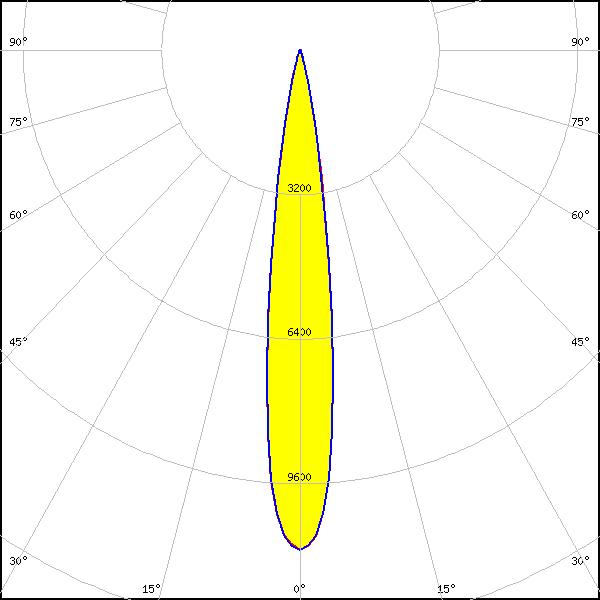

LED: NV4WB35AM
FWHM: 14°
FWTM: 28°
Peak intensity: 11.082 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

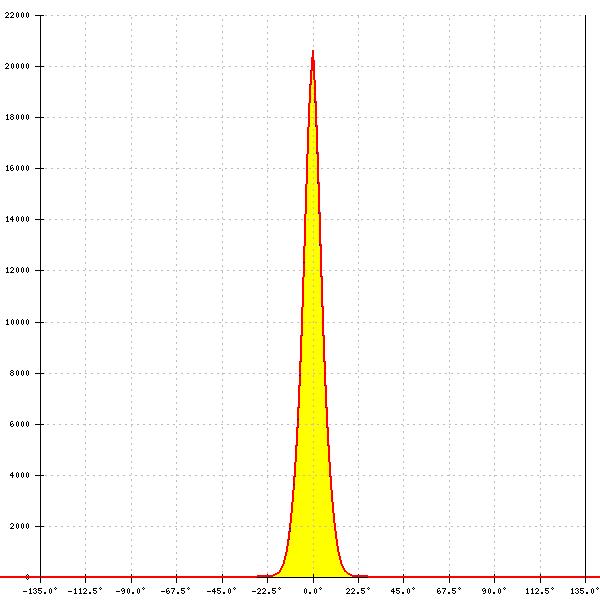

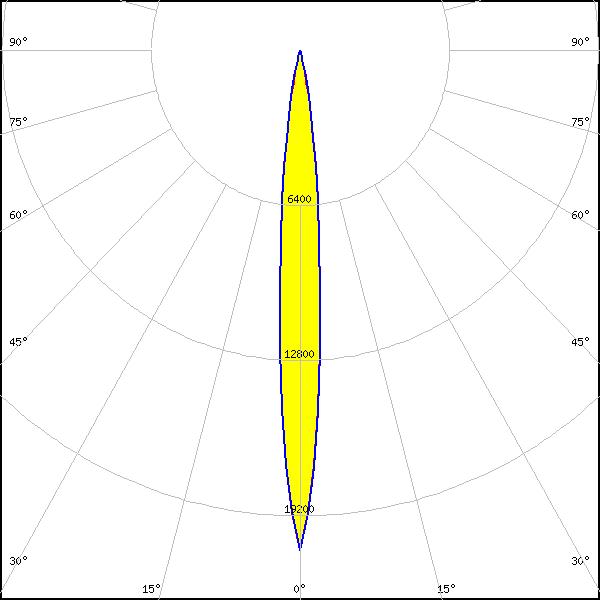

LED: NVSW219F
FWHM: 10°
FWTM: 22°
Peak intensity: 20.629 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

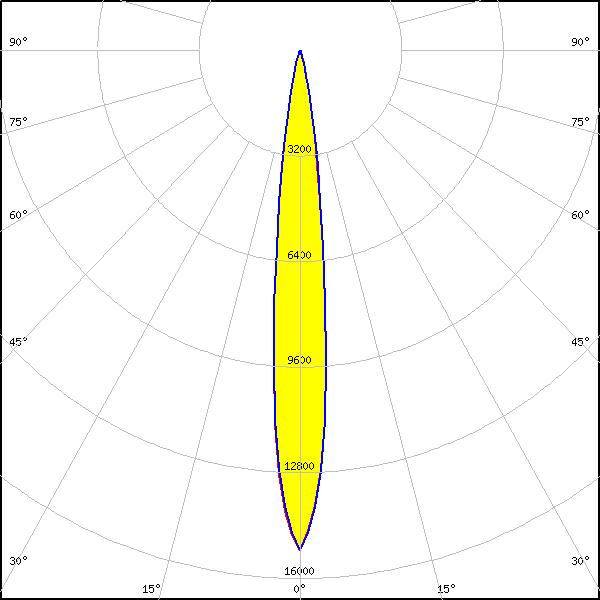

LED: OSCONIQ P 3737 (3W version)
FWHM: 12°
FWTM: 24°
Peak intensity: 15.152 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

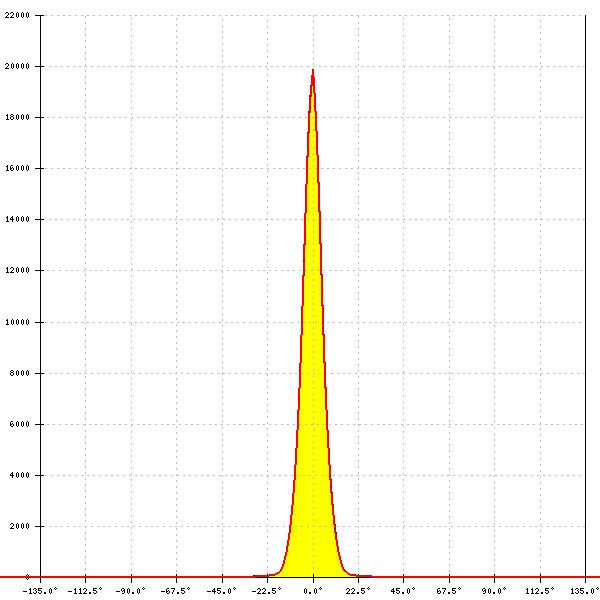

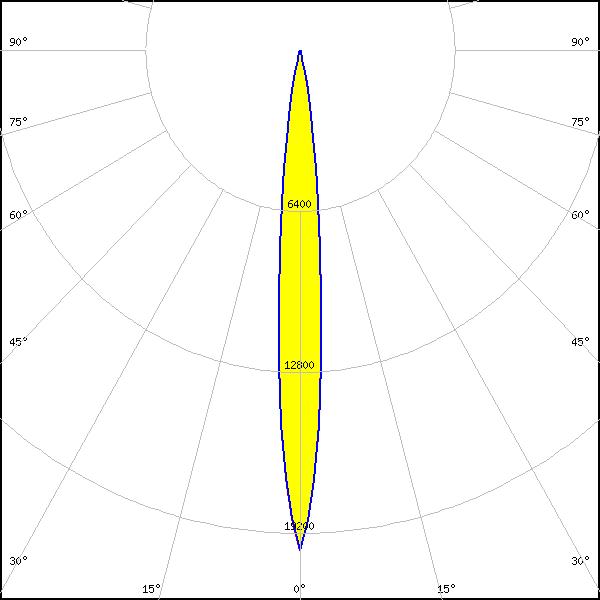

LED: LH351B
FWHM: 10°
FWTM: 22°
Peak intensity: 19.877 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
