C18077_LINDA-10-F
Print

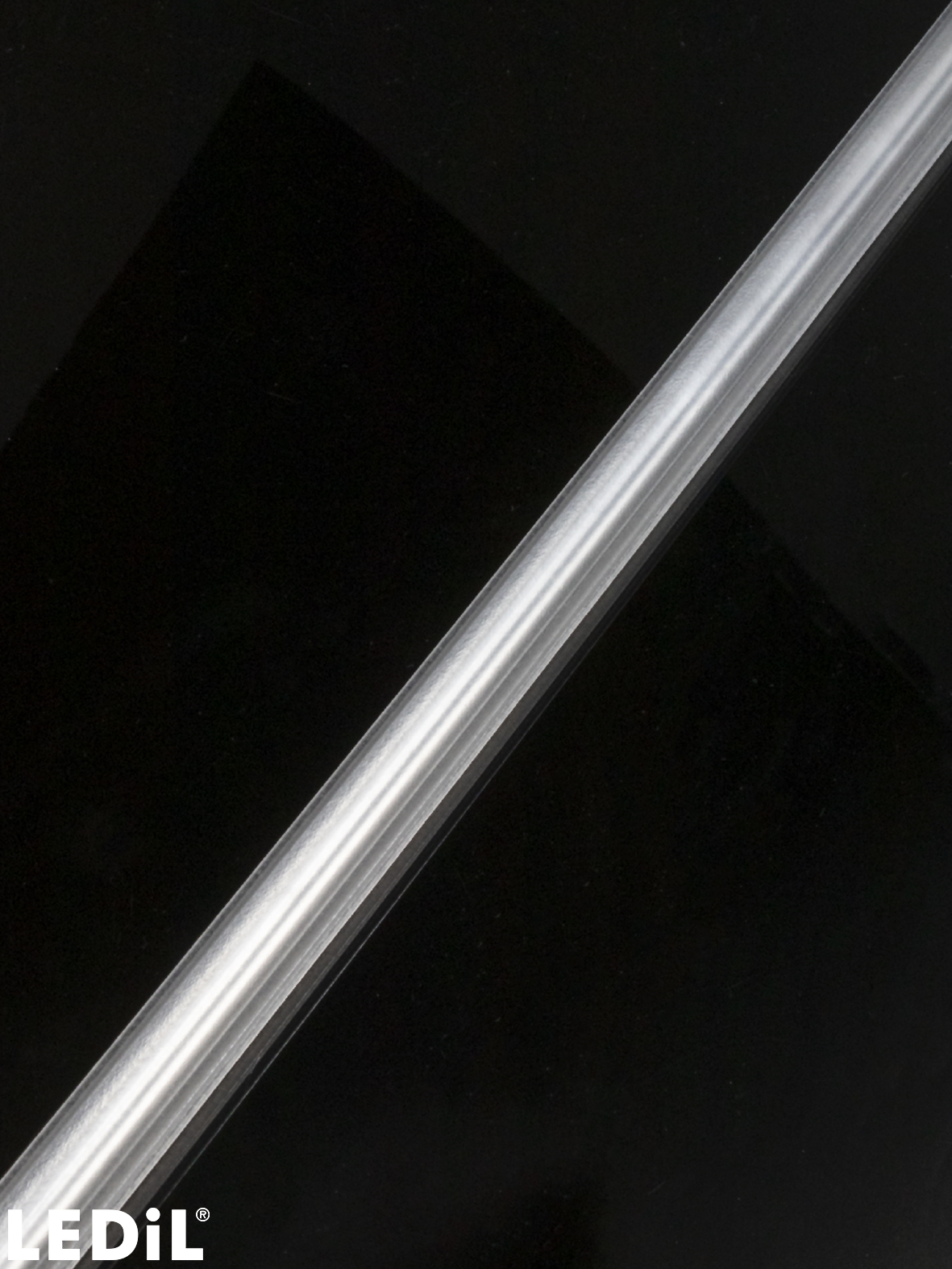

Asymmetric beam for undercabinet lighting
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

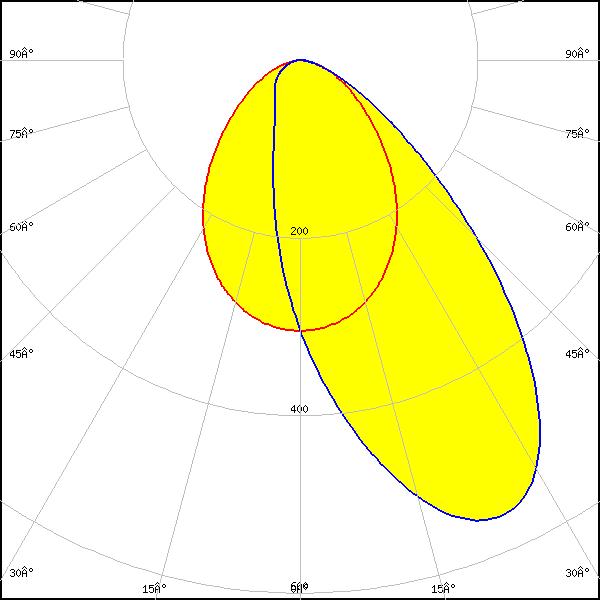

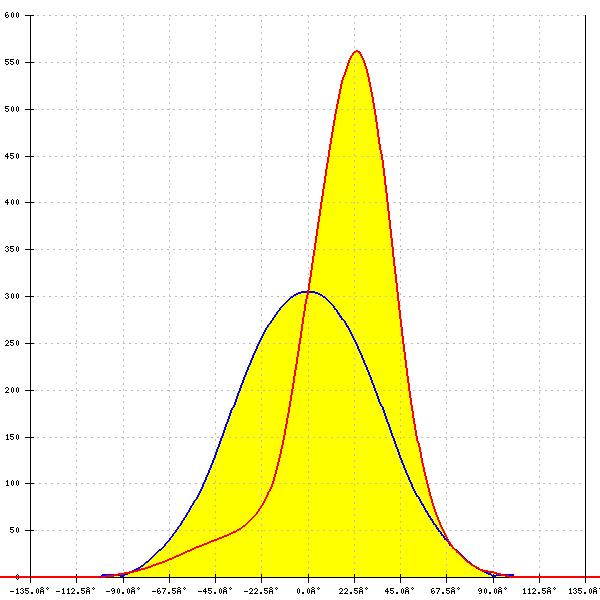

LED:
LUXEON 3030 2D (Square LES)
FWHM:
82° + 47°
FWTM:
143° + 95°
Peak intensity:
0.561 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

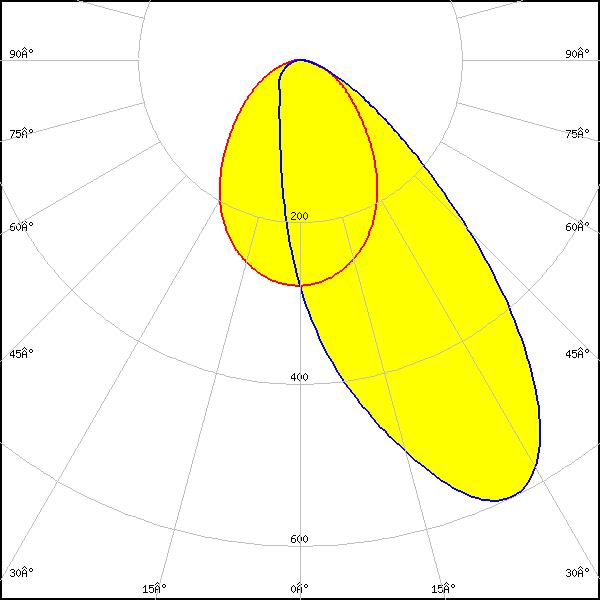

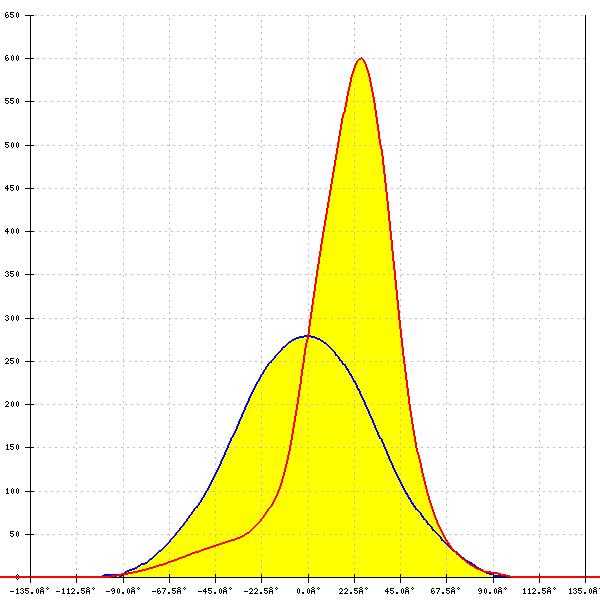

LED:
MP-2016
FWHM:
80° + 43°
FWTM:
146° + 89°
Peak intensity:
0.600 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

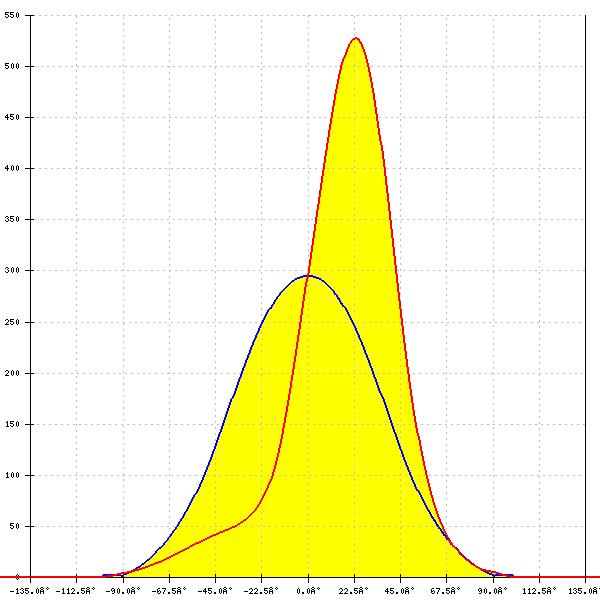

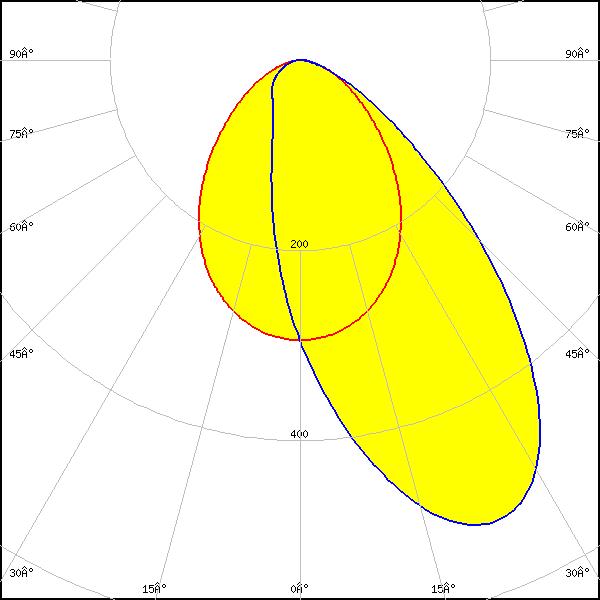

LED:
NF2x757G
FWHM:
83° + 48°
FWTM:
143° + 98°
Peak intensity:
0.529 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

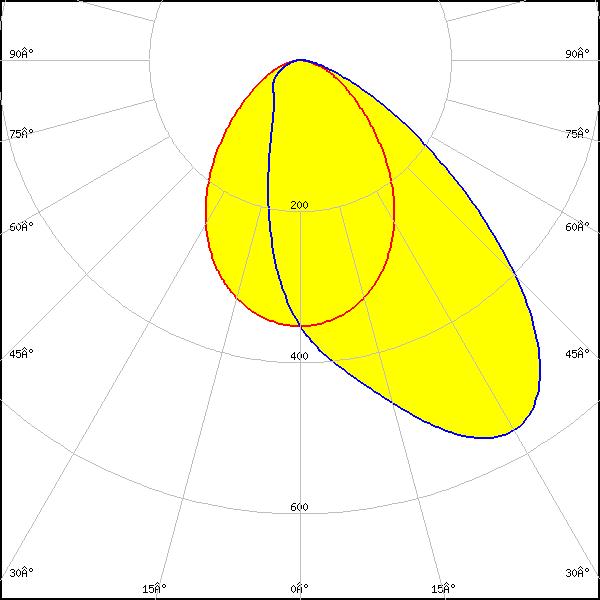

LED:
NFSW757H
FWHM:
81° + 58°
FWTM:
140° + 108°
Peak intensity:
0.566 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

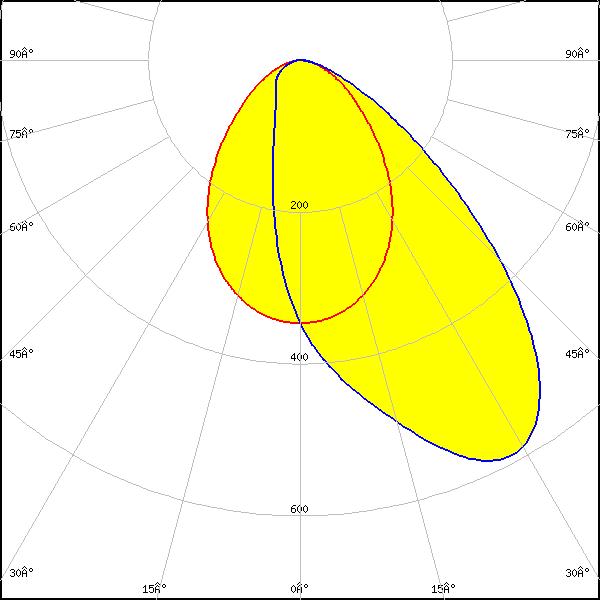

LED:

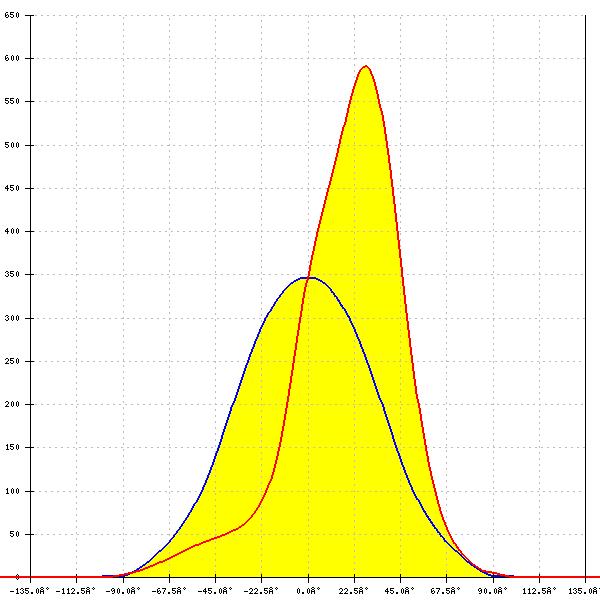

Duris S5 (Single chip)
FWHM:
80° + 53°
FWTM:
140° + 100°
Peak intensity:
0.591 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

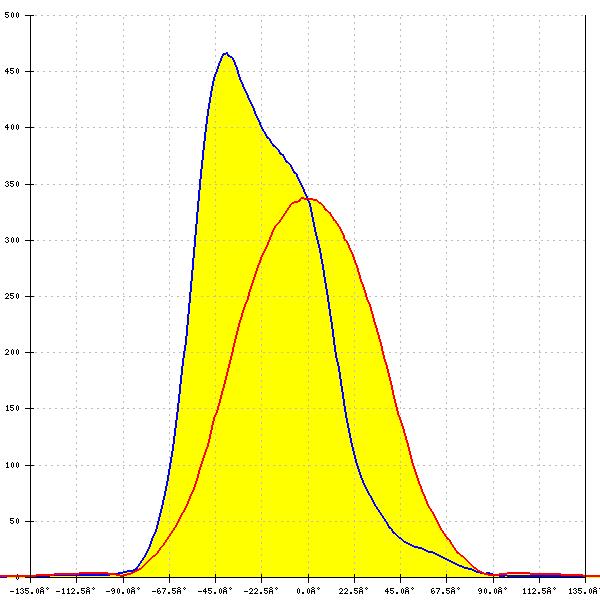

LED:
LM28xB Series
FWHM: asymmetric
Peak intensity:
0.466 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

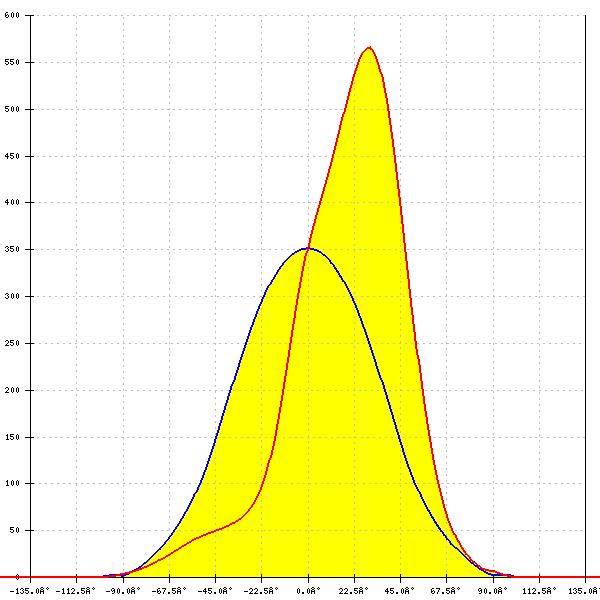

LED:
LM301B
FWHM:
82° + 57°
FWTM:
141° + 107°
Peak intensity:
0.565 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL 3030
FWHM:
80° + 52°
FWTM:
140° + 102°
Peak intensity:
0.564 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

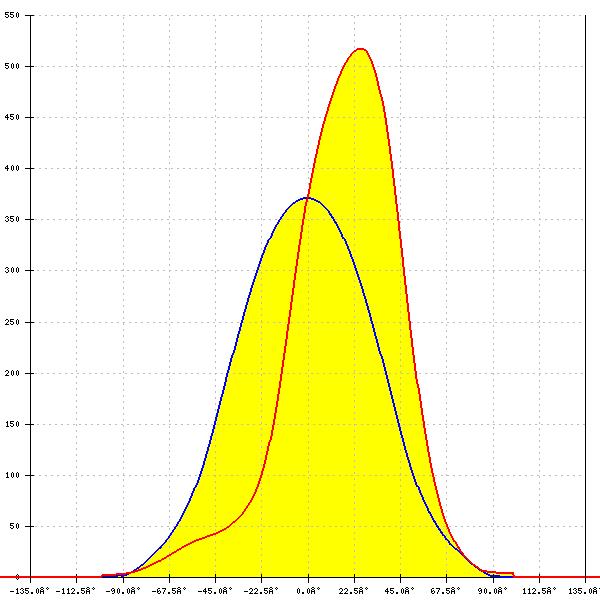

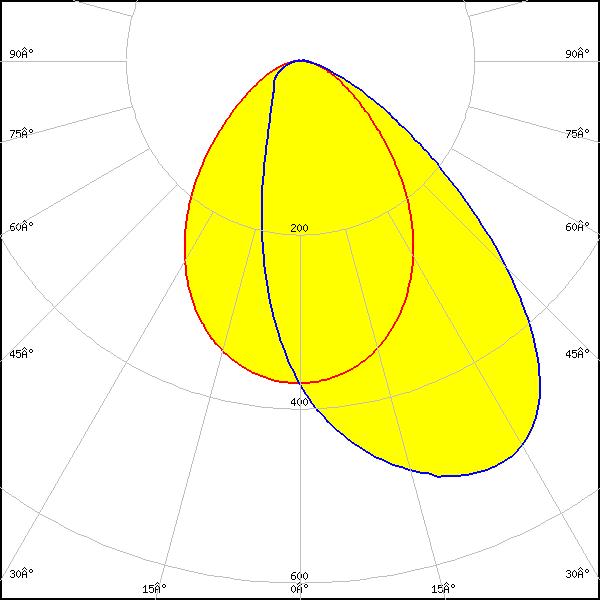

LED:
LLE FLEX 8mm EXC3
FWHM:
81° + 58°
FWTM:
136° + 105°
Peak intensity:
0.517 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
