    C18062_OLGA-WW

    Print

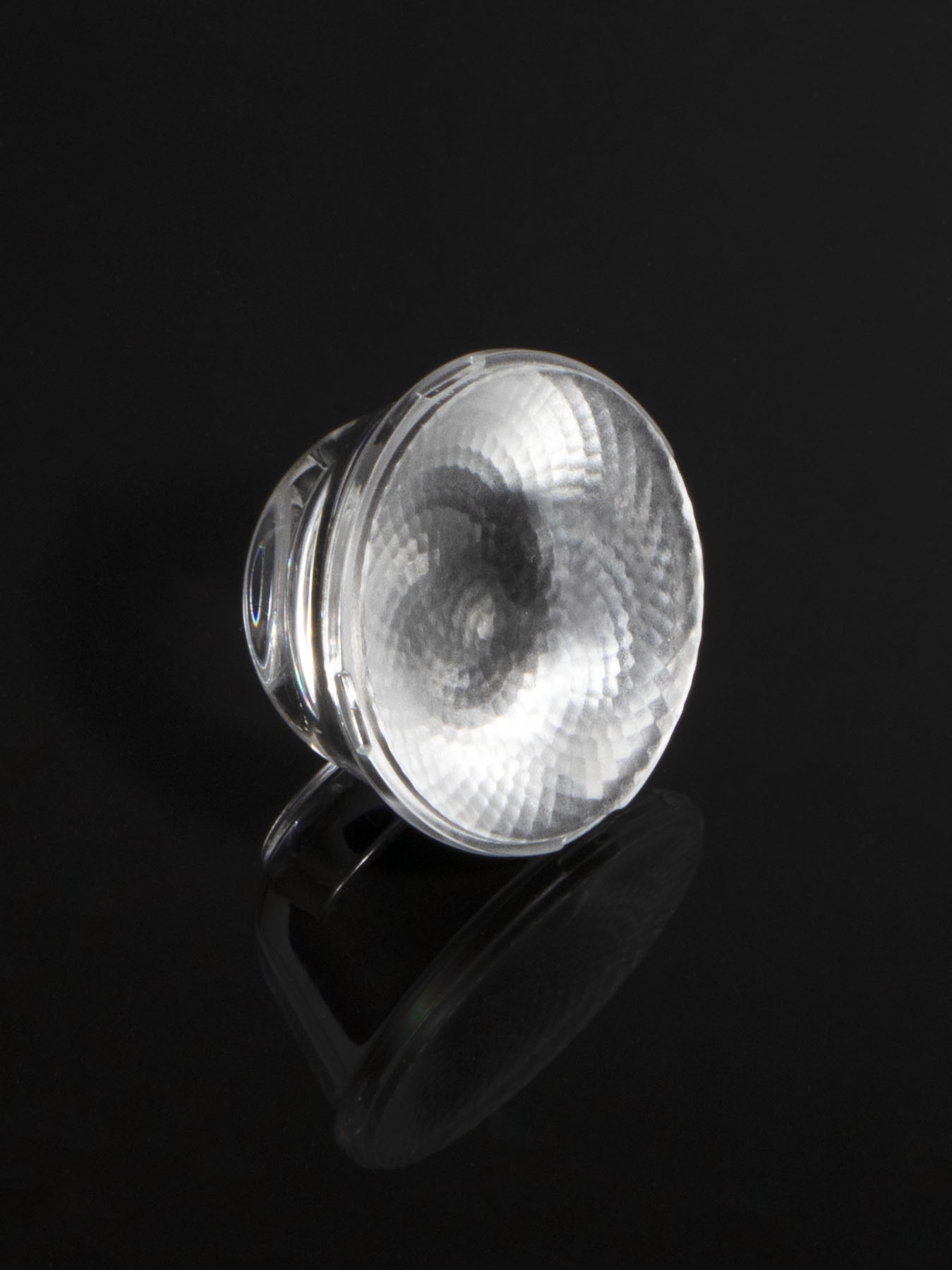

    ~60° wide beam with flange.

    Specification
    • Dimensions:
      30 mm
    • Height:
      18.45 mm
    • Fastening:
      glue
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      792 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      7.7 kg
    • MPQ:
      66 pcs
    • MOQ:
      132 pcs
    • MOQ size:
      480 x 280 x 60 mm
    • MOQ weight:
      1.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C18062_OLGA-WW
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – December 2, 2021

    Application guide

    LEDiL guide for retail lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Moscow Paleontological Museum

    News

    PRODUCT NEWS - OLGA

    Application area

    Indoor Architectural Lighting

    Optical results

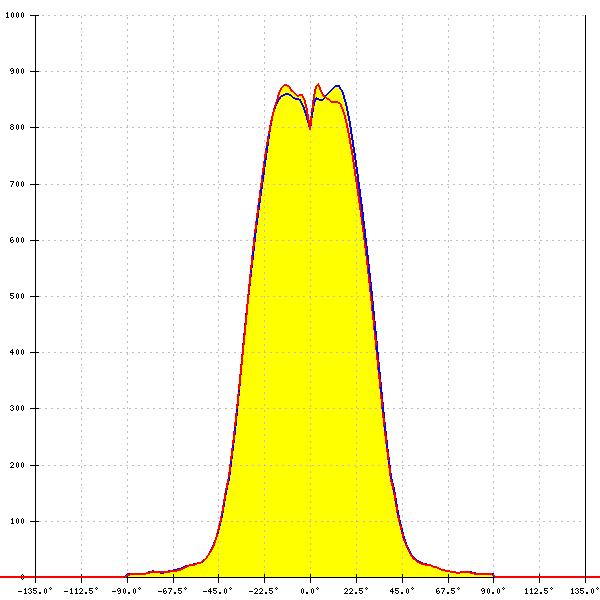

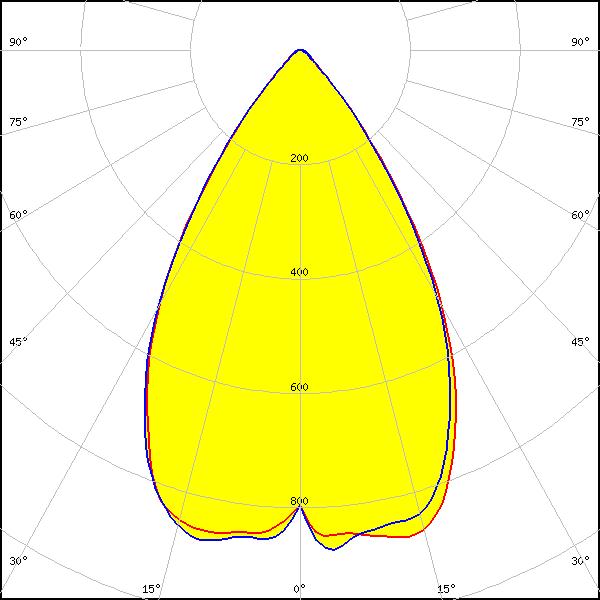

    LED: V4 HD Gen 7
    LES size: 5.2 mm
    FWHM: 64°
    FWTM: 89°
    Peak intensity: 0.877 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

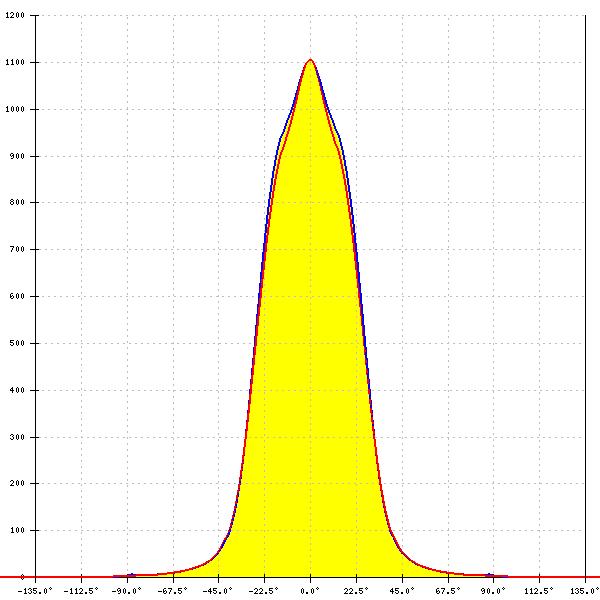

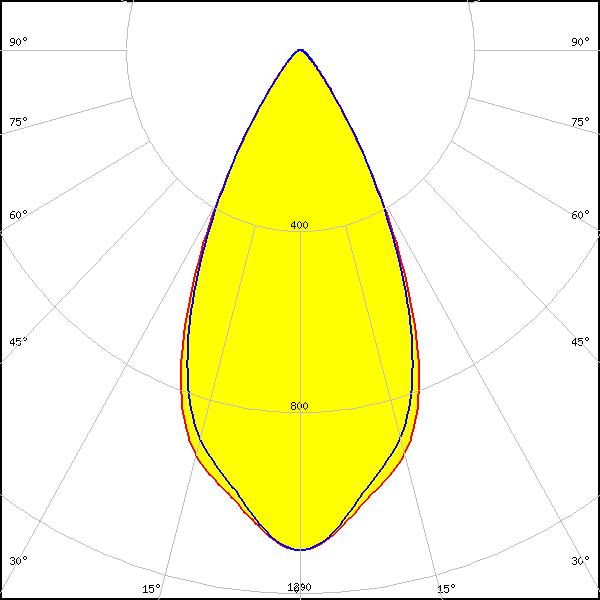

    LED: CLU7L3
    LES size: 2.4 mm
    FWHM: 52°
    FWTM: 78°
    Peak intensity: 1.105 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

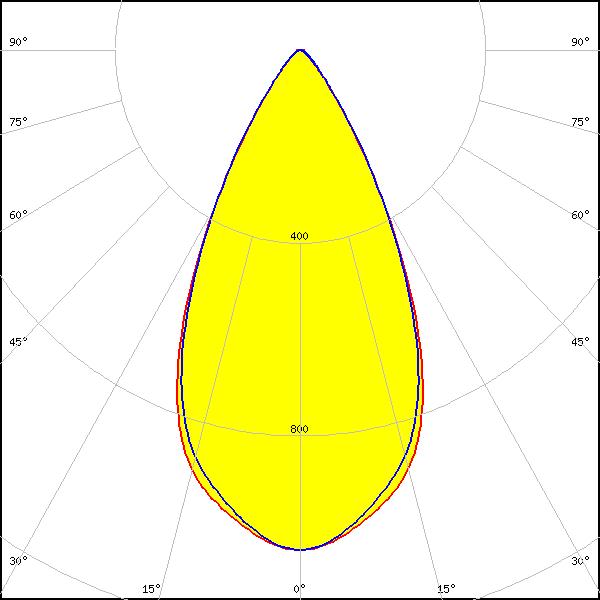

    LED: CLU7R3
    LES size: 4.2 mm
    FWHM: 52°
    FWTM: 79°
    Peak intensity: 1.038 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

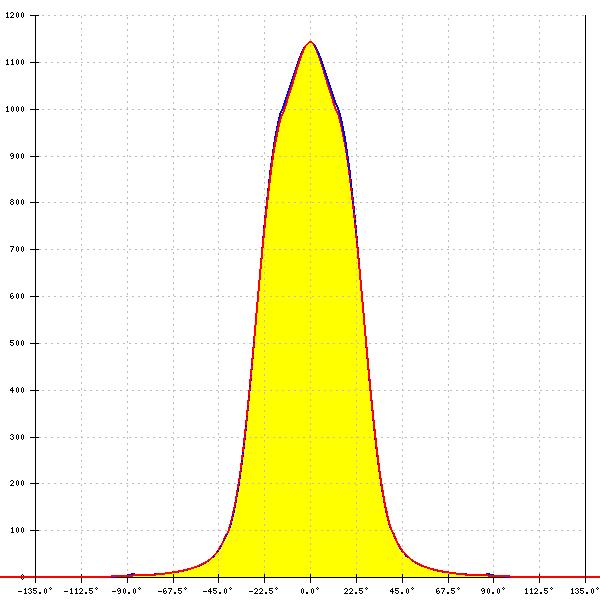

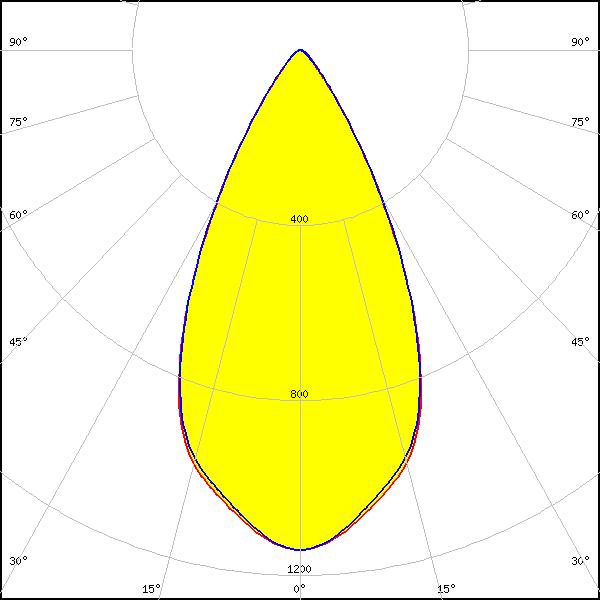

    LED: CLU7S3
    LES size: 3.5 mm
    FWHM: 53°
    FWTM: 78°
    Peak intensity: 1.143 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

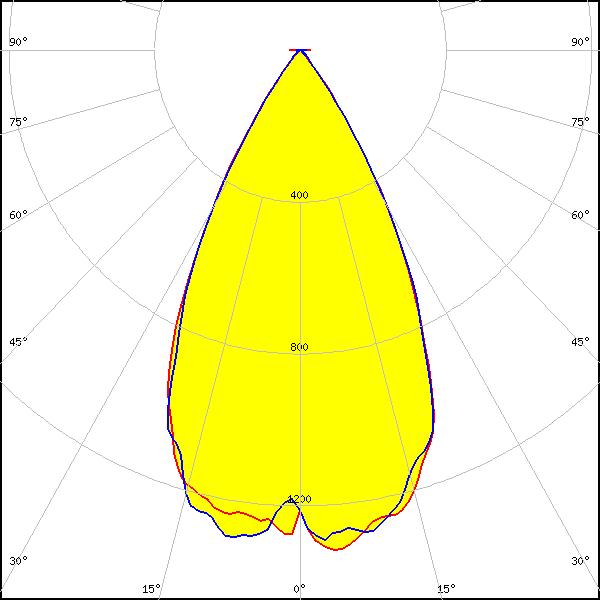

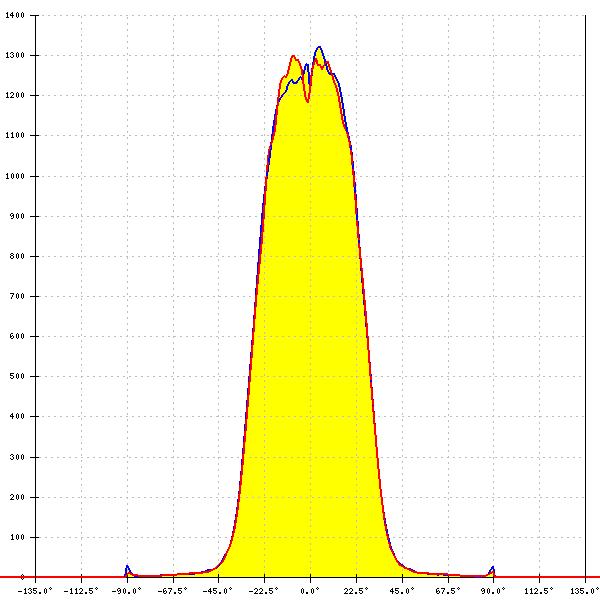

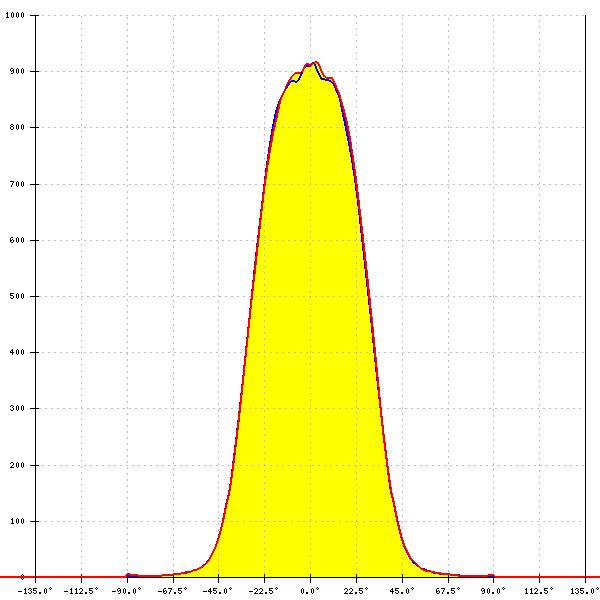

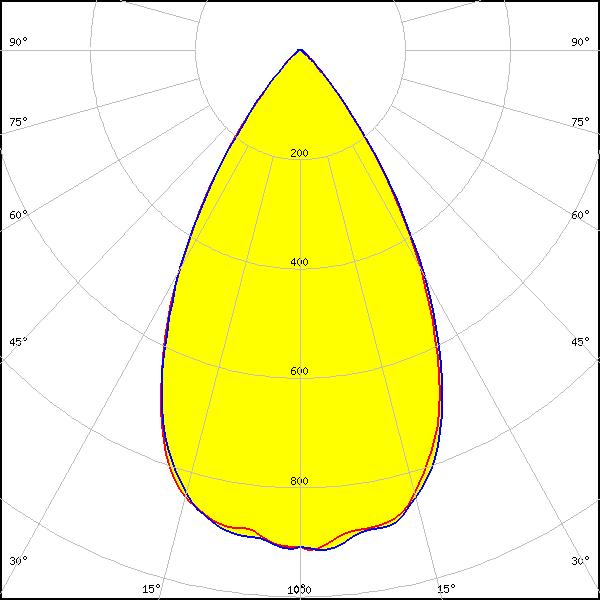

    LED: XP-G3
    LES size: 0.0 mm
    FWHM: 60°
    FWTM: 86°
    Peak intensity: 0.926 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    LES size: 0.0 mm
    FWHM: 54°
    FWTM: 74°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

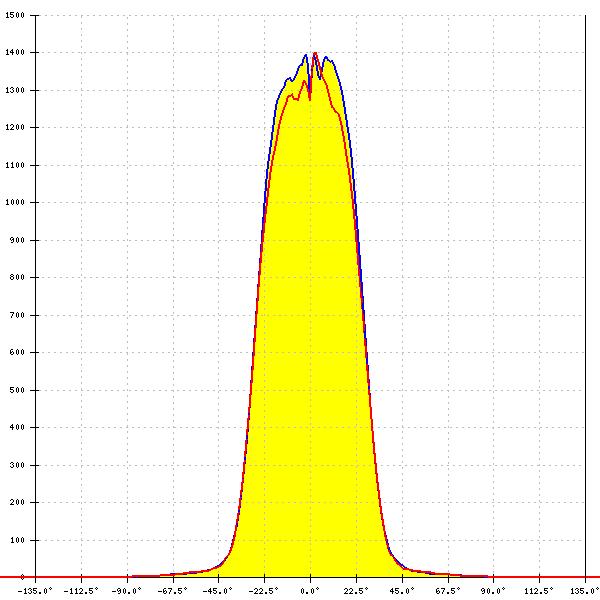

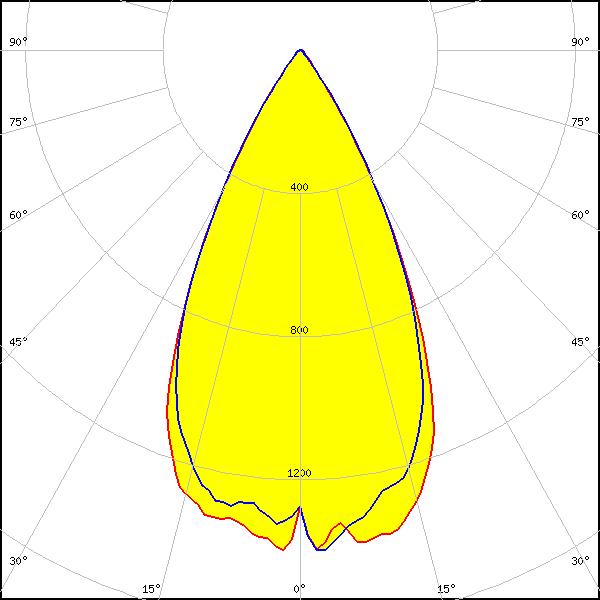

    LED: LUXEON 5050 Round LES
    LES size: 0.0 mm
    FWHM: 52°
    FWTM: 72°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

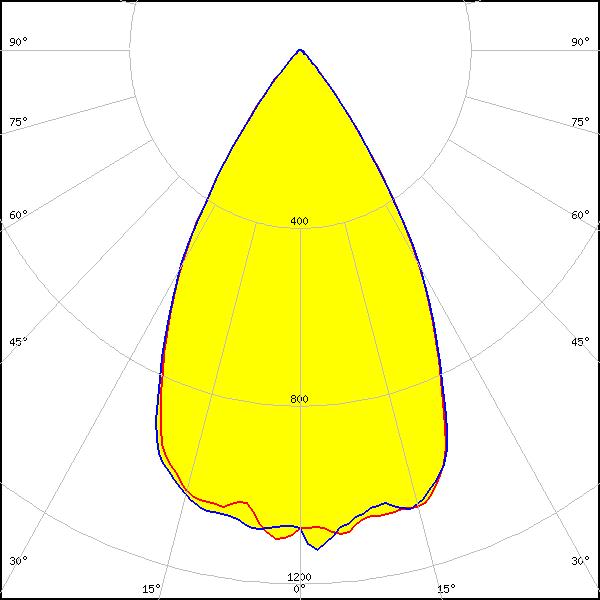

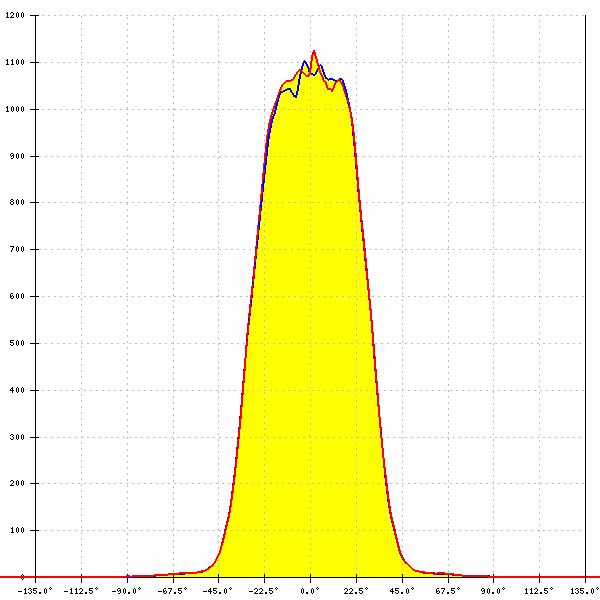

    LED: CXM-3
    LES size: 3.5 mm
    FWHM: 60°
    FWTM: 82°
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
    LES size: 10.6 mm
    FWHM: 72°
    FWTM: 101°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
