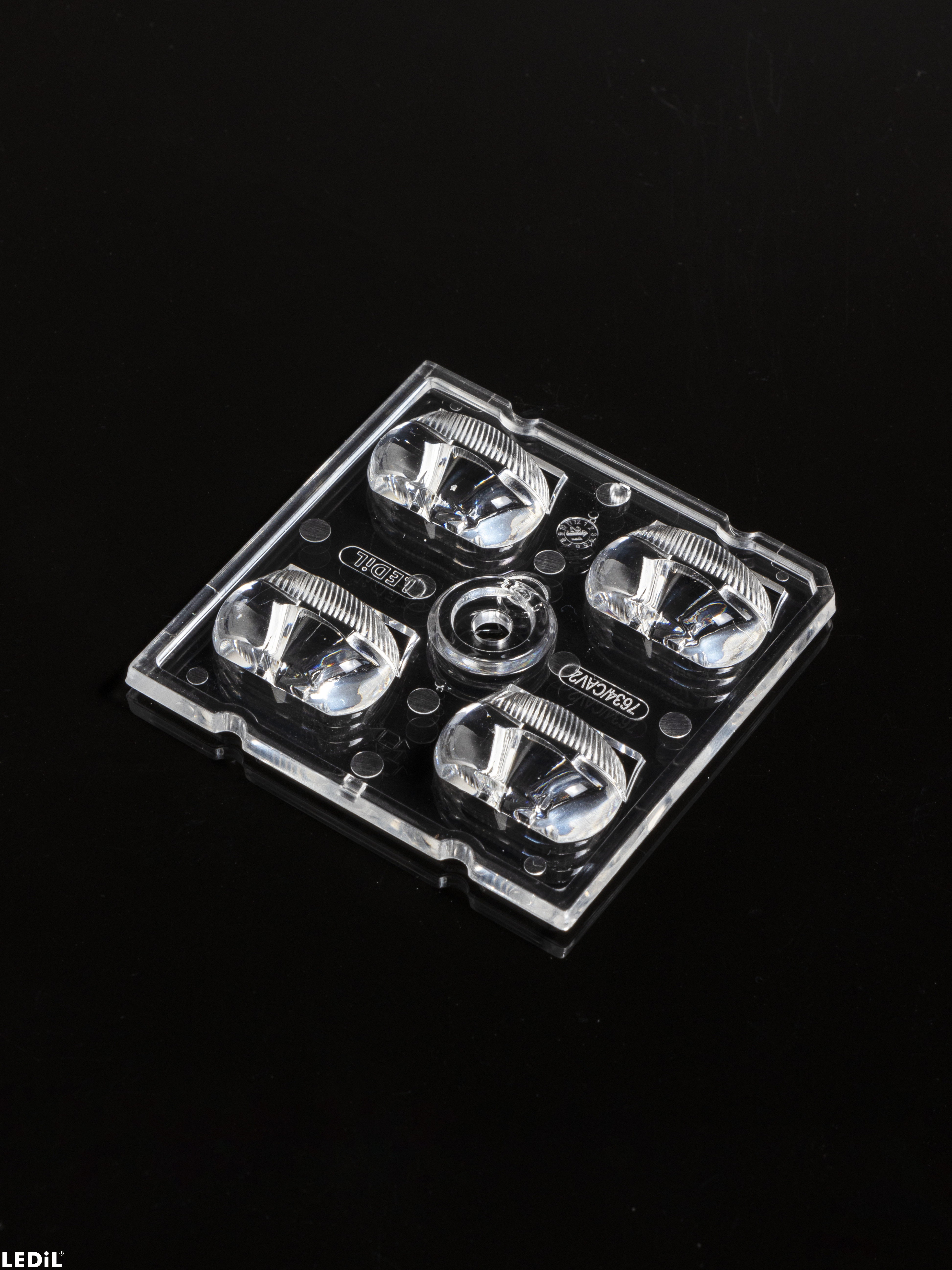

C17634_STRADA-2X2-LM2

Print

Excellent longitudinal luminance uniformity for EN13201 M-class where road width is equal or less the pole height.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    6.60 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.3 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C17634_STRADA-2X2-LM2

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

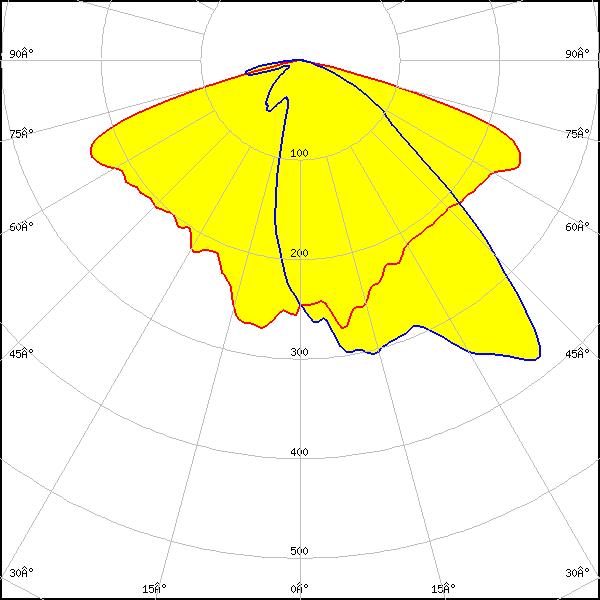

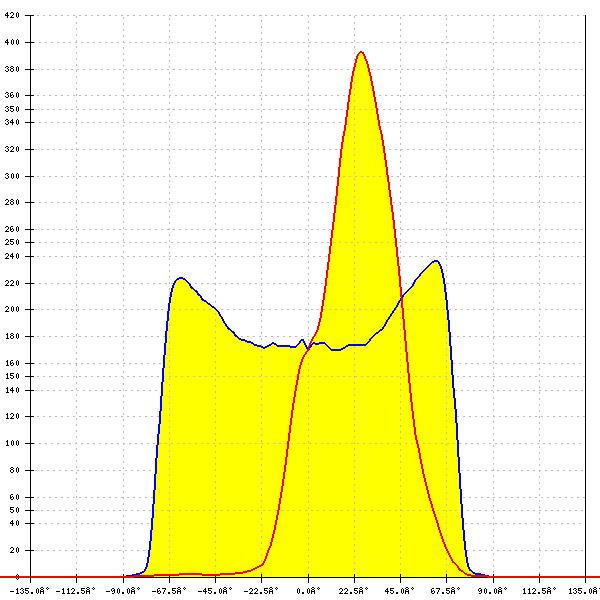

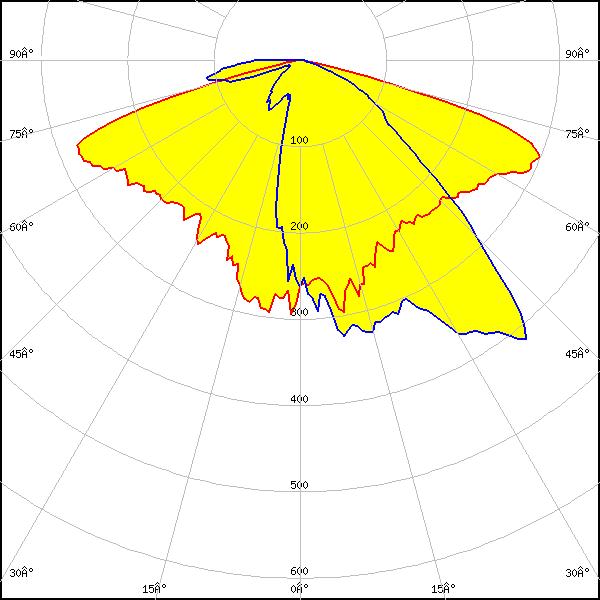

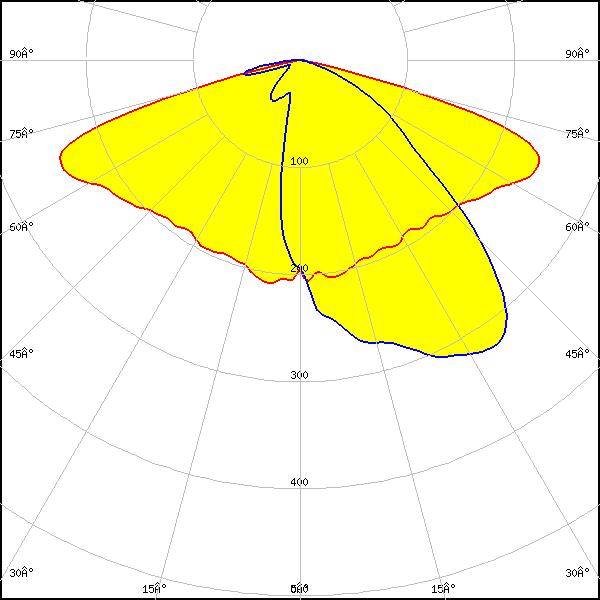

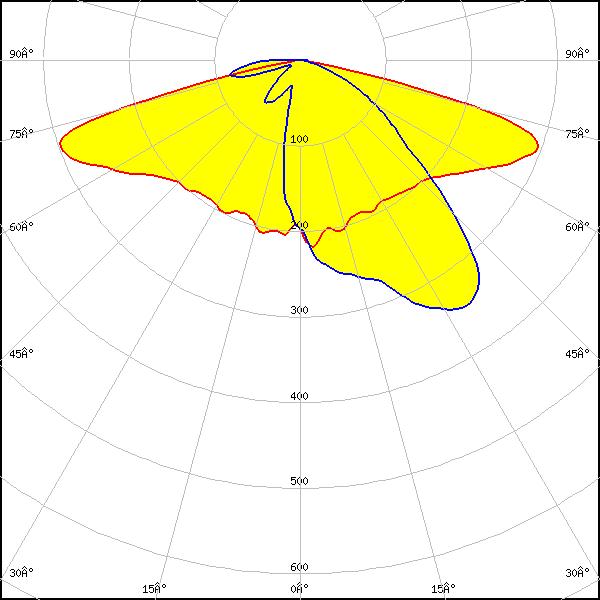

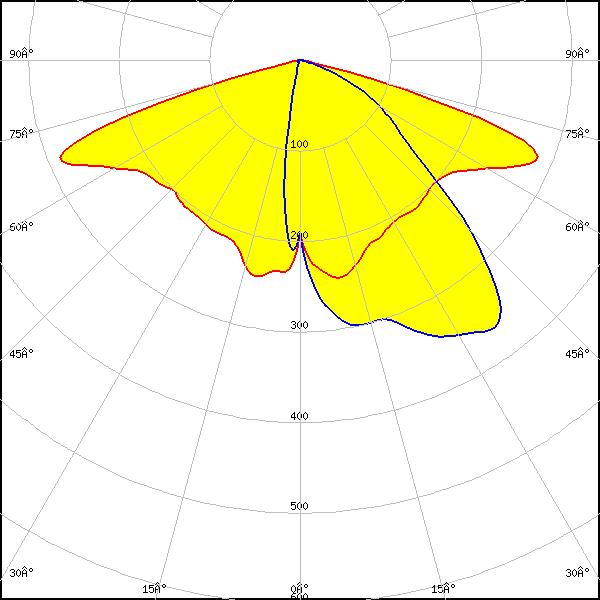

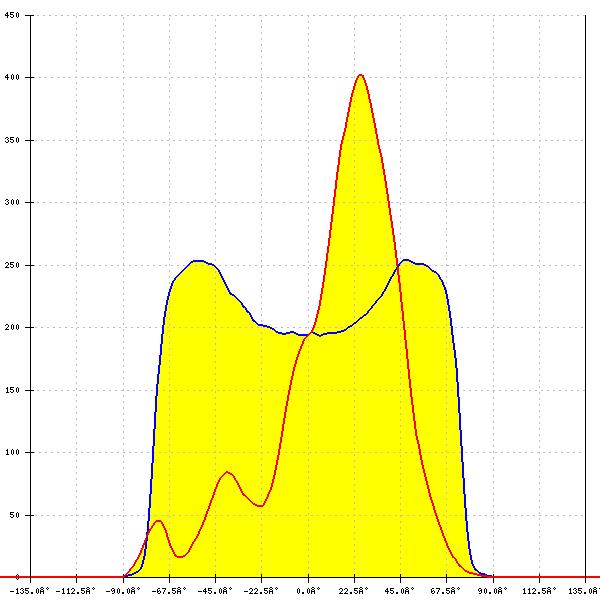

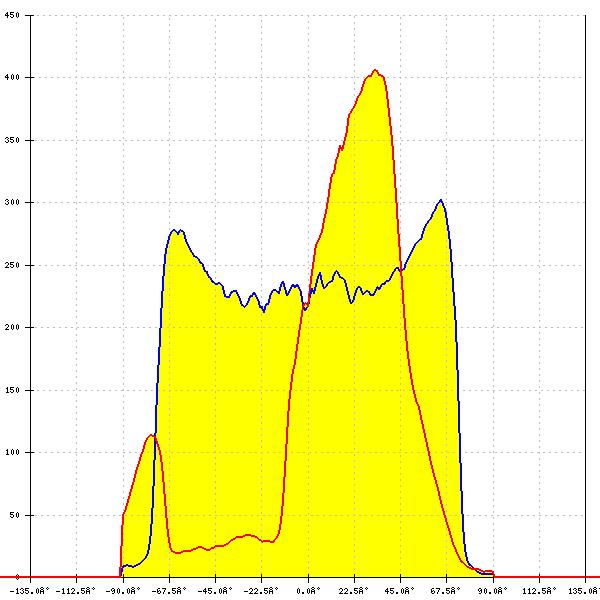

Optical results

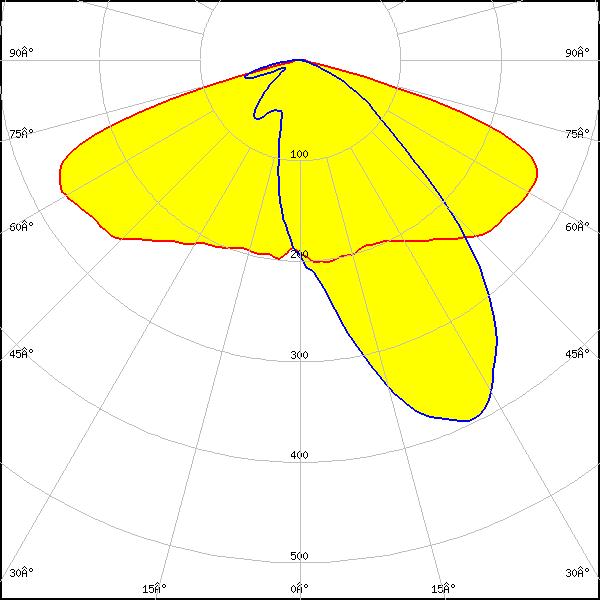

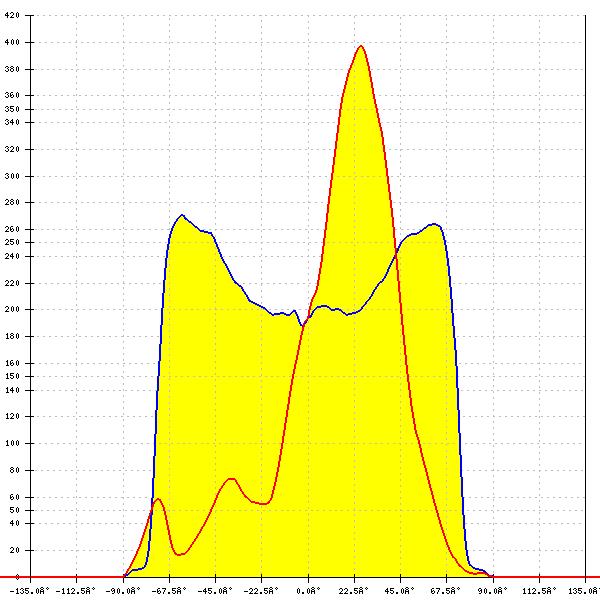

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.472 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

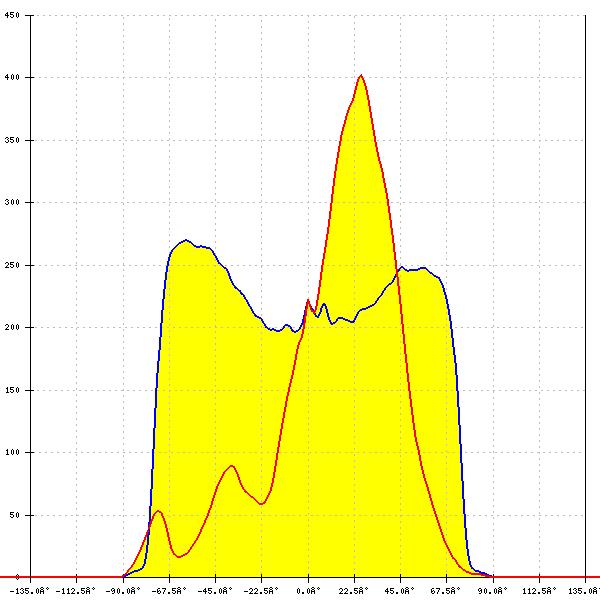

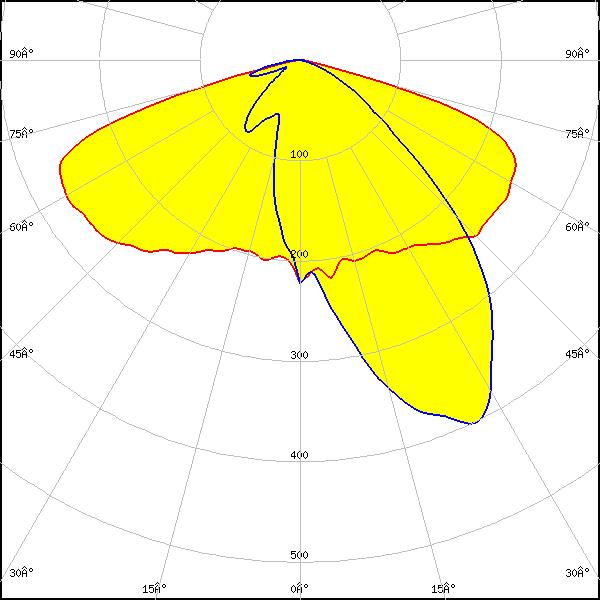

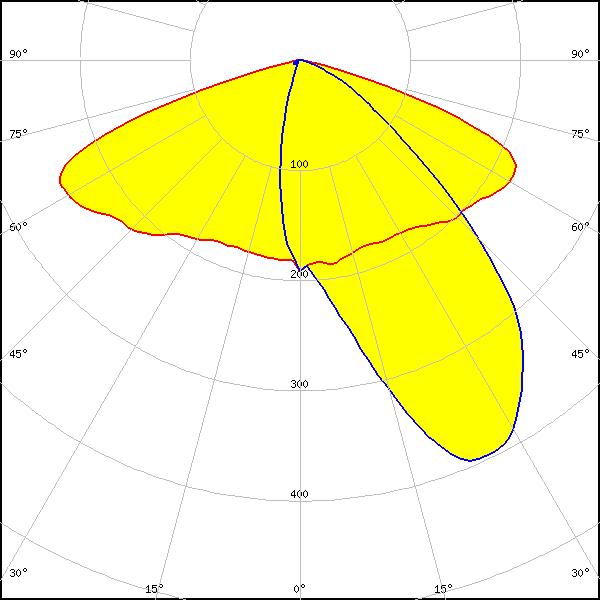

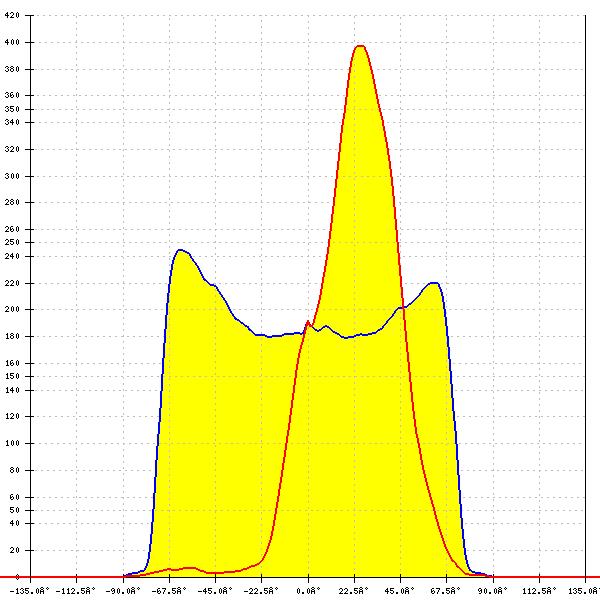

LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 0.435 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

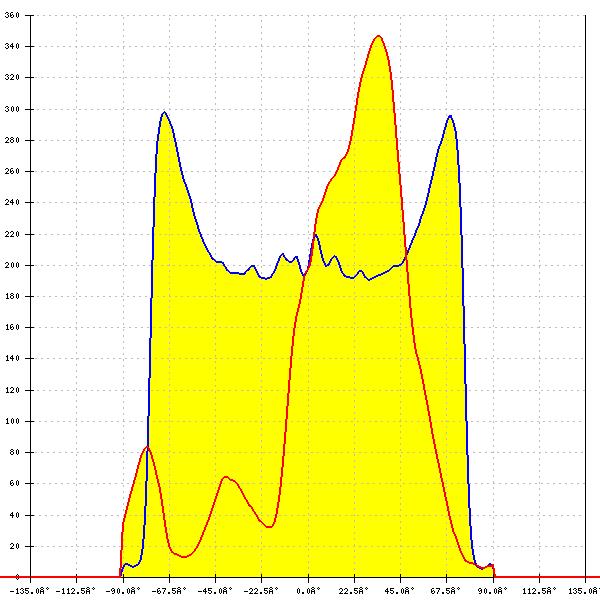

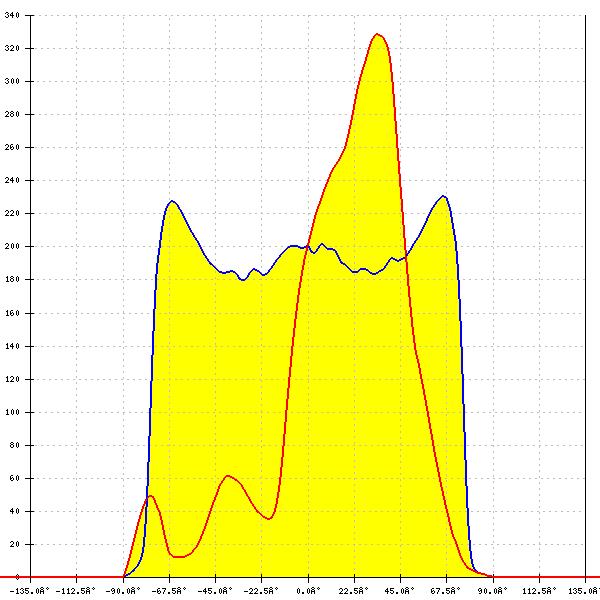

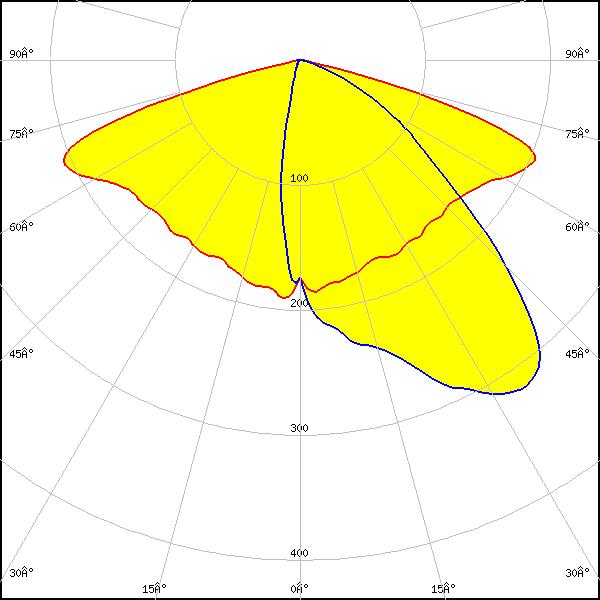

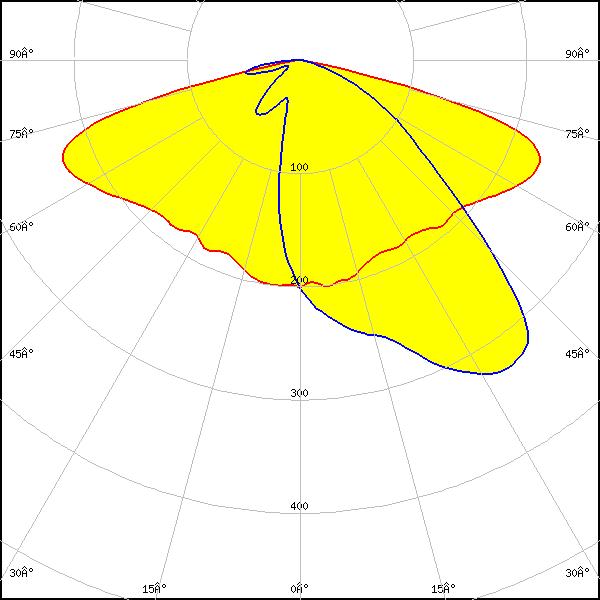

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.664 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

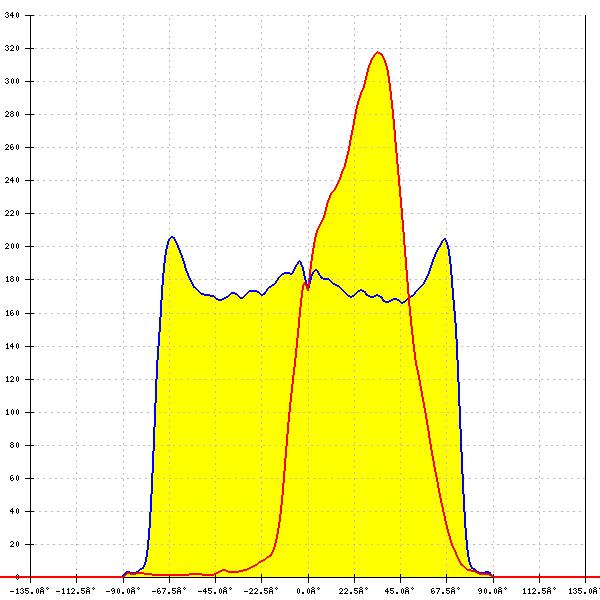

LED: XP-G3
Required components:
FWHM: asymmetric
Peak intensity: 0.493 cd/lm
Efficiency: 67 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.531 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

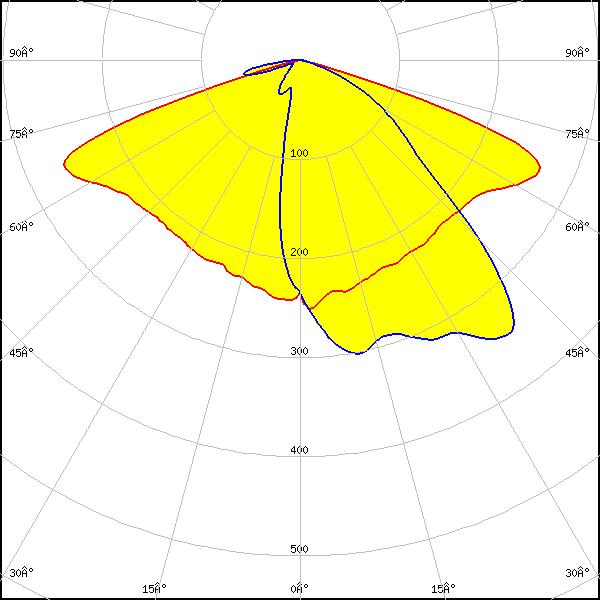

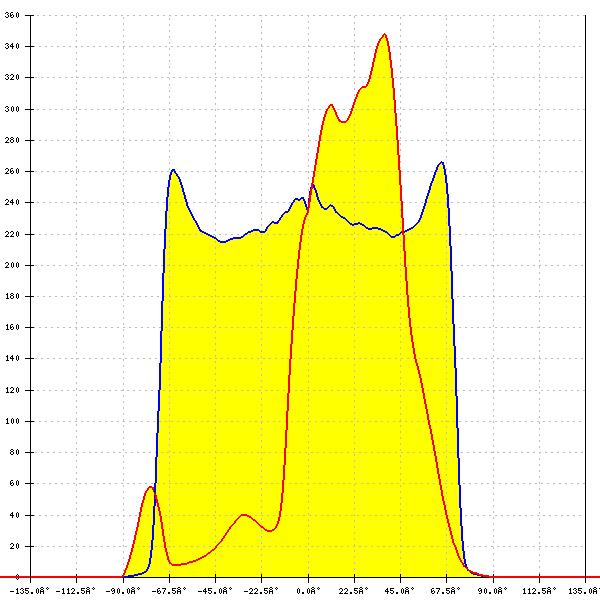

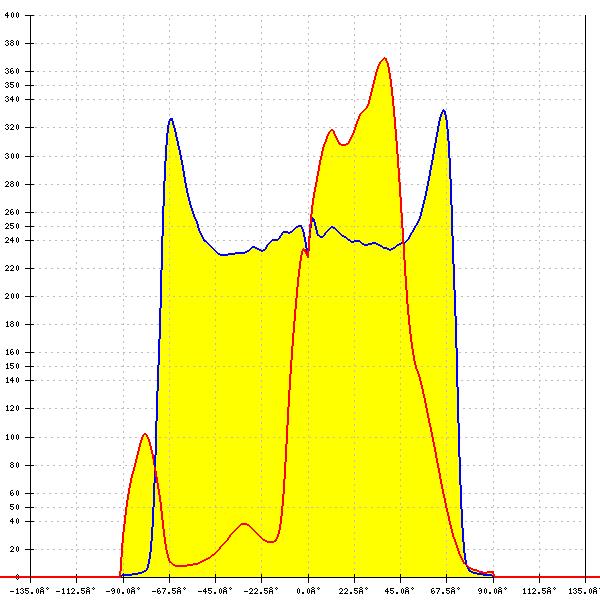

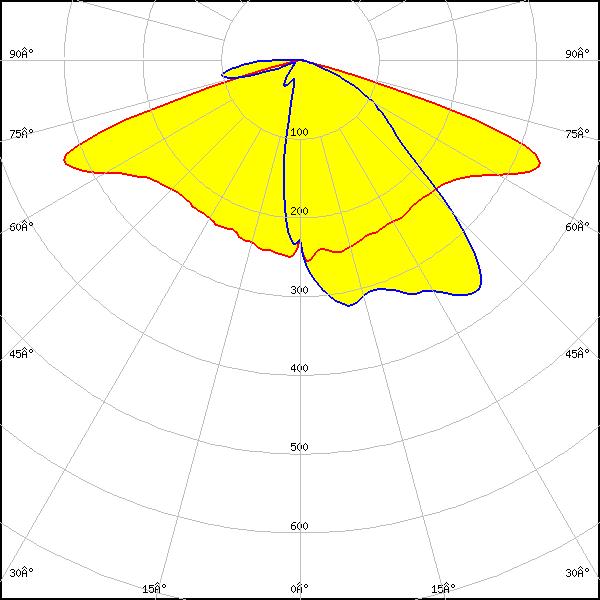

LED: XP-G4
FWHM: asymmetric
Peak intensity: 0.808 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G4
FWHM: asymmetric
Peak intensity: 0.653 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

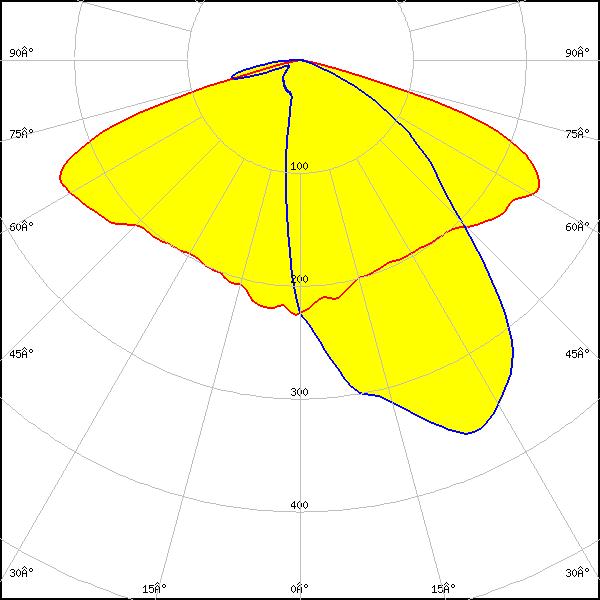

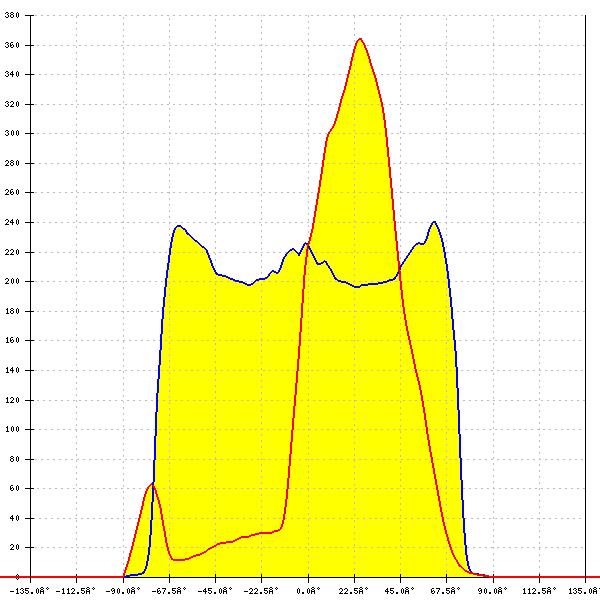

LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.677 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

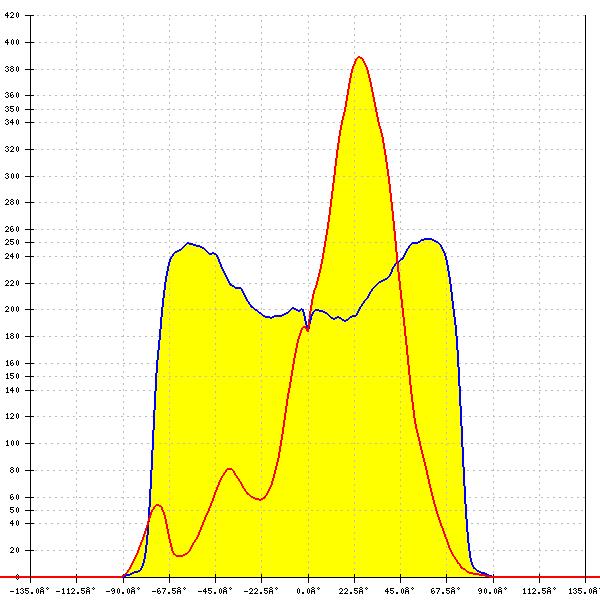

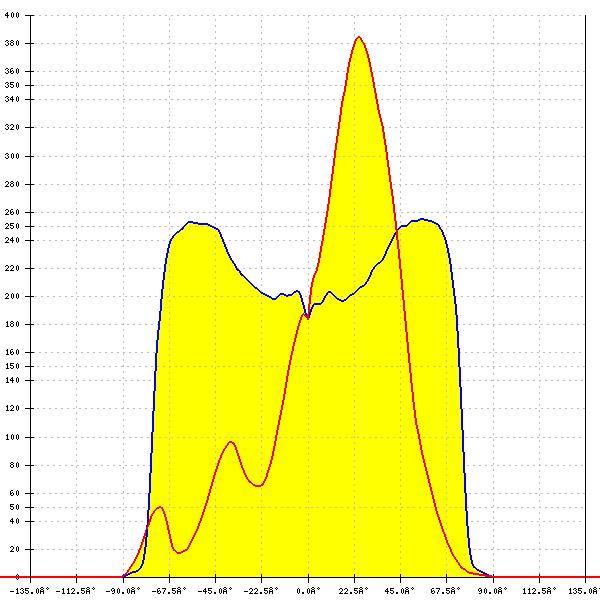

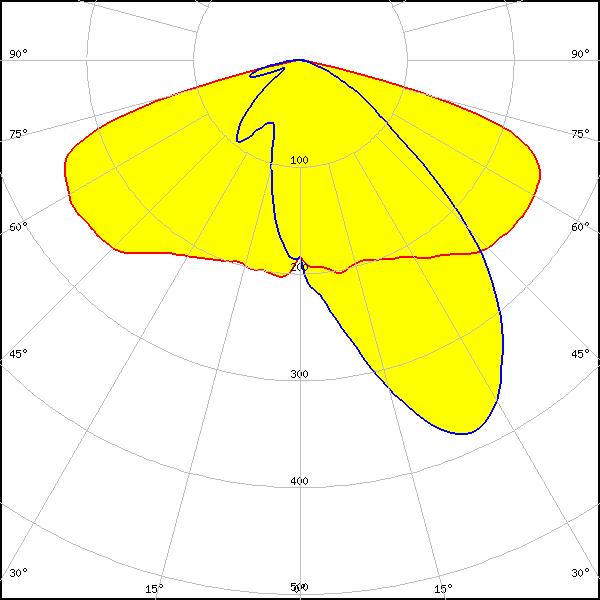

LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.443 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

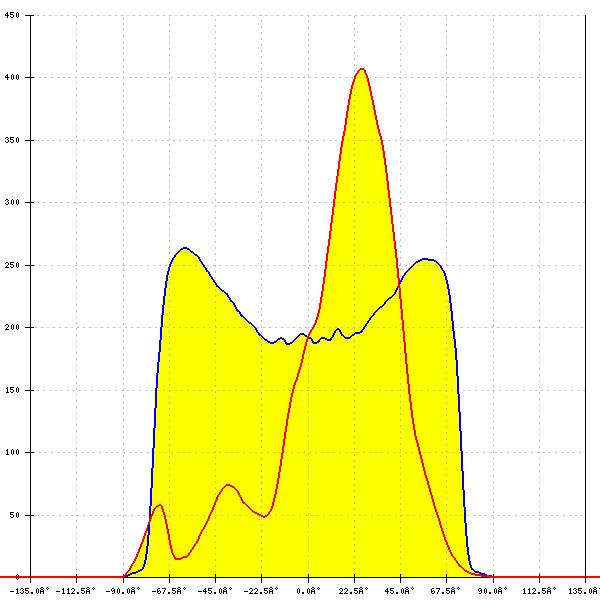

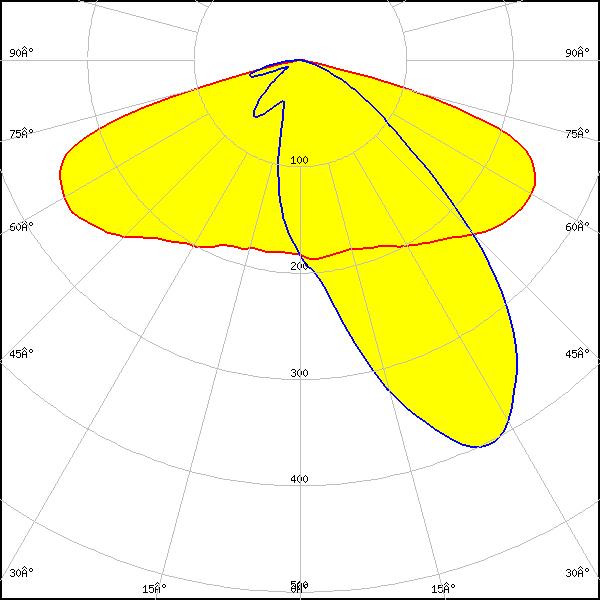

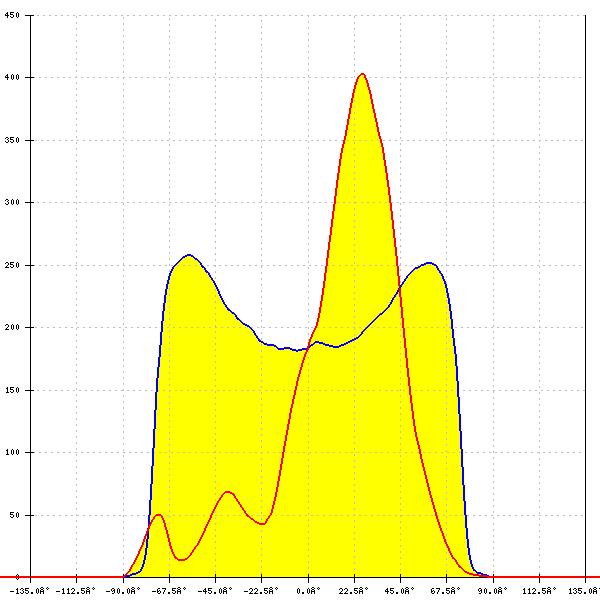

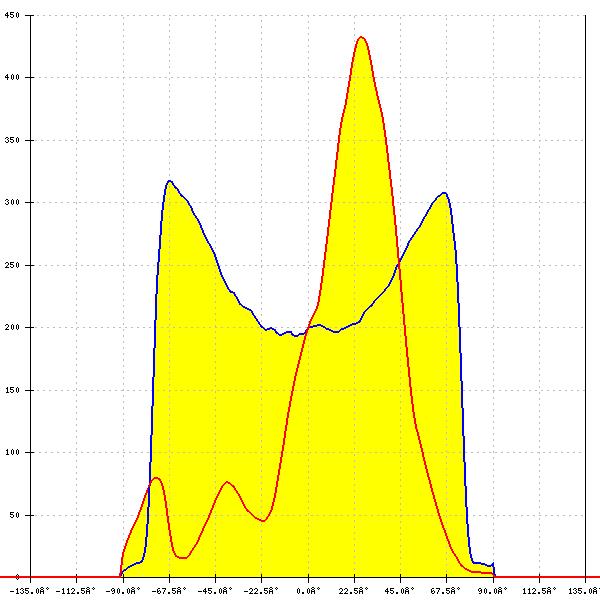

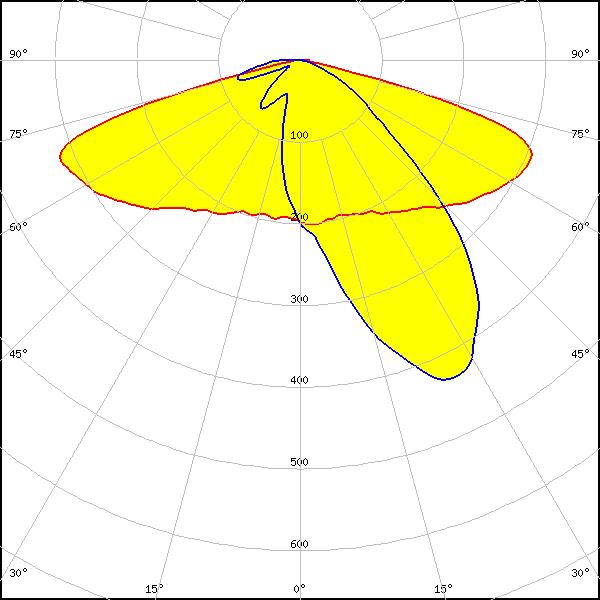

LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.523 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.443 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.462 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

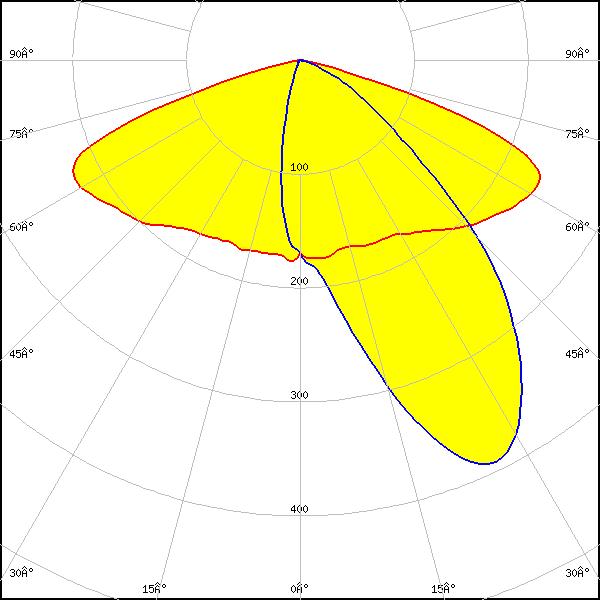

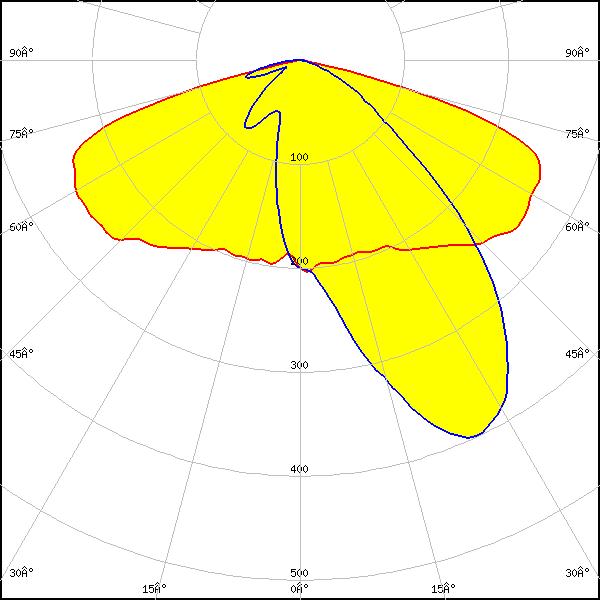

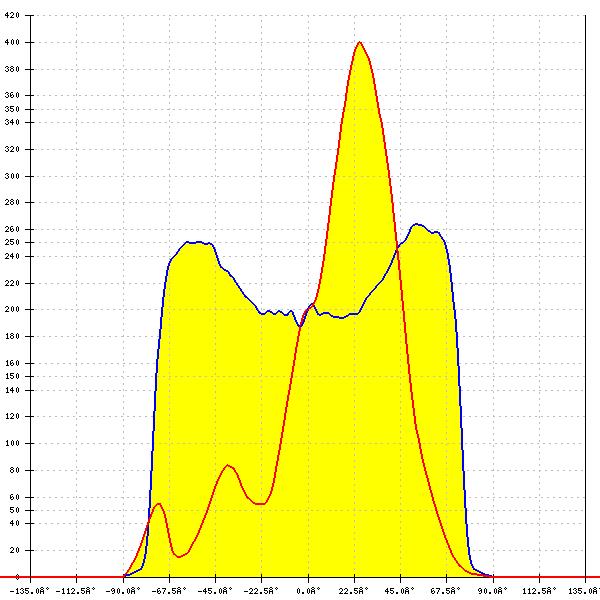

LED: LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity: 0.434 cd/lm
Efficiency: 68 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.446 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

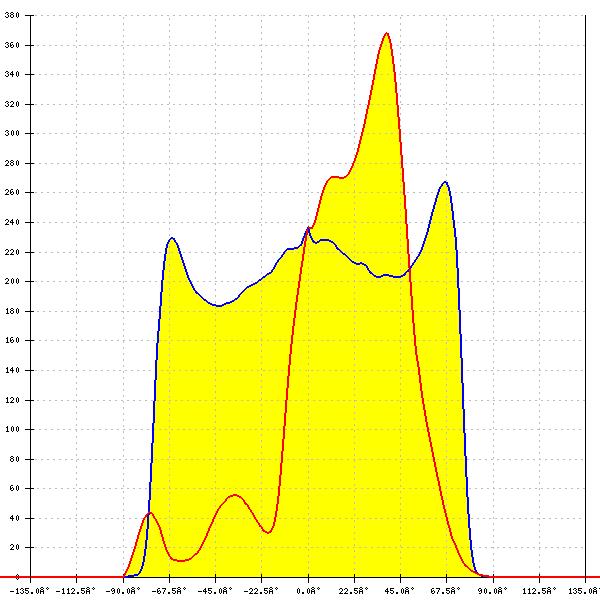

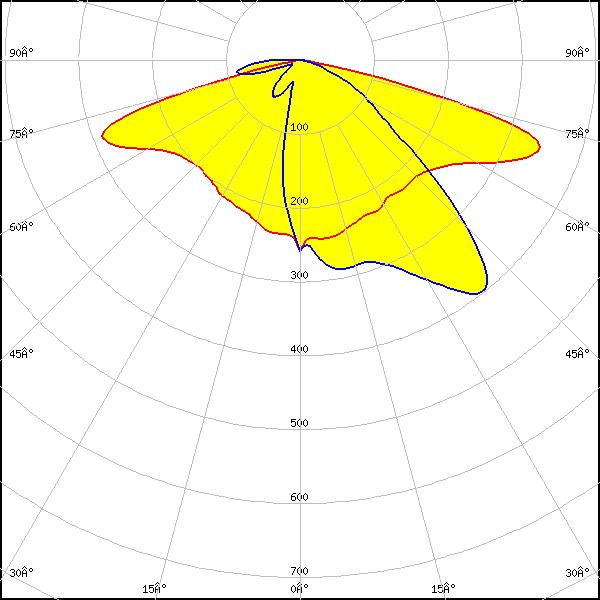

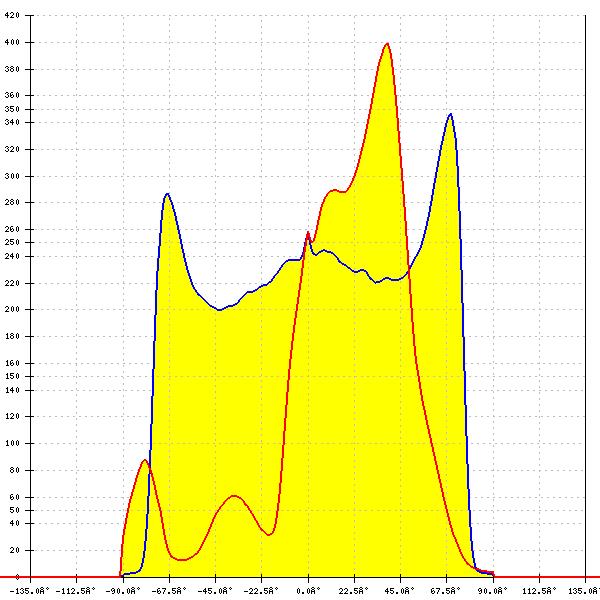

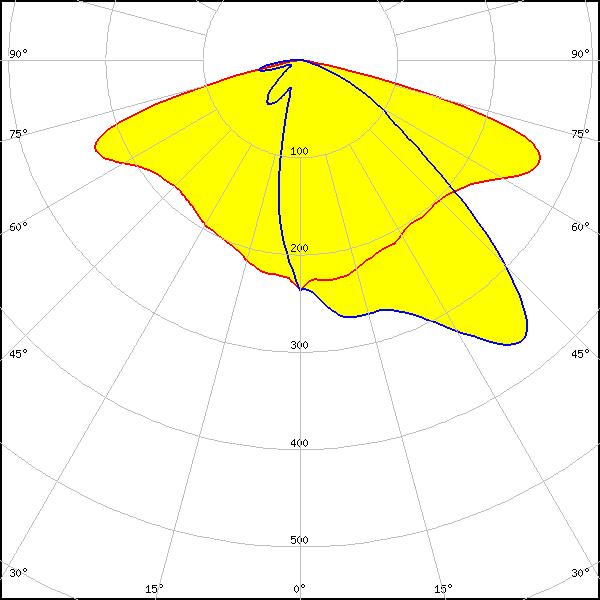

LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 0.694 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 0.509 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

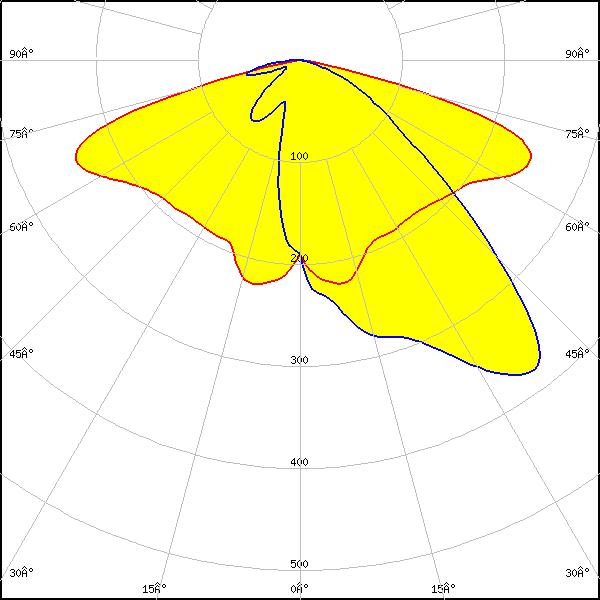

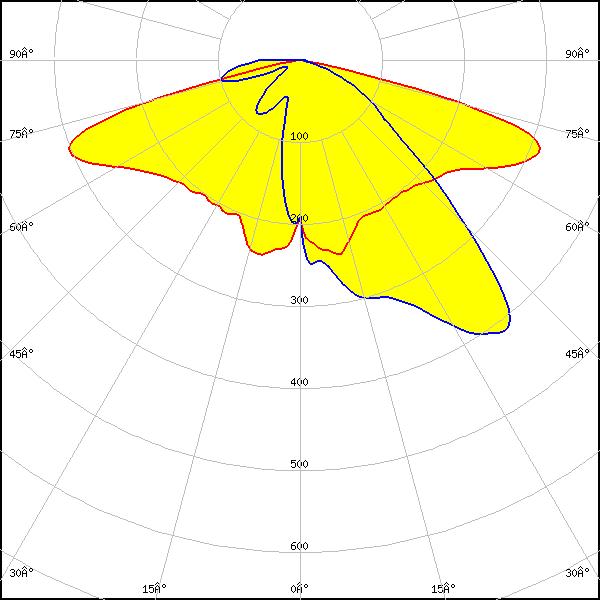

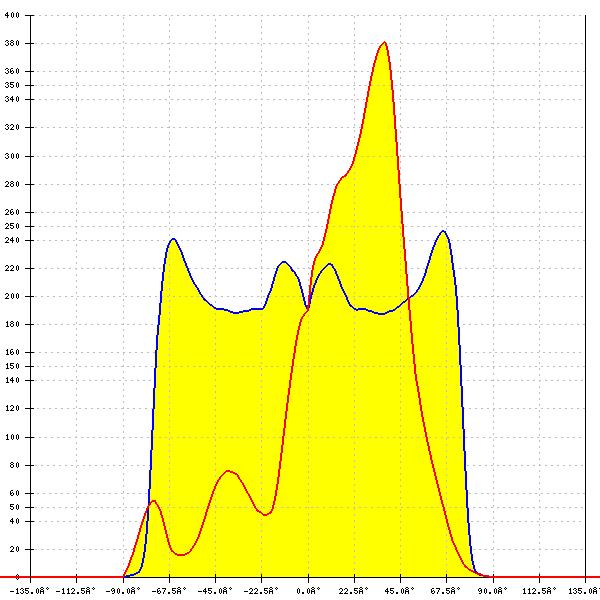

LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: asymmetric
Peak intensity: 0.669 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: asymmetric
Peak intensity: 0.479 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

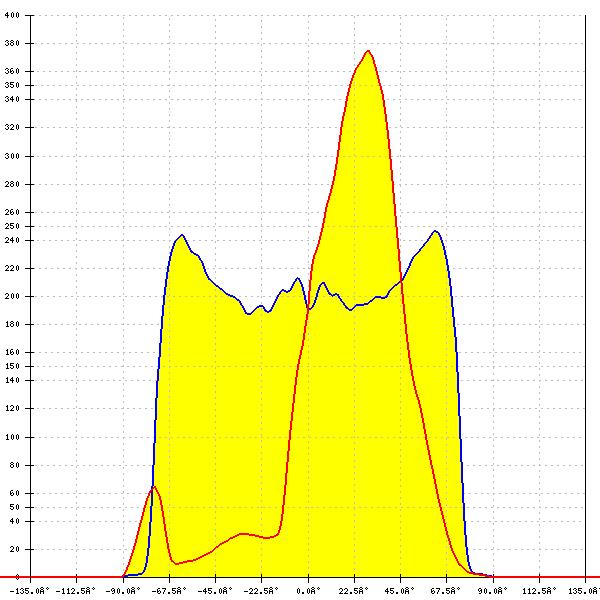

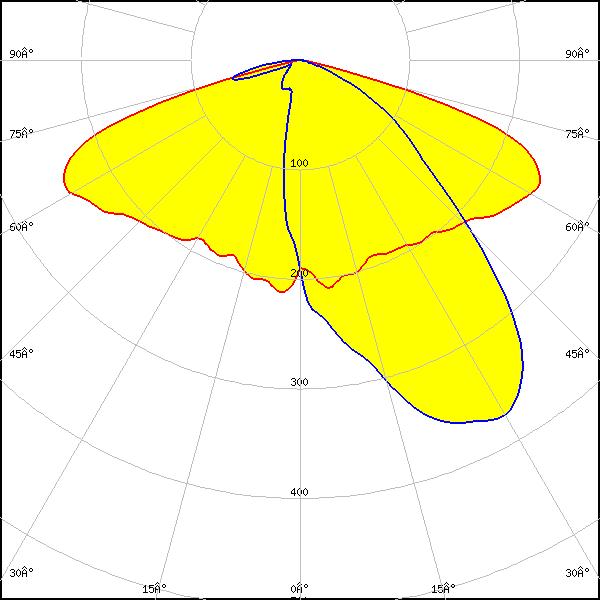

LED: NF2x757G
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

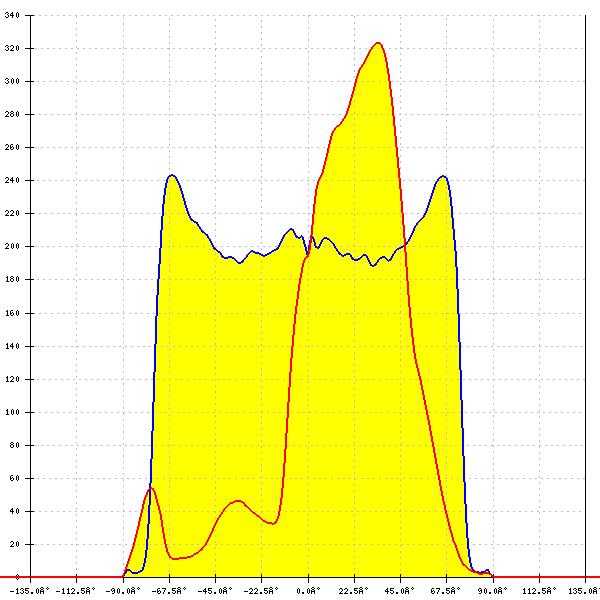

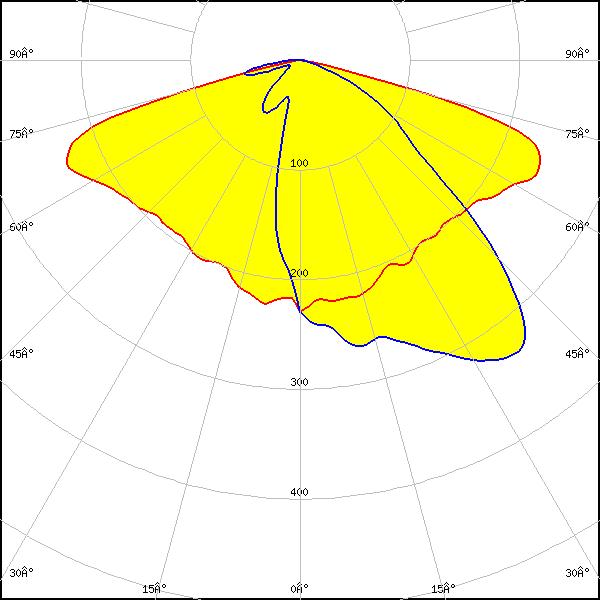

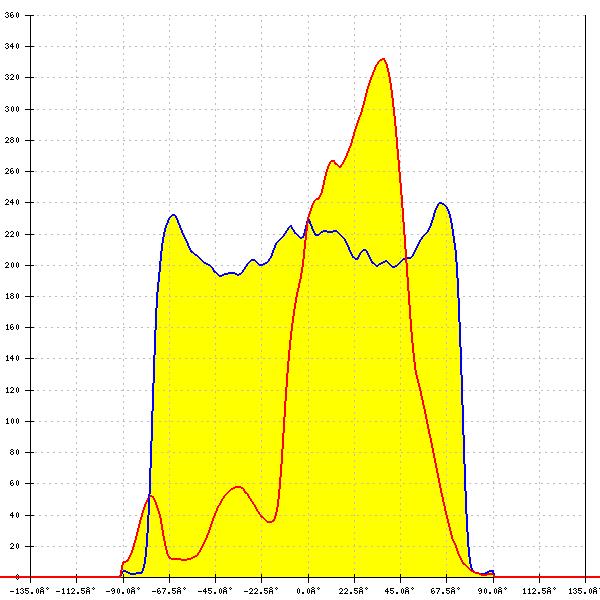

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.542 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

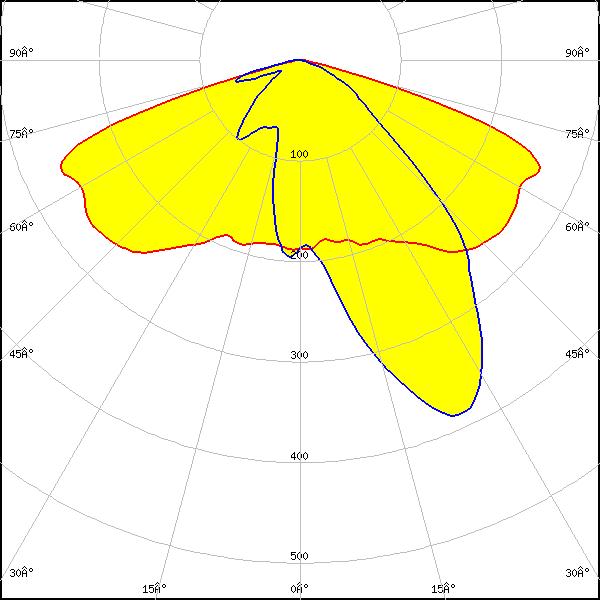

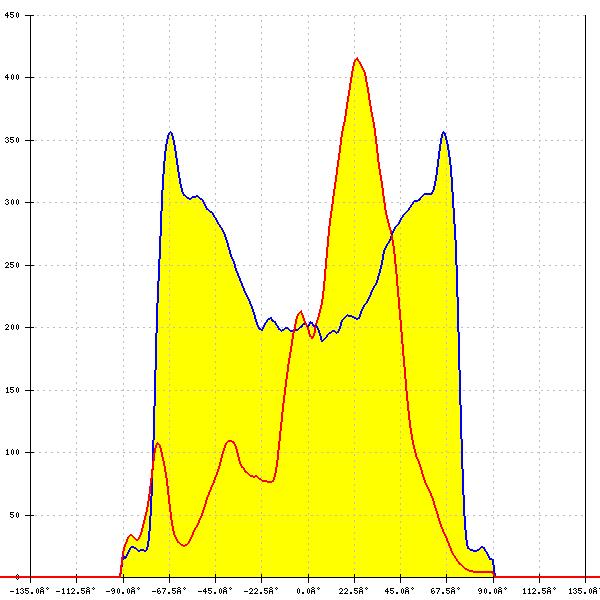

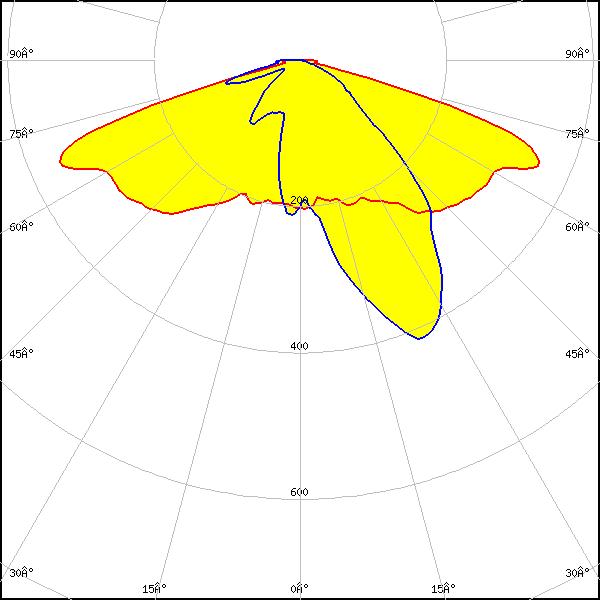

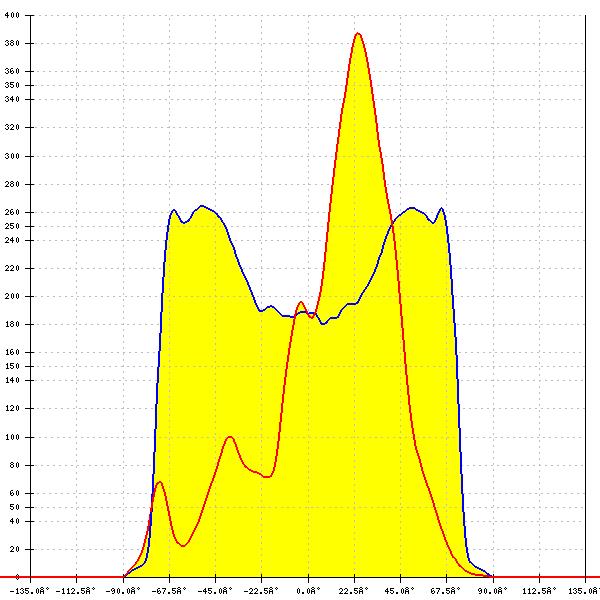

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.403 cd/lm
Efficiency: 78 %
LEDs/each optic: 4
Light colour/type: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.460 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: White

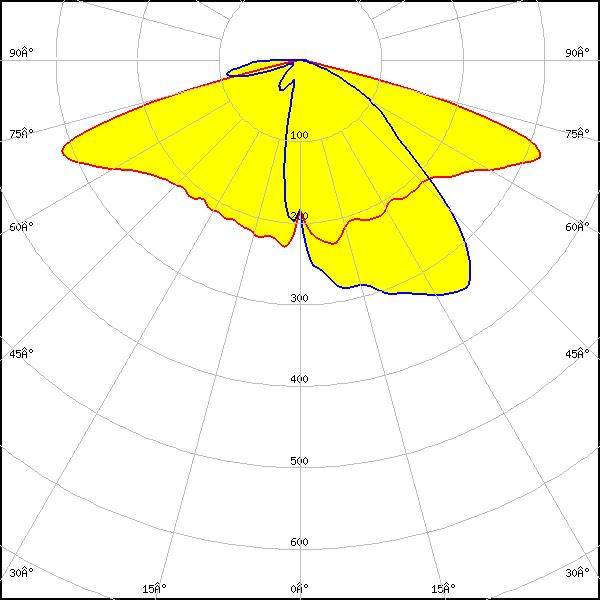

LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.580 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 0.740 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

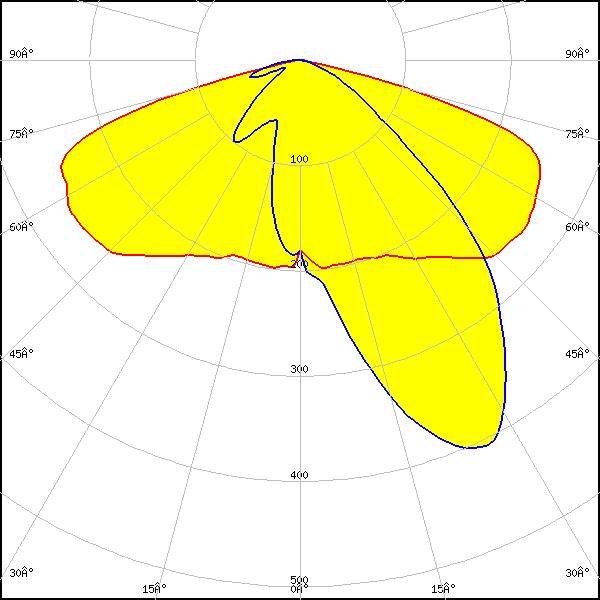

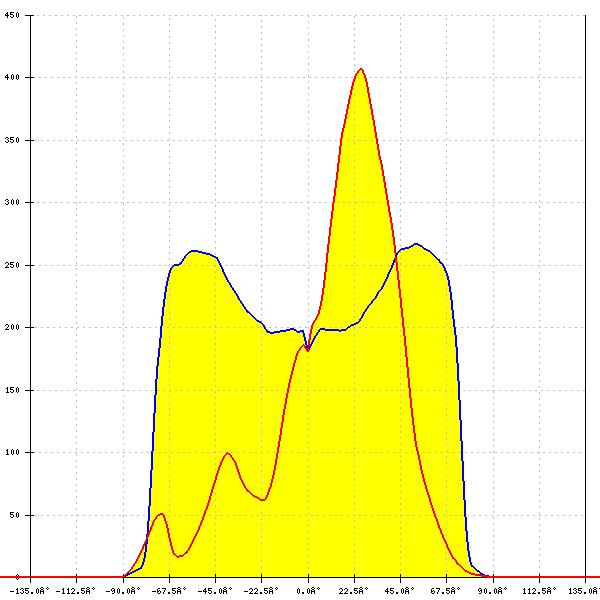

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.420 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

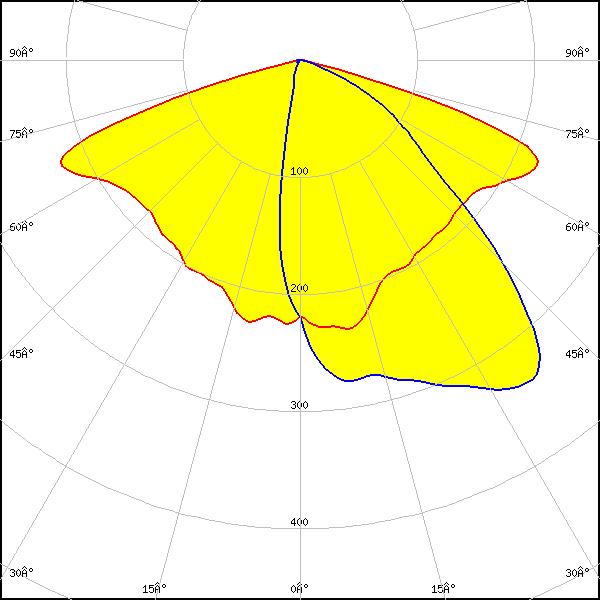

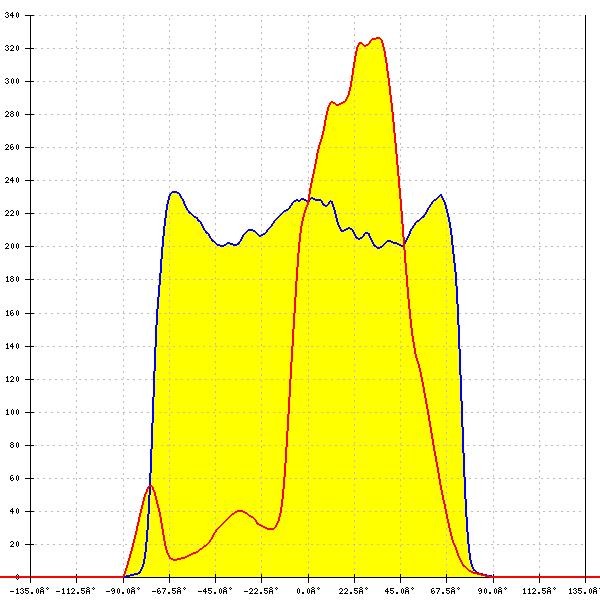

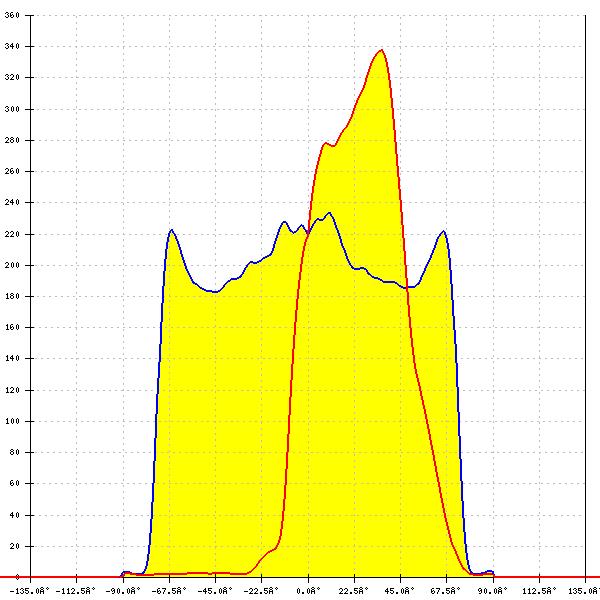

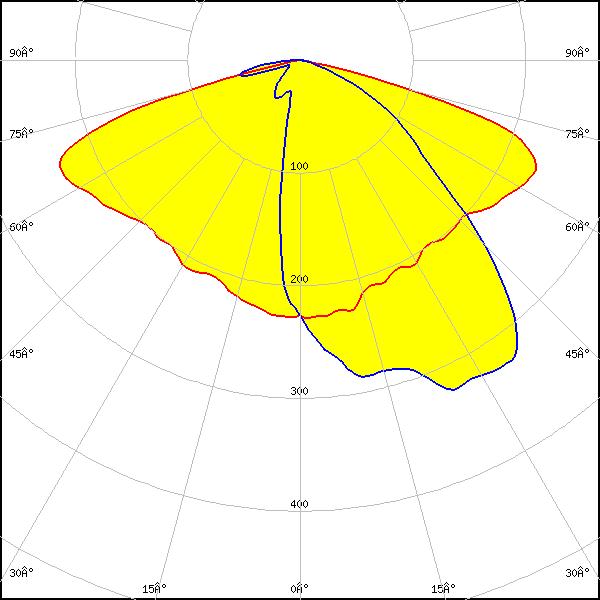

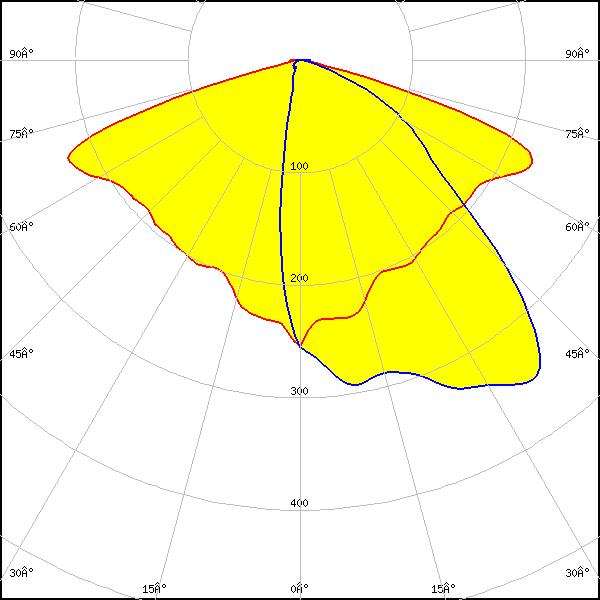

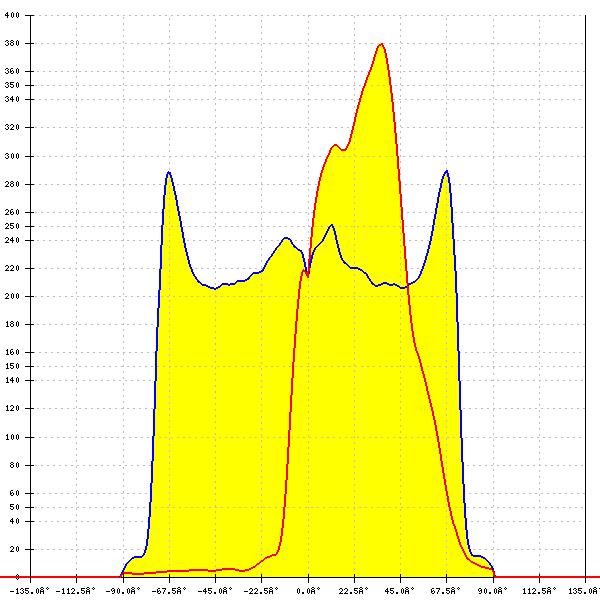

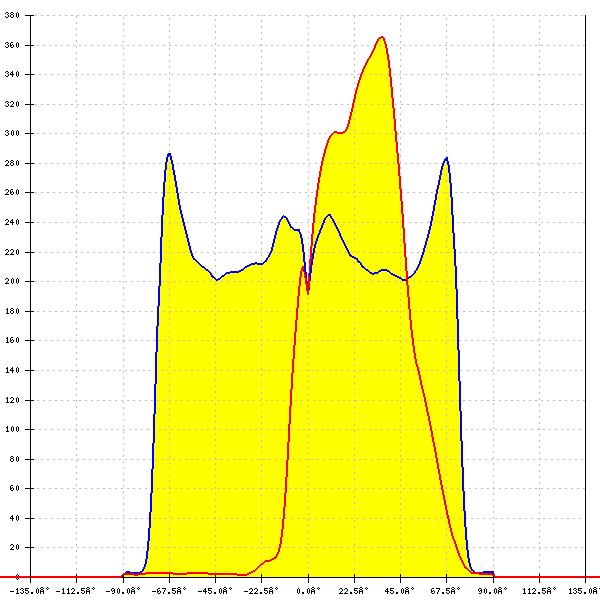

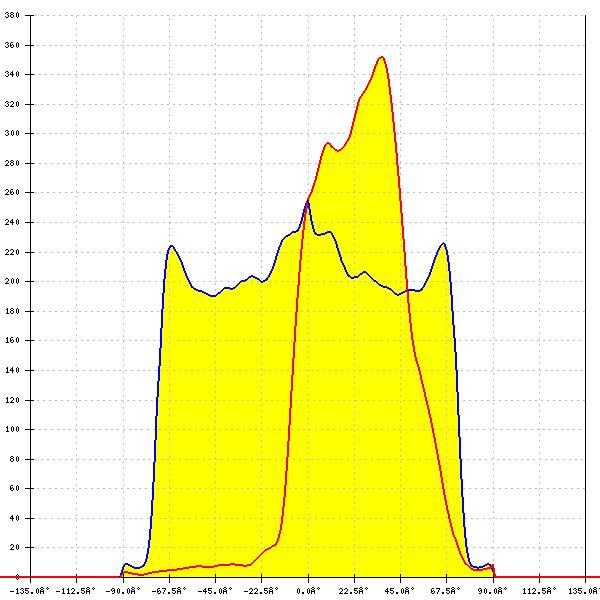

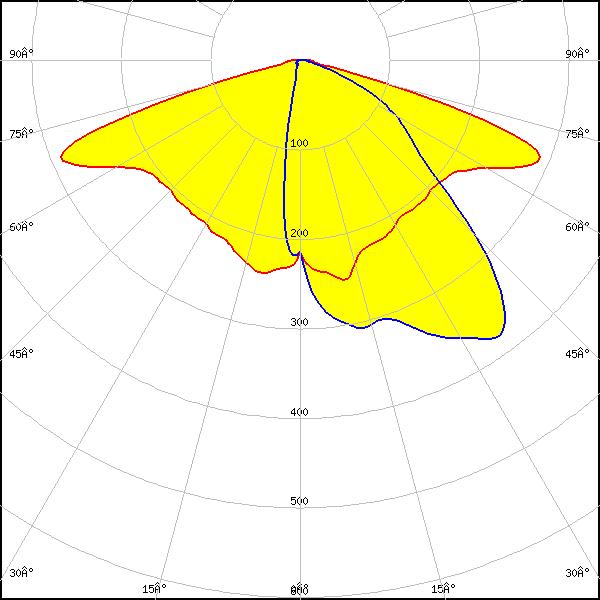

LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.655 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.652 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.529 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
Required components:
FWHM: asymmetric
Peak intensity: 0.521 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.581 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G5
FWHM: asymmetric
Peak intensity: 0.594 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G5
FWHM: asymmetric
Peak intensity: 0.863 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

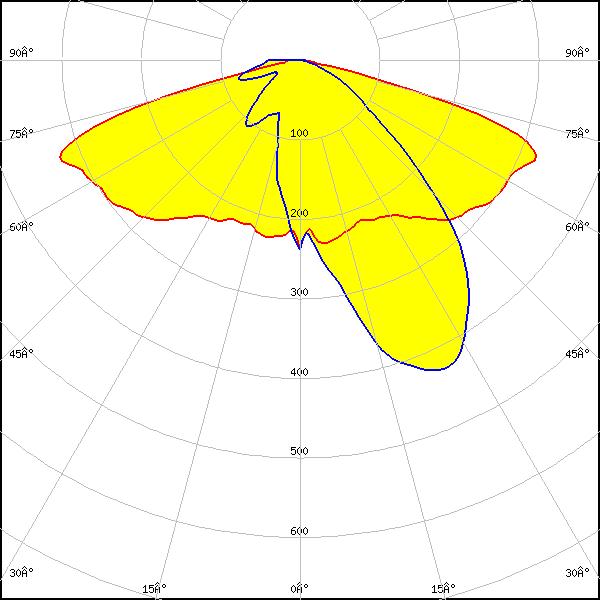

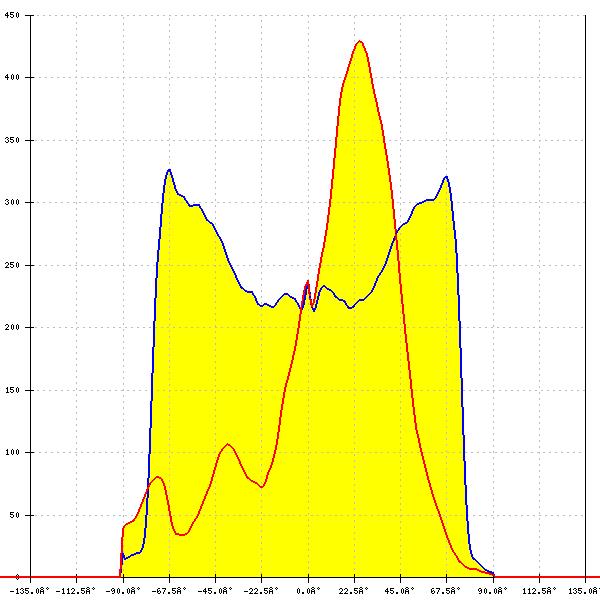

LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: asymmetric
Peak intensity: 0.487 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: asymmetric
Peak intensity: 0.411 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

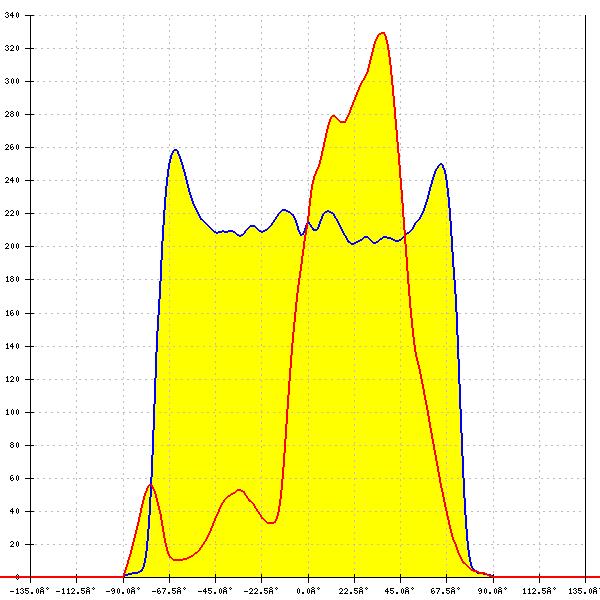

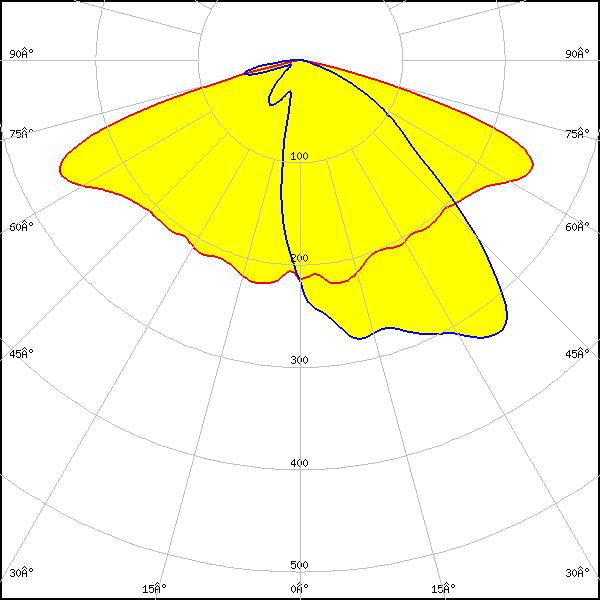

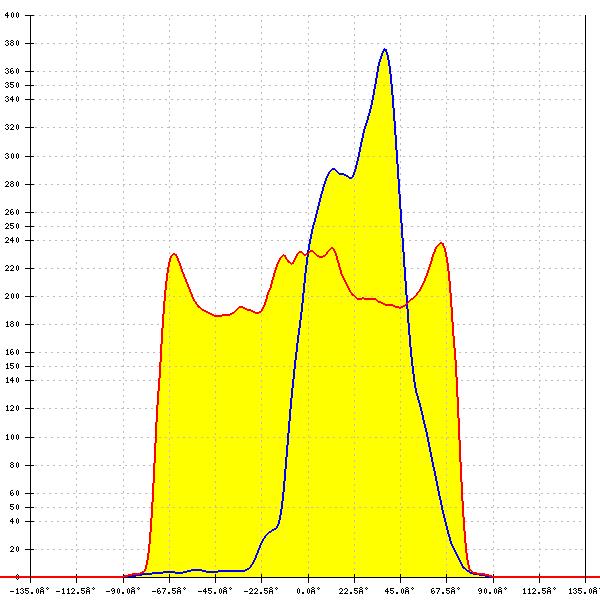

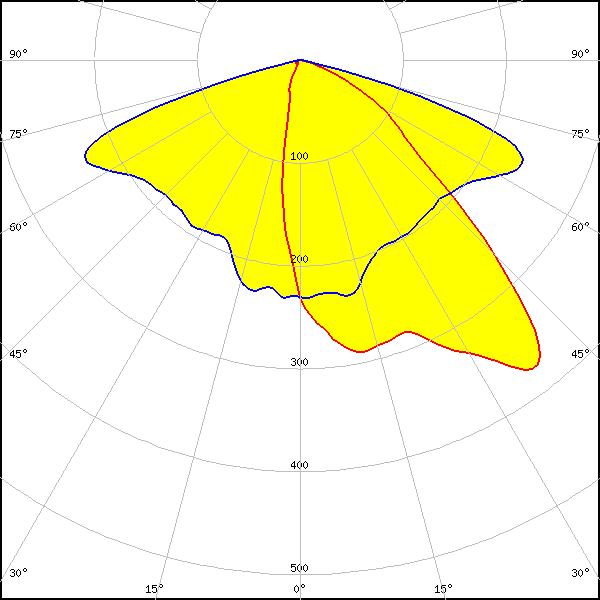

LED: LH351B
FWHM: asymmetric
Peak intensity: 0.581 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

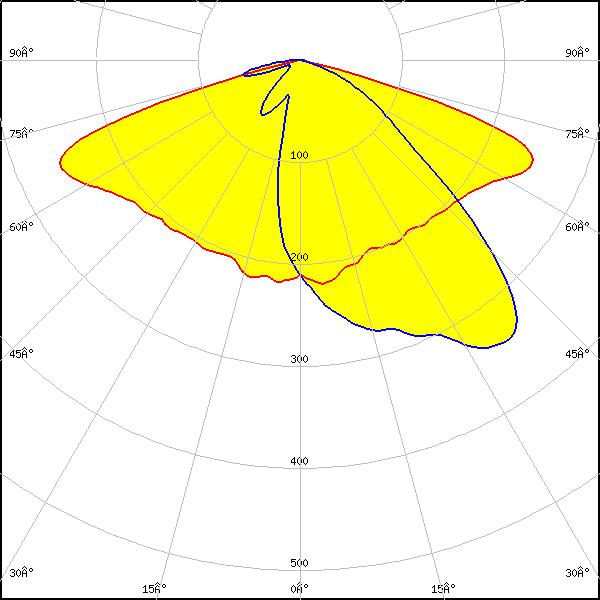

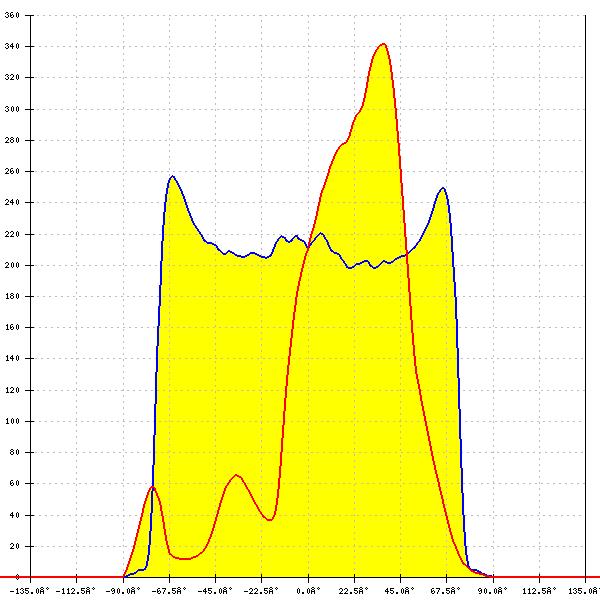

LED: LH351C
FWHM: asymmetric
Peak intensity: 0.556 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

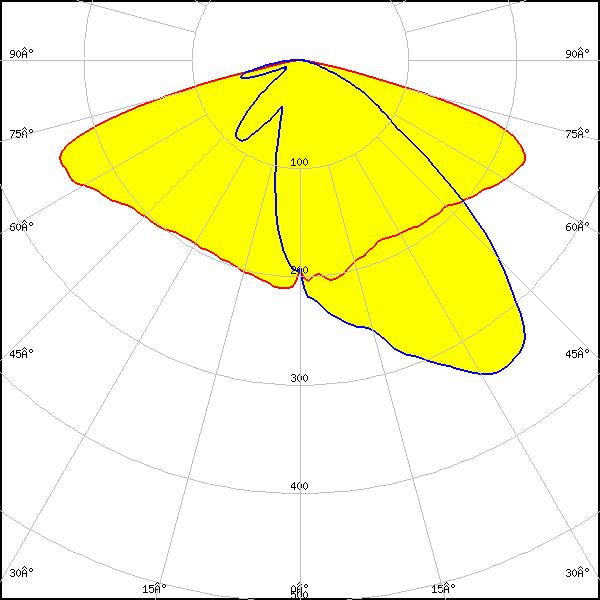

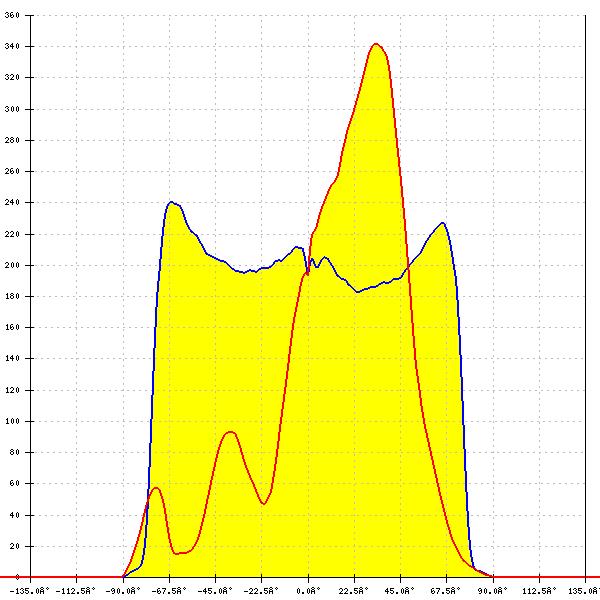

LED: LH351D
FWHM: asymmetric
Peak intensity: 0.456 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

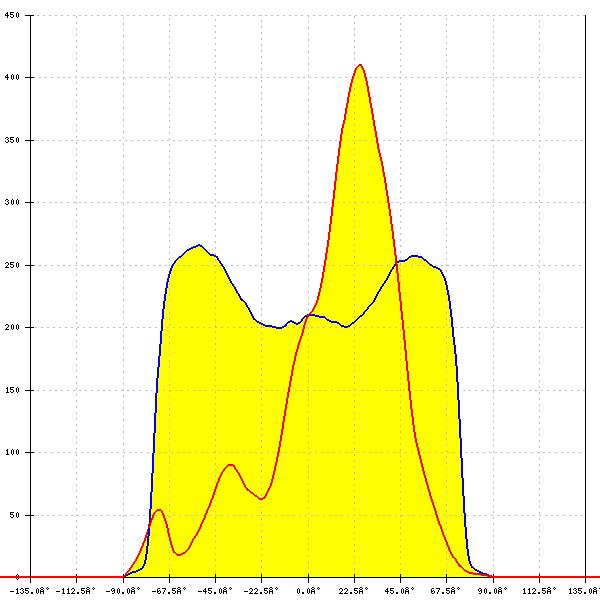

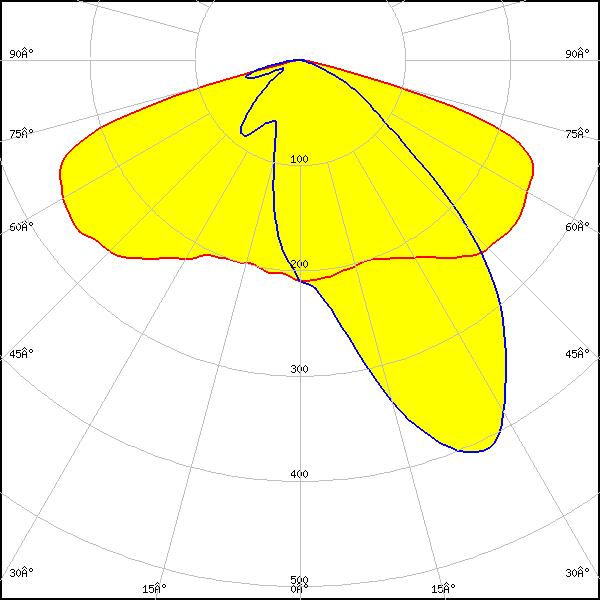

LED: LH502C
FWHM: asymmetric
Peak intensity: 0.433 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

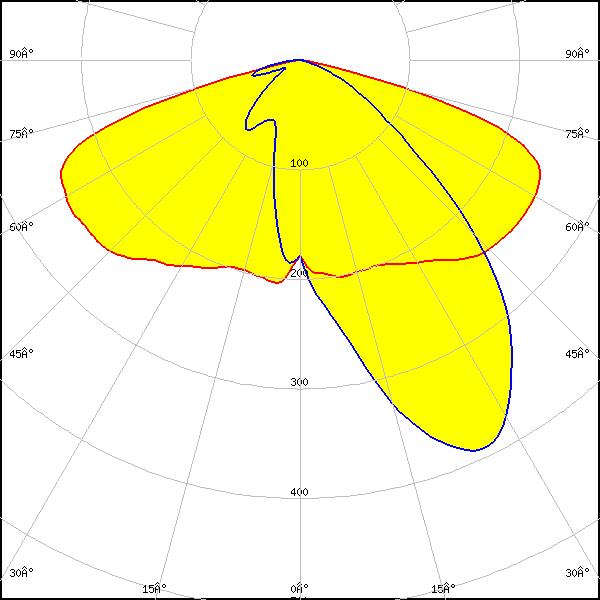

LED: LH502D
FWHM: asymmetric
Peak intensity: 0.503 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LH502D
FWHM: asymmetric
Peak intensity: 0.423 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

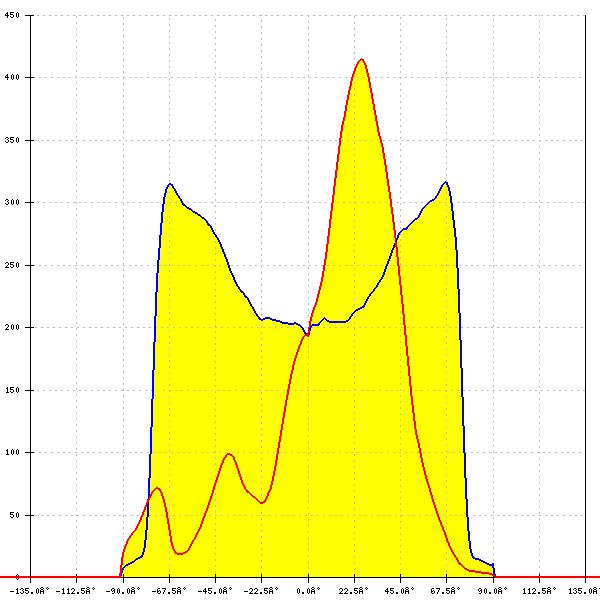

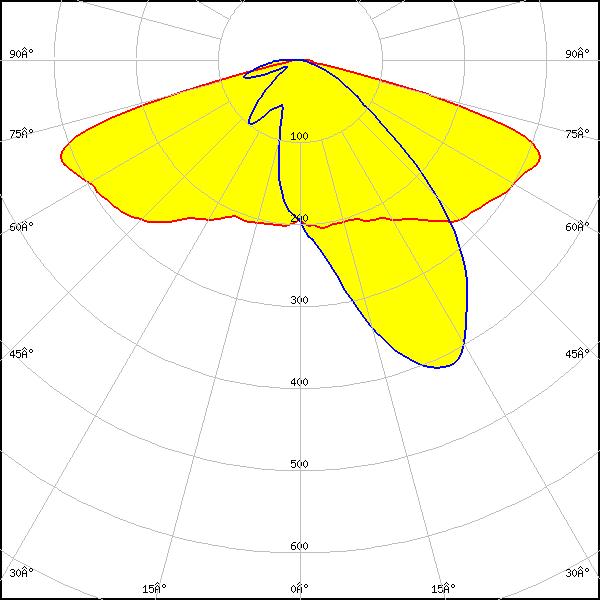

LED: MJT 5050
FWHM: asymmetric
Peak intensity: 0.468 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

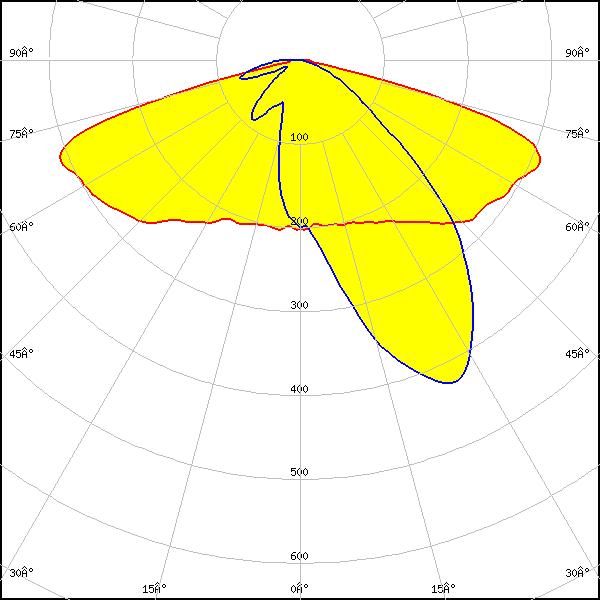

LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.476 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.419 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

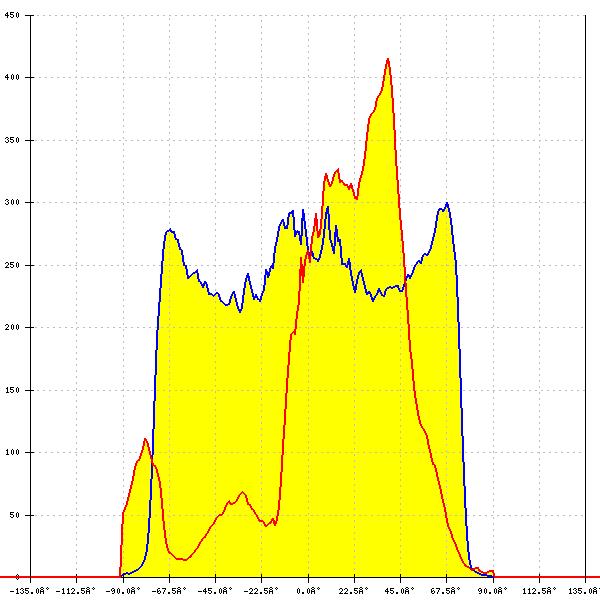

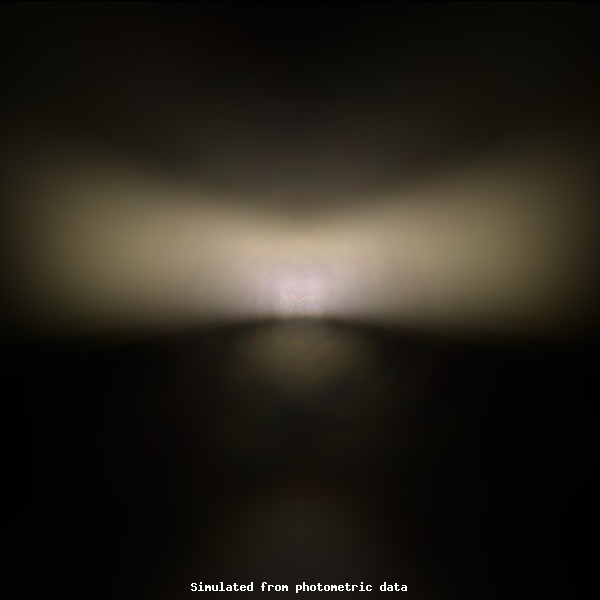

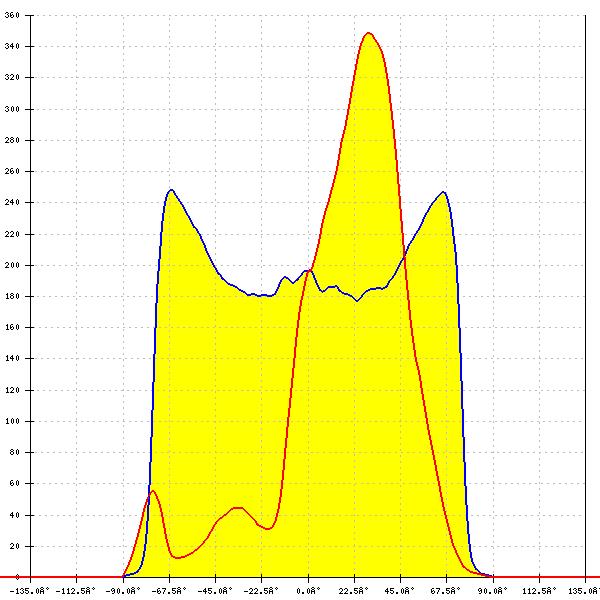

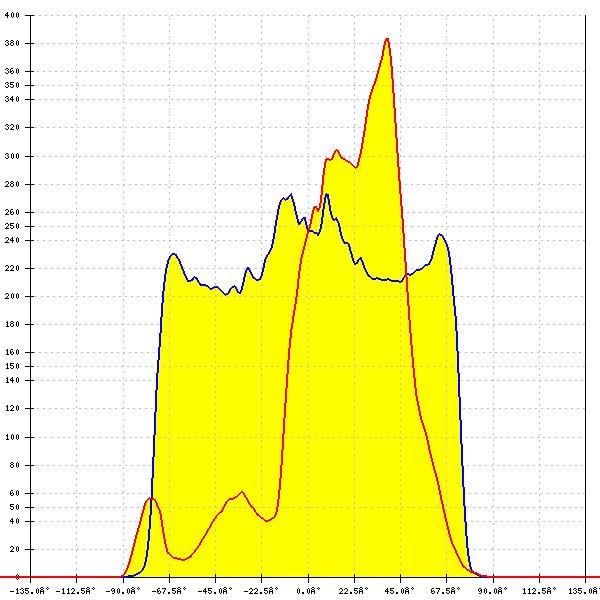

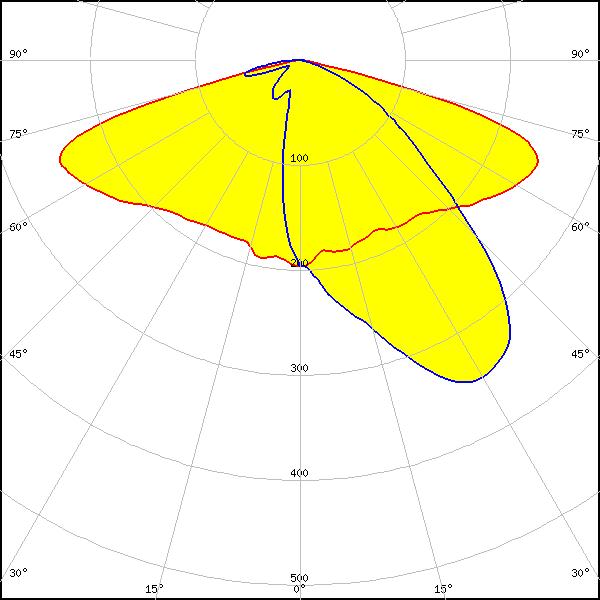

LED: Z5M3
FWHM: asymmetric
Peak intensity: 0.565 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
