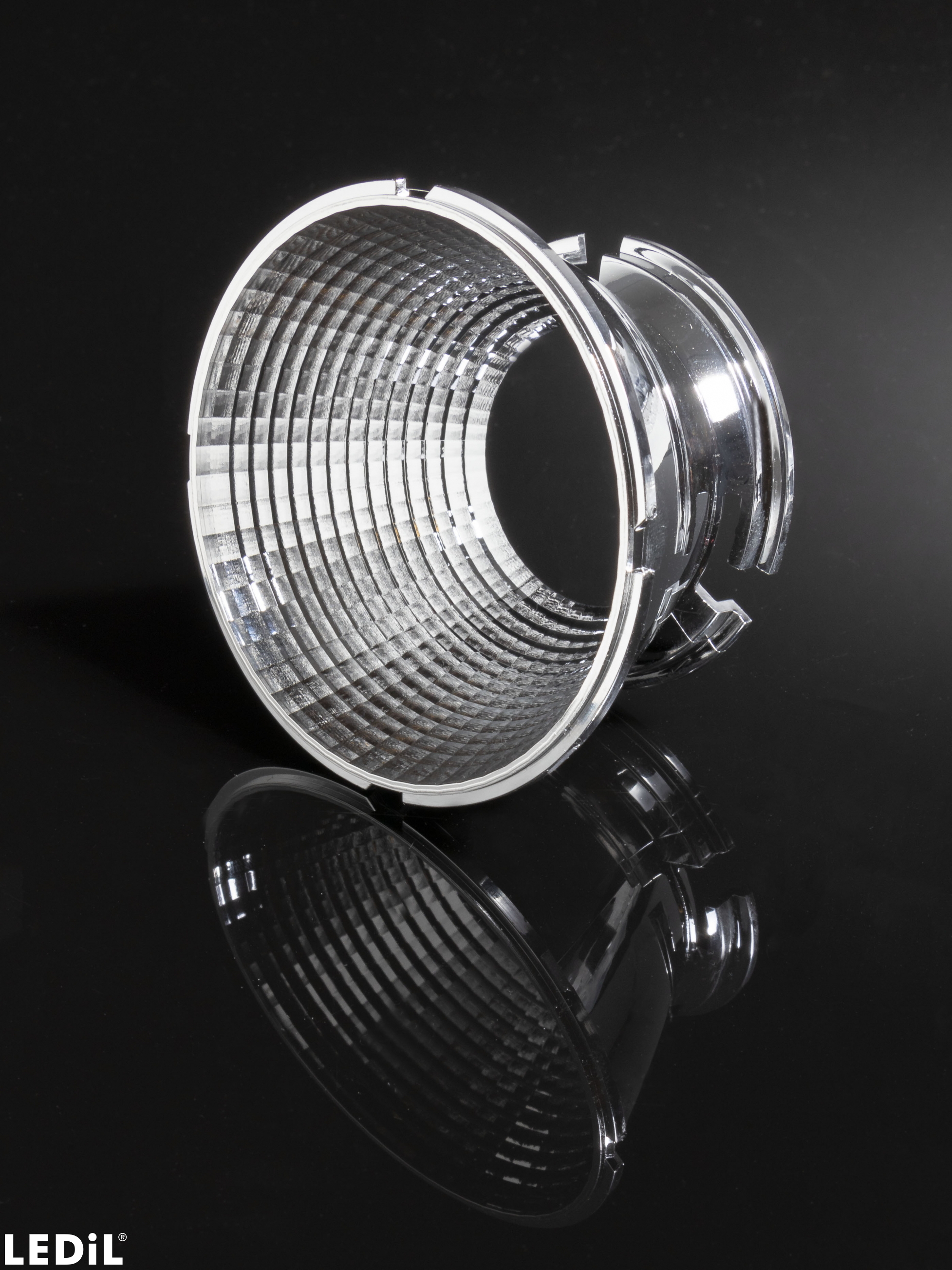

    C17543_LENINA-M-HMDS

    Print

    ~30° medium beam

    Specification
    • Dimensions:
      74 mm
    • Height:
      40.00 mm
    • Fastening:
      socket
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      60 pcs
    • Box size:
      476 x 273 x 197 mm
    • Box weight:
      2.1 kg
    • MPQ:
      60 pcs
    • MOQ:
      120 pcs
    • MOQ size:
      480 x 280 x 200 mm
    • MOQ weight:
      2.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C17543_LENINA-M-HMDS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    NEW PRODUCTS – DECEMBER 15, 2020

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    PRODUCT NEWS - LENA AND LENINA

    Application area

    Indoor Architectural Lighting

    Compatibility guide

    LENA/LENINA System Reflectors Compatibility Guide

    Compatibility guide

    LEDiL System Reflector Compatibility Guide

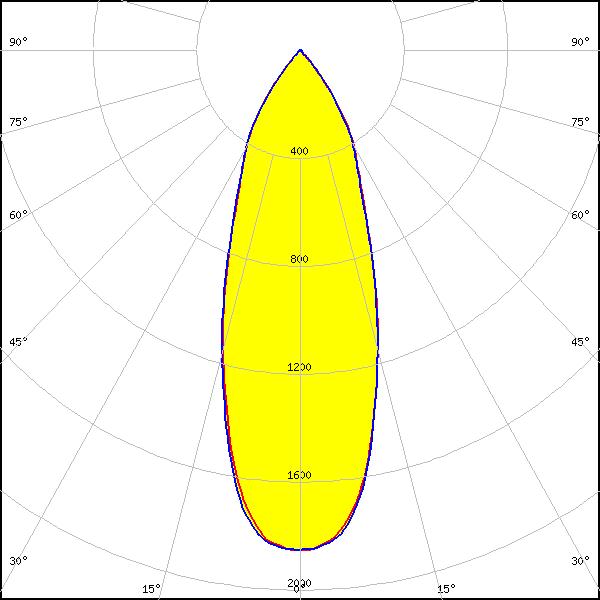

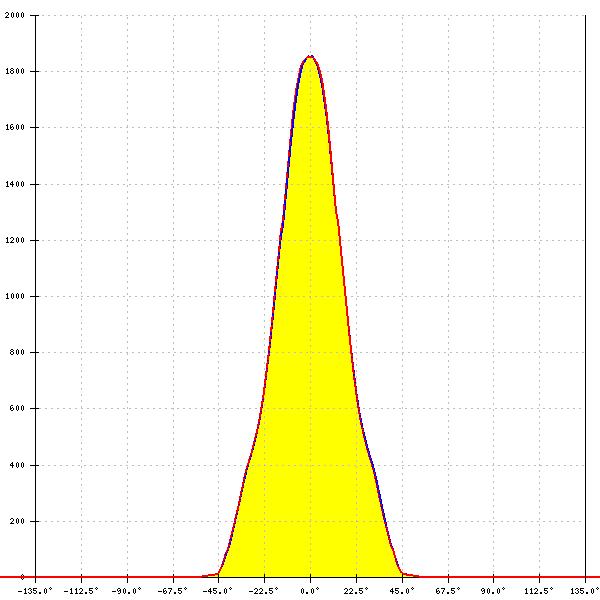

    Optical results

    LED: VERO18
    LES size: 18.6 mm
    Required components:
    C13868_LENA-STD-BASE-VERO13-18
    FWHM: 37°
    FWTM: 75°
    Peak intensity: 1.853 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
