C17411_SPORT-2X2-S2

Print

Slightly asymmetric ~20° spot beam with minimum spill light

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    14.23 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    476 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    10.5 kg
  • MPQ:
    28 pcs
  • MOQ:
    140 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    3.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C17411_SPORT-2X2-S2

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

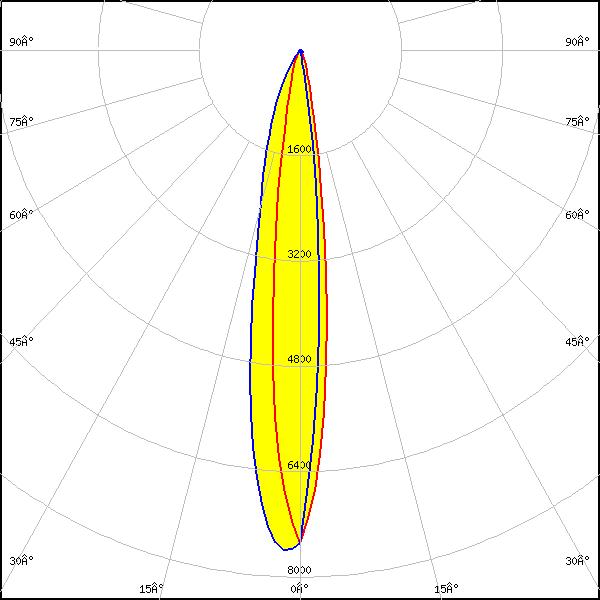

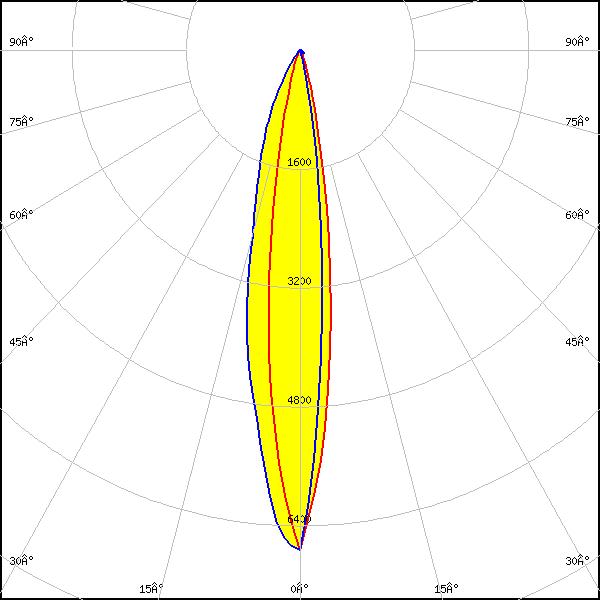

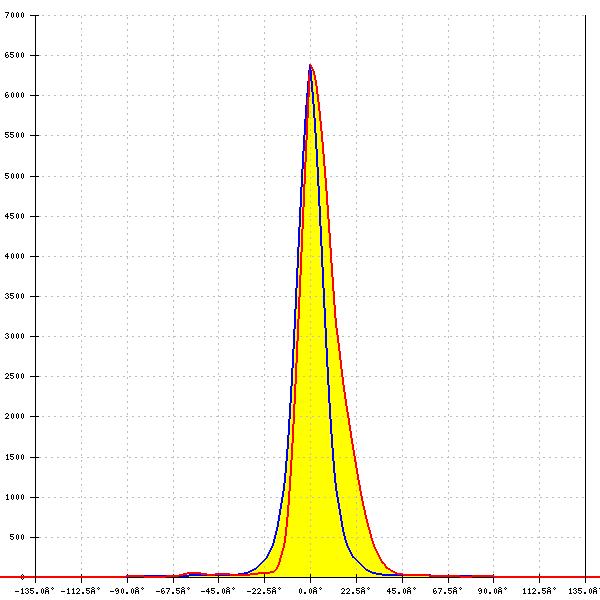

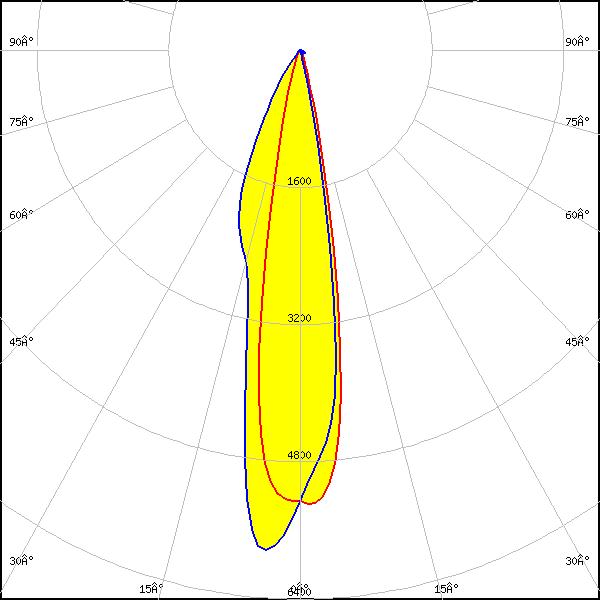

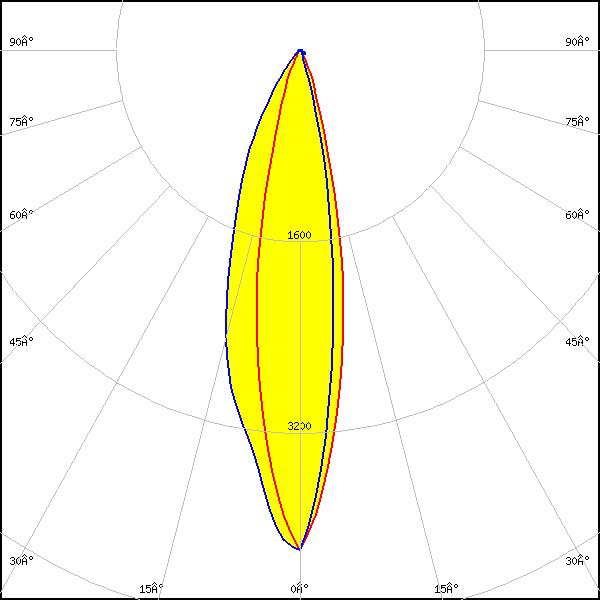

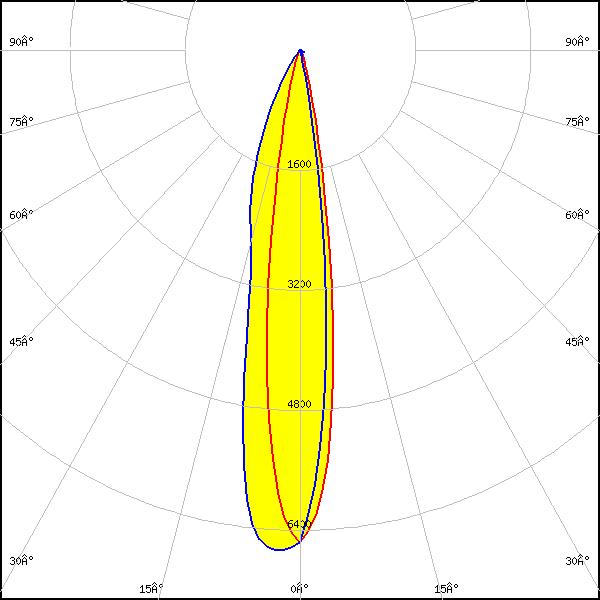

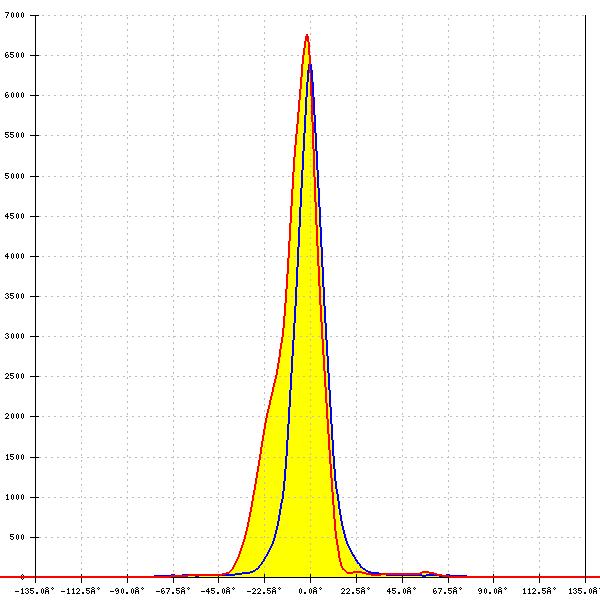

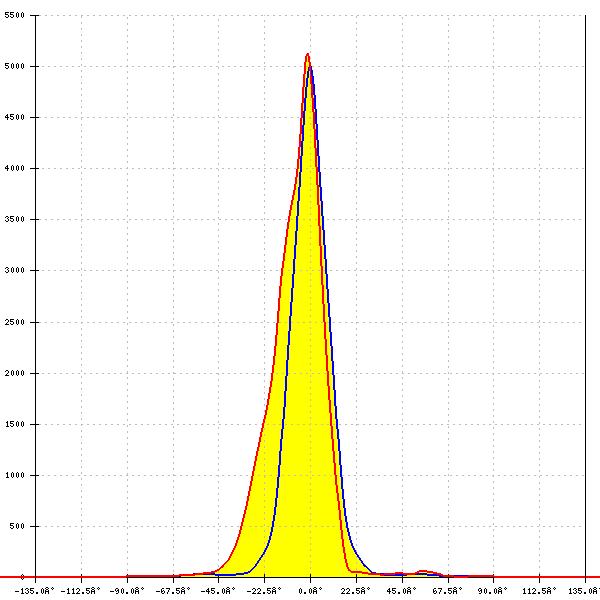

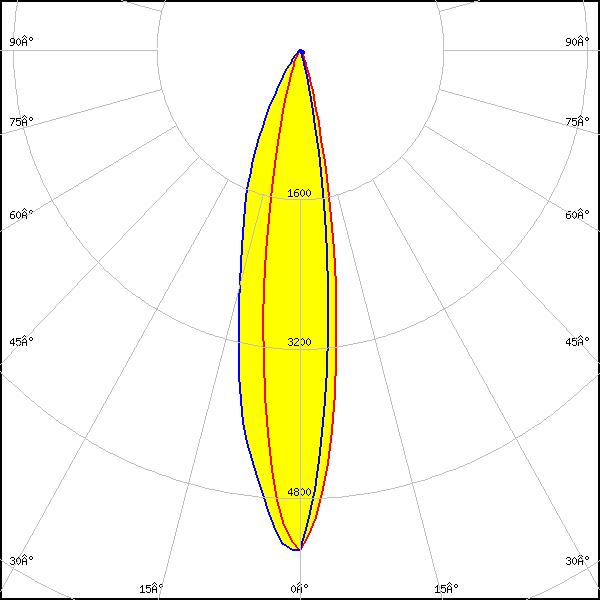

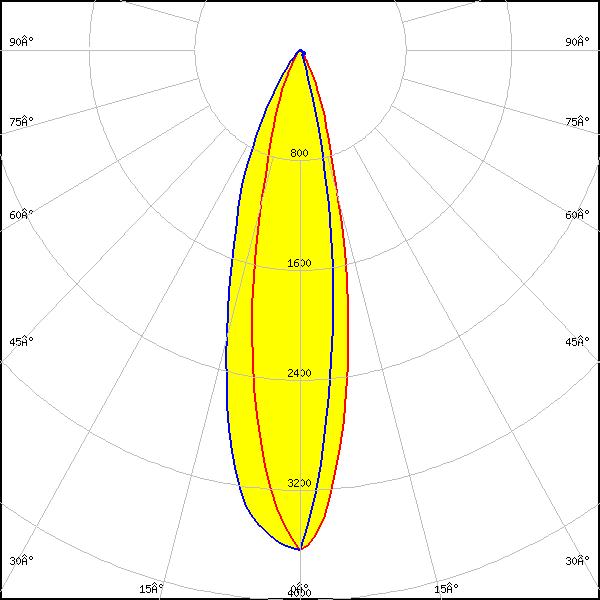

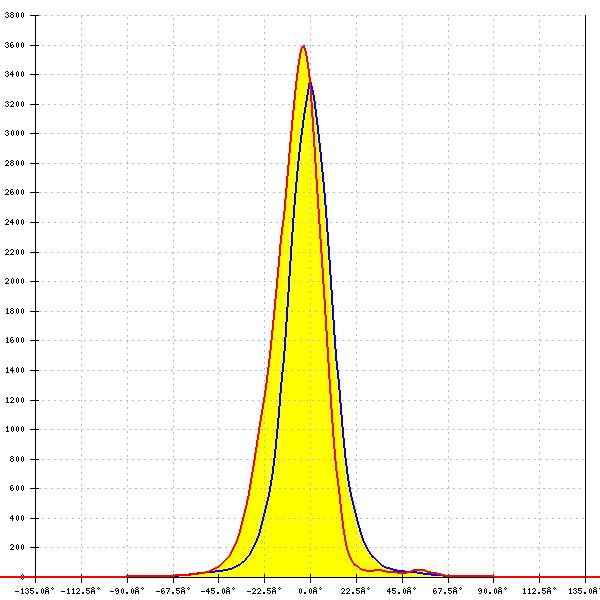

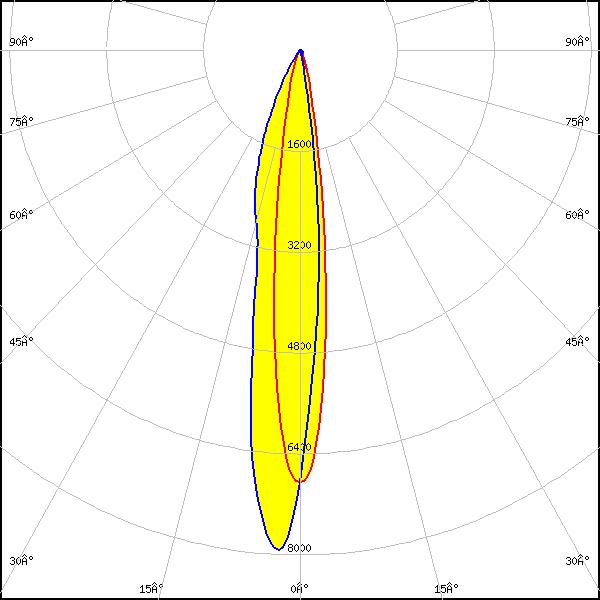

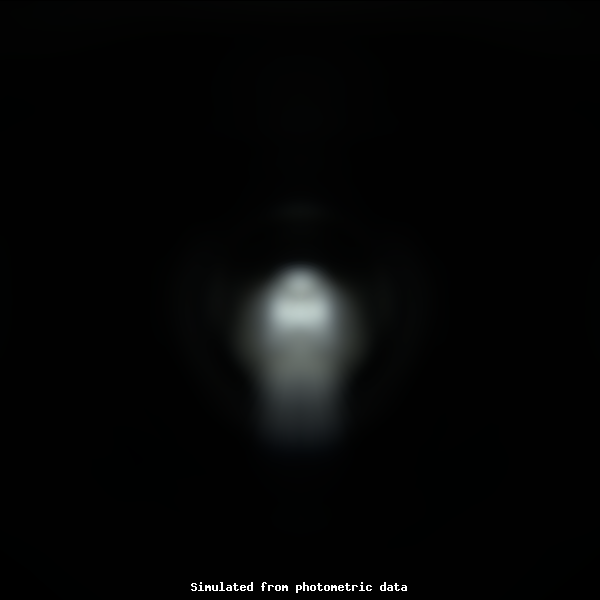

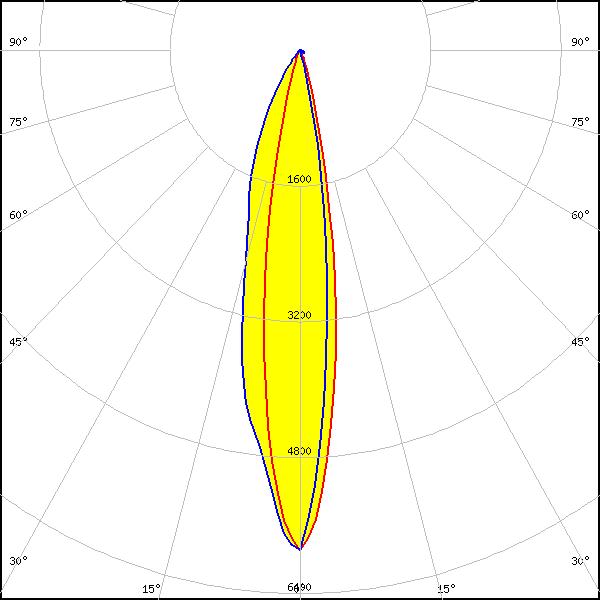

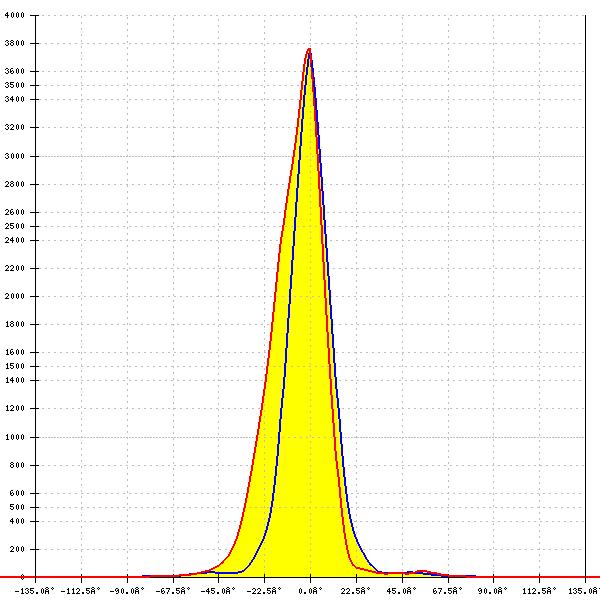

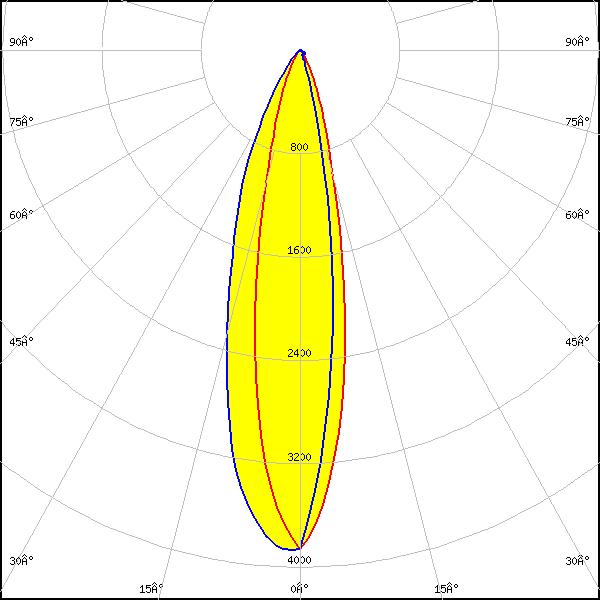

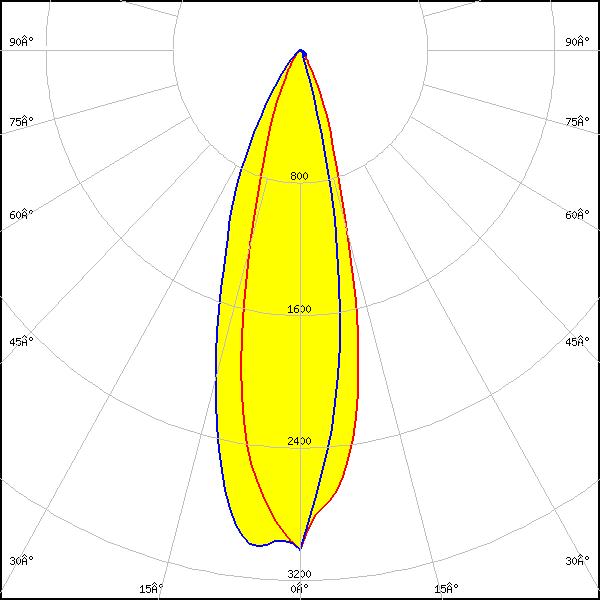

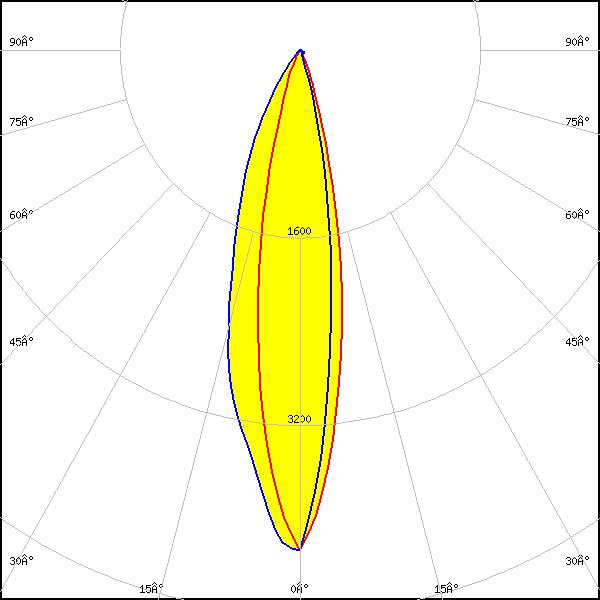

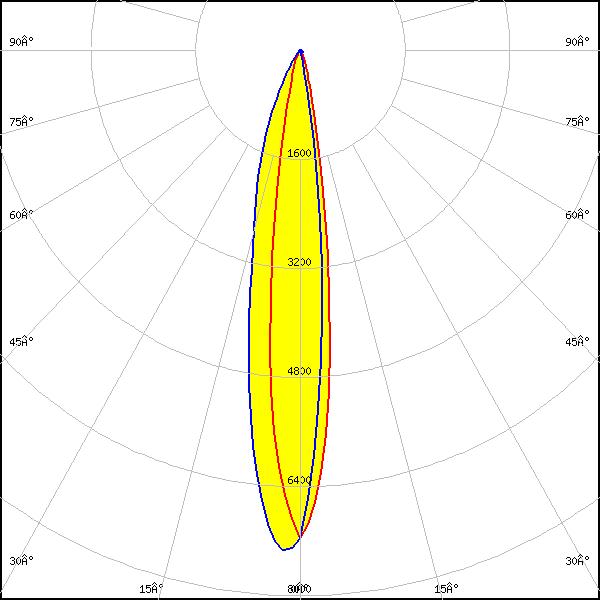

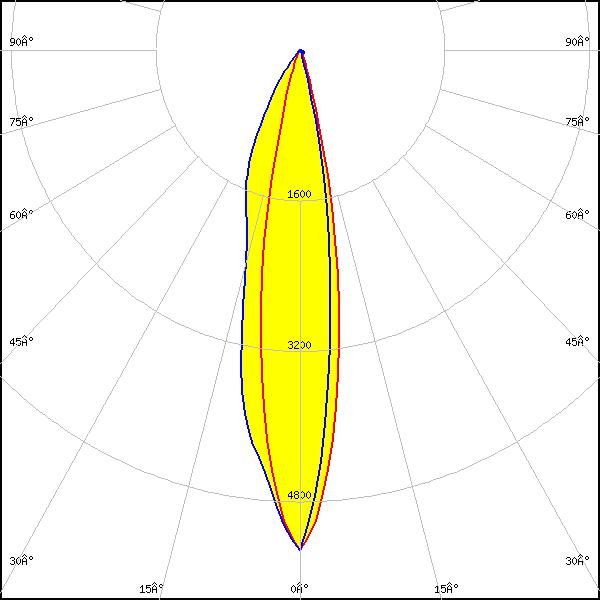

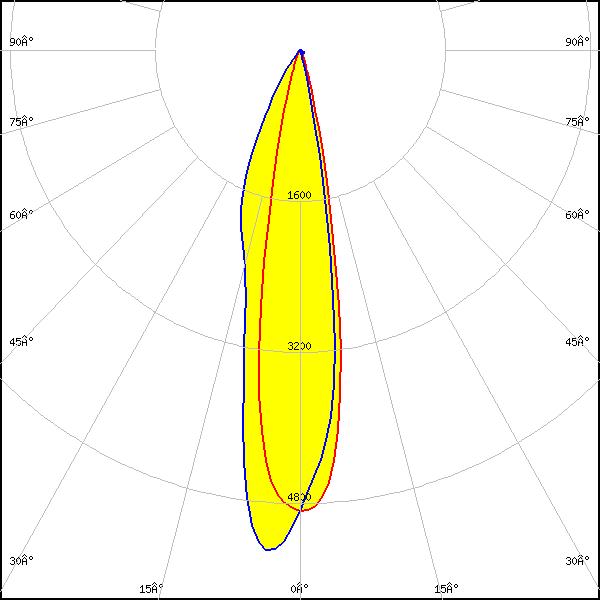

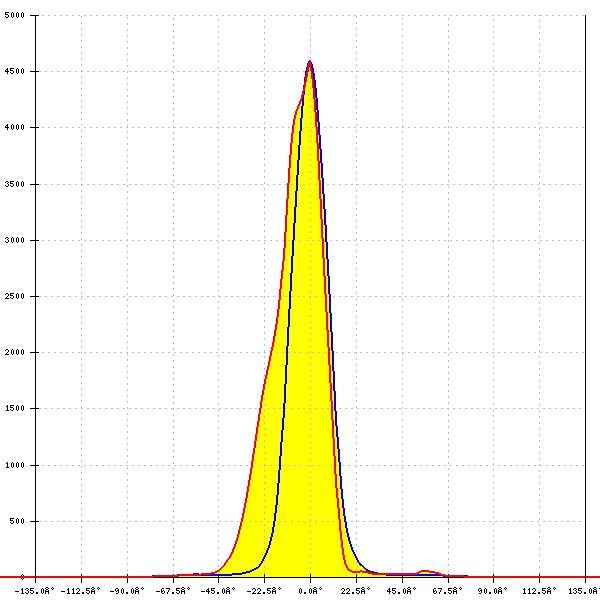

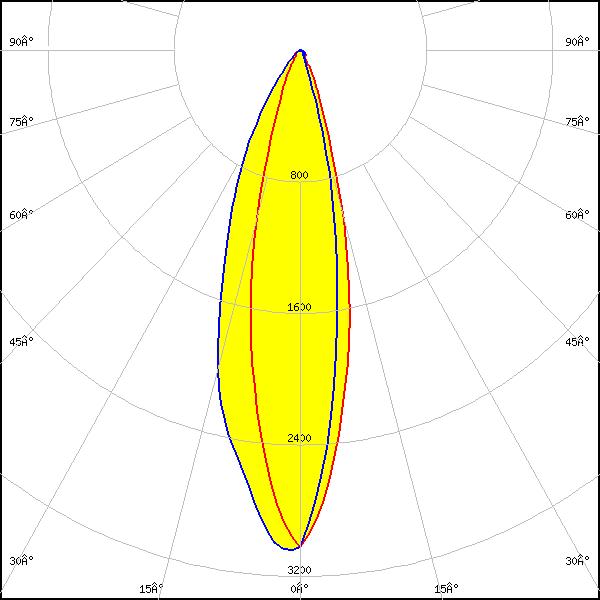

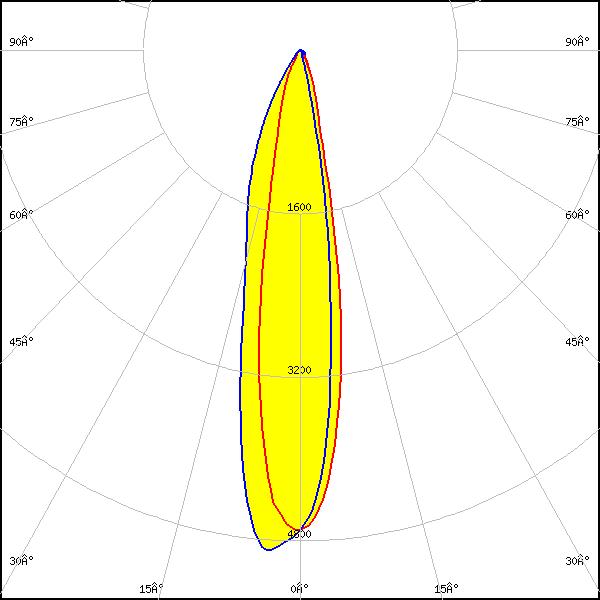

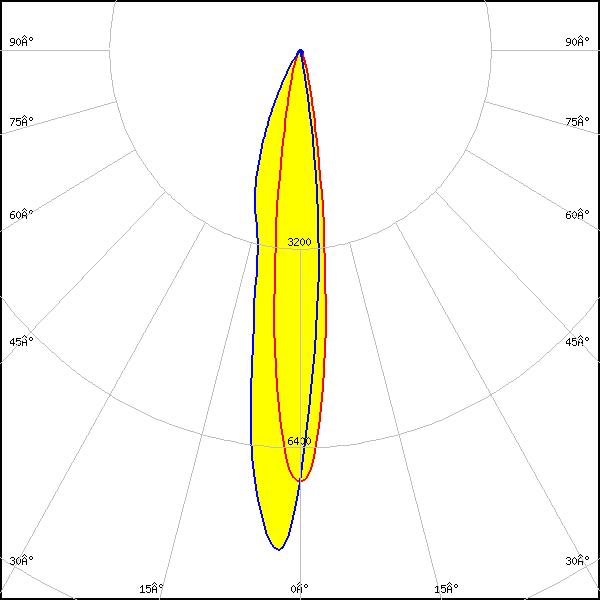

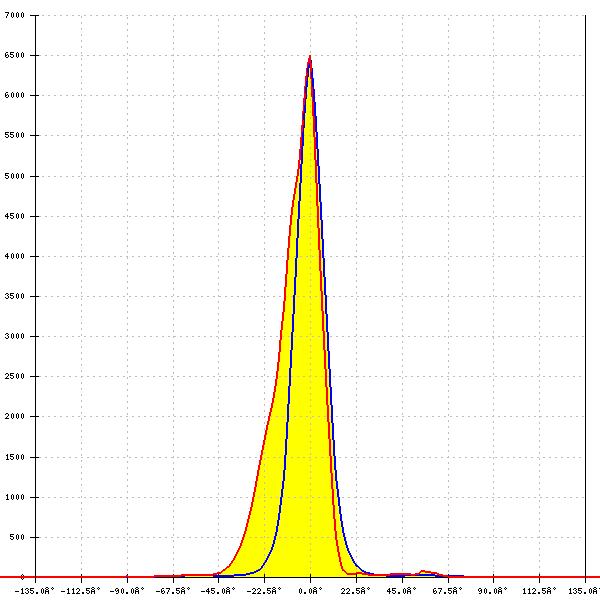

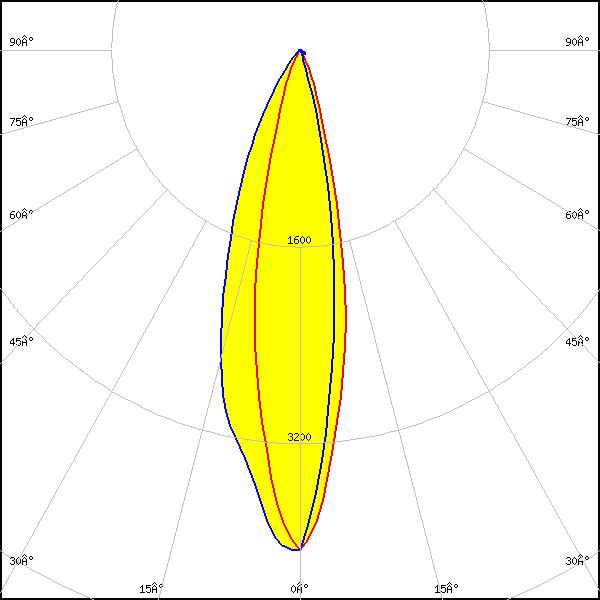

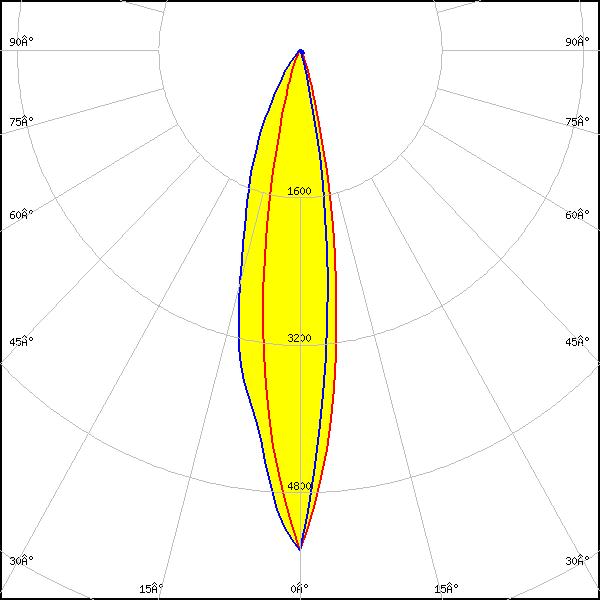

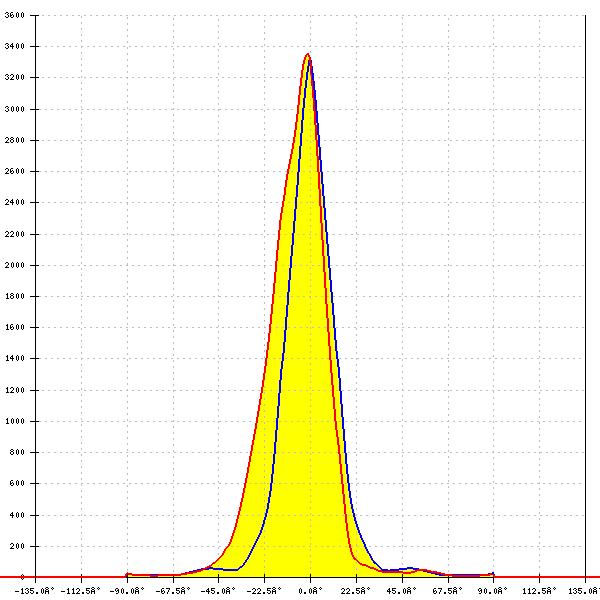

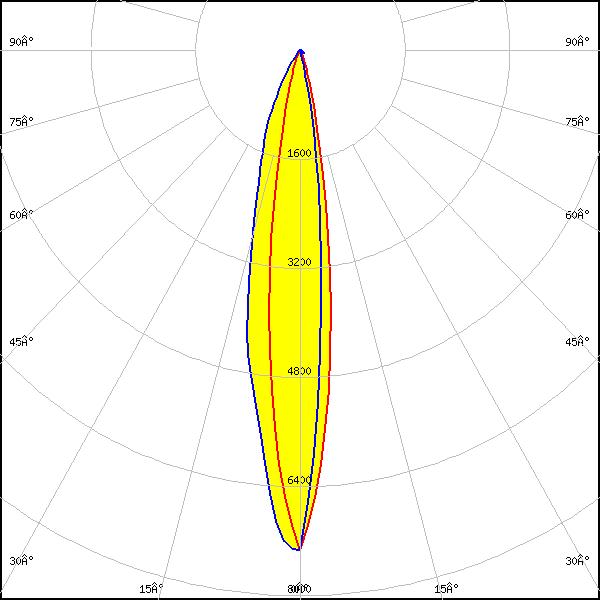

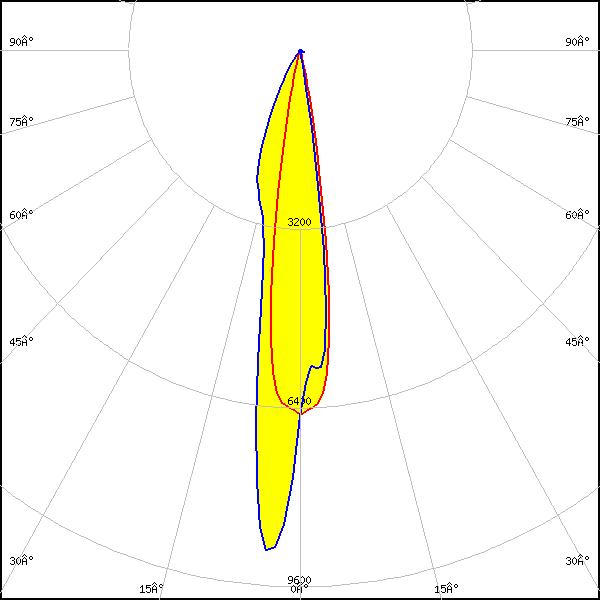

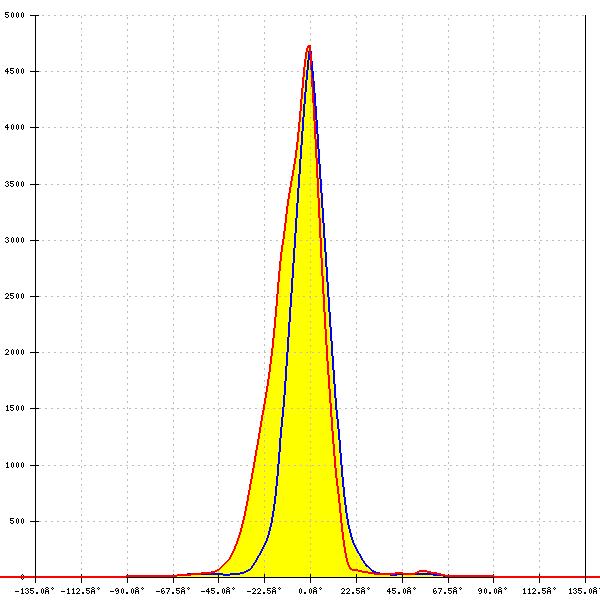

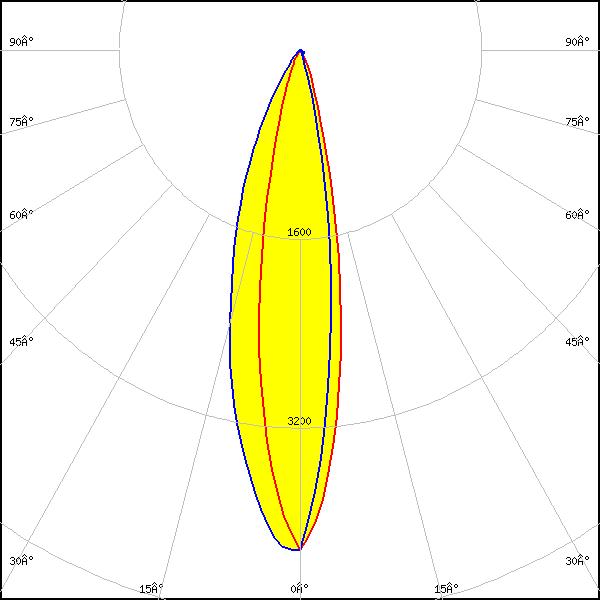

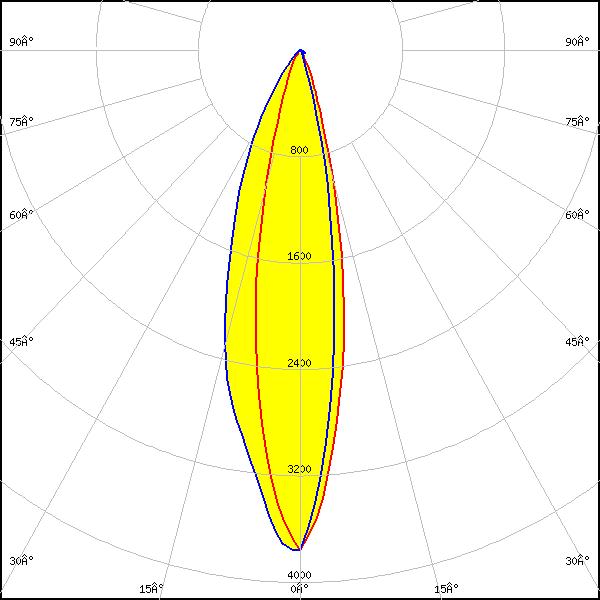

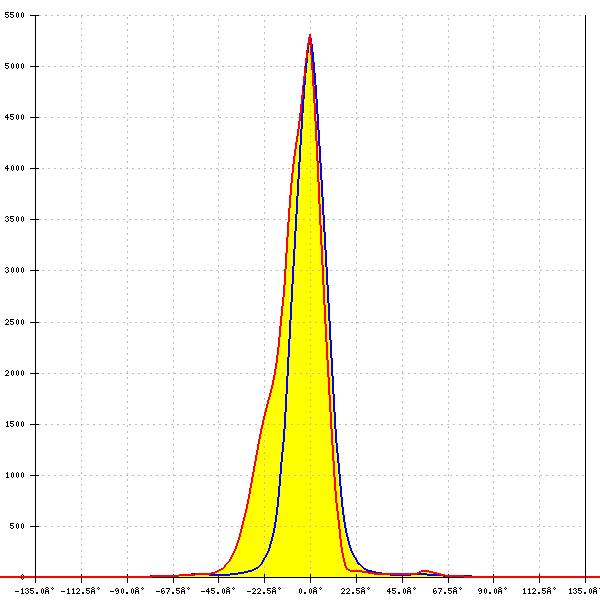

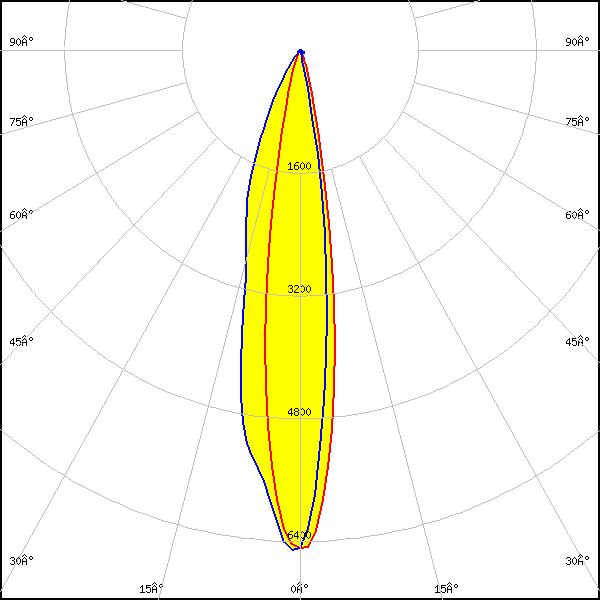

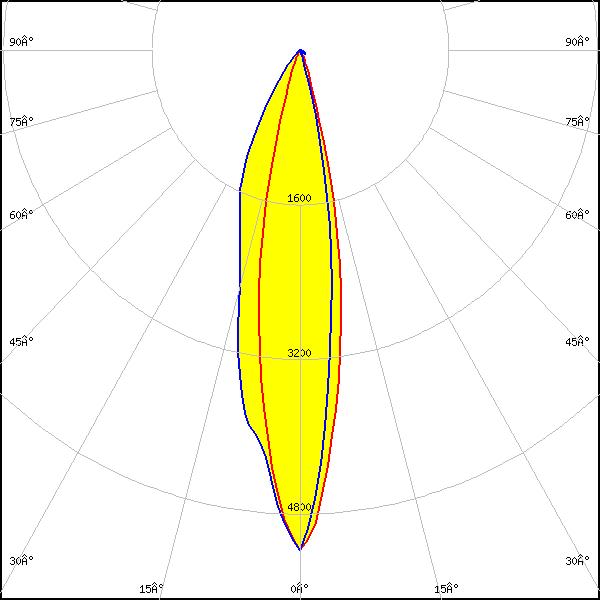

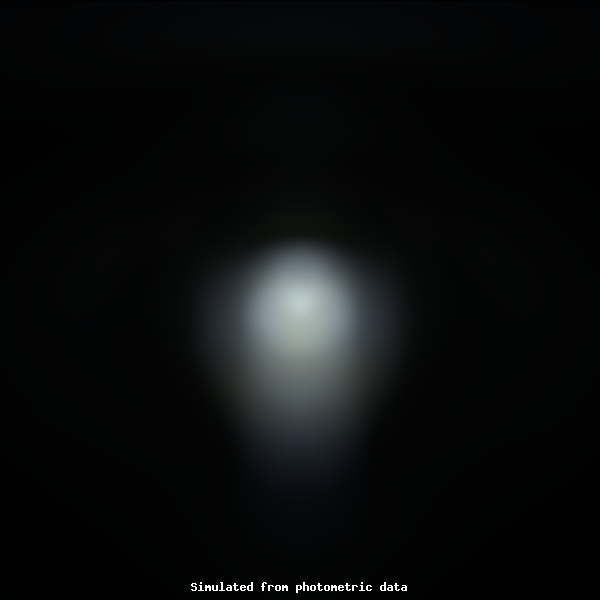

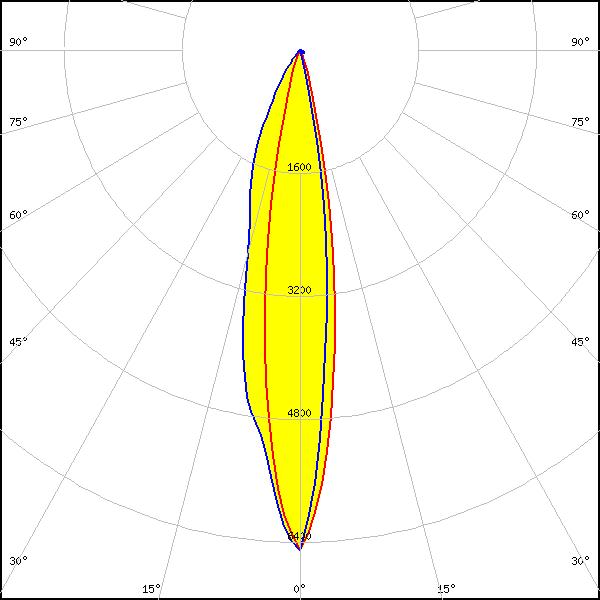

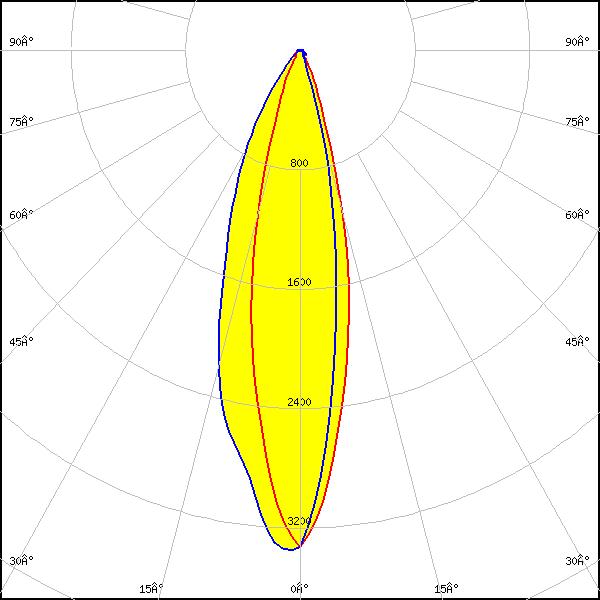

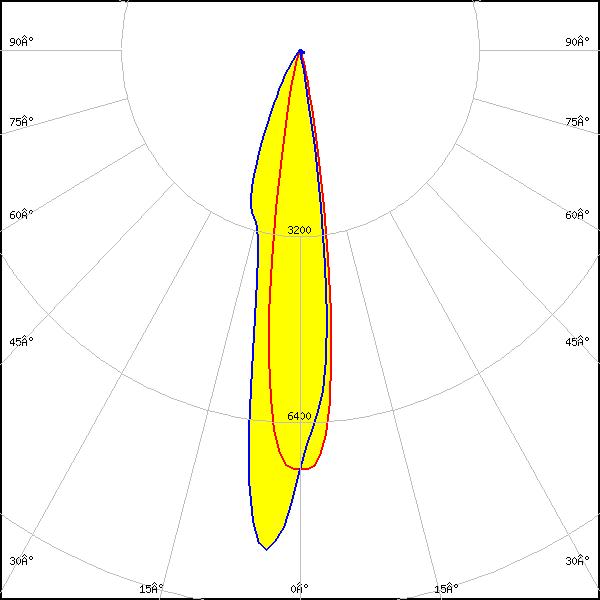

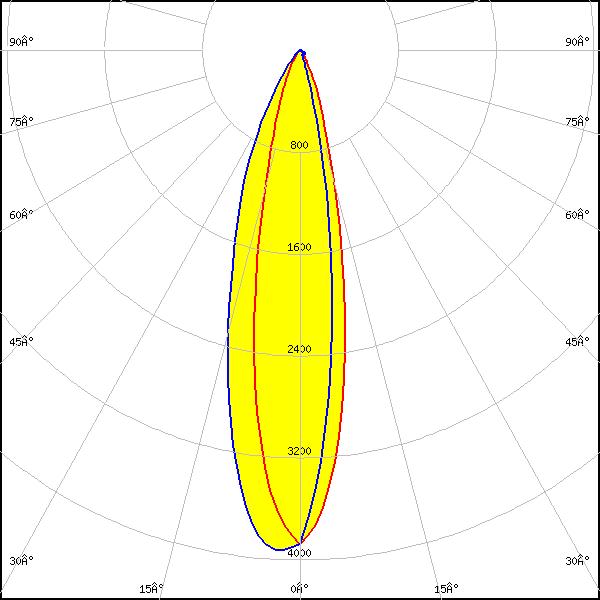

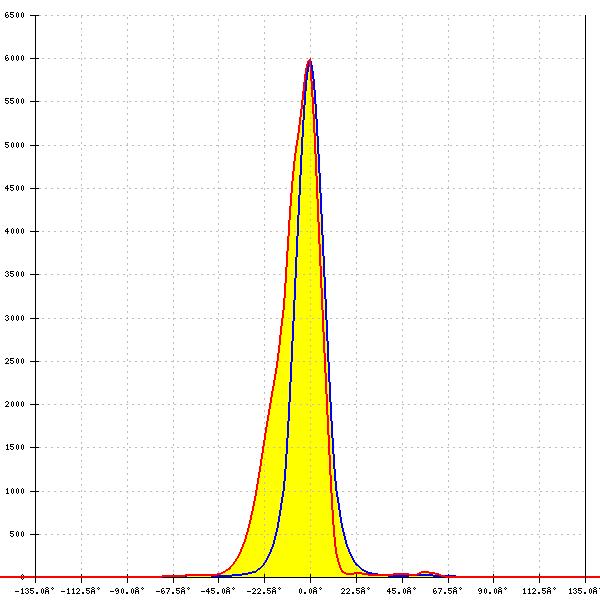

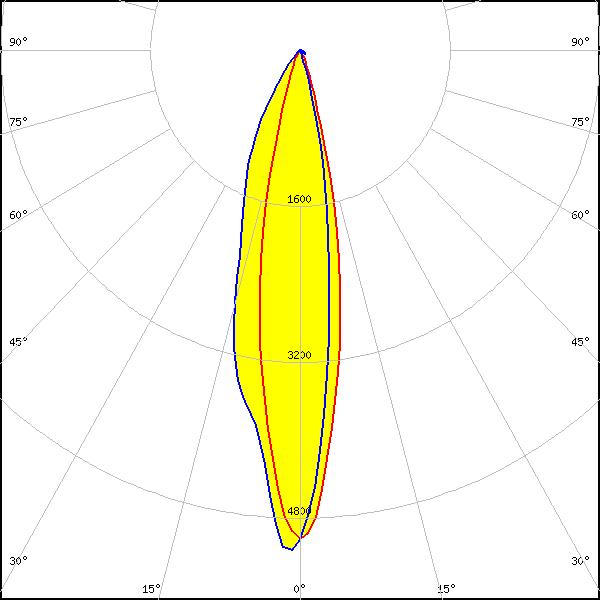

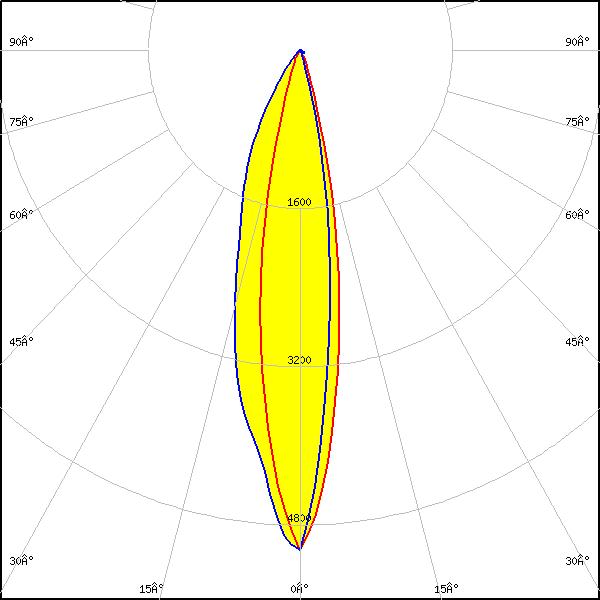

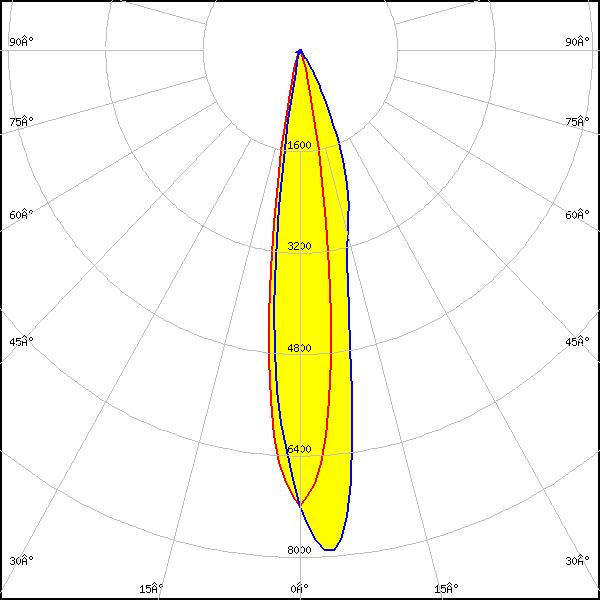

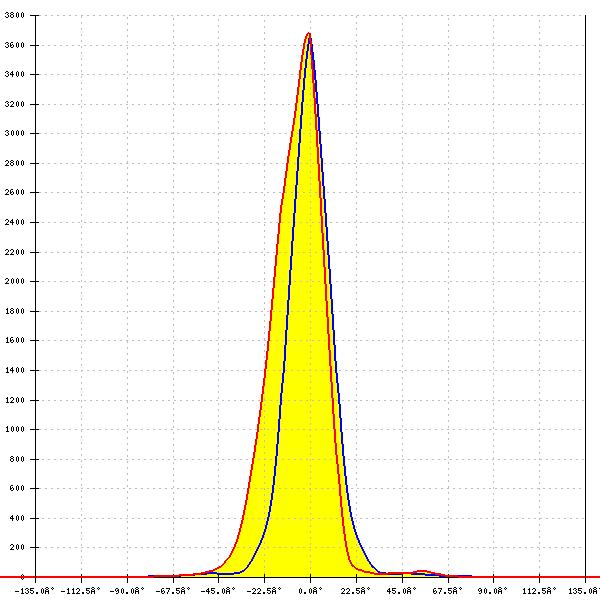

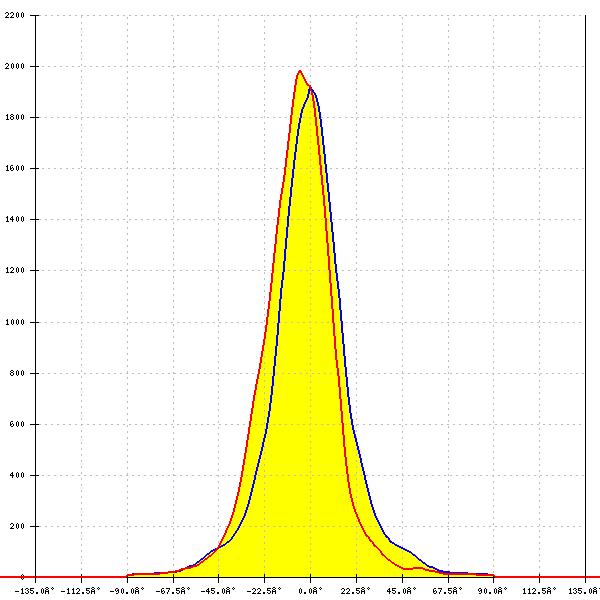

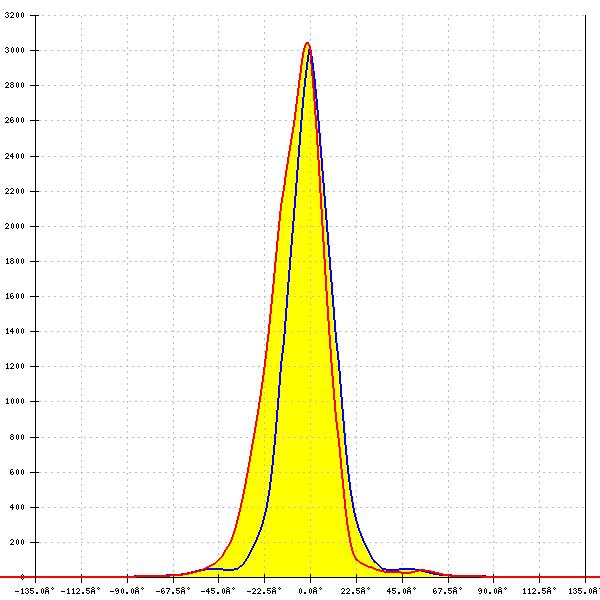

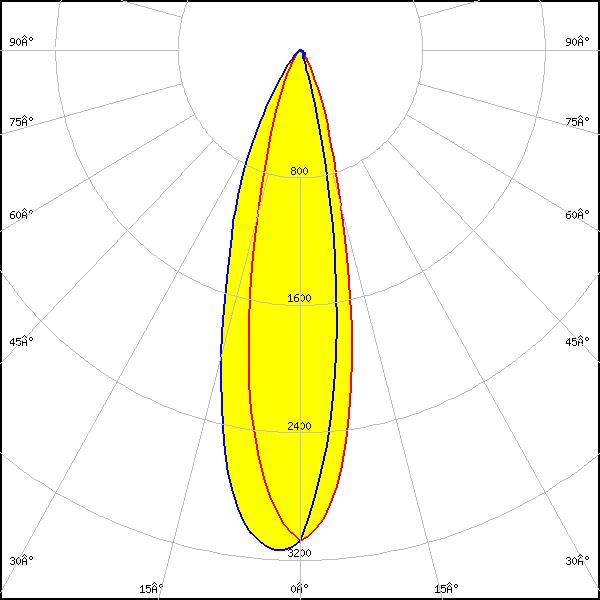

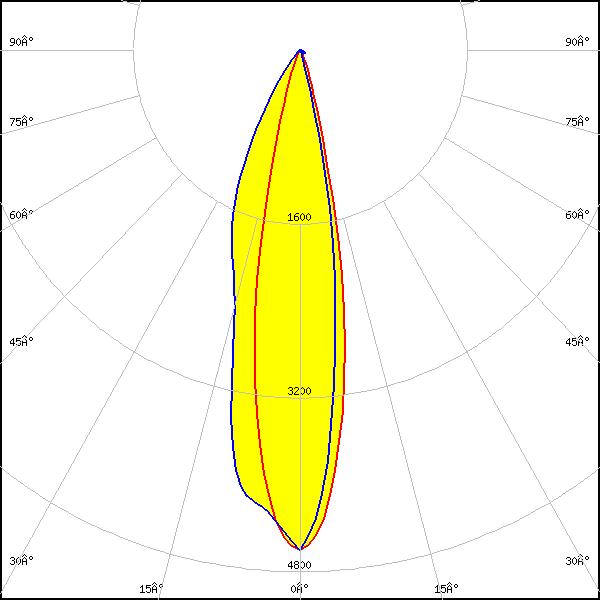

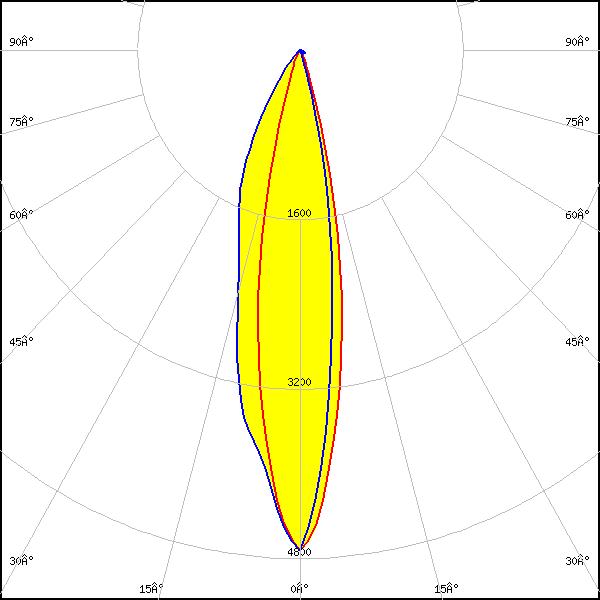

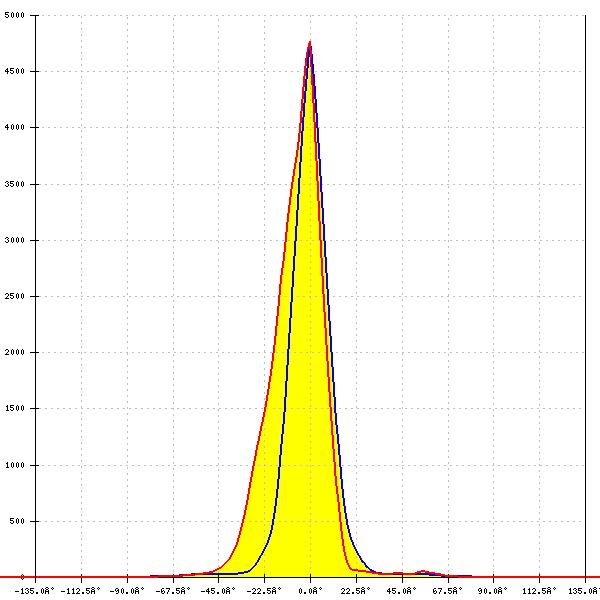

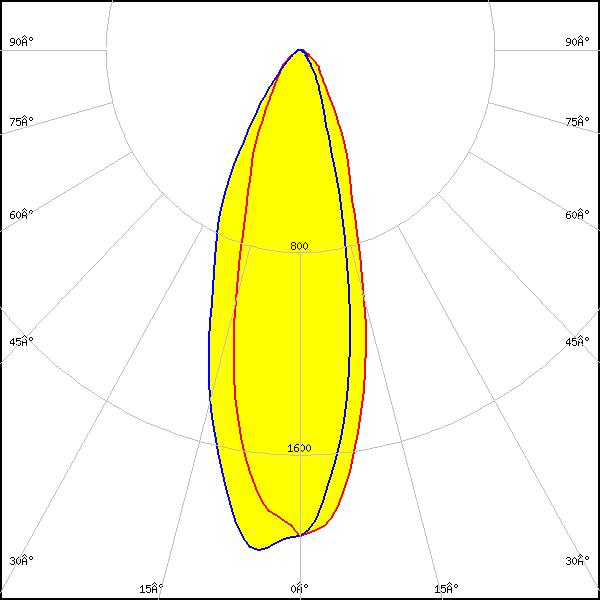

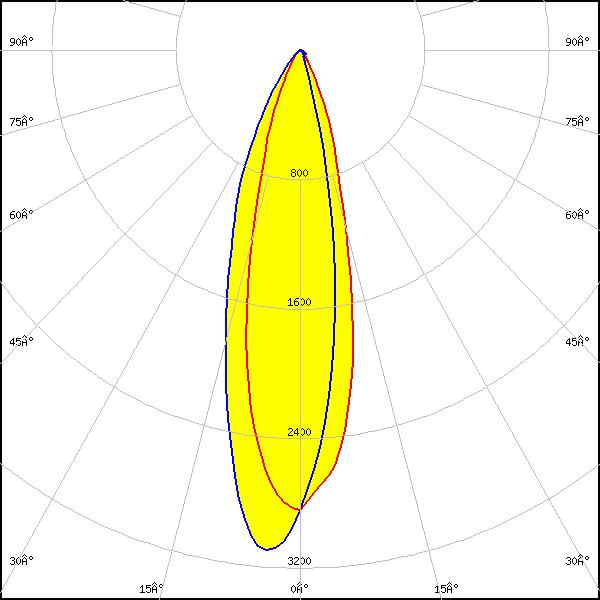

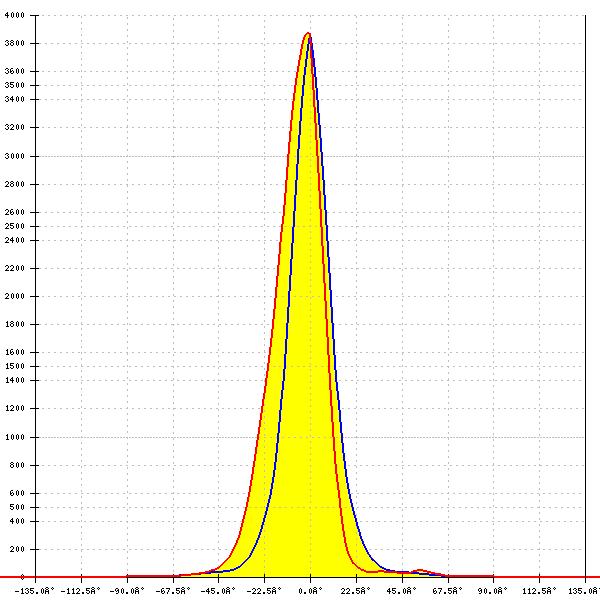

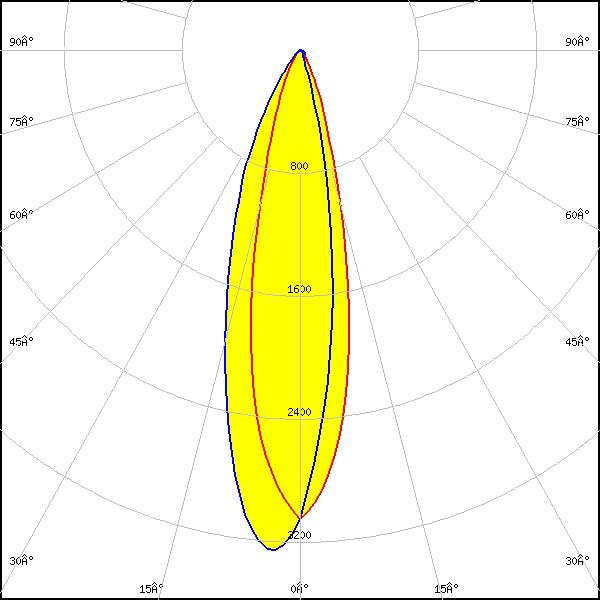

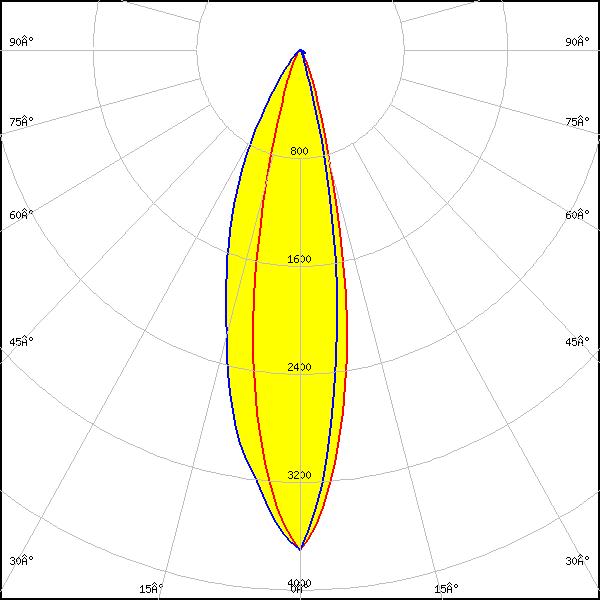

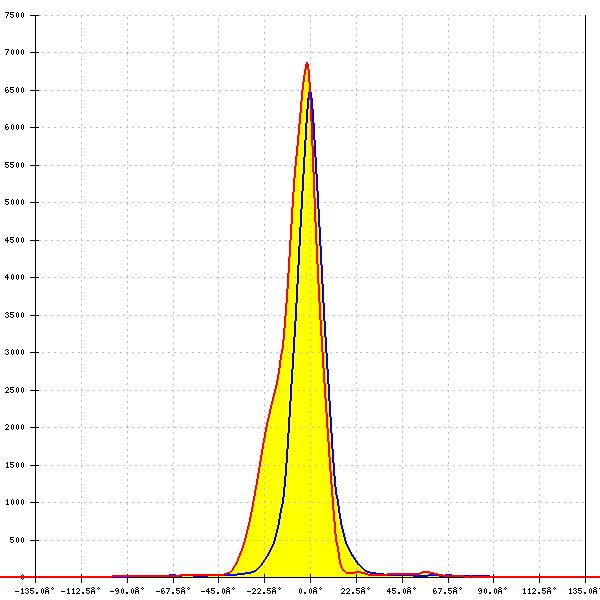

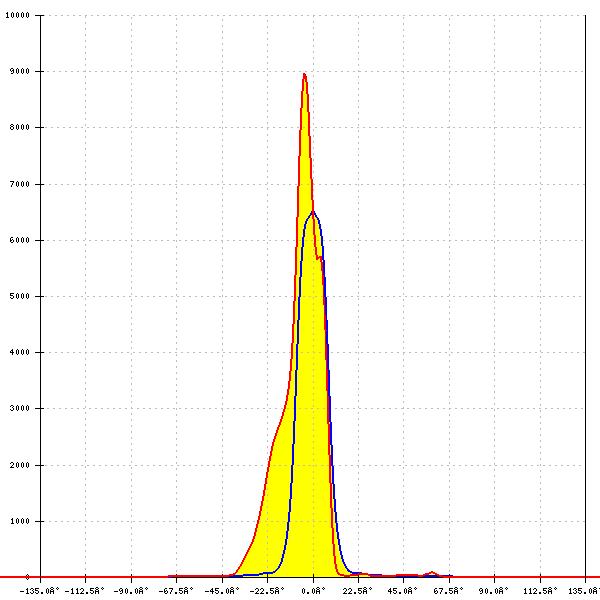

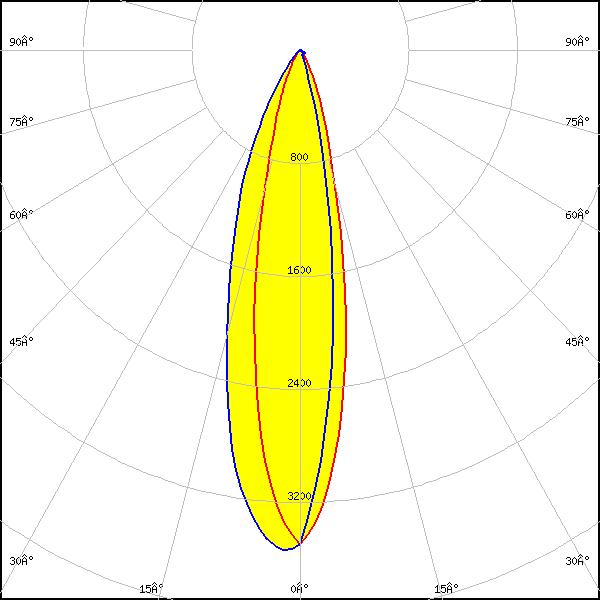

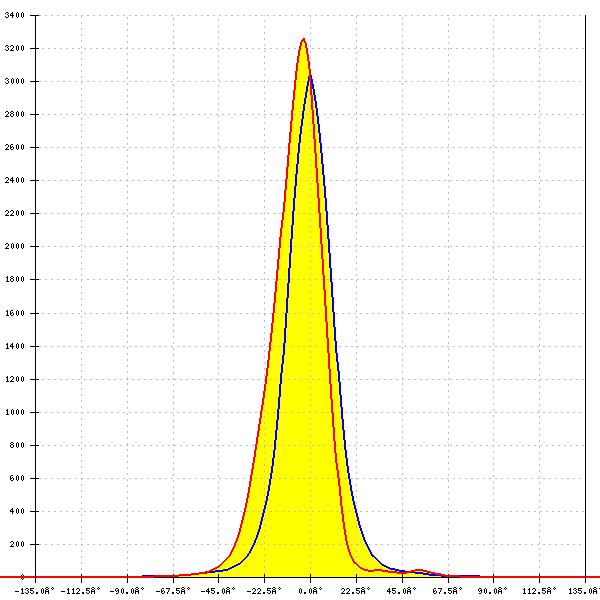

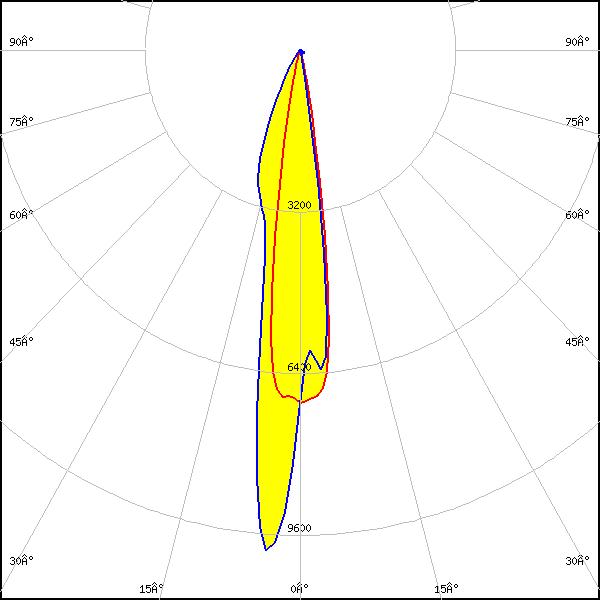

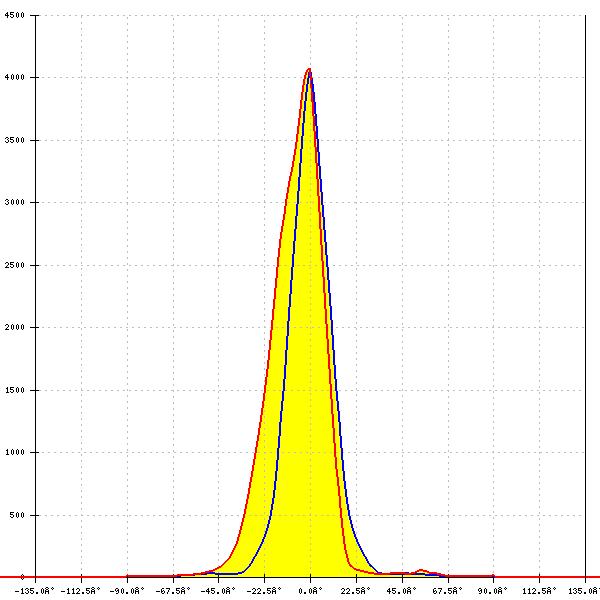

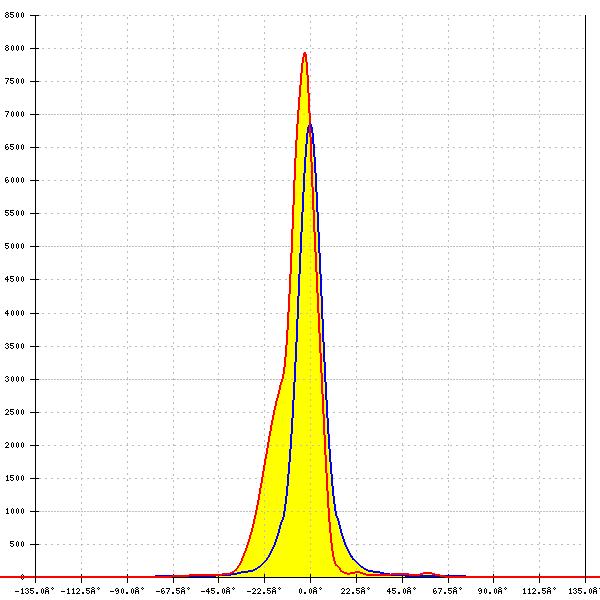

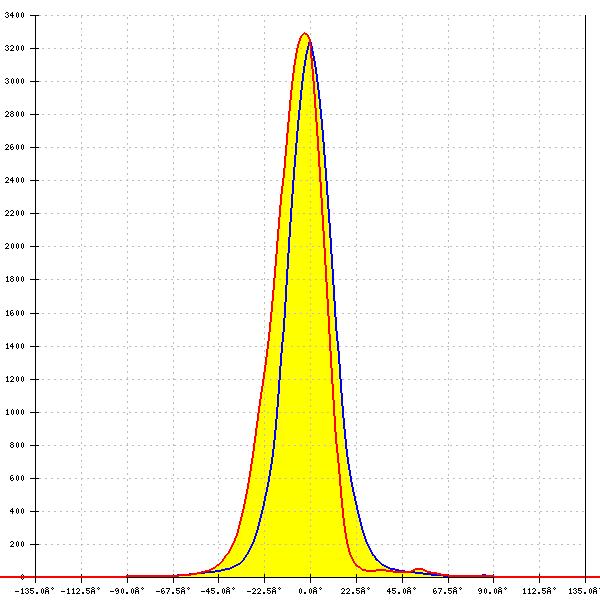

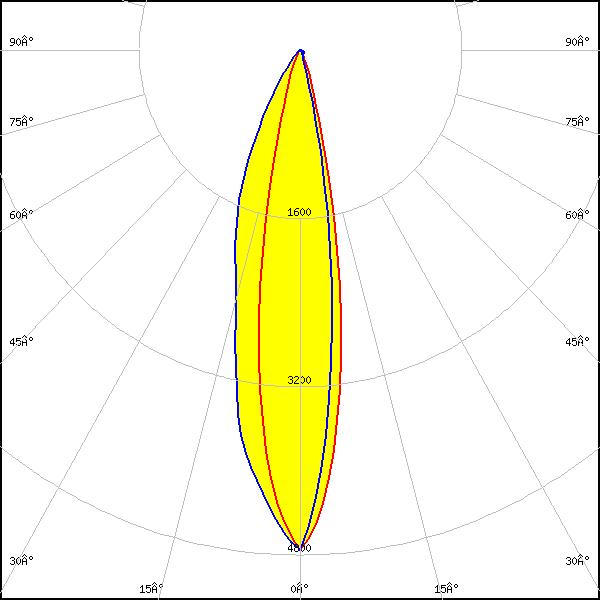

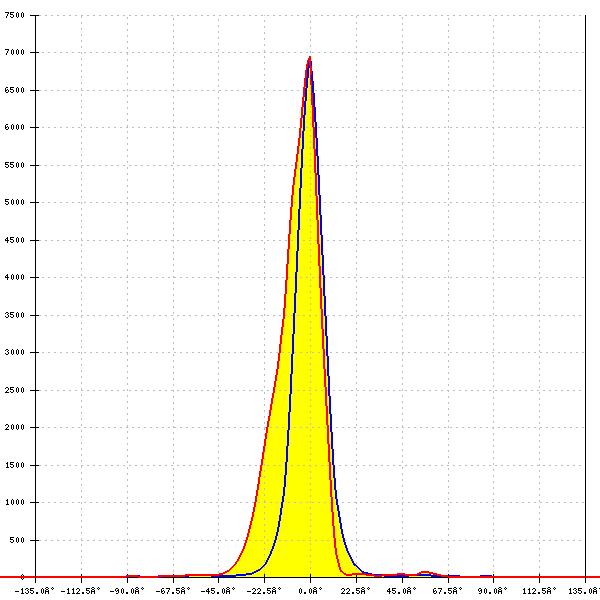

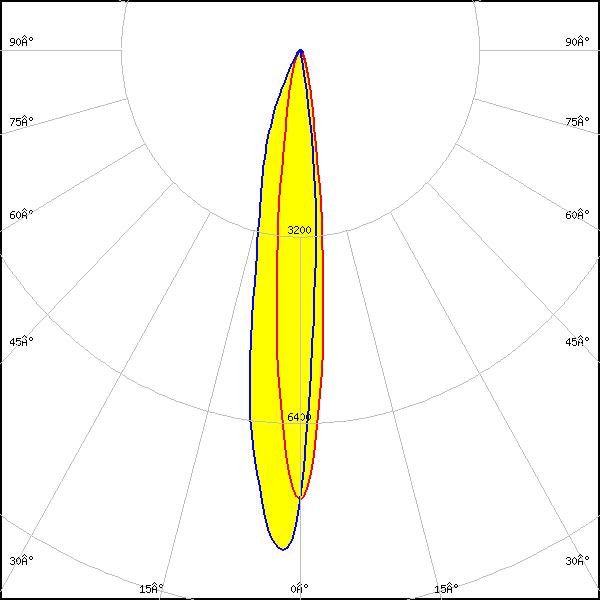

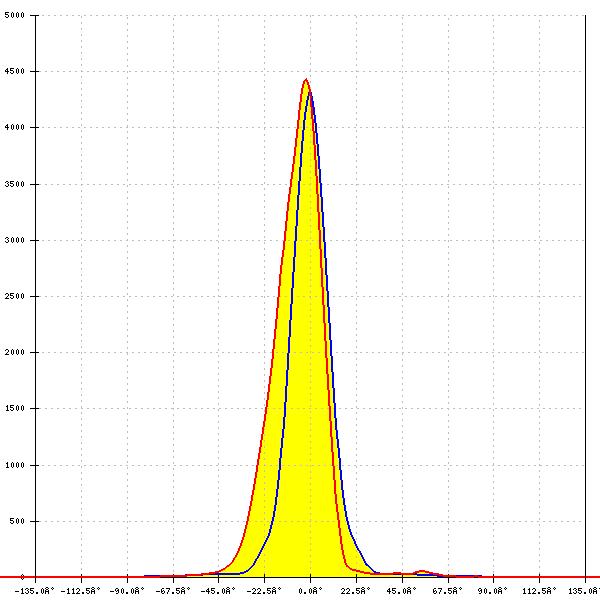

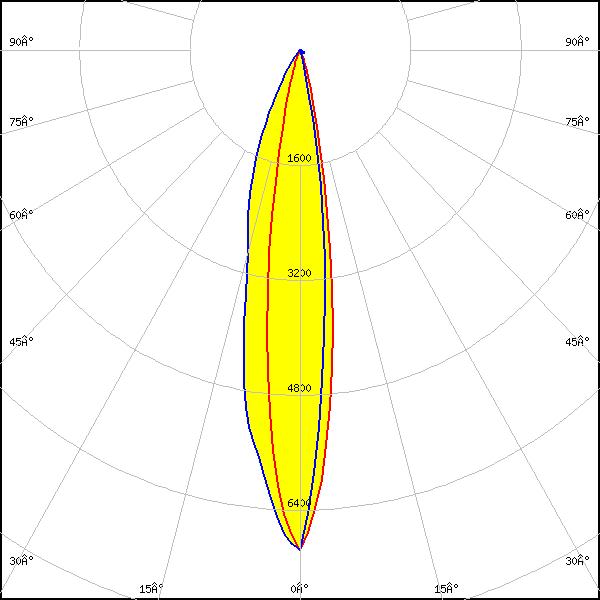

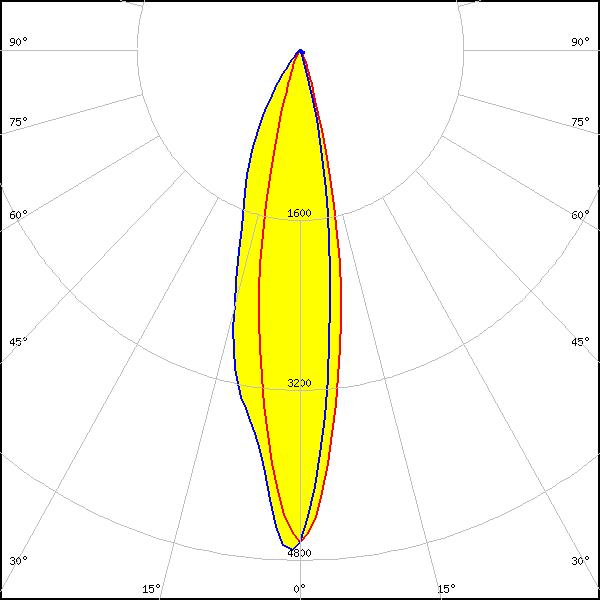

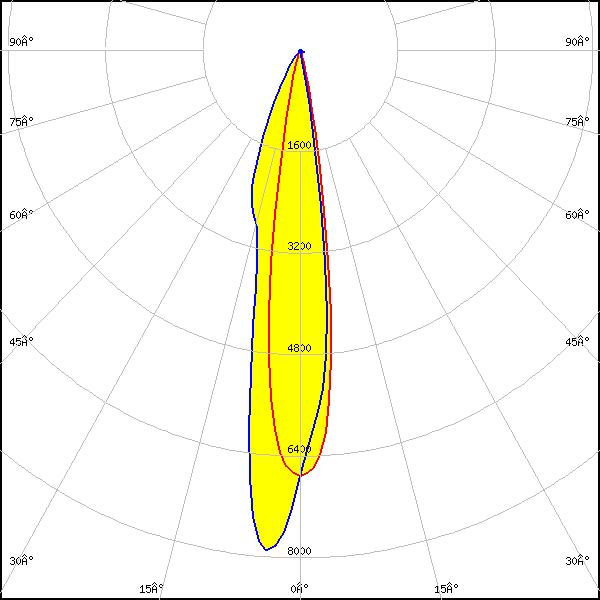

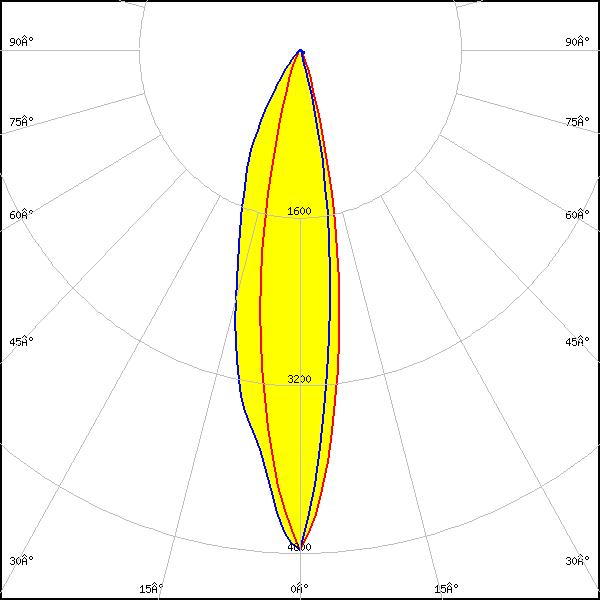

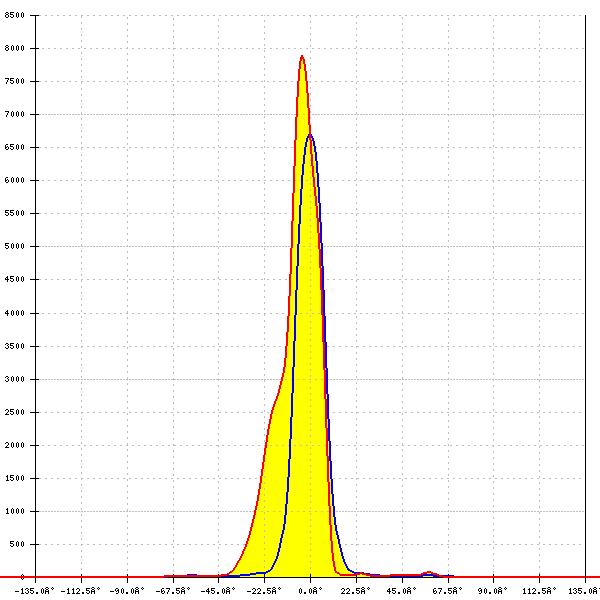

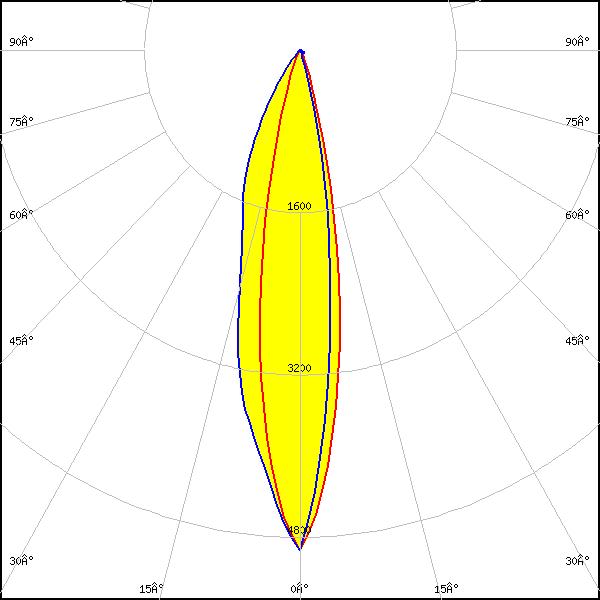

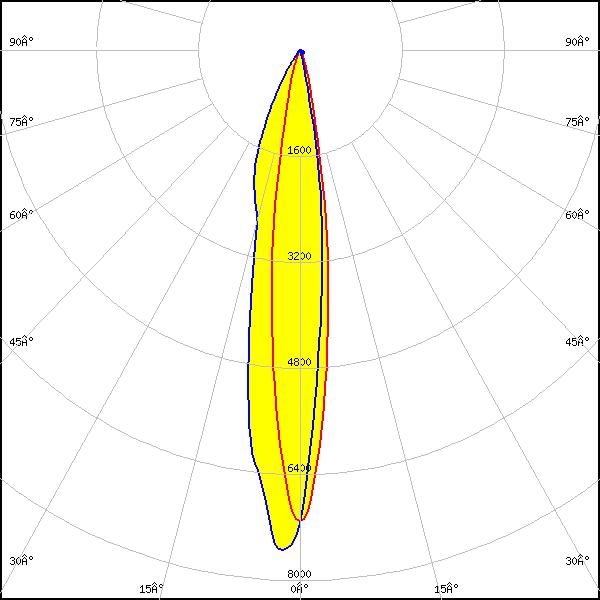

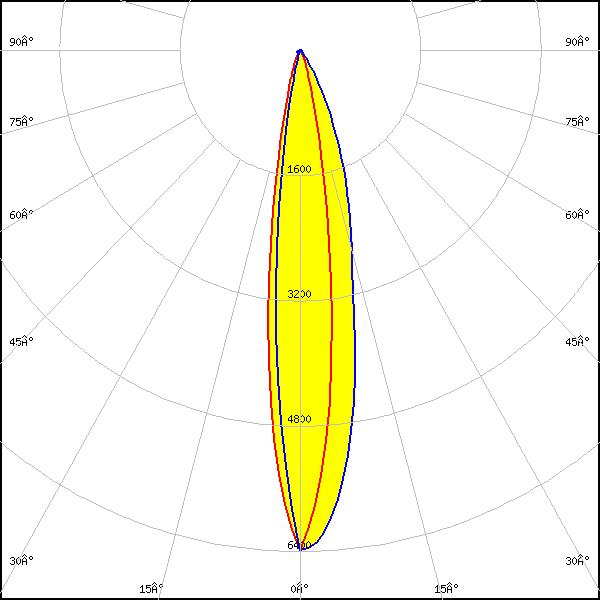

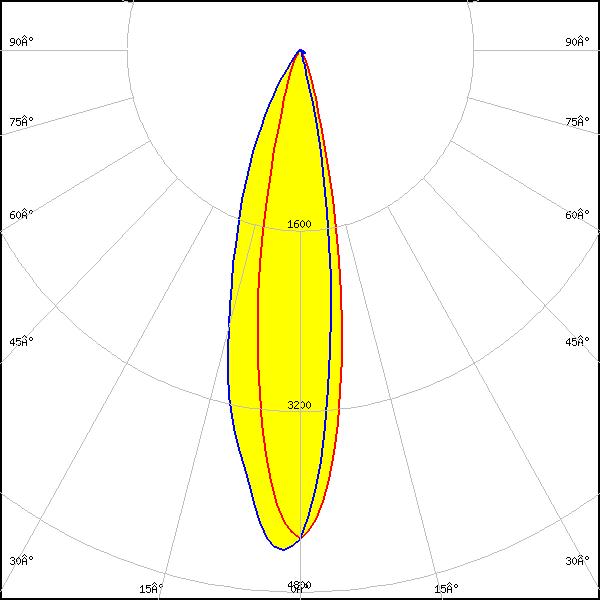

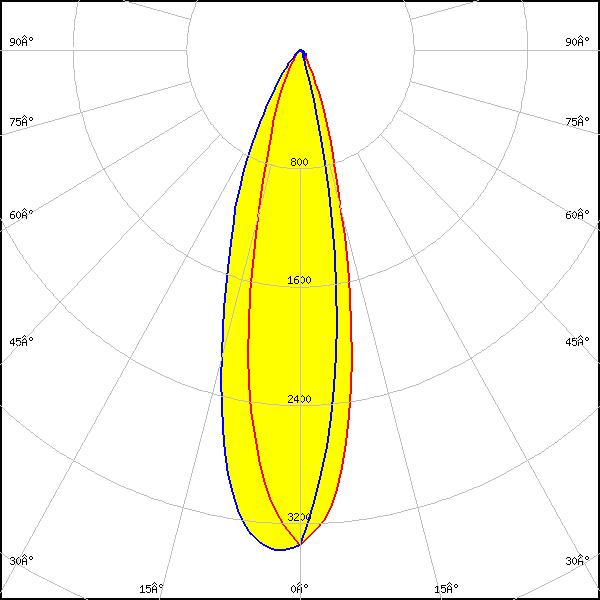

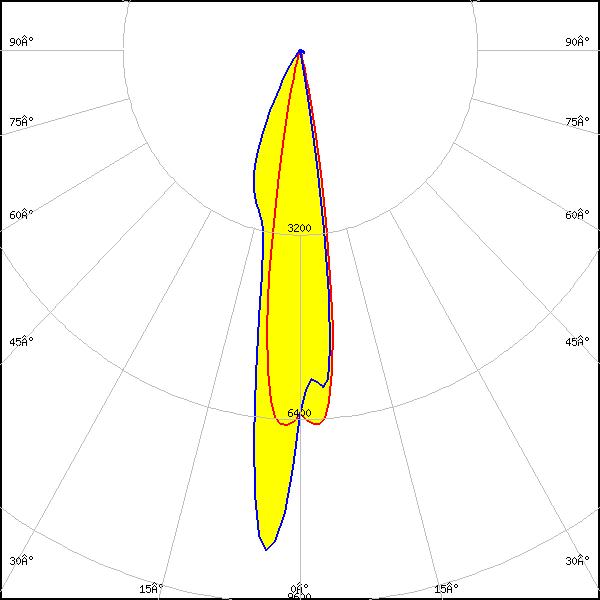

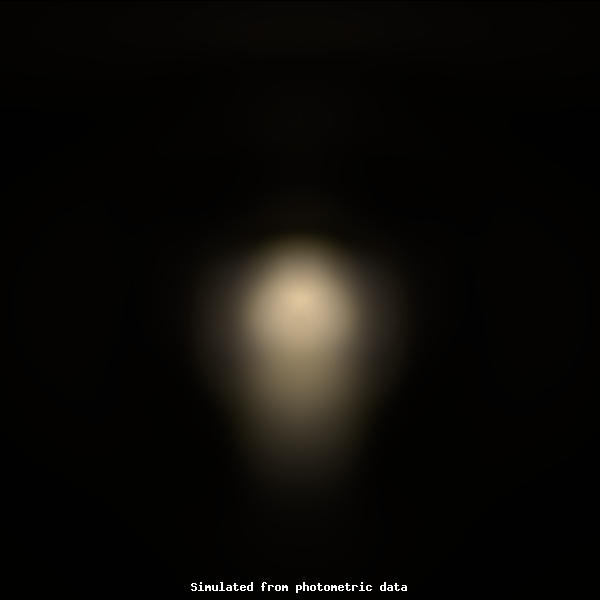

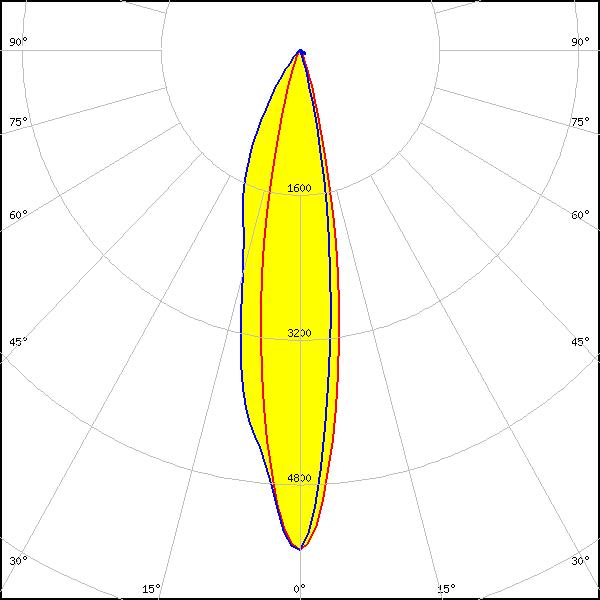

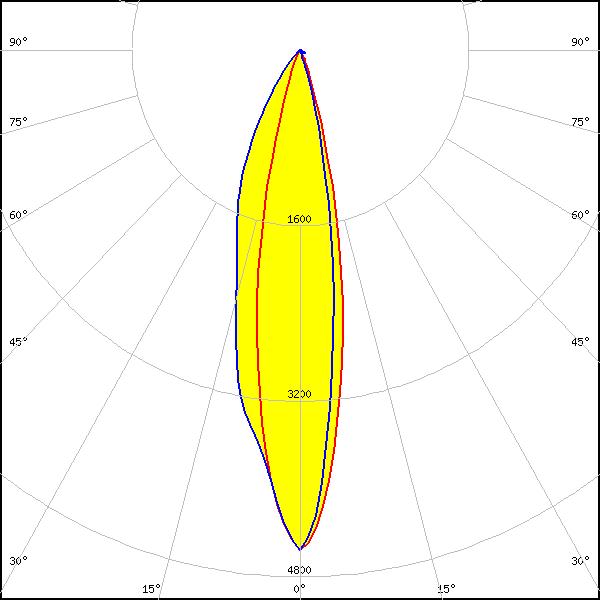

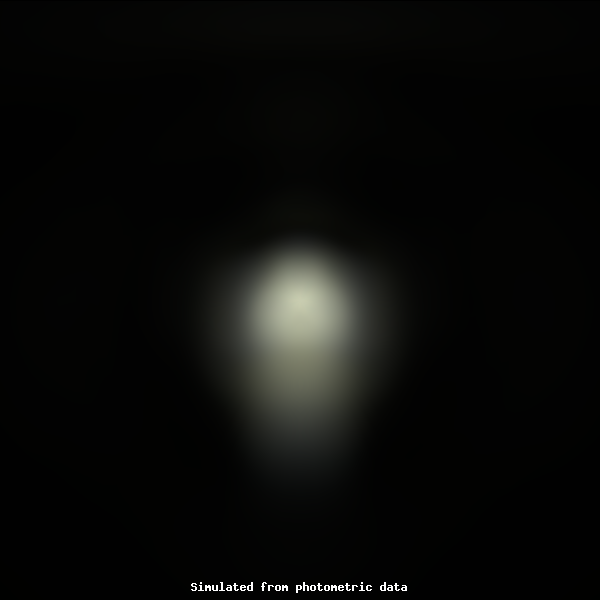

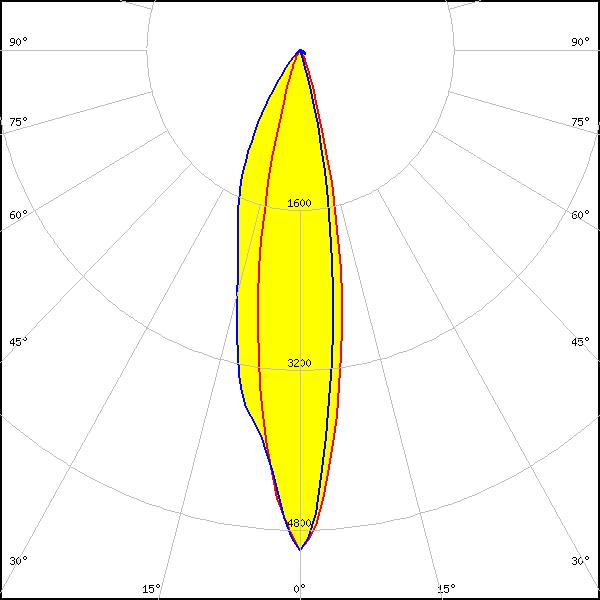

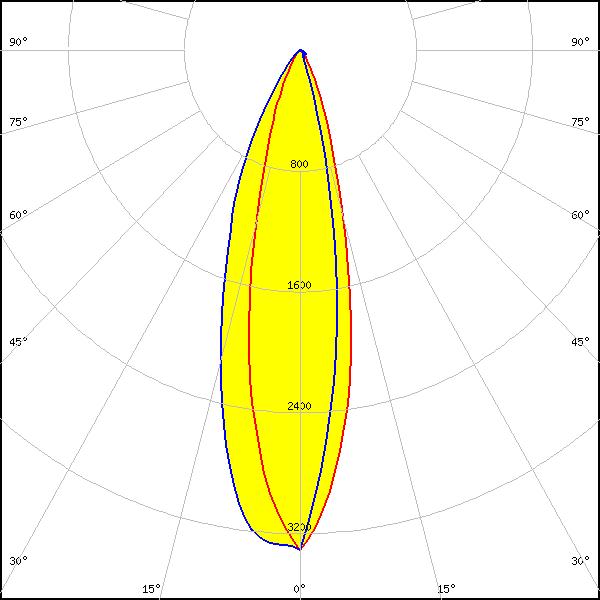

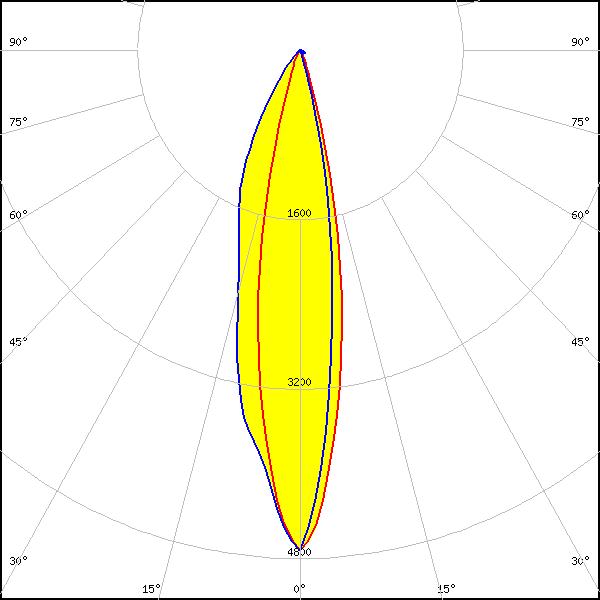

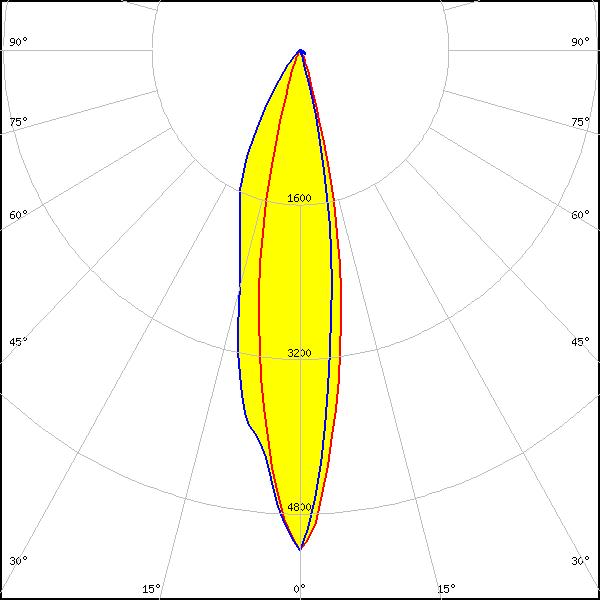

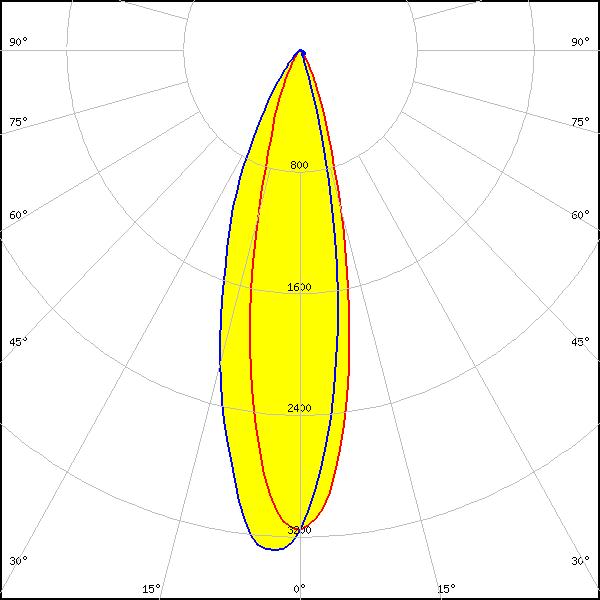

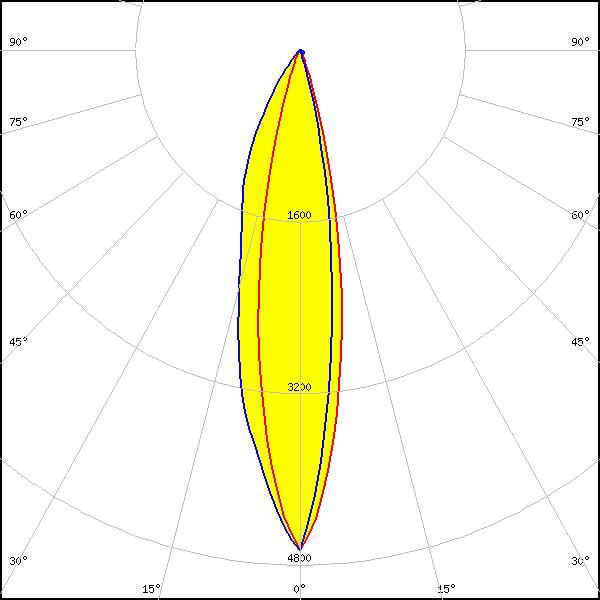

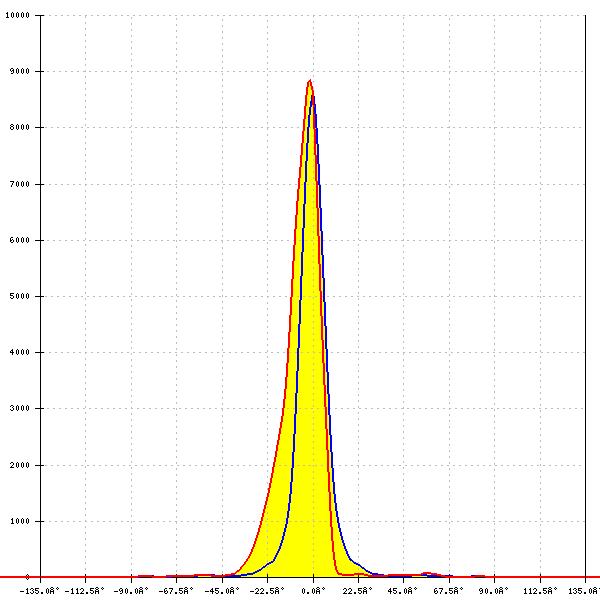

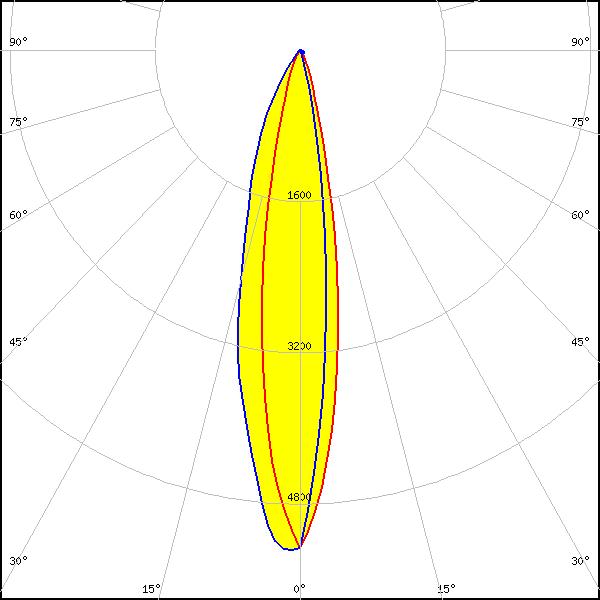

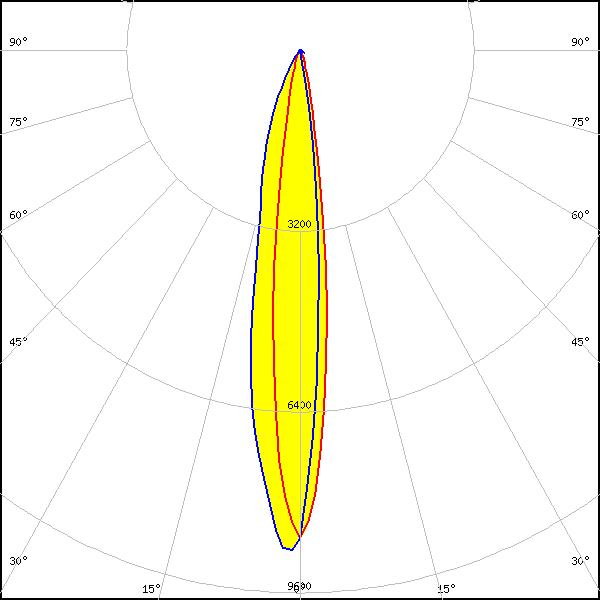

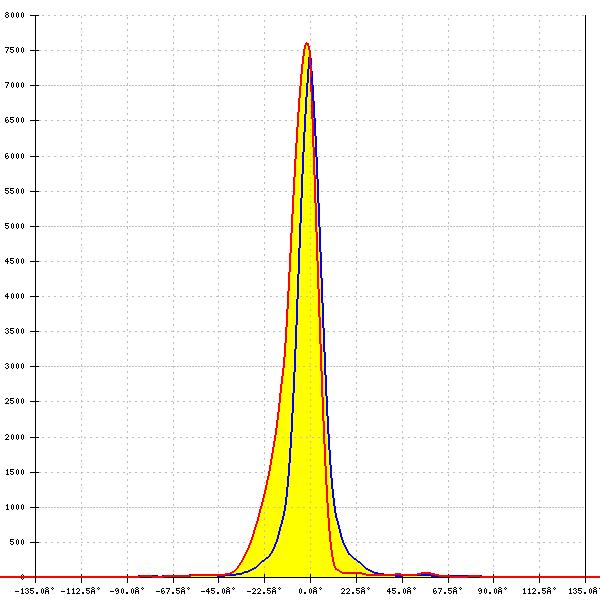

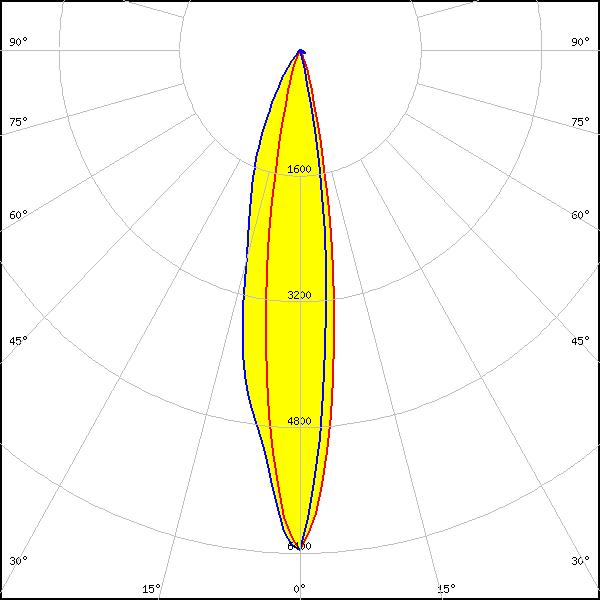

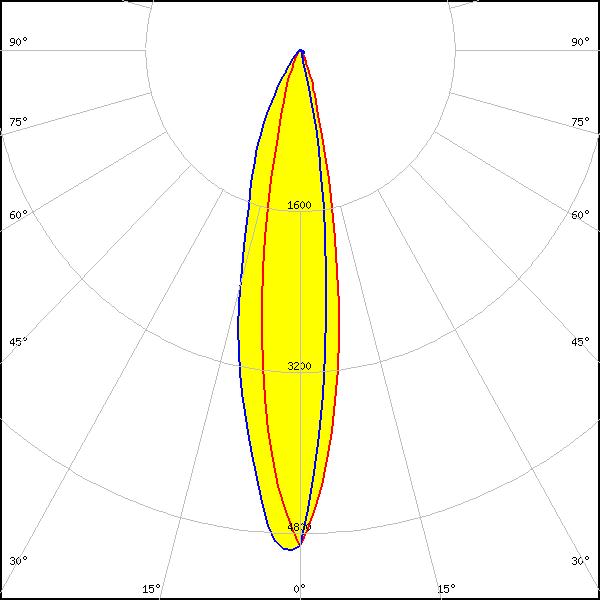

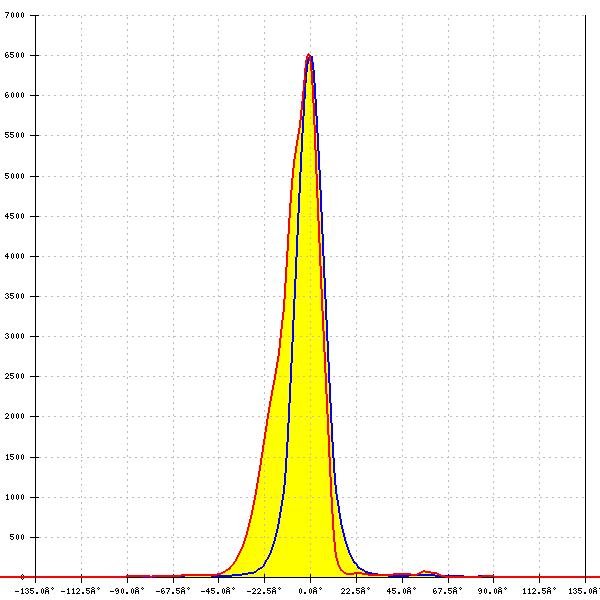

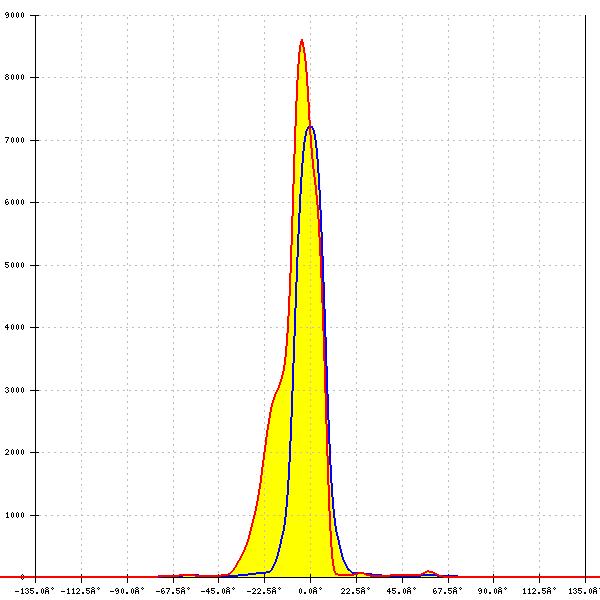

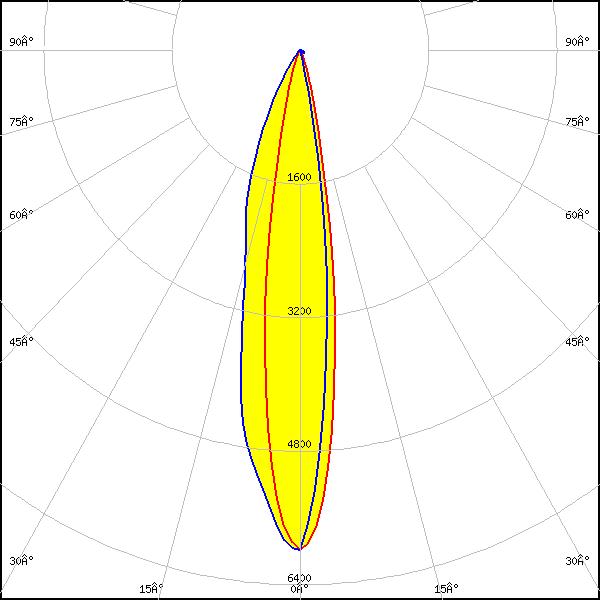

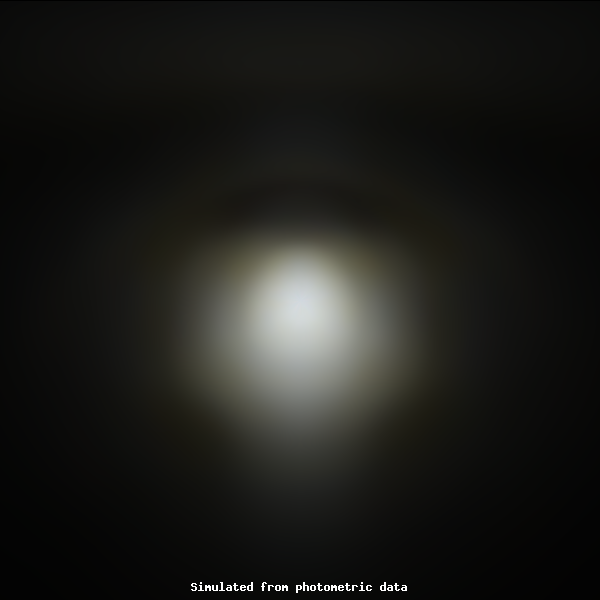

Optical results

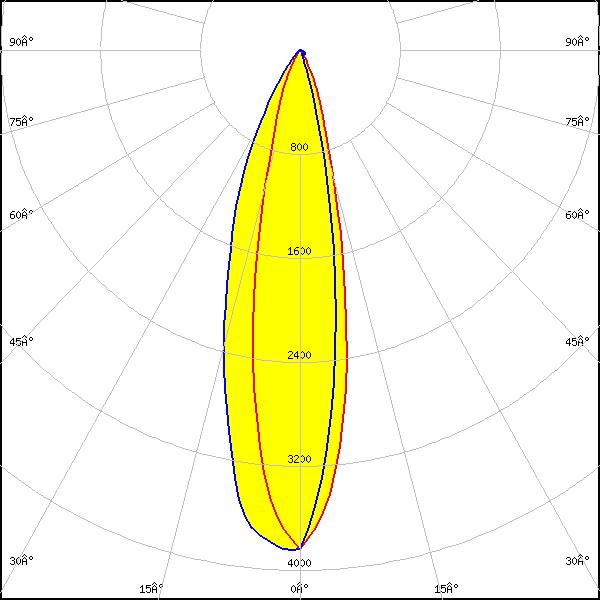

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 3.847 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 3.612 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity: 3.939 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP35.2 HD
FWHM: asymmetric
Peak intensity: 3.361 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP35.2 HD
FWHM: asymmetric
Peak intensity: 3.044 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP35.2 HI
FWHM: asymmetric
Peak intensity: 4.238 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

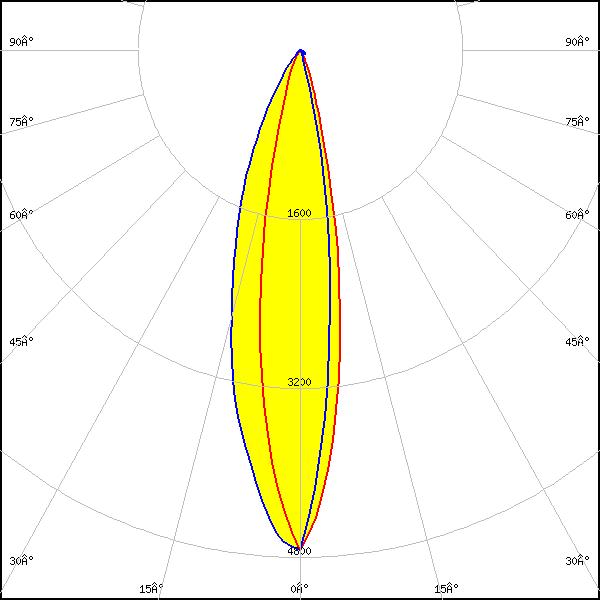

LED: XHP35.2 HI
FWHM: asymmetric
Peak intensity: 4.733 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

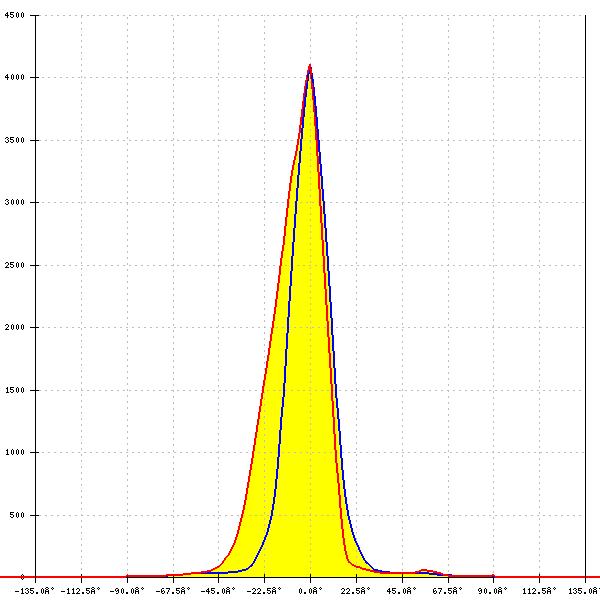

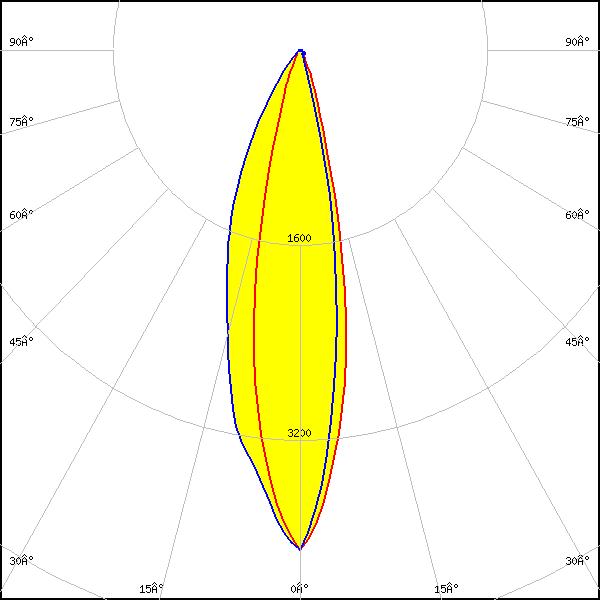

LED: XM-L3
FWHM: asymmetric
Peak intensity: 4.104 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: XM-L3
FWHM: asymmetric
Peak intensity: 3.705 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 5.923 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 4.757 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

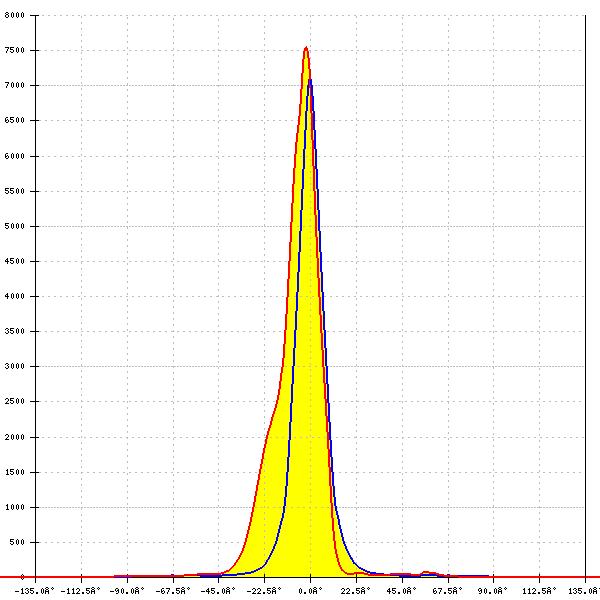

LED: XP-G4
FWHM: asymmetric
Peak intensity: 7.552 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

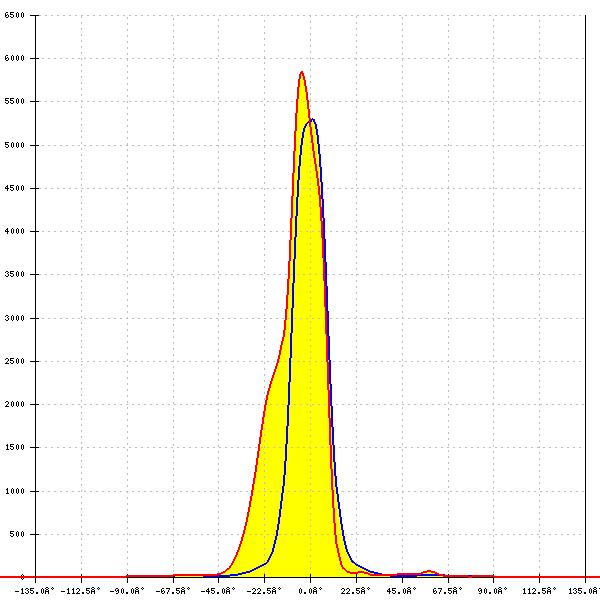

LED: XP-G4 HI
FWHM: asymmetric
Peak intensity: 5.891 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

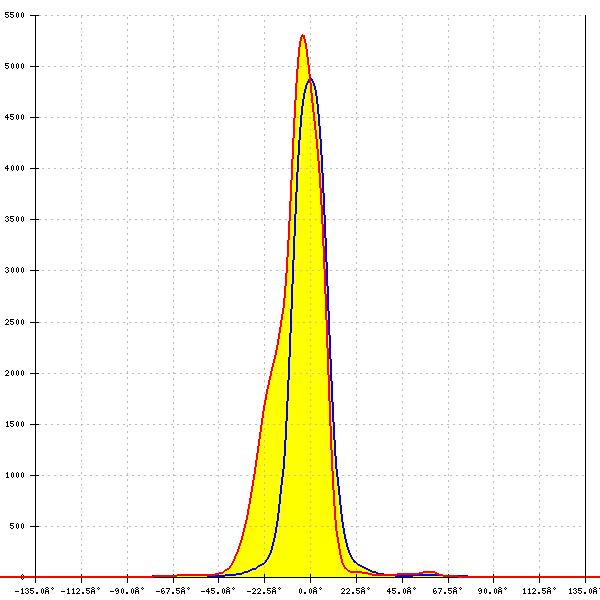

LED: XP-G4 HI
FWHM: asymmetric
Peak intensity: 5.350 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HD
FWHM: asymmetric
Peak intensity: 5.055 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HD
FWHM: asymmetric
Peak intensity: 4.770 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

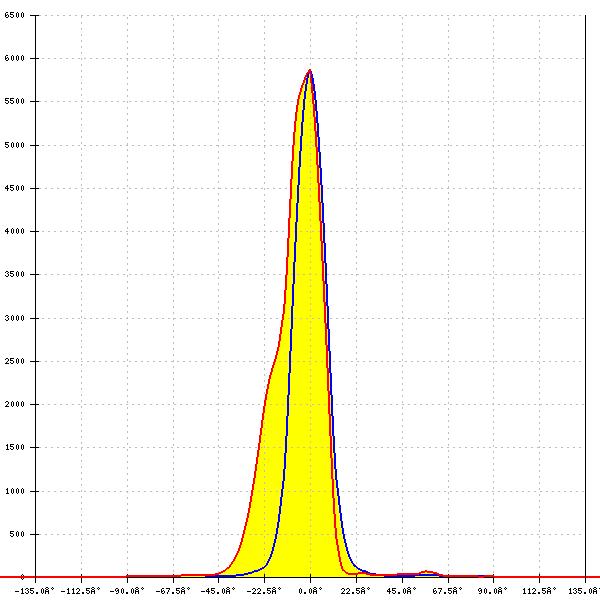

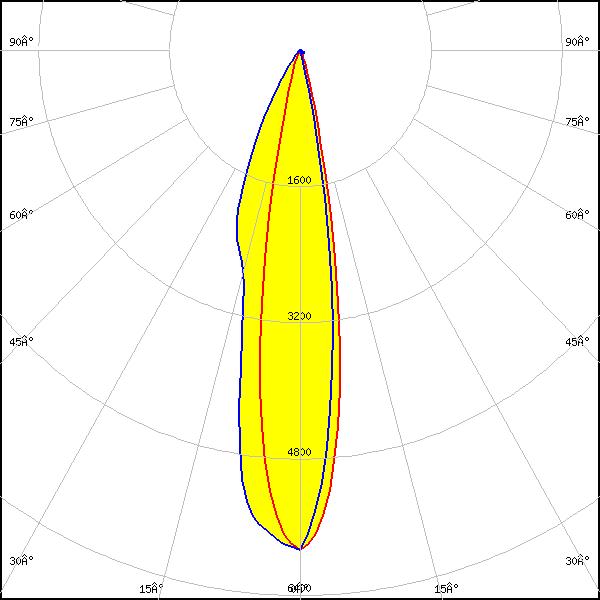

LED: XP-L HI
FWHM: asymmetric
Peak intensity: 5.879 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

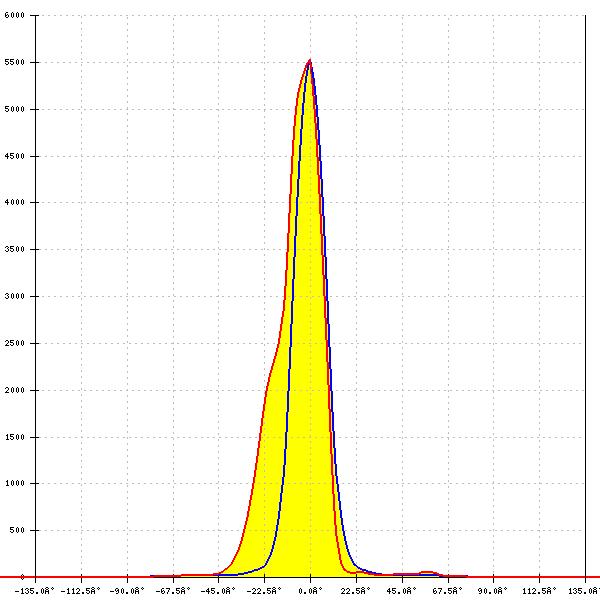

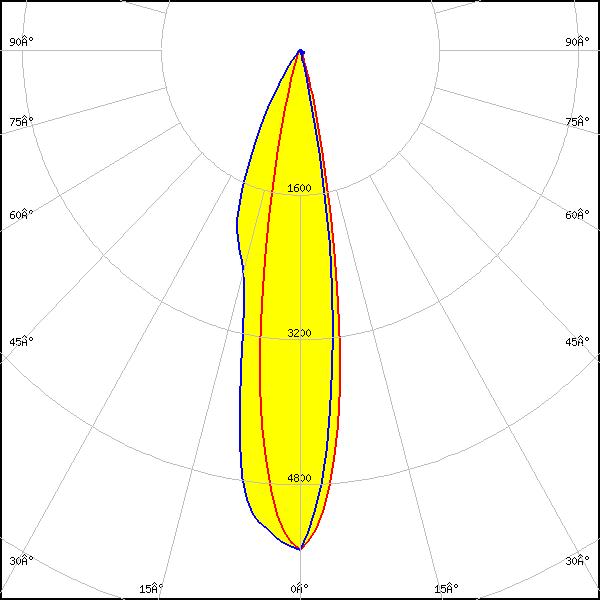

LED: XP-L HI
FWHM: asymmetric
Peak intensity: 5.533 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L2
FWHM: asymmetric
Peak intensity: 4.178 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L2
FWHM: asymmetric
Peak intensity: 3.766 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

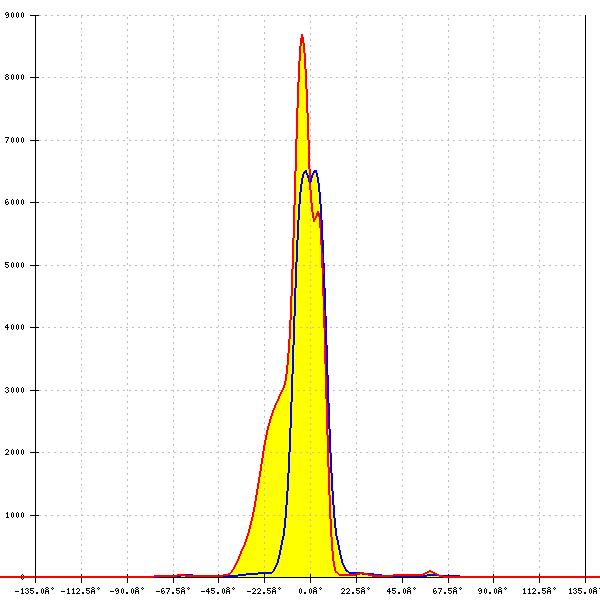

LED: XP-P
FWHM: asymmetric
Peak intensity: 8.708 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

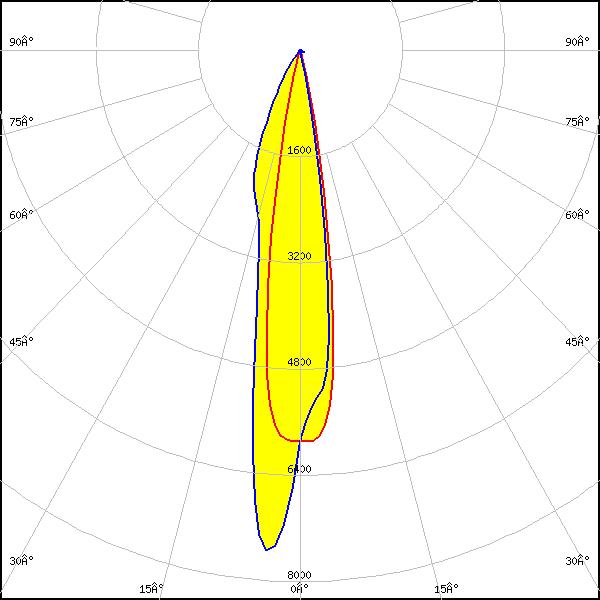

LED: XP-P
FWHM: asymmetric
Peak intensity: 7.612 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

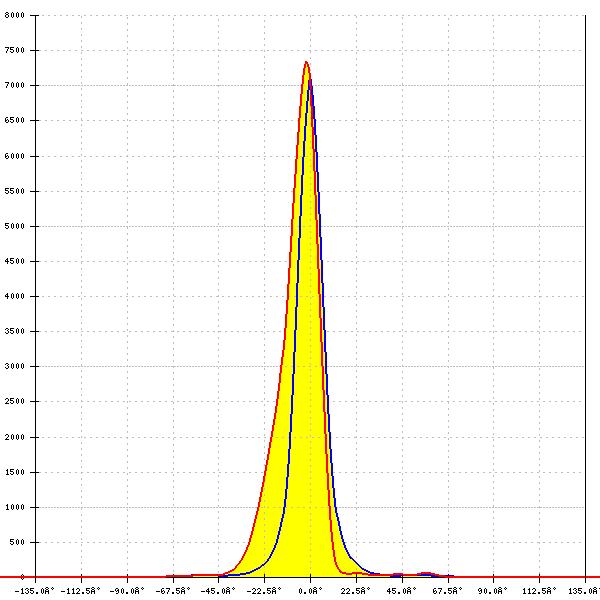

LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 7.368 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 3.893 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 3.548 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 3.638 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

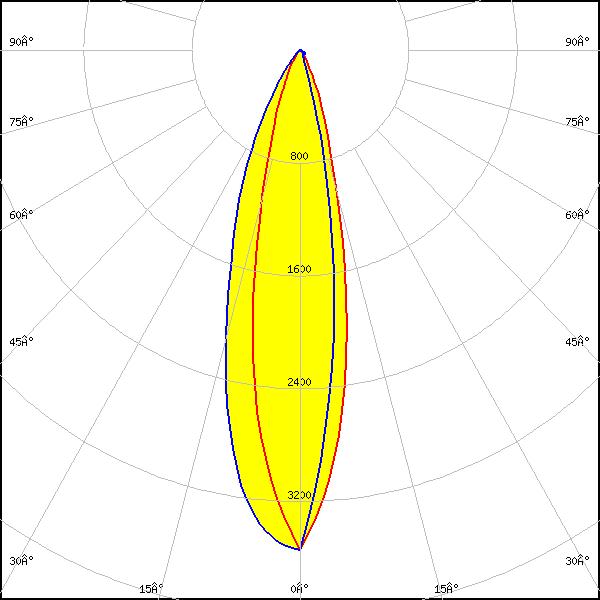

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 3.547 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

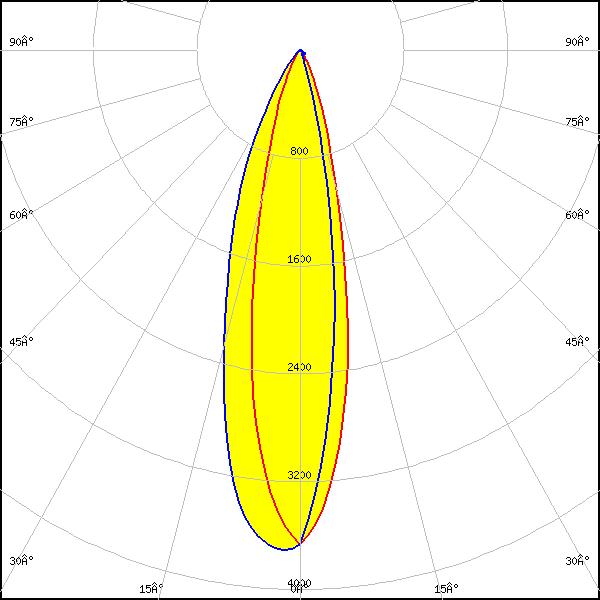

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 3.730 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 7070
FWHM: asymmetric
Peak intensity: 1.986 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

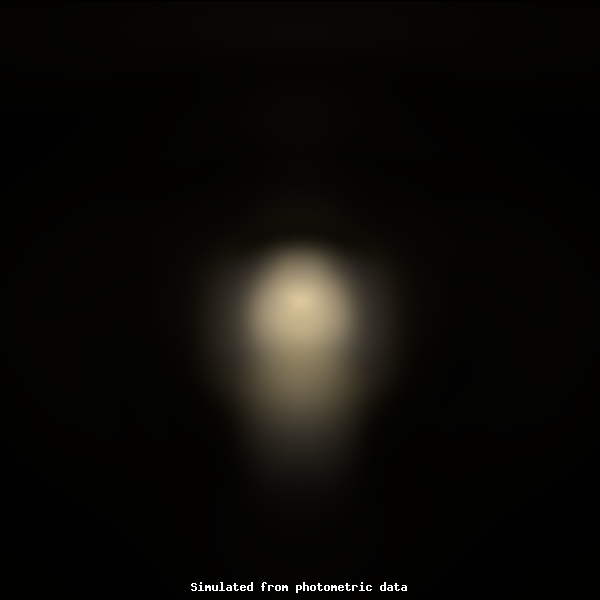

LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 6.866 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

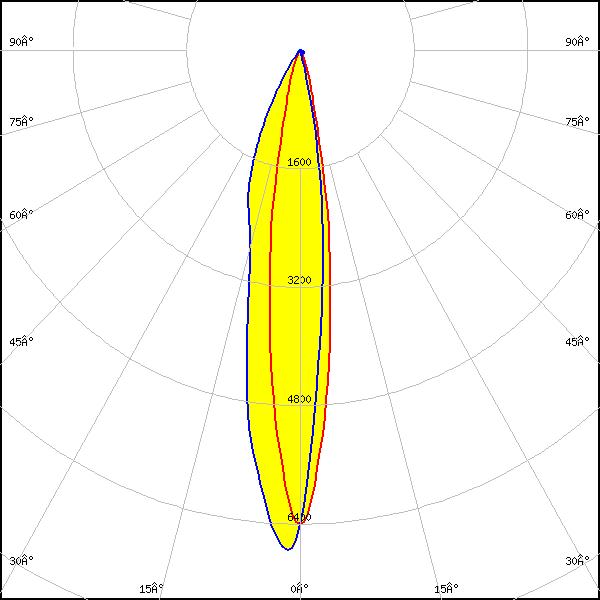

LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 6.758 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

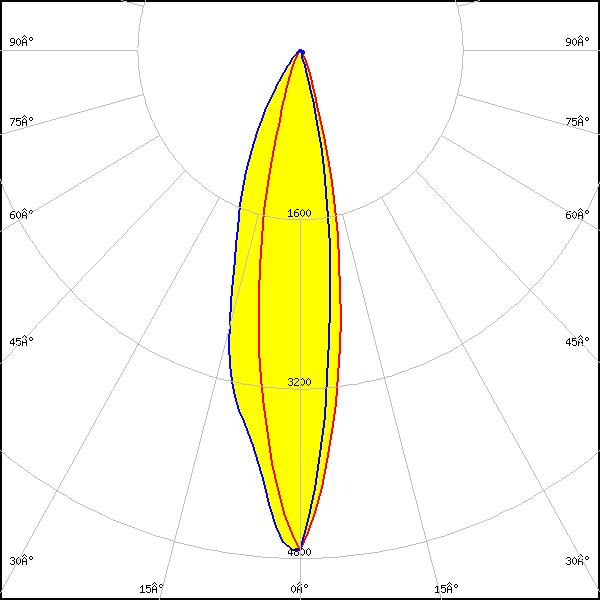

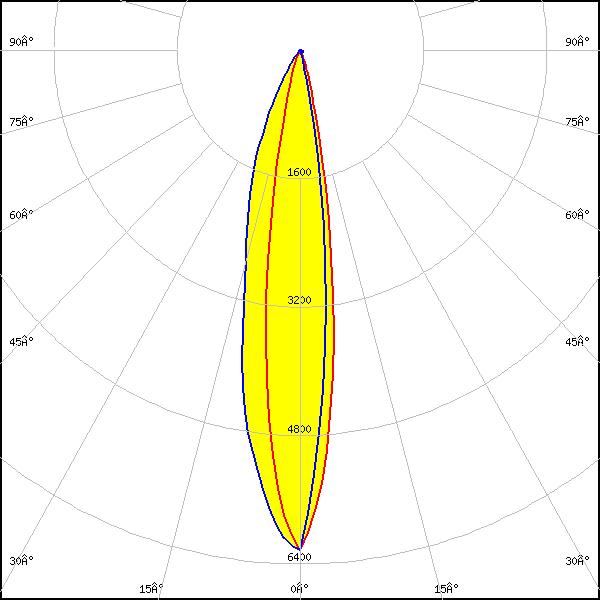

LED: LUXEON HL4Z
FWHM: asymmetric
Peak intensity: 6.958 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

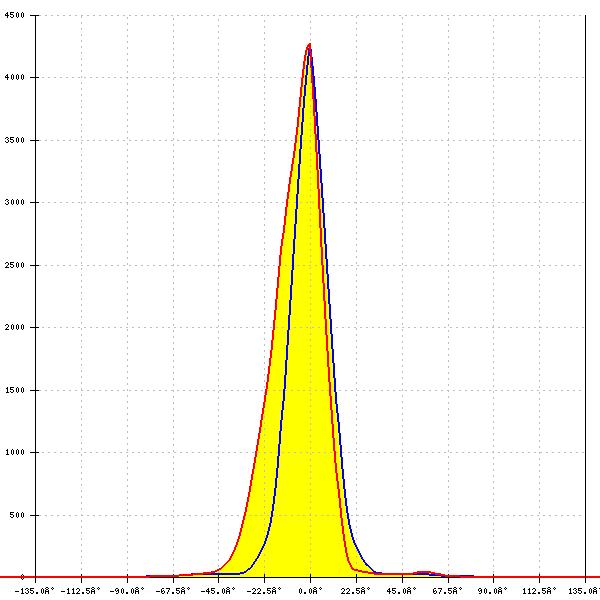

LED: LUXEON HL4Z
FWHM: asymmetric
Peak intensity: 6.232 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

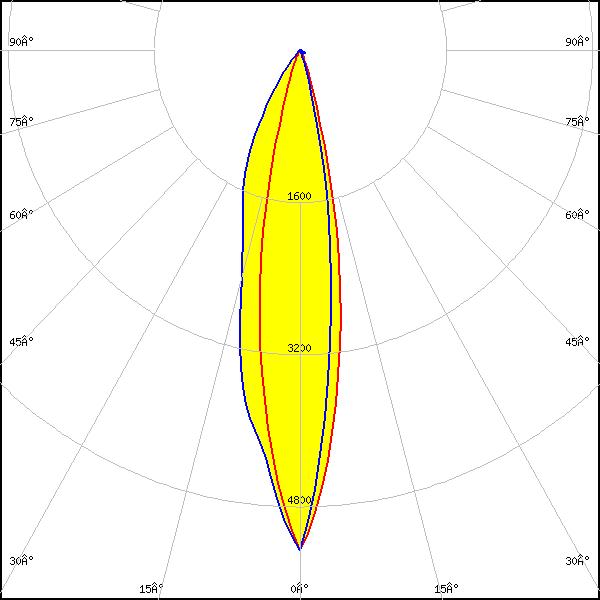

LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: asymmetric
Peak intensity: 5.257 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: asymmetric
Peak intensity: 4.664 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: SST-20
FWHM: asymmetric
Peak intensity: 6.712 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: SST-70X-WCS
FWHM: asymmetric
Peak intensity: 4.079 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: SST-70X-WCS
FWHM: asymmetric
Peak intensity: 3.680 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 4.439 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

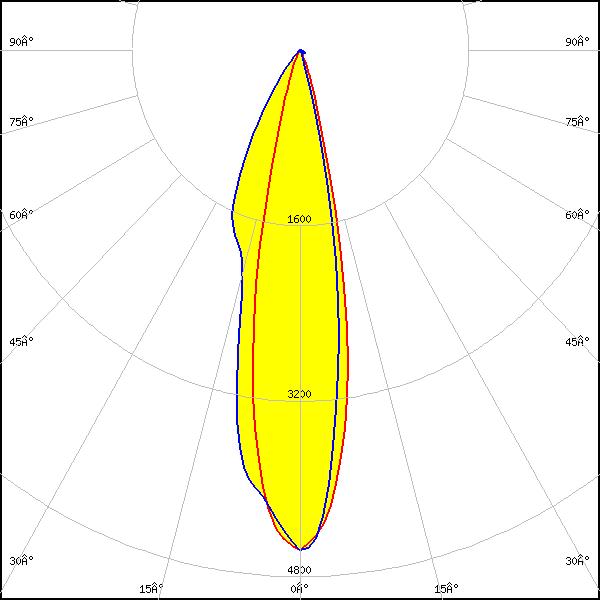

LED: NVSW219D
FWHM: asymmetric
Peak intensity: 4.572 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW219F
FWHM: asymmetric
Peak intensity: 4.610 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW3x9A
FWHM: asymmetric
Peak intensity: 4.929 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 7.611 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

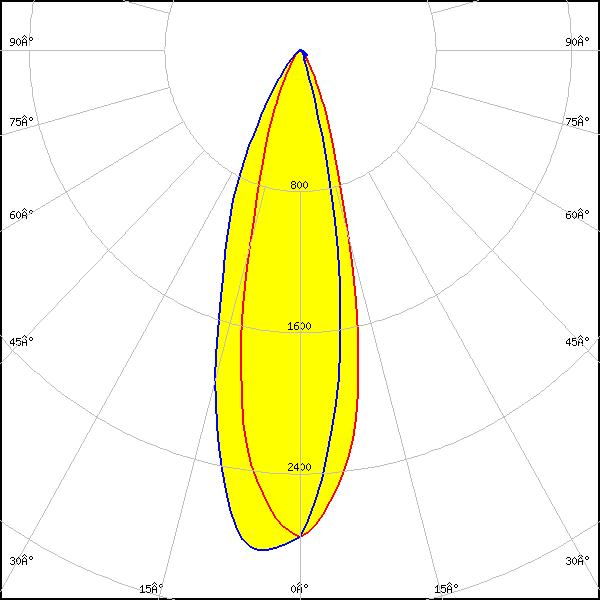

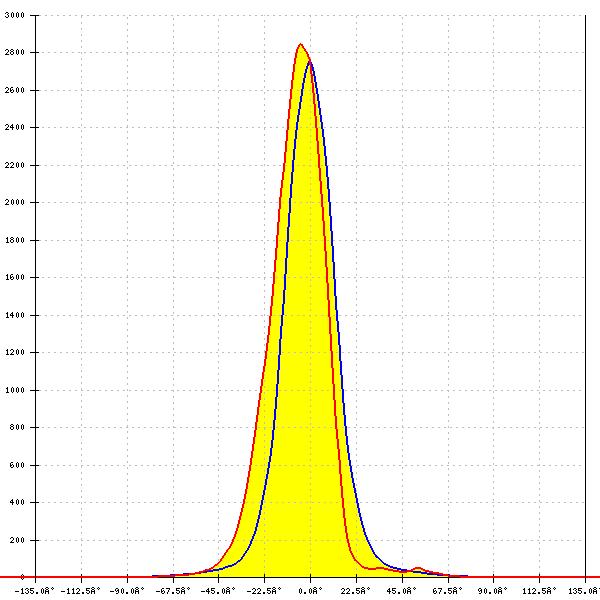

LED: Duris S8
FWHM: asymmetric
Peak intensity: 2.847 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

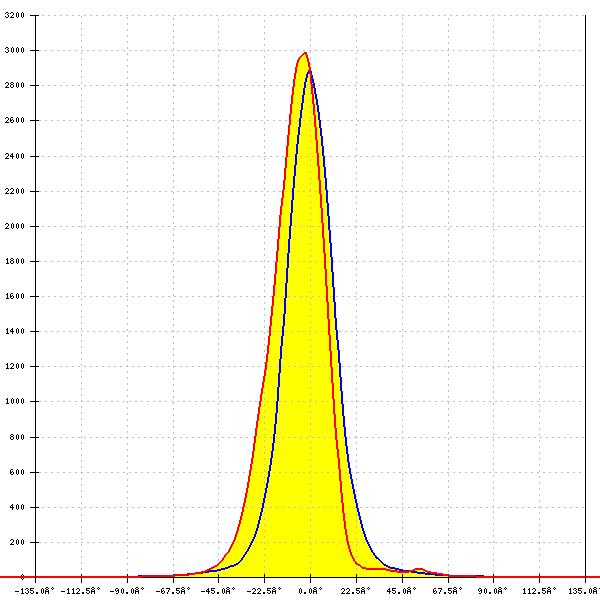

LED: Duris S8
FWHM: asymmetric
Peak intensity: 3.025 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

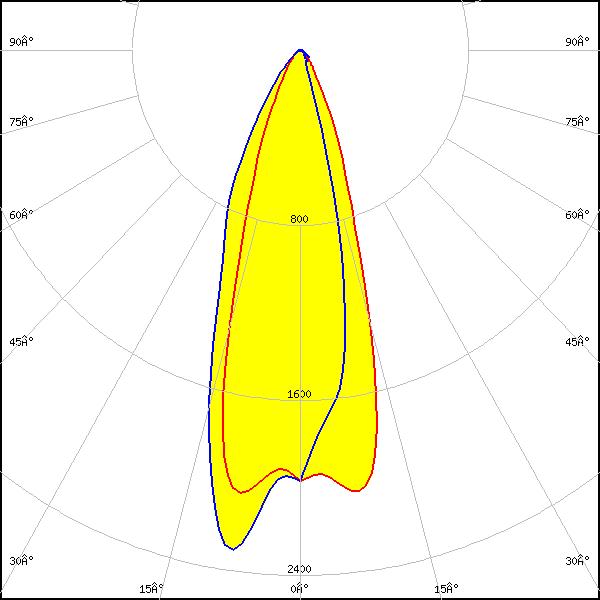

LED: OSCONIQ C 2424
FWHM: asymmetric
Peak intensity: 2.307 cd/lm
Efficiency: 96 %
LEDs/each optic: 4
Light colour/type: White
LED: OSCONIQ C 3030
FWHM: asymmetric
Peak intensity: 6.636 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ C 3030
FWHM: asymmetric
Peak intensity: 8.576 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

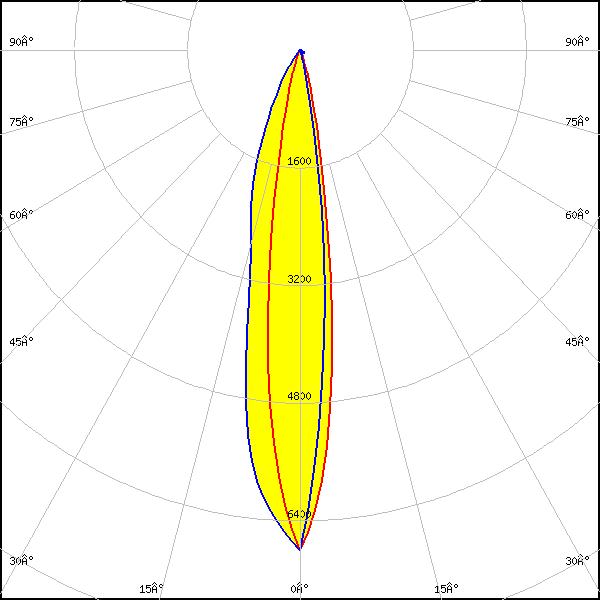

LED: OSCONIQ P 3737 (2W version)
FWHM: asymmetric
Peak intensity: 6.803 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity: 5.425 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

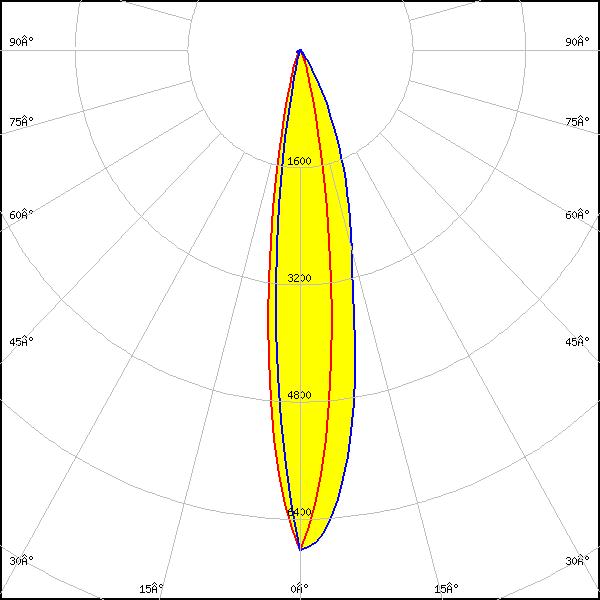

LED: OSCONIQ P 3737 Flat
FWHM: asymmetric
Peak intensity: 6.825 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 Flat
FWHM: asymmetric
Peak intensity: 6.385 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

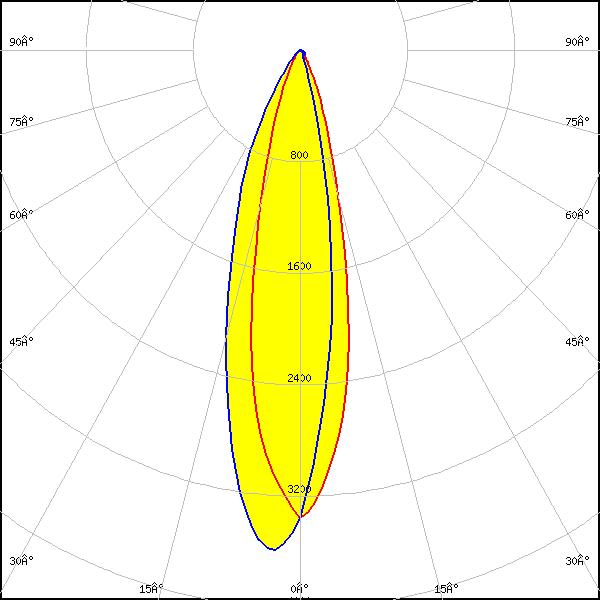

LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 3.593 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 3.257 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 8.059 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 7.937 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square Flat
FWHM: asymmetric
Peak intensity: 7.913 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

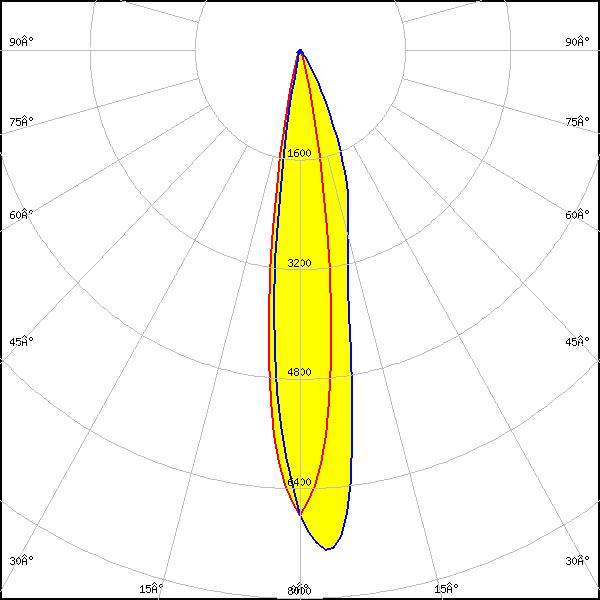

LED: OSLON Square Flat
FWHM: asymmetric
Peak intensity: 7.311 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: OSTAR Projection Compact (KW.CSLNM1.TG)
FWHM: asymmetric
Peak intensity: 7.084 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351B
FWHM: asymmetric
Peak intensity: 5.316 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

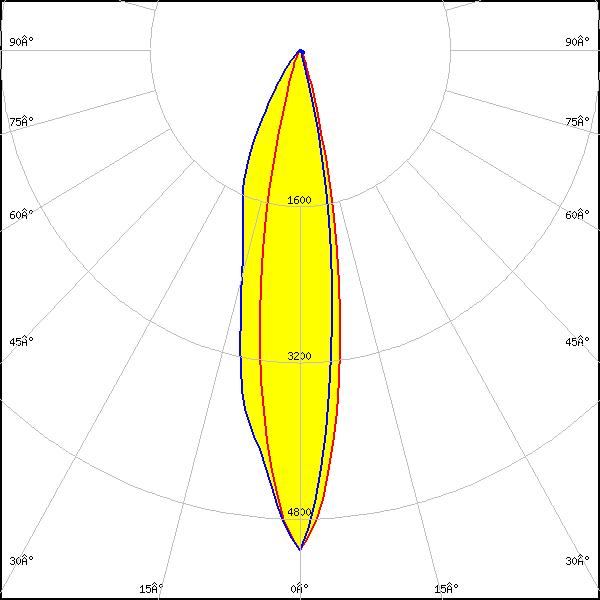

LED: LH351C
FWHM: asymmetric
Peak intensity: 5.119 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

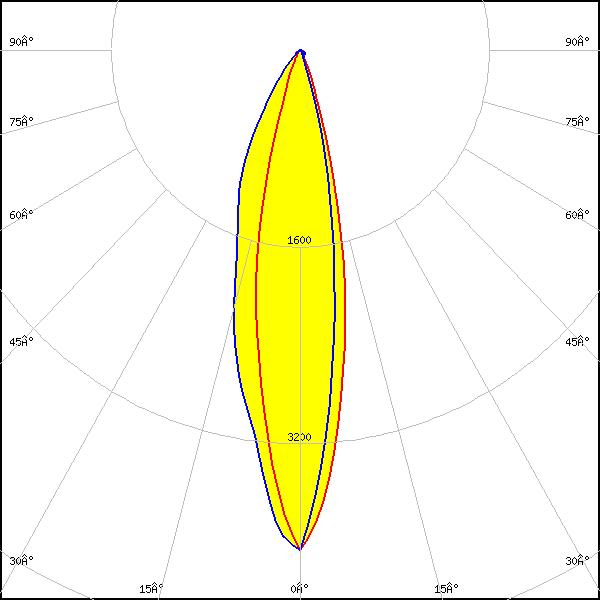

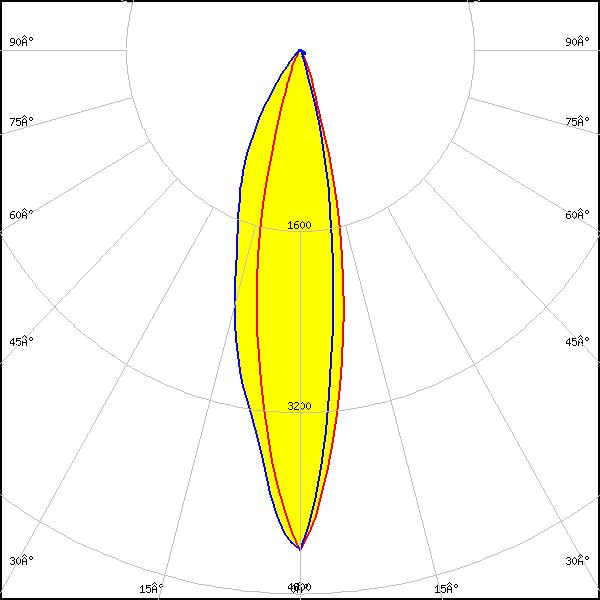

LED: LH351D
FWHM: asymmetric
Peak intensity: 4.087 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351D
FWHM: asymmetric
Peak intensity: 4.416 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: LH502C
FWHM: asymmetric
Peak intensity: 3.403 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: LH502C
FWHM: asymmetric
Peak intensity: 3.147 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

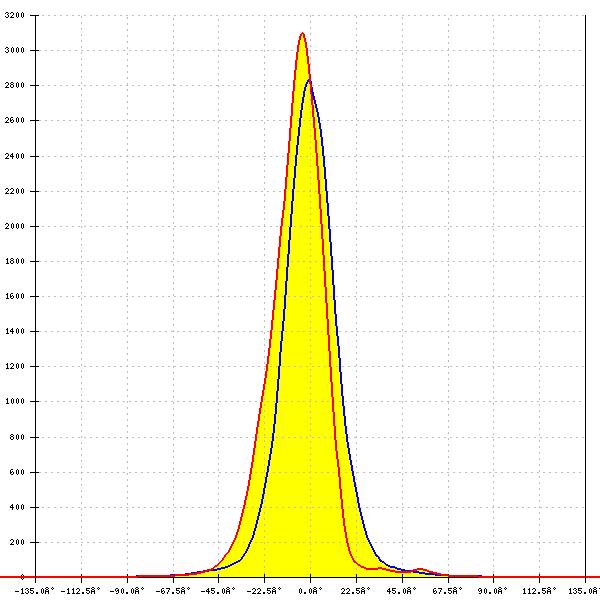

LED: MJT 5050
FWHM: asymmetric
Peak intensity: 3.107 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 3.318 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 2.984 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M3
FWHM: asymmetric
Peak intensity: 5.355 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M4
FWHM: asymmetric
Peak intensity: 7.333 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M4
FWHM: asymmetric
Peak intensity: 6.730 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M5
FWHM: asymmetric
Peak intensity: 4.993 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M5
FWHM: asymmetric
Peak intensity: 5.313 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: Z8Y22
FWHM: asymmetric
Peak intensity: 6.324 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

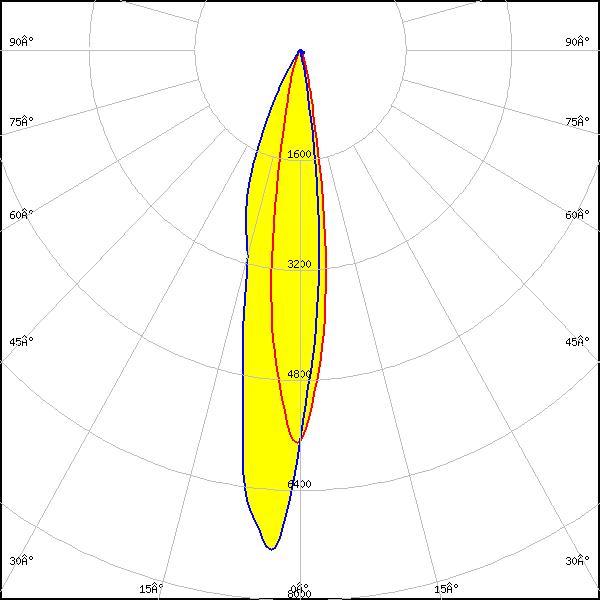

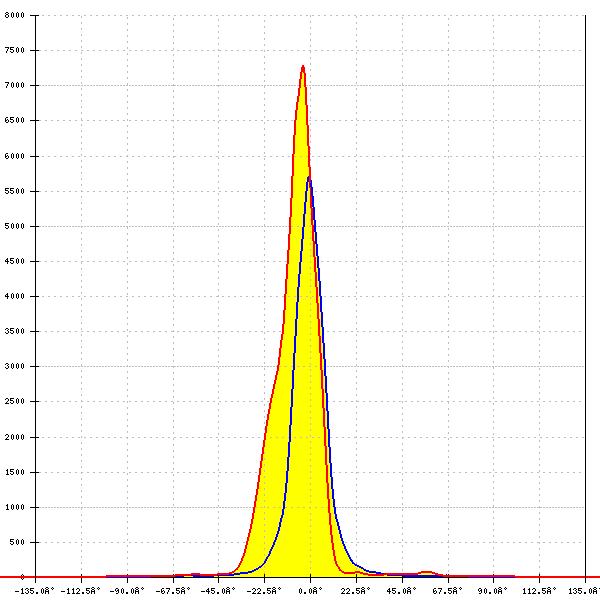

LED: PassivePAQ-R-222x50.OS1.9.7K-750-5 V1.0
FWHM: asymmetric
Peak intensity: 7.284 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: PassivePAQ-R-274x51-NI0-21K-857-5
FWHM: asymmetric
Peak intensity: 4.919 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
