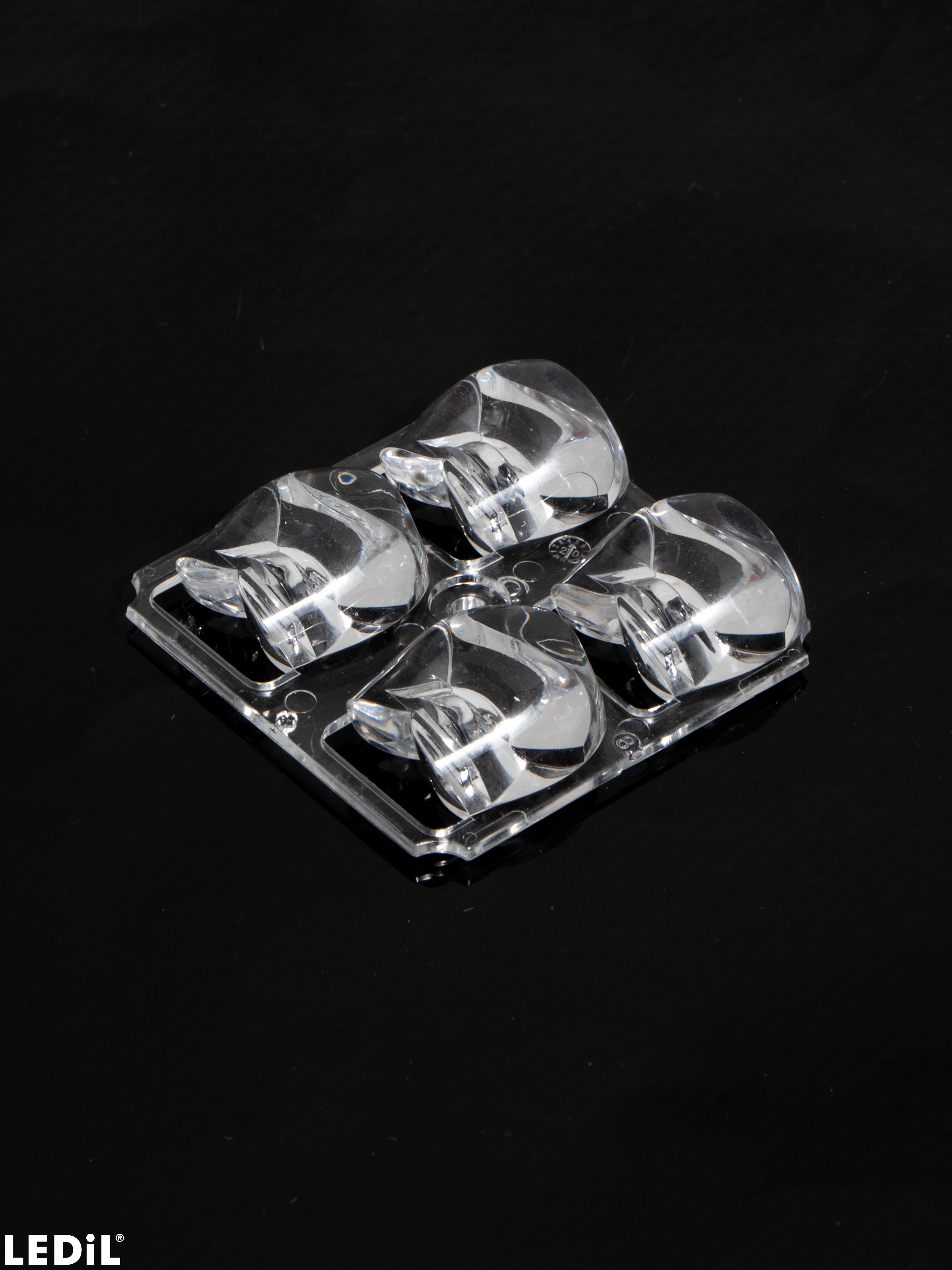

C17409_SPORT-2X2-FT6W

Print

Wide forward throw beam with optimized cut-off for high masts

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    12.25 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    640 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.9 kg
  • MPQ:
    128 pcs
  • MOQ:
    128 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    2.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C17409_SPORT-2X2-FT6W

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

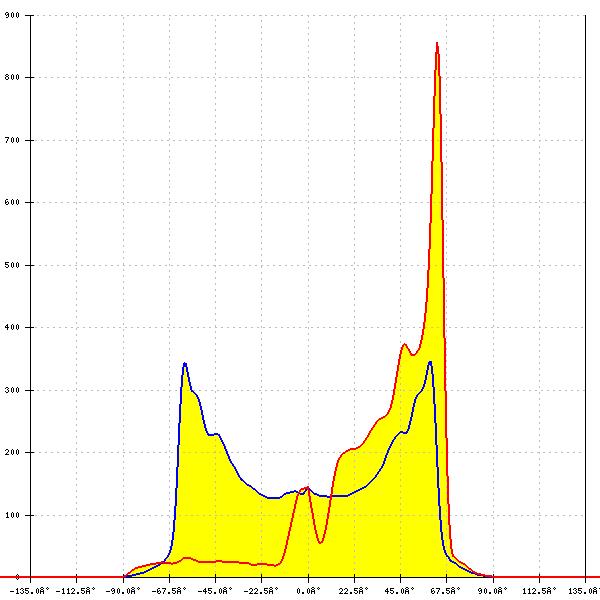

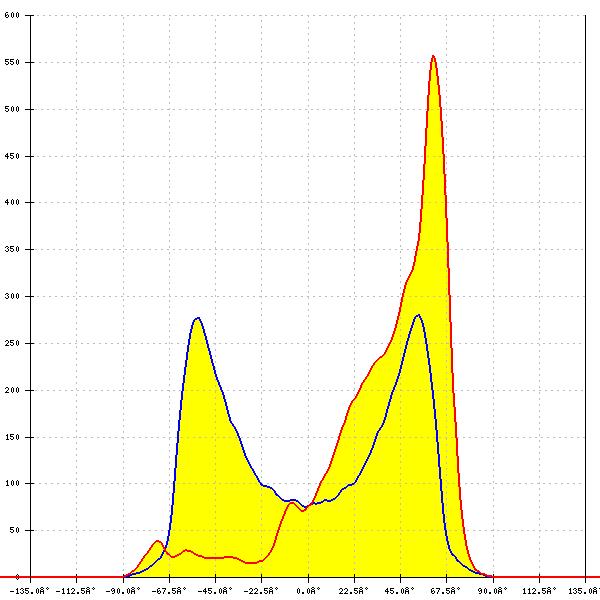

Optical results

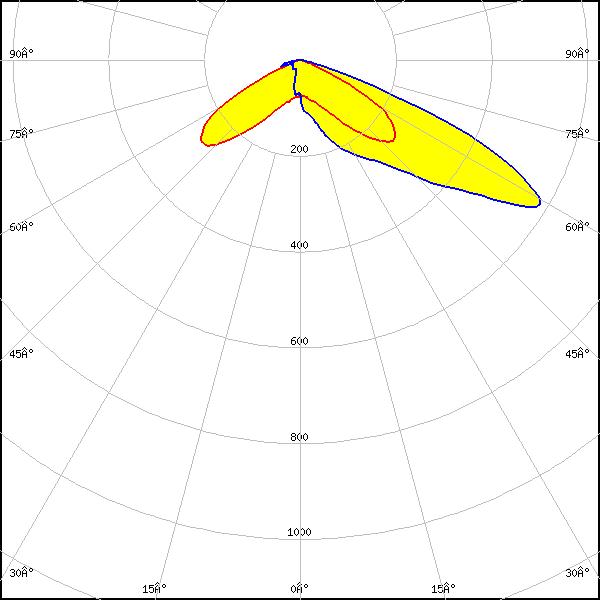

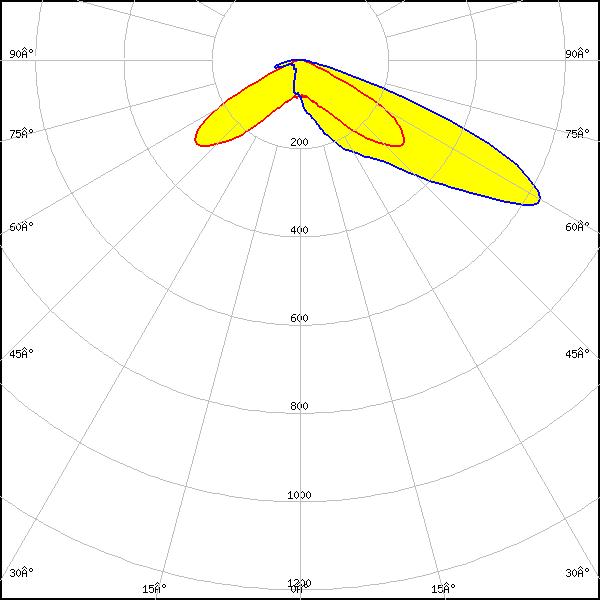

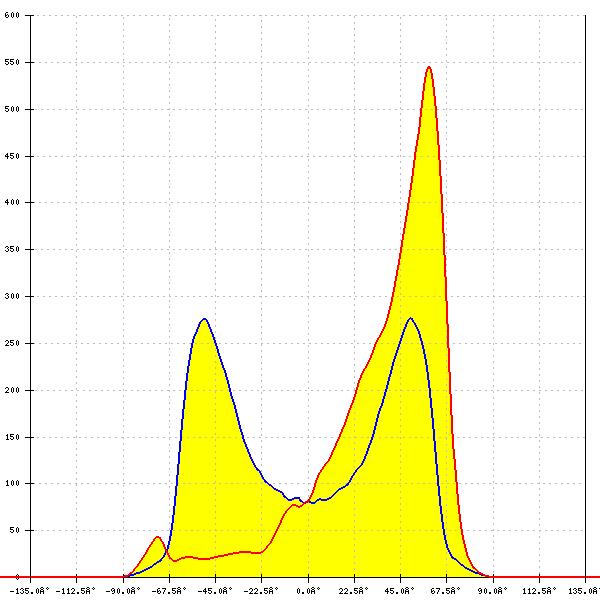

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.803 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.685 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 0.767 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

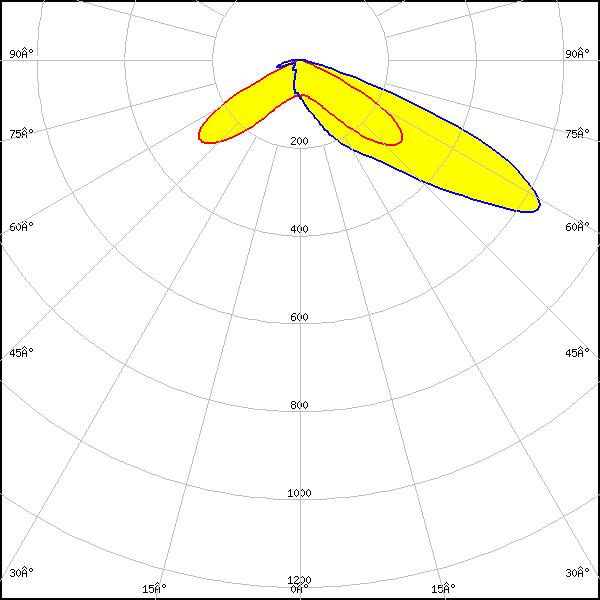

LED: J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity: 0.803 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

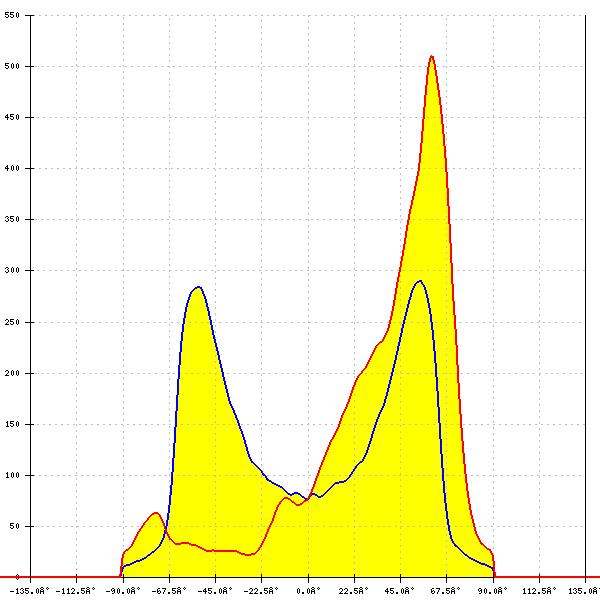

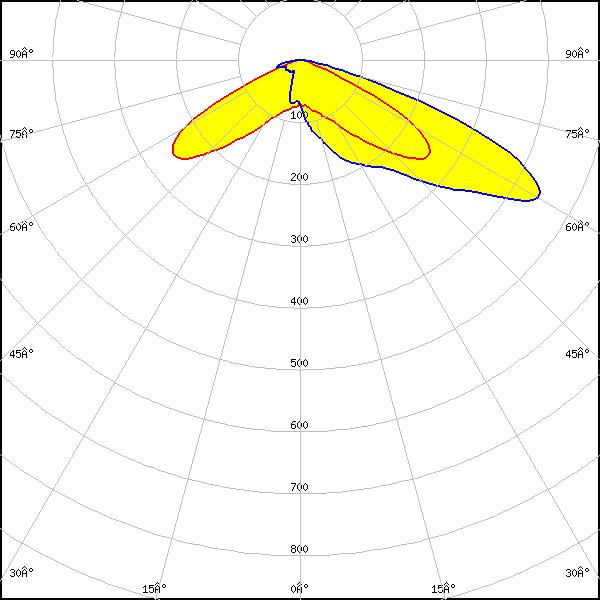

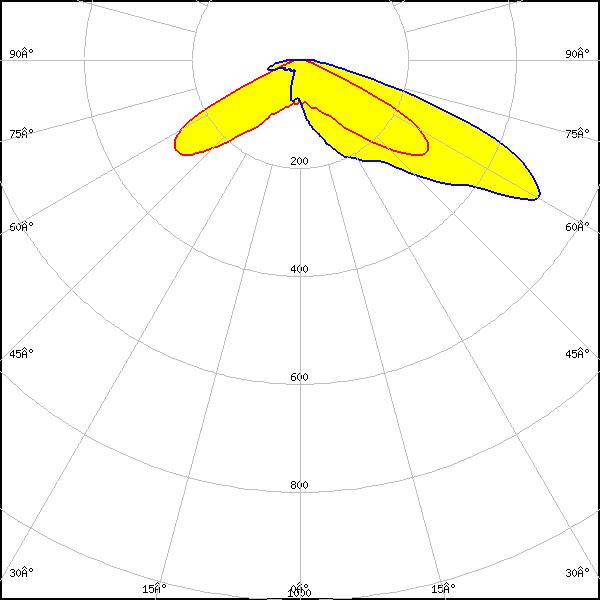

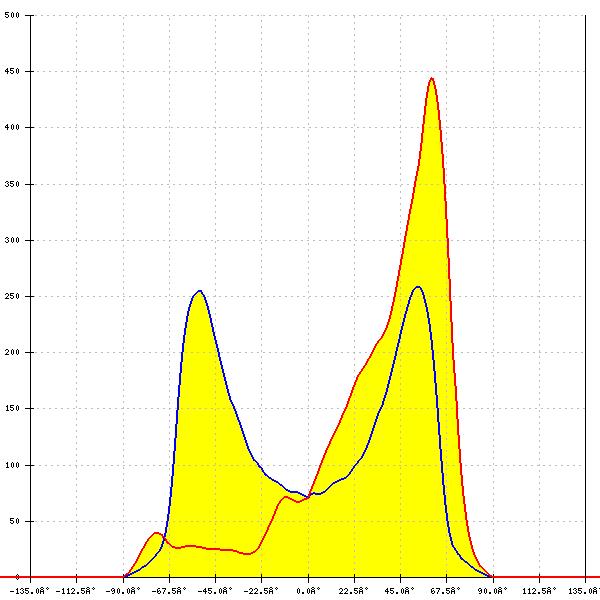

LED: XHP35.2 HD
FWHM: asymmetric
Peak intensity: 0.760 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP35.2 HD
FWHM: asymmetric
Peak intensity: 0.590 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

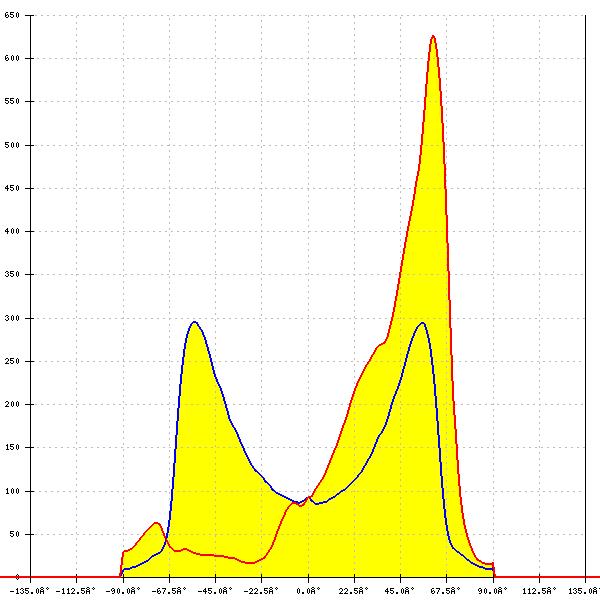

LED: XHP35.2 HI
FWHM: asymmetric
Peak intensity: 0.847 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP35.2 HI
FWHM: asymmetric
Peak intensity: 0.664 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 1.055 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

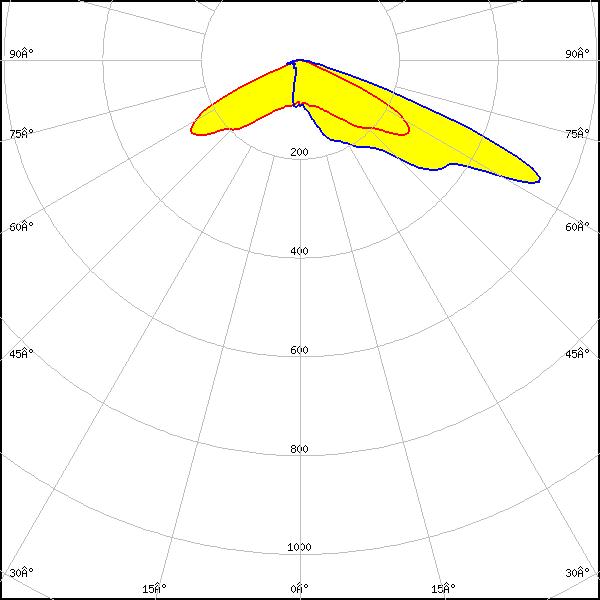

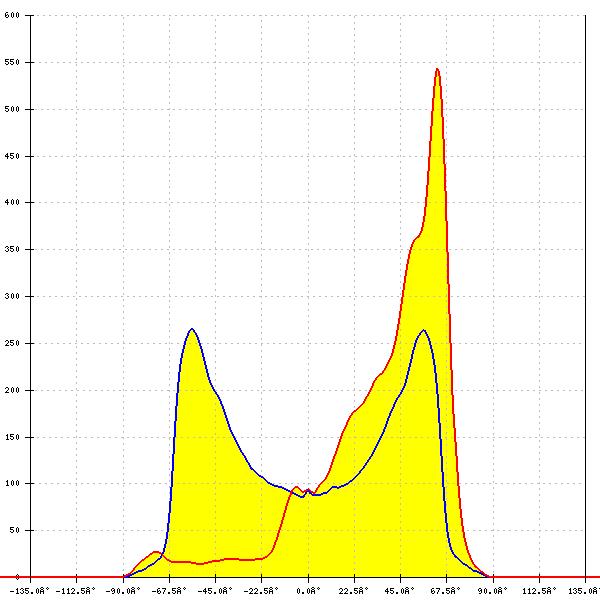

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.746 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

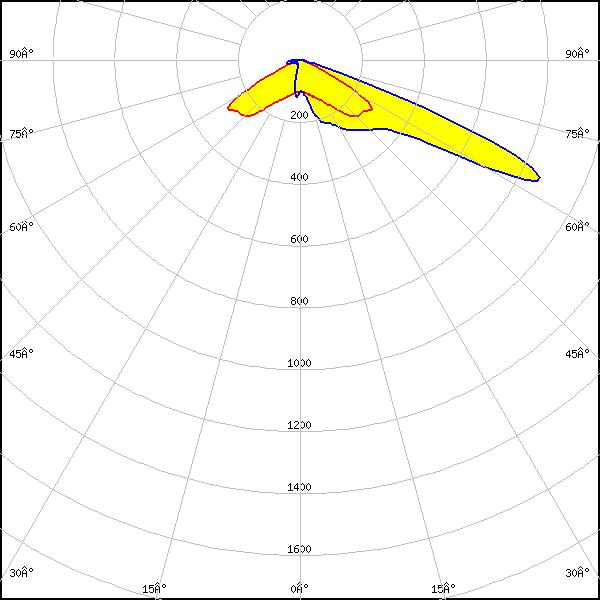

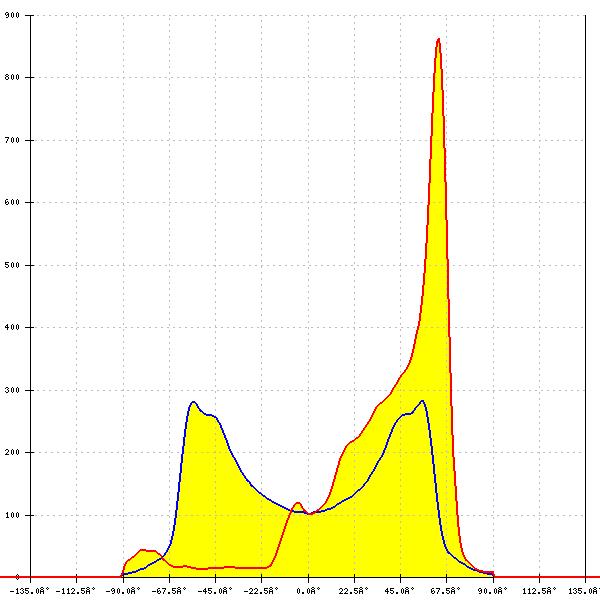

LED: XP-G4
FWHM: asymmetric
Peak intensity: 0.929 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

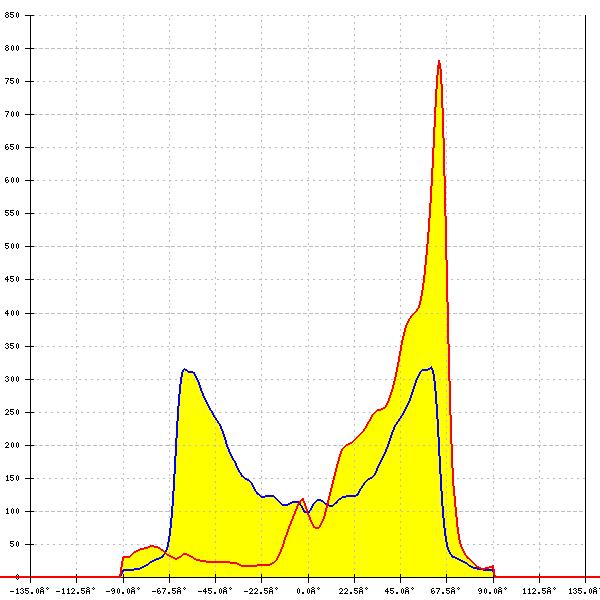

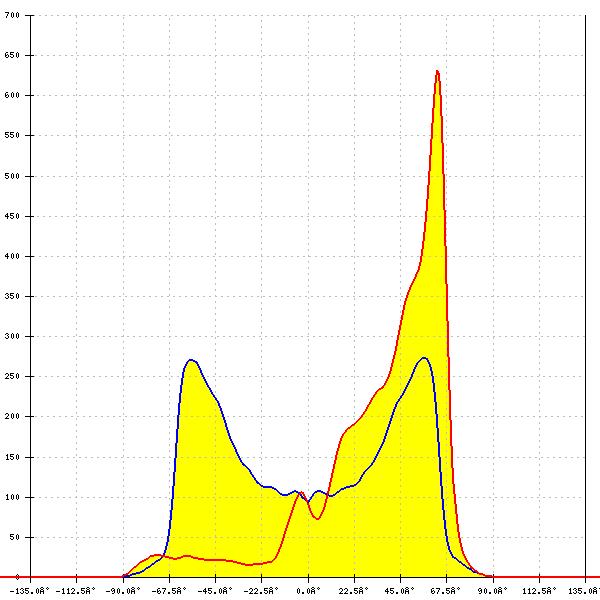

LED: XP-G4 HI
FWHM: asymmetric
Peak intensity: 1.037 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G4 HI
FWHM: asymmetric
Peak intensity: 0.766 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

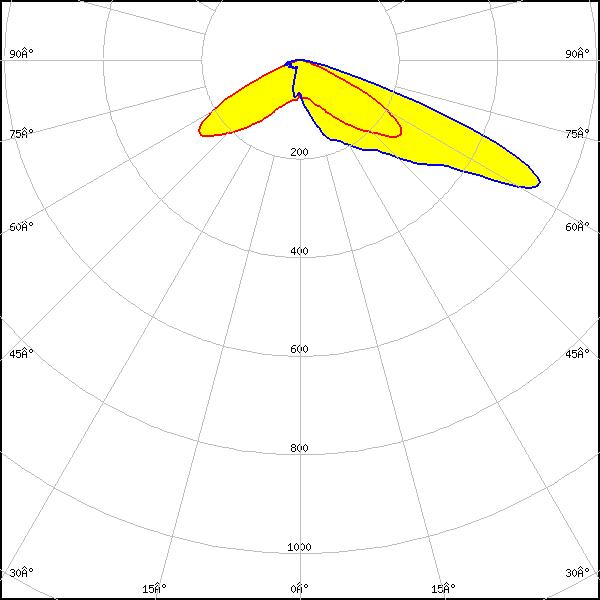

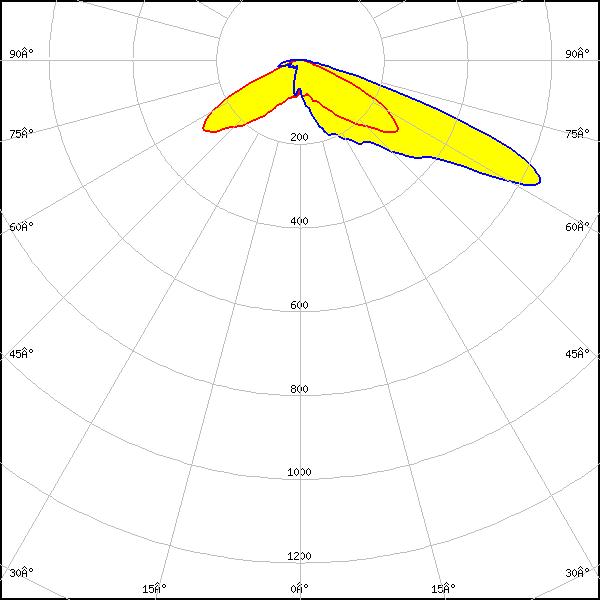

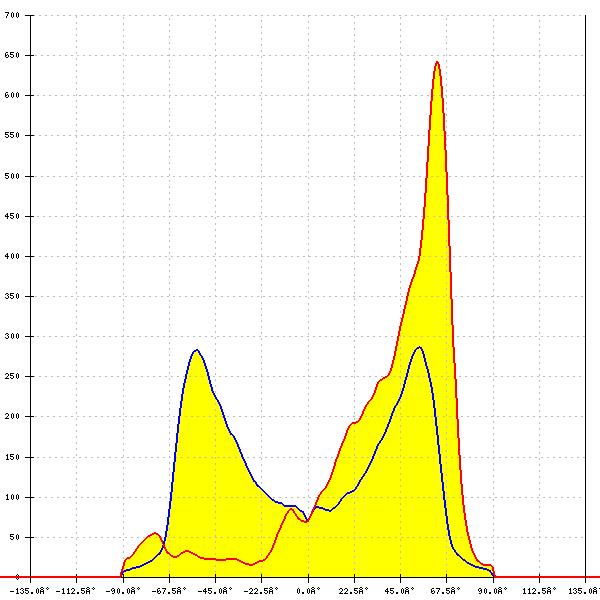

LED: XP-L HD
FWHM: asymmetric
Peak intensity: 0.696 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HD
FWHM: asymmetric
Peak intensity: 0.913 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

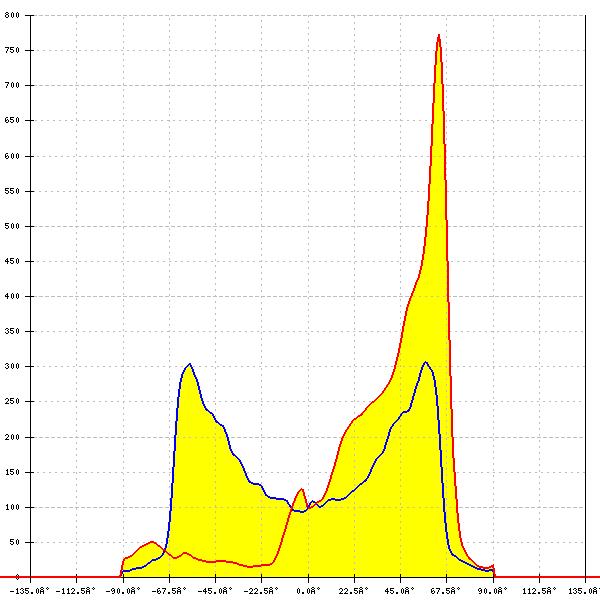

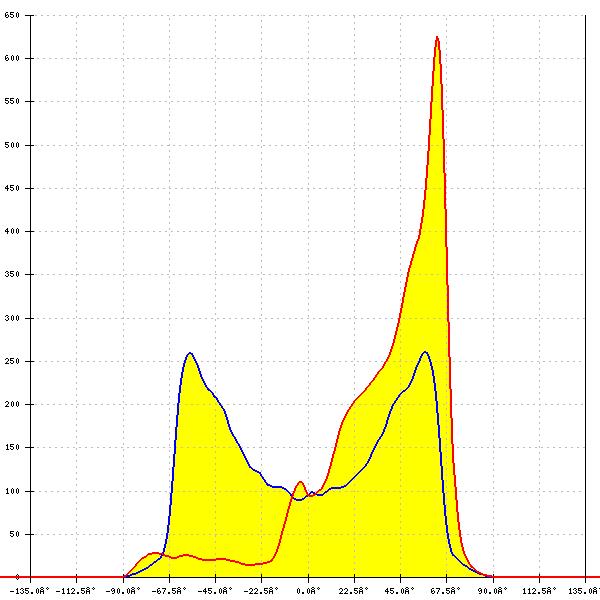

LED: XP-L HI
FWHM: asymmetric
Peak intensity: 0.732 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L HI
FWHM: asymmetric
Peak intensity: 0.983 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

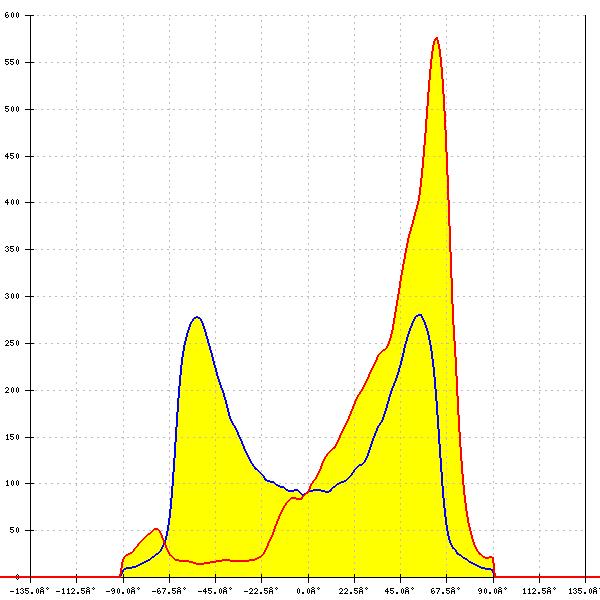

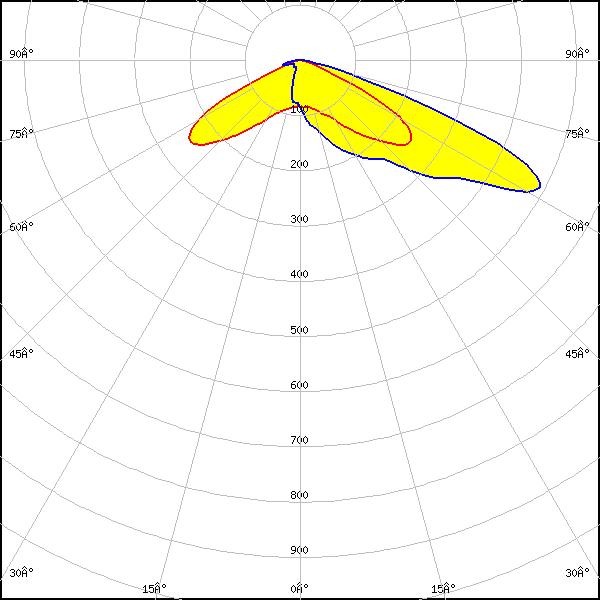

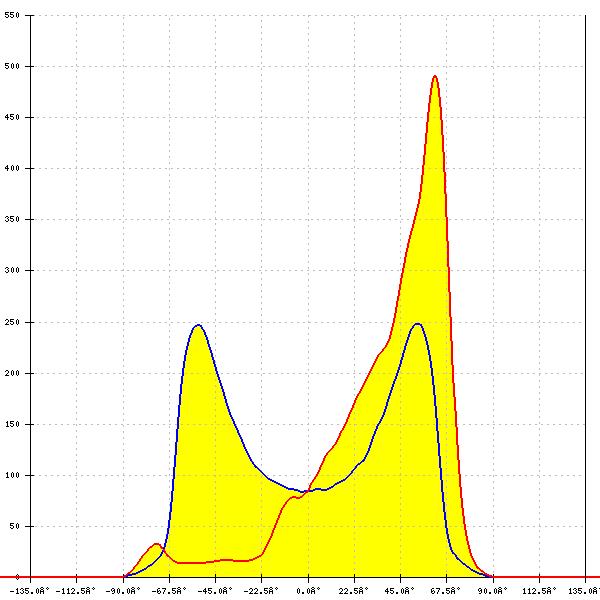

LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.814 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-L2
FWHM: asymmetric
Peak intensity: 0.638 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

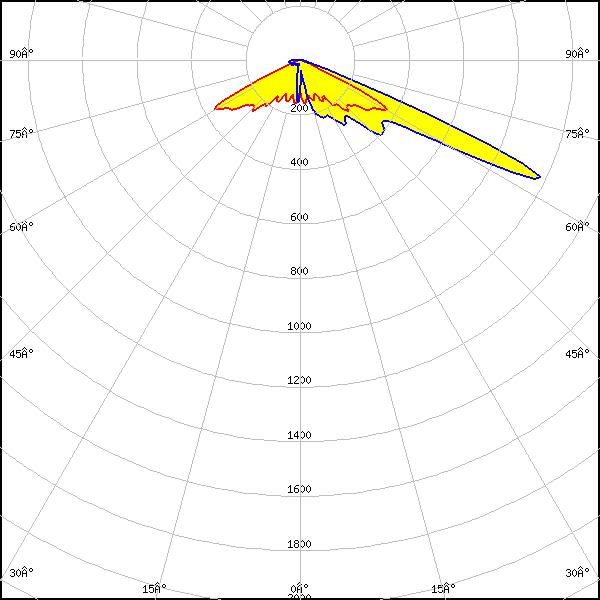

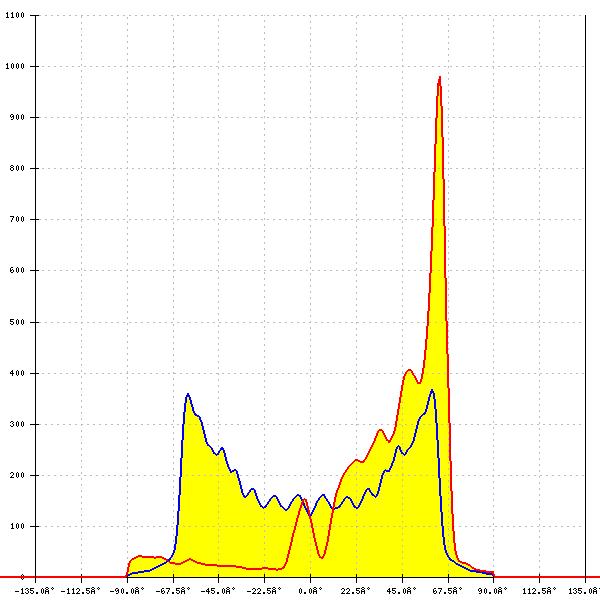

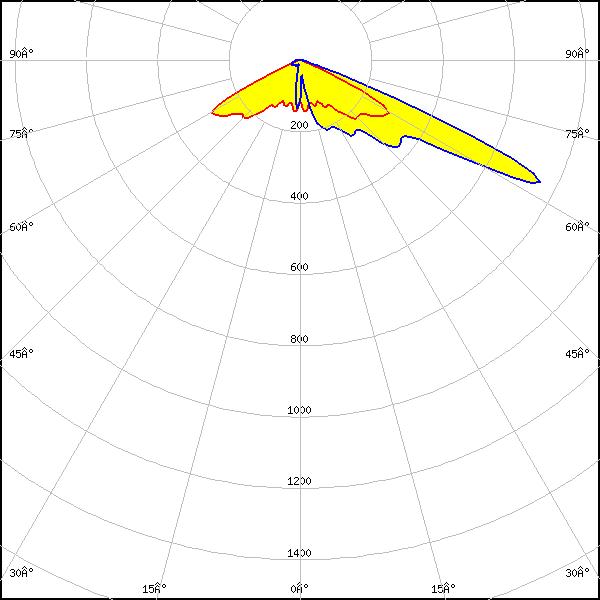

LED: XP-P
FWHM: asymmetric
Peak intensity: 1.178 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-P
FWHM: asymmetric
Peak intensity: 0.852 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

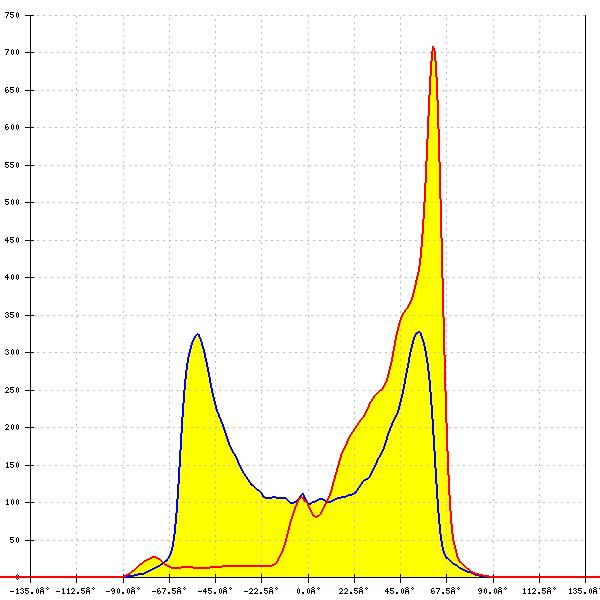

LED: LUXEON 3030 2D (Round LES)
FWHM: asymmetric
Peak intensity: 0.946 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

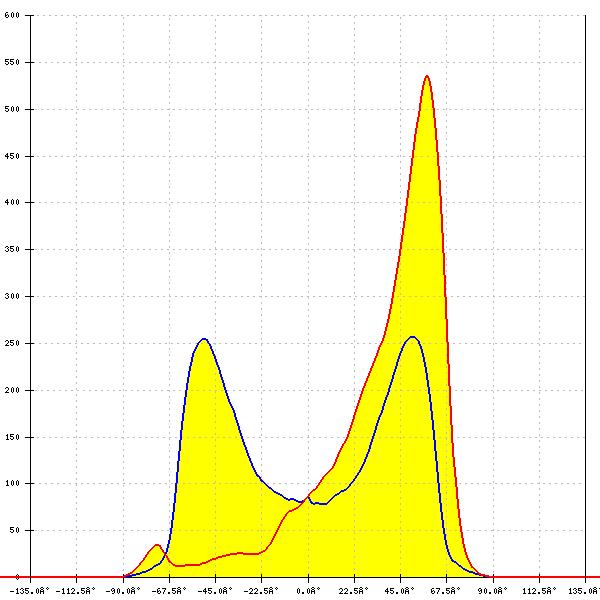

LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.789 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.648 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.702 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

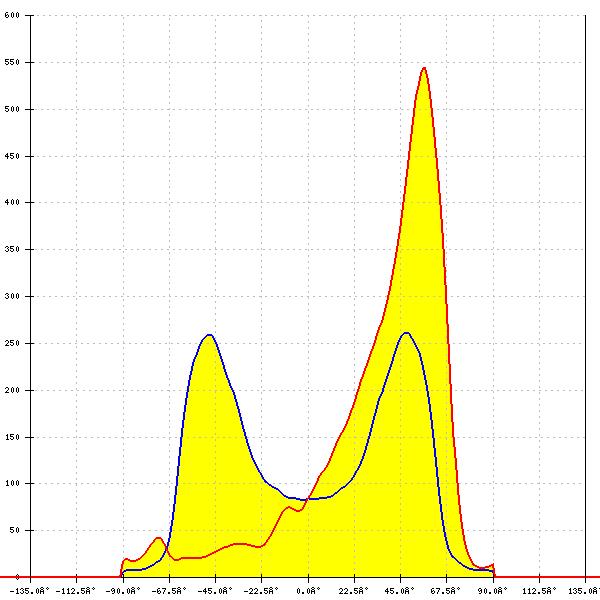

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.643 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.779 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

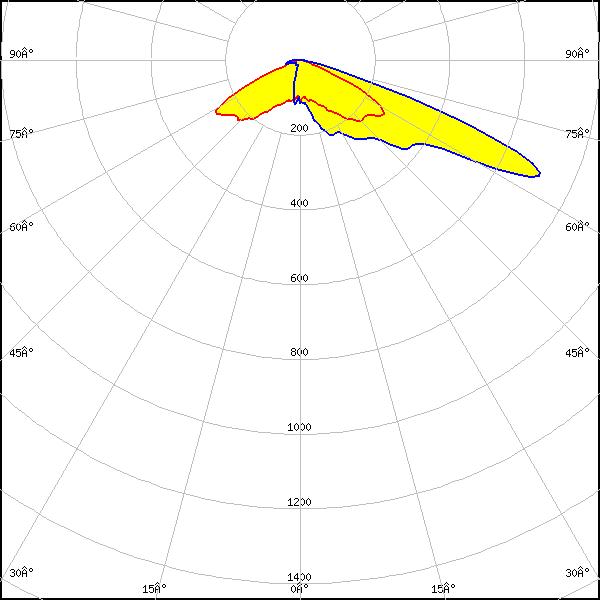

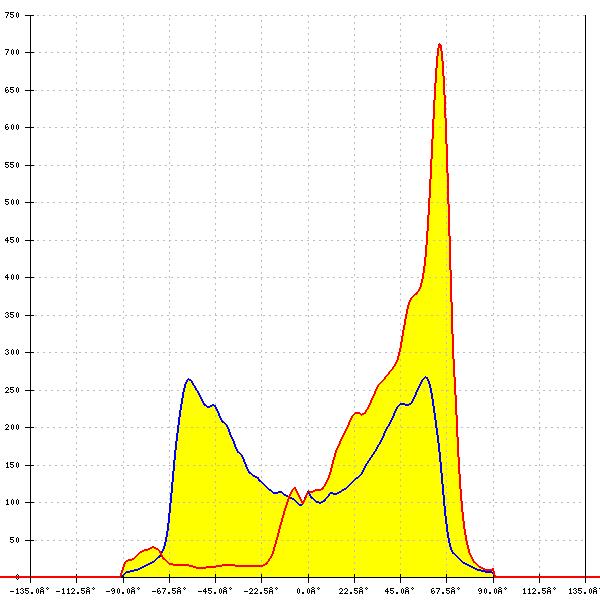

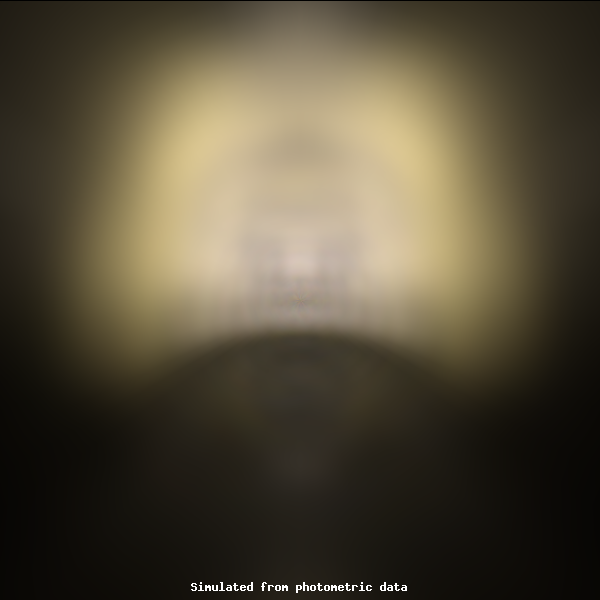

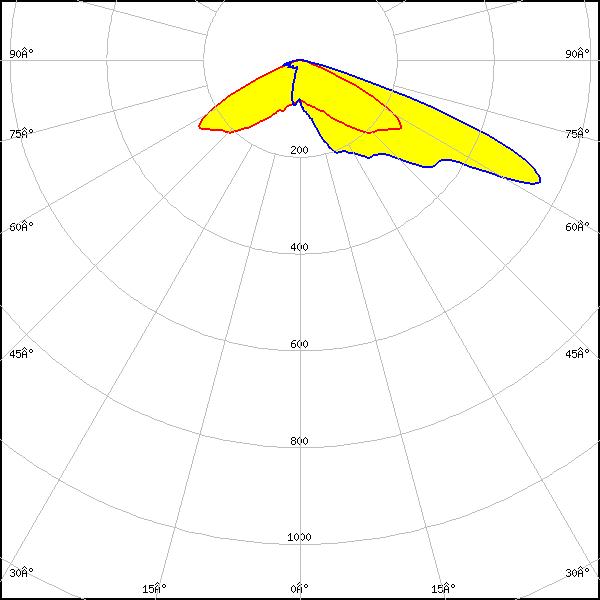

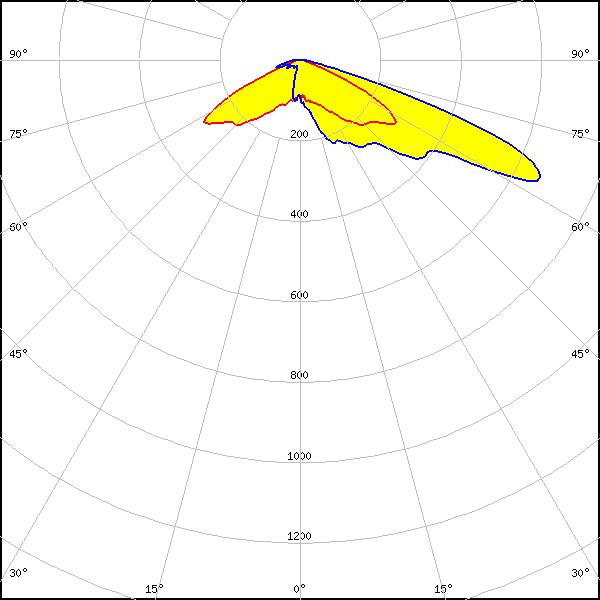

LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 0.846 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

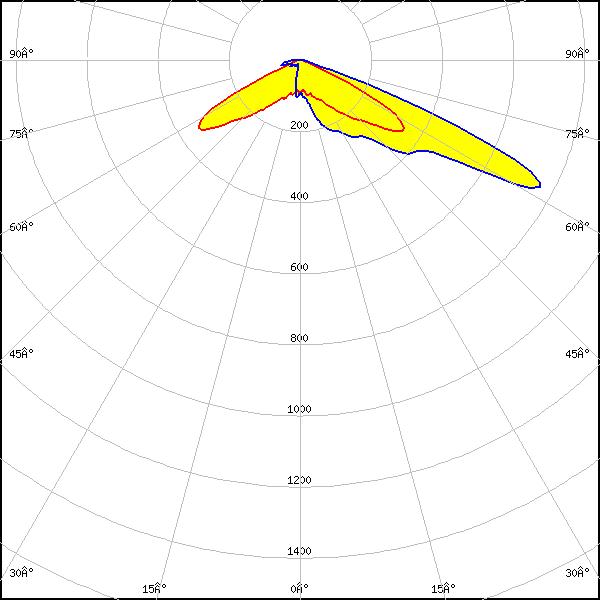

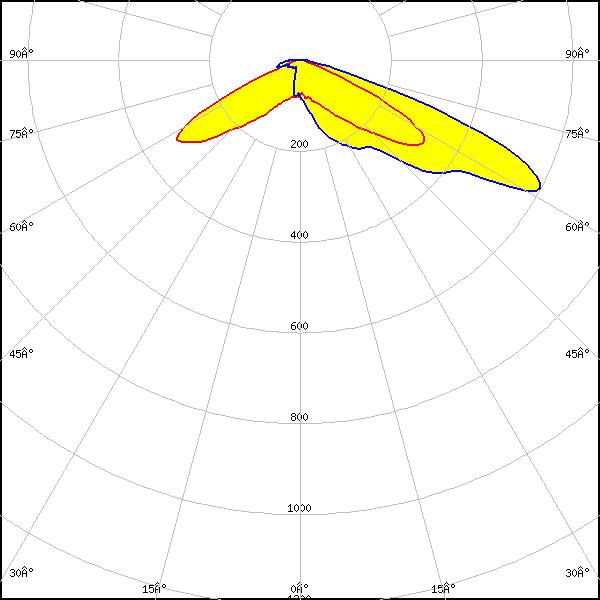

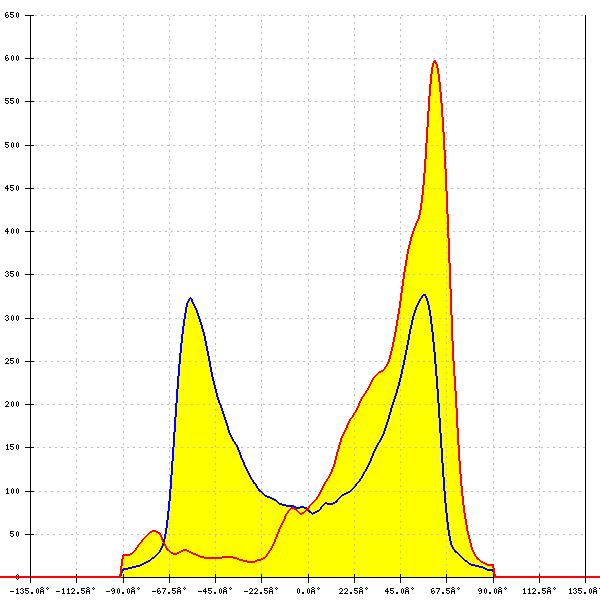

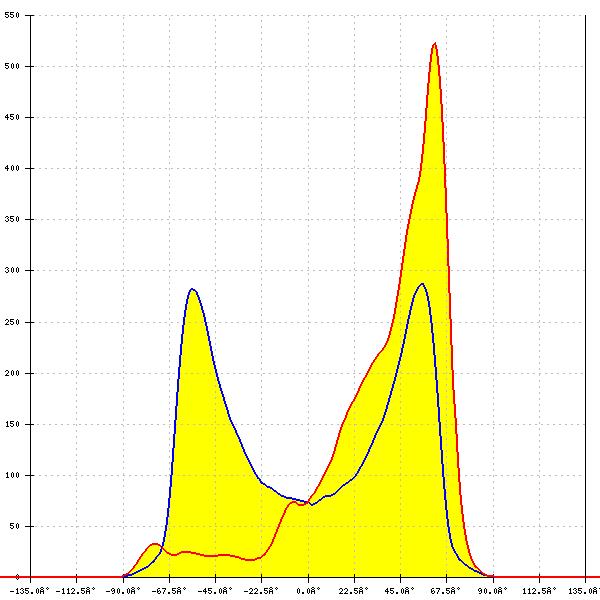

LED: LUXEON HL4Z
FWHM: asymmetric
Peak intensity: 1.067 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

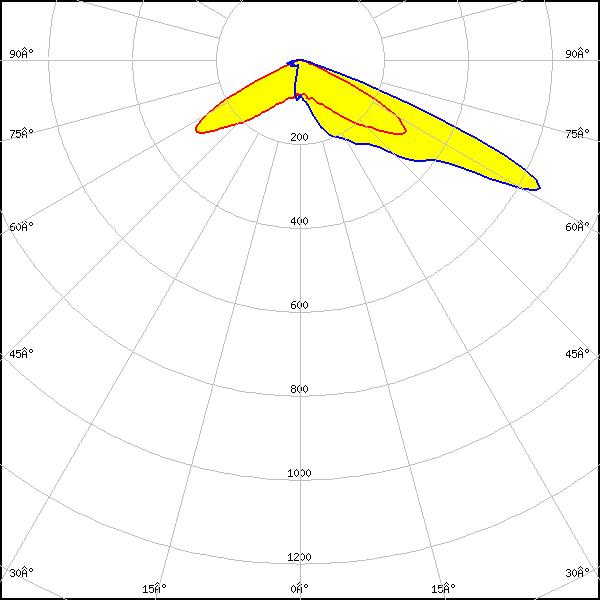

LED: LUXEON HL4Z
FWHM: asymmetric
Peak intensity: 0.814 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

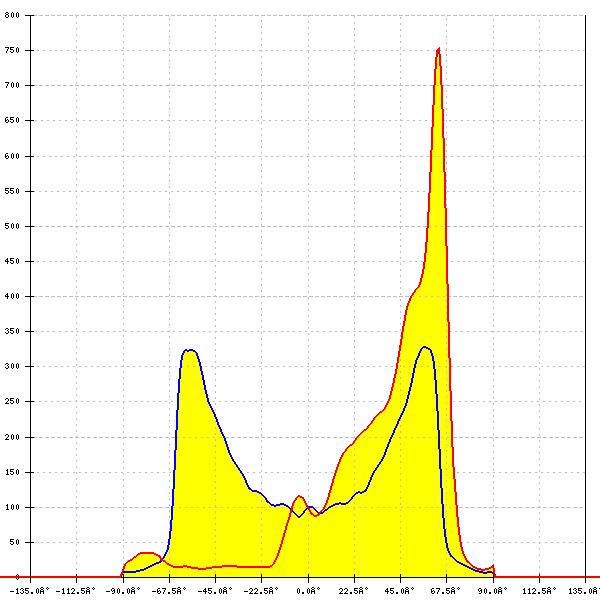

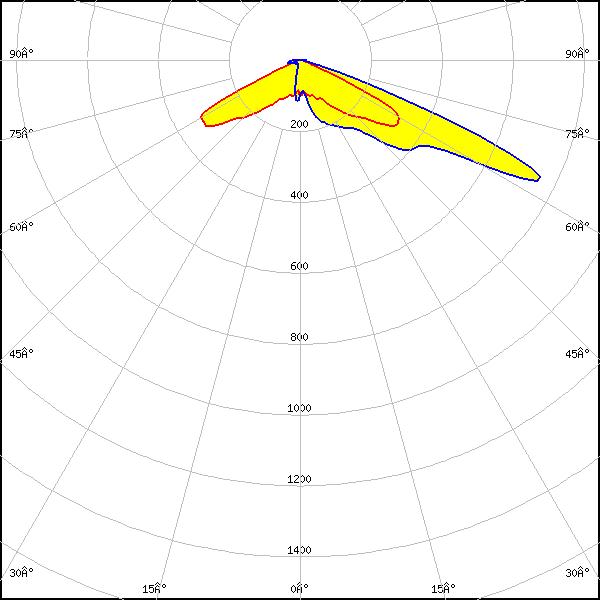

LED: LUXEON TX
FWHM: asymmetric
Peak intensity: 1.069 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

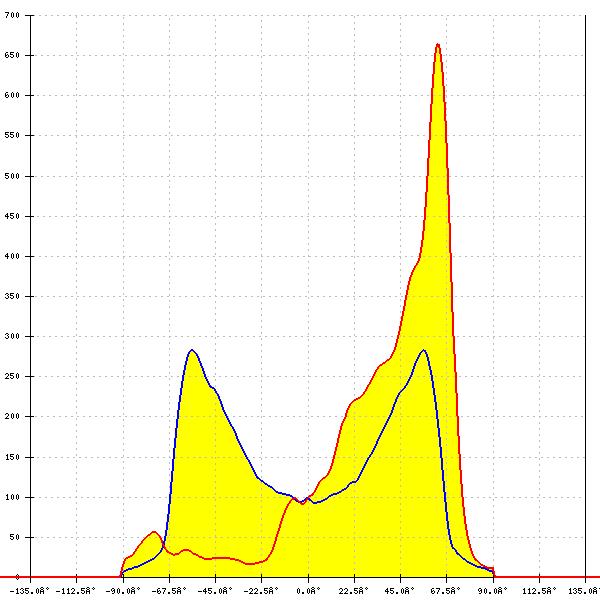

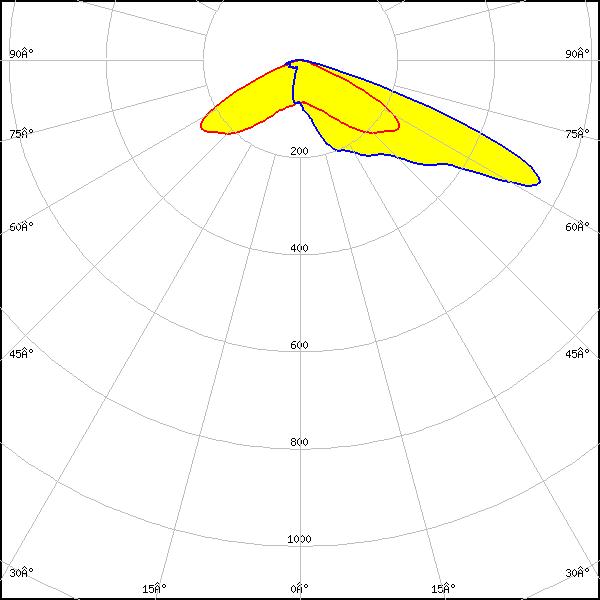

LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: asymmetric
Peak intensity: 0.824 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

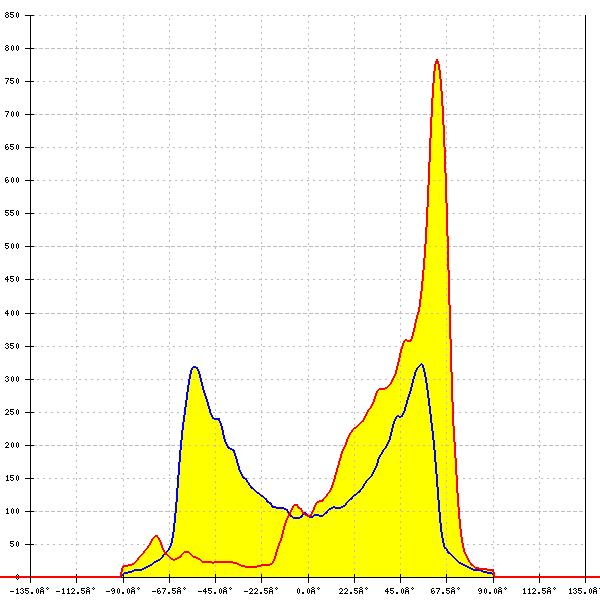

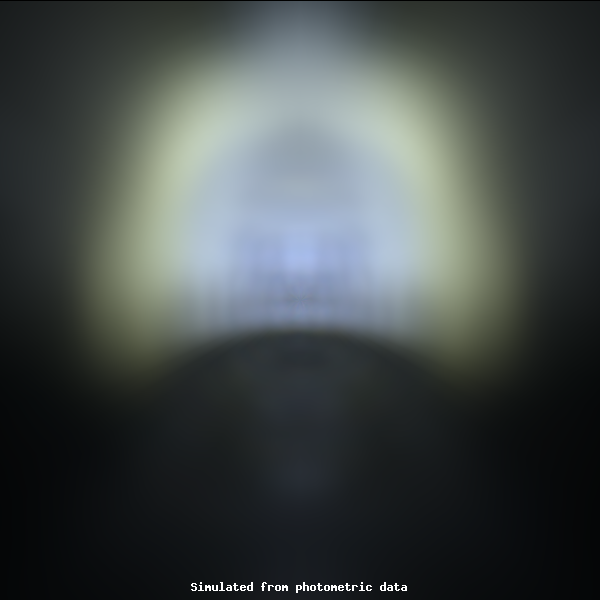

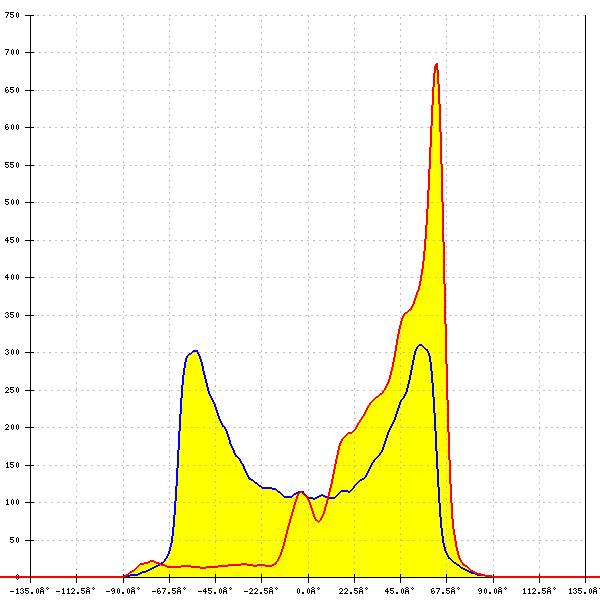

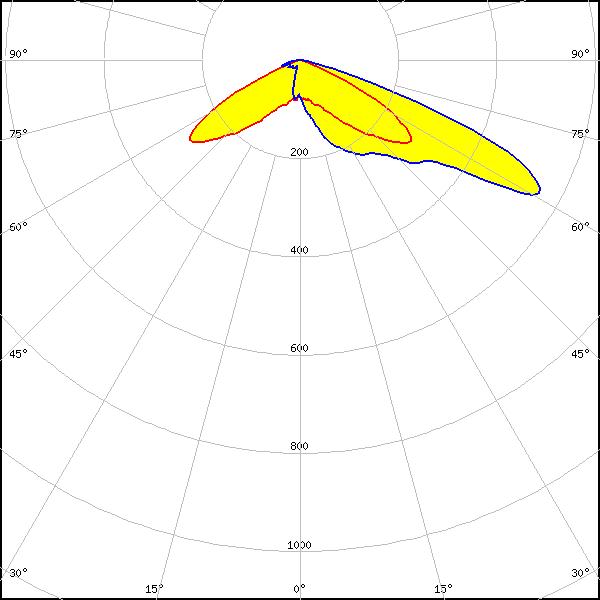

LED: SST-20
FWHM: asymmetric
Peak intensity: 0.938 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

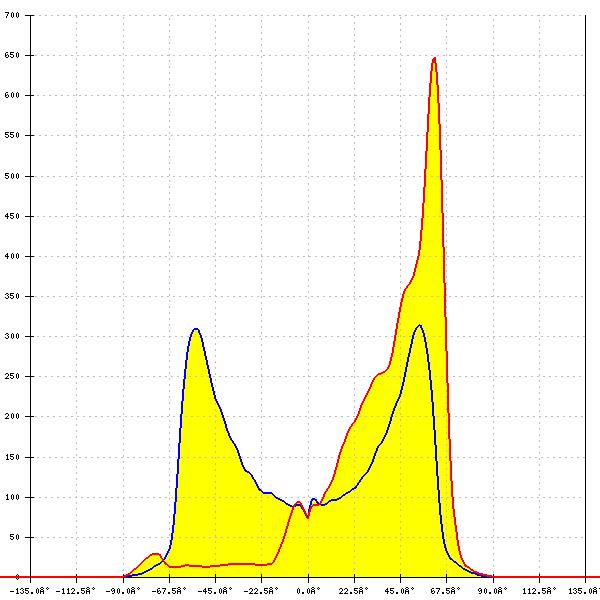

LED: NF2x757G
FWHM: asymmetric
Peak intensity: 0.879 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: NFSx757G
FWHM: asymmetric
Peak intensity: 0.888 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

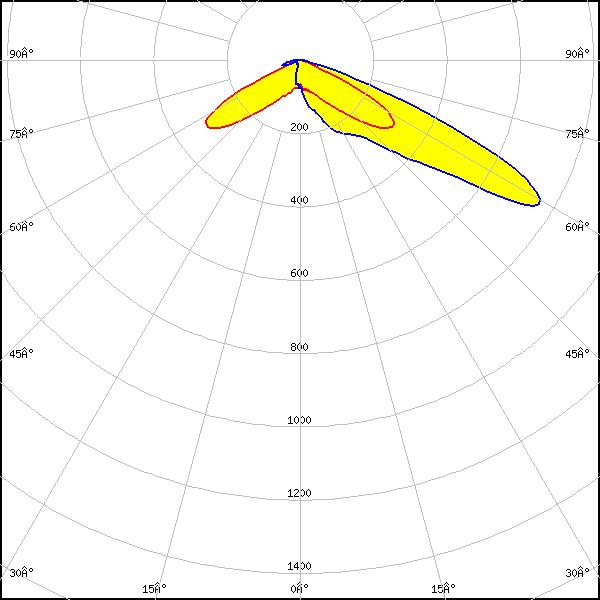

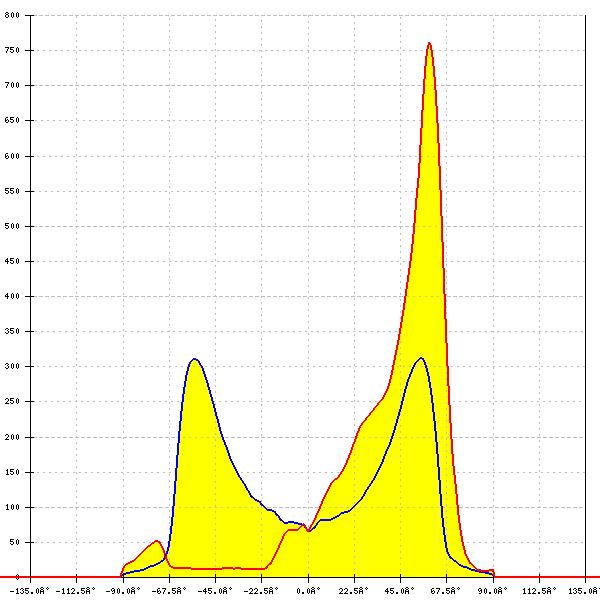

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.752 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.887 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

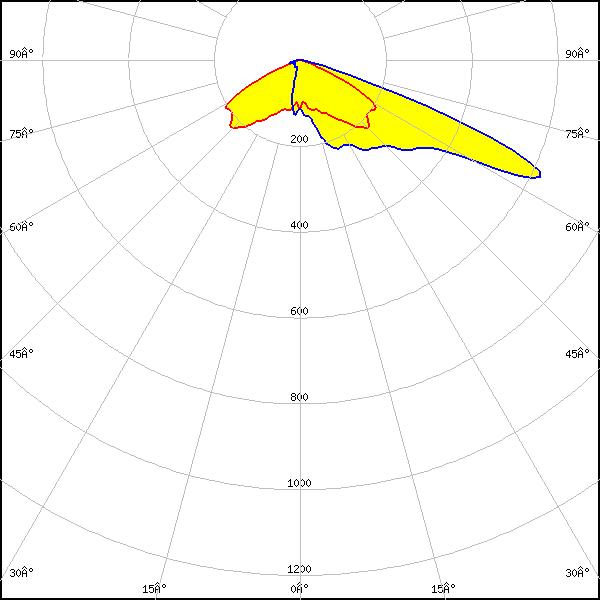

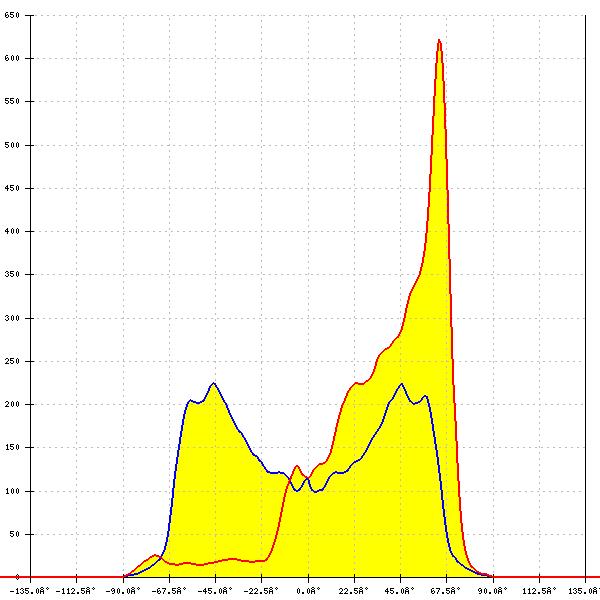

LED: NVSW219D
FWHM: asymmetric
Peak intensity: 0.676 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

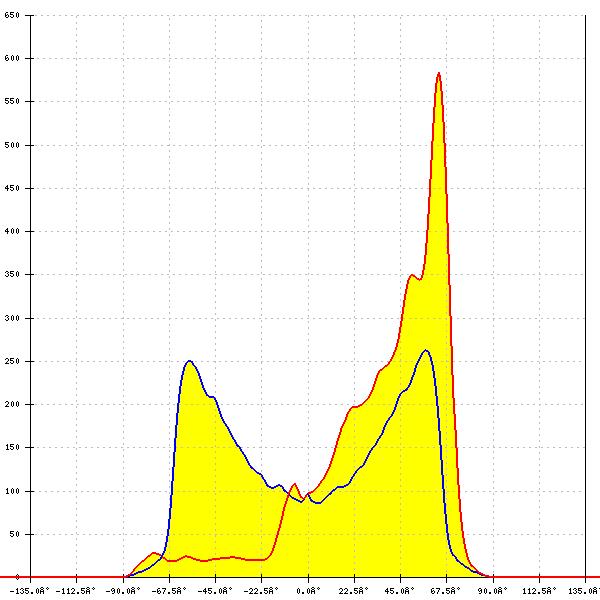

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.763 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

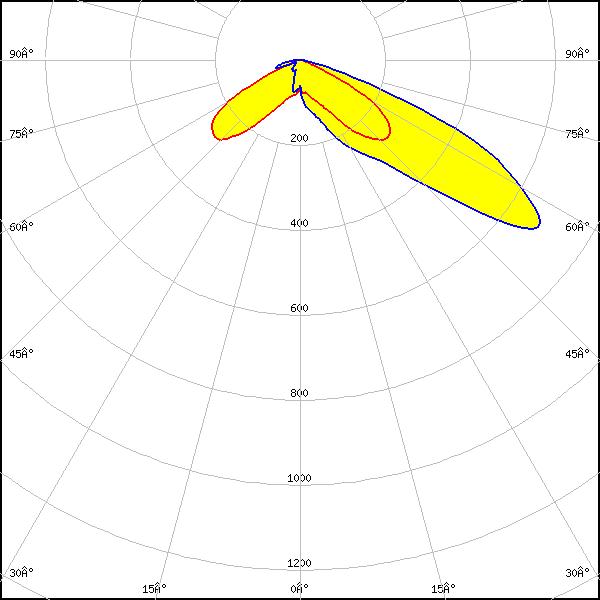

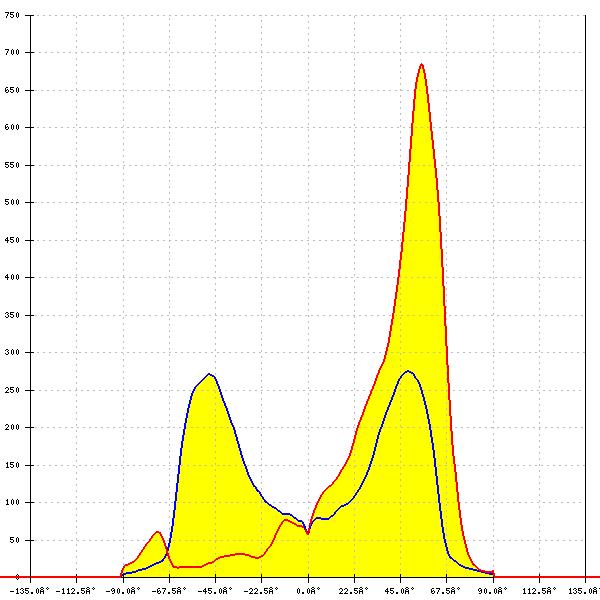

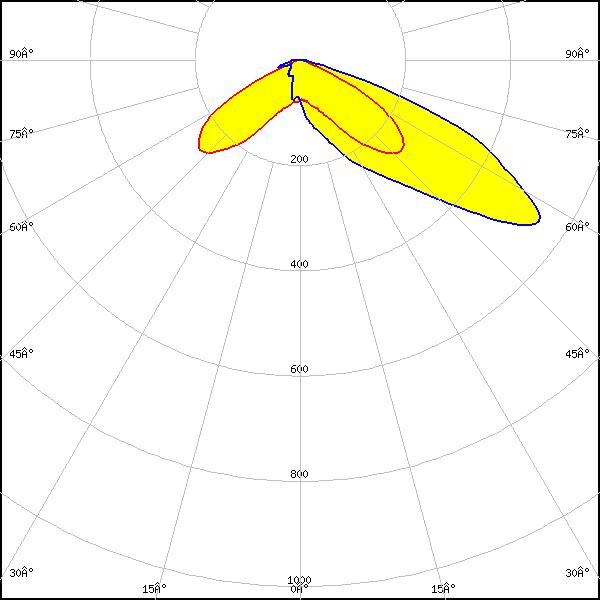

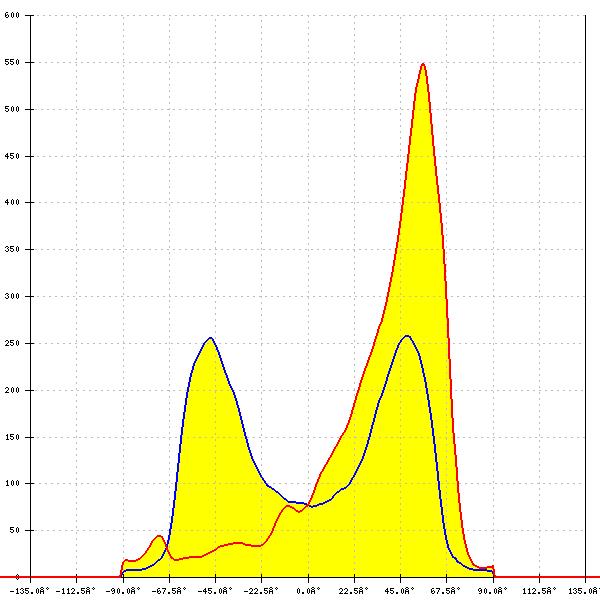

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.738 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.636 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

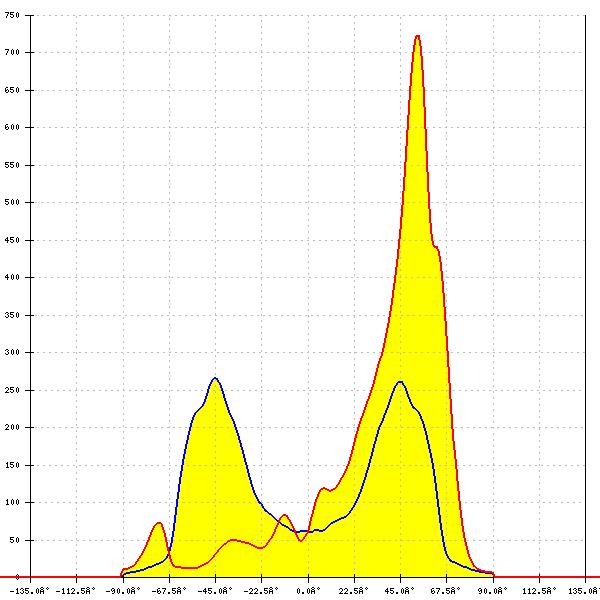

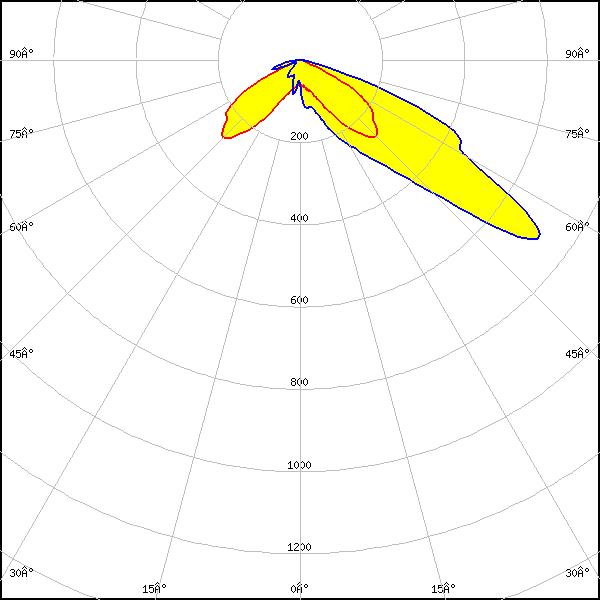

LED: OSCONIQ C 2424
FWHM: asymmetric
Peak intensity: 0.767 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour/type: White

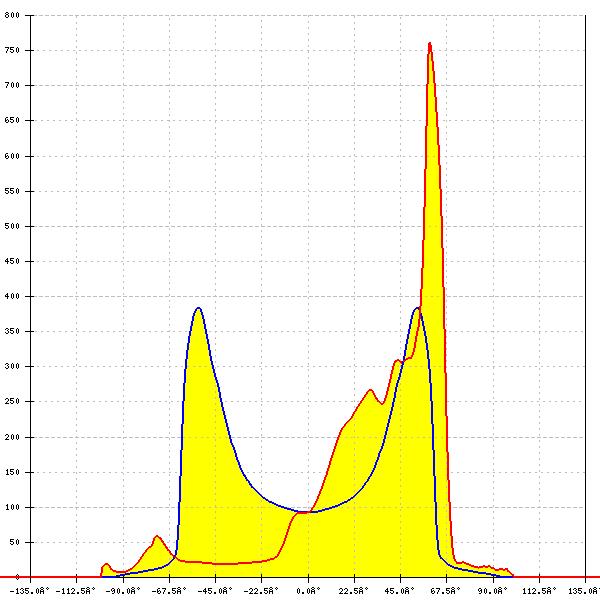

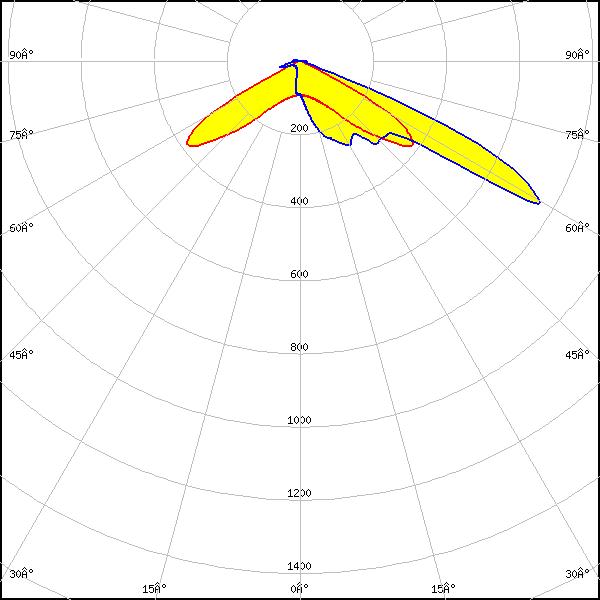

LED: OSCONIQ C 3030
FWHM: asymmetric
Peak intensity: 0.837 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ C 3030
FWHM: asymmetric
Peak intensity: 1.336 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (2W version)
FWHM: asymmetric
Peak intensity: 0.832 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity: 0.744 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 Flat
FWHM: asymmetric
Peak intensity: 0.971 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

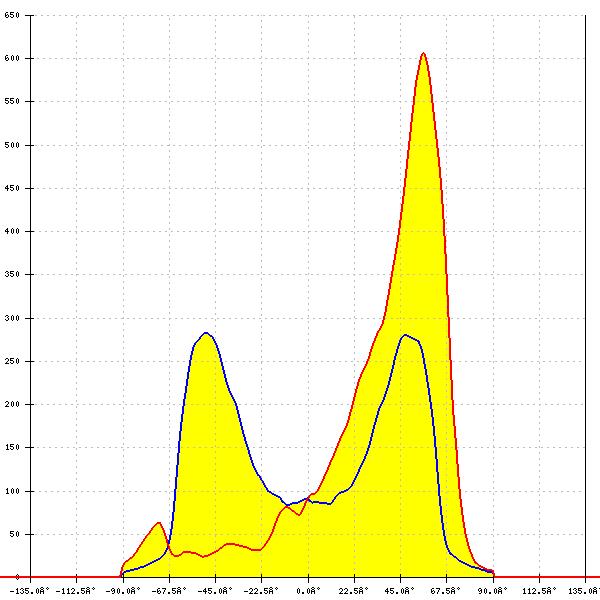

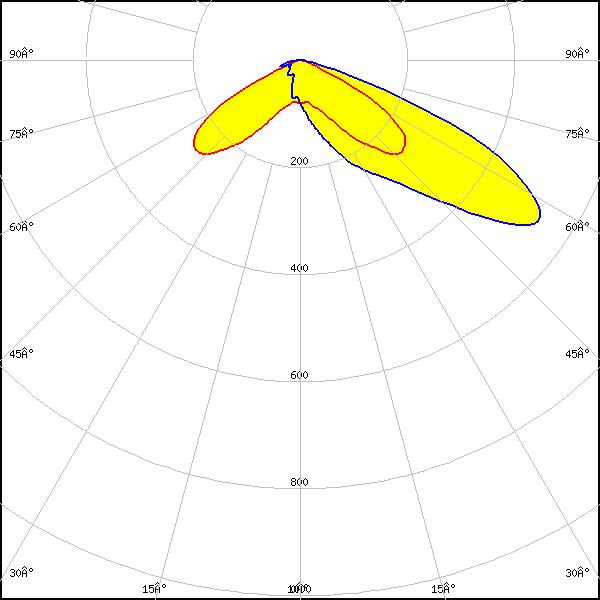

LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 0.765 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 0.631 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

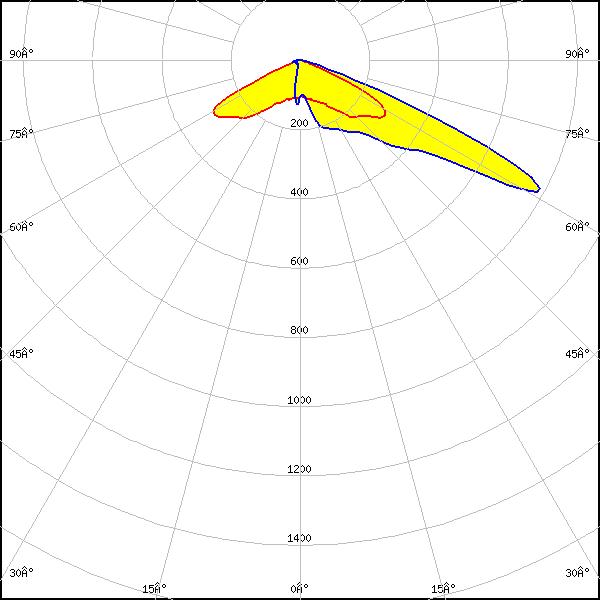

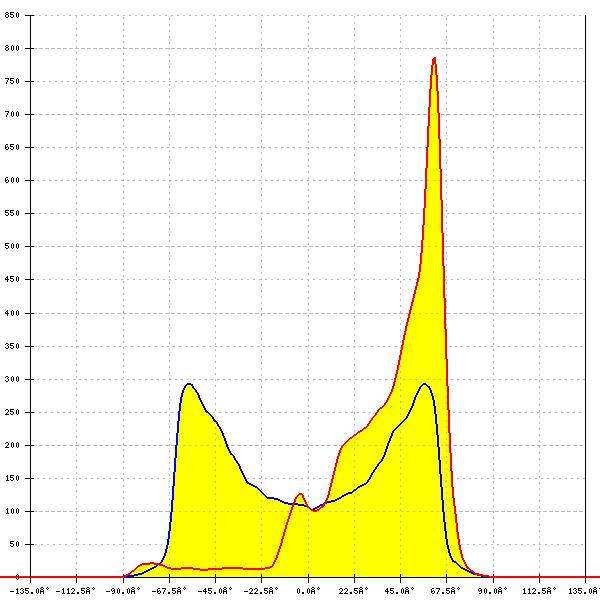

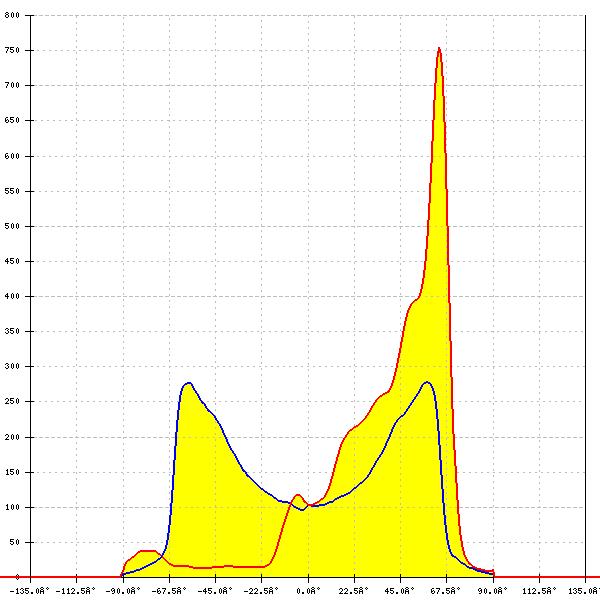

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.963 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.831 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

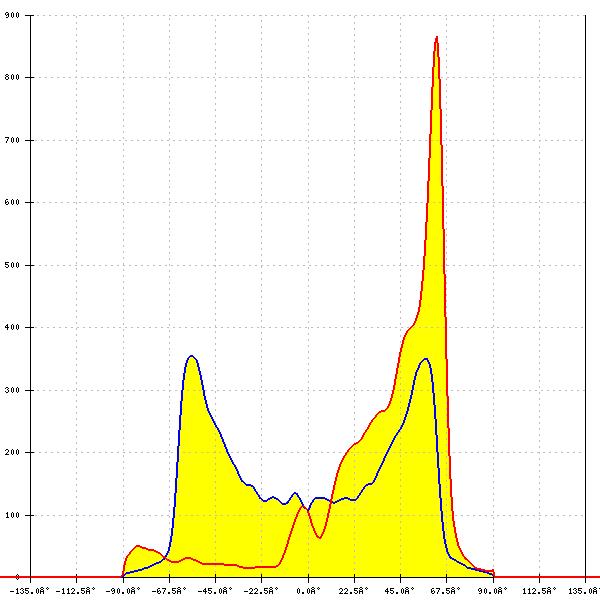

LED: OSLON Square Flat
FWHM: asymmetric
Peak intensity: 1.069 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

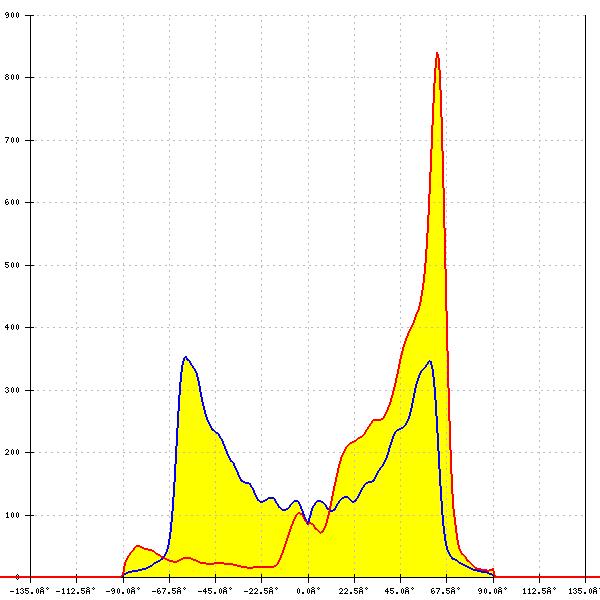

LED: OSTAR Projection Compact (KW.CSLNM1.TG)
FWHM: asymmetric
Peak intensity: 1.064 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351B
FWHM: asymmetric
Peak intensity: 0.686 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

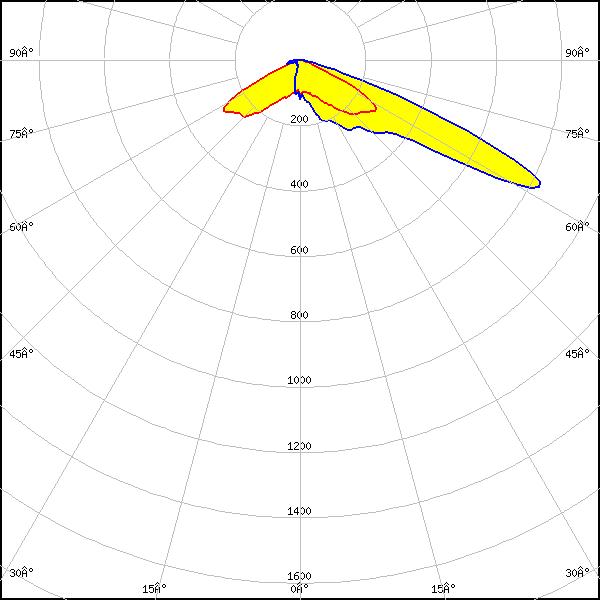

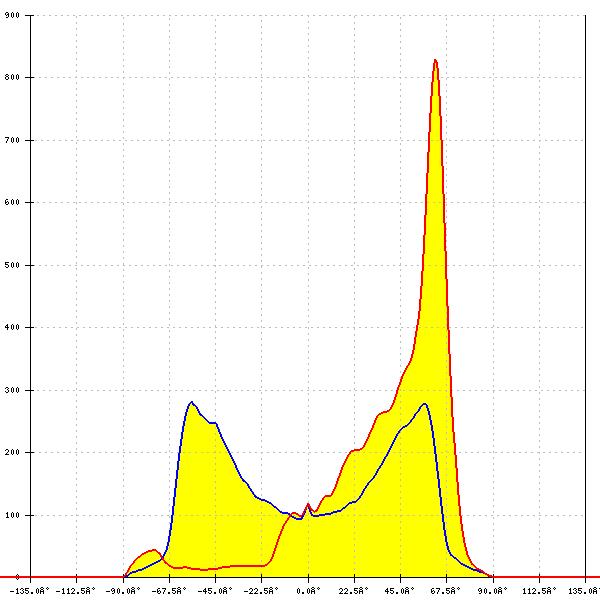

LED: LH351C
FWHM: asymmetric
Peak intensity: 0.846 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

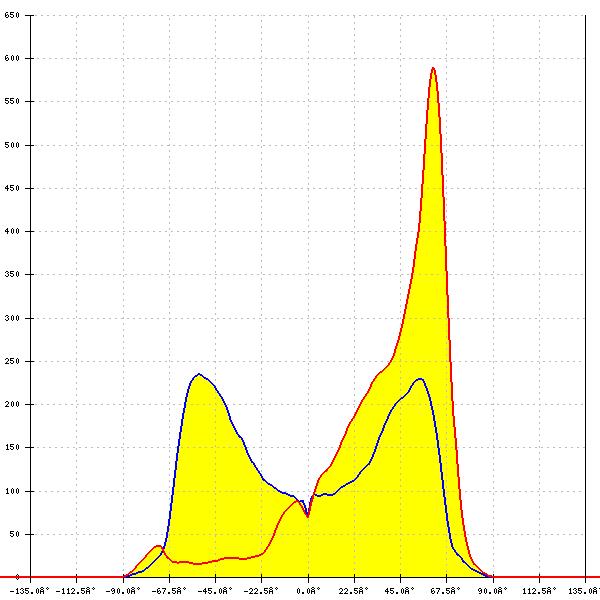

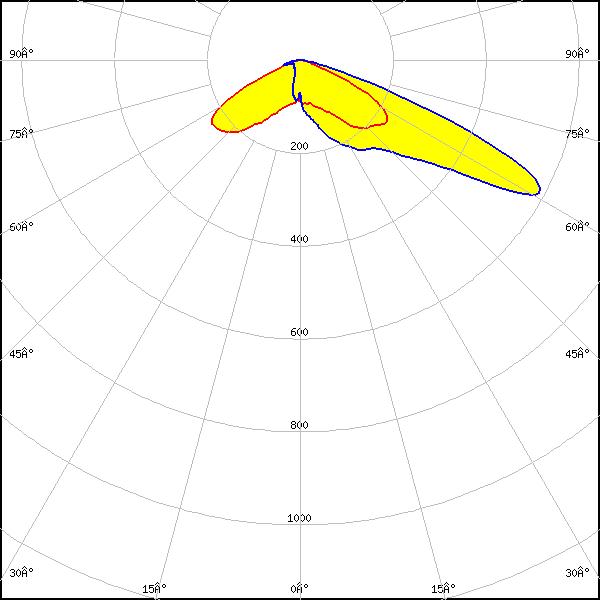

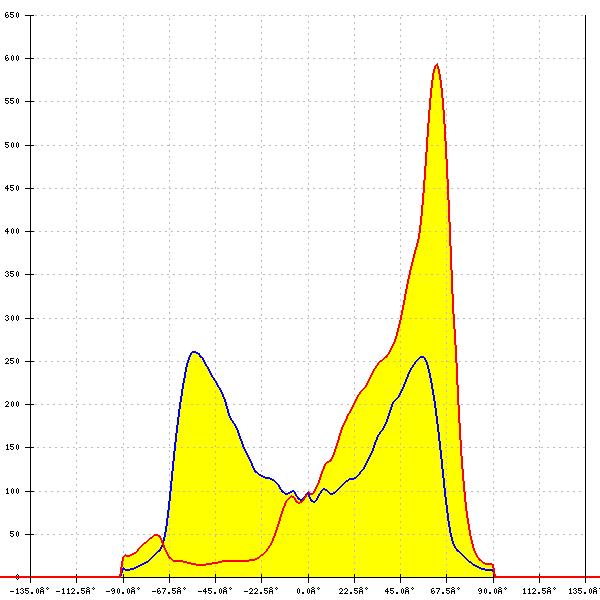

LED: LH351D
FWHM: asymmetric
Peak intensity: 0.612 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351D
FWHM: asymmetric
Peak intensity: 0.718 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

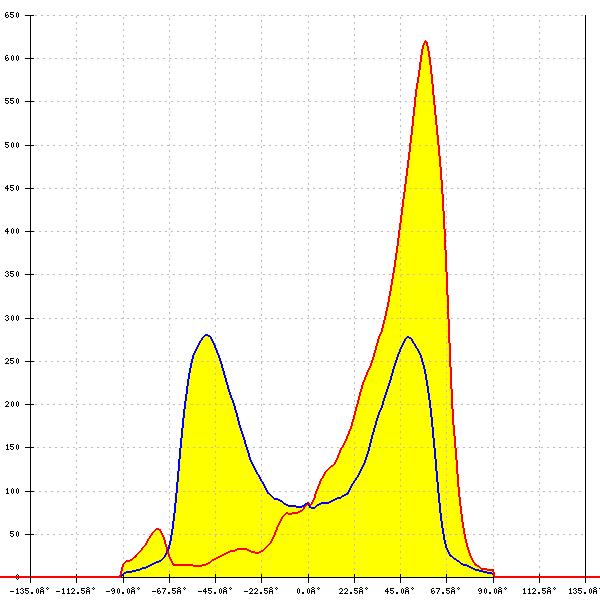

LED: LH502C
FWHM: asymmetric
Peak intensity: 0.769 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LH502C
FWHM: asymmetric
Peak intensity: 0.647 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: MJT 5050
FWHM: asymmetric
Peak intensity: 0.660 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.760 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.628 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

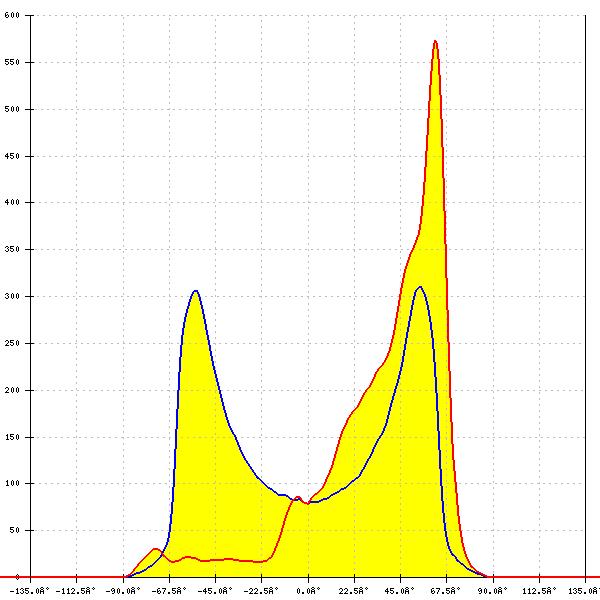

LED: Z5M3
FWHM: asymmetric
Peak intensity: 0.841 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

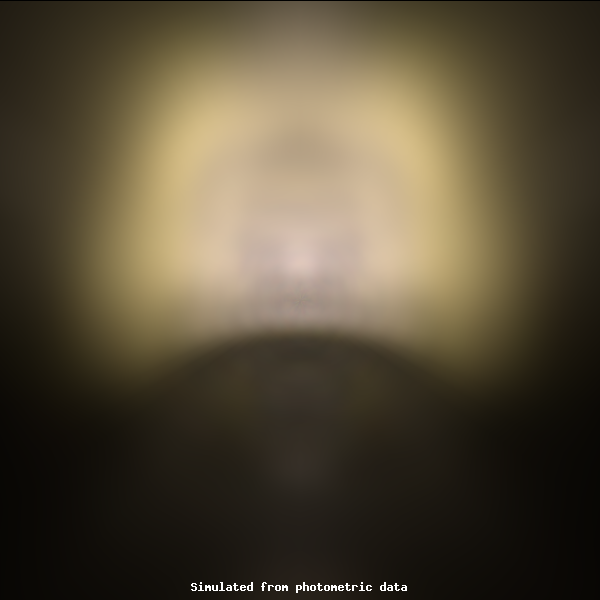

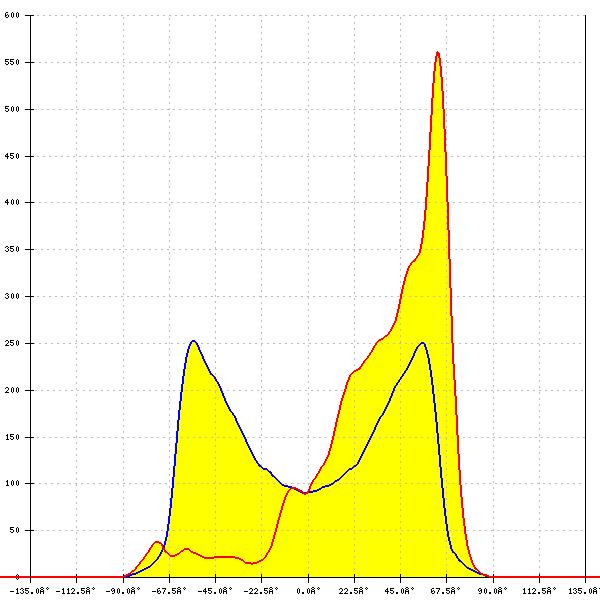

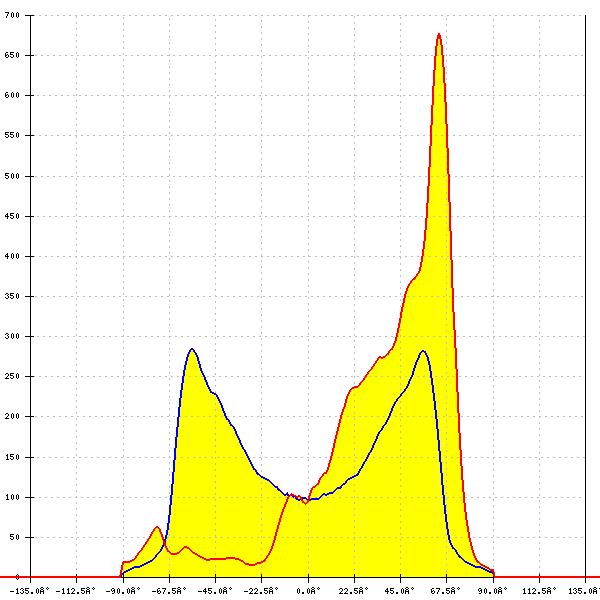

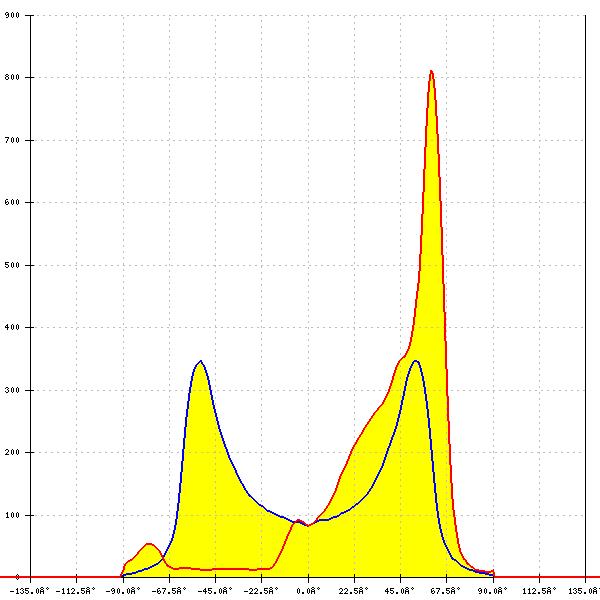

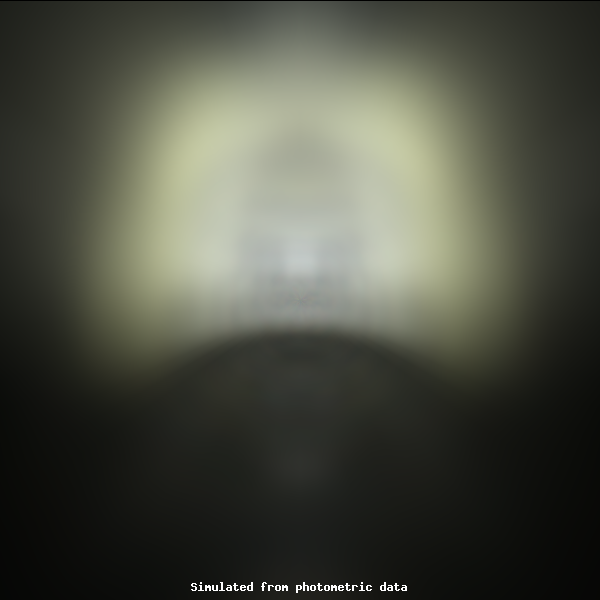

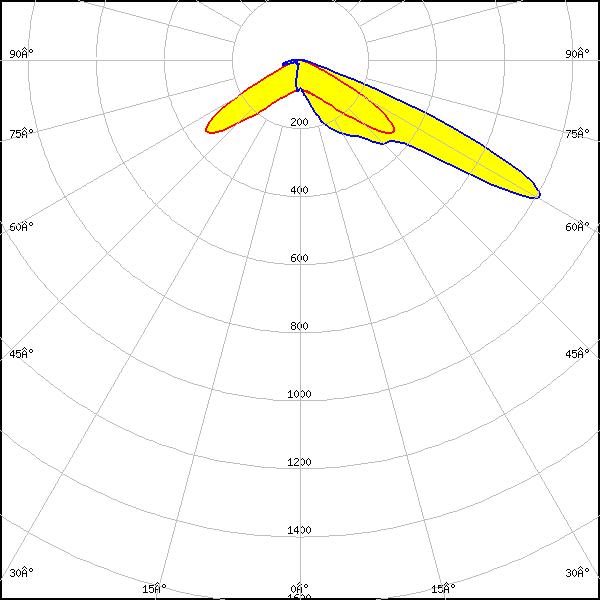

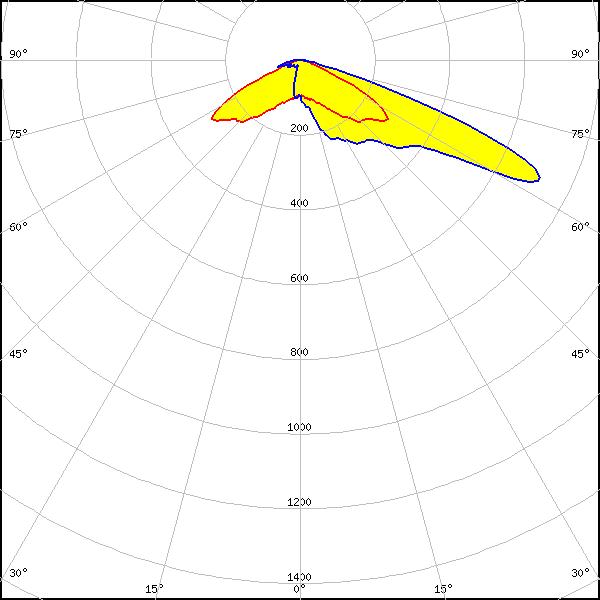

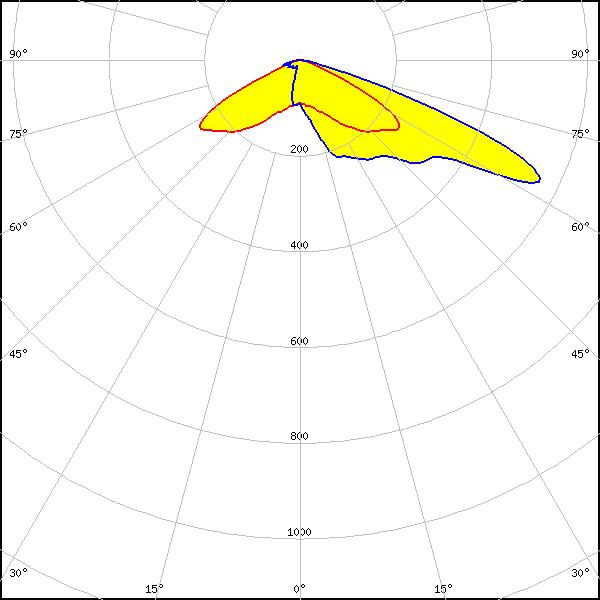

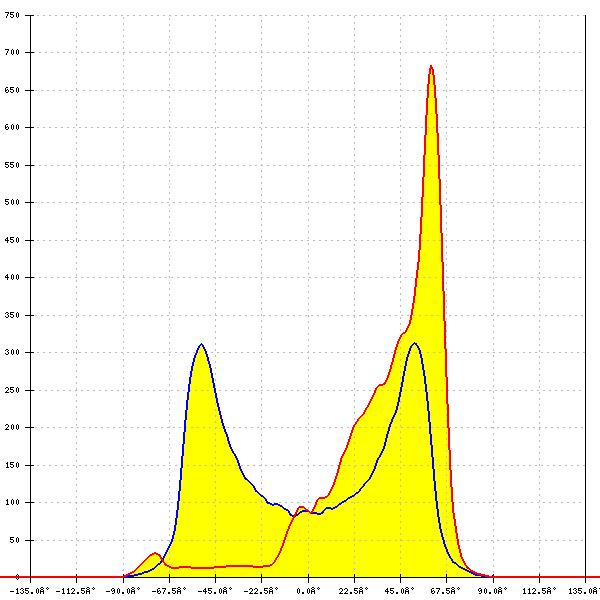

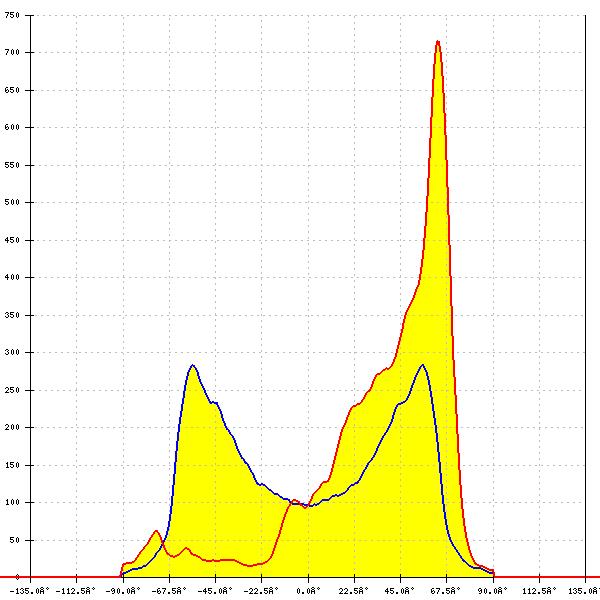

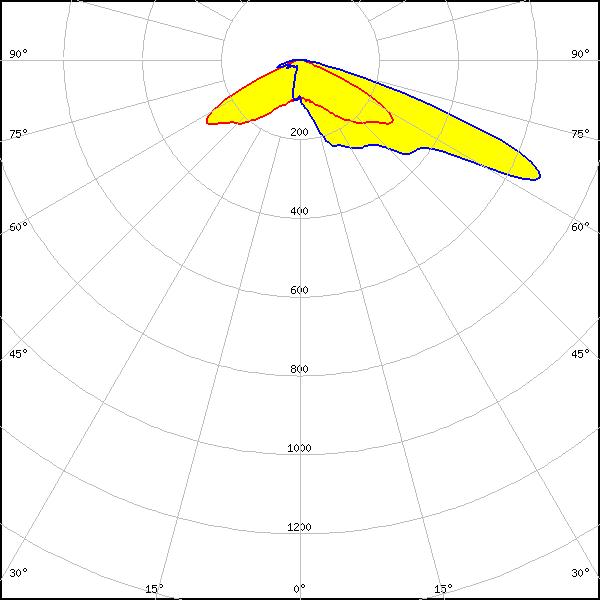

LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.970 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.833 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

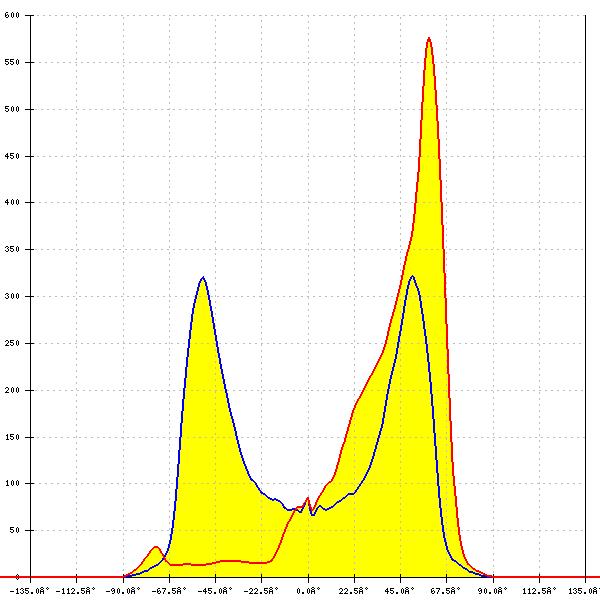

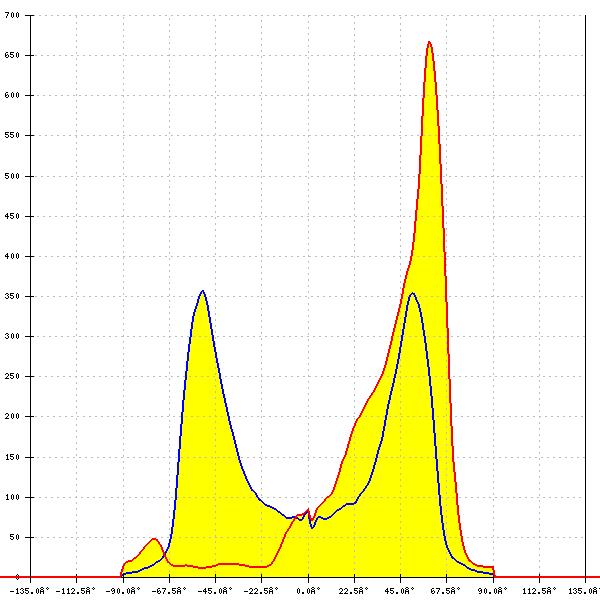

LED: Z5M5
FWHM: asymmetric
Peak intensity: 0.788 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M5
FWHM: asymmetric
Peak intensity: 0.914 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

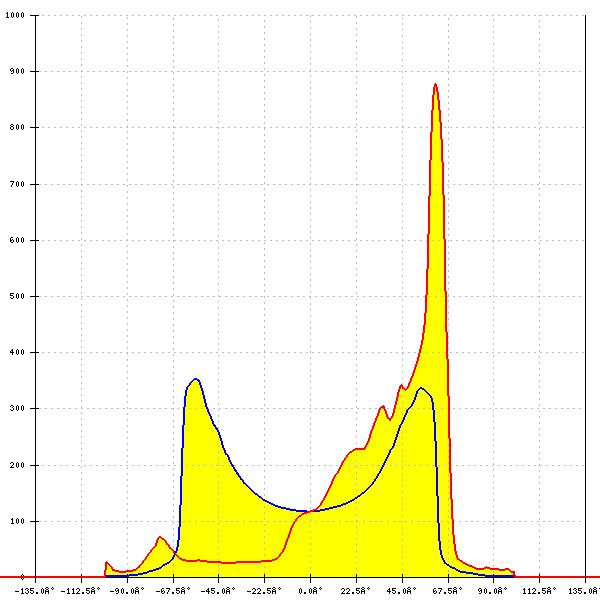

LED: PassivePAQ-R-222x50.OS1.9.7K-750-5 V1.0
FWHM: asymmetric
Peak intensity: 1.150 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

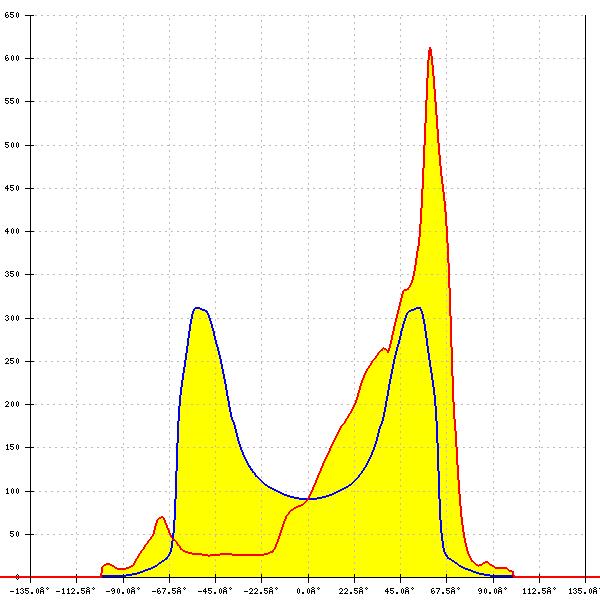

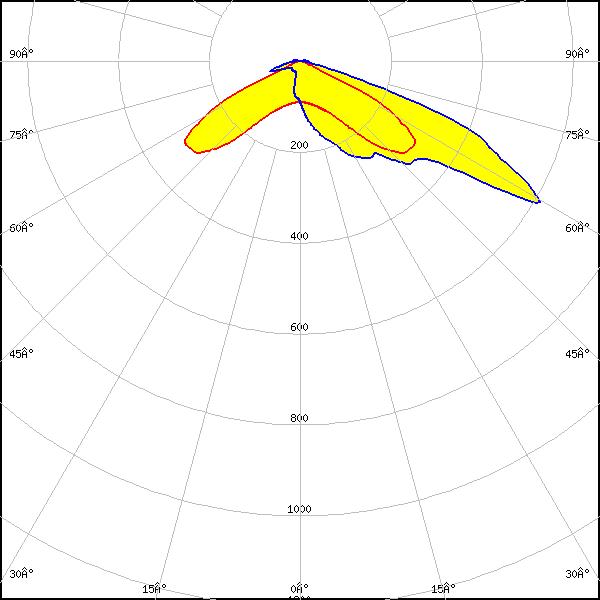

LED: PassivePAQ-R-274x51-NI0-21K-857-5
FWHM: asymmetric
Peak intensity: 1.023 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE 2x8 6000lm HP HE EXC3 OTD
FWHM: asymmetric
Peak intensity: 0.668 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
