C17303_HB-2X2-5050-S

Print

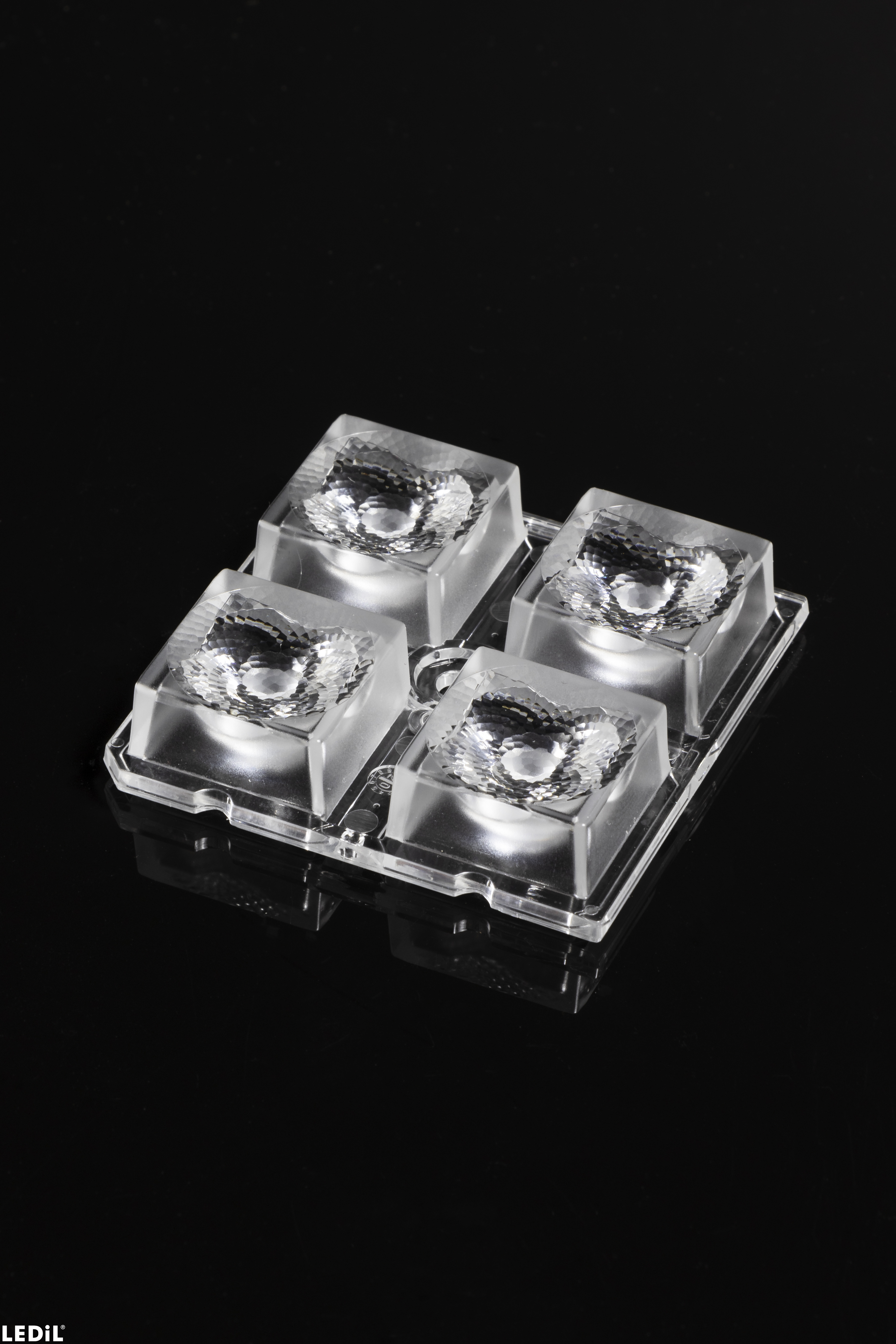

~25° spot beam for industrial applications

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    10.35 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    10.2 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    2.3 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17303_HB-2X2-5050-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

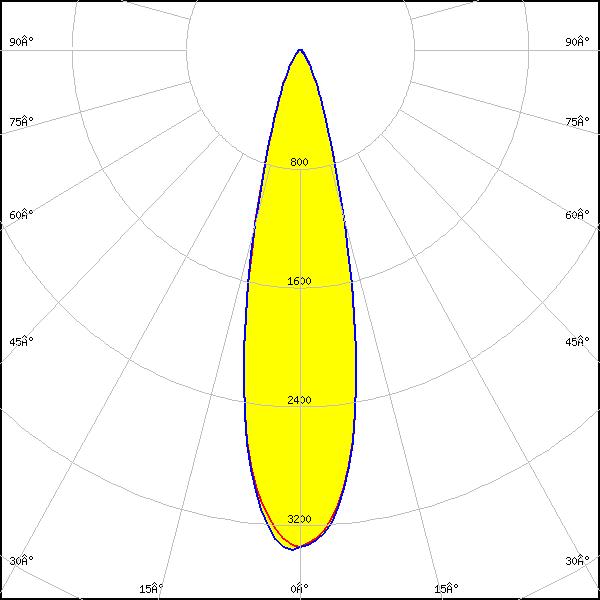

LED: J Series 5050 Round LES
FWHM: 26°
FWTM: 50°
Peak intensity: 3.367 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050B 6V K Class
FWHM: 24°
FWTM: 48°
Peak intensity: 3.533 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

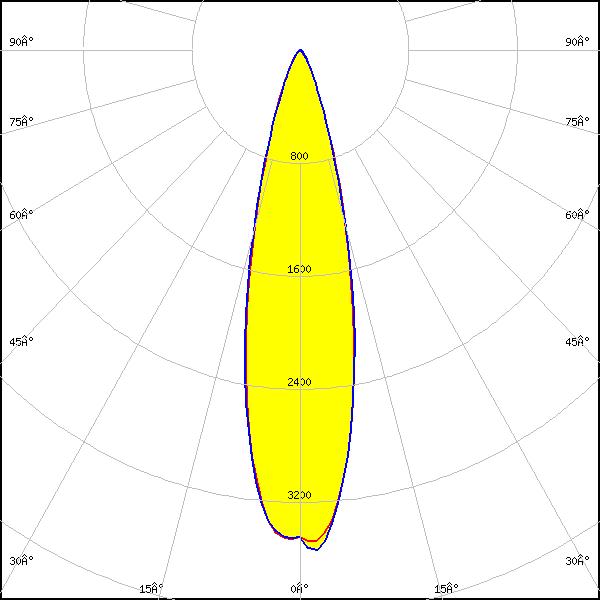

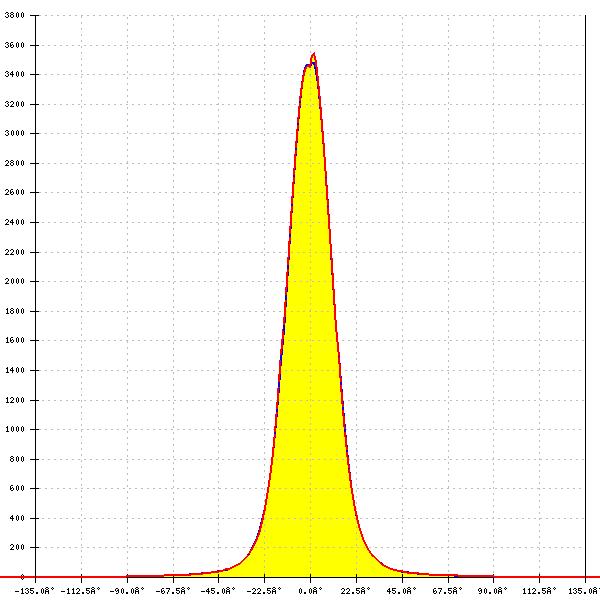

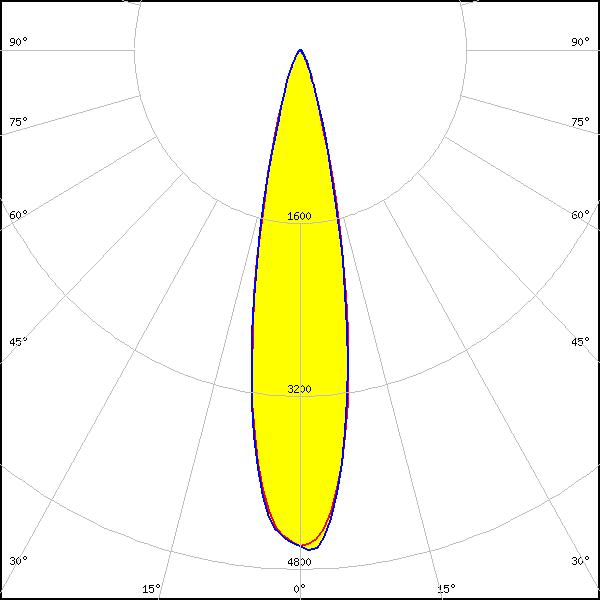

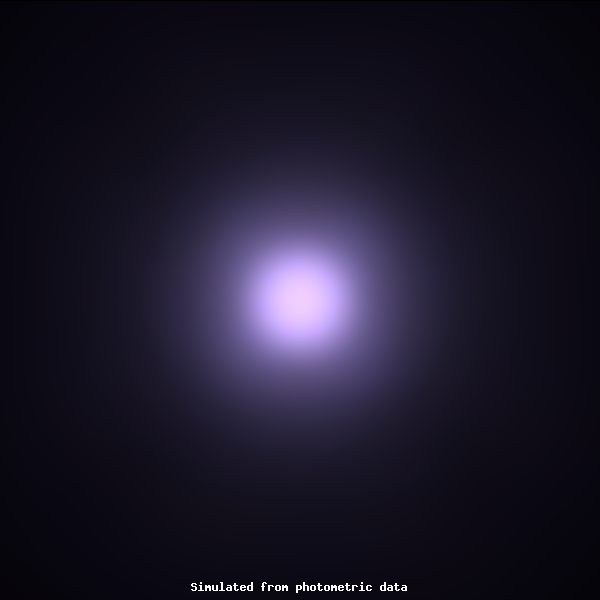

LED: XM-L RGBW (XMLDCL HI)
FWHM: 26°
FWTM: 48°
Peak intensity: 3.543 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: RGBW

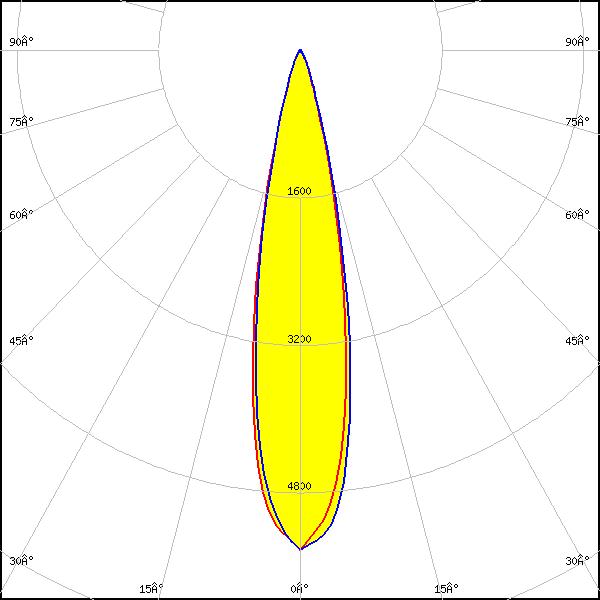

LED: XP-G2
FWHM: 21°
FWTM: 38°
Peak intensity: 5.424 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

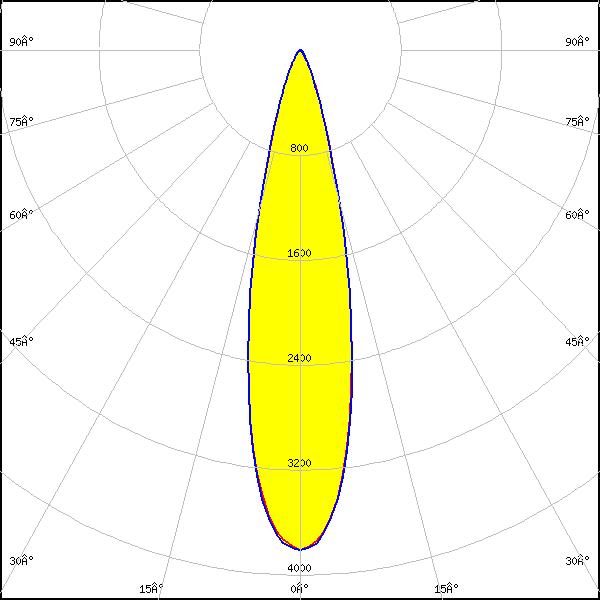

LED: XP-G3
FWHM: 24°
FWTM: 44°
Peak intensity: 3.826 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

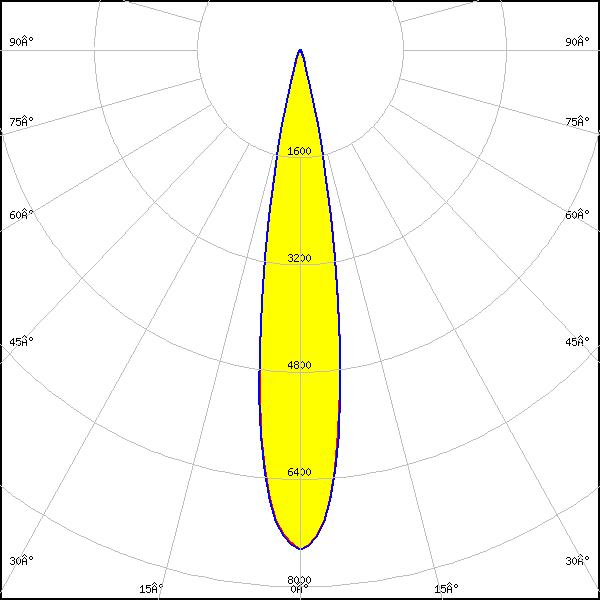

LED: XP-P
FWHM: 18°
FWTM: 30°
Peak intensity: 7.459 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

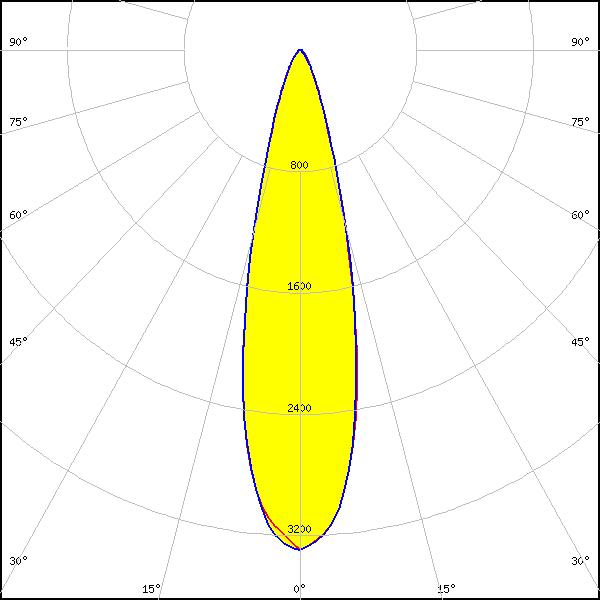

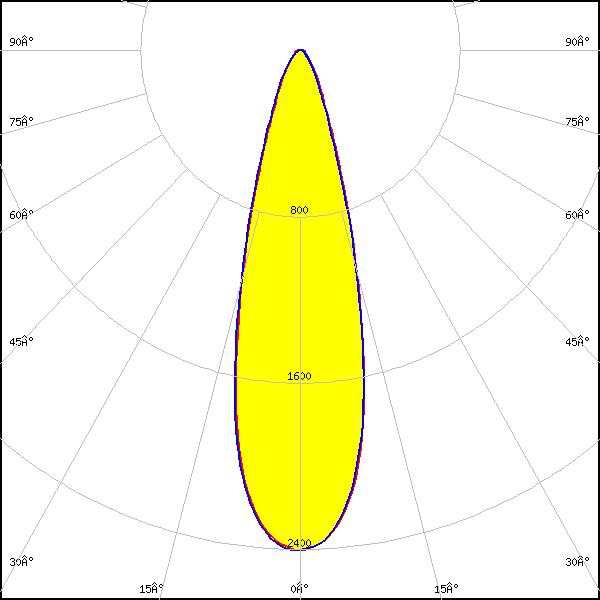

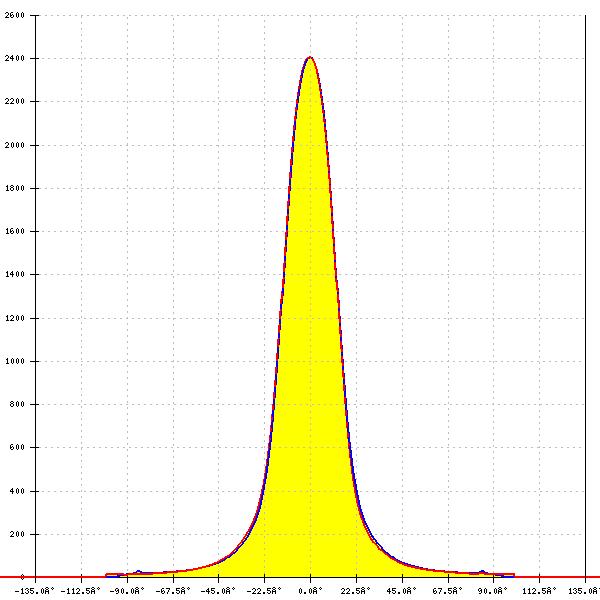

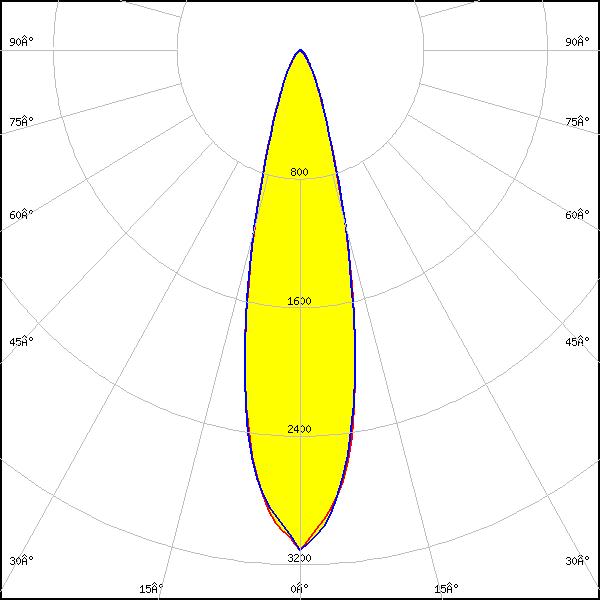

LED: LUXEON 5050 HE
FWHM: 26°
FWTM: 50°
Peak intensity: 3.110 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

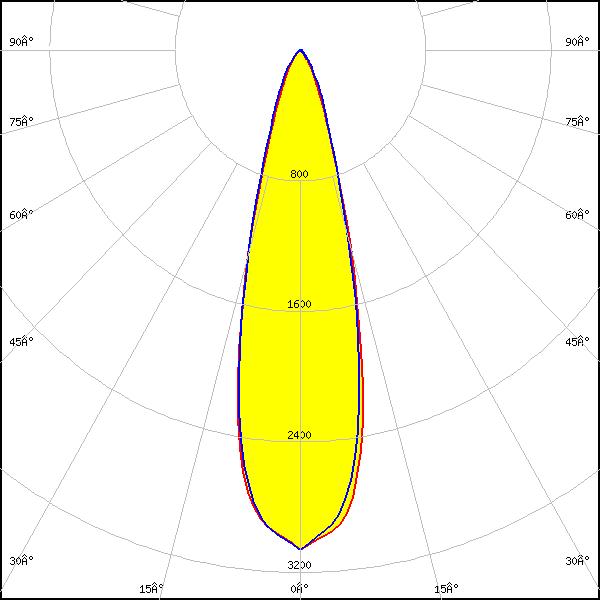

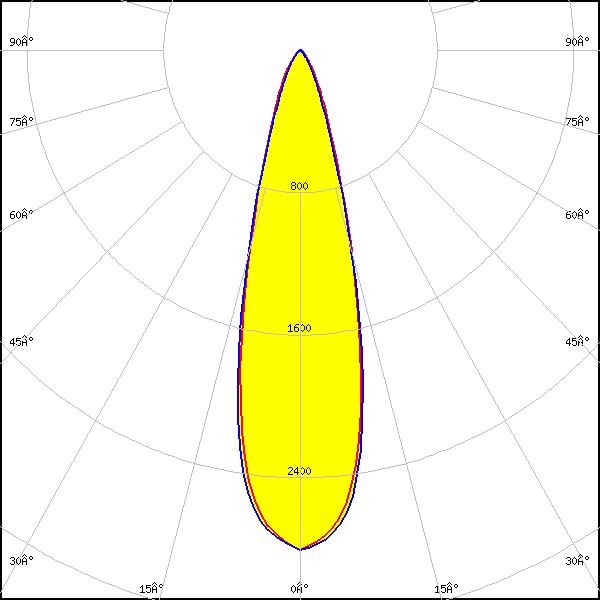

LED: LUXEON 5050 Round LES
FWHM: 28°
FWTM: 52°
Peak intensity: 2.809 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

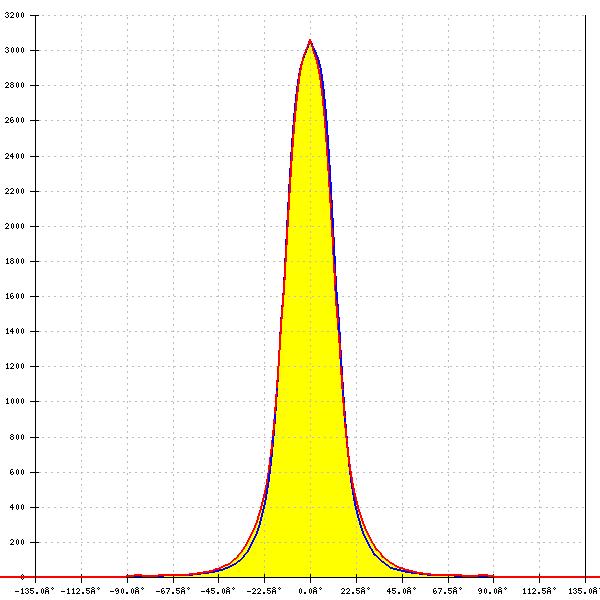

LED: LUXEON 5050 Round LES
FWHM: 27°
FWTM: 51°
Peak intensity: 3.065 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

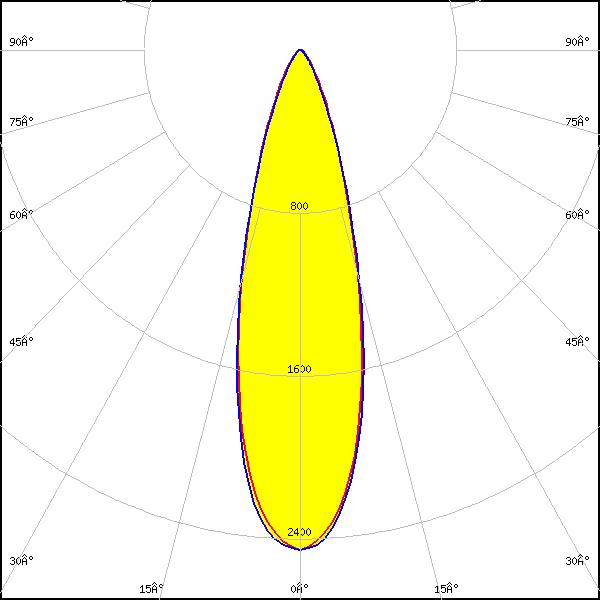

LED: LUXEON 5050 Square LES
FWHM: 28°
FWTM: 57°
Peak intensity: 2.461 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

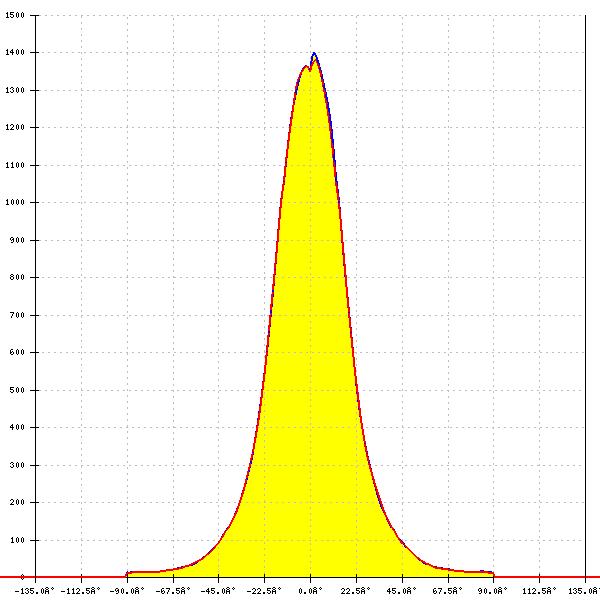

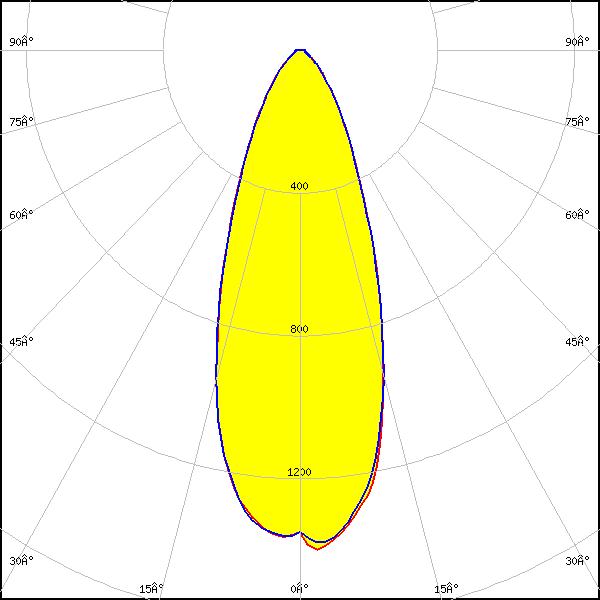

LED: LUXEON 7070
FWHM: 38°
FWTM: 79°
Peak intensity: 1.422 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

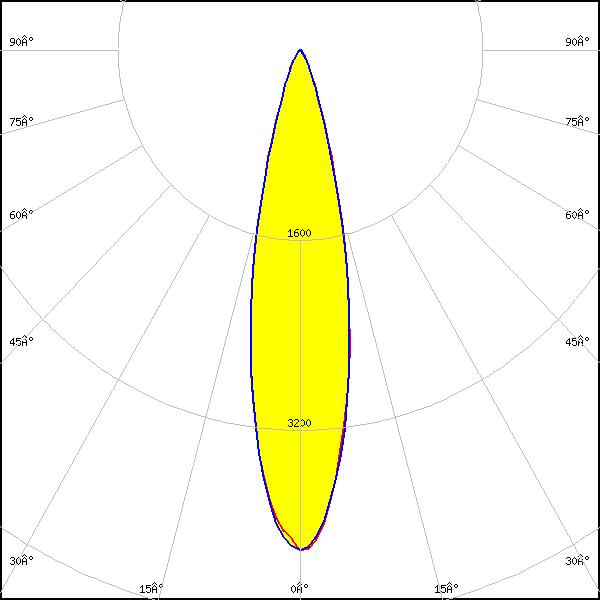

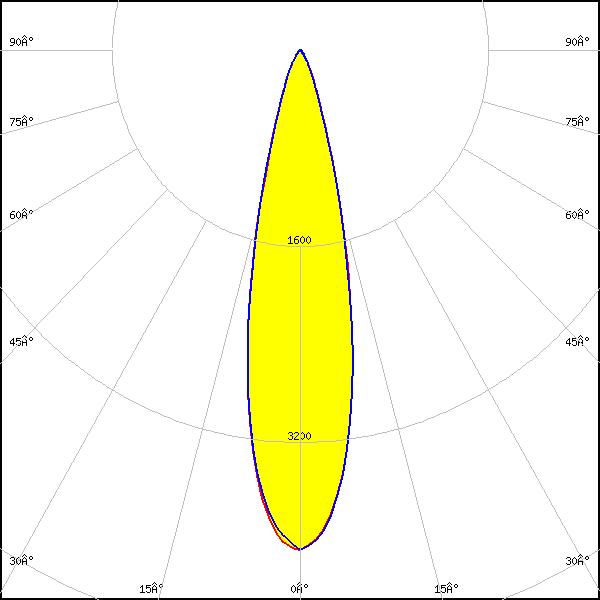

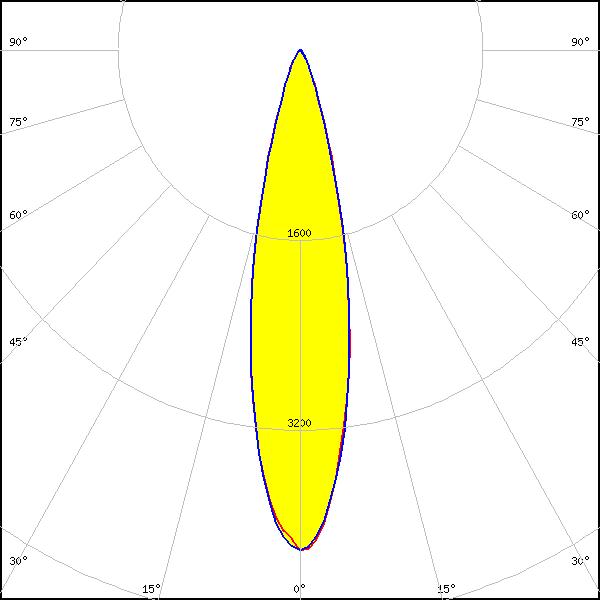

LED: LUXEON HL2X
FWHM: 24°
FWTM: 44°
Peak intensity: 4.082 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

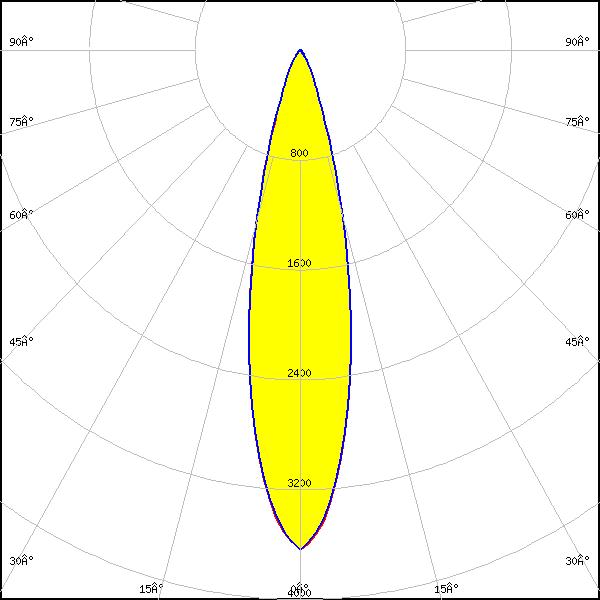

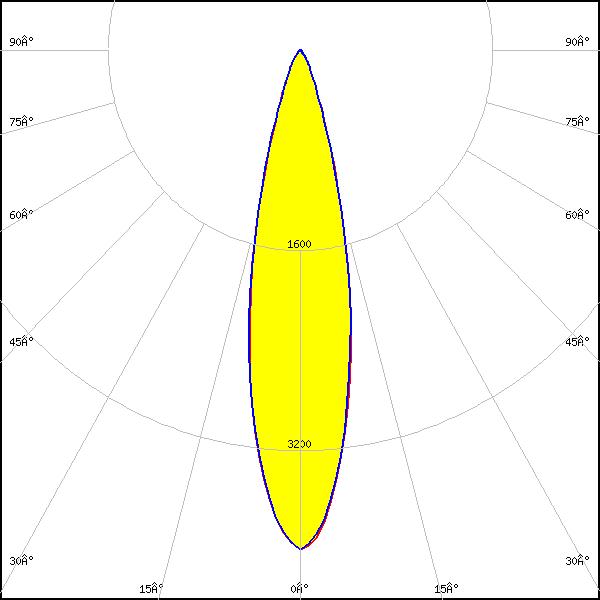

LED: LUXEON HL2X-D
FWHM: 24°
FWTM: 46°
Peak intensity: 3.998 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON HL2X-D
FWHM: 24°
FWTM: 46°
Peak intensity: 3.643 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

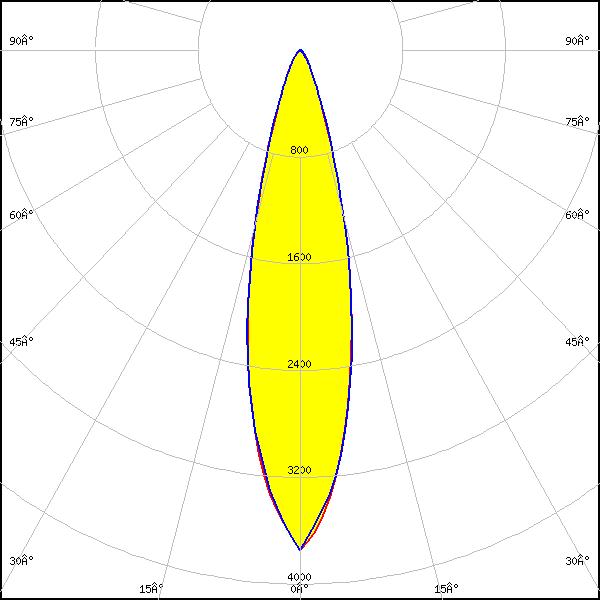

LED: LUXEON HL2X-P
FWHM: 24°
FWTM: 47°
Peak intensity: 3.748 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

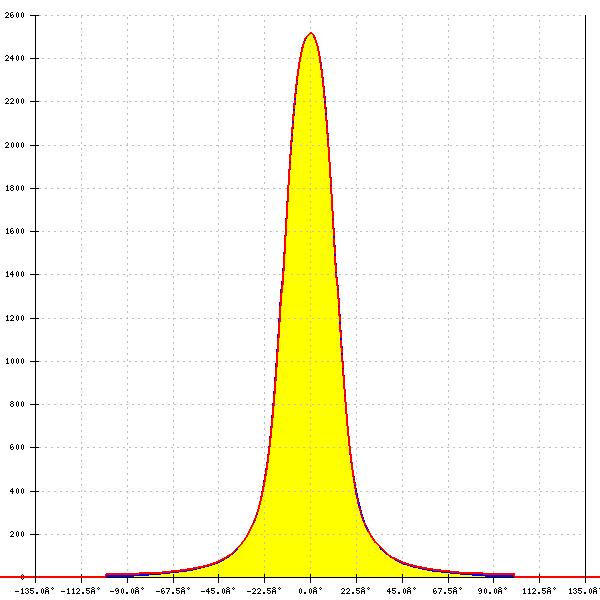

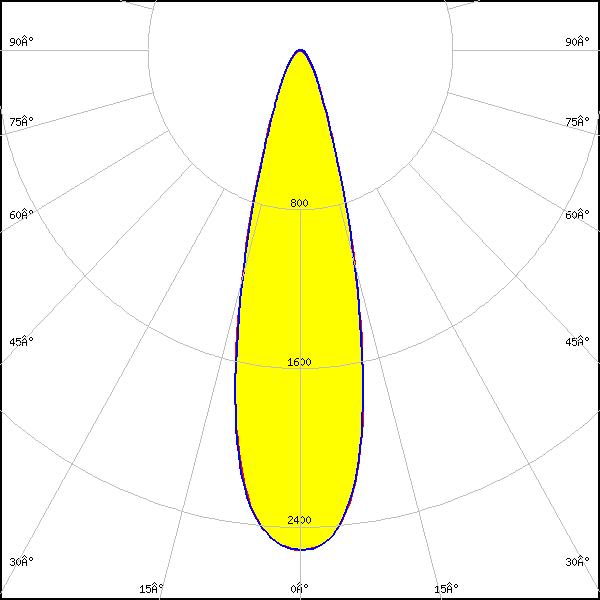

LED: LUXEON XR-5050 SQR (L213-xxxx016MRH001)
FWHM: 28°
FWTM: 55°
Peak intensity: 2.516 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

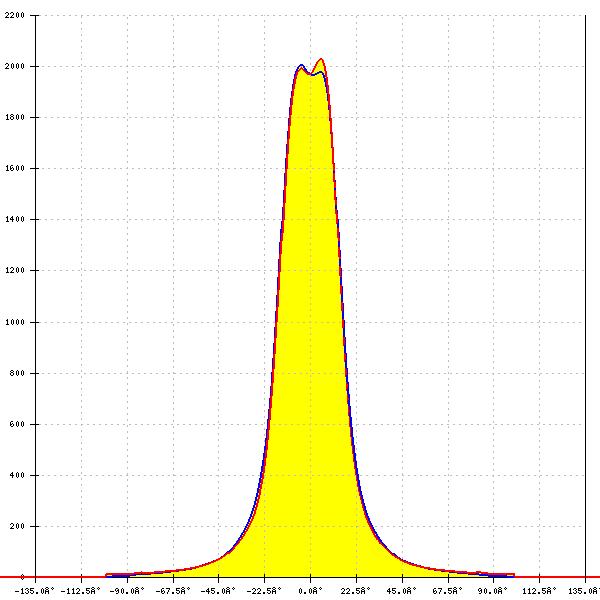

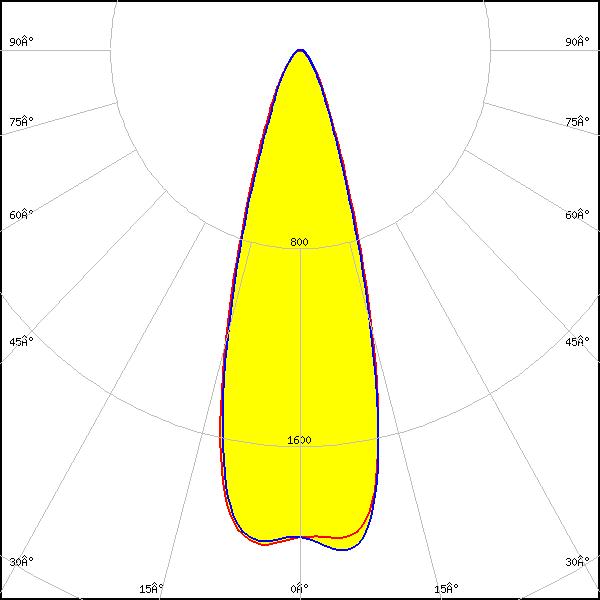

LED: RecLED 173x50mm 2900lm 740 2x6 5050 Opt G1
FWHM: 33°
FWTM: 60°
Peak intensity: 2.048 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

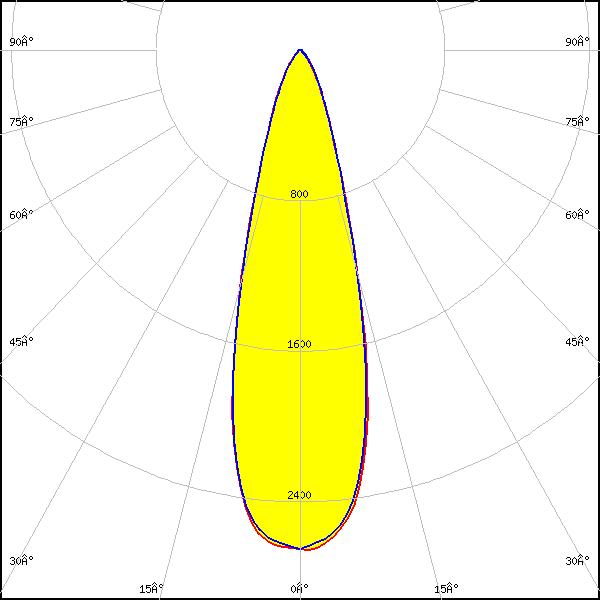

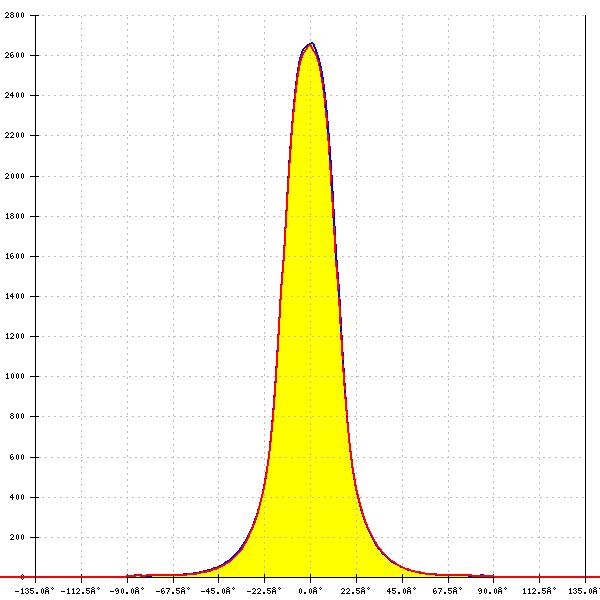

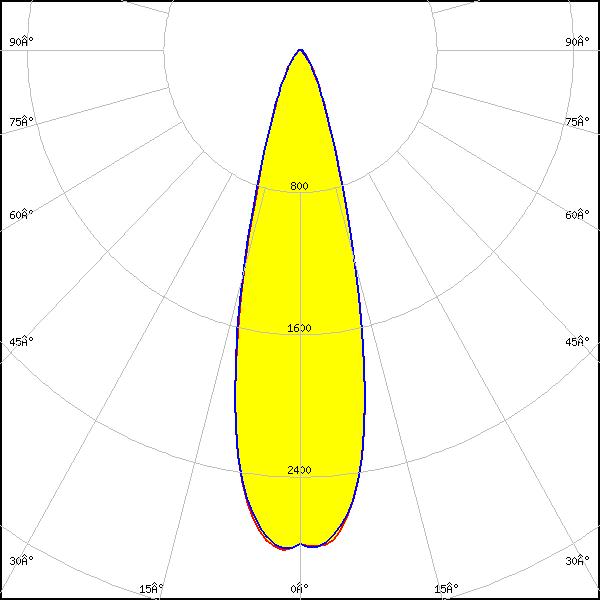

LED: NFMW48xA
FWHM: 28°
FWTM: 54°
Peak intensity: 2.841 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: NFMW48xA
FWHM: 29°
FWTM: 55°
Peak intensity: 2.662 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

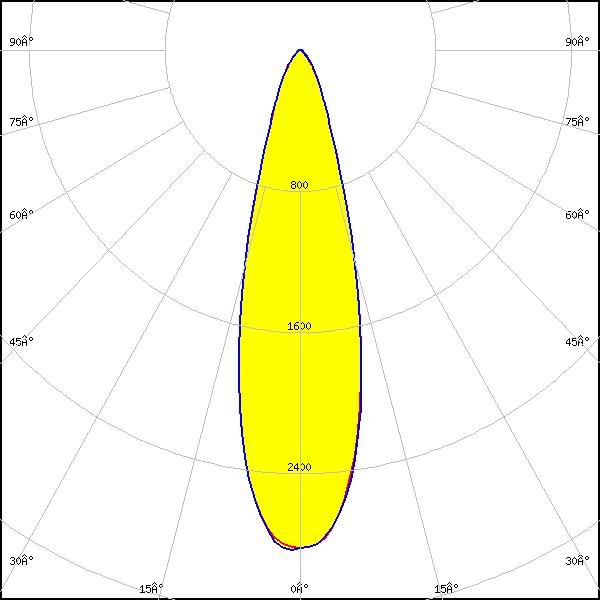

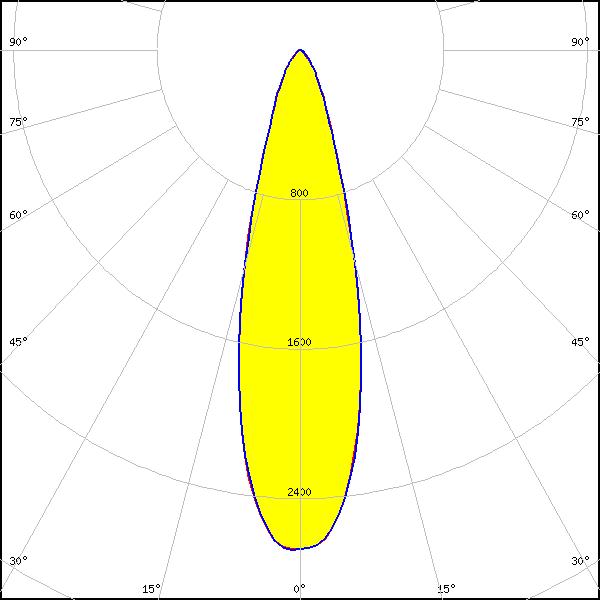

LED: DURIS E 5050 (GW J9LHS1.4M)
FWHM: 28°
FWTM: 56°
Peak intensity: 2.678 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: RGBW
LED: DURIS E 5050 (GW J9LHS1.4M)
FWHM: 28°
FWTM: 56°
Peak intensity: 2.837 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: RGBW

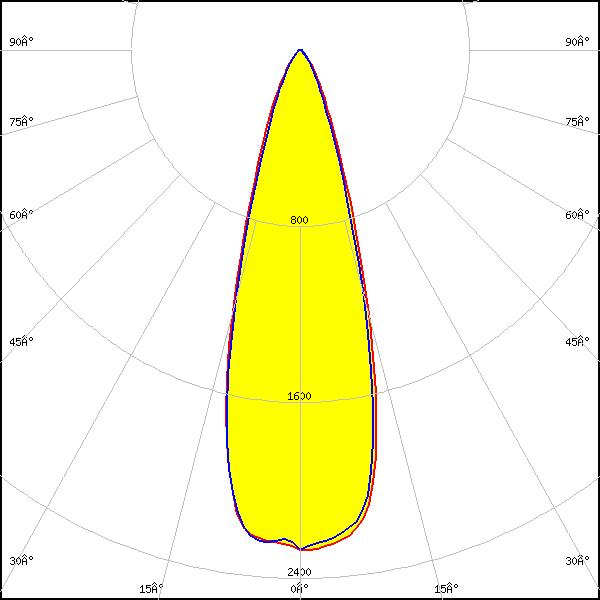

LED: Duris S8
FWHM: 31°
FWTM: 56°
Peak intensity: 2.281 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

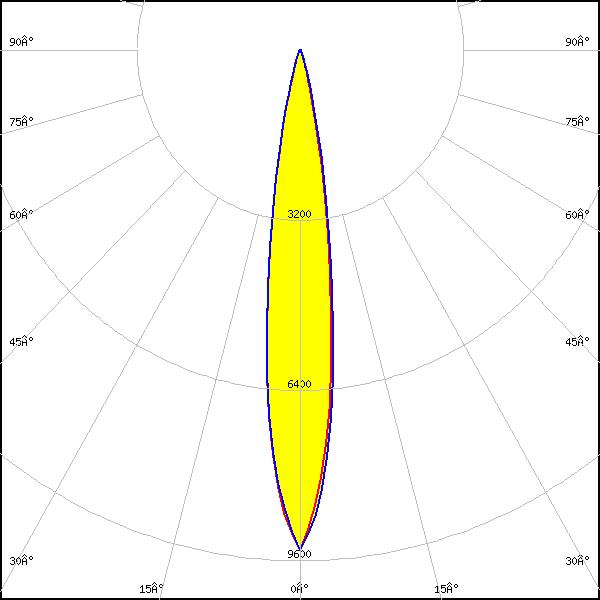

LED: OSCONIQ C 2424
FWHM: 16°
FWTM: 30°
Peak intensity: 9.406 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

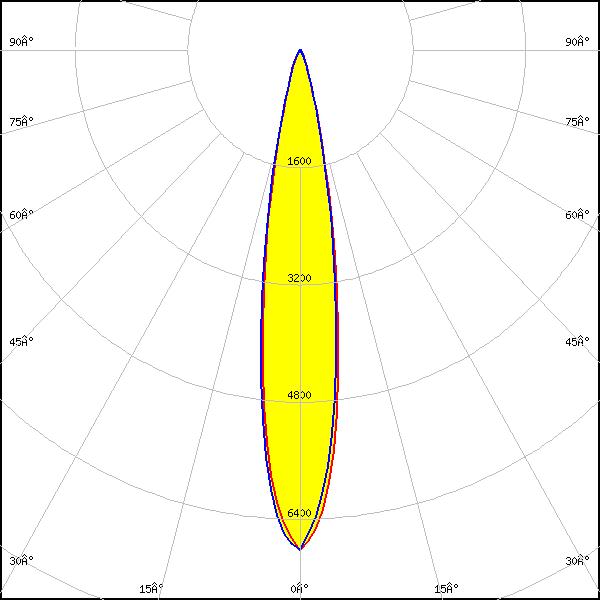

LED: OSCONIQ P 3737 Flat
FWHM: 18°
FWTM: 34°
Peak intensity: 6.822 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

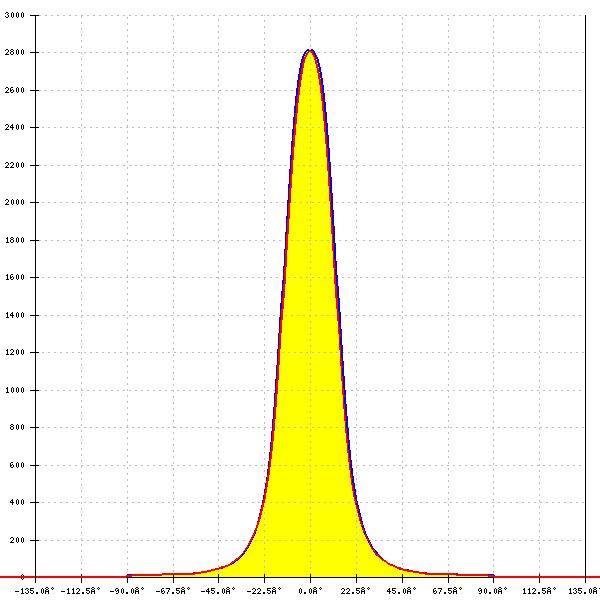

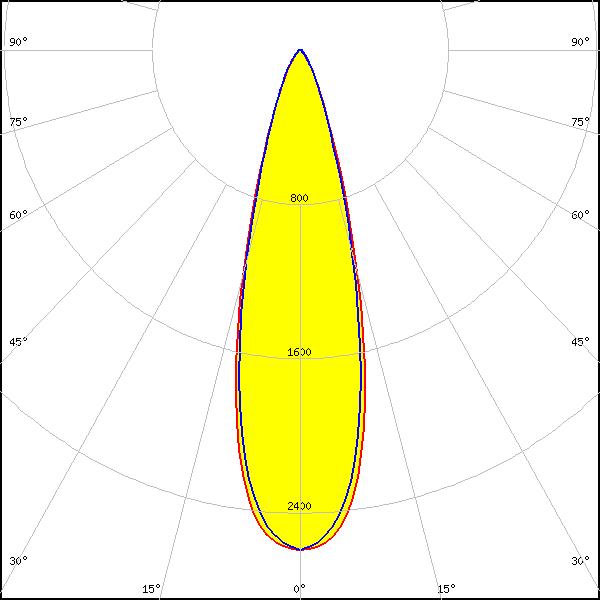

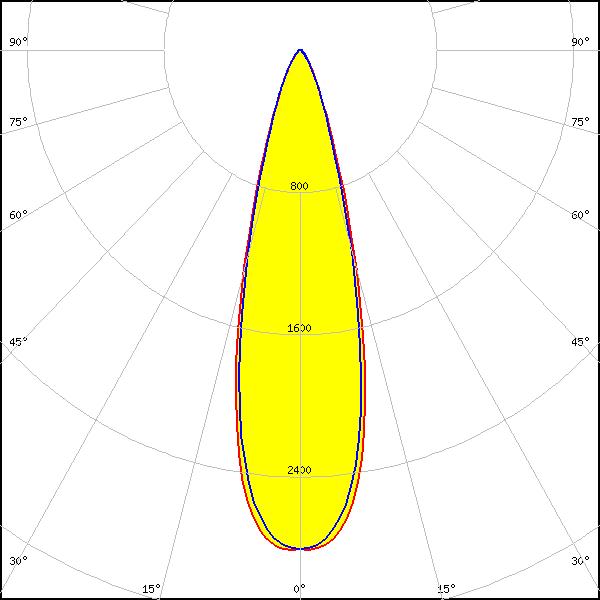

LED: OSCONIQ S 5050
FWHM: 28°
FWTM: 52°
Peak intensity: 2.827 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ S 5050
FWHM: 28°
FWTM: 52°
Peak intensity: 2.594 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

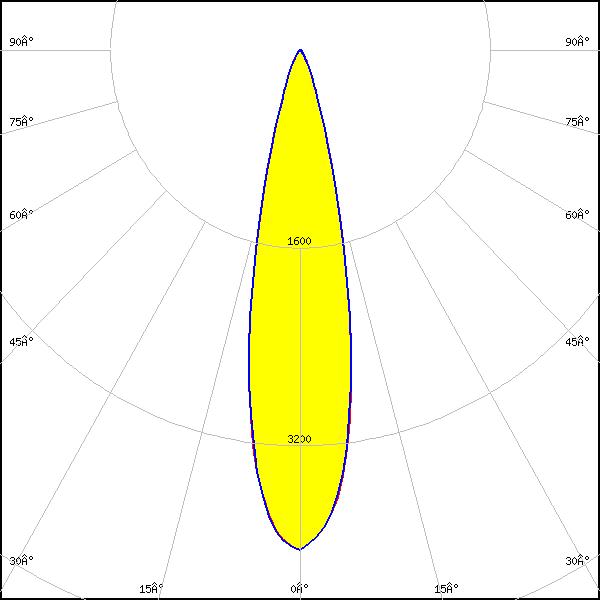

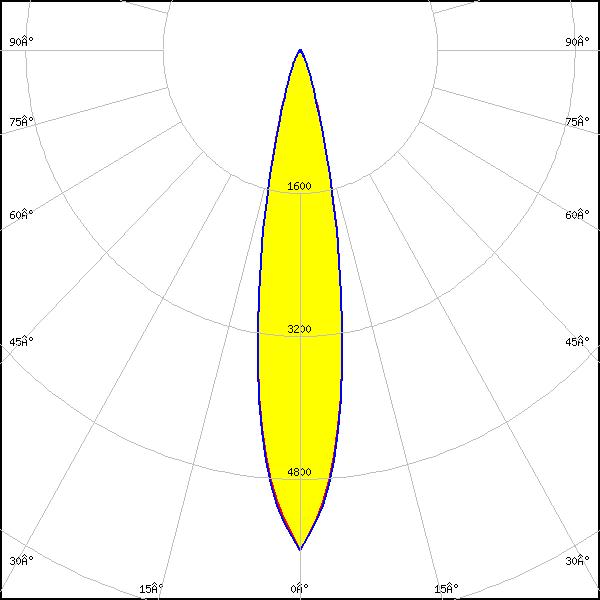

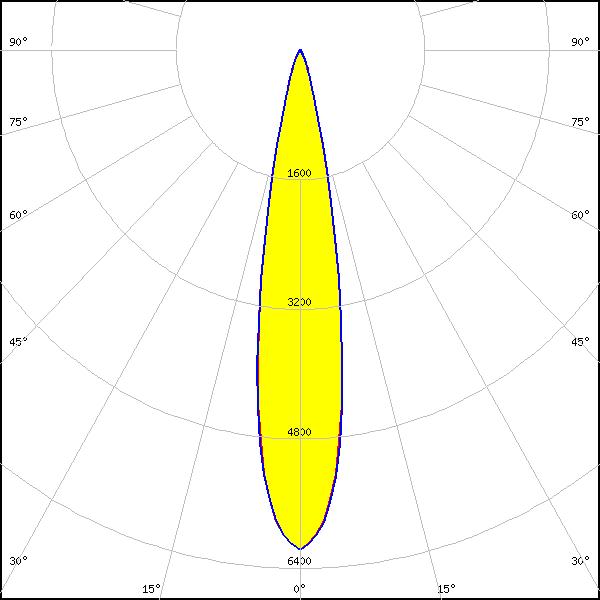

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 20°
FWTM: 38°
Peak intensity: 5.595 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: 24°
FWTM: 42°
Peak intensity: 4.046 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

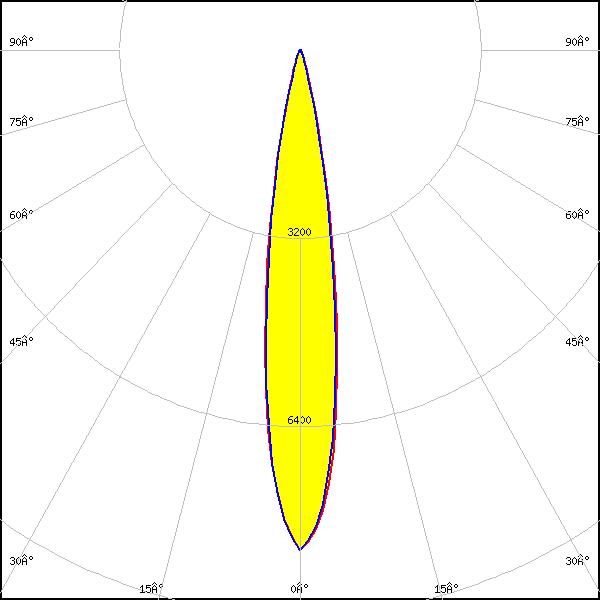

LED: OSLON Square Flat
FWHM: 17°
FWTM: 30°
Peak intensity: 8.504 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

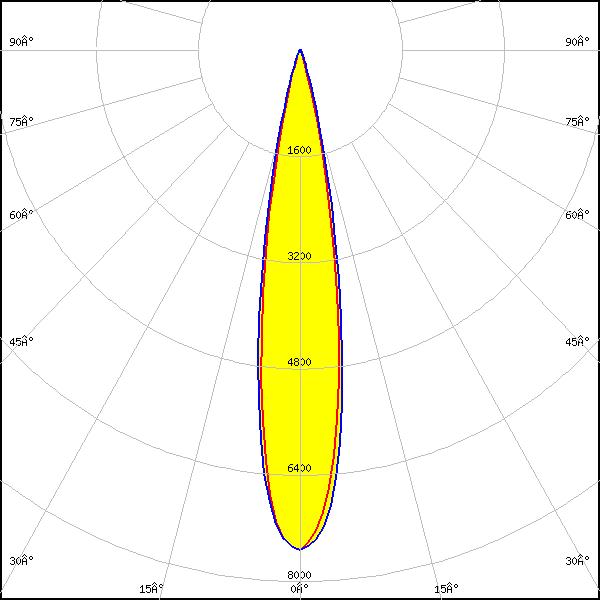

LED: OSTAR Projection Compact (KW.CSLNM1.TG)
FWHM: 19°
FWTM: 32°
Peak intensity: 7.532 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

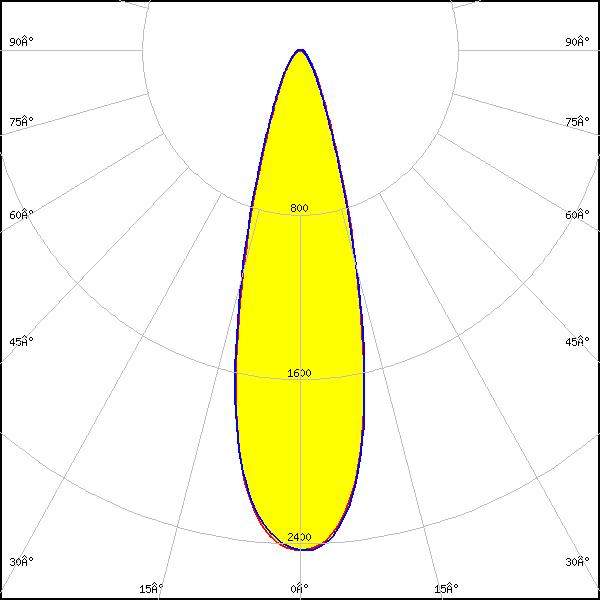

LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: 29°
FWTM: 56°
Peak intensity: 2.435 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

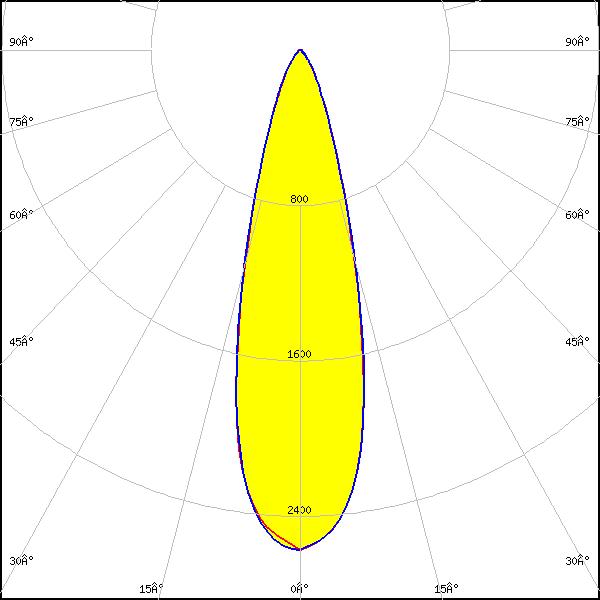

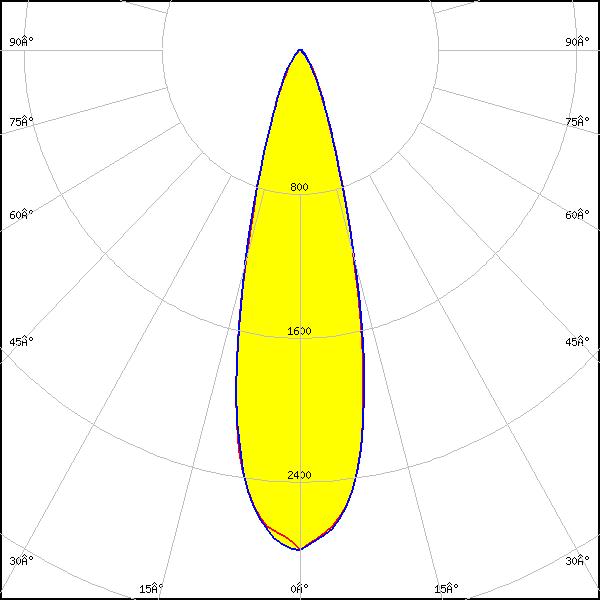

LED: LH502C
FWHM: 28°
FWTM: 54°
Peak intensity: 2.780 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LH502C
FWHM: 28°
FWTM: 54°
Peak intensity: 2.575 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

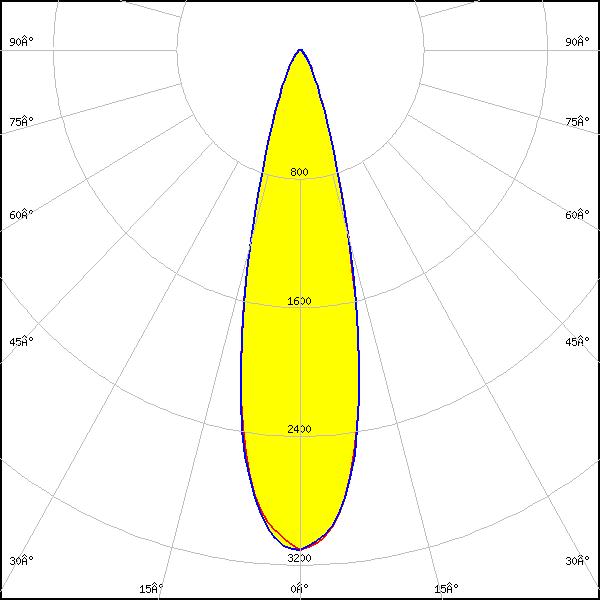

LED: LH502D
FWHM: 26°
FWTM: 50°
Peak intensity: 3.109 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

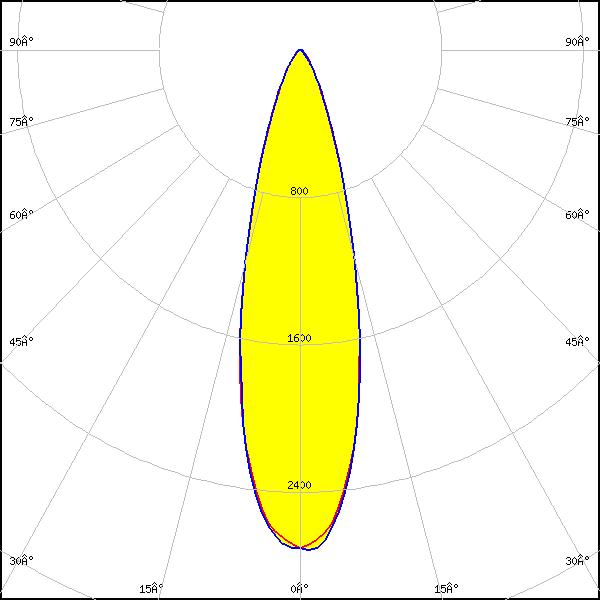

LED: LH508B
FWHM: 28°
FWTM: 56°
Peak intensity: 2.732 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

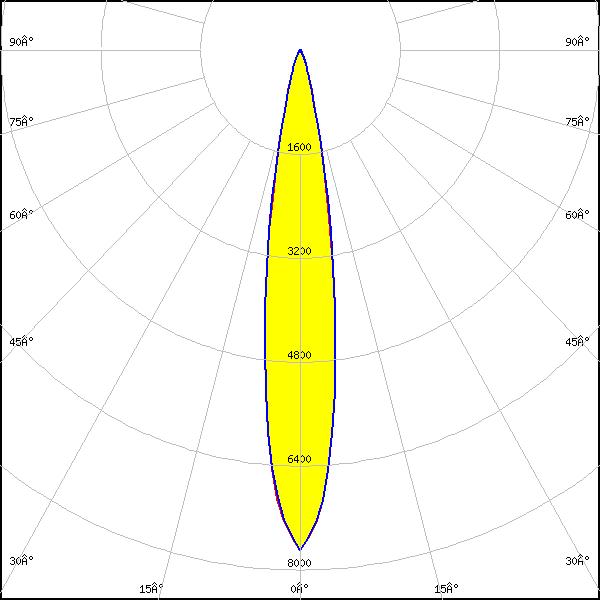

LED: LM301B
FWHM: 16°
FWTM: 32°
Peak intensity: 7.700 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

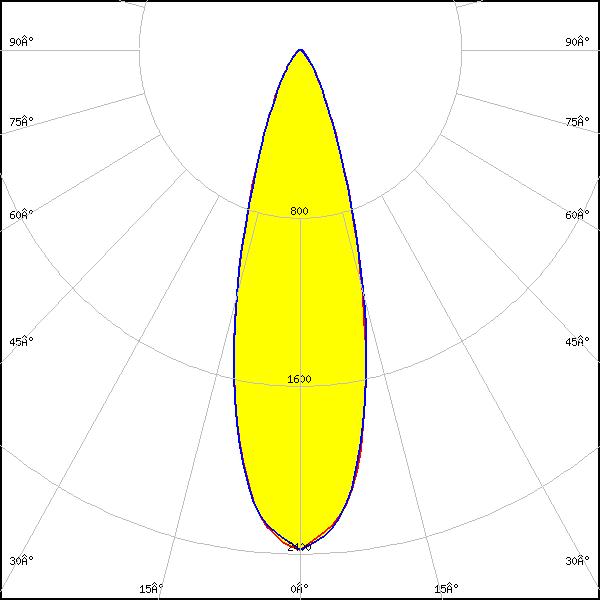

LED: MJT 5050
FWHM: 30°
FWTM: 60°
Peak intensity: 2.382 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

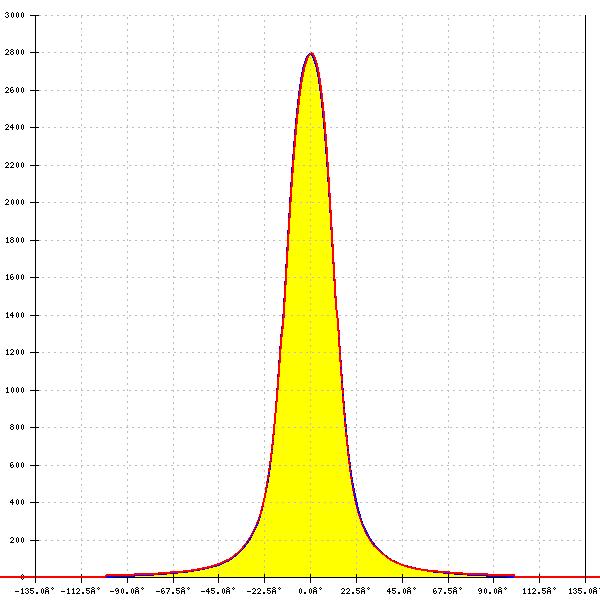

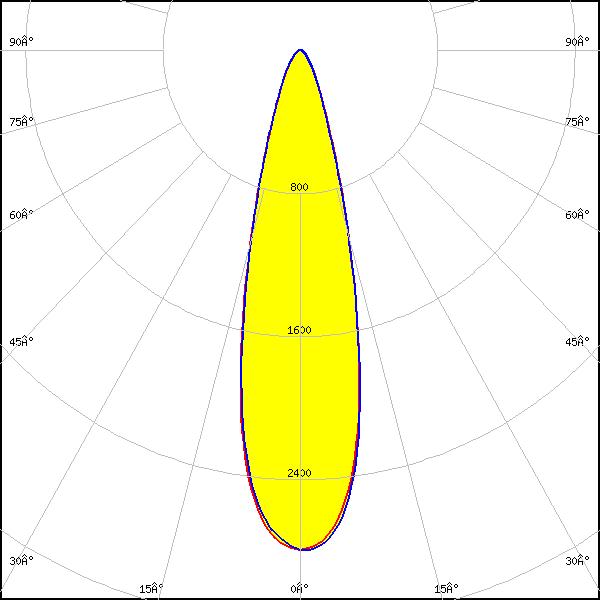

LED: RLE 2x8 6000lm HP HE EXC3 OTD
FWHM: 27°
FWTM: 52°
Peak intensity: 2.796 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
