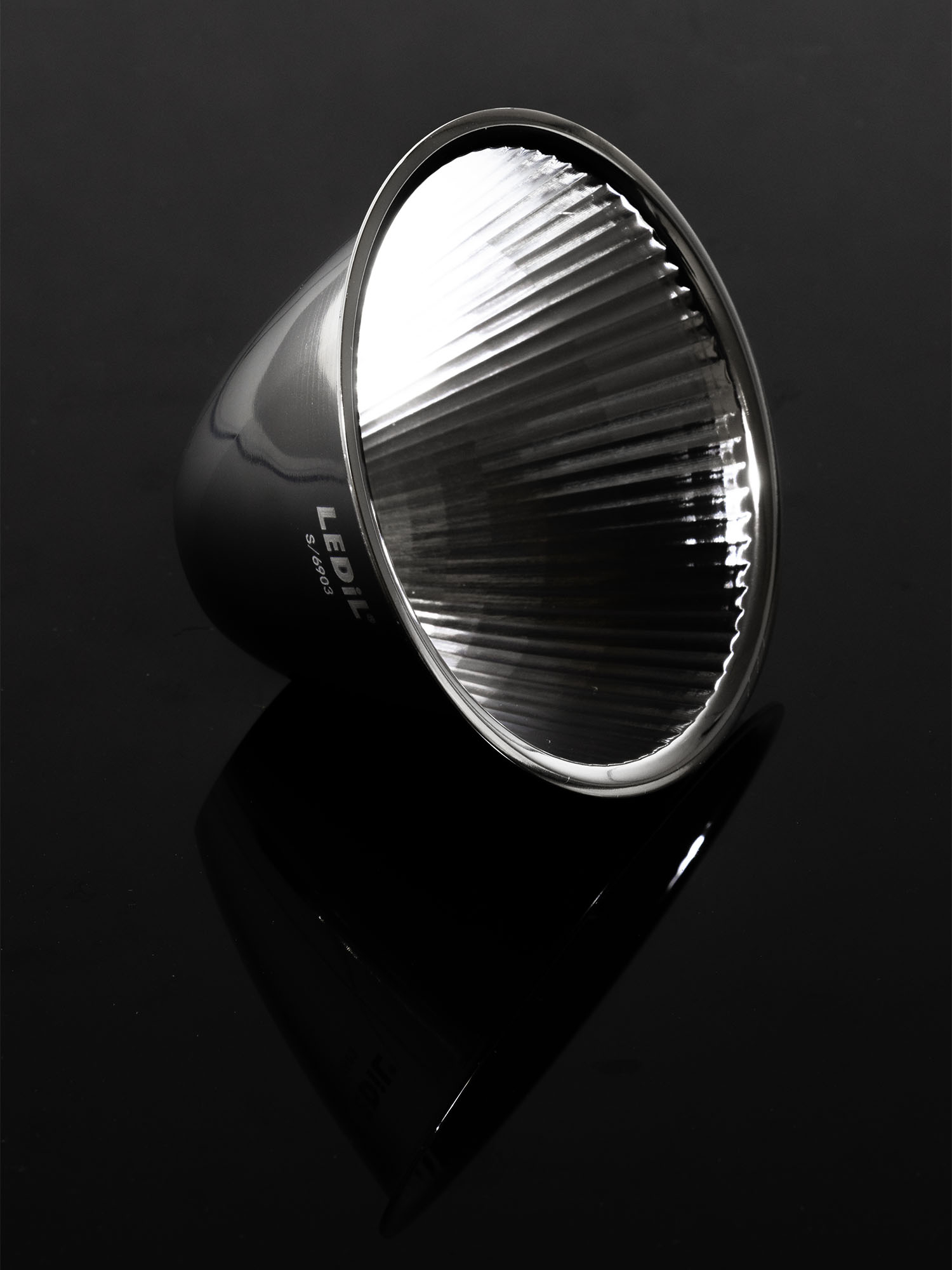

    C16903_ALISE-70-S

    Print

    ~15° spot beam

    Specification
    • Dimensions:
      70 mm
    • Height:
      42.00 mm
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      500 pcs
    • Box size:
      410 x 335 x 200 mm
    • Box weight:
      8.4 kg
    • MPQ:
      25 pcs
    • MOQ:
      100 pcs
    • MOQ size:
      270 x 190 x 230 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16903_ALISE-70-S
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    Assembly of ALISE and ELISE reflector accessories

    Article

    Are reflectors becoming redundant?

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    UV-C LIGHTING

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    News

    ALISE from LEDiL, aluminum reflectors for retail lighting

    Luminaire, example

    Track light luminaires with ALISE/ELISE

    Application example

    Supermarket lighting with LINDA and ALISE

    Application example

    Aisle lighting using track lights with ALISE reflectors

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    ALISE-70-RING

    Mounting ring for ∅70 mm ALISE and ELISE reflectors.

    ALISE-70-CL

    Clear sublens for ∅70 mm ALISE and ELISE reflectors.

    ALISE-70-DL

    Diffusing sublens for ∅70 mm ALISE and ELISE reflectors.

    Optical results

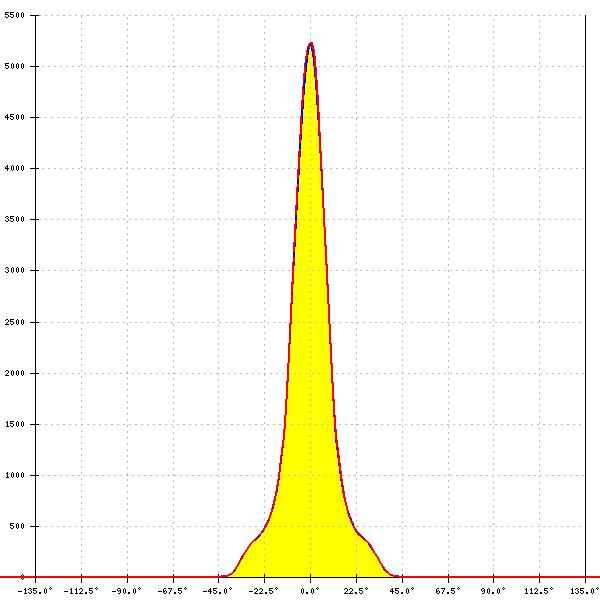

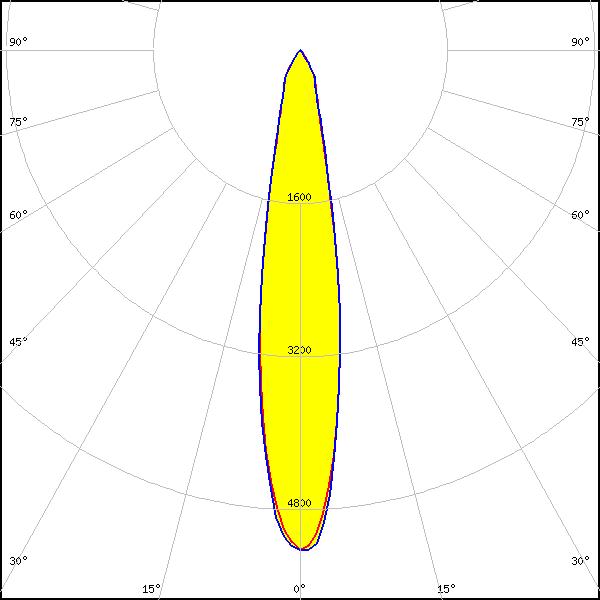

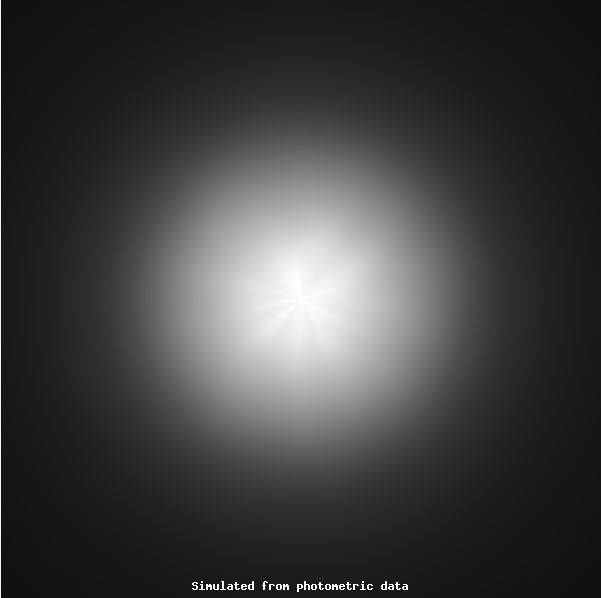

    LED: V13 Gen7
    LES size: 14.0 mm
    FWHM: 18°
    FWTM: 42°
    Peak intensity: 5.345 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

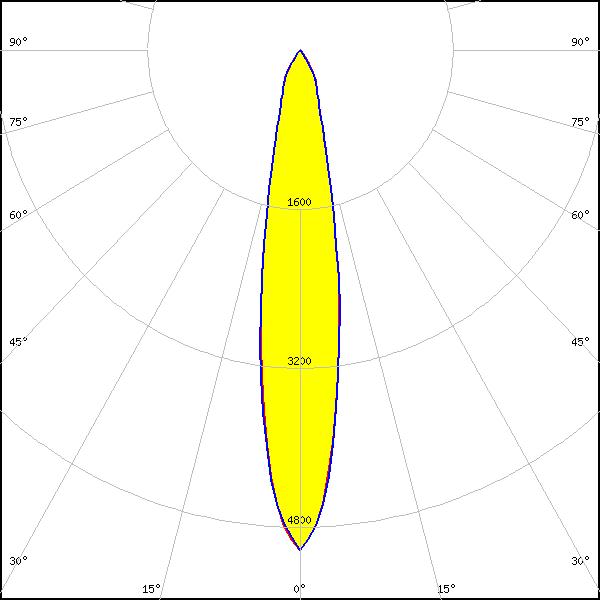

    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    FWHM: 18°
    FWTM: 44°
    Peak intensity: 5.033 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

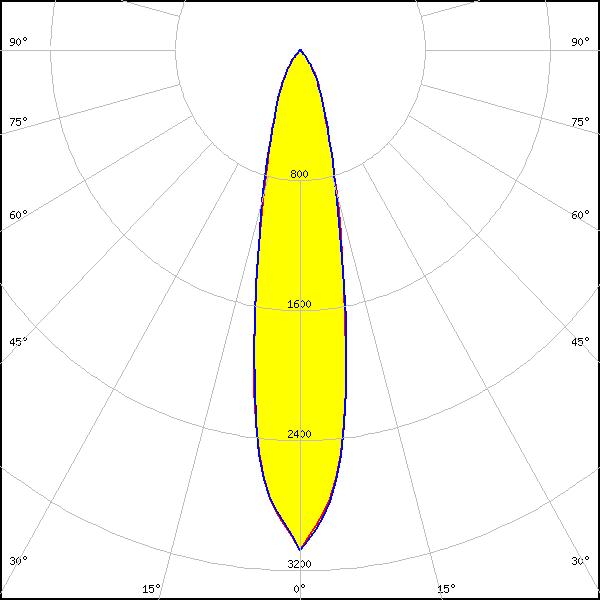

    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    Required components:
    C17098_ALISE-70-DL
    FWHM: 22°
    FWTM: 52°
    Peak intensity: 3.074 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

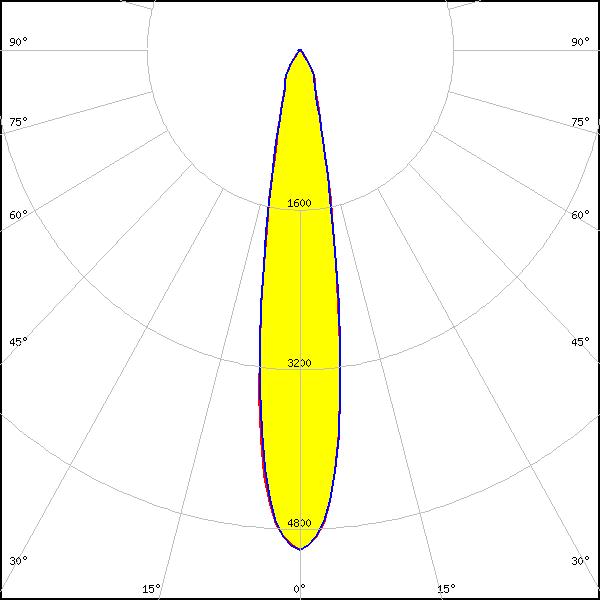

    LED: CMA1840
    LES size: 14.0 mm
    FWHM: 18°
    FWTM: 40°
    Peak intensity: 5.009 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

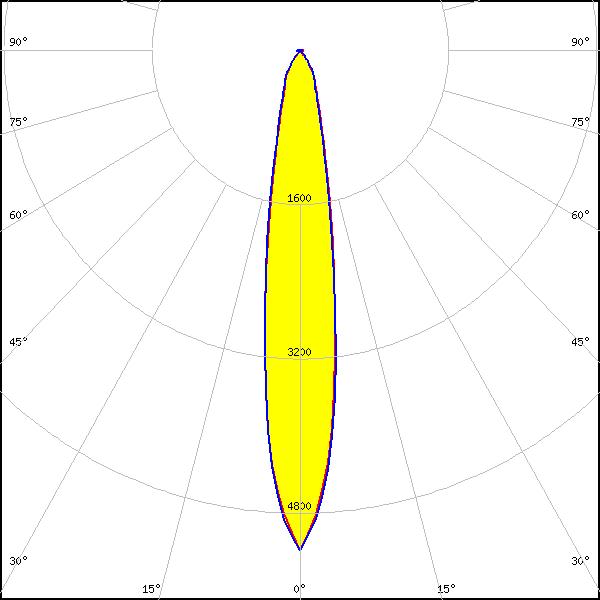

    LED: CMU15xx
    LES size: 14.5 mm
    FWHM: 16°
    FWTM: 42°
    Peak intensity: 5.184 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

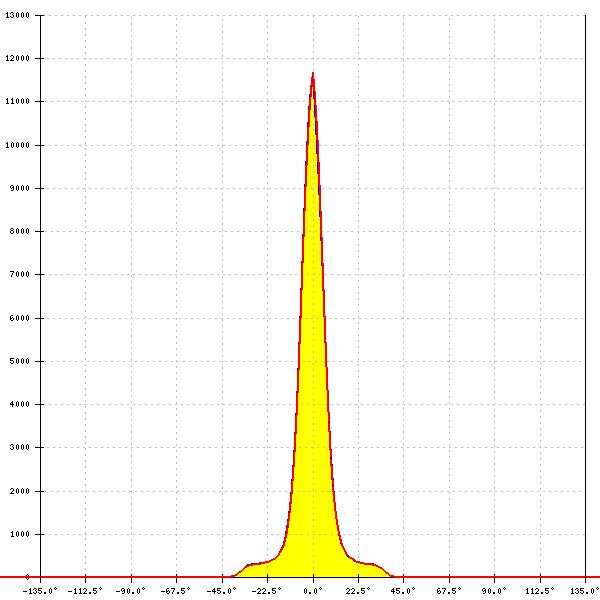

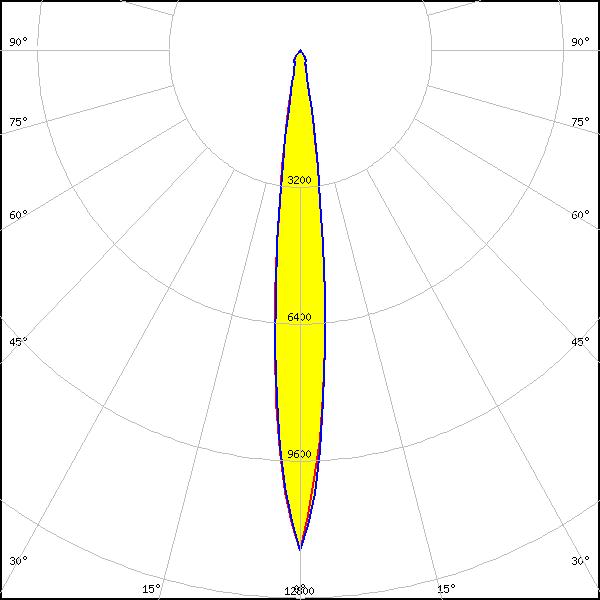

    LED: LUXEON CoB 1202/1203
    LES size: 9.0 mm
    Required components:
    TE Connectivity: 2213382-1
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 11.689 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

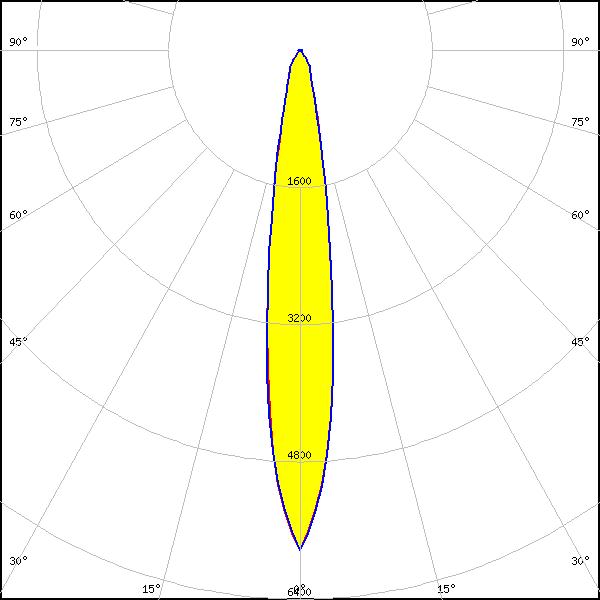

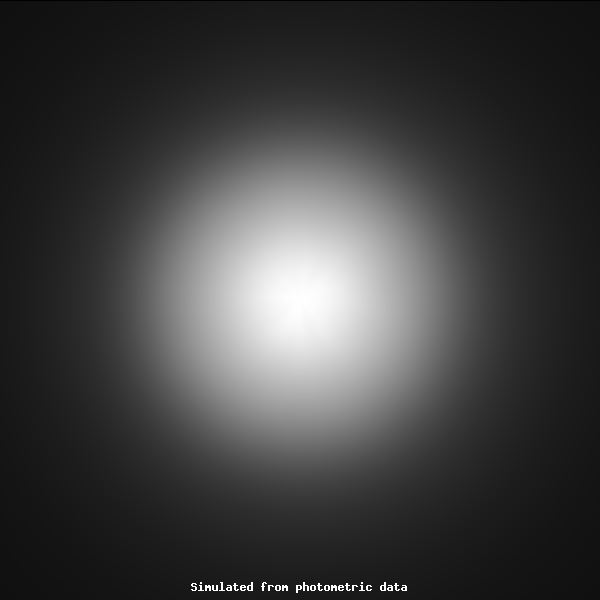

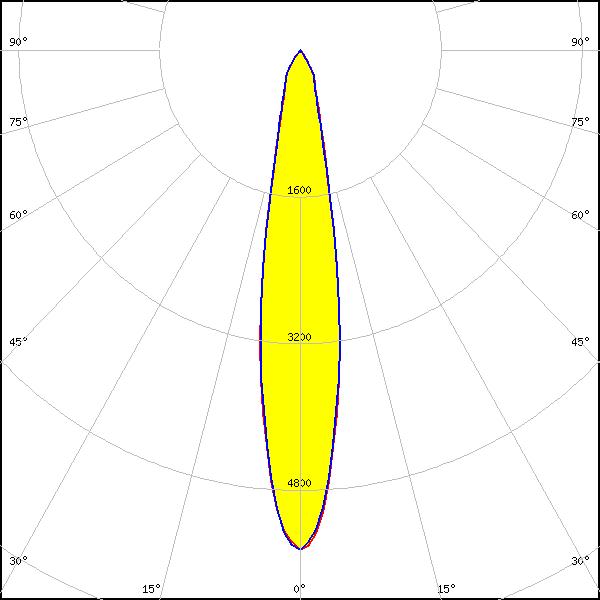

    LED: LUXEON CoB 1204/1205
    LES size: 13.0 mm
    FWHM: 18°
    FWTM: 40°
    Peak intensity: 5.455 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1204/1205
    LES size: 13.0 mm
    FWHM: 16°
    FWTM: 35°
    Peak intensity: 5.831 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

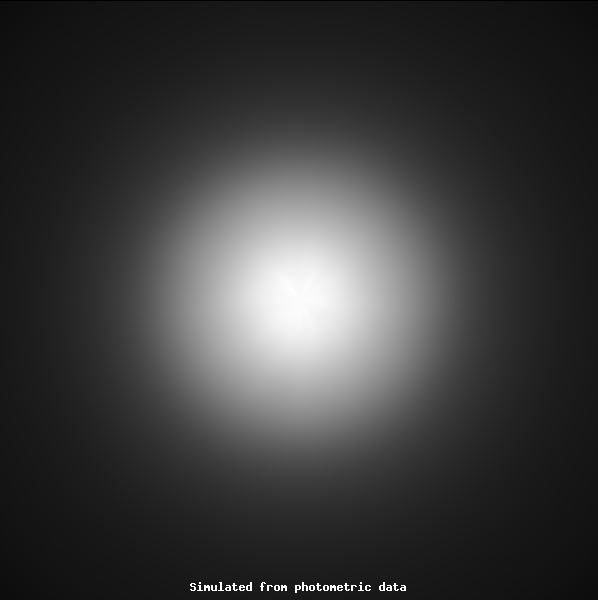

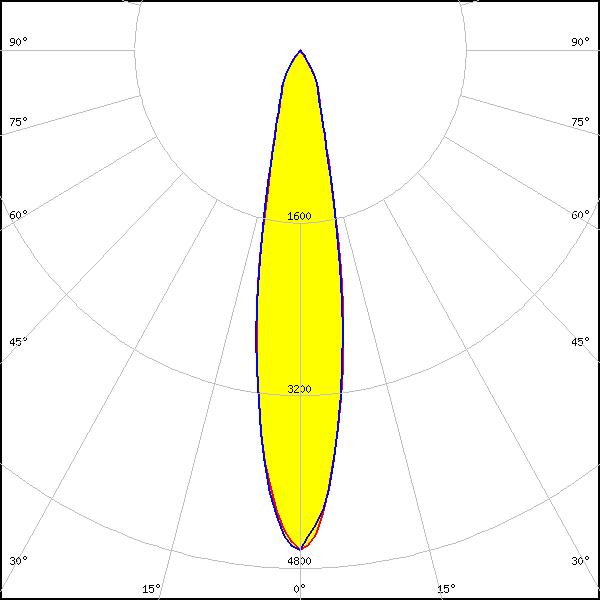

    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    FWHM: 20°
    FWTM: 46°
    Peak intensity: 4.634 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

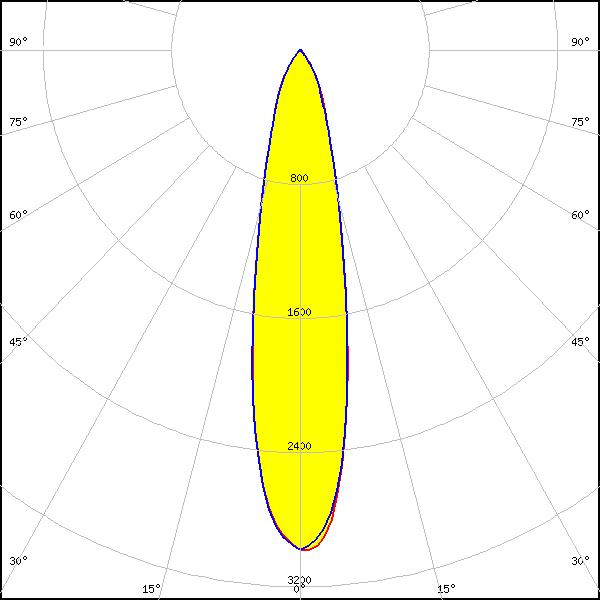

    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    Required components:
    C17098_ALISE-70-DL
    FWHM: 22°
    FWTM: 52°
    Peak intensity: 2.991 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

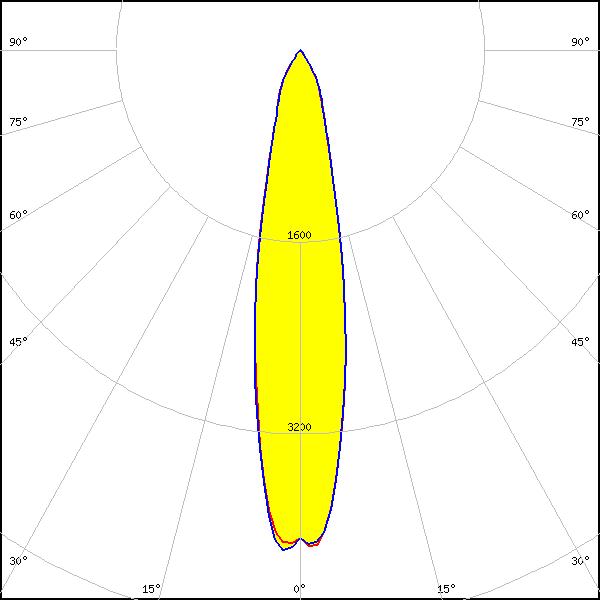

    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    FWHM: 22°
    FWTM: 51°
    Peak intensity: 4.175 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: WICOP DY9560-27
    LES size: 0.0 mm
    FWHM: 11°
    FWTM: 24°
    Efficiency: 89 %
    LEDs/each optic: 24
    Light colour/type: UV-A
