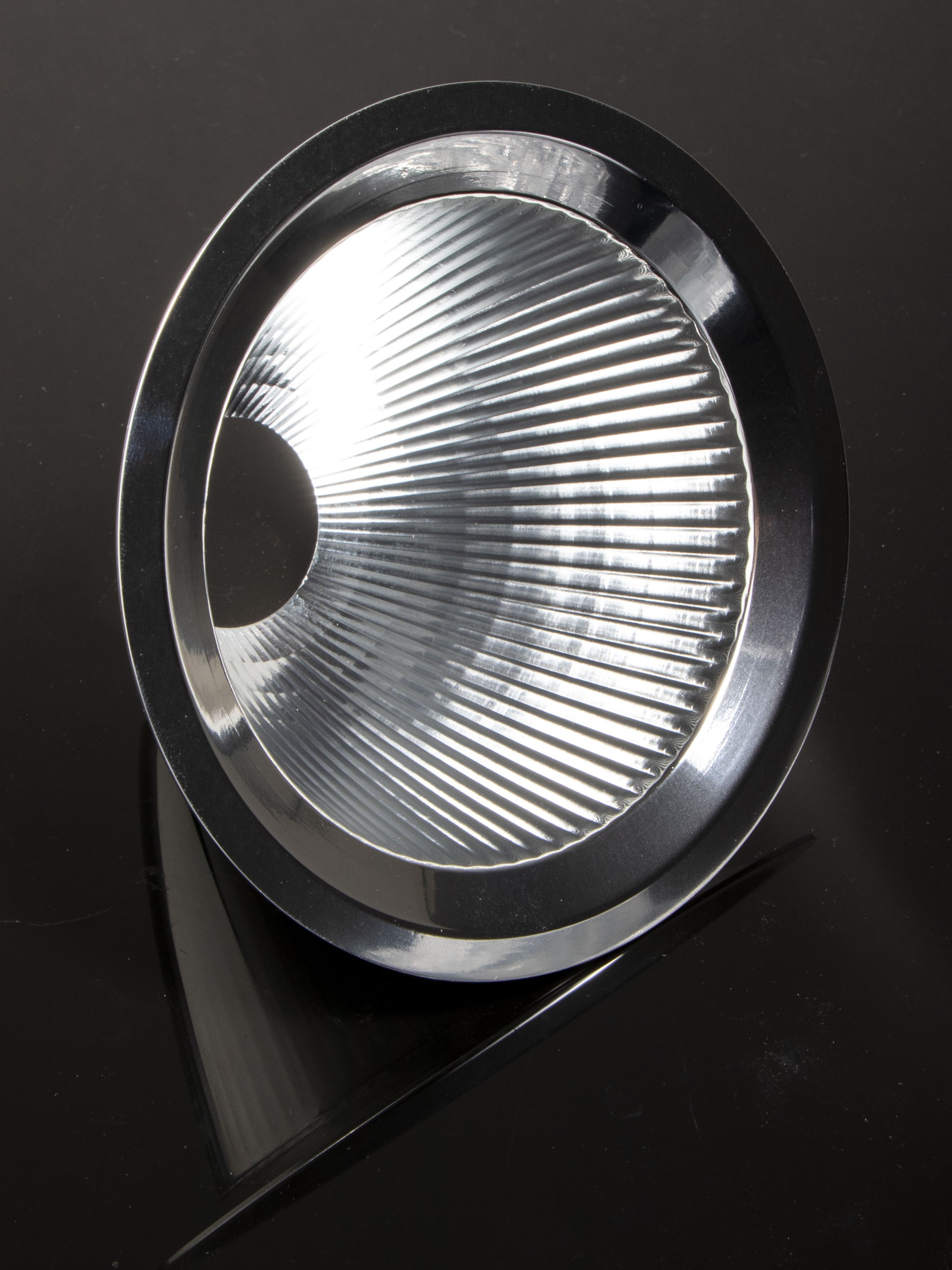

    C16900_ALISE-110-M

    Print

    ~24° medium beam

    Specification
    • Dimensions:
      110 mm
    • Height:
      65.00 mm
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      300 pcs
    • Box size:
      500 x 375 x 250 mm
    • Box weight:
      11.2 kg
    • MPQ:
      25 pcs
    • MOQ:
      100 pcs
    • MOQ size:
      480 x 280 x 150 mm
    • MOQ weight:
      3.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16900_ALISE-110-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    Assembly of ALISE and ELISE reflector accessories

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    UV-C LIGHTING

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    News

    ALISE from LEDiL, aluminum reflectors for retail lighting

    Luminaire, example

    Track light luminaires with ALISE/ELISE

    Application example

    Supermarket lighting with LINDA and ALISE

    Application example

    Aisle lighting using track lights with ALISE reflectors

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    ALISE-110-RING

    Mounting ring for ∅110 mm ALISE and ELISE reflectors.

    ALISE-110-CL

    Clear sublens for ∅110 mm ALISE and ELISE reflectors.

    ALISE-110-DL

    Diffusing sublens for ∅110 mm ALISE and ELISE reflectors.

    Optical results

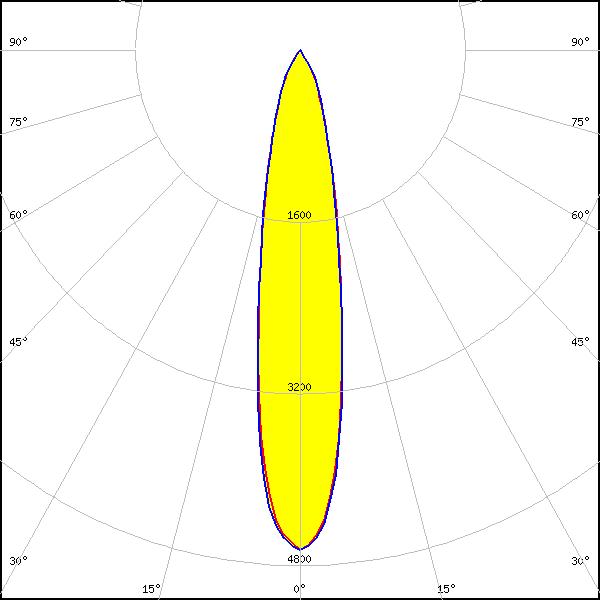

    LED: Vero SE 18
    LES size: 18.6 mm
    FWHM: 20°
    FWTM: 49°
    Peak intensity: 4.700 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

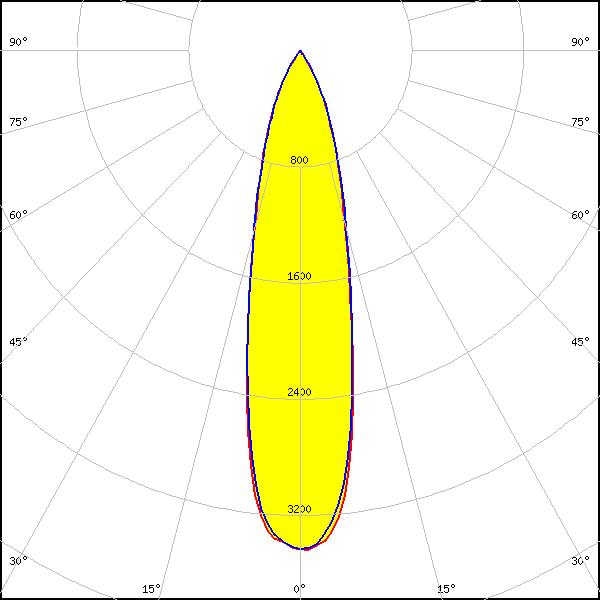

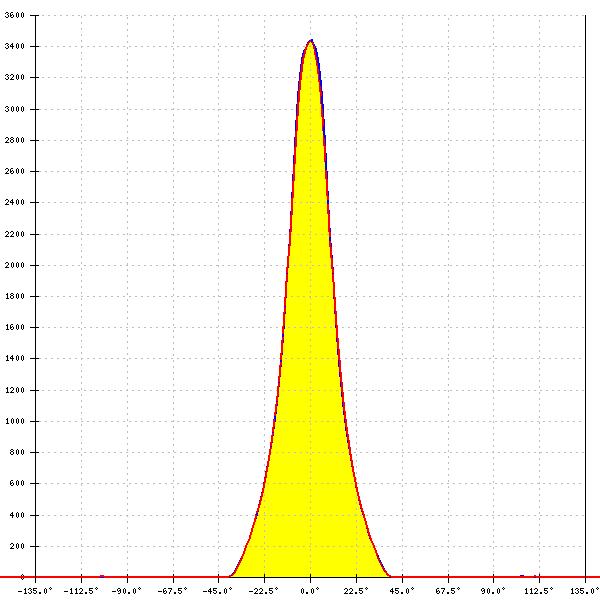

    LED: CLL04x/CLU04x
    LES size: 22.0 mm
    FWHM: 24°
    FWTM: 55°
    Peak intensity: 3.400 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

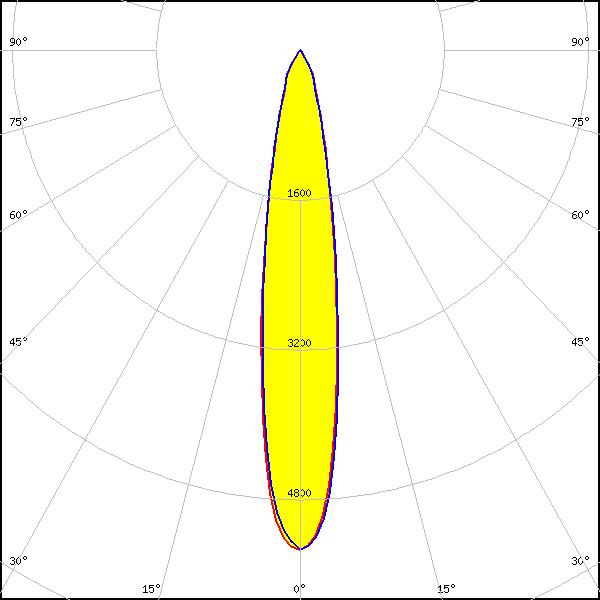

    LED: CMA1840
    LES size: 14.0 mm
    FWHM: 18°
    FWTM: 41°
    Peak intensity: 5.339 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

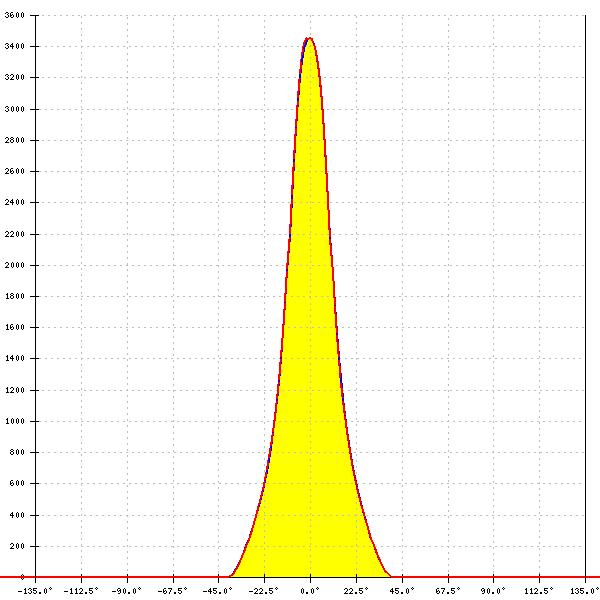

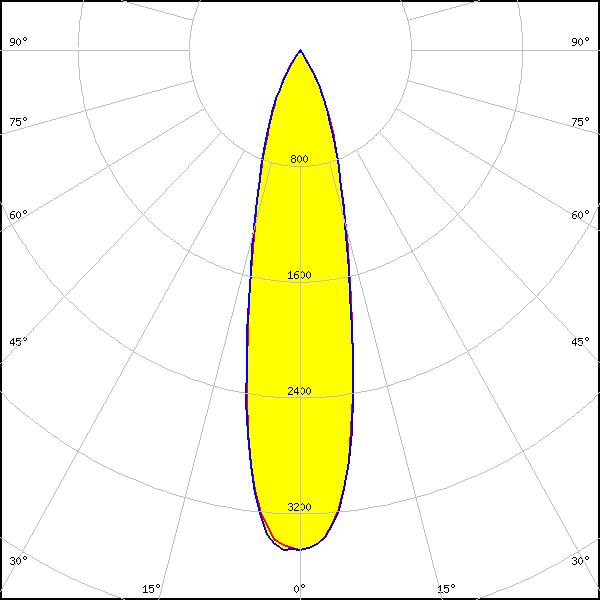

    LED: CMT28xx
    LES size: 22.0 mm
    FWHM: 25°
    FWTM: 56°
    Peak intensity: 3.500 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

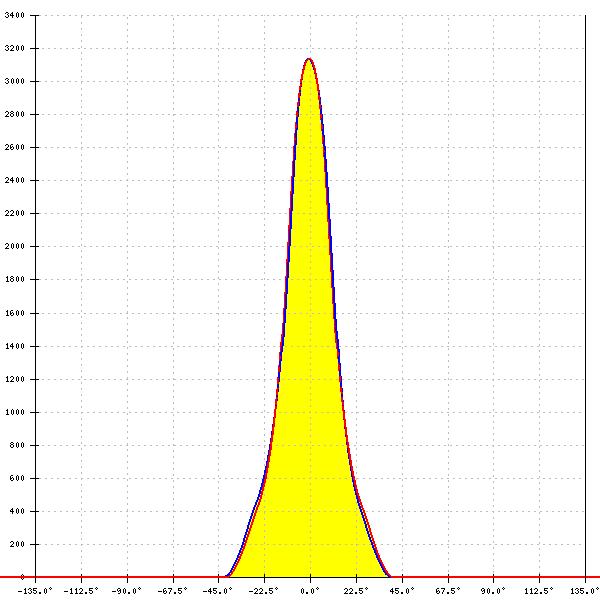

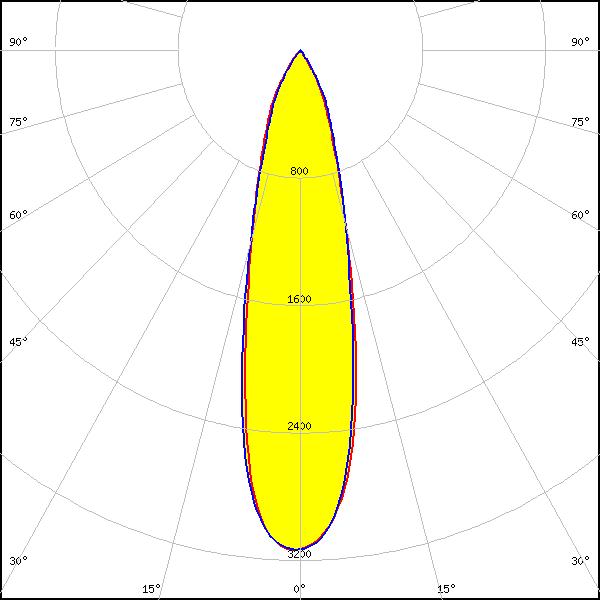

    LED: CMU22xx
    LES size: 22.0 mm
    Required components:
    Bender Wirth: 431 Typ L3
    FWHM: 25°
    FWTM: 58°
    Peak intensity: 3.137 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

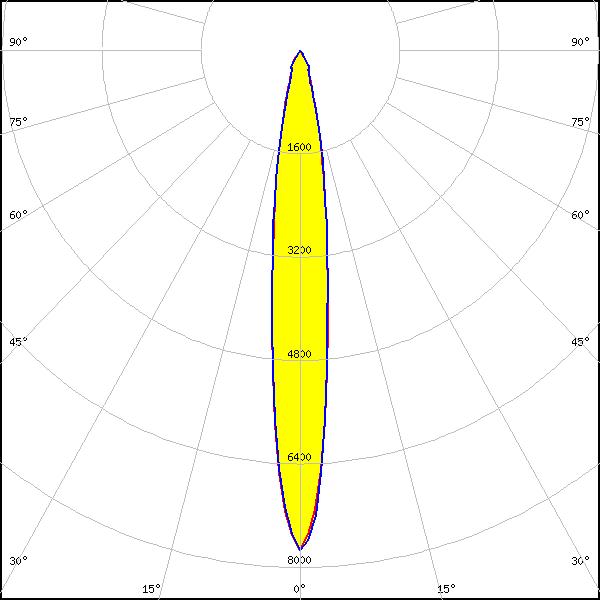

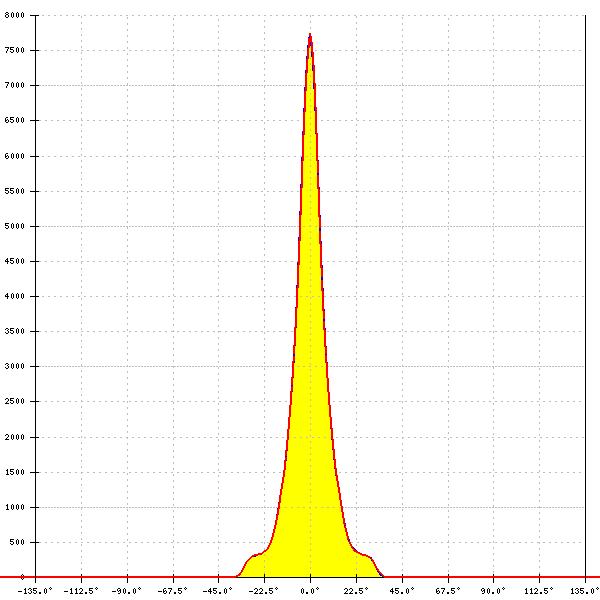

    LED: CXA/B 15xx
    LES size: 8.9 mm
    FWHM: 14°
    FWTM: 34°
    Peak intensity: 7.739 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

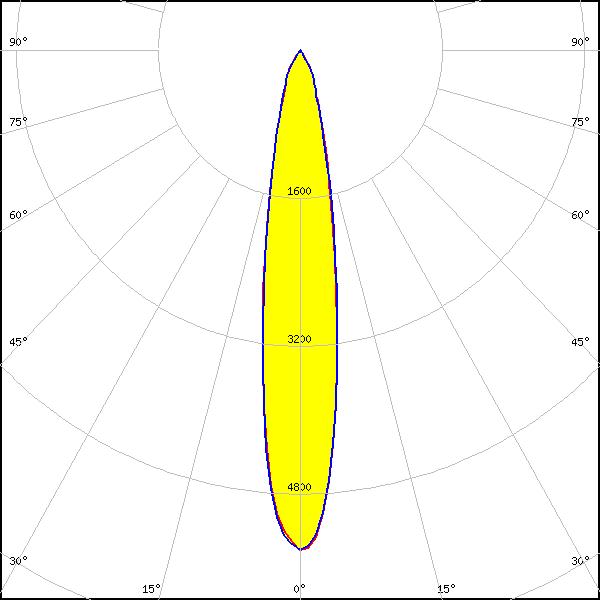

    LED: CXA/B 1830
    LES size: 14.0 mm
    FWHM: 18°
    FWTM: 42°
    Peak intensity: 5.413 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

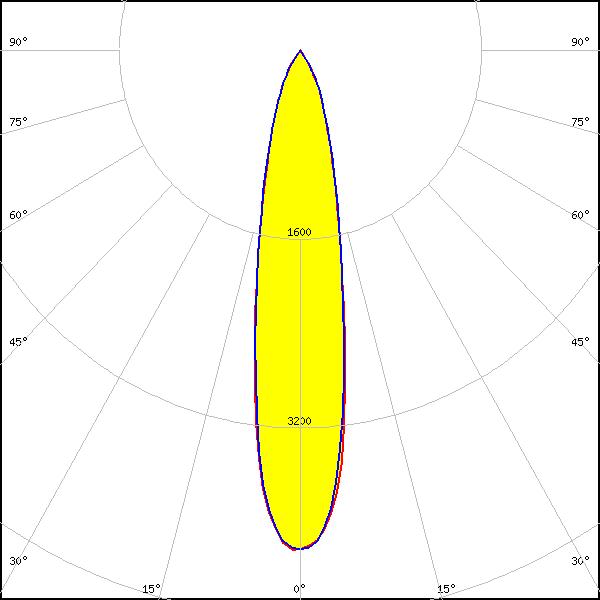

    LED: CXA/B 30xx
    LES size: 23.0 mm
    FWHM: 21°
    FWTM: 51°
    Peak intensity: 4.200 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

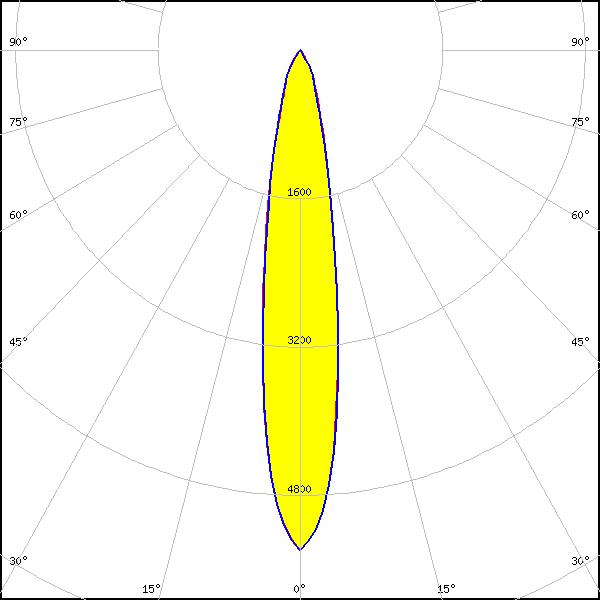

    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    FWHM: 18°
    FWTM: 42°
    Peak intensity: 5.392 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

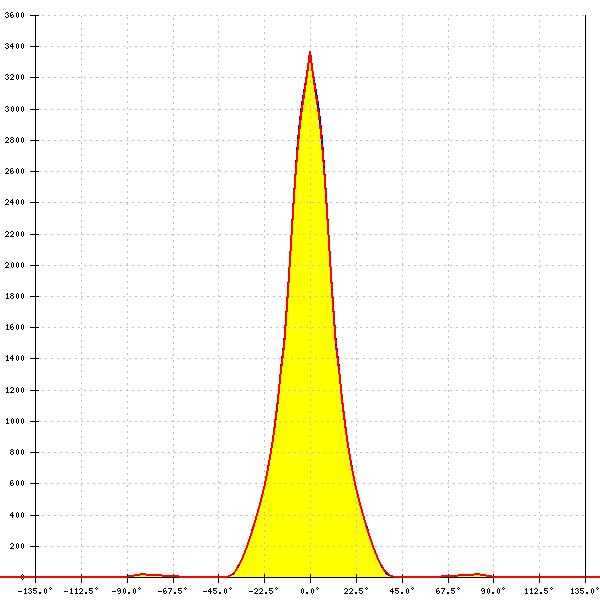

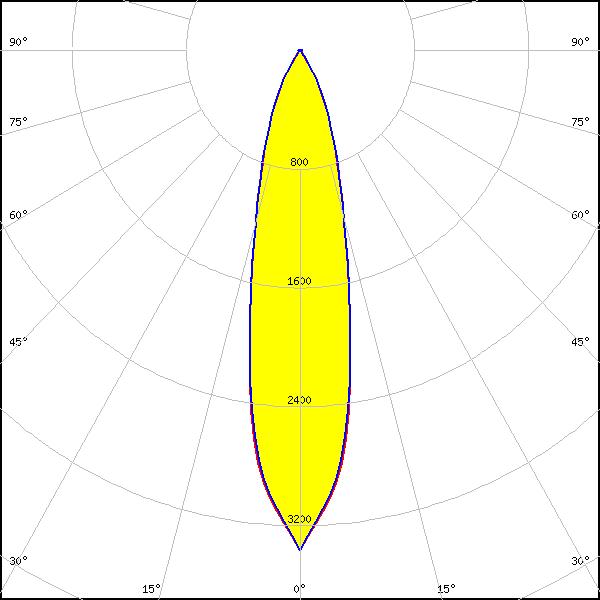

    LED: CxM-22 (28x28)
    LES size: 22.0 mm
    FWHM: 24°
    FWTM: 56°
    Peak intensity: 3.367 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB J-Type
    LES size: 14.6 mm
    FWHM: 18°
    FWTM: 40°
    Peak intensity: 5.537 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

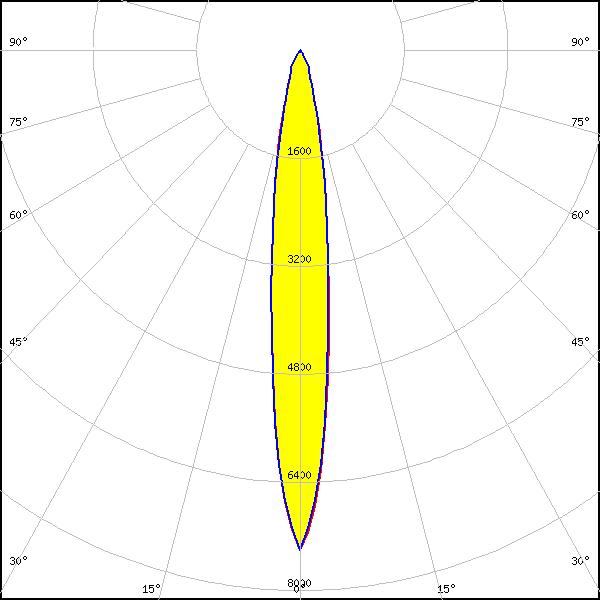

    LED: LC003D / LC006D / LC009D / LC013D
    LES size: 9.8 mm
    FWHM: 14°
    FWTM: 34°
    Peak intensity: 7.409 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

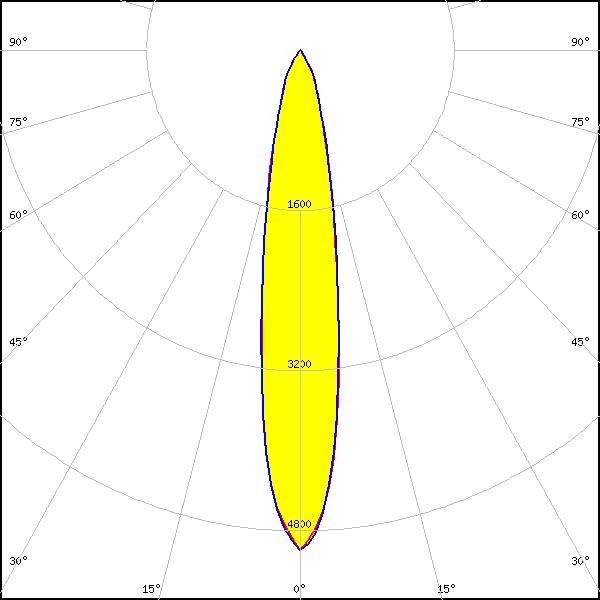

    LED: LC016D / LC019D / LC026D / LC033D
    LES size: 14.5 mm
    FWHM: 18°
    FWTM: 44°
    Peak intensity: 4.996 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

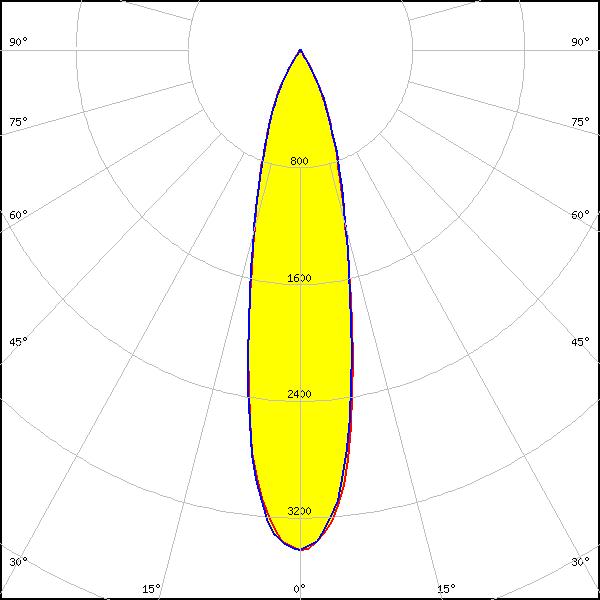

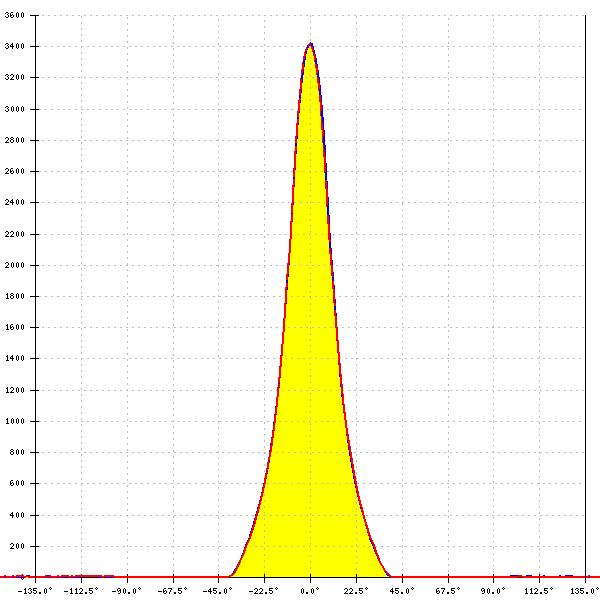

    LED: LC040D / LC060D / LC080D
    LES size: 22.0 mm
    FWHM: 24°
    FWTM: 55°
    Peak intensity: 3.400 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
