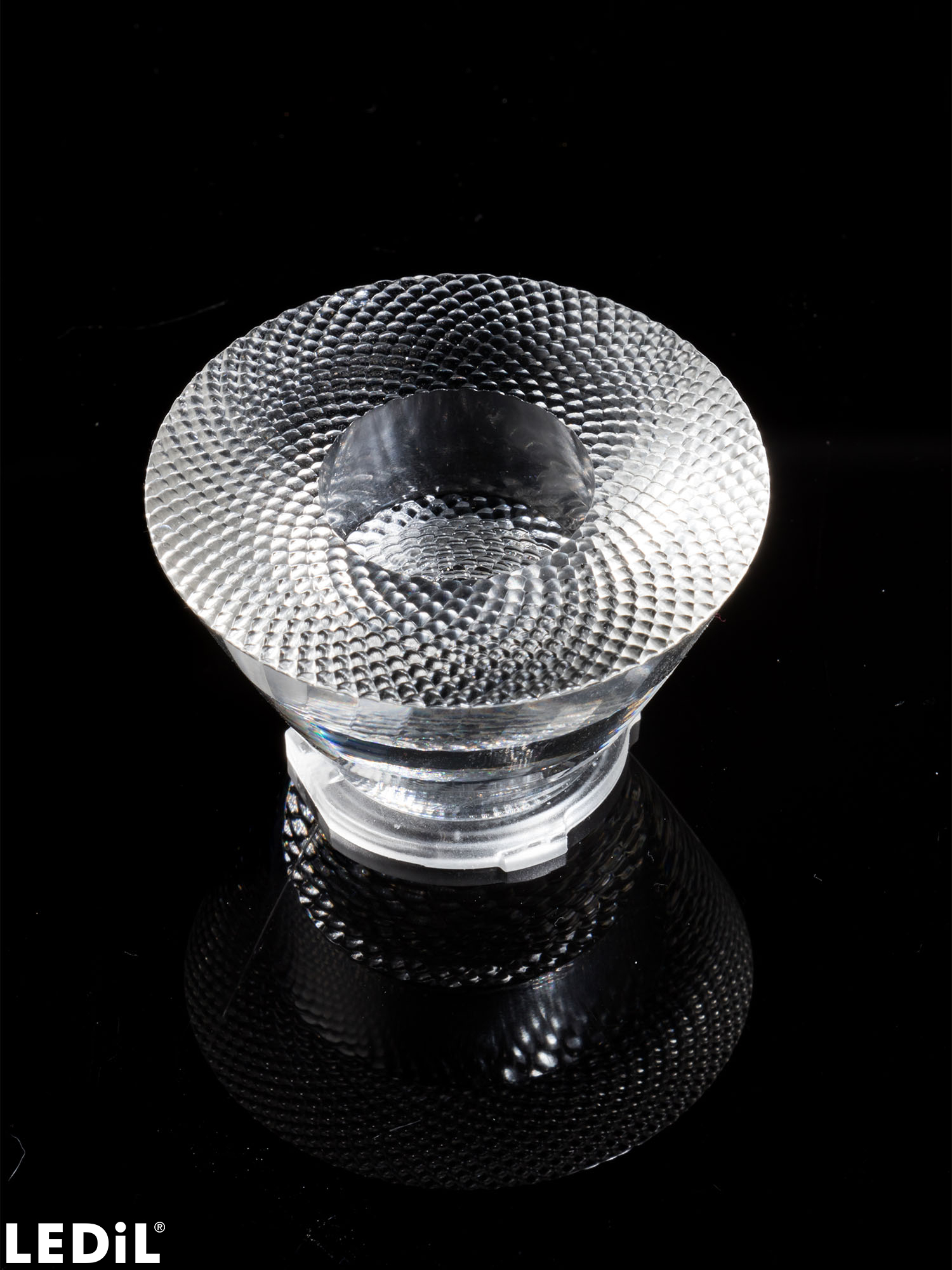

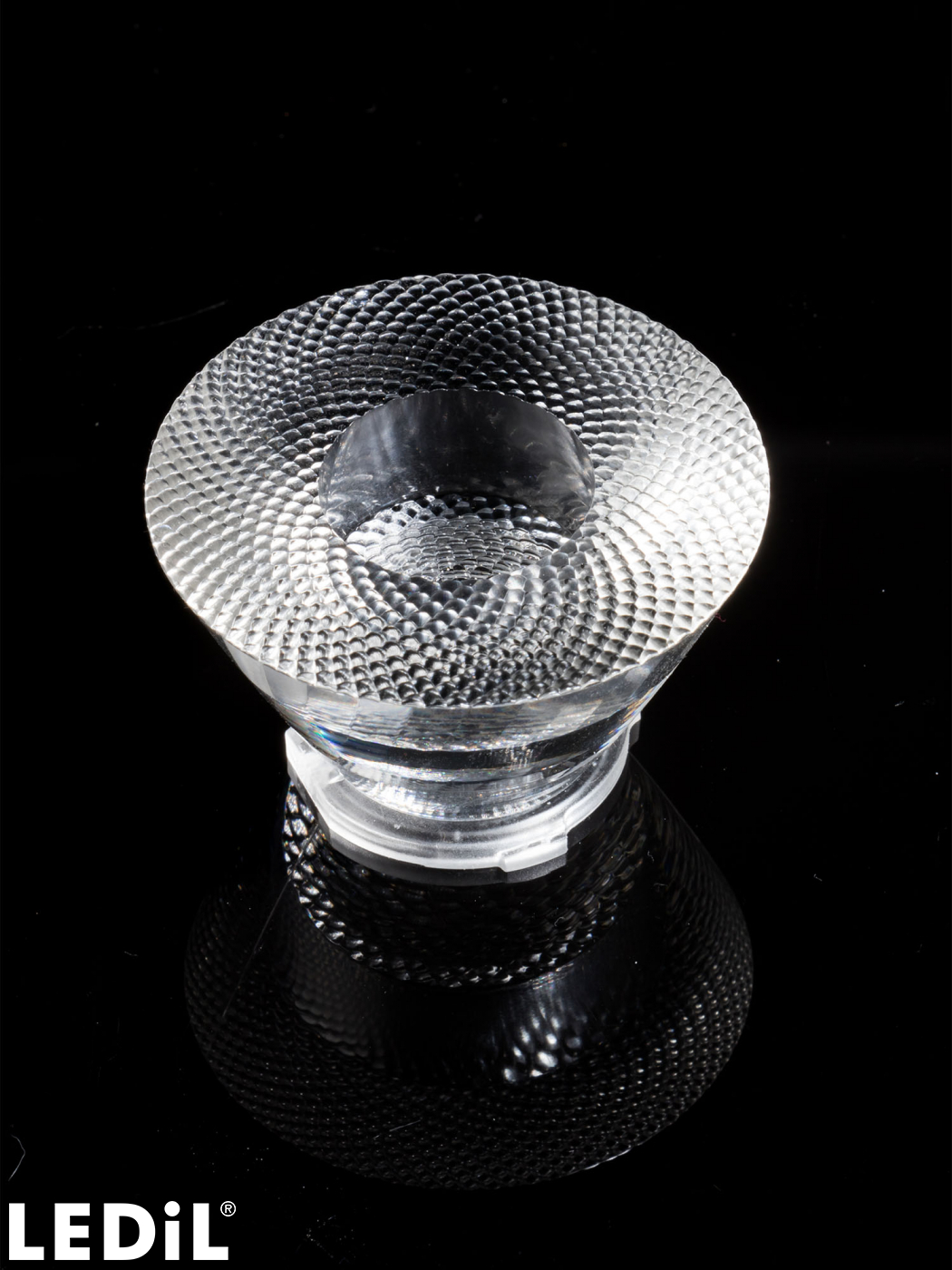

    C16687_ILONA-M

    Print

    ~25° wide beam

    Specification
    • Dimensions:
      50 mm
    • Height:
      29.66 mm
    • Fastening:
      socket
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      264 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.9 kg
    • MPQ:
      33 pcs
    • MOQ:
      99 pcs
    • MOQ size:
      480 x 280 x 110 mm
    • MOQ weight:
      3.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16687_ILONA-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    Introducing best TIR lens family for retail lighting

    PCN

    Product change notification NR177 - Change of amount in carton

    PCN

    Product change notification NR162 - Changes in product mechanics

    Luminaire, example

    Track lights with ILONA-ZOOM & ILONA

    Article

    Are reflectors becoming redundant?

    Compatibility guide

    LEDiL connector and socket compatibility

    Application guide

    LEDiL guide for retail lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Compatible product

    B+W 630 Hekla datasheet

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    Effective fashion retail lighting

    News

    ILONA TIR lens family for highly efficient retail lighting

    Luminaire, example

    Track light luminaire with ILONA

    Application example

    Retail lighting with DAISY and ILONA

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    HEKLA-SOCKET-E

    Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

    HEKLA-SOCKET-A

    Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

    HEKLA-SOCKET-B

    Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

    HEKLA-SOCKET-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-SOCKET-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-SOCKET-F

    Version compatible with Bridgelux VERO10

    HEKLA-SOCKET-G

    Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

    HEKLA-SOCKET-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-SOCKET-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-SOCKET-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-K

    Version compatible with Bender+Wirth Typ L8

    HEKLA-G2-C

    Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

    HEKLA-G2-D

    Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

    HEKLA-G2-H

    Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

    HEKLA-G2-I

    Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

    HEKLA-G2-J

    Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

    HEKLA-SOCKET-VERO18

    Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

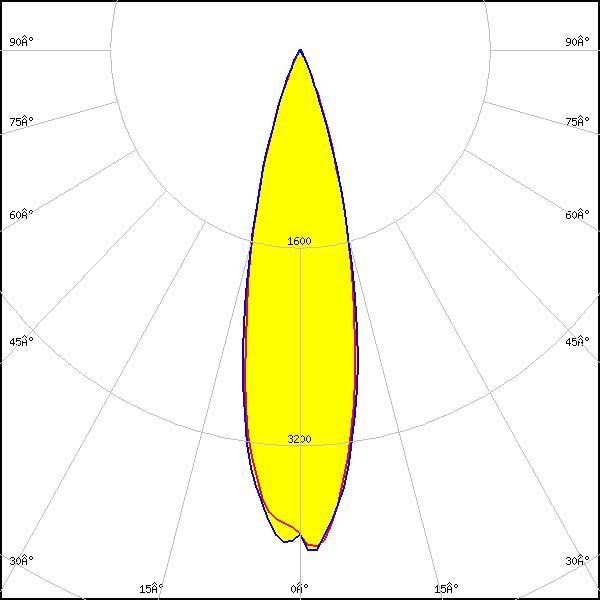

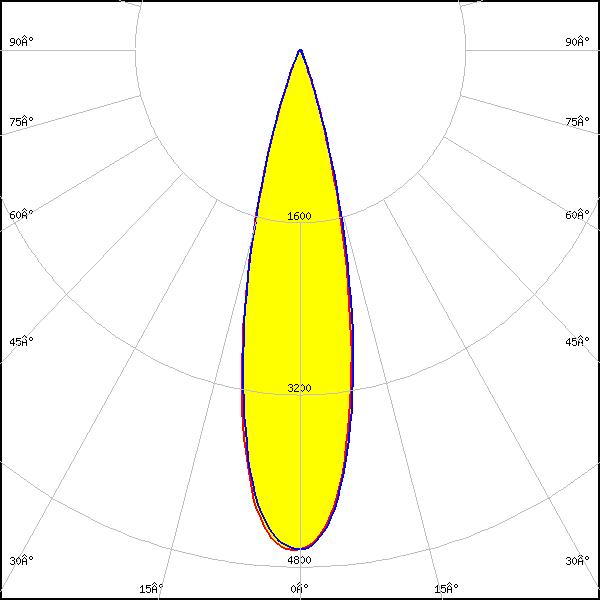

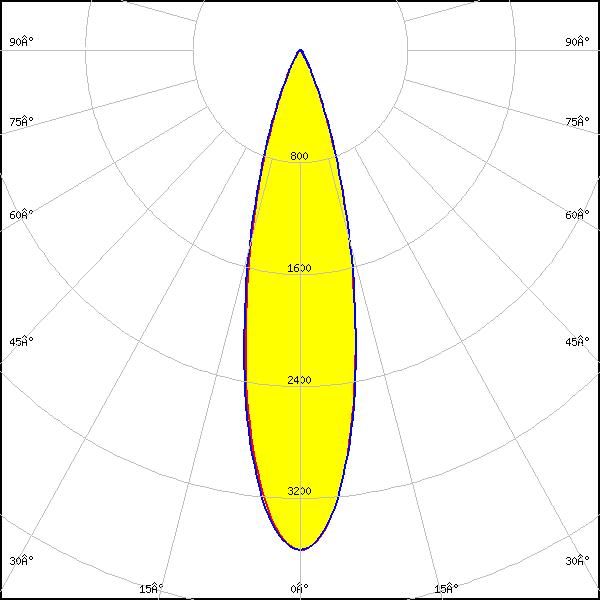

    Optical results

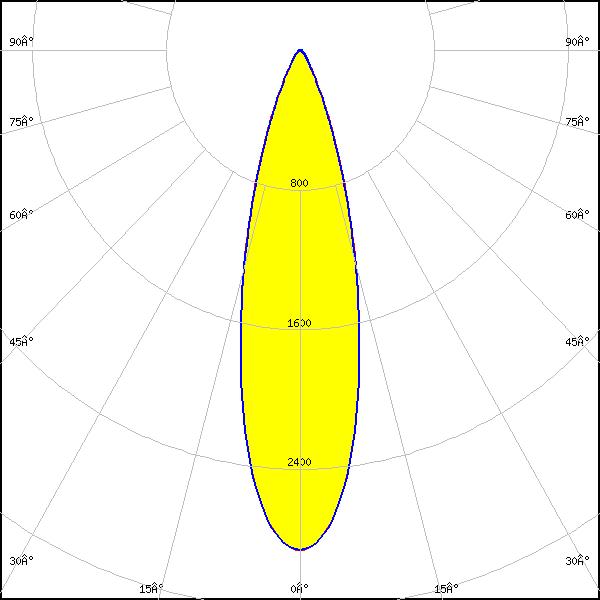

    LED: V11 HD Gen 8
    LES size: 11.3 mm
    Required components:
    Bender Wirth: 633d Hekla
    FWHM: 28°
    FWTM: 53°
    Peak intensity: 2.866 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

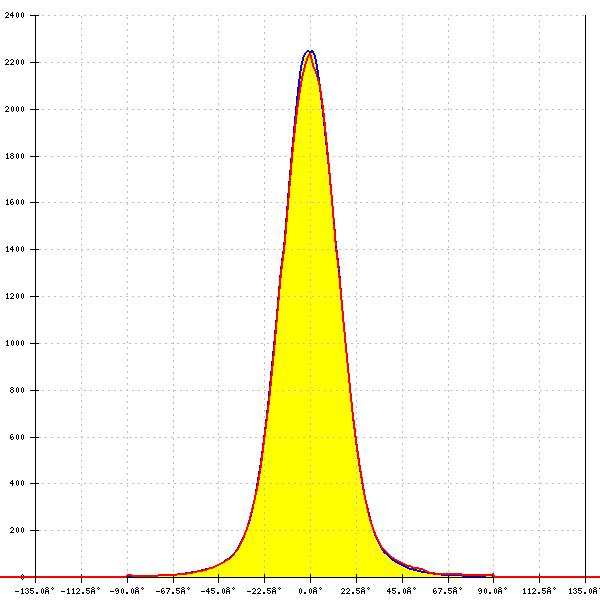

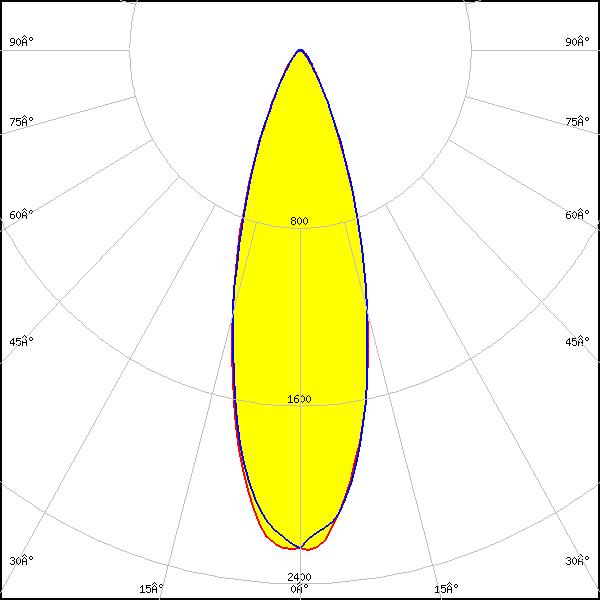

    LED: V13 Gen 8-9
    LES size: 14.8 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 32°
    FWTM: 61°
    Peak intensity: 2.263 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

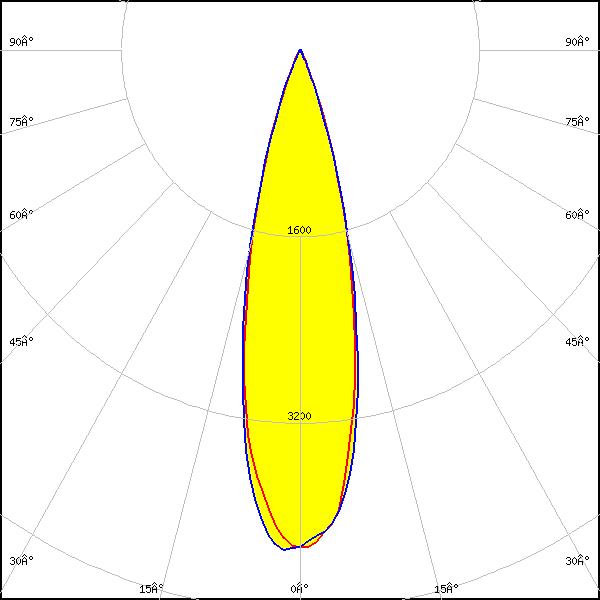

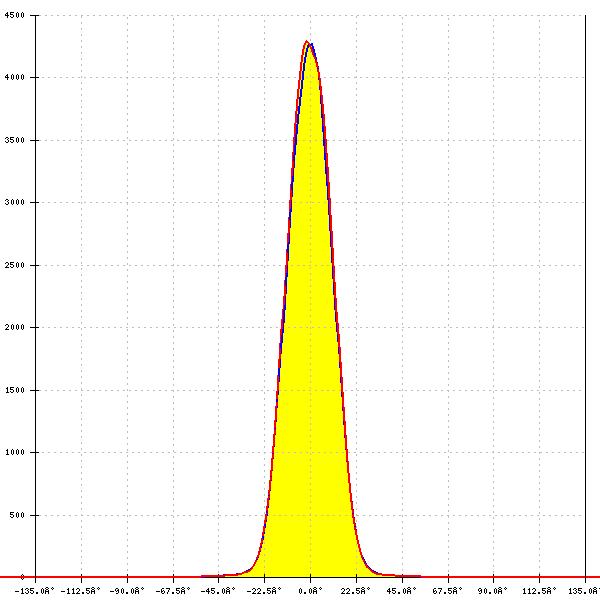

    LED: V4 HD Gen 7
    LES size: 5.2 mm
    Required components:
    F15253_HEKLA-SOCKET-A
    FWHM: 26°
    FWTM: 44°
    Peak intensity: 4.270 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

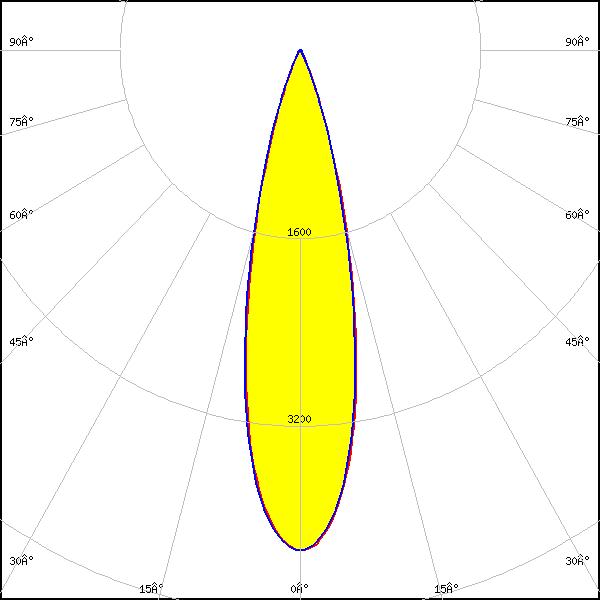

    LED: V6 HD Gen 7
    LES size: 7.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 25°
    FWTM: 44°
    Peak intensity: 4.257 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

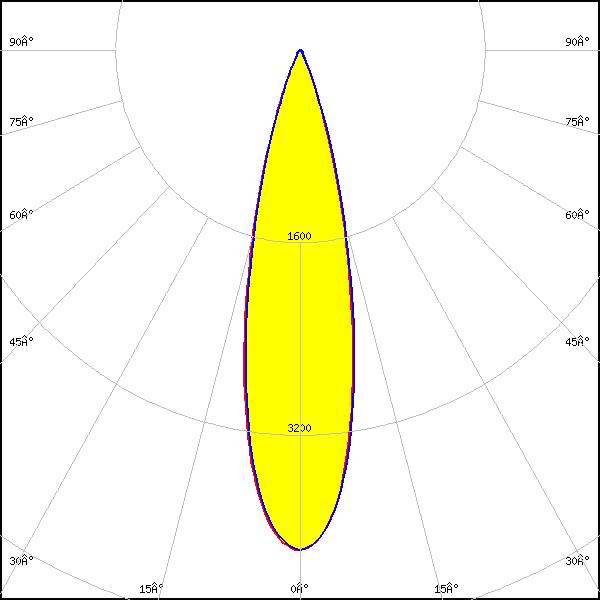

    LED: V6 HD Gen 7
    LES size: 7.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 25°
    FWTM: 44°
    Peak intensity: 4.158 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

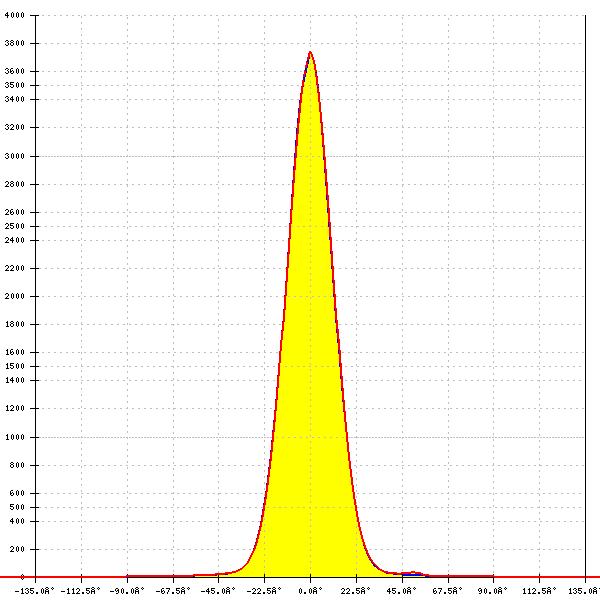

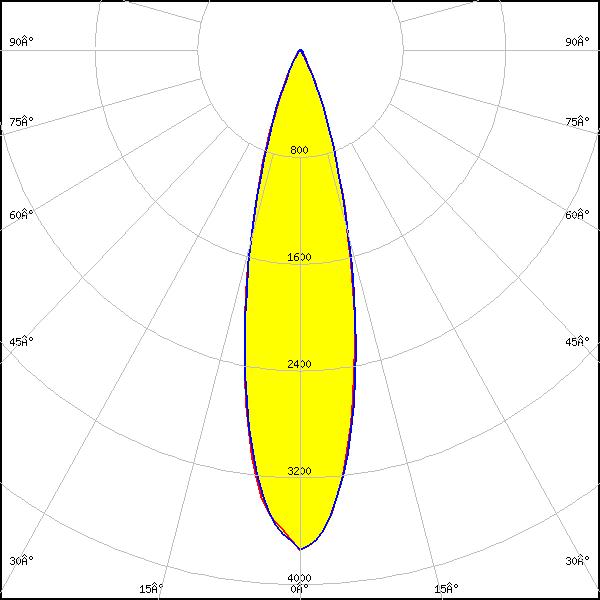

    LED: V9 HD Gen7
    LES size: 9.2 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.744 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 10
    LES size: 9.9 mm
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.675 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta DTW 13mm (21W)
    LES size: 14.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 491 Typ L8
    FWHM: 31°
    FWTM: 61°
    Peak intensity: 2.154 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: Vesta DTW 9mm (4W/6W/12W)
    LES size: 9.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 490 Typ L8
    FWHM: 25°
    FWTM: 48°
    Peak intensity: 3.596 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vesta TW 6mm DP
    LES size: 6.3 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 504 Typ L8
    FWHM: 26°
    FWTM: 45°
    Peak intensity: 3.865 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

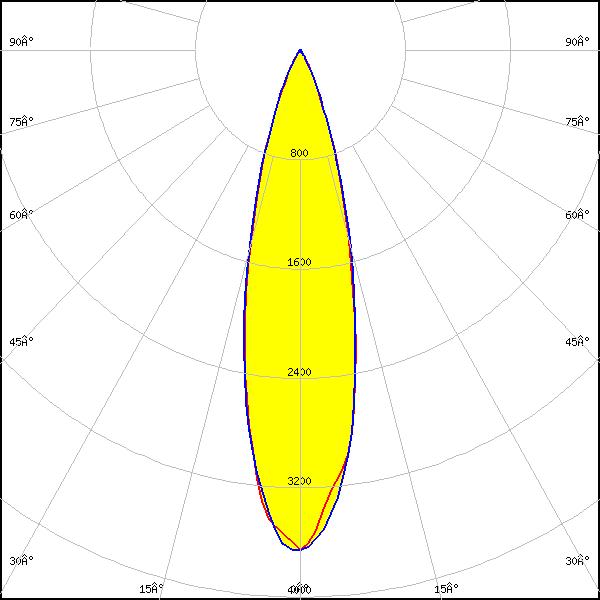

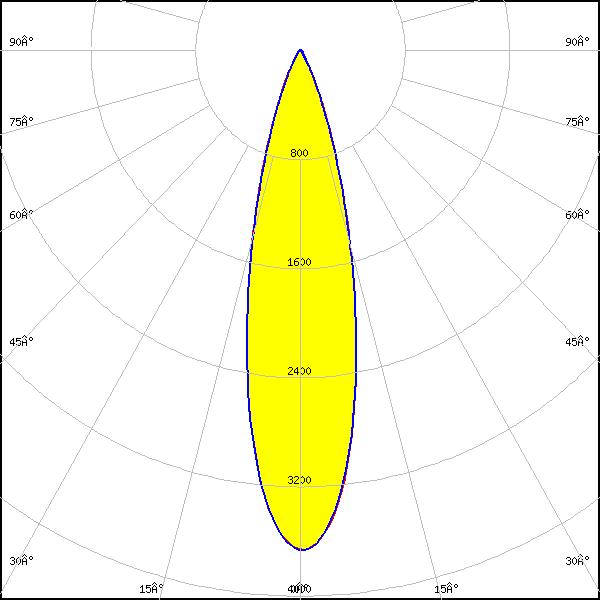

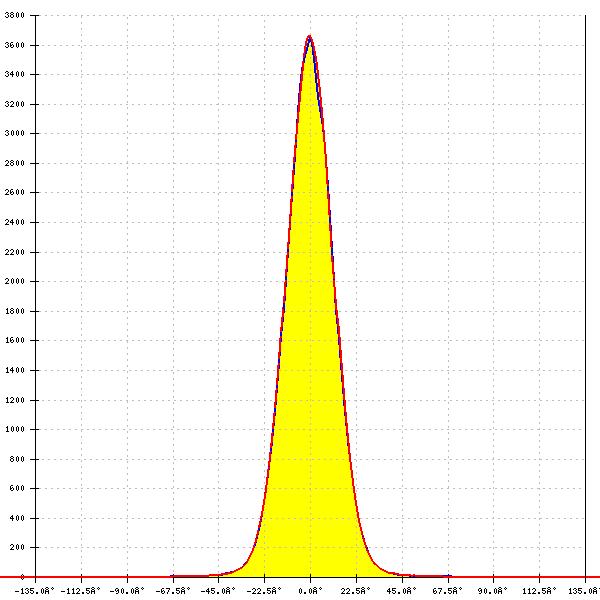

    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 26°
    FWTM: 49°
    Peak intensity: 3.660 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

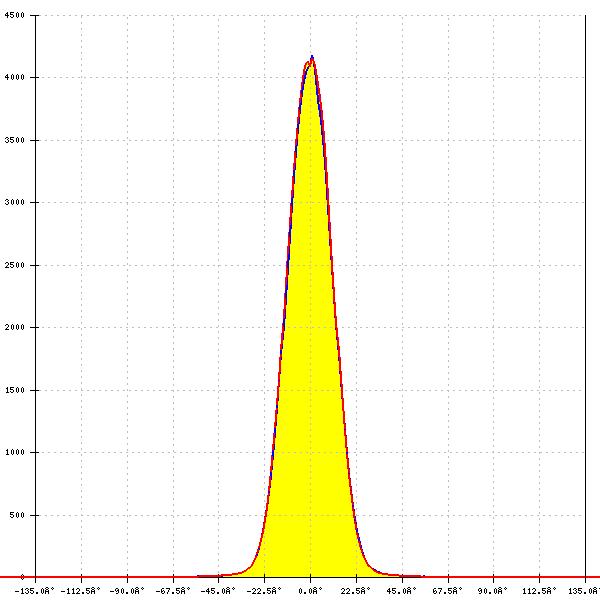

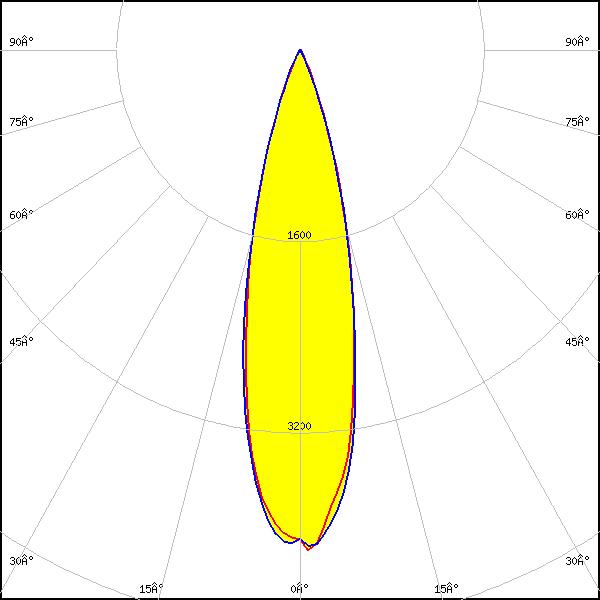

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 26°
    FWTM: 45°
    Peak intensity: 4.180 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

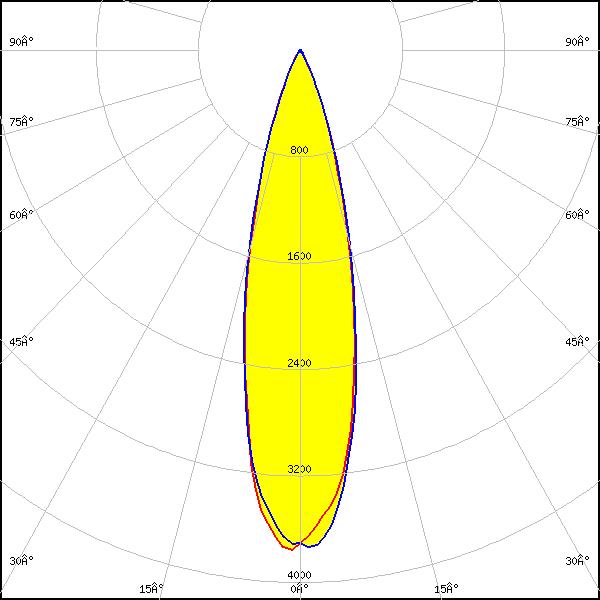

    LED: CLU710/711
    LES size: 8.5 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.760 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

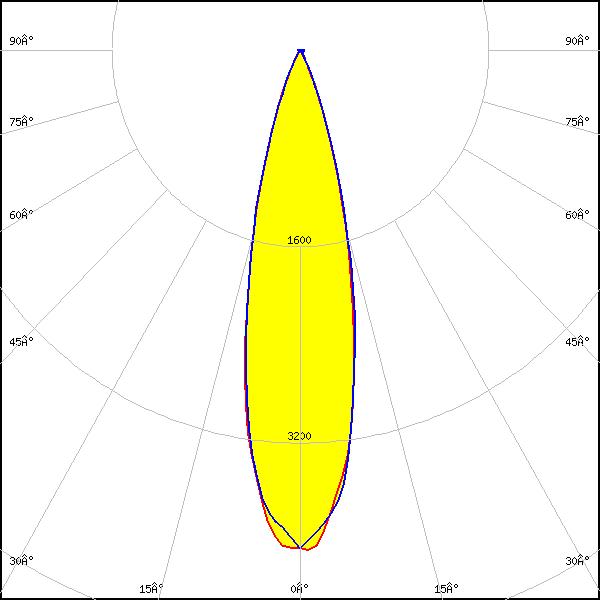

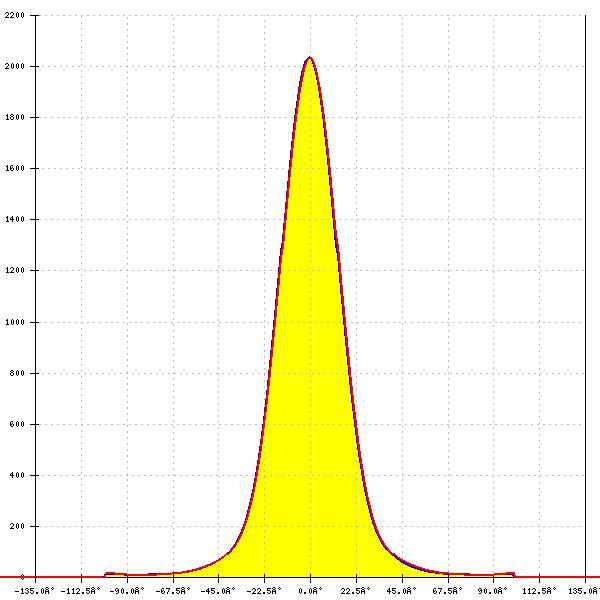

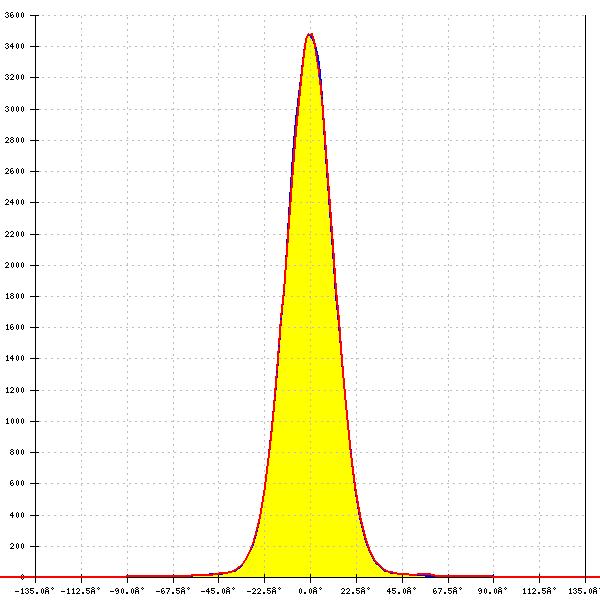

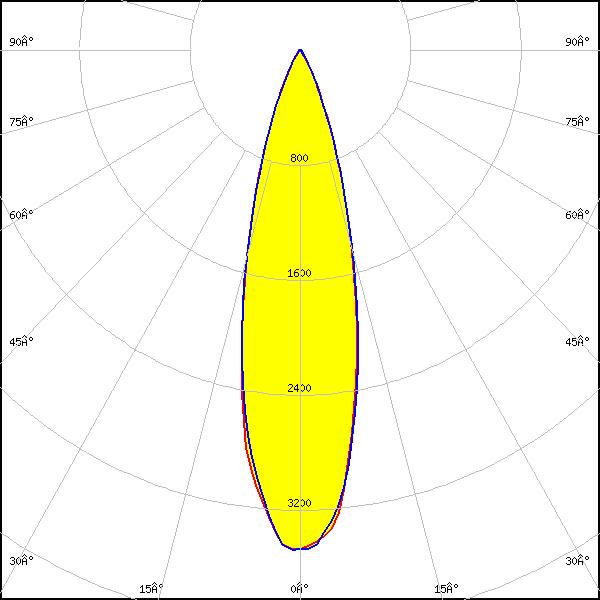

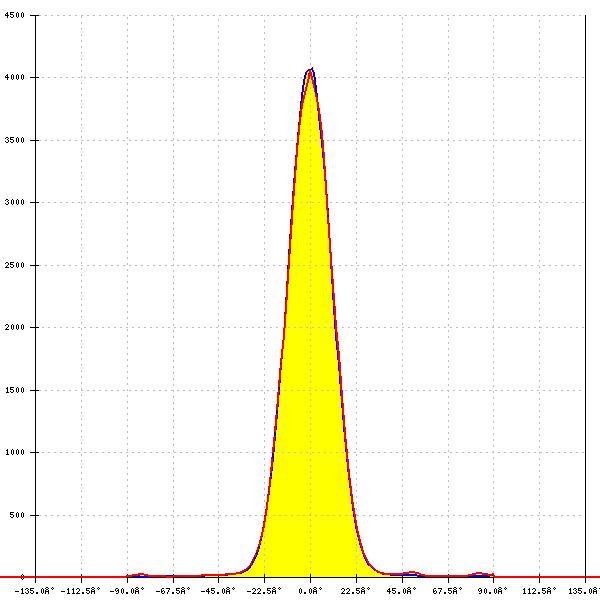

    LED: CLU712/713
    LES size: 8.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 28°
    FWTM: 50°
    Peak intensity: 3.544 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

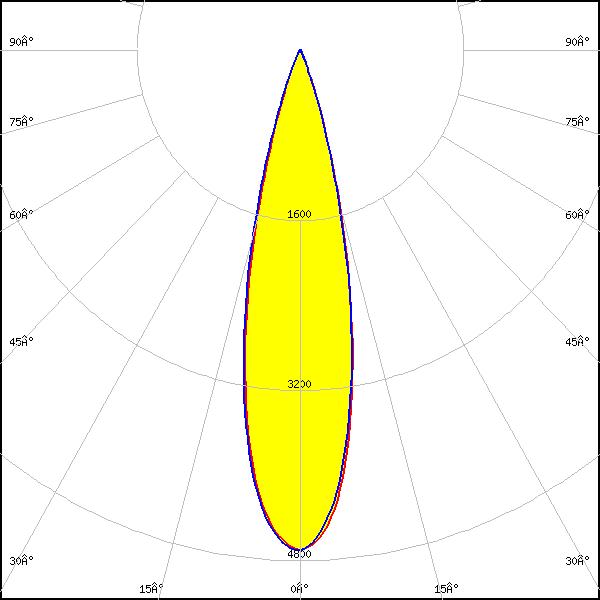

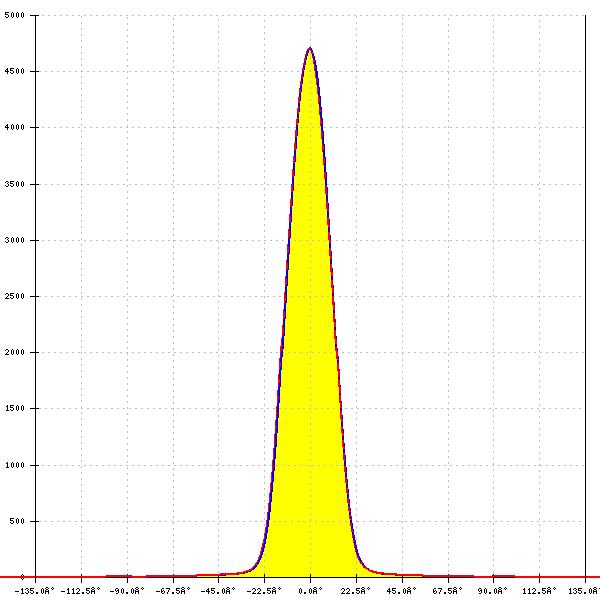

    LED: CLU7A2/7A3
    LES size: 4.2 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 25°
    FWTM: 41°
    Peak intensity: 4.703 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

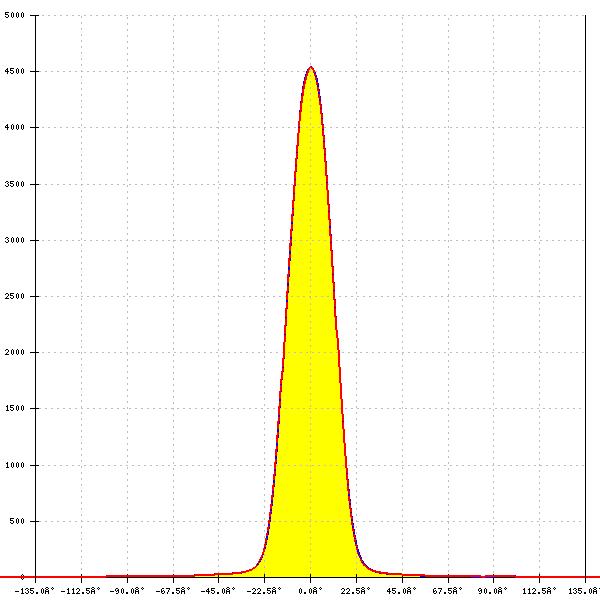

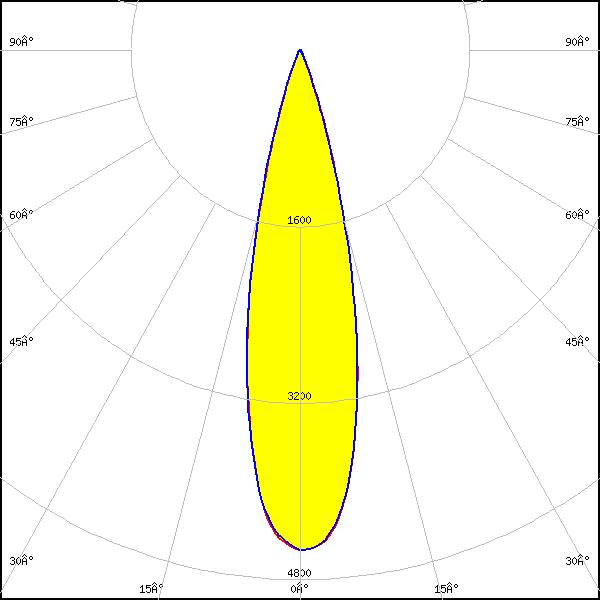

    LED: CLU7B2
    LES size: 3.3 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 25°
    FWTM: 41°
    Peak intensity: 4.534 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

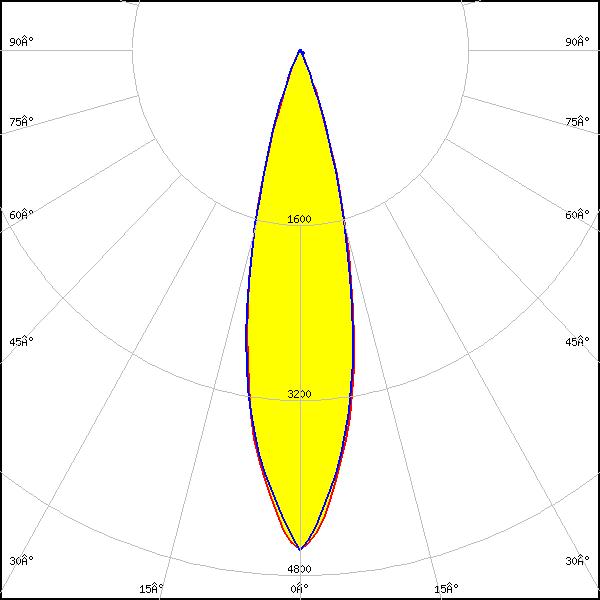

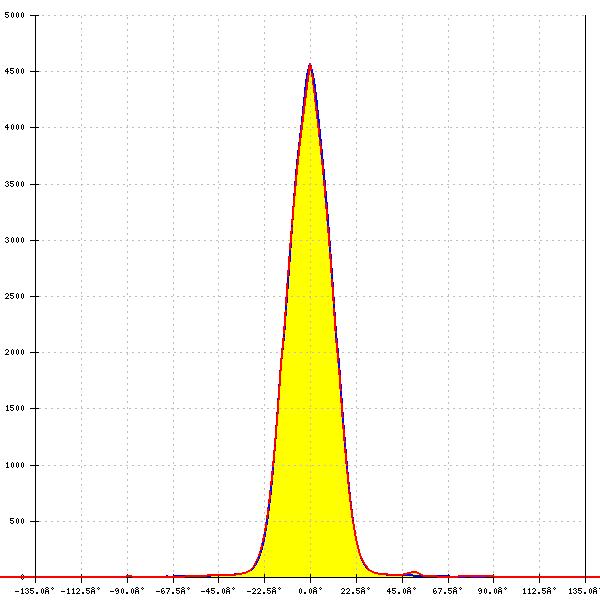

    LED: CHA0304
    LES size: 3.3 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 25°
    FWTM: 42°
    Peak intensity: 4.571 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

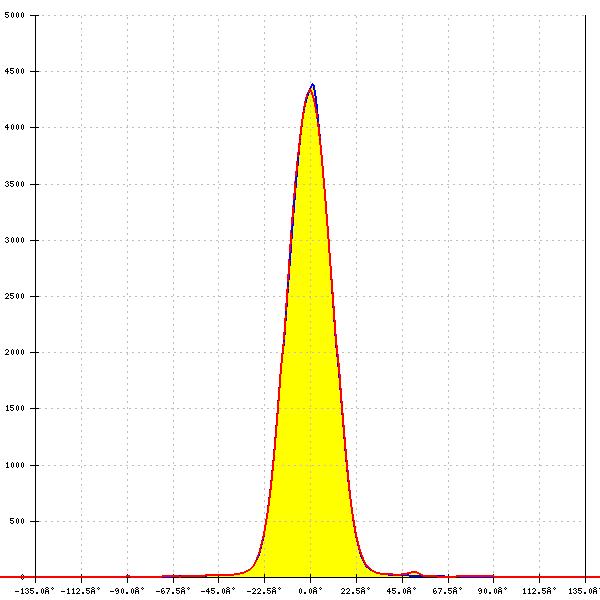

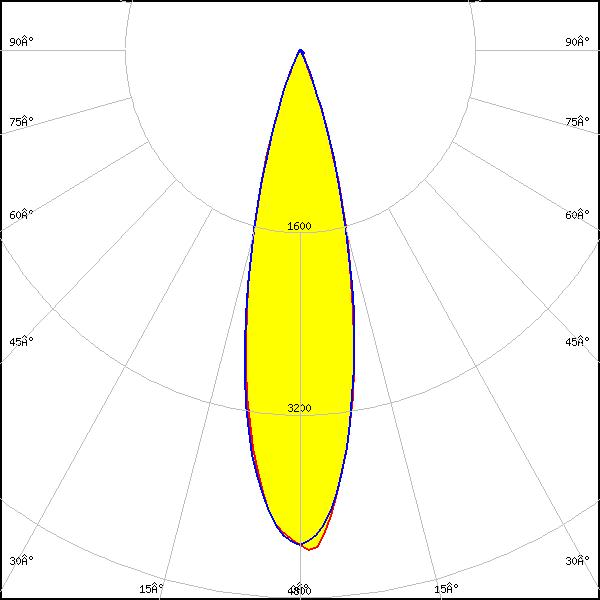

    LED: CHA0410
    LES size: 4.2 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 26°
    FWTM: 44°
    Peak intensity: 4.386 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

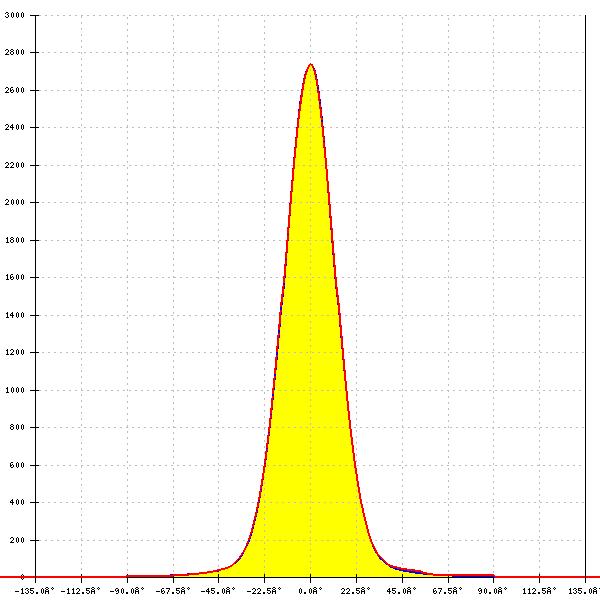

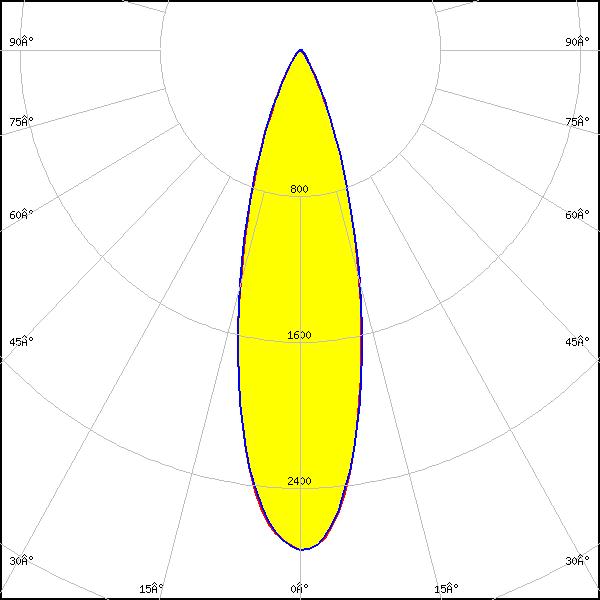

    LED: CMA1825
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 30°
    FWTM: 56°
    Peak intensity: 2.747 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

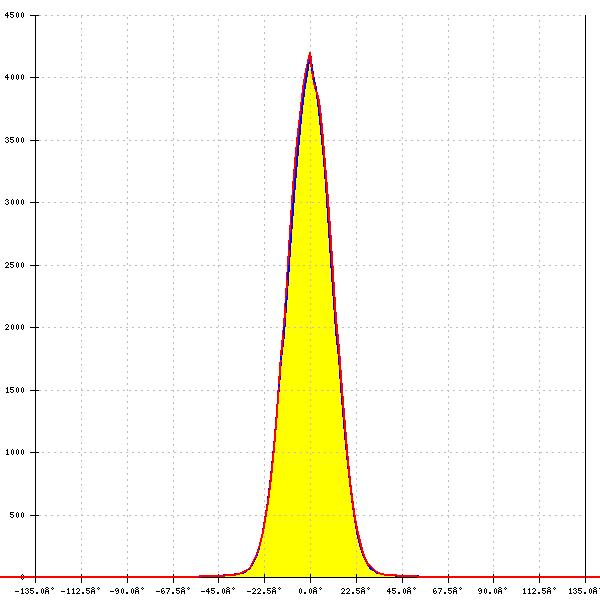

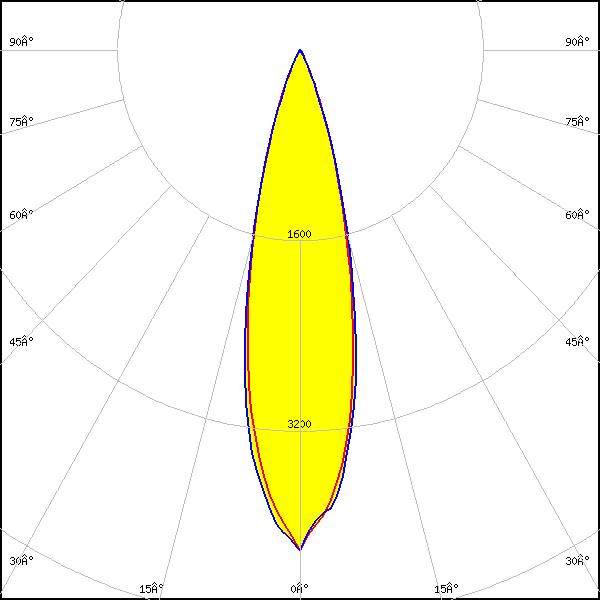

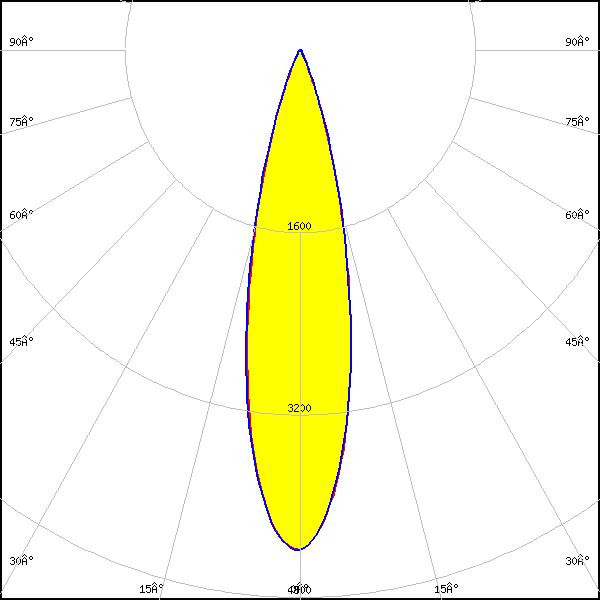

    LED: CXA/B 13xx
    LES size: 6.0 mm
    Required components:
    F15956_HEKLA-SOCKET-J
    FWHM: 25°
    FWTM: 45°
    Peak intensity: 4.200 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

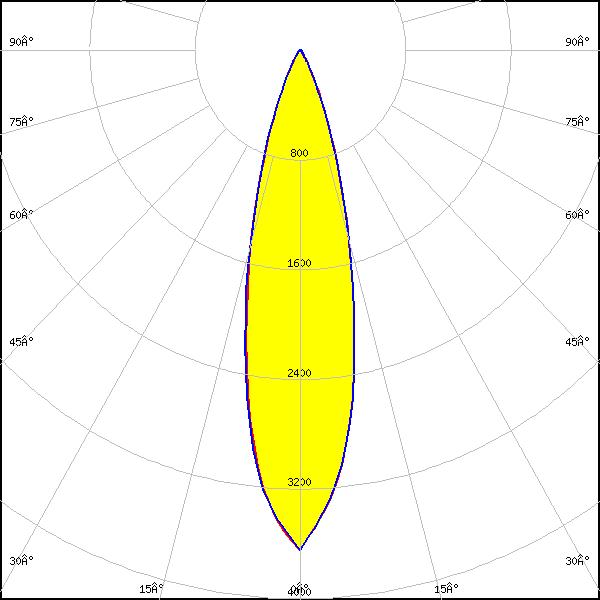

    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    F15256_HEKLA-SOCKET-D
    FWHM: 26°
    FWTM: 49°
    Peak intensity: 3.600 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

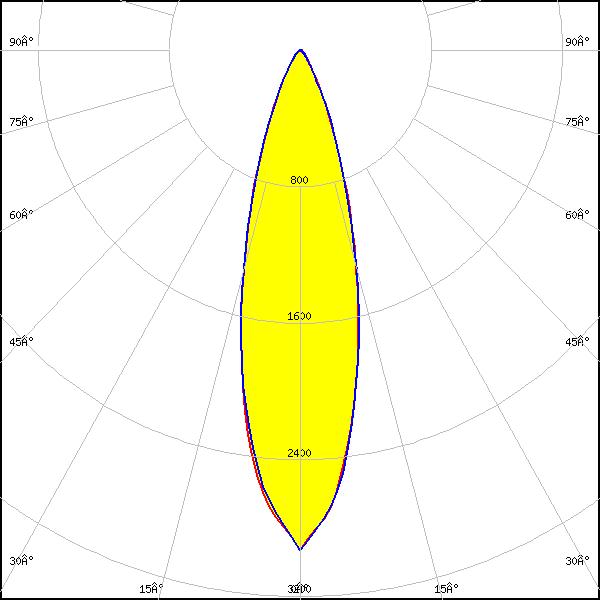

    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    F15254_HEKLA-SOCKET-B
    FWHM: 28°
    FWTM: 55°
    Peak intensity: 2.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

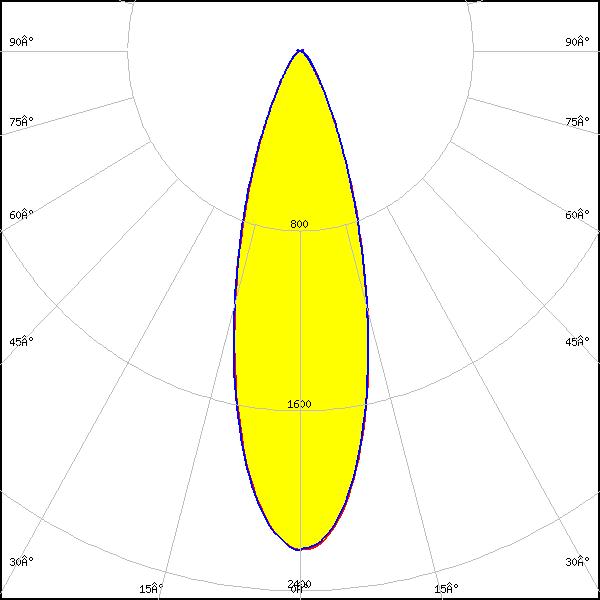

    LED: LUXEON CX Plus CoB L08 (Gen2)
    LES size: 14.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 32°
    FWTM: 62°
    Peak intensity: 2.221 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

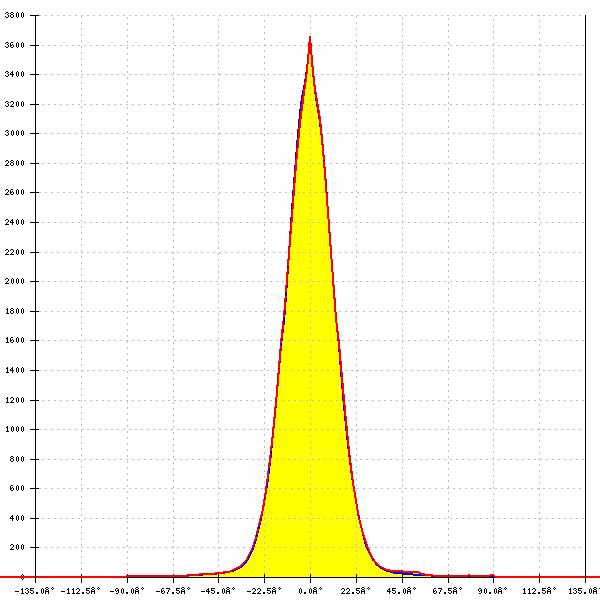

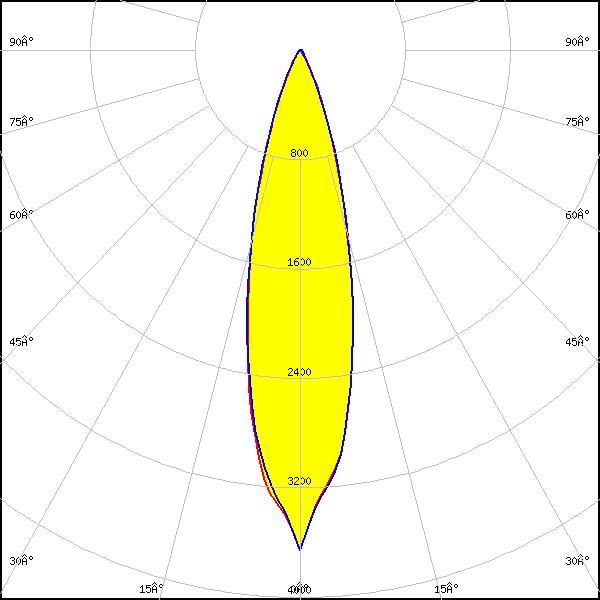

    LED: LUXEON CoB 1202/1203
    LES size: 9.0 mm
    Required components:
    F17437_HEKLA-G2-H
    FWHM: 26°
    FWTM: 50°
    Peak intensity: 3.657 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202s
    LES size: 6.5 mm
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.821 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

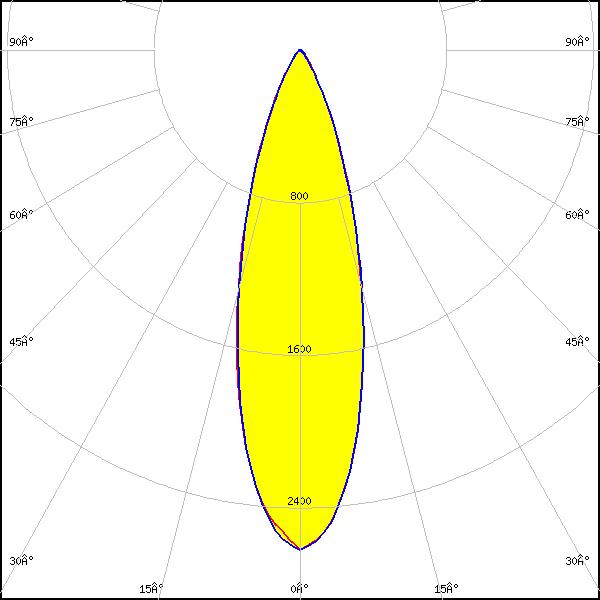

    LED: LUXEON CoB 1204/1205
    LES size: 13.0 mm
    FWHM: 30°
    FWTM: 58°
    Peak intensity: 2.622 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

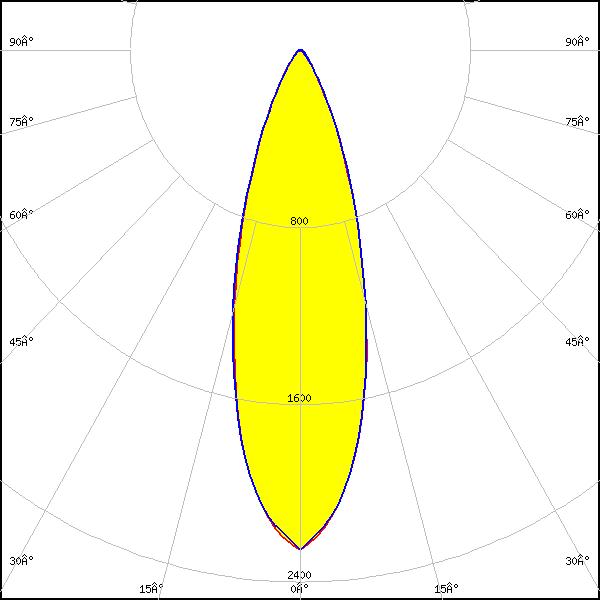

    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    FWHM: 32°
    FWTM: 60°
    Peak intensity: 2.258 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

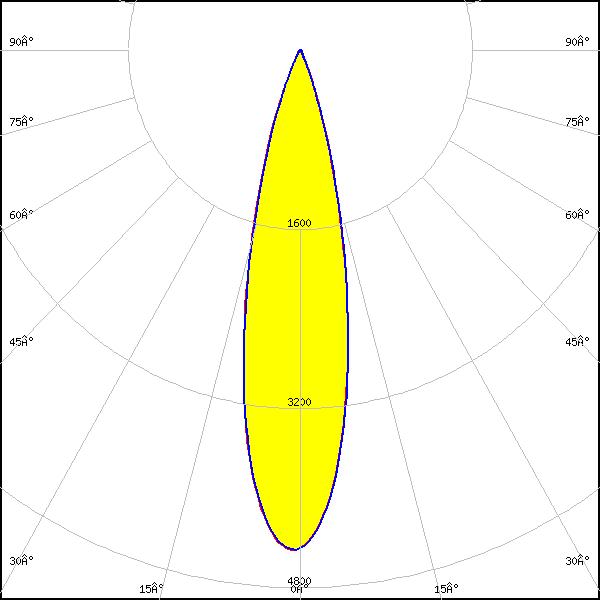

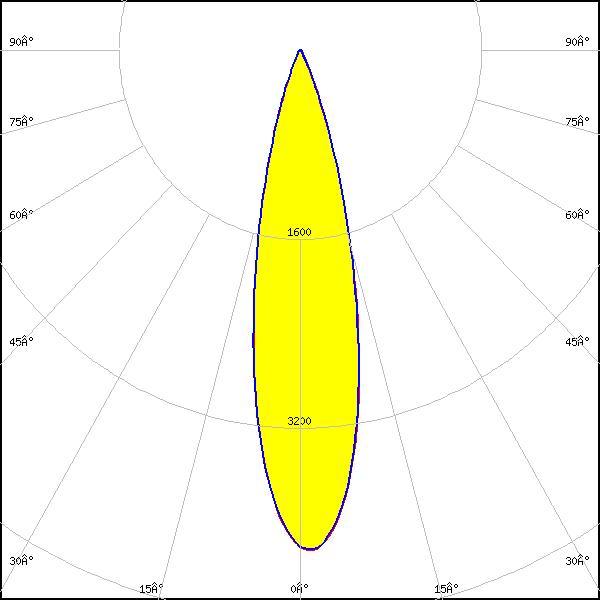

    LED: LUXEON CX Plus CoB - HD S01H4
    LES size: 4.5 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 25°
    FWTM: 43°
    Peak intensity: 4.477 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

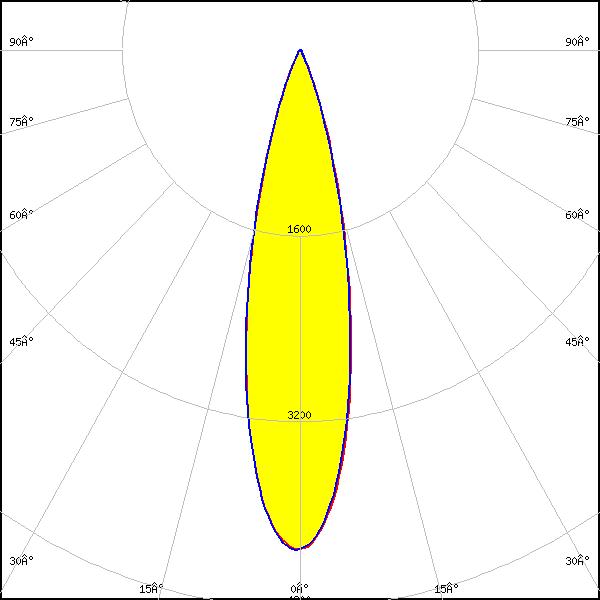

    LED: LUXEON CX Plus CoB - HD S02H6
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 25°
    FWTM: 44°
    Peak intensity: 4.310 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

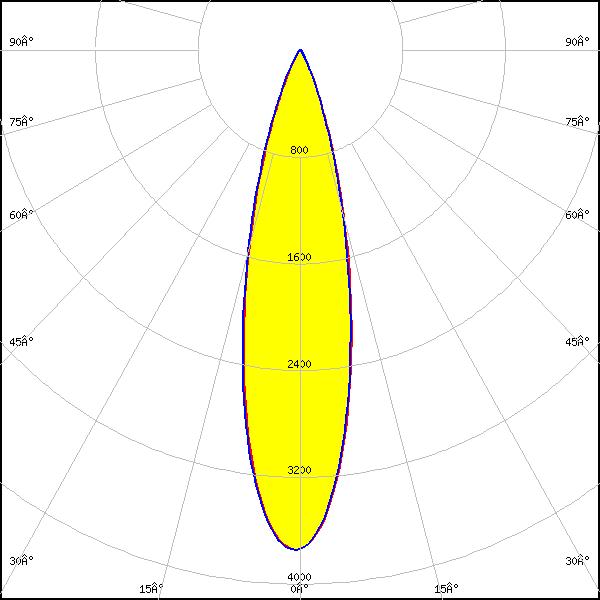

    LED: LUXEON CX Plus CoB - HD S04H9
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 25°
    FWTM: 48°
    Peak intensity: 3.752 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
    LES size: 12.0 mm
    Required components:
    Bender Wirth: 637a Hekla
    FWHM: 28°
    FWTM: 54°
    Peak intensity: 2.932 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

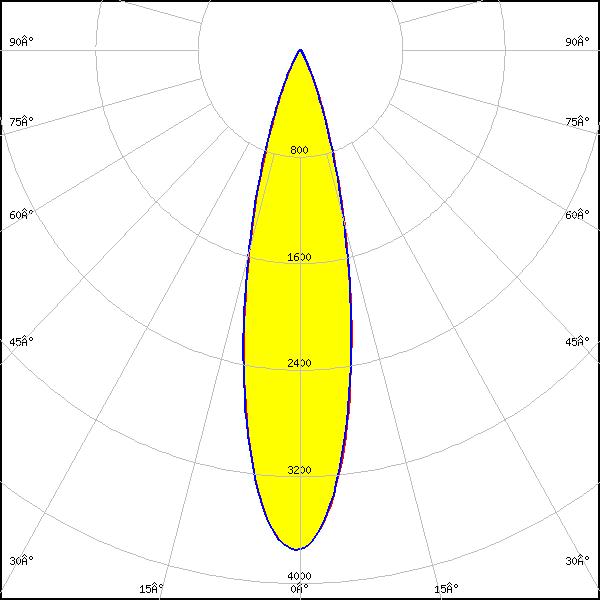

    LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
    LES size: 9.0 mm
    Required components:
    Bender Wirth: 641a Hekla
    FWHM: 25°
    FWTM: 48°
    Peak intensity: 3.755 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CX Plus CoB S01 (Gen2)
    LES size: 6.0 mm
    Required components:
    Bender Wirth: 634c Hekla
    FWHM: 25°
    FWTM: 44°
    Peak intensity: 4.259 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Fusion 21-up (20x24)
    LES size: 7.5 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 442 Typ L8
    FWHM: 25°
    FWTM: 47°
    Peak intensity: 3.707 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 21
    Light colour/type: White

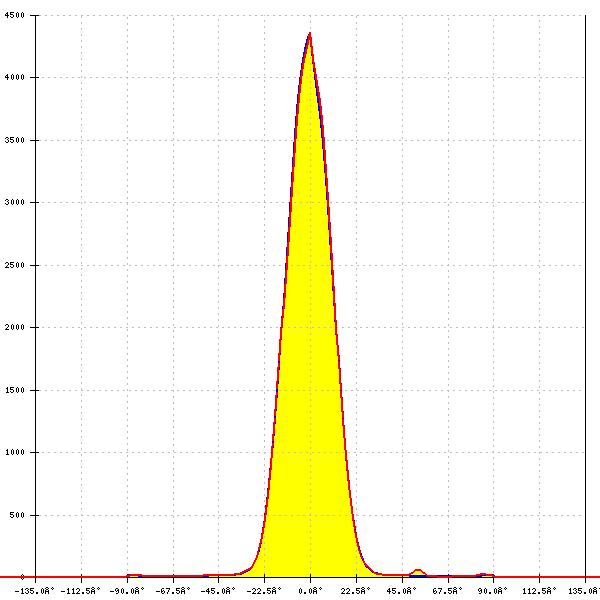

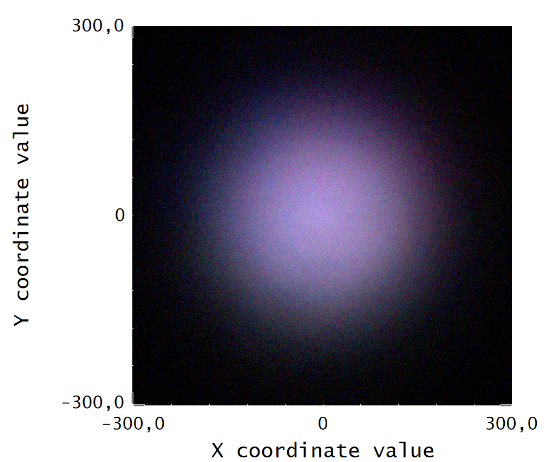

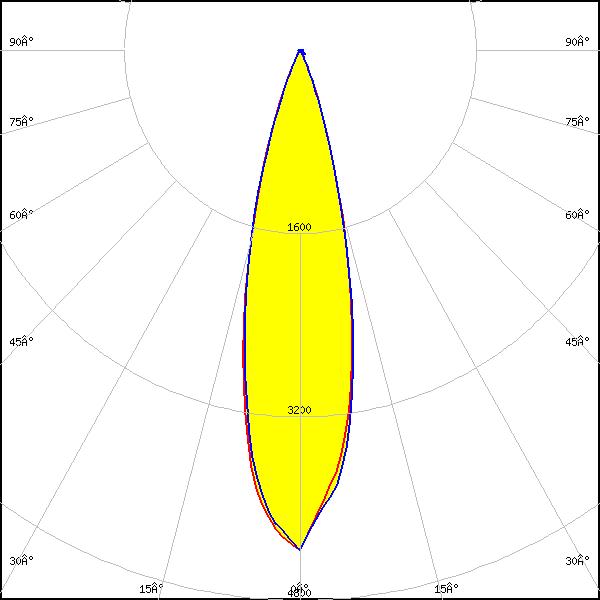

    LED: LUXEON Rubix
    LES size: 0.0 mm
    FWHM: 25°
    FWTM: 43°
    Peak intensity: 4.367 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: RGBW
    LED: CXM-3
    LES size: 3.5 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 25°
    FWTM: 41°
    Peak intensity: 4.645 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

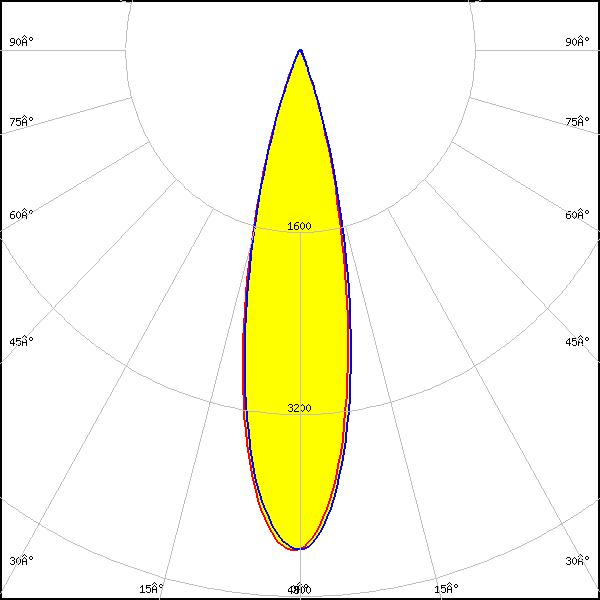

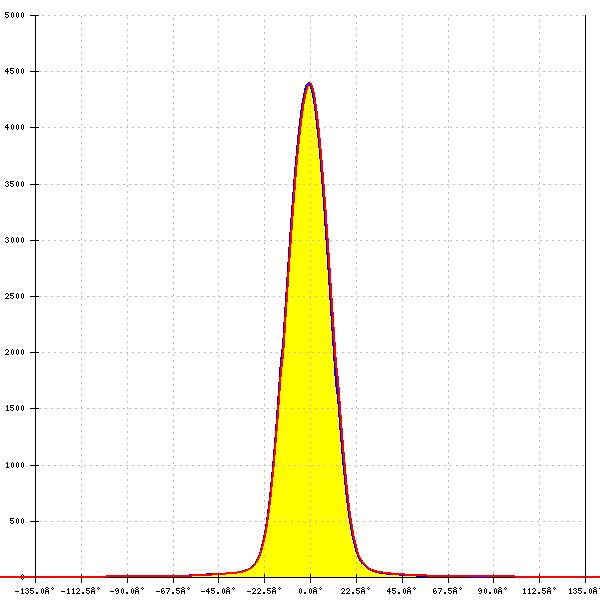

    LED: CXM-4
    LES size: 4.5 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.399 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 6)
    LES size: 5.9 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 26°
    FWTM: 46°
    Peak intensity: 4.142 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB S-Type (LES 7)
    LES size: 6.7 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 26°
    FWTM: 46°
    Peak intensity: 4.078 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

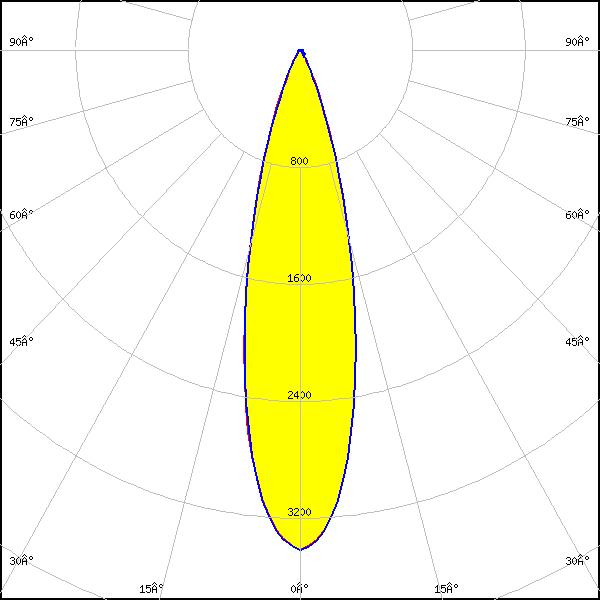

    LED: NFSWE11A
    LES size: 0.0 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.419 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 30
    Light colour/type: White
    LED: OSTAR Stage (S2WN)
    LES size: 0.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 25°
    FWTM: 41°
    Peak intensity: 4.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSTAR Stage (S2WP)
    LES size: 0.0 mm
    Required components:
    F15859_HEKLA-SOCKET-I
    FWHM: 25°
    FWTM: 41°
    Peak intensity: 4.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L13 CoB
    LES size: 13.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 29°
    FWTM: 56°
    Peak intensity: 2.639 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo SLM L15 CoB
    LES size: 15.0 mm
    Required components:
    Bender Wirth: 632a Hekla XL
    FWHM: 32°
    FWTM: 62°
    Peak intensity: 2.224 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

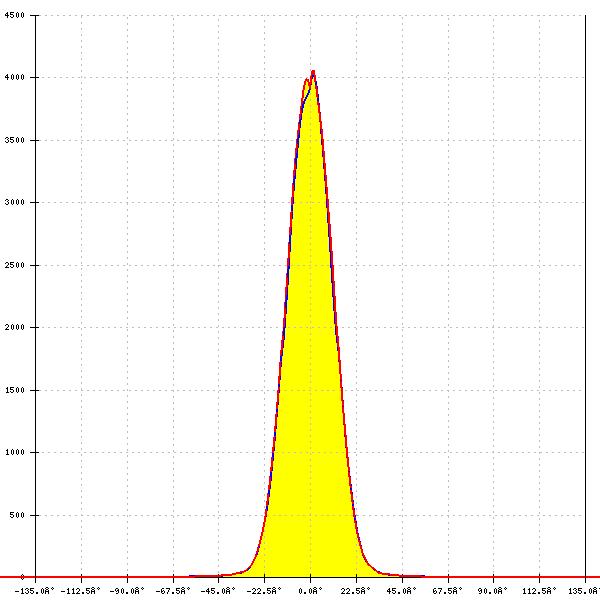

    LED: LC010C
    LES size: 6.0 mm
    Required components:
    F15848_HEKLA-SOCKET-G
    FWHM: 26°
    FWTM: 46°
    Peak intensity: 4.050 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

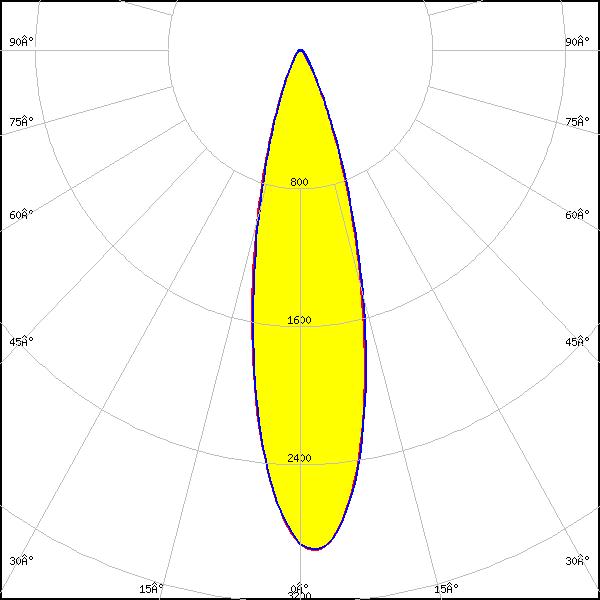

    LED: LC010T (Tunable White)
    LES size: 9.8 mm
    Required components:
    C16142_HEKLA-SOCKET-K
    Bender Wirth: 501 Typ L8
    FWHM: 26°
    FWTM: 51°
    Peak intensity: 2.942 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: Tunable White
    LED: LC020C
    LES size: 8.0 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 26°
    FWTM: 46°
    Peak intensity: 4.106 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

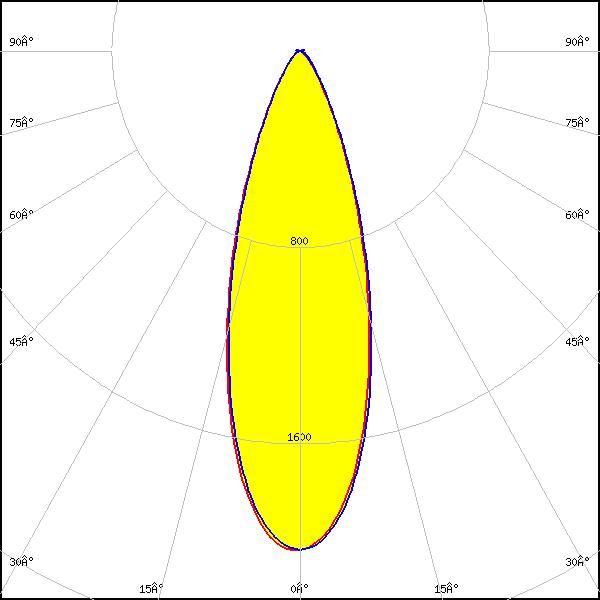

    LED: MJT COB LES 14.5
    LES size: 14.5 mm
    Required components:
    F17438_HEKLA-G2-I
    FWHM: 34°
    FWTM: 64°
    Peak intensity: 2.035 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

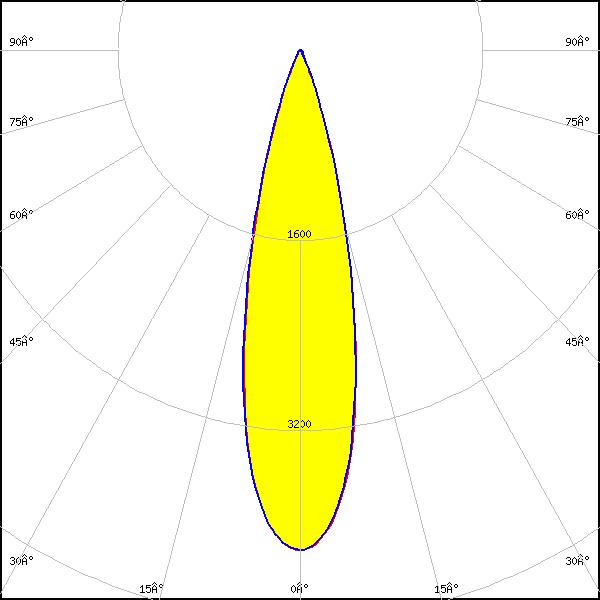

    LED: MJT COB LES 6
    LES size: 6.0 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 26°
    FWTM: 44°
    Peak intensity: 4.213 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

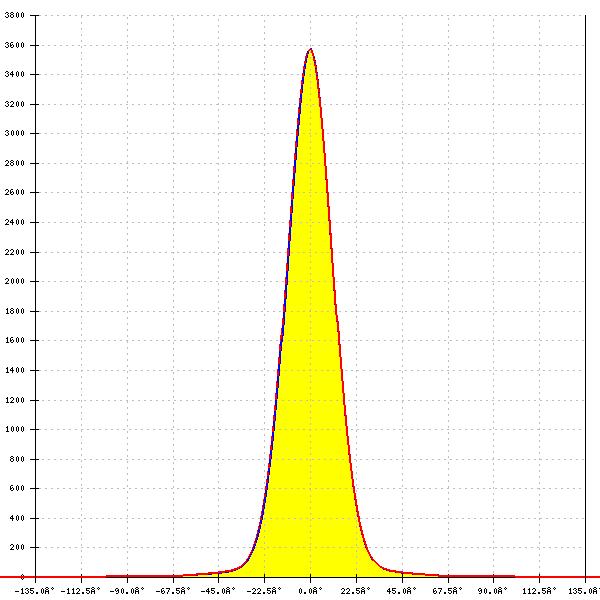

    LED: MJT COB LES 9.8
    LES size: 9.8 mm
    Required components:
    F17435_HEKLA-G2-C
    FWHM: 26°
    FWTM: 49°
    Peak intensity: 3.572 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SLE G7 LES09
    LES size: 9.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 25°
    FWTM: 48°
    Peak intensity: 3.720 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

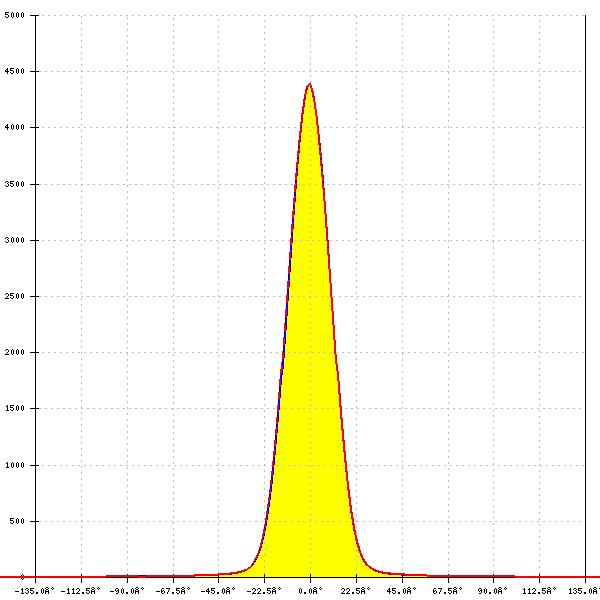

    LED: XOB 6 mm
    LES size: 6.0 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 24°
    FWTM: 44°
    Peak intensity: 4.390 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XOB 9.8 mm
    LES size: 9.8 mm
    Required components:
    F15255_HEKLA-SOCKET-C
    FWHM: 26°
    FWTM: 48°
    Peak intensity: 3.668 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XTM - 9mm LES
    LES size: 9.0 mm
    Required components:
    C15743_XTM-ADAPTER-50-B
    FWHM: 26°
    FWTM: 49°
    Peak intensity: 3.622 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
