    C16663_CLAUDIA-Z2T25

    Print

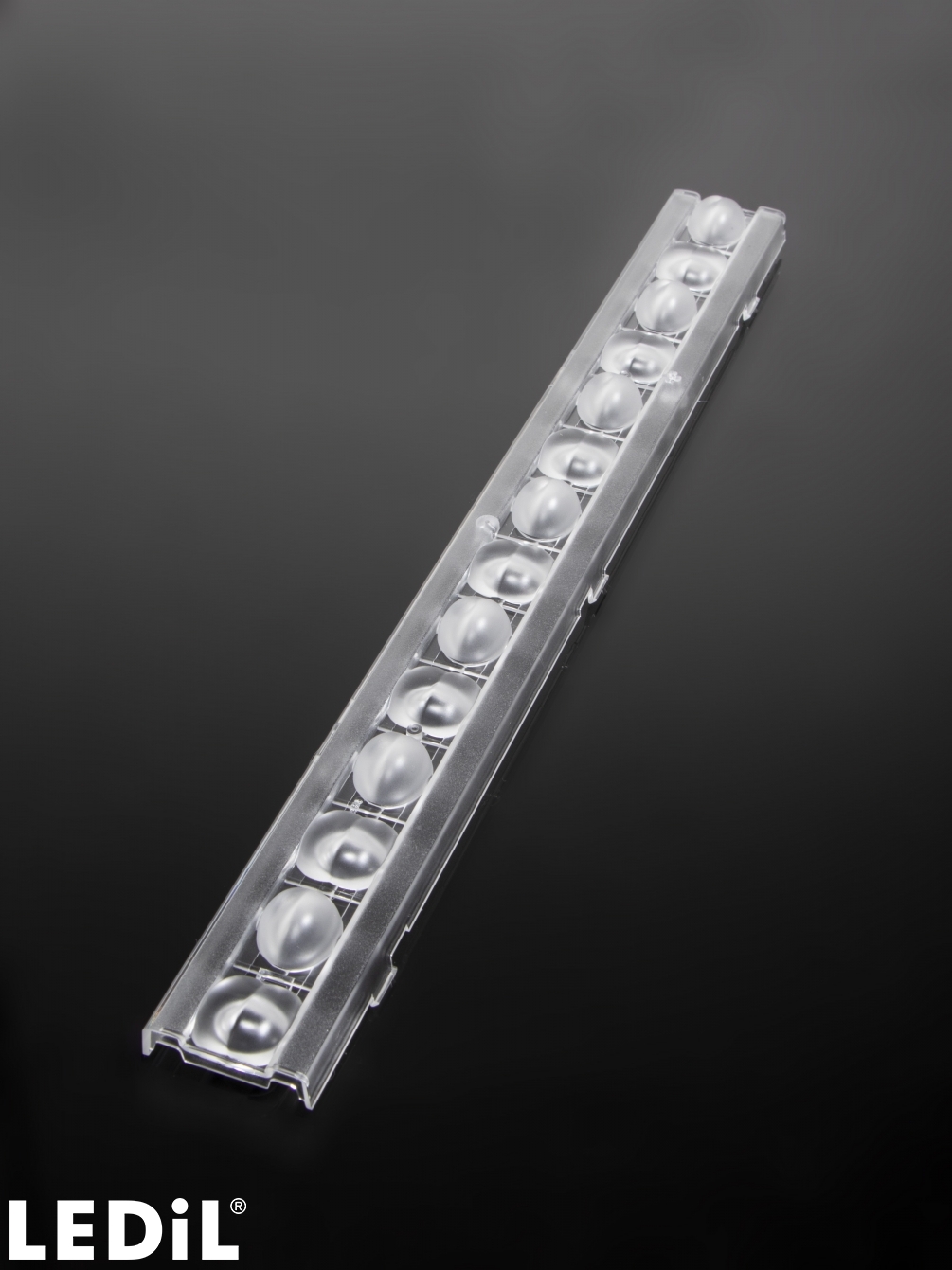

    Double asymmetric beam for aisle and shelf lighting

    Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

    Specification
    • Dimensions:
      279 x  29 mm
    • Height:
      13.60 mm
    • Fastening:
      clips
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      180 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      6.8 kg
    • MPQ:
      180 pcs
    • MOQ:
      20160 pcs
    • MOQ size:
      400 x 300 x 300 mm
    • MOQ weight:
      6.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C16663_CLAUDIA-Z2T25
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
    WHERE TO BUY

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR184 - Change of minimum order quantities of specific products (002)

    News

    New Products - 2019-08-27

    Application guide

    Guide for Retail Lighting Optics

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Article

    Illuminating supermarkets with LEDiL optics

    News

    Linear lighting solutions

    News

    NEW PRODUCTS - 2018-11-13

    News

    CLAUDIA The affordable choice for supermarket and retail lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Application area

    Retail Lighting

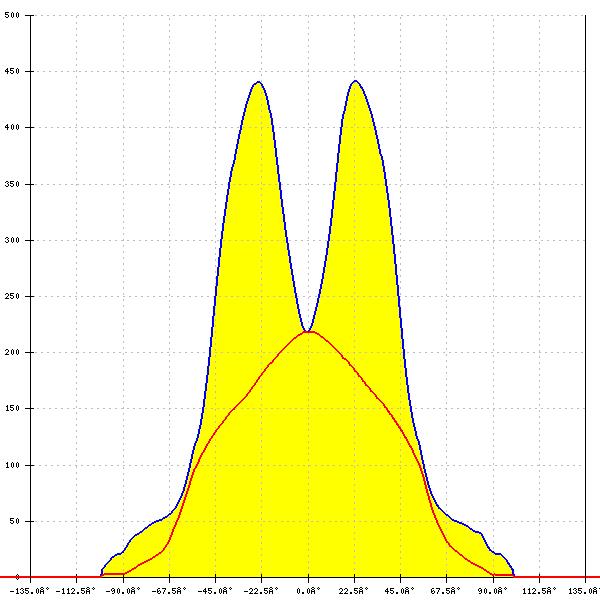

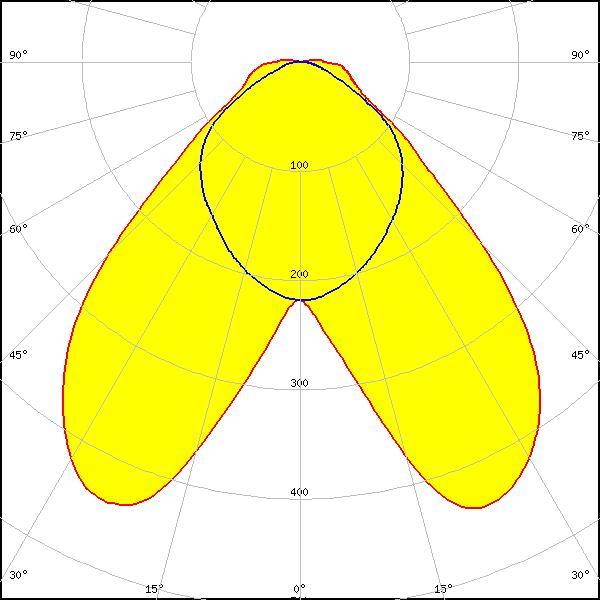

    Optical results

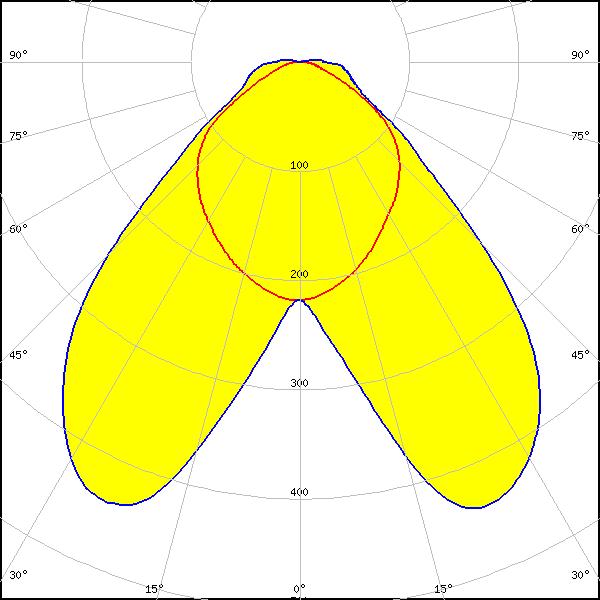

    LED: J Series 2835
    FWHM: asymmetric
    Peak intensity: 0.441 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White

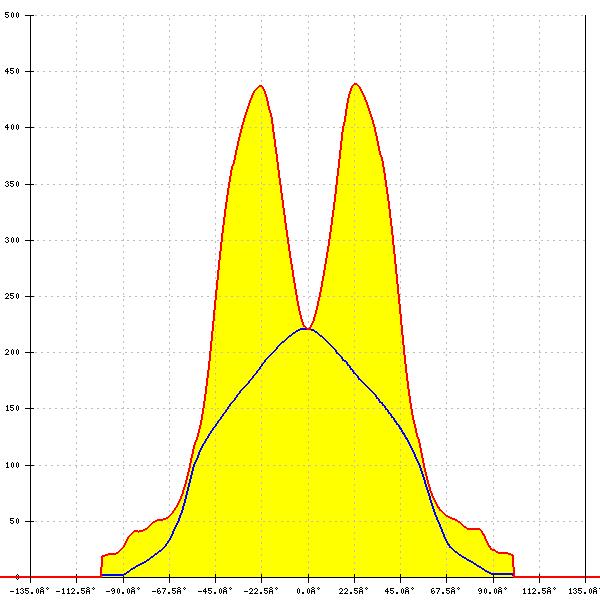

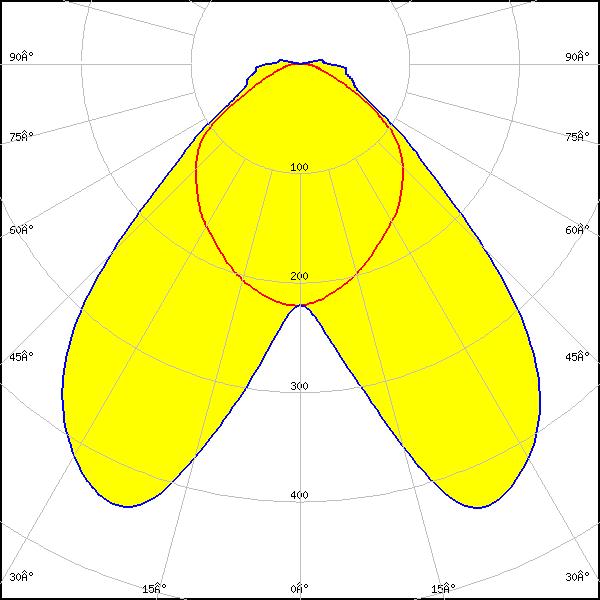

    LED: LinLED 280x26mm 1300lm 840 2C 42V Opt G1
    FWHM: asymmetric
    Peak intensity: 0.439 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

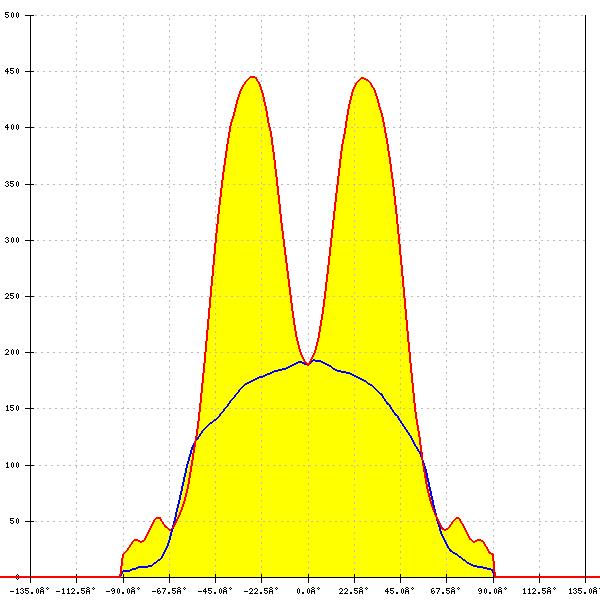

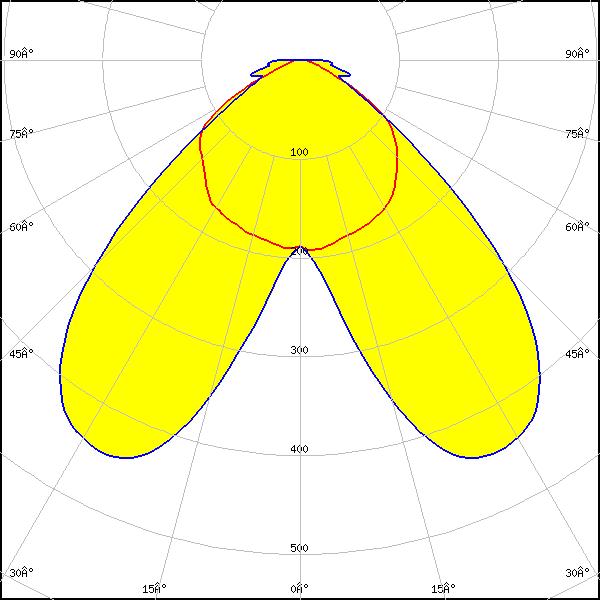

    LED: NFMW48xA
    FWHM: asymmetric
    Peak intensity: 0.445 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

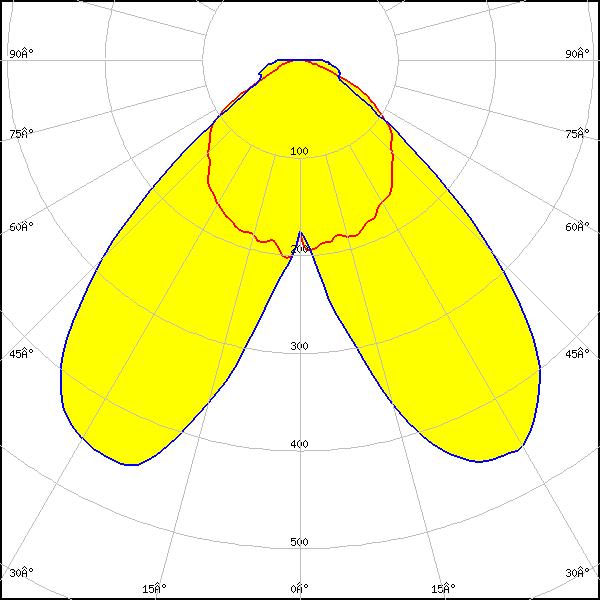

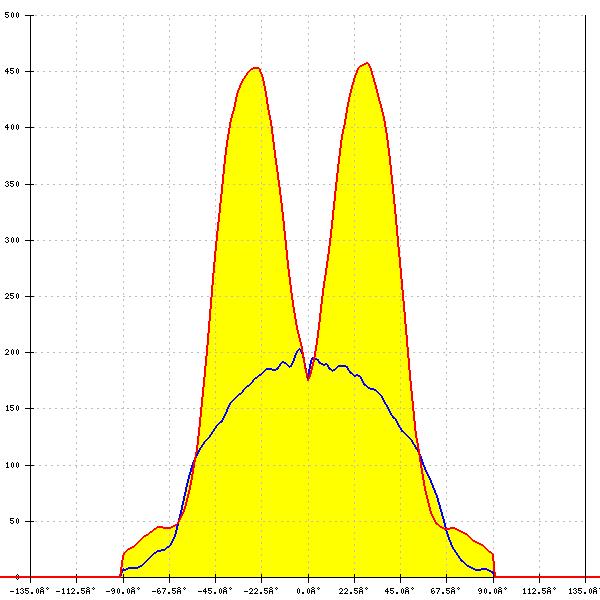

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.458 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

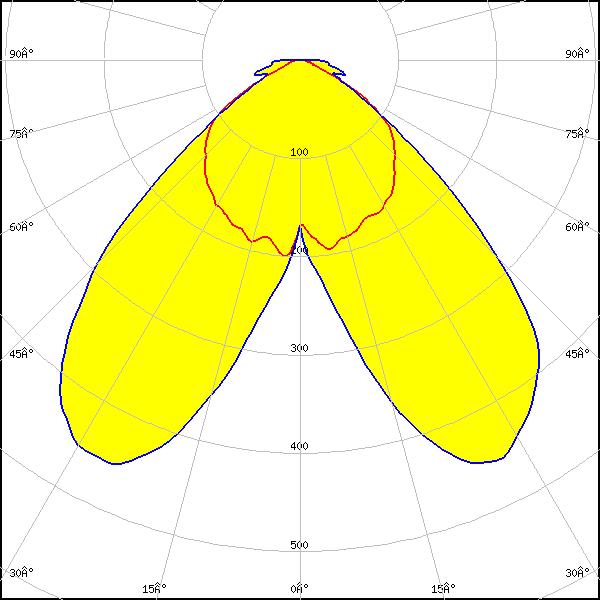

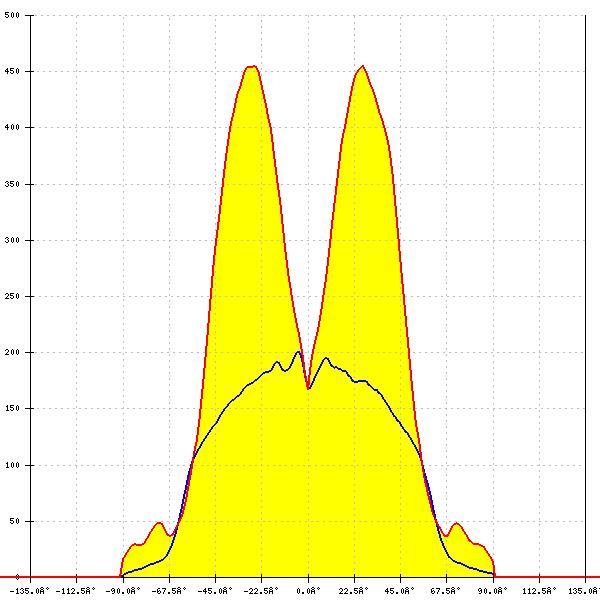

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.455 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

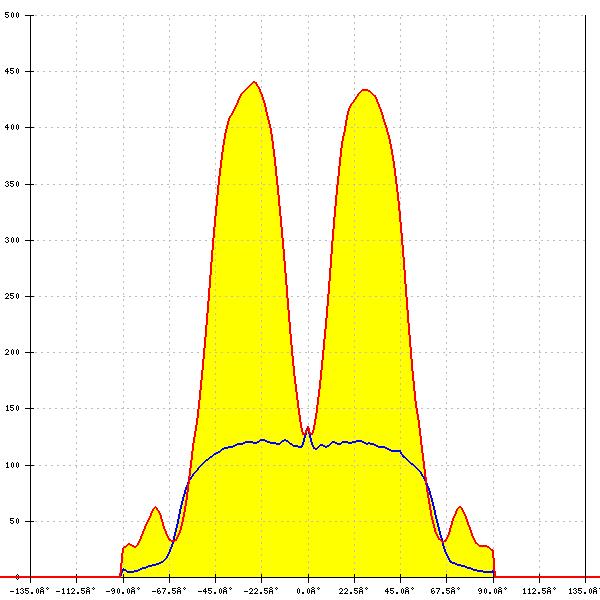

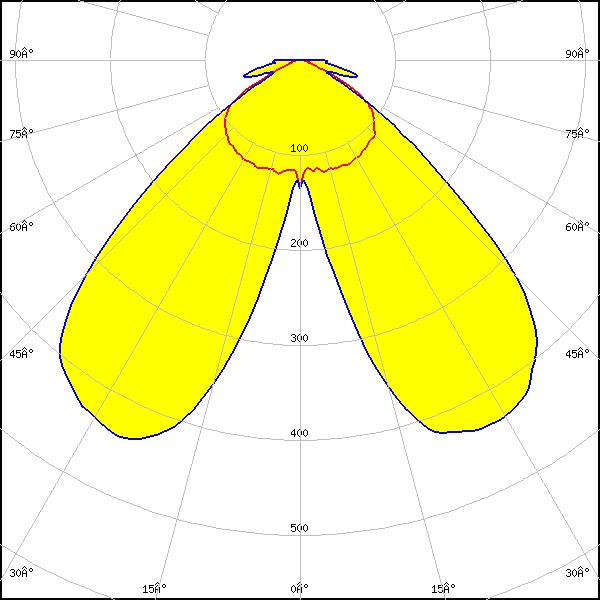

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.440 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Hyper Red

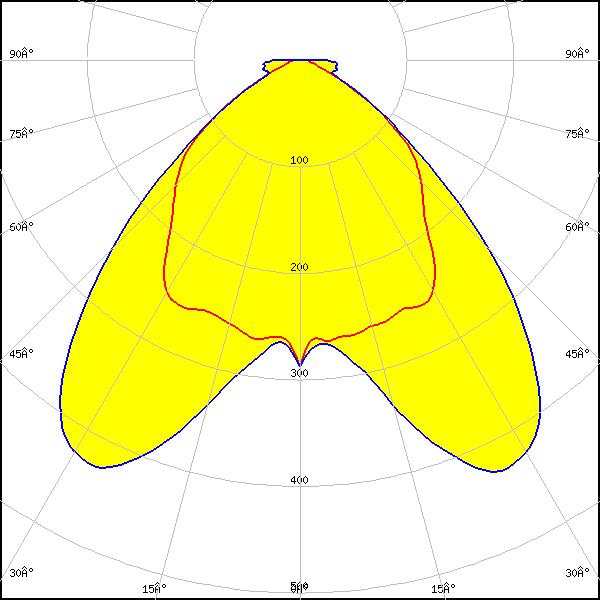

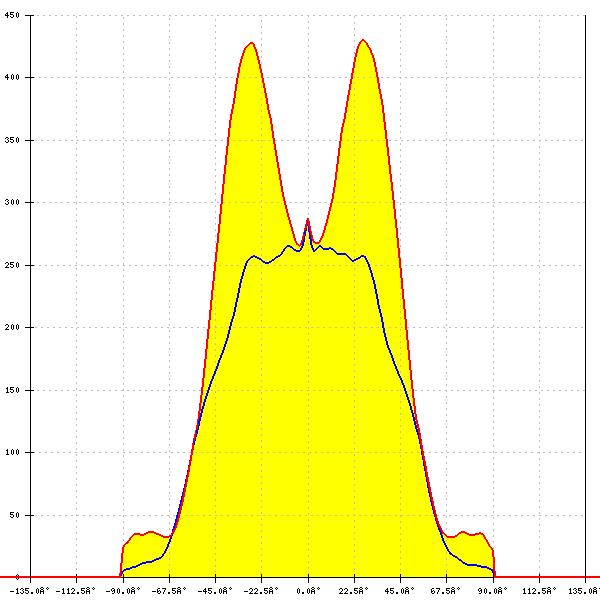

    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.430 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White

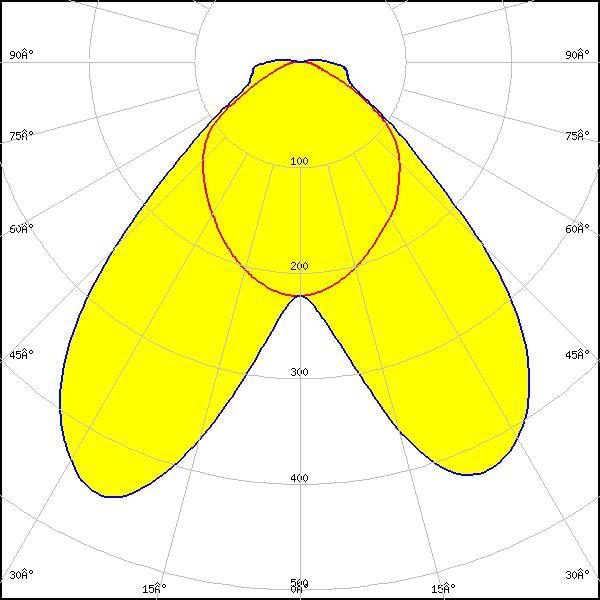

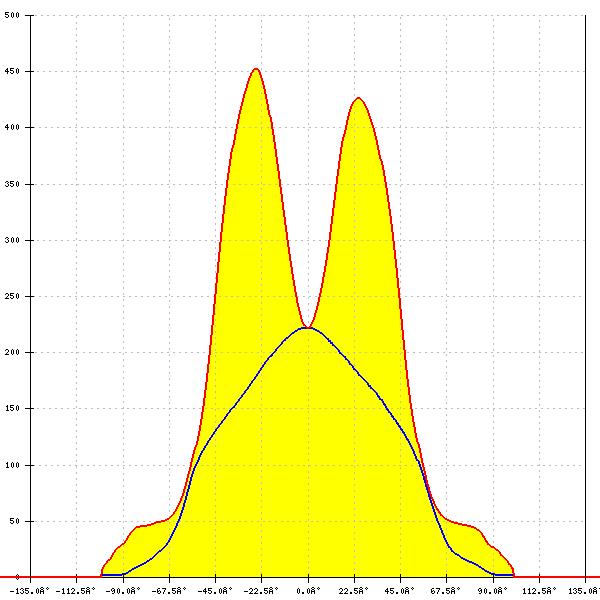

    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.450 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
