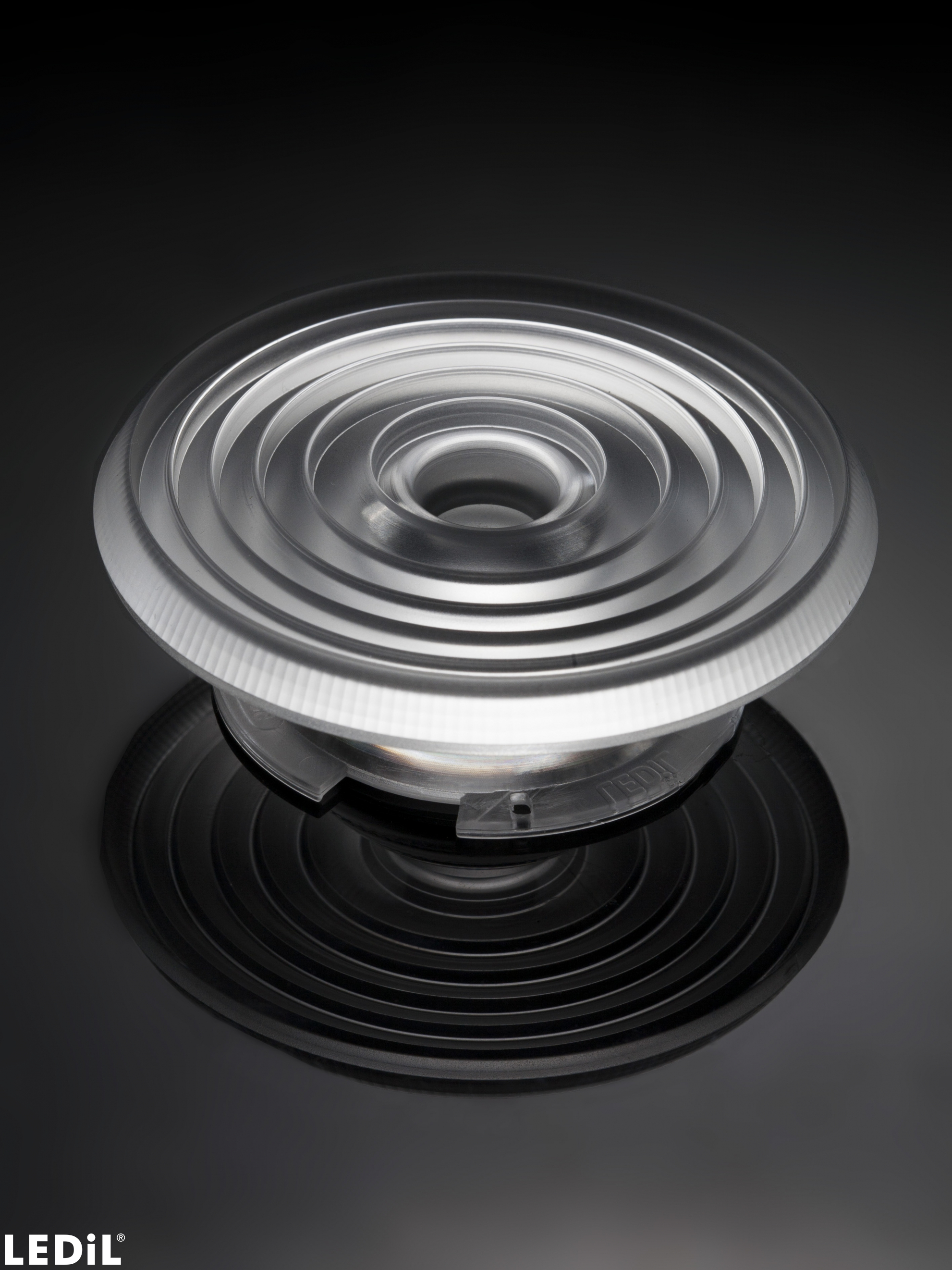

C16264_MOLLY-M-B
Print
~35° medium beam compatible with 3rd party connectors from BJB, Stucchi and Tridonic
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

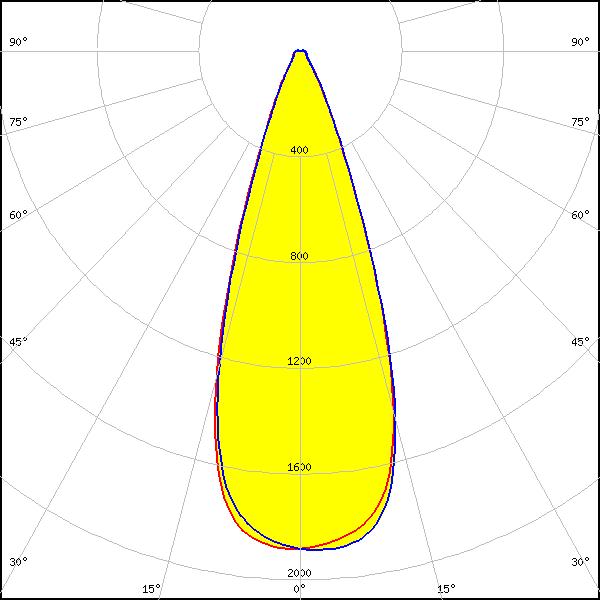

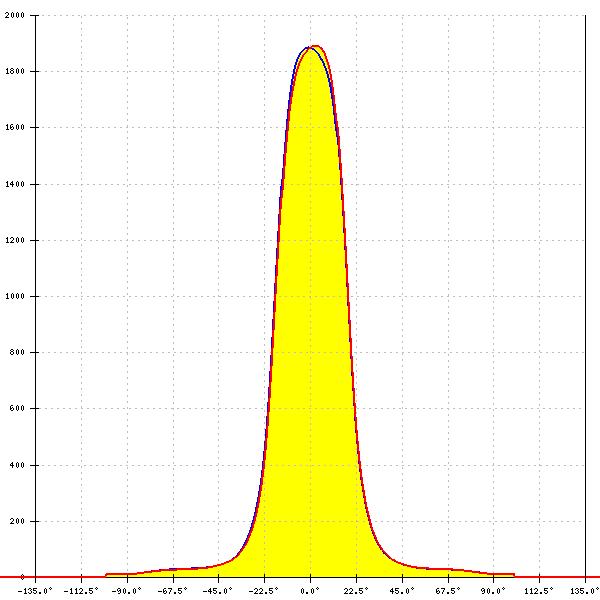

LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
36°
FWTM:
58°
Peak intensity:
1.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

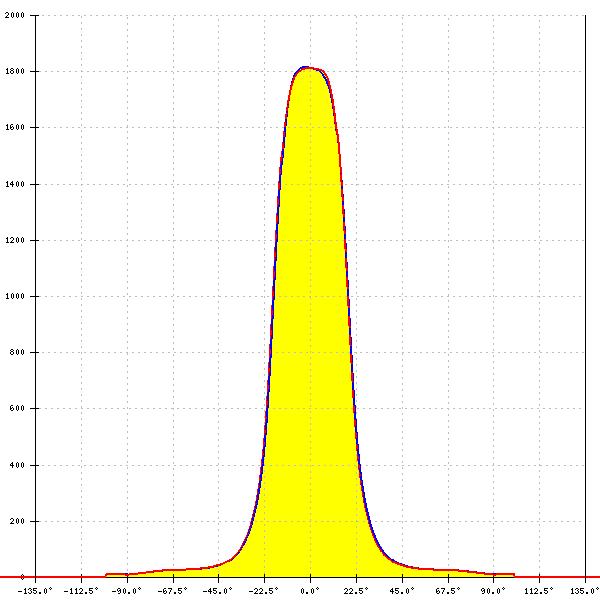

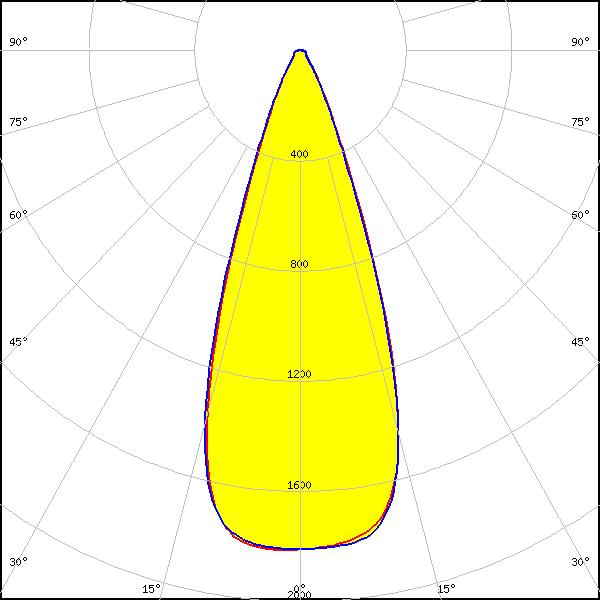

LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
BJB: 47.319.2011
FWHM:
38°
FWTM:
59°
Peak intensity:
1.816 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

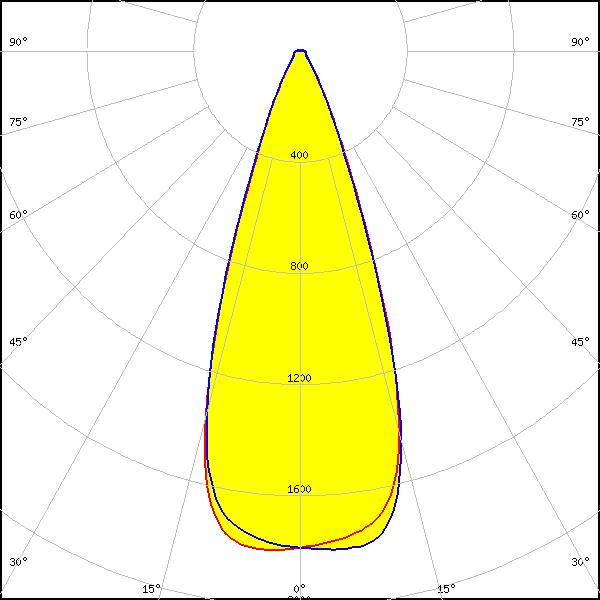

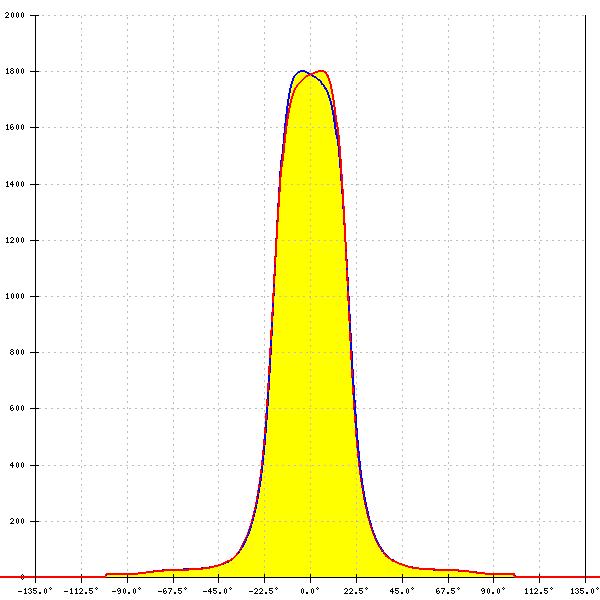

LED:
SLE G7 LES15
LES size: 15.0 mm
Required components:
BJB: 47.319.2021
FWHM:
38°
FWTM:
59°
Peak intensity:
1.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

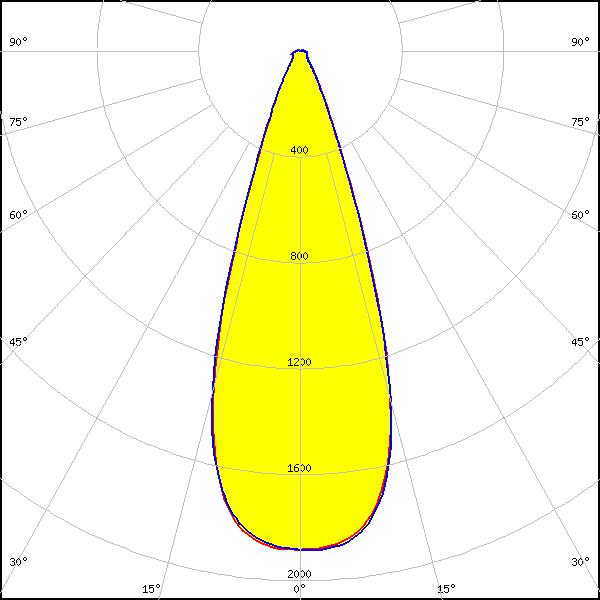

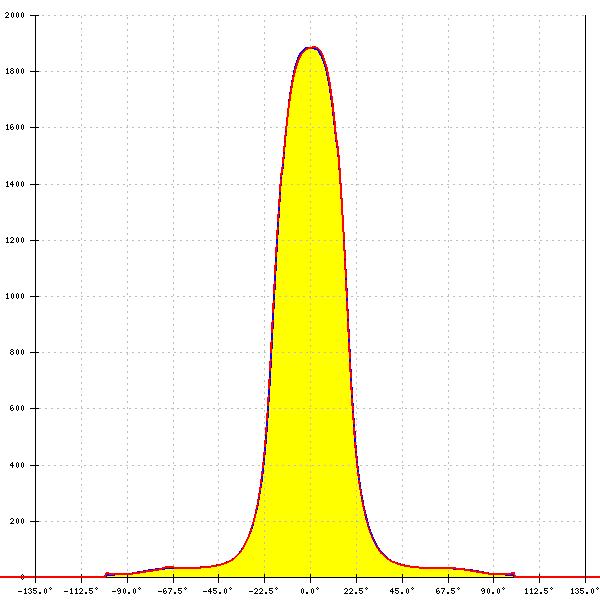

LED:
SLE G7 LES17 H
FWHM:
36°
FWTM:
57°
Peak intensity:
1.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

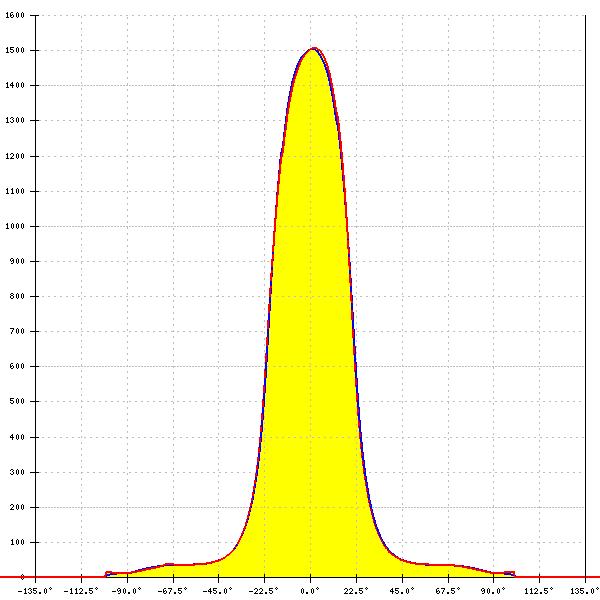

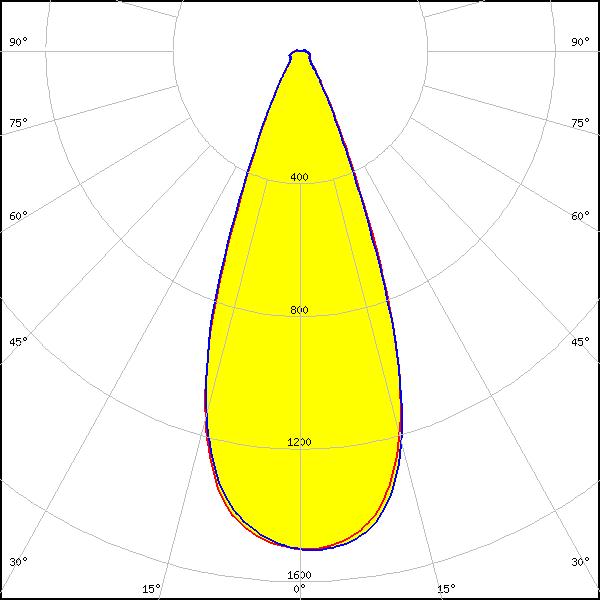

LED:
SLE G7 LES21 H
FWHM:
41°
FWTM:
64°
Peak intensity:
1.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

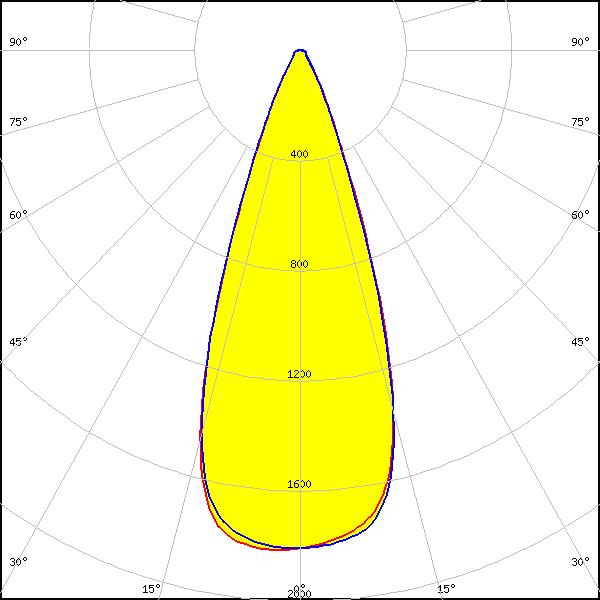

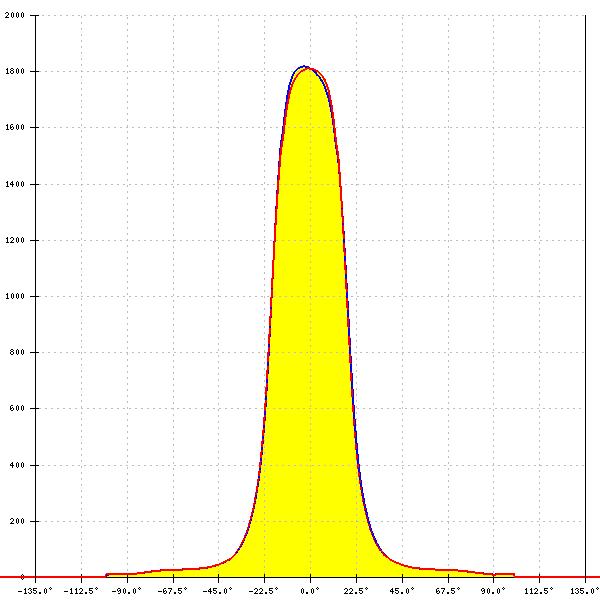

LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
38°
FWTM:
59°
Peak intensity:
1.817 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
