    C16263_MOLLY-S-B

    Print

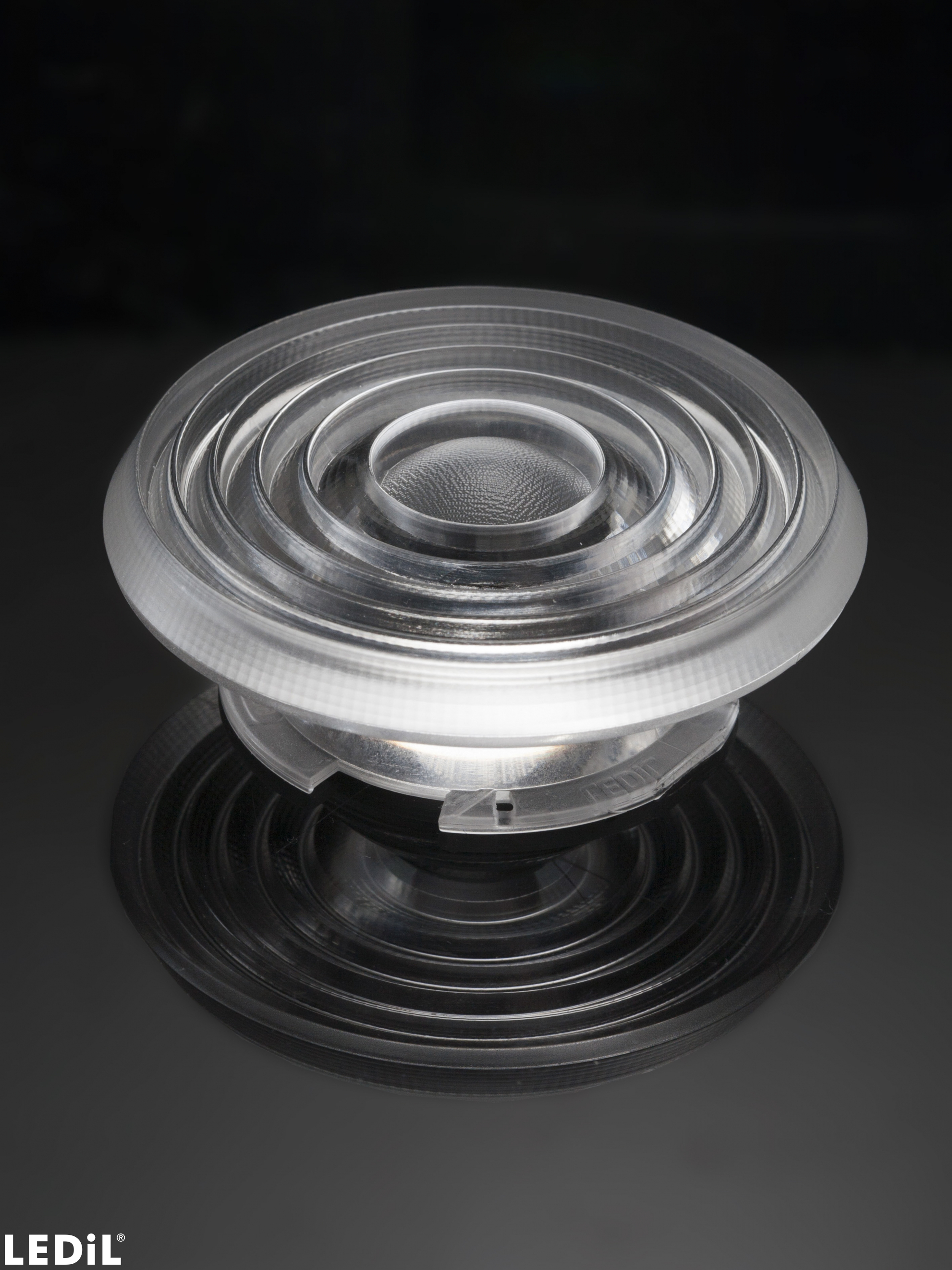

    ~25° spot beam compatible with 3rd party connectors from BJB, Stucchi and Tridonic

    Specification
    • Dimensions:
      70 mm
    • Height:
      24.80 mm
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      180 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.6 kg
    • MPQ:
      18 pcs
    • MOQ:
      36 pcs
    • MOQ size:
      480 x 280 x 70 mm
    • MOQ weight:
      2.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16263_MOLLY-S-B
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    MOLLY represents LEDiL’s cutting-edge optical lens design taking full advantage of bigger size COBs

    Compatibility guide

    LEDiL connector and socket compatibility

    News

    New Products 2018-07-06

    Application guide

    LEDiL guide for retail lighting optics

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    Luminaire, example

    Track light luminaire with MOLLY

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    Effective fashion retail lighting

    Case story

    MOLLY goes to Italy

    News

    MOLLY Winner in German Design Award 2019

    News

    PRODUCT NEWS - MOLLY

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Optical results

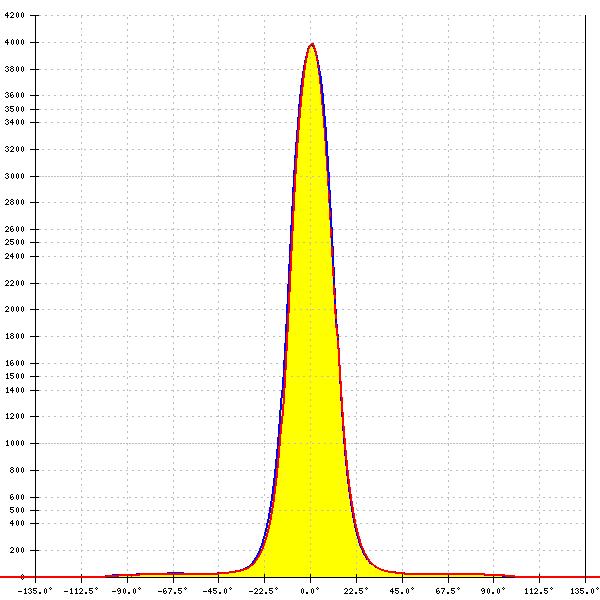

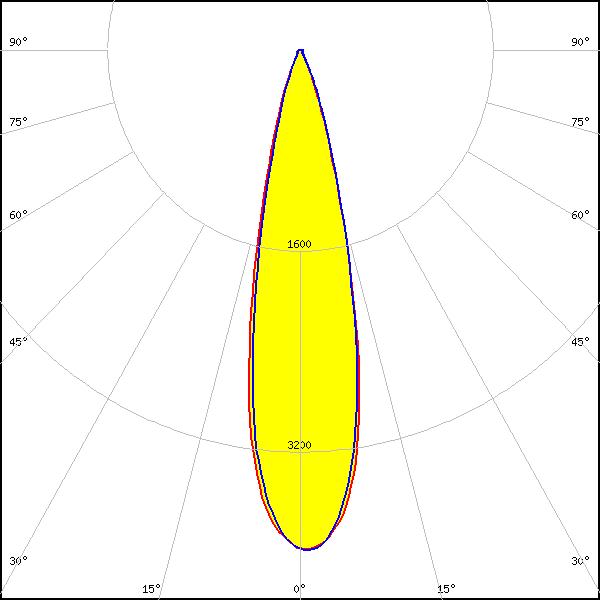

    LED: CLL03x/CLU03x
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 24°
    FWTM: 42°
    Peak intensity: 4.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

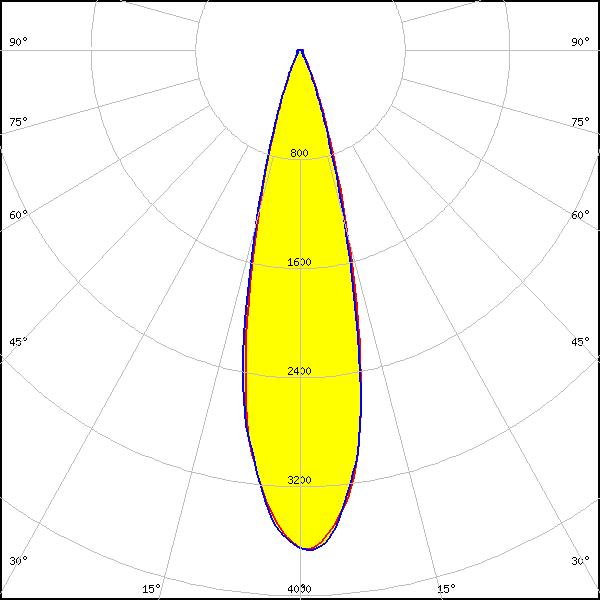

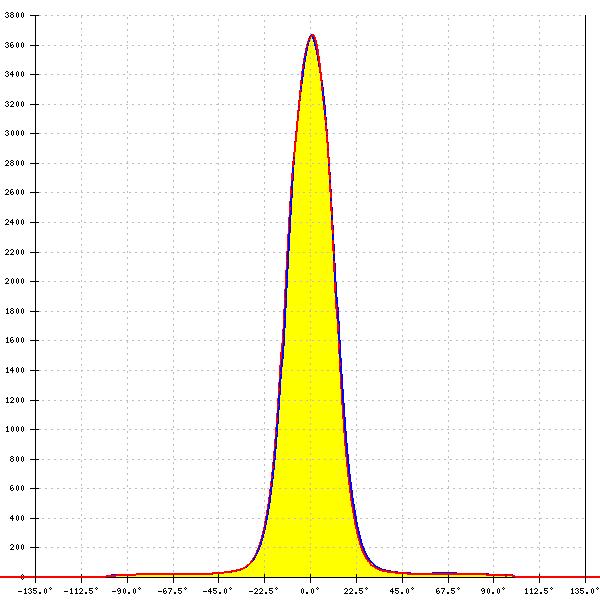

    LED: LUXEON CoB 1208
    LES size: 15.0 mm
    Required components:
    BJB: 47.319.2011
    FWHM: 26°
    FWTM: 44°
    Peak intensity: 3.678 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

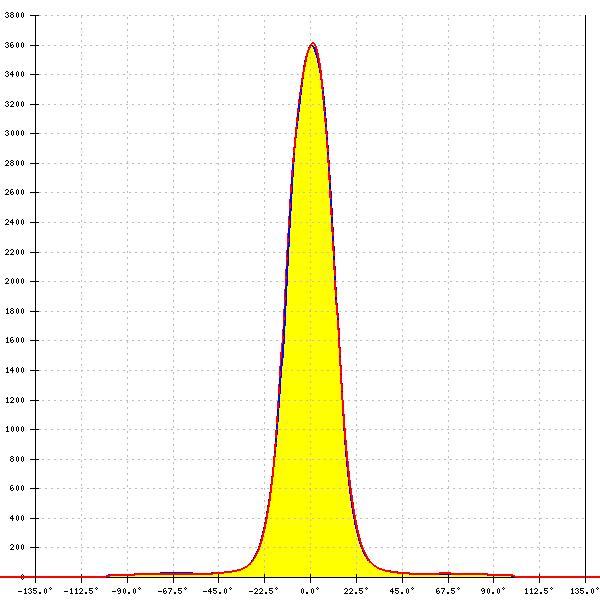

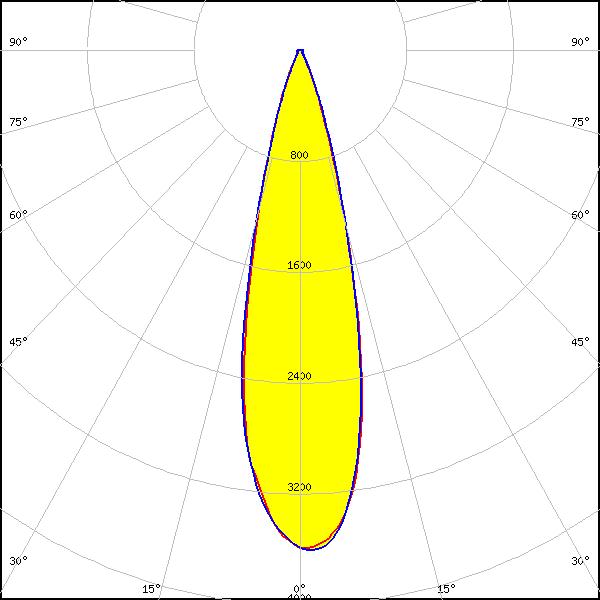

    LED: SLE G7 LES15
    LES size: 15.0 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 26°
    FWTM: 44°
    Peak intensity: 3.600 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

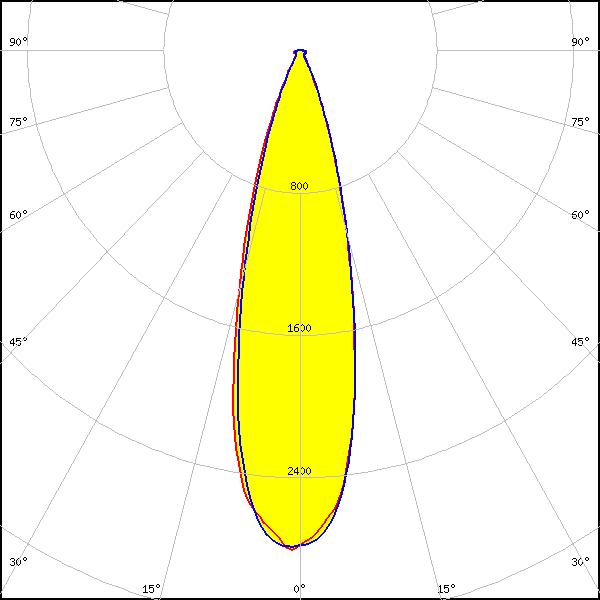

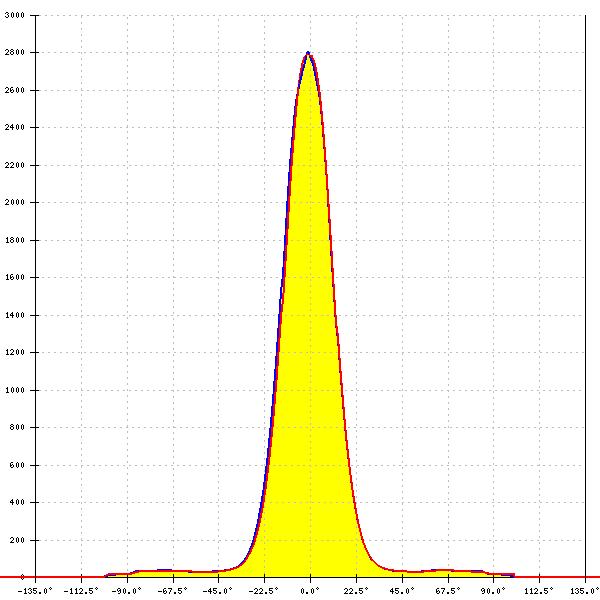

    LED: SLE G7 LES17 H
    FWHM: 27°
    FWTM: 49°
    Peak intensity: 2.800 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

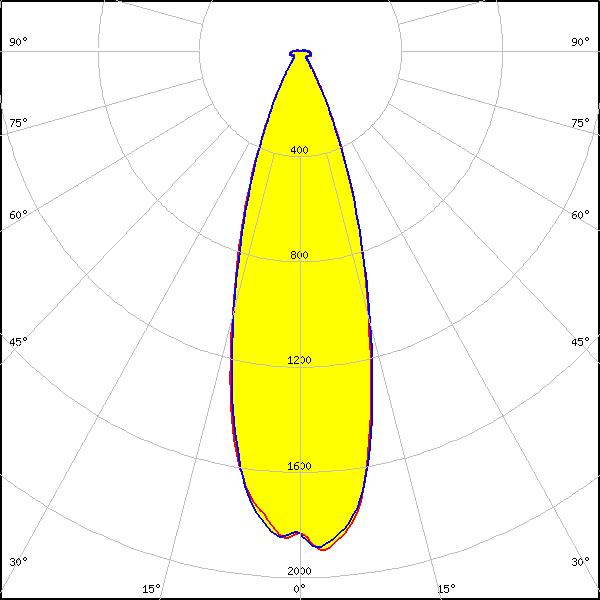

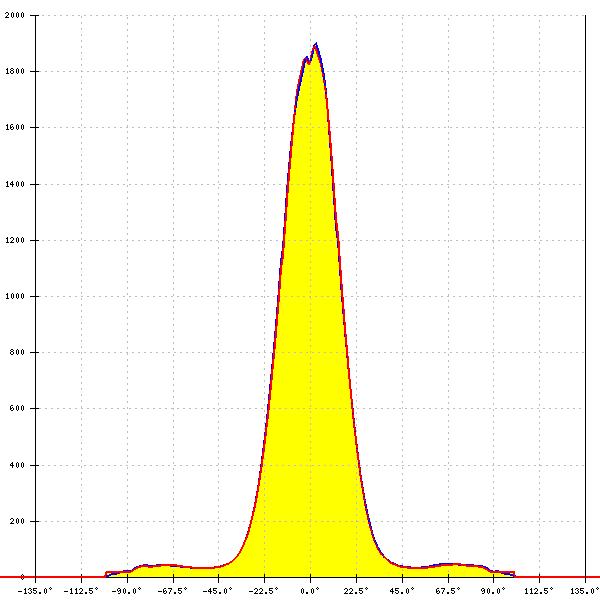

    LED: SLE G7 LES21 H
    FWHM: 32°
    FWTM: 59°
    Peak intensity: 1.900 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

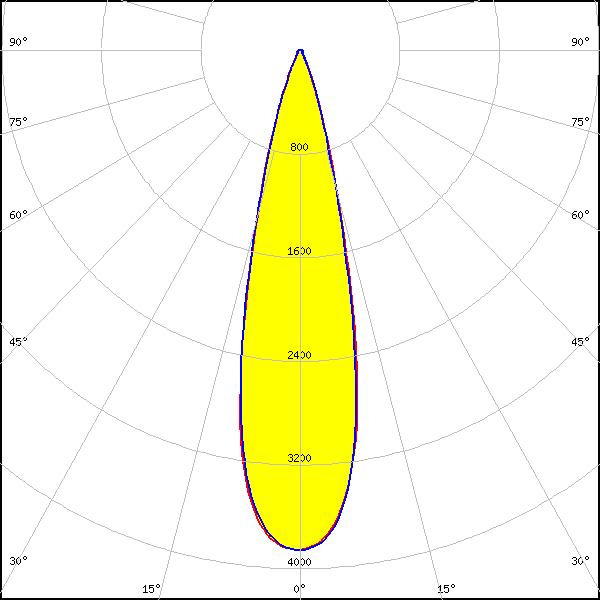

    LED: XOB 14.5 mm
    LES size: 14.5 mm
    Required components:
    BJB: 47.319.2021
    FWHM: 25°
    FWTM: 43°
    Peak intensity: 3.858 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
