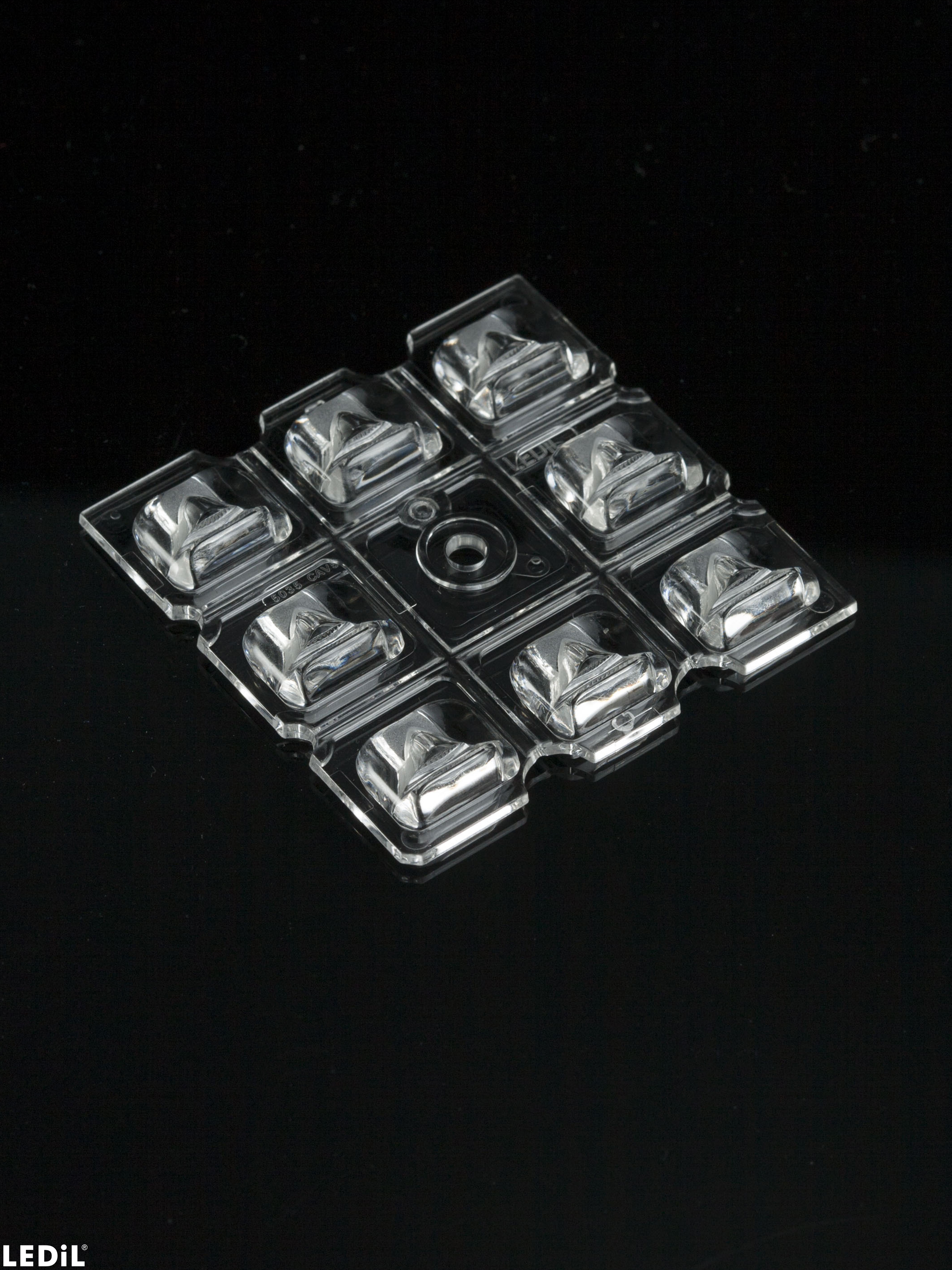

    C16039_STRADELLA-8-T3-PC

    Print

    IESNA Type III (medium) beam for typical road lighting setups. Variant made from PC.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      5.70 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      5.7 kg
    • MPQ:
      160 pcs
    • MOQ:
      20000 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16039_STRADELLA-8-T3-PC
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New street and high bay beams

    Application guide

    LEDiL guide for street lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    PRODUCT NEWS - STRADELLA FAMILY

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

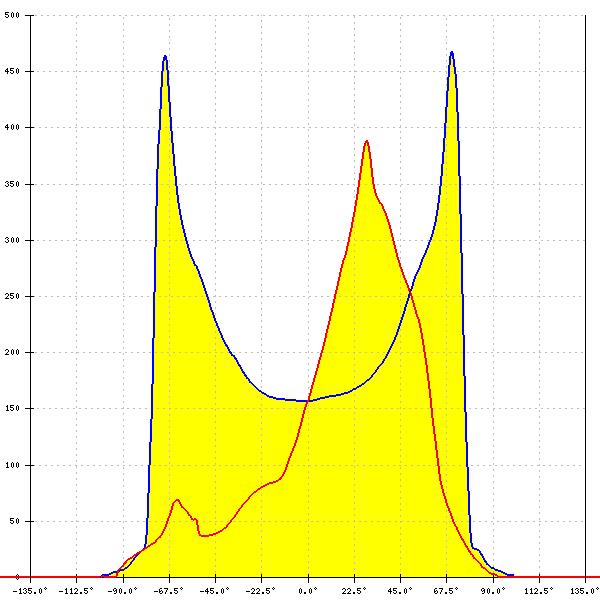

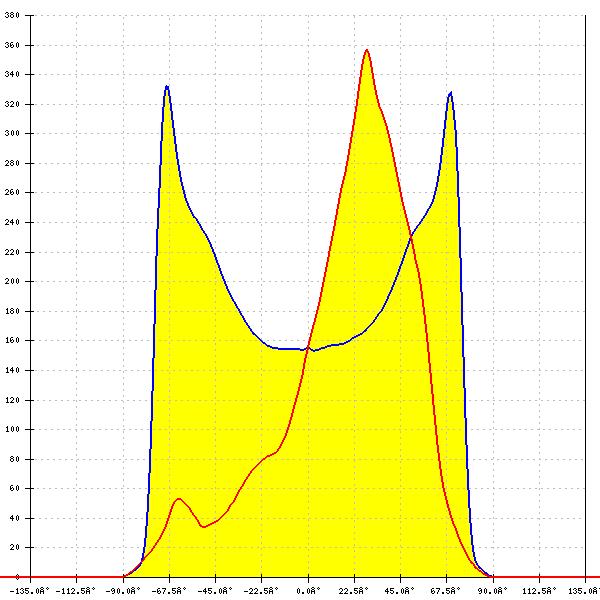

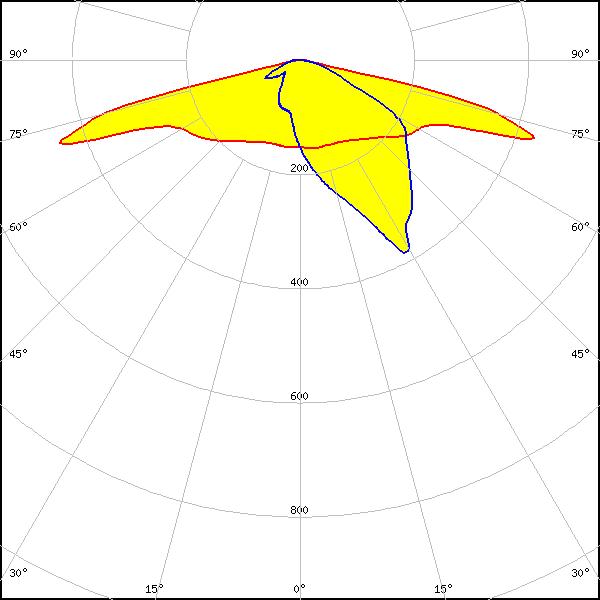

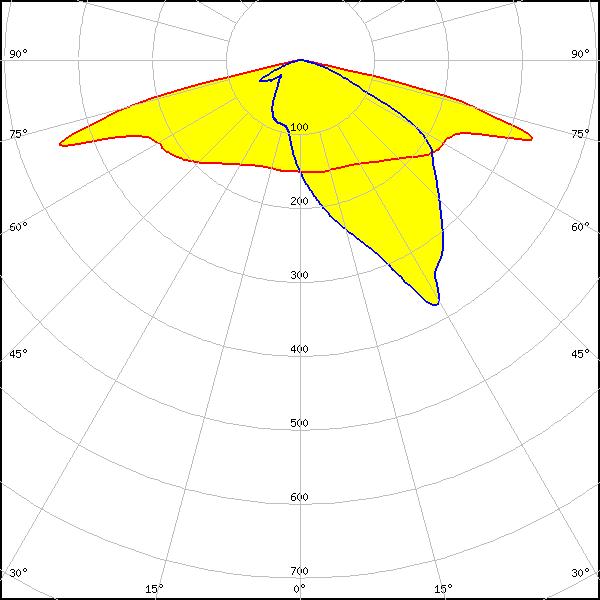

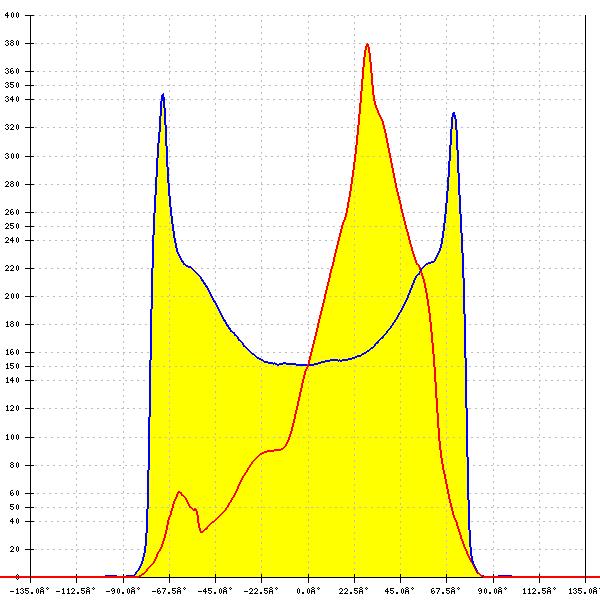

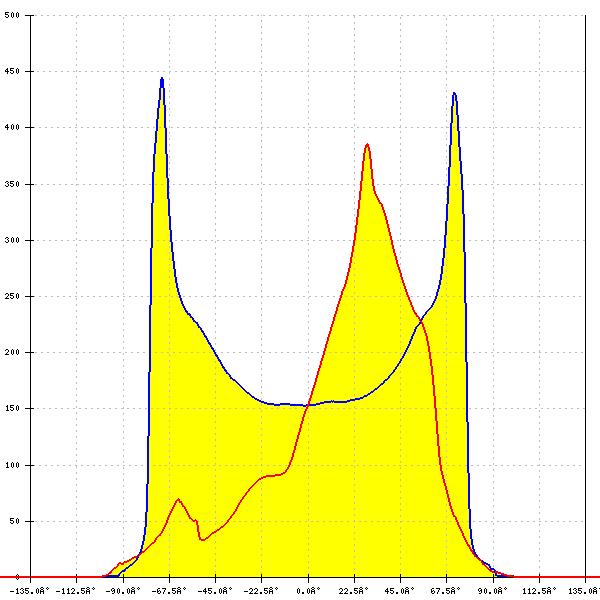

    Optical results

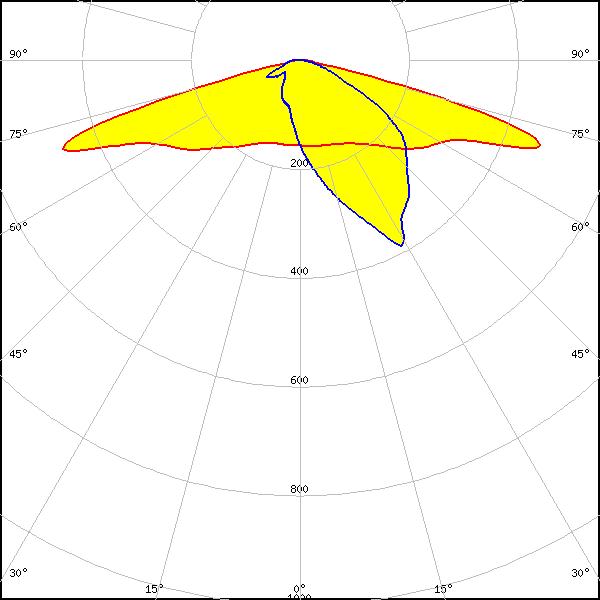

    LED: J Series 3030
    FWHM: asymmetric
    Peak intensity: 0.515 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

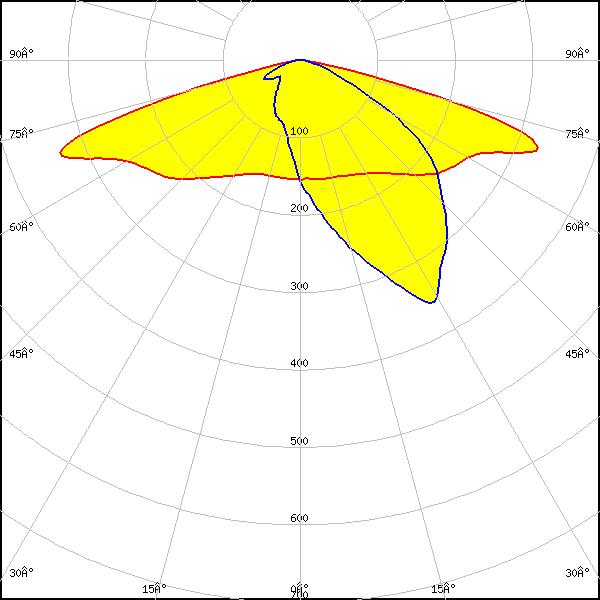

    LED: J Series 3030
    FWHM: asymmetric
    Peak intensity: 0.809 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

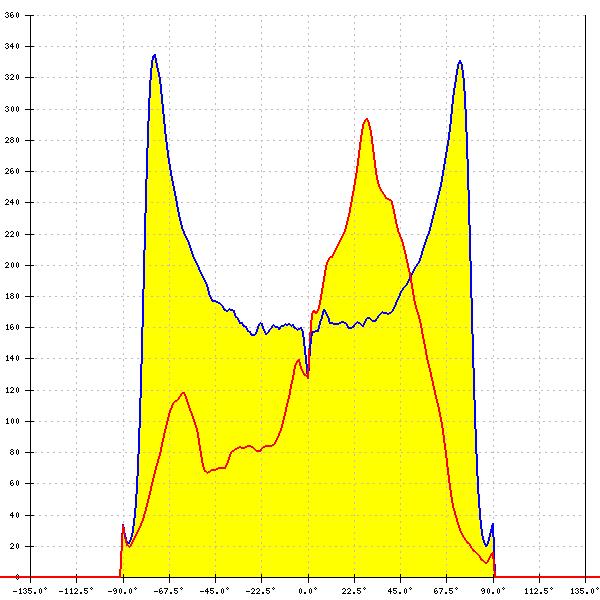

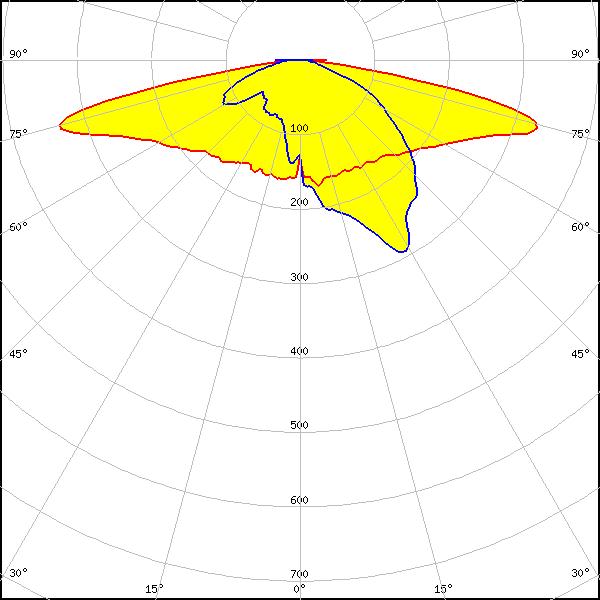

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.520 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 0.000 cd/lm
    LEDs/each optic: 1
    Light colour/type: White

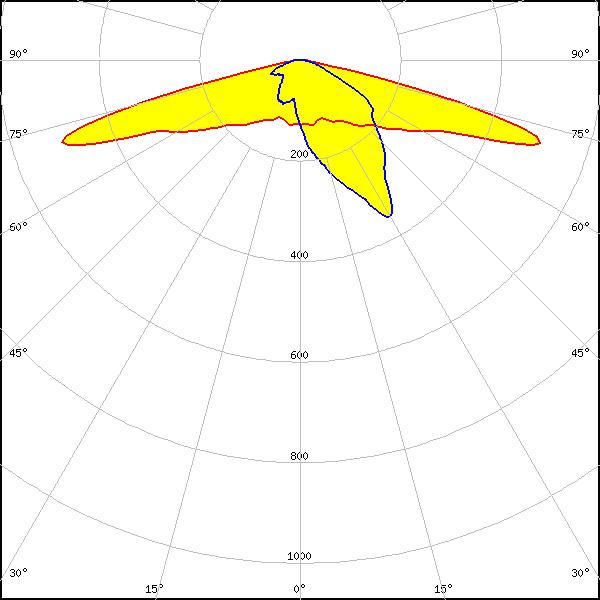

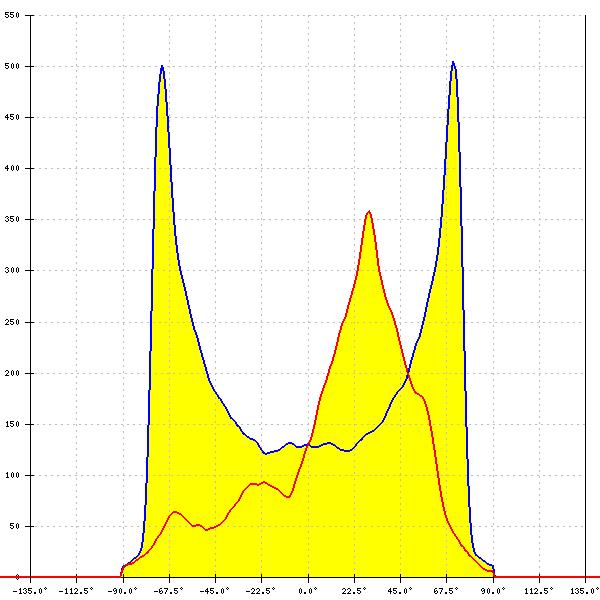

    LED: OSCONIQ C 2424
    FWHM: asymmetric
    Peak intensity: 0.857 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

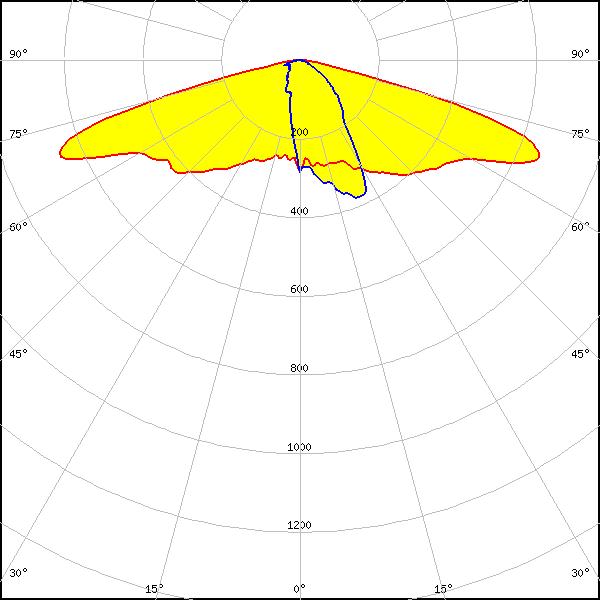

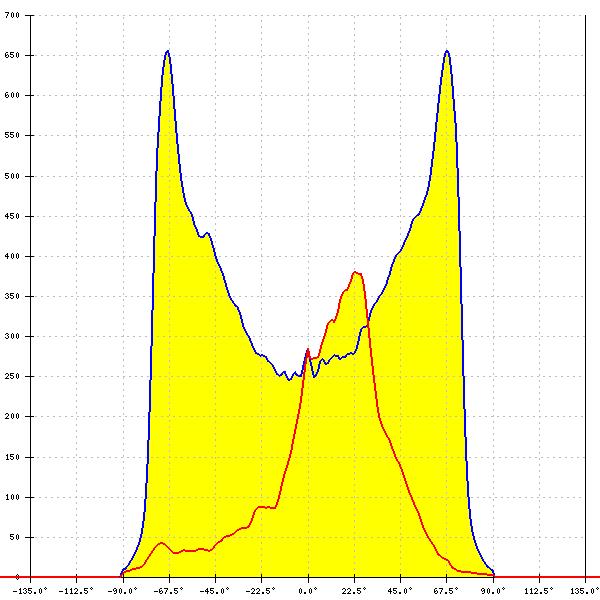

    LED: OSCONIQ P 3737 (2W version)
    FWHM: asymmetric
    Peak intensity: 0.760 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

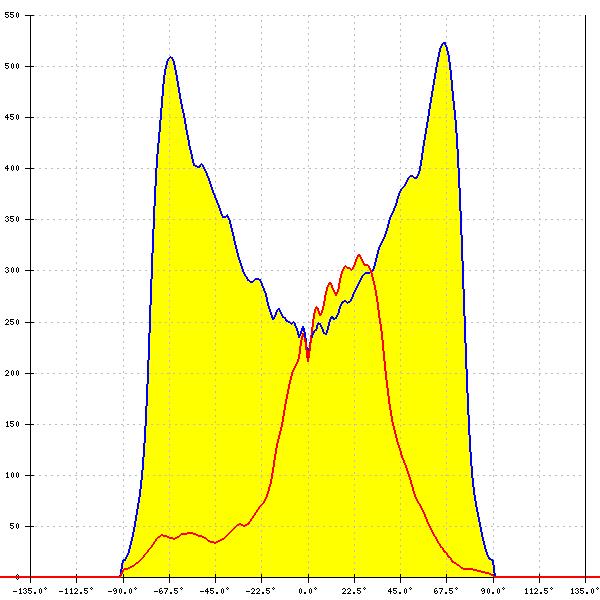

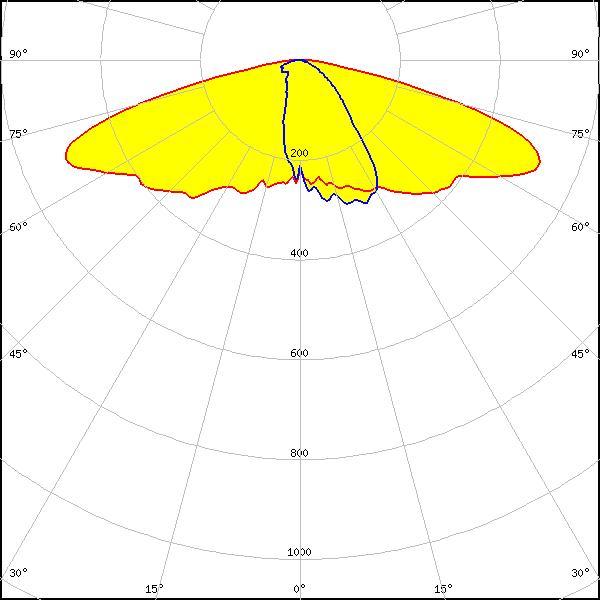

    LED: OSCONIQ P 3737 (3W version)
    FWHM: asymmetric
    Peak intensity: 0.550 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

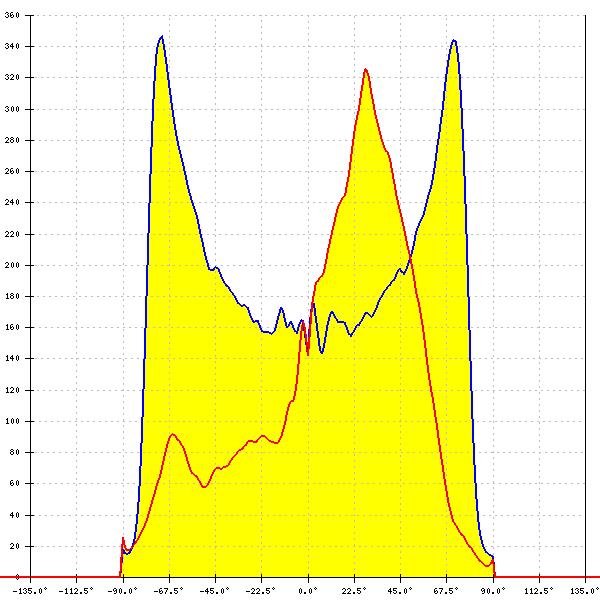

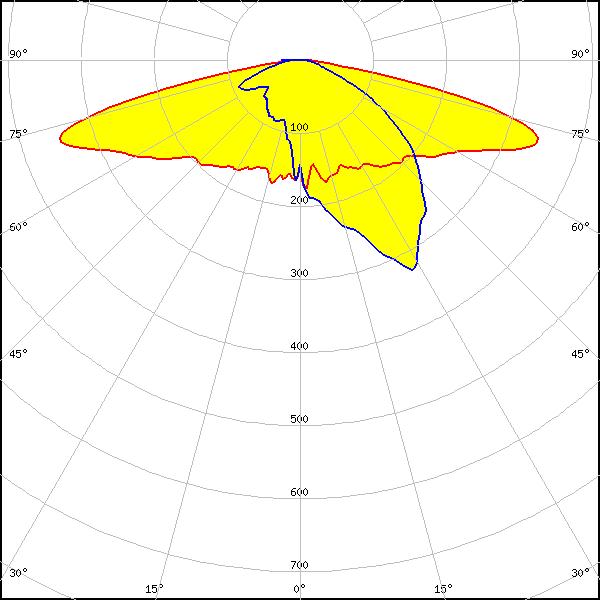

    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 0.570 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

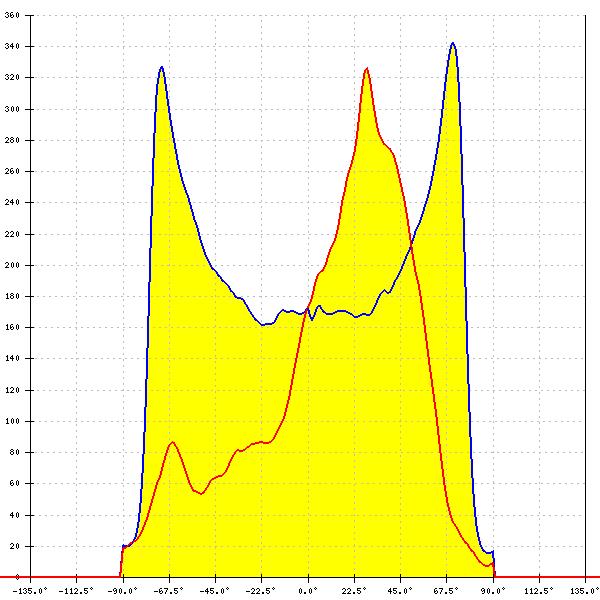

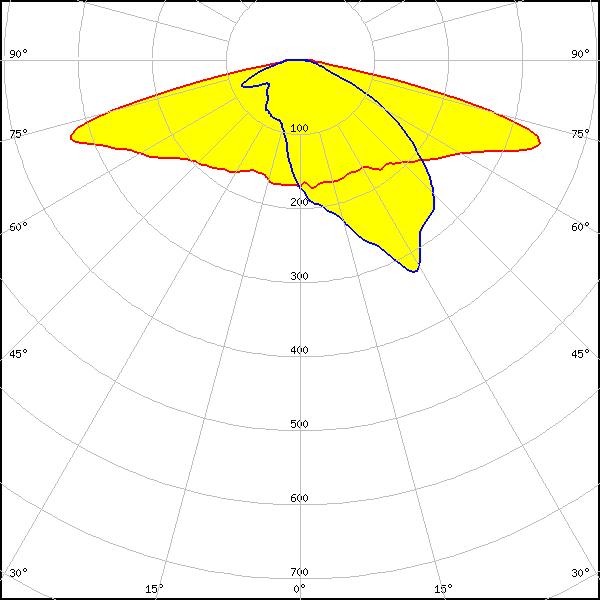

    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 0.530 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

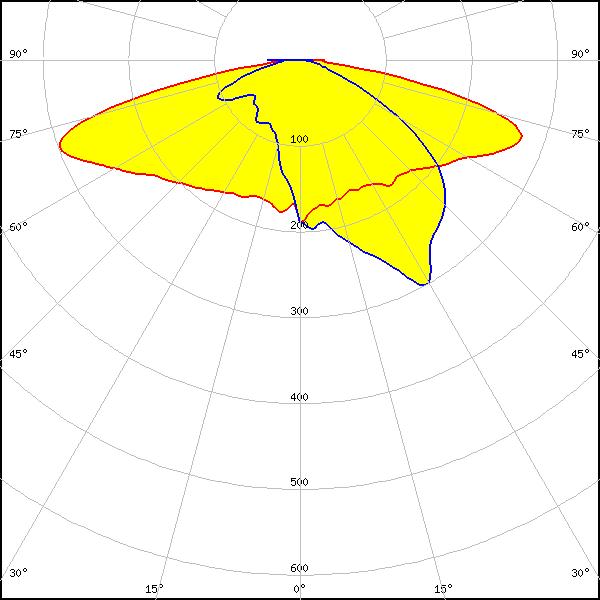

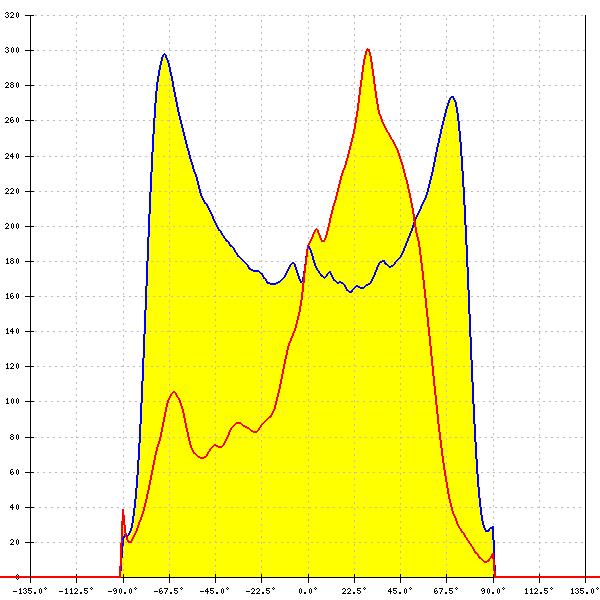

    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 0.410 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

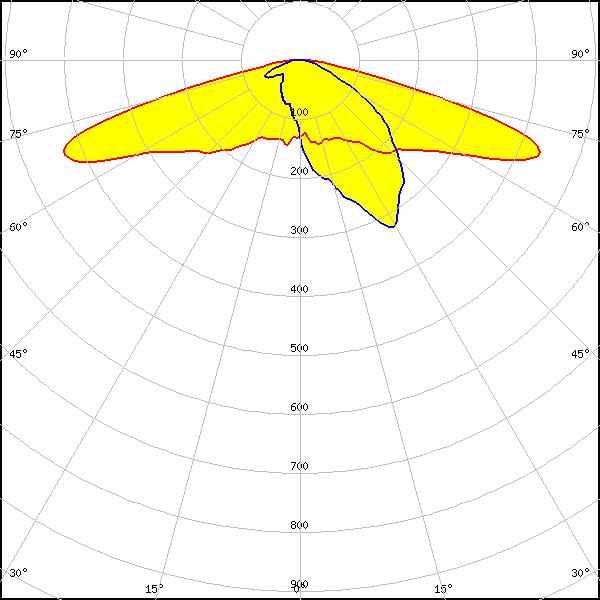

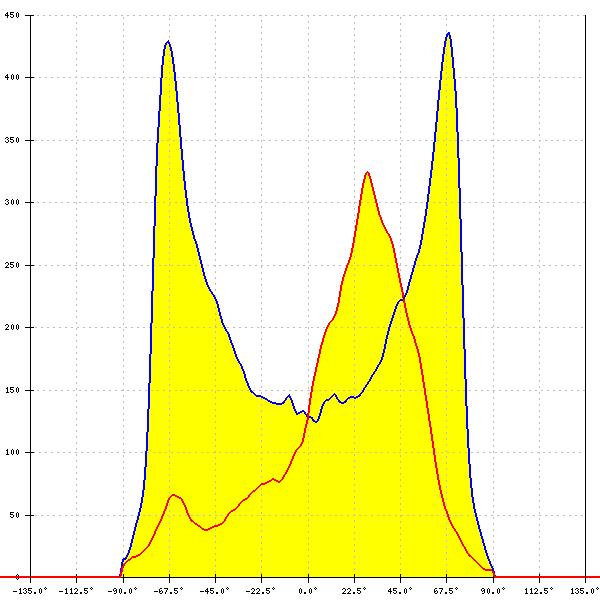

    LED: Z5M4
    FWHM: asymmetric
    Peak intensity: 0.665 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
