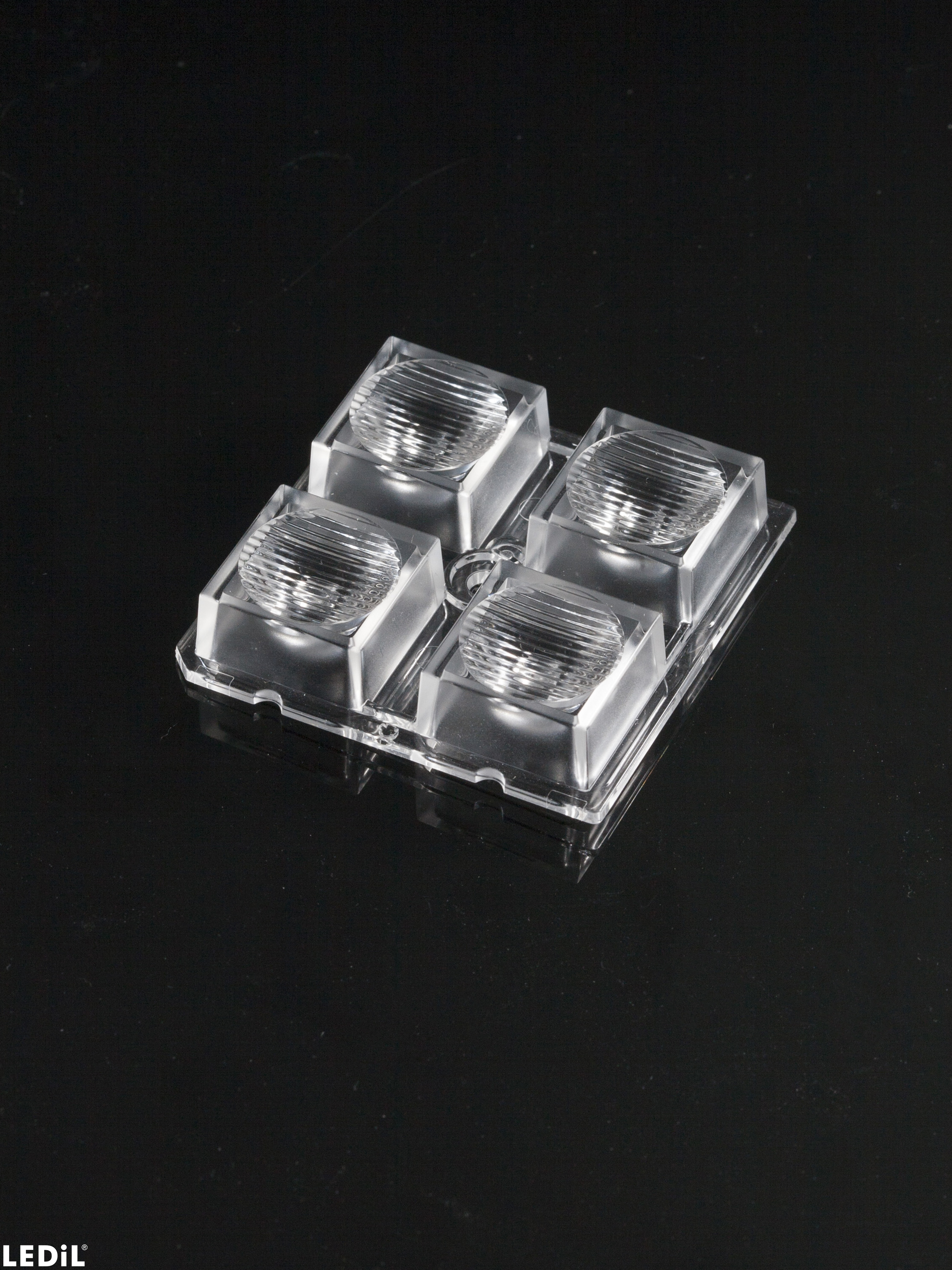

C15925_HB-2X2-ON
Print
~15° + 50° oval beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

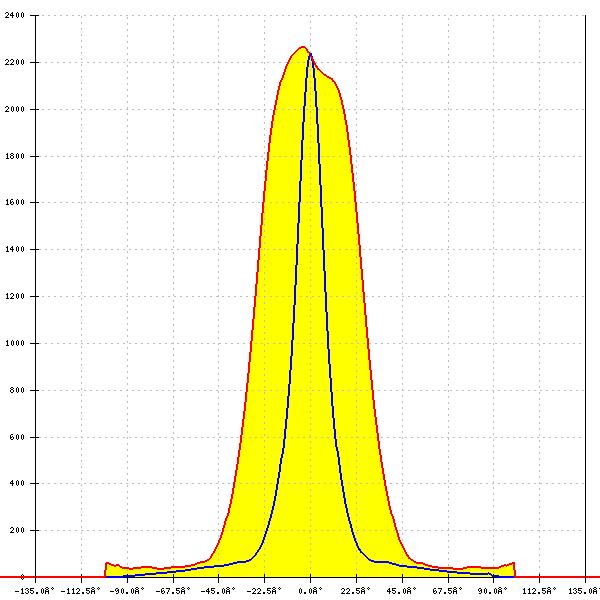

LED:

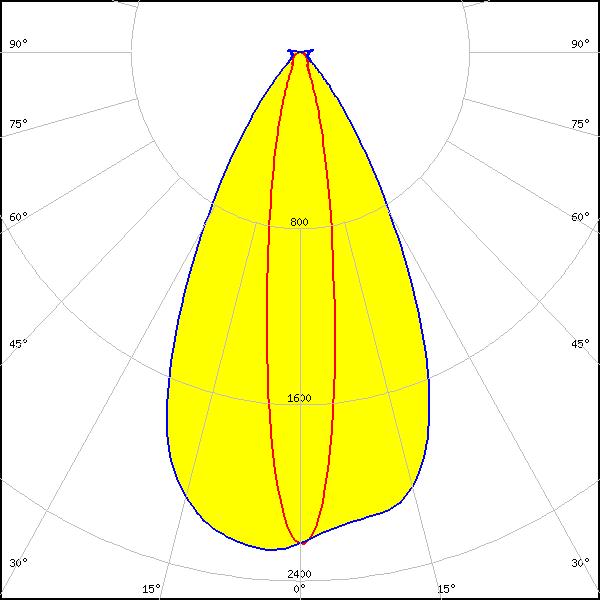

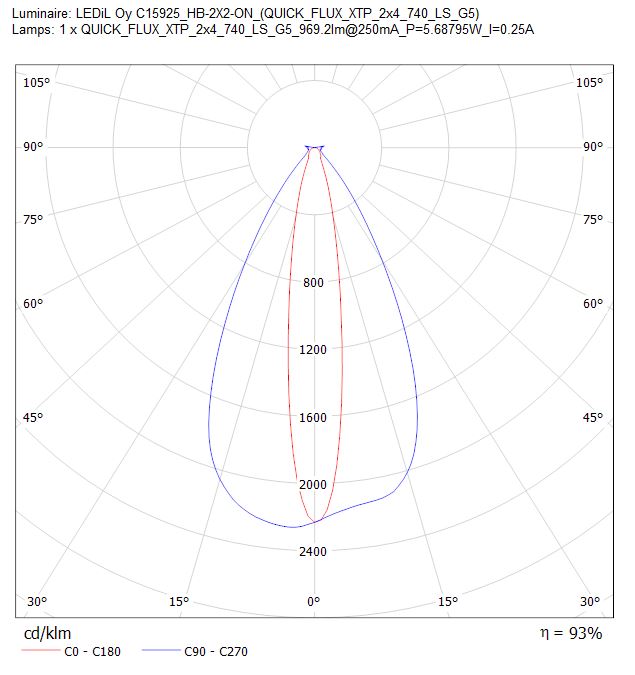

QUICK FLUX XTP 2x4 xxx LS G5
FWHM:
16° + 55°
FWTM:
40° + 83°
Peak intensity:
2.300 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

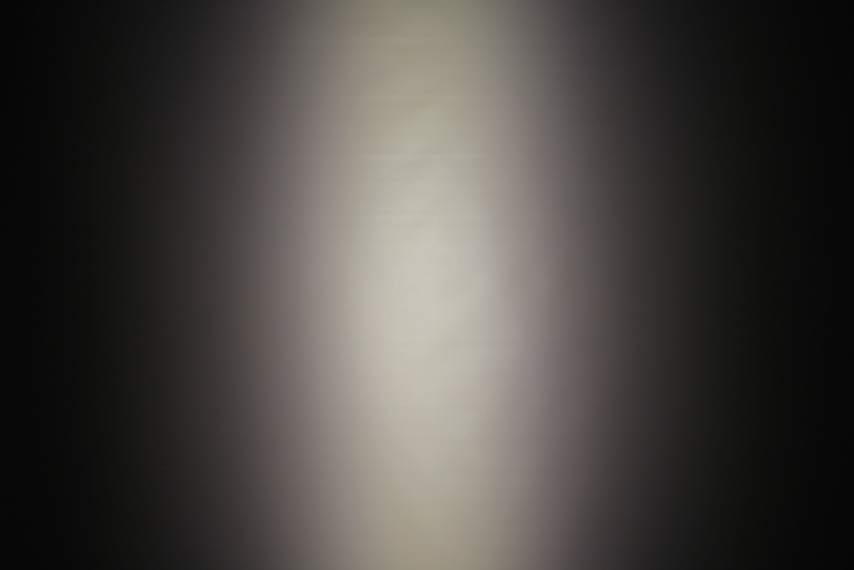

LED:

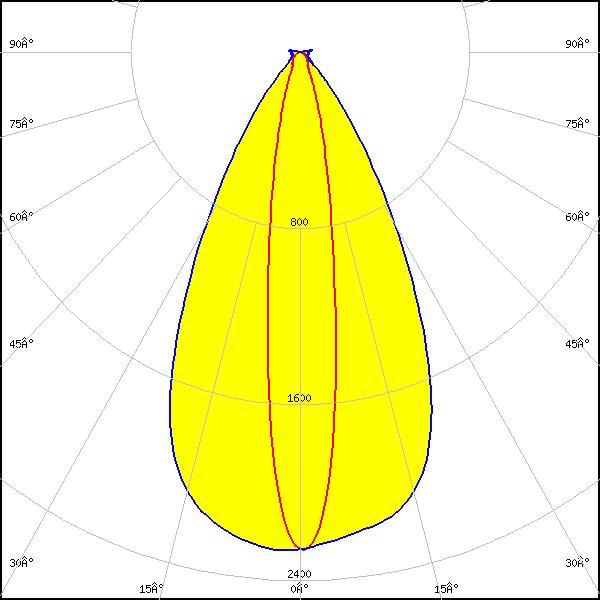

QUICK FLUX XTP 2x6 xxx LS G5
FWHM:
16° + 55°
FWTM:
40° + 83°
Peak intensity:
2.300 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

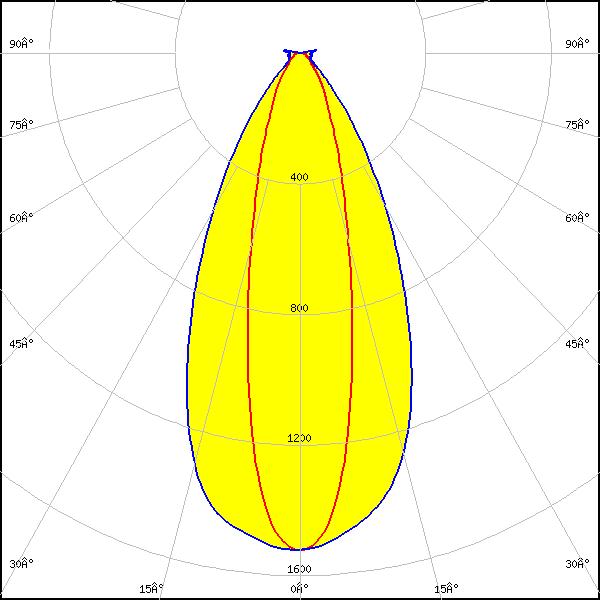

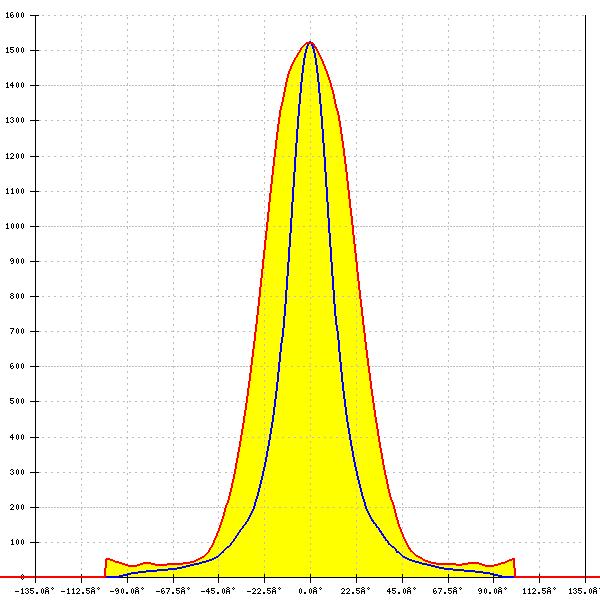

J Series 5050C 6V E Class
FWHM:
25° + 51°
FWTM:
64° + 87°
Peak intensity:
1.524 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

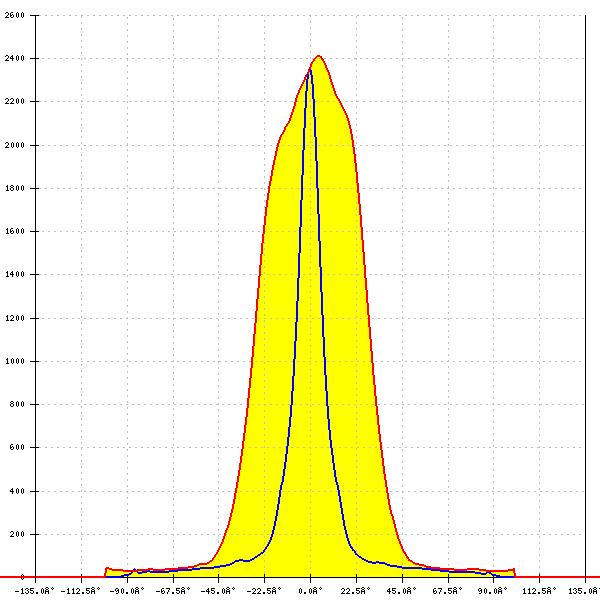

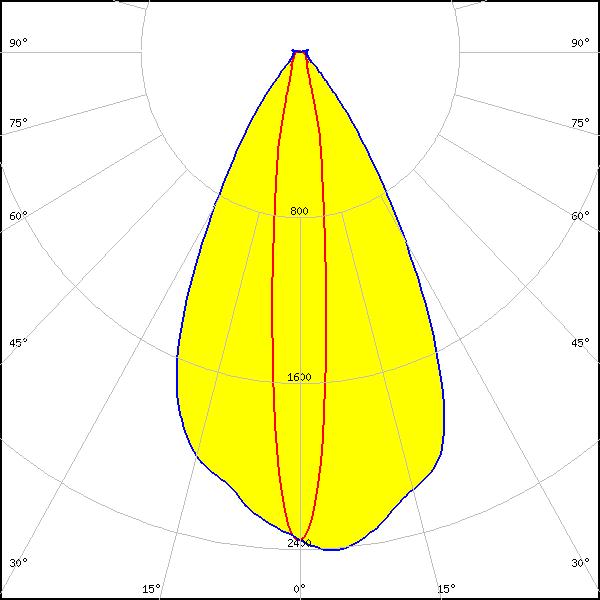

LED:

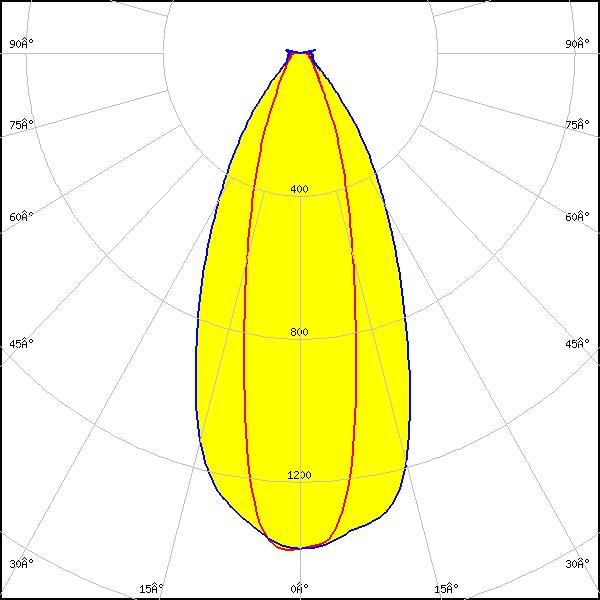

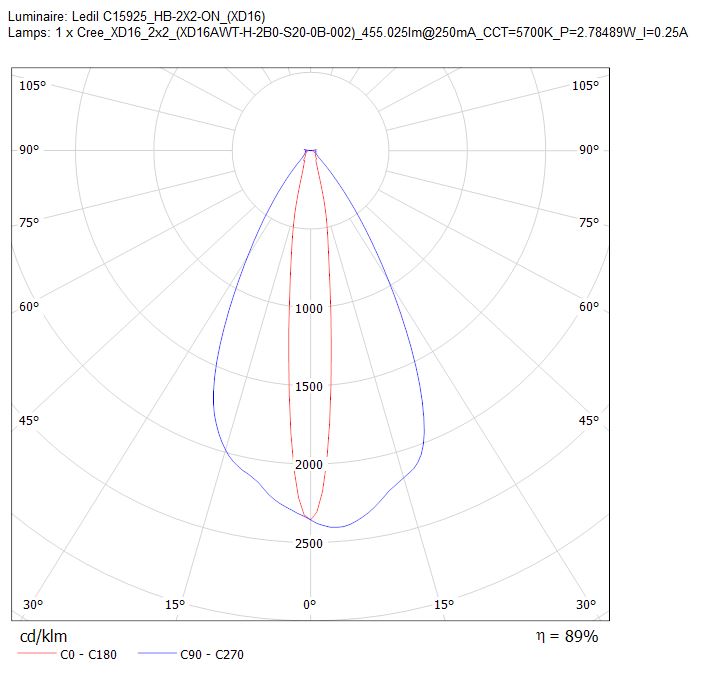

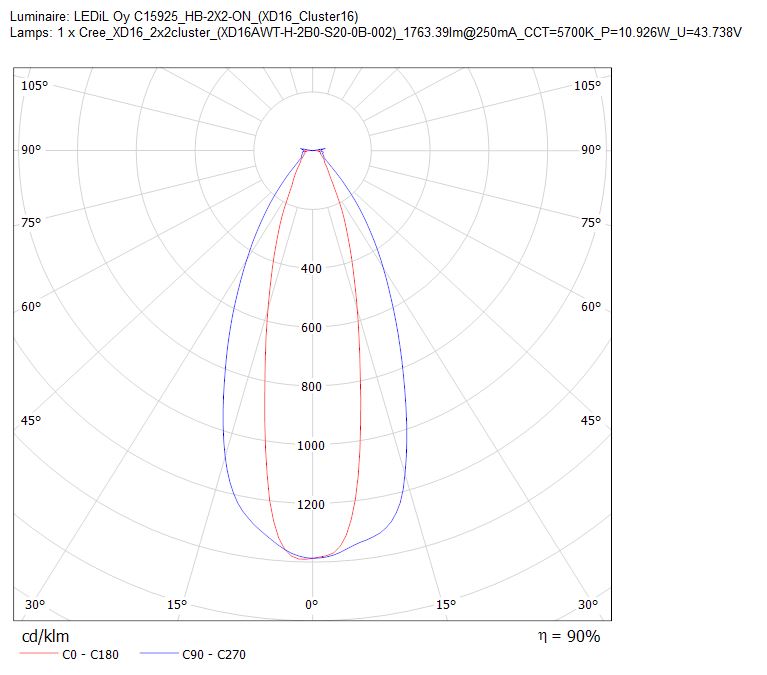

XD16
FWHM:
27° + 49°
FWTM:
62° + 89°
Peak intensity:
1.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
White
LED:
XD16
FWHM:
13° + 55°
FWTM:
34° + 82°
Peak intensity:
2.400 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

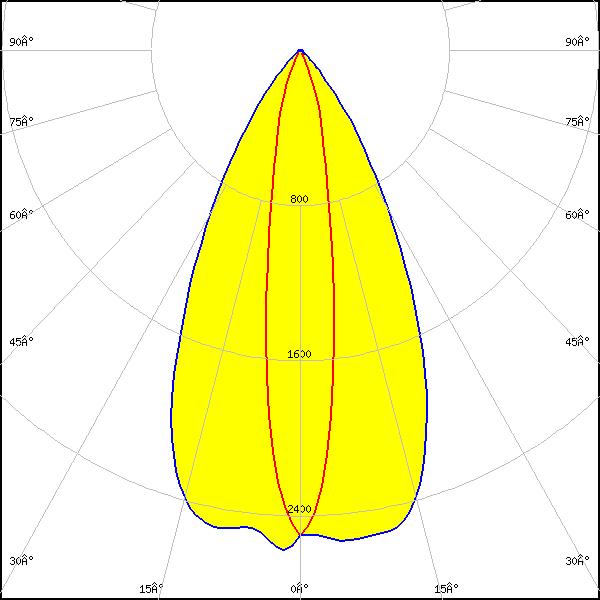

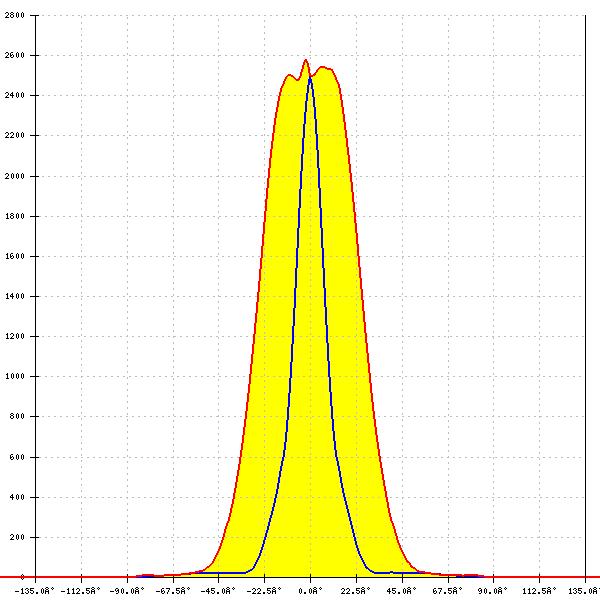

LED:
XHP35 HI
FWHM:
16° + 50°
FWTM:
0° + 0°
Peak intensity:
0.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

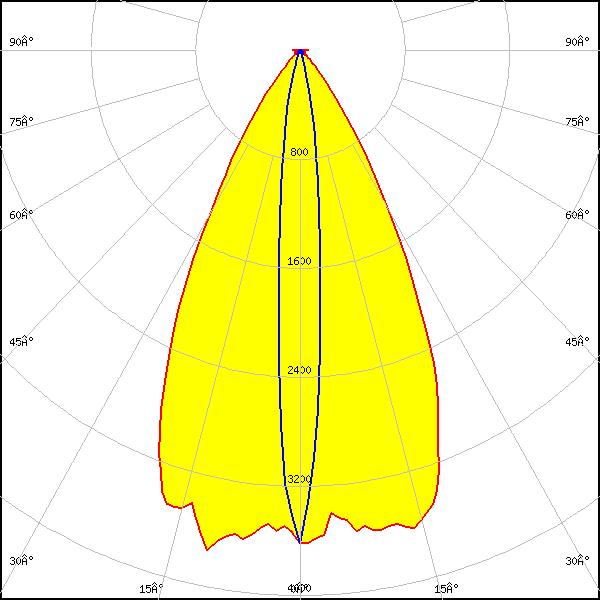

LED:
XP-E2
FWHM:
54° + 10°
FWTM:
78° + 27°
Peak intensity:
3.753 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E2
FWHM:
10° + 50°
FWTM:
0° + 0°
Peak intensity:
0.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

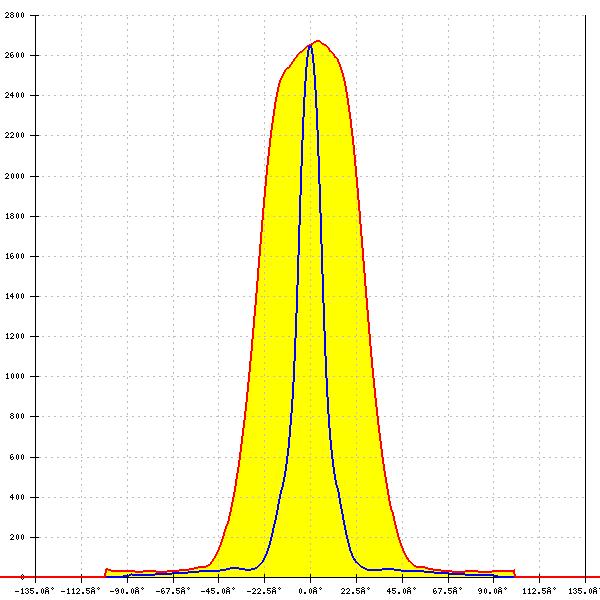

LED:

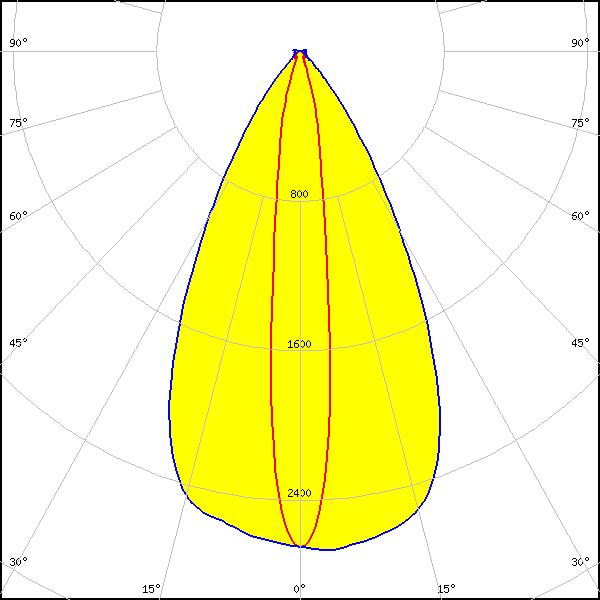

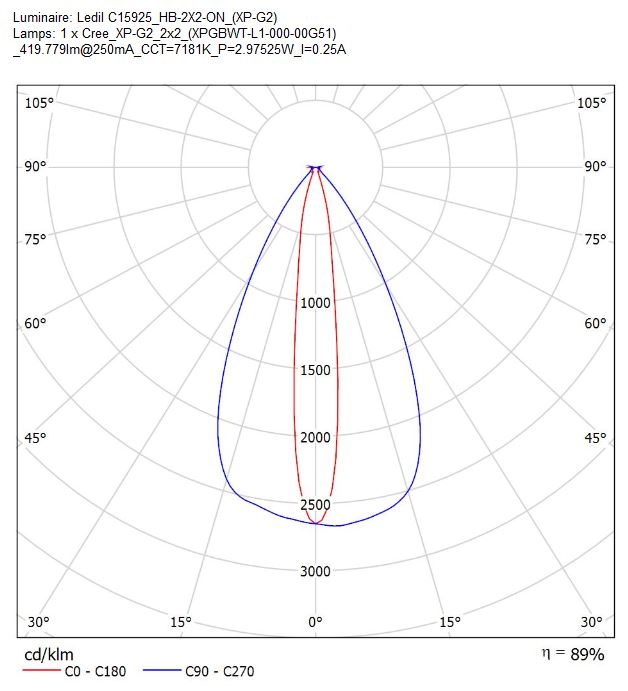

XP-G2
FWHM:
14° + 55°
FWTM:
34° + 82°
Peak intensity:
2.670 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

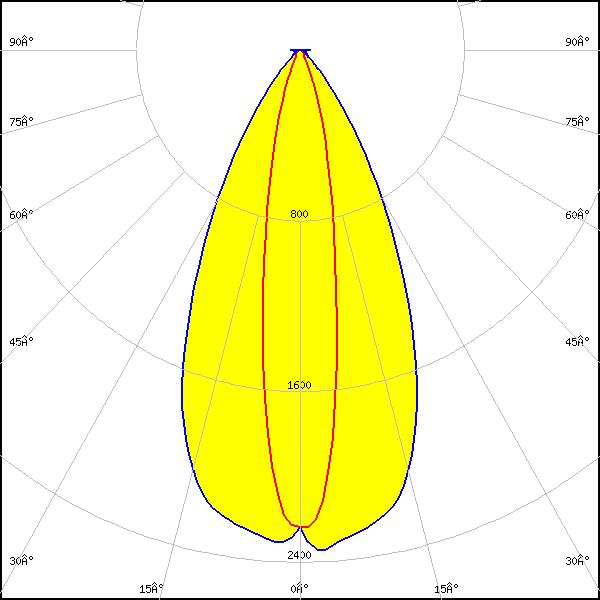

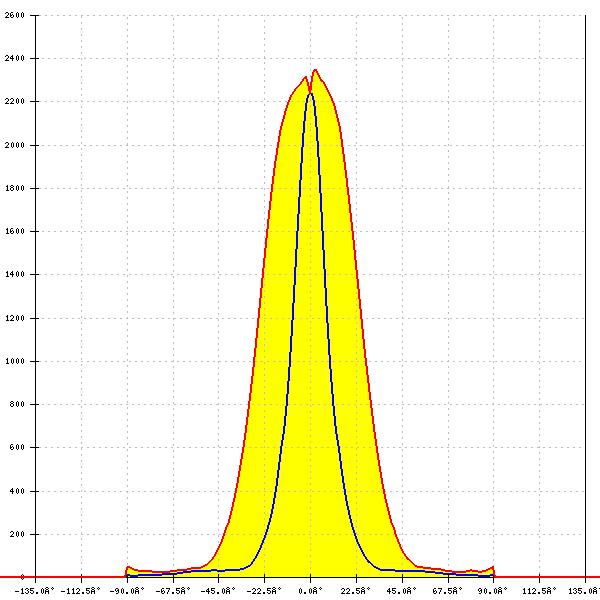

LED:
XP-G2 HE
FWHM:
18° + 51°
FWTM:
42° + 82°
Peak intensity:
2.357 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

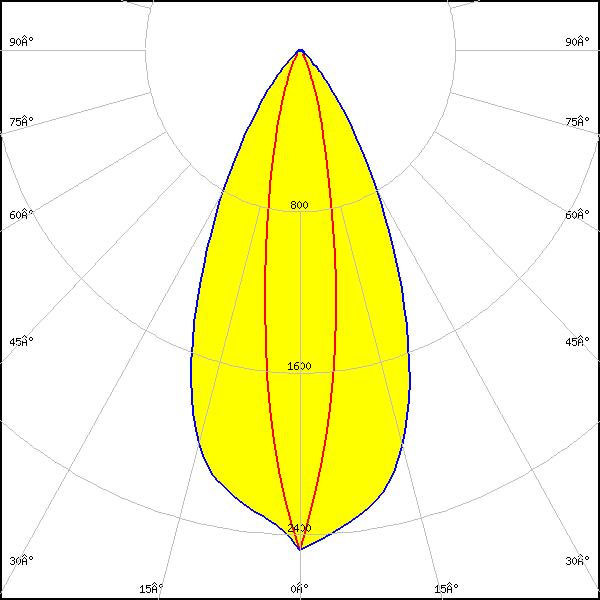

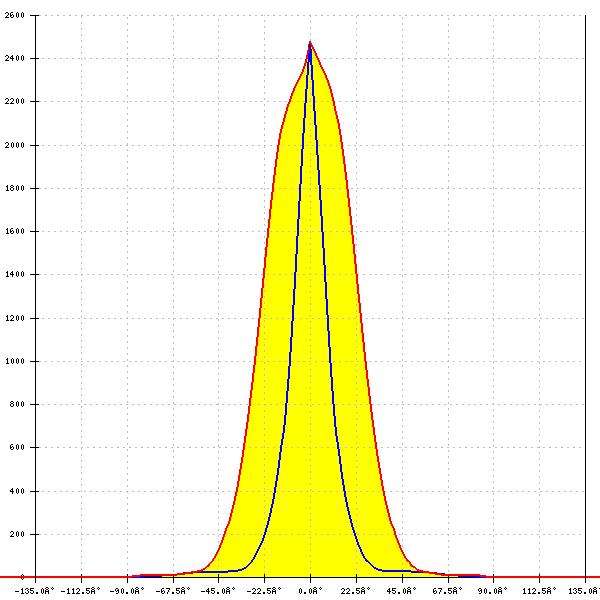

LED:
XP-G3
FWHM:
17° + 48°
FWTM:
0° + 0°
Peak intensity:
0.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

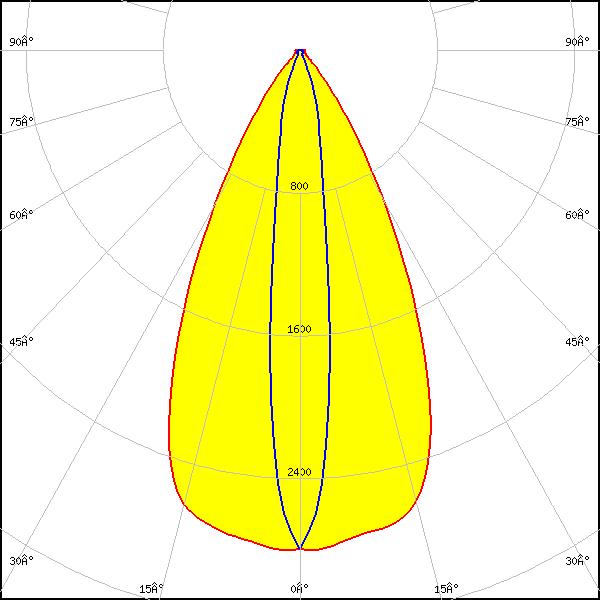

XP-G4
FWHM:
14° + 54°
FWTM:
36° + 80°
Peak intensity:
2.804 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

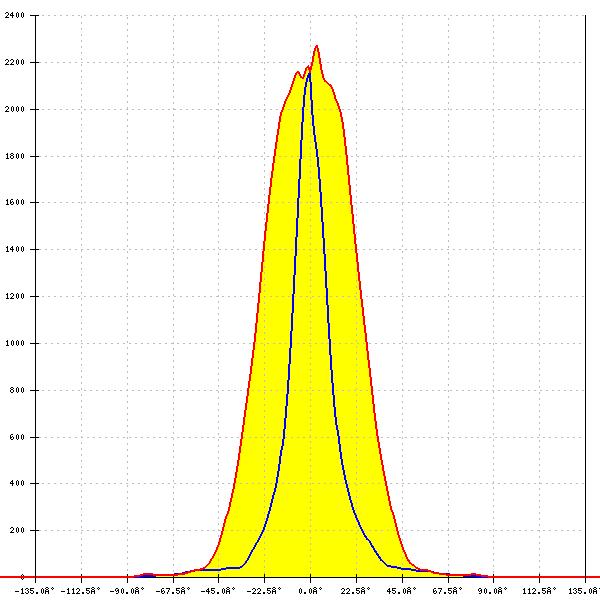

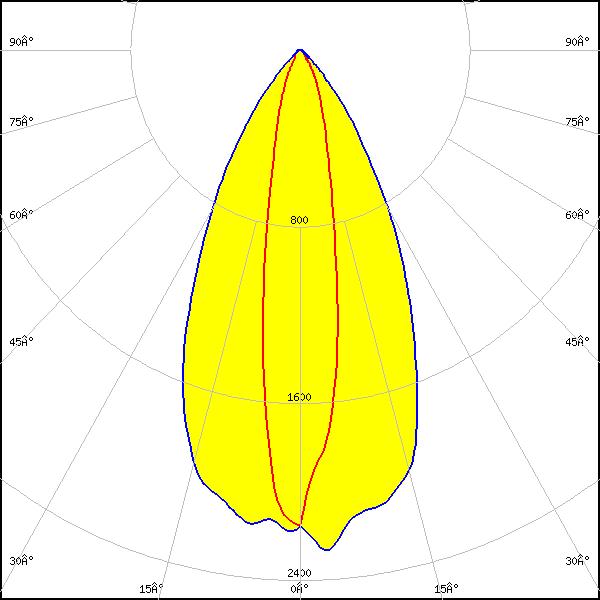

LED:
XP-L HD
FWHM:
18° + 50°
FWTM:
0° + 0°
Peak intensity:
0.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

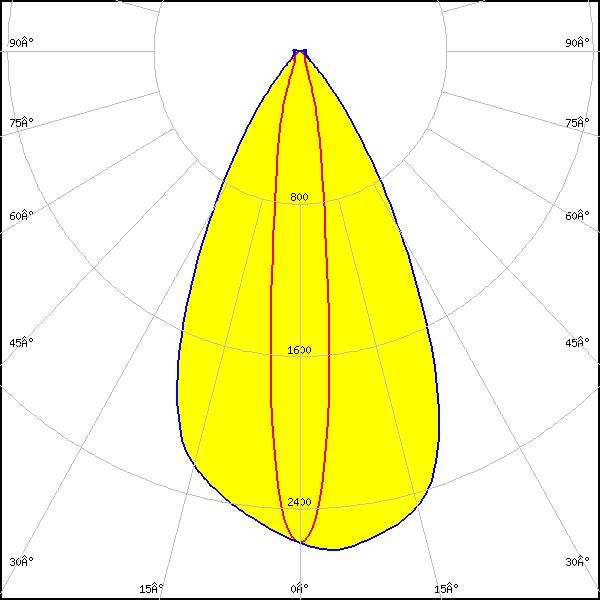

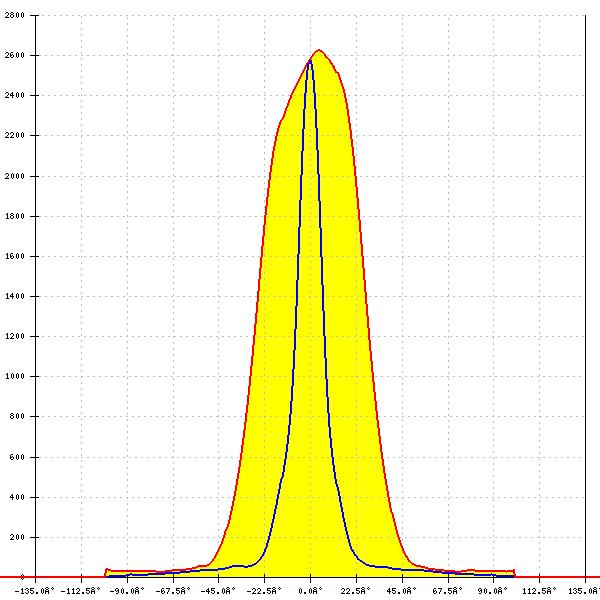

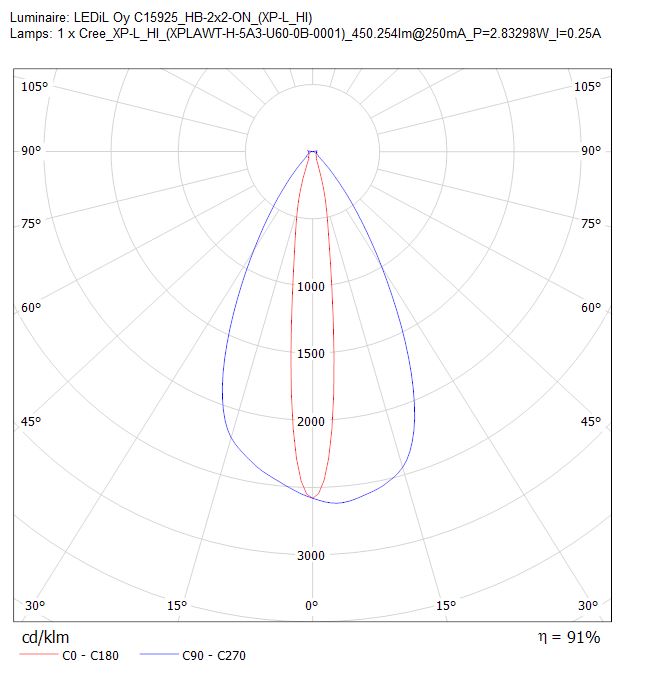

XP-L HI
FWHM:
14° + 55°
FWTM:
36° + 82°
Peak intensity:
2.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

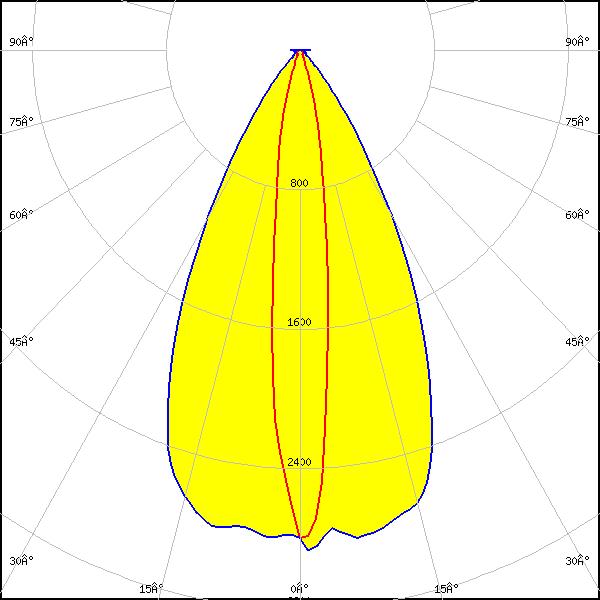

LED:

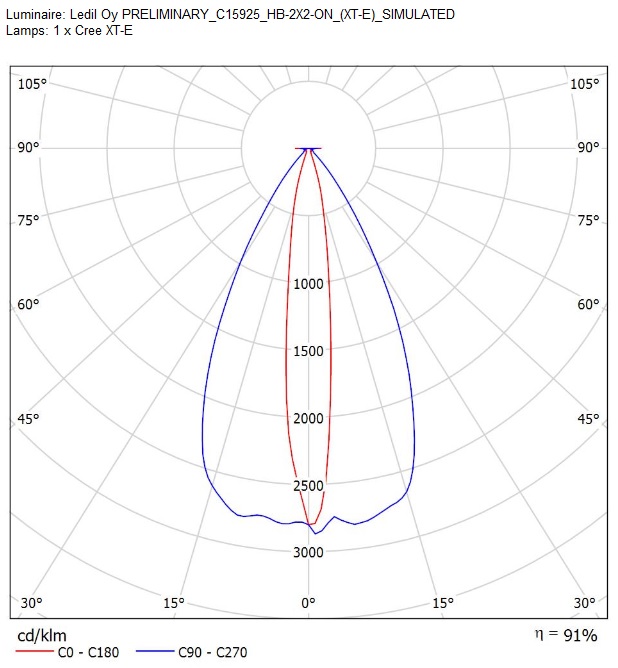

XT-E
FWHM:
14° + 55°
FWTM:
34° + 80°
Peak intensity:
2.900 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

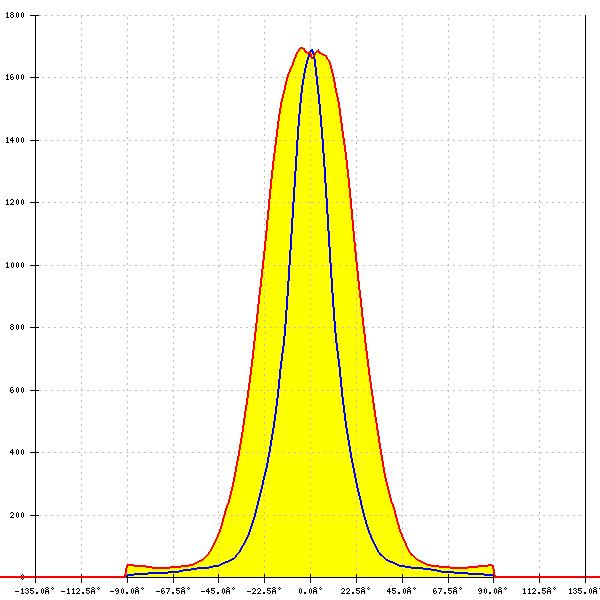

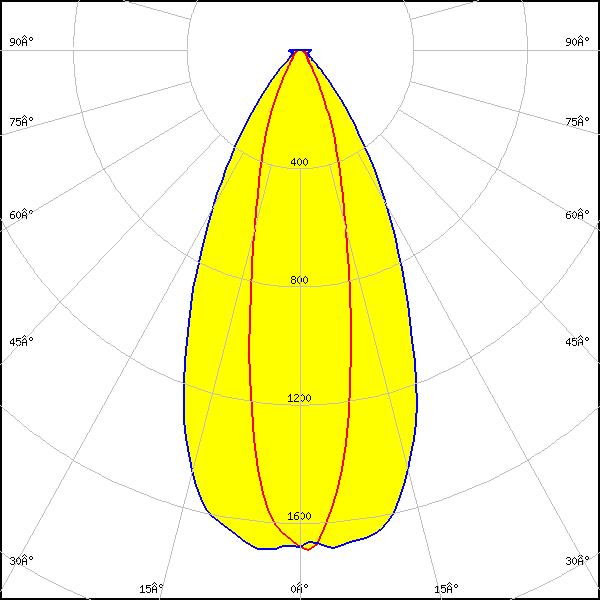

LED:

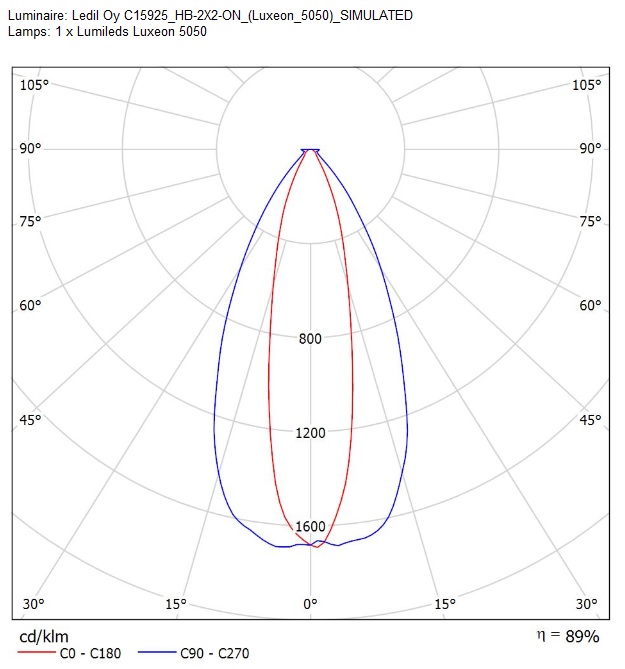

LUXEON 5050 Round LES
FWHM:
23° + 51°
FWTM:
56° + 86°
Peak intensity:
1.700 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

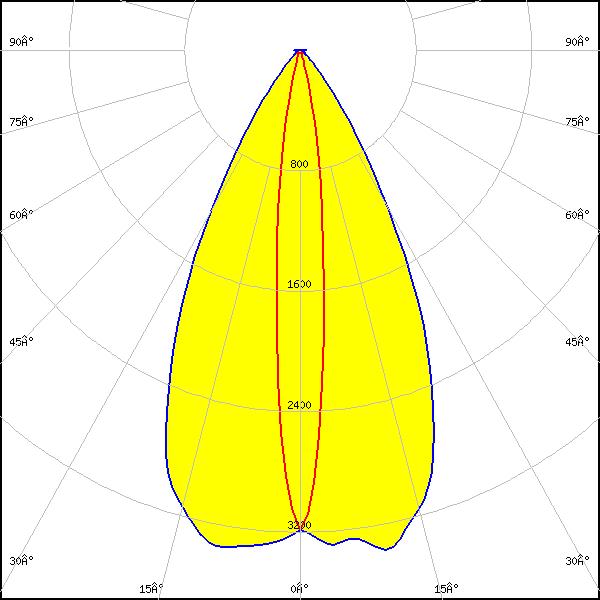

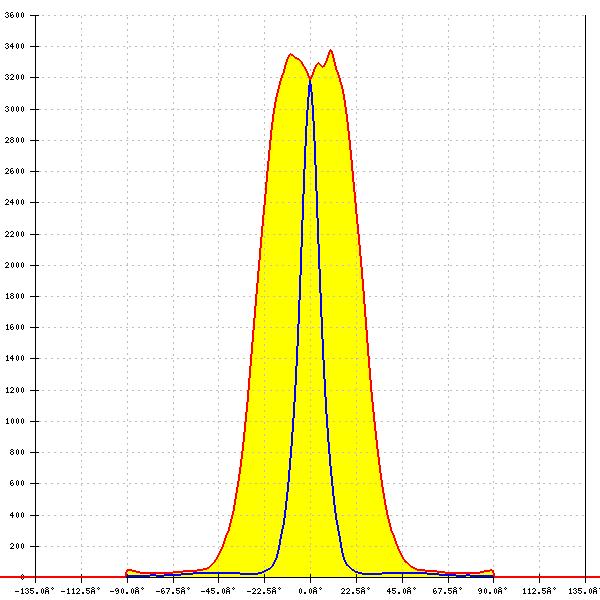

LED:

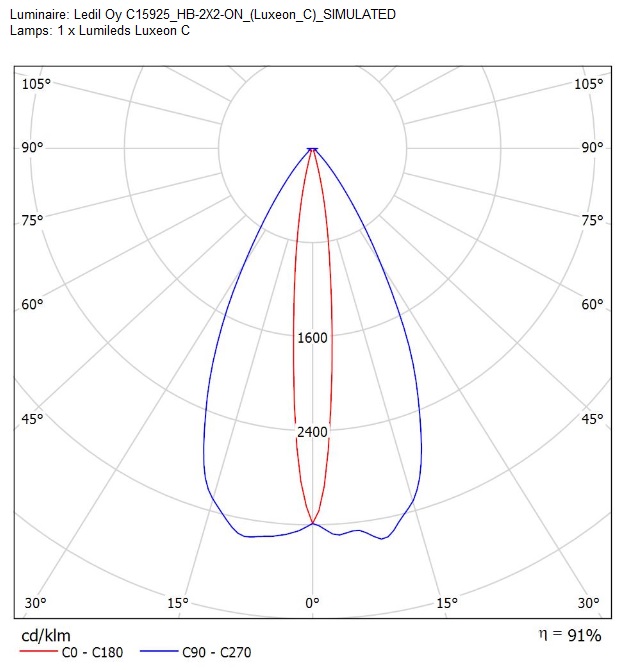

LUXEON C
FWHM:
12° + 54°
FWTM:
27° + 79°
Peak intensity:
3.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

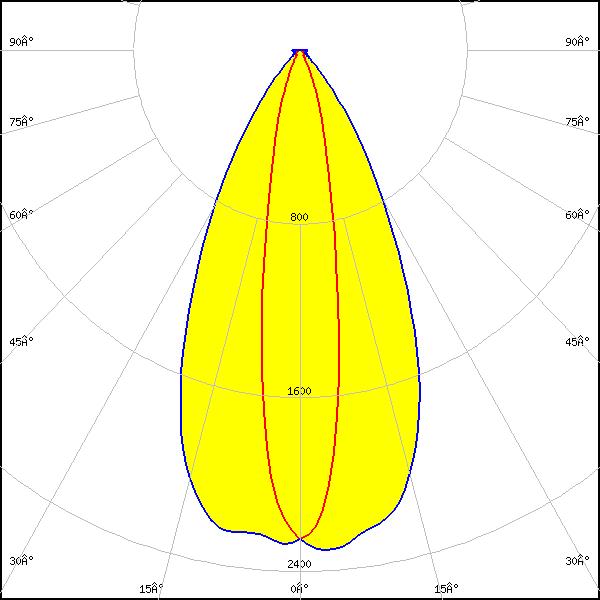

LED:
LUXEON HL2X
FWHM:
18° + 52°
FWTM:
42° + 82°
Peak intensity:
2.307 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

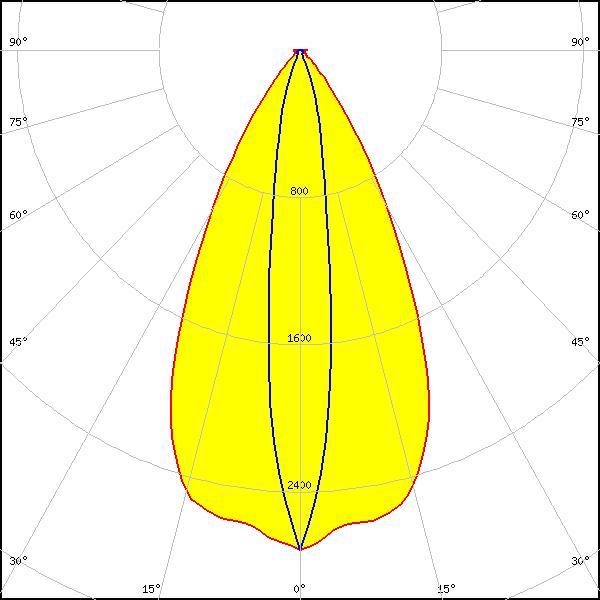

LED:

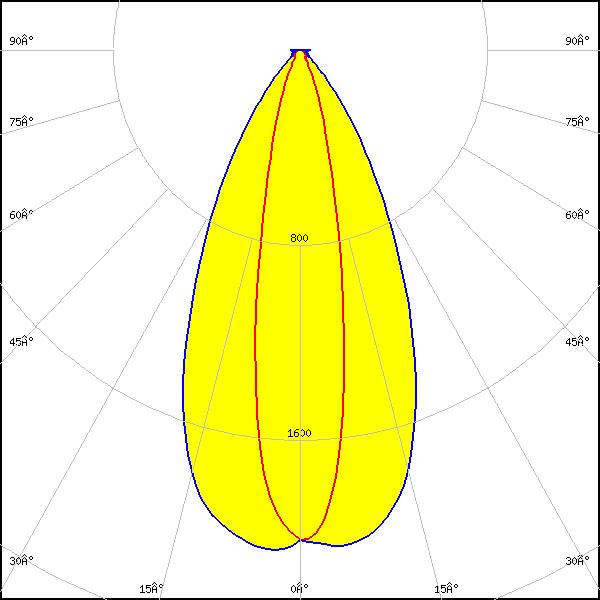

LUXEON HL4X
FWHM:
20° + 50°
FWTM:
46° + 84°
Peak intensity:
2.063 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

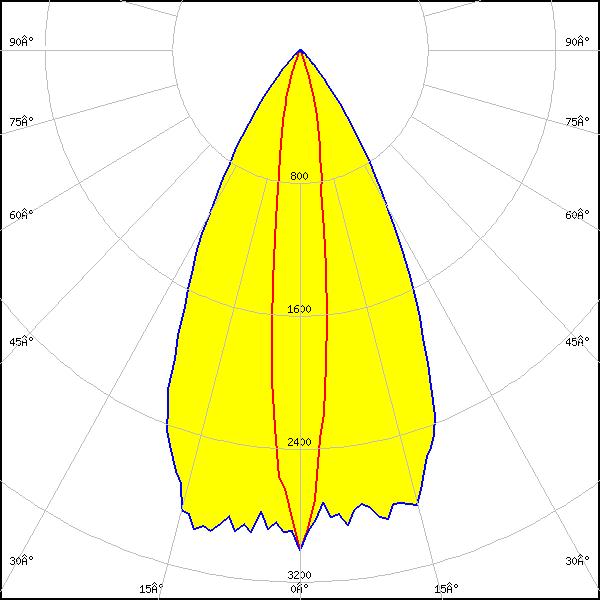

LED:

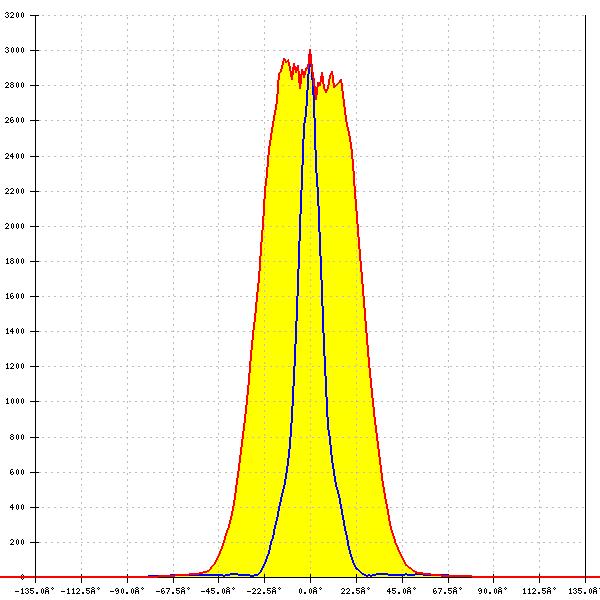

LUXEON TX
FWHM:
14° + 50°
FWTM:
0° + 0°
Peak intensity:
0.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

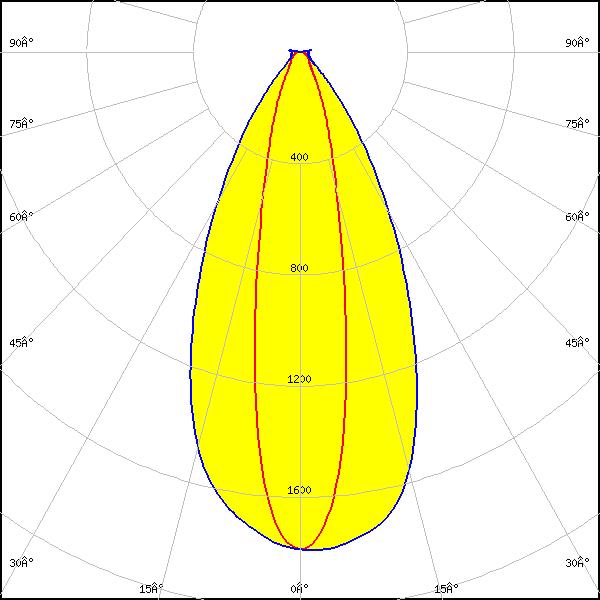

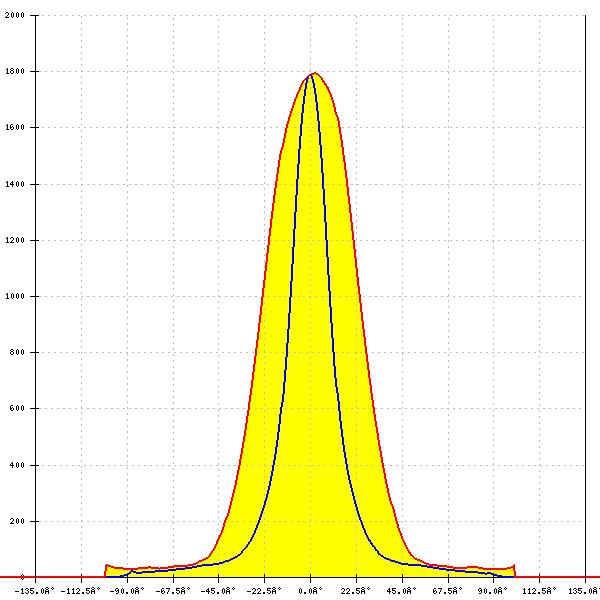

LED:

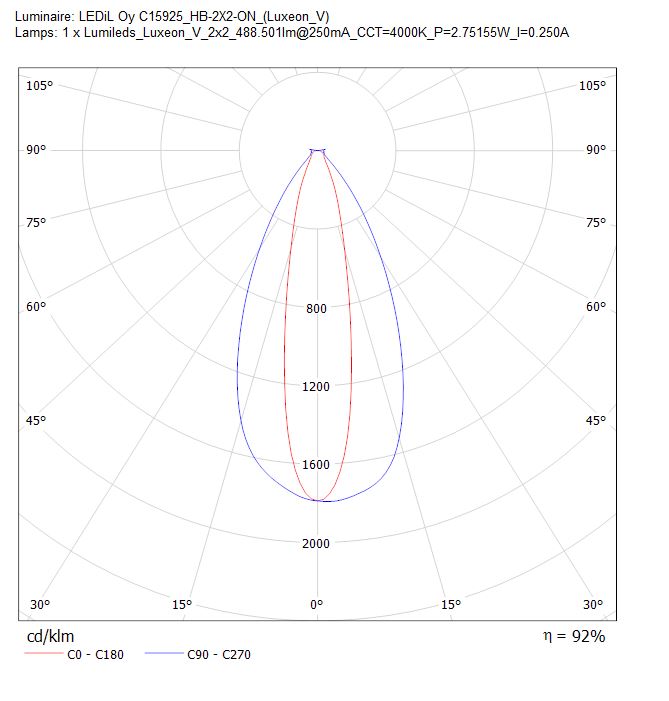

LUXEON V
FWHM:
22° + 51°
FWTM:
52° + 86°
Peak intensity:
1.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

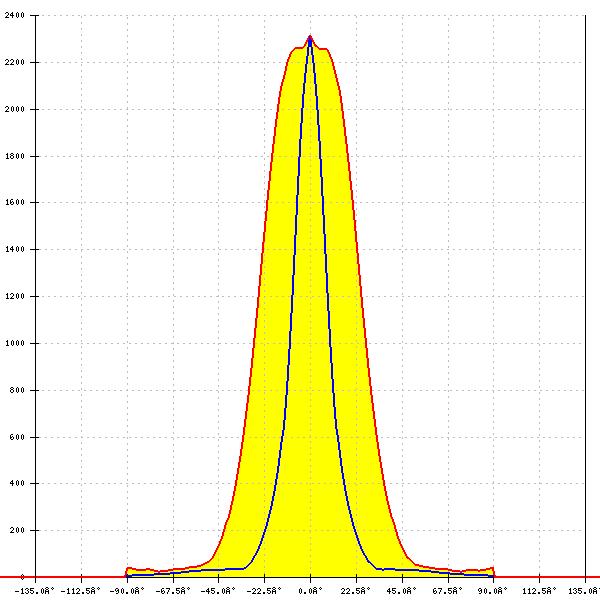

LED:

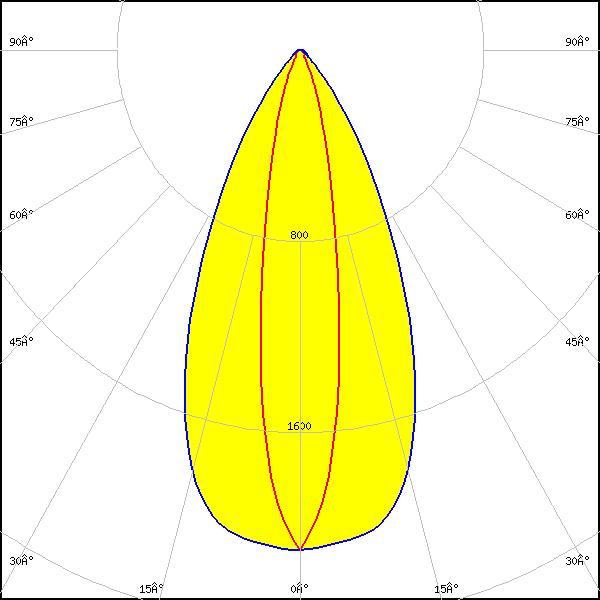

LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM:
18° + 52°
FWTM:
42° + 82°
Peak intensity:
2.314 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

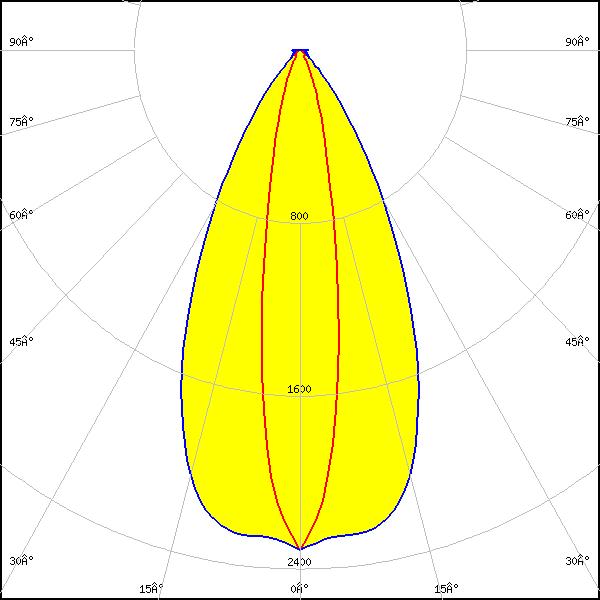

LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM:
18° + 50°
FWTM:
42° + 80°
Peak intensity:
2.093 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

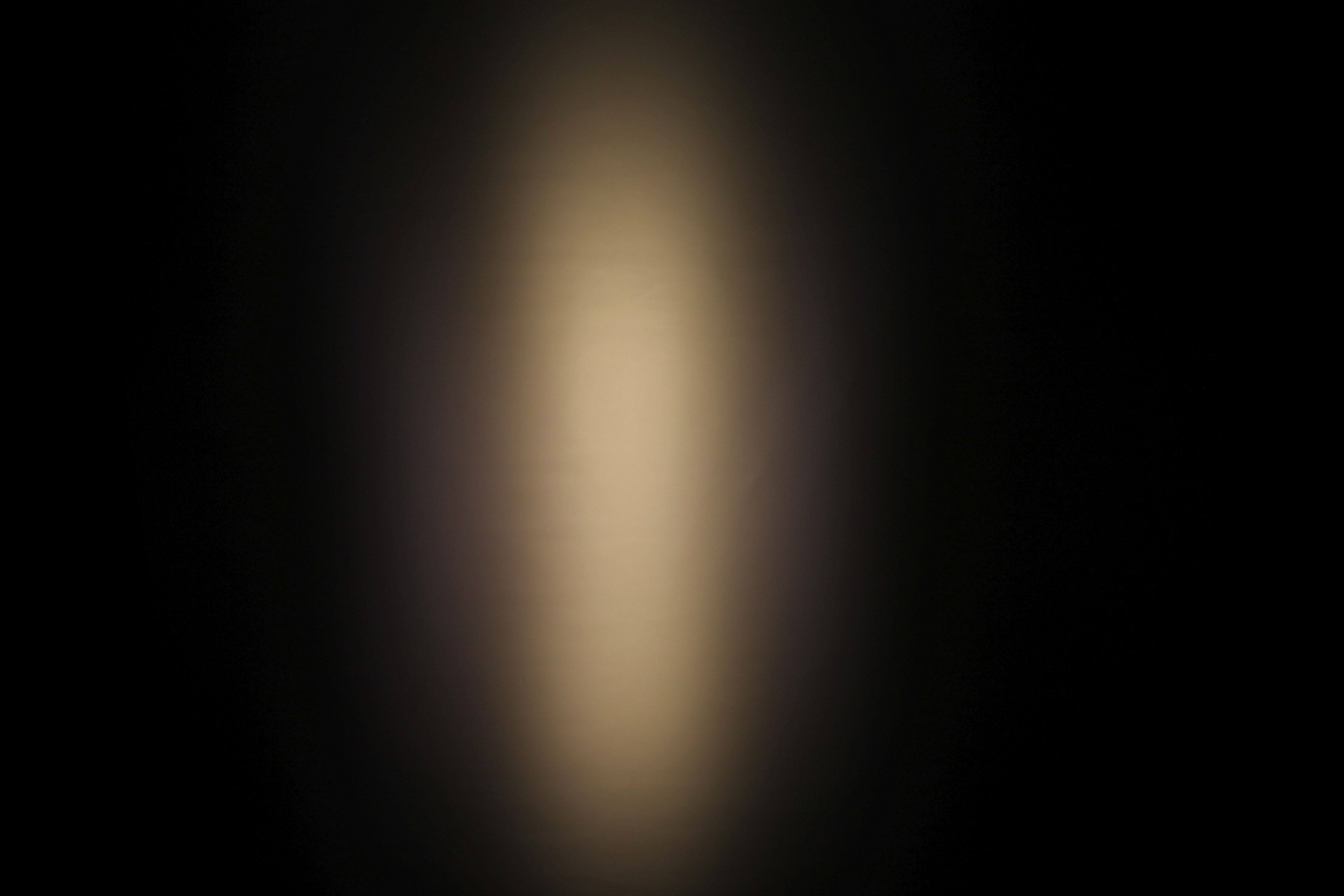

LED:

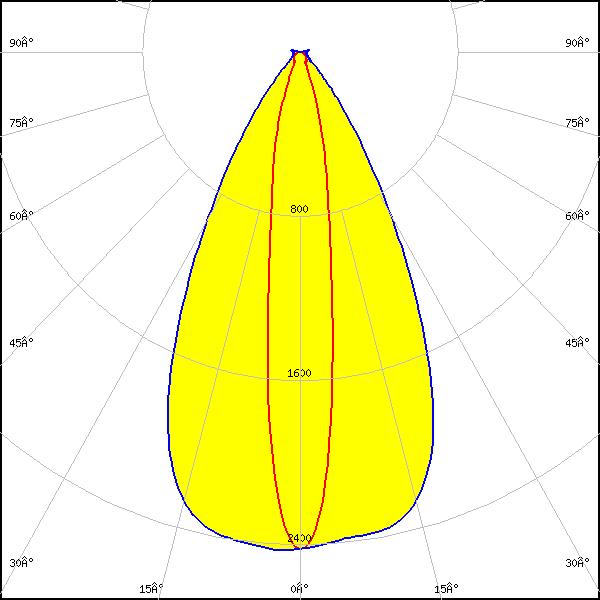

RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM:
15° + 54°
FWTM:
39° + 83°
Peak intensity:
2.431 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

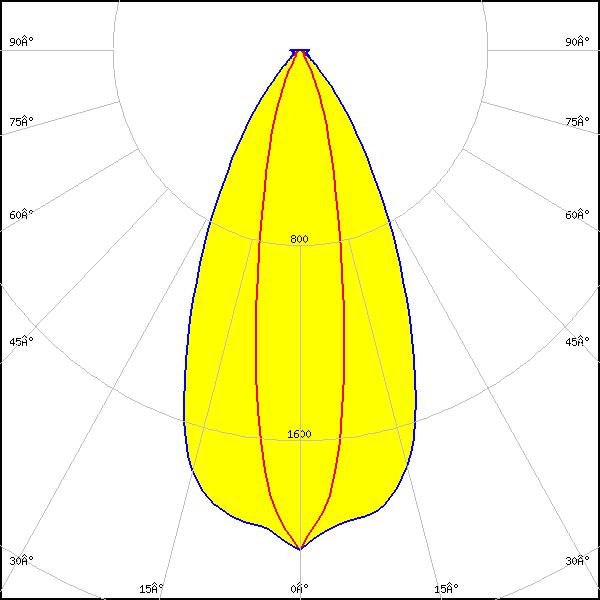

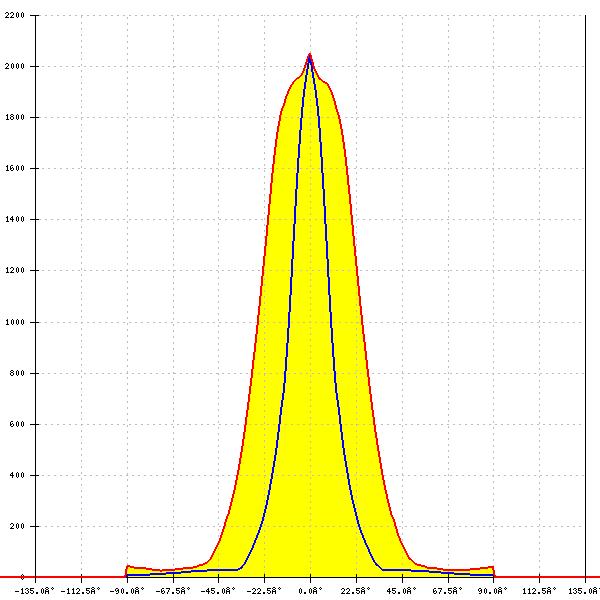

NV4WB35AM
FWHM:
20° + 50°
FWTM:
48° + 84°
Peak intensity:
2.050 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

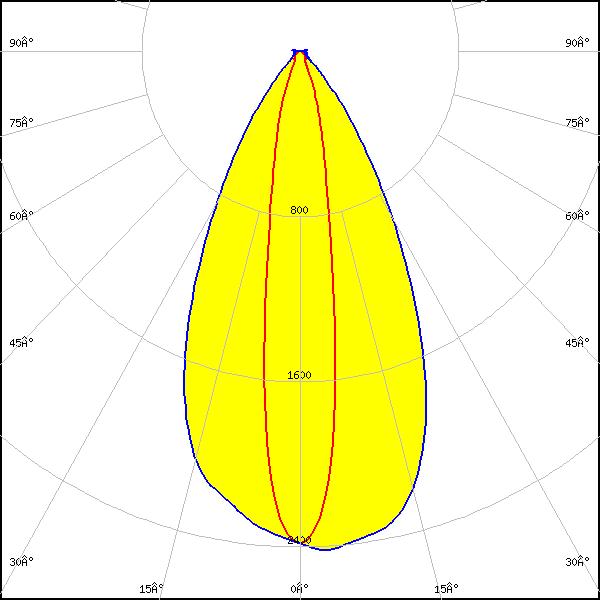

LED:

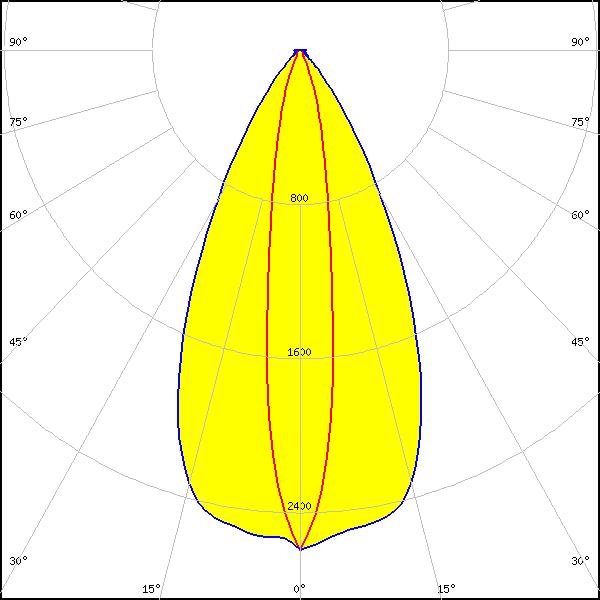

NVSW219F
FWHM:
17° + 53°
FWTM:
40° + 83°
Peak intensity:
2.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

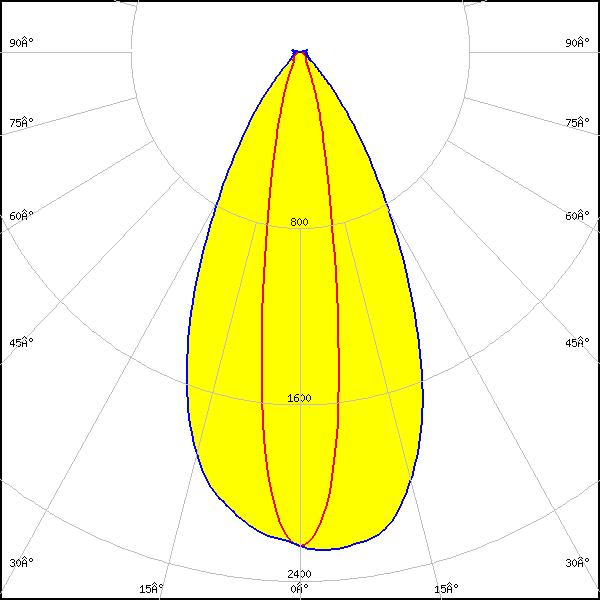

LED:
NVSW319B
FWHM:
18° + 52°
FWTM:
41° + 84°
Peak intensity:
2.300 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

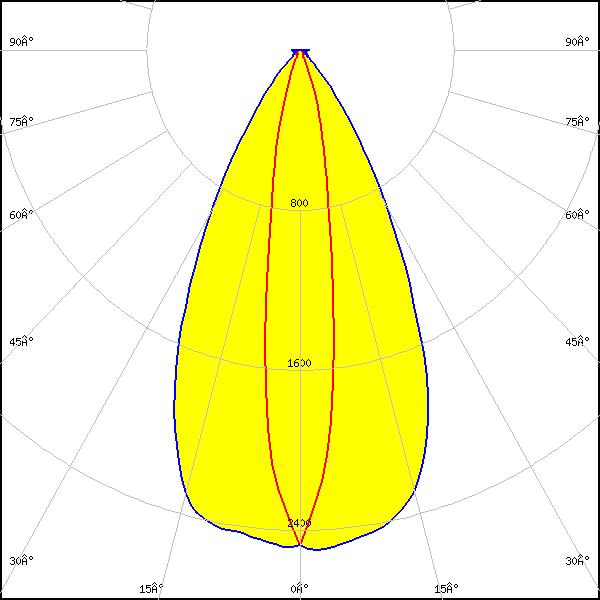

LED:
NVSxx19B/NVSxx19C
FWHM:
16° + 53°
FWTM:
38° + 81°
Peak intensity:
2.540 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

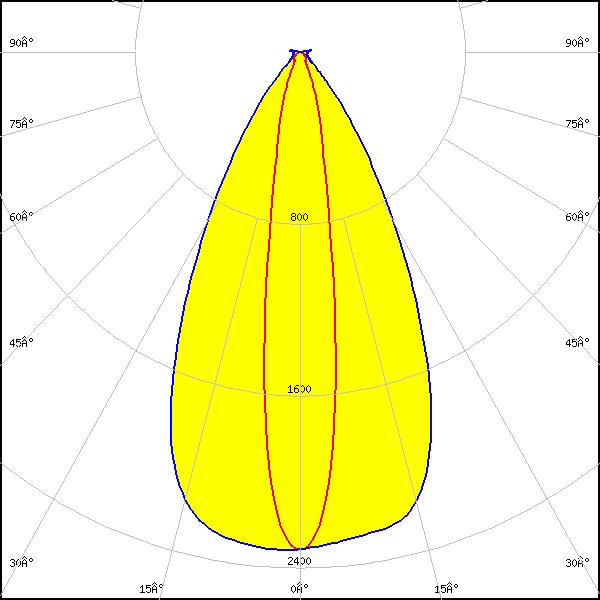

LED:
PL-BRICK HP 3800 2x8 SSG
FWHM:
17° + 54°
FWTM:
41° + 84°
Peak intensity:
2.322 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

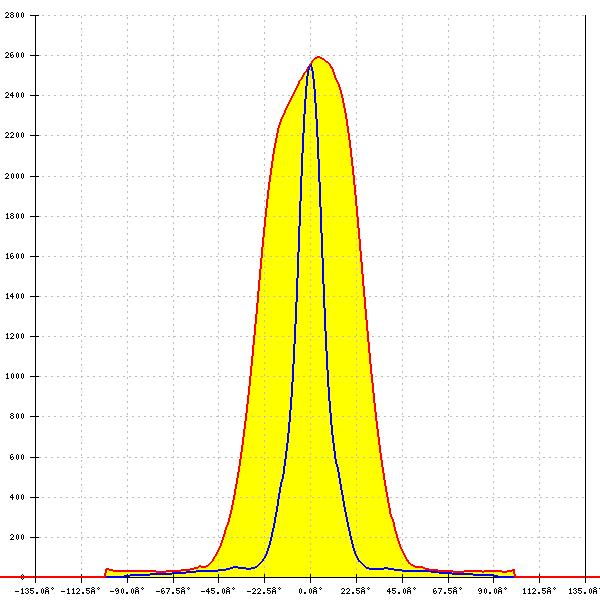

LED:
PrevaLED Brick HP 2x8
FWHM:
15° + 54°
FWTM:
36° + 82°
Peak intensity:
2.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

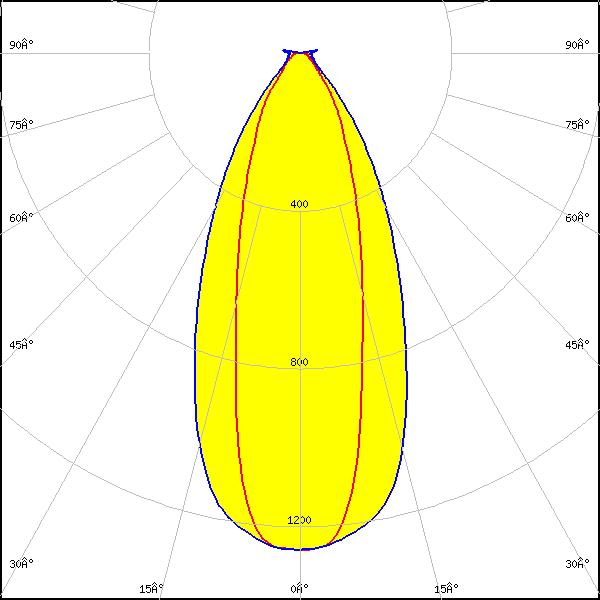

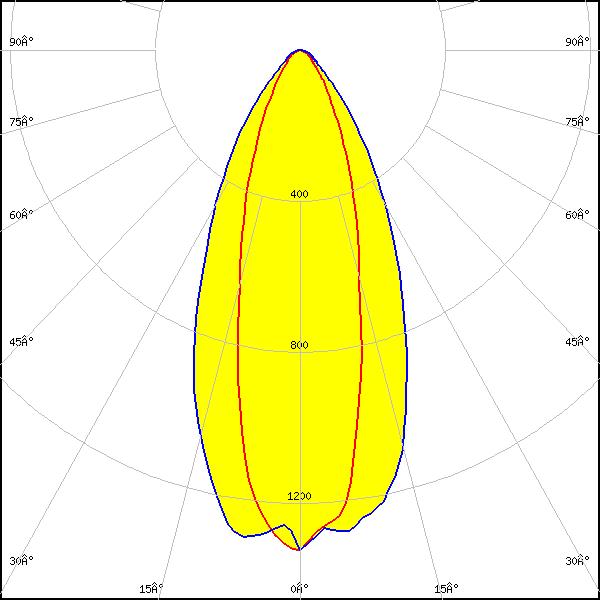

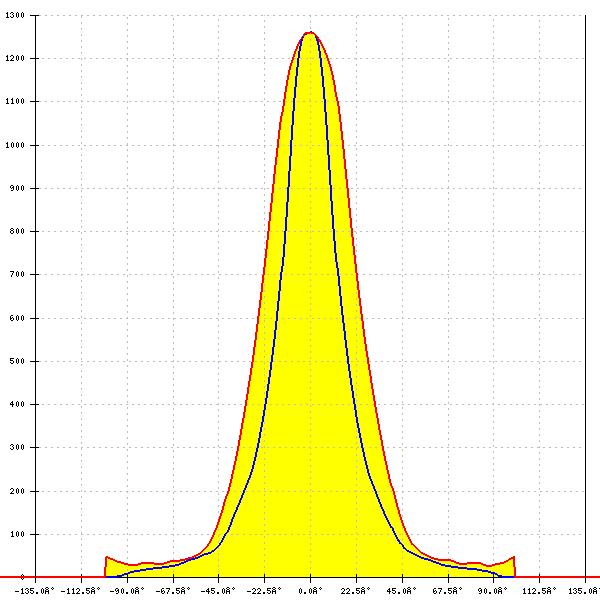

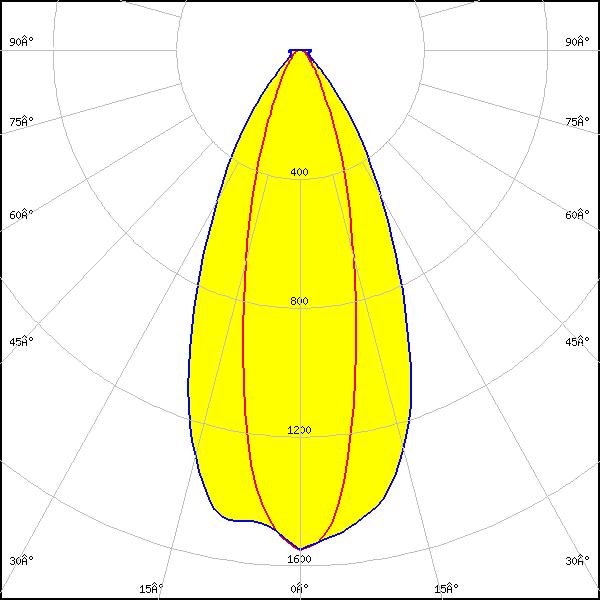

LED:

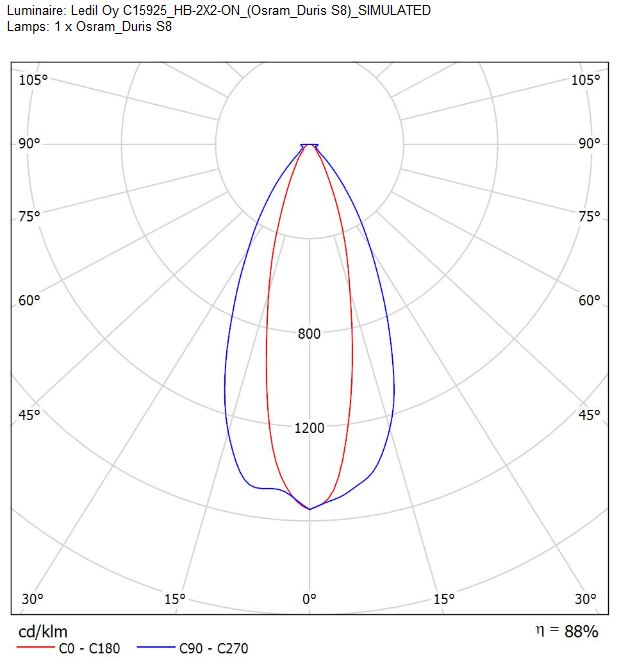

Duris S8
FWHM:
29° + 49°
FWTM:
69° + 89°
Peak intensity:
1.400 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM:
31° + 49°
FWTM:
78° + 91°
Peak intensity:
1.260 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

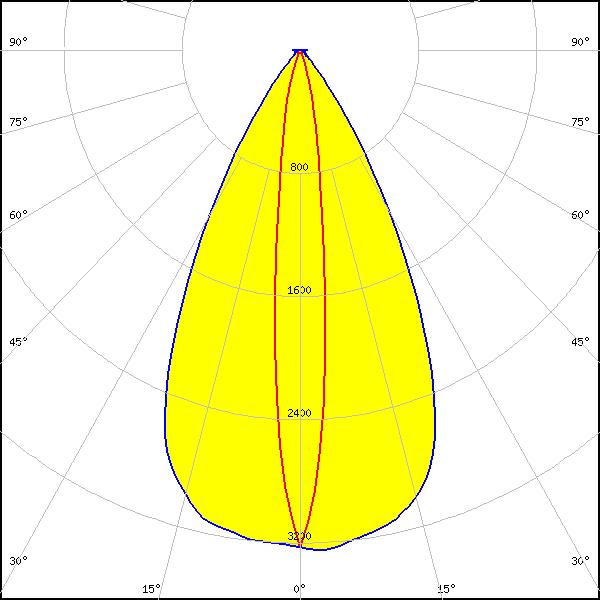

OSCONIQ C 2424
FWHM:
12° + 54°
FWTM:
30° + 78°
Peak intensity:
3.270 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

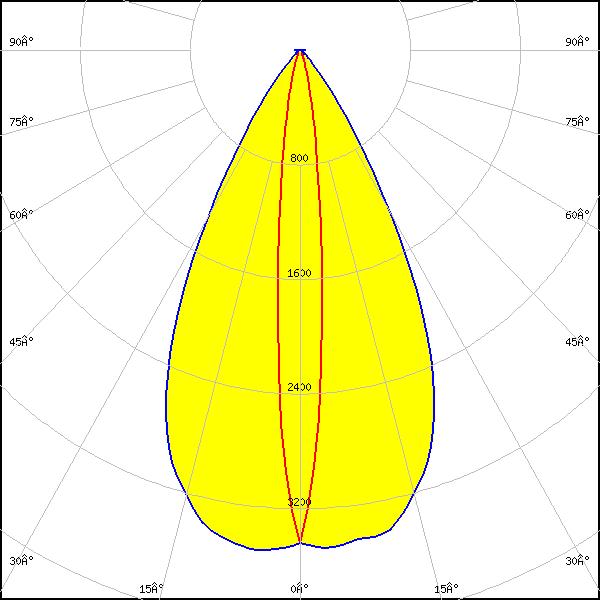

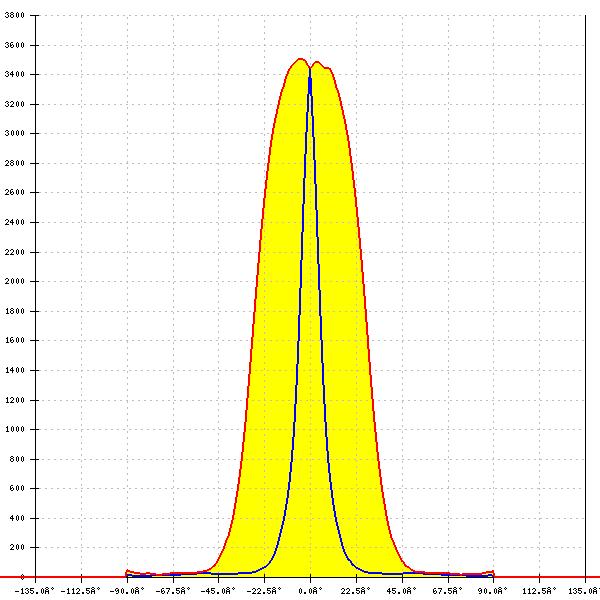

OSCONIQ P 3030
FWHM:
10° + 56°
FWTM:
28° + 78°
Peak intensity:
3.504 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

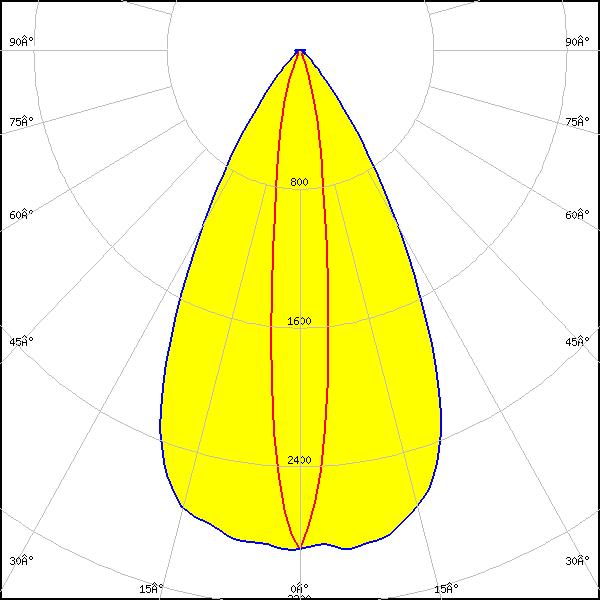

LED:
OSCONIQ P 3737 (2W version)
FWHM:
13° + 56°
FWTM:
34° + 81°
Peak intensity:
2.910 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

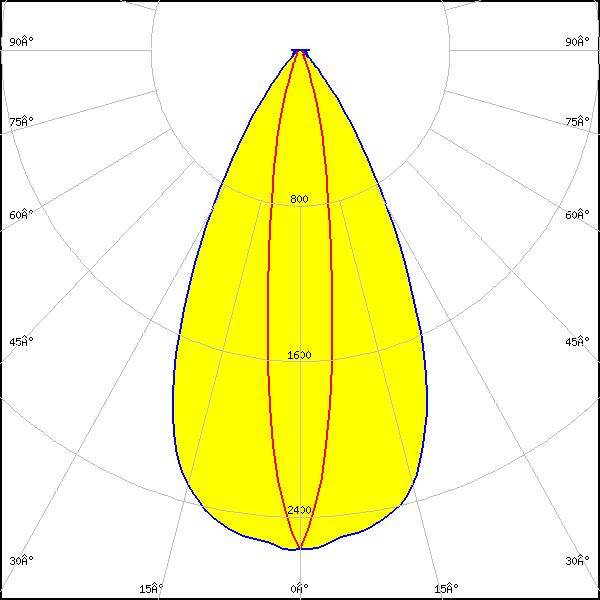

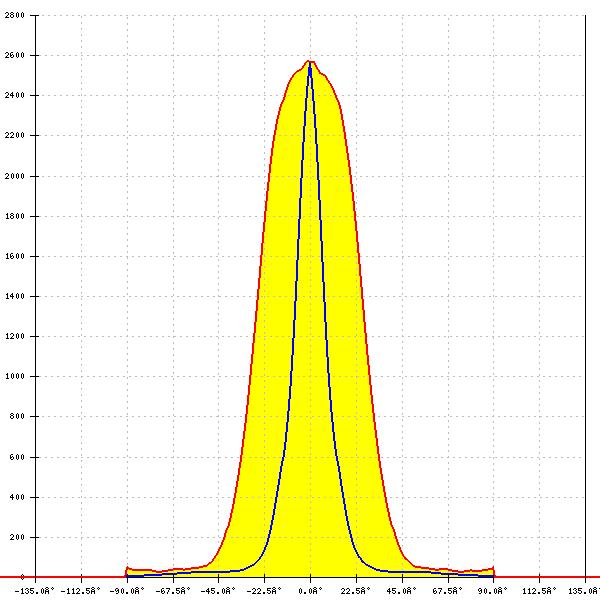

LED:
OSCONIQ P 3737 Flat
FWHM:
16° + 54°
FWTM:
38° + 80°
Peak intensity:
2.579 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

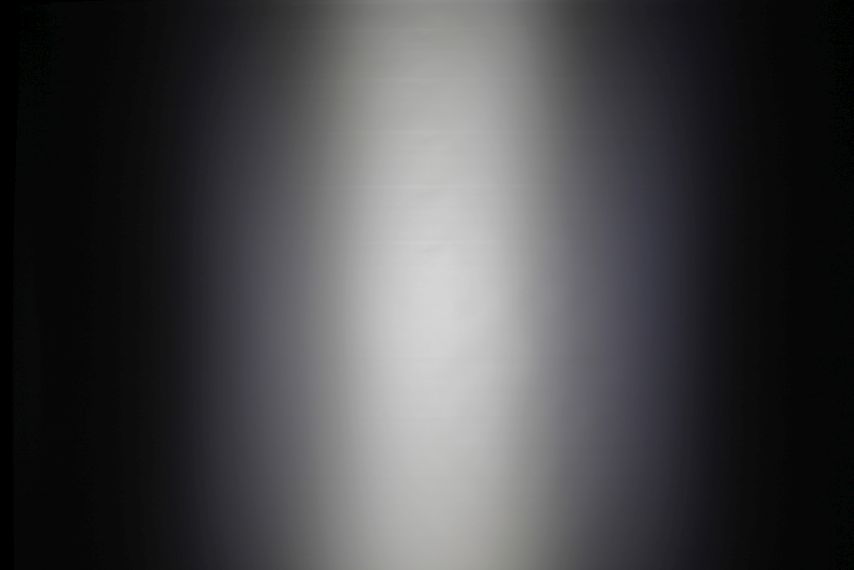

LED:

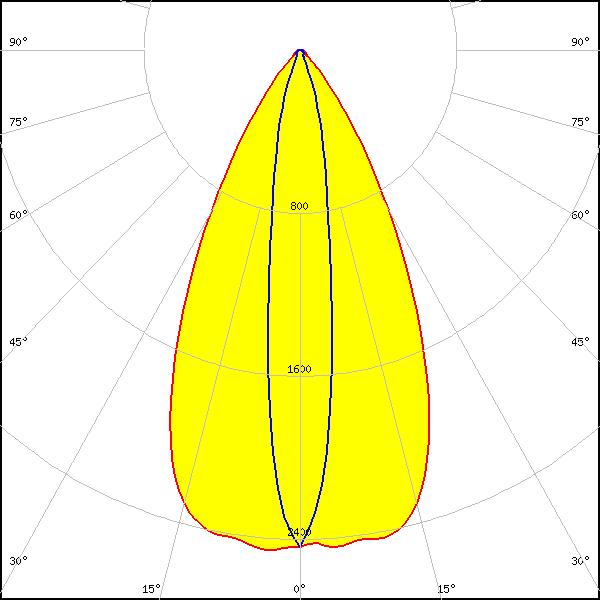

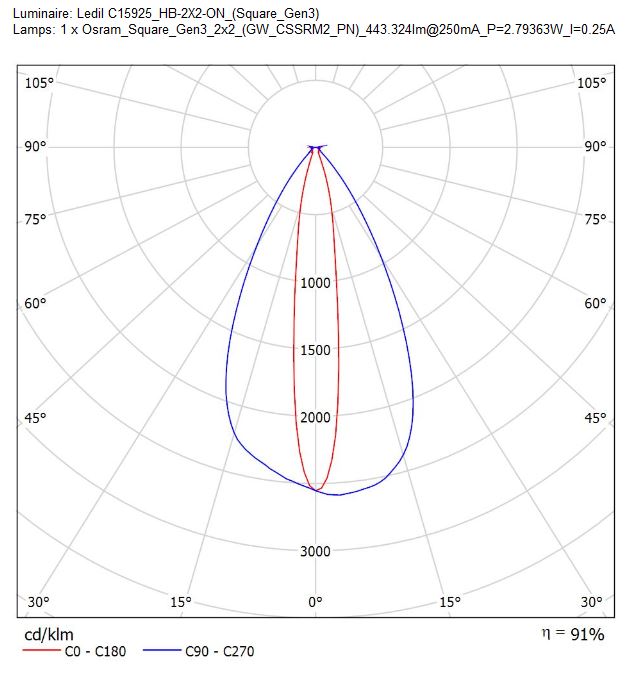

OSLON Square CSSRM2/CSSRM3
FWHM:
15° + 54°
FWTM:
36° + 82°
Peak intensity:
2.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

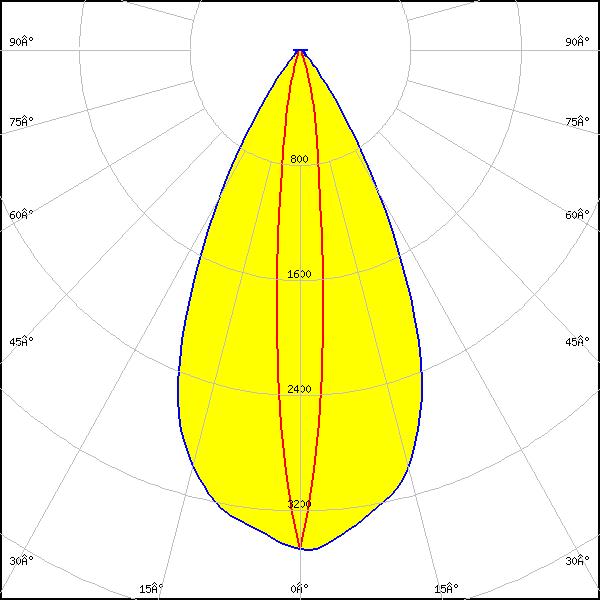

LED:
OSLON Square Flat
FWHM:
12° + 52°
FWTM:
29° + 76°
Peak intensity:
3.477 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

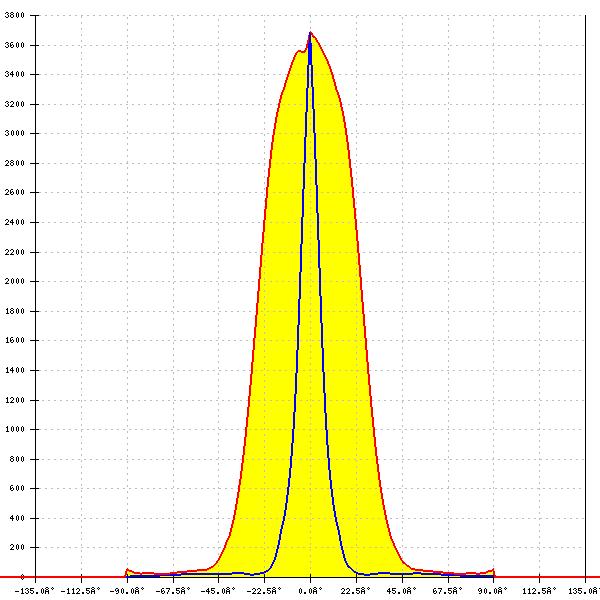

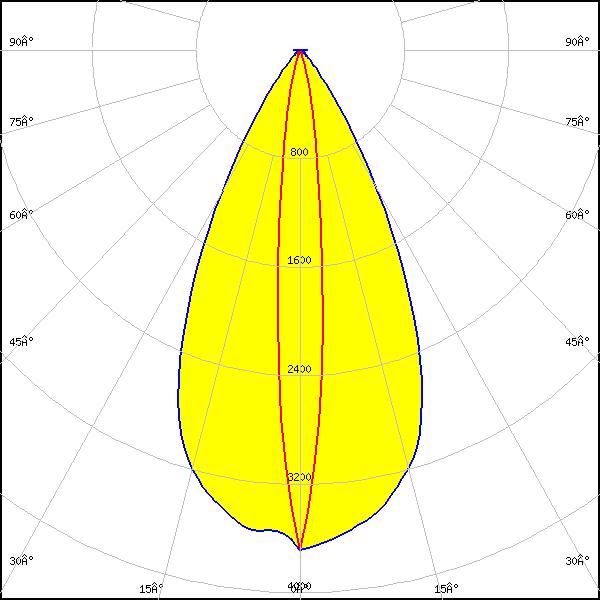

LED:
OSTAR Projection Compact (KW.CSLNM1.TG)
FWHM:
10° + 52°
FWTM:
26° + 76°
Peak intensity:
3.687 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G4+
FWHM:
18° + 53°
FWTM:
41° + 84°
Peak intensity:
2.240 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

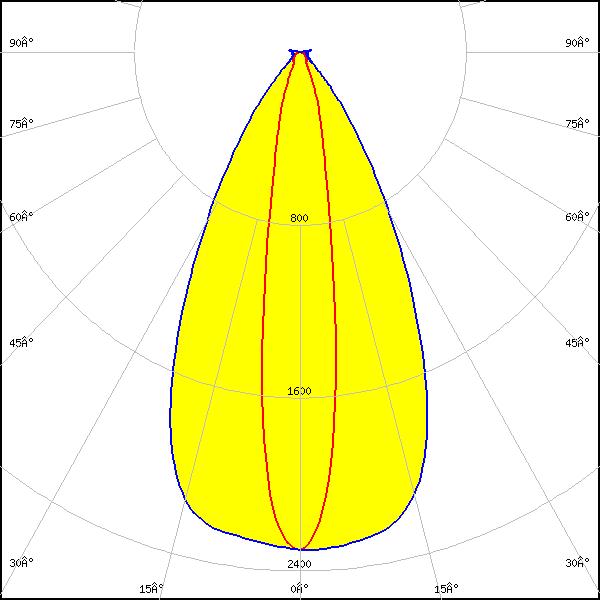

LED:
HiLOM RH16 (LH351C)
FWHM:
17° + 54°
FWTM:
42° + 84°
Peak intensity:
2.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

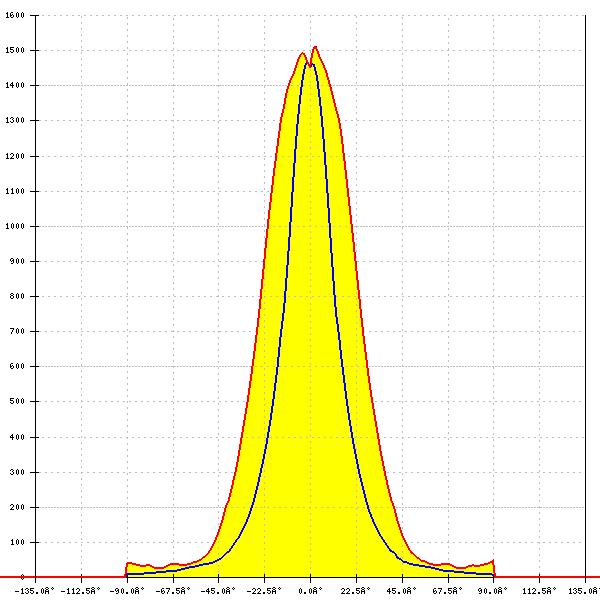

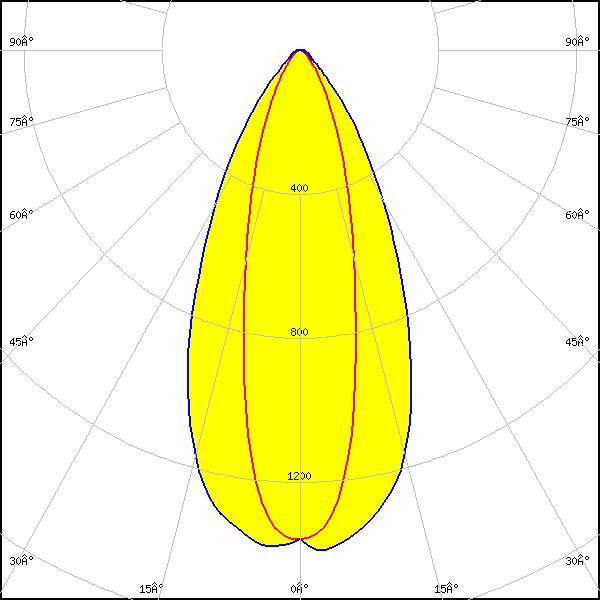

LED:

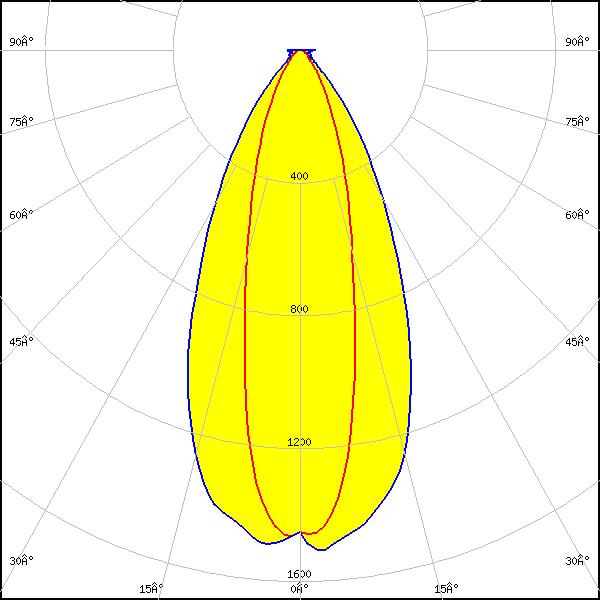

LH502C
FWHM:
26° + 50°
FWTM:
64° + 86°
Peak intensity:
1.510 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH502C
FWHM:
28° + 50°
FWTM:
64° + 86°
Peak intensity:
1.391 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

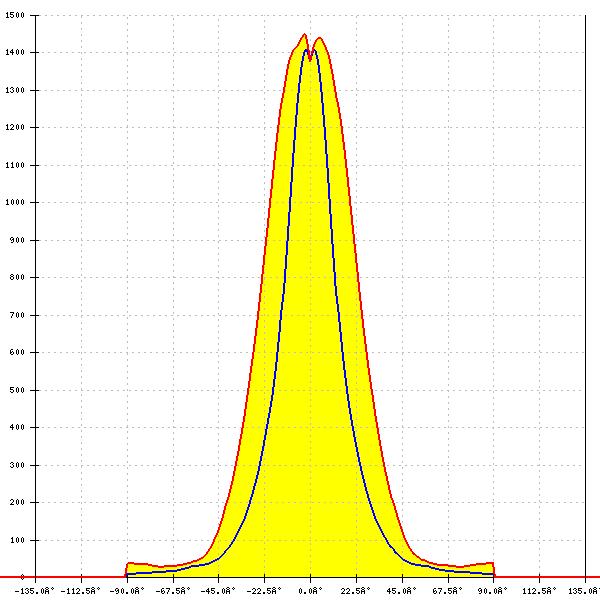

LED:

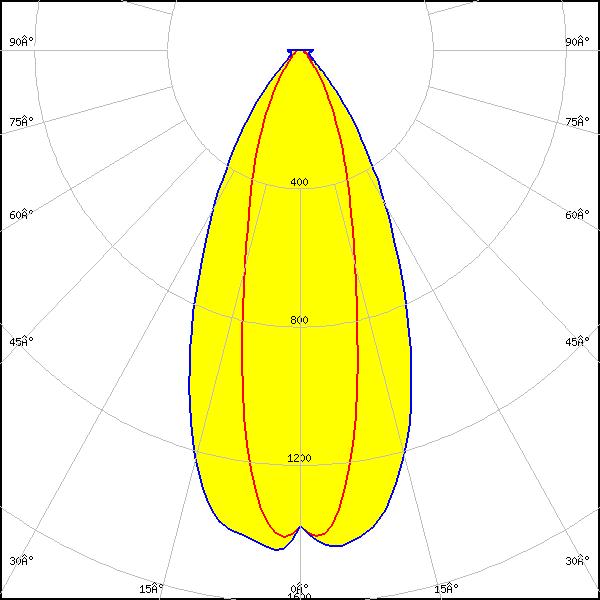

MJT 5050
FWHM:
28° + 50°
FWTM:
67° + 88°
Peak intensity:
1.471 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

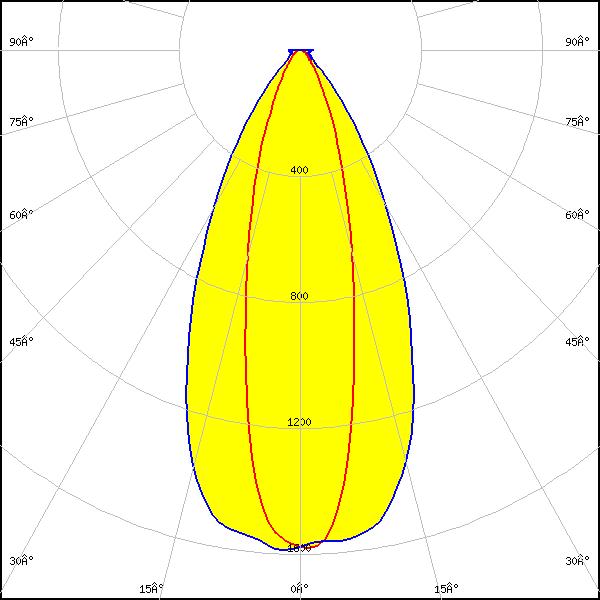

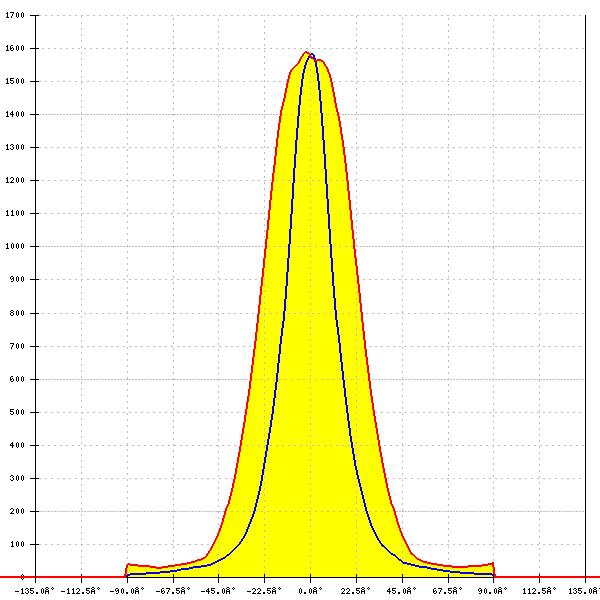

LED:
SEOUL DC 5050 6V
FWHM:
26° + 50°
FWTM:
60° + 86°
Peak intensity:
1.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

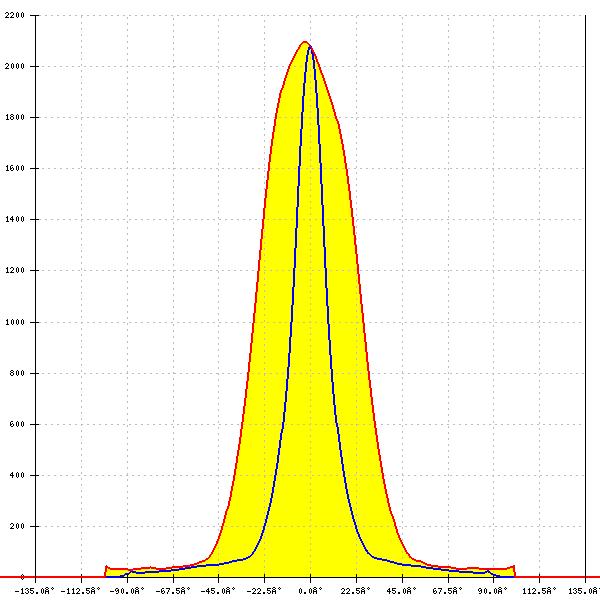

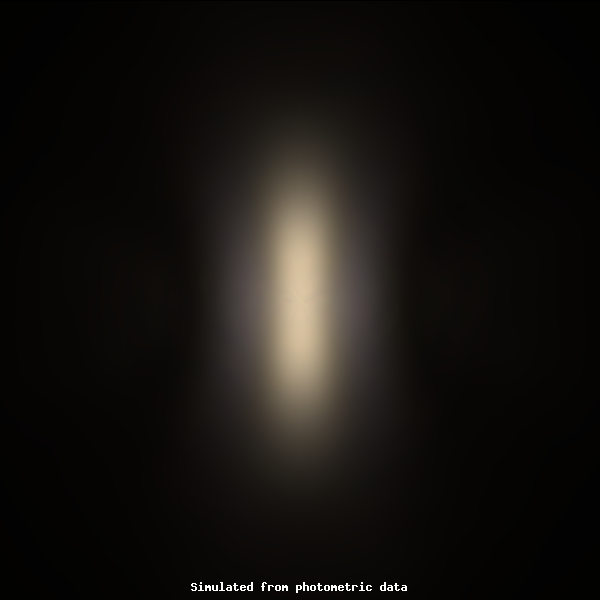

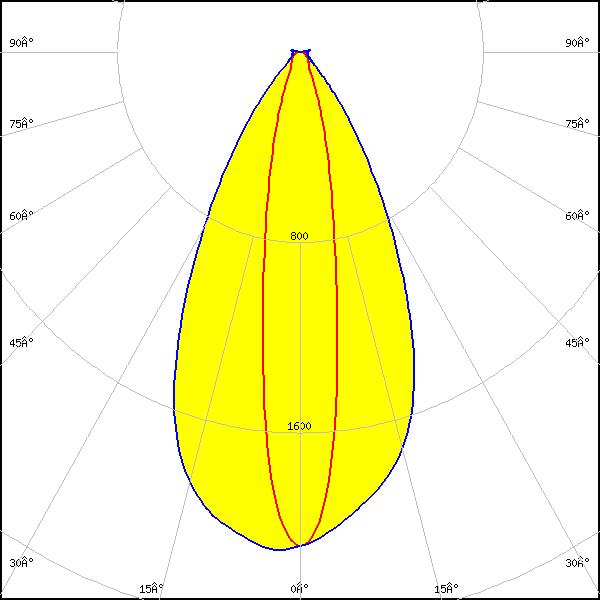

LED:

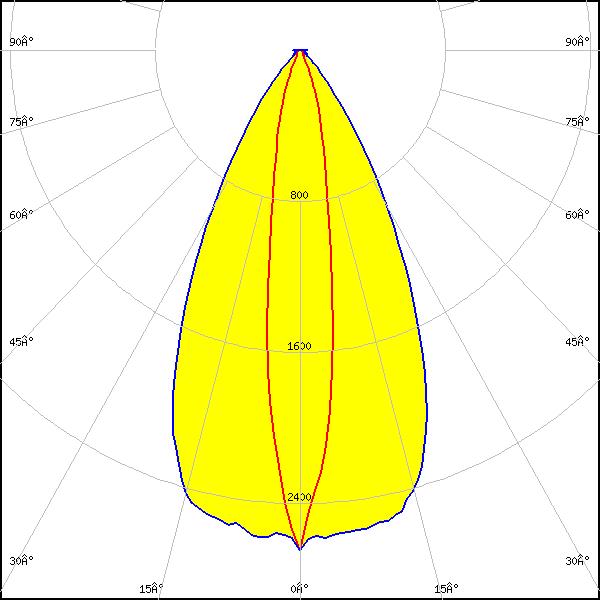

Z5M3
FWHM:
18° + 53°
FWTM:
44° + 84°
Peak intensity:
2.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
20° + 50°
FWTM:
46° + 82°
Peak intensity:
2.073 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
22° + 50°
FWTM:
46° + 82°
Peak intensity:
1.885 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

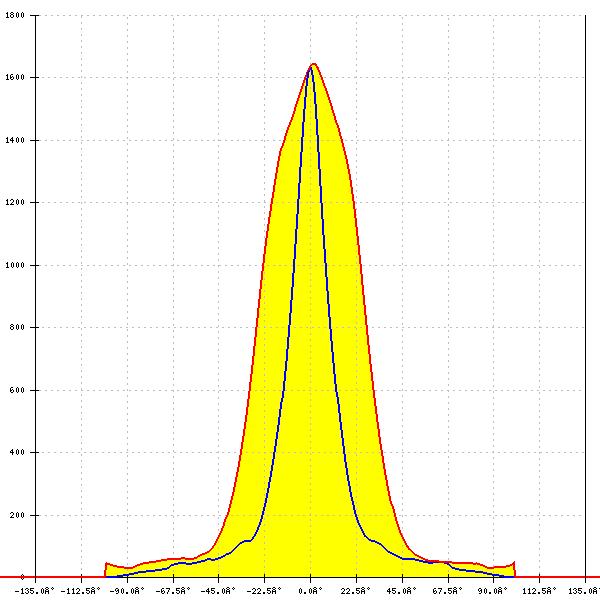

LED:

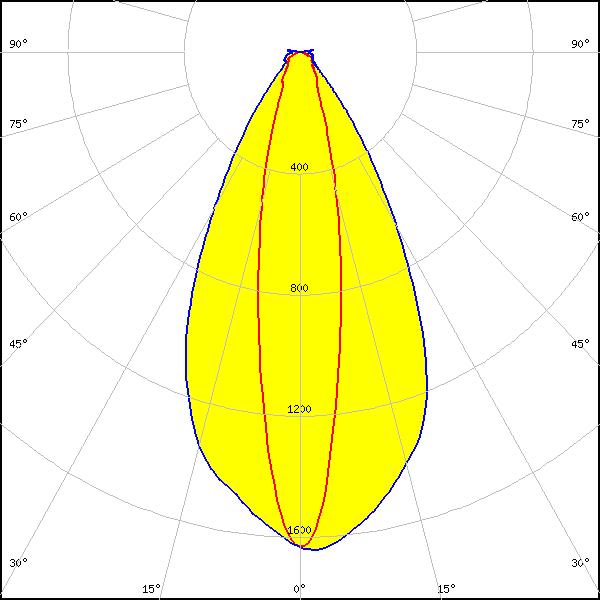

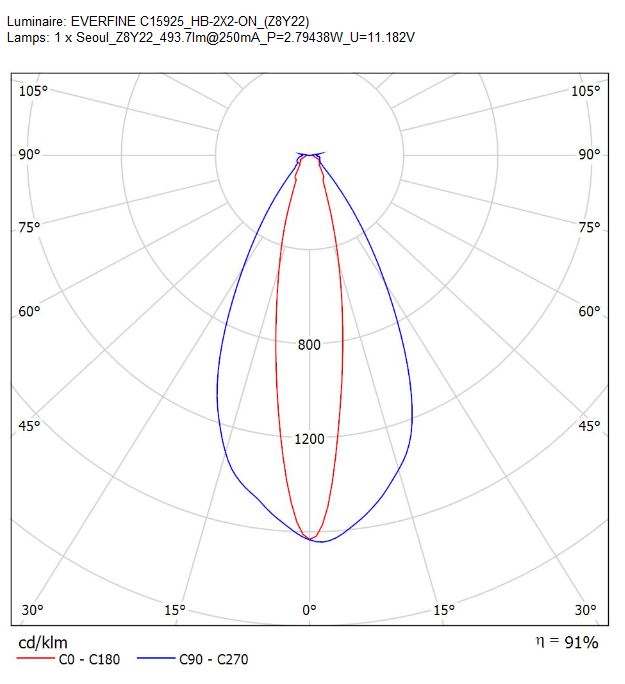

Z8Y22
FWHM:
20° + 53°
FWTM:
50° + 85°
Peak intensity:
1.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

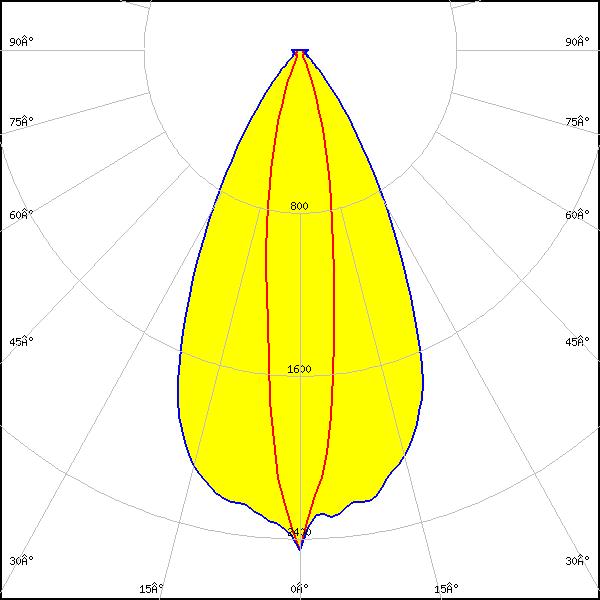

LED:
Z8Y22T
FWHM:
16° + 52°
FWTM:
39° + 81°
Peak intensity:
2.460 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE 2x4 2000lm HP EXC2 OTD
FWHM:
15° + 55°
FWTM:
37° + 82°
Peak intensity:
2.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

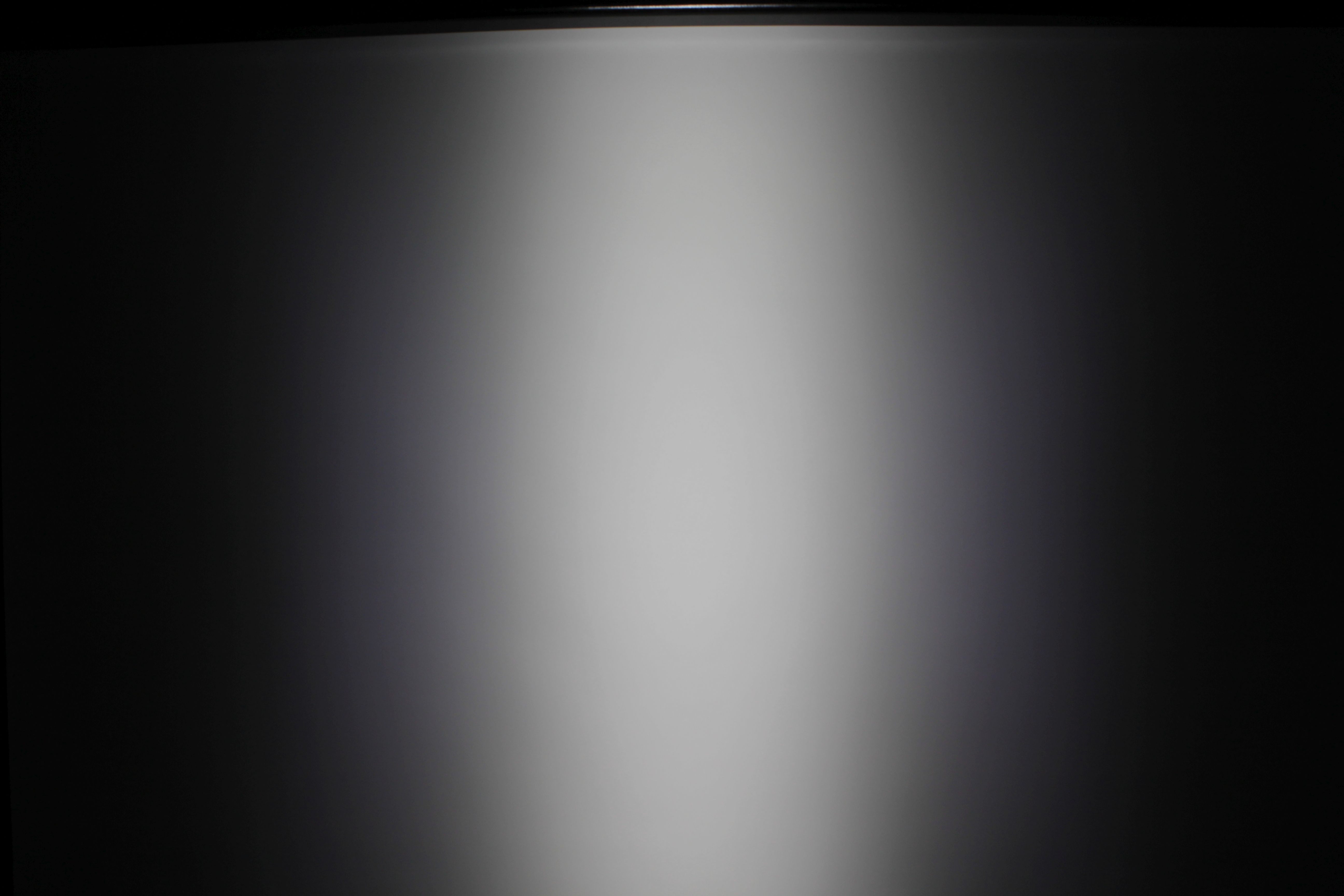

LED:

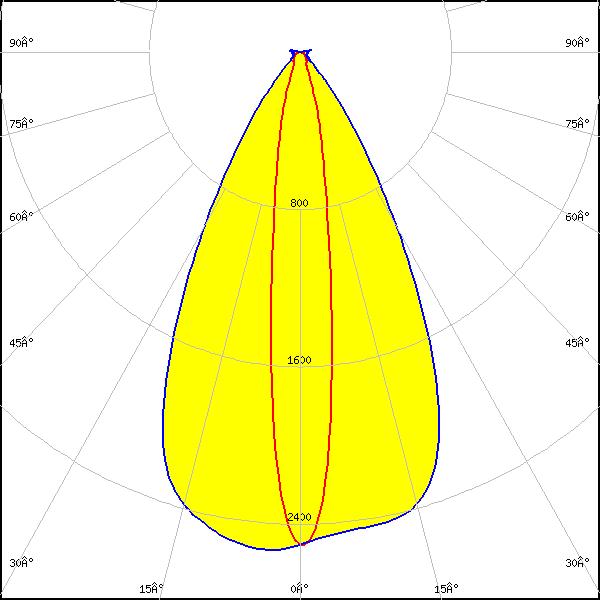

RLE 2x8 4000lm HP EXC2 OTD
FWHM:
15° + 55°
FWTM:
37° + 82°
Peak intensity:
2.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
