    C14928_HB-2X2-RW-PC

    Print

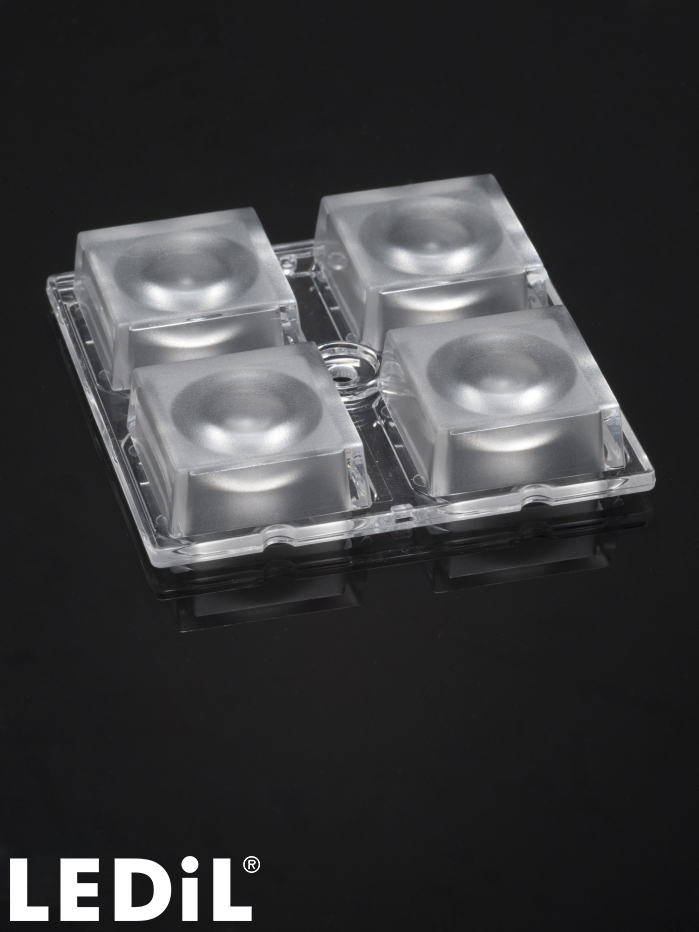

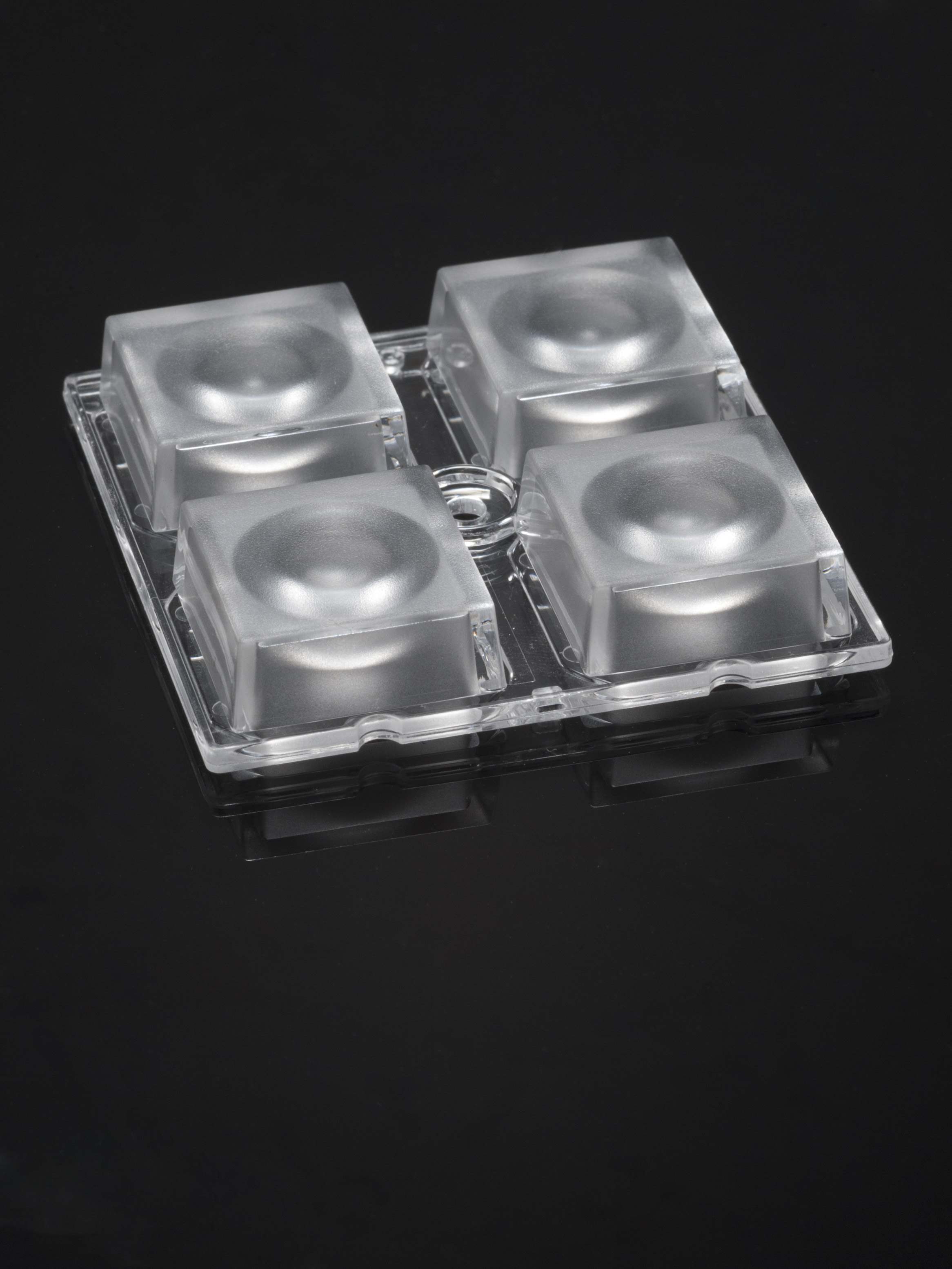

    ~50° wide beam. Variant made from PC.

    Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      8.50 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.4 kg
    • MPQ:
      800 pcs
    • MOQ:
      5600 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      9.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C14928_HB-2X2-RW-PC
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
    WHERE TO BUY

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New street and high bay beams

    Case story

    The Belogorsky Monastery of St. Nicholas

    News

    New Products - 2018-12-20

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Stadium lighting

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

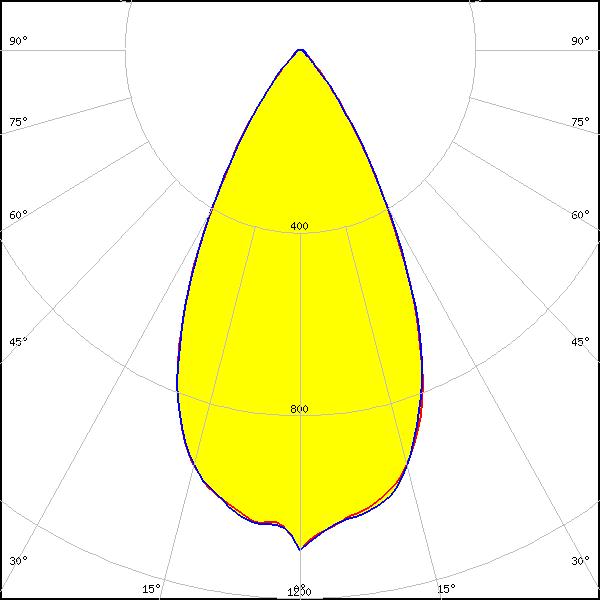

    Optical results

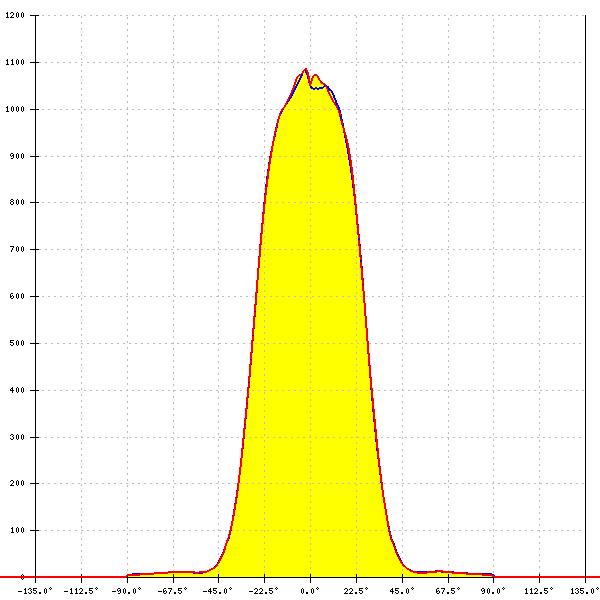

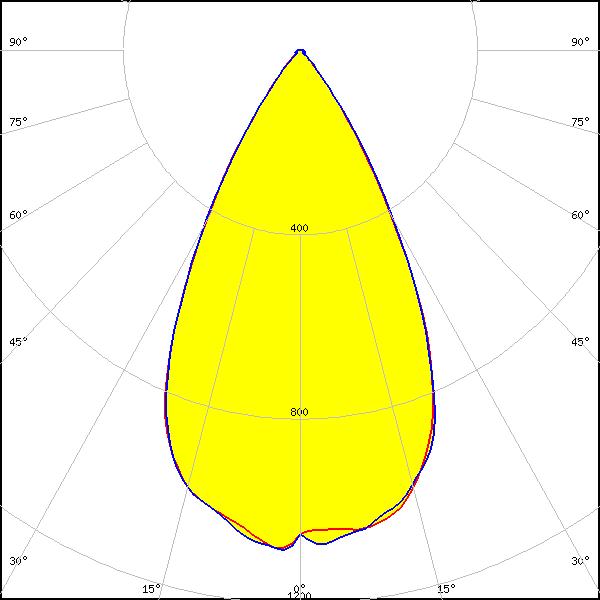

    LED: NV4WB35AM
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.098 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

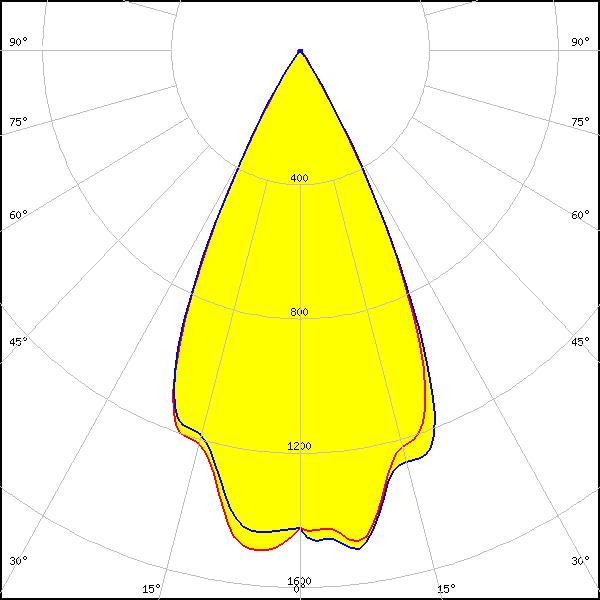

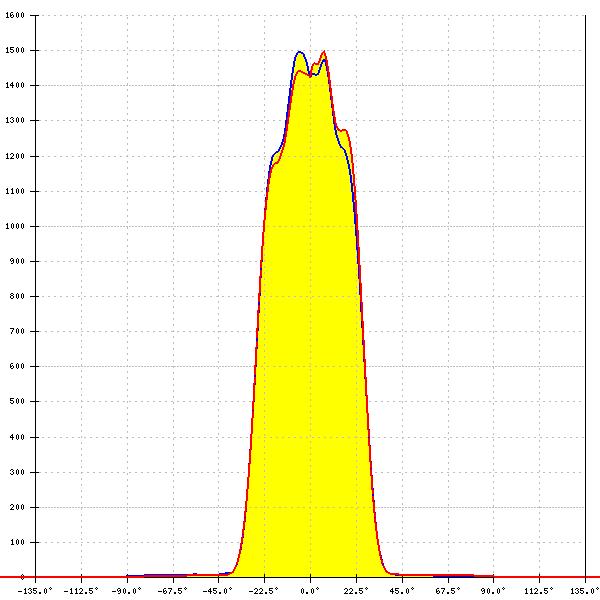

    LED: OSCONIQ C 2424
    FWHM: 50° + 51°
    FWTM: 64° + 64°
    Peak intensity: 1.497 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
