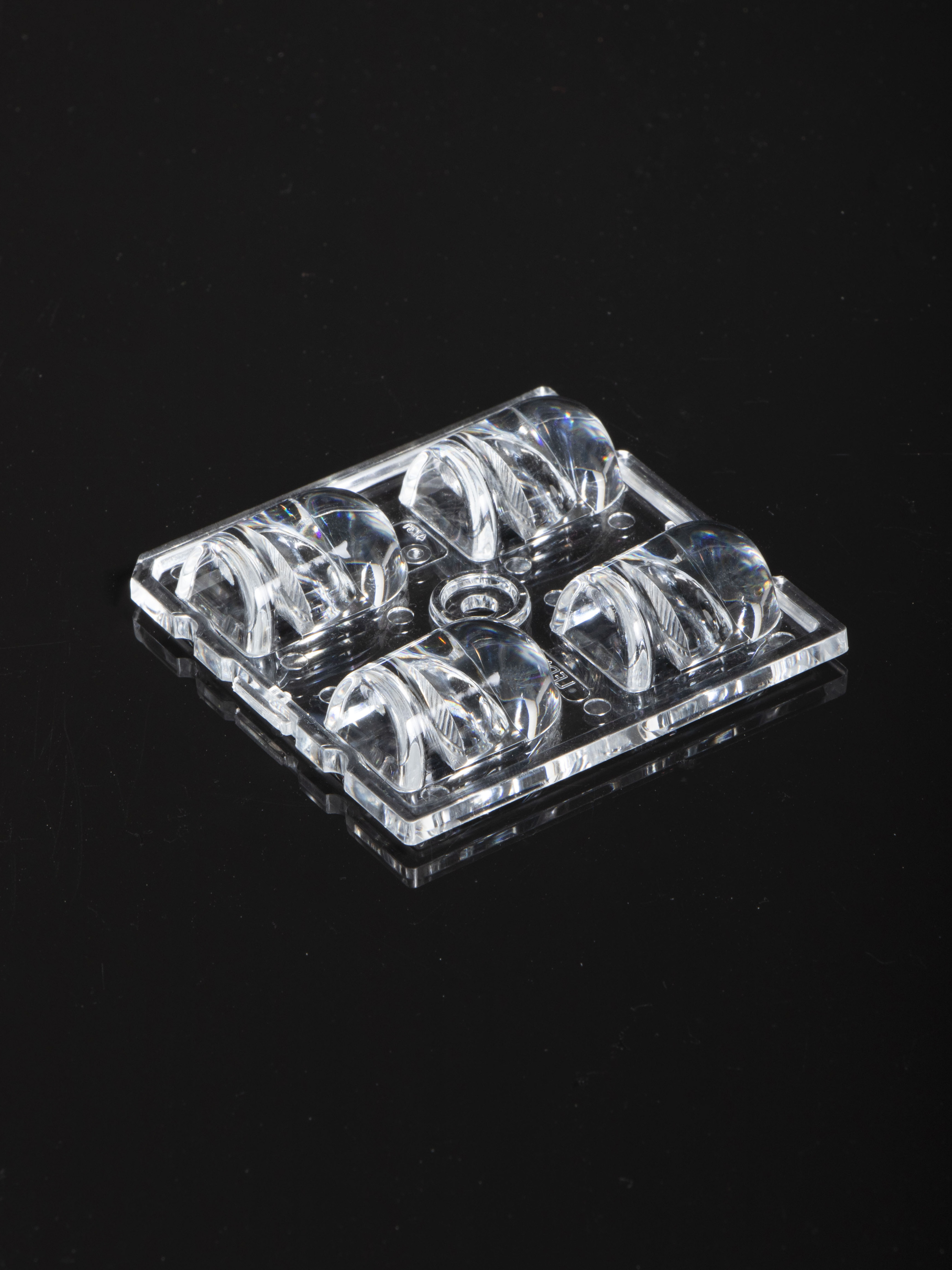

    C14731_STRADA-2X2-FN-PC

    Print

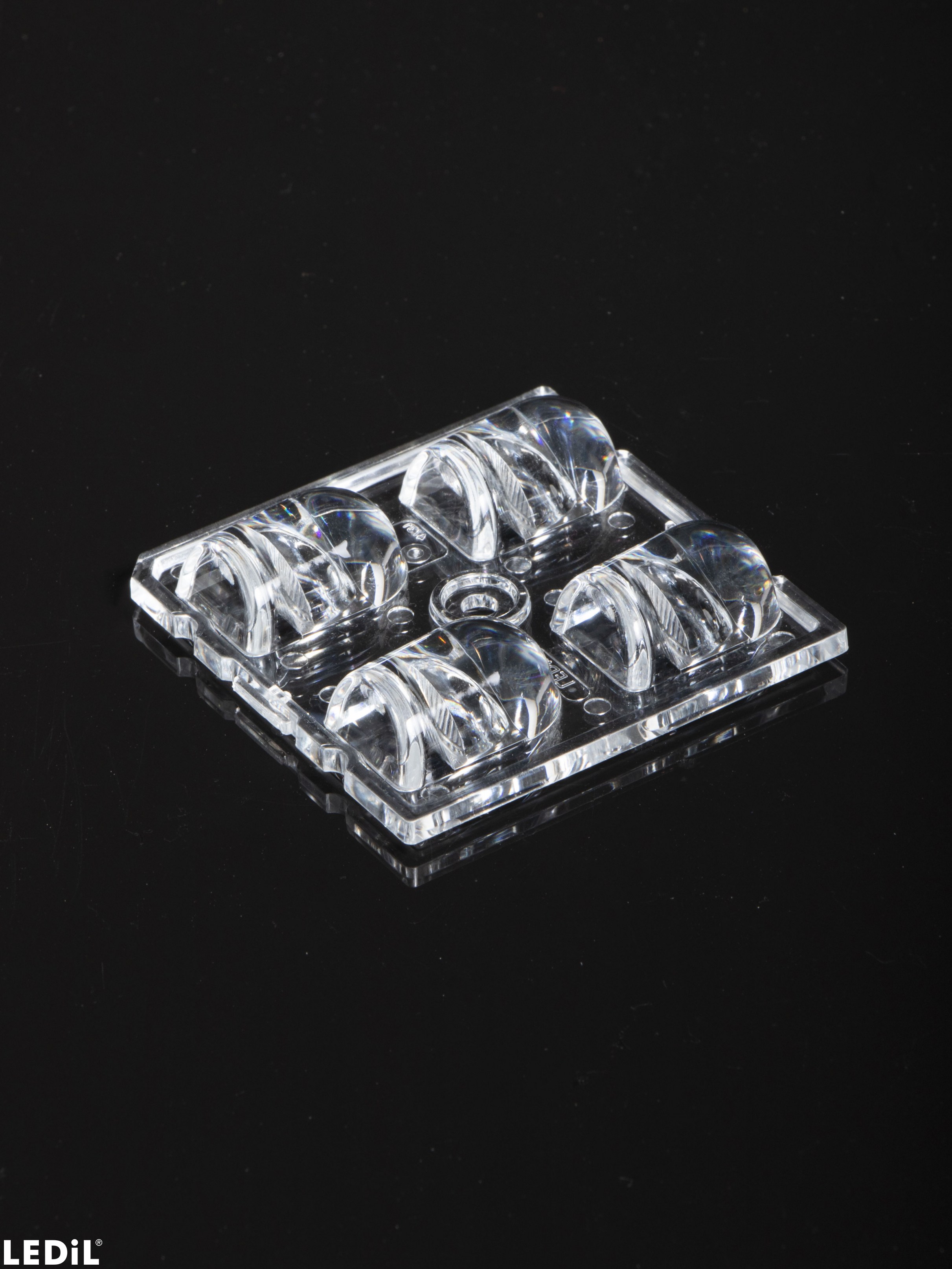

    Narrow forward throw beam for area lighting. Excellent for lighting stadiums and airports from high masts. Variant made from PC.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      10.00 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.0 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      2.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C14731_STRADA-2X2-FN-PC
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application area

    Sports outdoor lighting

    Application area

    SPORTS INDOOR LIGHTING

    News

    New Products - 2018-12-20

    Case story

    Lauben Bozen medieval lighting

    Application area

    Urban lighting with LEDiL optics

    Application example

    Urban lighting with LEDiL optics

    Application guide

    LEDiL guide for street lighting optics

    Reference product

    Bollard lamp for urban environments

    Case story

    Naberezhne Highway in Kiev

    Application area

    Industrial Lighting

    Installation guide

    STRADA-2X2 Installation guide

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    AVAILABLE LEDiL ACCESSORIES

    STRADA-2X2-SHD-WHT

    White shade for additional backlight control.

    STRADA-2X2-SHD-BLK

    Black shade for additional backlight control.

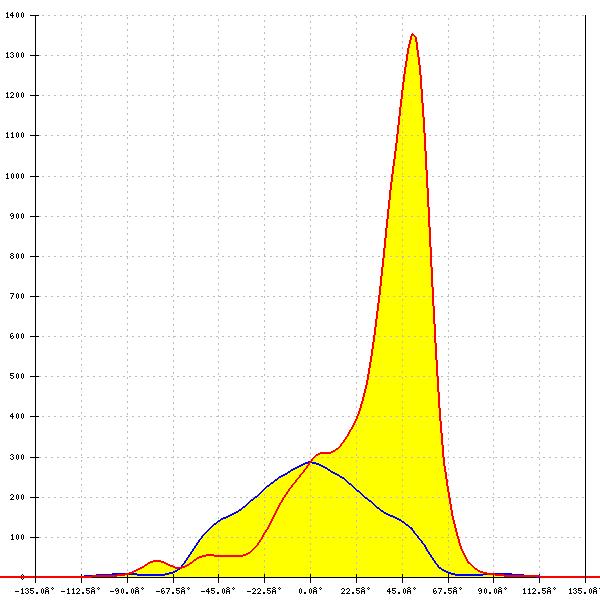

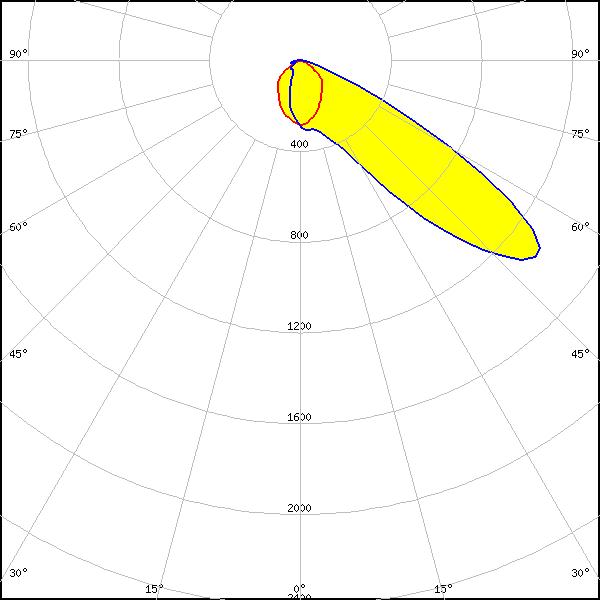

    Optical results

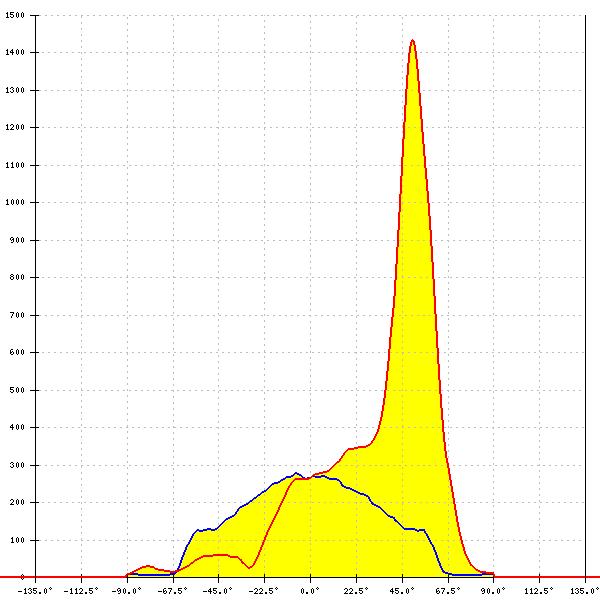

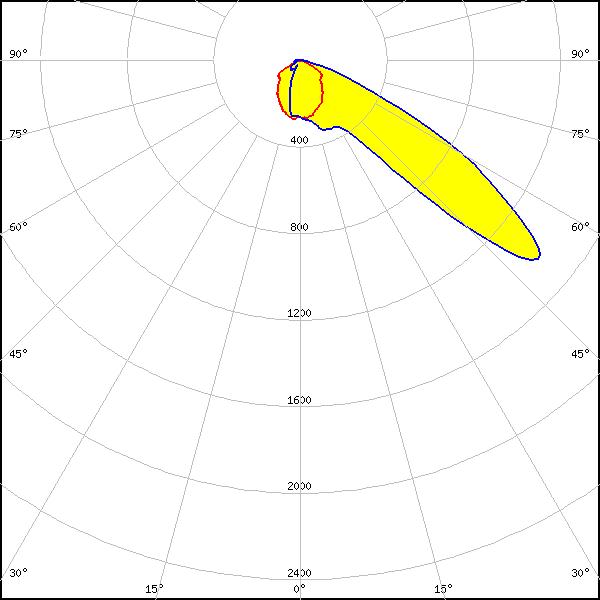

    LED: LUXEON TX
    FWHM: asymmetric
    Peak intensity: 1.434 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

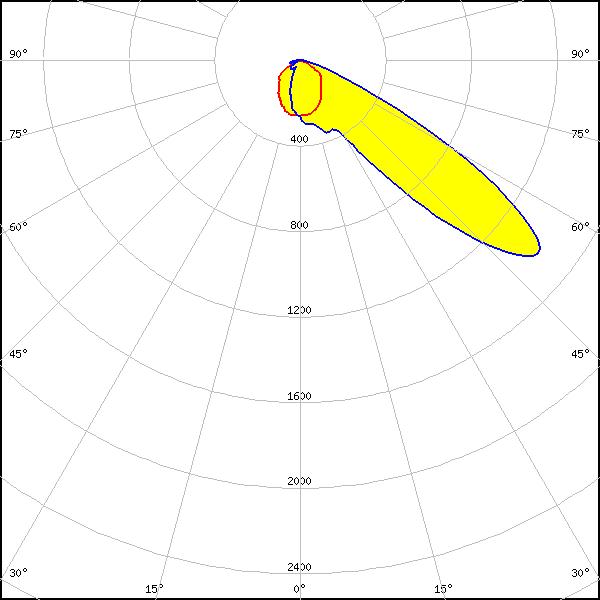

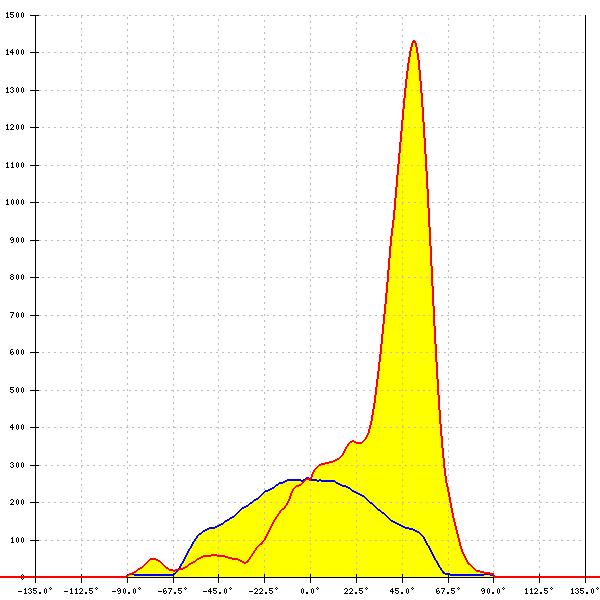

    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 1.432 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 1.274 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

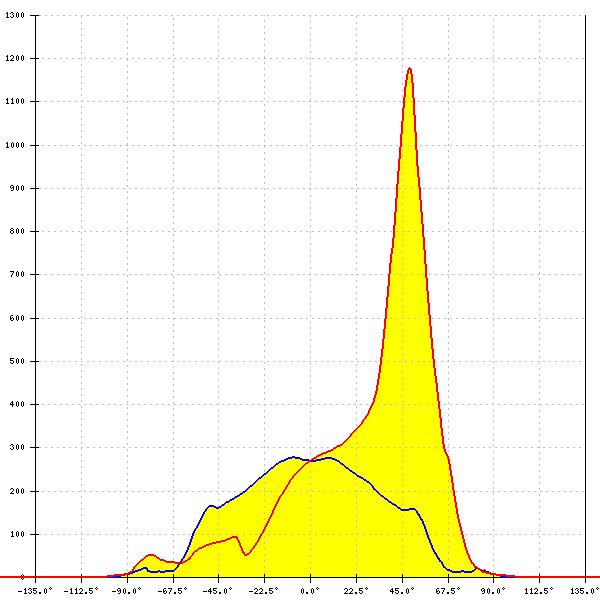

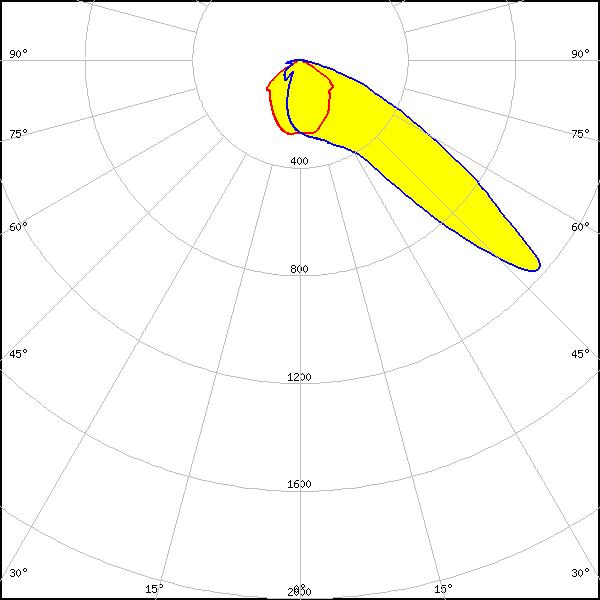

    LED: NVSW3x9A
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

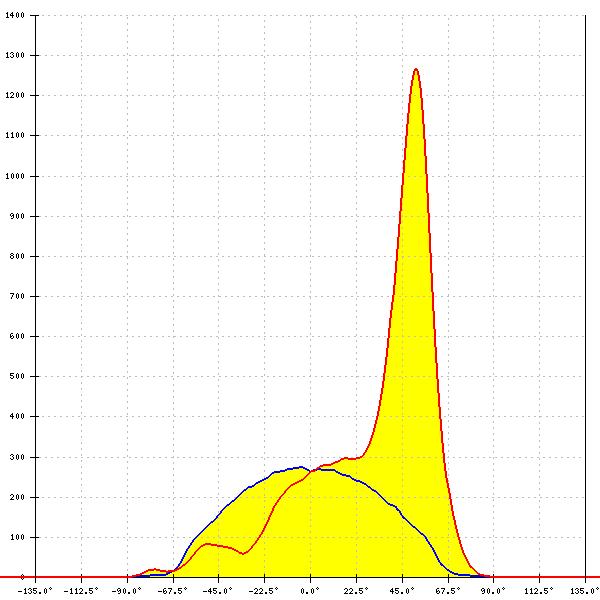

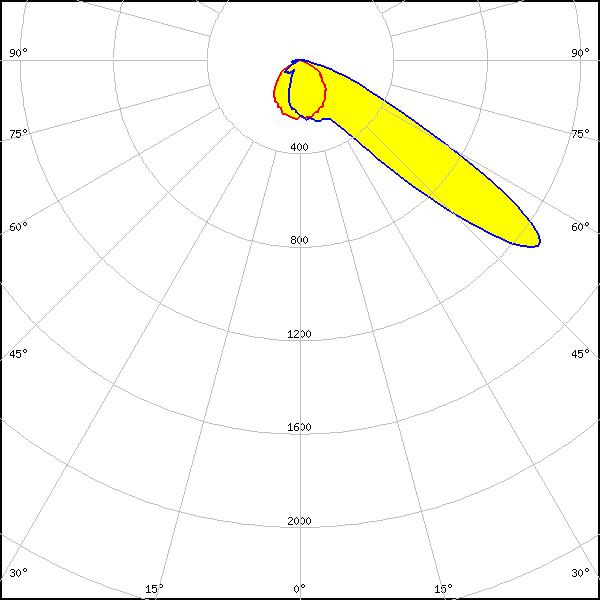

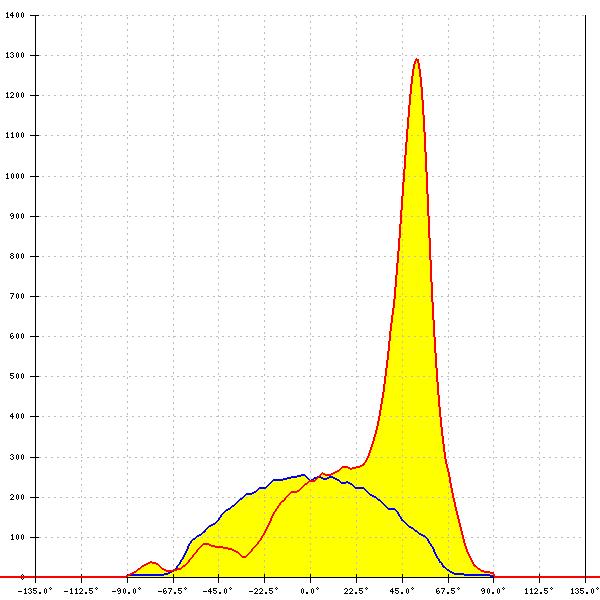

    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 1.291 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

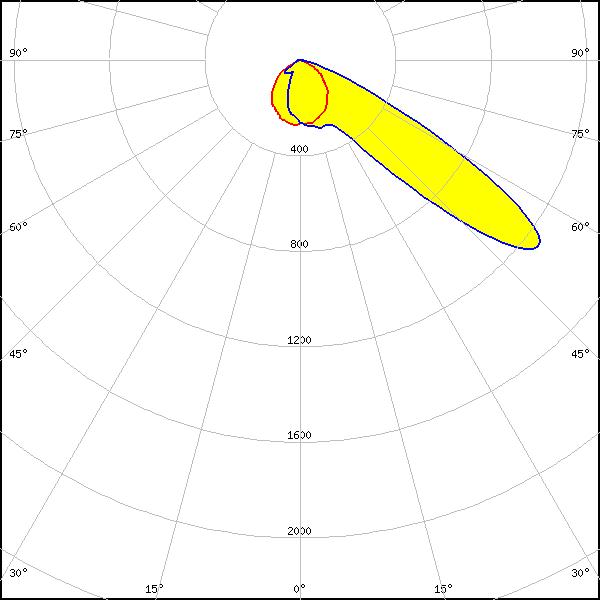

    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 1.268 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

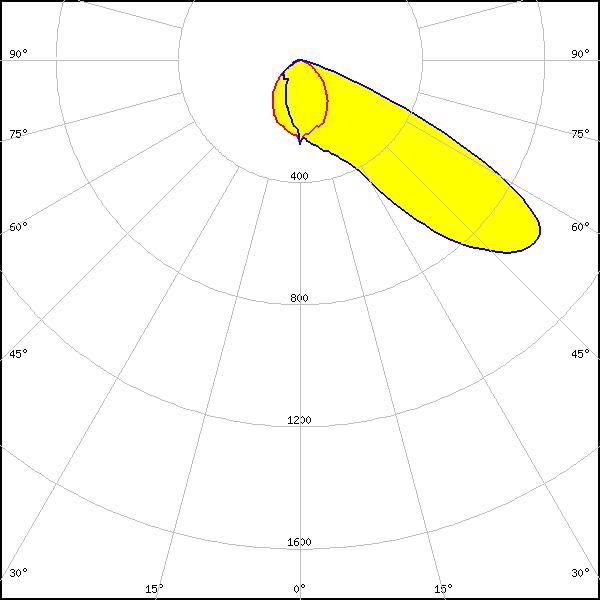

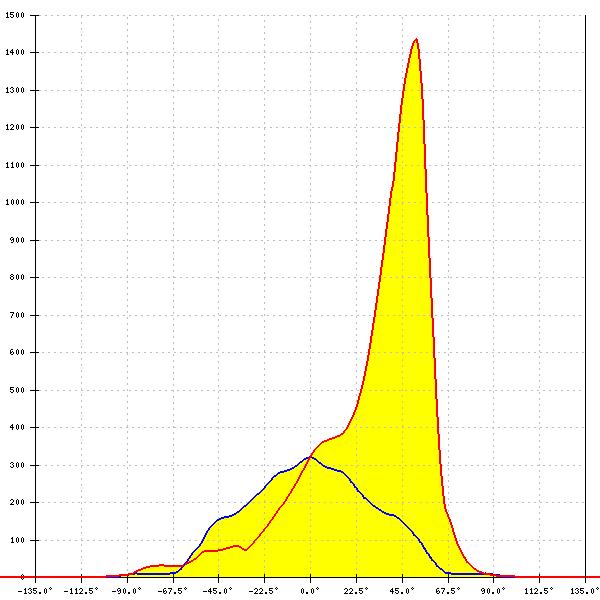

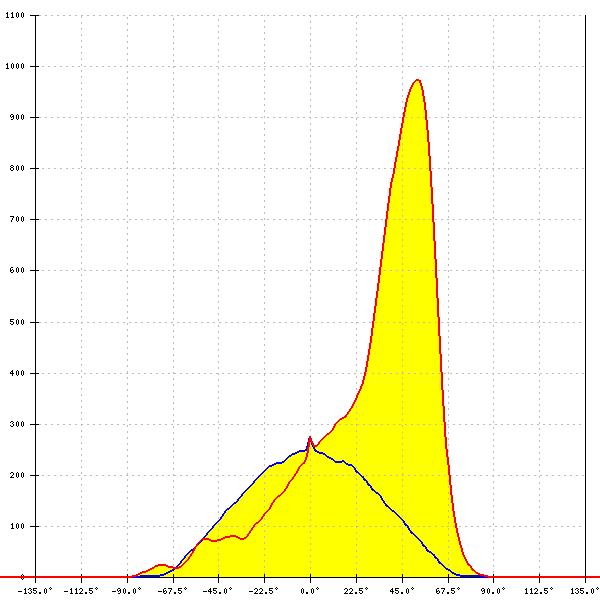

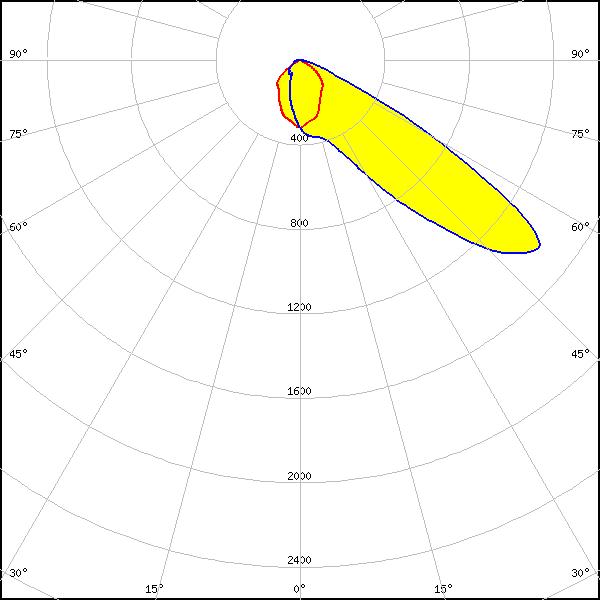

    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.973 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 1.435 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

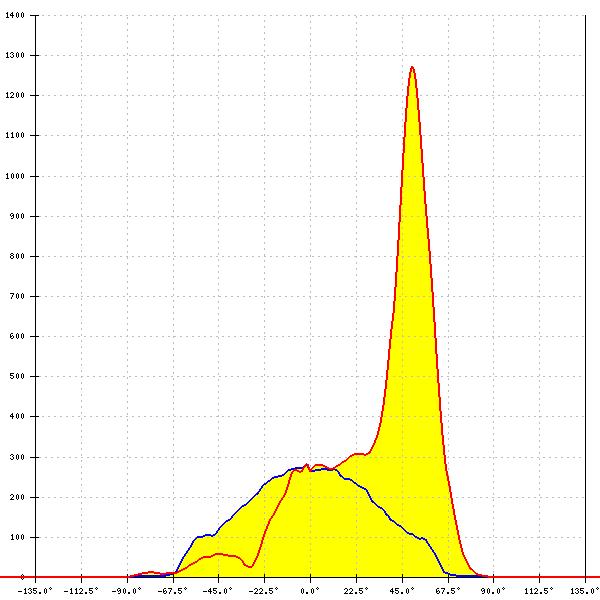

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 1.274 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

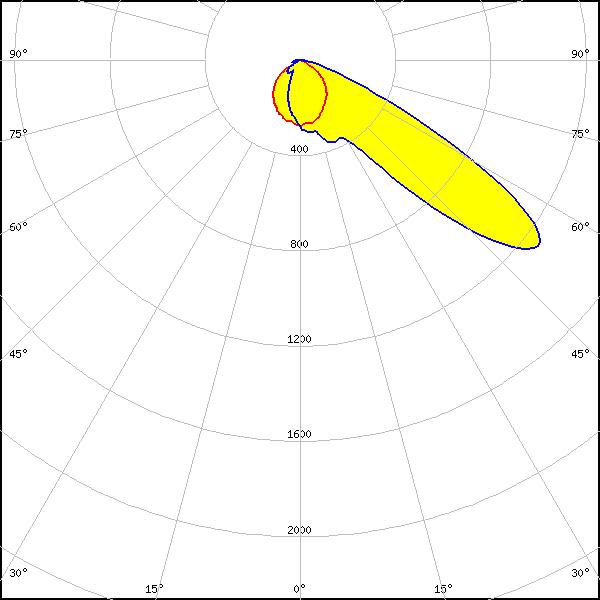

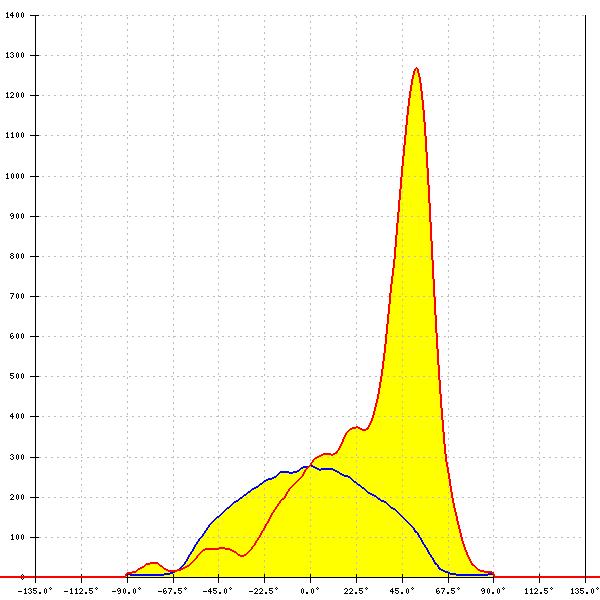

    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 1.267 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

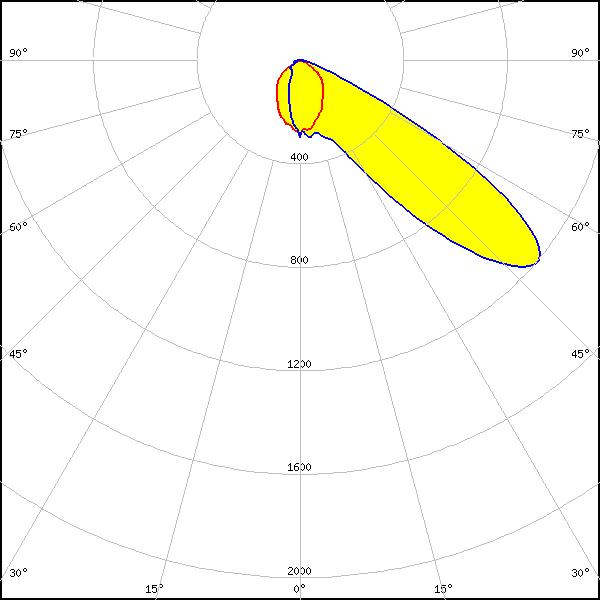

    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 1.334 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 1.205 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

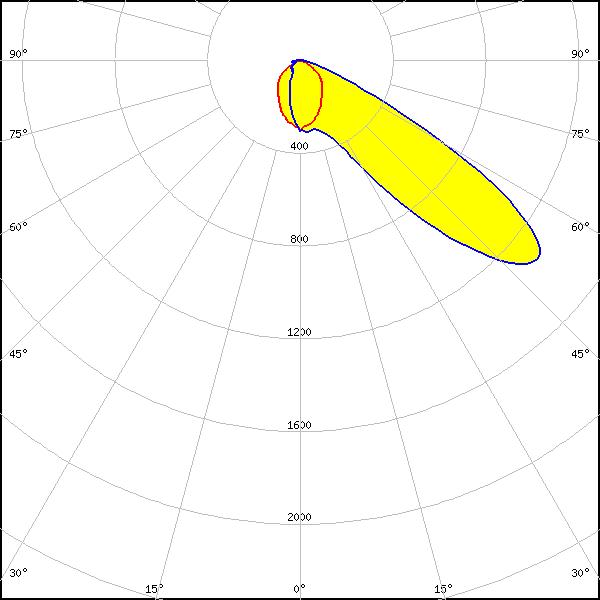

    LED: RLE 2x4 3000lm HP HE EXC3 OTD
    FWHM: asymmetric
    Peak intensity: 1.334 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

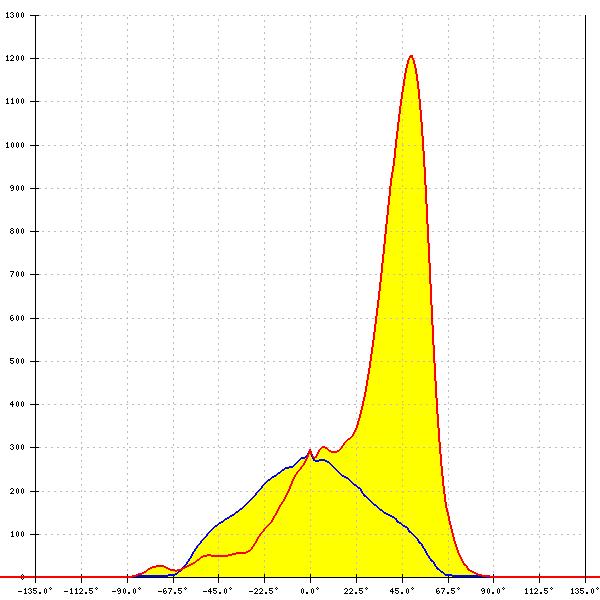

    LED: RLE 2x4 3000lm HP HE EXC3 OTD
    FWHM: asymmetric
    Peak intensity: 1.205 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
