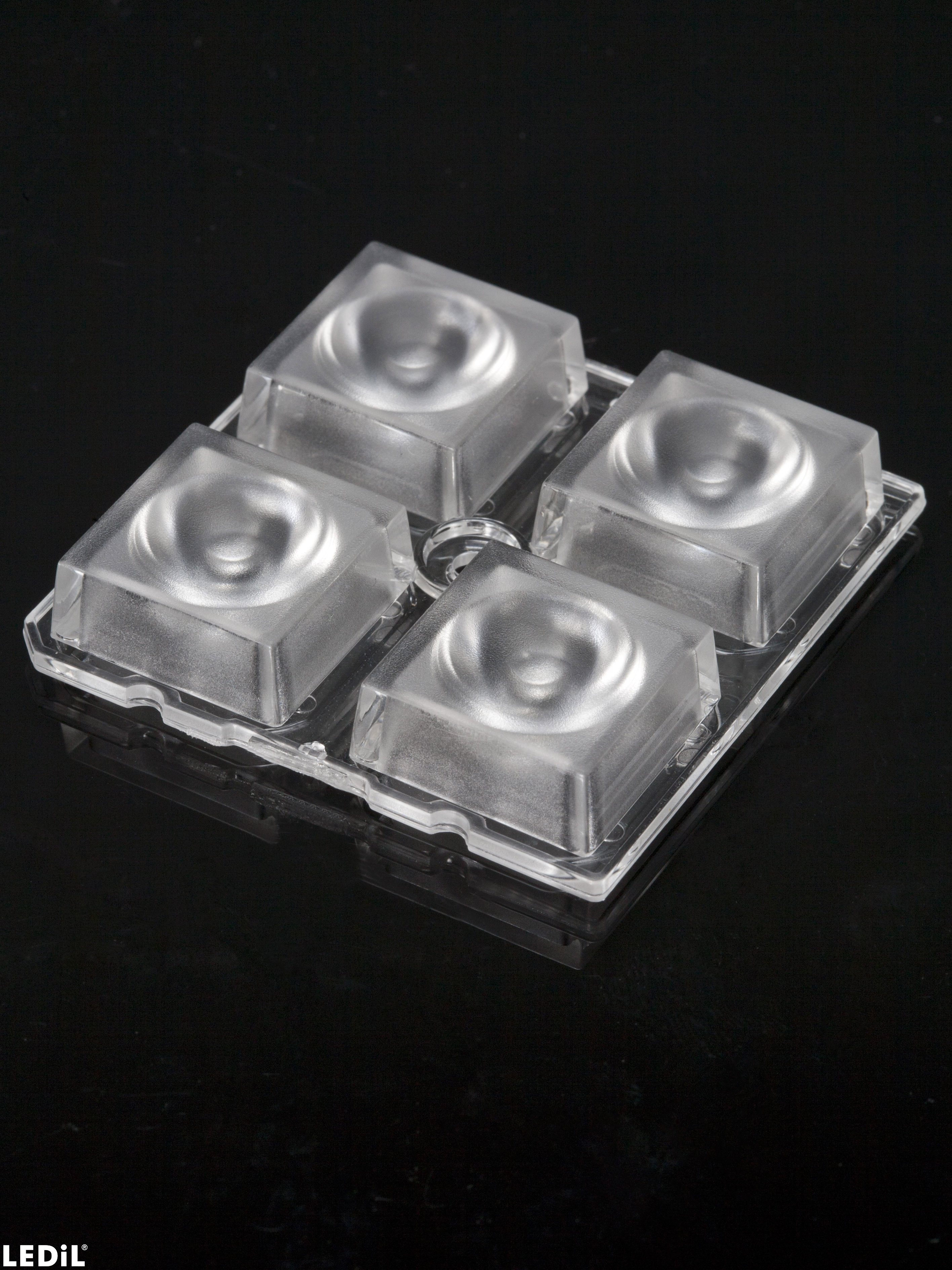

C14607_HB-2X2-M
Print
~25° medium beam optimized for CREE XP-L and XM-L
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
Bridgelux SMD 5050
FWHM:
36°
FWTM:
66°
Peak intensity:
1.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

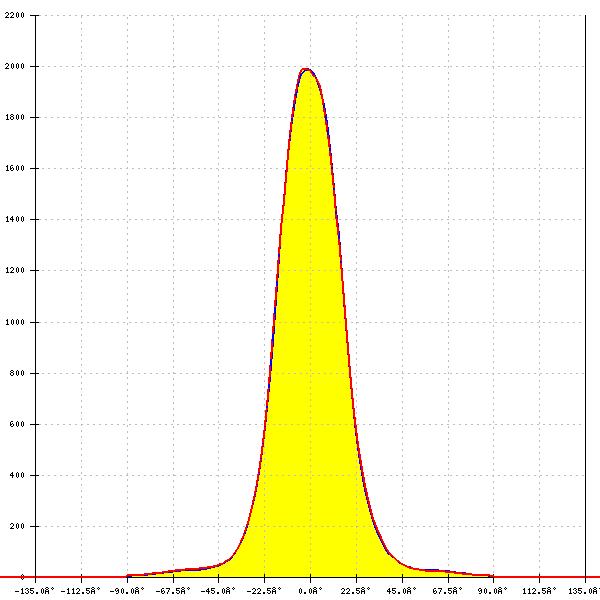

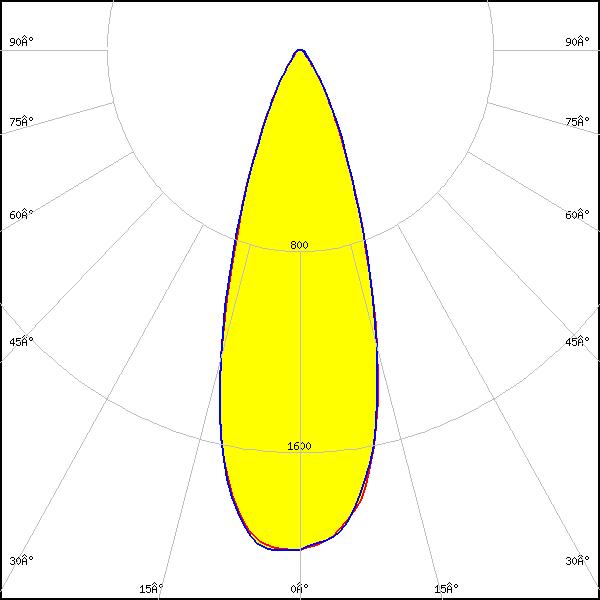

LED:
J Series 5050 Round LES
FWHM:
35°
FWTM:
64°
Peak intensity:
2.025 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

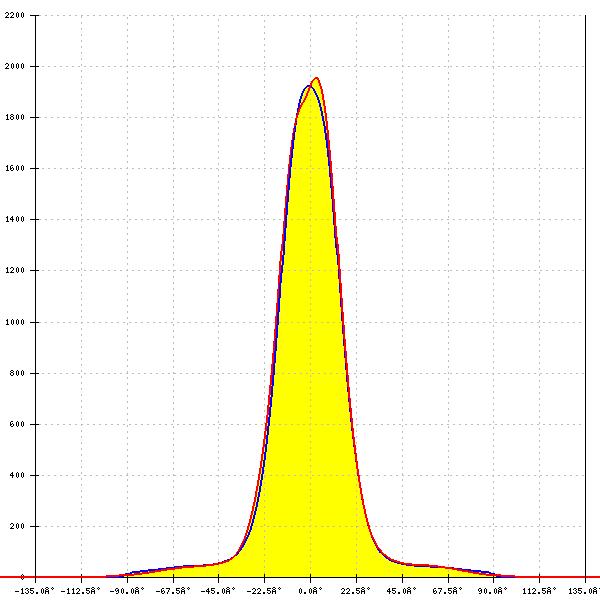

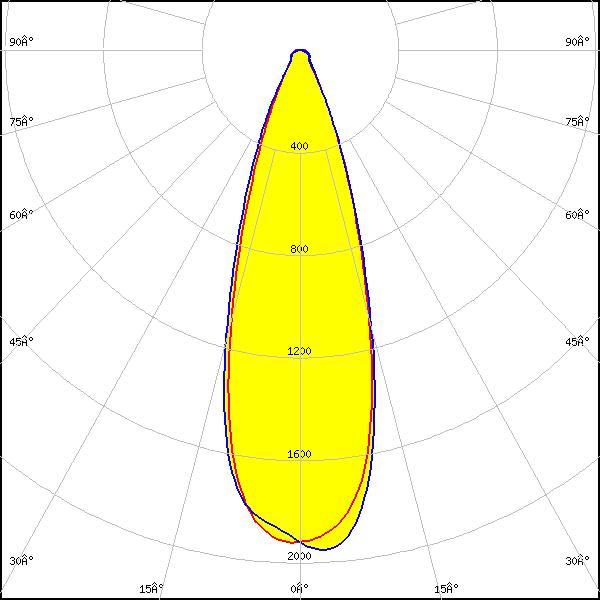

LED:
XD16
FWHM:
19°
FWTM:
39°
Peak intensity:
4.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XD16
FWHM:
33°
FWTM:
59°
Peak intensity:
2.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
White

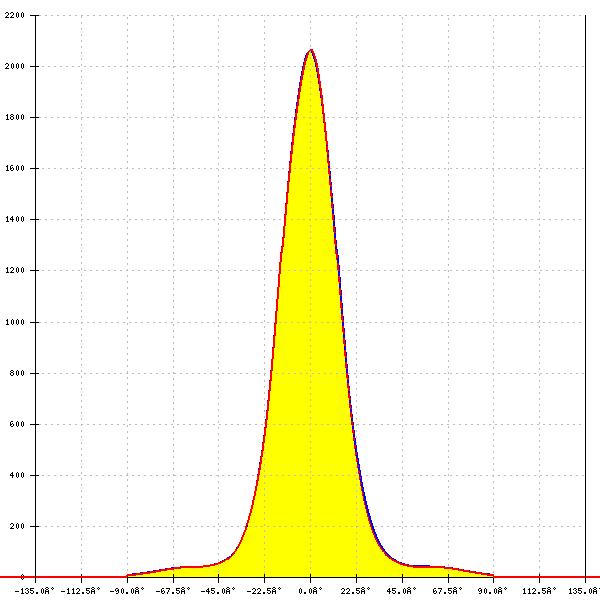

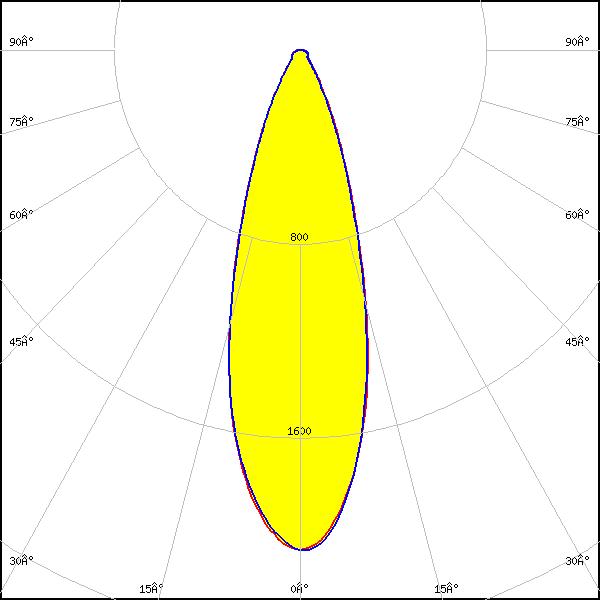

LED:
XM-L
FWHM:
32°
FWTM:
61°
Peak intensity:
2.040 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

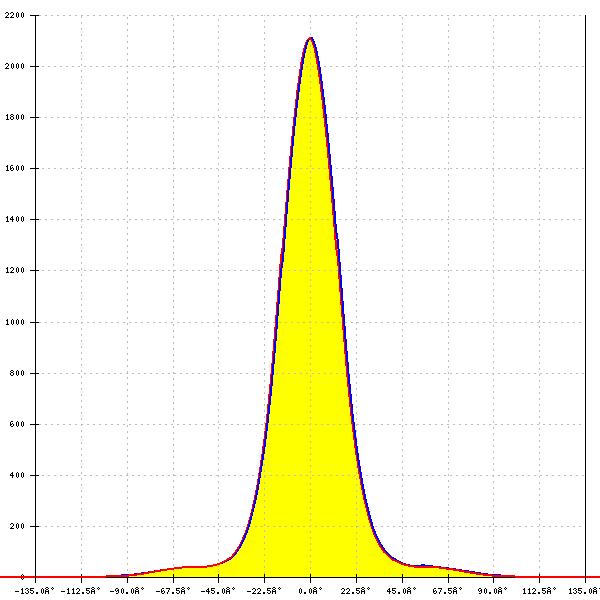

LED:

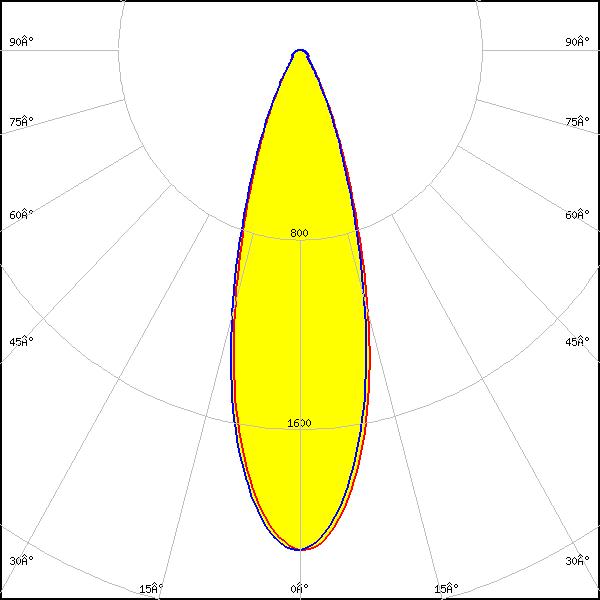

XM-L2
FWHM:
32°
FWTM:
61°
Peak intensity:
2.112 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

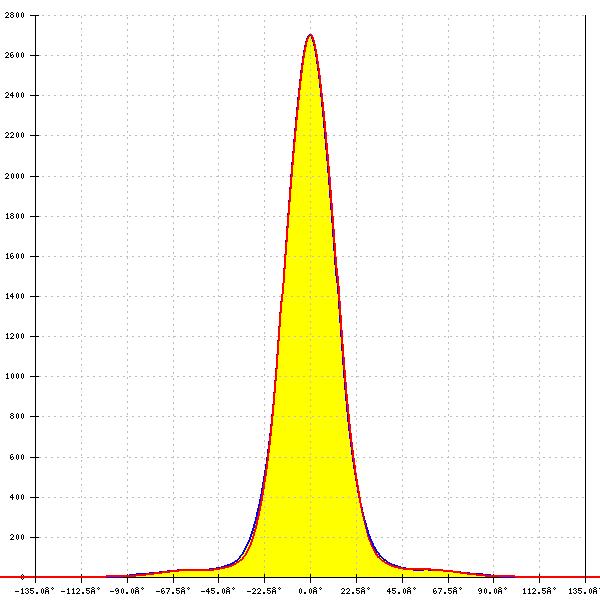

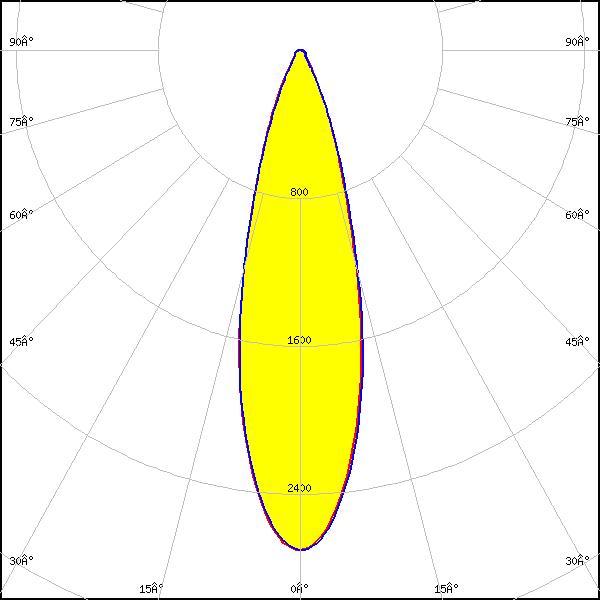

XM-L3
FWHM:
28°
FWTM:
54°
Peak intensity:
2.703 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

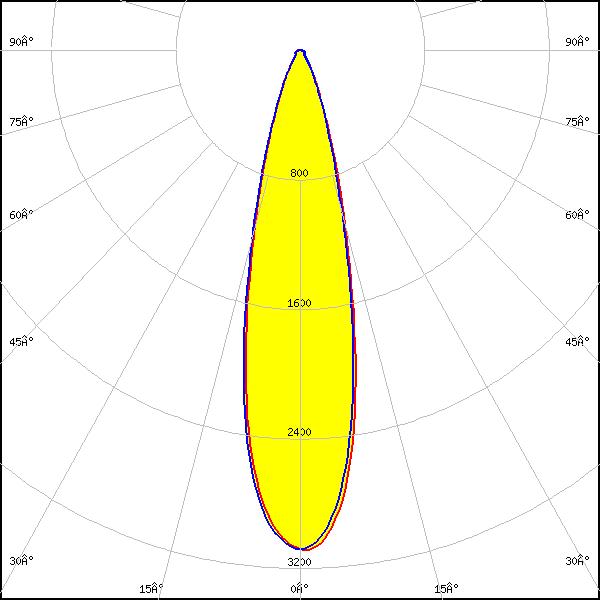

LED:
XP-G2
FWHM:
25°
FWTM:
49°
Peak intensity:
3.100 cd/lm
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2 HE
FWHM:
35°
FWTM:
58°
Peak intensity:
2.063 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM:
28°
FWTM:
50°
Peak intensity:
3.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

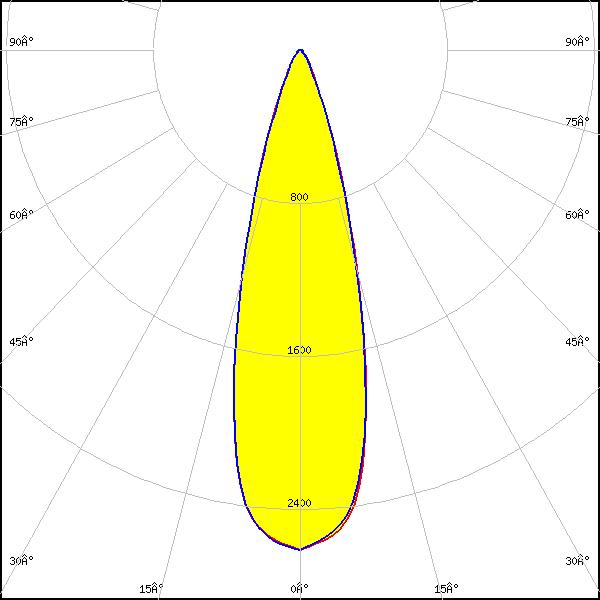

XP-G4
FWHM:
28°
FWTM:
50°
Peak intensity:
2.850 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G4
FWHM:
28°
FWTM:
50°
Peak intensity:
2.614 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L HD
FWHM:
31°
FWTM:
60°
Peak intensity:
2.213 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

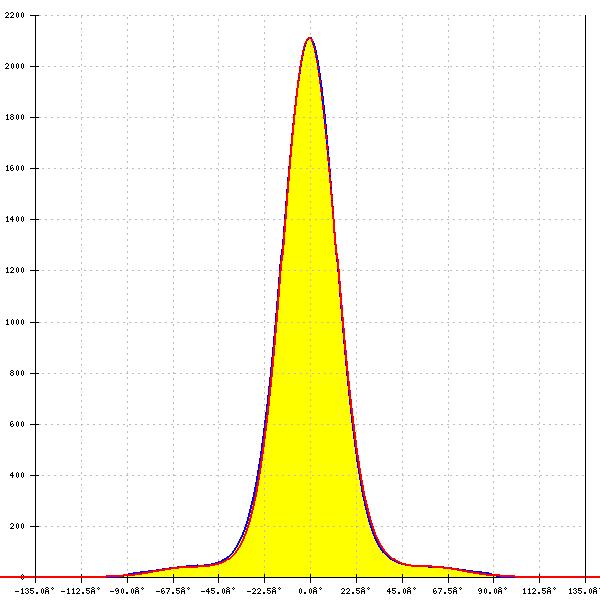

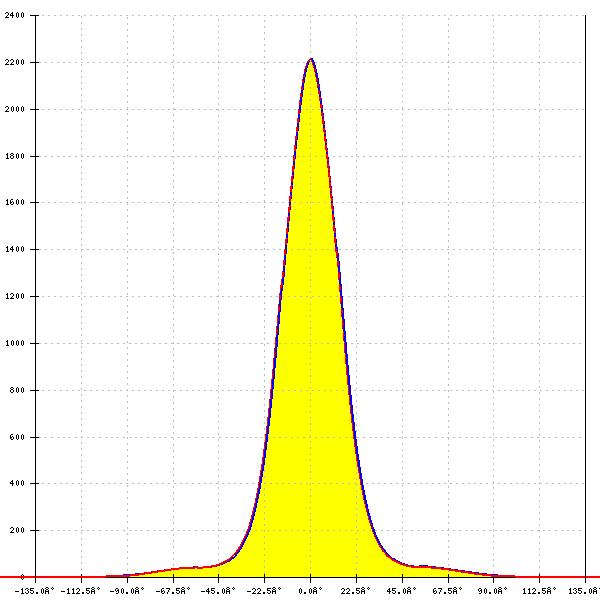

LED:

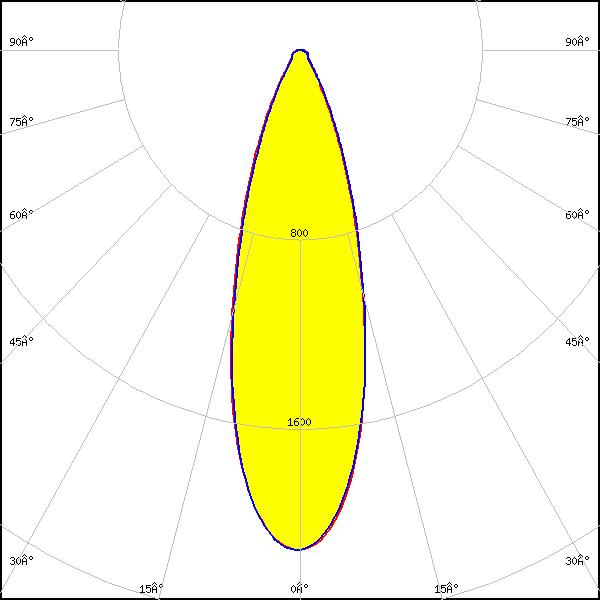

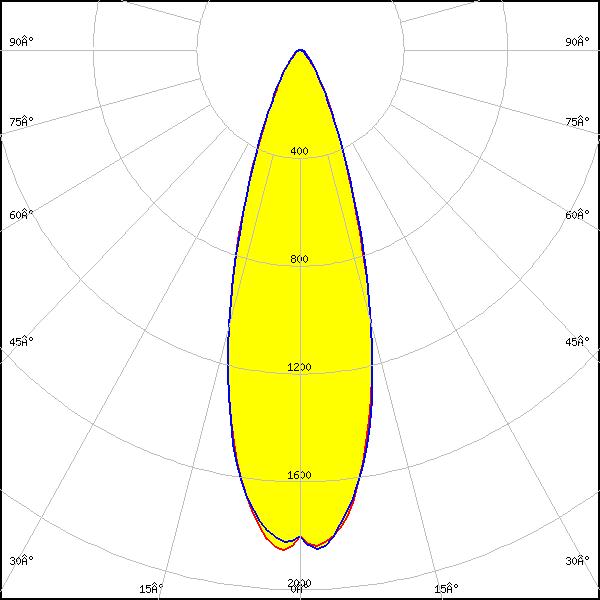

XP-L2
FWHM:
32°
FWTM:
62°
Peak intensity:
1.865 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L2
FWHM:
31°
FWTM:
61°
Peak intensity:
2.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

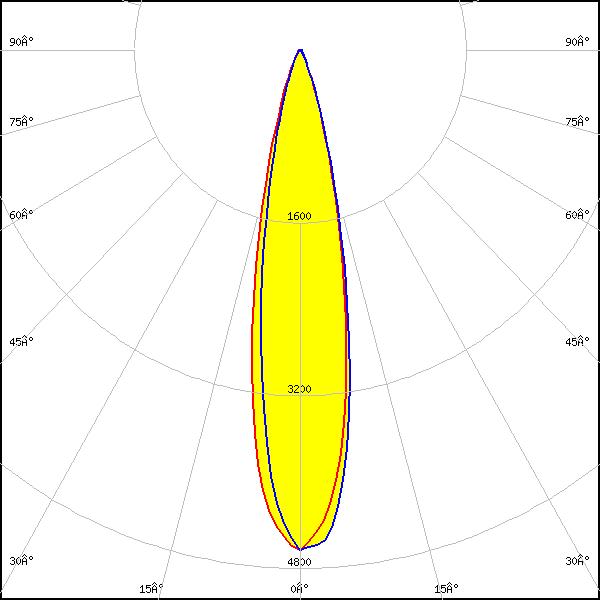

LED:

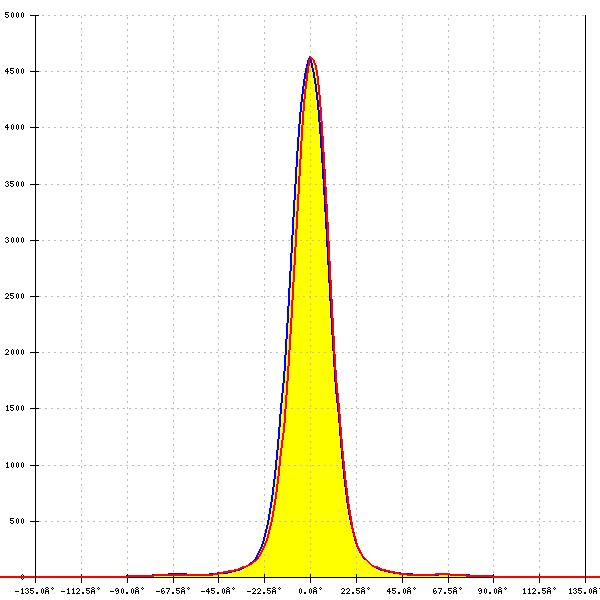

LUXEON 3030 2D (Round LES)
FWHM:
21°
FWTM:
41°
Peak intensity:
4.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

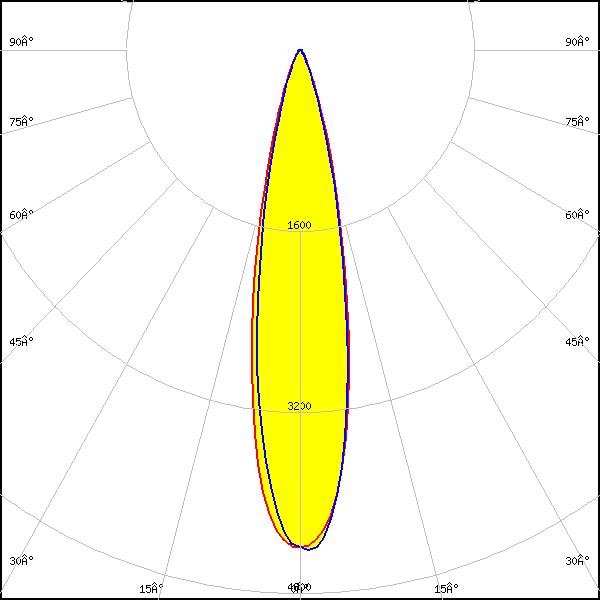

LUXEON 3535 2D
FWHM:
22°
FWTM:
42°
Peak intensity:
4.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

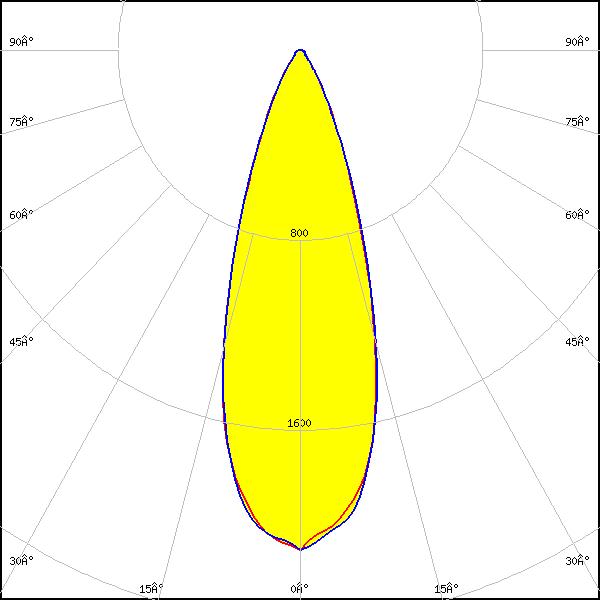

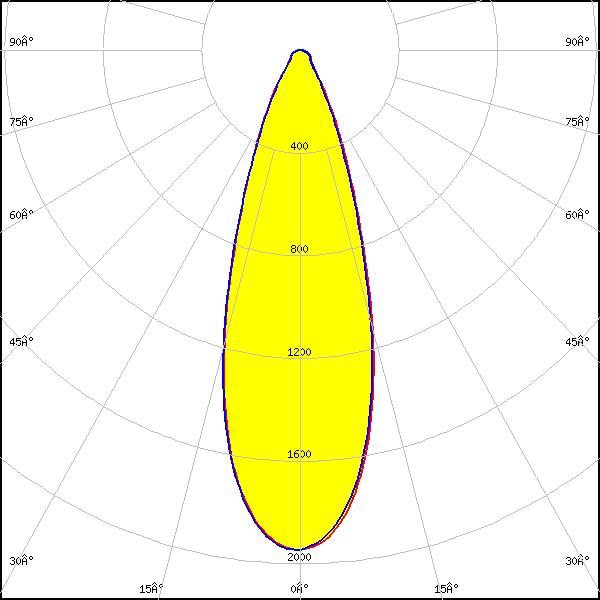

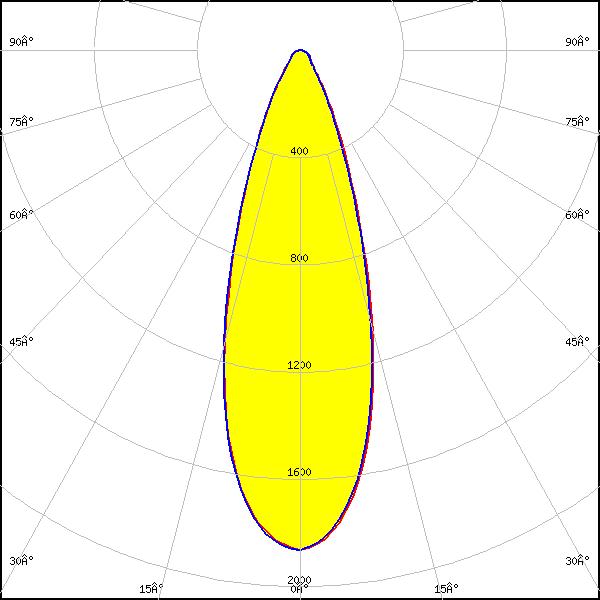

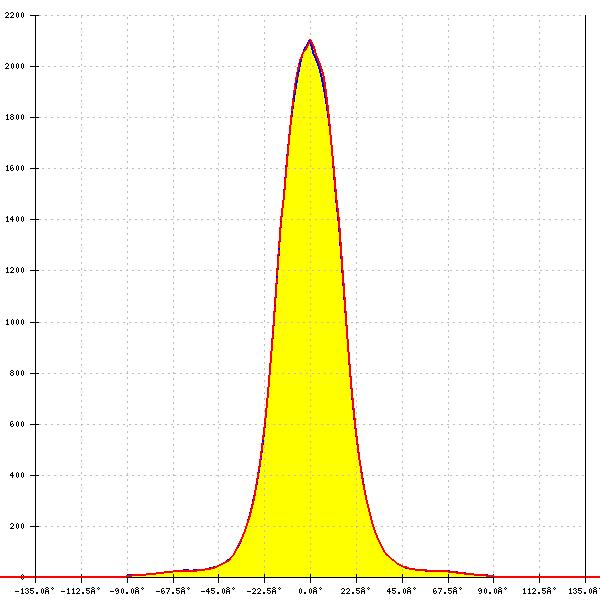

LUXEON 5050 Round LES
FWHM:
34°
FWTM:
64°
Peak intensity:
1.865 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Round LES
FWHM:
34°
FWTM:
65°
Peak intensity:
1.950 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

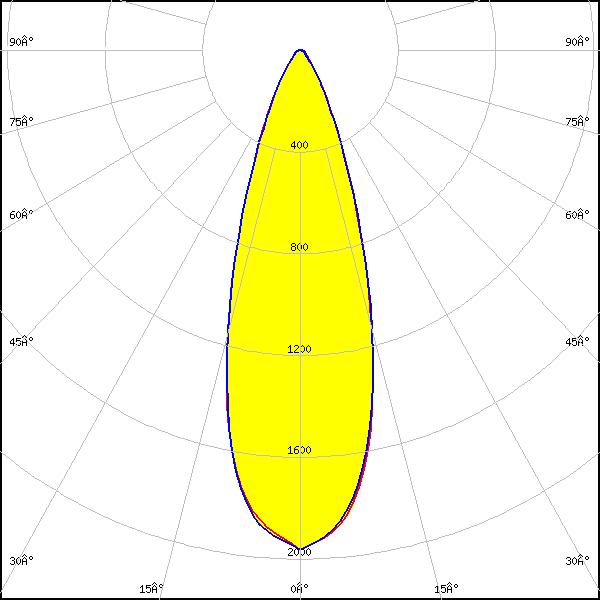

LUXEON 5050 Square LES
FWHM:
34°
FWTM:
62°
Peak intensity:
1.966 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 Square LES
FWHM:
34°
FWTM:
62°
Peak intensity:
2.109 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

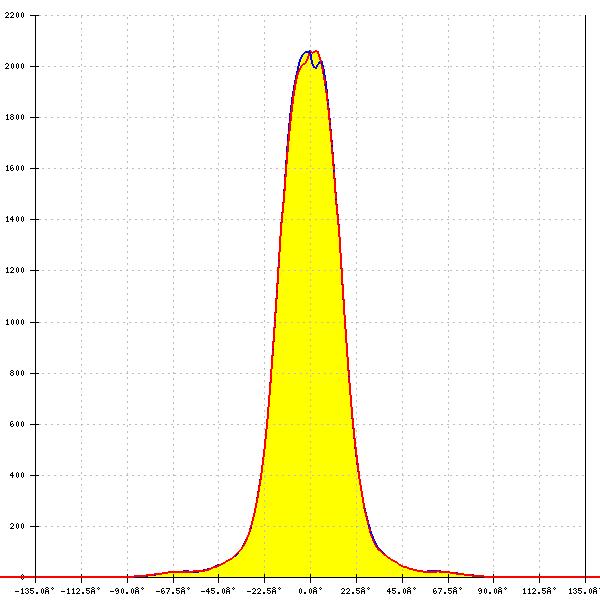

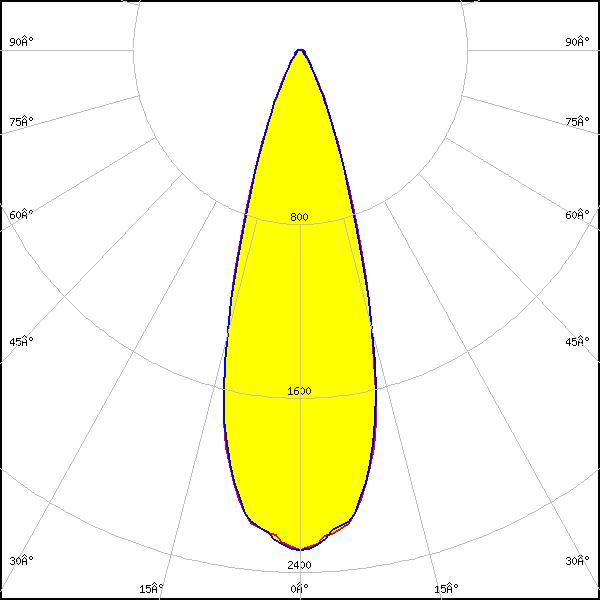

LED:

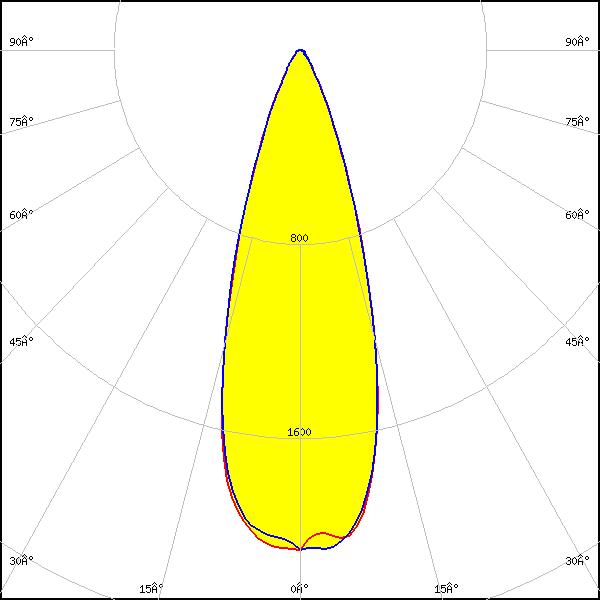

LUXEON HL2X
FWHM:
34°
FWTM:
58°
Peak intensity:
2.072 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

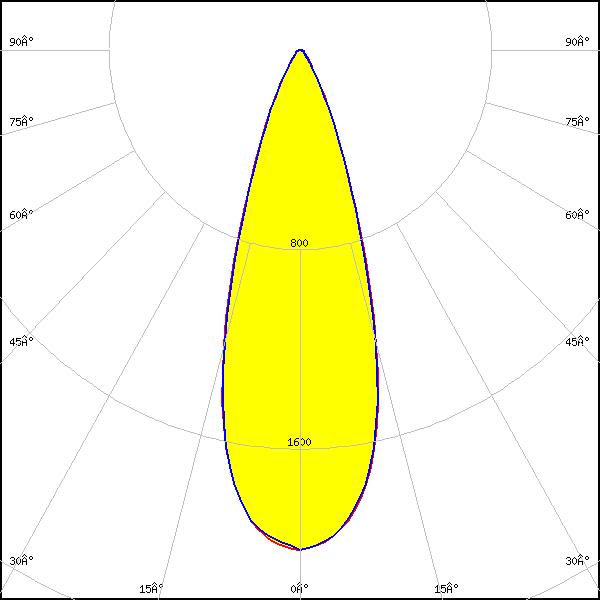

LED:

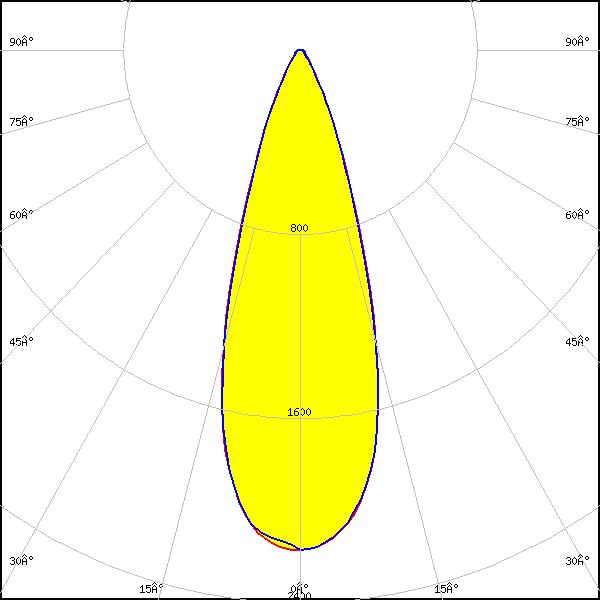

LUXEON HL2X-D
FWHM:
34°
FWTM:
58°
Peak intensity:
2.180 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

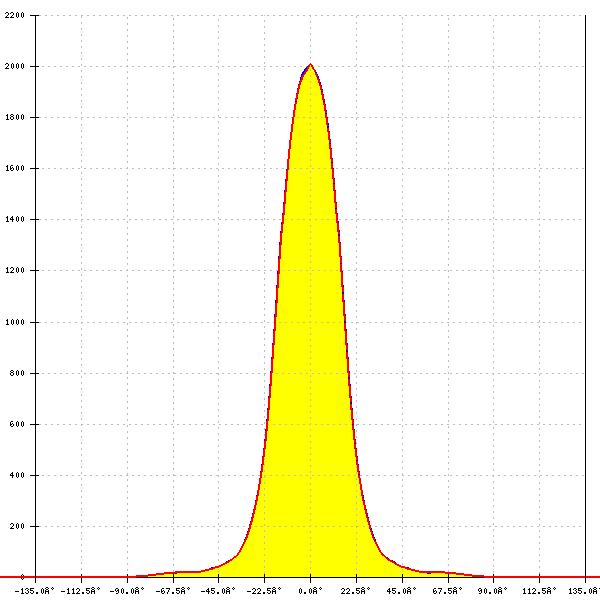

LUXEON HL2X-D
FWHM:
34°
FWTM:
58°
Peak intensity:
2.007 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

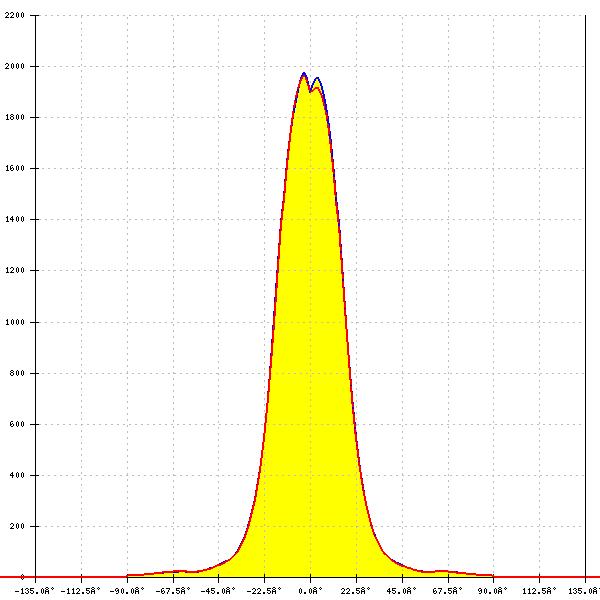

LED:
LUXEON HL2X-P
FWHM:
36°
FWTM:
62°
Peak intensity:
1.979 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

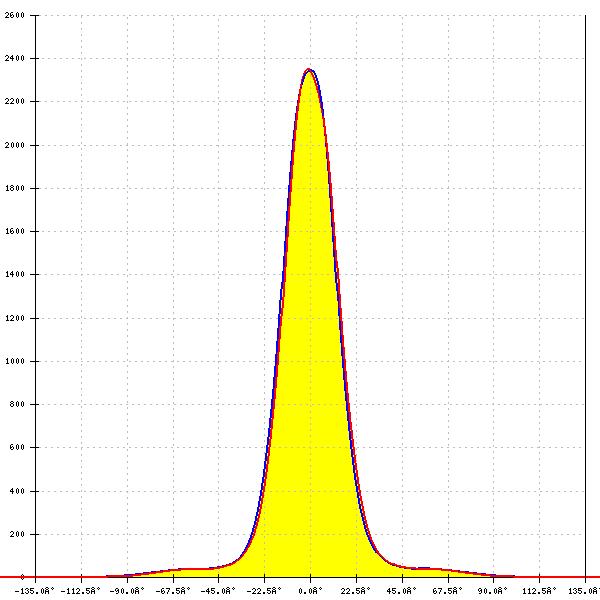

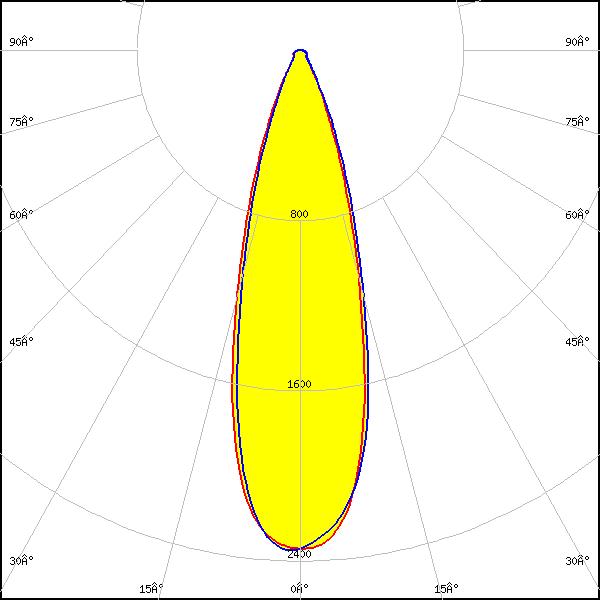

LUXEON MZ
FWHM:
30°
FWTM:
55°
Peak intensity:
2.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

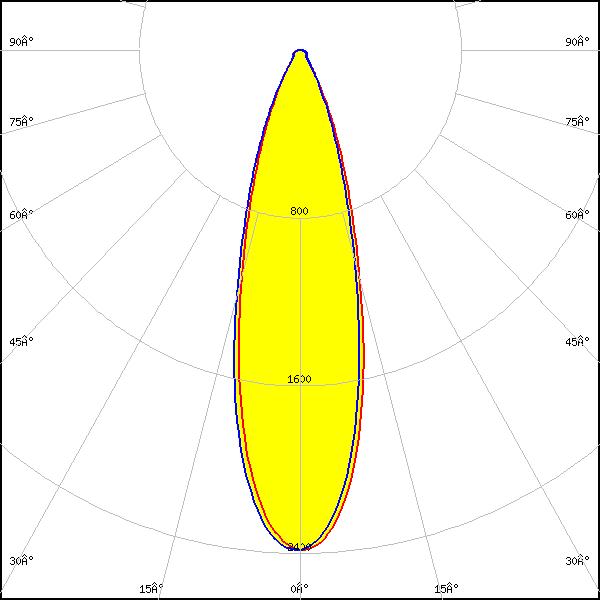

LUXEON V
FWHM:
29°
FWTM:
58°
Peak intensity:
2.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

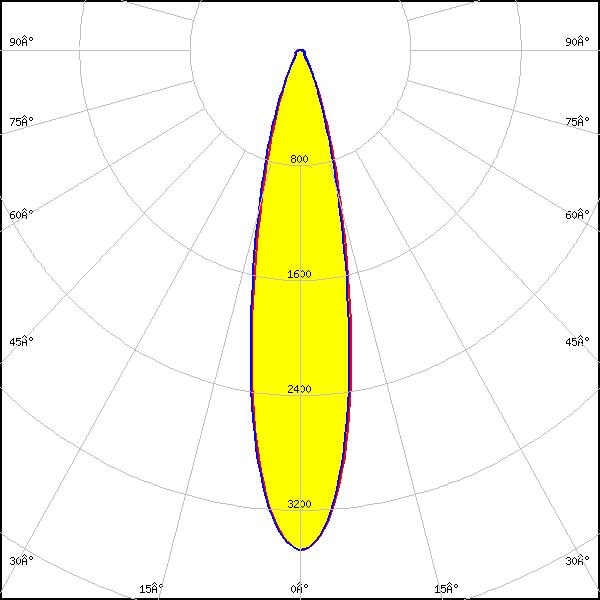

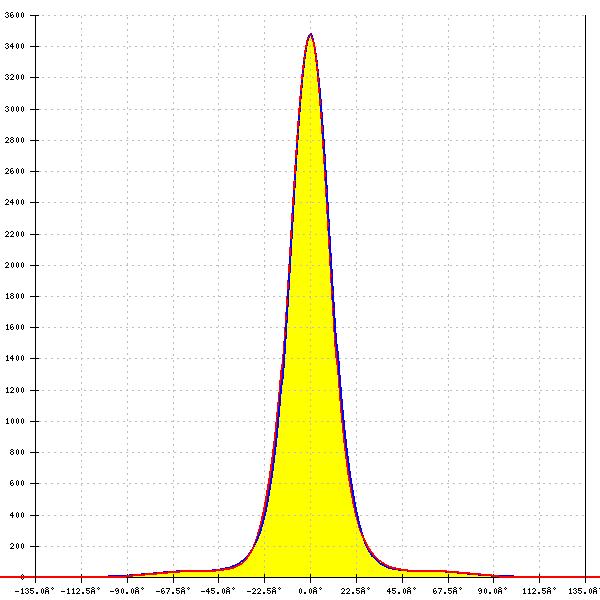

LED:
LUXEON V2
FWHM:
23°
FWTM:
47°
Peak intensity:
3.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

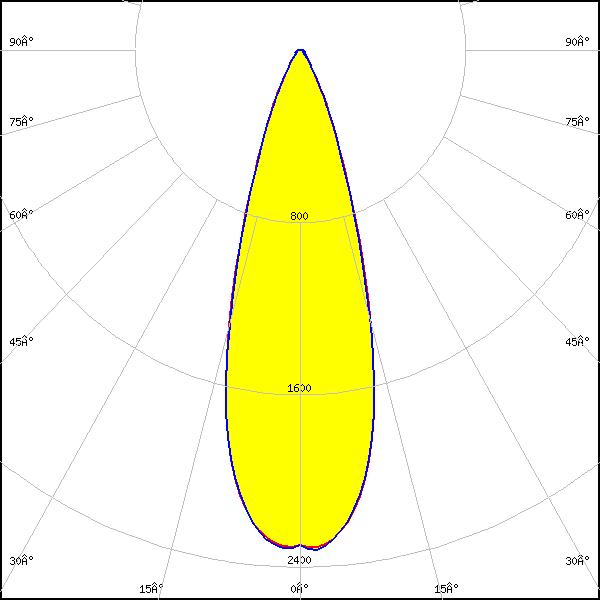

LED:

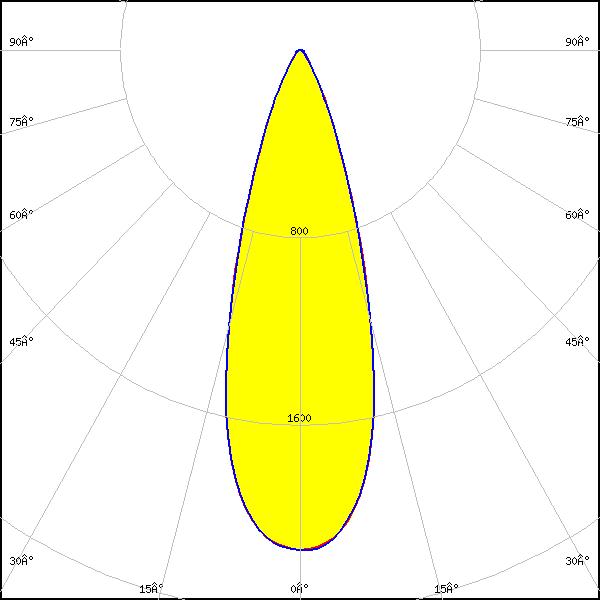

LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM:
32°
FWTM:
58°
Peak intensity:
2.138 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM:
32°
FWTM:
56°
Peak intensity:
2.331 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-10-B130
FWHM:
21°
FWTM:
42°
Peak intensity:
4.411 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Deep Red

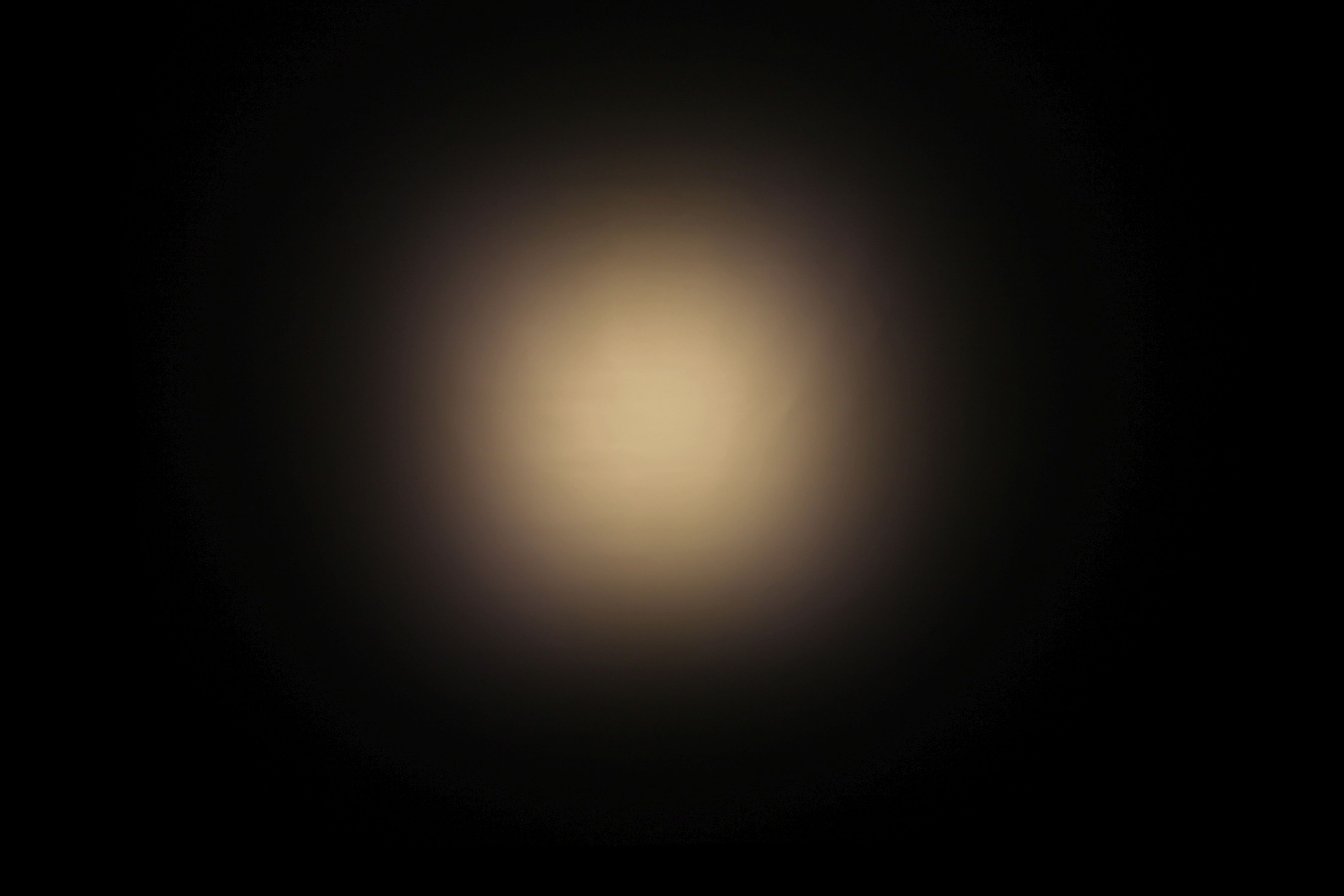

LED:

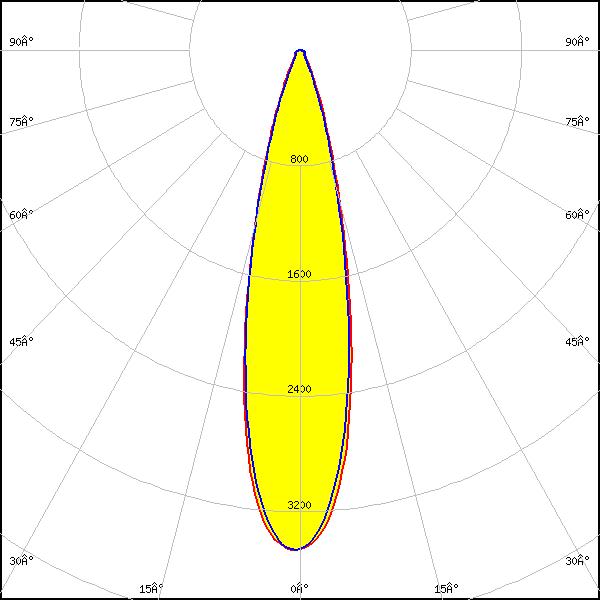

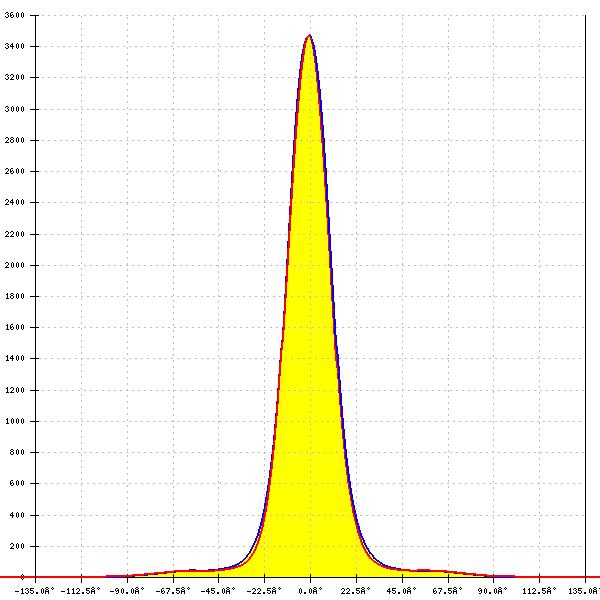

RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM:
24°
FWTM:
46°
Peak intensity:
3.470 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

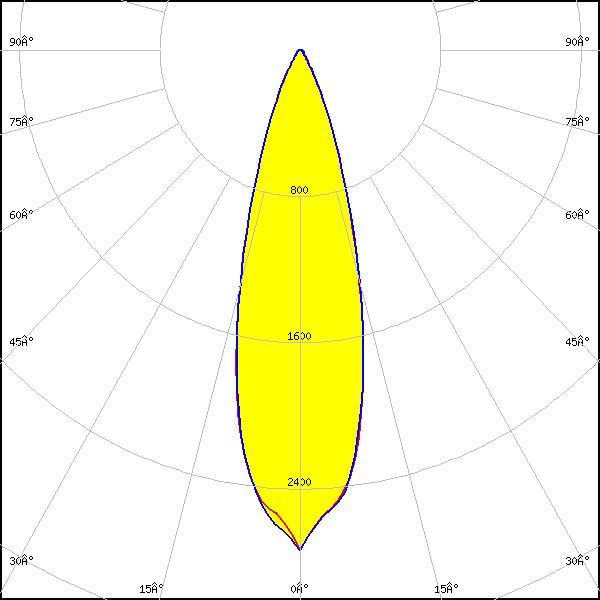

NV4WB35AM
FWHM:
30°
FWTM:
54°
Peak intensity:
2.736 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

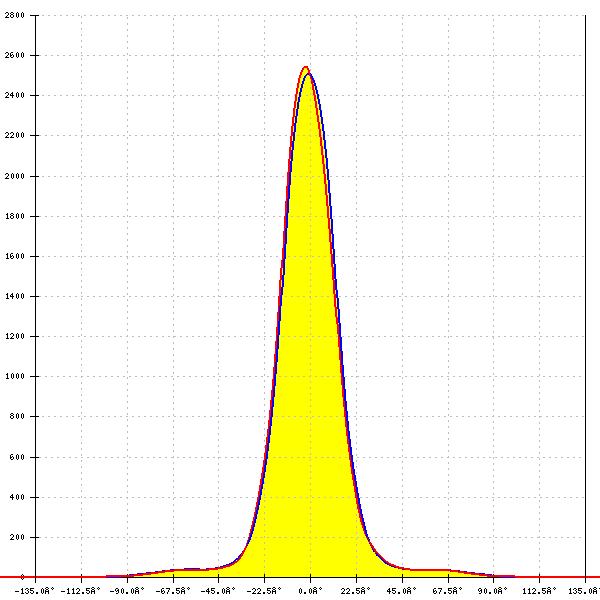

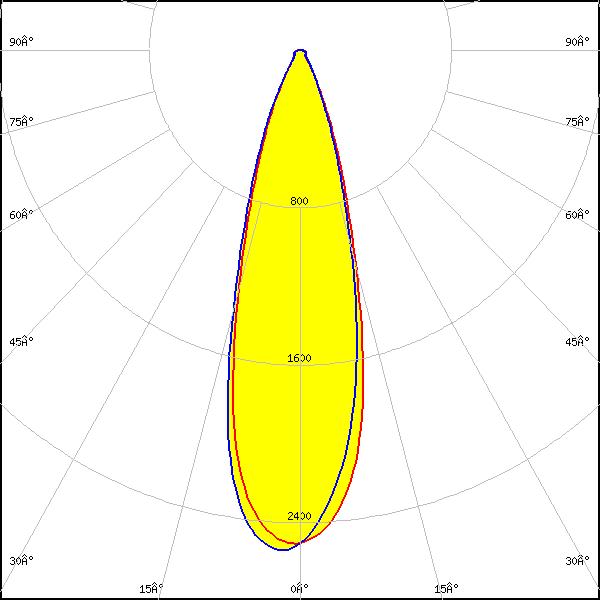

LED:

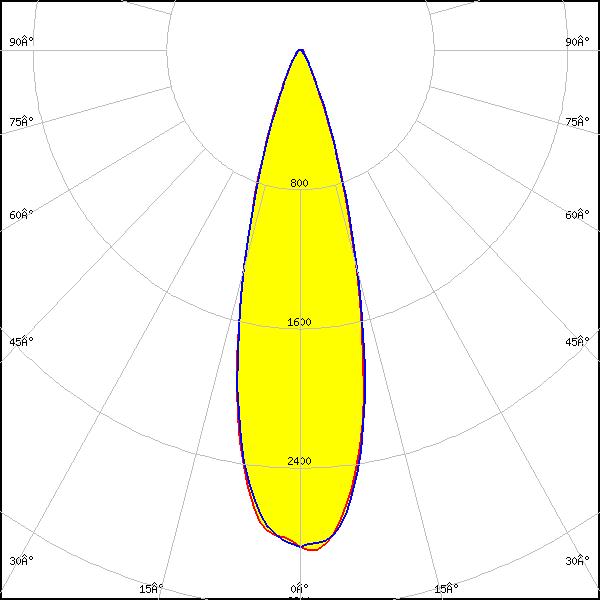

NVSW219D
FWHM:
29°
FWTM:
55°
Peak intensity:
2.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

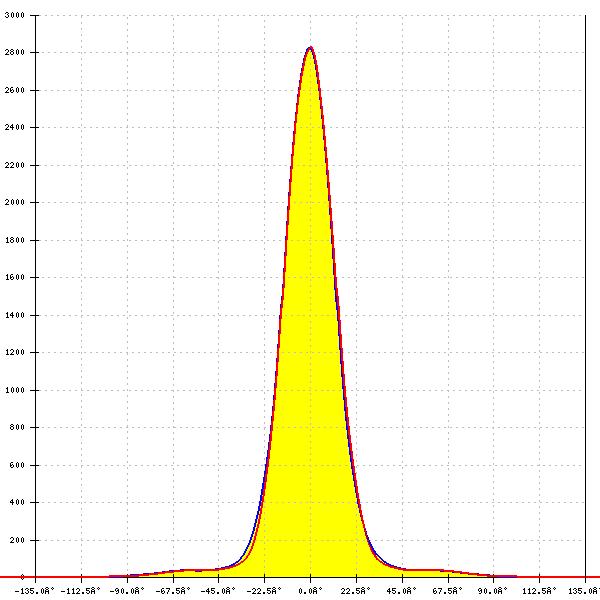

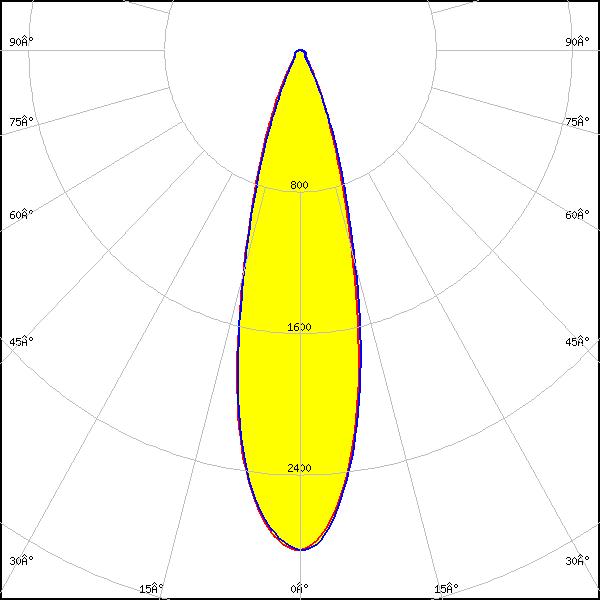

LED:
NVSW219F
FWHM:
28°
FWTM:
53°
Peak intensity:
2.827 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

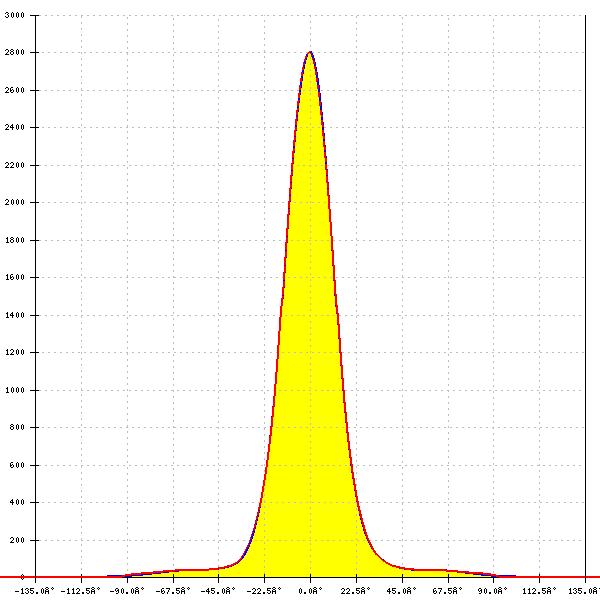

LED:
NVSW319B
FWHM:
29°
FWTM:
57°
Peak intensity:
2.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW3x9A
FWHM:
28°
FWTM:
53°
Peak intensity:
2.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
28°
FWTM:
50°
Peak intensity:
2.888 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

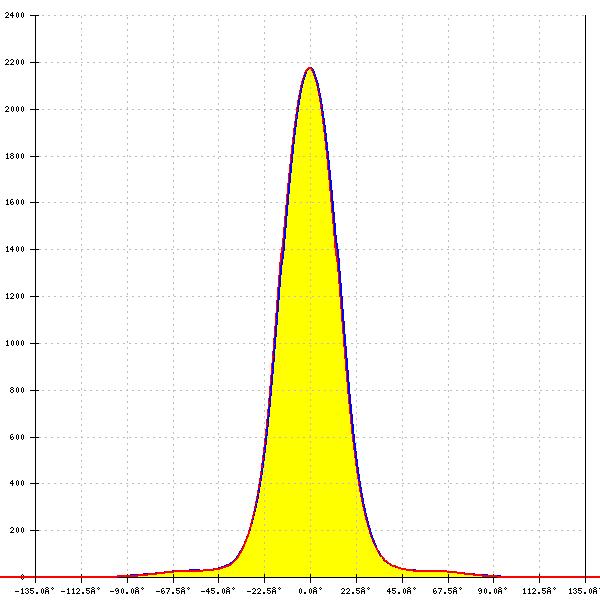

LED:

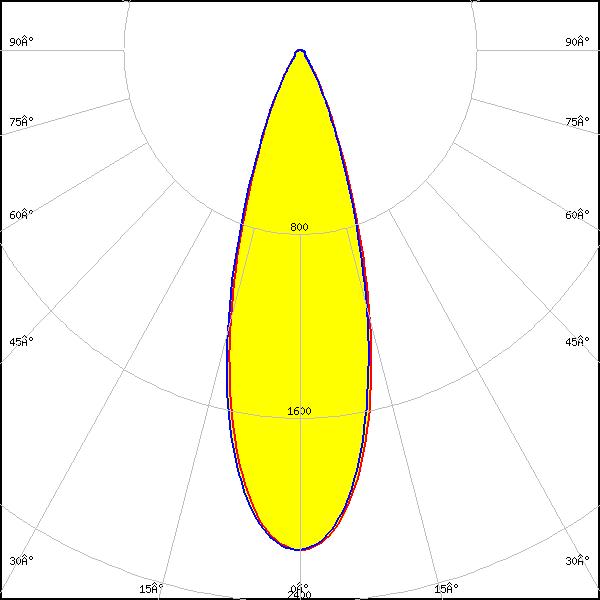

NWSx229A
FWHM:
33°
FWTM:
58°
Peak intensity:
2.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

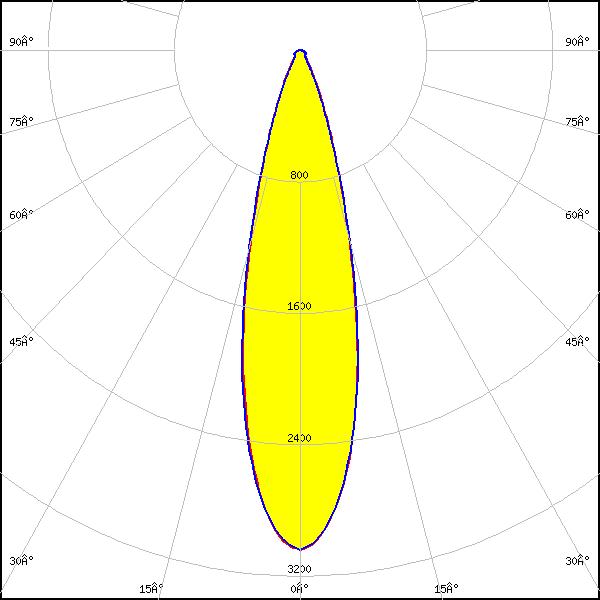

PL-BRICK HP 3800 2x8 SSG
FWHM:
26°
FWTM:
50°
Peak intensity:
3.044 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PrevaLED Brick HP 2x8
FWHM:
23°
FWTM:
44°
Peak intensity:
3.750 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

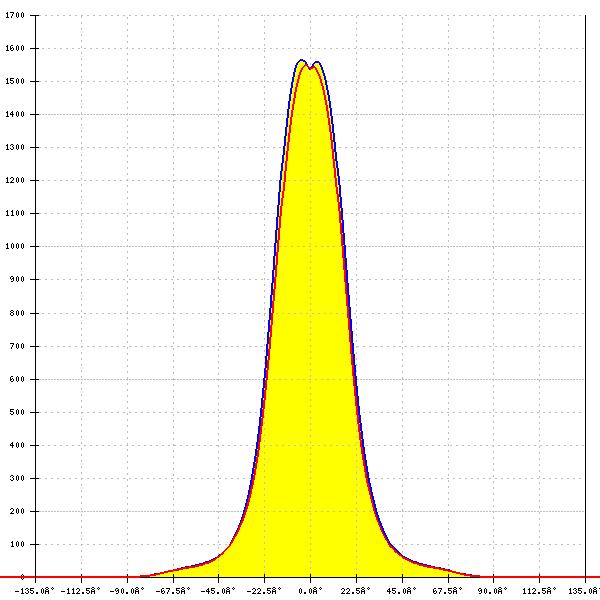

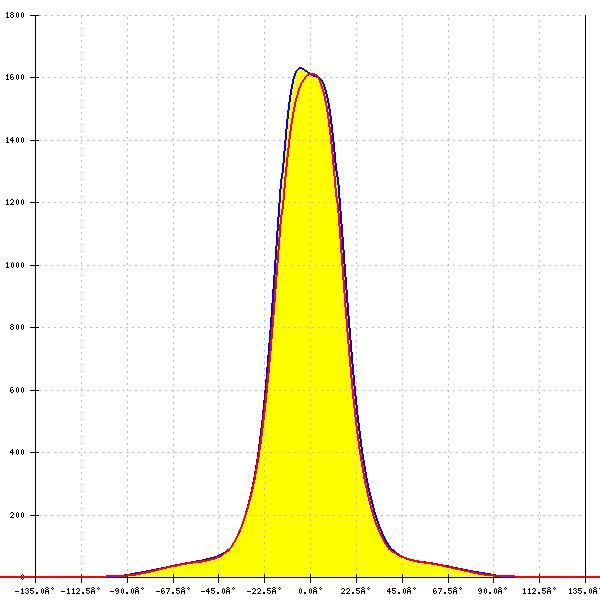

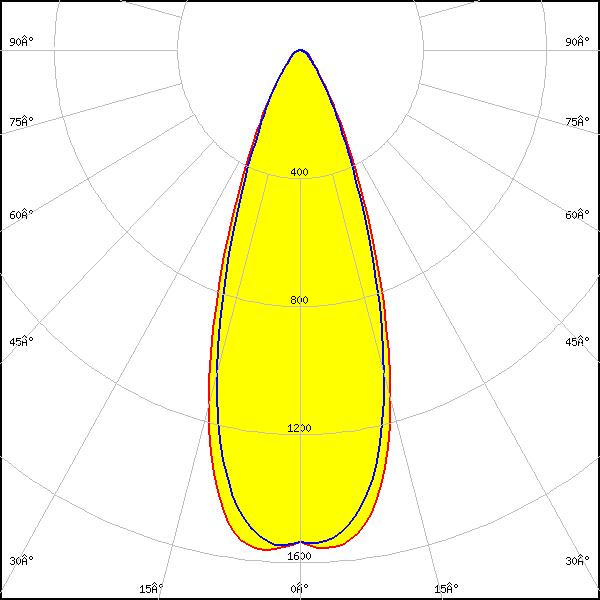

Duris S8
FWHM:
38°
FWTM:
69°
Peak intensity:
1.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM:
38°
FWTM:
68°
Peak intensity:
1.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

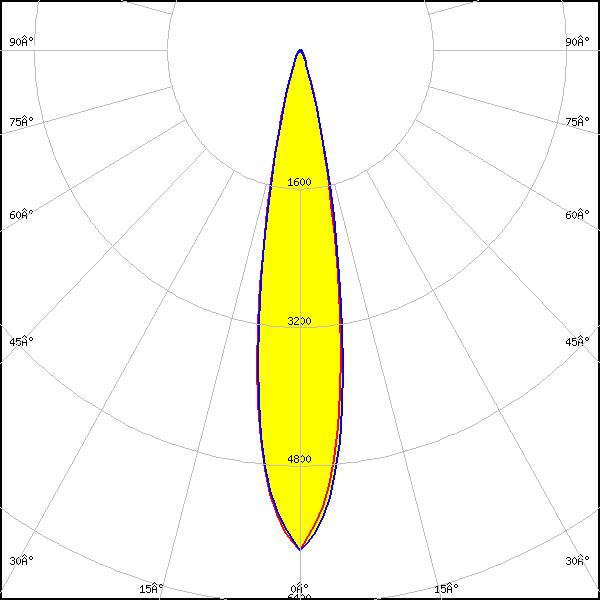

OSCONIQ C 2424
FWHM:
19° + 20°
FWTM:
36° + 36°
Peak intensity:
5.775 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

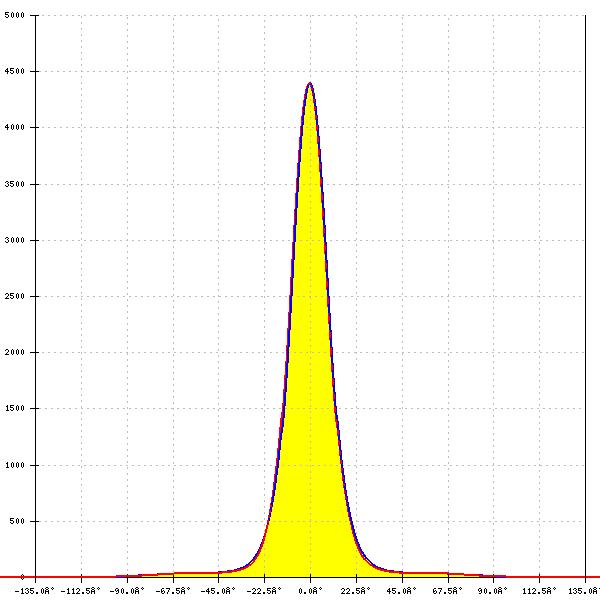

LED:

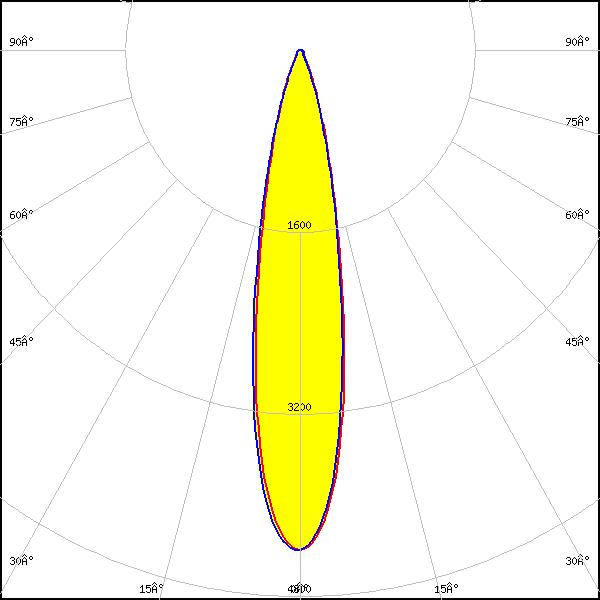

OSCONIQ C 3030
FWHM:
21°
FWTM:
42°
Peak intensity:
4.397 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

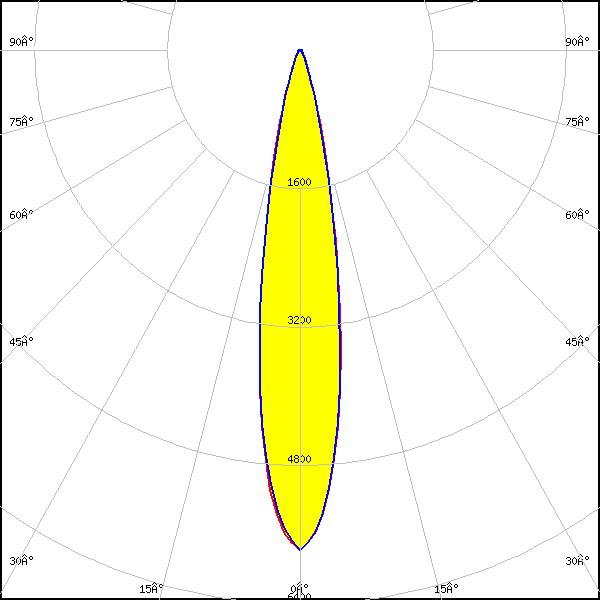

LED:
OSCONIQ P 3030
FWHM:
18°
FWTM:
36°
Peak intensity:
5.783 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

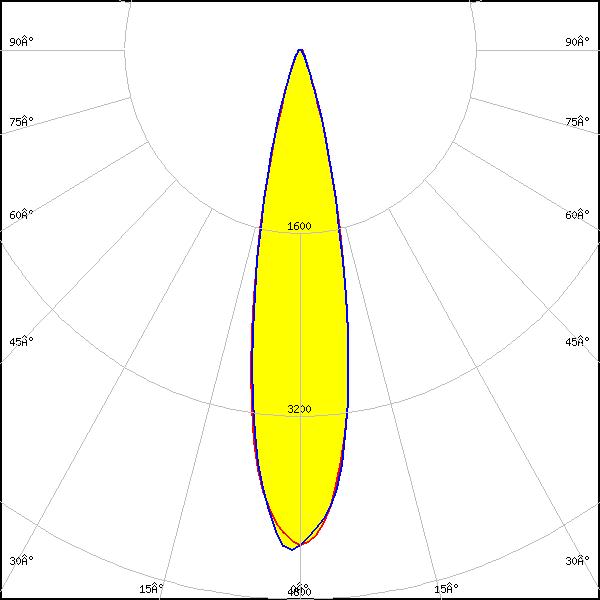

OSCONIQ P 3737 (2W version)
FWHM:
22°
FWTM:
40°
Peak intensity:
4.378 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (2W version)
FWHM:
22°
FWTM:
40°
Peak intensity:
4.018 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

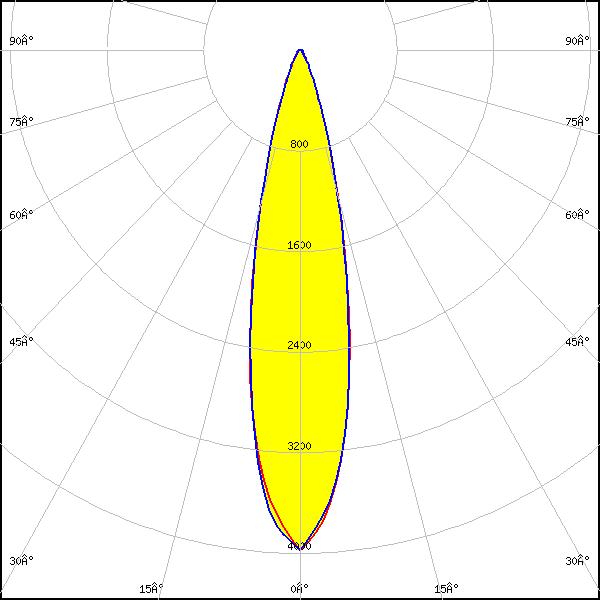

OSCONIQ P 3737 Flat
FWHM:
24°
FWTM:
44°
Peak intensity:
3.976 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

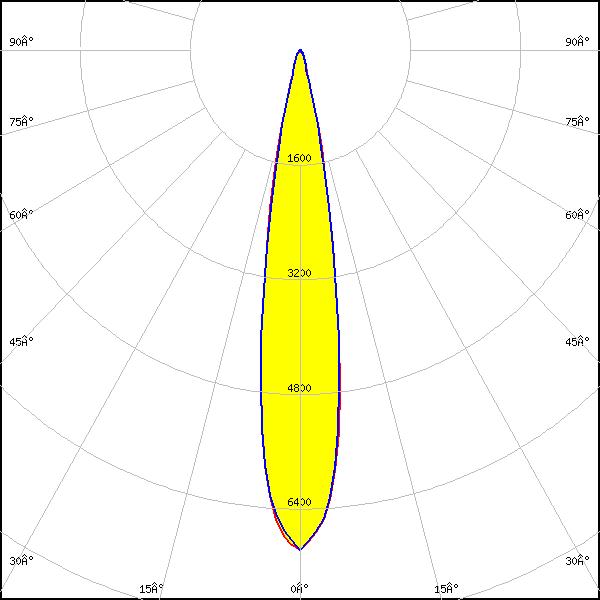

LED:
OSLON Pure 1414
FWHM:
18°
FWTM:
30°
Peak intensity:
6.976 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
22°
FWTM:
42°
Peak intensity:
4.094 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
23°
FWTM:
44°
Peak intensity:
3.750 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

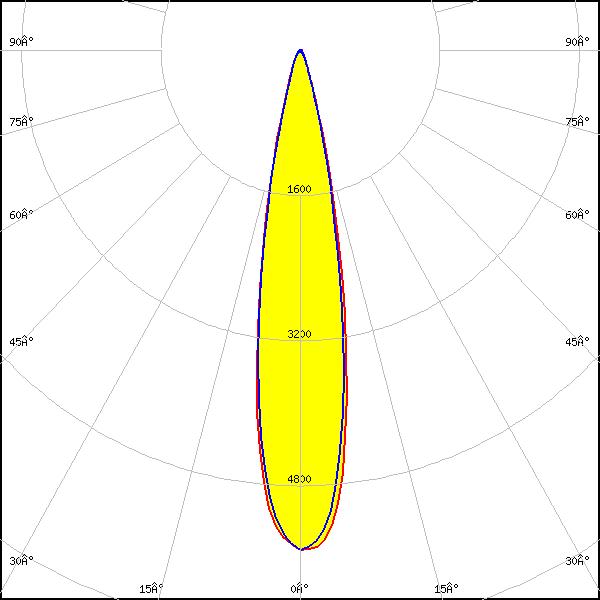

LED:
OSLON Square Flat
FWHM:
20°
FWTM:
35°
Peak intensity:
5.543 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

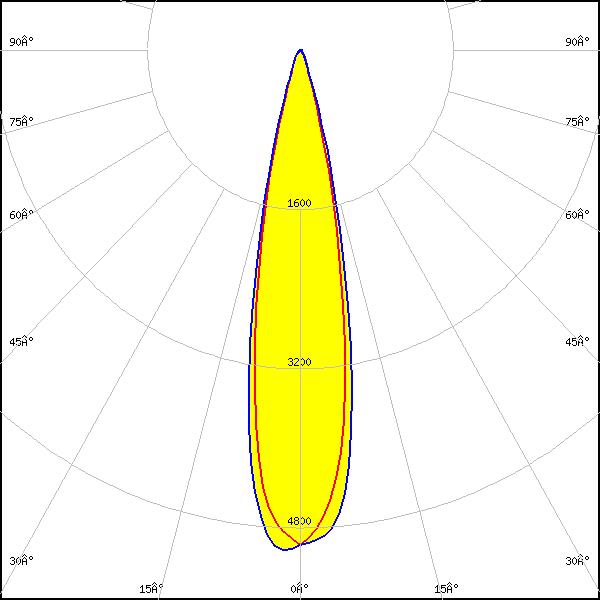

LED:
OSTAR Projection Compact (KW.CSLNM1.TG)
FWHM:
21°
FWTM:
38°
Peak intensity:
5.030 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

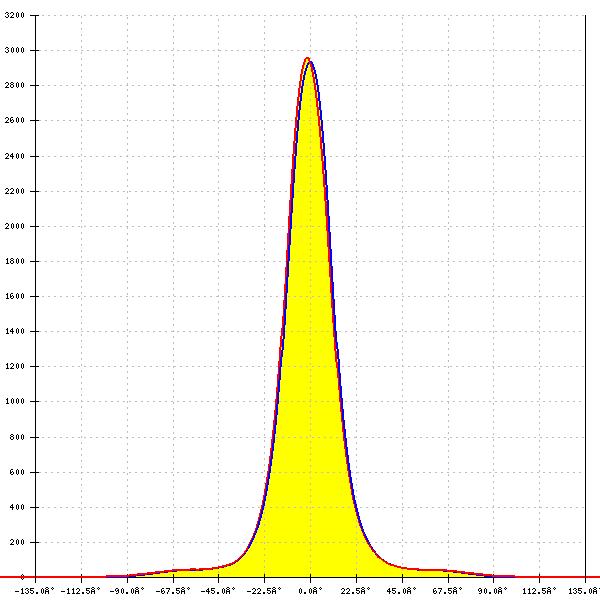

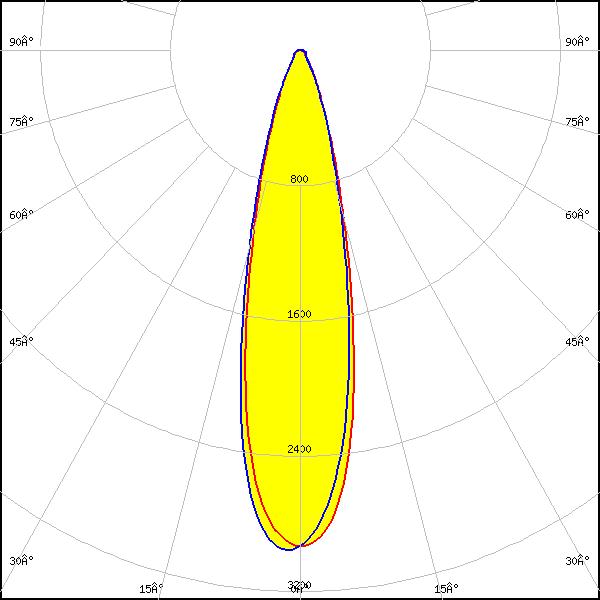

Fortimo FastFlex LED 2x8 DA G4
FWHM:
25°
FWTM:
51°
Peak intensity:
3.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G4+
FWHM:
30°
FWTM:
59°
Peak intensity:
2.302 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA G5
FWHM:
24°
FWTM:
47°
Peak intensity:
3.385 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x8 DA HE
FWHM:
32°
FWTM:
61°
Peak intensity:
2.050 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

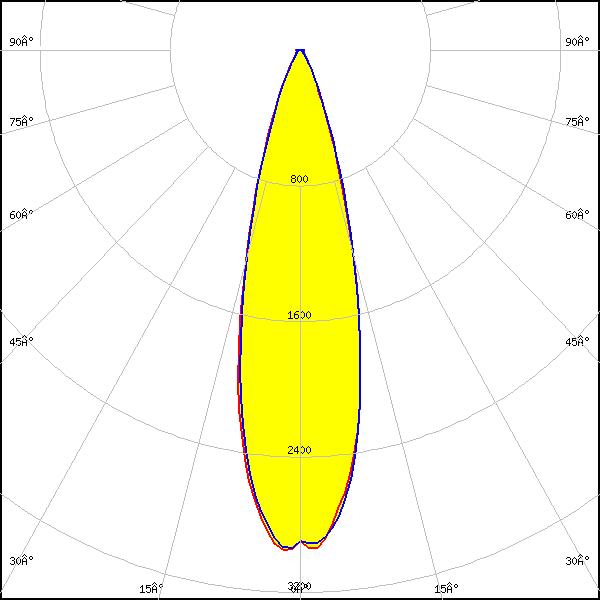

LED:
Fortimo FastFlex LED 2x8 DAX G4
FWHM:
28°
FWTM:
50°
Peak intensity:
3.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

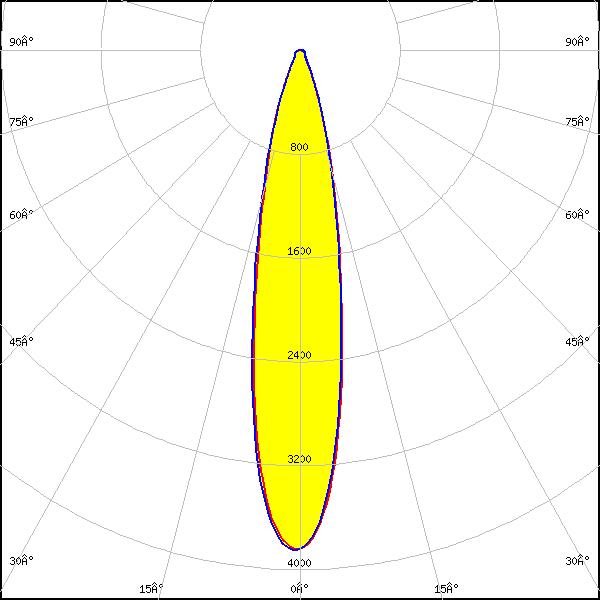

LED:
HiLOM RC12 Z (LH181B)
FWHM:
21°
FWTM:
45°
Peak intensity:
3.853 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

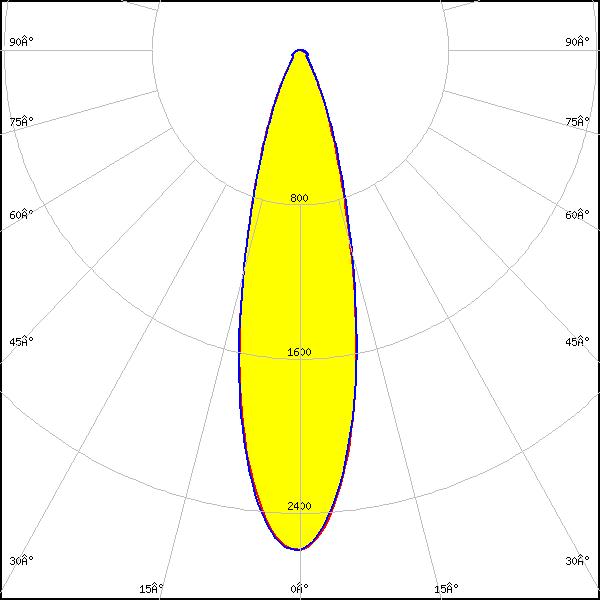

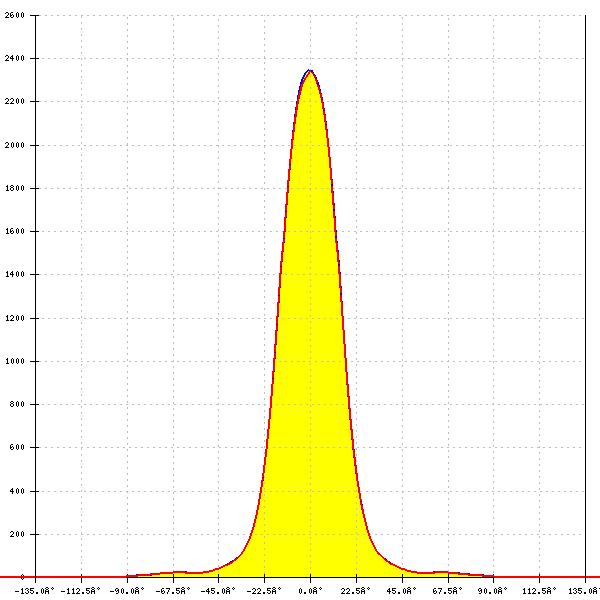

LED:

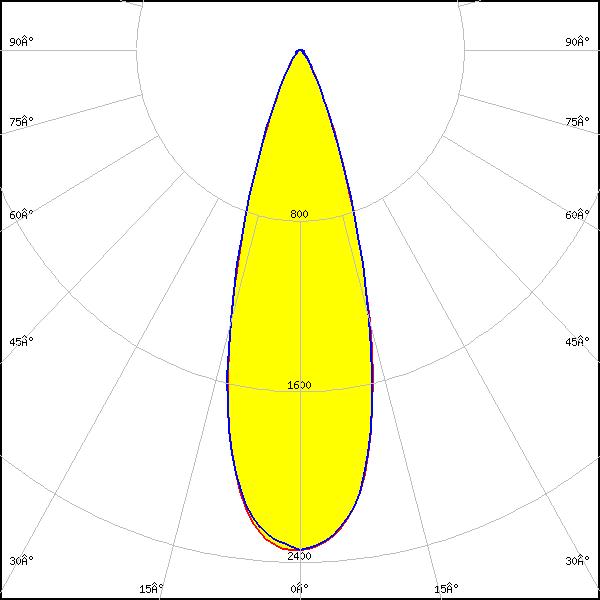

HiLOM RH12 Z (LH351C)
FWHM:
27°
FWTM:
55°
Peak intensity:
2.593 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

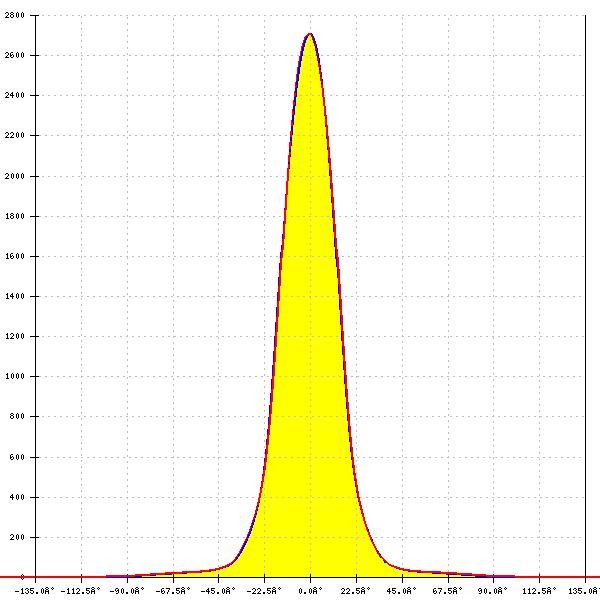

LED:

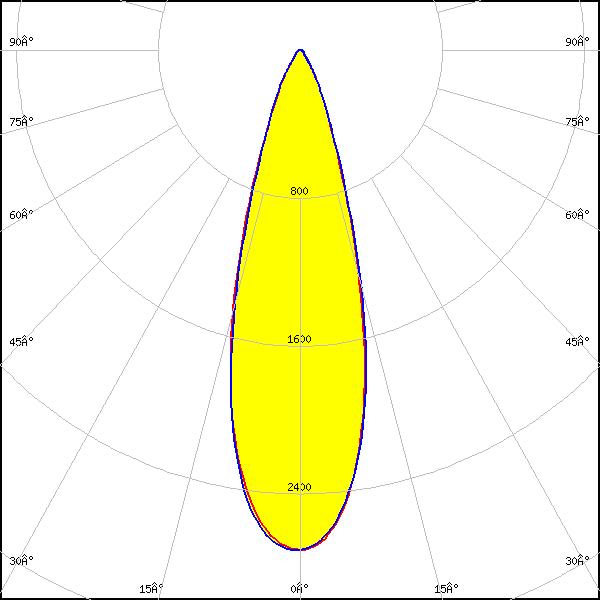

HiLOM RH16 (LH351C)
FWHM:
30°
FWTM:
55°
Peak intensity:
2.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

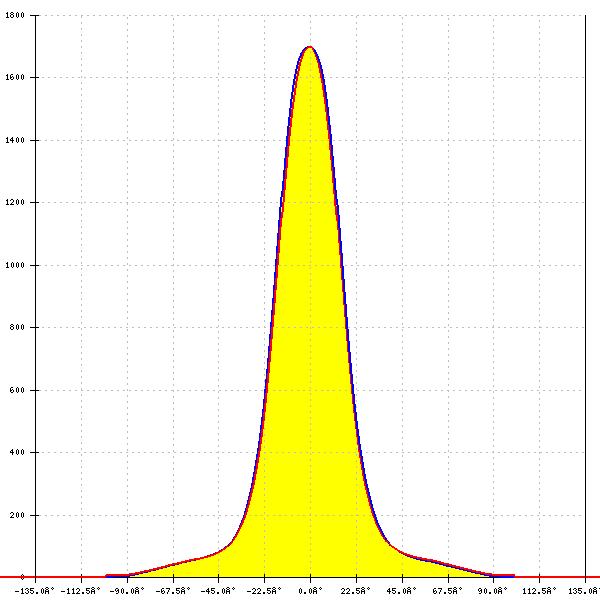

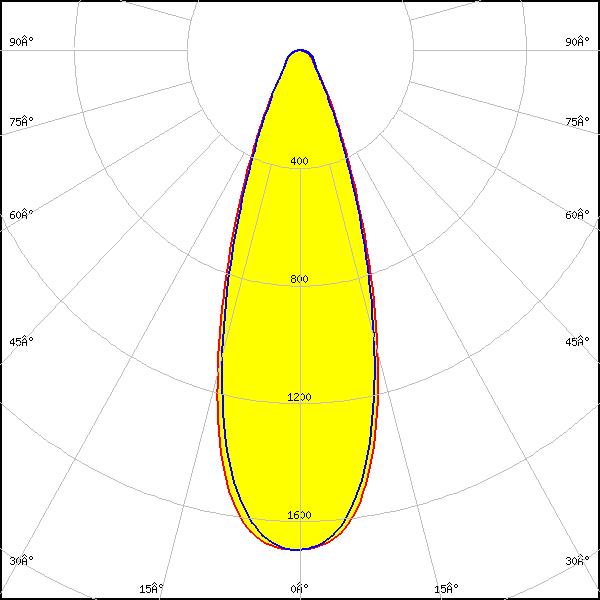

LED:
HiLOM RM12 Z (LH502C)
FWHM:
35°
FWTM:
67°
Peak intensity:
1.699 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

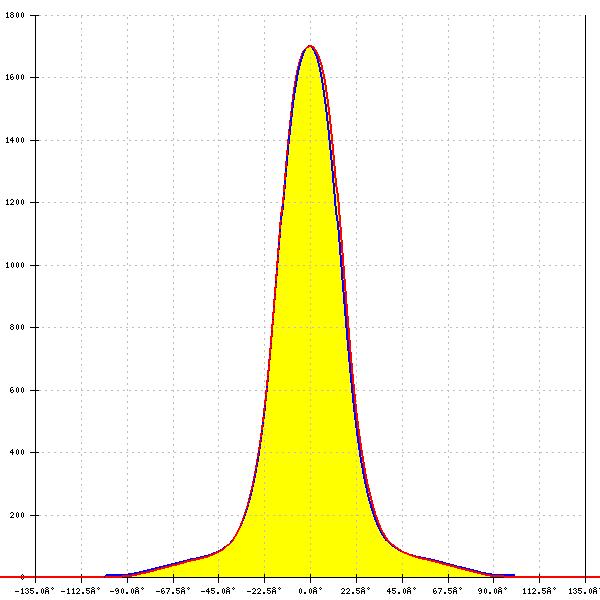

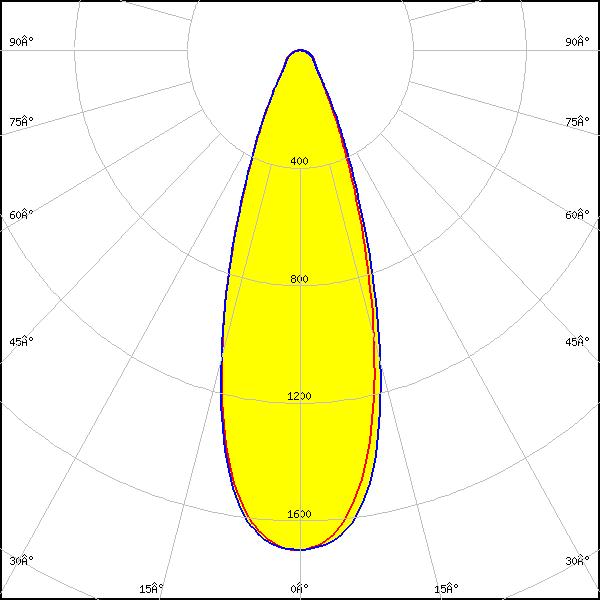

HiLOM RM16 Z (LH502C)
FWHM:
36°
FWTM:
68°
Peak intensity:
1.701 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

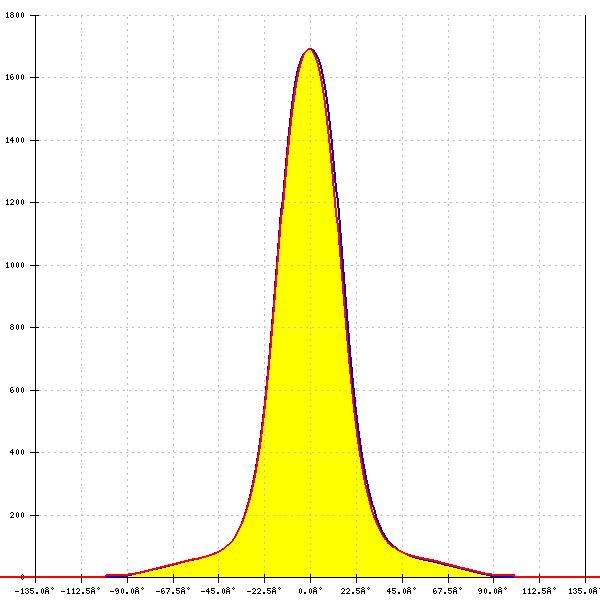

LED:

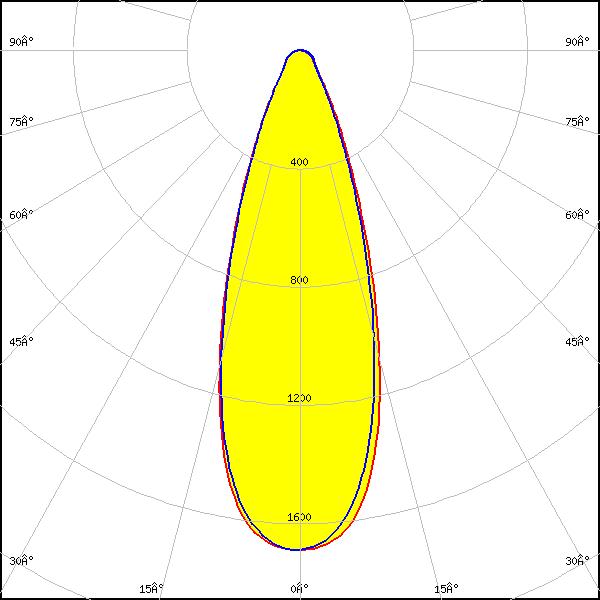

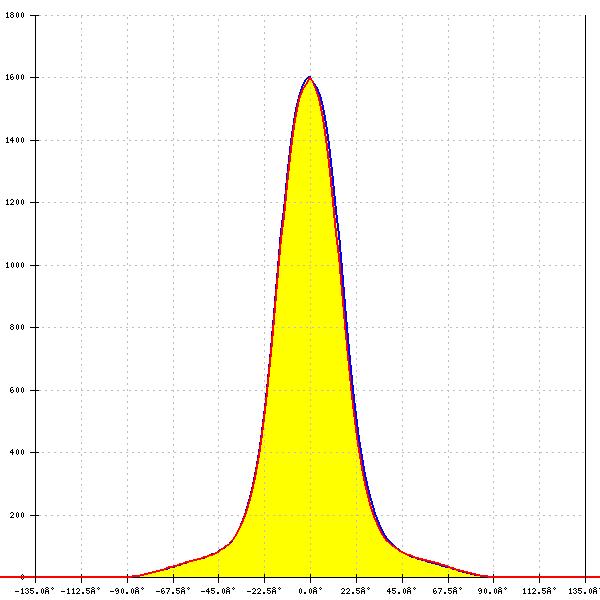

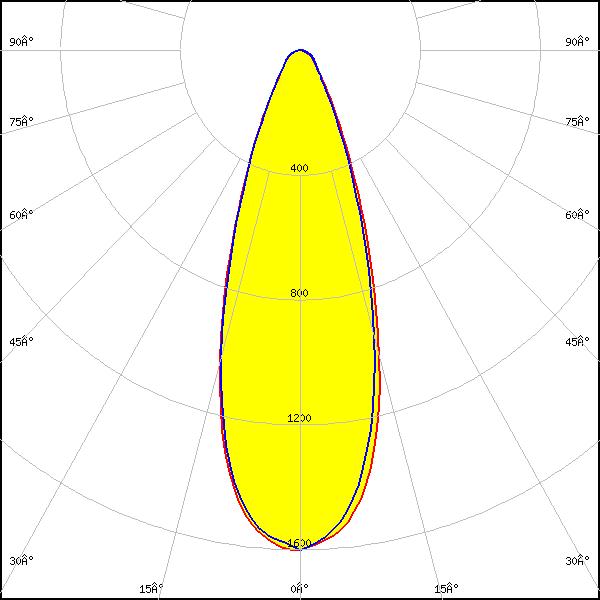

HiLOM RM8 Z (LH502C)
FWHM:
36°
FWTM:
68°
Peak intensity:
1.691 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

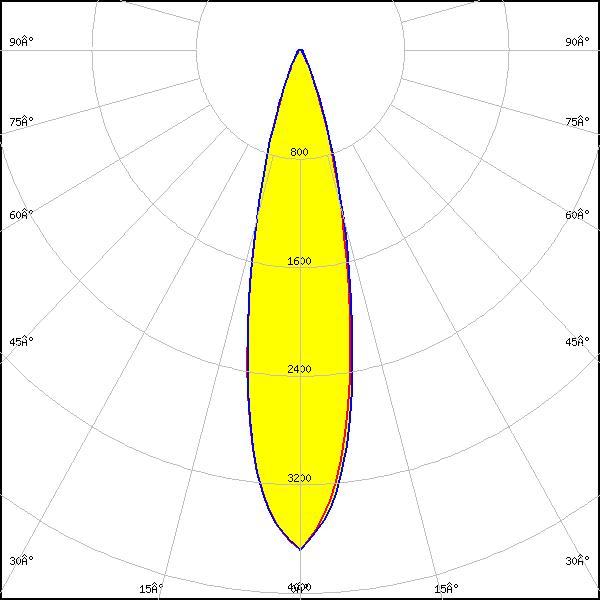

LH231B
FWHM:
24°
FWTM:
46°
Peak intensity:
3.683 cd/lm
Efficiency:
92 %
LEDs/each optic:
4
Light colour/type:
White
LED:

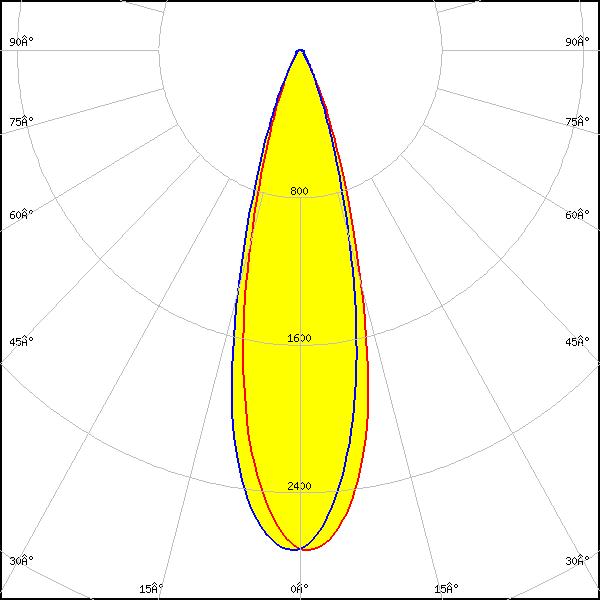

LH351B
FWHM:
28°
FWTM:
52°
Peak intensity:
2.720 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351C
FWHM:
32°
FWTM:
56°
Peak intensity:
2.348 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

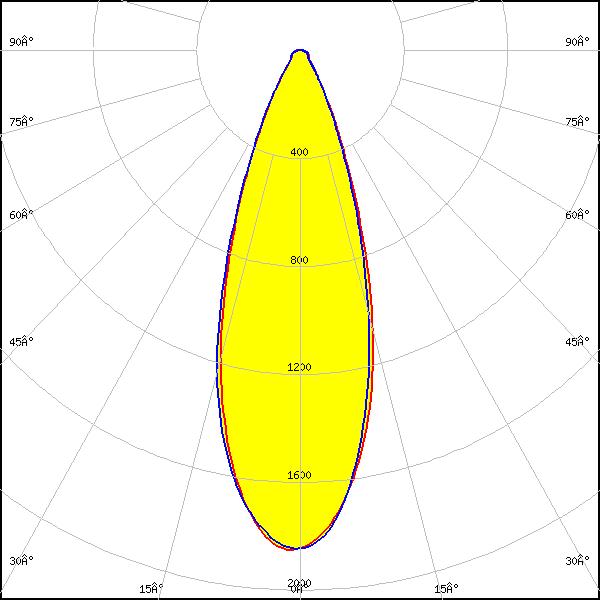

LH351D
FWHM:
35°
FWTM:
64°
Peak intensity:
1.900 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH502C
FWHM:
36°
FWTM:
70°
Peak intensity:
1.602 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH508A Plus
FWHM:
32°
FWTM:
62°
Peak intensity:
2.129 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

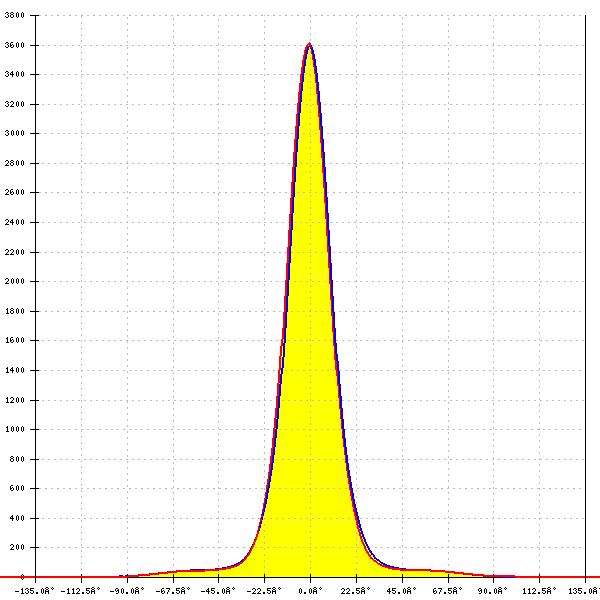

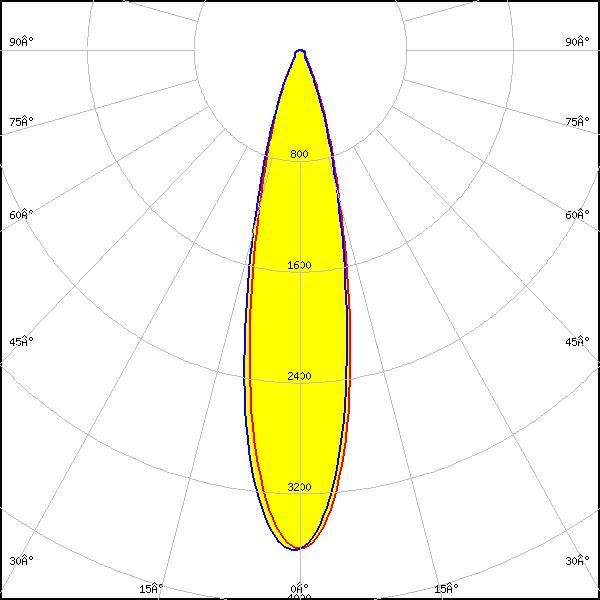

LED-Pa-L15c2W11c2-xxx-C050-01
FWHM:
24°
FWTM:
48°
Peak intensity:
3.613 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
2x2 Y22 module - SMJQ-D48W16AA-XX
FWHM:
34°
FWTM:
64°
Peak intensity:
1.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

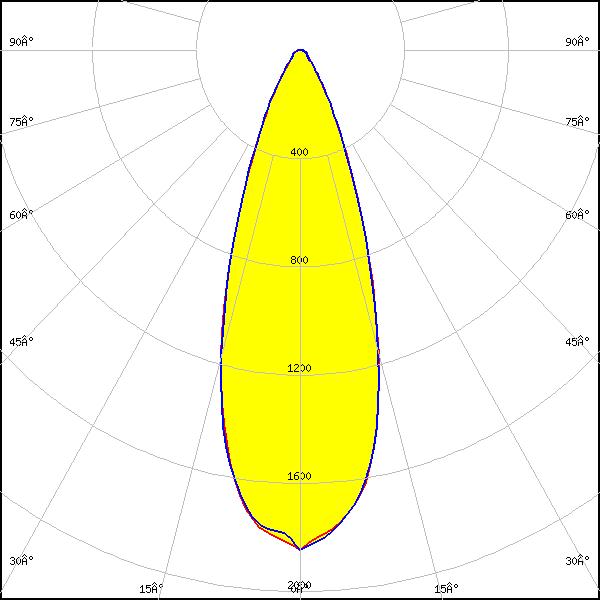

MJT 5050
FWHM:
36°
FWTM:
66°
Peak intensity:
1.848 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

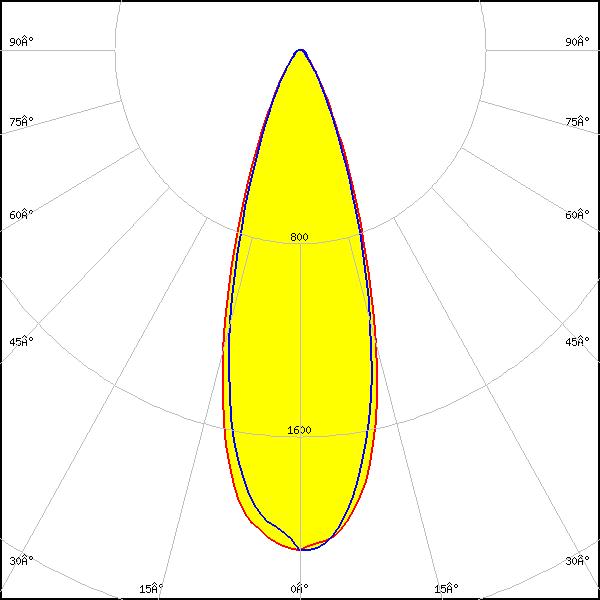

SEOUL DC 5050 6V
FWHM:
34°
FWTM:
62°
Peak intensity:
2.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

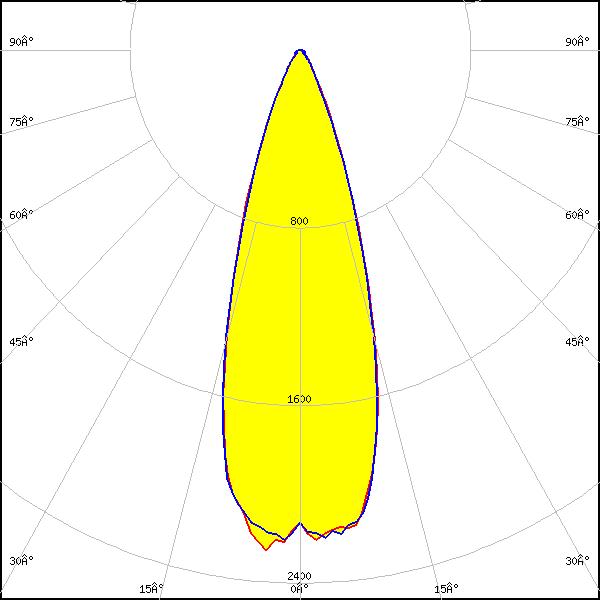

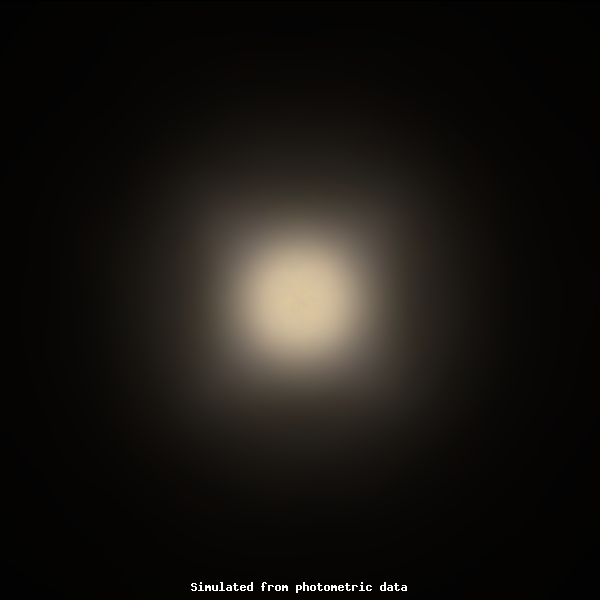

Z5M3
FWHM:
25°
FWTM:
51°
Peak intensity:
3.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

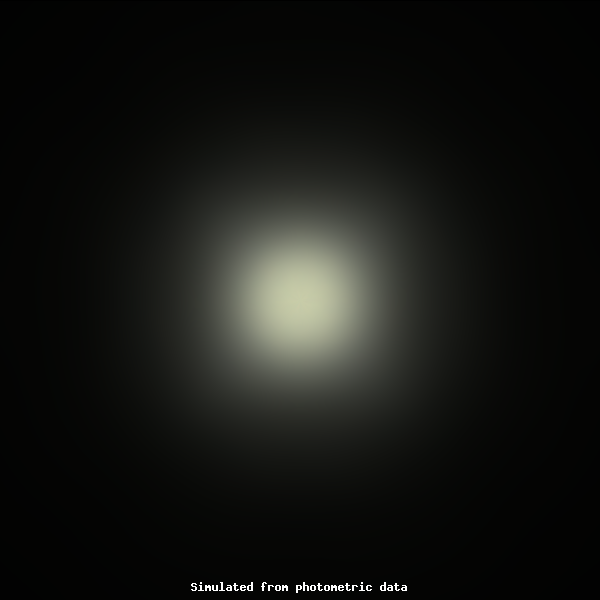

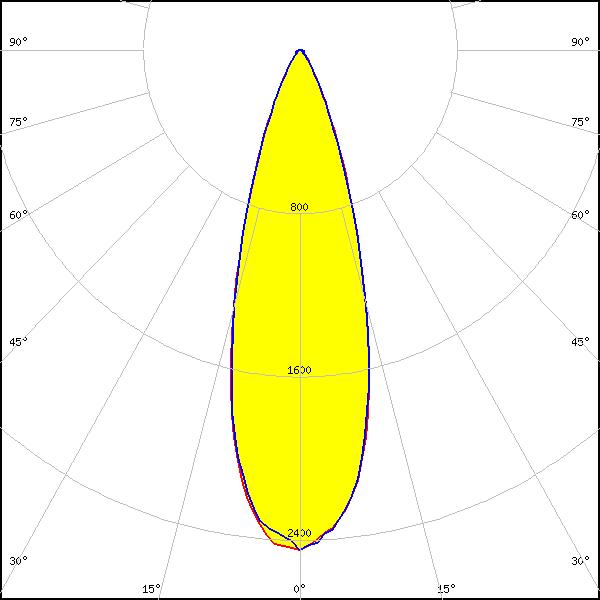

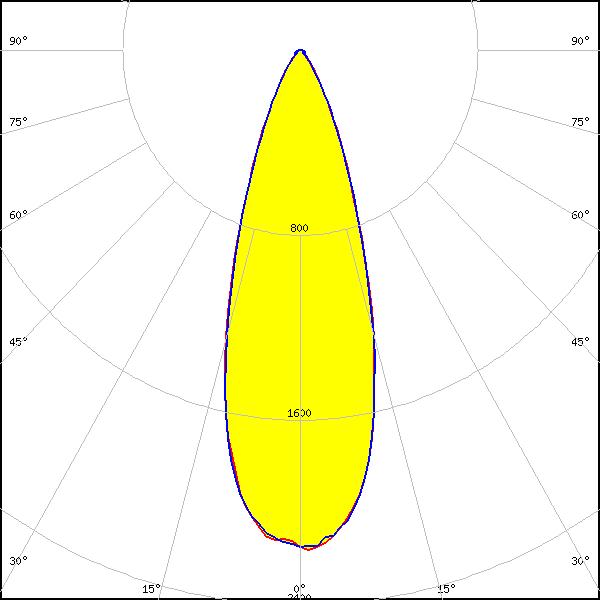

Z5M4
FWHM:
26°
FWTM:
52°
Peak intensity:
3.014 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
28°
FWTM:
50°
Peak intensity:
3.062 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
28°
FWTM:
50°
Peak intensity:
2.793 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y19
FWHM:
34°
FWTM:
64°
Peak intensity:
1.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White
LED:
Z8Y19
FWHM:
34°
FWTM:
64°
Peak intensity:
1.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White
LED:

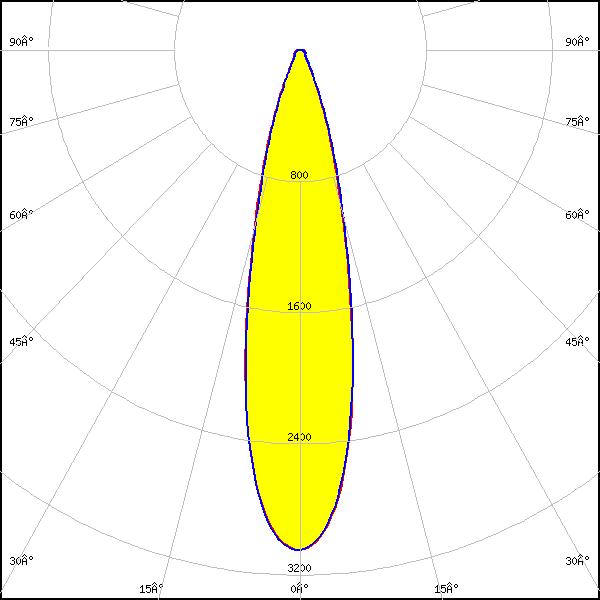

Z8Y22P
FWHM:
25°
FWTM:
48°
Peak intensity:
3.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

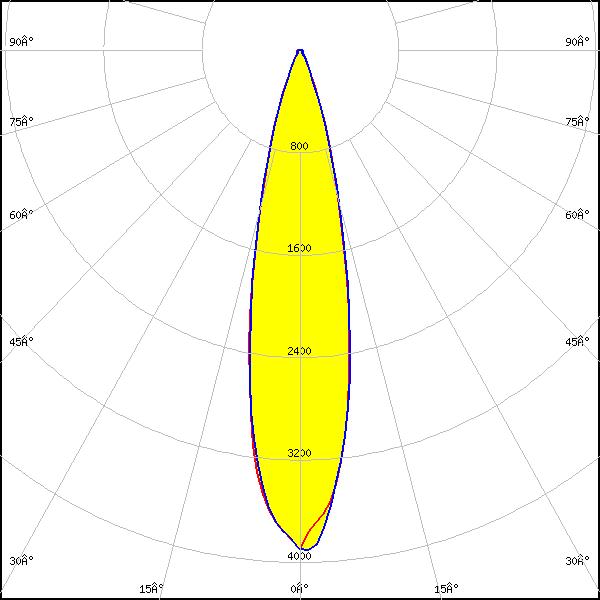

Z8Y22T
FWHM:
23°
FWTM:
44°
Peak intensity:
3.920 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

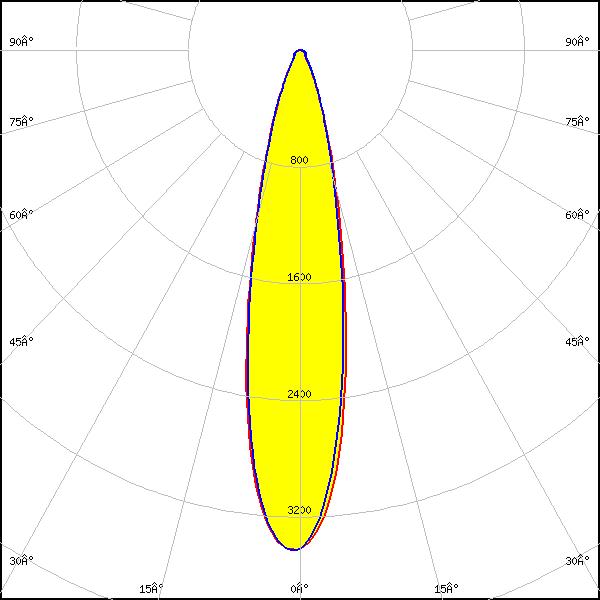

RLE 2x8 4000lm HP EXC2 OTD
FWHM:
23°
FWTM:
48°
Peak intensity:
3.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

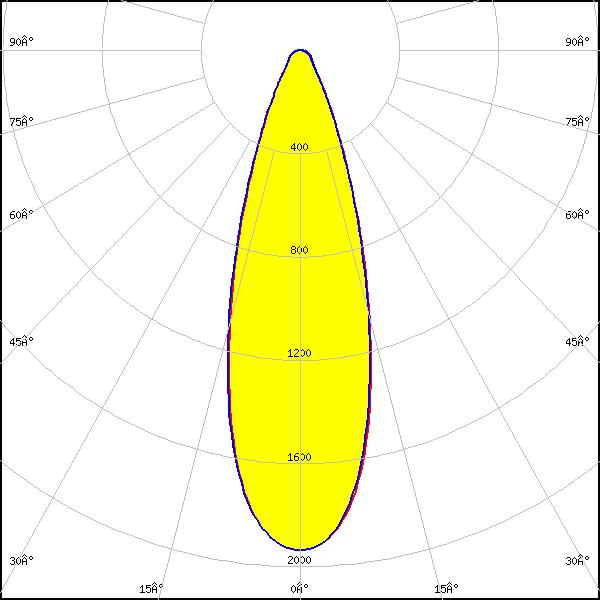

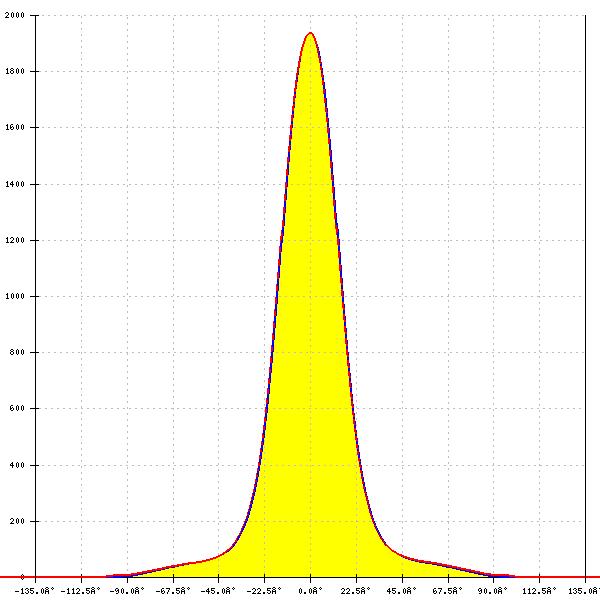

RLE 2x8 6000lm HP HE EXC3 OTD
FWHM:
33°
FWTM:
64°
Peak intensity:
1.936 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM:
24°
FWTM:
51°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM:
24°
FWTM:
51°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM:
24°
FWTM:
51°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM:
24°
FWTM:
51°
Peak intensity:
3.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
