    C14530_FLORENCE-1R-Z2T25

    Print

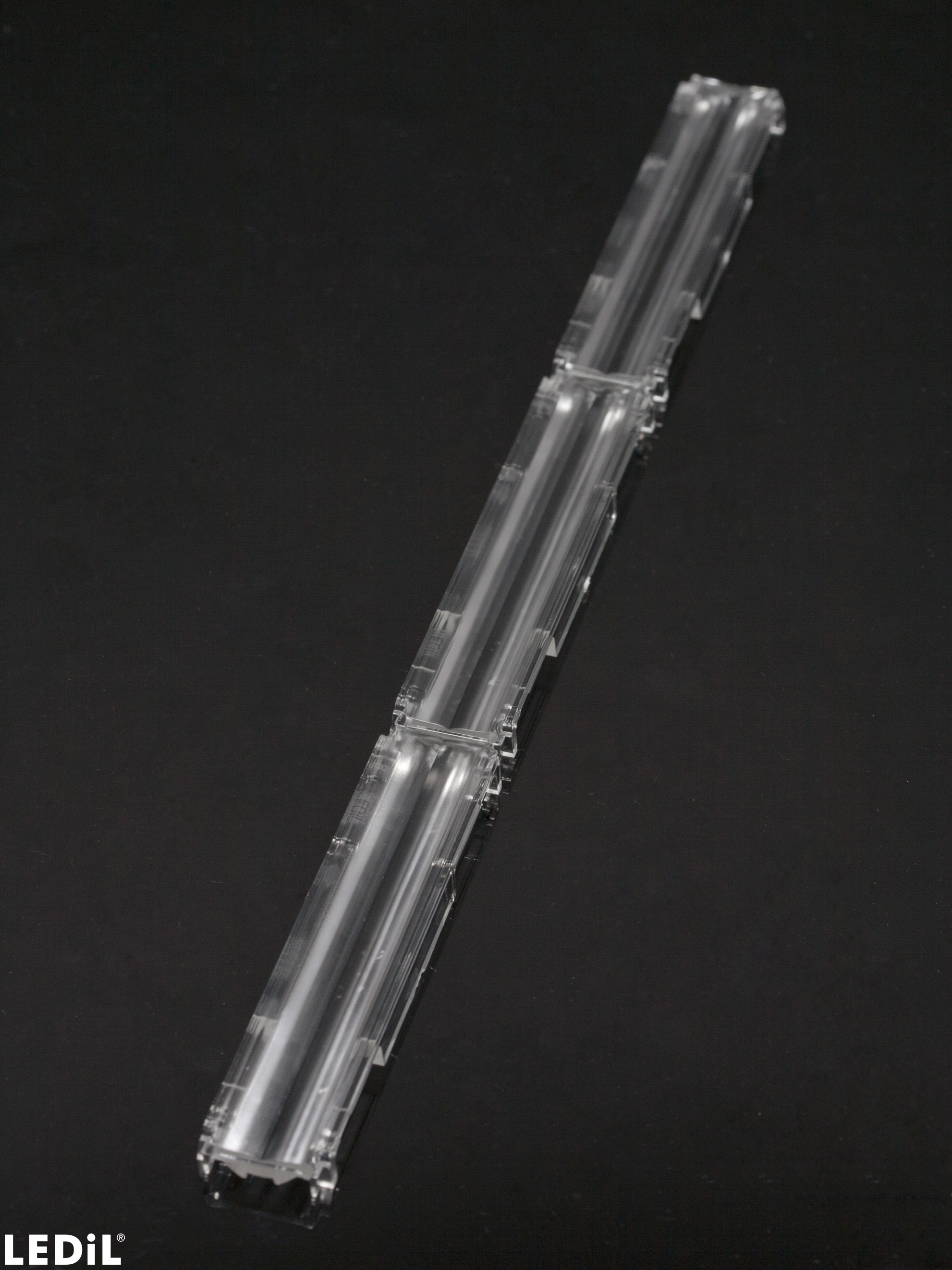

    Double asymmetric beam for aisle and shelf lighting

    Specification
    • Dimensions:
      20 x  286 mm
    • Height:
      6.40 mm
    • Fastening:
      glue
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      210 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.6 kg
    • MPQ:
      15 pcs
    • MOQ:
      45 pcs
    • MOQ size:
      480 x 280 x 100 mm
    • MOQ weight:
      1.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C14530_FLORENCE-1R-Z2T25
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    FLORENCE-1R assembly instruction

    Case story

    Russian DIY chain Leroy Merlin

    Case story

    Supermarket lighting for Spar

    Application example

    Supermarket lighting with FLORENCE-1R and 1R-GC

    PCN

    Product change notification NR103.a - Change of packaging quantities 280515

    PCN

    Product change notification NR103.a - Change of packaging quantities 280515

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    Linear lighting solutions

    News

    PRODUCT NEWS - FLORENCE-1R

    News

    PRODUCT NEWS - FLORENCE-1R

    News

    PRODUCT NEWS - FLORENCE-1R

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Compatibility guide

    FLORENCE-1R Compatibility Guide

    Application area

    Office Lighting

    Application guide

    LEDiL guide for retail lighting optics

    Article

    Illuminating supermarkets with LEDiL optics

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    FLORENCE-1R-CLIP-A

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 40 mm wide PCB

    FLORENCE-1R-CLIP-B

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD to extrusion profiles

    FLORENCE-1R-CLIP-C

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 24 mm wide PCB

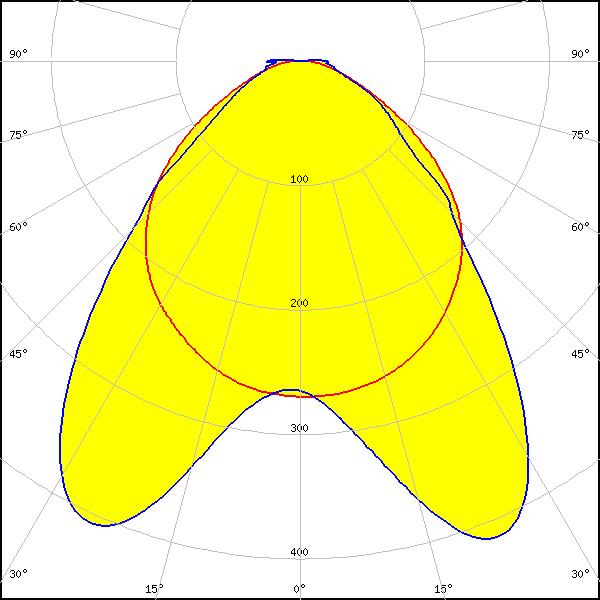

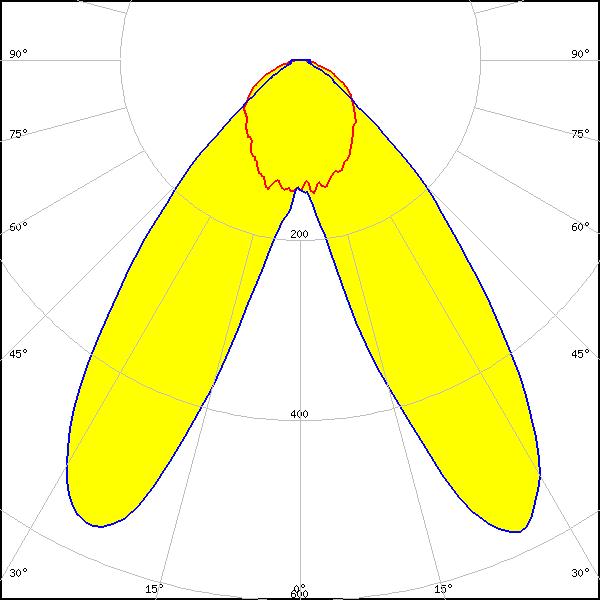

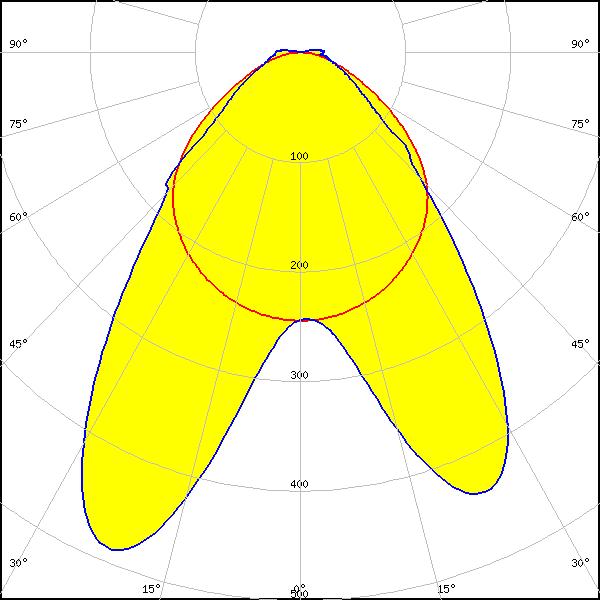

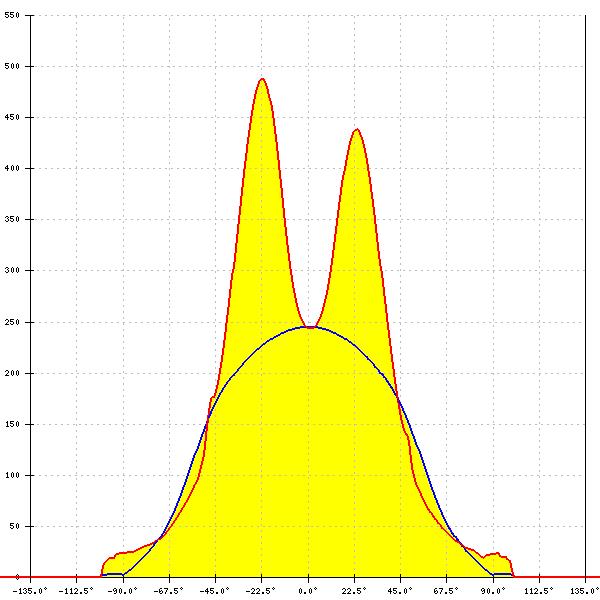

    Optical results

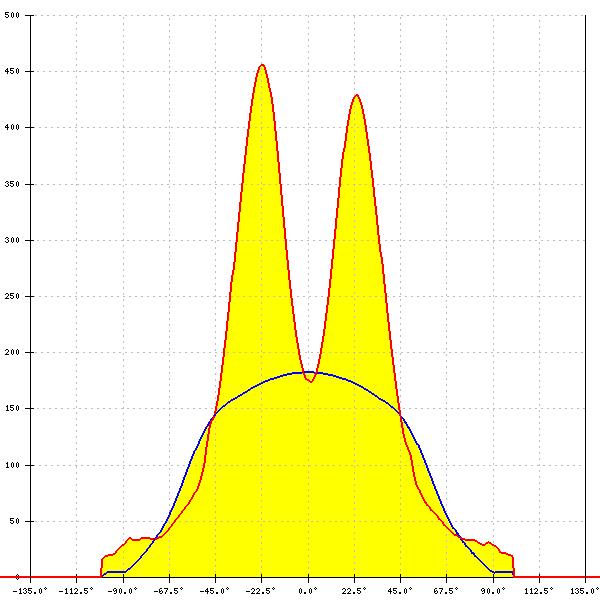

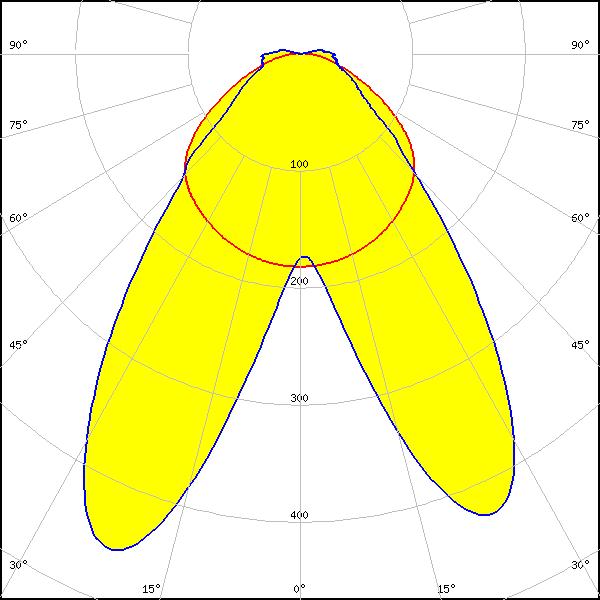

    LED: CALGD0414-M8W1
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

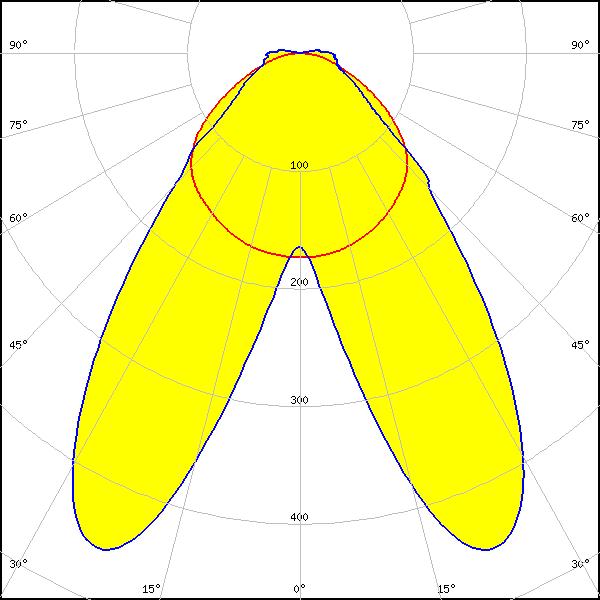

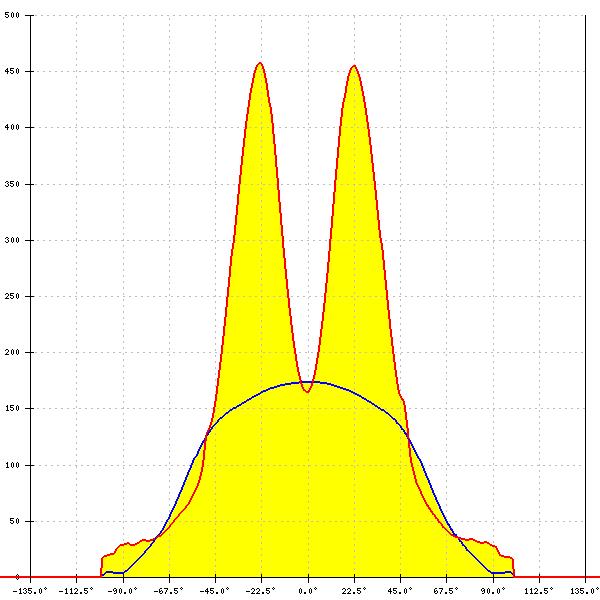

    LED: CALGD0814-M17W1
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: L0-280024-xxx-C0800-L267
    FWHM: asymmetric
    Peak intensity: 0.420 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

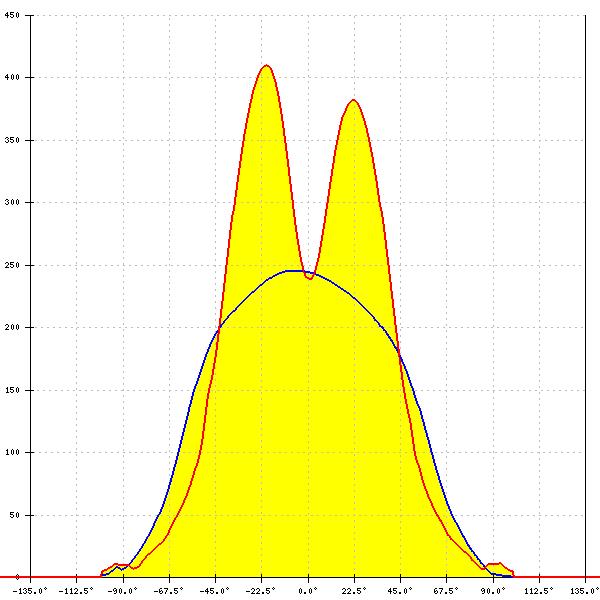

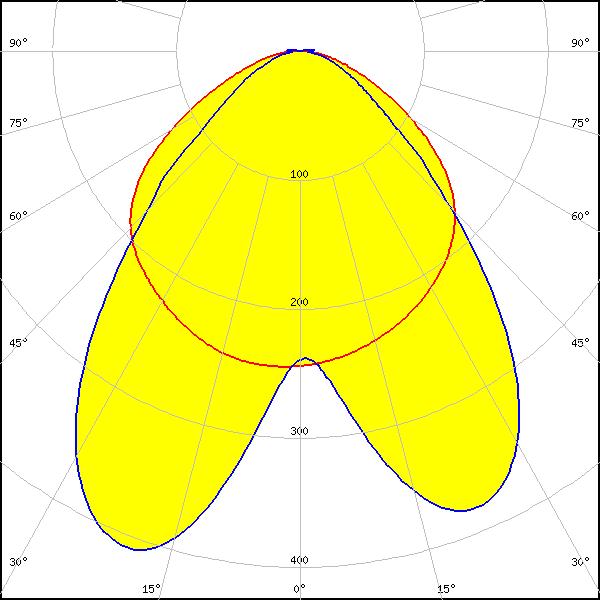

    LED: XH-B/G
    FWHM: asymmetric
    Peak intensity: 0.410 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 2835 Line
    FWHM: asymmetric
    Peak intensity: 0.580 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

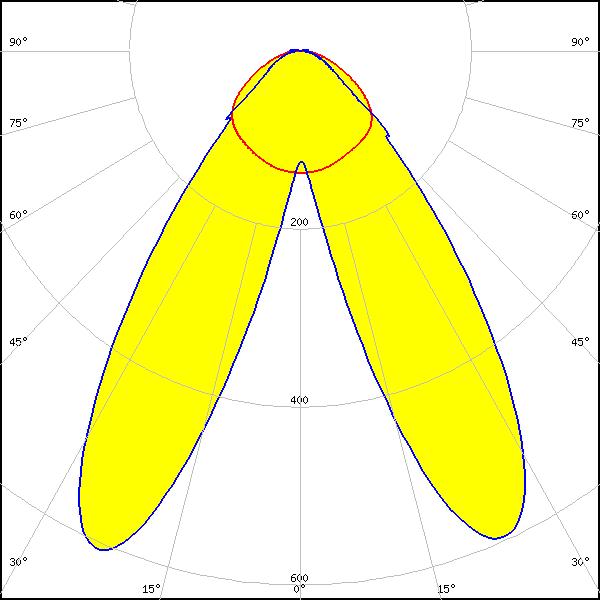

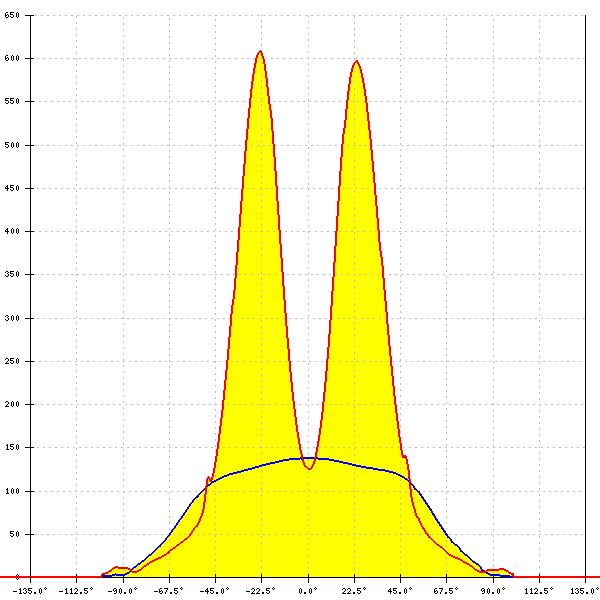

    LED: LUXEON 3014
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

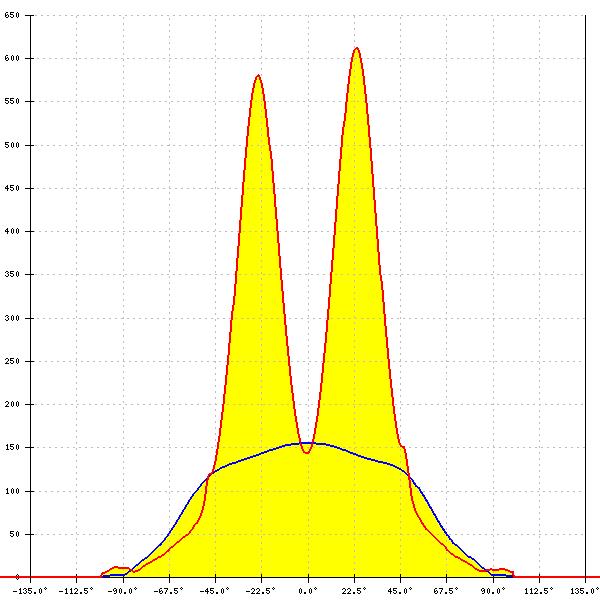

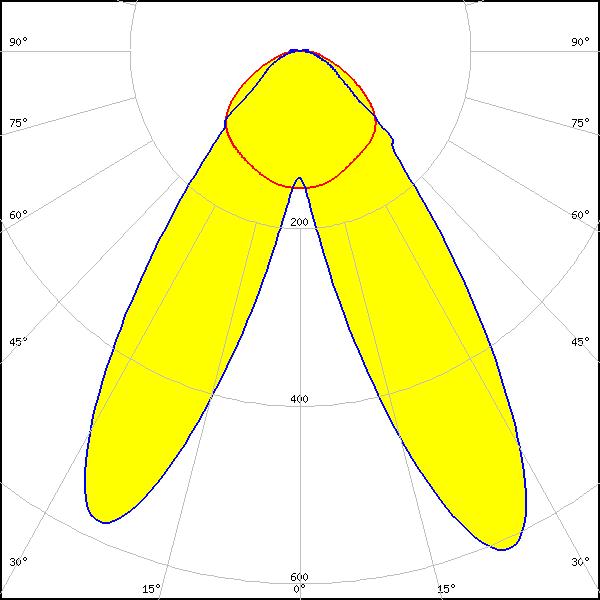

    LED: LUXEON 3020
    FWHM: asymmetric
    Peak intensity: 0.610 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

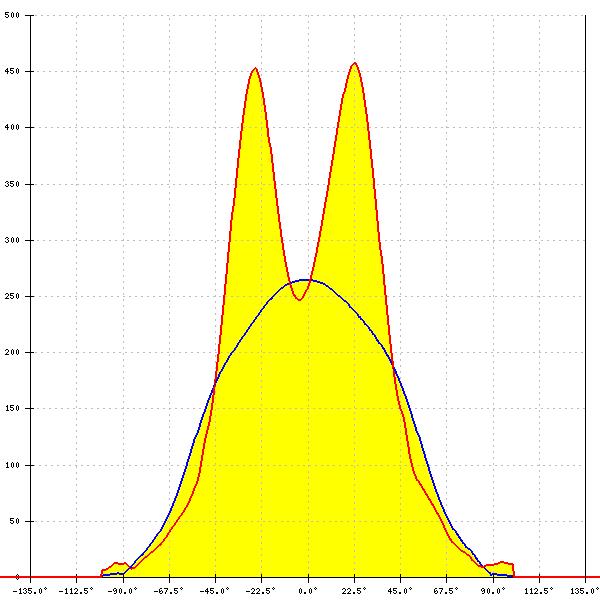

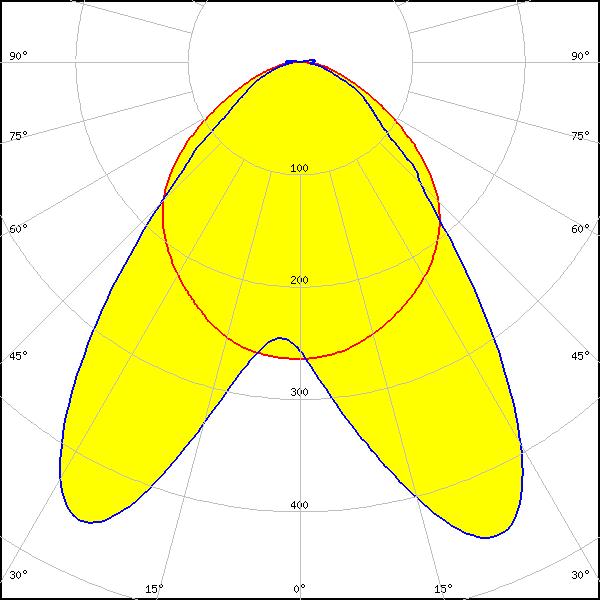

    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

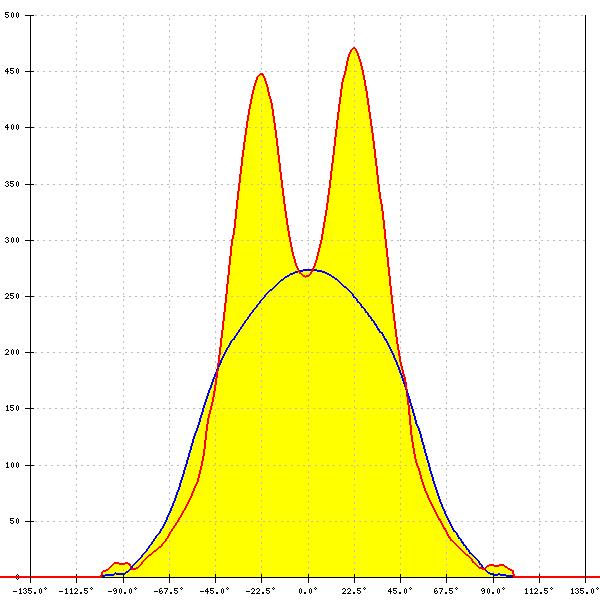

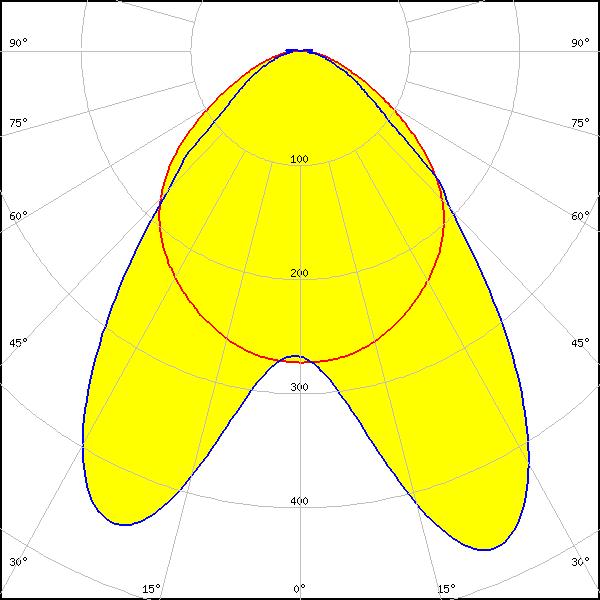

    LED: LUXEON 3535L
    FWHM: asymmetric
    Peak intensity: 0.470 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

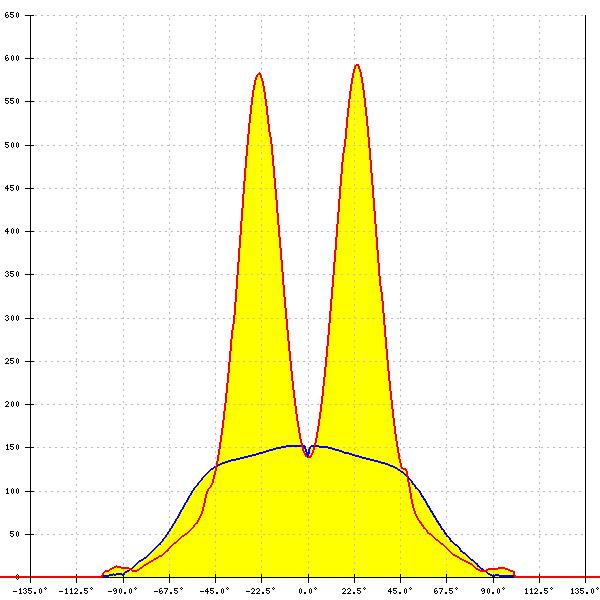

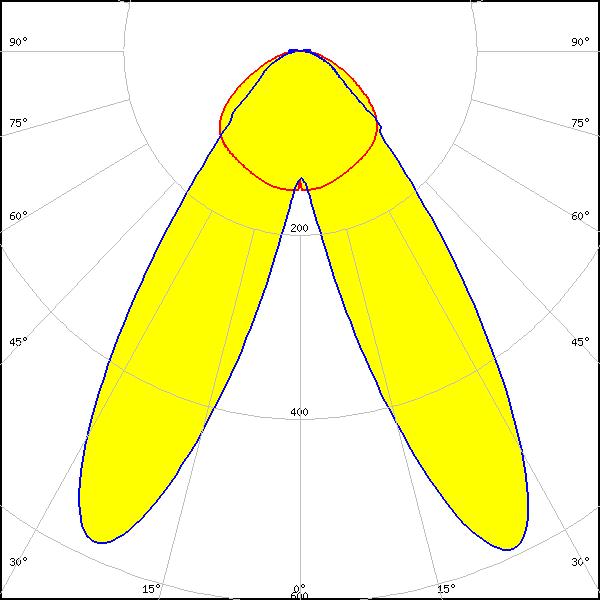

    LED: MP-2016
    FWHM: asymmetric
    Peak intensity: 0.590 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

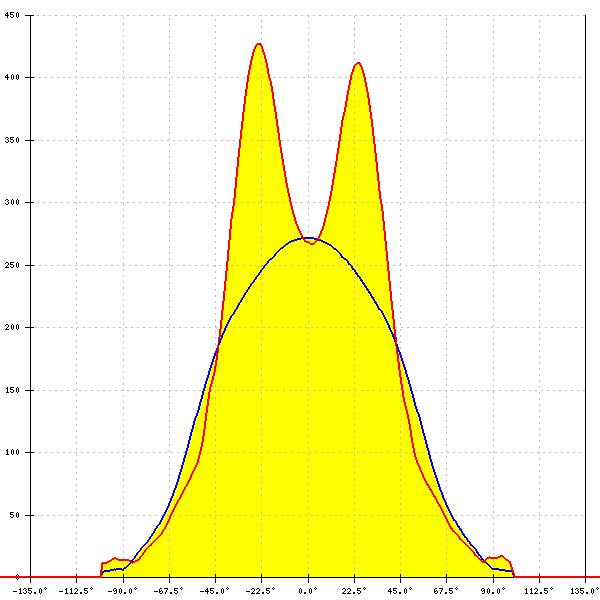

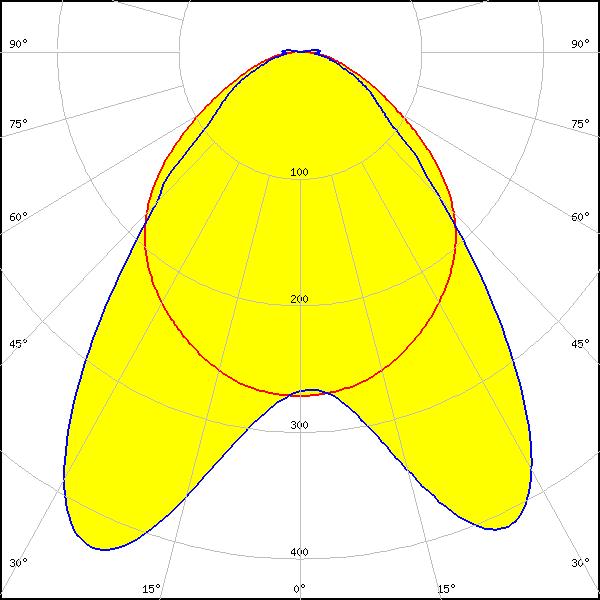

    LED: NF2x757D
    FWHM: asymmetric
    Peak intensity: 0.430 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

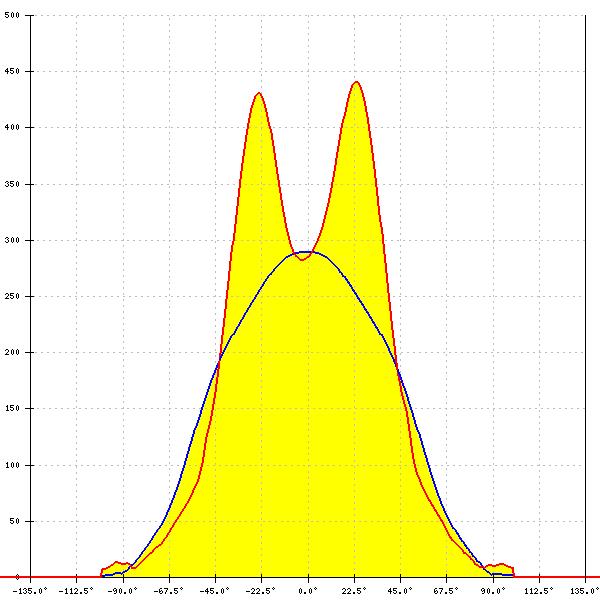

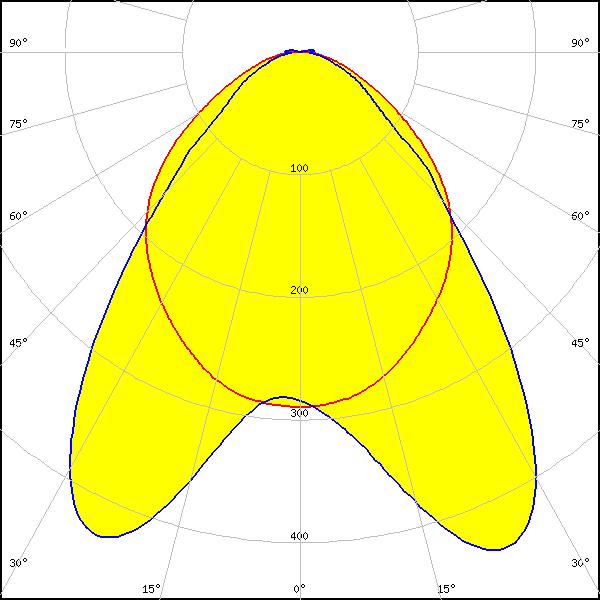

    LED: NF2x757G
    FWHM: asymmetric
    Peak intensity: 0.440 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

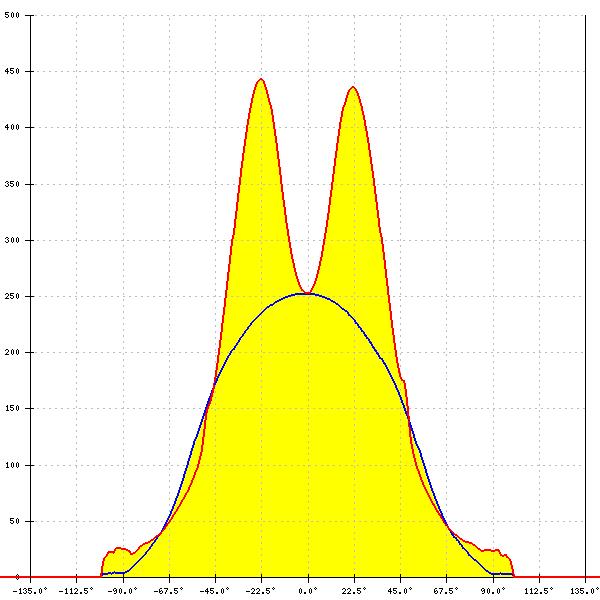

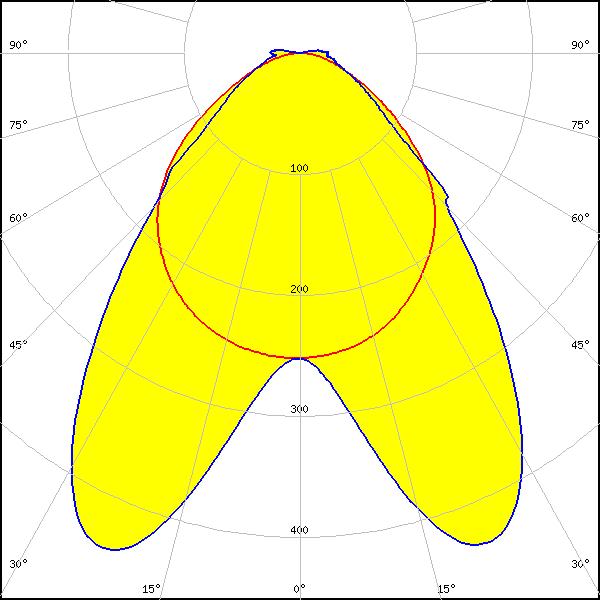

    LED: NFSW757H
    Required components:
    C14353_FLORENCE-1R-CLIP-A
    FWHM: asymmetric
    Peak intensity: 0.443 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

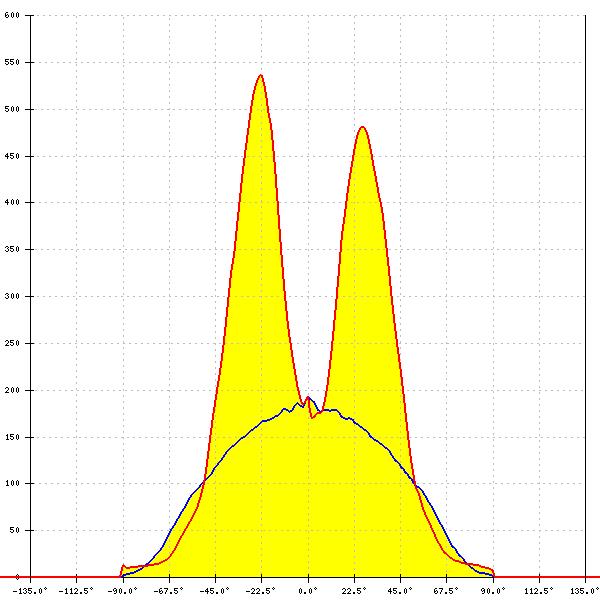

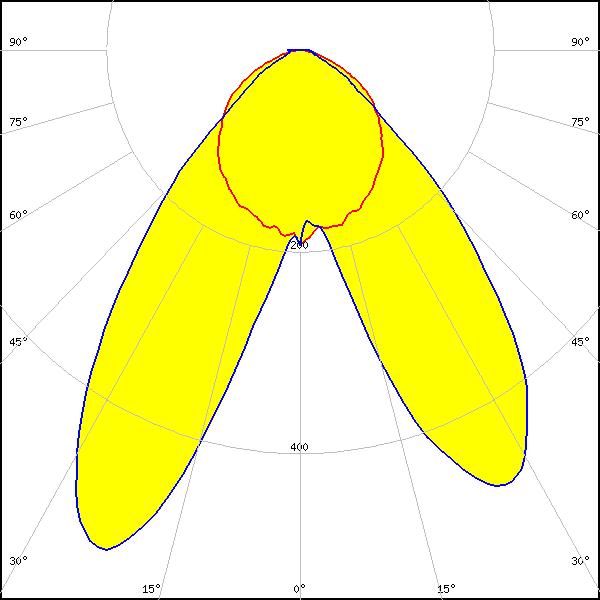

    LED: Duris E 2835
    FWHM: asymmetric
    Peak intensity: 0.540 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

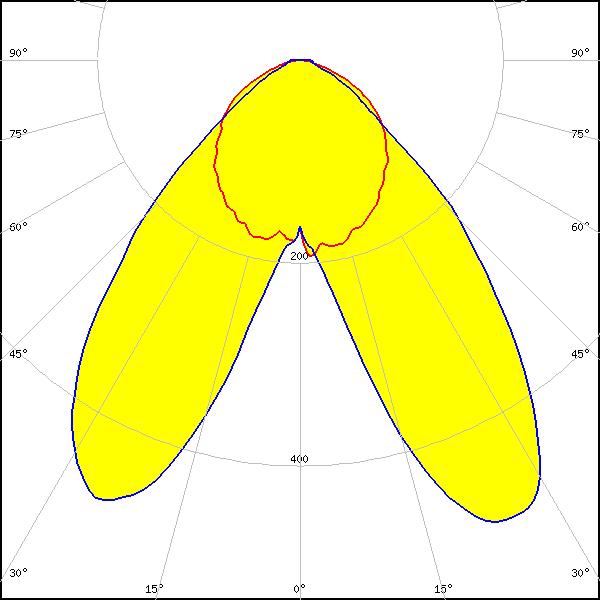

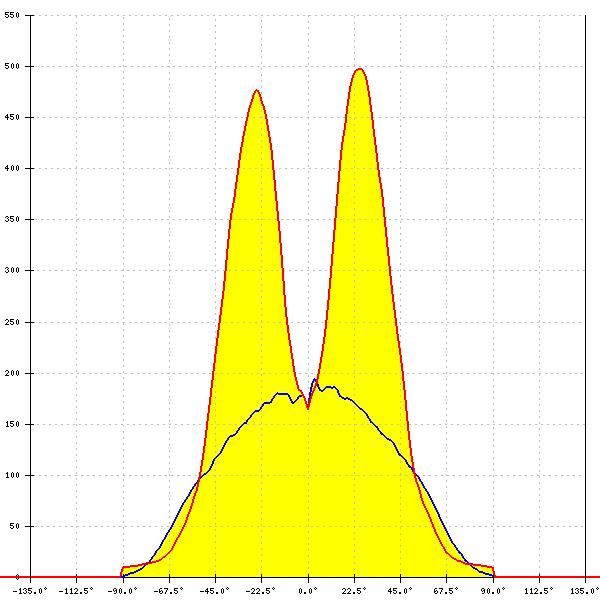

    LED: Duris E5
    FWHM: asymmetric
    Peak intensity: 0.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

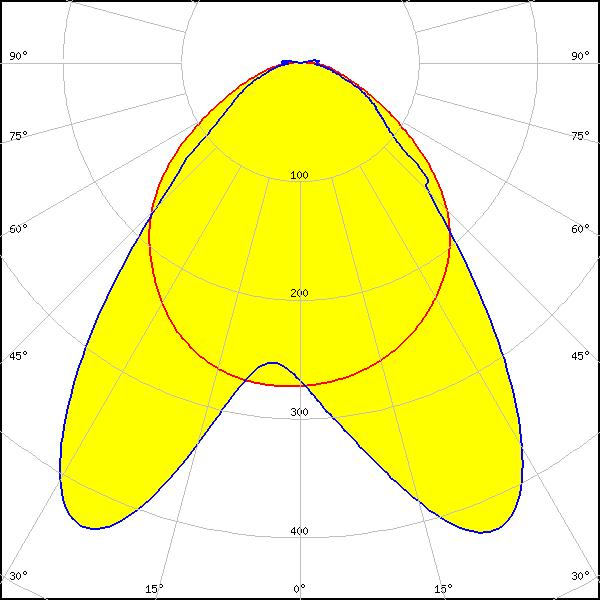

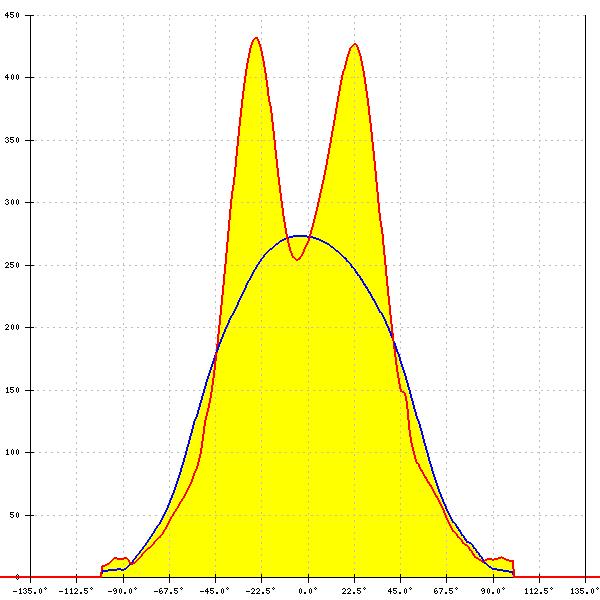

    LED: Duris S5 (2 chip)
    FWHM: asymmetric
    Peak intensity: 0.430 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

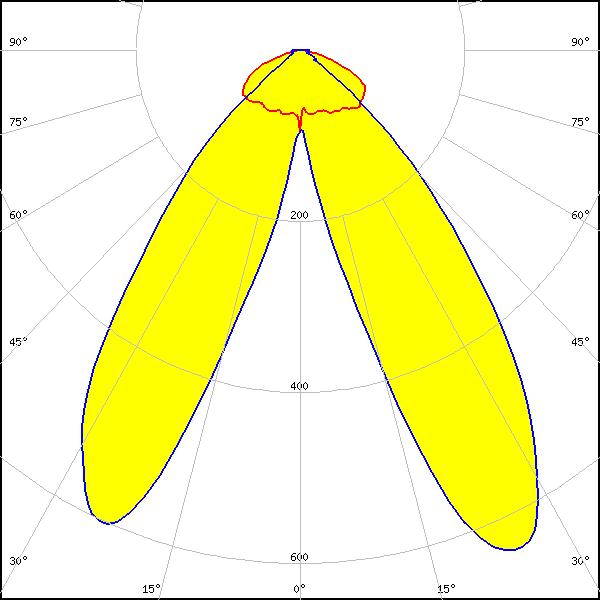

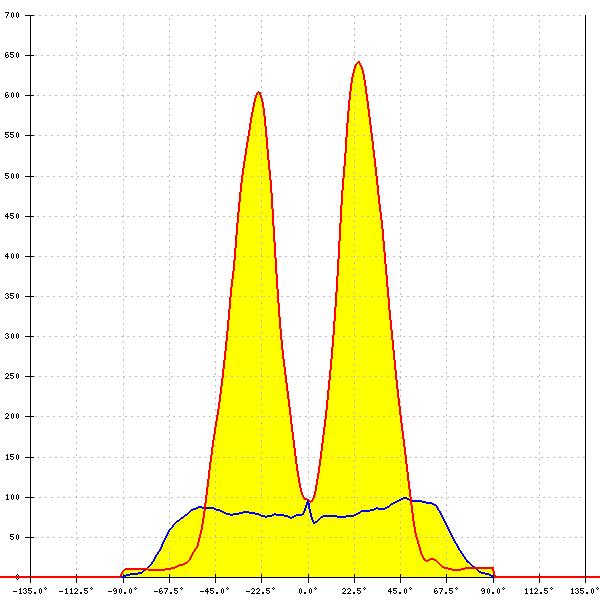

    LED: OSCONIQ C 2424
    FWHM: asymmetric
    Peak intensity: 0.646 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft 2000lm 1R HV4
    Required components:
    C14353_FLORENCE-1R-CLIP-A
    FWHM: asymmetric
    Peak intensity: 0.490 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft HF 1R HV5
    Required components:
    C14353_FLORENCE-1R-CLIP-A
    FWHM: asymmetric
    Peak intensity: 0.485 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo LED Line 1ft MF 1R HV5 & LV5
    Required components:
    C14353_FLORENCE-1R-CLIP-A
    FWHM: asymmetric
    Peak intensity: 0.477 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

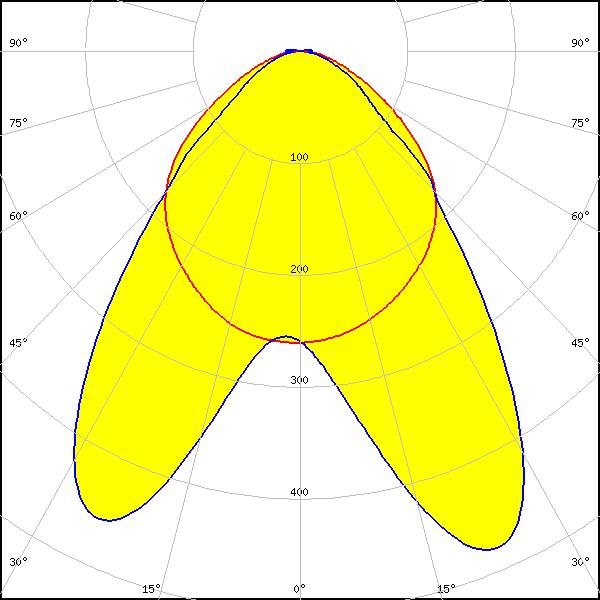

    LED: LM28xB Series
    FWHM: asymmetric
    Peak intensity: 0.480 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

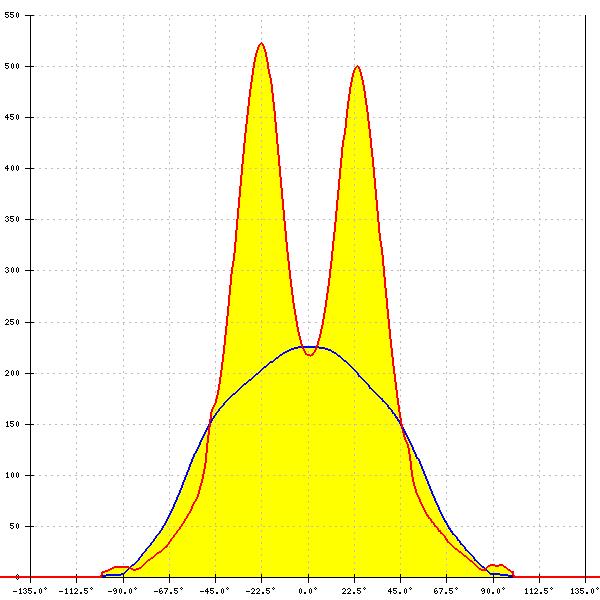

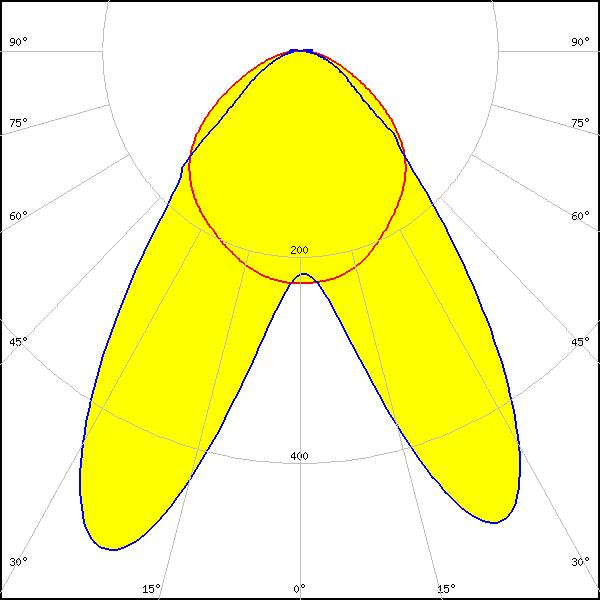

    LED: LM301A
    FWHM: asymmetric
    Peak intensity: 0.520 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

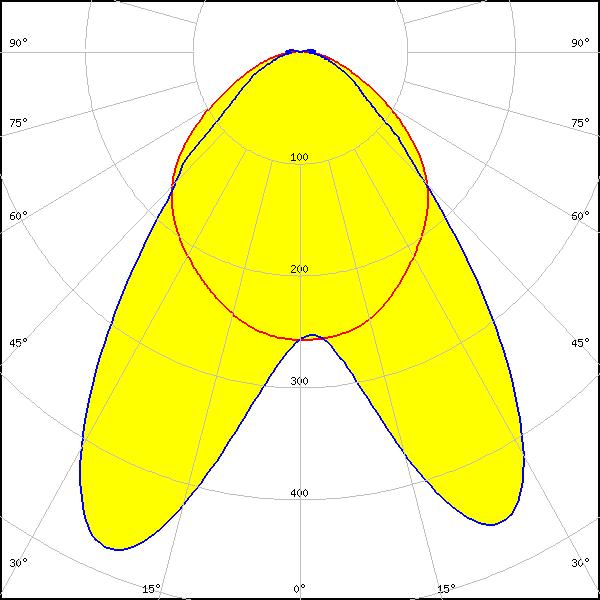

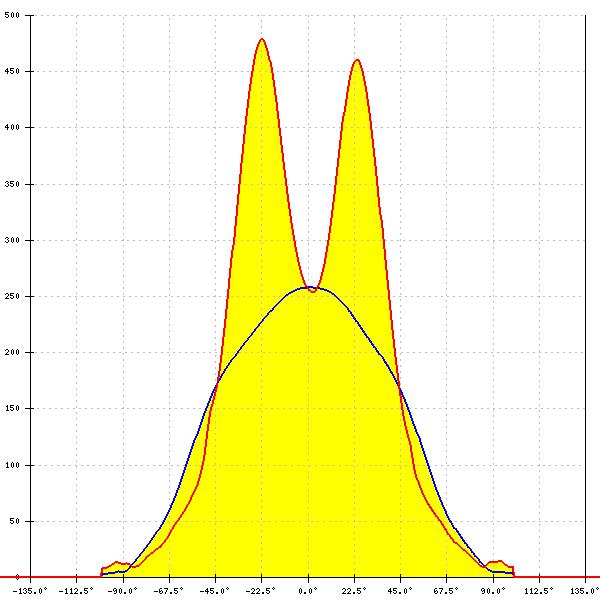

    LED: LM302A
    FWHM: asymmetric
    Peak intensity: 0.480 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

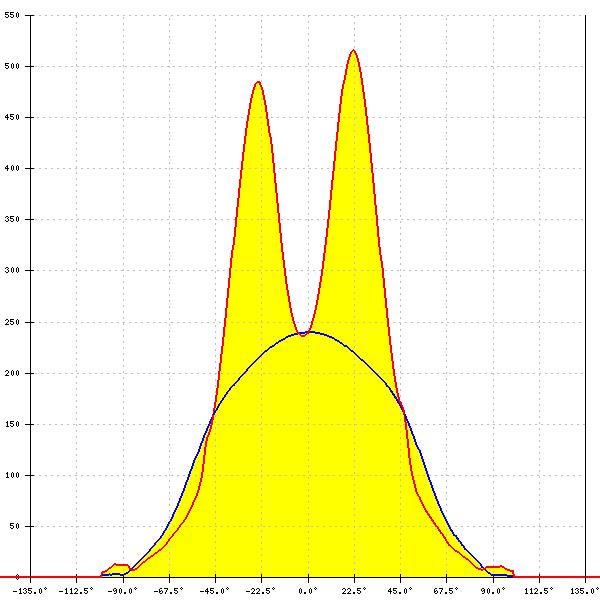

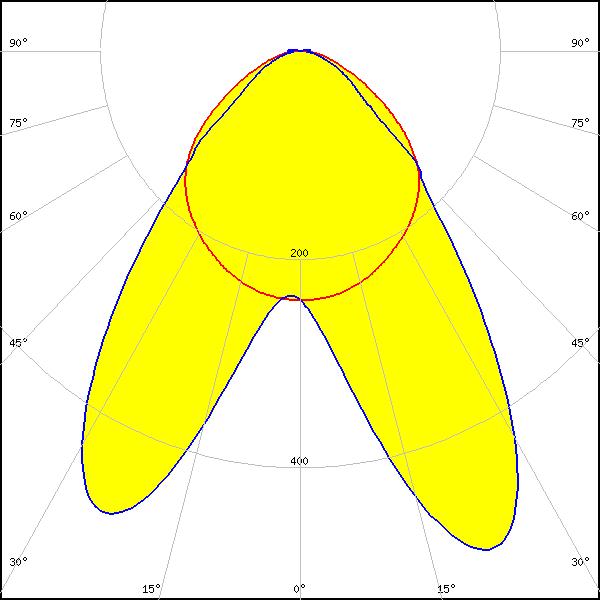

    LED: LM561C
    FWHM: asymmetric
    Peak intensity: 0.520 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

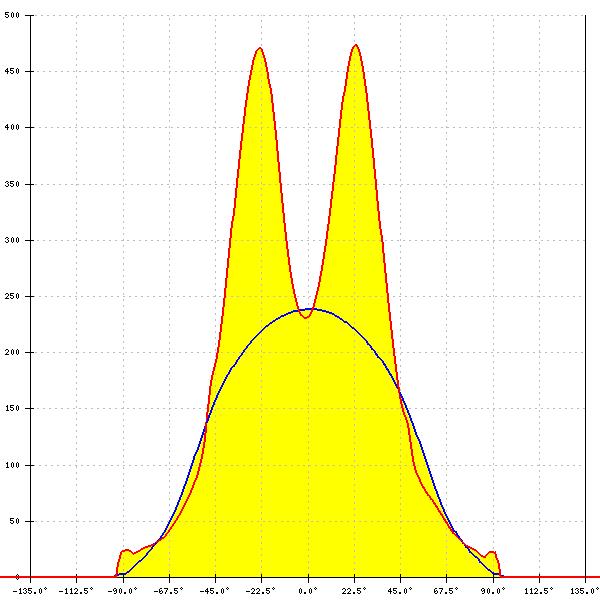

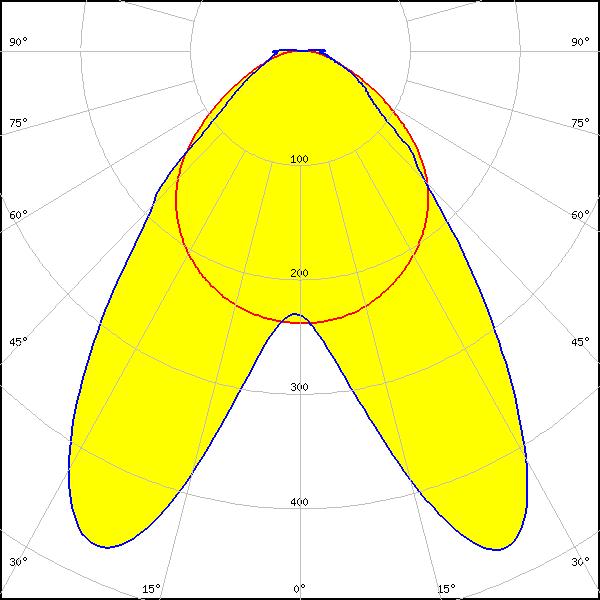

    LED: LT-S282N
    FWHM: asymmetric
    Peak intensity: 0.470 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

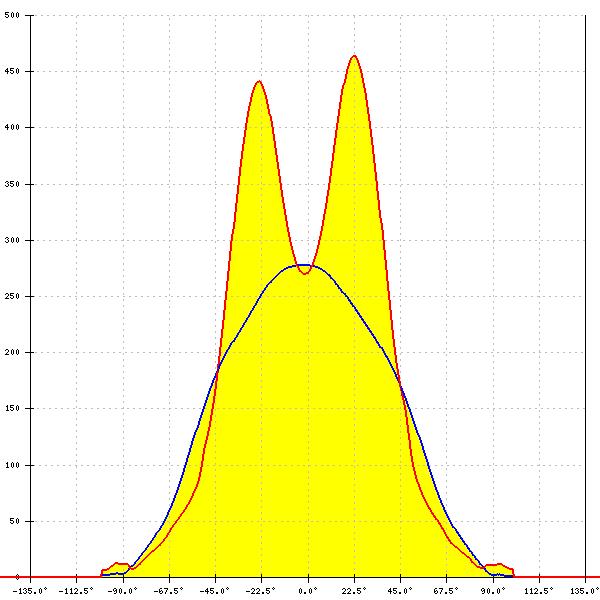

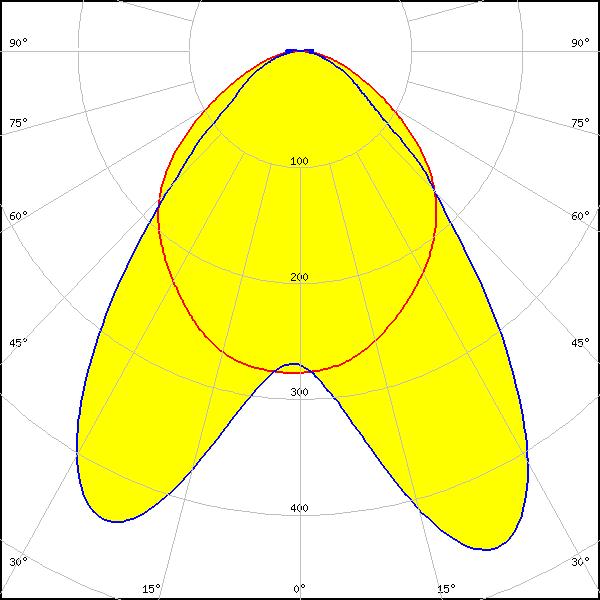

    LED: SEOUL 3030
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3030
    Required components:
    C14353_FLORENCE-1R-CLIP-A
    FWHM: asymmetric
    Peak intensity: 0.520 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

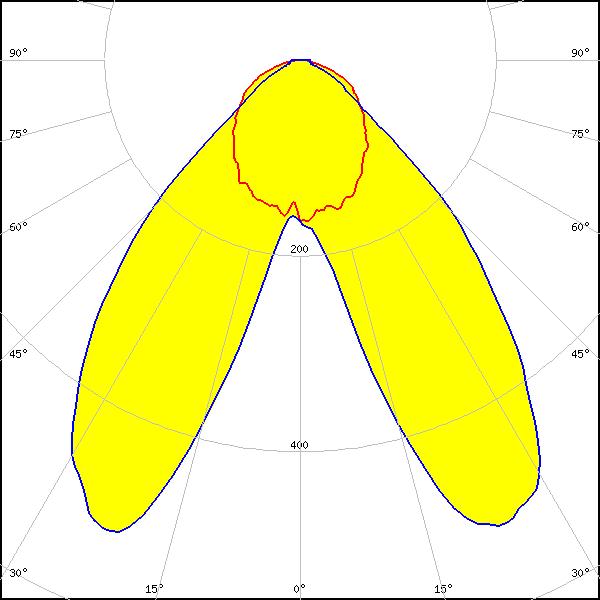

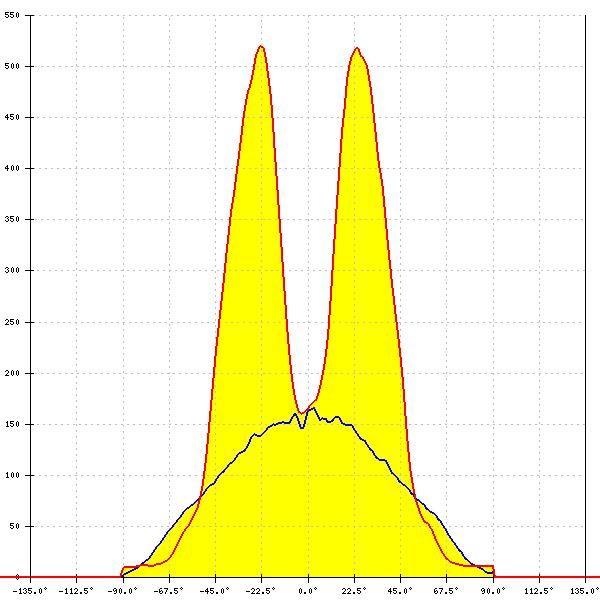

    LED: SEOUL DC 3030C
    FWHM: asymmetric
    Peak intensity: 0.528 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
