    C14305_STELLA-CLAMP-CXA15-18

    Print

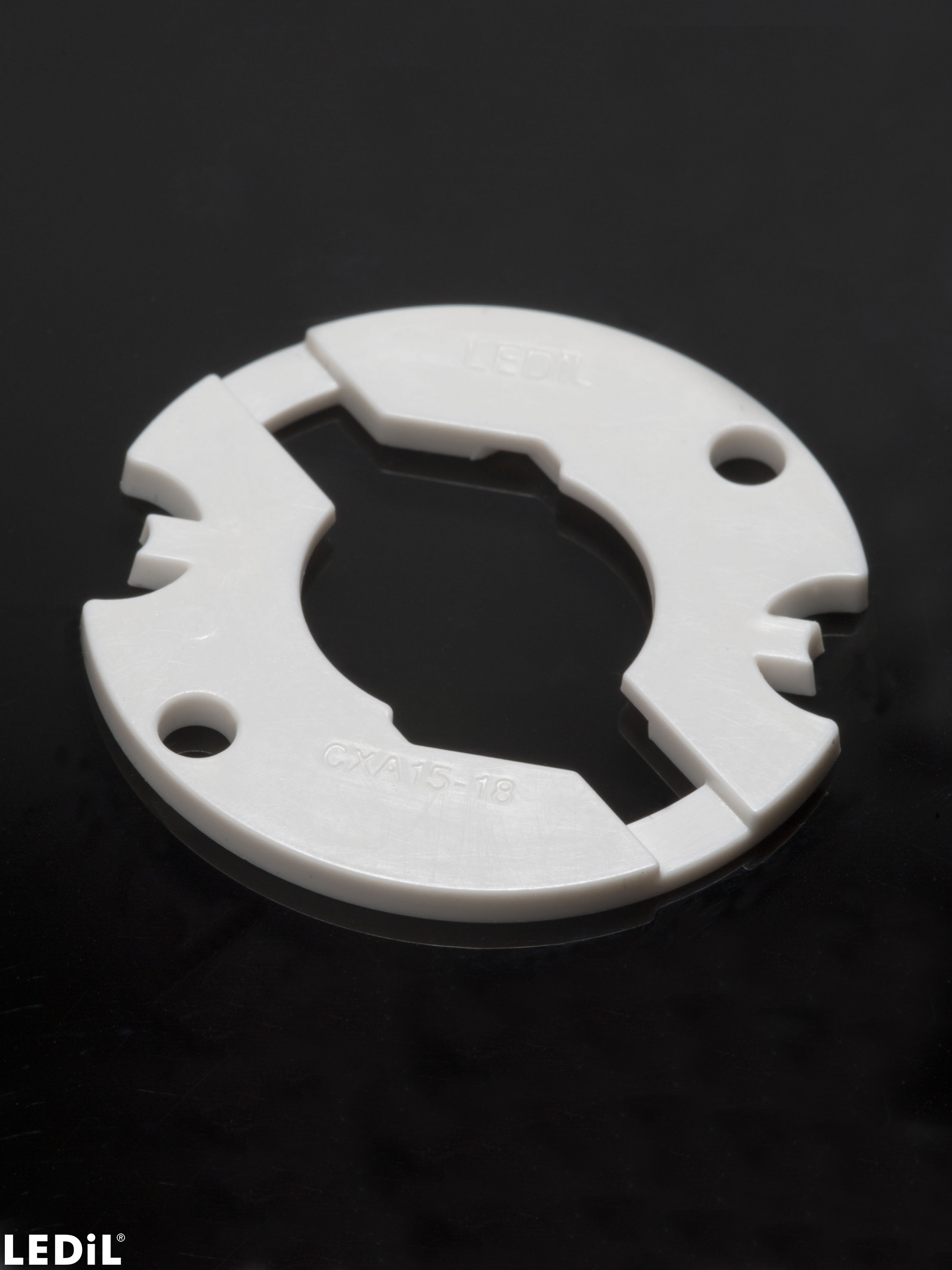

    Basepart for STELLA. Compatible with CREE CXA15xx and CXA18xx.

    Specification
    • Dimensions:
      37 mm
    • Height:
      2.00 mm
    • Fastening:
      screw
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      3200 pcs
    • Box size:
      380 x 280 x 270 mm
    • Box weight:
      5.3 kg
    • MPQ:
      10 pcs
    • MOQ:
      100 pcs
    • MOQ size:
      230 x 160 x 30 mm
    • MOQ weight:
      0.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
