    C14123_CLAMP-CXA15-18

    Print

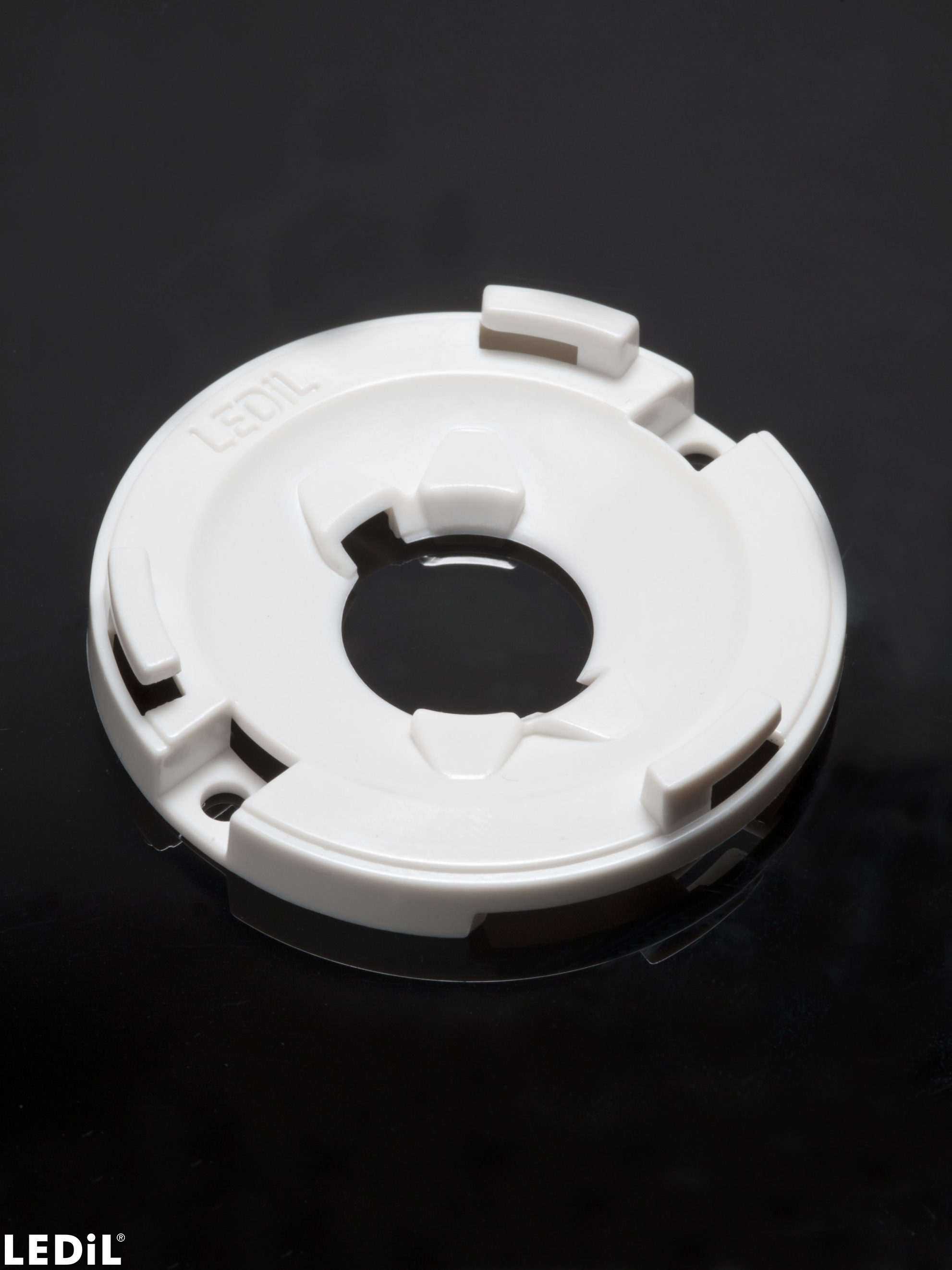

    Basepart for reflectors and lenses with A-type interface. Compatible with CREE CXA/B 15xx and CXA/B 18xx.

    Specification
    • Dimensions:
      50 mm
    • Height:
      9.25 mm
    • Fastening:
      screw
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      180 pcs
    • Box size:
      273 x 183 x 135 mm
    • Box weight:
      0.8 kg
    • MPQ:
      60 pcs
    • MOQ:
      60 pcs
    • MOQ size:
      280 x 180 x 90 mm
    • MOQ weight:
      0.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C14123_CLAMP-CXA15-18
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR100.a - Change of packaging quantities 050115

    Application guide

    LEDiL guide for retail lighting optics

    Case story

    Machang bridge

    News

    LEDiL optics and new B+W Hybrid 630 COB holders

    News

    PRODUCT NEWS - SYSTEM REFLECTORS

    Application area

    Indoor Architectural Lighting

    Compatibility guide

    LEDiL System Reflector Compatibility Guide

    Application area

    Retail Lighting

    AVAILABLE LEDiL PRODUCTS

    ANGELETTE-WAS

    Asymmetric wall-washer beam

    MOLLY-S

    ~25° spot beam

    MOLLY-M

    ~35° medium beam

    MOLLY-W

    ~60° wide beam

    ANGELINA-S

    ~20° spot beam

    ANGELA-S

    ~10° spot beam

    ANGELA-M

    ~30° medium beam

    ANGELA-W

    ~45° wide beam

    ANGELINA-M

    ~30° medium beam

    ANGELINA-W

    ~50° wide beam

    ANGELINA-XW

    White version with ~91° wide beam

    ANGELA-XW

    White version with ~70° wide beam

    ANGELETTE-S

    ~10° spot beam

    ANGELETTE-M

    ~50° medium beam

    ANGELETTE-WW

    ~60° wide beam

    ANGELETTE-S-PLAIN

    ~10° spot beam. Clean appearance with no additional attachment interface.

    ANGELETTE-M-PLAIN

    ~50° medium beam. Clean appearance with no additional attachment interface.

    ANGELETTE-WW-PLAIN

    ~60° wide beam. Clean appearance with no additional attachment interface.

    ANGELETTE-M2

    ~35° medium beam

    RONDA-WAS

    Asymmetric beam for wall washing with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-WWW

    ~90° very wide beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-WW

    ~60° wide beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-ZT45

    Double asymmetric beam for wall-washing and aisle lighting with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-W

    ~45° wide beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-REC-60

    ~60° + 60° rectangular beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-S

    ~25° spot beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-REC-90

    ~80°+80° rectangular beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL

    RONDA-WAS2

    Asymmetric beam for wall-washing with holder A compatible with TE, Bender+Wirth and IDEAL

    RONDA-O

    ~50° + 30° oval beam with holder A compatible with 3rd party connectors from TE, Bender+Wirth and IDEAL.

    Compatible LEDs

    LED: CXA/B 15xx
    LES size: 8.9 mm
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    LED: CXA/B 1830
    LES size: 14.0 mm
