    C14115_PF-SOCKET-CXA15-18

    Print

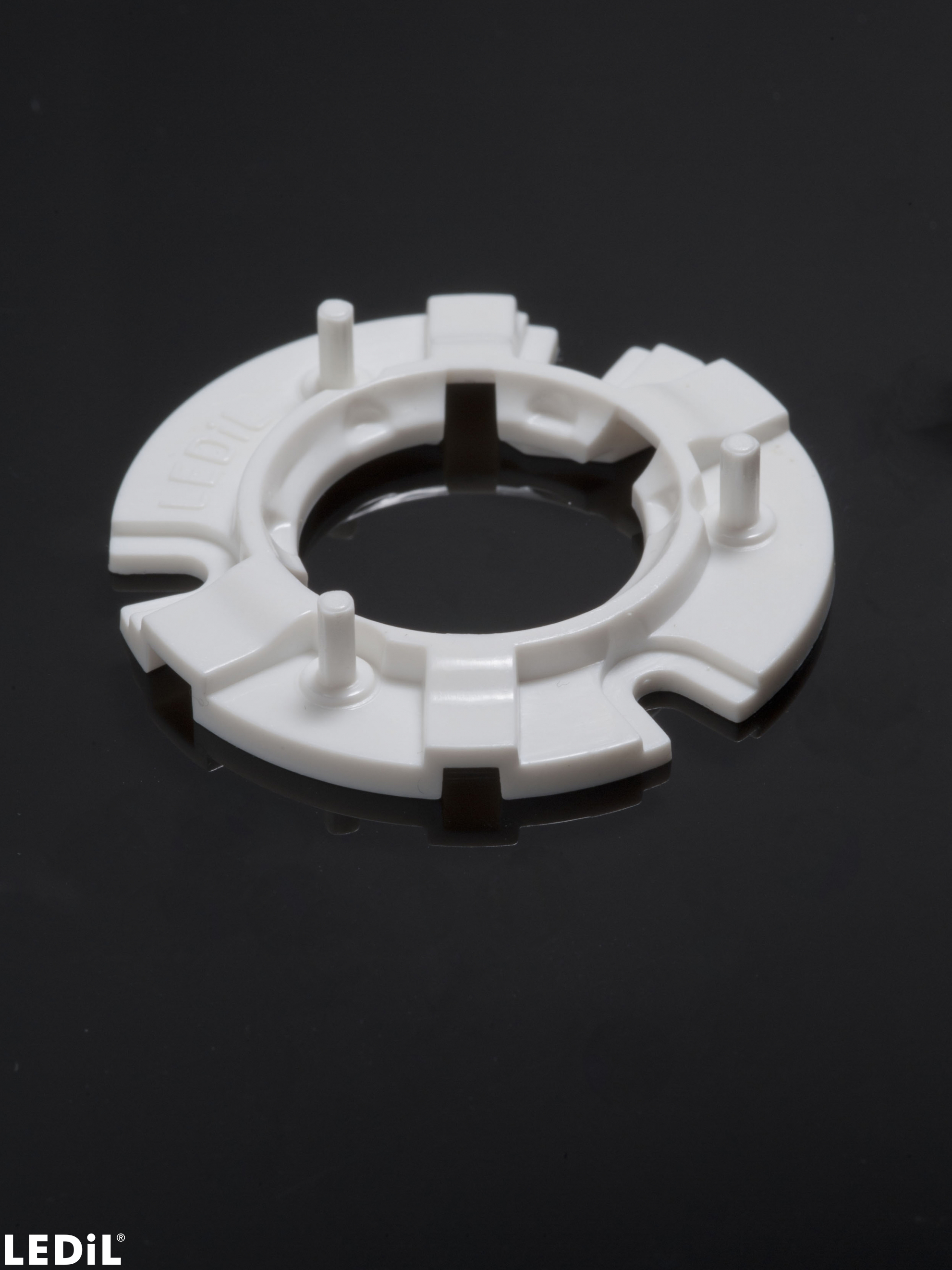

    Socket with press fit interface. Compatible with MIRELLA-PF and BARBARA-PF for CREE CXA/B 15xx and CXA/B 18xx.

    Specification
    • Dimensions:
      38 mm
    • Height:
      4.30 mm
    • Fastening:
      screw
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      336 pcs
    • Box weight:
      1.0 kg
    • MPQ:
      28 pcs
    • MOQ:
      28 pcs
    • MOQ size:
      230 x 160 x 30 mm
    • MOQ weight:
      0.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C14115_PF-SOCKET-CXA15-18
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - MIRELLA

    News

    PRODUCT NEWS - SYSTEM REFLECTORS

    Compatibility guide

    MIRELLA-PF and BARBARA-PF Compatibility Guide

    Compatibility guide

    LEDiL System Reflector Compatibility Guide

    News

    PRODUCT NEWS - MIRELLA

    Application area

    Indoor Architectural Lighting

    Case story

    The Luneur amusement park

    Case story

    The Basilica of San Francesco

    AVAILABLE LEDiL PRODUCTS

    MIRELLA-50-S-PF

    ~15° spot beam

    MIRELLA-50-M-PF

    ~30° medium beam

    MIRELLA-50-W-PF

    ~40° wide beam

    BARBARA-S-PF

    ~15° spot beam

    BARBARA-W-PF

    ~35° wide beam

    BARBARA-WW-PF

    ~60° wide beam

    BARBARA-XW-PF

    White version with ~75° wide beam

    Compatible LEDs

    LED: CXA/B 15xx
    LES size: 8.9 mm
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
