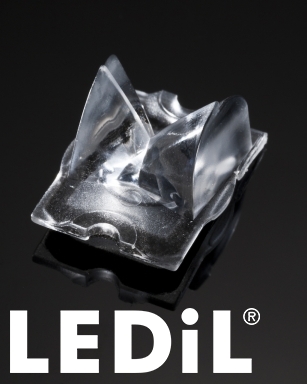

    C13500_STRADA-T-DW

    Print

    Soft wide beam with good illuminance uniformity

    Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

    Specification
    • Dimensions:
      20 x  16 mm
    • Height:
      11.50 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      2880 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.1 kg
    • MPQ:
      2880 pcs
    • MOQ:
      11520 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      6.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C13500_STRADA-T-DW
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
    WHERE TO BUY

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application example

    Wall pack lighting with STRADA-T-DN and -DW

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

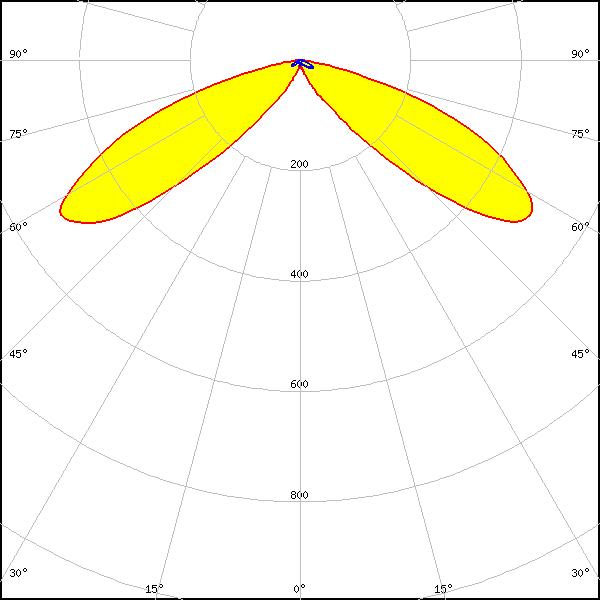

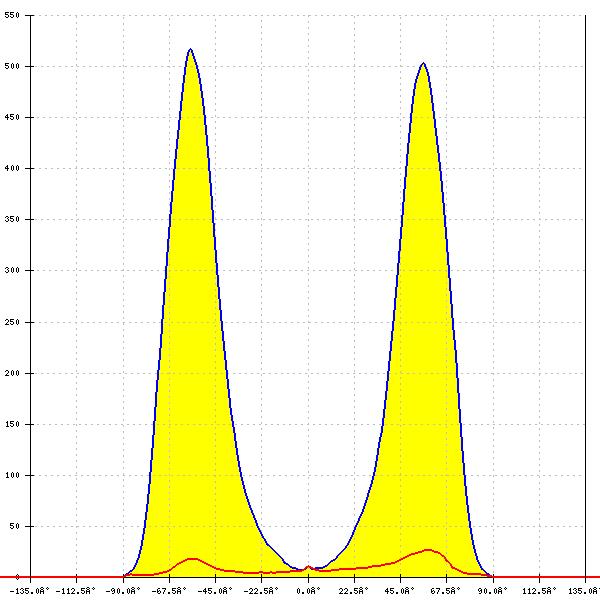

    Optical results

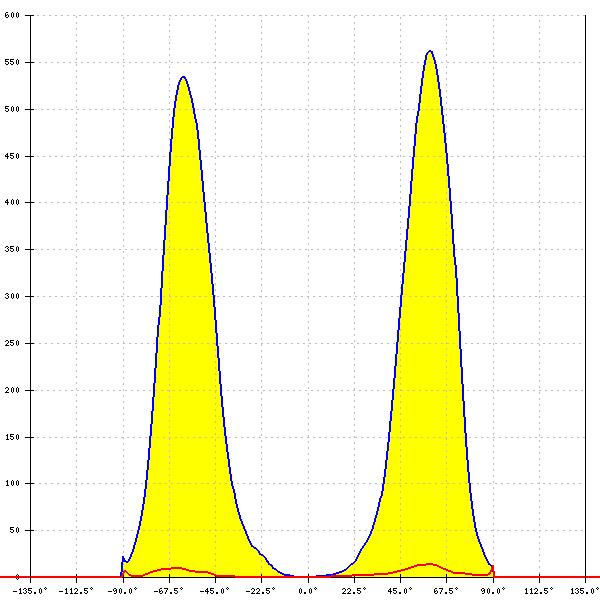

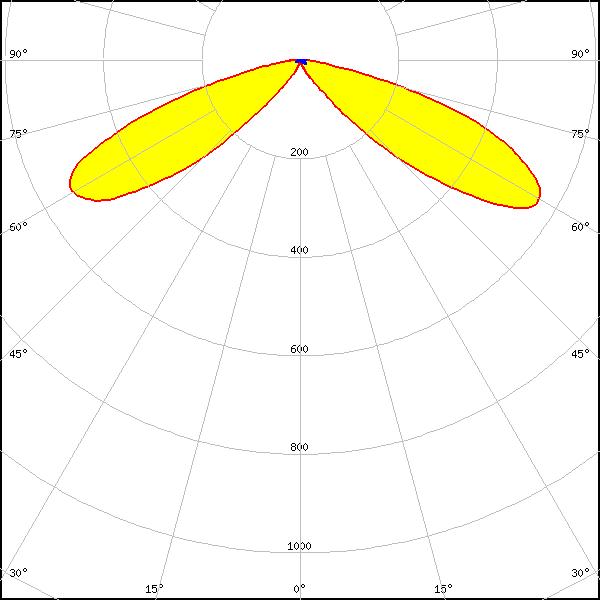

    LED: XP-G2
    FWHM: asymmetric
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

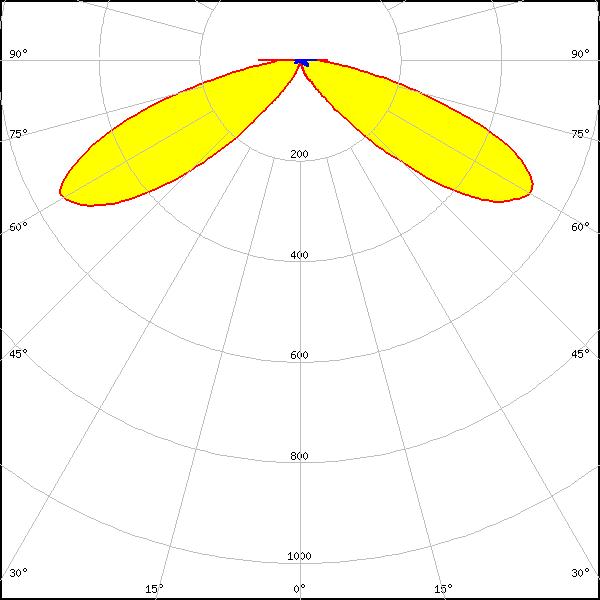

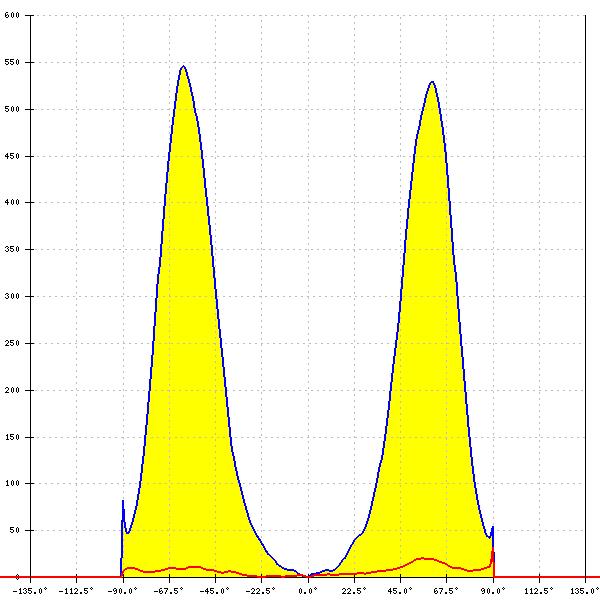

    LED: XT-E
    FWHM: asymmetric
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

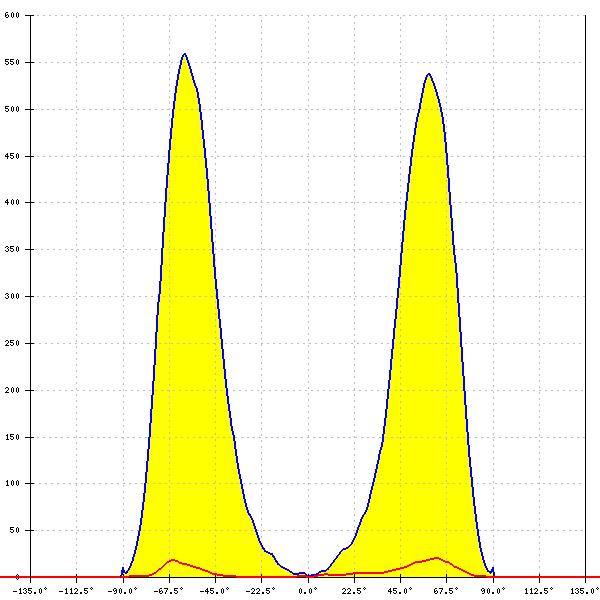

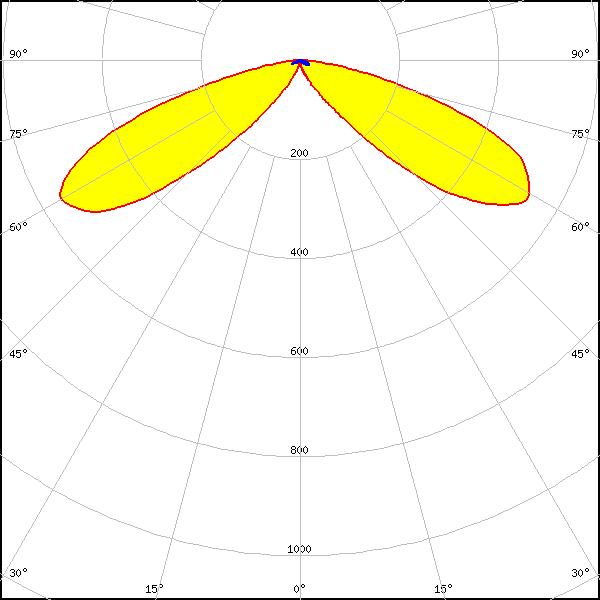

    LED: LUXEON T
    FWHM: asymmetric
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

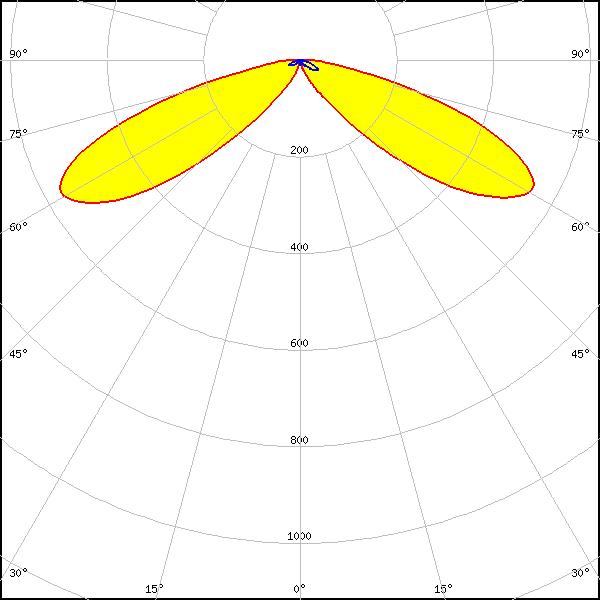

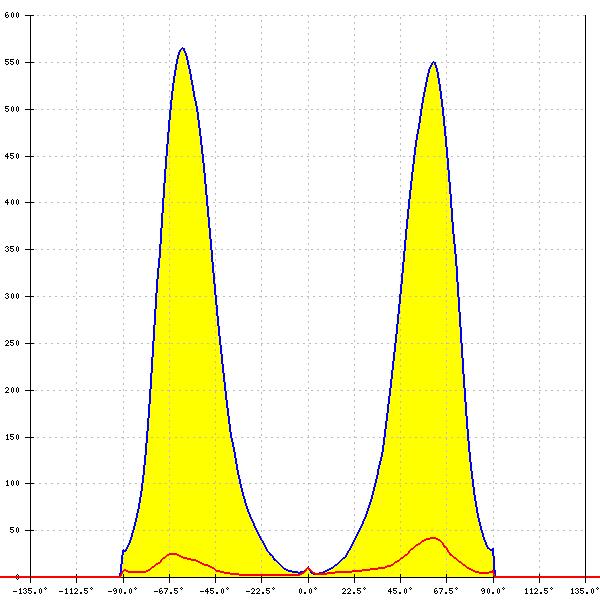

    LED: LUXEON TX
    FWHM: asymmetric
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

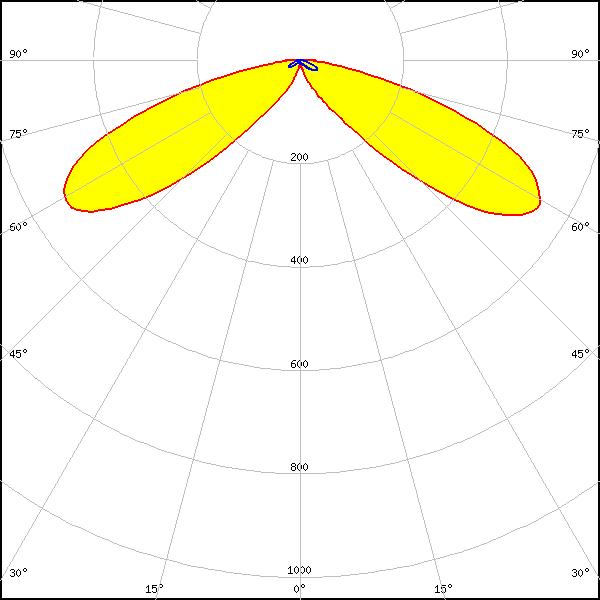

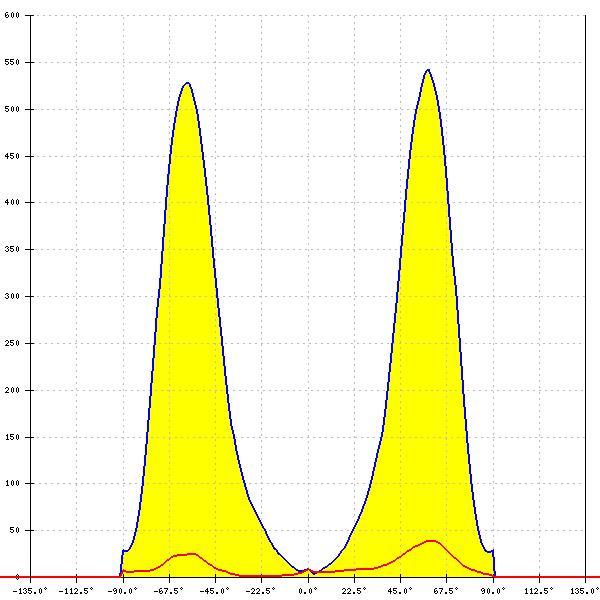

    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
