C13499_STRADA-2X2-CY

Print

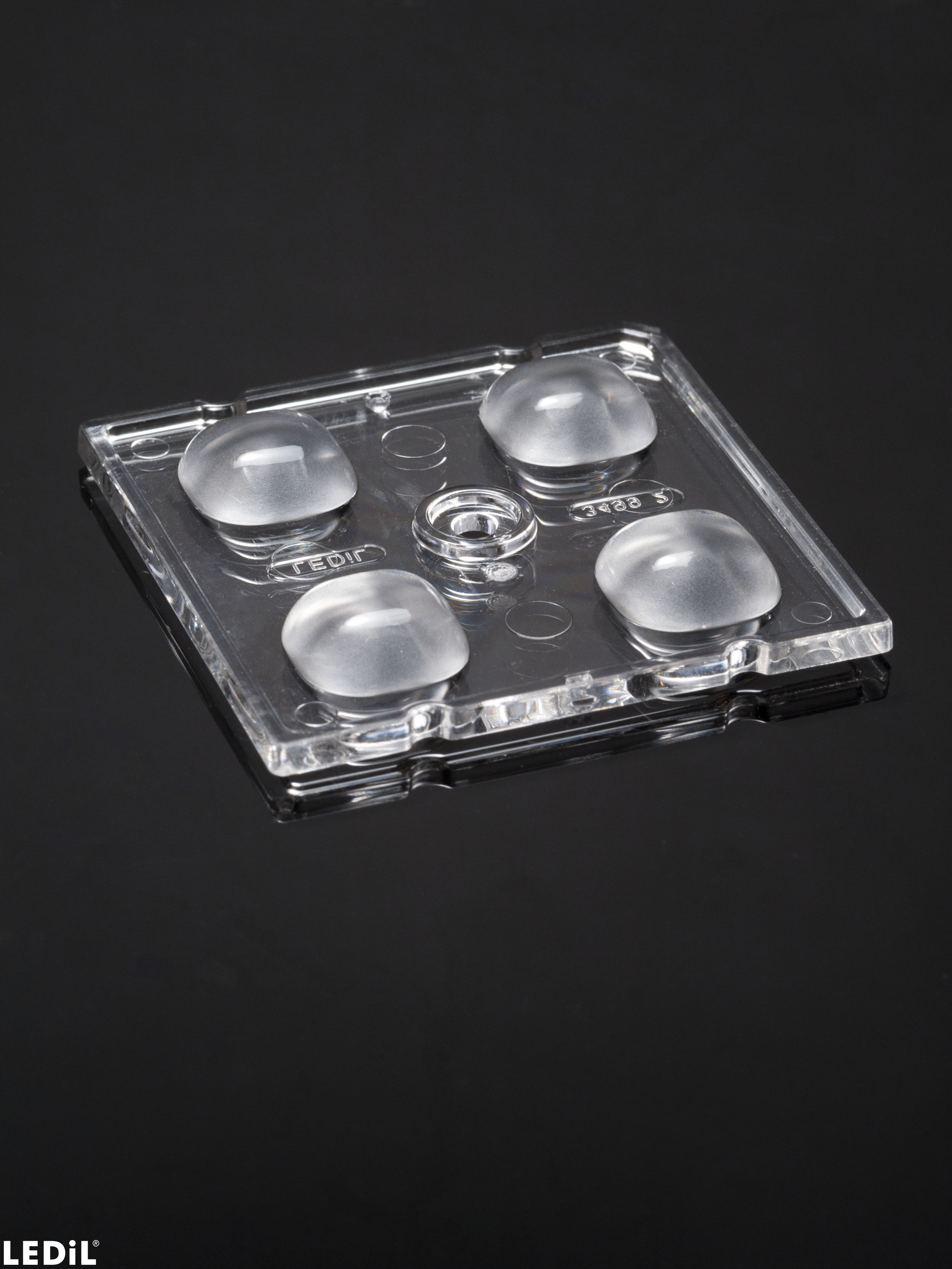

Beam for canopy lighting with batwing light distribution. Suitable for symmetrical tunnel lighting.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    5.95 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.2 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C13499_STRADA-2X2-CY
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

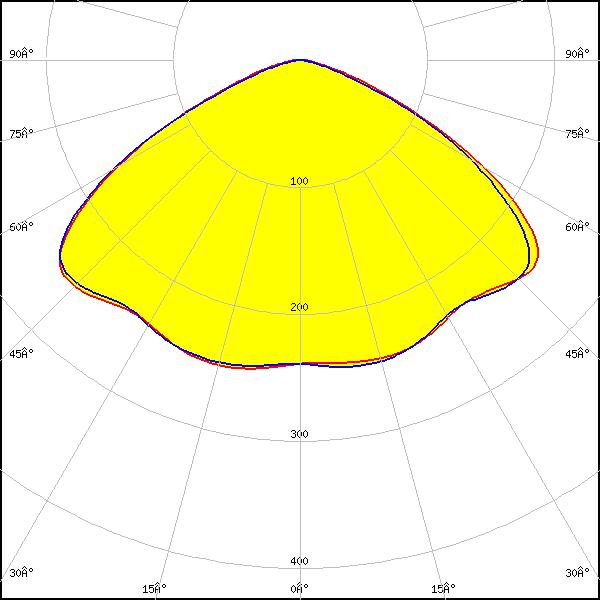

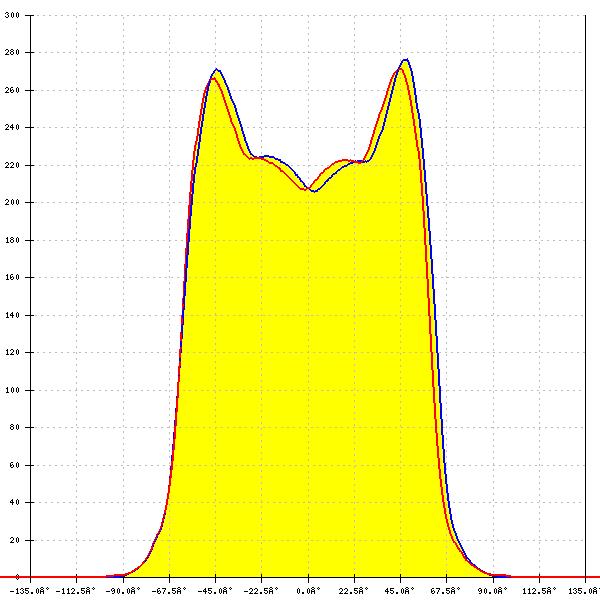

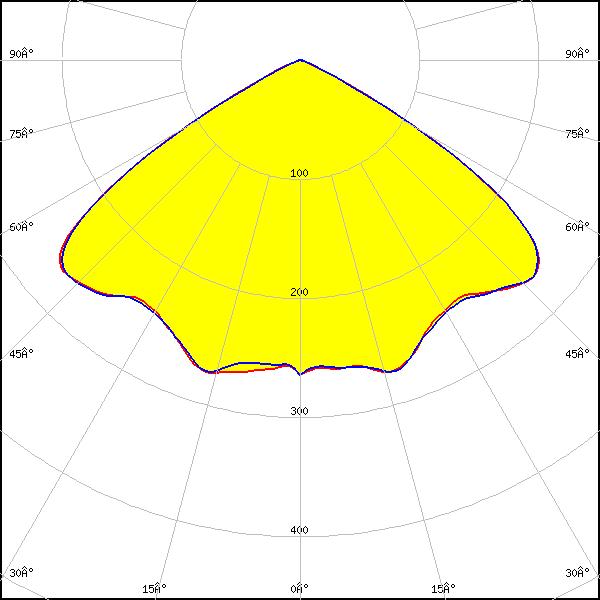

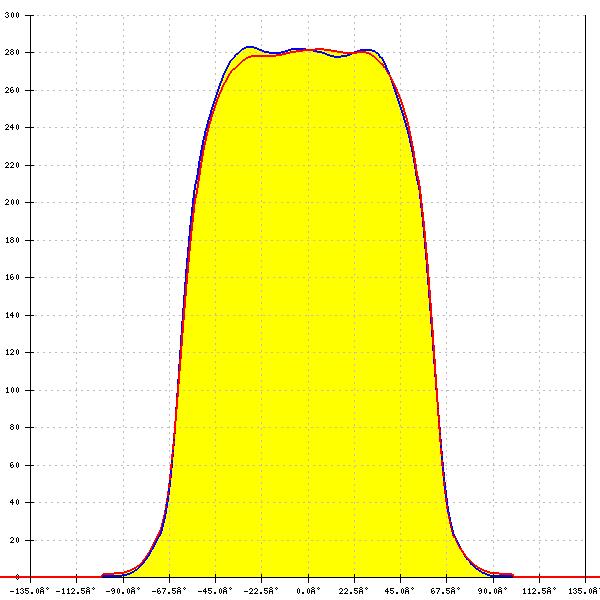

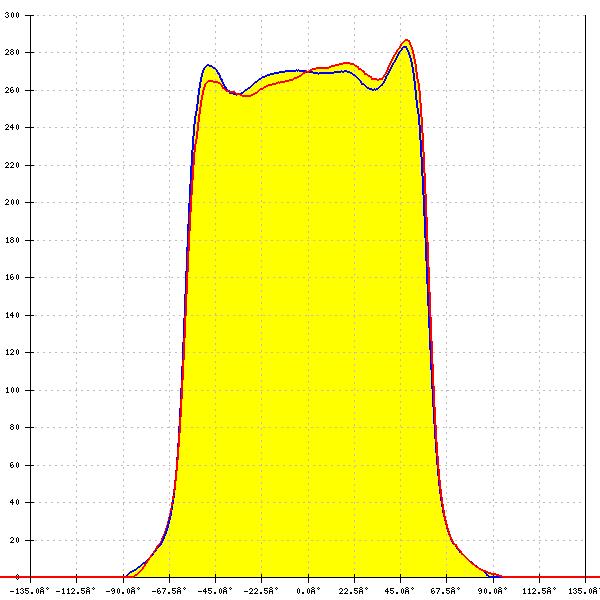

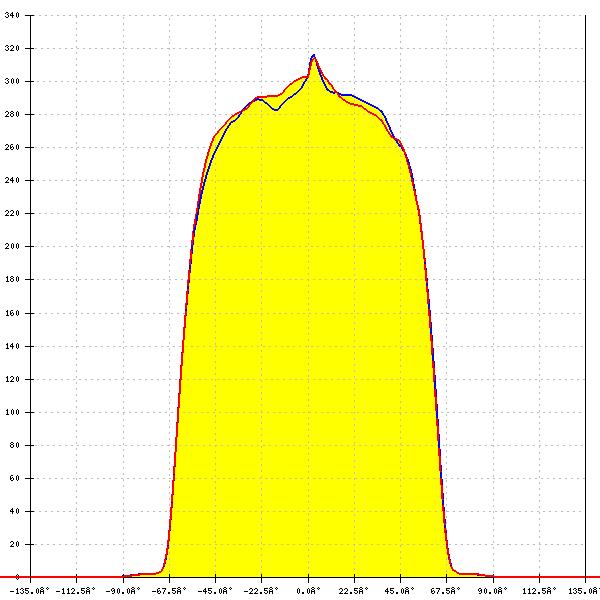

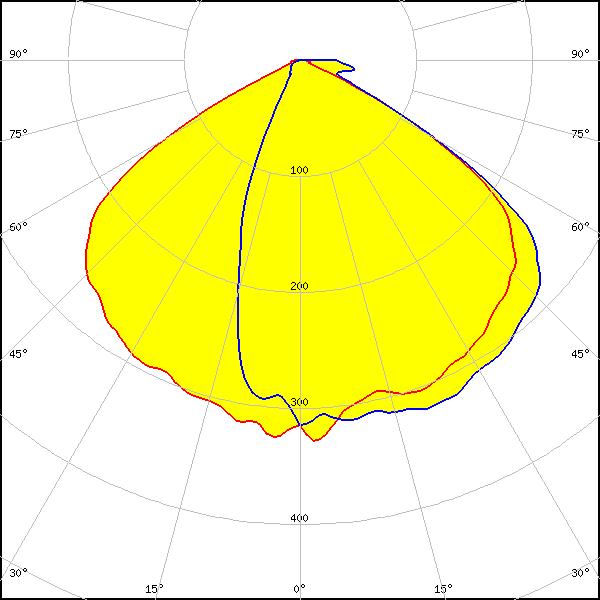

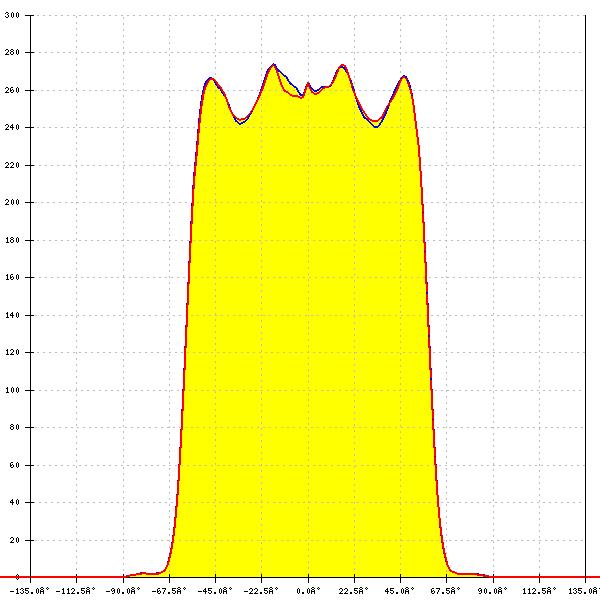

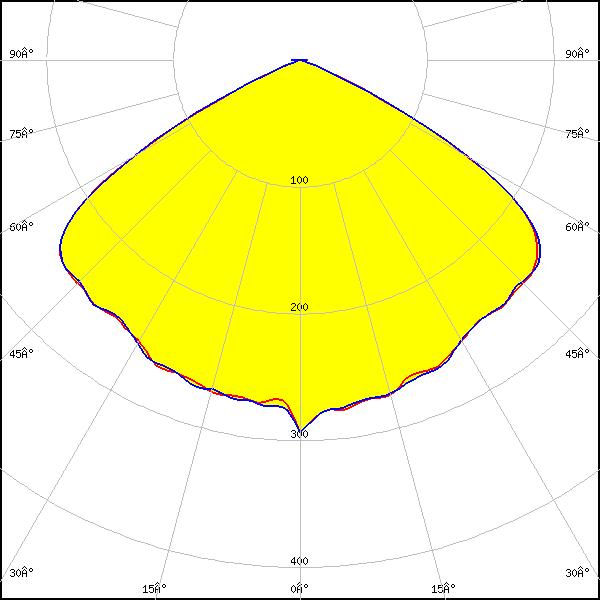

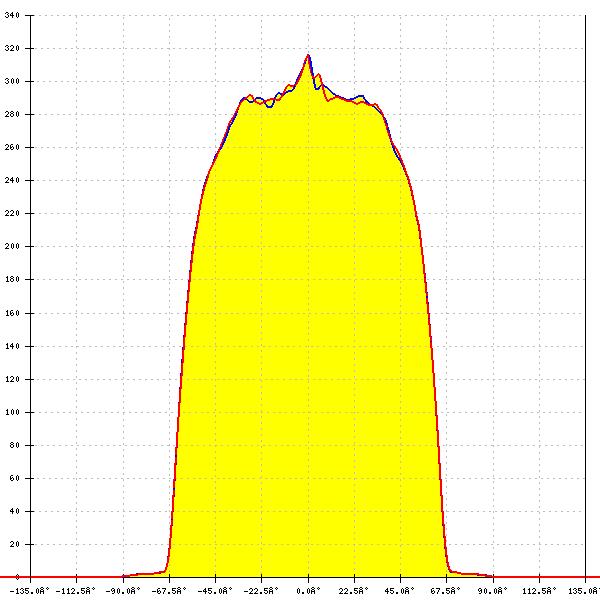

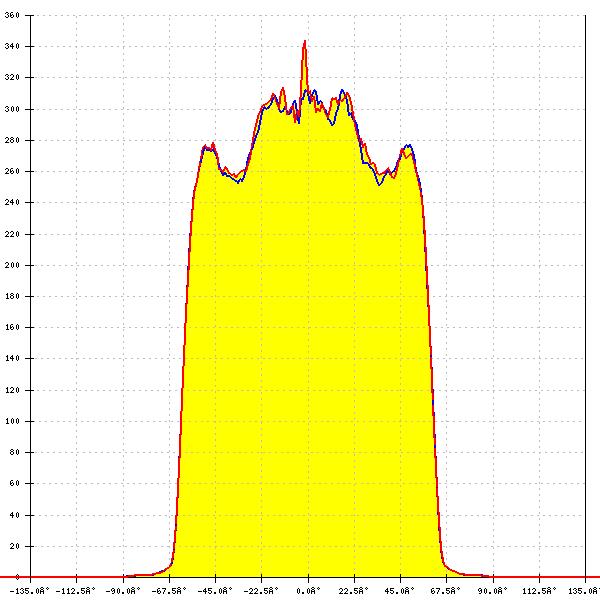

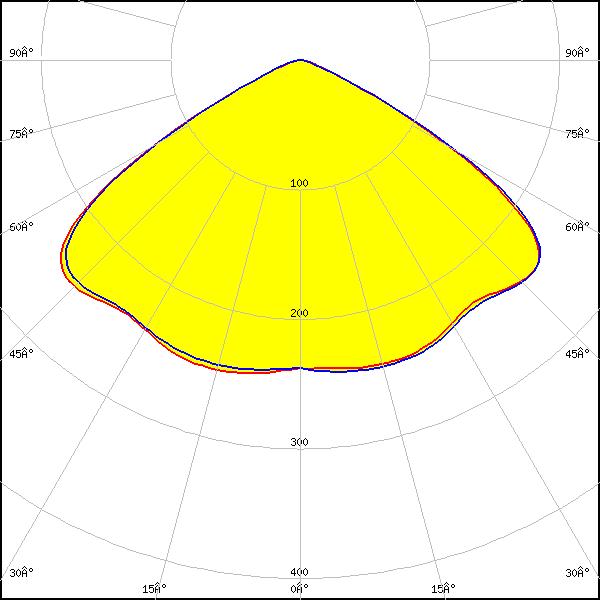

Optical results

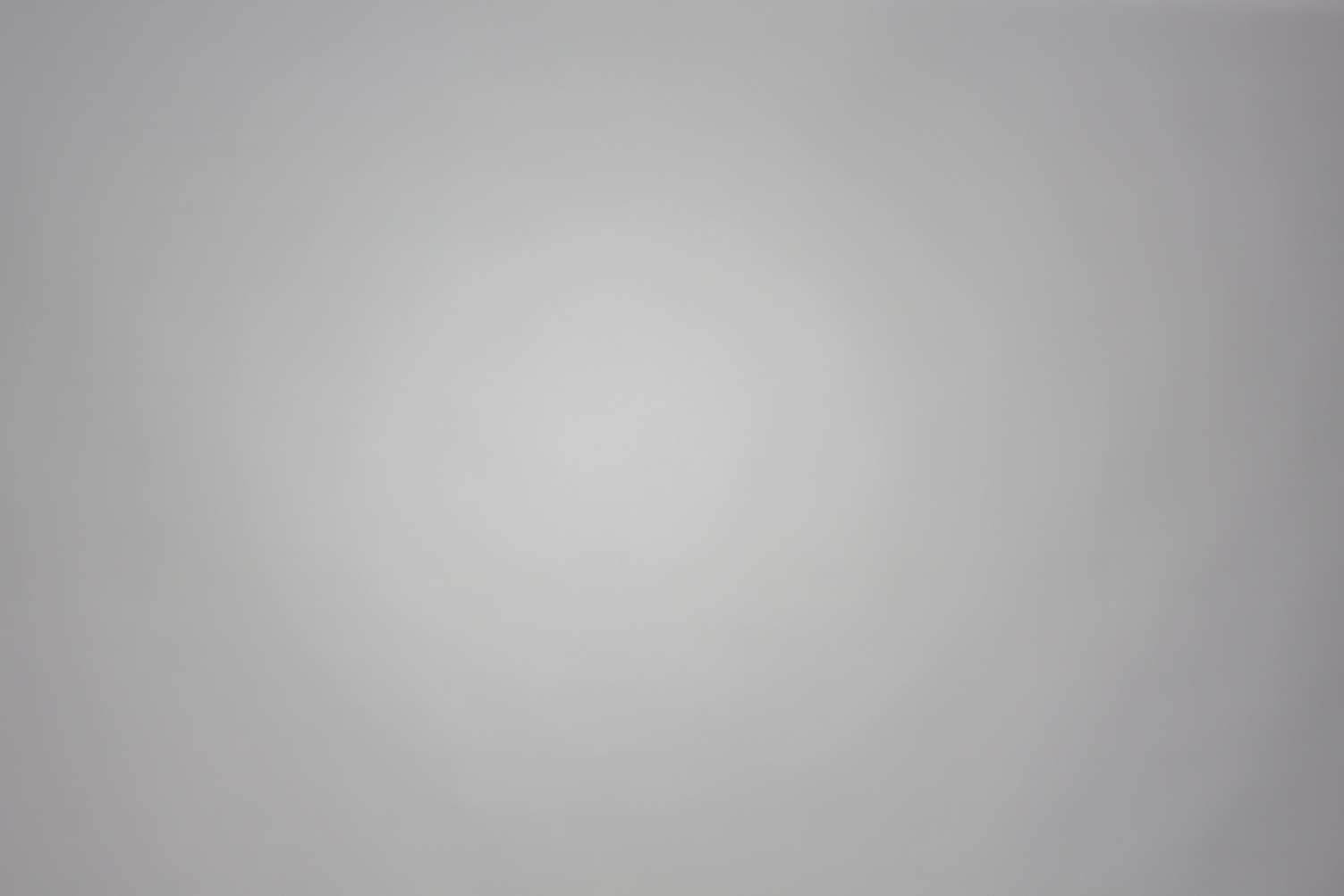

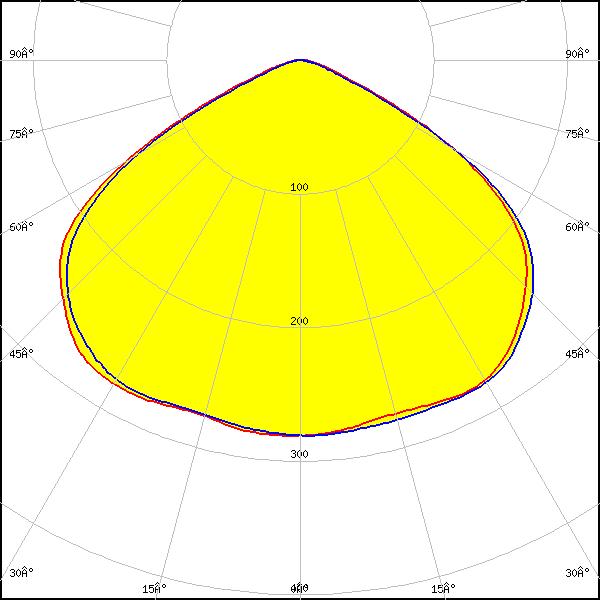

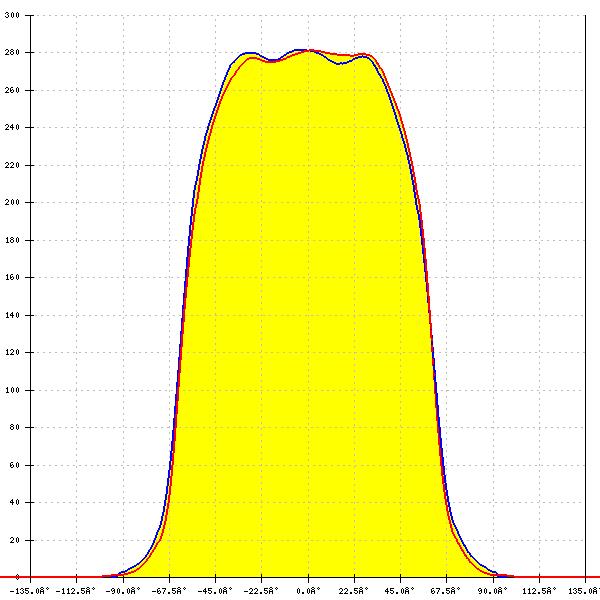

LED: Bridgelux SMD 5050
FWHM: 120° + 119°
FWTM: 143° + 139°
Peak intensity: 0.320 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

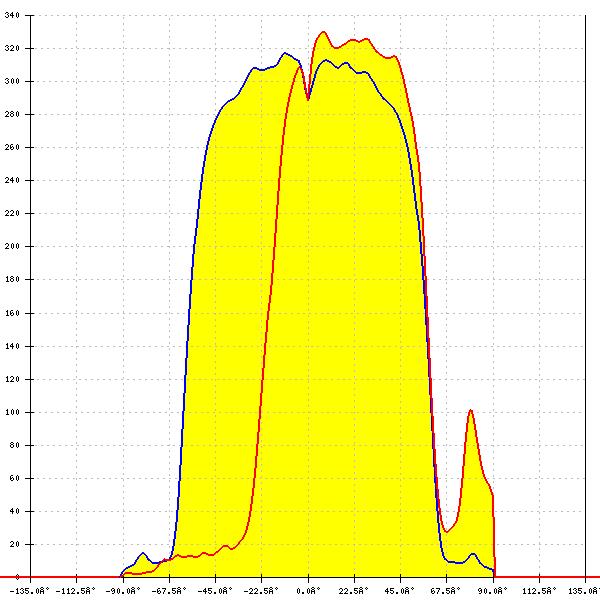

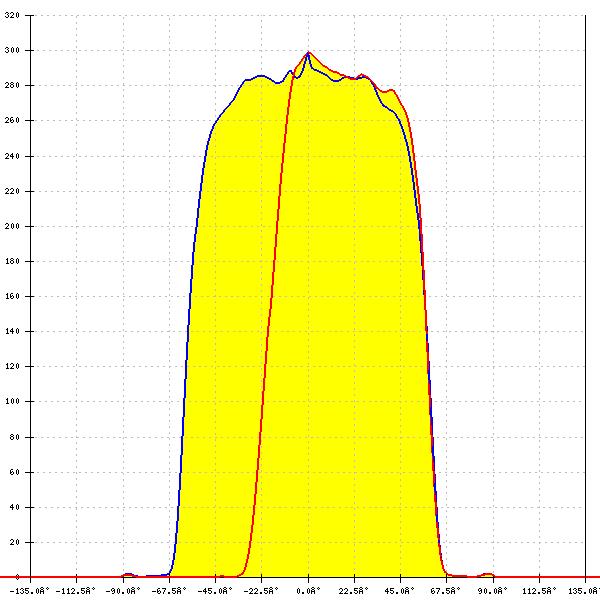

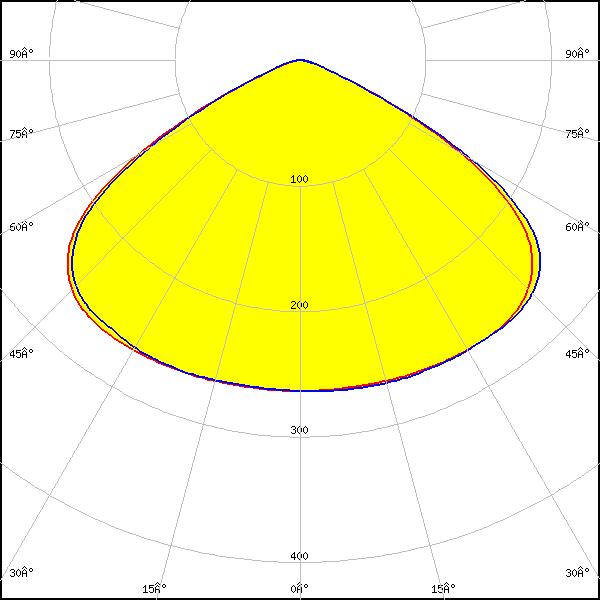

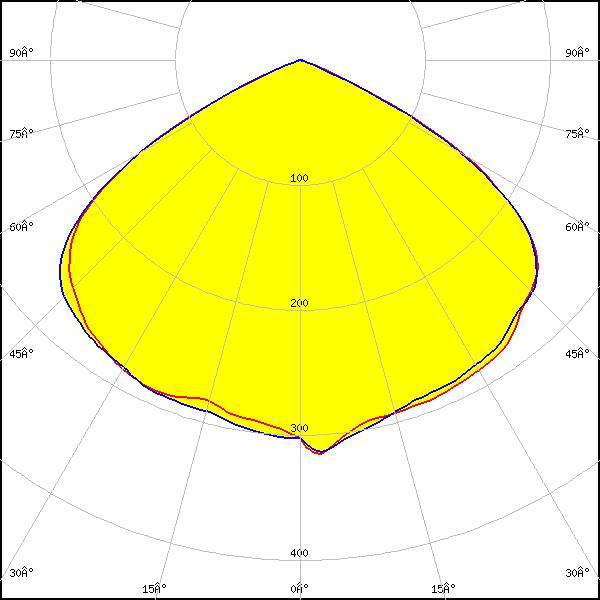

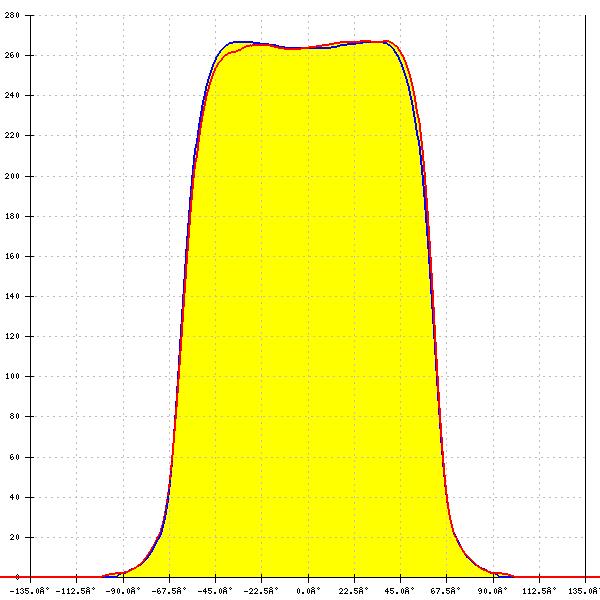

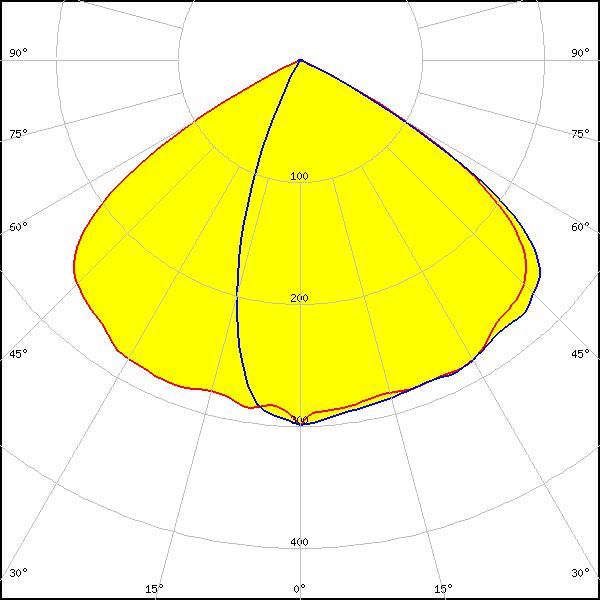

LED: J Series 5050C 6V E Class
FWHM: 122°
FWTM: 140°
Peak intensity: 0.338 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

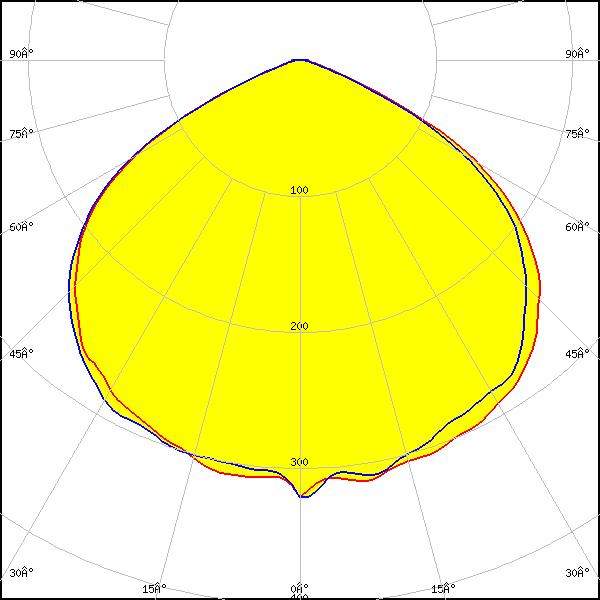

LED: MHB-A/B
FWHM: 117° + 116°
FWTM: 140° + 140°
Peak intensity: 0.320 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

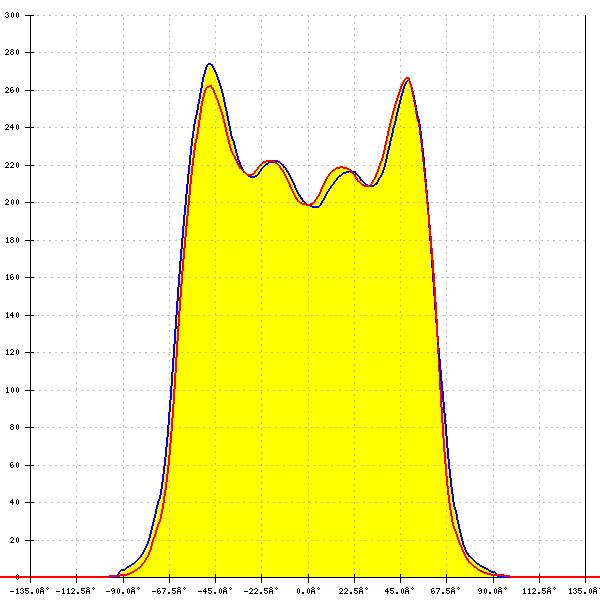

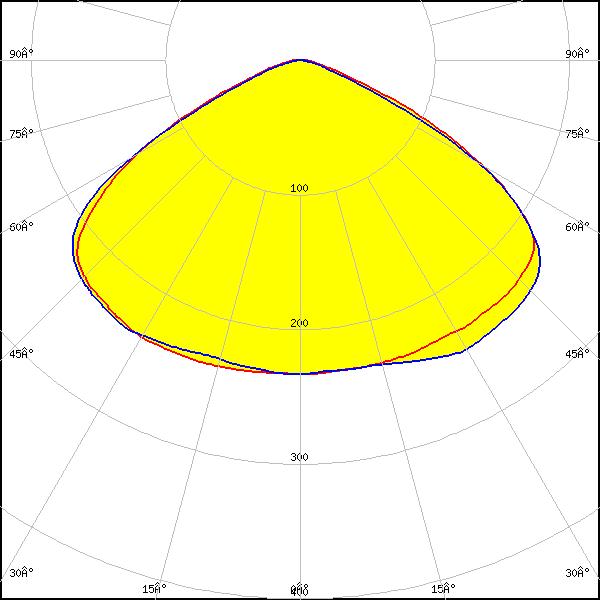

LED: XD16
FWHM: 132° + 130°
FWTM: 152° + 148°
Peak intensity: 0.360 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

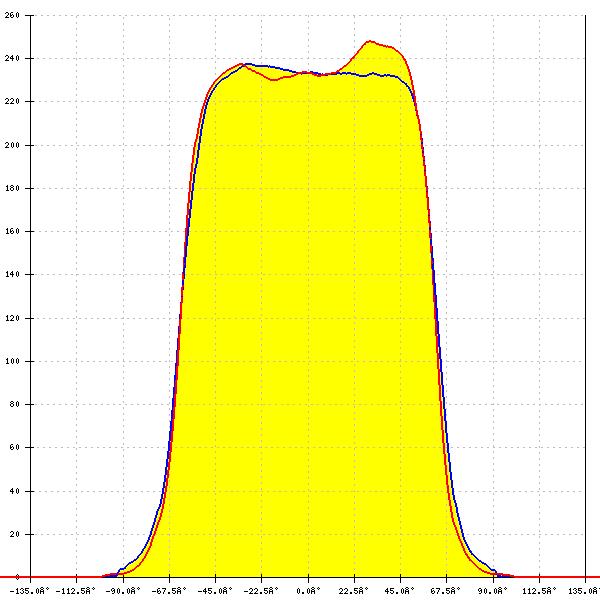

LED: XD16
FWHM: 125° + 124°
FWTM: 149° + 145°
Peak intensity: 0.340 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

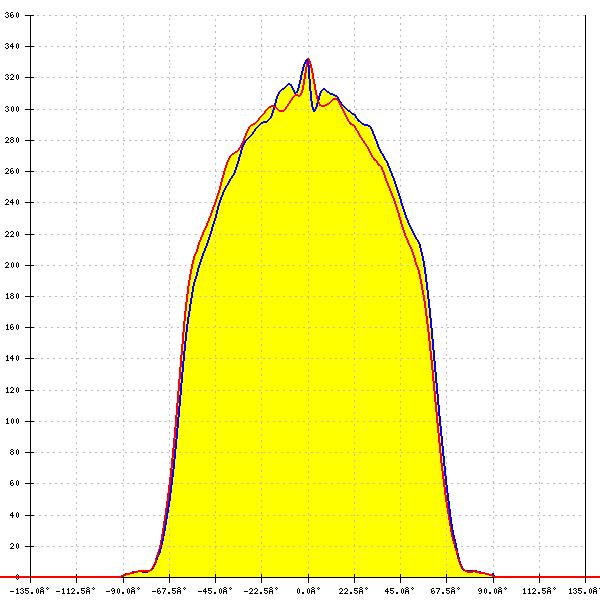

LED: XHP35 HD
FWHM: asymmetric
Peak intensity: 0.333 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

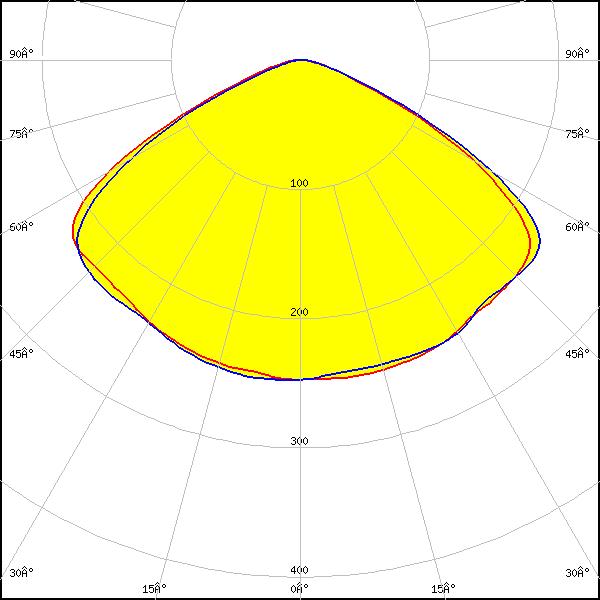

LED: XM-L
FWHM: 126°
FWTM: 149°
Peak intensity: 0.320 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

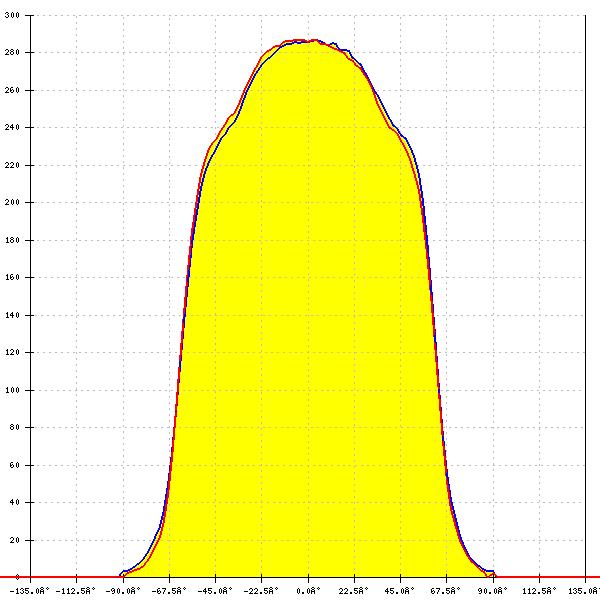

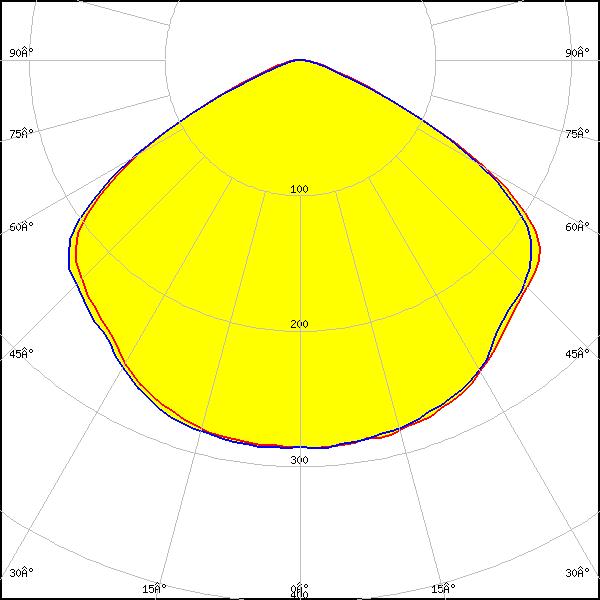

LED: XM-L2
FWHM: 121°
FWTM: 145°
Peak intensity: 0.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

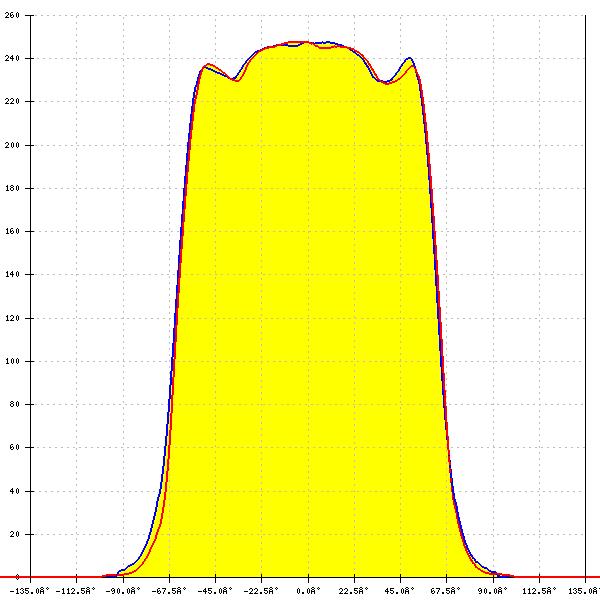

LED: XM-L3
FWHM: asymmetric
Peak intensity: 0.326 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

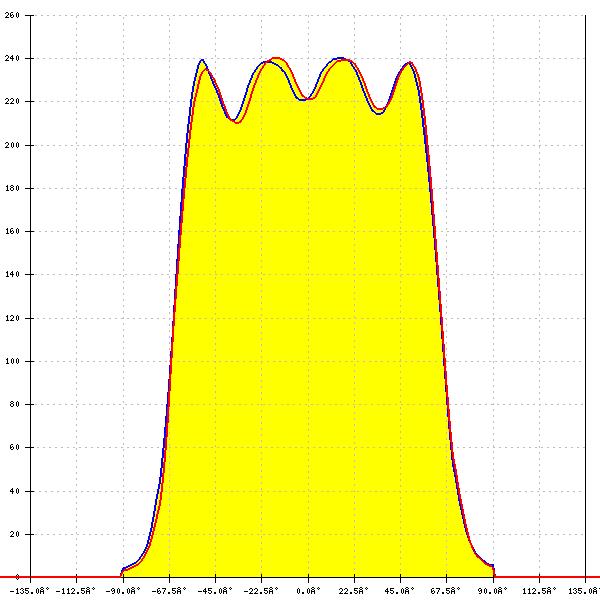

LED: XP-G
FWHM: 131°
FWTM: 152°
Peak intensity: 0.320 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

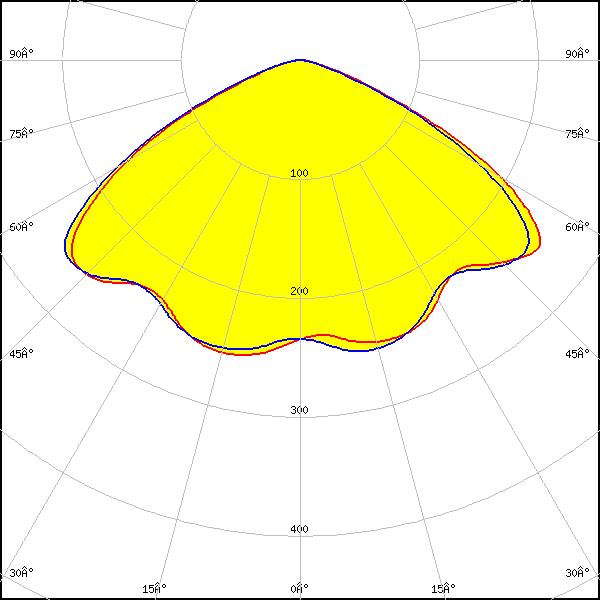

LED: XP-G2
FWHM: 129°
FWTM: 151°
Peak intensity: 0.340 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

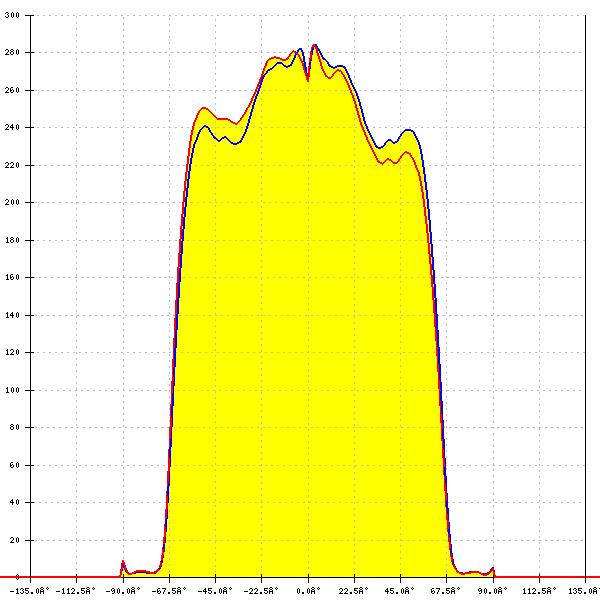

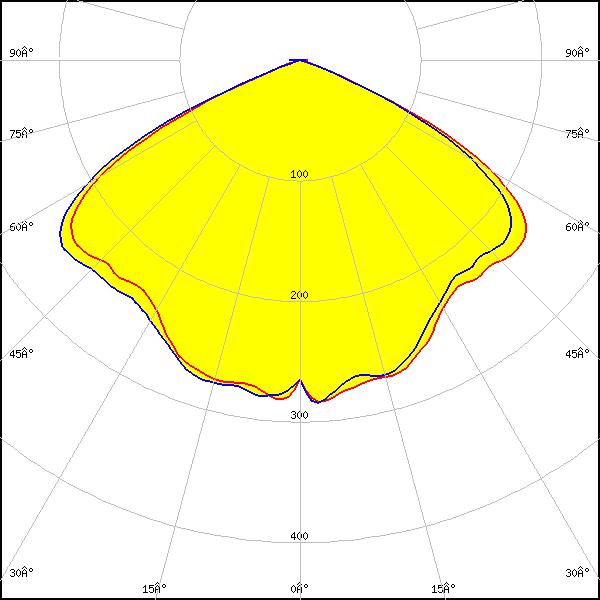

LED: XP-G2 HE
FWHM: 126°
FWTM: 138°
Peak intensity: 0.337 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

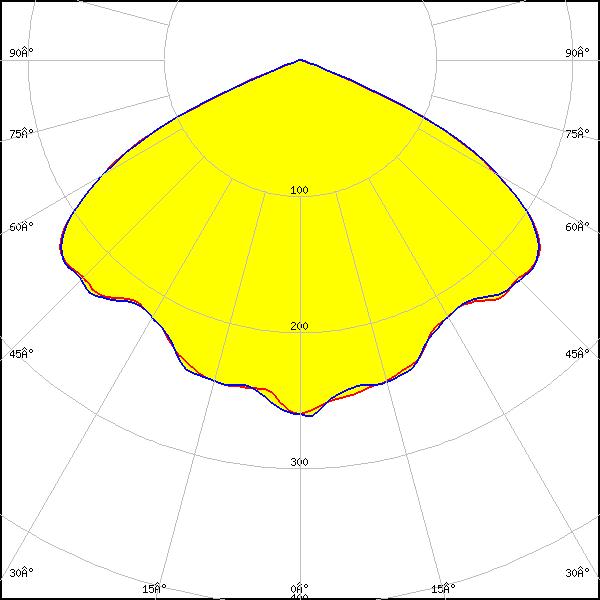

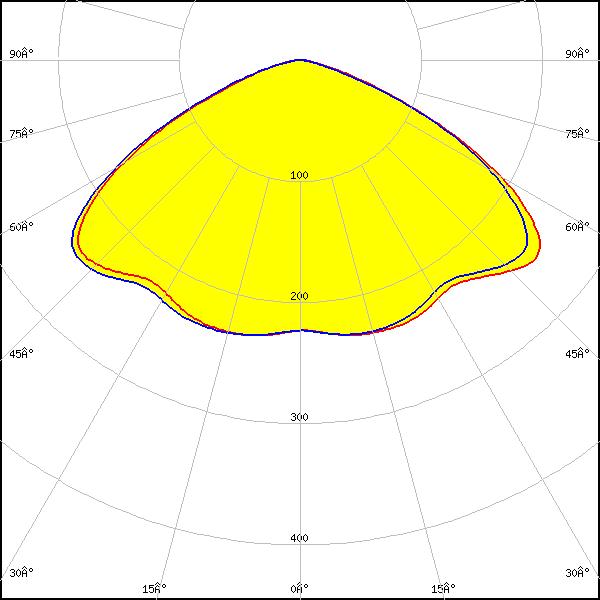

LED: XP-G3
FWHM: 126°
FWTM: 138°
Peak intensity: 0.299 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: 131° + 132°
FWTM: 154° + 154°
Peak intensity: 0.330 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

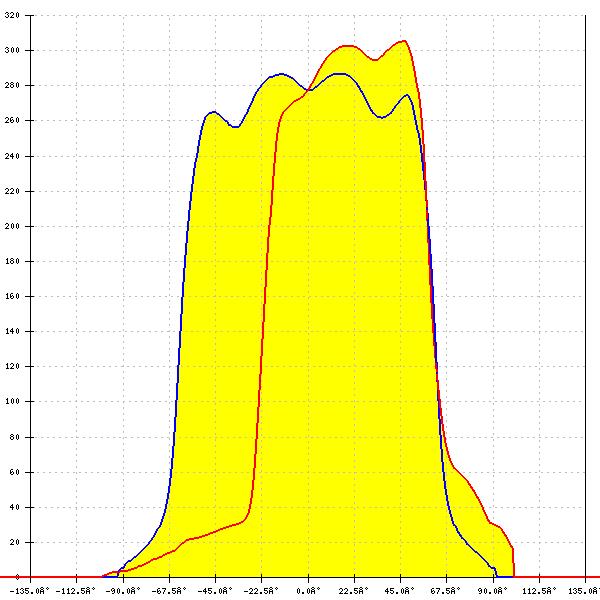

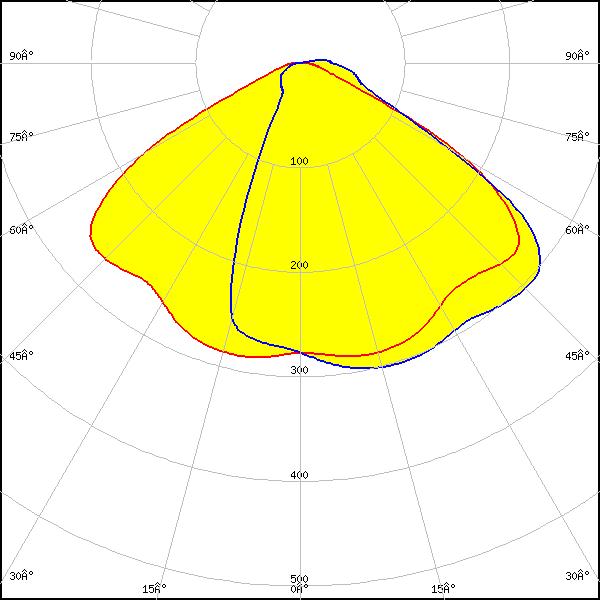

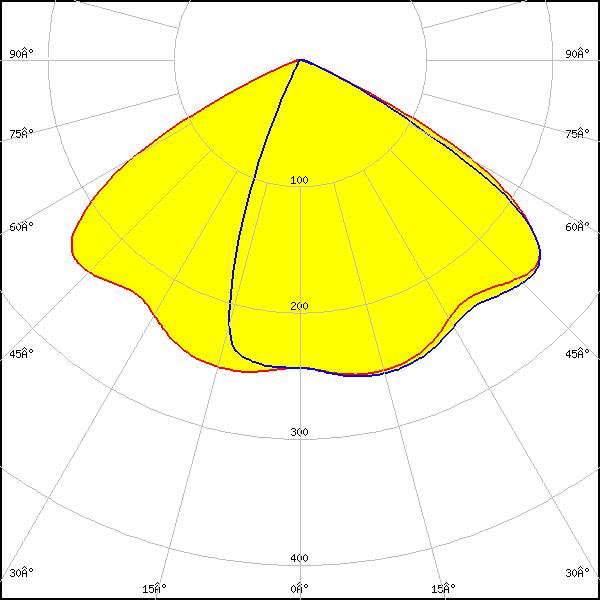

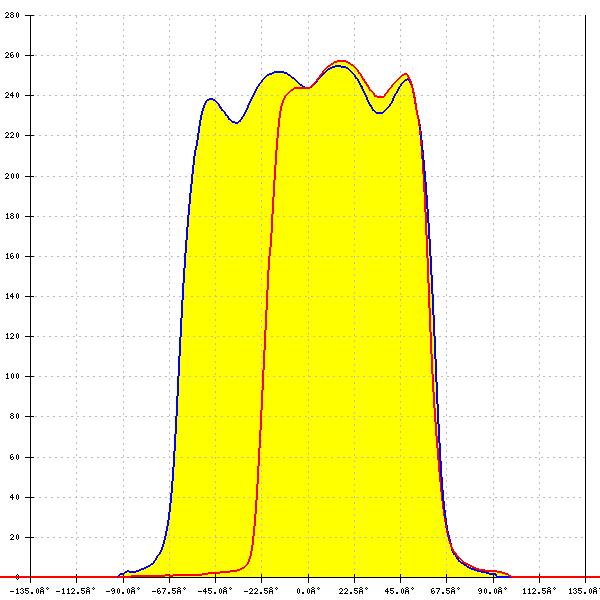

LED: XP-G3
Required components:
FWHM: asymmetric
Peak intensity: 0.342 cd/lm
Efficiency: 62 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
Required components:
FWHM: asymmetric
Peak intensity: 0.390 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

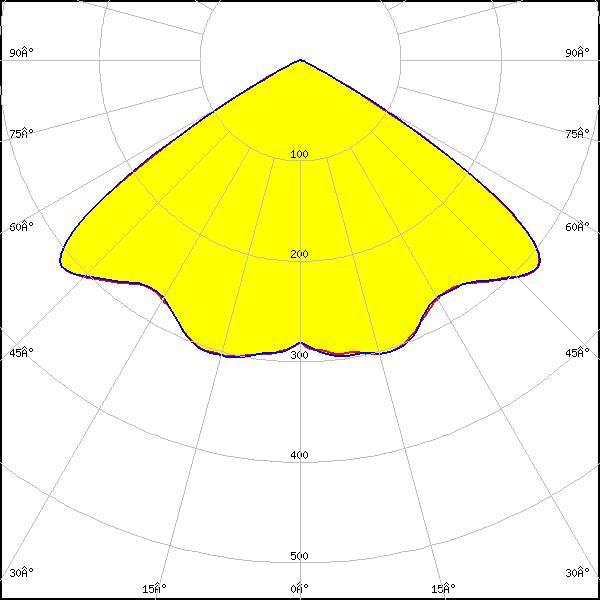

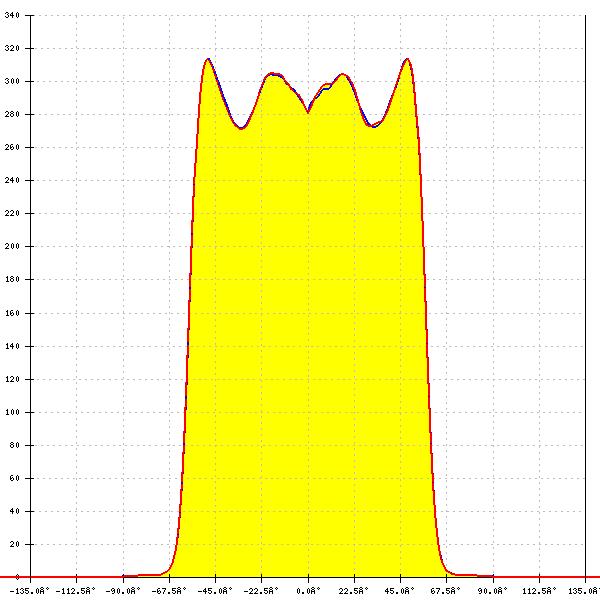

LED: XP-G4
FWHM: 116°
FWTM: 126°
Peak intensity: 0.407 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

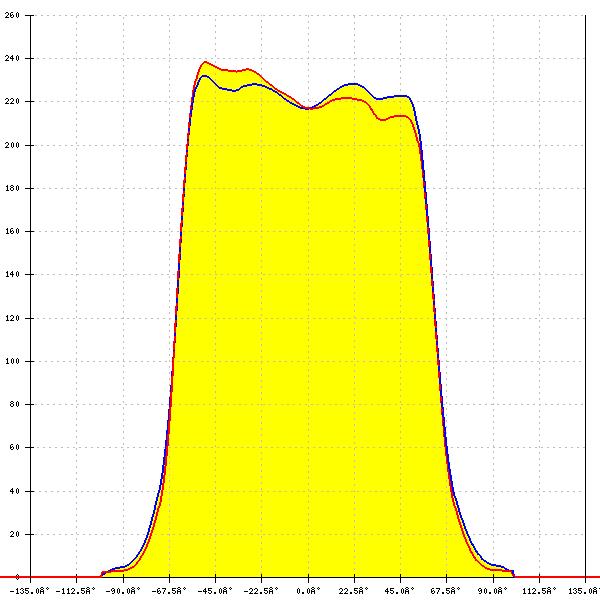

LED: XP-L HD
FWHM: 131°
FWTM: 157°
Peak intensity: 0.320 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

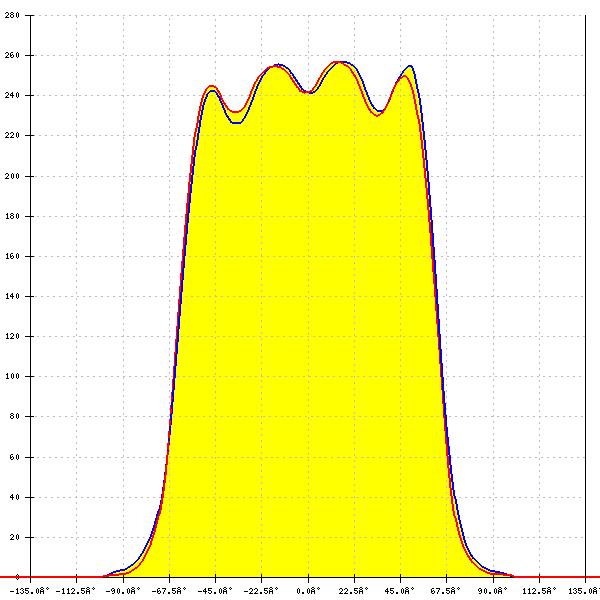

LED: XP-L HI
FWHM: 127°
FWTM: 150°
Peak intensity: 0.330 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

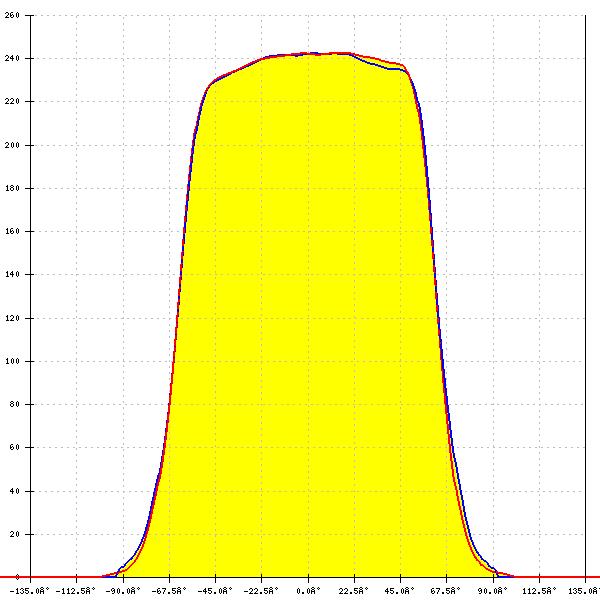

LED: XP-L2
FWHM: 127°
FWTM: 156°
Peak intensity: 0.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

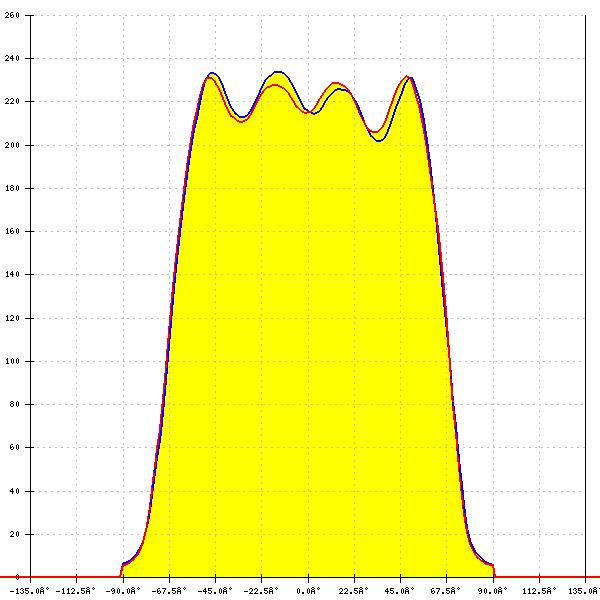

LED: XT-E
FWHM: 136°
FWTM: 156°
Peak intensity: 0.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

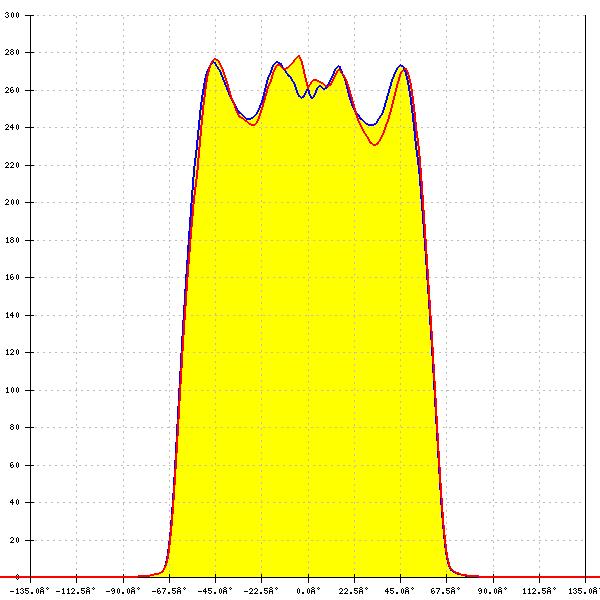

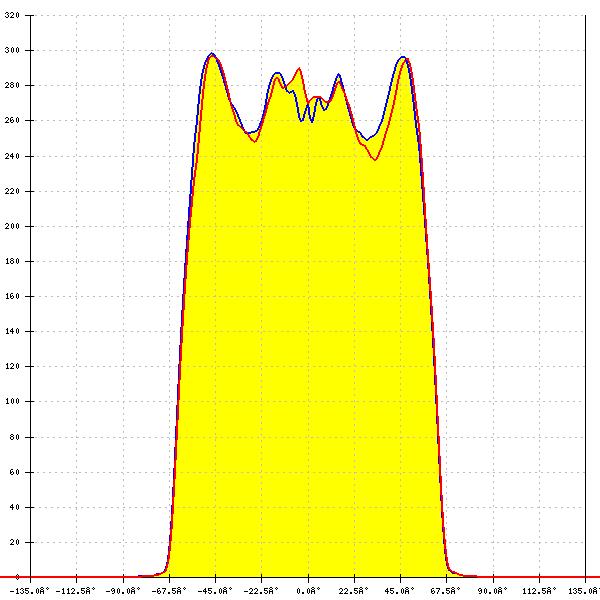

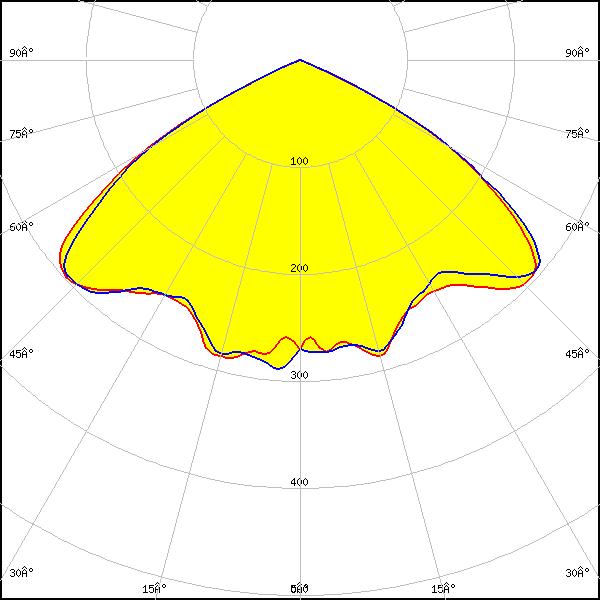

LED: LUXEON 3030 2D (Round LES)
FWHM: 118°
FWTM: 131°
Peak intensity: 0.390 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

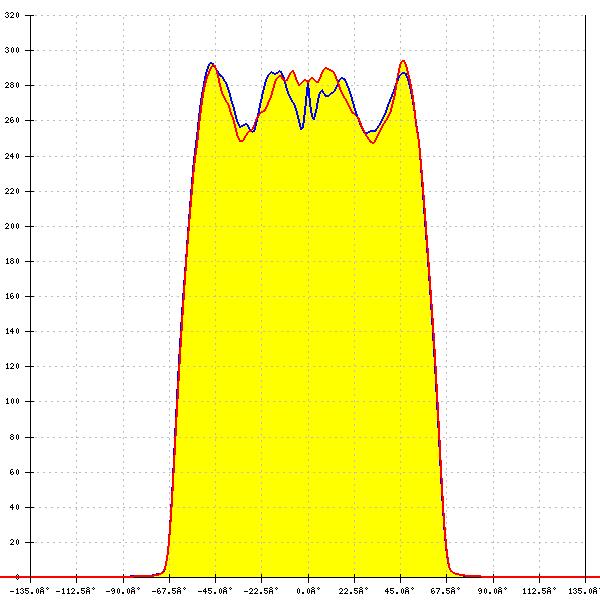

LED: LUXEON 3030 2D (Square LES)
FWHM: 119°
FWTM: 133°
Peak intensity: 0.390 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

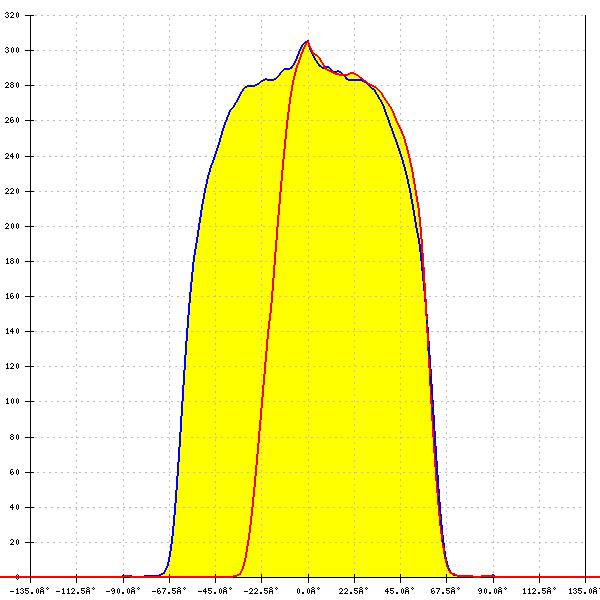

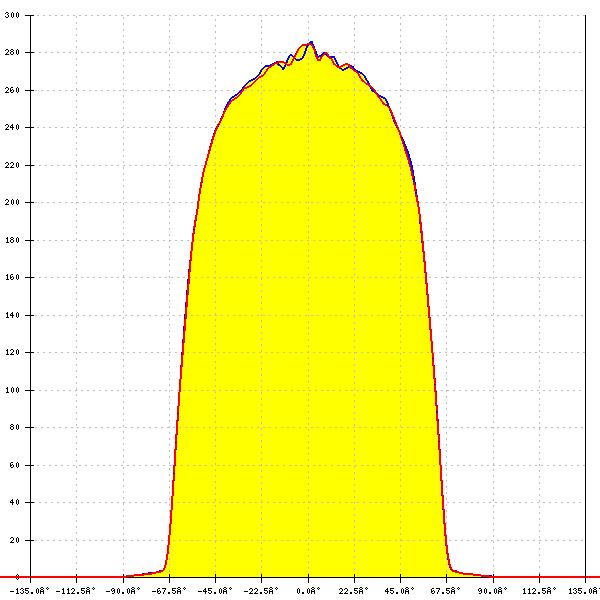

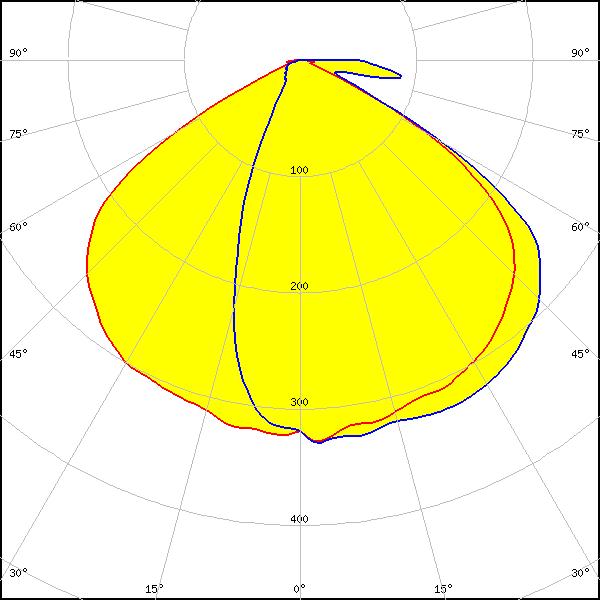

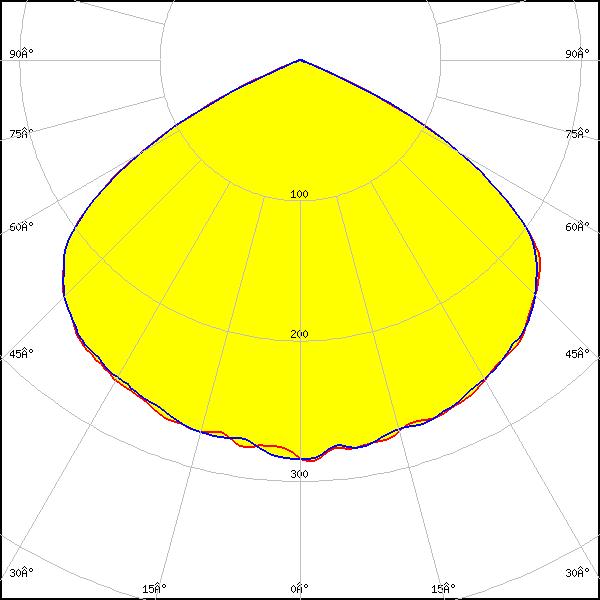

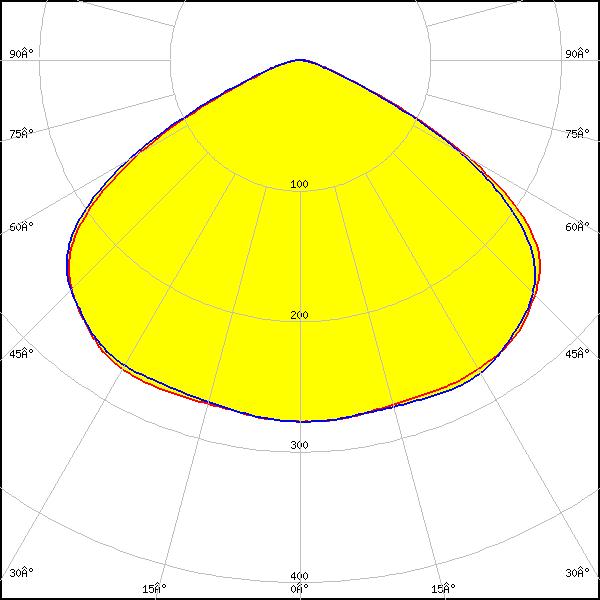

LED: LUXEON 5050 HE
FWHM: 120°
FWTM: 134°
Peak intensity: 0.336 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 HE
FWHM: 118°
FWTM: 134°
Peak intensity: 0.309 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

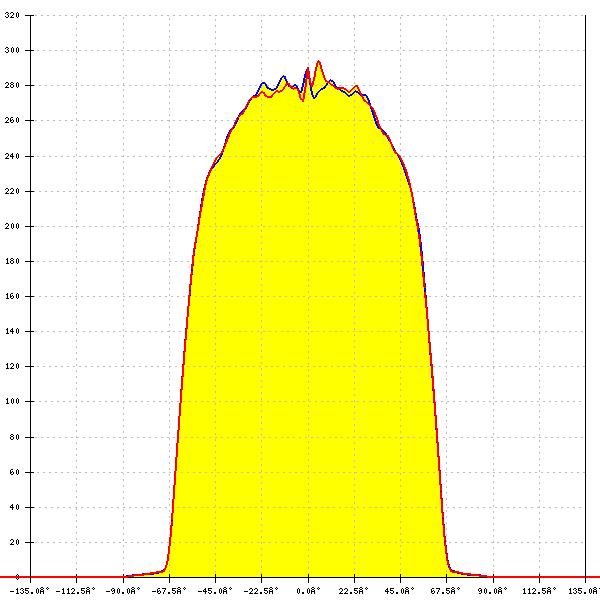

LED: LUXEON 5050 Round LES
FWHM: 117°
FWTM: 132°
Peak intensity: 0.318 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: 121°
FWTM: 143°
Peak intensity: 0.320 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: 114°
FWTM: 132°
Peak intensity: 0.318 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: 118°
FWTM: 134°
Peak intensity: 0.330 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

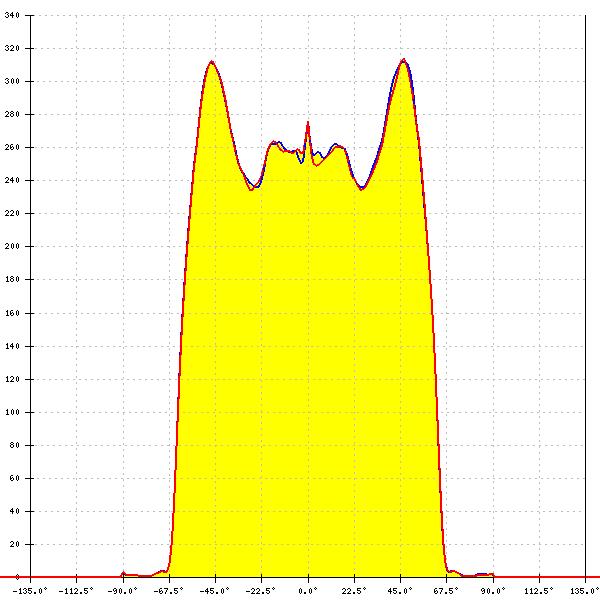

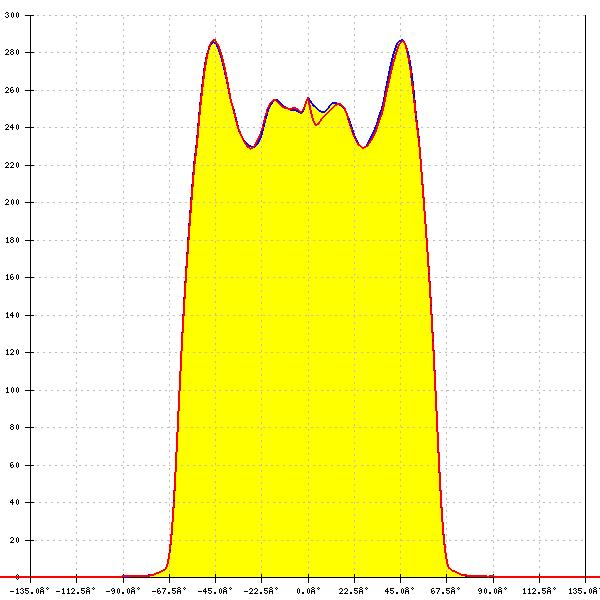

LED: LUXEON HL2Z
FWHM: 122°
FWTM: 132°
Peak intensity: 0.408 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON HL2Z
FWHM: 120°
FWTM: 132°
Peak intensity: 0.362 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

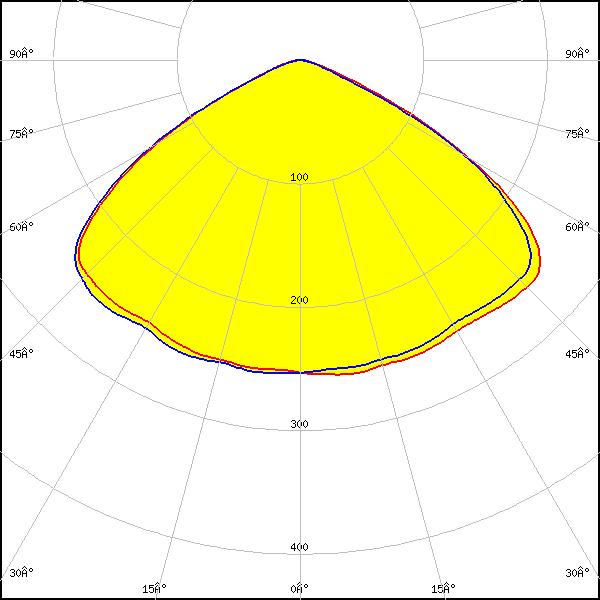

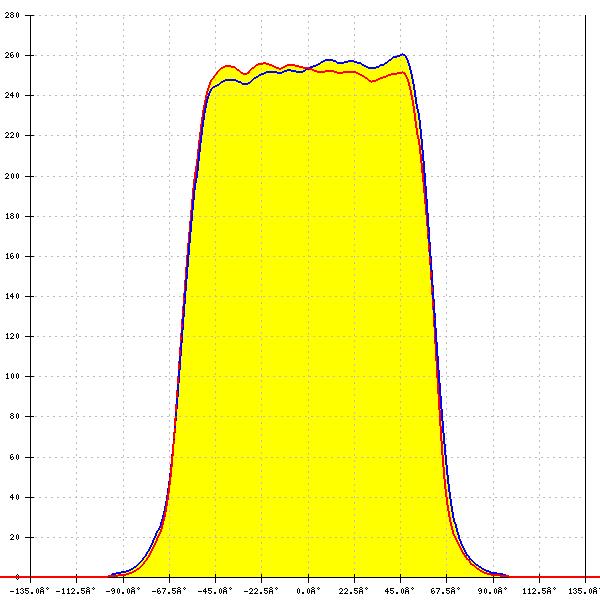

LED: LUXEON MZ
FWHM: 123°
FWTM: 144°
Peak intensity: 0.350 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

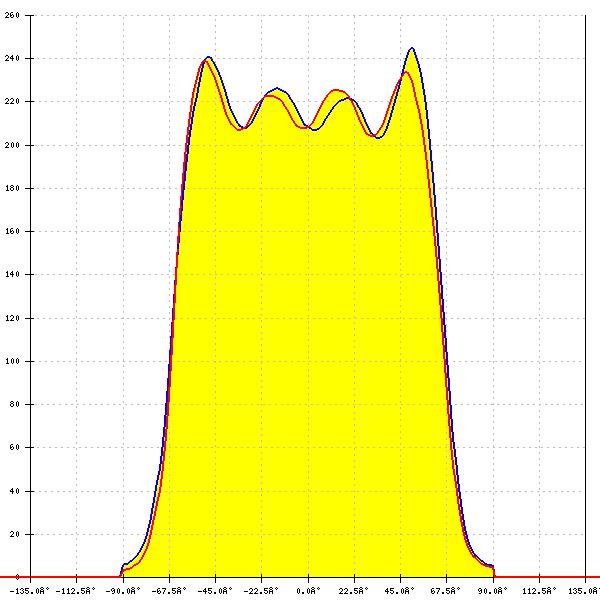

LED: LUXEON Q
FWHM: 134°
FWTM: 157°
Peak intensity: 0.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

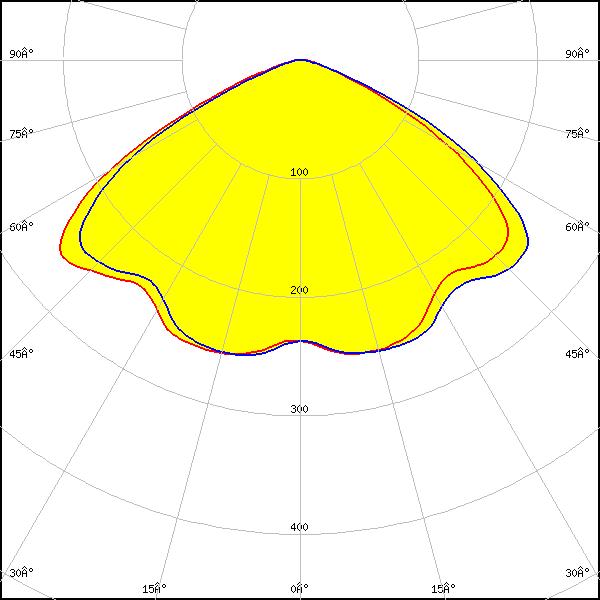

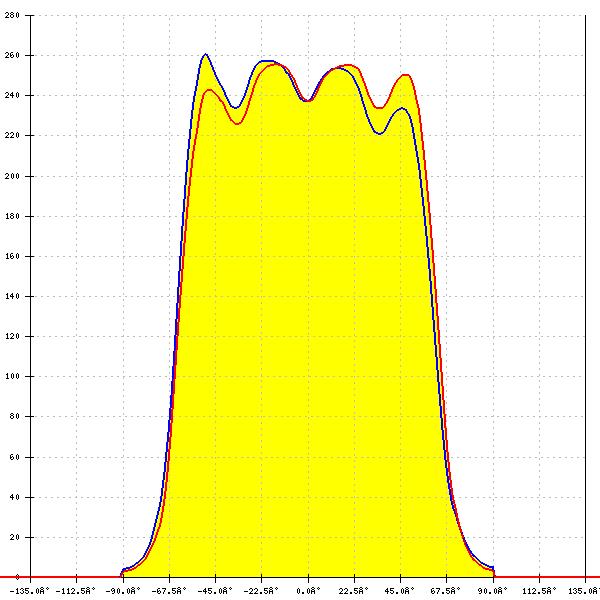

LED: LUXEON T
FWHM: 127°
FWTM: 147°
Peak intensity: 0.340 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON TX
FWHM: 123°
FWTM: 146°
Peak intensity: 0.330 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON V
FWHM: 125° + 123°
FWTM: 151° + 145°
Peak intensity: 0.310 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

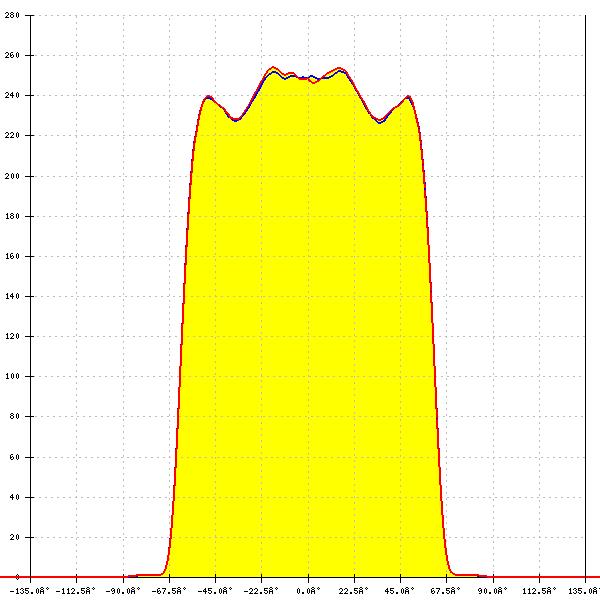

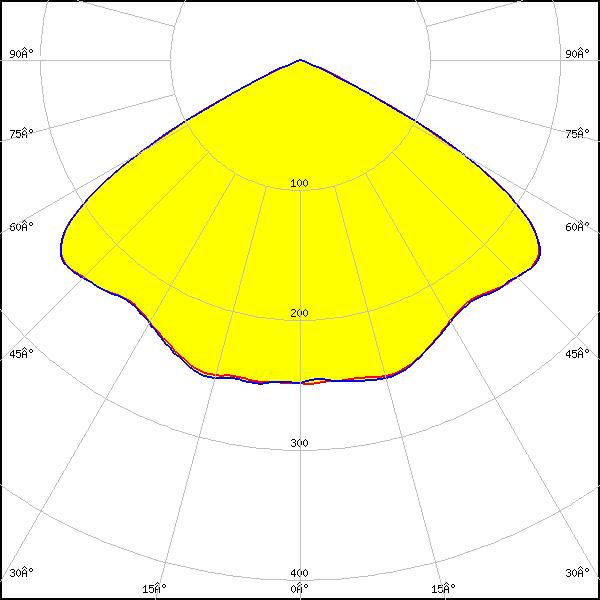

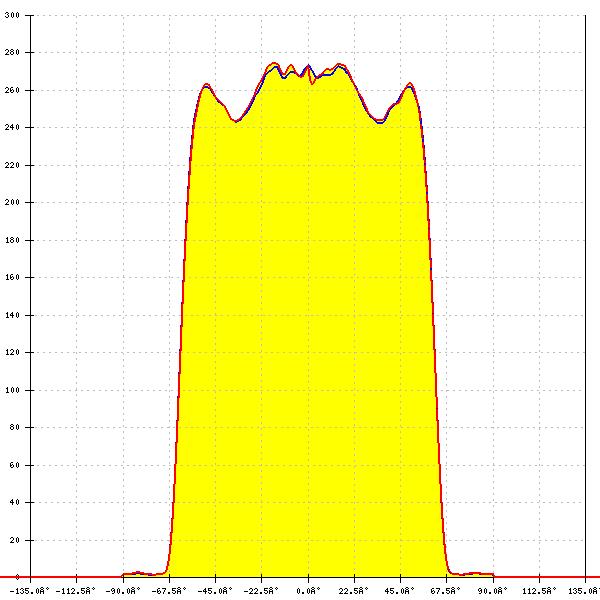

LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: 122°
FWTM: 132°
Peak intensity: 0.359 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
FWHM: 122°
FWTM: 132°
Peak intensity: 0.311 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

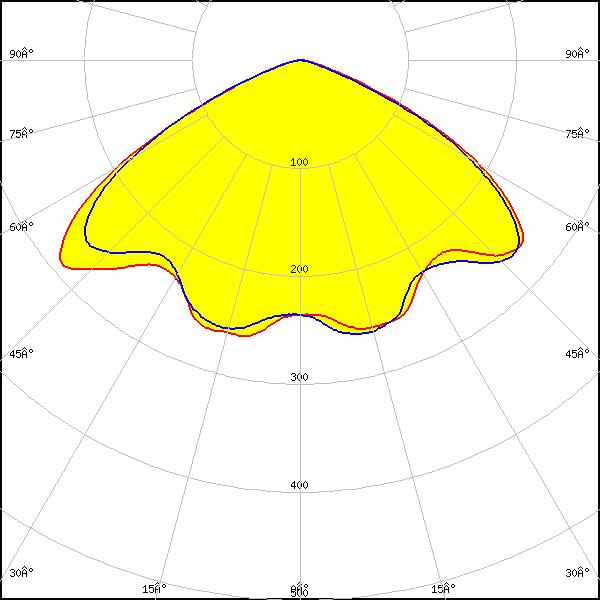

LED: SST-10-B130
FWHM: 126°
FWTM: 147°
Peak intensity: 0.361 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: Deep Red

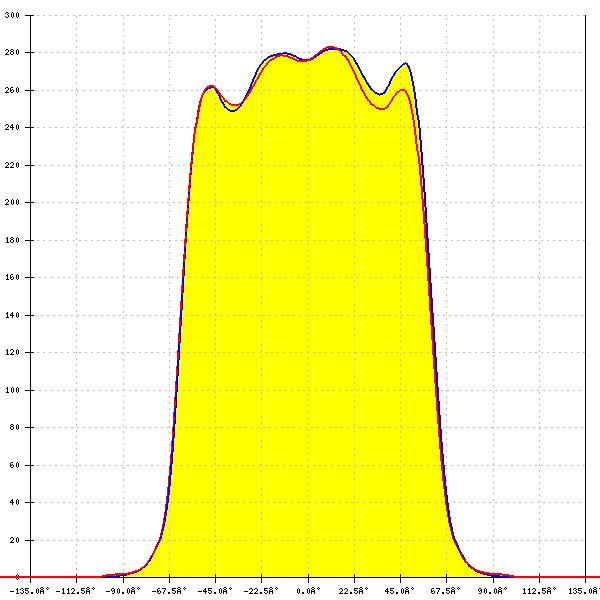

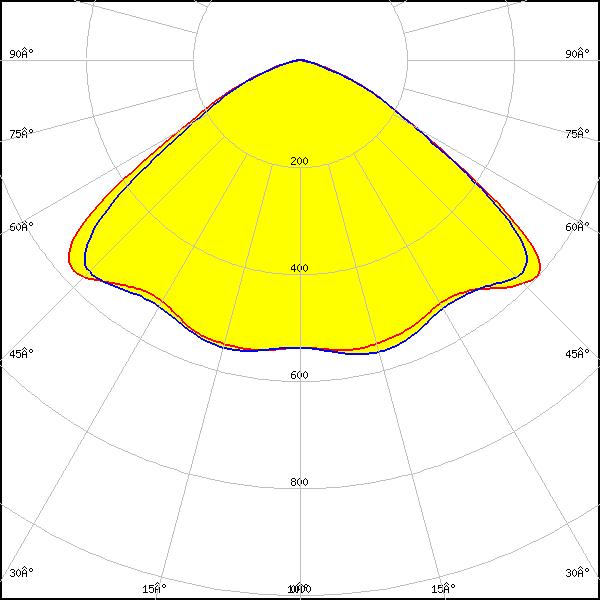

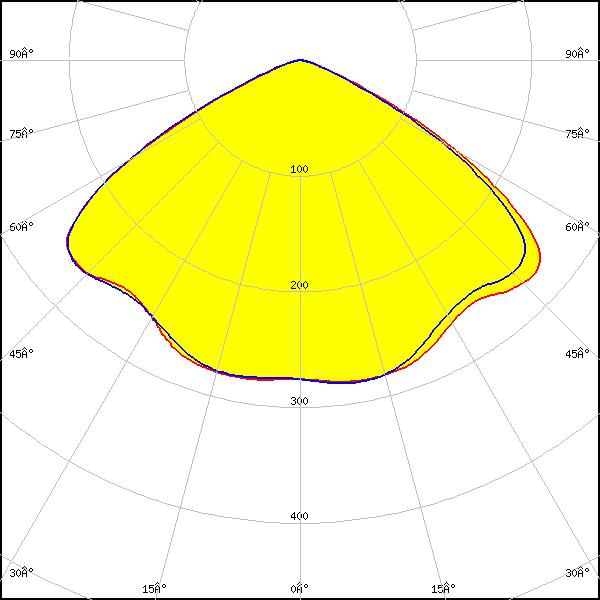

LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity: 0.365 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

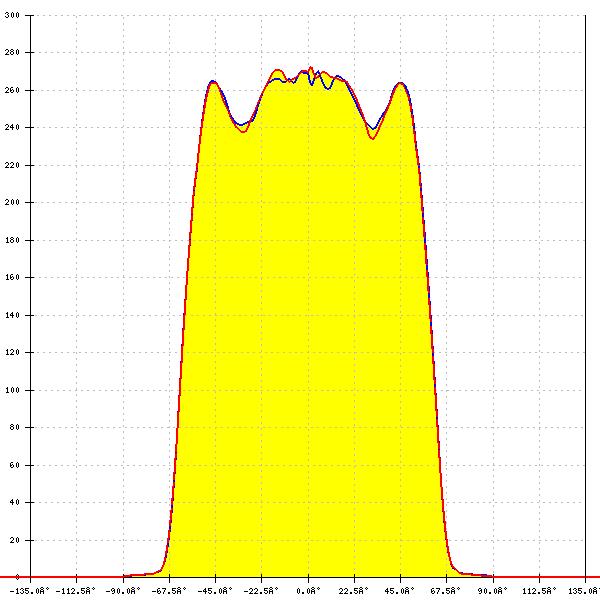

LED: NF2x757G
FWHM: 120°
FWTM: 134°
Peak intensity: 0.348 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

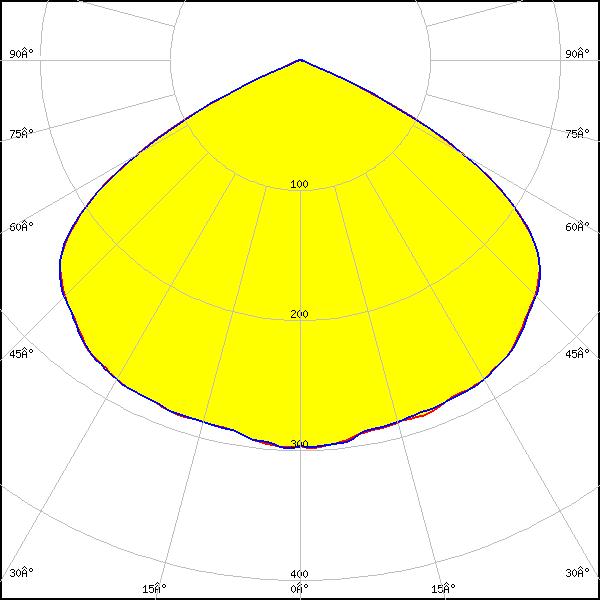

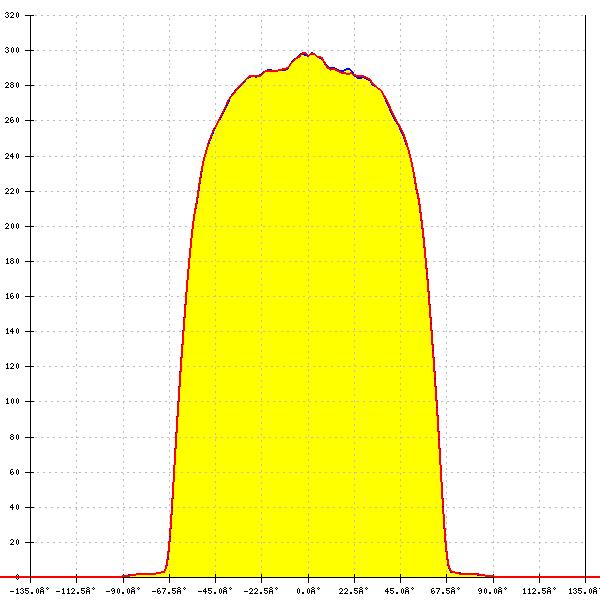

LED: NFMW48xA
FWHM: 120°
FWTM: 134°
Peak intensity: 0.336 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

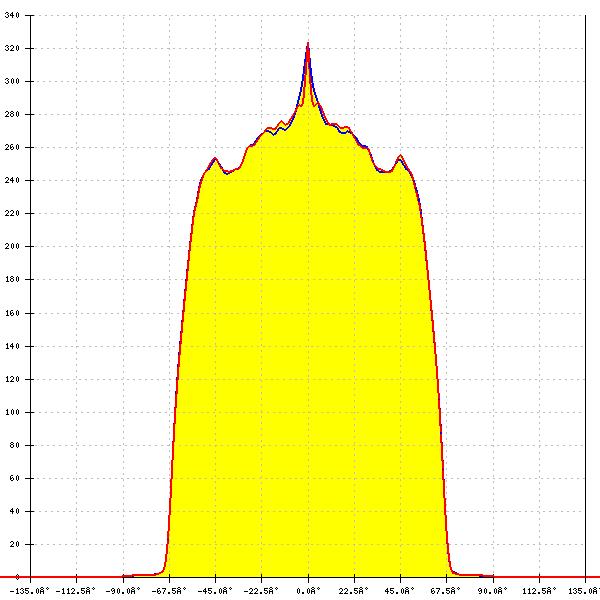

LED: NV4WB35AM
FWHM: 120°
FWTM: 136°
Peak intensity: 0.346 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

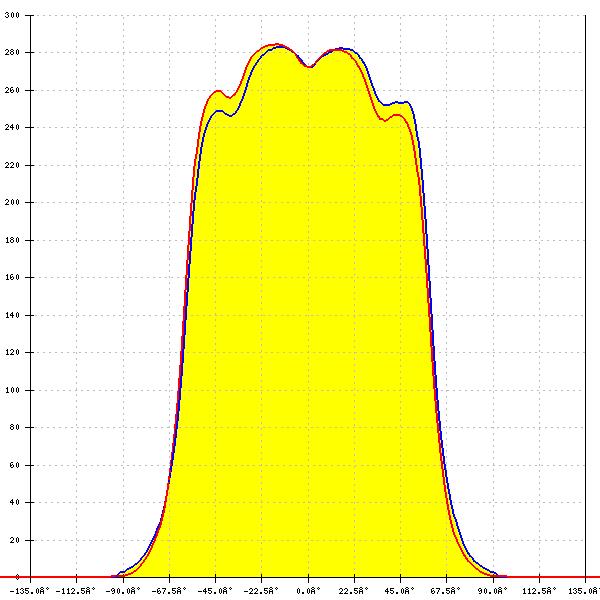

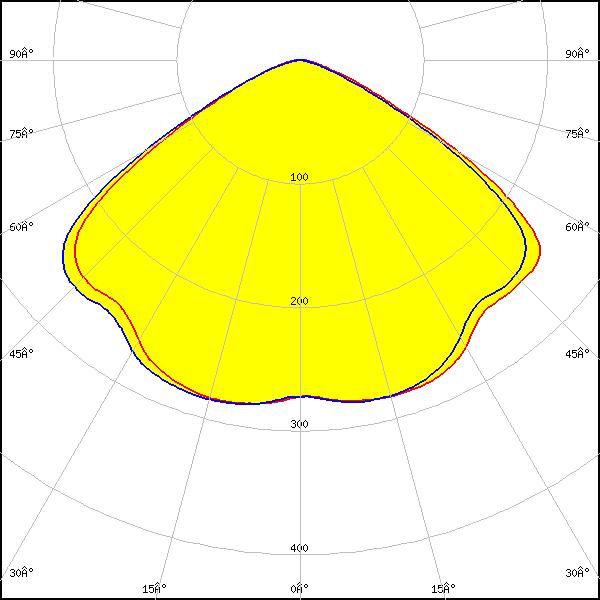

LED: NVSW219D
FWHM: asymmetric
Peak intensity: 0.340 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

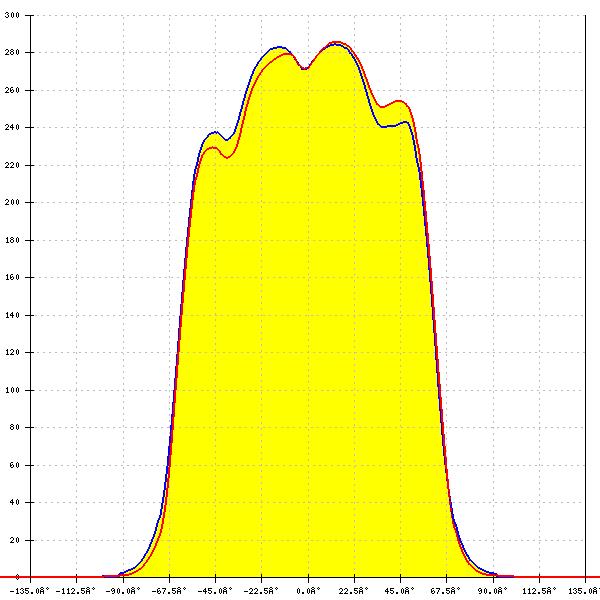

LED: NVSW219F
FWHM: 123°
FWTM: 143°
Peak intensity: 0.340 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

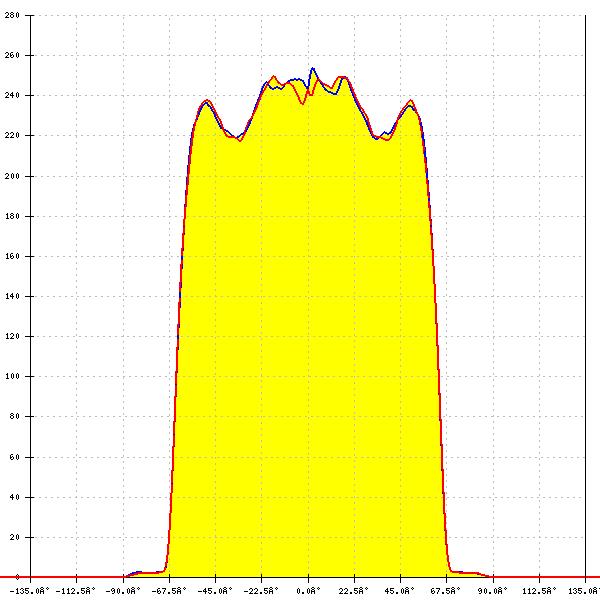

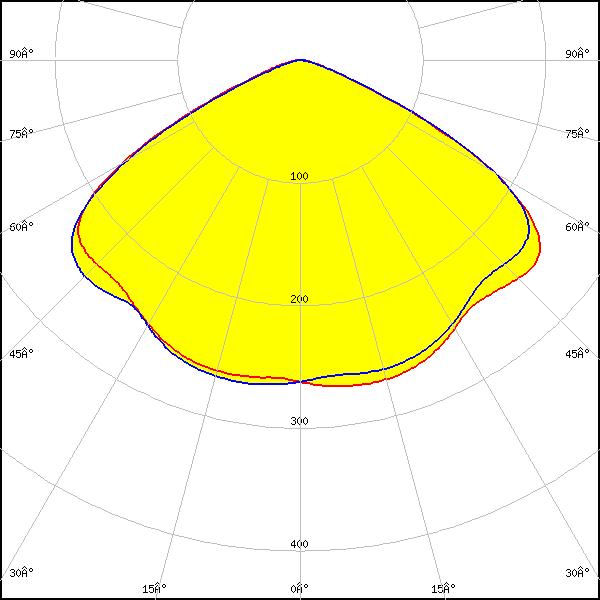

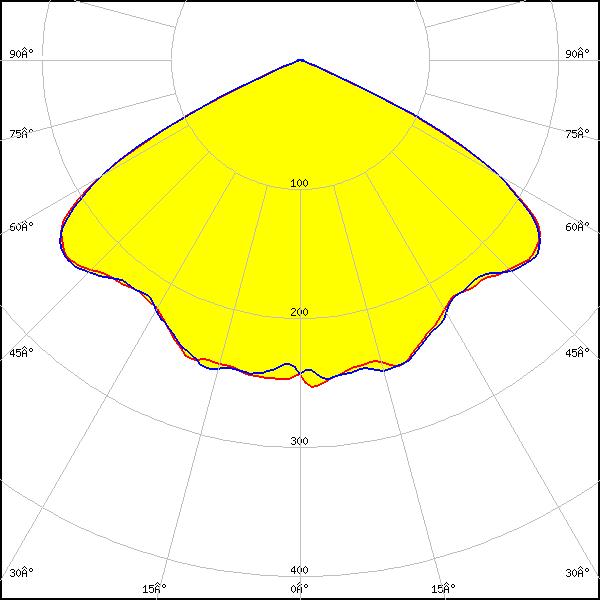

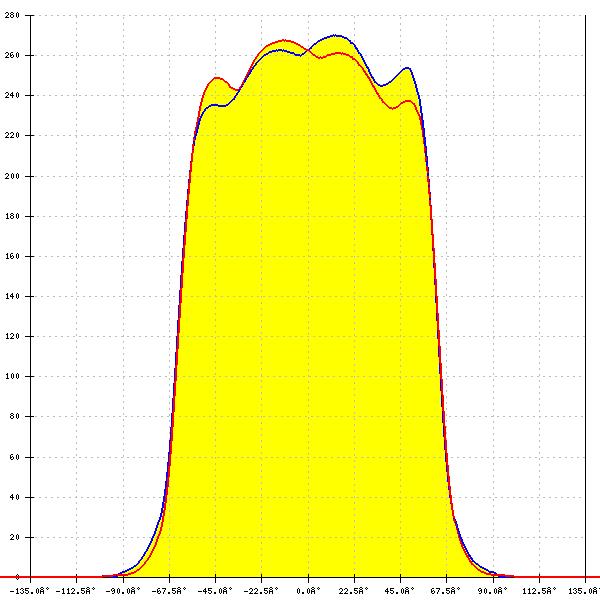

LED: NVSW319B
FWHM: 126°
FWTM: 134°
Peak intensity: 0.319 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW319B
FWHM: 125°
FWTM: 144°
Peak intensity: 0.333 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW3x9A
FWHM: 129° + 128°
FWTM: 151° + 148°
Peak intensity: 0.340 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

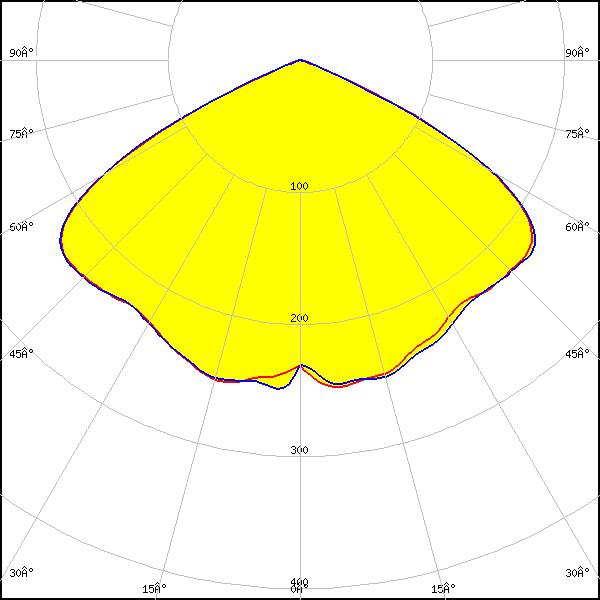

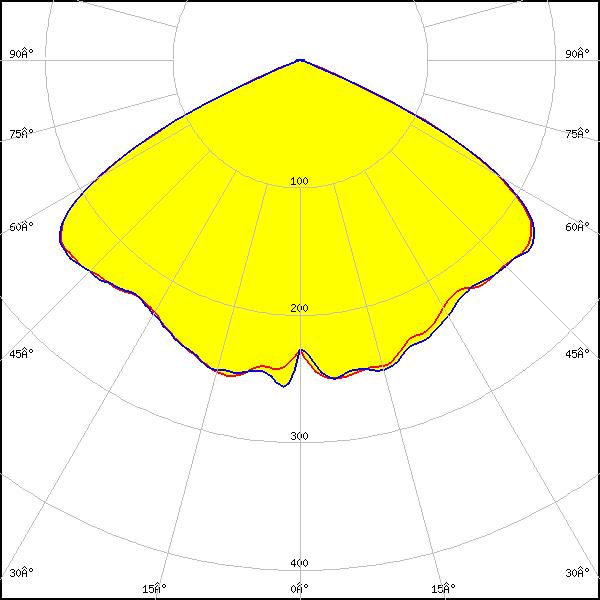

LED: NVSW519A
FWHM: 126°
FWTM: 136°
Peak intensity: 0.350 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW519A
FWHM: 125°
FWTM: 136°
Peak intensity: 0.317 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxE21A
FWHM: 125°
FWTM: 144°
Peak intensity: 0.390 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

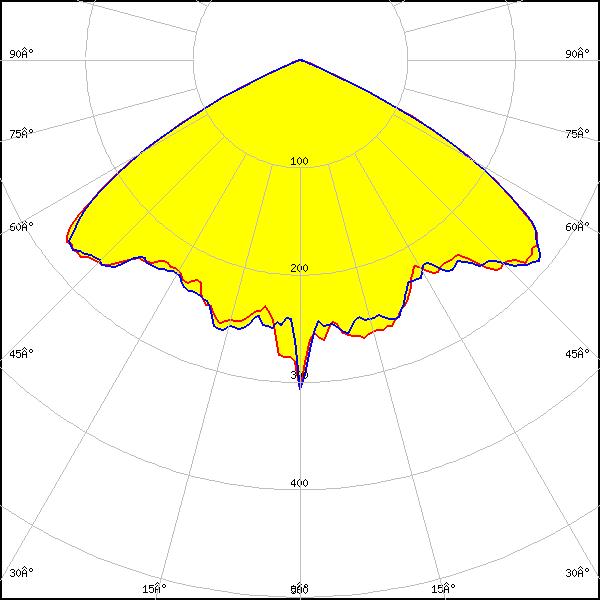

LED: NVSxx19B/NVSxx19C
FWHM: 122°
FWTM: 132°
Peak intensity: 0.391 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

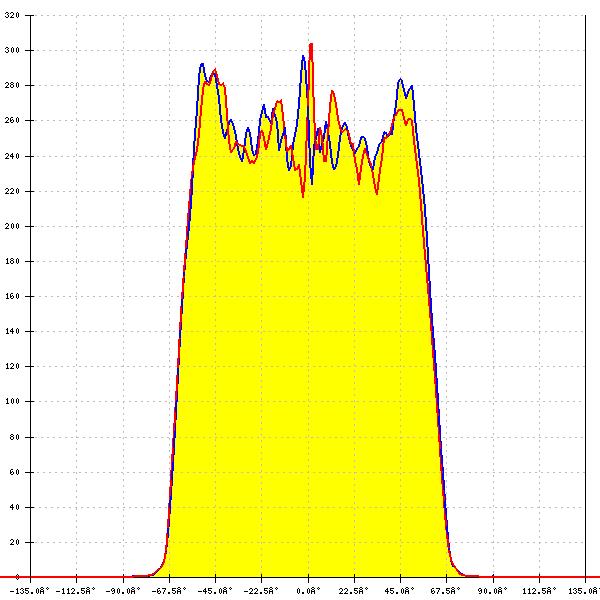

LED: PrevaLED Brick HP 2x8
FWHM: 122°
FWTM: 136°
Peak intensity: 0.400 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

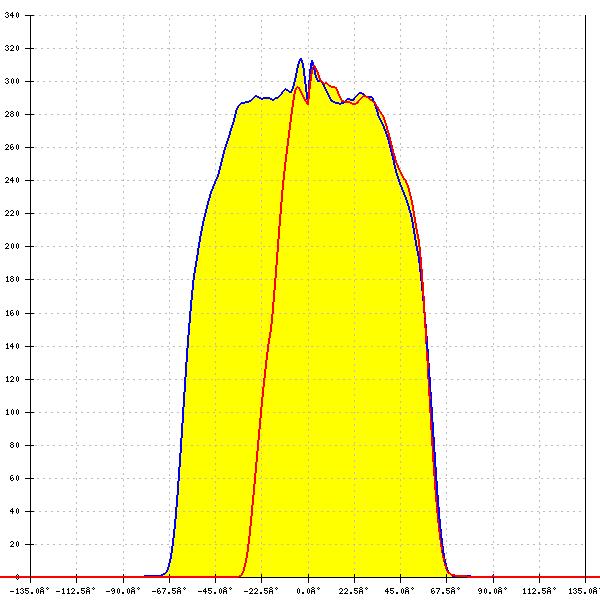

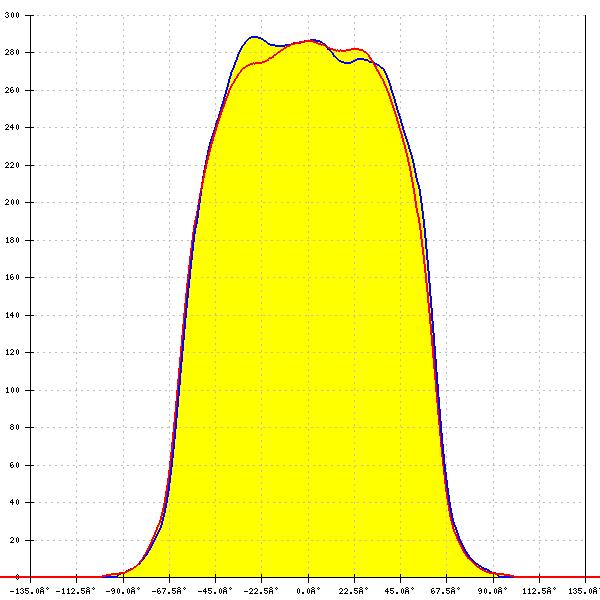

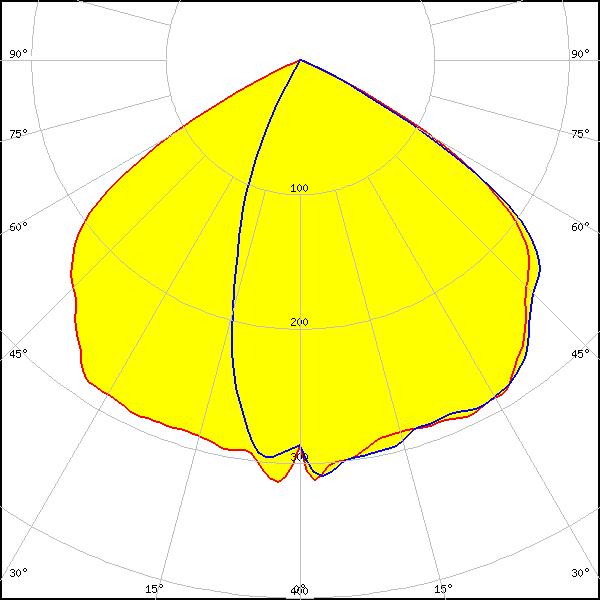

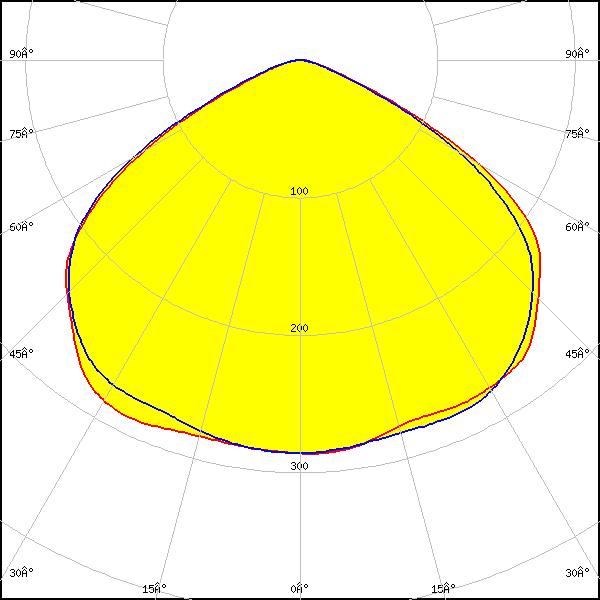

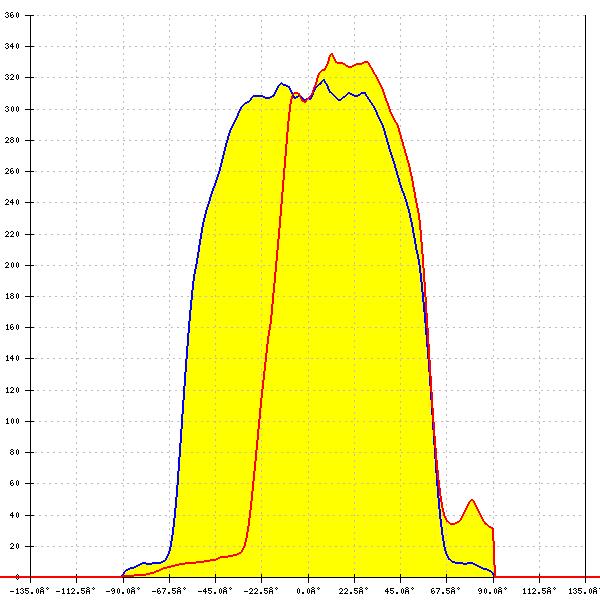

LED: Duris S8
FWHM: 119°
FWTM: 143°
Peak intensity: 0.320 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

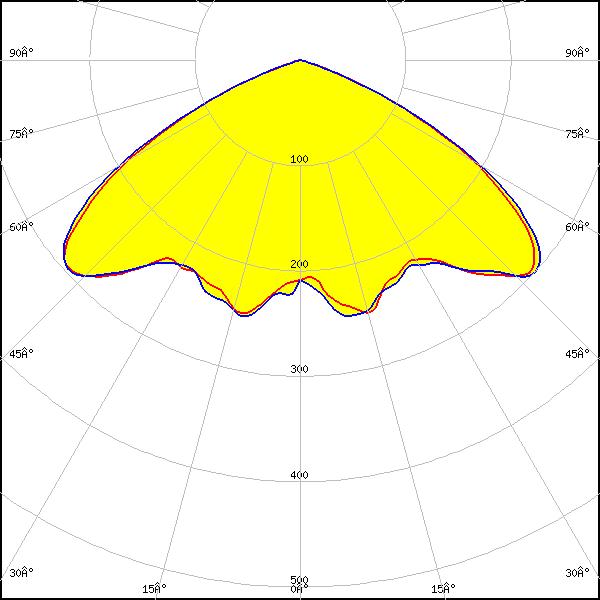

LED: OSCONIQ P 3030
FWHM: 125°
FWTM: 141°
Peak intensity: 0.393 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 3737 (2W version)
FWHM: 114°
FWTM: 134°
Peak intensity: 0.380 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

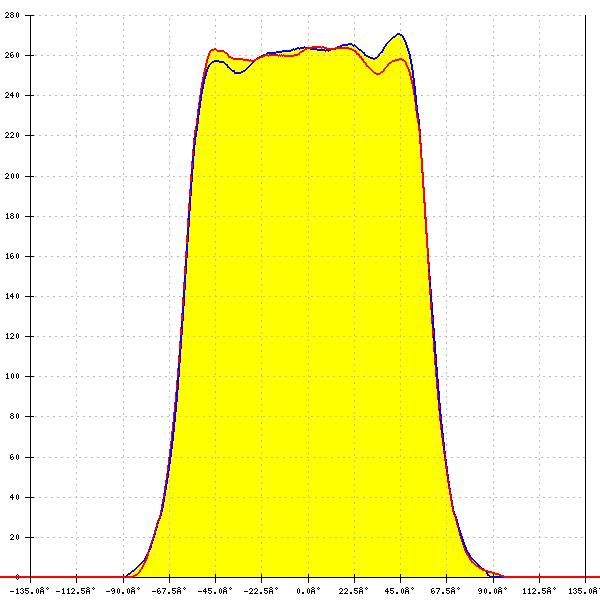

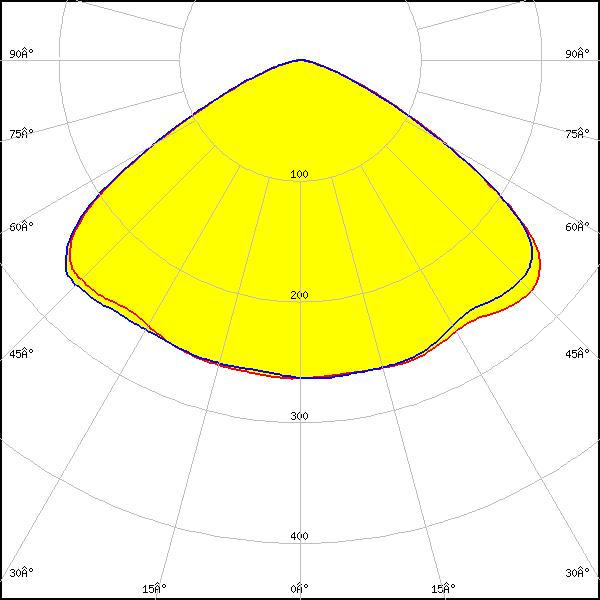

LED: OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity: 0.356 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

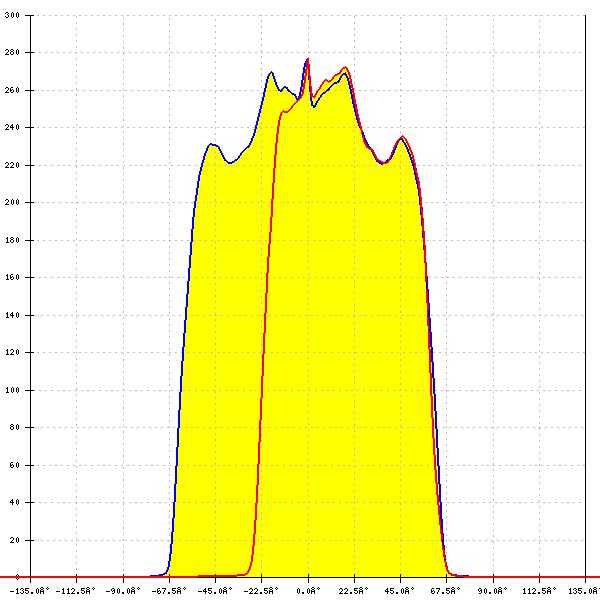

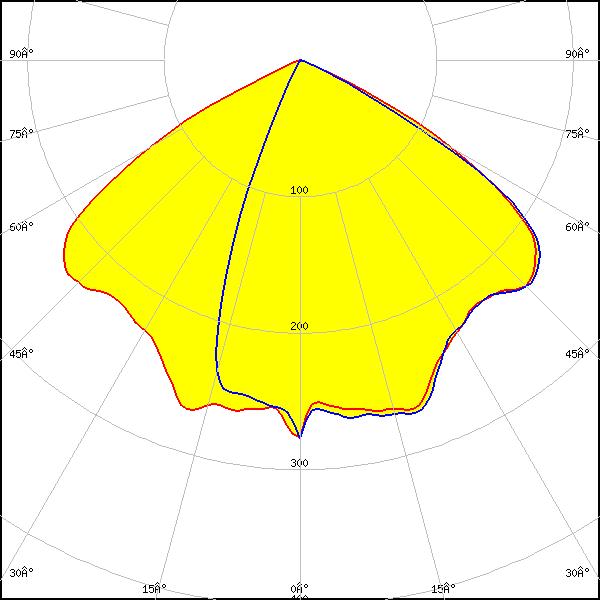

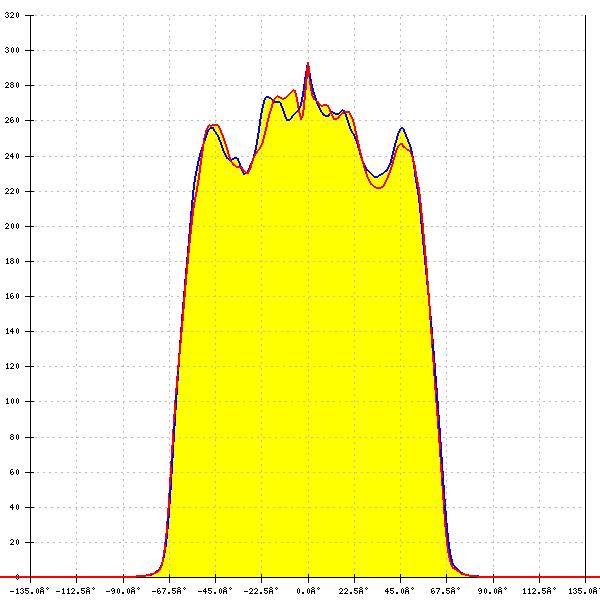

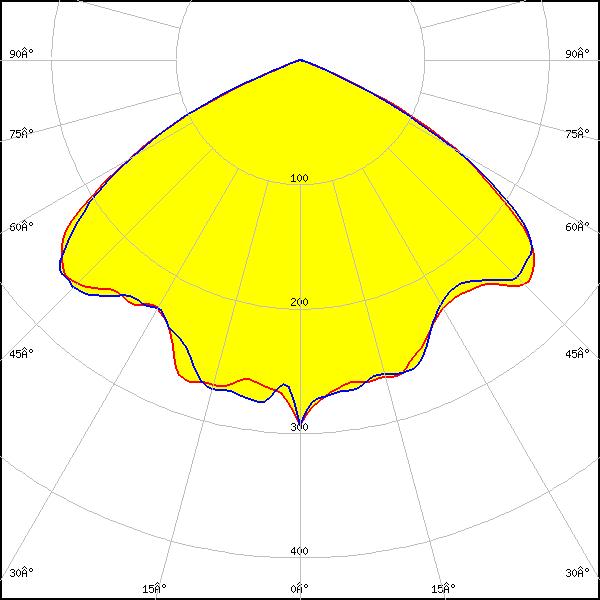

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 122°
FWTM: 134°
Peak intensity: 0.340 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON Square CSSRM2/CSSRM3
FWHM: 128° + 127°
FWTM: 149° + 145°
Peak intensity: 0.360 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

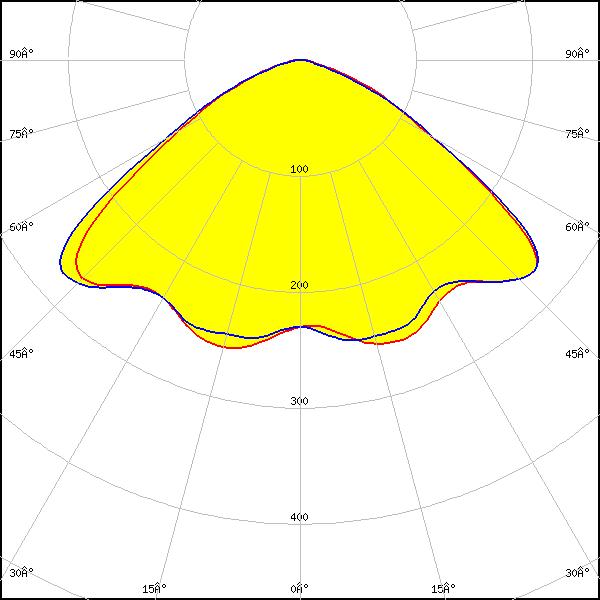

LED: OSLON Square PC
FWHM: 122°
FWTM: 154°
Peak intensity: 0.330 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

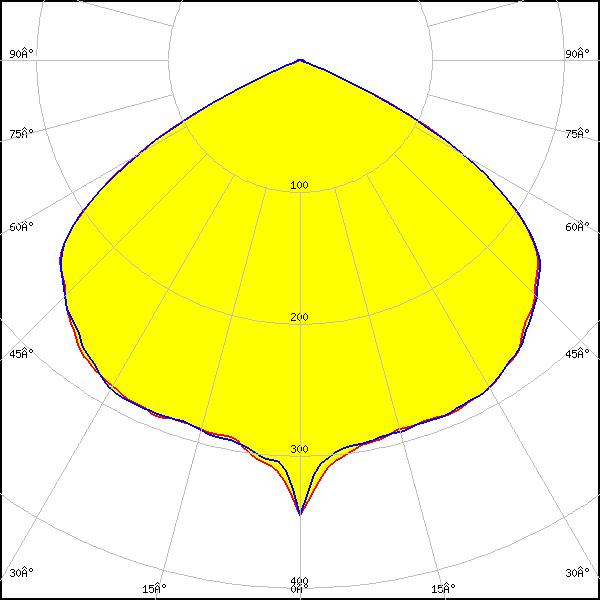

LED: Fortimo FastFlex LED 2x8 DA (U)HE
FWHM: 116°
FWTM: 132°
Peak intensity: 0.345 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA (U)HE
FWHM: 116°
FWTM: 132°
Peak intensity: 0.307 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

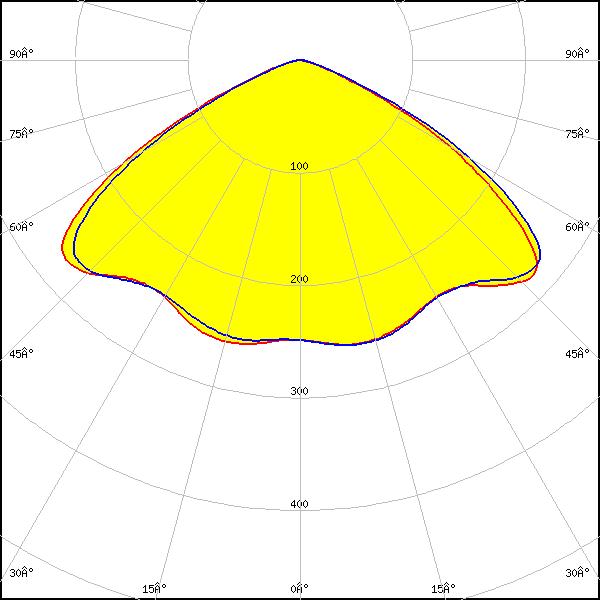

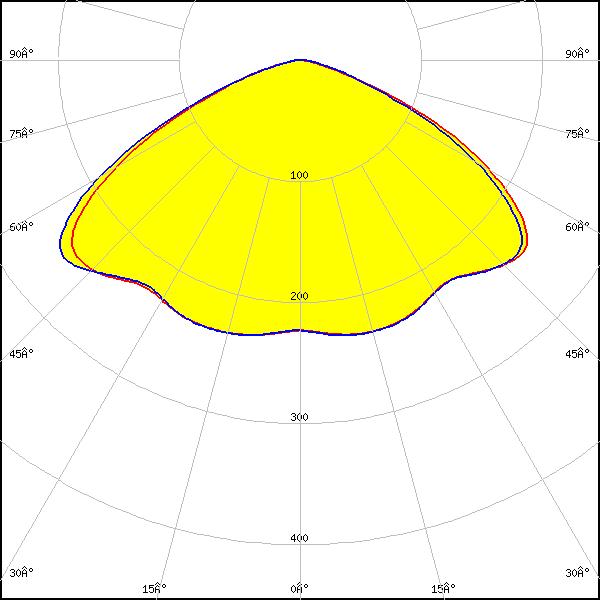

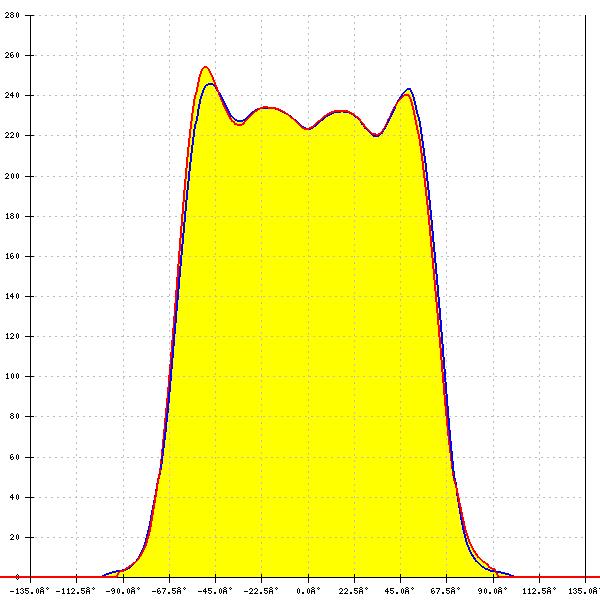

LED: Fortimo FastFlex LED 2x8 DA G4
FWHM: 125°
FWTM: 145°
Peak intensity: 0.360 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G4+
FWHM: 127°
FWTM: 148°
Peak intensity: 0.318 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA G5
FWHM: 122°
FWTM: 142°
Peak intensity: 0.365 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DAX G4
FWHM: 131°
FWTM: 154°
Peak intensity: 0.330 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

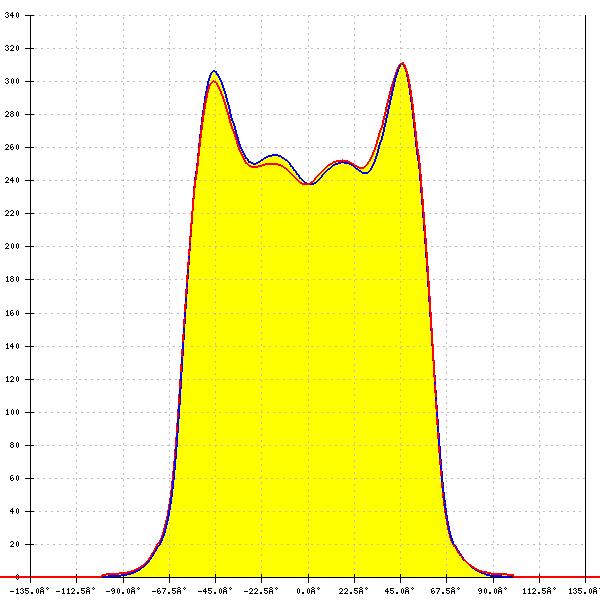

LED: HiLOM RC12 Z (LH181B)
FWHM: 120°
FWTM: 138°
Peak intensity: 0.404 cd/lm
Efficiency: 99 %
LEDs/each optic: 1
Light colour/type: White

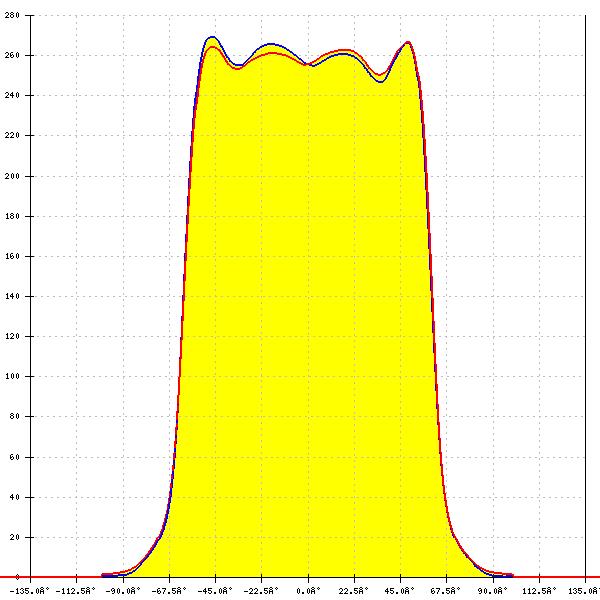

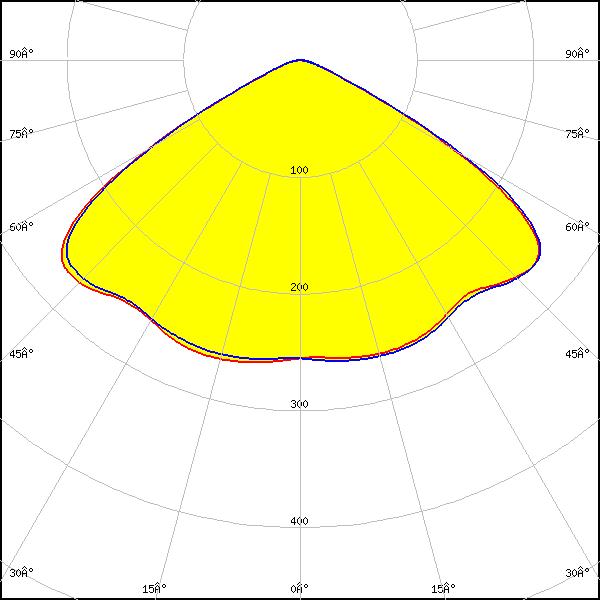

LED: HiLOM RH12 Z (LH351C)
FWHM: 121°
FWTM: 138°
Peak intensity: 0.316 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: HiLOM RH12 Z (LH351C)
FWHM: 121°
FWTM: 139°
Peak intensity: 0.357 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

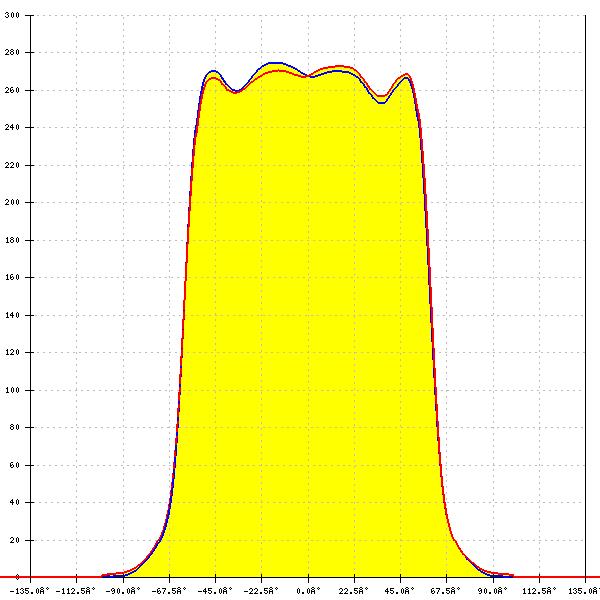

LED: HiLOM RH16 (LH351C)
FWHM: 121°
FWTM: 139°
Peak intensity: 0.400 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

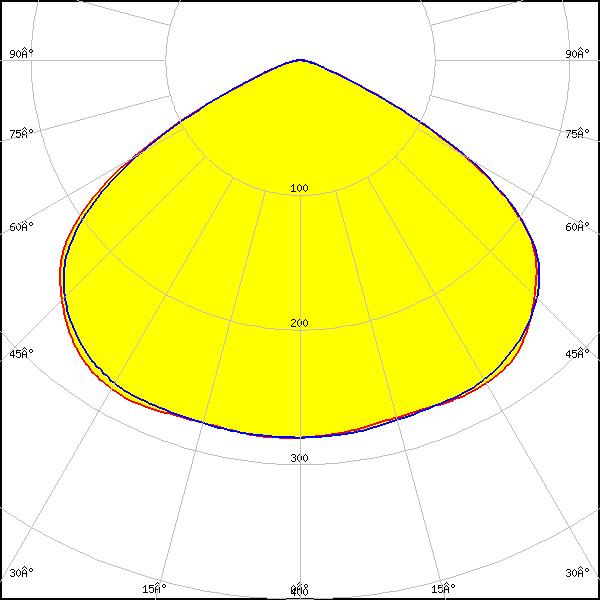

LED: HiLOM RM12 Z (LH502C)
FWHM: 120°
FWTM: 141°
Peak intensity: 0.324 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

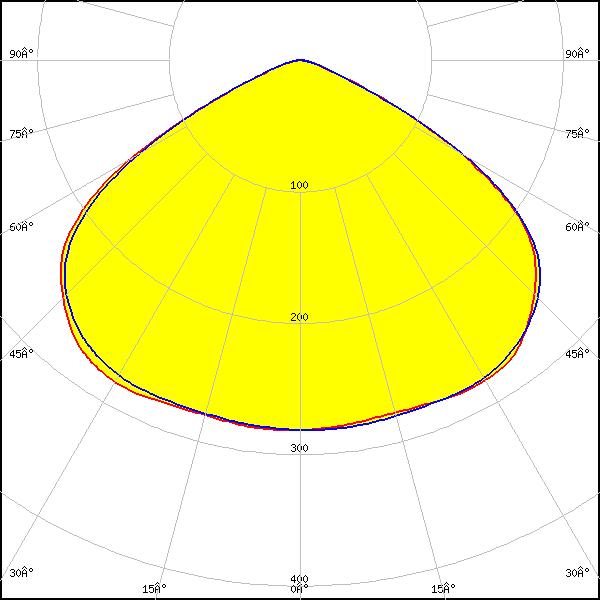

LED: HiLOM RM16 Z (LH502C)
FWHM: 120°
FWTM: 141°
Peak intensity: 0.330 cd/lm
Efficiency: 99 %
LEDs/each optic: 1
Light colour/type: White

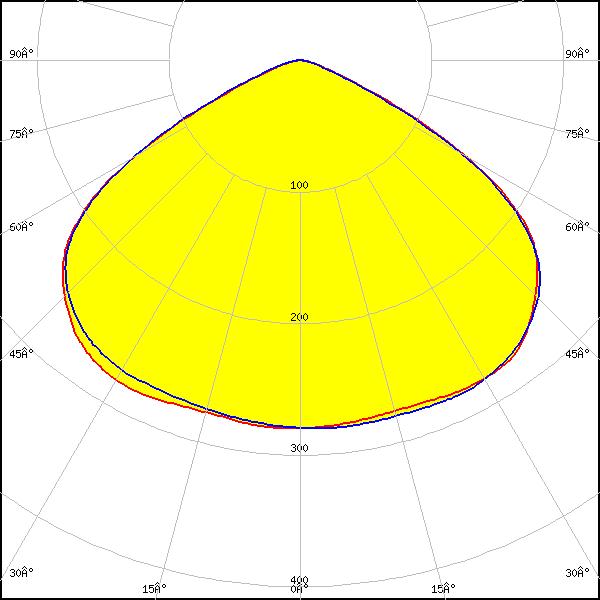

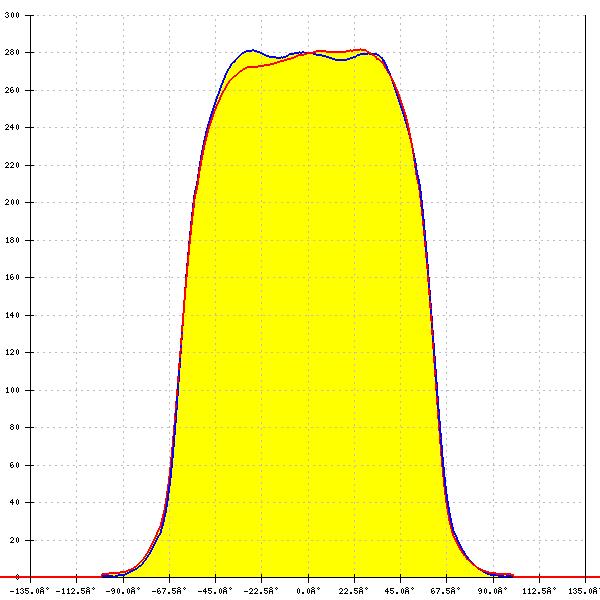

LED: HiLOM RM8 Z (LH502C)
FWHM: asymmetric
Peak intensity: 0.330 cd/lm
Efficiency: 99 %
LEDs/each optic: 1
Light colour/type: White

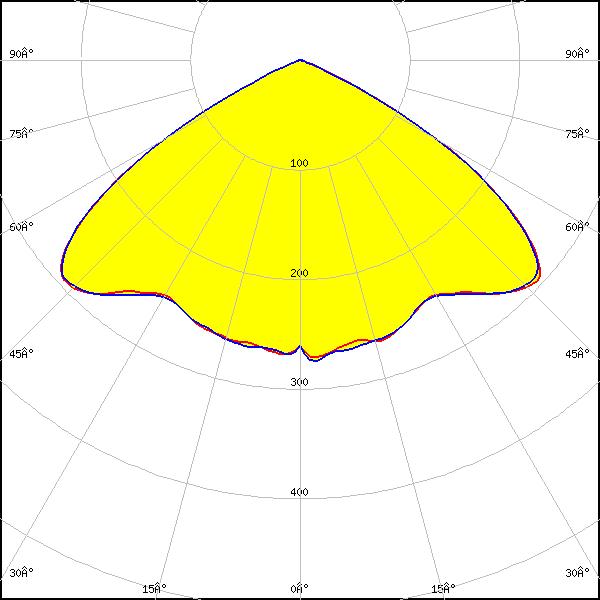

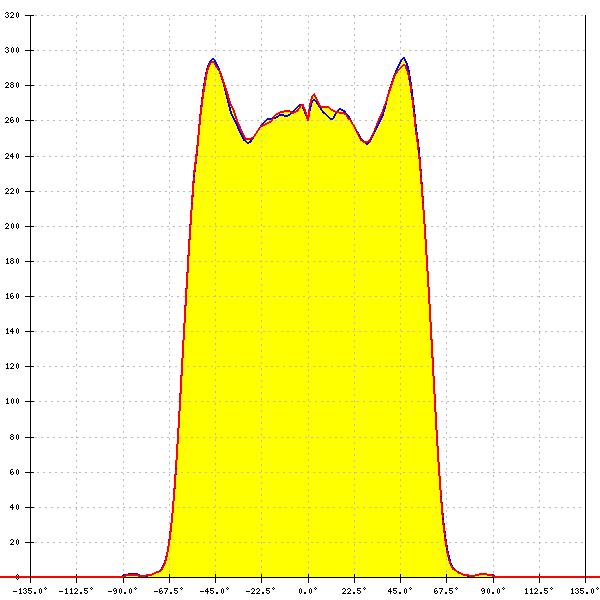

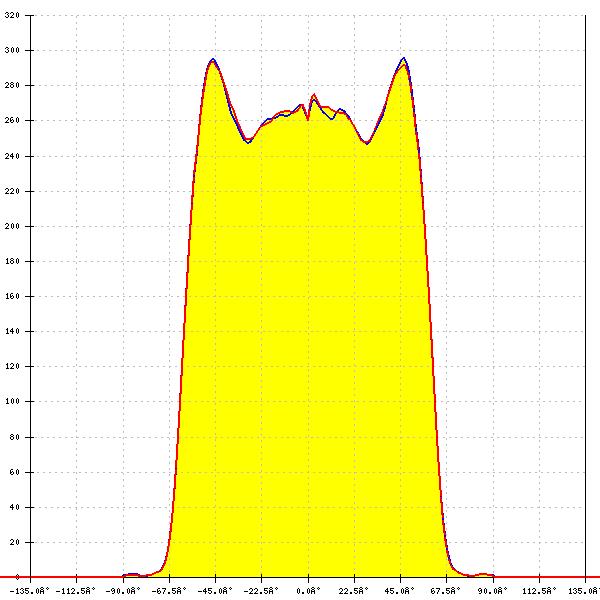

LED: LH231B
FWHM: 120°
FWTM: 132°
Peak intensity: 0.384 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

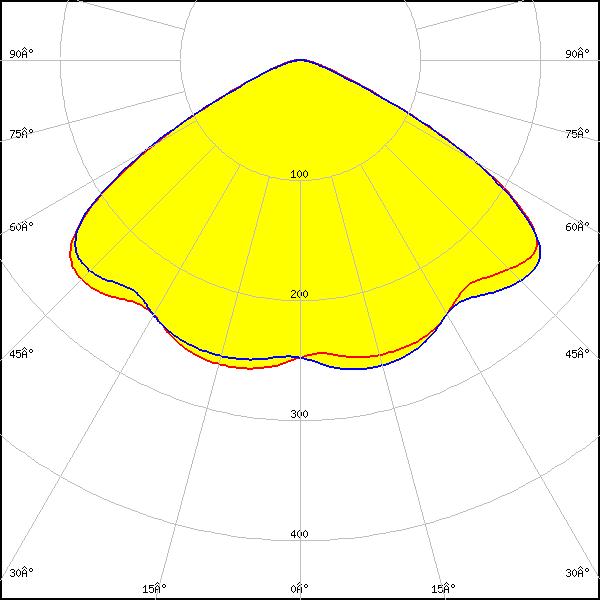

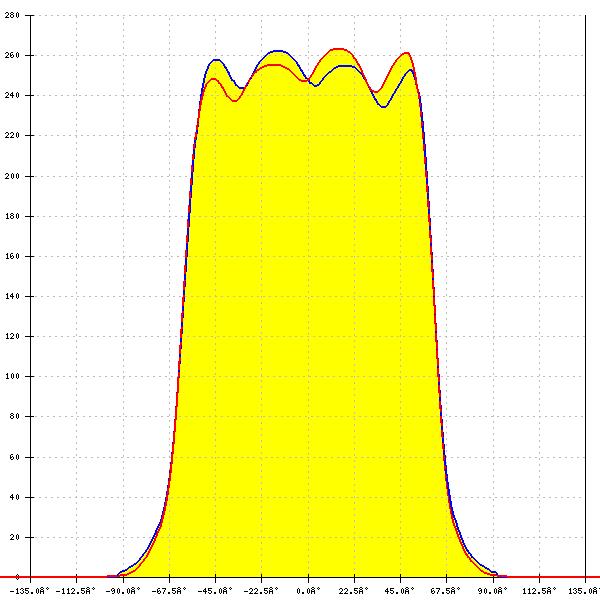

LED: LH351B
FWHM: 118°
FWTM: 130°
Peak intensity: 0.349 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351B
FWHM: 126°
FWTM: 149°
Peak intensity: 0.340 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

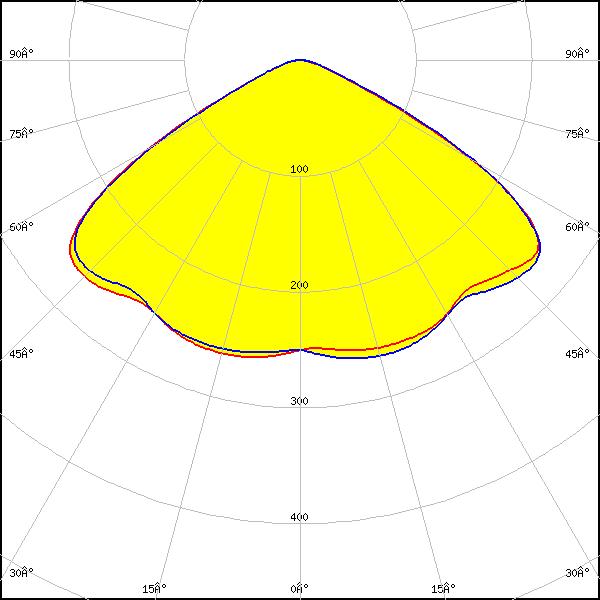

LED: LH351C
FWHM: 123°
FWTM: 144°
Peak intensity: 0.350 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: LH351D
FWHM: 120°
FWTM: 134°
Peak intensity: 0.332 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

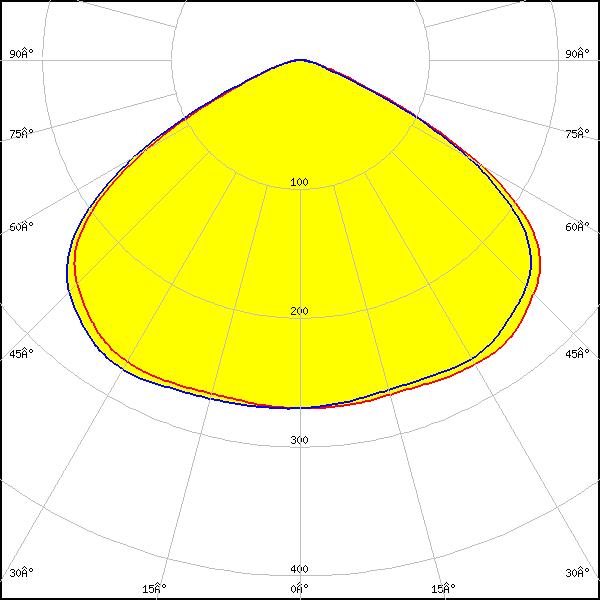

LED: LH508A
FWHM: 122°
FWTM: 144°
Peak intensity: 0.320 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

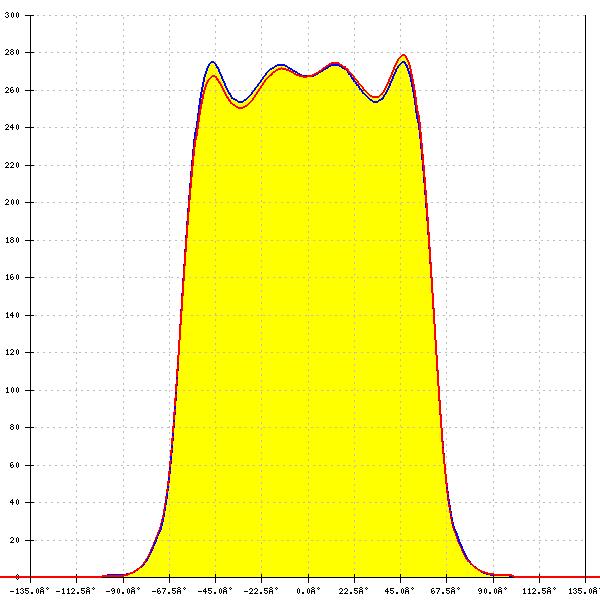

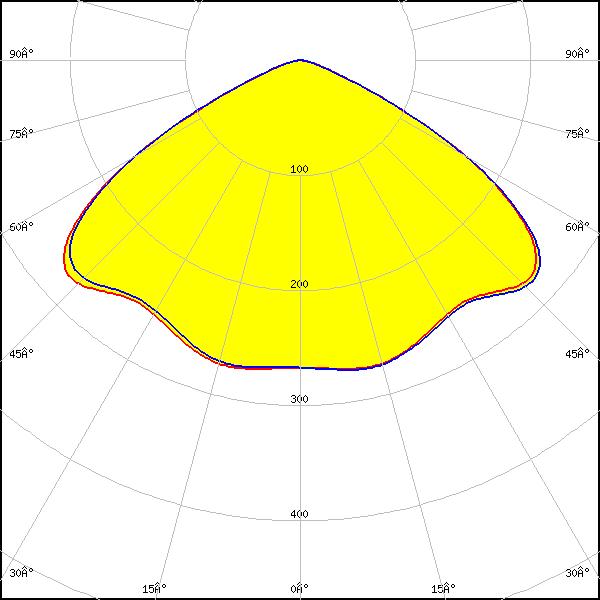

LED: LED-Pa-L15c2W11c2-xxx-C050-01
FWHM: 123°
FWTM: 142°
Peak intensity: 0.367 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour/type: White

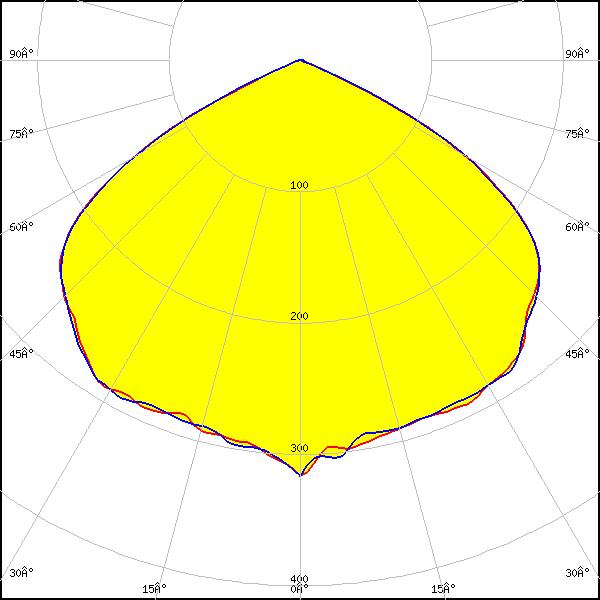

LED: MJT 5050
FWHM: 118°
FWTM: 132°
Peak intensity: 0.338 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 5050 6V
LEDs/each optic: 1
Light colour/type: White

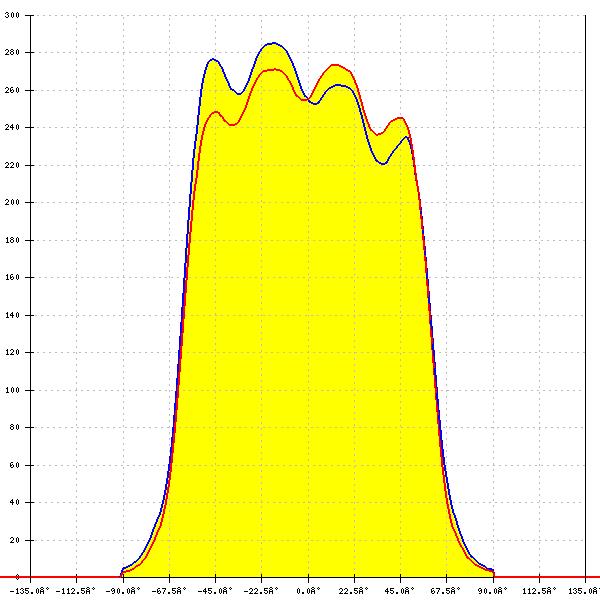

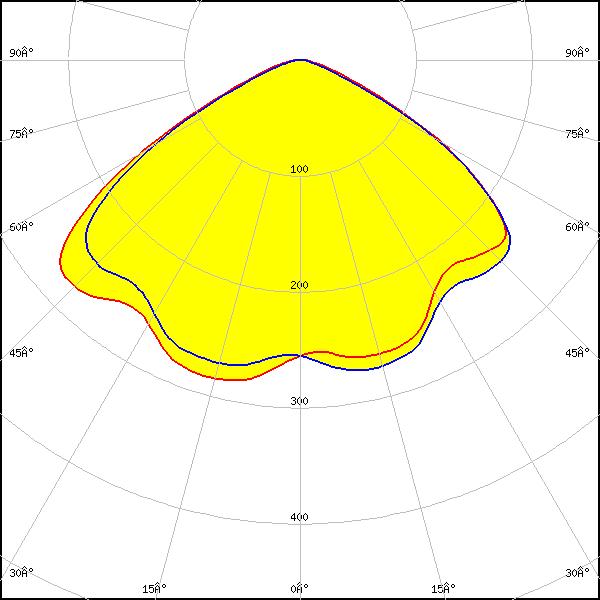

LED: Z5M1/Z5M2
FWHM: 122°
FWTM: 149°
Peak intensity: 0.400 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

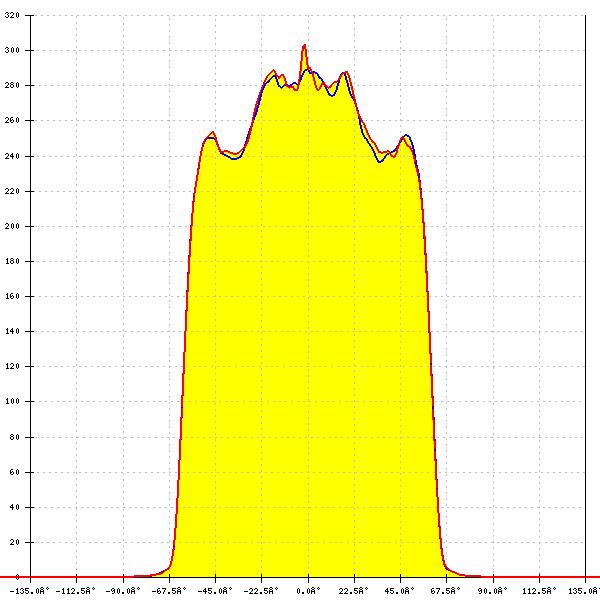

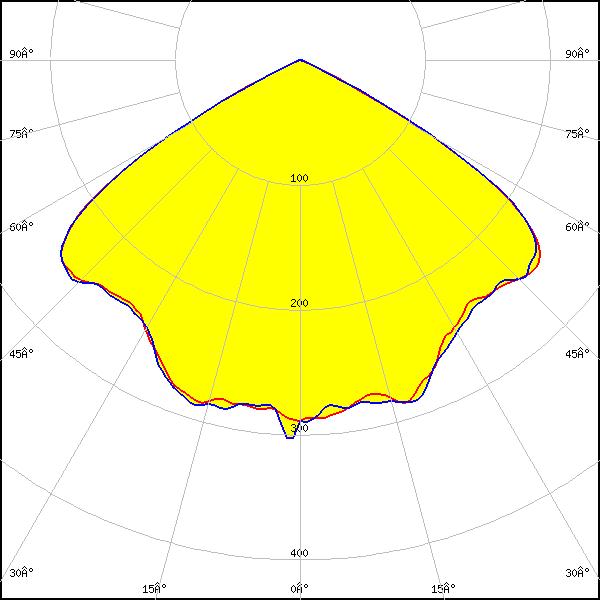

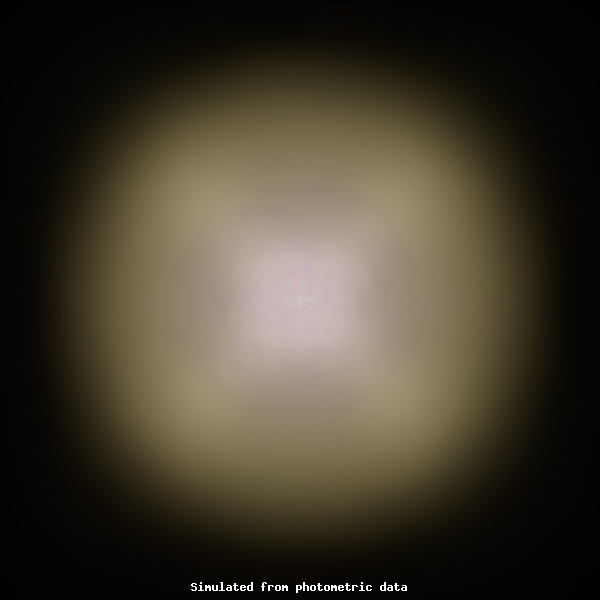

LED: Z5M3
FWHM: asymmetric
Peak intensity: 0.340 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: Z5M4
FWHM: asymmetric
Peak intensity: 0.379 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White
LED: Z8Y22
FWHM: 127° + 124°
FWTM: 146° + 144°
Peak intensity: 0.380 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: TL1L3
FWHM: 118°
FWTM: 154°
Peak intensity: 0.290 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

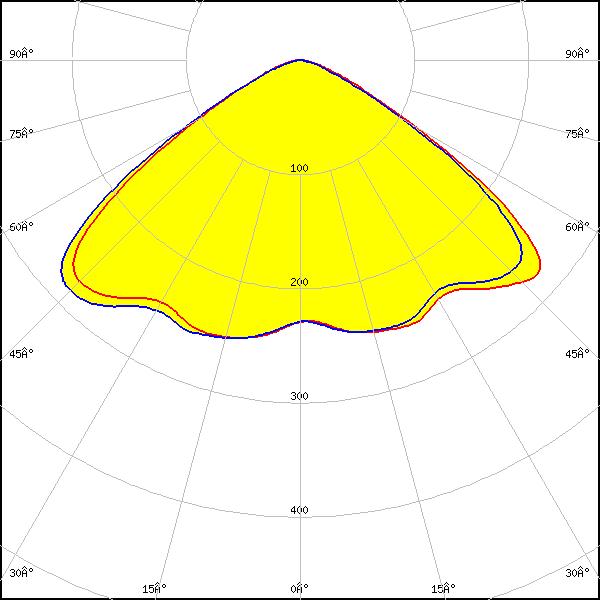

LED: TL1L4
FWHM: 119°
FWTM: 146°
Peak intensity: 0.360 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE 2x4 2000lm HP EXC2 OTD
FWHM: 128°
FWTM: 147°
Peak intensity: 0.400 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE 2x8 4000lm HP EXC2 OTD
FWHM: 128°
FWTM: 147°
Peak intensity: 0.400 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x121mm 2000lm xxx EXC OTD
FWHM: 119° + 117°
FWTM: 147° + 146°
Peak intensity: 0.350 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x133mm 2000lm xxx EXC OTD
FWHM: 119° + 117°
FWTM: 147° + 146°
Peak intensity: 0.350 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x223mm 4000lm xxx EXC OTD
FWHM: 119° + 117°
FWTM: 147° + 146°
Peak intensity: 0.350 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: RLE G1 49x245mm 4000lm xxx EXC OTD
FWHM: 119° + 117°
FWTM: 147° + 146°
Peak intensity: 0.350 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
