    C13476_STRADA-FT

    Print

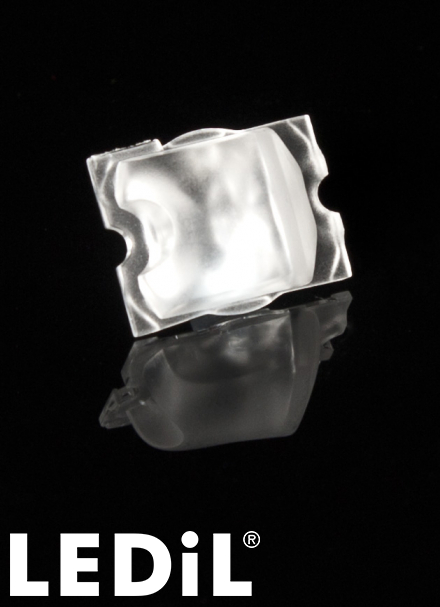

    Forward throw beam for area lighting

    Specification
    • Dimensions:
      20 x  16 mm
    • Height:
      8.20 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      2880 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.3 kg
    • MPQ:
      144 pcs
    • MOQ:
      288 pcs
    • MOQ size:
      480 x 280 x 40 mm
    • MOQ weight:
      1.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C13476_STRADA-FT
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - STRADA-F SERIES

    Application example

    ME4a with STRADA-FT and STRADA-FW

    Application example

    Parking lot lighting with STRADA-FT

    Application example

    Freeway lighting with STRADA-FT and -FW

    Application area

    Tunnel and Transportation Lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

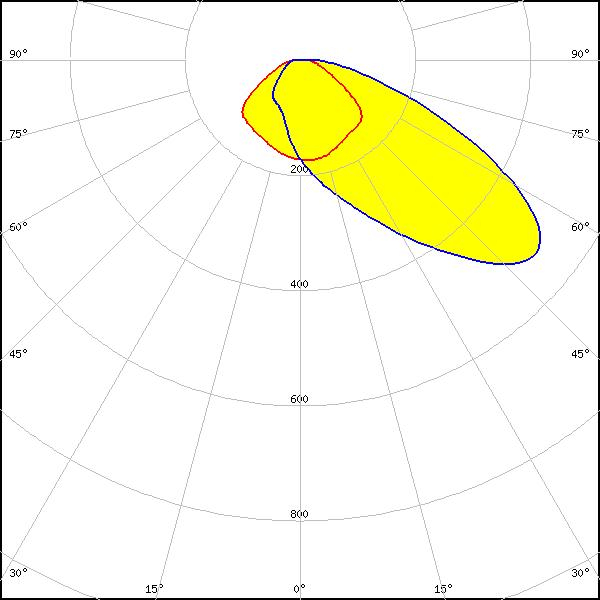

    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 0.540 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

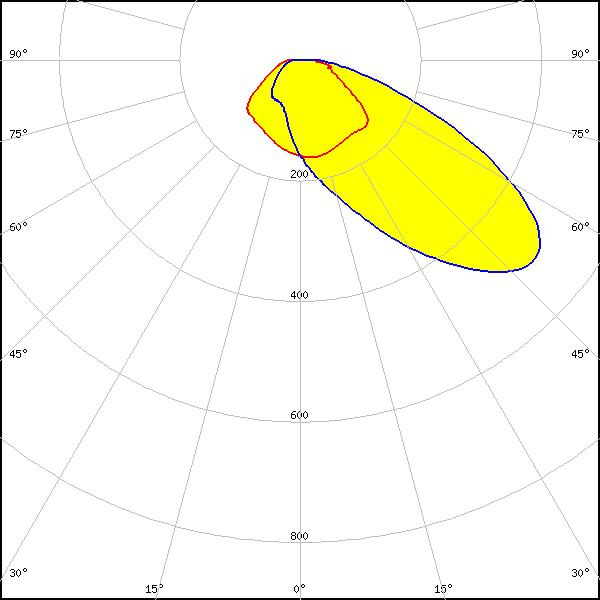

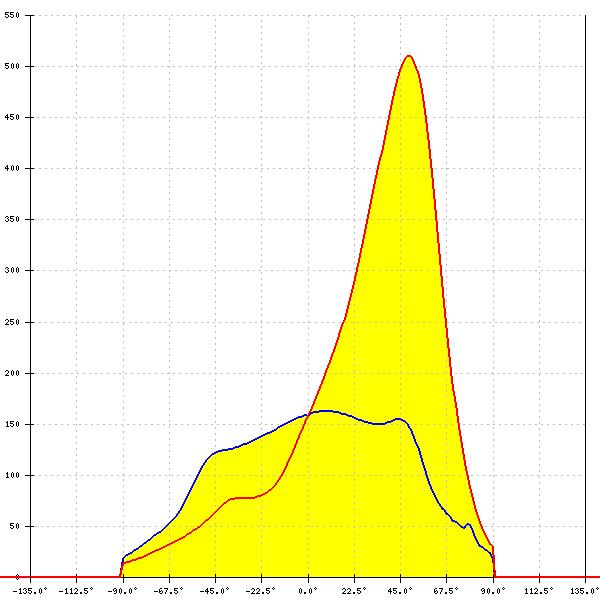

    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 0.530 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

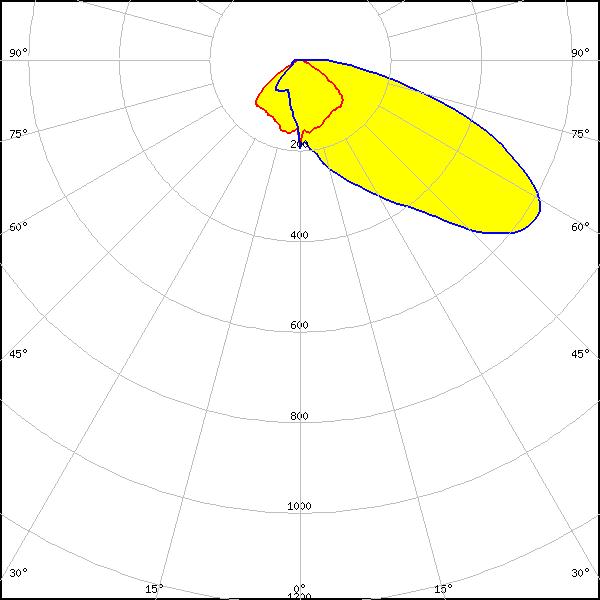

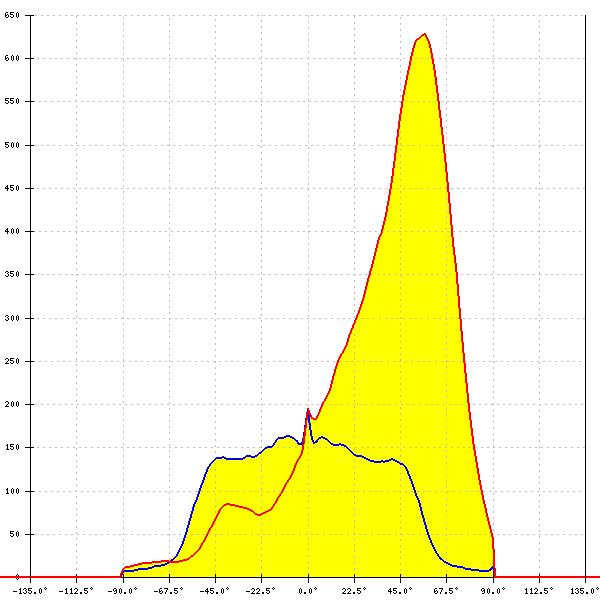

    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 0.648 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

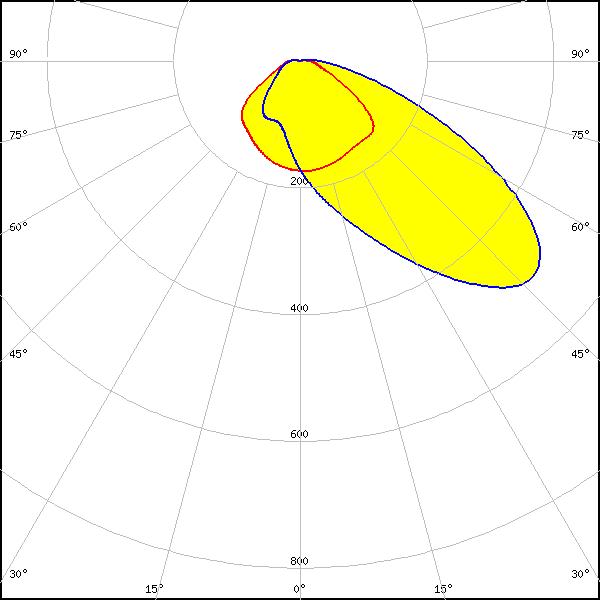

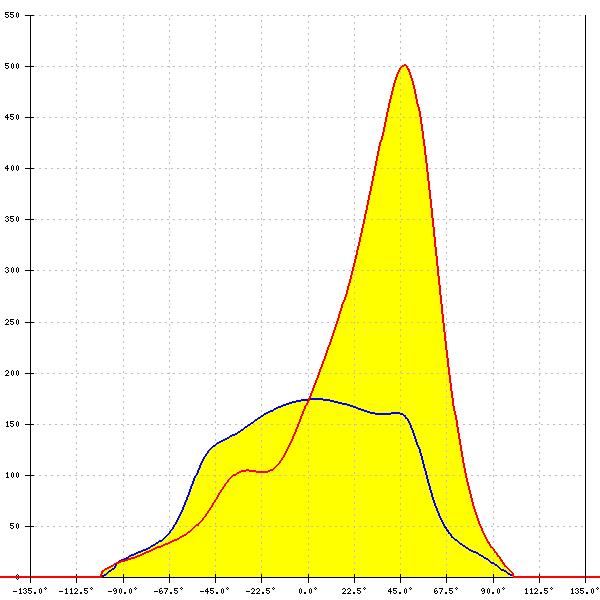

    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 0.510 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

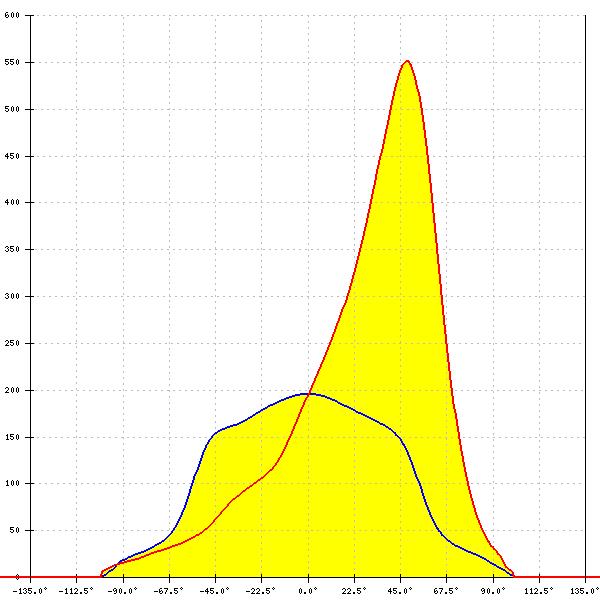

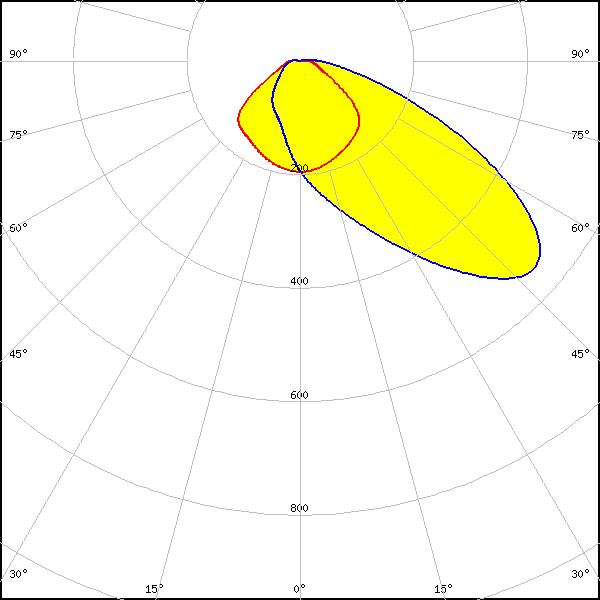

    LED: LH351Z
    FWHM: asymmetric
    Peak intensity: 0.550 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
