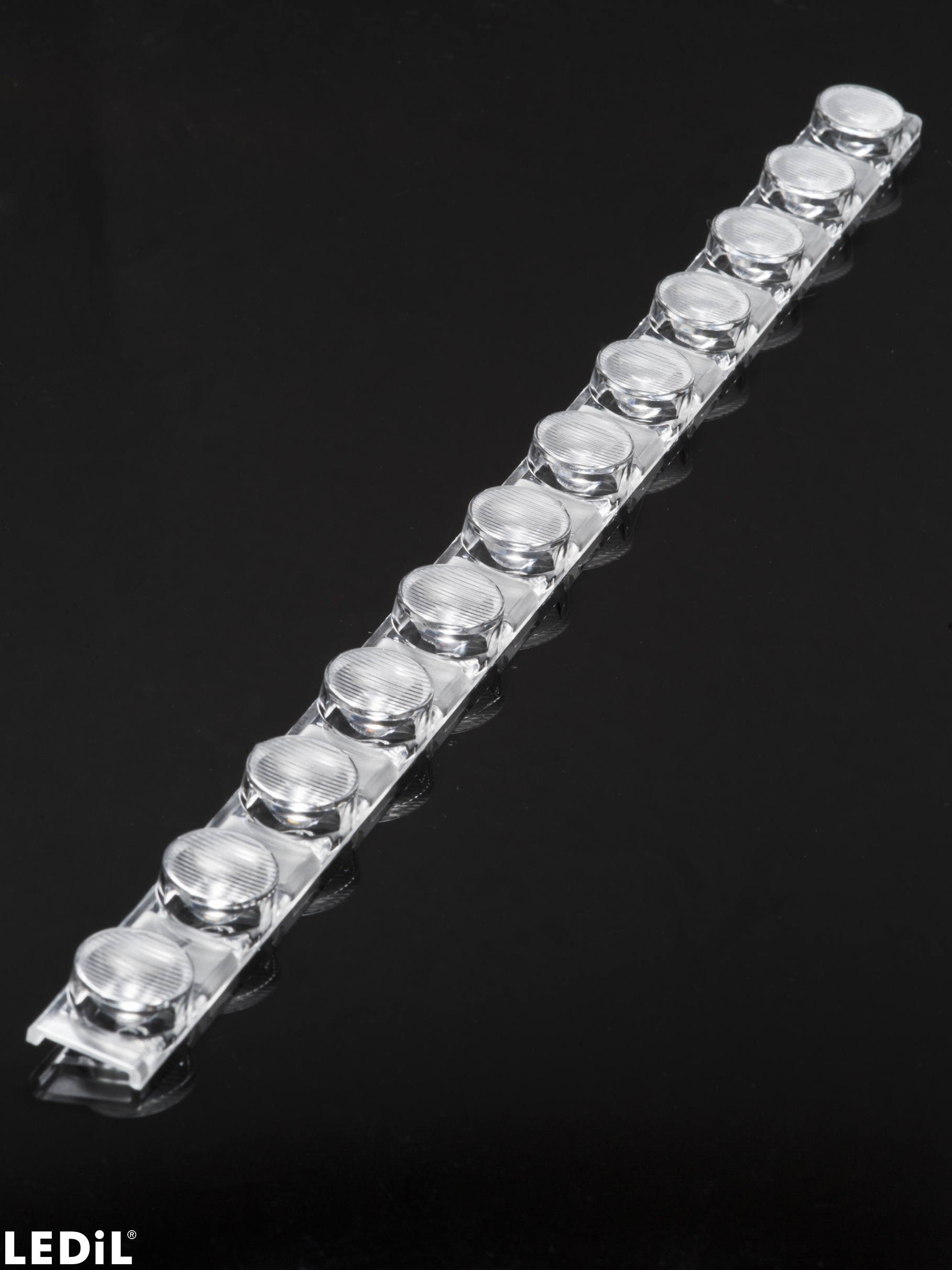

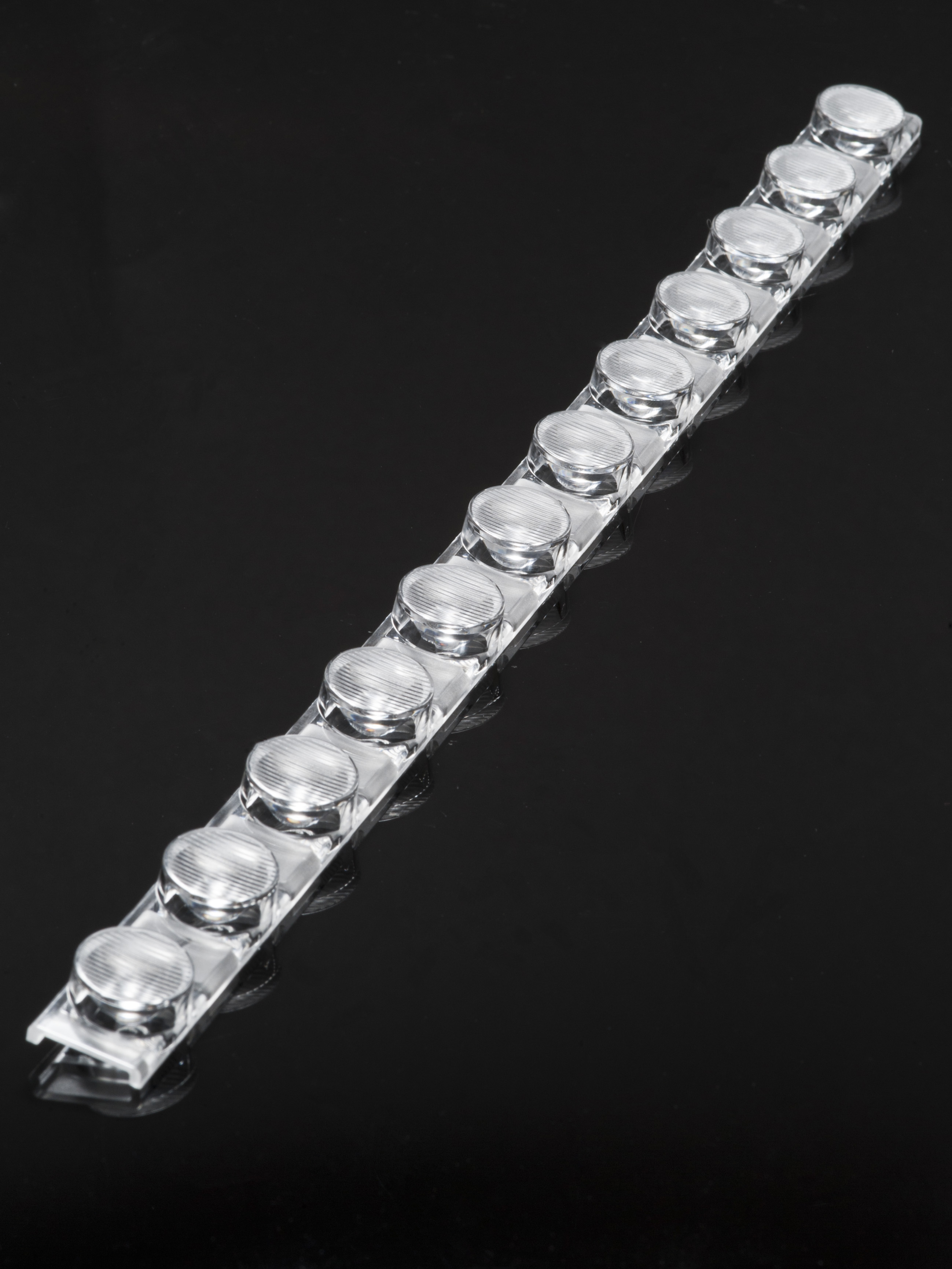

    C13460_VANESSA-O

    Print

    ~45° + 20° oval beam

    Specification
    • Dimensions:
      295 x  16 mm
    • Height:
      8.00 mm
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      448 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      11.3 kg
    • MPQ:
      14 pcs
    • MOQ:
      84 pcs
    • MOQ size:
      360 x 350 x 80 mm
    • MOQ weight:
      2.4 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C13460_VANESSA-O
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Article

    Office luminaire examples from LEDiL

    Application example

    Reception lighting with FLORENTINA, MOLLY and VANESSA

    Application example

    Office meeting room lighting with DAISY

    Application example

    Open office lighting with DAISY (Task related)

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Optical results

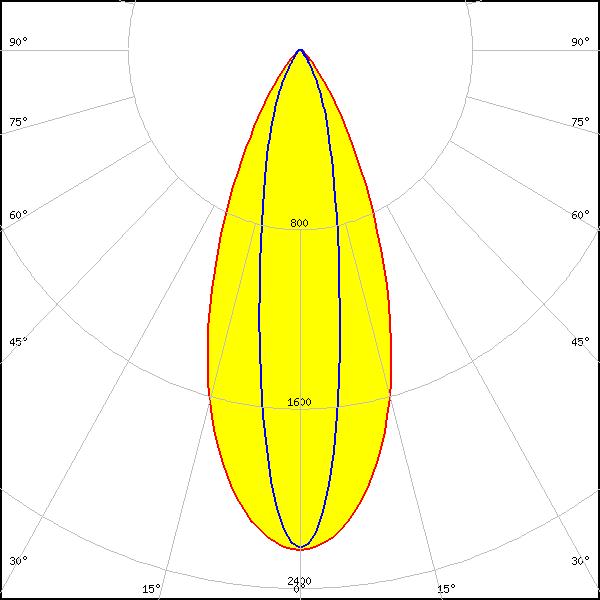

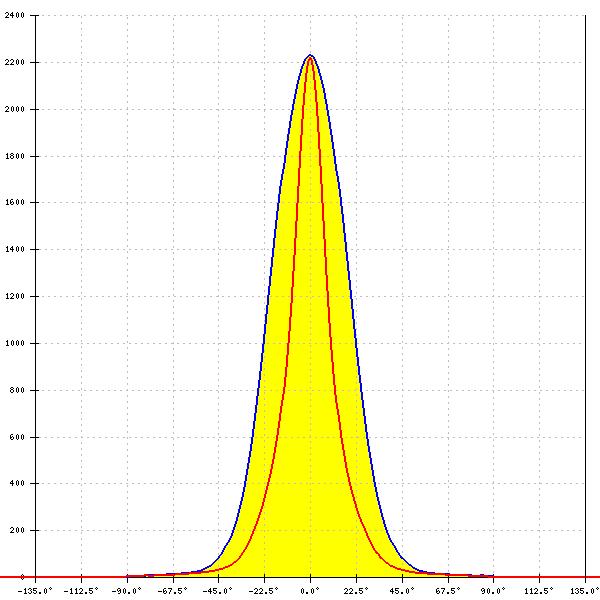

    LED: NF2x757A
    FWHM: 42° + 19°
    FWTM: 73° + 52°
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

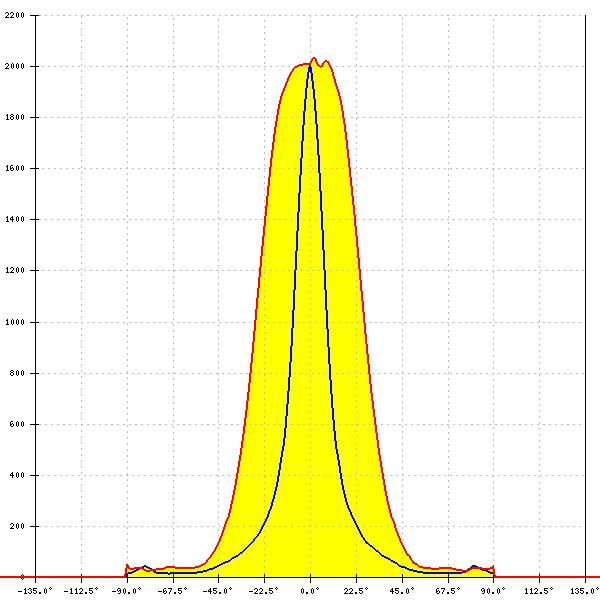

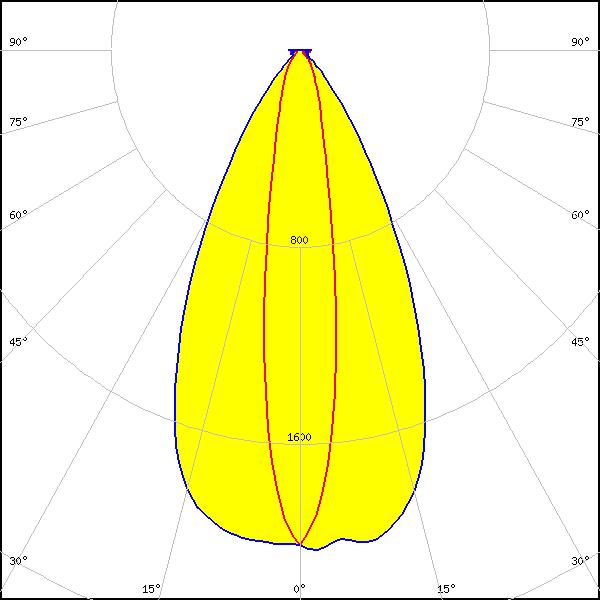

    LED: NVSxE21A
    FWHM: 18° + 54°
    FWTM: 46° + 82°
    Peak intensity: 2.060 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

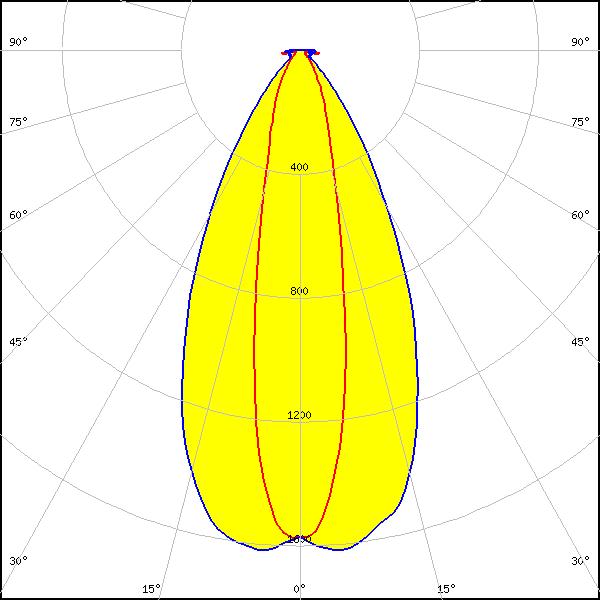

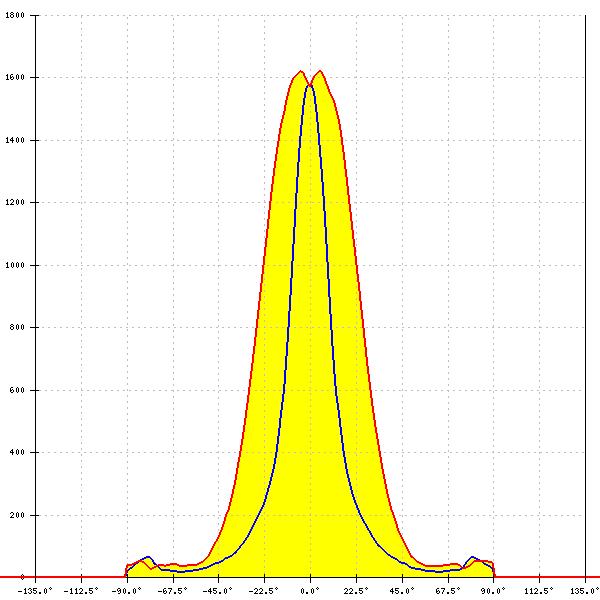

    LED: Z8Y22
    FWHM: 22° + 52°
    FWTM: 56° + 86°
    Peak intensity: 1.644 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
