    C13300_STRADA-2X2-T2

    Print

    IESNA Type II (medium) beam applicable for European P-class standard pedestrian lighting and M-class roads

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      7.70 mm
    • Fastening:
      glue, pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.3 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.9 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C13300_STRADA-2X2-T2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    STRADA-2X2-SHD – Blocks backlight in 20+ LEDiL lenses

    PCN

    Product change notification NR118a - Change of packaging quantities and packaging type 200416

    Application area

    Urban lighting with LEDiL optics

    Application example

    Urban lighting with LEDiL optics

    Application guide

    LEDiL guide for street lighting optics

    Reference product

    Bollard lamp for urban environments

    Case story

    Naberezhne Highway in Kiev

    Application area

    Industrial Lighting

    Installation guide

    STRADA-2X2 Installation guide

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    AVAILABLE LEDiL ACCESSORIES

    STRADA-2X2-SHD-WHT

    White shade for additional backlight control.

    STRADA-2X2-SHD-BLK

    Black shade for additional backlight control.

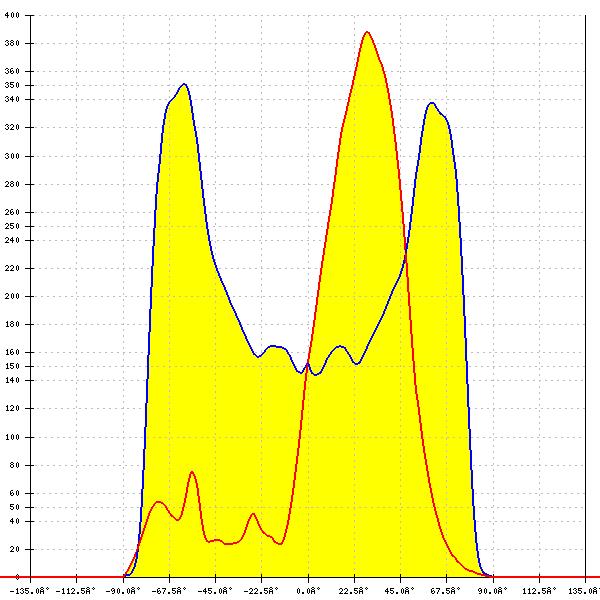

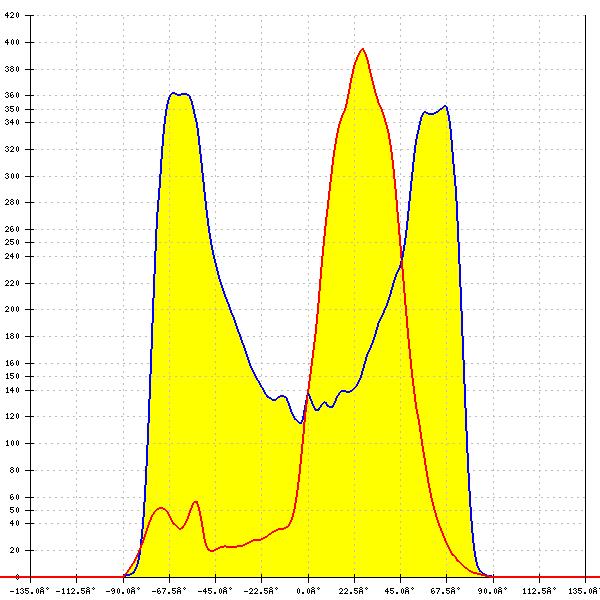

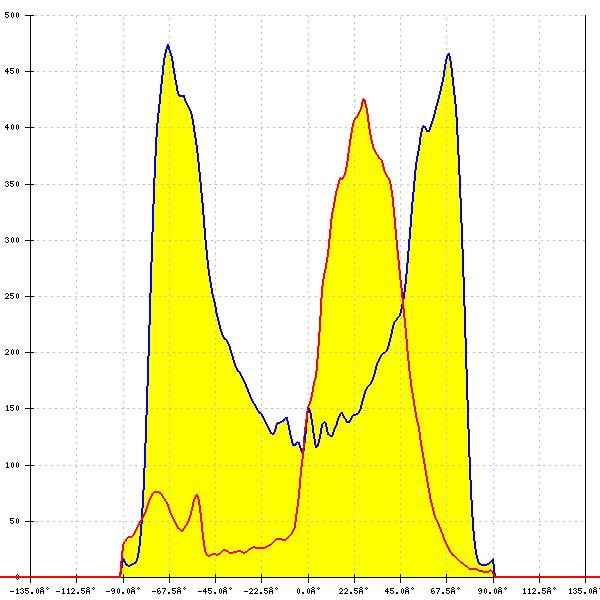

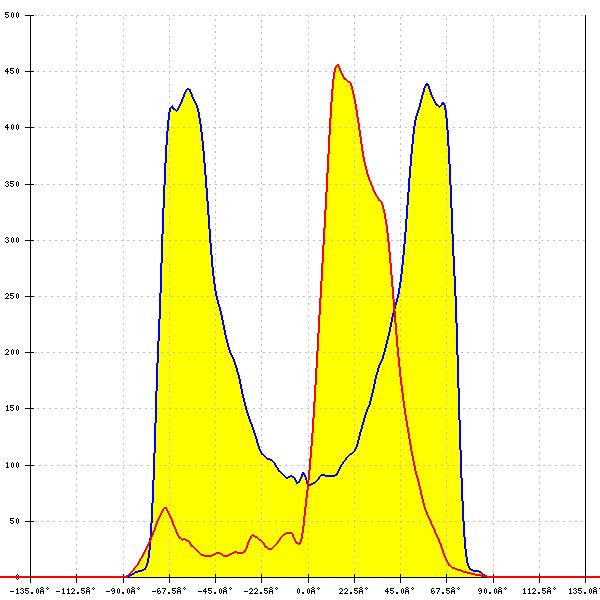

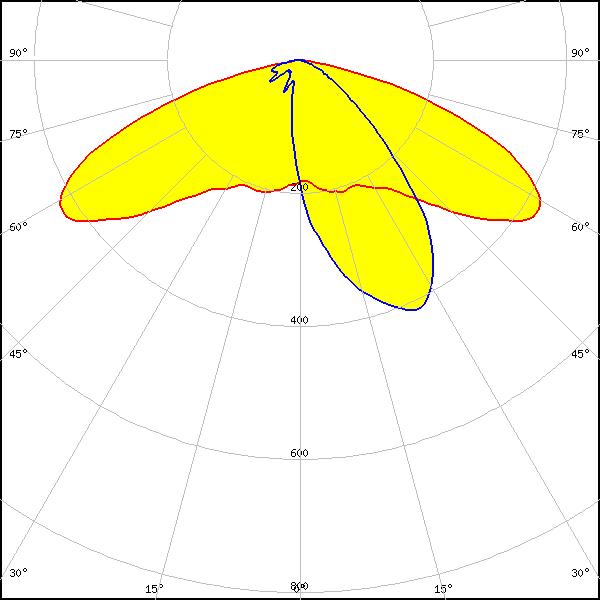

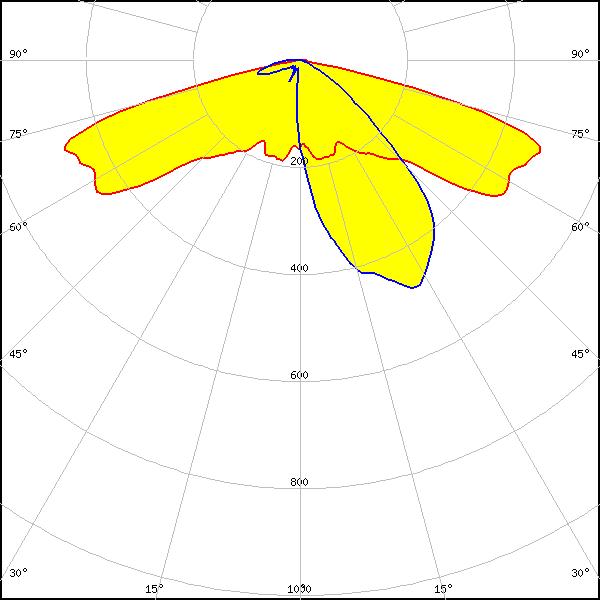

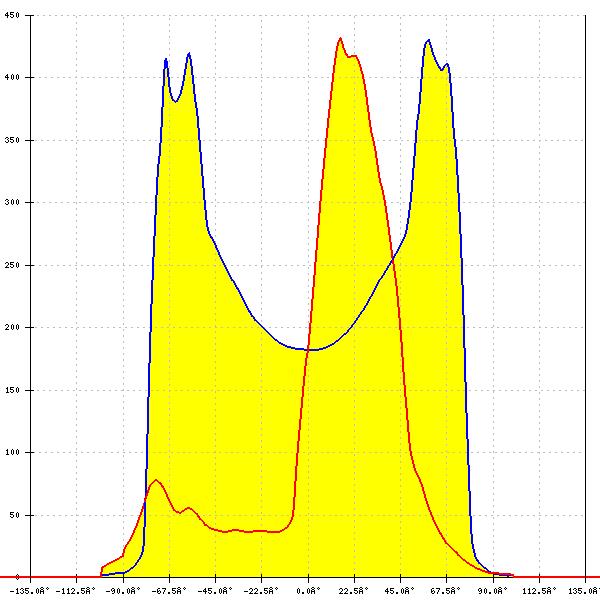

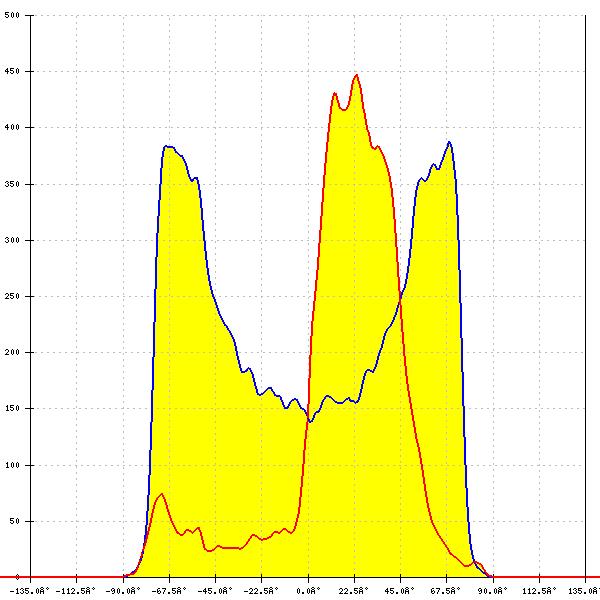

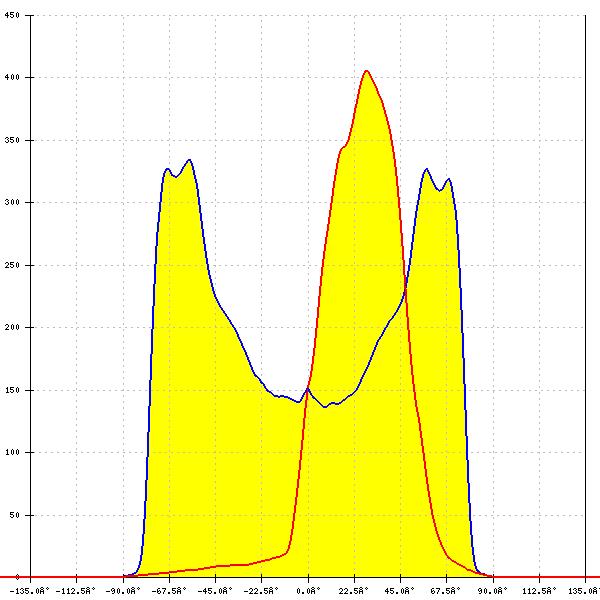

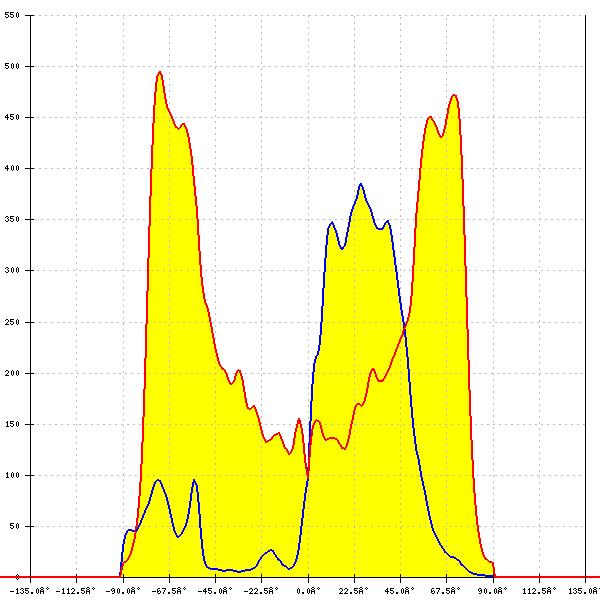

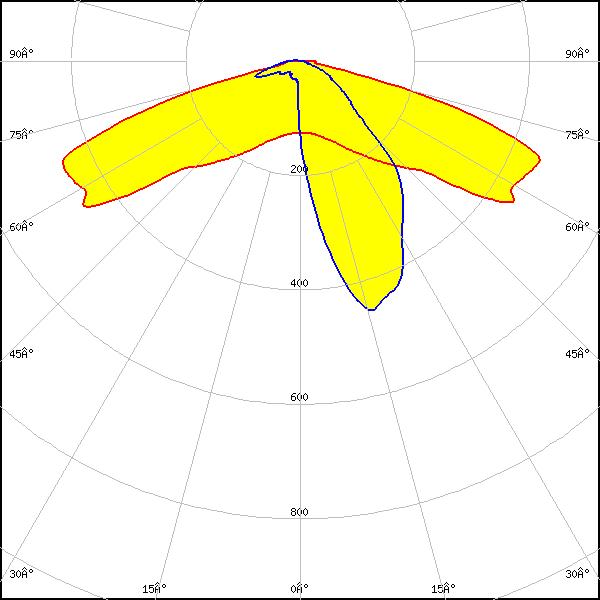

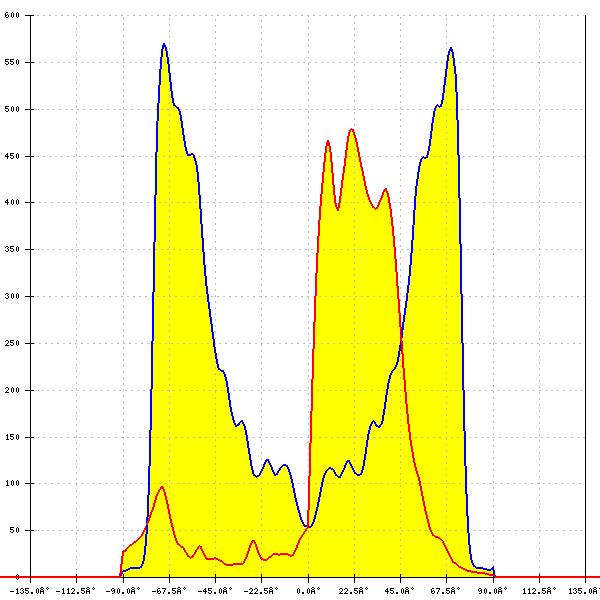

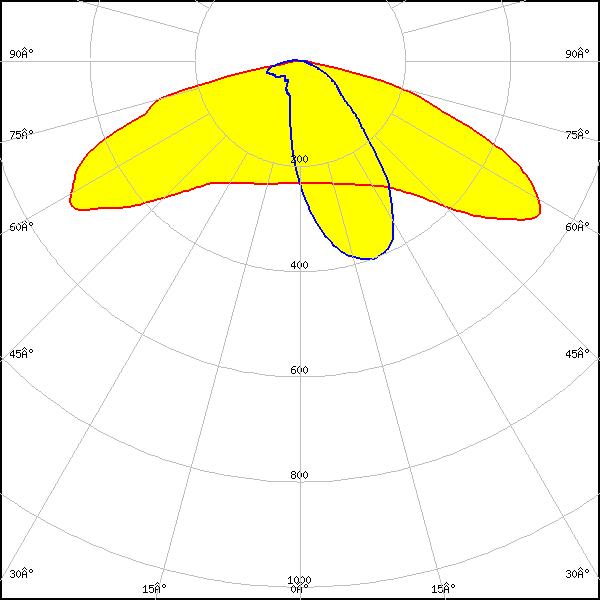

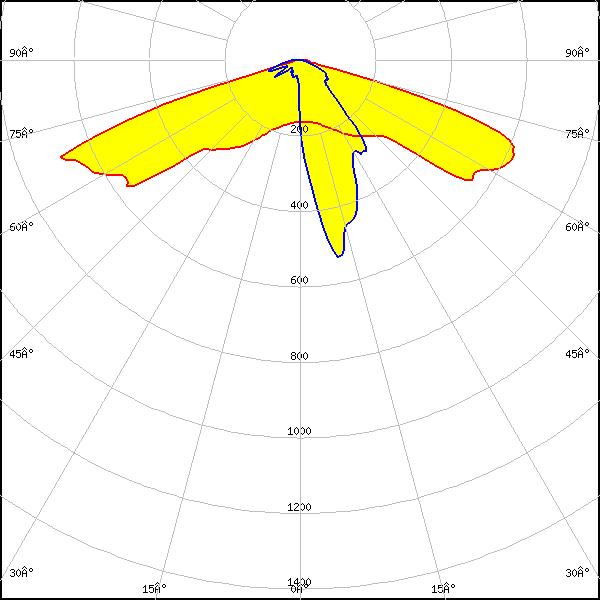

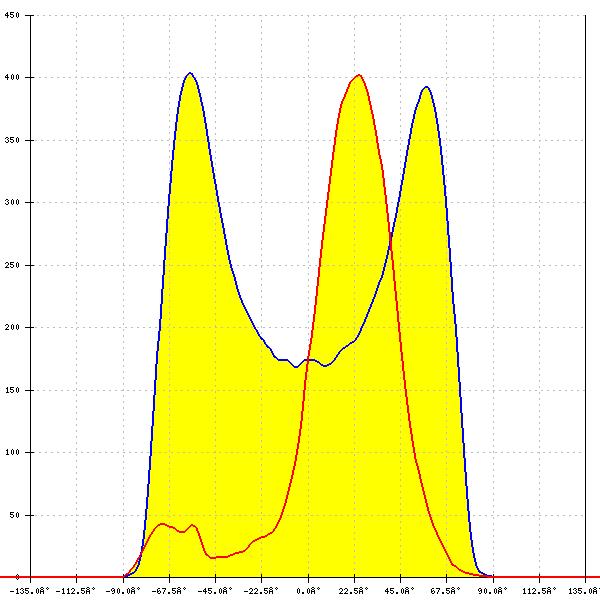

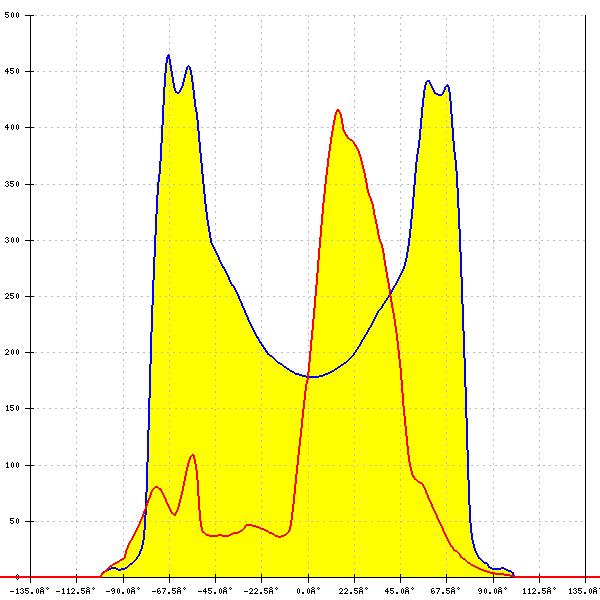

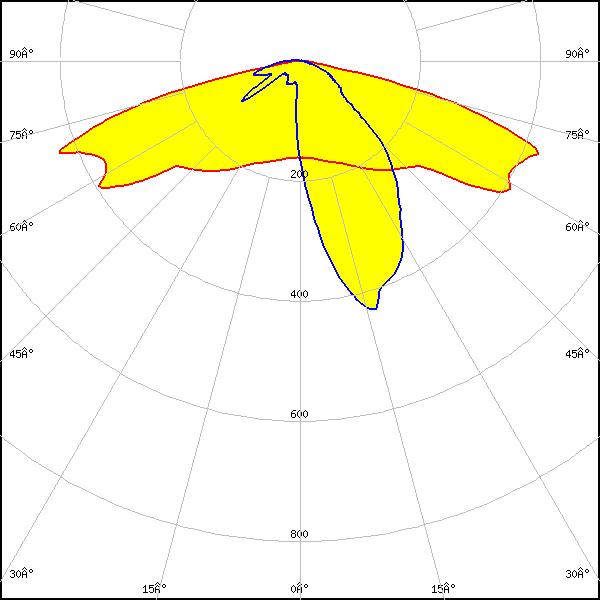

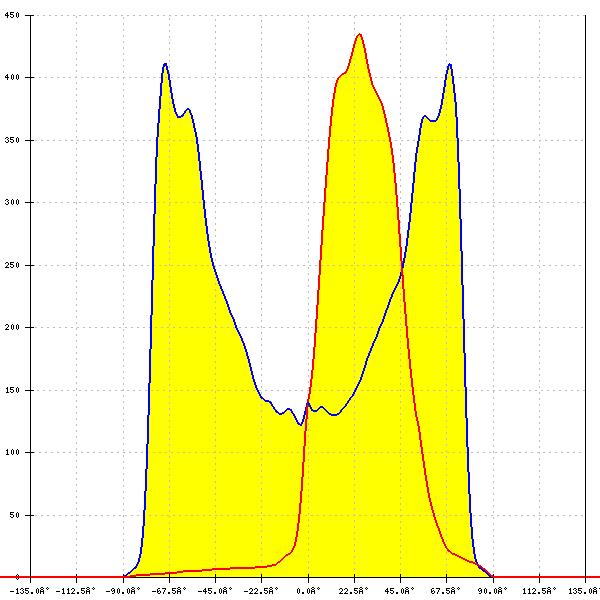

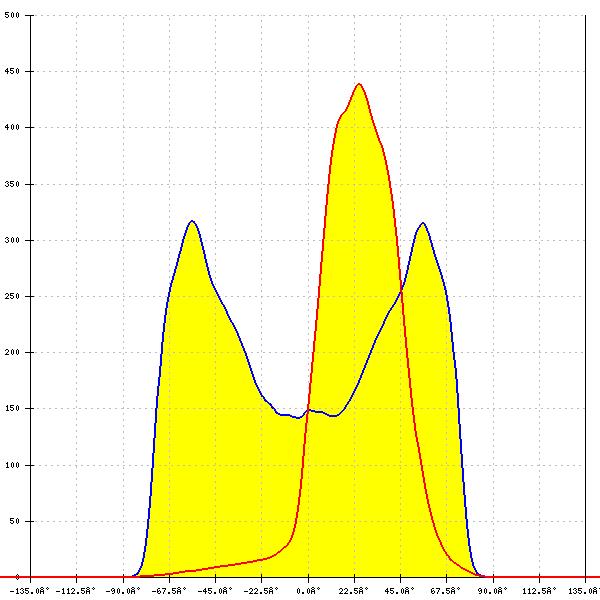

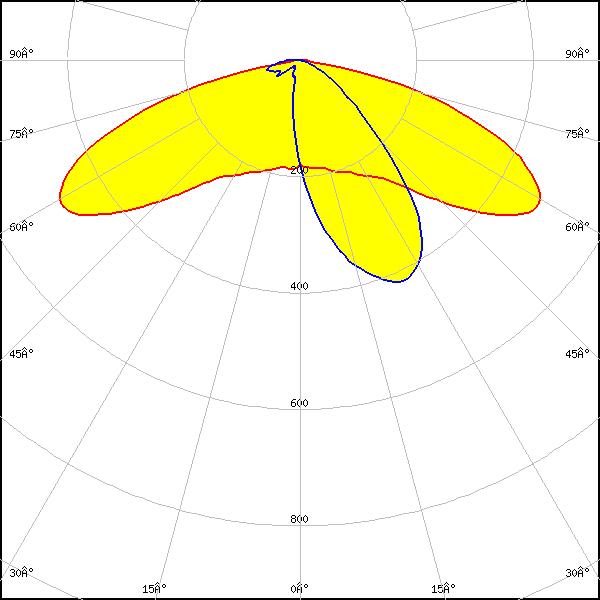

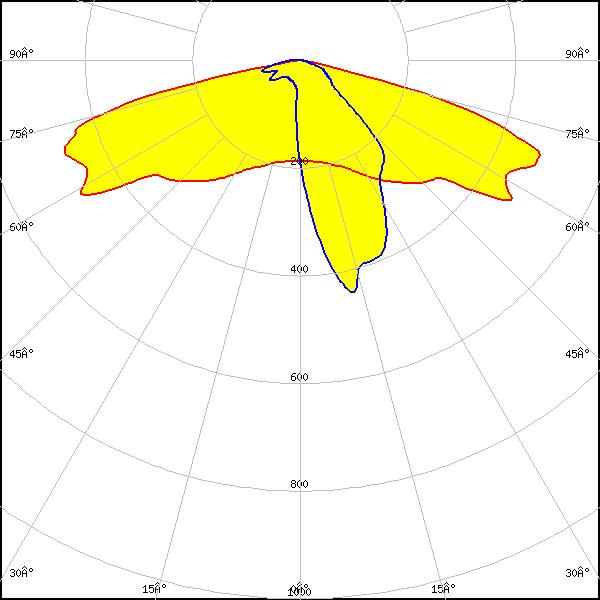

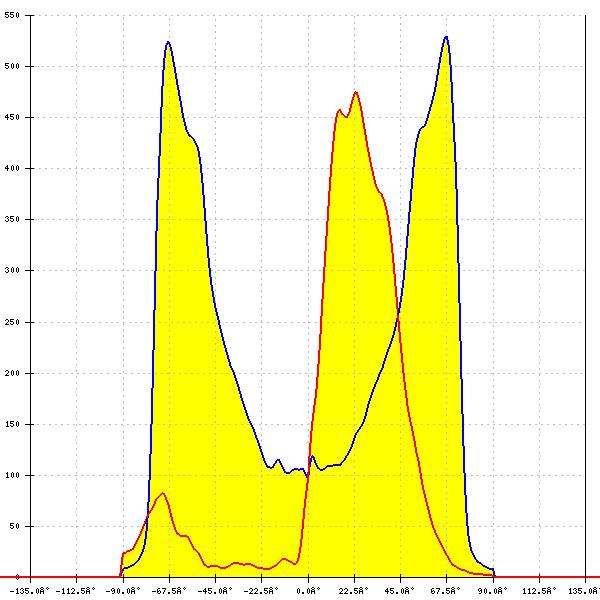

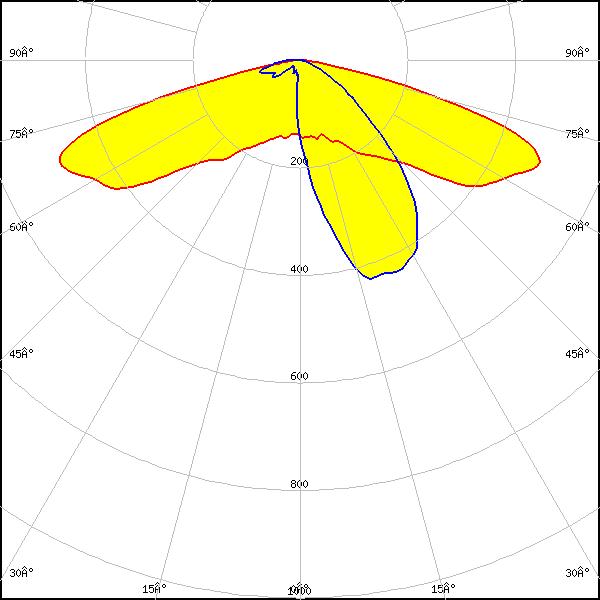

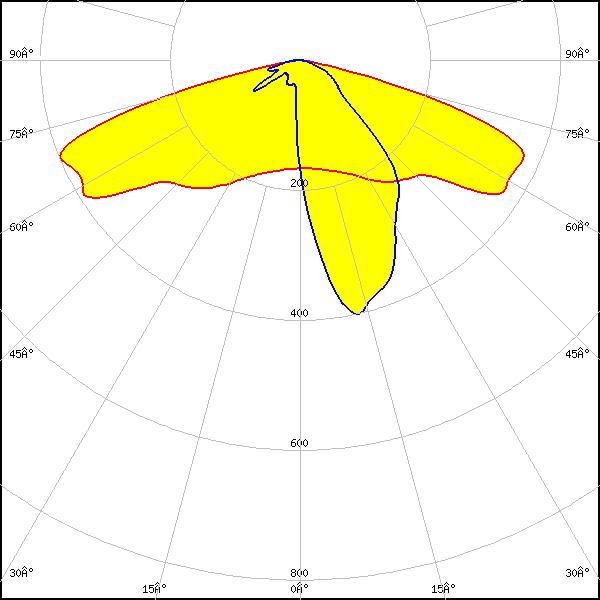

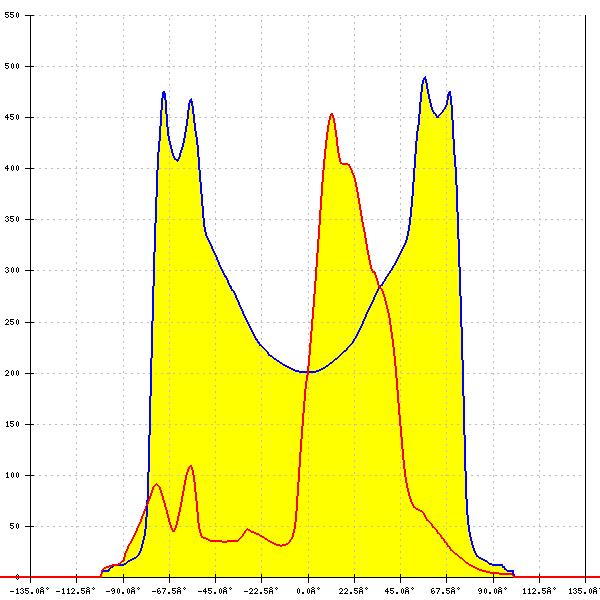

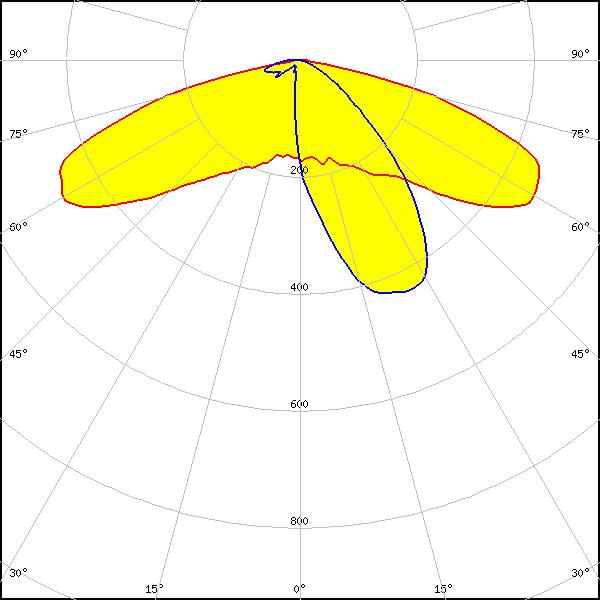

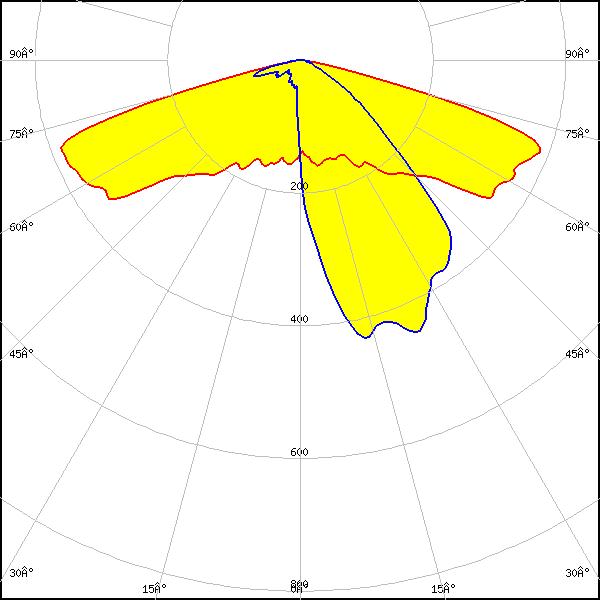

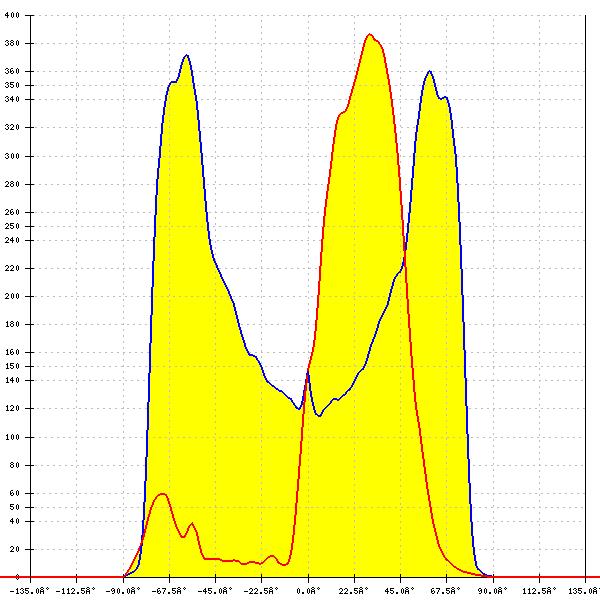

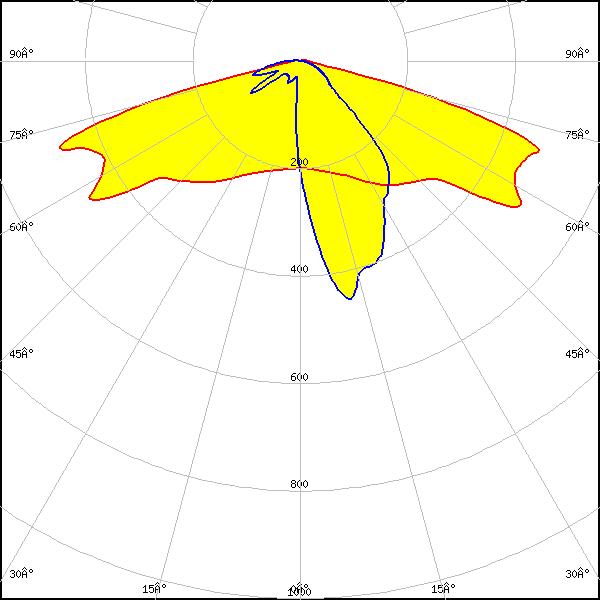

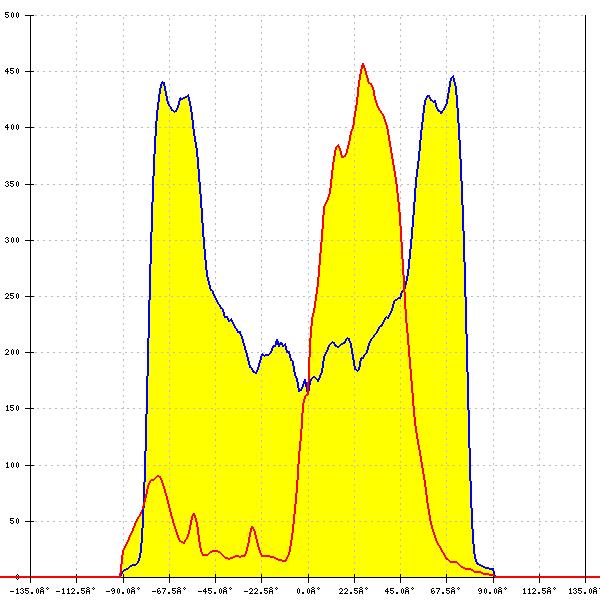

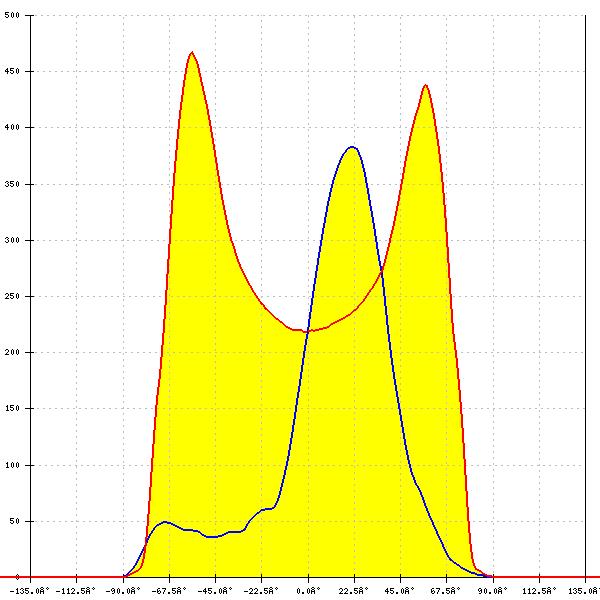

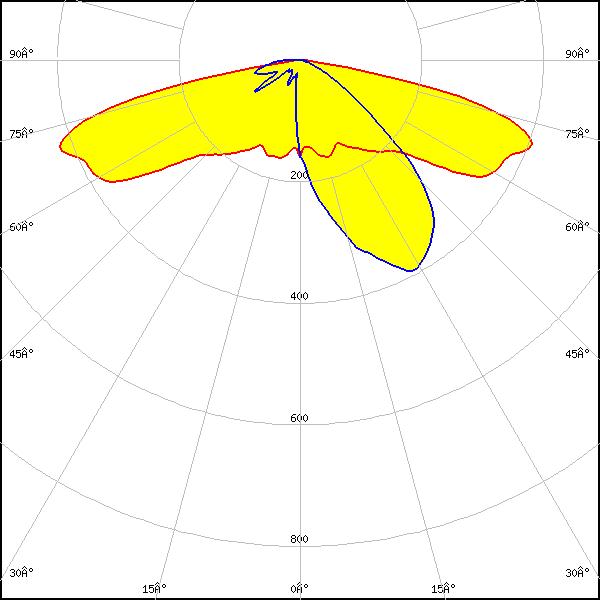

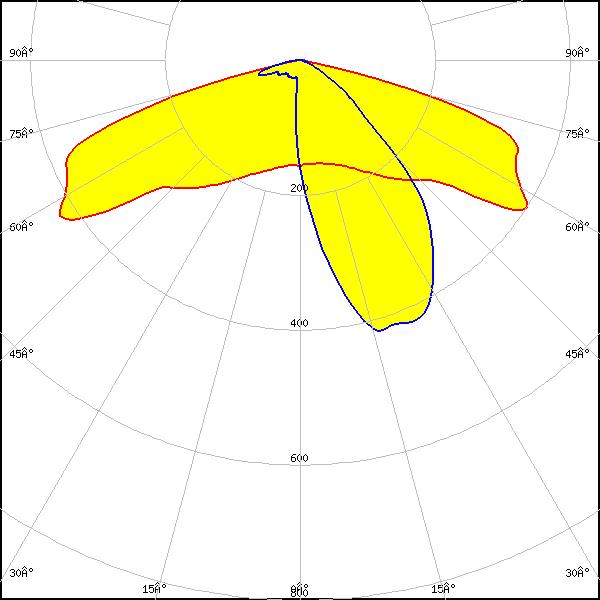

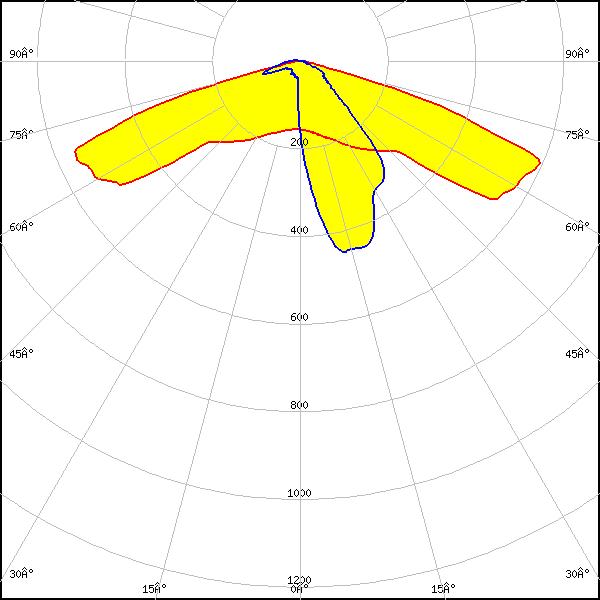

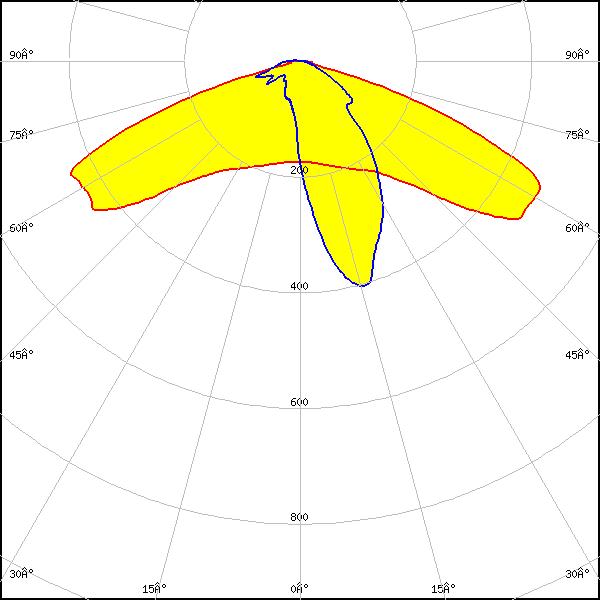

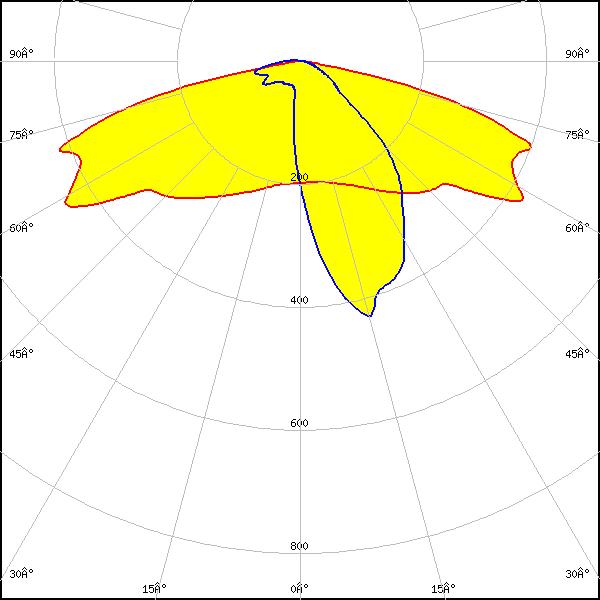

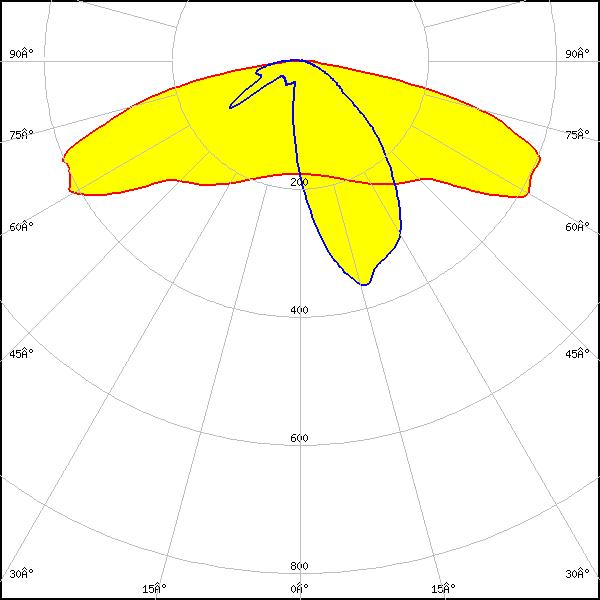

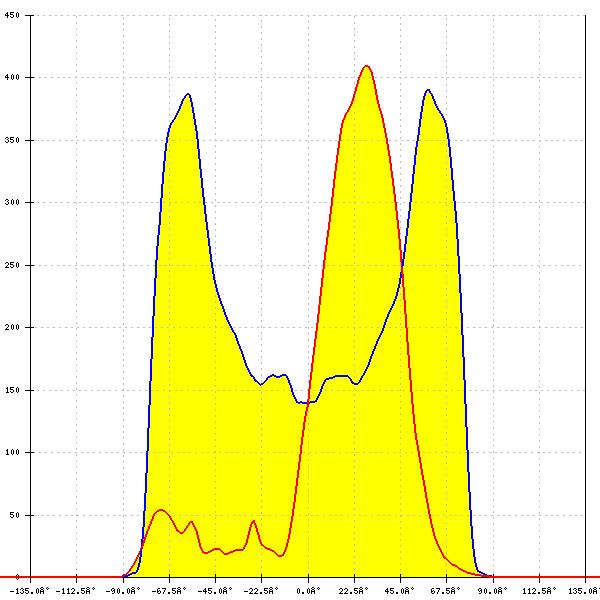

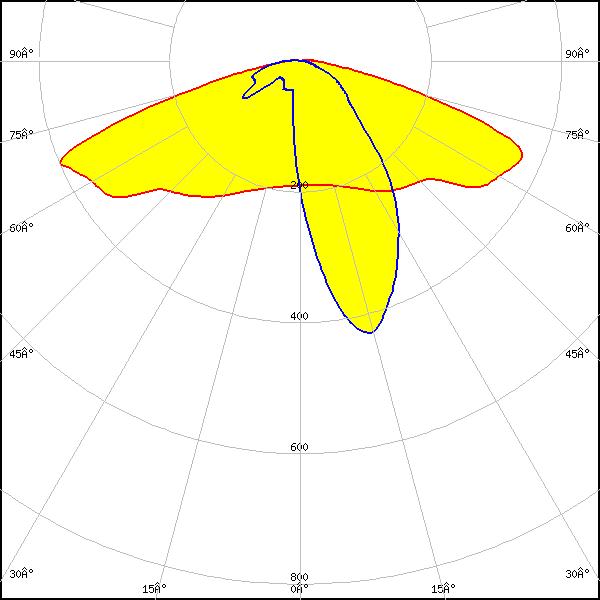

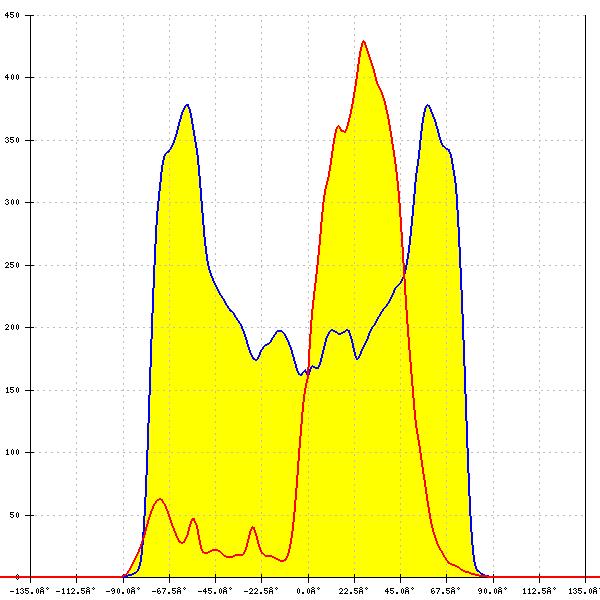

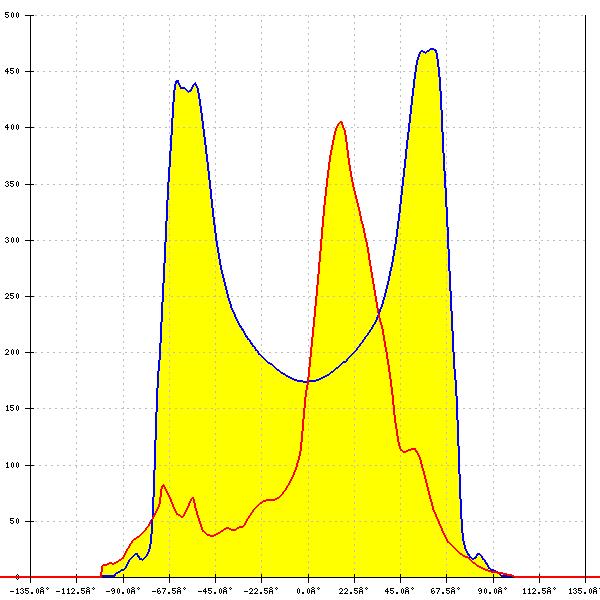

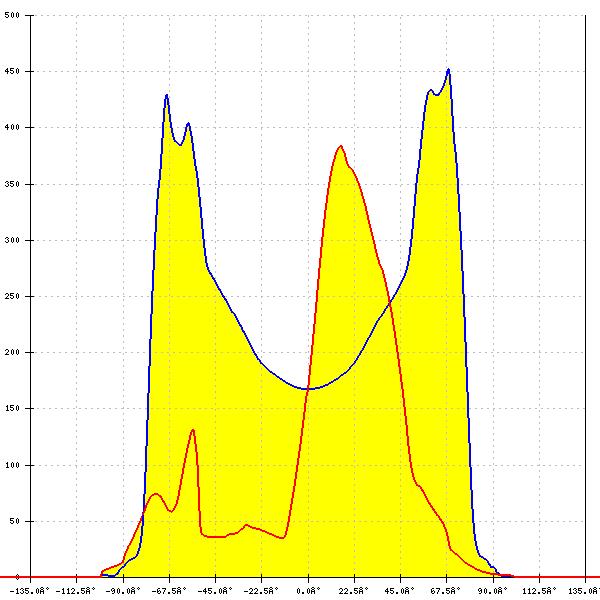

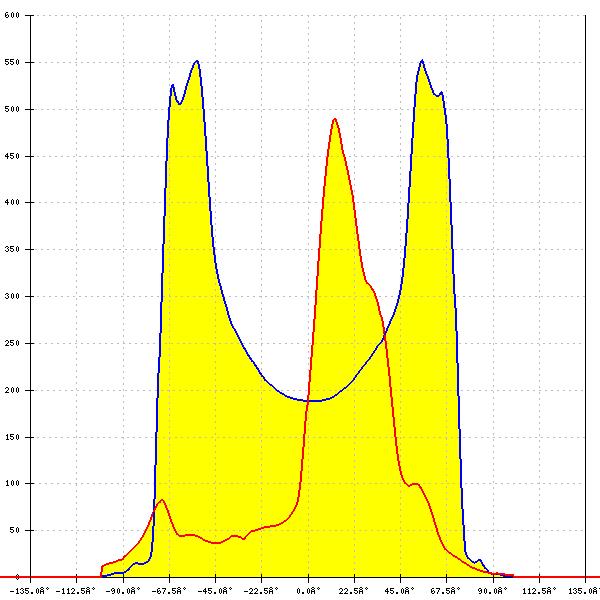

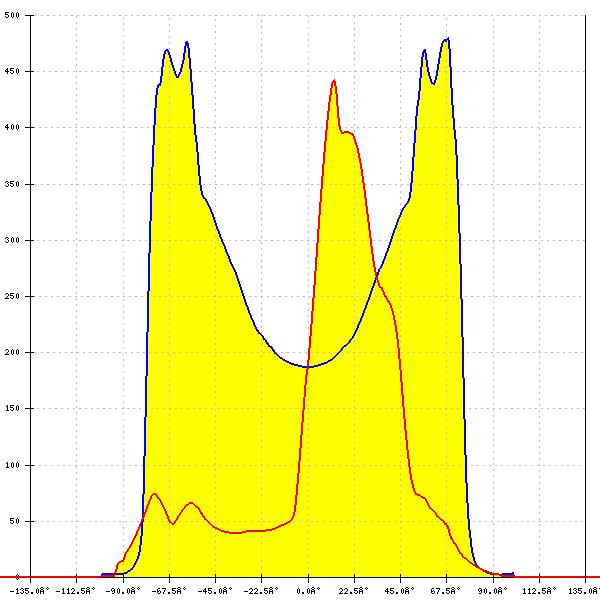

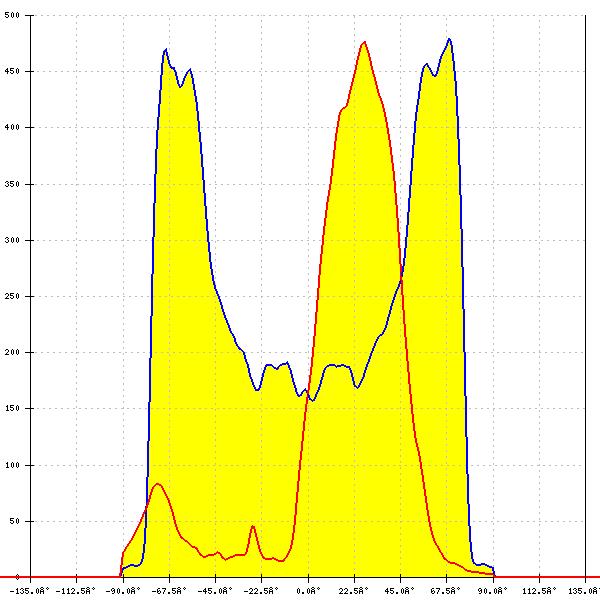

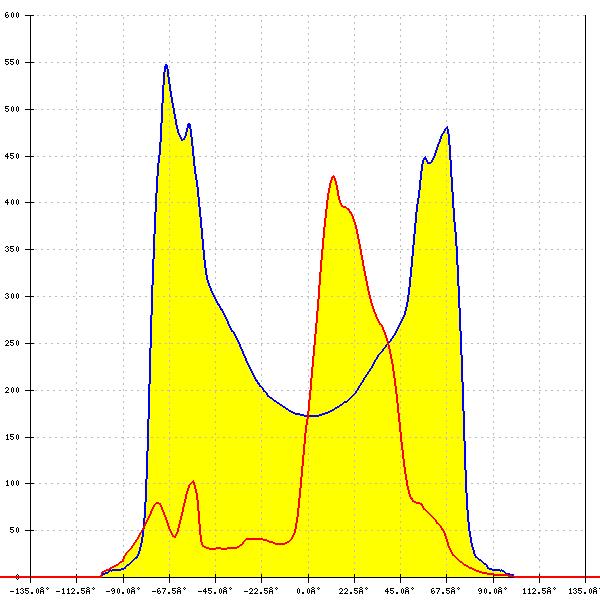

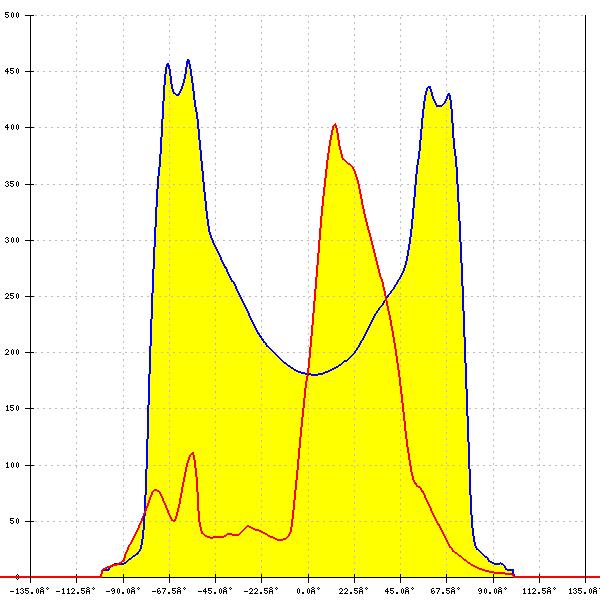

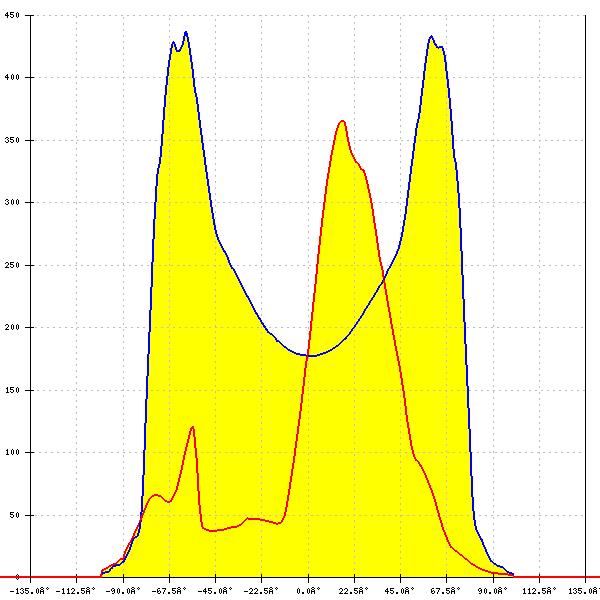

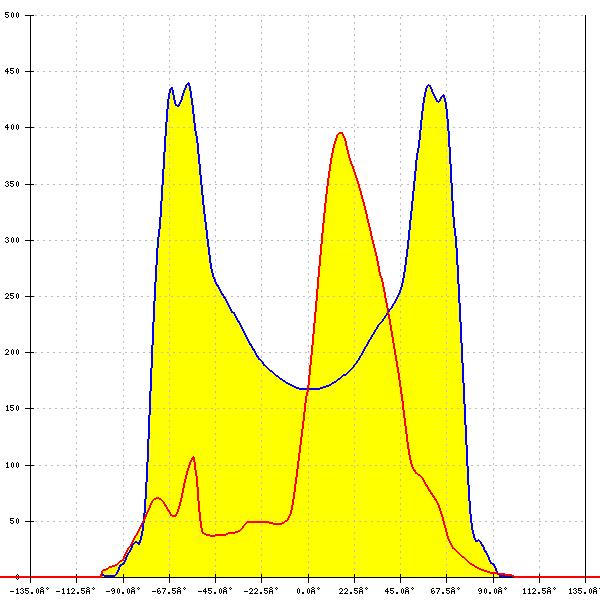

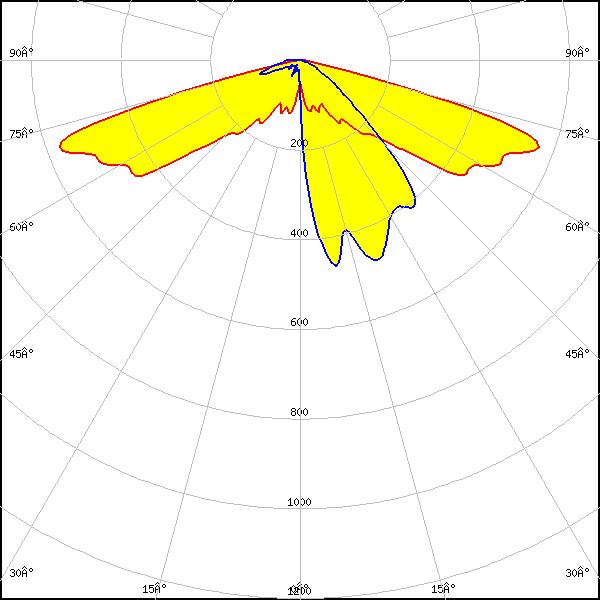

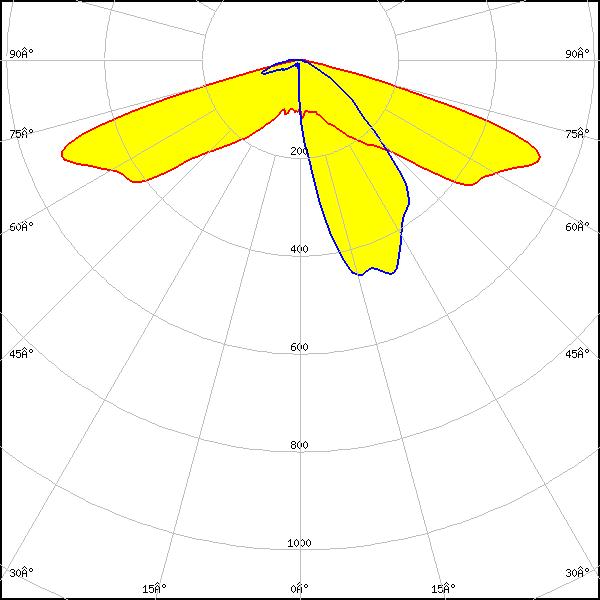

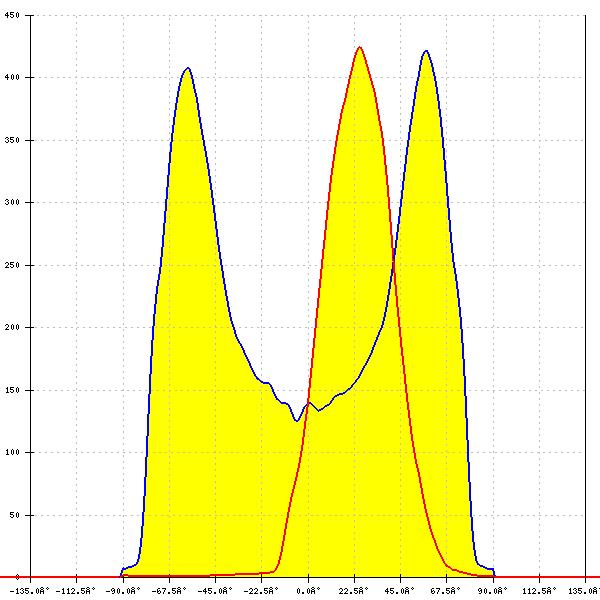

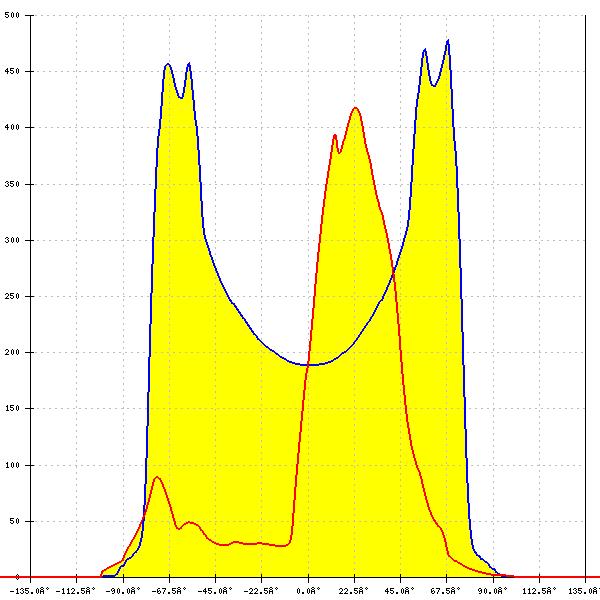

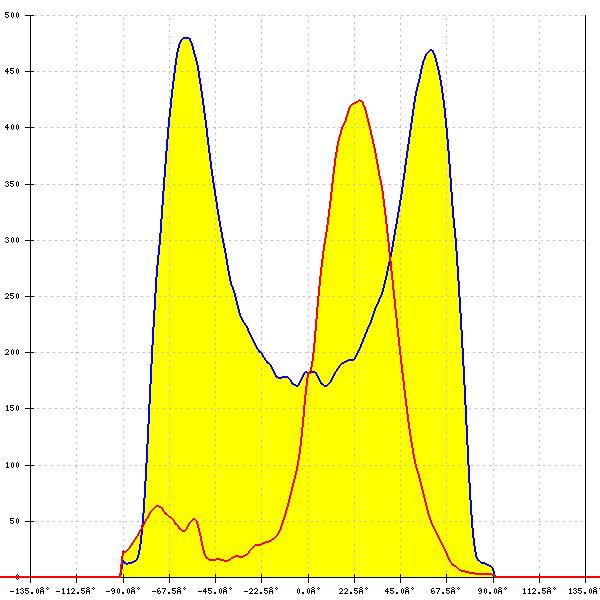

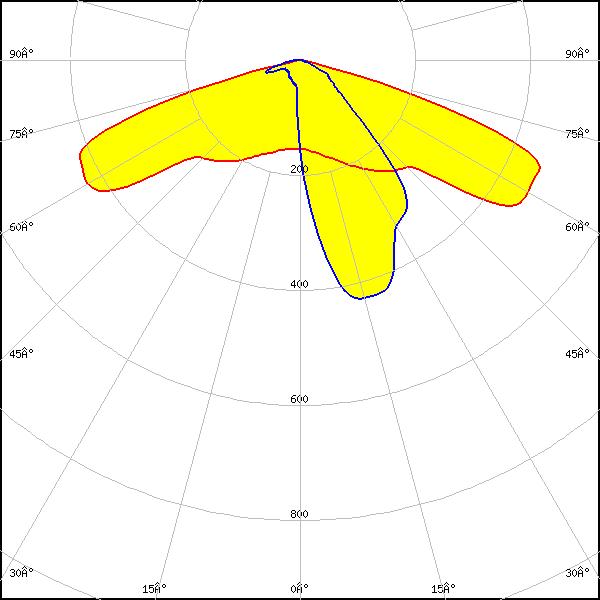

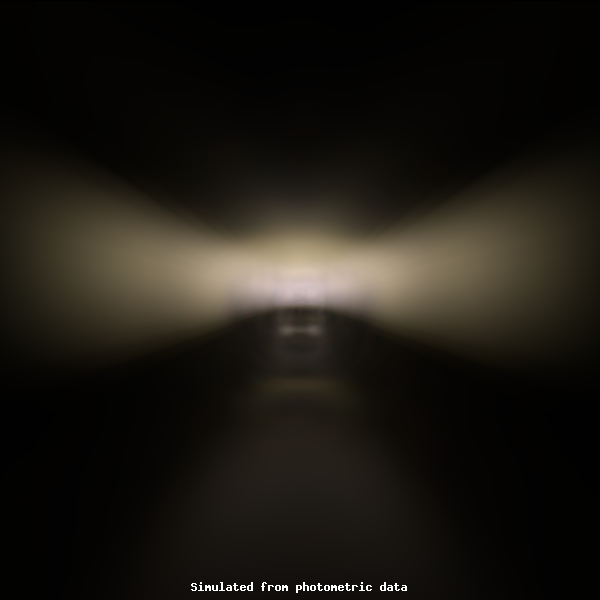

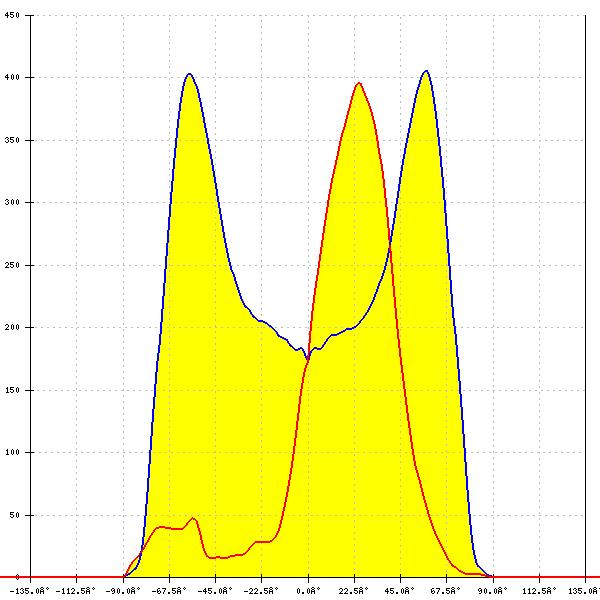

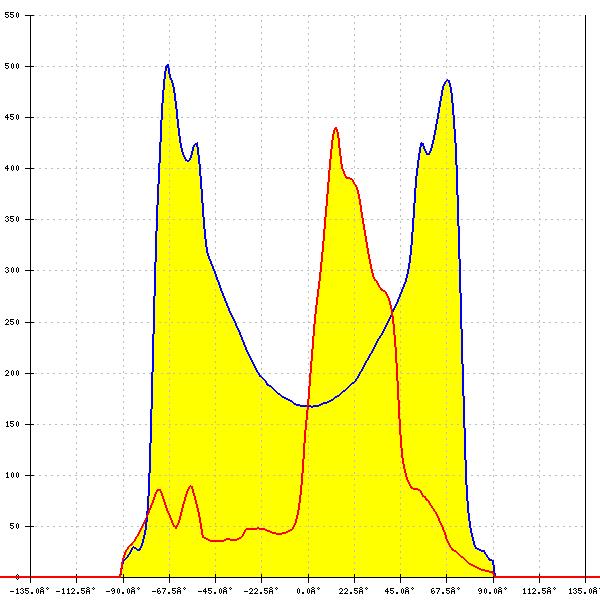

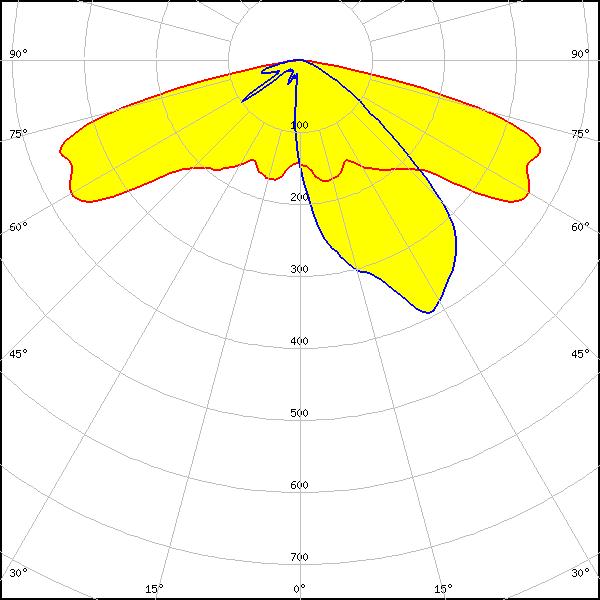

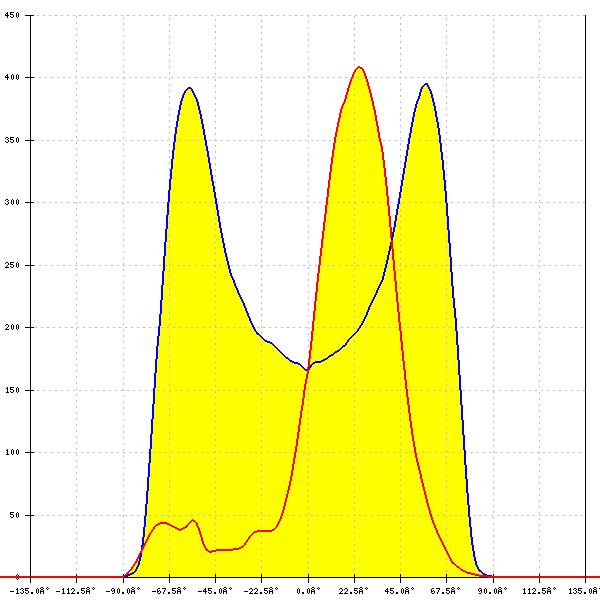

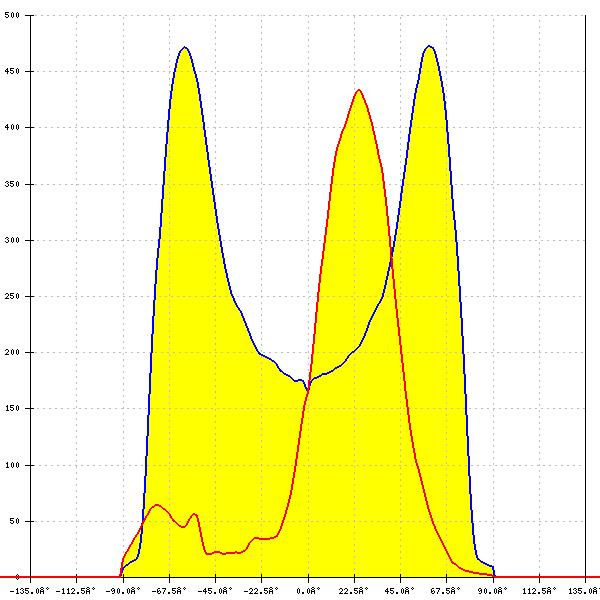

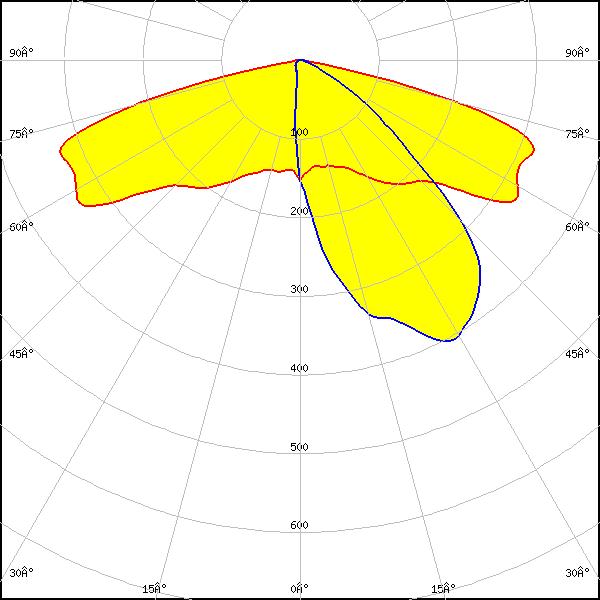

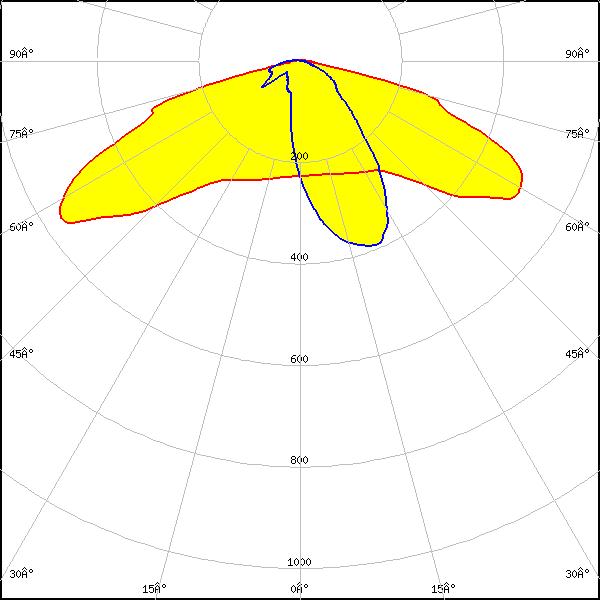

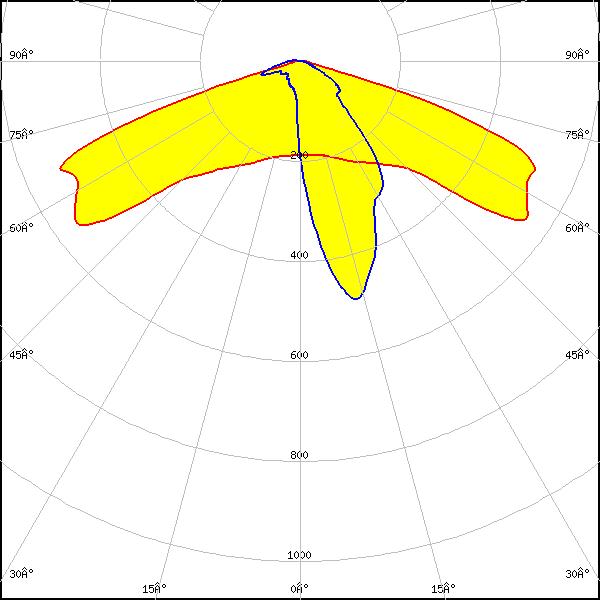

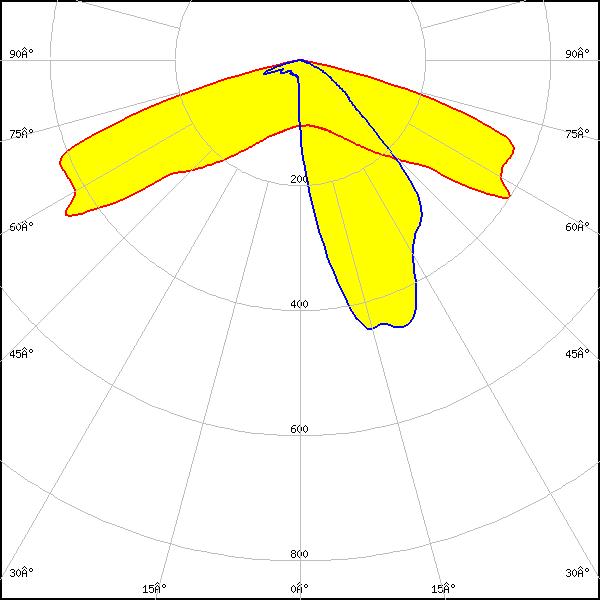

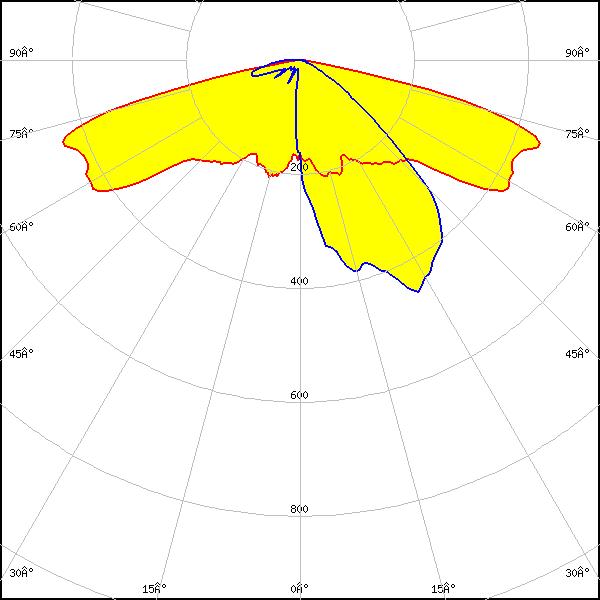

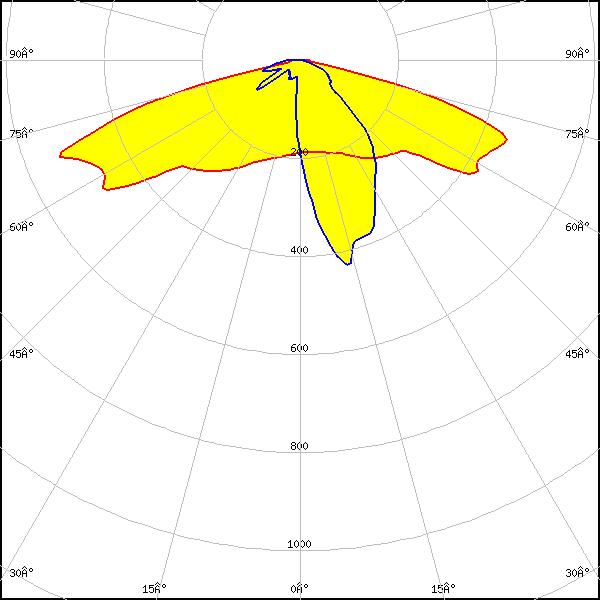

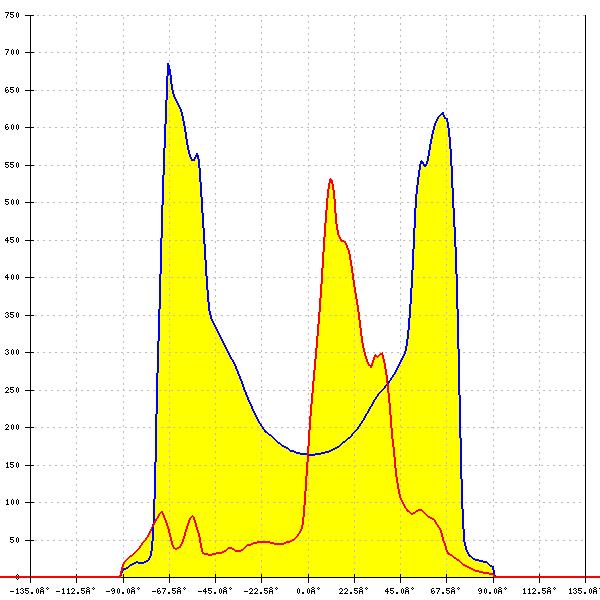

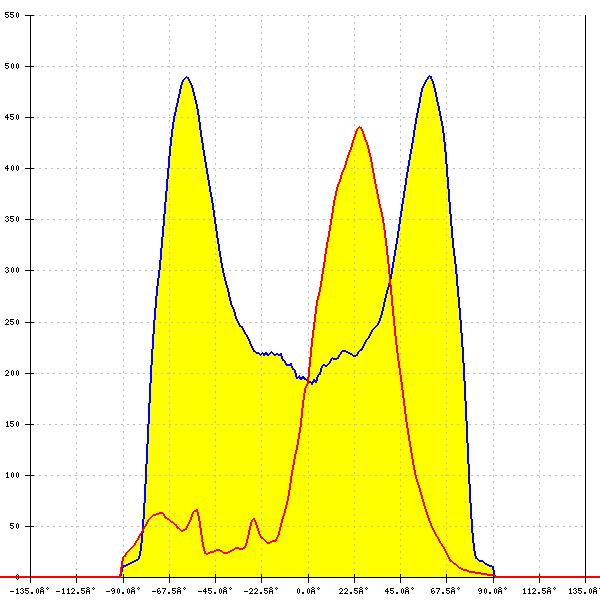

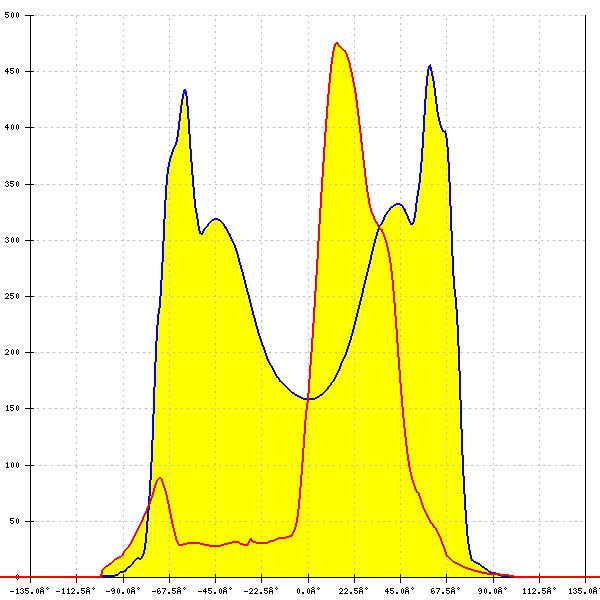

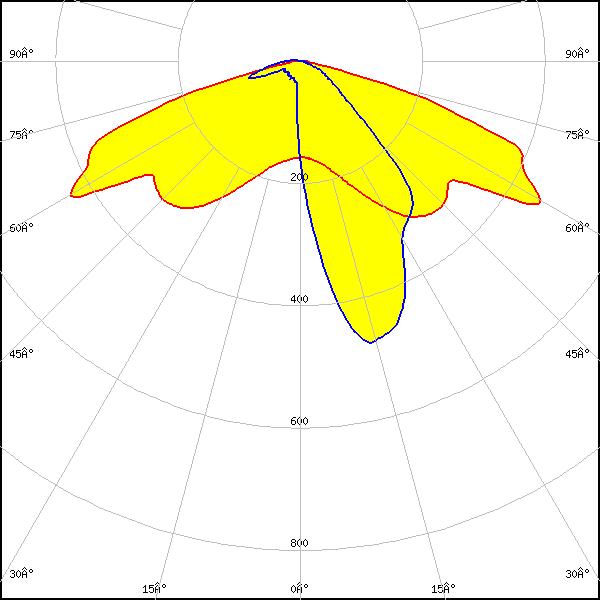

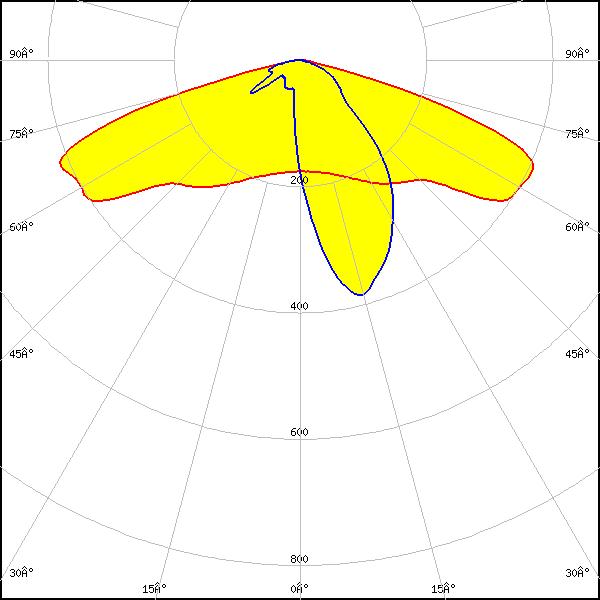

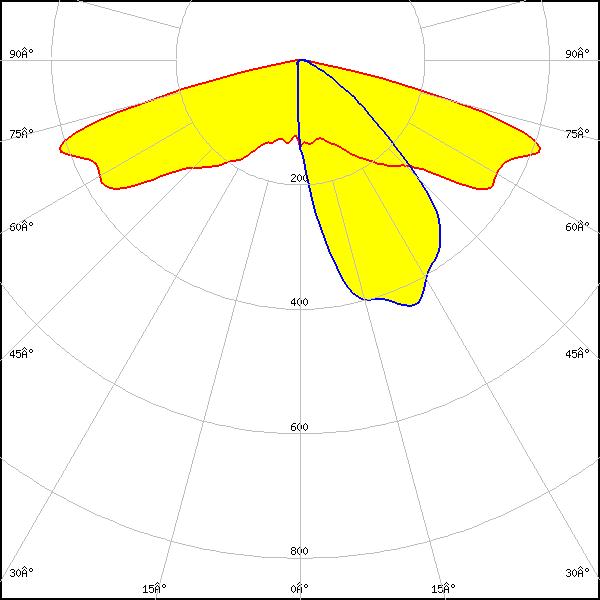

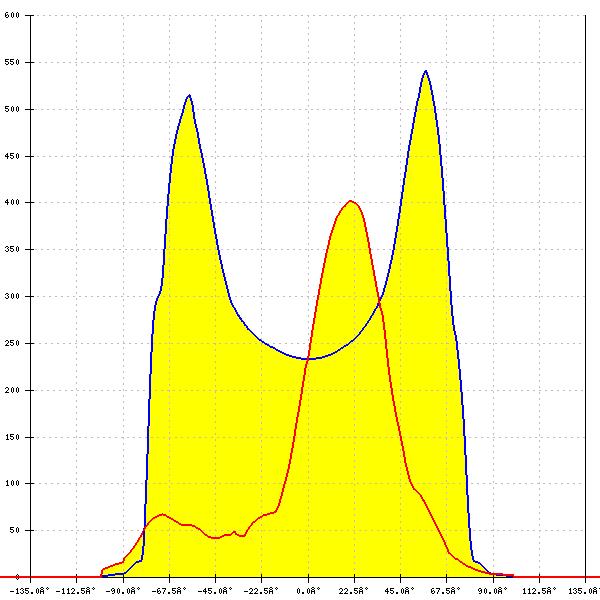

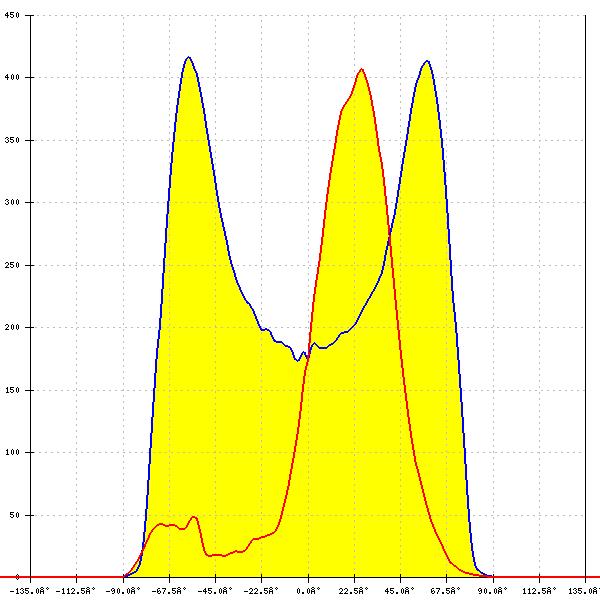

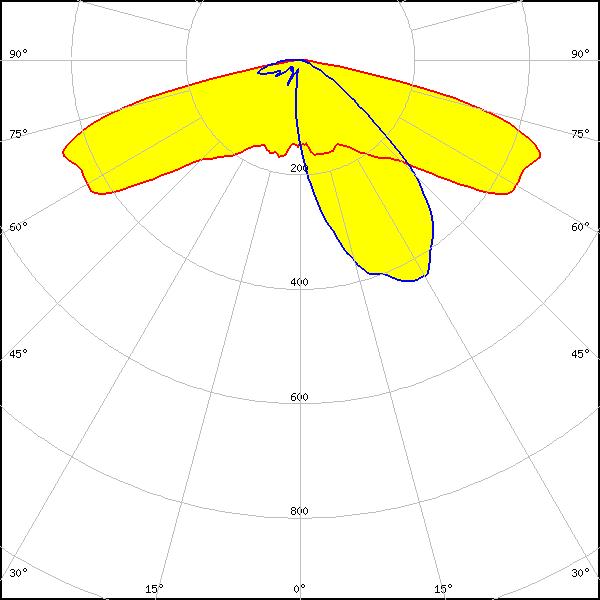

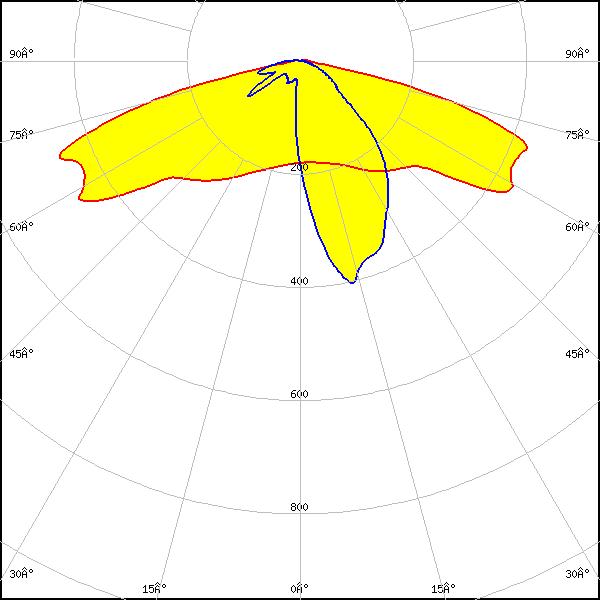

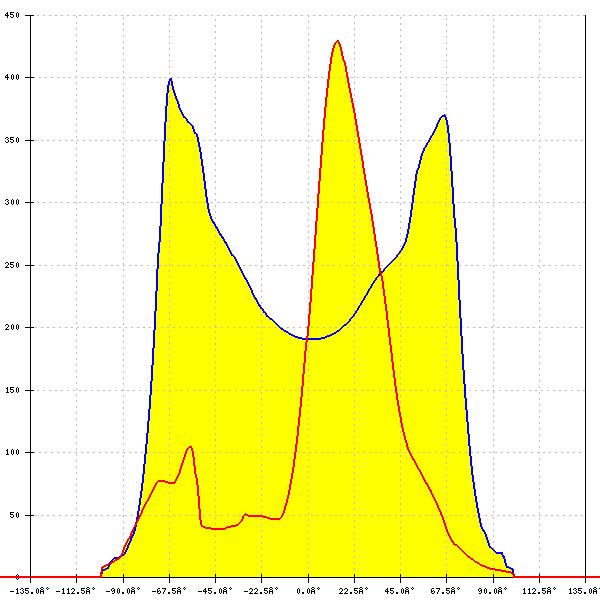

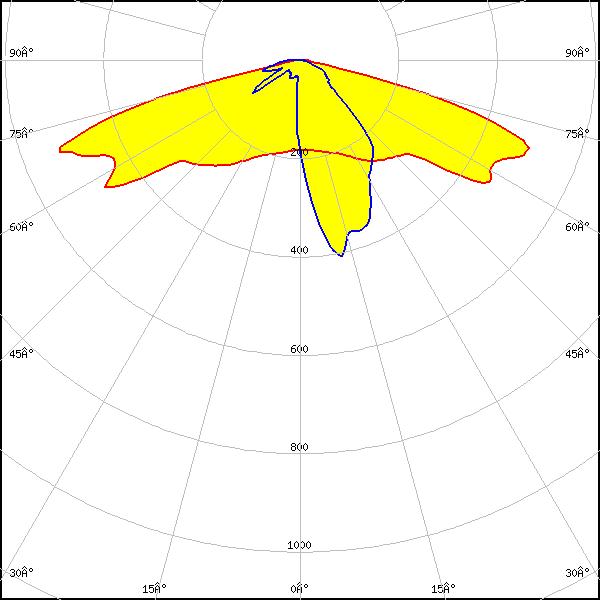

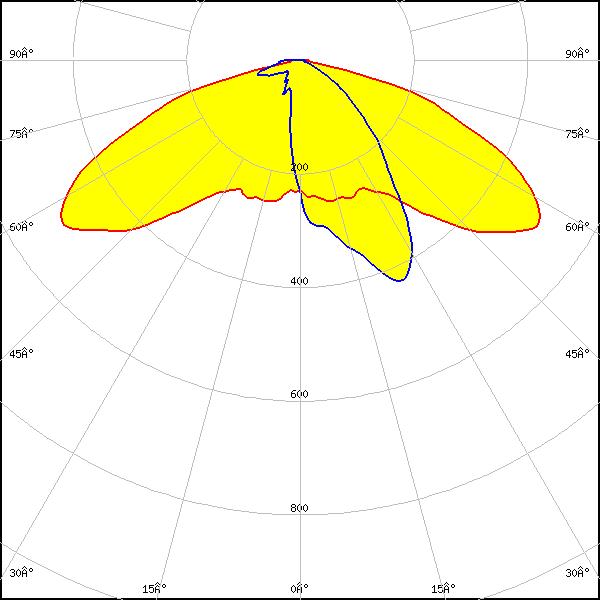

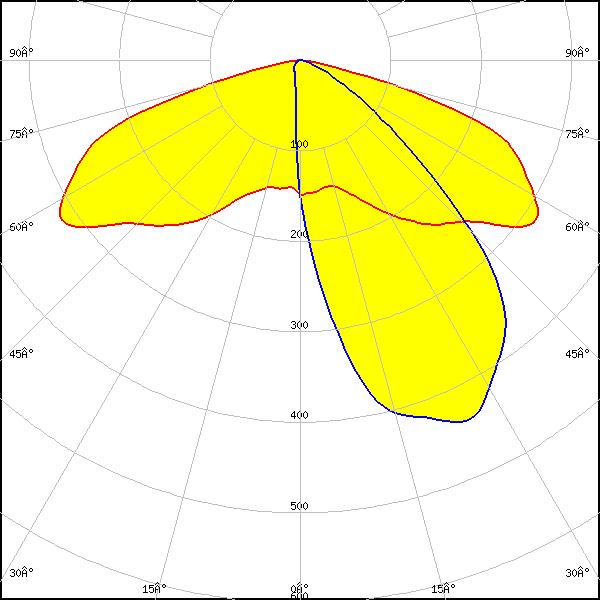

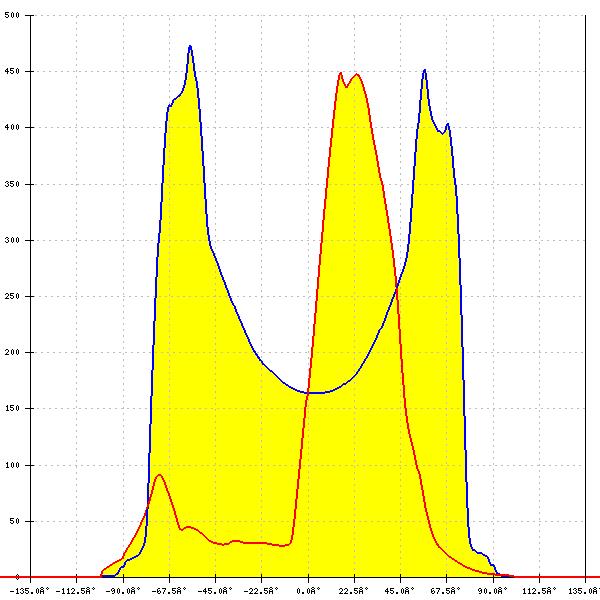

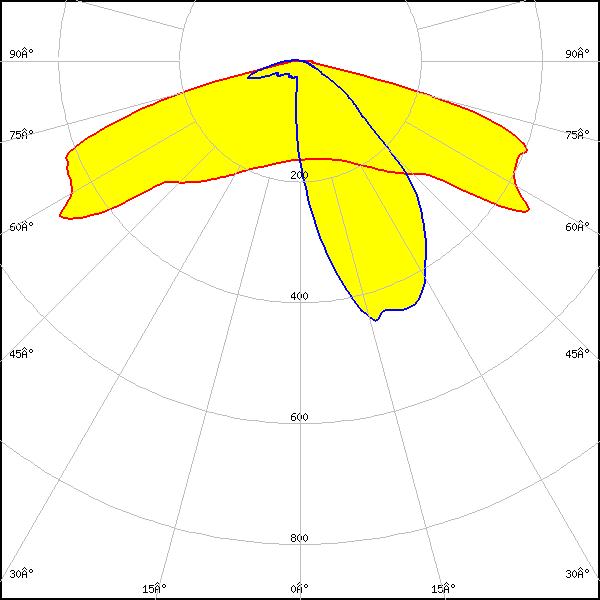

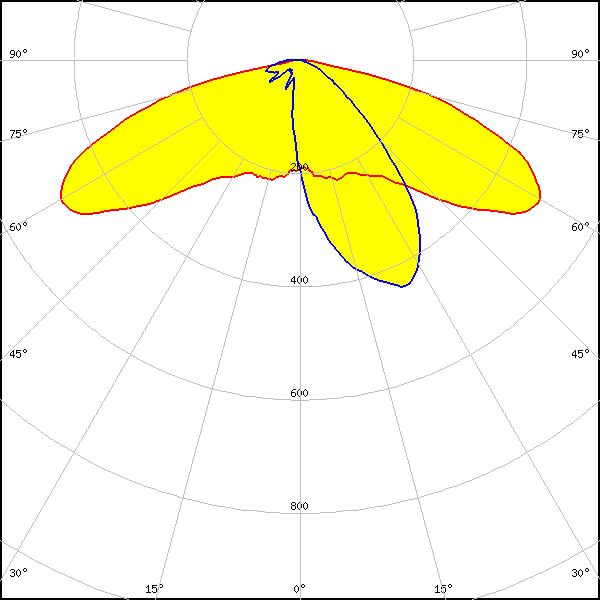

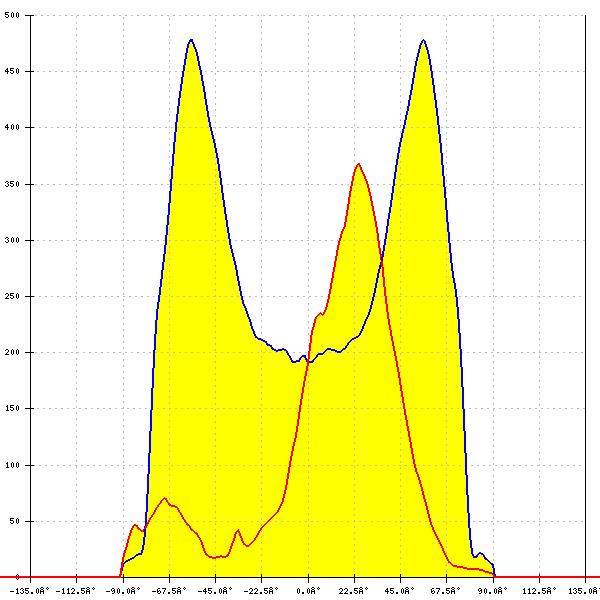

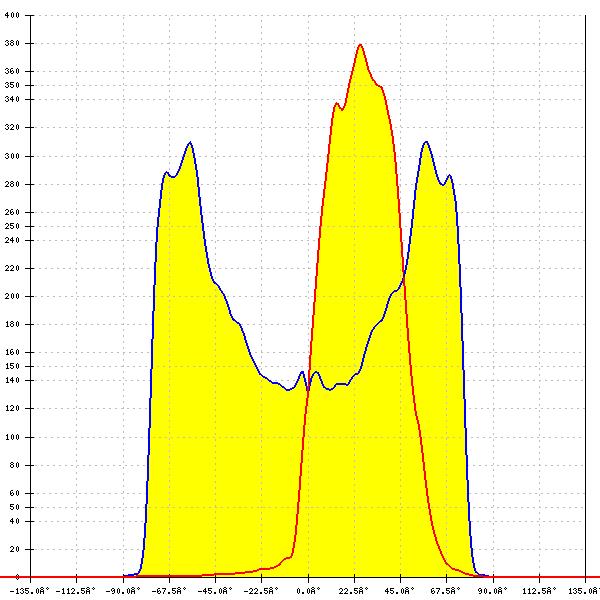

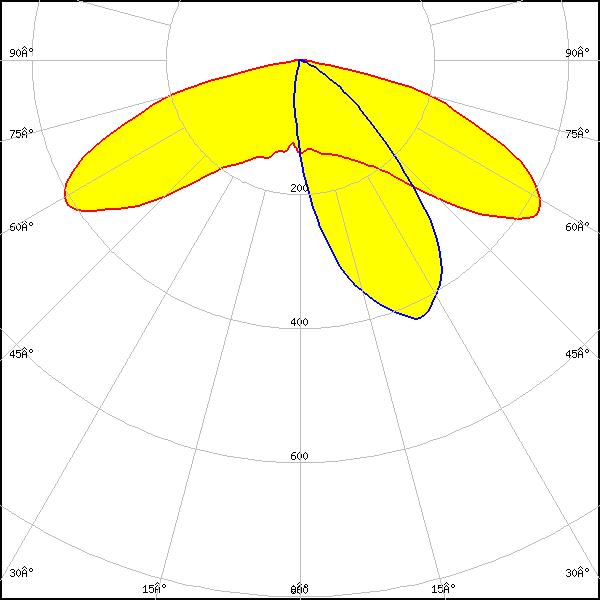

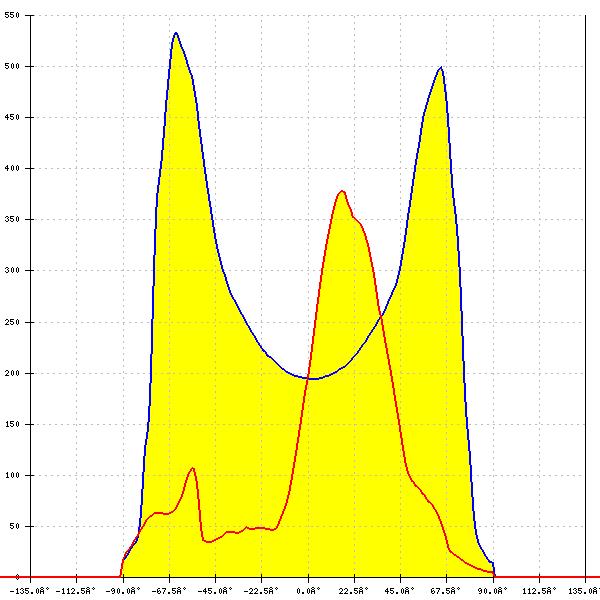

    Optical results

    LED: Bridgelux SMD 5050
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

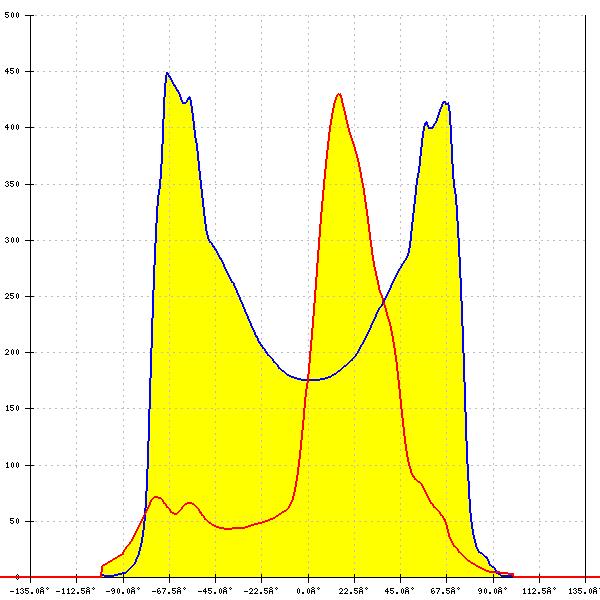

    LED: QUICK FLUX XTP 2x4 xxx LS G5
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

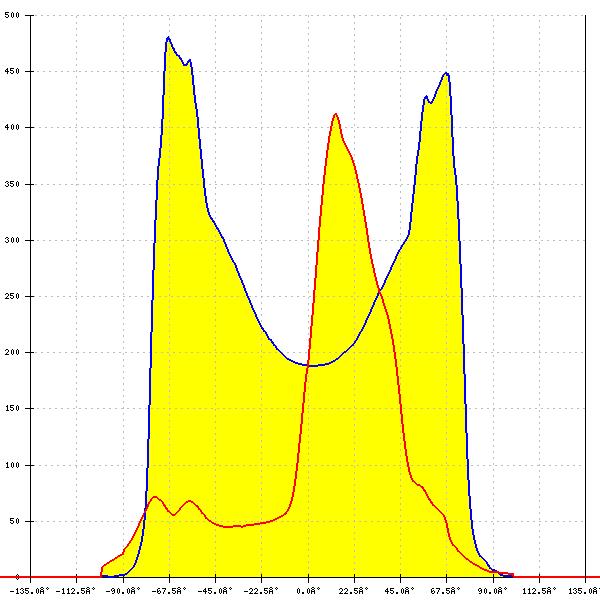

    LED: QUICK FLUX XTP 2x6 xxx LS G5
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

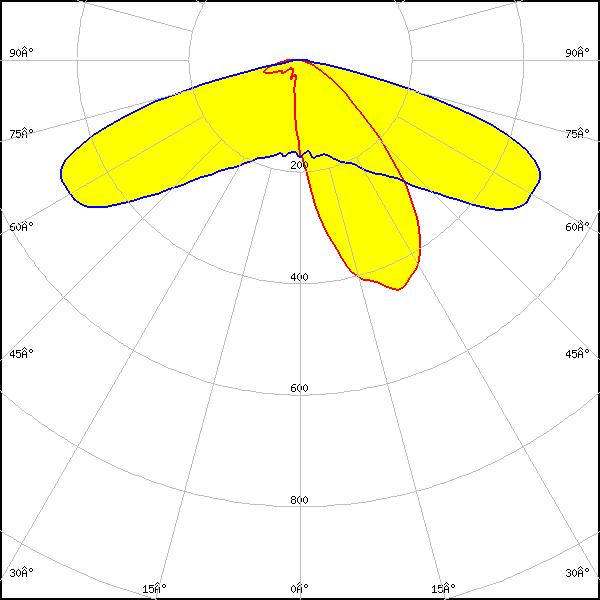

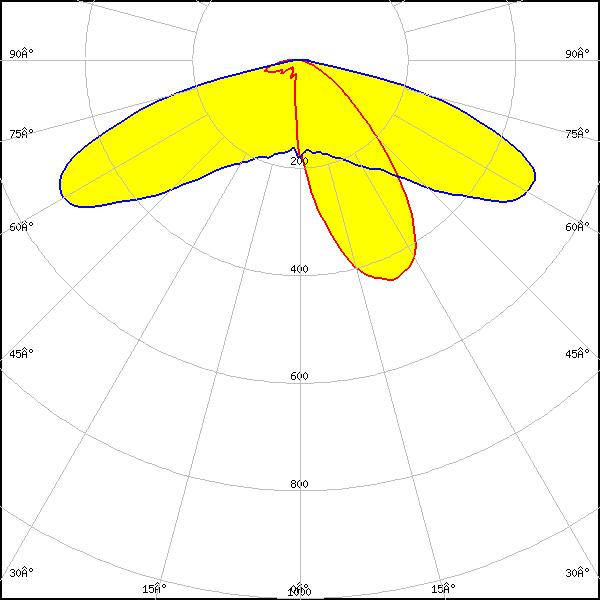

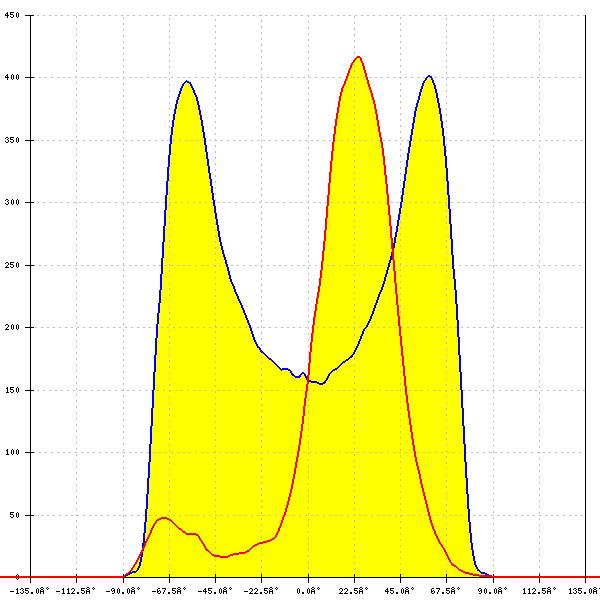

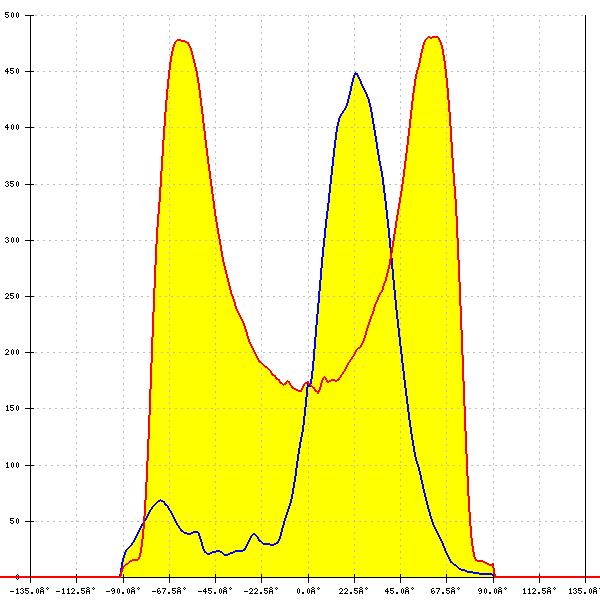

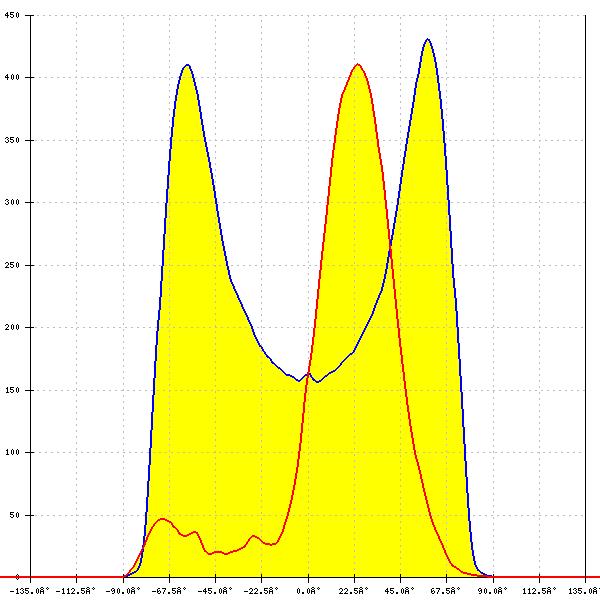

    LED: J Series 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.585 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.755 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.713 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.612 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.622 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

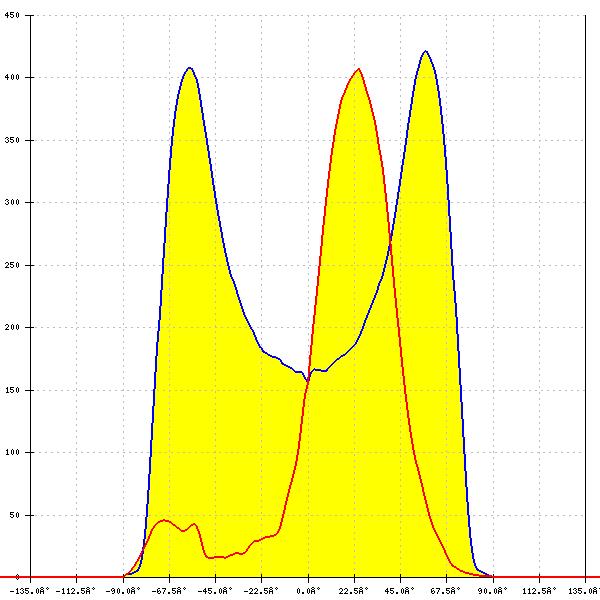

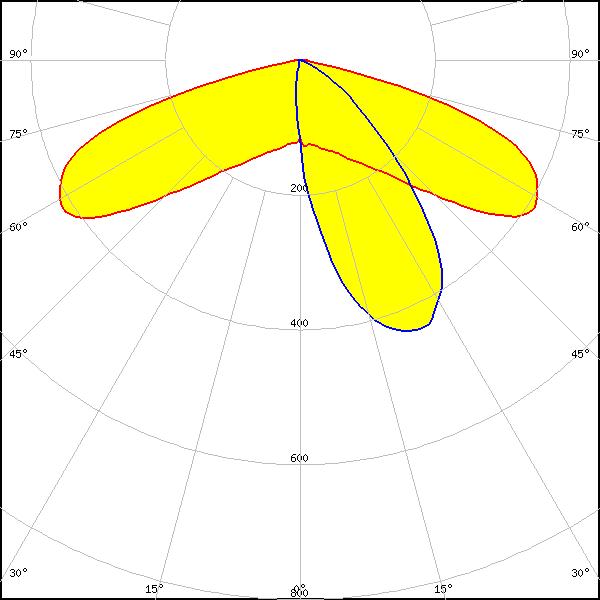

    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 0.595 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

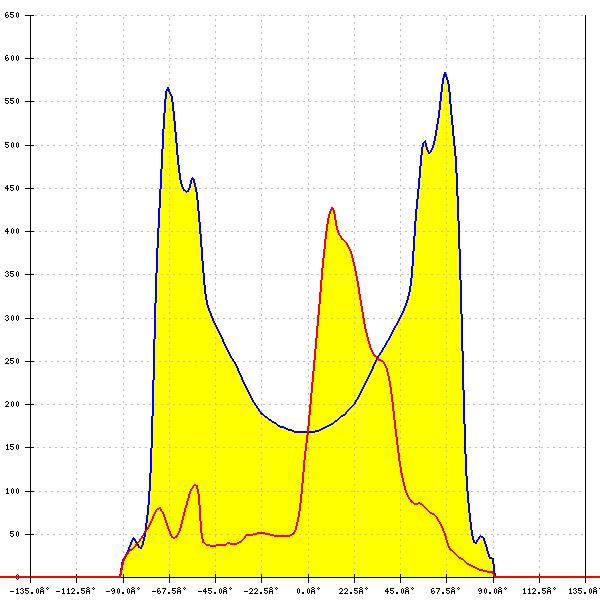

    LED: XB-D
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

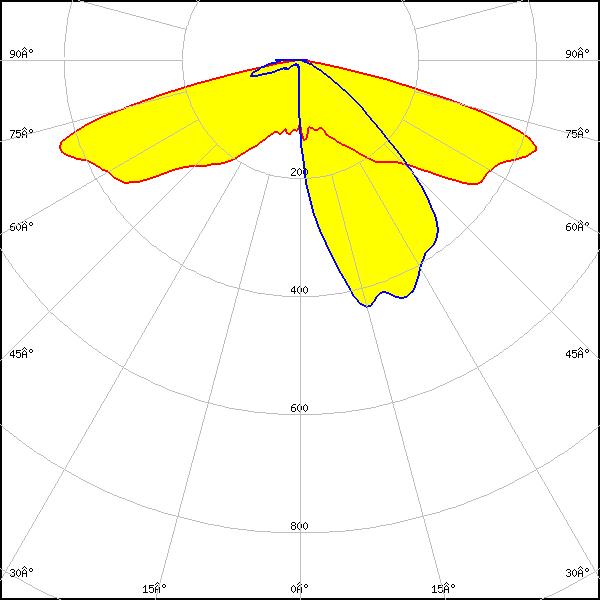

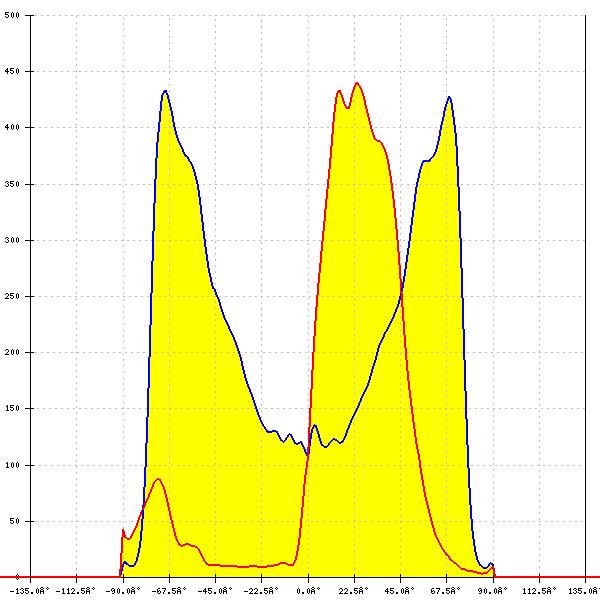

    LED: XB-H
    FWHM: asymmetric
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

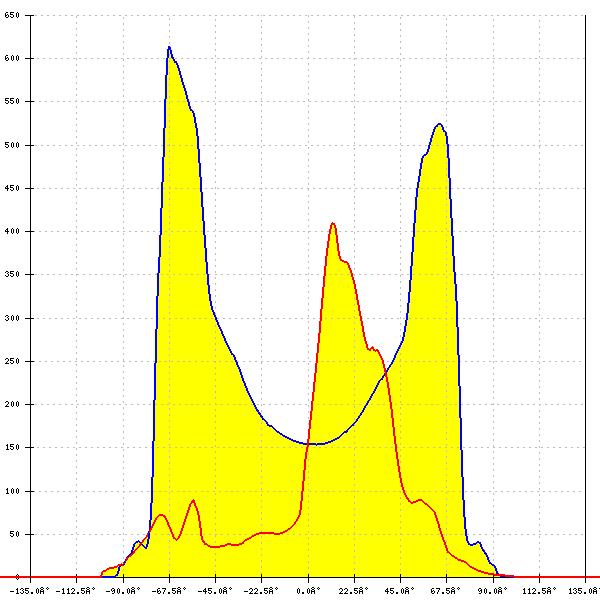

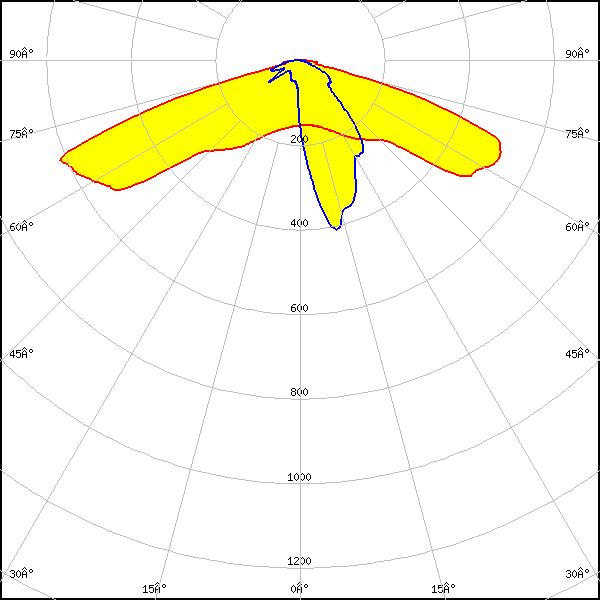

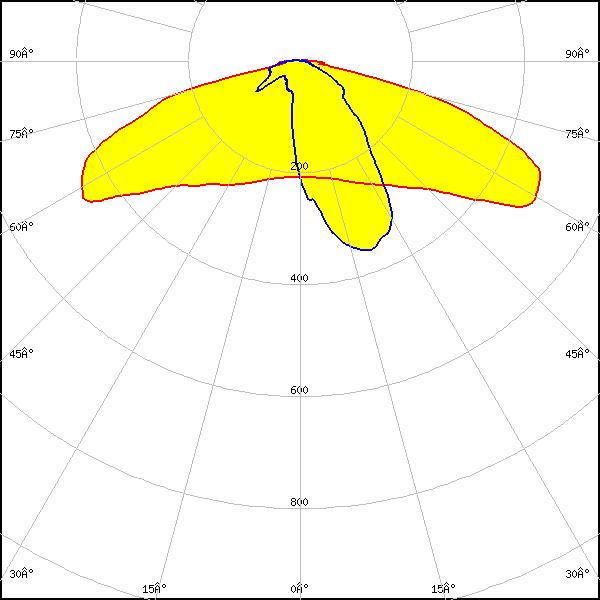

    LED: XD16
    FWHM: asymmetric
    Peak intensity: 0.809 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 2
    Light colour/type: White

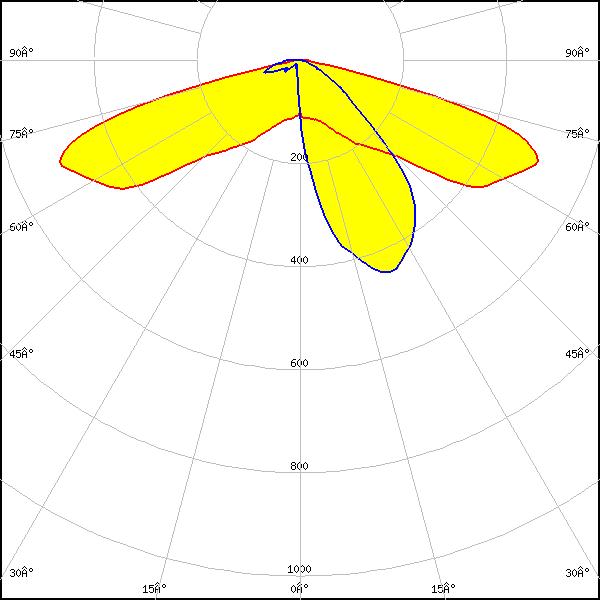

    LED: XD16
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XD16
    FWHM: asymmetric
    Peak intensity: 0.740 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White

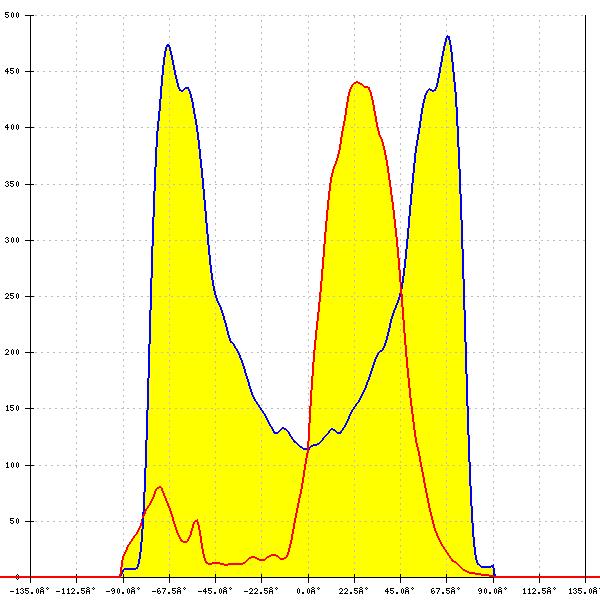

    LED: XE-G
    FWHM: asymmetric
    Peak intensity: 0.758 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: XHP35 HD
    FWHM: asymmetric
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP35 HI
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

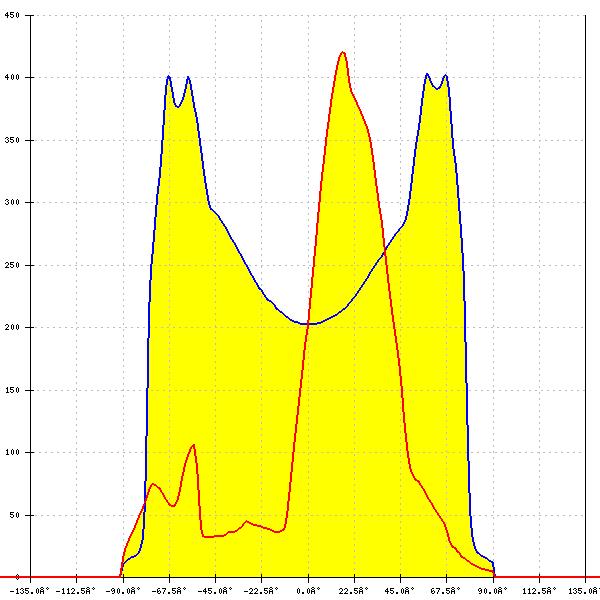

    LED: XM-L2
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XM-L3
    FWHM: asymmetric
    Peak intensity: 0.905 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

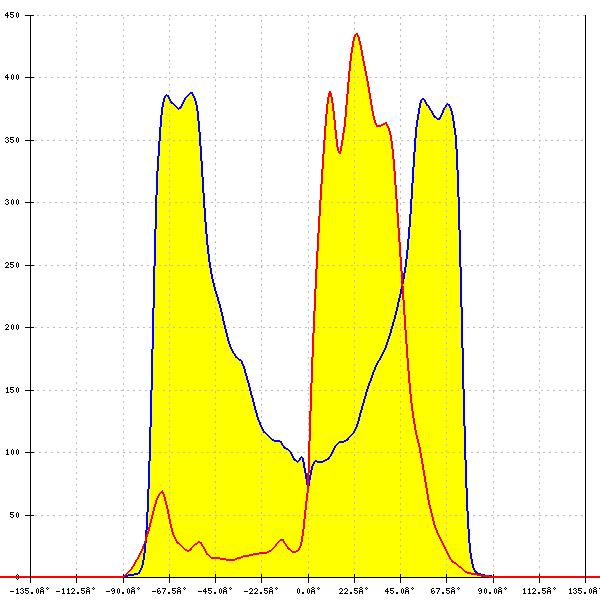

    LED: XP-E2
    FWHM: asymmetric
    Peak intensity: 0.727 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

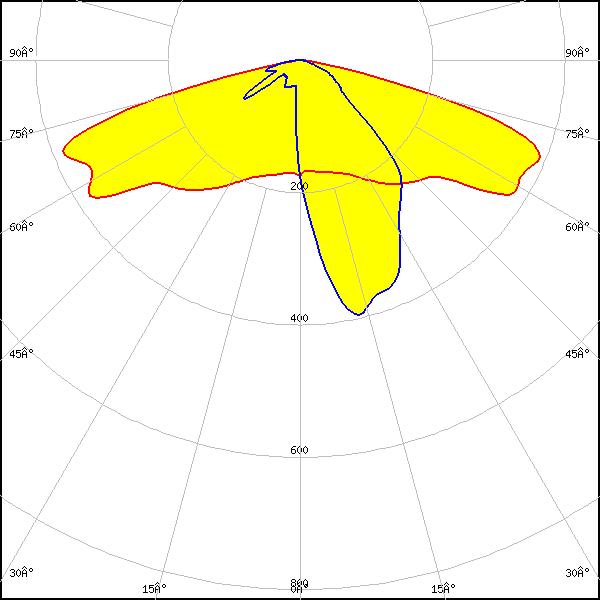

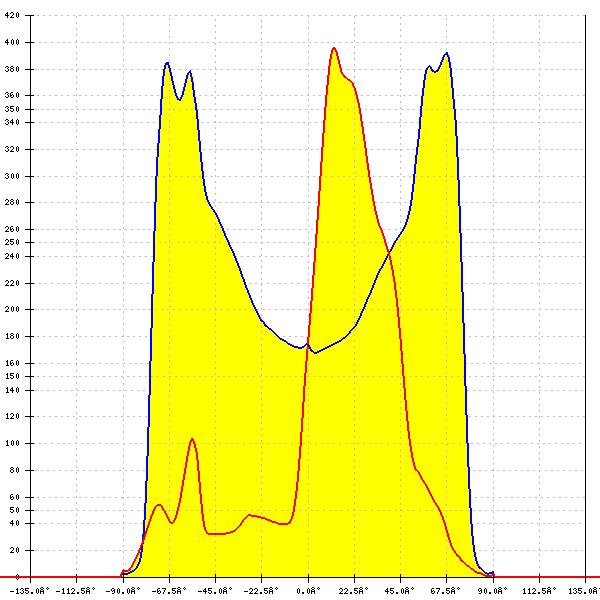

    LED: XP-G
    FWHM: asymmetric
    Peak intensity: 0.620 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

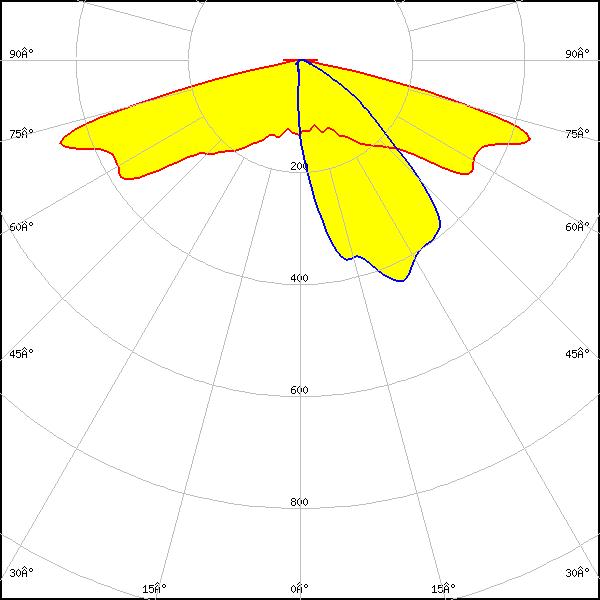

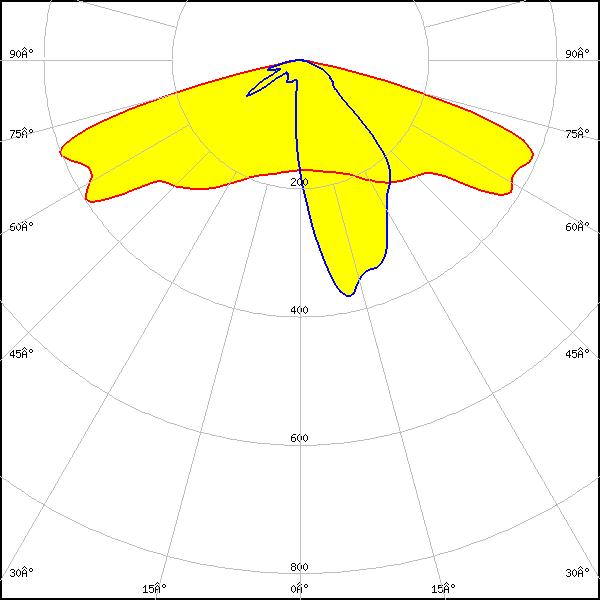

    LED: XP-G2
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.779 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 0.631 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

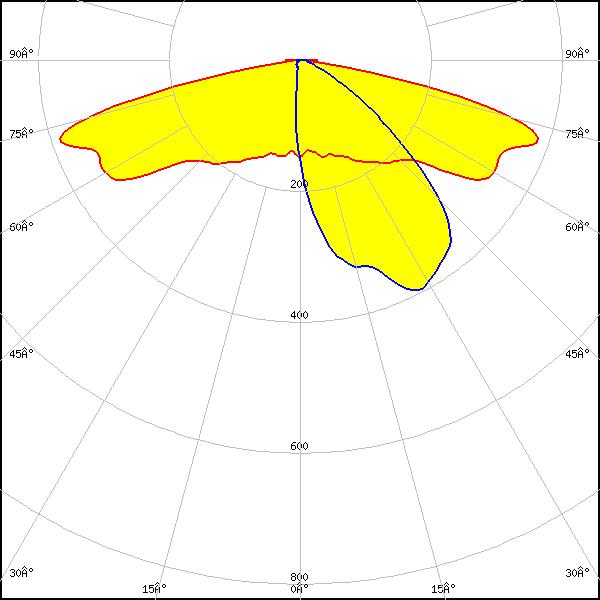

    LED: XP-G2 HE
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.636 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G2 HE
    FWHM: asymmetric
    Peak intensity: 0.839 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

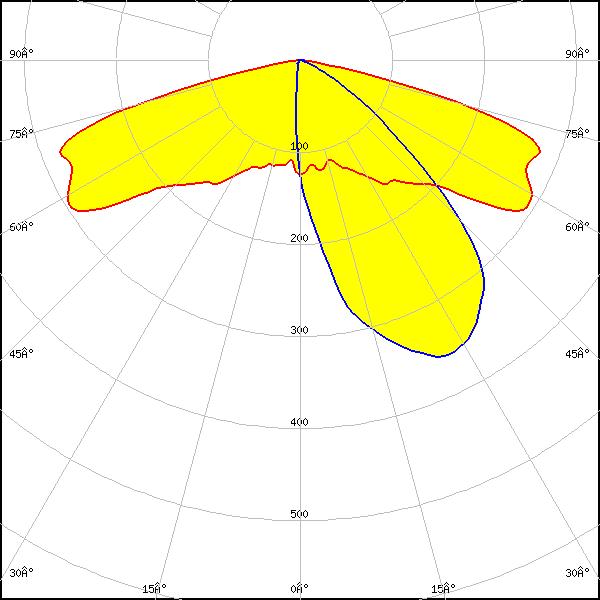

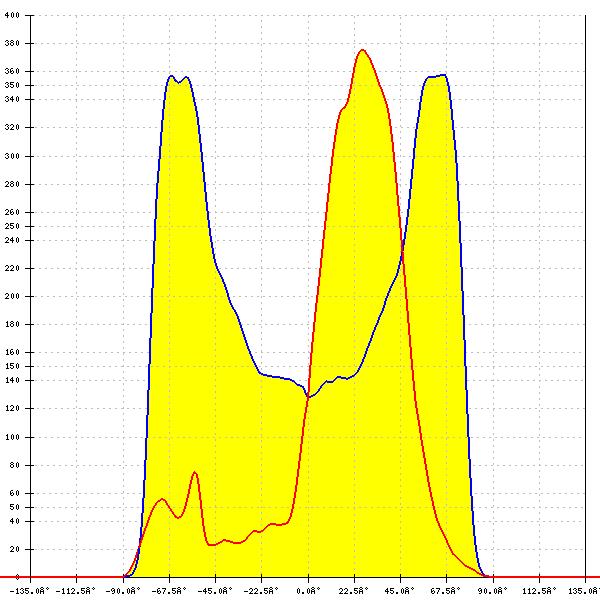

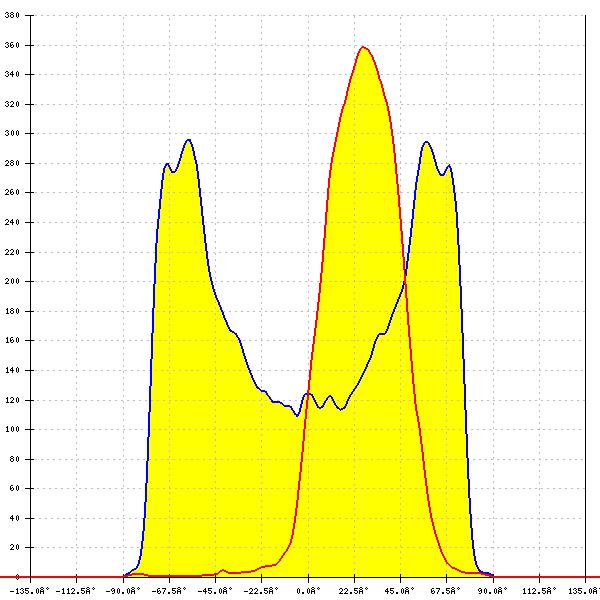

    LED: XP-G3
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.556 cd/lm
    Efficiency: 67 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.550 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.643 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.967 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4
    FWHM: asymmetric
    Peak intensity: 0.825 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4
    FWHM: asymmetric
    Peak intensity: 0.636 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HD
    FWHM: asymmetric
    Peak intensity: 0.830 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

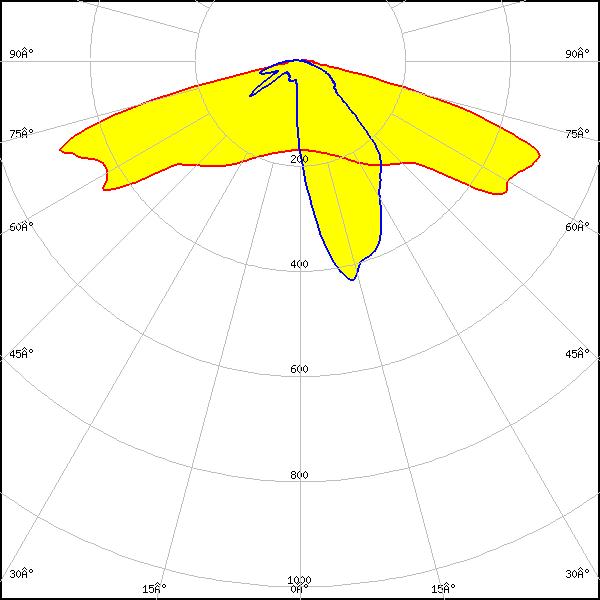

    LED: XP-L HI
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L2
    FWHM: asymmetric
    Peak intensity: 0.760 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

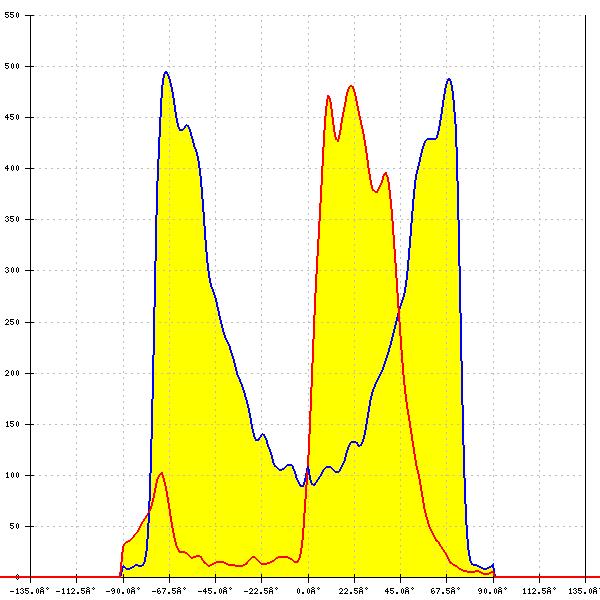

    LED: XQ-E HD
    FWHM: asymmetric
    Peak intensity: 0.952 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

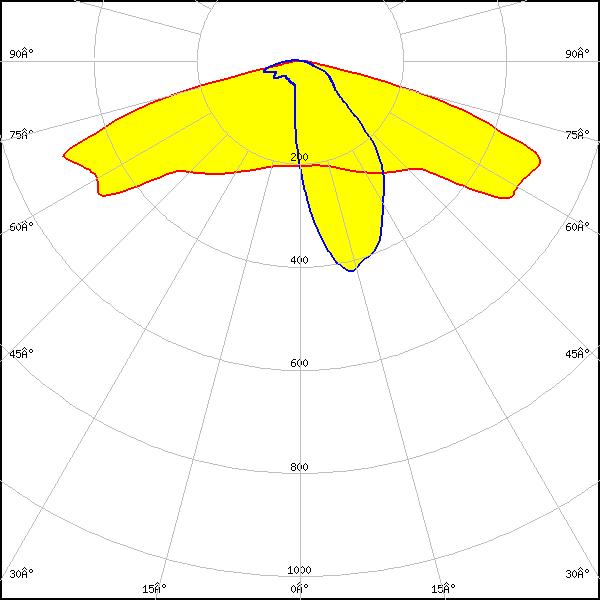

    LED: EHP-2x8-3535
    FWHM: asymmetric
    Peak intensity: 0.977 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

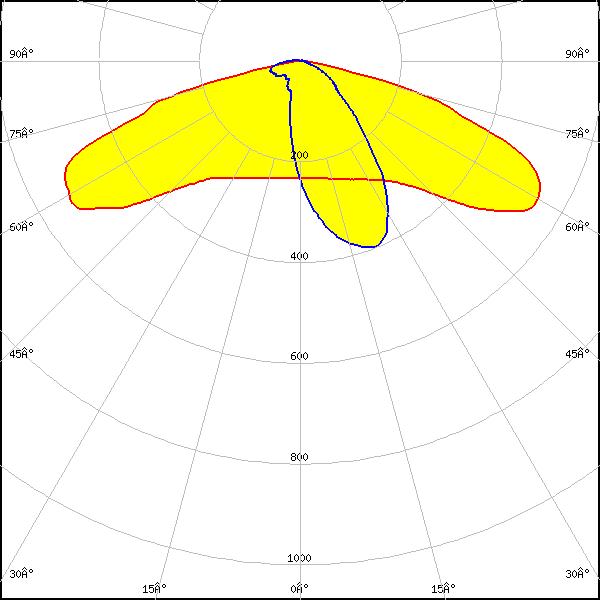

    LED: EHP-2x8-5050
    FWHM: asymmetric
    Peak intensity: 0.658 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 0.907 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3030 2D (Round LES)
    FWHM: asymmetric
    Peak intensity: 0.661 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

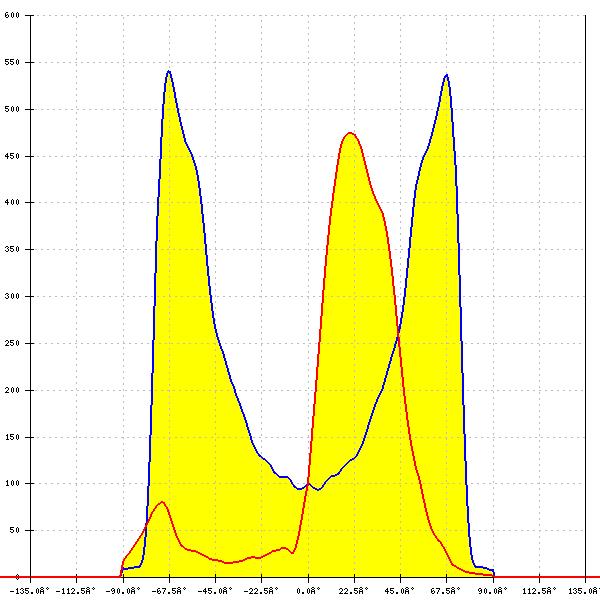

    LED: LUXEON 3030 2D (Square LES)
    FWHM: asymmetric
    Peak intensity: 0.894 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 3030 2D (Square LES)
    FWHM: asymmetric
    Peak intensity: 0.644 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

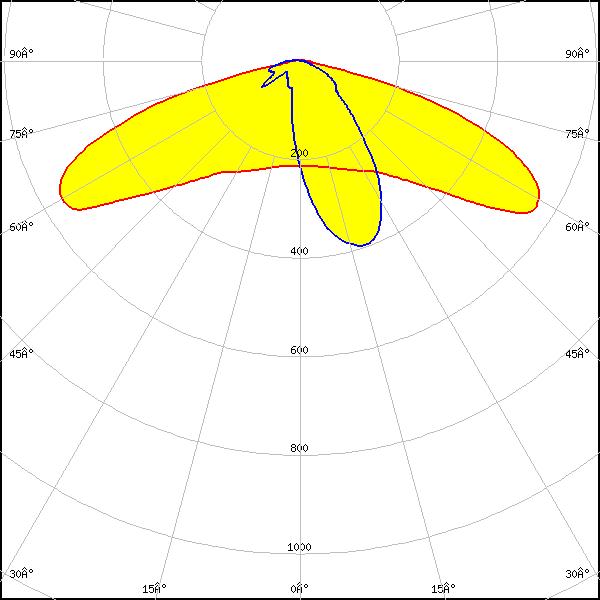

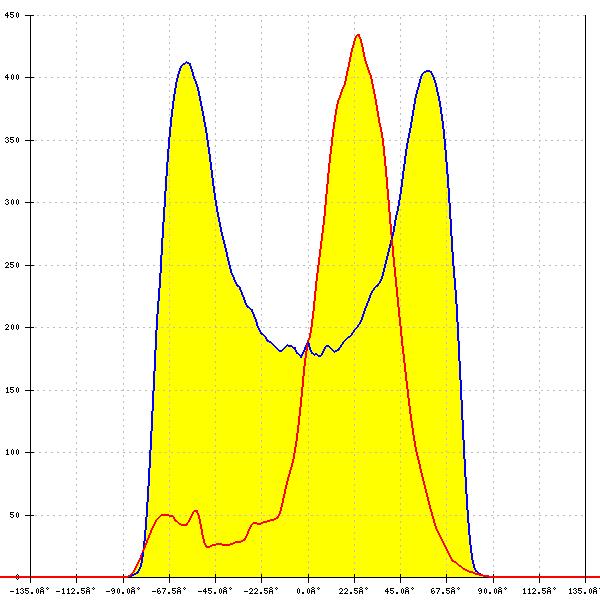

    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.620 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Round LES
    FWHM: asymmetric
    Peak intensity: 0.770 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

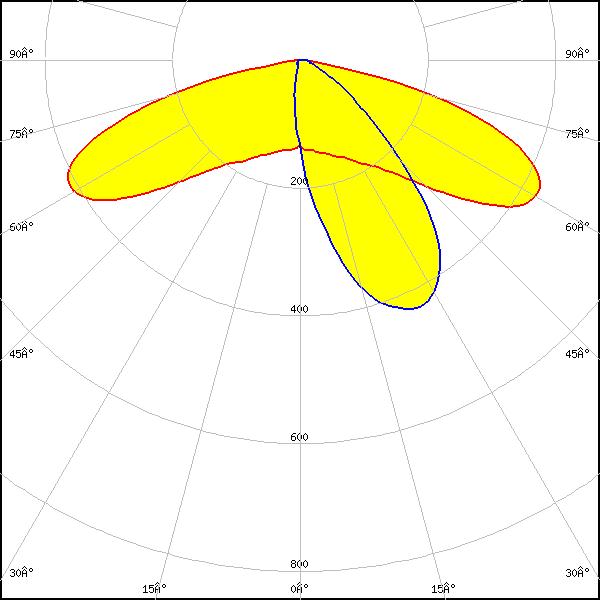

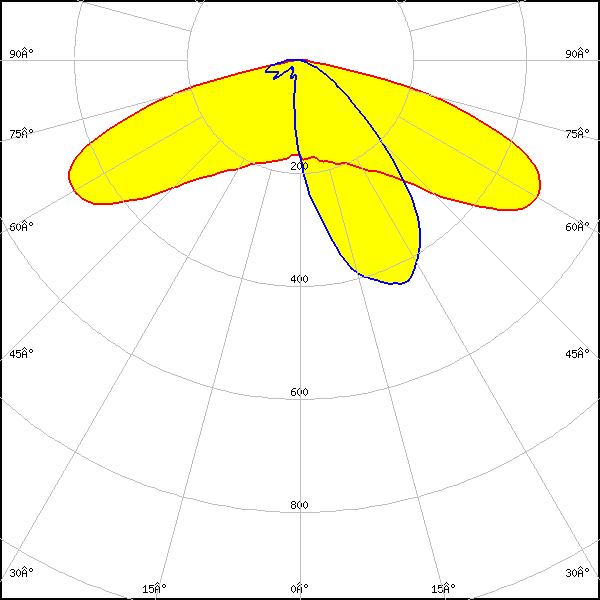

    LED: LUXEON 5050 Square LES
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.534 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.601 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.676 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.579 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.580 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

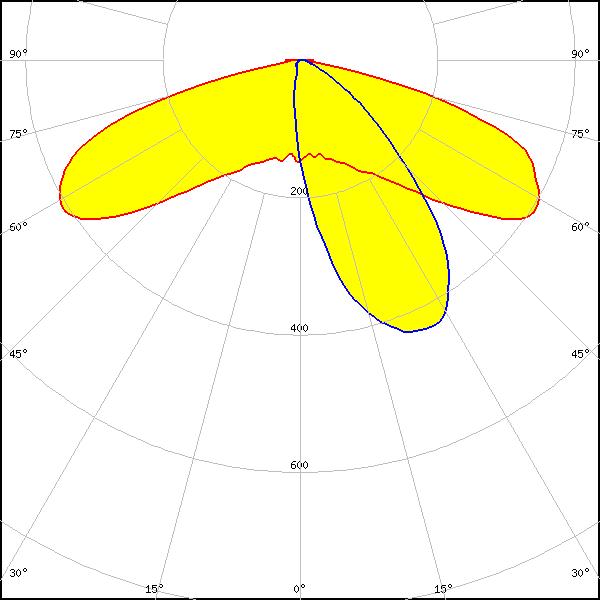

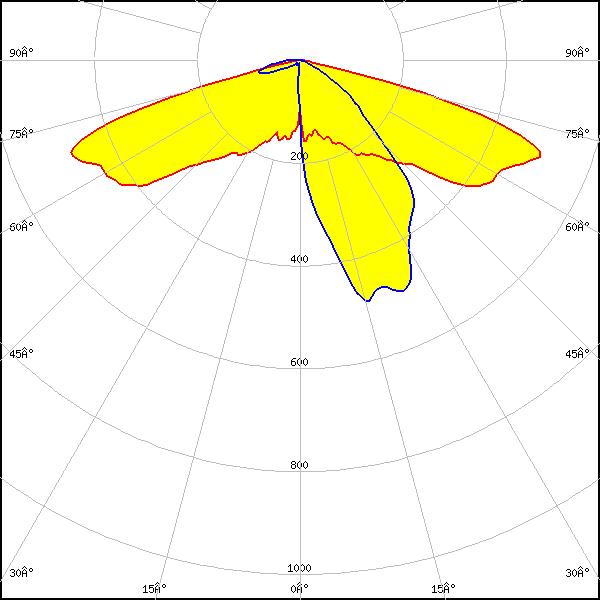

    LED: LUXEON H50-2
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White

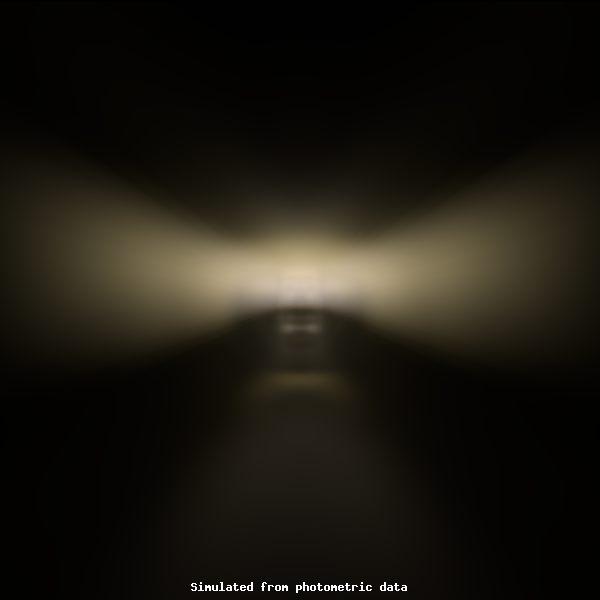

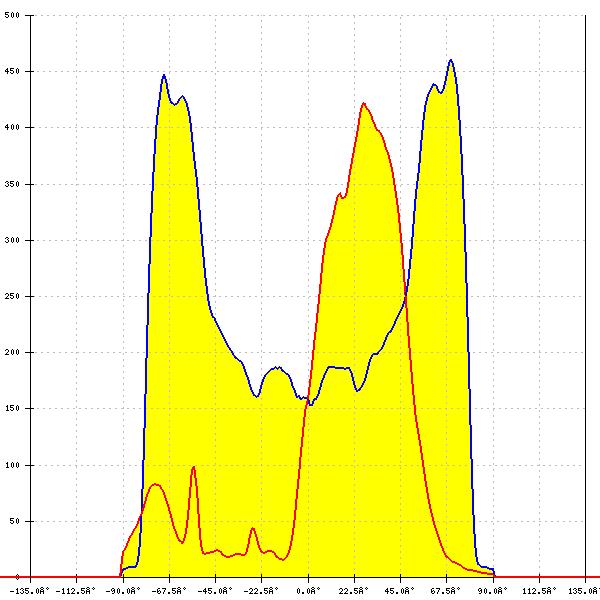

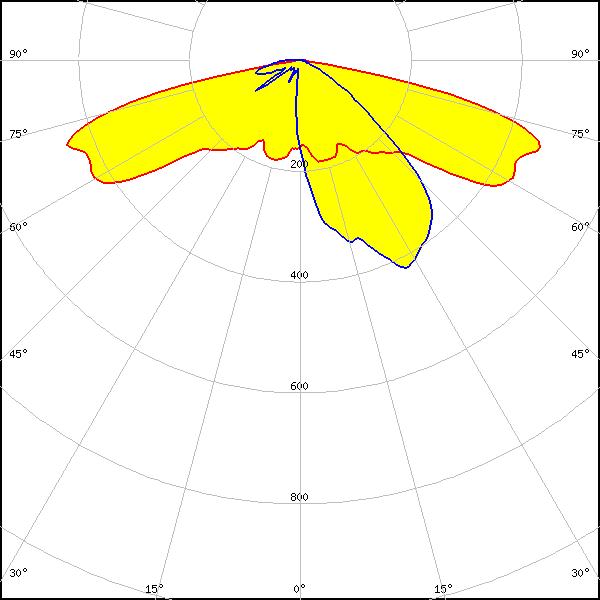

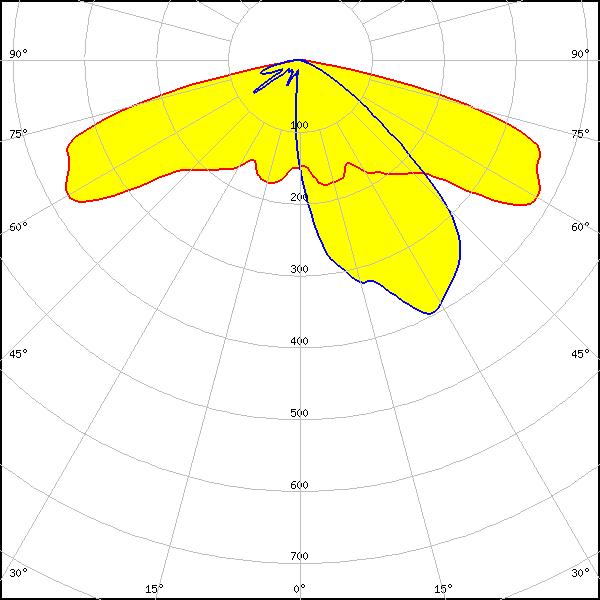

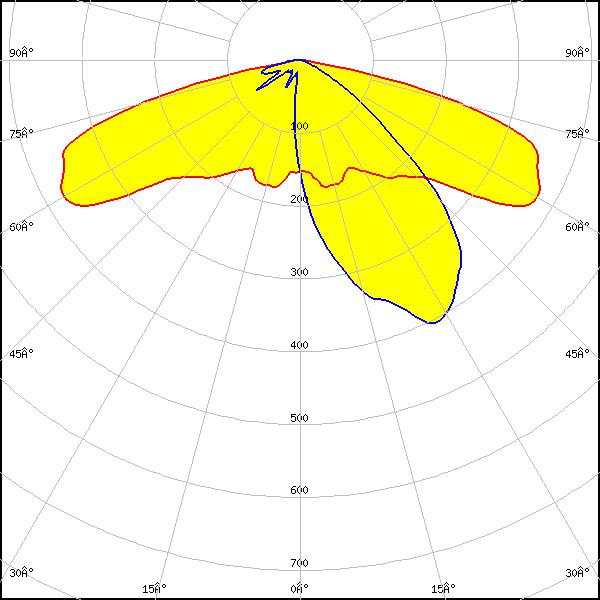

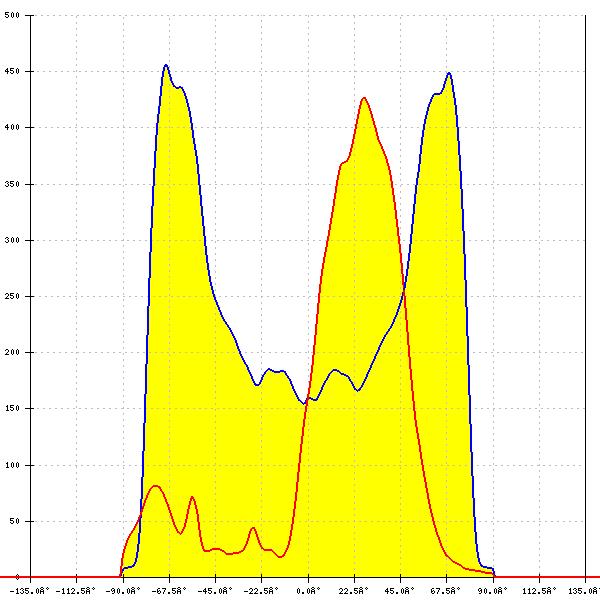

    LED: LUXEON HL2X
    FWHM: asymmetric
    Peak intensity: 0.738 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X
    FWHM: asymmetric
    Peak intensity: 0.624 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL4X
    FWHM: asymmetric
    Peak intensity: 0.735 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL4X
    FWHM: asymmetric
    Peak intensity: 0.541 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

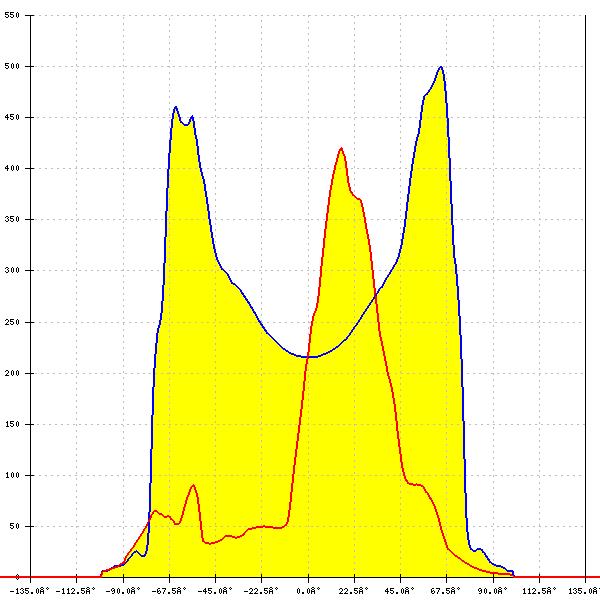

    LED: LUXEON MZ
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

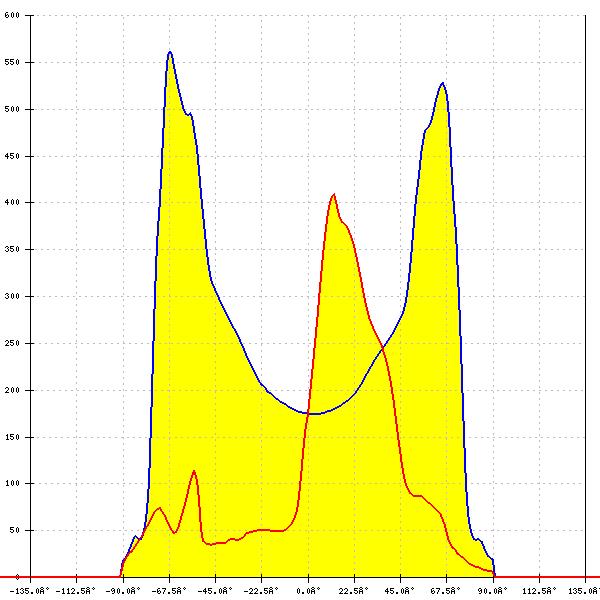

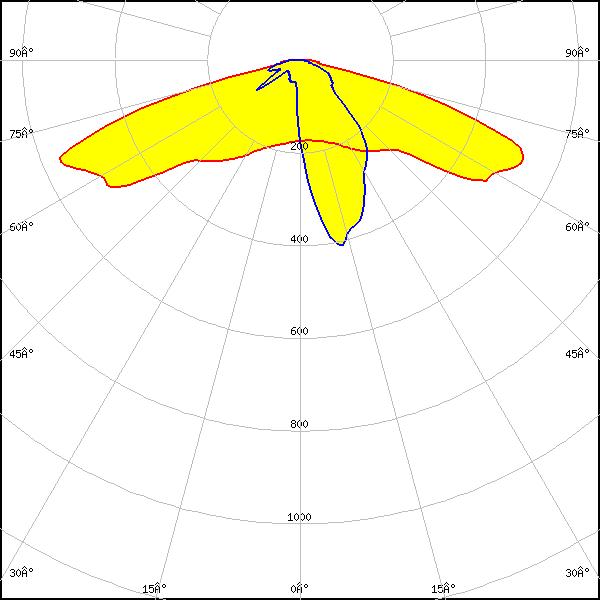

    LED: LUXEON Q
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

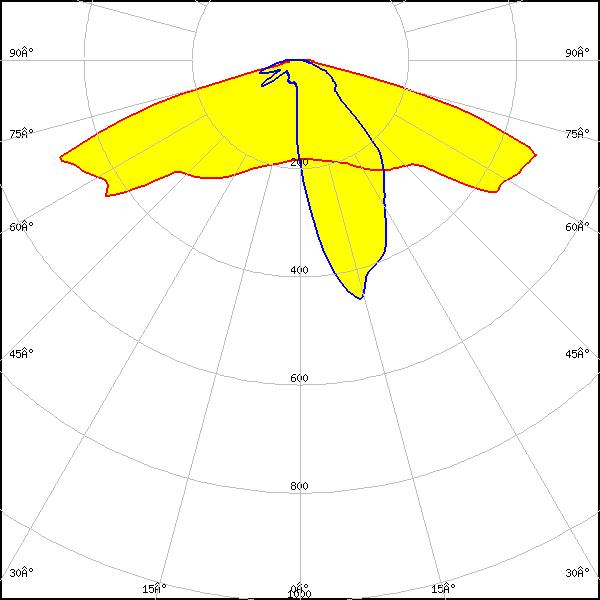

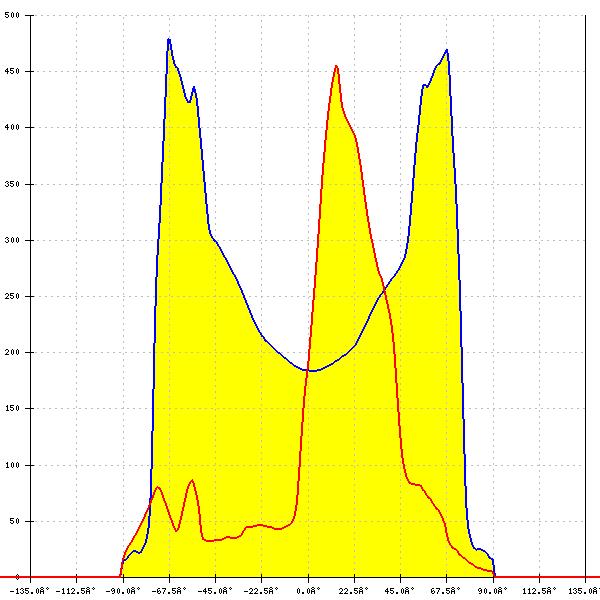

    LED: LUXEON R
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Rebel ES
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON T
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON TX
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON V
    FWHM: asymmetric
    Peak intensity: 0.790 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON V2
    FWHM: asymmetric
    Peak intensity: 0.760 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: asymmetric
    Peak intensity: 0.728 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-HL2X (L2H2-xxxxxxxMLU010)
    FWHM: asymmetric
    Peak intensity: 0.556 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON Z ES
    FWHM: asymmetric
    Peak intensity: 1.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

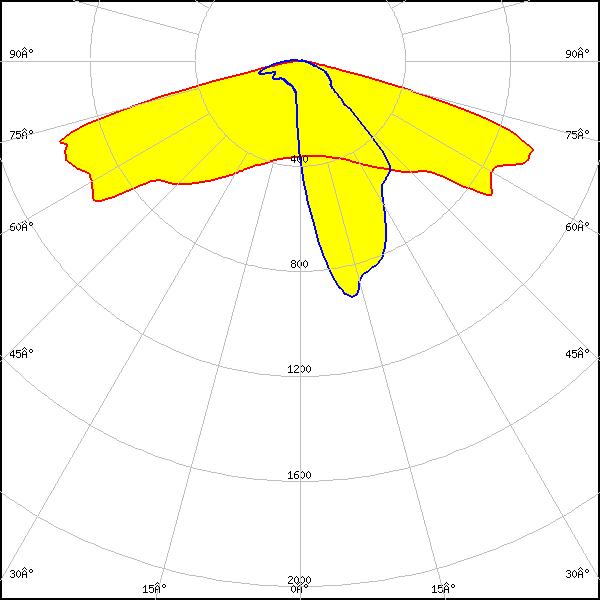

    LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
    FWHM: asymmetric
    Peak intensity: 0.874 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxx19A
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: NFSx757G
    FWHM: asymmetric
    Peak intensity: 0.688 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NS9x383
    FWHM: asymmetric
    Peak intensity: 0.800 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: asymmetric
    Peak intensity: 0.748 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219D
    FWHM: asymmetric
    Peak intensity: 0.920 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 0.651 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 0.971 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW319B
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW3x9A
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 0.679 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 0.534 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.633 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.534 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 0.793 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 1.480 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19A
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 0.657 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 0.632 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: asymmetric
    Peak intensity: 1.095 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NWSx229A
    FWHM: asymmetric
    Peak intensity: 0.820 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PL-BRICK HP 3800 2x8 SSG
    FWHM: asymmetric
    Peak intensity: 0.921 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Brick HP 2x8
    FWHM: asymmetric
    Peak intensity: 0.625 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PrevaLED Brick HP 2x8
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

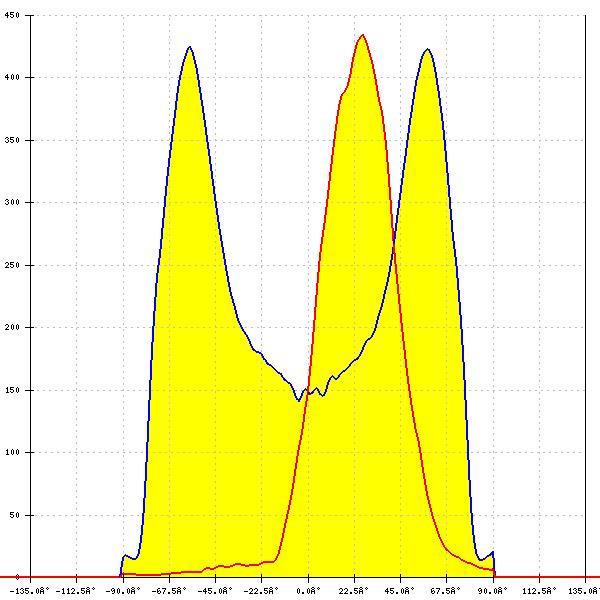

    LED: Duris S8
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.604 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.606 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.530 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S8
    FWHM: asymmetric
    Peak intensity: 0.740 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (2W version)
    FWHM: asymmetric
    Peak intensity: 0.910 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 3737 (3W version)
    FWHM: asymmetric
    Peak intensity: 0.730 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050
    FWHM: asymmetric
    Peak intensity: 0.563 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Pure 1414
    FWHM: asymmetric
    Peak intensity: 0.989 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Pure 1414
    FWHM: asymmetric
    Peak intensity: 0.667 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.668 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.503 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.599 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square PC
    FWHM: asymmetric
    Peak intensity: 0.700 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square PC
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x2 DA G5
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.668 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x2 DA G5
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.552 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA (U)HE
    FWHM: asymmetric
    Peak intensity: 0.647 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA (U)HE
    FWHM: asymmetric
    Peak intensity: 0.530 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G4+
    FWHM: asymmetric
    Peak intensity: 0.839 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: asymmetric
    Peak intensity: 0.671 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DA G5
    FWHM: asymmetric
    Peak intensity: 1.049 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DAX G4
    FWHM: asymmetric
    Peak intensity: 0.561 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x8 DAX G4
    FWHM: asymmetric
    Peak intensity: 0.000 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RC12 Z (LH181B)
    FWHM: asymmetric
    Peak intensity: 1.246 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RH12 Z (LH351C)
    FWHM: asymmetric
    Peak intensity: 0.919 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

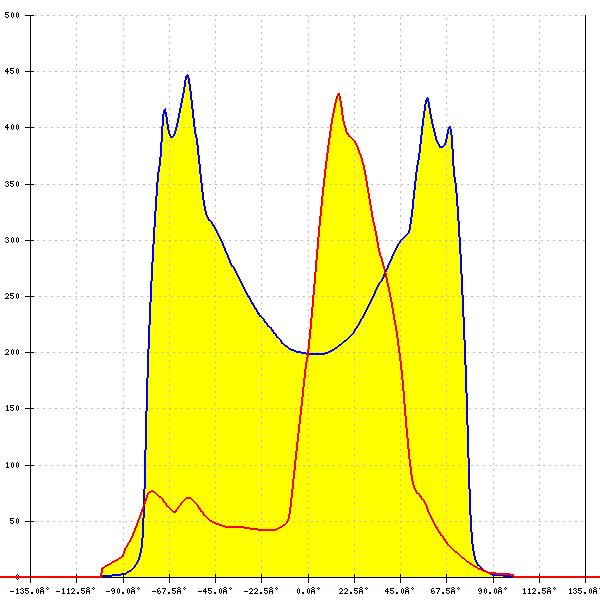

    LED: HiLOM RH16 (LH351C)
    FWHM: asymmetric
    Peak intensity: 0.890 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM12 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.697 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM16 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.717 cd/lm
    Efficiency: 99 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM8 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.598 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM8 Z (LH502C)
    FWHM: asymmetric
    Peak intensity: 0.705 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 0.606 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: asymmetric
    Peak intensity: 0.950 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    Required components:
    C17677_STRADA-2X2-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.600 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    Required components:
    C17580_STRADA-2X2-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.609 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 0.630 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351C
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

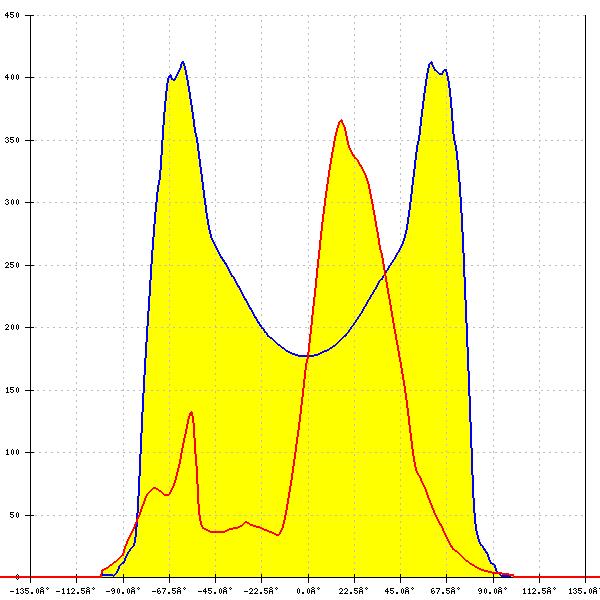

    LED: LH351D
    FWHM: asymmetric
    Peak intensity: 0.780 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351Z
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.678 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.544 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH508A
    FWHM: asymmetric
    Peak intensity: 0.750 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LED-Pa-L15c2W11c2-xxx-C050-01
    FWHM: asymmetric
    Peak intensity: 1.092 cd/lm
    Efficiency: 98 %
    LEDs/each optic: 1
    Light colour/type: White

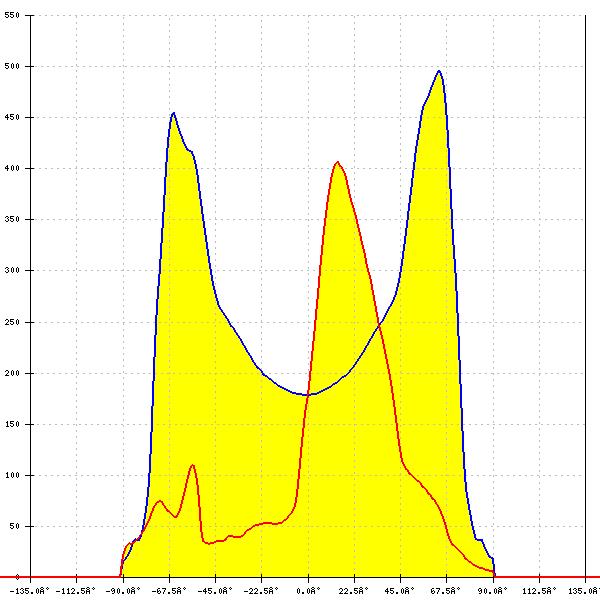

    LED: Acrich MJT 4040
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

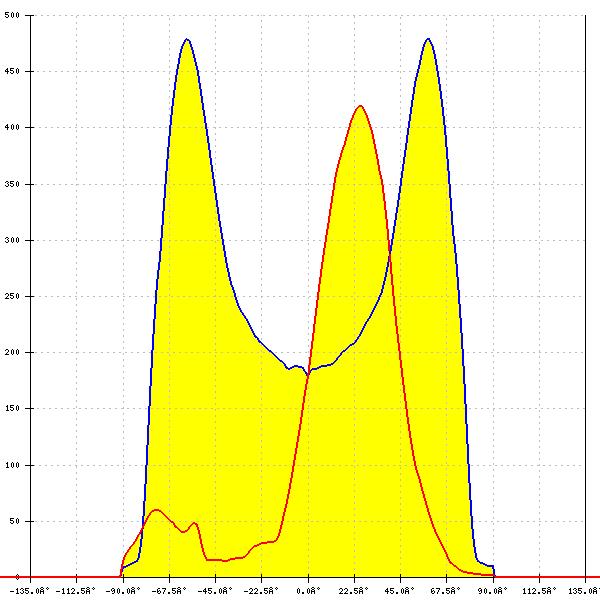

    LED: MJT 5050
    FWHM: asymmetric
    Peak intensity: 0.639 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.524 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.649 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

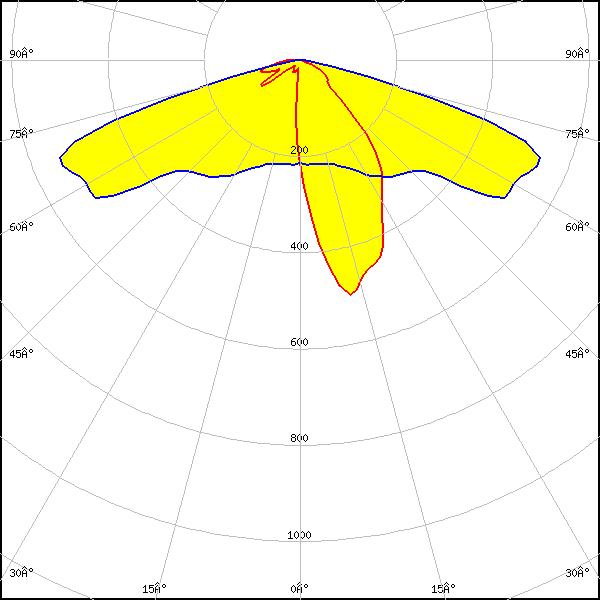

    LED: Z5M1/Z5M2
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3
    FWHM: asymmetric
    Peak intensity: 0.643 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M3
    FWHM: asymmetric
    Peak intensity: 0.950 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4
    FWHM: asymmetric
    Peak intensity: 0.691 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M4
    FWHM: asymmetric
    Peak intensity: 0.938 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M5
    FWHM: asymmetric
    Peak intensity: 0.807 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5M5
    FWHM: asymmetric
    Peak intensity: 0.606 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z5P
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y19
    FWHM: asymmetric
    Peak intensity: 0.587 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: Z8Y19
    FWHM: asymmetric
    Peak intensity: 0.900 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Z8Y22P
    FWHM: asymmetric
    Peak intensity: 0.960 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: TL1L3
    FWHM: asymmetric
    Peak intensity: 0.790 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: TL1L4
    FWHM: asymmetric
    Peak intensity: 1.000 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x4 2000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 0.713 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 2x8 4000lm HP EXC2 OTD
    FWHM: asymmetric
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x121mm 2000lm xxx EXC OTD
    FWHM: asymmetric
    Peak intensity: 0.607 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x223mm 4000lm xxx EXC OTD
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE G1 49x245mm 4000lm xxx EXC OTD
    FWHM: asymmetric
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
