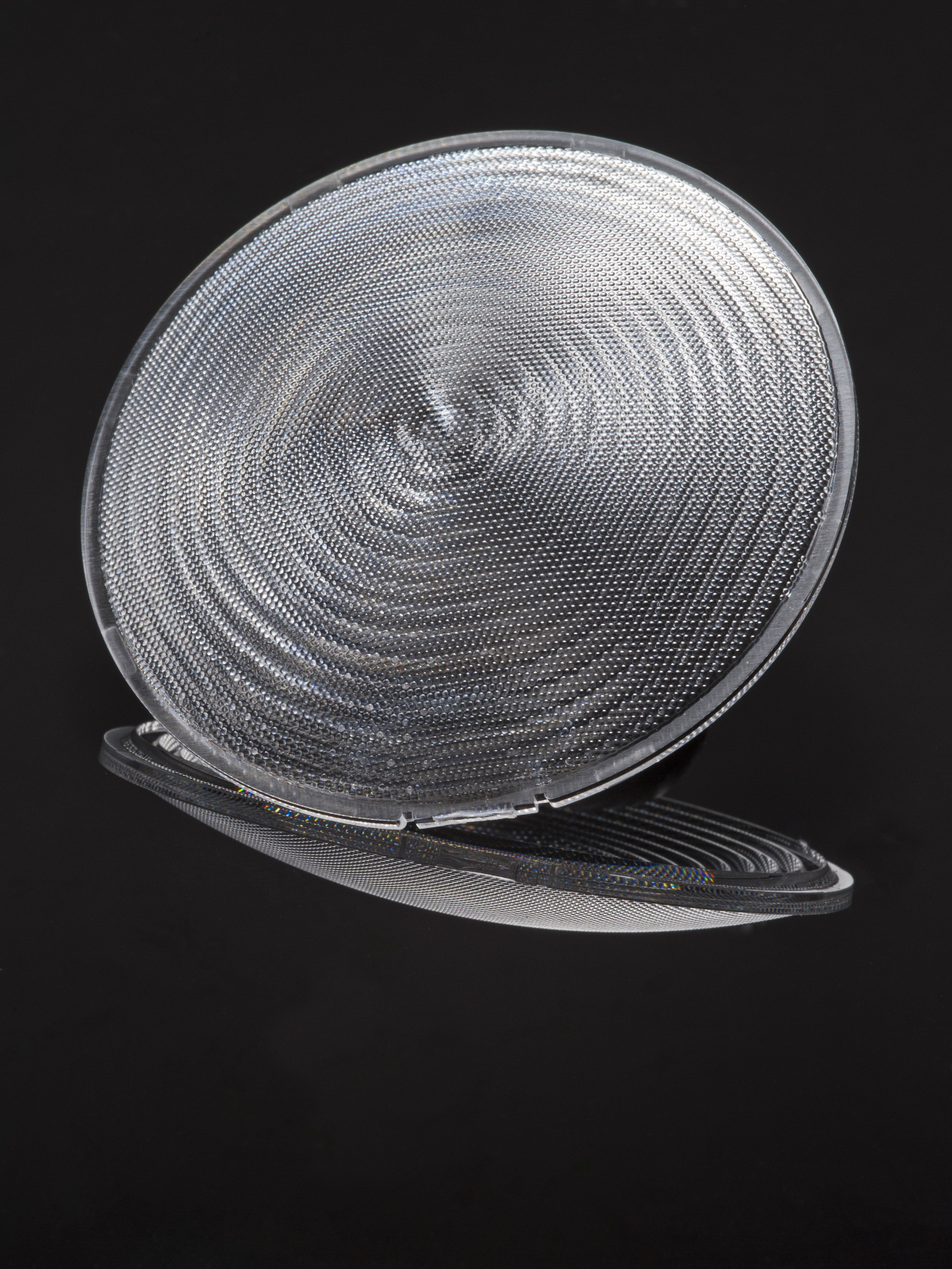

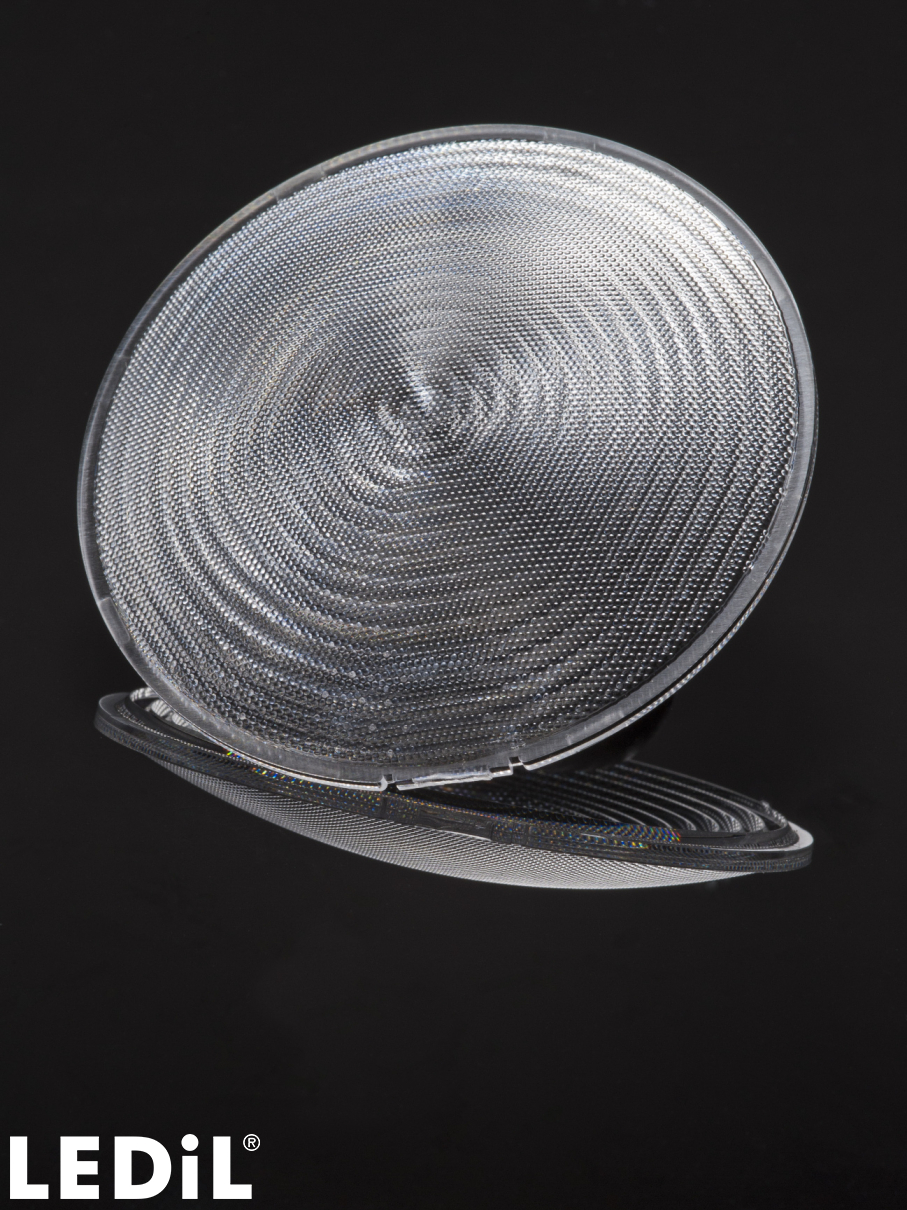

C13254_HELENA-B

~25° medium beam

Specification

Dimensions:

73 mm
Height:

11.10 mm
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Materials

PC
Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

420 pcs
Box size:

476 x 273 x 292 mm
Box weight:

9.1 kg
MPQ:

15 pcs
MOQ:

90 pcs
MOQ size:

480 x 280 x 80 mm
MOQ weight:

2.2 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: C13254_HELENA-B

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting>
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

C13254_HELENA-B

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

News

PRODUCT NEWS - HELENA

Application area

Indoor Architectural Lighting

Application area

Retail Lighting

Optical results

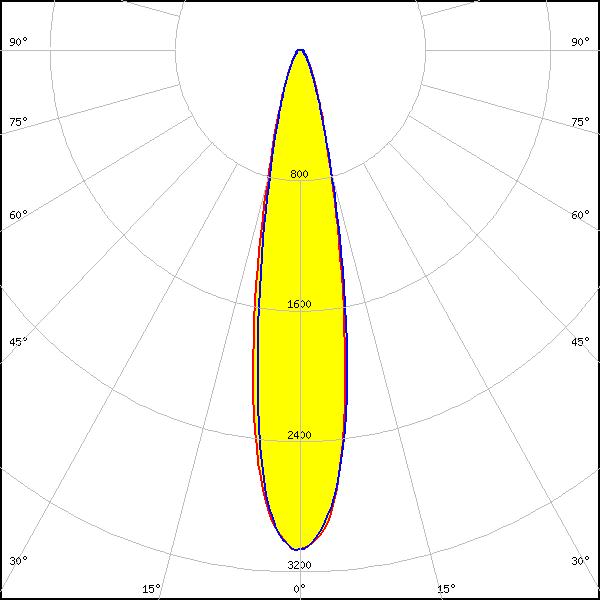

LED: CXA/B 15xx

LES size: 8.9 mm

FWHM: 21°

FWTM: 43°

Peak intensity: 3.100 cd/lm

Efficiency: 74 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

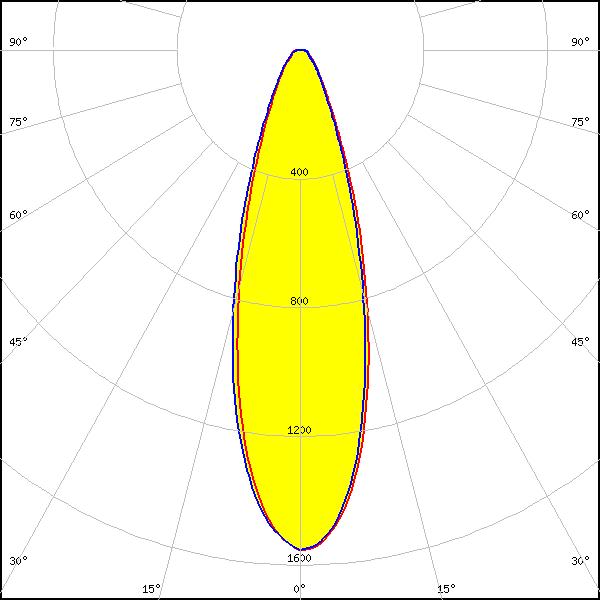

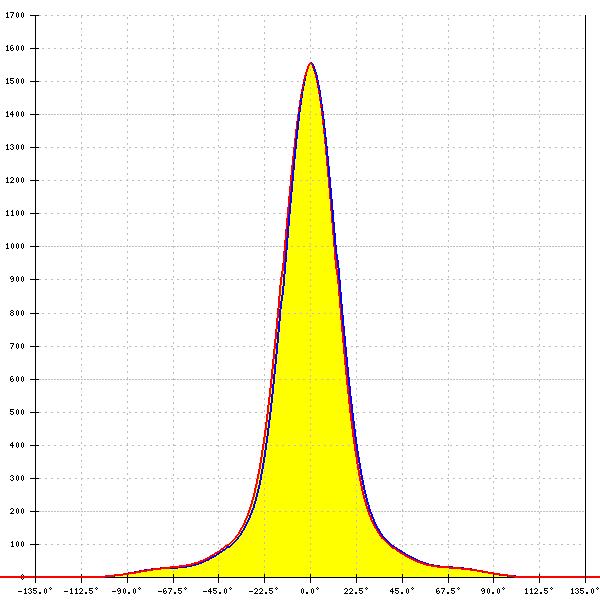

LED: CXA/B 25xx

LES size: 19.0 mm

FWHM: 31°

FWTM: 64°

Peak intensity: 1.600 cd/lm

Efficiency: 75 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

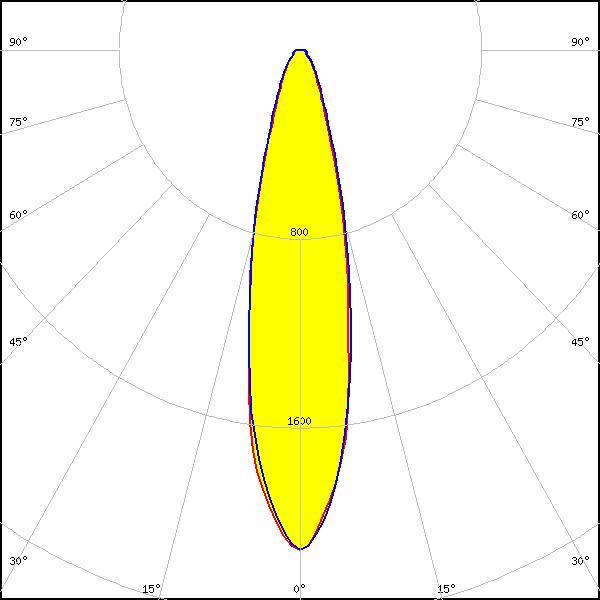

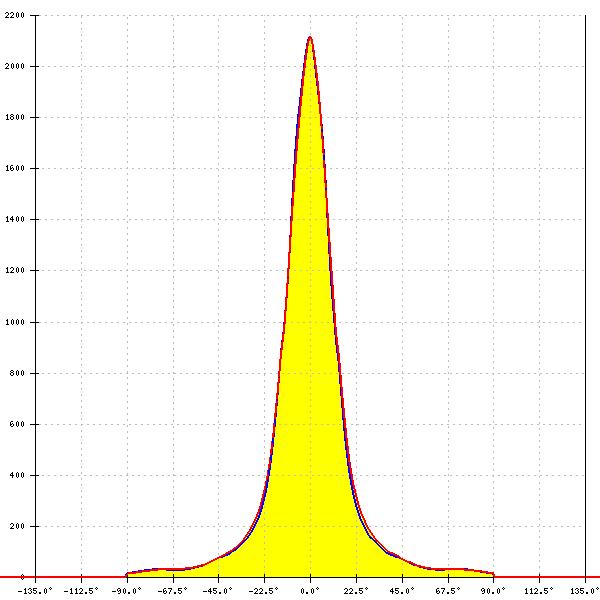

LED: LUXEON K12

LES size: 13.5 mm

FWHM: 24°

FWTM: 53°

Peak intensity: 2.100 cd/lm

Efficiency: 74 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

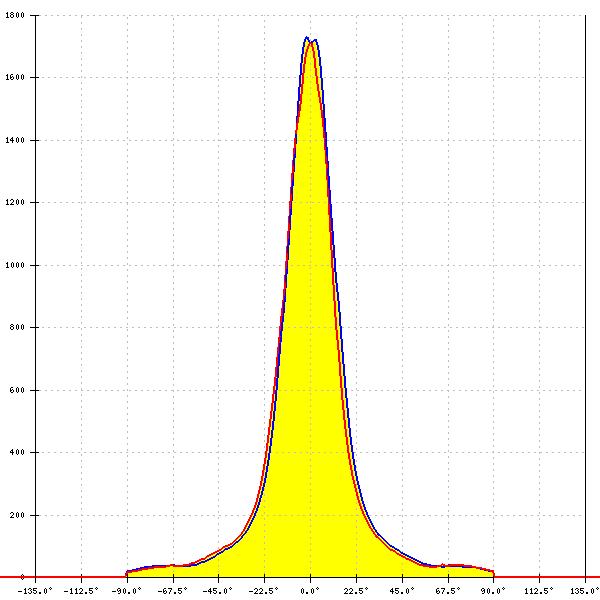

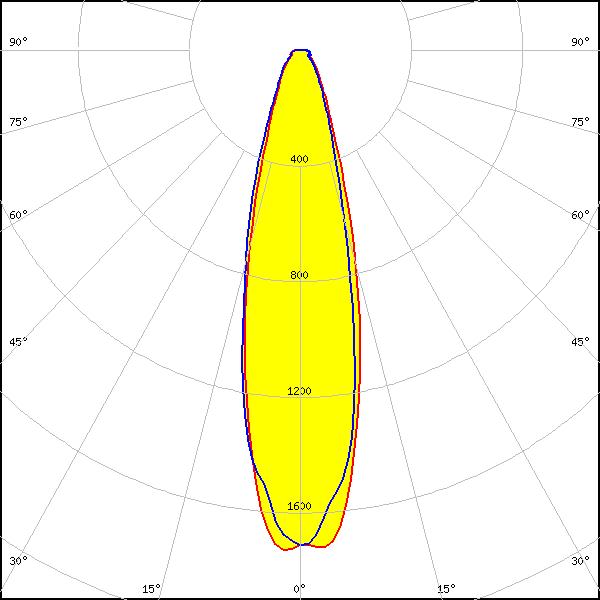

LED: LUXEON K16

LES size: 17.0 mm

FWHM: 27°

FWTM: -

Peak intensity: 1.730 cd/lm

Efficiency: 74 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

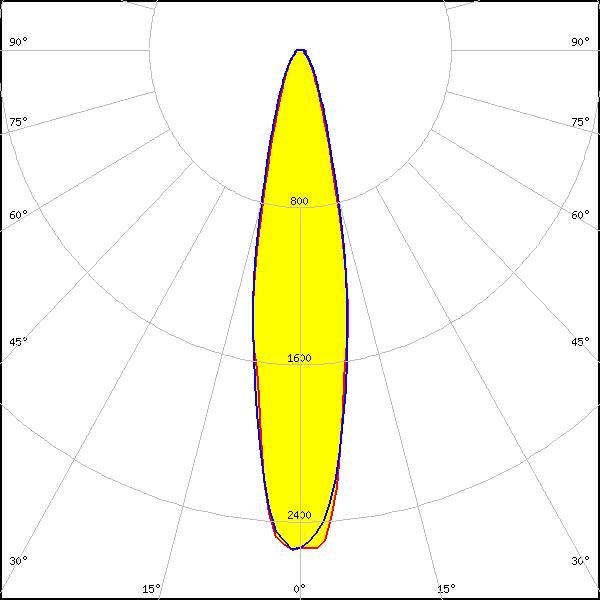

LED: LUXEON K8

LES size: 10.0 mm

FWHM: 23°

FWTM: 49°

Peak intensity: 2.550 cd/lm

Efficiency: 75 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
