C12958_LENINA-XW
Print
White version with ~75° wide beam
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

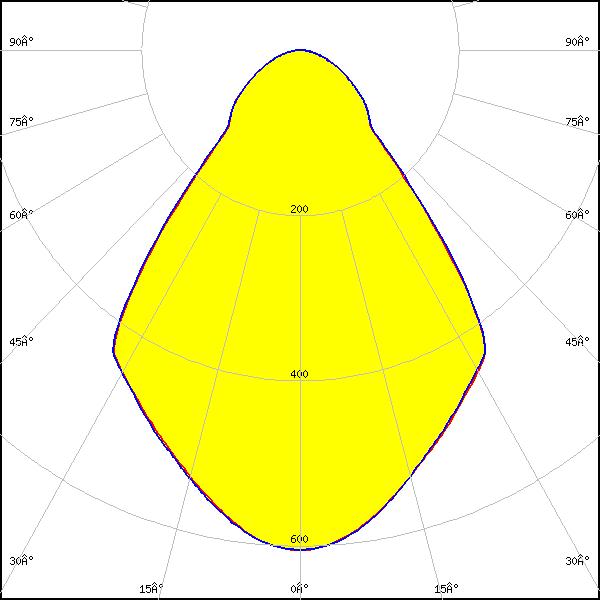

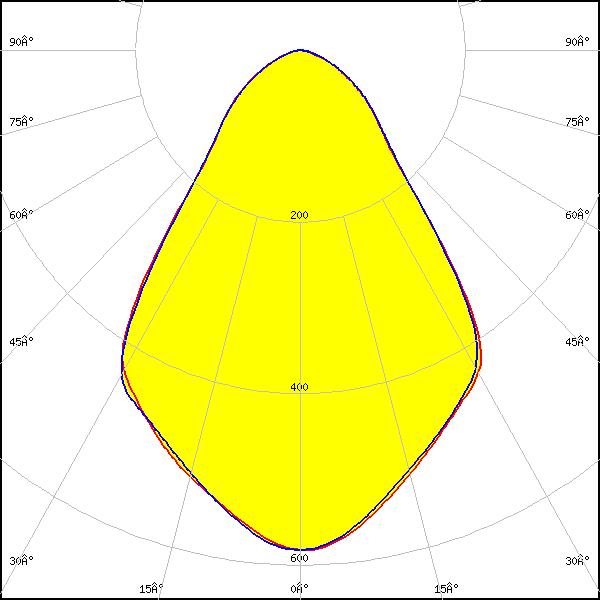

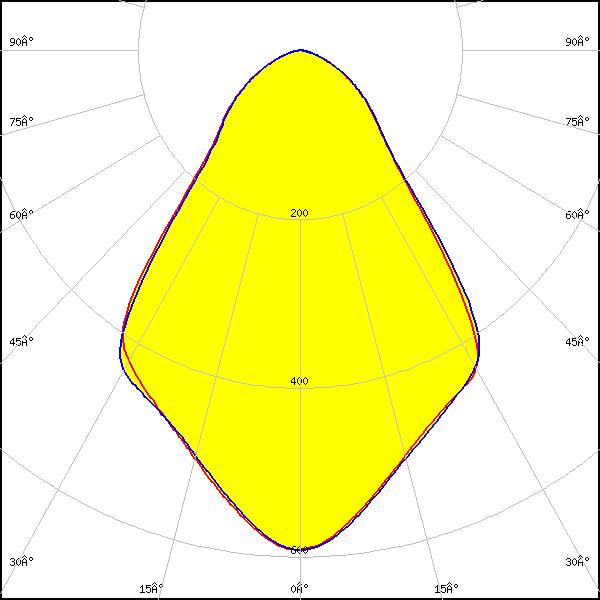

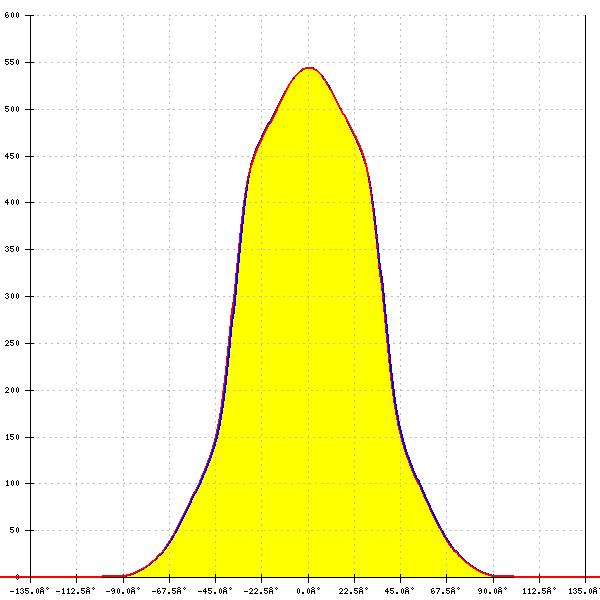

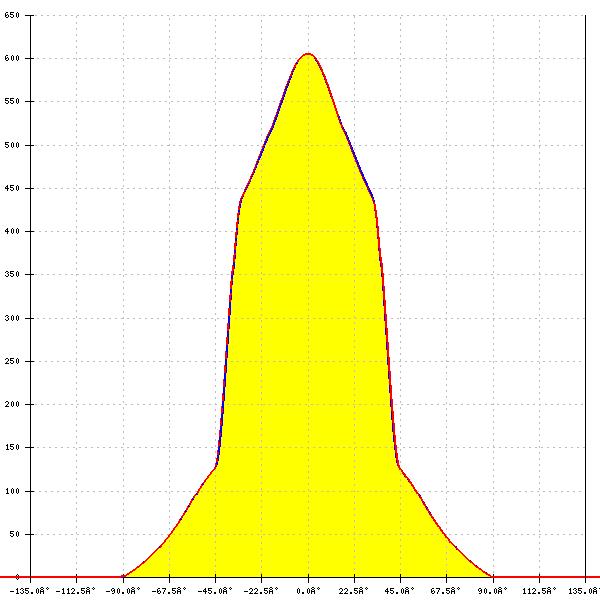

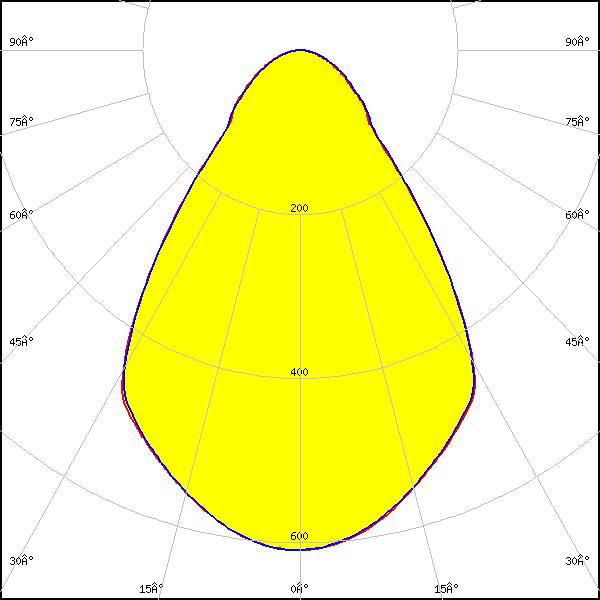

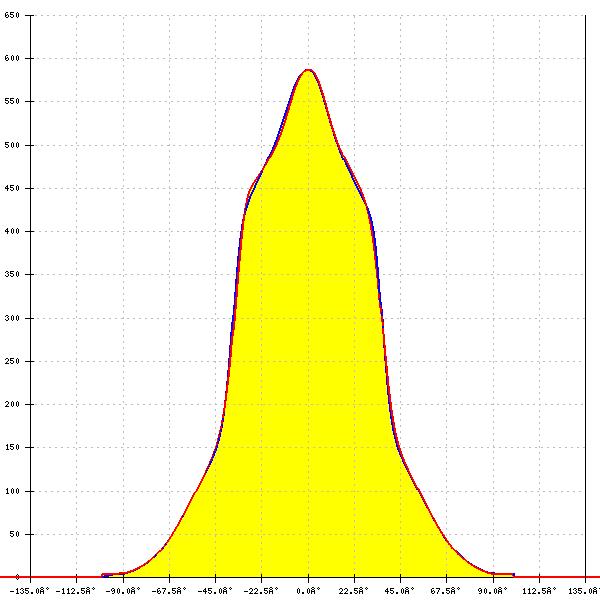

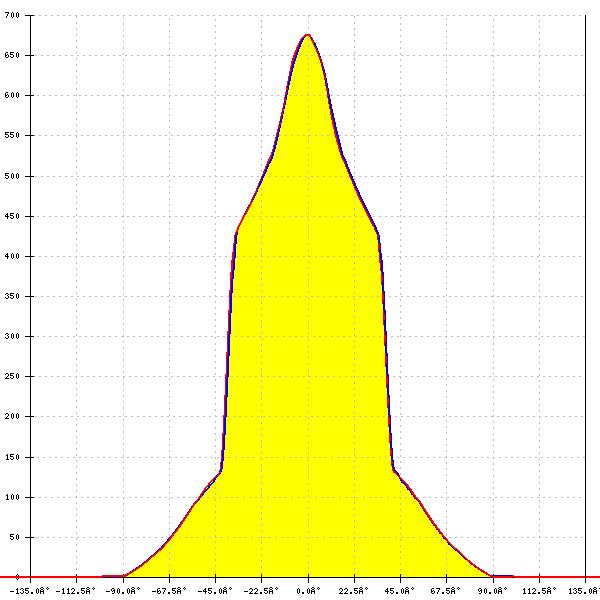

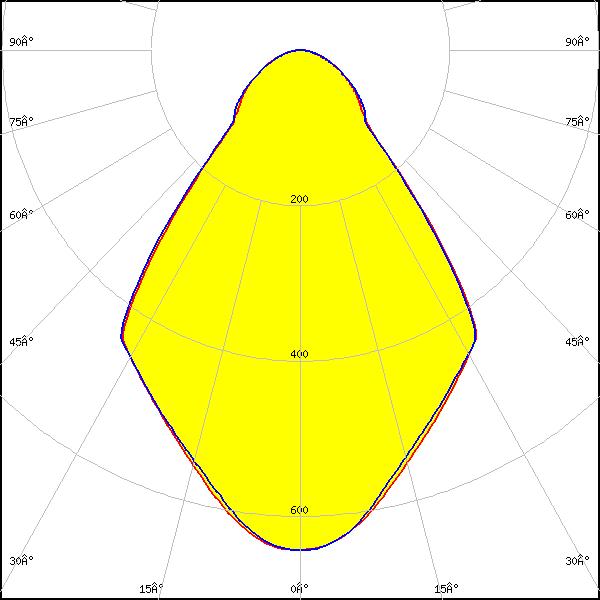

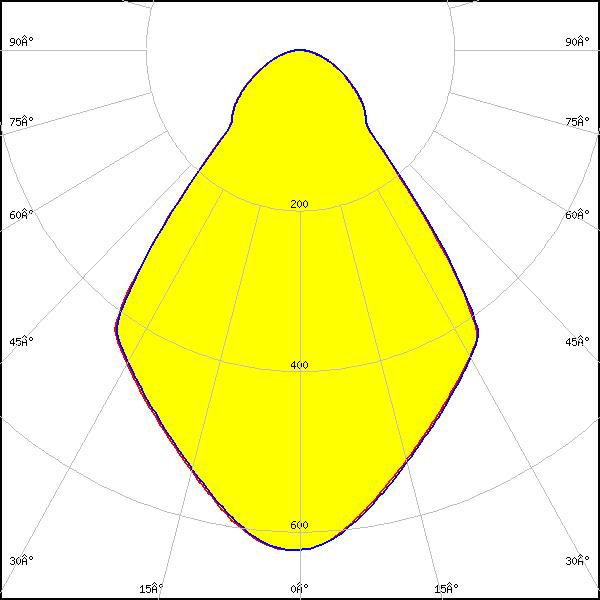

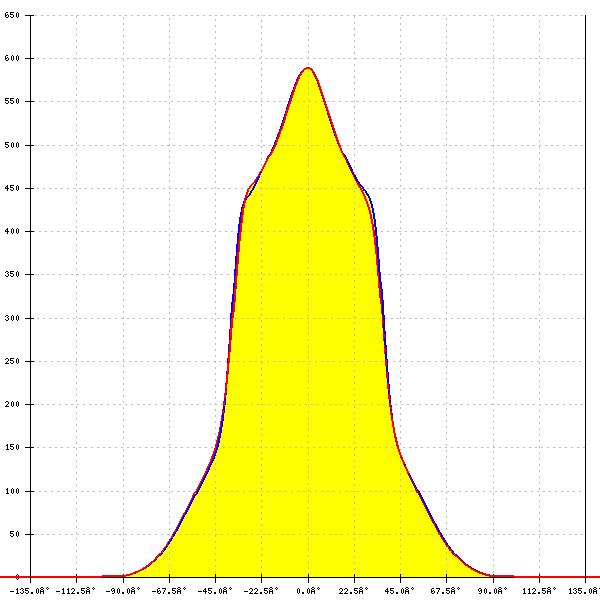

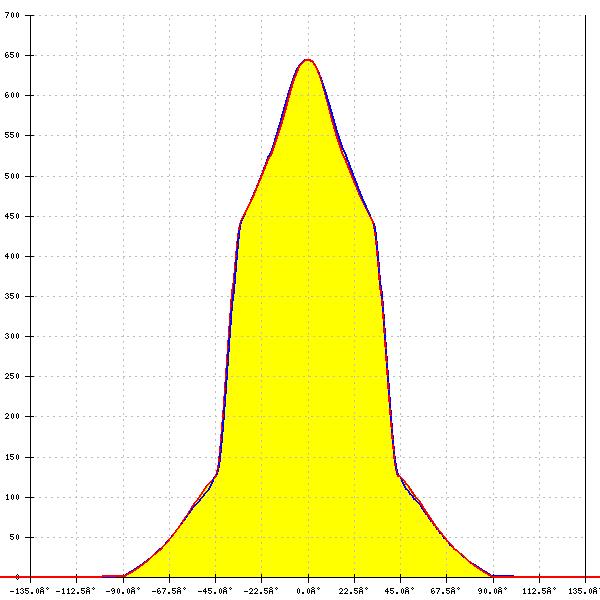

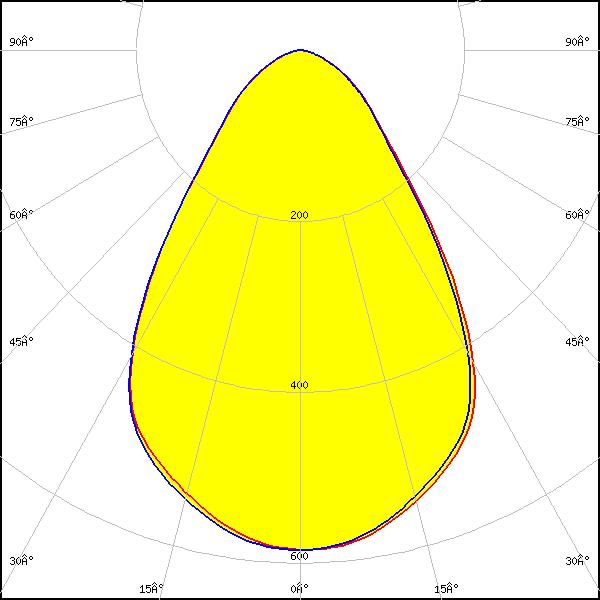

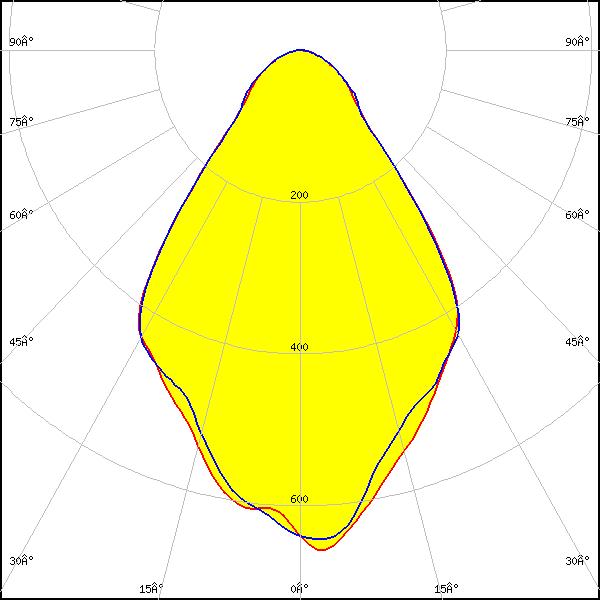

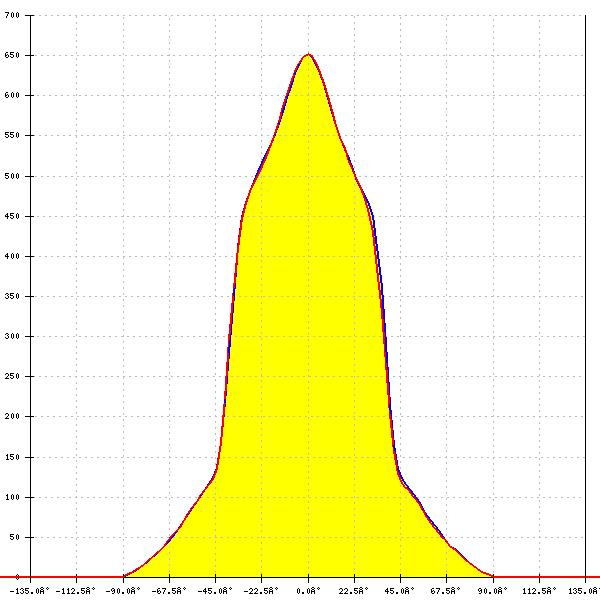

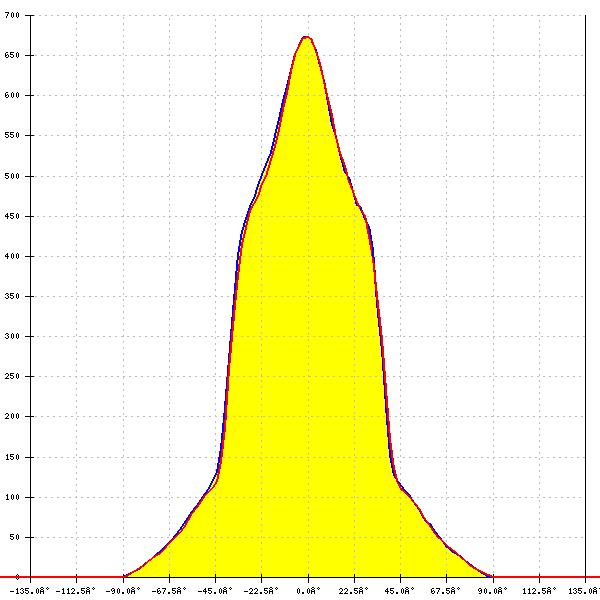

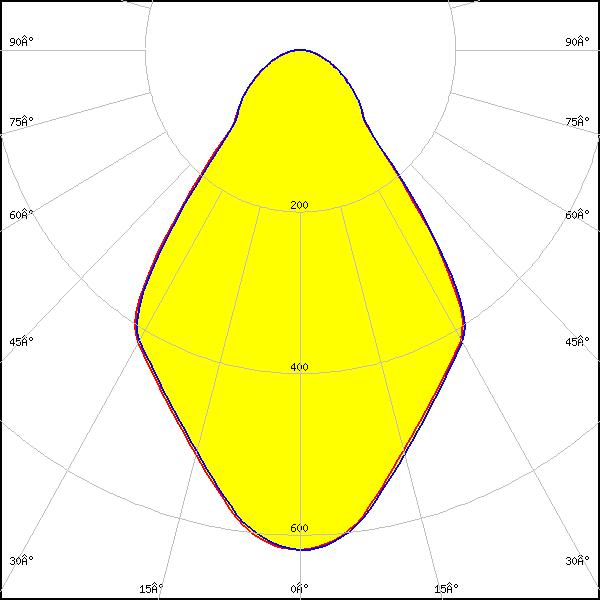

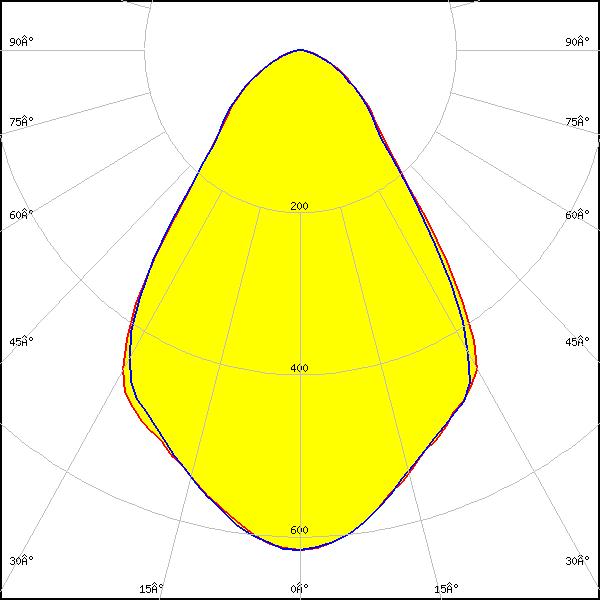

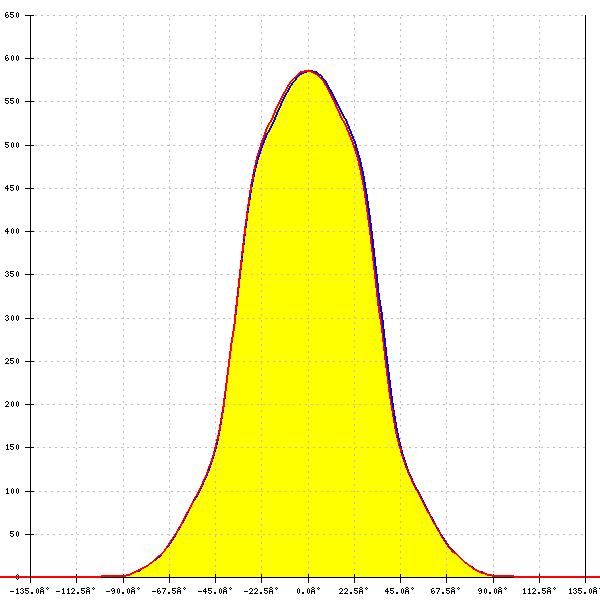

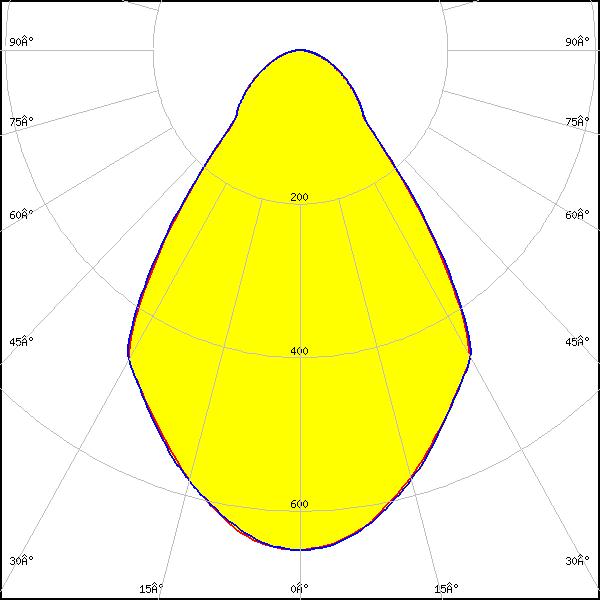

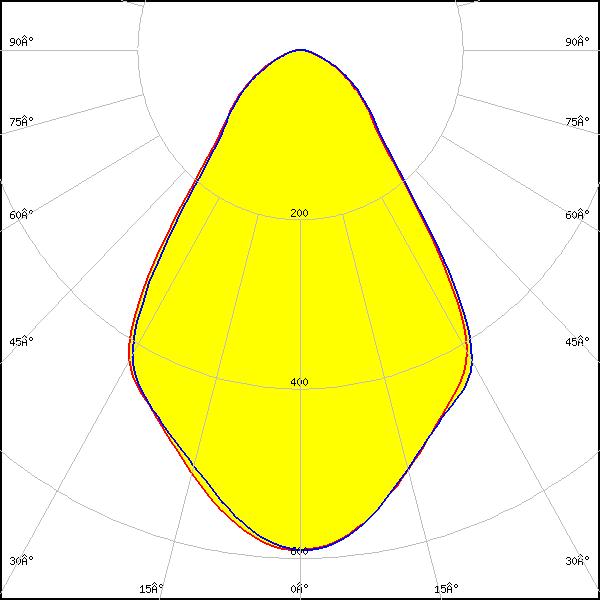

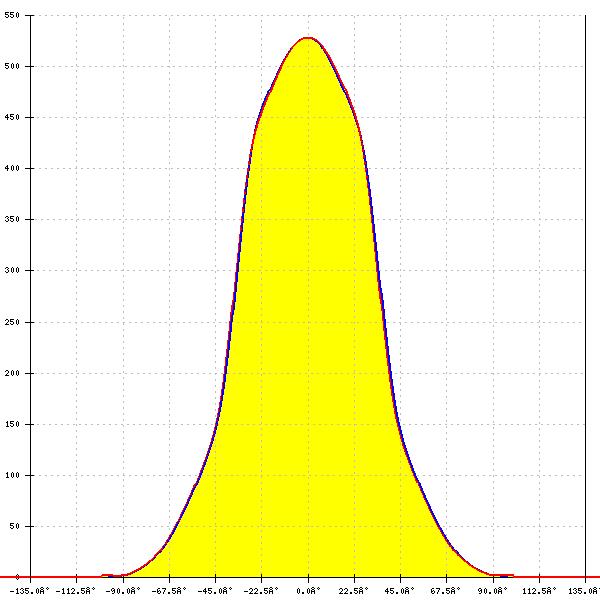

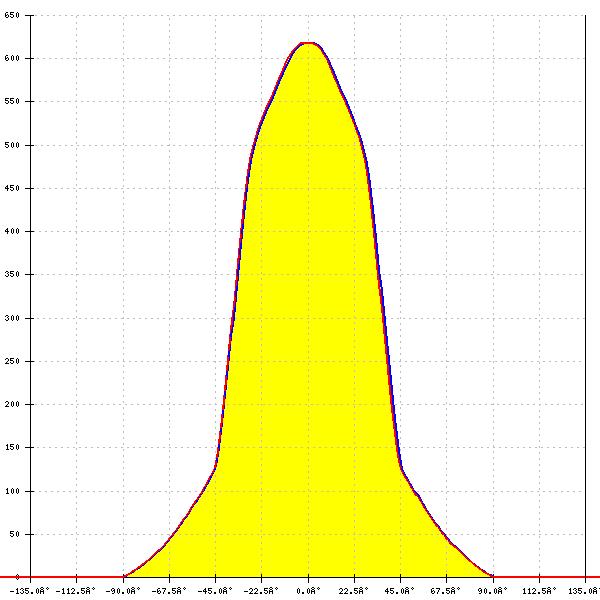

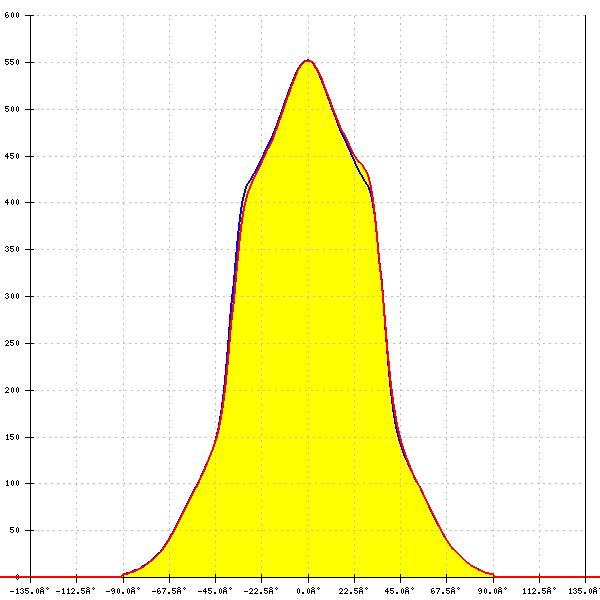

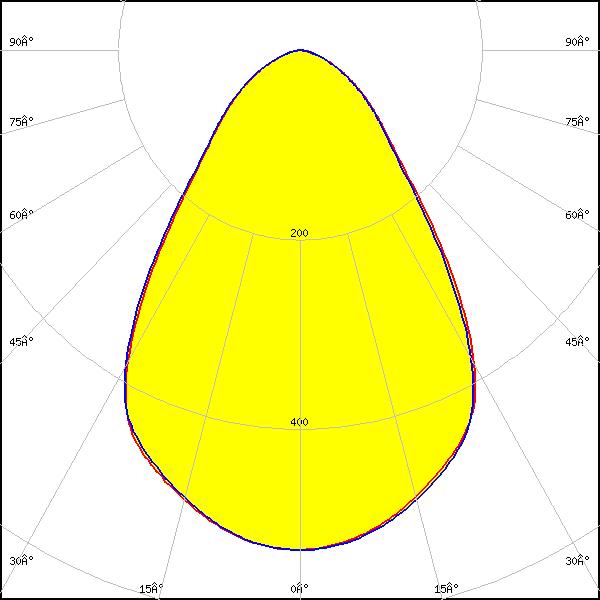

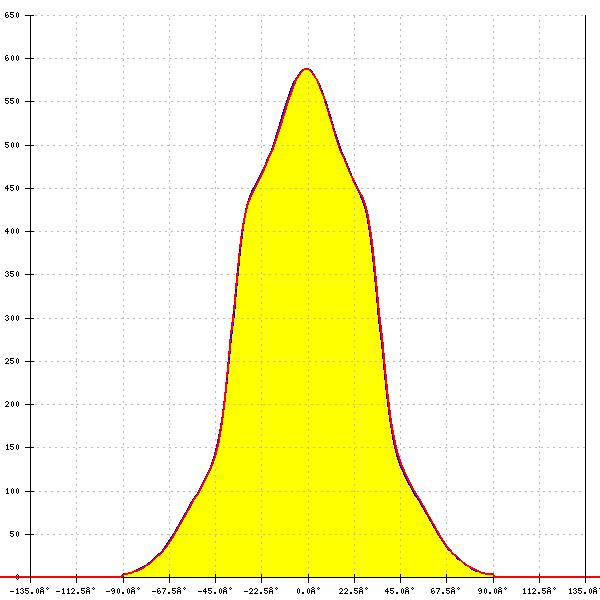

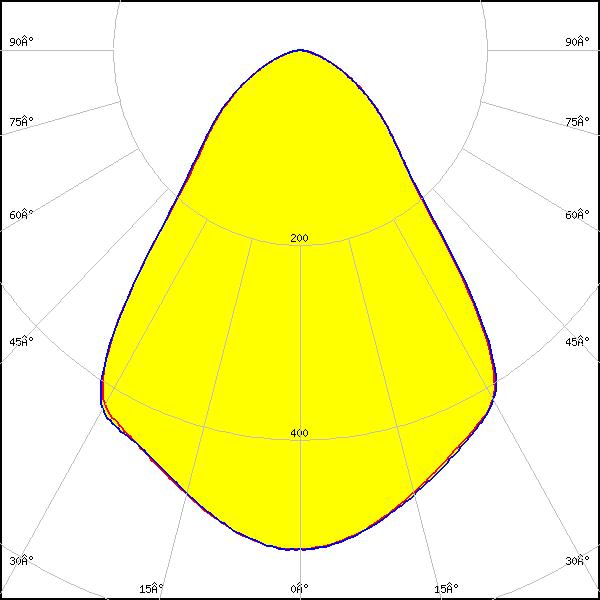

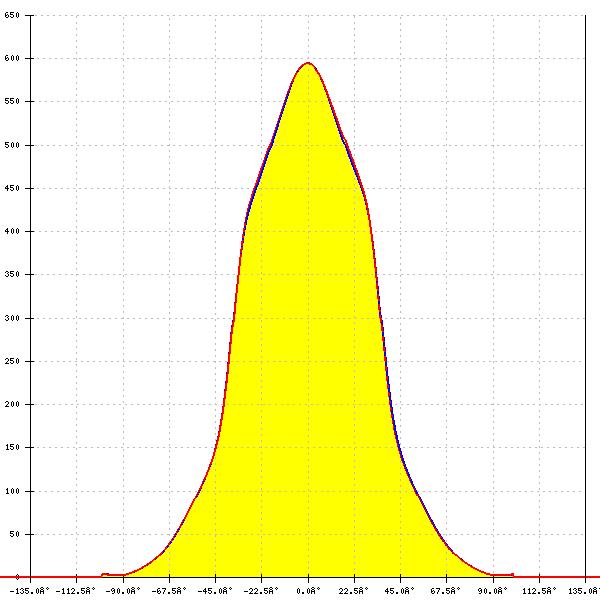

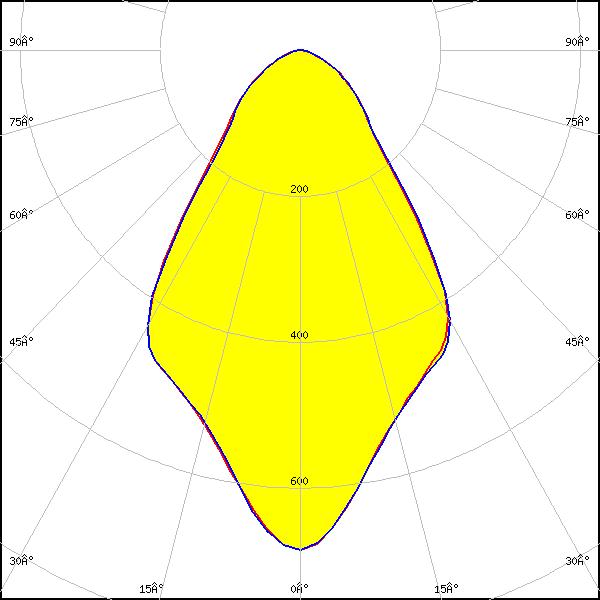

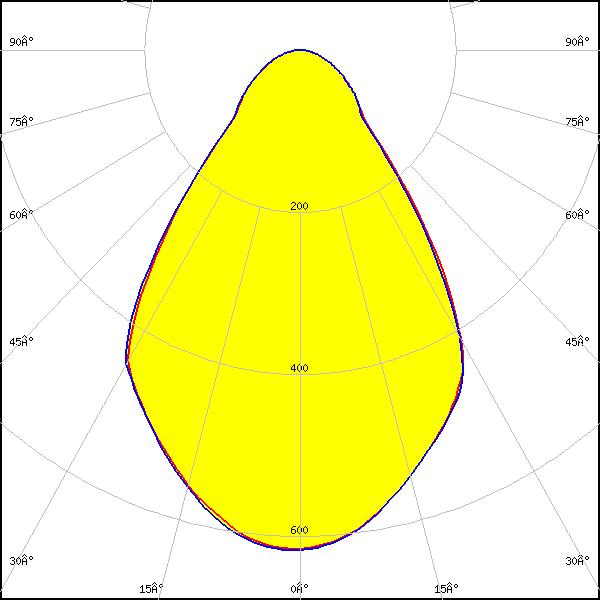

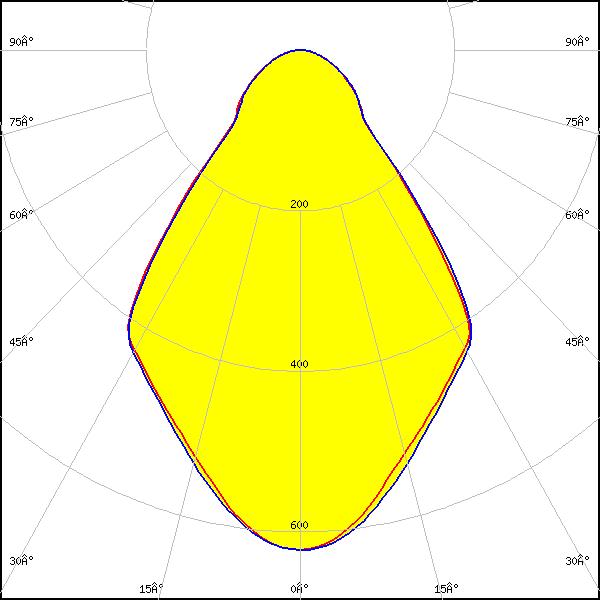

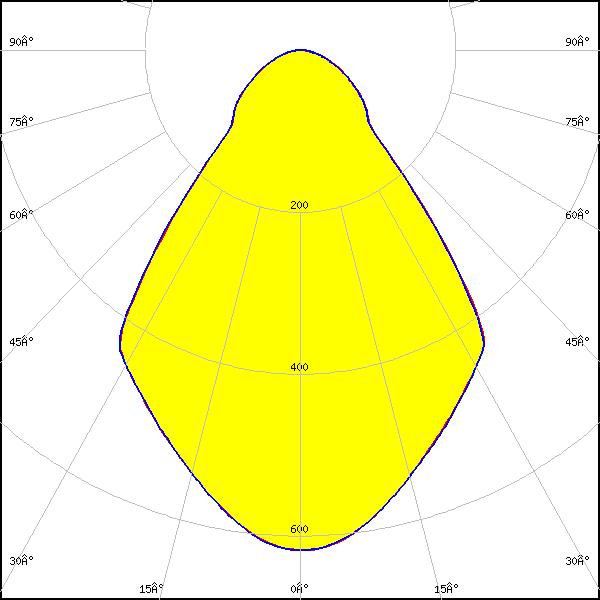

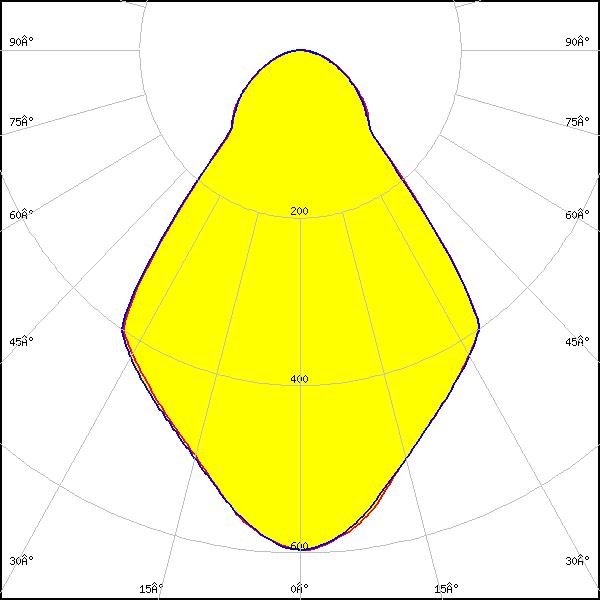

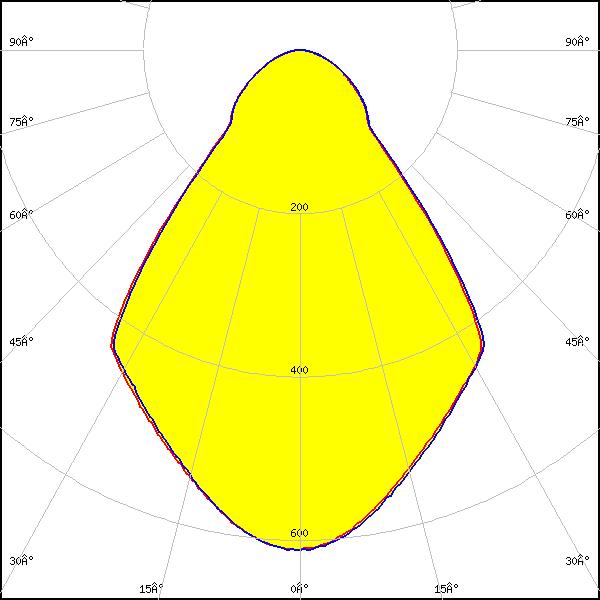

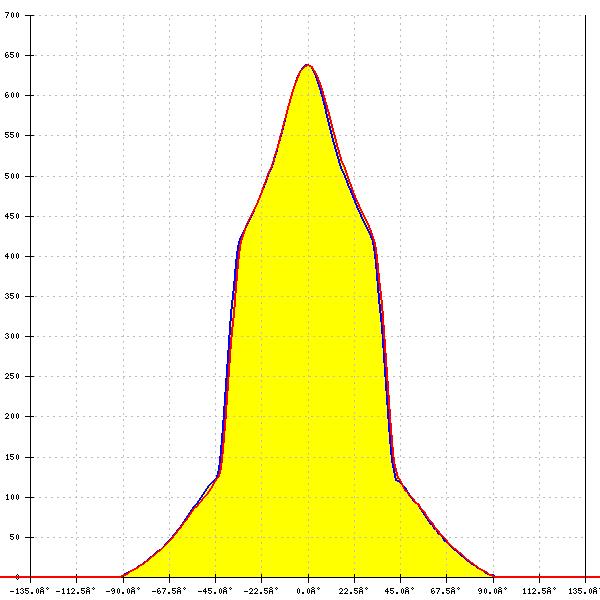

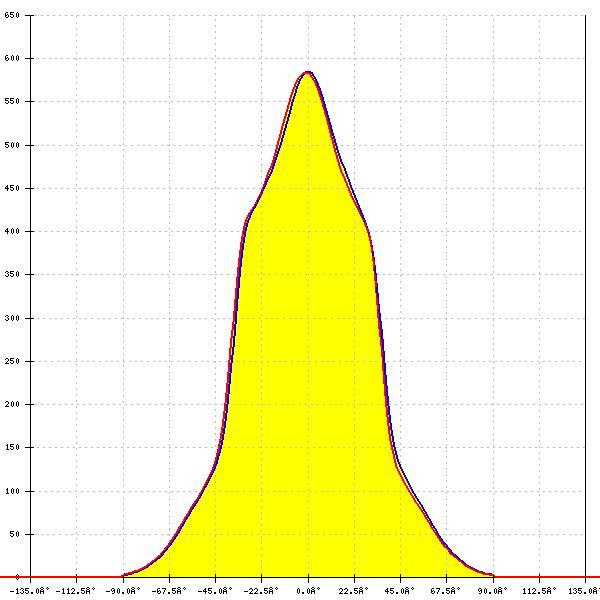

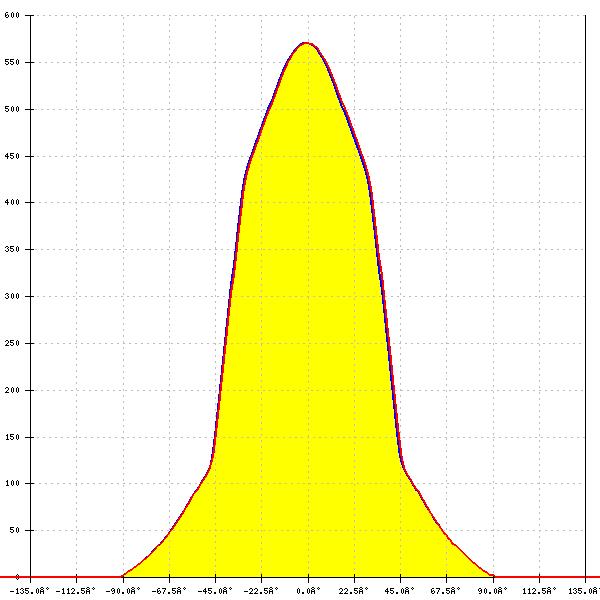

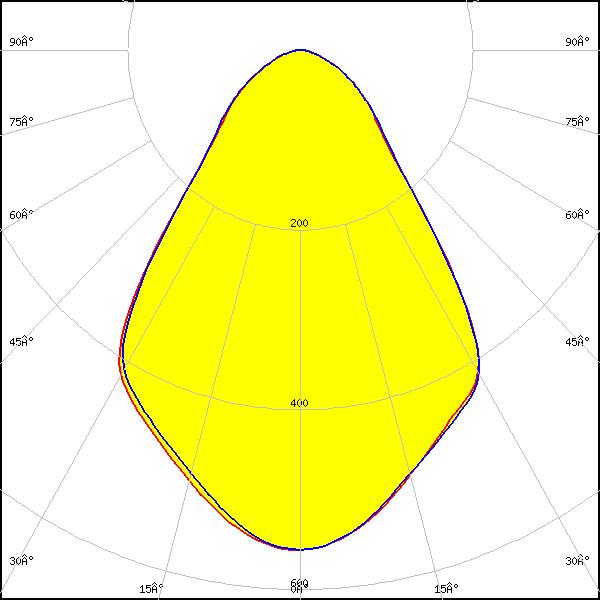

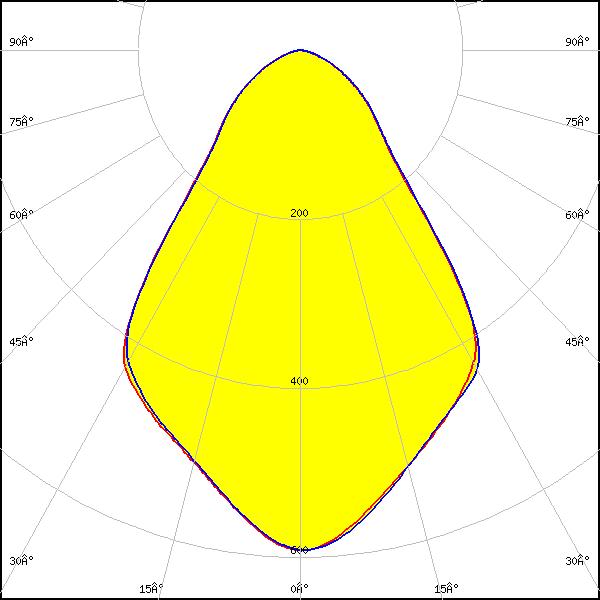

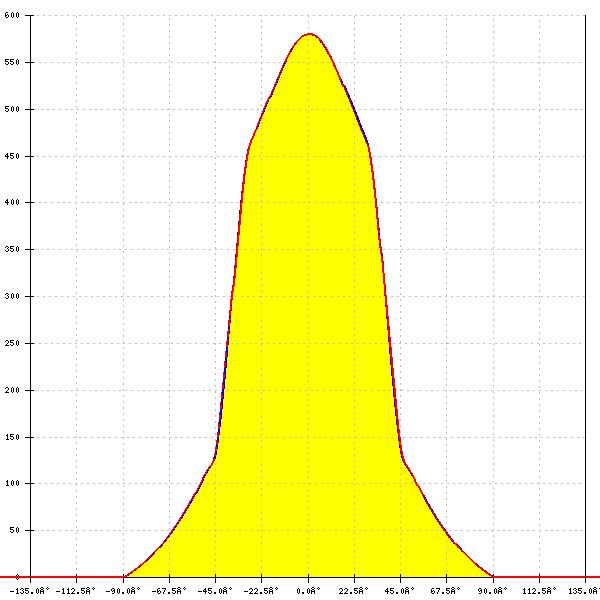

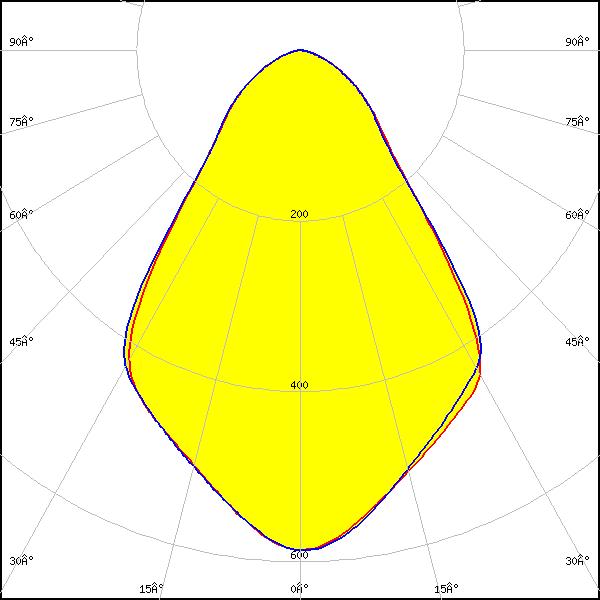

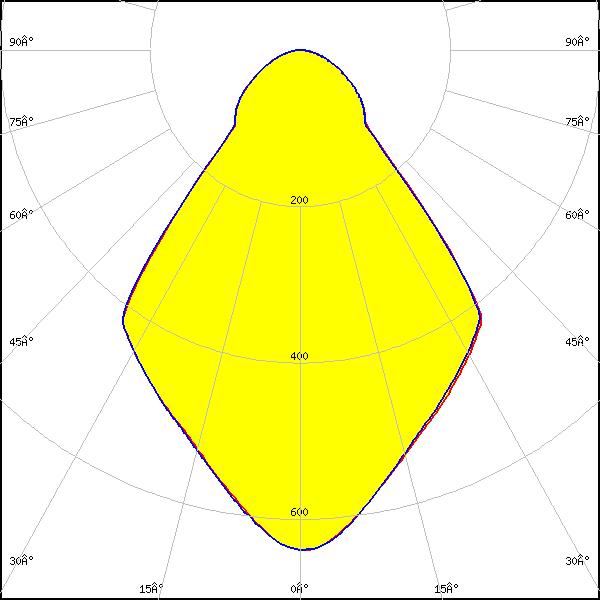

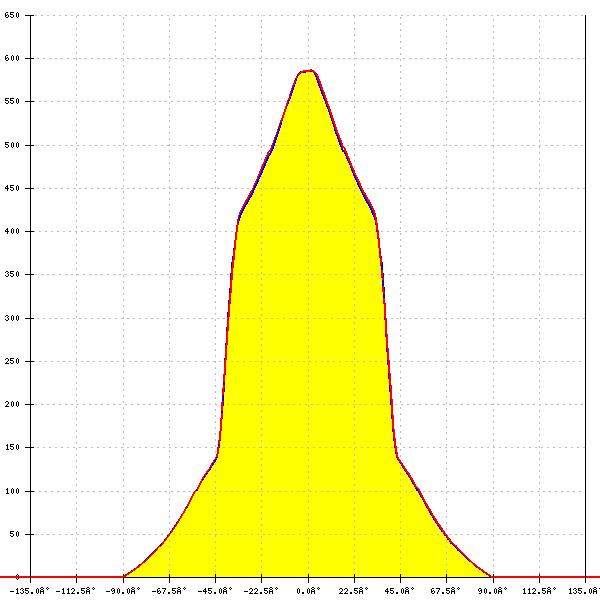

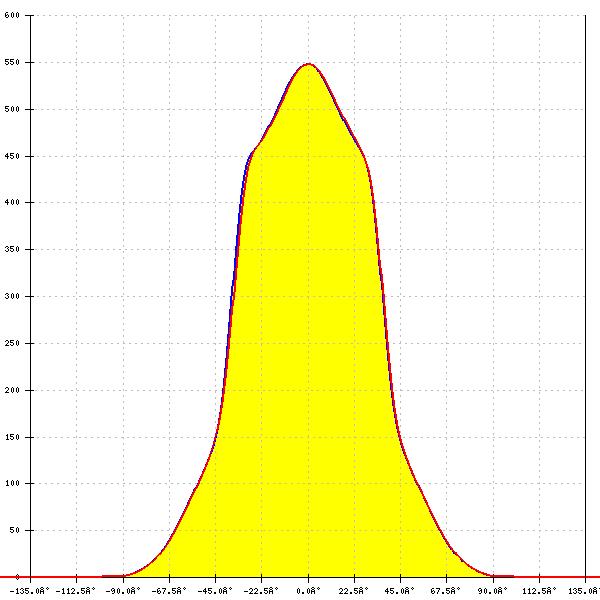

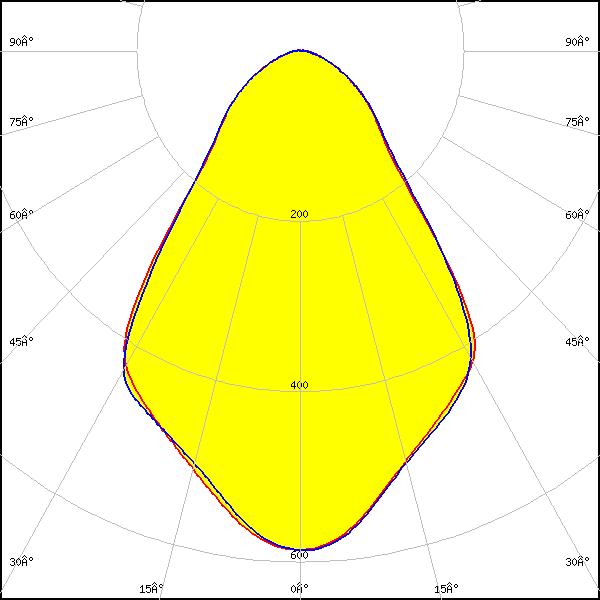

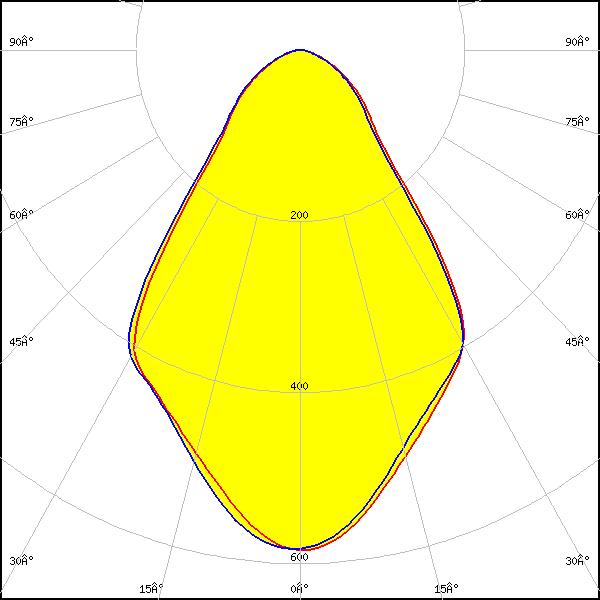

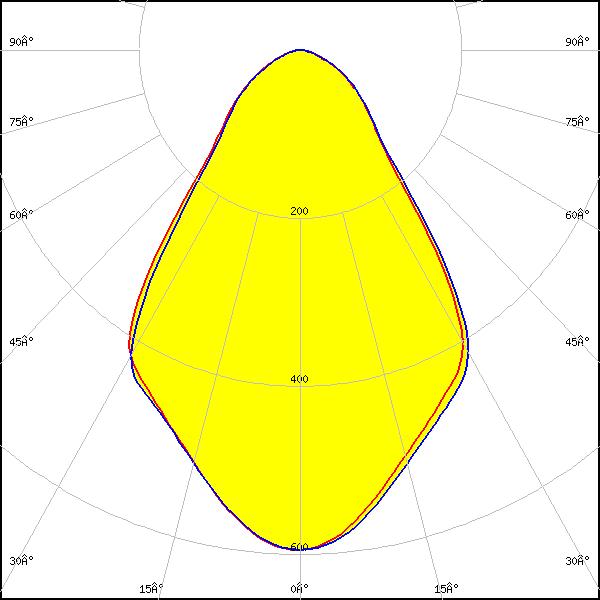

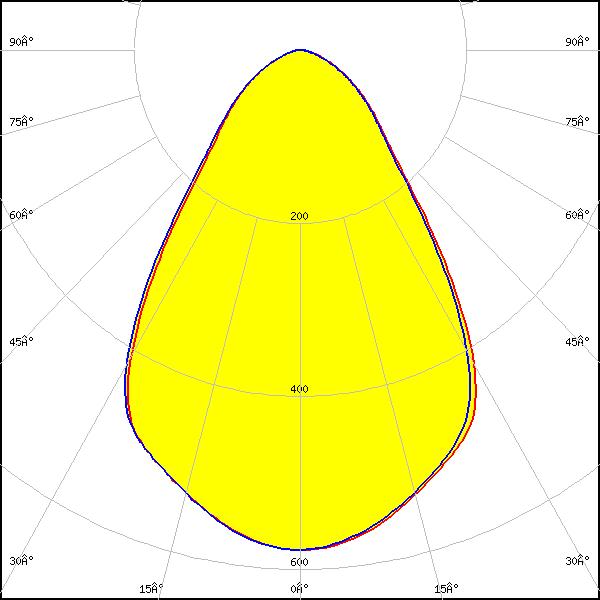

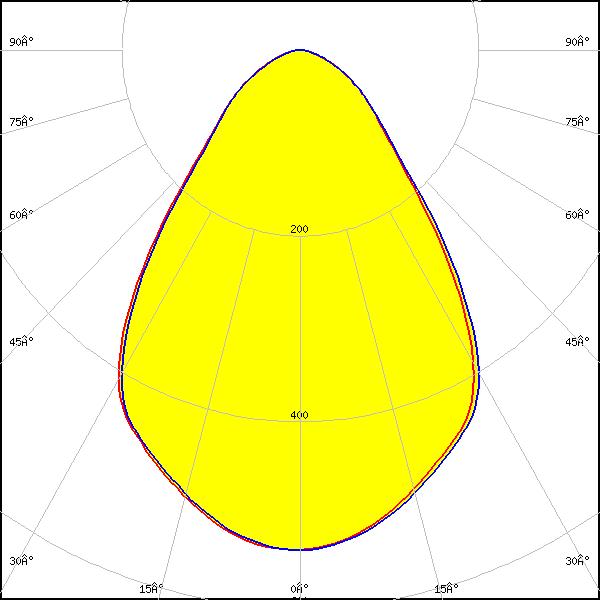

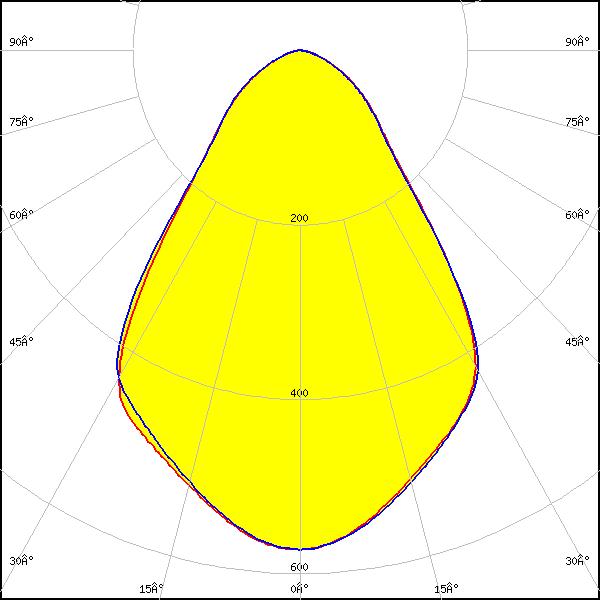

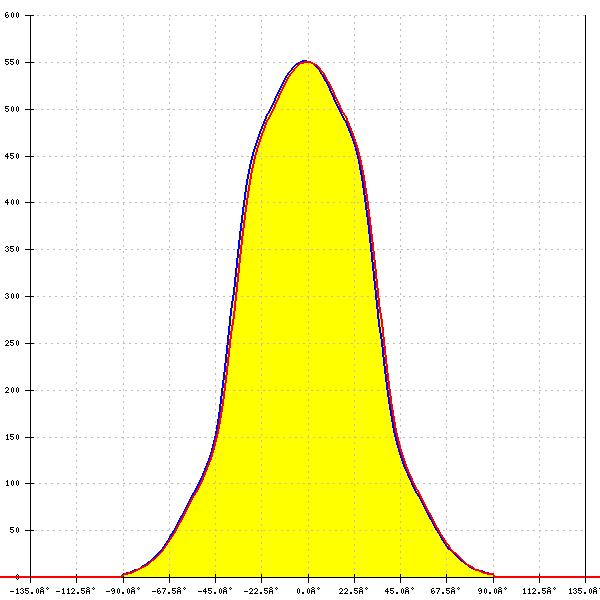

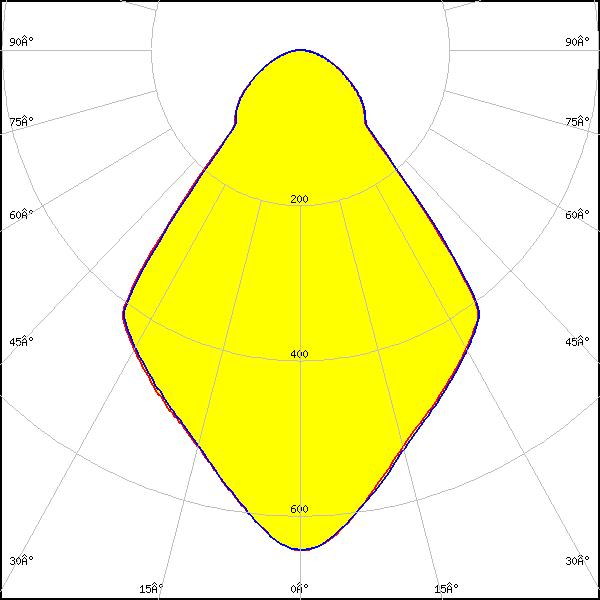

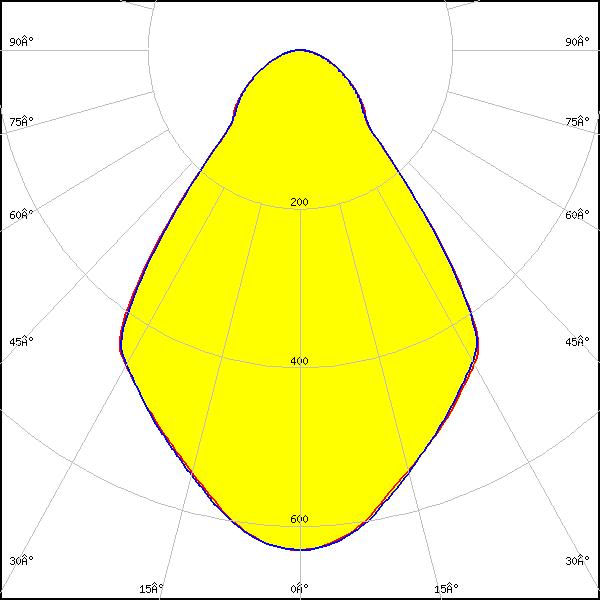

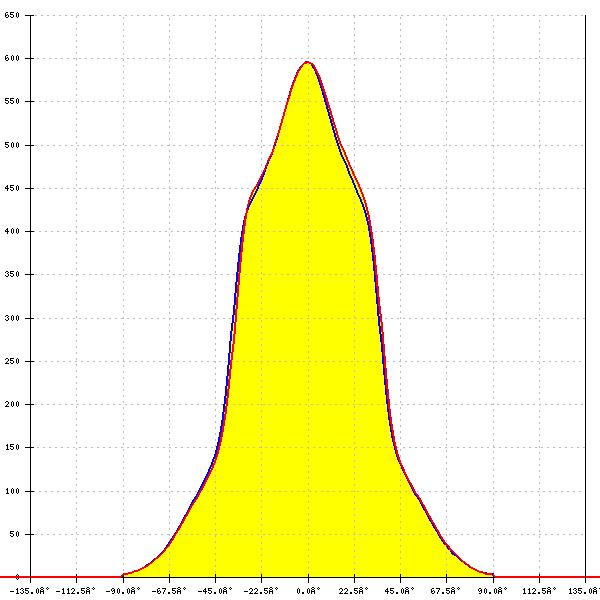

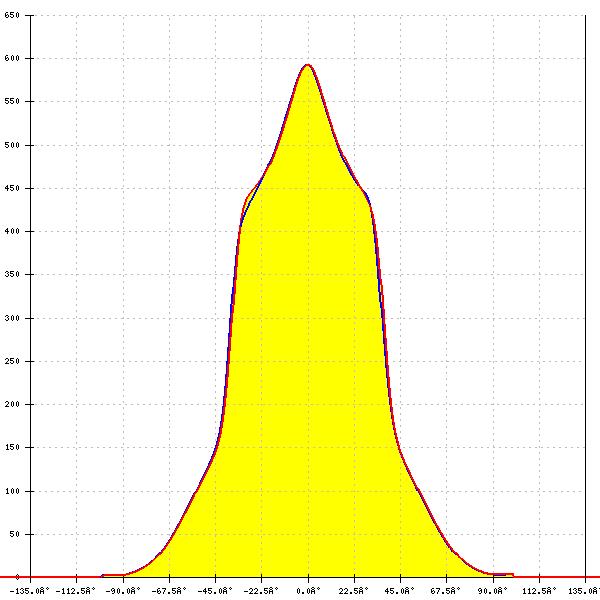

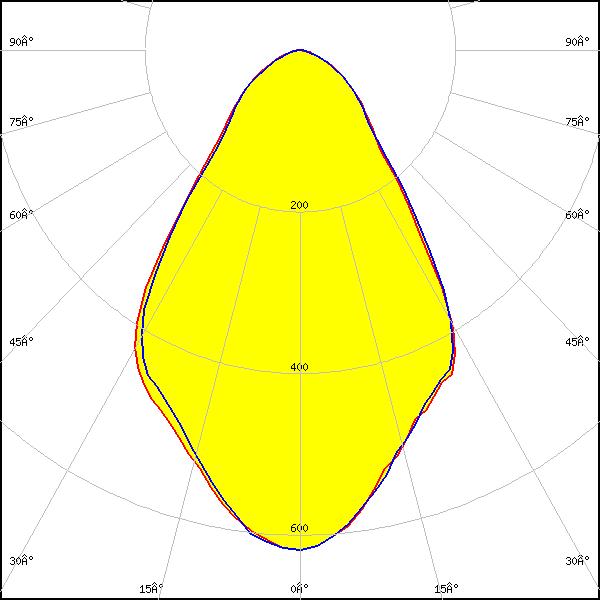

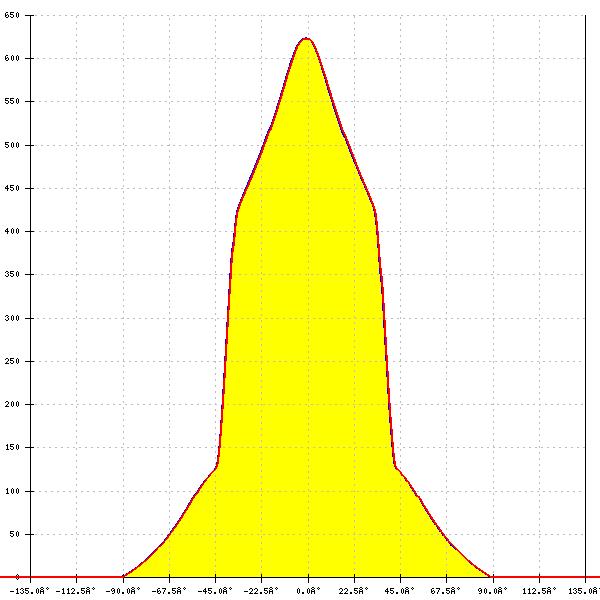

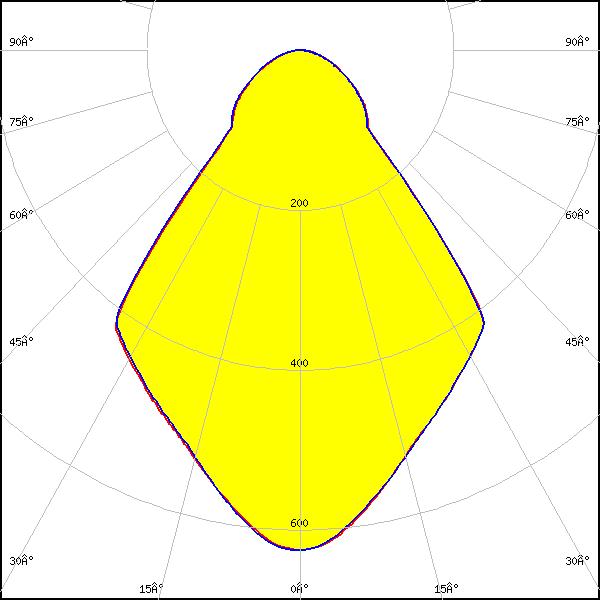

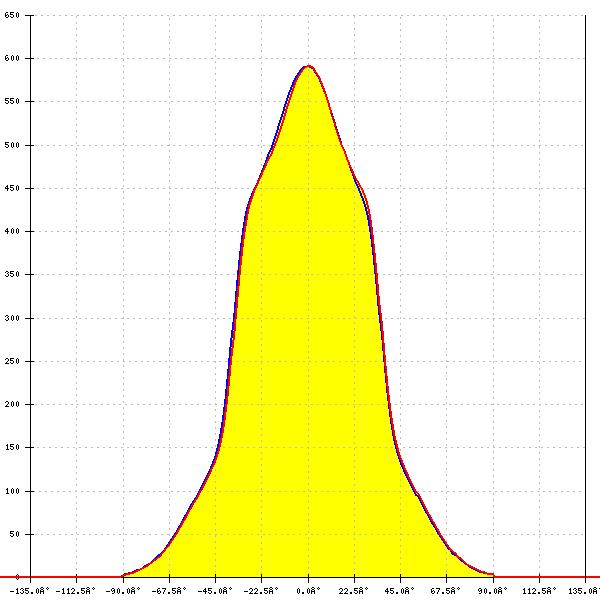

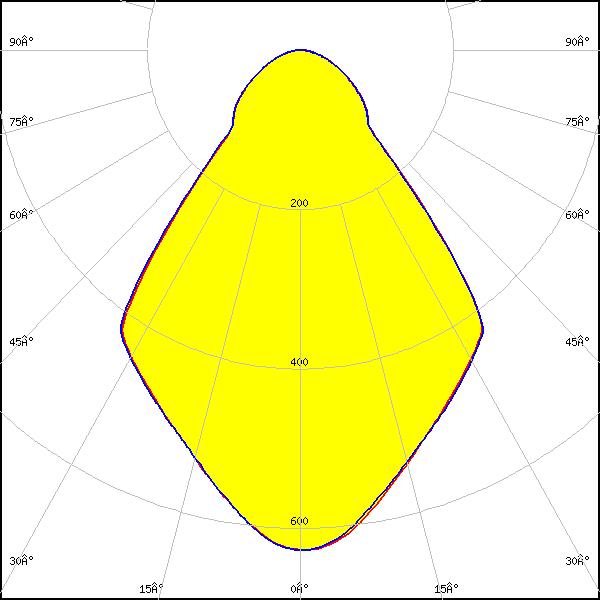

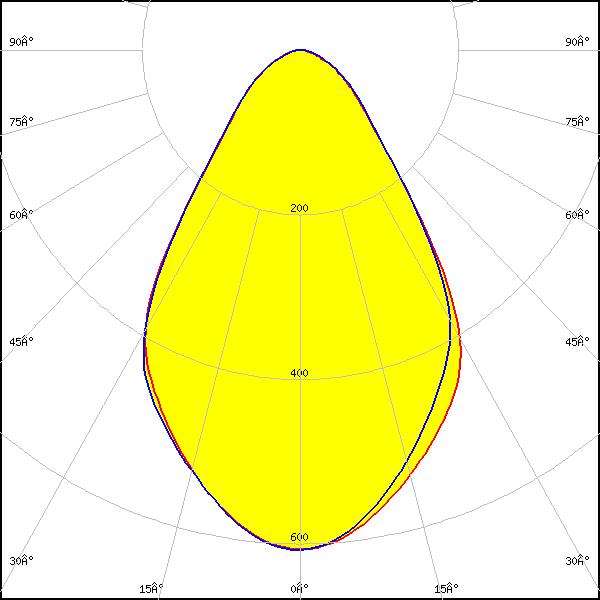

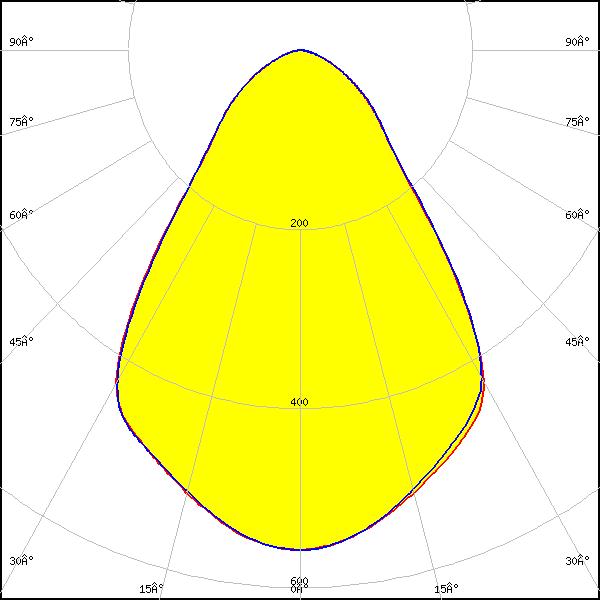

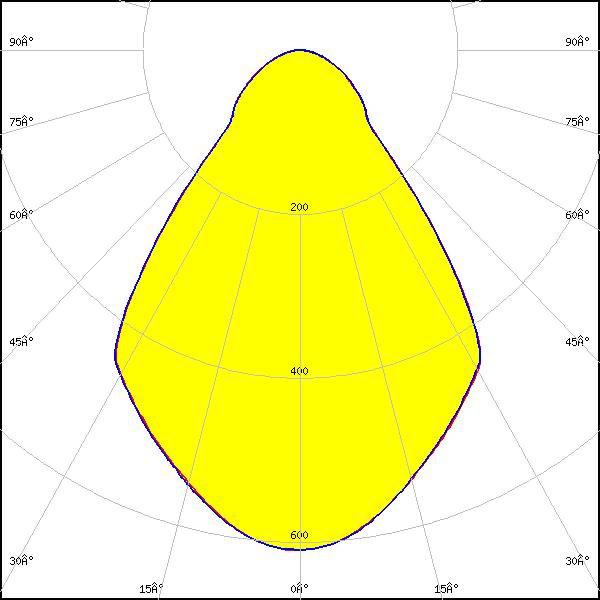

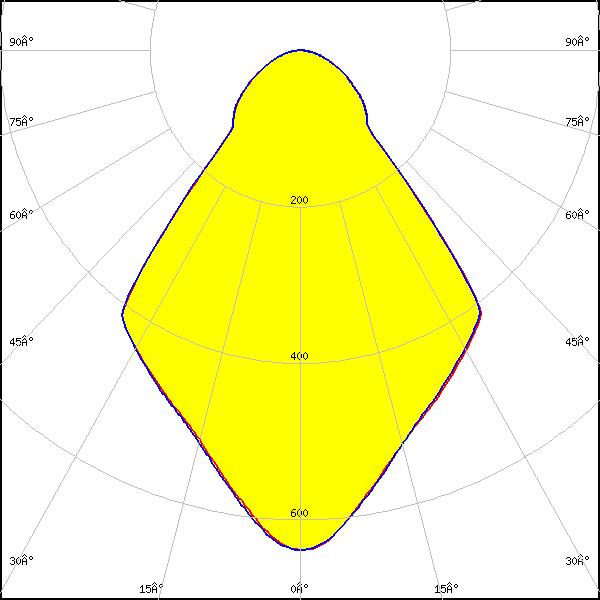

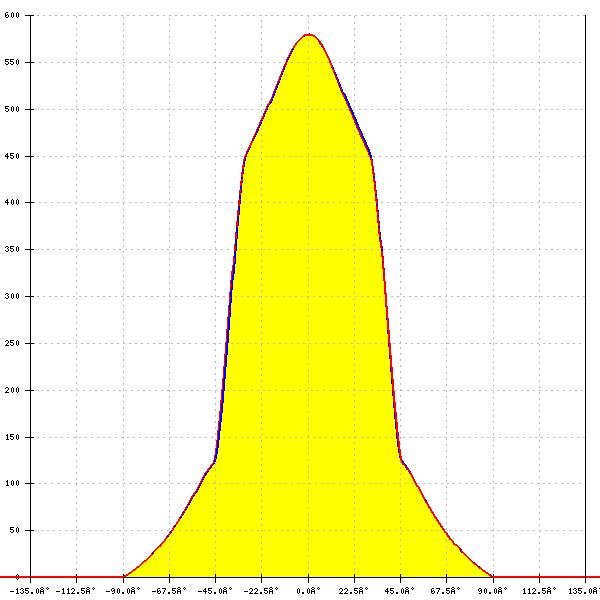

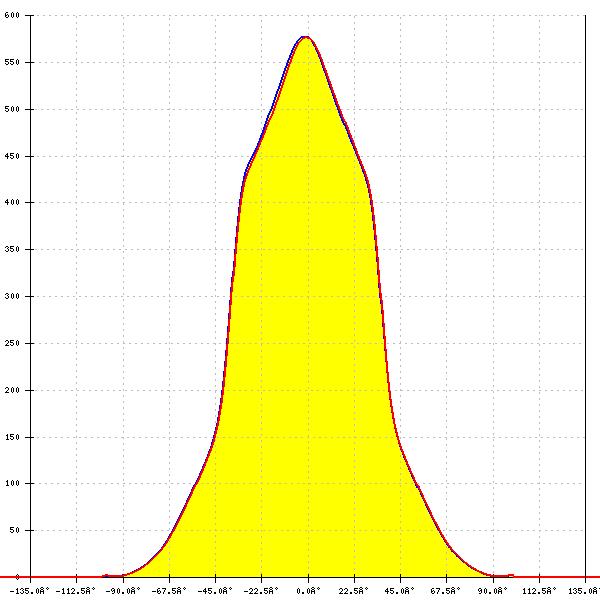

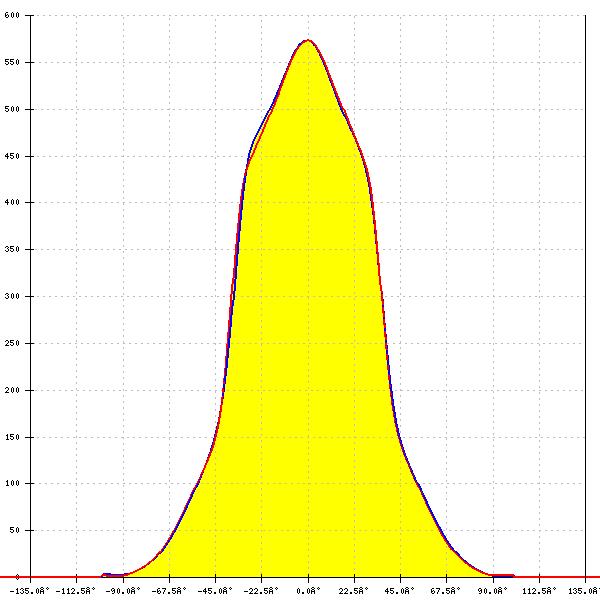

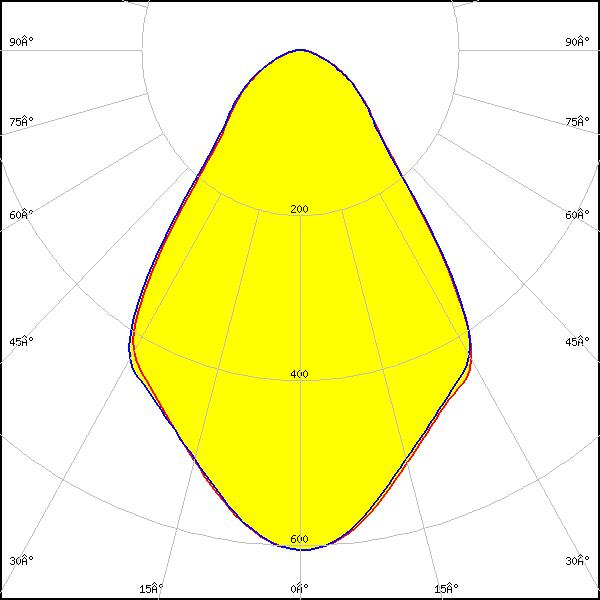

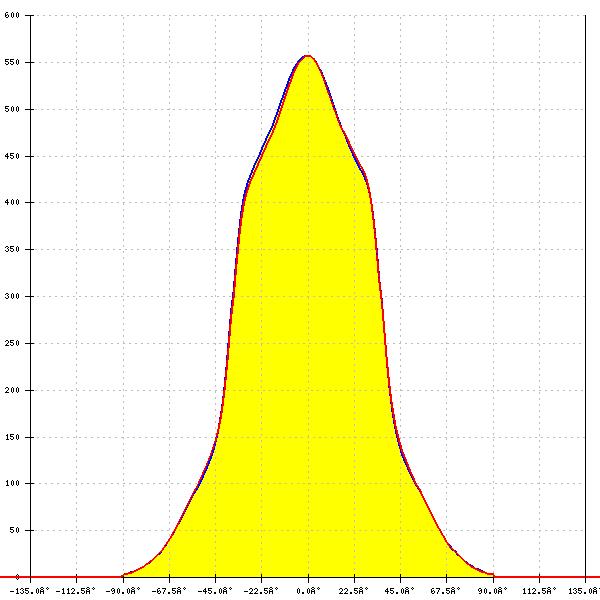

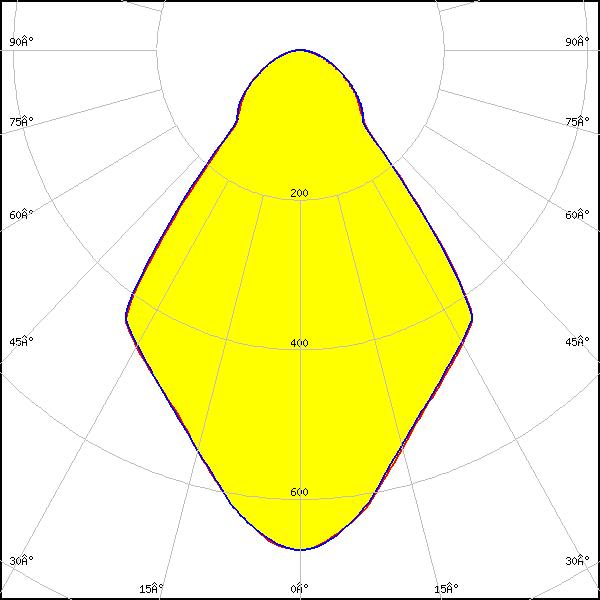

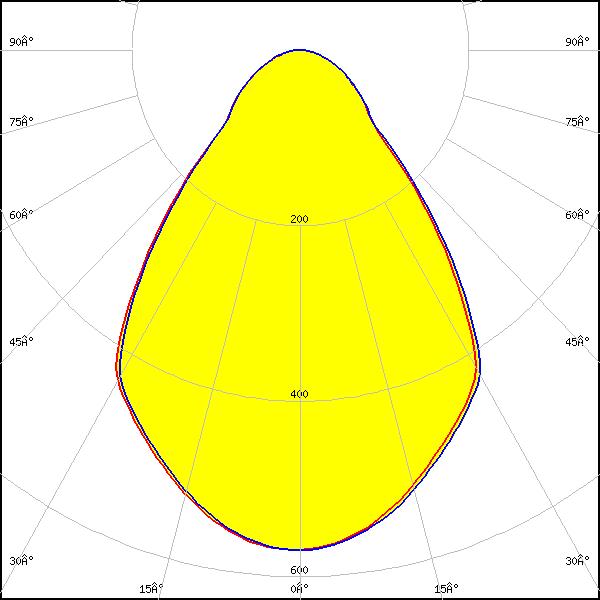

Optical results
LED:
BXRA ES Rectangle
LES size: 19.2 mm
Required components:
FWHM:
74°
FWTM:
124°
Peak intensity:
0.610 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
BXRA ES Rectangle
LES size: 19.2 mm
Required components:
FWHM:
73°
FWTM:
125°
Peak intensity:
0.570 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
BXRA RS
LES size: 35.3 mm
Required components:
FWHM:
76°
FWTM:
128°
Peak intensity:
0.570 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
BXRA RS
LES size: 35.3 mm
Required components:
FWHM:
87°
FWTM:
128°
Peak intensity:
0.539 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen6
LES size: 9.9 mm
Required components:
FWHM:
69°
FWTM:
124°
Peak intensity:
0.700 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
71°
FWTM:
115°
Peak intensity:
0.720 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM:
73°
FWTM:
121°
Peak intensity:
0.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM:
72°
FWTM:
121°
Peak intensity:
0.570 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM:
70°
FWTM:
119°
Peak intensity:
0.603 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

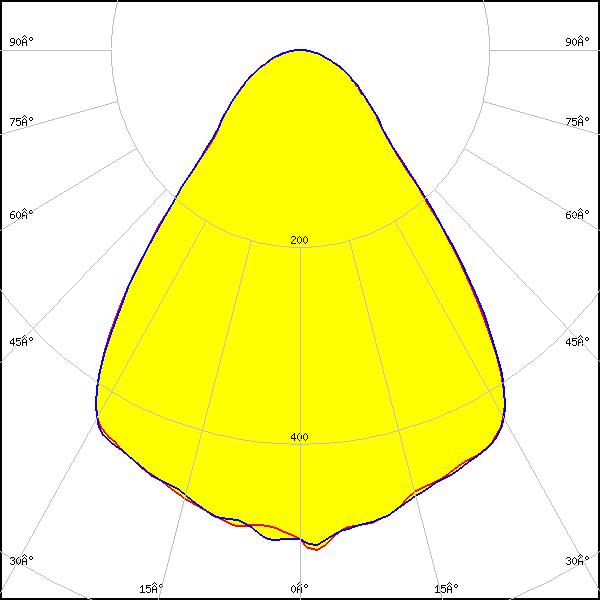

LED:
V22 Gen 8-9
LES size: 23.3 mm
Required components:
FWHM:
78°
FWTM:
132°
Peak intensity:
0.509 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

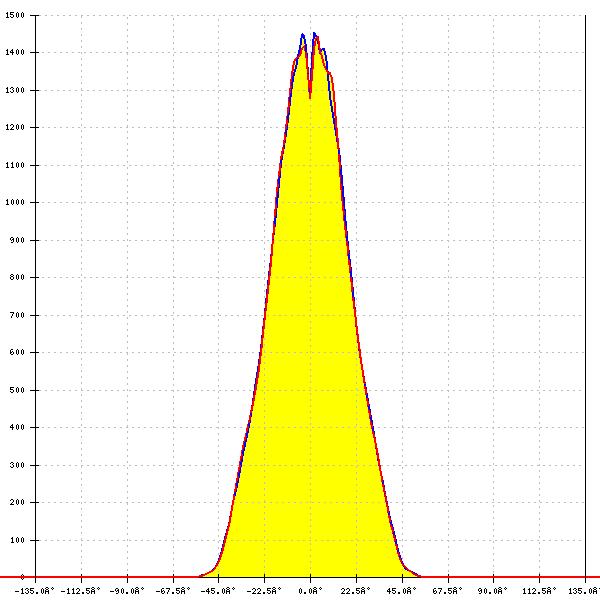

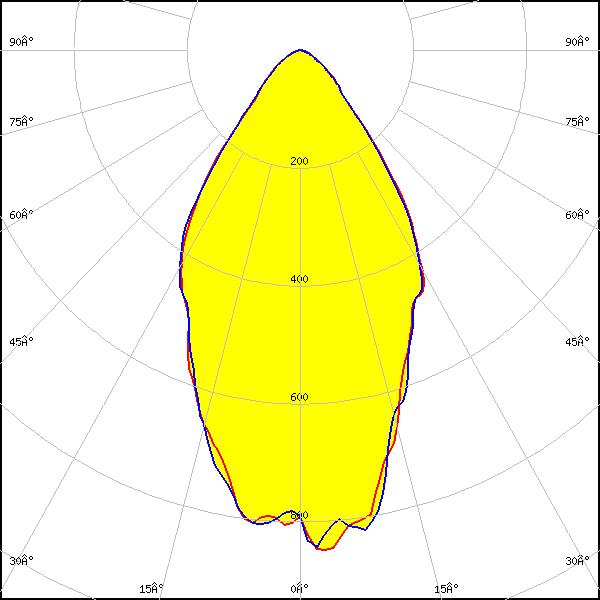

LED:
V22 Gen7
LES size: 22.6 mm
Required components:
FWHM:
60°
FWTM:
94°
Peak intensity:
0.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen7
LES size: 22.6 mm
Required components:
FWHM:
60°
FWTM:
96°
Peak intensity:
0.894 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
71°
FWTM:
120°
Peak intensity:
0.690 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

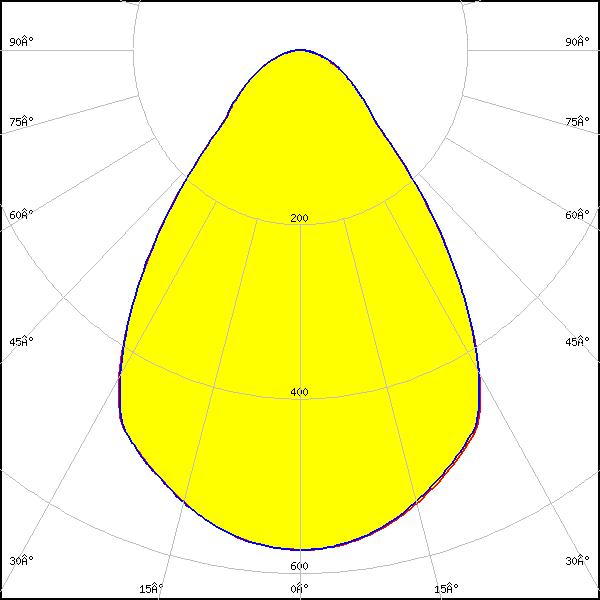

LED:
Vero SE 29
LES size: 29.2 mm
Required components:
FWHM:
76°
FWTM:
127°
Peak intensity:
0.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

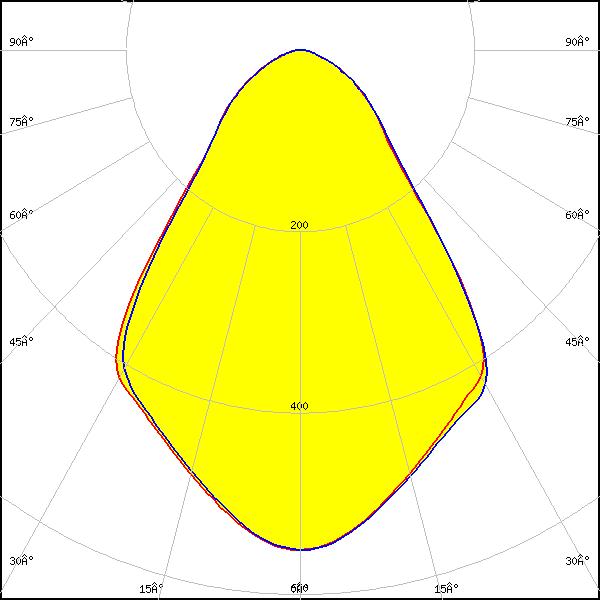

VERO13
LES size: 13.4 mm
Required components:
FWHM:
76°
FWTM:
128°
Peak intensity:
0.590 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
75°
FWTM:
127°
Peak intensity:
0.550 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

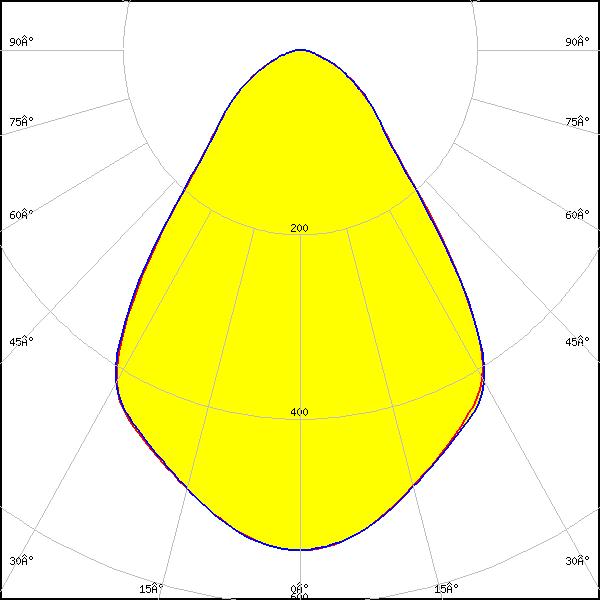

LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM:
76°
FWTM:
128°
Peak intensity:
0.580 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM:
75°
FWTM:
128°
Peak intensity:
0.540 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

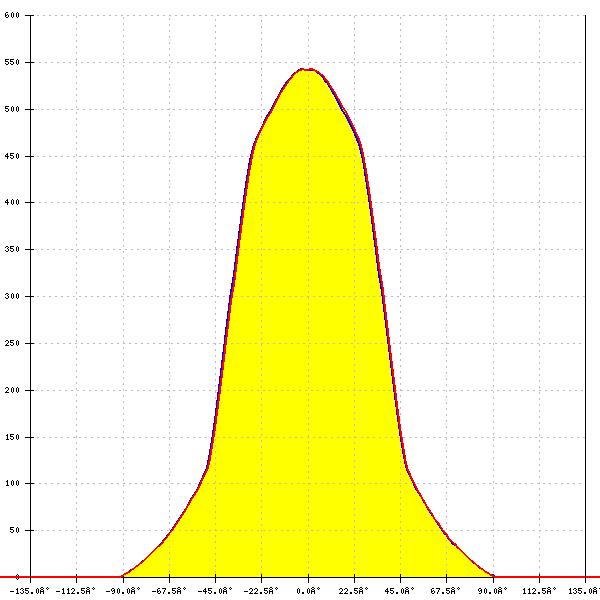

LED:
VERO29
LES size: 29.2 mm
Required components:
FWHM:
77°
FWTM:
130°
Peak intensity:
0.540 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO29
LES size: 29.2 mm
Required components:
FWHM:
77°
FWTM:
129°
Peak intensity:
0.520 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CL-L340
LES size: 20.0 mm
Required components:
FWHM:
72°
FWTM:
122°
Peak intensity:
0.619 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CL-L340
LES size: 20.0 mm
Required components:
FWHM:
71°
FWTM:
124°
Peak intensity:
0.575 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
75°
FWTM:
125°
Peak intensity:
0.640 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
73°
FWTM:
125°
Peak intensity:
0.590 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

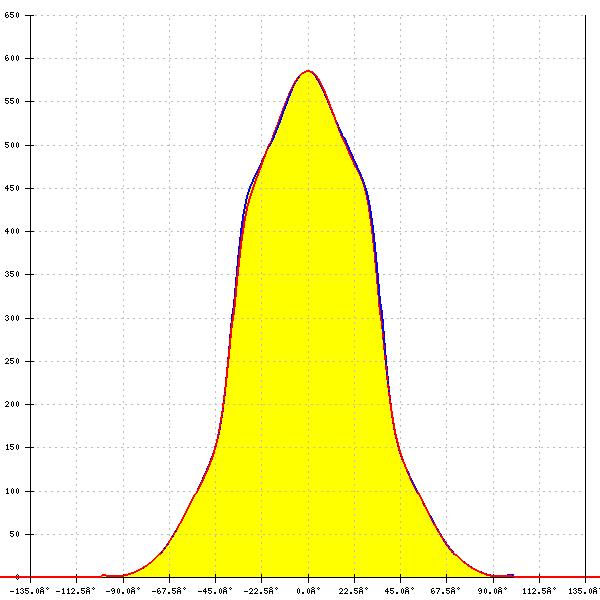

CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
74°
FWTM:
124°
Peak intensity:
0.630 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
72°
FWTM:
125°
Peak intensity:
0.610 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
75°
FWTM:
126°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
74°
FWTM:
125°
Peak intensity:
0.580 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

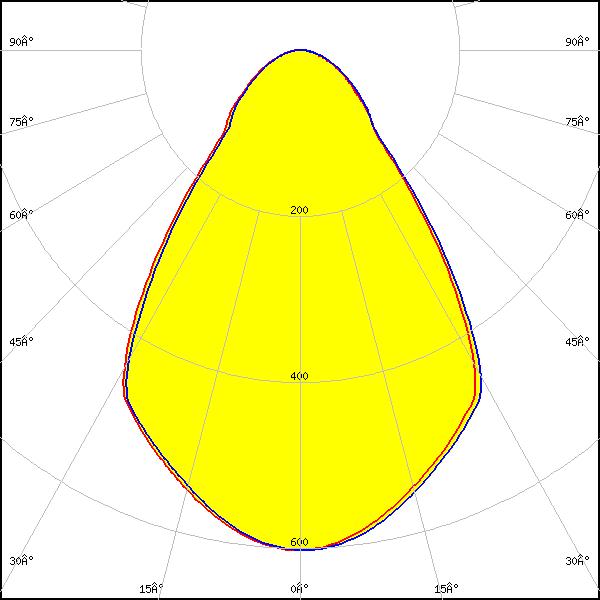

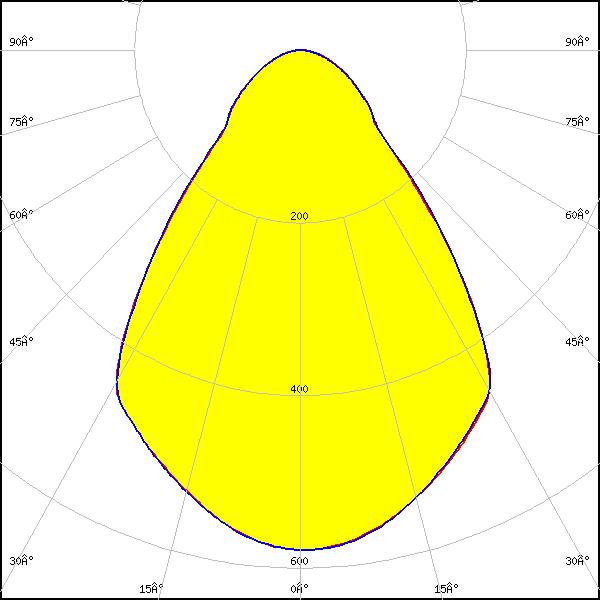

LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
71°
FWTM:
122°
Peak intensity:
0.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
71°
FWTM:
124°
Peak intensity:
0.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
75°
FWTM:
127°
Peak intensity:
0.580 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
75°
FWTM:
127°
Peak intensity:
0.540 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
71°
FWTM:
124°
Peak intensity:
0.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
73°
FWTM:
126°
Peak intensity:
0.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
A.A.G. STUCCHI: S-8000-12
A.A.G. STUCCHI: S-8000-12
FWHM:
74°
FWTM:
126°
Peak intensity:
0.500 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
IDEAL: 50-2204CT
IDEAL: 50-2100LN
IDEAL: 50-2100LN
FWHM:
72°
FWTM:
124°
Peak intensity:
0.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

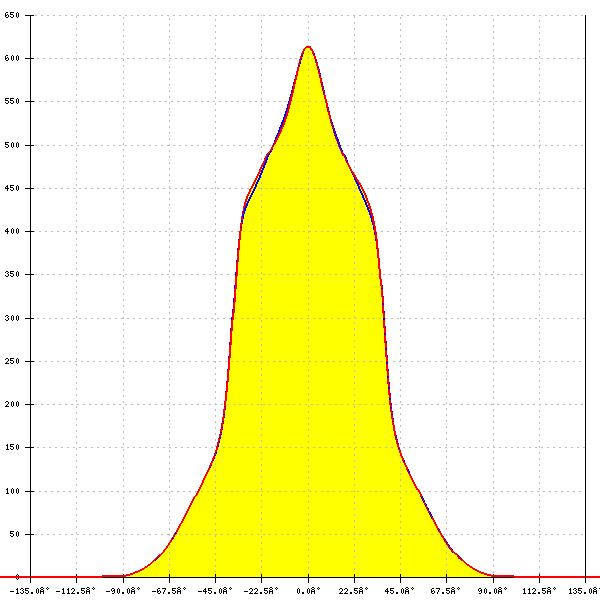

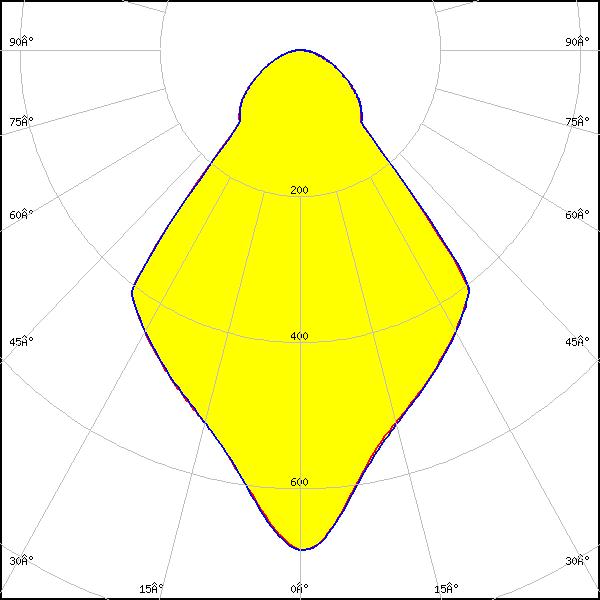

LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
75°
FWTM:
122°
Peak intensity:
0.680 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
73°
FWTM:
124°
Peak intensity:
0.610 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

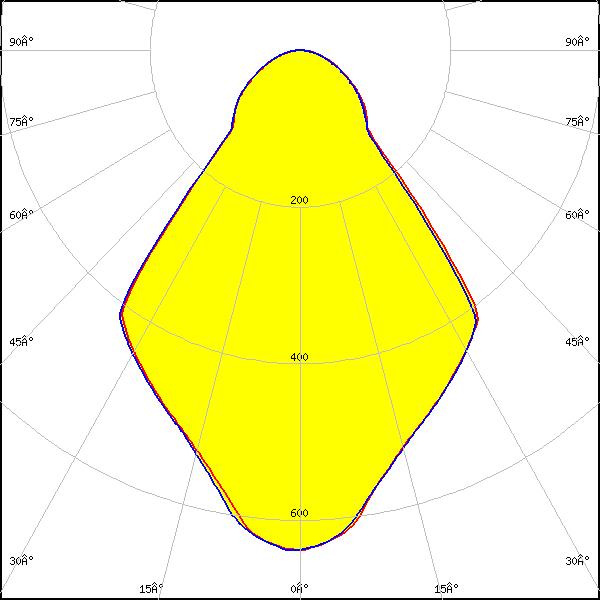

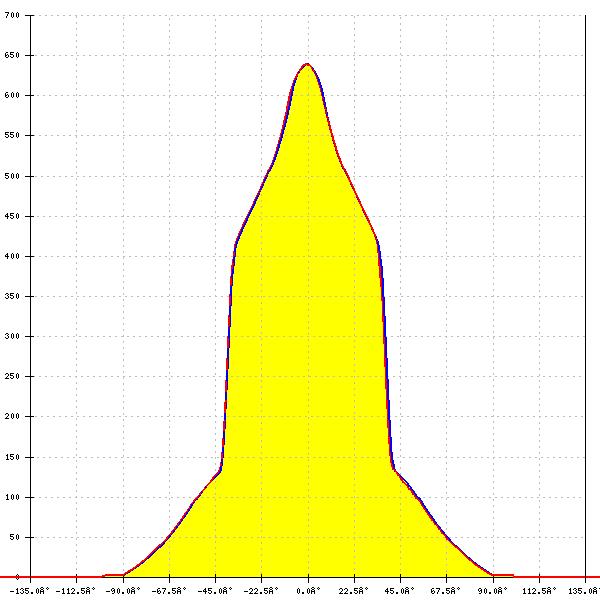

LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
75°
FWTM:
127°
Peak intensity:
0.640 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
73°
FWTM:
127°
Peak intensity:
0.590 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

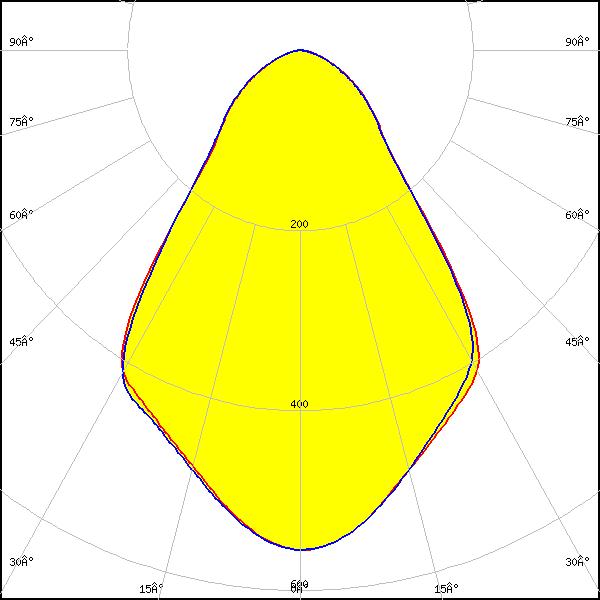

LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
74°
FWTM:
127°
Peak intensity:
0.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
73°
FWTM:
127°
Peak intensity:
0.560 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

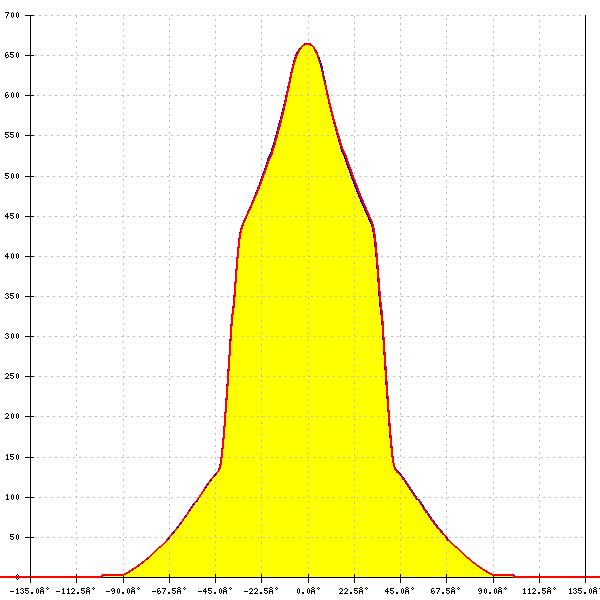

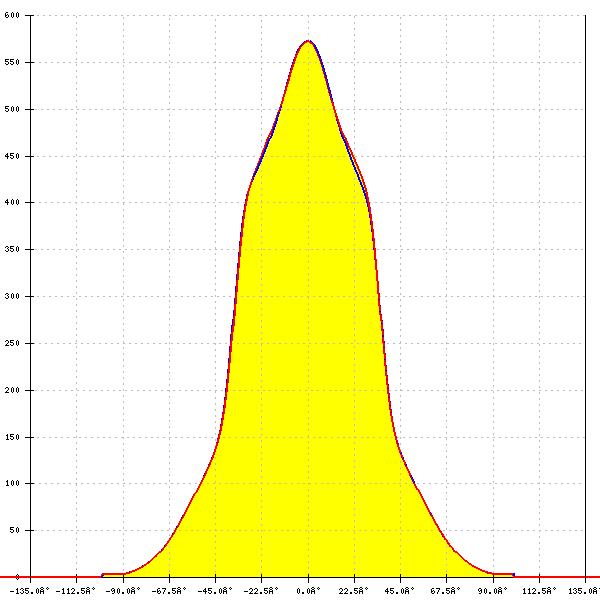

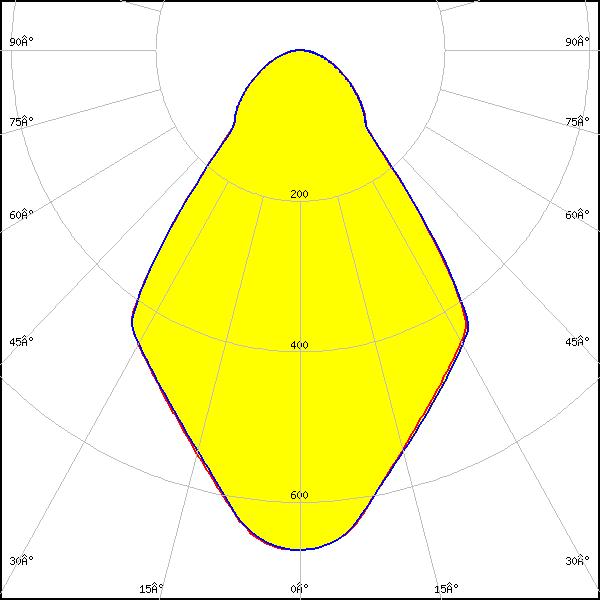

LED:
CLU730/731/733
LES size: 13.0 mm
Required components:
FWHM:
72°
FWTM:
124°
Peak intensity:
0.660 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU730/731/733
LES size: 13.0 mm
Required components:
FWHM:
71°
FWTM:
125°
Peak intensity:
0.570 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

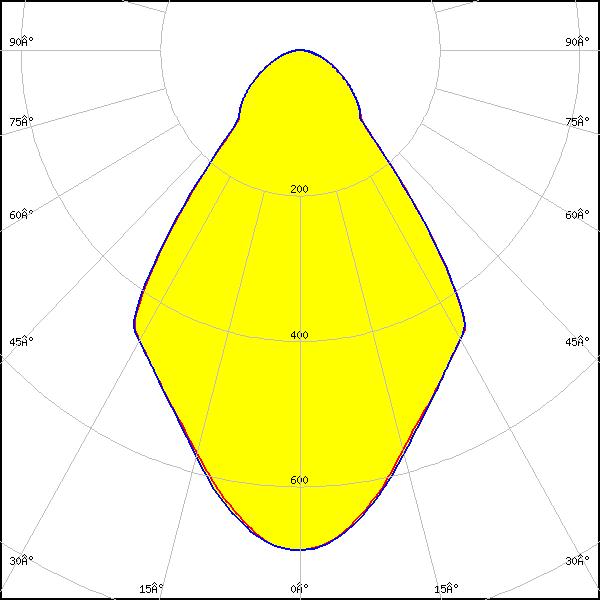

LED:
CMA1840
LES size: 14.0 mm
Required components:
FWHM:
71°
FWTM:
120°
Peak intensity:
0.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

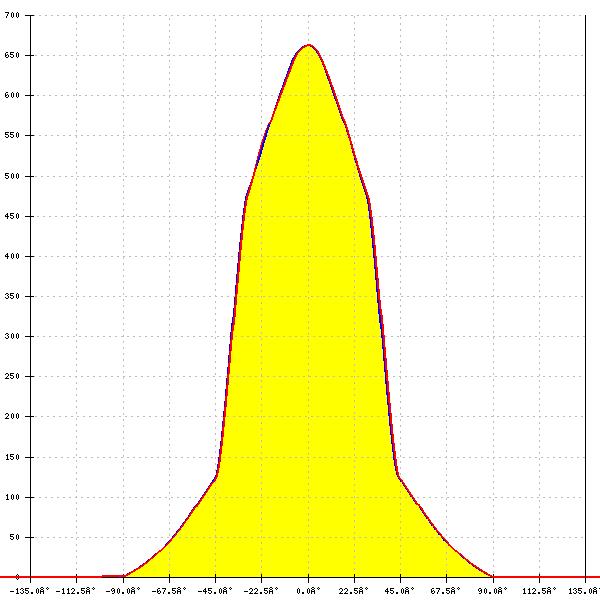

LED:
CMA2550
LES size: 19.0 mm
Required components:
FWHM:
71°
FWTM:
121°
Peak intensity:
0.650 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

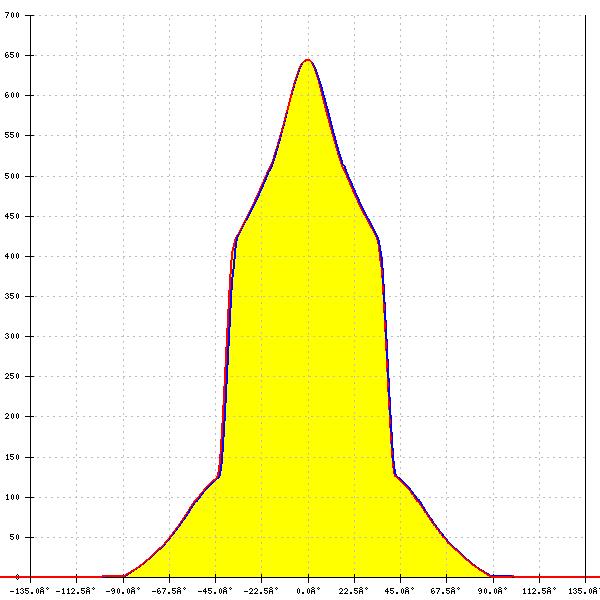

LED:
CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
75°
FWTM:
124°
Peak intensity:
0.650 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT19xx
LES size: 14.5 mm
Required components:
FWHM:
75°
FWTM:
126°
Peak intensity:
0.618 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT19xx
LES size: 14.5 mm
Required components:
FWHM:
74°
FWTM:
124°
Peak intensity:
0.644 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

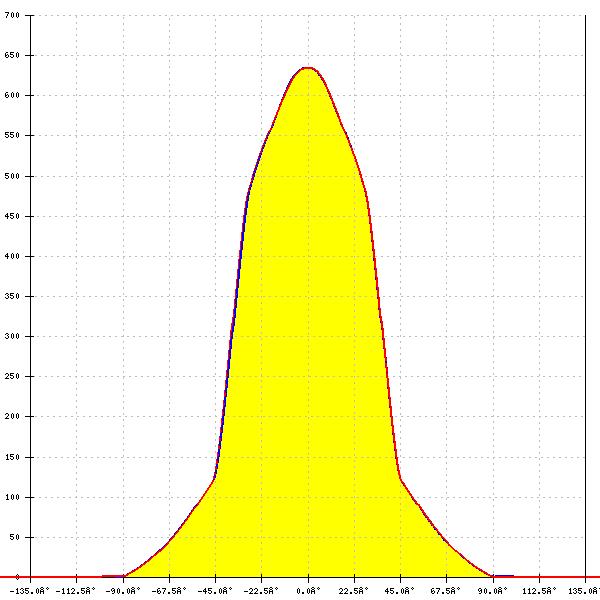

CMT28xx
LES size: 22.0 mm
Required components:
FWHM:
72°
FWTM:
123°
Peak intensity:
0.630 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT28xx
LES size: 22.0 mm
Required components:
FWHM:
75°
FWTM:
126°
Peak intensity:
0.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
70°
FWTM:
113°
Peak intensity:
0.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
69°
FWTM:
120°
Peak intensity:
0.700 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
75°
FWTM:
124°
Peak intensity:
0.640 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
73°
FWTM:
125°
Peak intensity:
0.590 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
75°
FWTM:
125°
Peak intensity:
0.620 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
74°
FWTM:
125°
Peak intensity:
0.590 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
73°
FWTM:
124°
Peak intensity:
0.790 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
73°
FWTM:
124°
Peak intensity:
0.790 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM:
75°
FWTM:
126°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM:
74°
FWTM:
126°
Peak intensity:
0.570 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM:
70°
FWTM:
120°
Peak intensity:
0.700 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM:
70°
FWTM:
120°
Peak intensity:
0.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
IDEAL: 50-2234C
IDEAL: 50-2100LN
IDEAL: 50-2100LN
FWHM:
72°
FWTM:
123°
Peak intensity:
0.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
FWHM:
77°
FWTM:
124°
Peak intensity:
0.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA2011
LES size: 14.5 mm
Required components:
FWHM:
72°
FWTM:
121°
Peak intensity:
0.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA2011
LES size: 14.5 mm
Required components:
FWHM:
70°
FWTM:
123°
Peak intensity:
0.600 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHI3030 19W
LES size: 20.0 mm
Required components:
FWHM:
75°
FWTM:
130°
Peak intensity:
0.550 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHI3030 29W
LES size: 26.0 mm
Required components:
FWHM:
75°
FWTM:
128°
Peak intensity:
0.520 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
76°
FWTM:
126°
Peak intensity:
0.630 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
74°
FWTM:
125°
Peak intensity:
0.590 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
FWHM:
73°
FWTM:
123°
Peak intensity:
0.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
FWHM:
71°
FWTM:
123°
Peak intensity:
0.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM:
74°
FWTM:
122°
Peak intensity:
0.680 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM:
74°
FWTM:
122°
Peak intensity:
0.670 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM:
73°
FWTM:
123°
Peak intensity:
0.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM:
72°
FWTM:
124°
Peak intensity:
0.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
FWHM:
76°
FWTM:
127°
Peak intensity:
0.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
FWHM:
75°
FWTM:
127°
Peak intensity:
0.540 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
73°
FWTM:
124°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
72°
FWTM:
125°
Peak intensity:
0.590 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
73°
FWTM:
126°
Peak intensity:
0.530 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
A.A.G. STUCCHI: S-8000-12
A.A.G. STUCCHI: S-8000-12
FWHM:
74°
FWTM:
127°
Peak intensity:
0.560 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K12
LES size: 13.5 mm
Required components:
FWHM:
72°
FWTM:
115°
Peak intensity:
0.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K12
LES size: 13.5 mm
Required components:
FWHM:
68°
FWTM:
118°
Peak intensity:
0.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K16
LES size: 17.0 mm
Required components:
FWHM:
72°
FWTM:
116°
Peak intensity:
0.640 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K16
LES size: 17.0 mm
Required components:
FWHM:
68°
FWTM:
120°
Peak intensity:
0.600 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM:
77°
FWTM:
129°
Peak intensity:
0.590 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM:
75°
FWTM:
128°
Peak intensity:
0.550 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-18 (Dim-To-Warm)
LES size: 16.8 mm
Required components:
FWHM:
76°
FWTM:
129°
Peak intensity:
0.570 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-18 (Dim-To-Warm)
LES size: 16.8 mm
Required components:
FWHM:
75°
FWTM:
128°
Peak intensity:
0.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
76°
FWTM:
128°
Peak intensity:
0.610 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
74°
FWTM:
127°
Peak intensity:
0.560 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM:
77°
FWTM:
131°
Peak intensity:
0.550 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM:
76°
FWTM:
129°
Peak intensity:
0.510 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

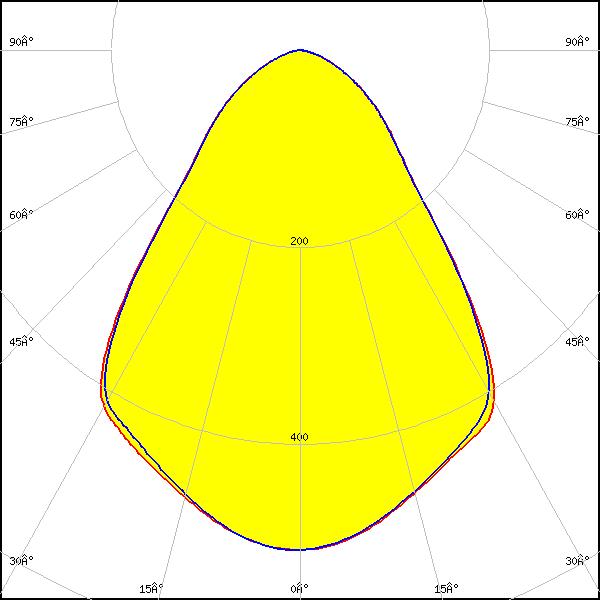

CTM-18 (Tunable White)
LES size: 17.5 mm
Required components:
FWHM:
78°
FWTM:
131°
Peak intensity:
0.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-18 (Tunable White)
LES size: 17.5 mm
Required components:
FWHM:
77°
FWTM:
129°
Peak intensity:
0.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-22 (Tunable White)
LES size: 22.0 mm
Required components:
FWHM:
78°
FWTM:
131°
Peak intensity:
0.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-22 (Tunable White)
LES size: 22.0 mm
Required components:
FWHM:
77°
FWTM:
129°
Peak intensity:
0.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
75°
FWTM:
126°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
74°
FWTM:
125°
Peak intensity:
0.580 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
74°
FWTM:
124°
Peak intensity:
0.650 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
73°
FWTM:
125°
Peak intensity:
0.620 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-22 (28x28)
LES size: 22.0 mm
Required components:
FWHM:
73°
FWTM:
128°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-22 (28x28)
LES size: 22.0 mm
Required components:
FWHM:
73°
FWTM:
128°
Peak intensity:
0.600 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
73°
FWTM:
125°
Peak intensity:
0.590 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
73°
FWTM:
123°
Peak intensity:
0.620 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
72°
FWTM:
124°
Peak intensity:
0.580 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
76°
FWTM:
127°
Peak intensity:
0.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
74°
FWTM:
126°
Peak intensity:
0.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
71°
FWTM:
122°
Peak intensity:
0.600 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
75°
FWTM:
125°
Peak intensity:
0.630 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
73°
FWTM:
125°
Peak intensity:
0.580 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
76°
FWTM:
126°
Peak intensity:
0.640 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
74°
FWTM:
126°
Peak intensity:
0.590 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
75°
FWTM:
125°
Peak intensity:
0.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
74°
FWTM:
125°
Peak intensity:
0.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM:
75°
FWTM:
125°
Peak intensity:
0.620 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM:
73°
FWTM:
126°
Peak intensity:
0.580 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S15
LES size: 14.7 mm
Required components:
FWHM:
72°
FWTM:
119°
Peak intensity:
0.660 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

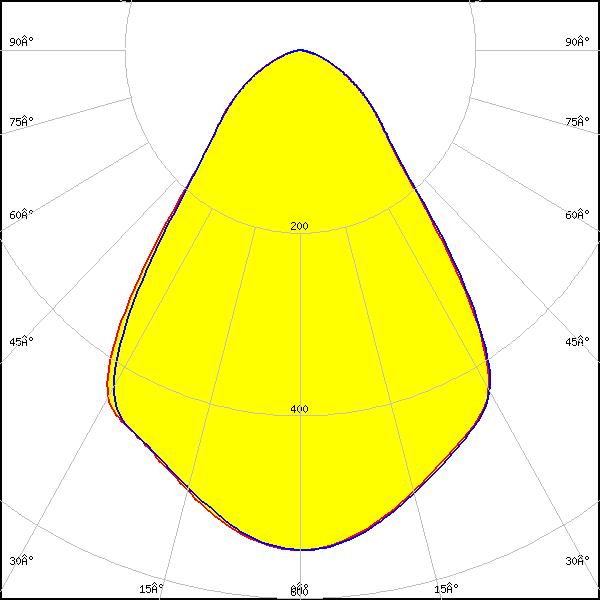

Soleriq S19
LES size: 17.9 mm
Required components:
FWHM:
76°
FWTM:
131°
Peak intensity:
0.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
Required components:
FWHM:
75°
FWTM:
127°
Peak intensity:
0.550 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
74°
FWTM:
123°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
71°
FWTM:
122°
Peak intensity:
0.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
FWHM:
73°
FWTM:
123°
Peak intensity:
0.650 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
FWHM:
72°
FWTM:
123°
Peak intensity:
0.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

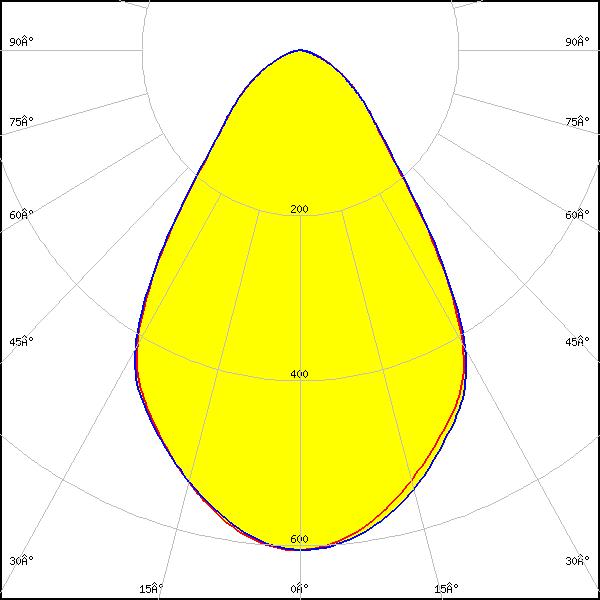

Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM:
71°
FWTM:
122°
Peak intensity:
0.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM:
72°
FWTM:
122°
Peak intensity:
0.650 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

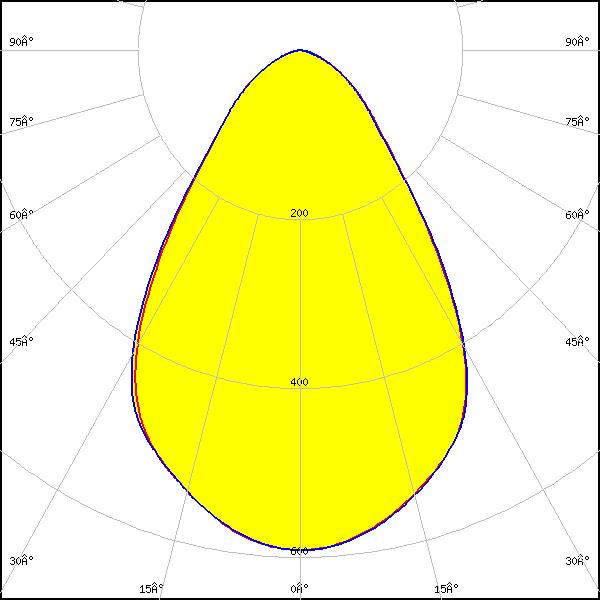

Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM:
71°
FWTM:
122°
Peak intensity:
0.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM:
72°
FWTM:
122°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
74°
FWTM:
125°
Peak intensity:
0.630 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
73°
FWTM:
125°
Peak intensity:
0.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
FWHM:
75°
FWTM:
126°
Peak intensity:
0.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
FWHM:
74°
FWTM:
126°
Peak intensity:
0.570 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

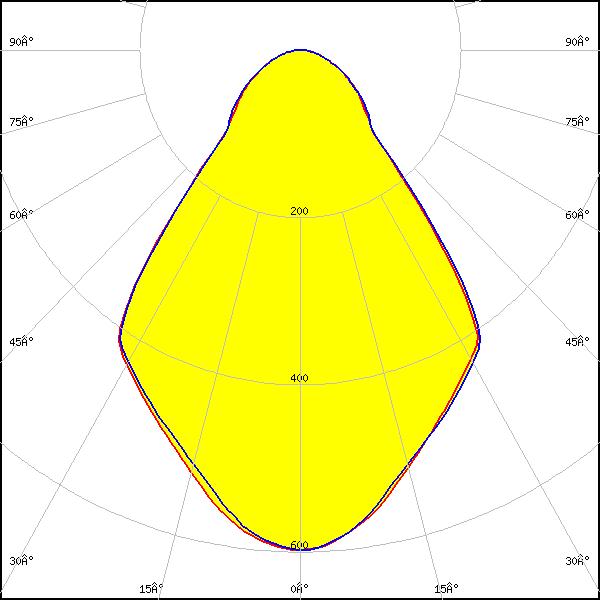

ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
75°
FWTM:
126°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
74°
FWTM:
125°
Peak intensity:
0.580 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
75°
FWTM:
126°
Peak intensity:
0.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
73°
FWTM:
126°
Peak intensity:
0.560 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC25/40/60
LES size: 22.6 mm
Required components:
FWHM:
73°
FWTM:
125°
Peak intensity:
0.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC25/40/60
LES size: 22.6 mm
Required components:
FWHM:
72°
FWTM:
125°
Peak intensity:
0.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
73°
FWTM:
125°
Peak intensity:
0.590 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
FWHM:
73°
FWTM:
123°
Peak intensity:
0.630 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
FWHM:
72°
FWTM:
124°
Peak intensity:
0.588 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
FWHM:
73°
FWTM:
123°
Peak intensity:
0.620 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
FWHM:
72°
FWTM:
124°
Peak intensity:
0.580 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES15
LES size: 15.0 mm
Required components:
FWHM:
73°
FWTM:
125°
Peak intensity:
0.590 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES17 H
Required components:
FWHM:
74°
FWTM:
126°
Peak intensity:
0.560 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES21 H
Required components:
FWHM:
74°
FWTM:
127°
Peak intensity:
0.590 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM:
74°
FWTM:
124°
Peak intensity:
0.633 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
