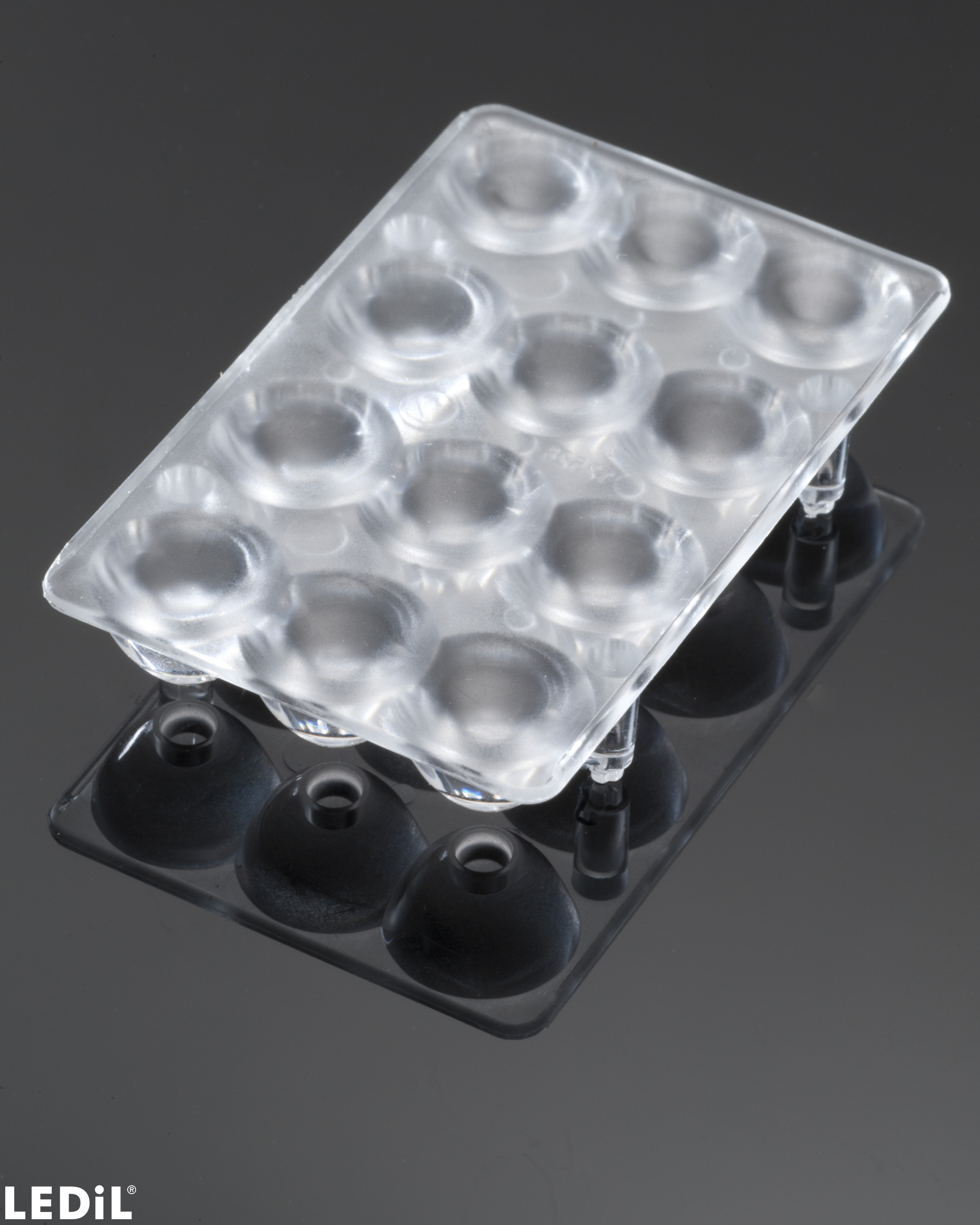

    C12528_PETUNIA

    Print

    ~30° medium beam

    Specification
    • Dimensions:
      30 x  47 mm
    • Height:
      7.40 mm
    • Fastening:
      pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      1000 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.9 kg
    • MPQ:
      40 pcs
    • MOQ:
      40 pcs
    • MOQ size:
      480 x 280 x 40 mm
    • MOQ weight:
      0.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C12528_PETUNIA
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - PETUNIA

    PCN

    Product change notification NR102.a - Change of packaging quantities 230415

    Application guide

    LEDiL guide for horticultural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    Horticultural lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Horticultural Lighting

    Optical results

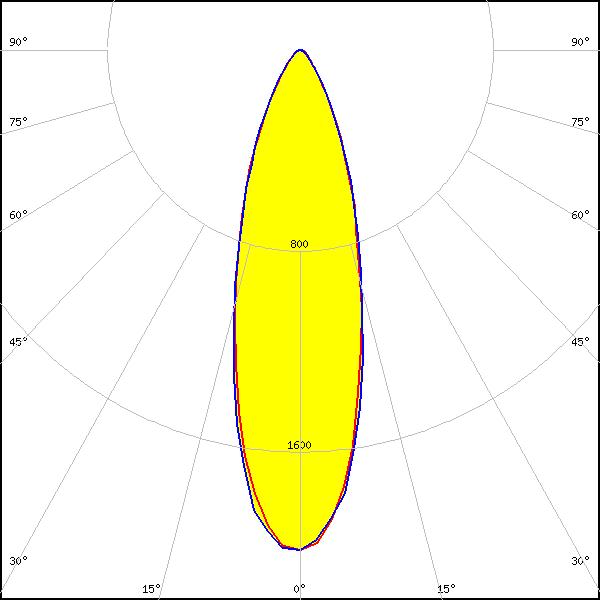

    LED: XB-D
    FWHM: 29°
    FWTM: 65°
    Peak intensity: 2.000 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

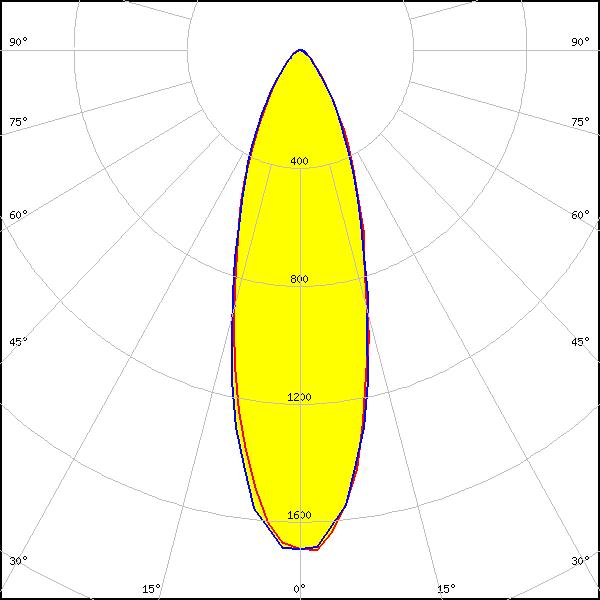

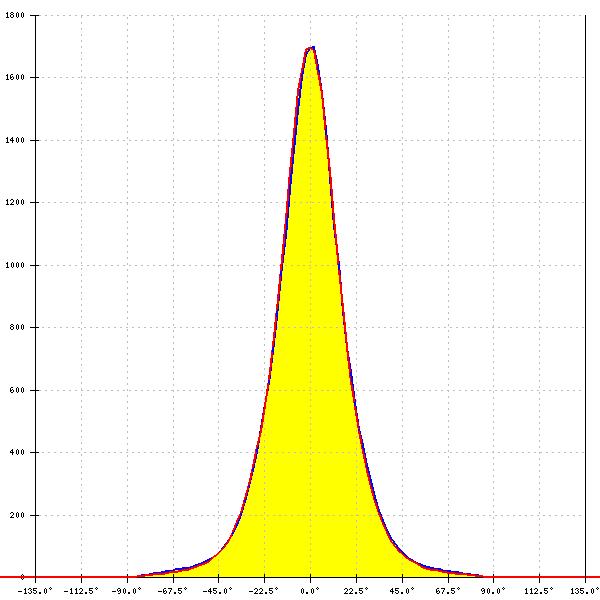

    LED: NVSxx19A
    FWHM: 32°
    FWTM: 73°
    Peak intensity: 1.700 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

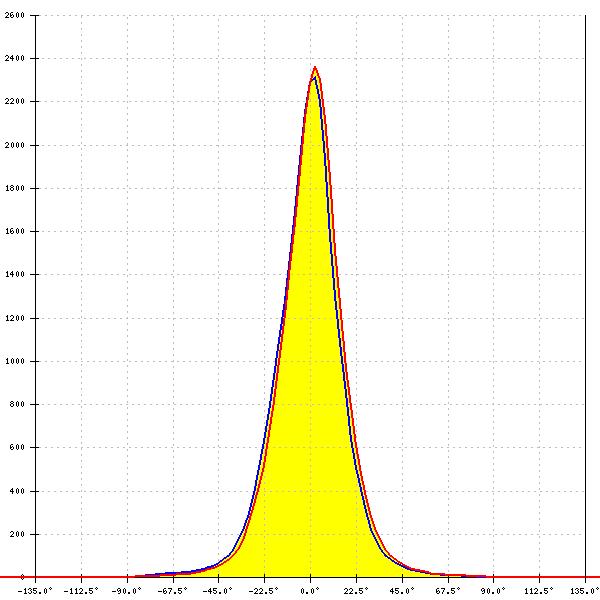

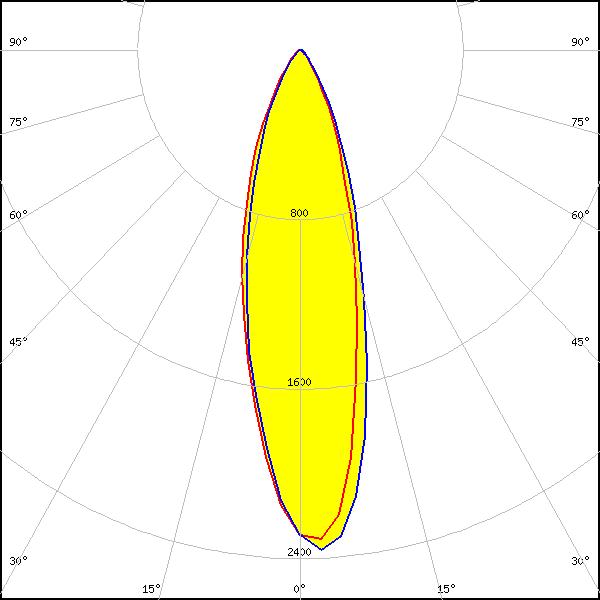

    LED: OSLON SSL 150
    FWHM: 28°
    FWTM: 60°
    Peak intensity: 2.300 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
