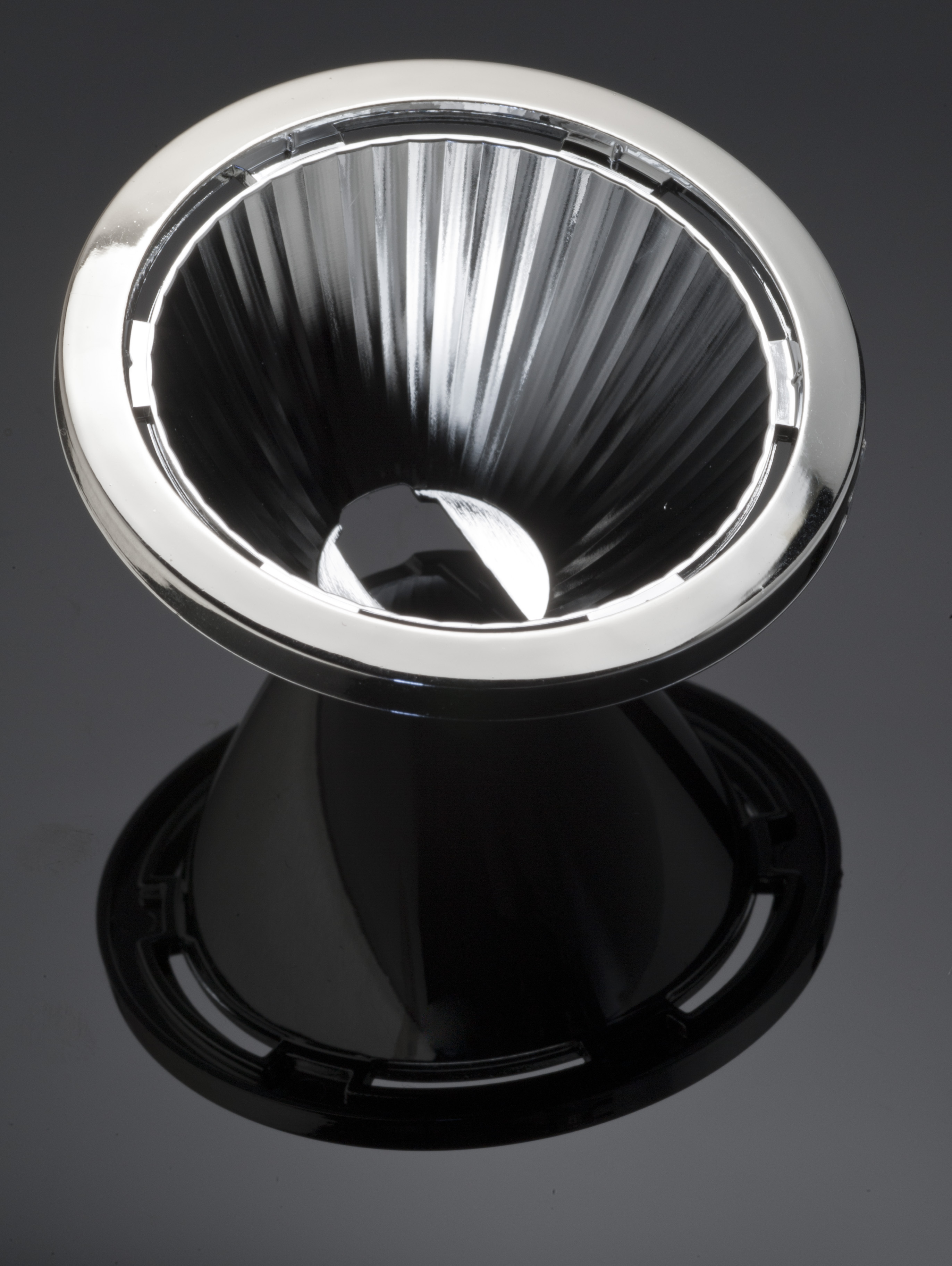

C12480_MIRELLA-50-S-PIN
Print
~15° spot beam
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Please note that the position pin holes come very close to the LED.
Related Content
AVAILABLE LEDiL ACCESSORIES

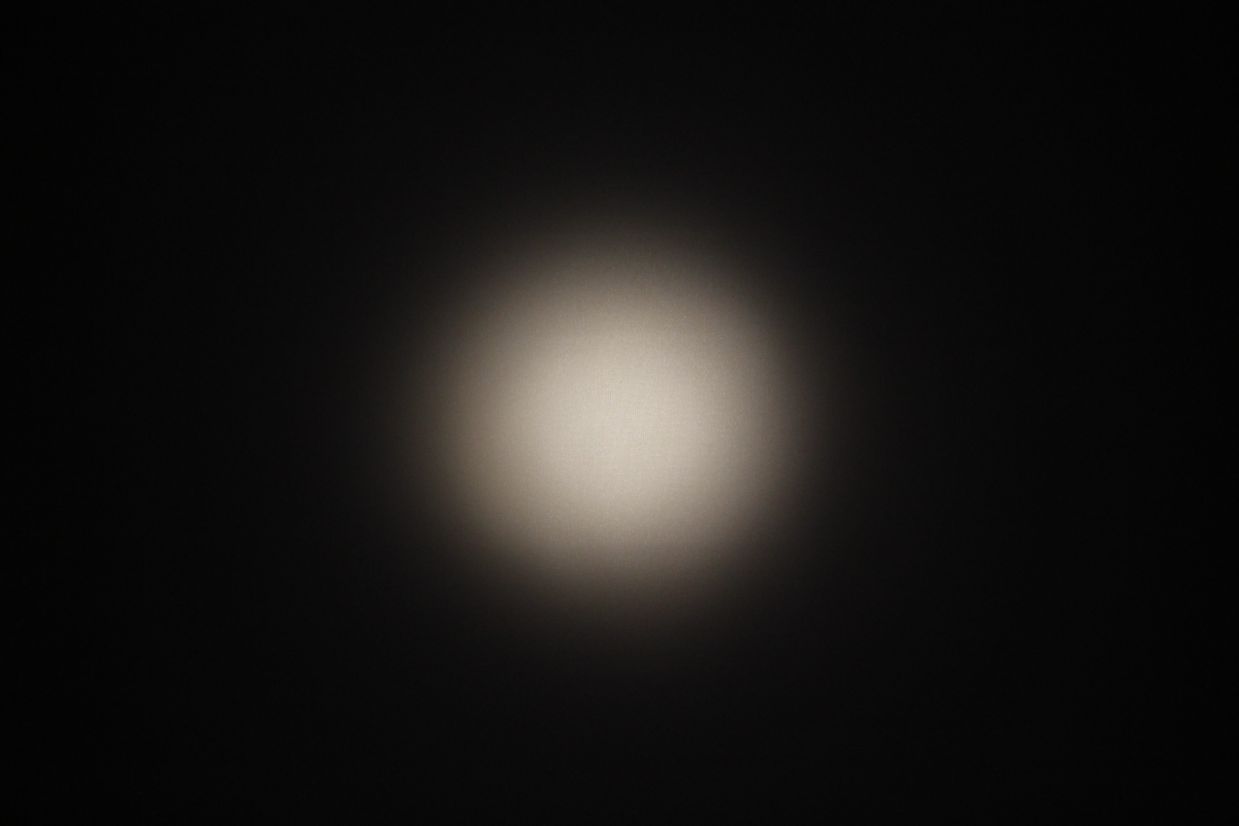

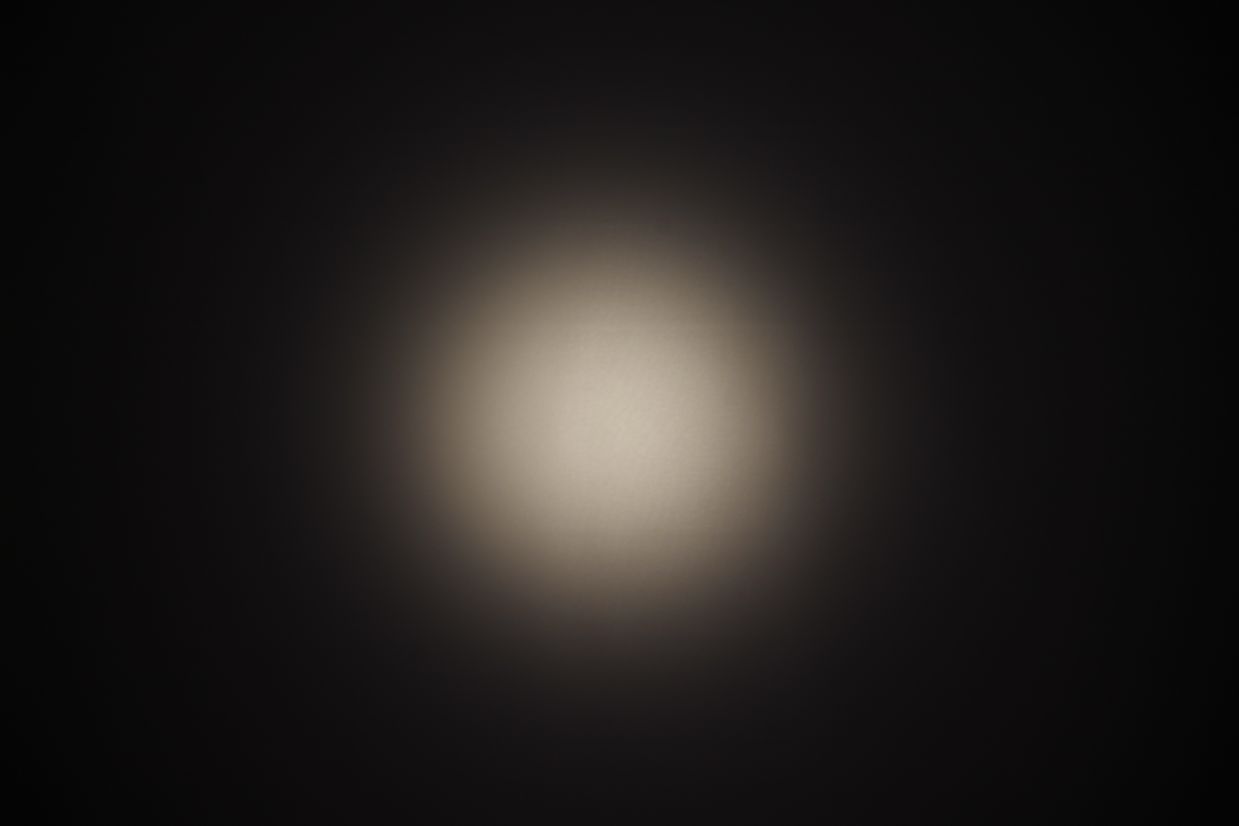

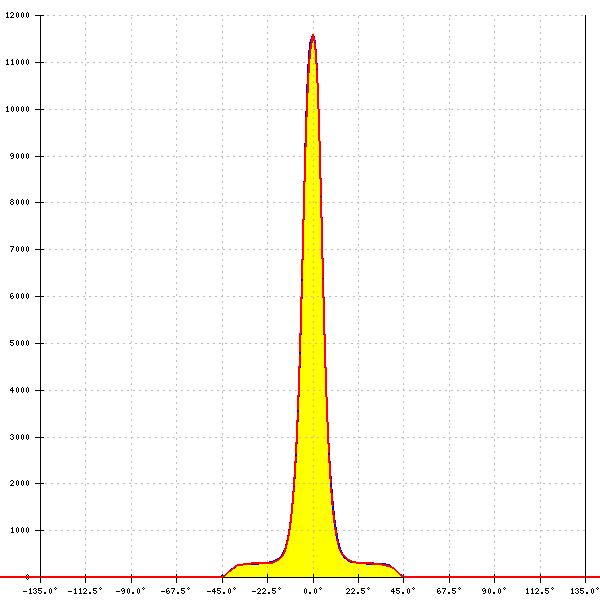

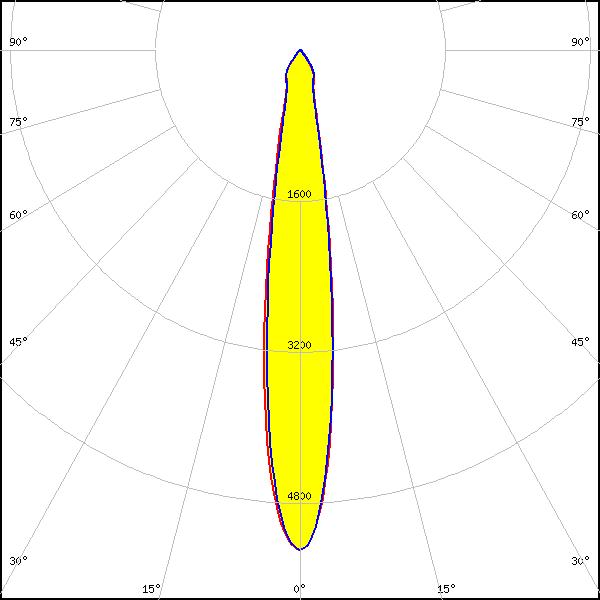

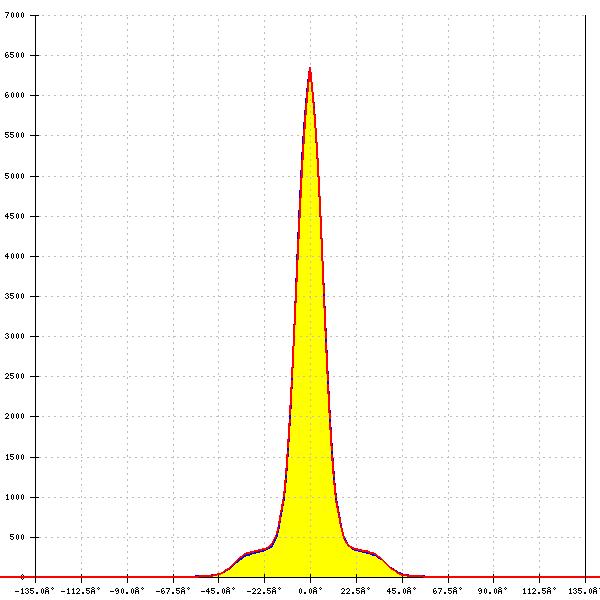

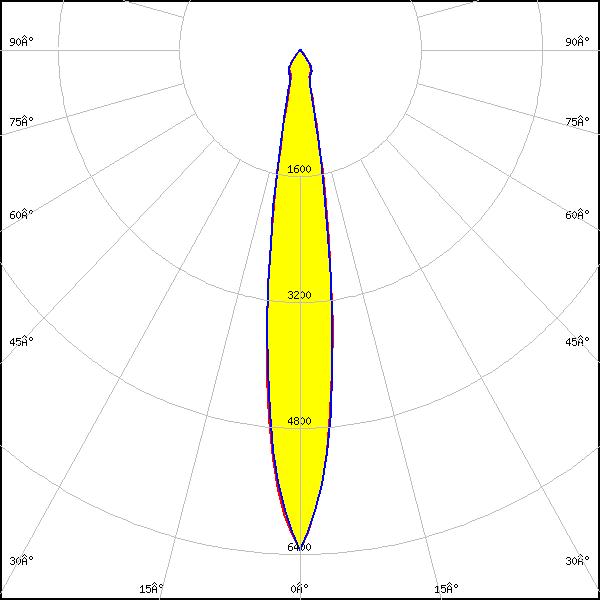

Optical results
LED:
SM4
Required components:
FWHM:
15°
FWTM:
32°
Peak intensity:
6.930 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

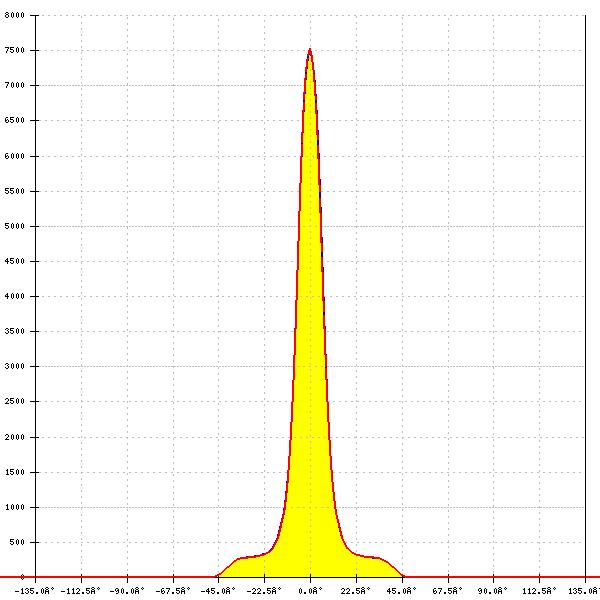

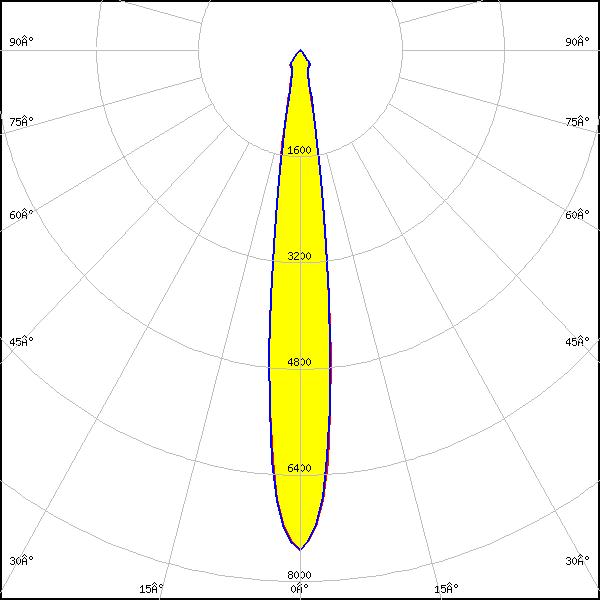

LED:
J Series 7070B K Class
FWHM:
14°
FWTM:
28°
Peak intensity:
7.530 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

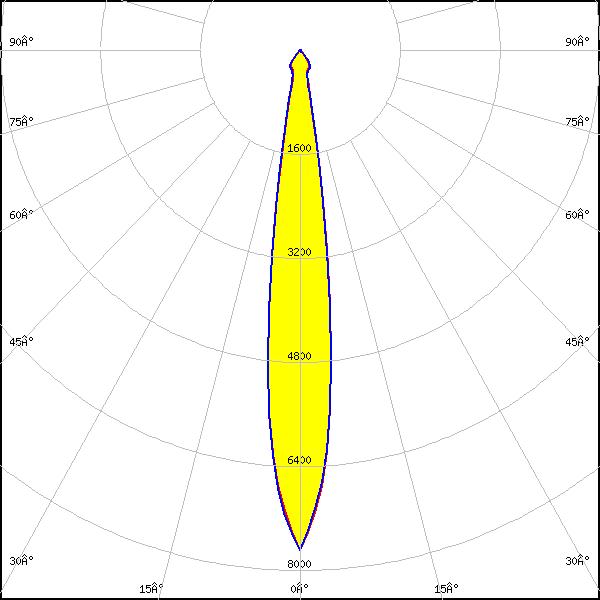

LED:
MHB-A/B
Required components:
FWHM:
17°
FWTM:
38°
Peak intensity:
5.430 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHB-A/B
Required components:
FWHM:
16°
FWTM:
32°
Peak intensity:
7.000 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

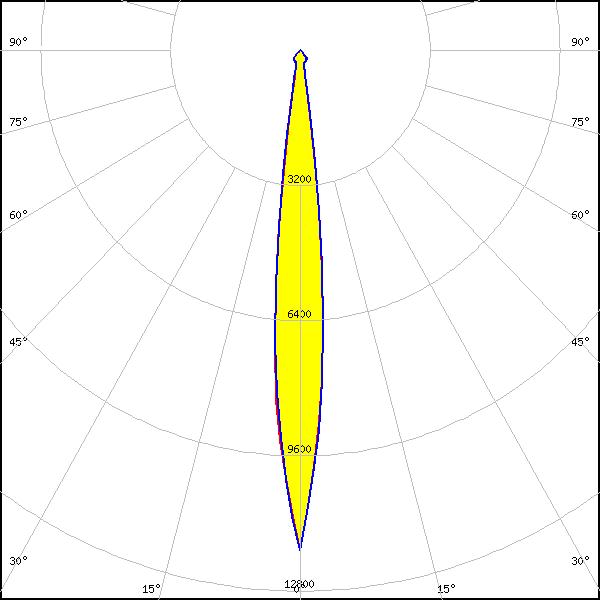

LED:

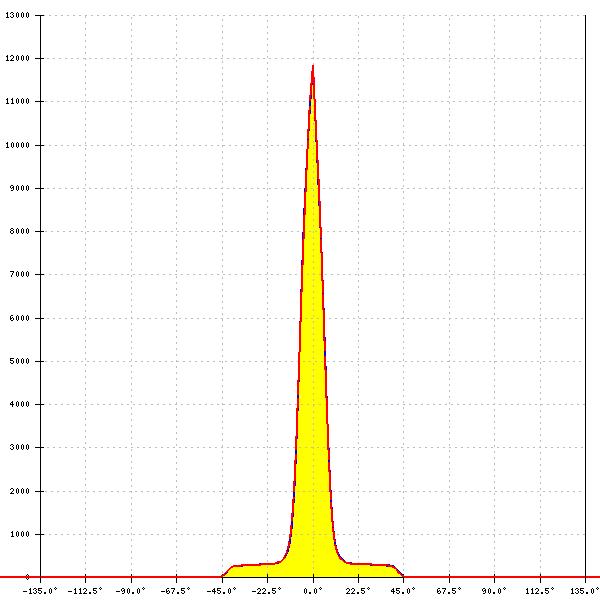

XHP35 HD
FWHM:
11°
FWTM:
20°
Peak intensity:
11.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

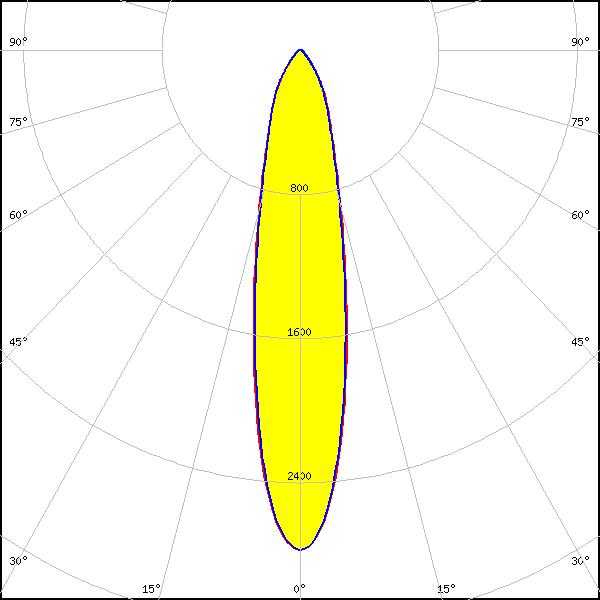

XHP50
FWHM:
13°
FWTM:
24°
Peak intensity:
8.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

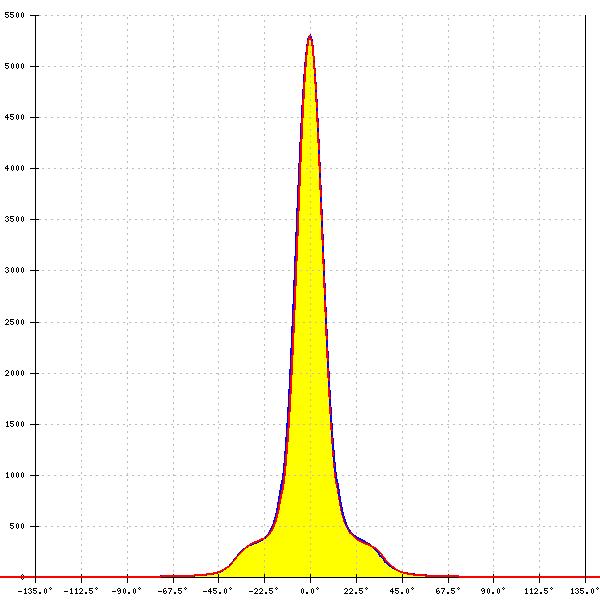

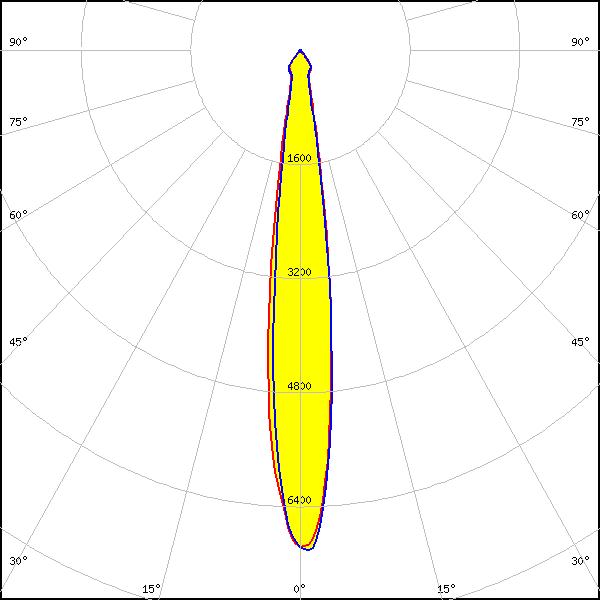

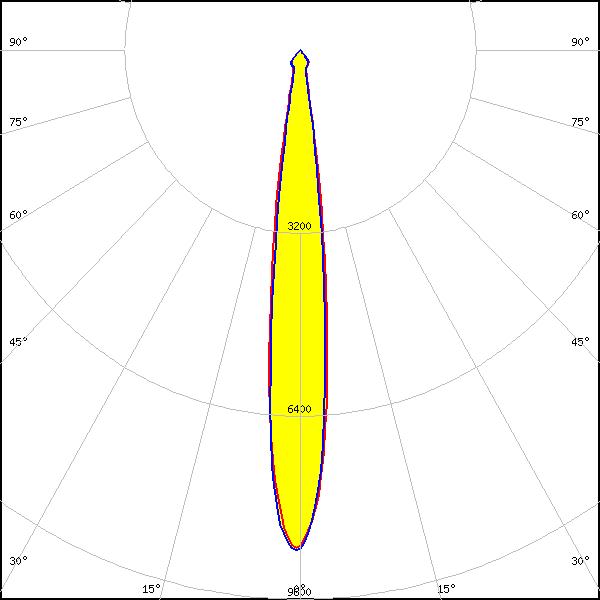

LED:
XHP50
Required components:
FWHM:
16°
FWTM:
35°
Peak intensity:
5.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

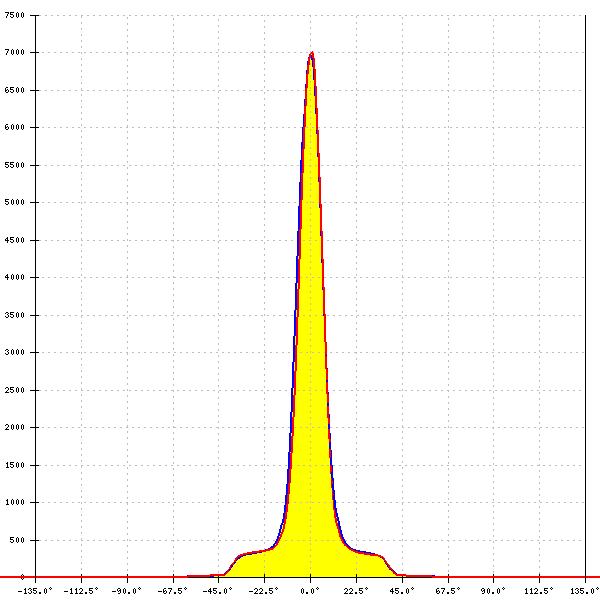

LED:
XHP50
Required components:
FWHM:
14°
FWTM:
27°
Peak intensity:
7.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
Required components:
FWHM:
22°
FWTM:
60°
Peak intensity:
2.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

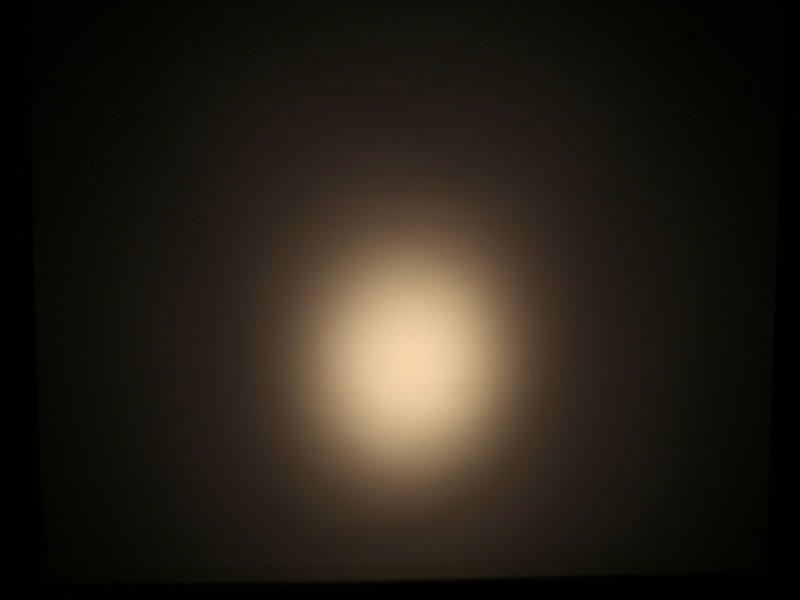

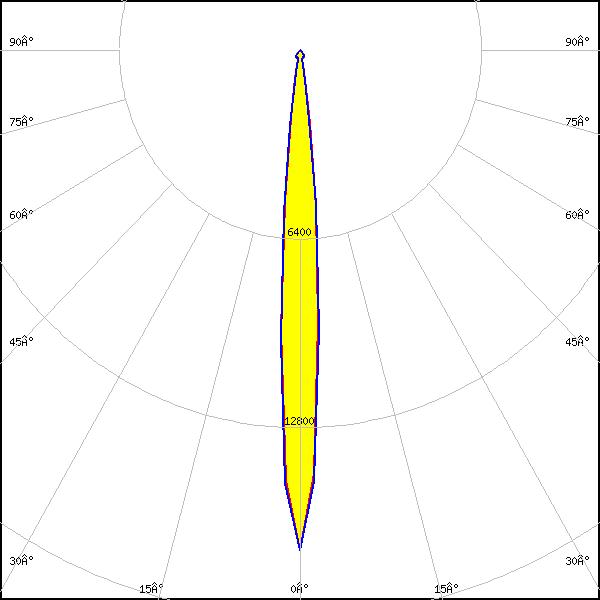

LED:
XM-L
Required components:
FWHM:
12°
FWTM:
26°
Peak intensity:
8.730 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L
Required components:
FWHM:
12°
FWTM:
24°
Peak intensity:
11.380 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

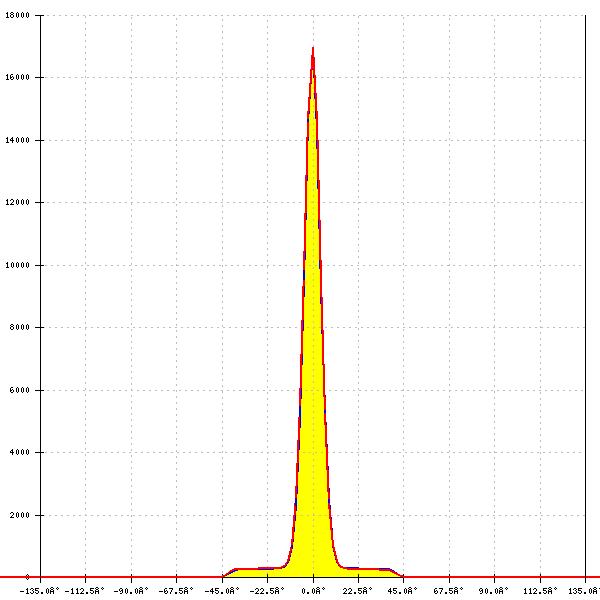

LED:
XM-L
FWHM:
9°
FWTM:
18°
Peak intensity:
19.340 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L RGBW (XMLCTW)
Required components:
FWHM:
21°
FWTM:
58°
Peak intensity:
3.350 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L2
Required components:
FWHM:
12°
FWTM:
26°
Peak intensity:
8.190 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L2
FWHM:
9°
FWTM:
18°
Peak intensity:
18.940 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
FWHM:
8°
FWTM:
16°
Peak intensity:
24.980 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
Required components:
FWHM:
11°
FWTM:
24°
Peak intensity:
10.360 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
Required components:
FWHM:
11°
FWTM:
22°
Peak intensity:
14.120 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
Required components:
FWHM:
11°
FWTM:
24°
Peak intensity:
10.360 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
8°
FWTM:
16°
Peak intensity:
25.060 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

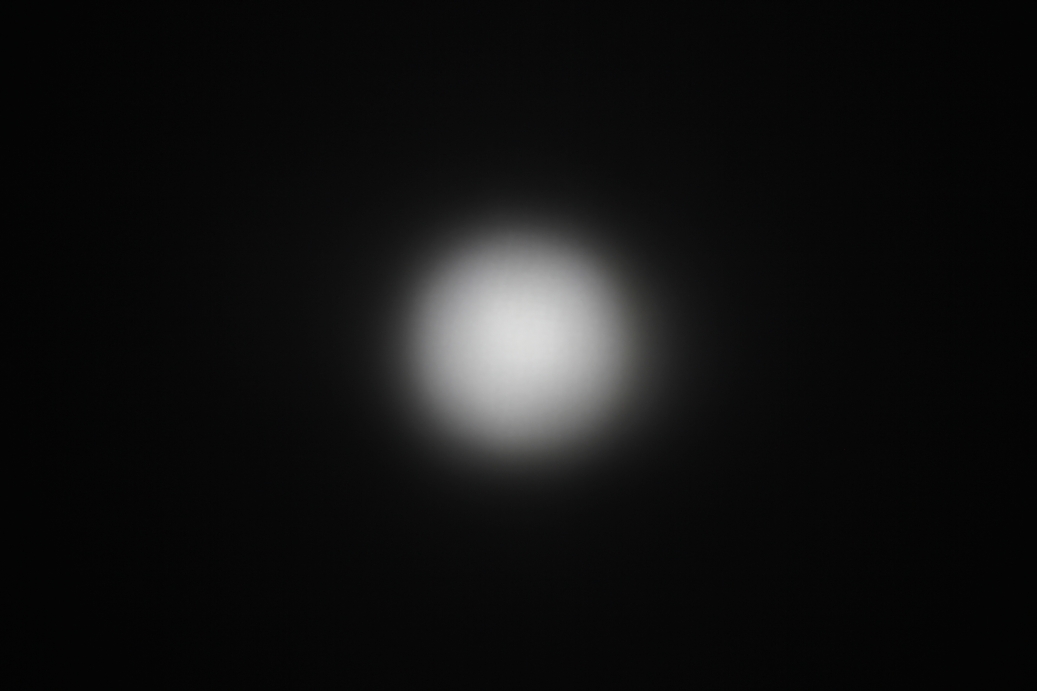

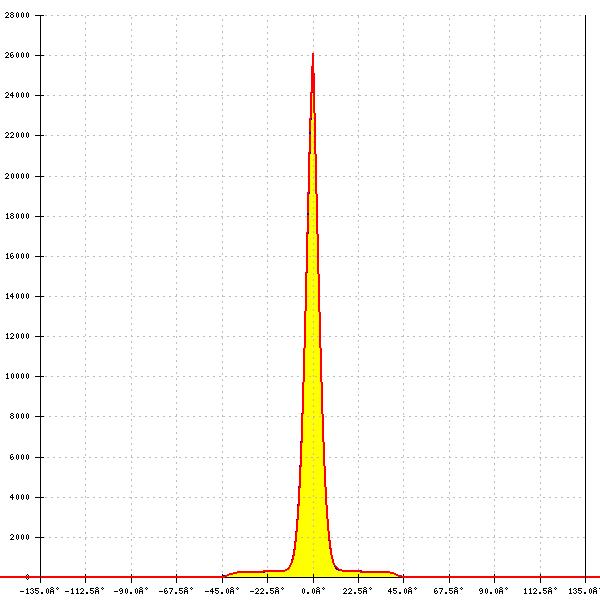

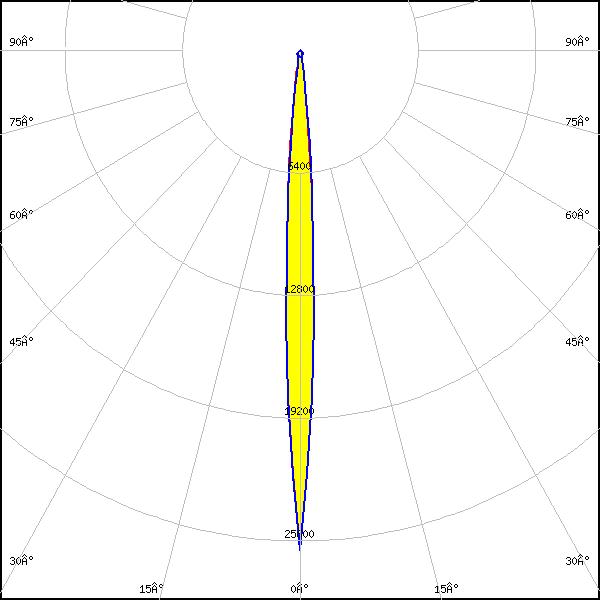

LED:
XP-L HI
FWHM:
8°
FWTM:
16°
Peak intensity:
24.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
8°
FWTM:
16°
Peak intensity:
23.980 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
Required components:
FWHM:
11°
FWTM:
24°
Peak intensity:
9.910 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
Required components:
FWHM:
10°
FWTM:
22°
Peak intensity:
14.100 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

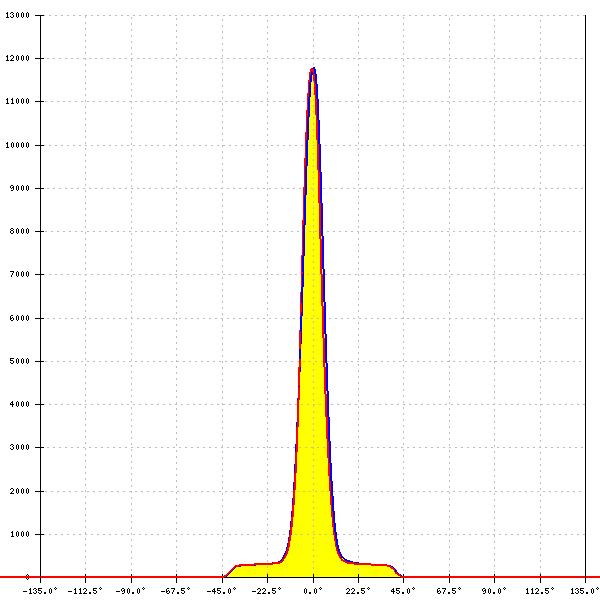

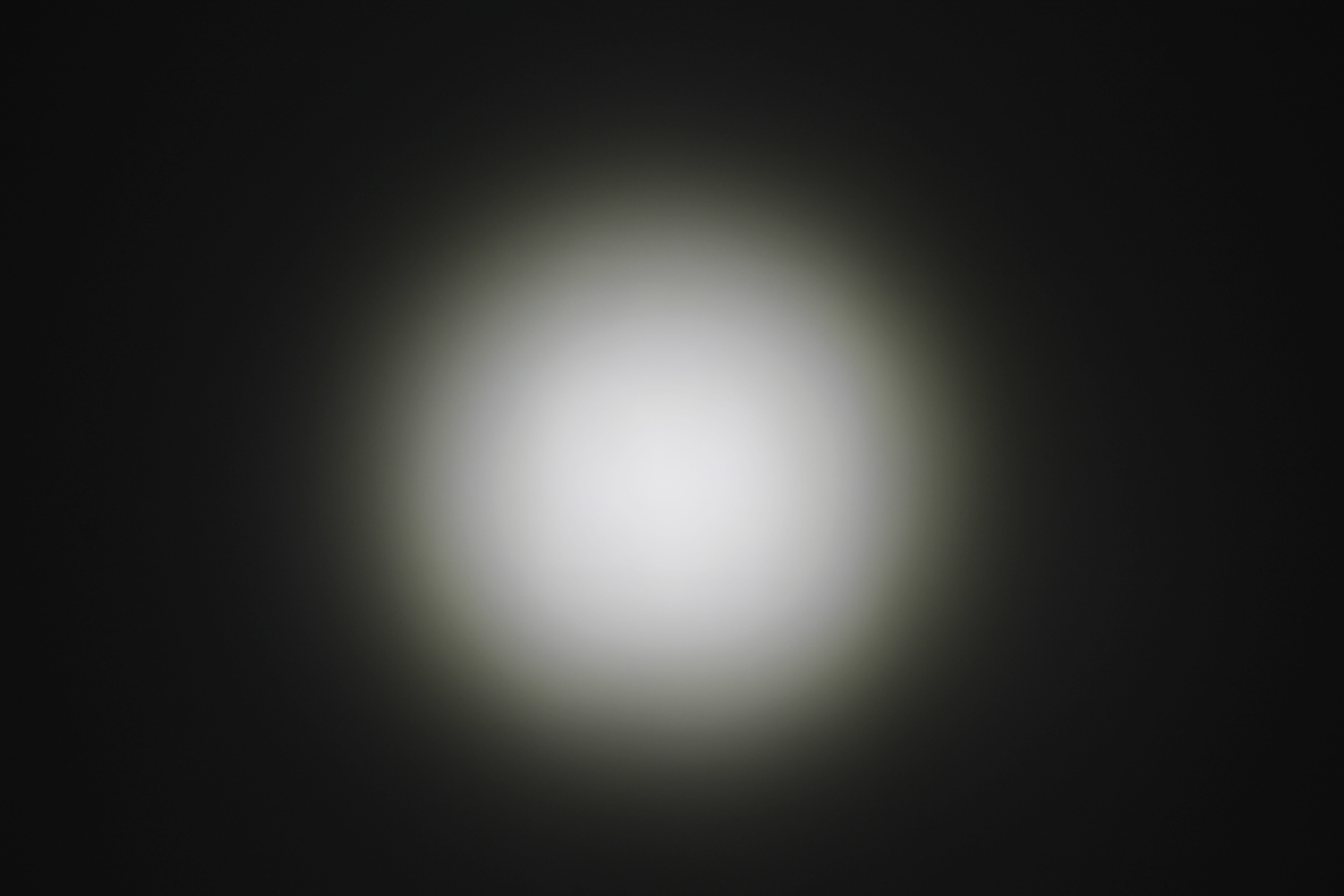

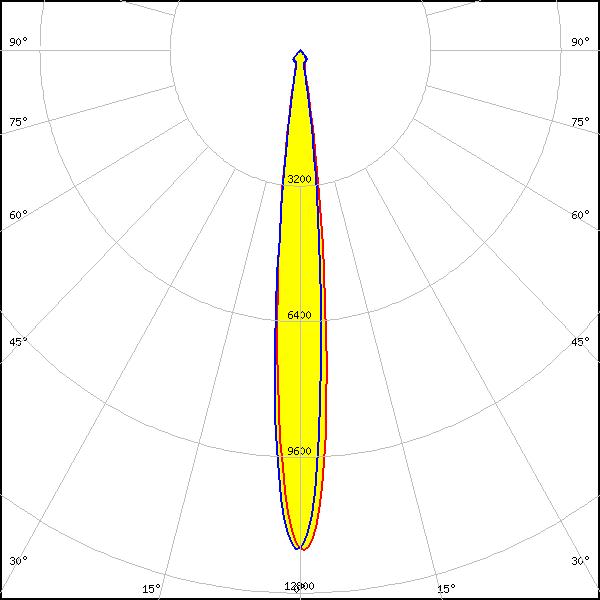

LED:
LUXEON 5050 Round LES
FWHM:
11°
FWTM:
21°
Peak intensity:
11.900 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

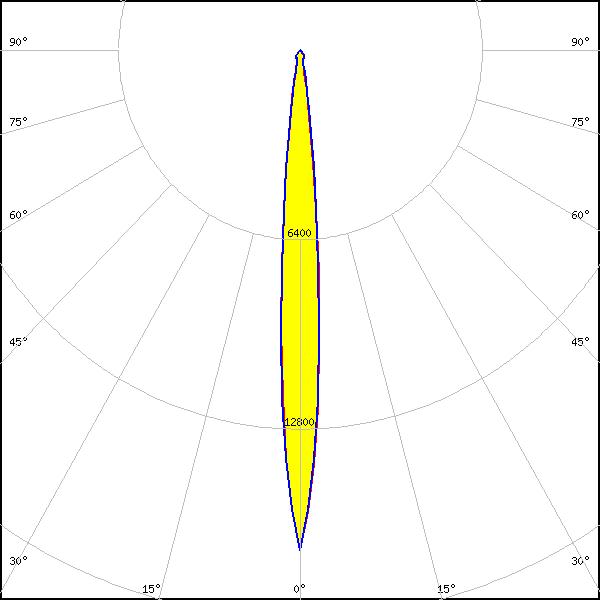

LED:
LUXEON 5258
FWHM:
9°
FWTM:
19°
Peak intensity:
17.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

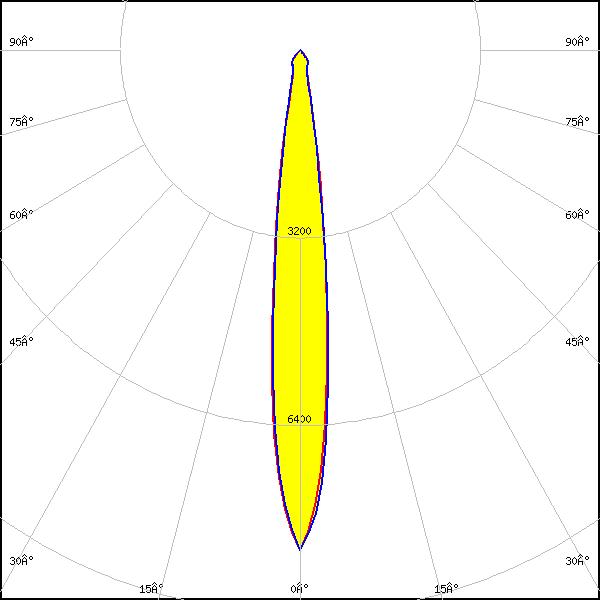

LED:
LUXEON 7070
FWHM:
13°
FWTM:
26°
Peak intensity:
8.530 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON A
FWHM:
9°
FWTM:
18°
Peak intensity:
20.540 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON A
Required components:
FWHM:
12°
FWTM:
28°
Peak intensity:
8.890 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON A
Required components:
FWHM:
10°
FWTM:
22°
Peak intensity:
14.520 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

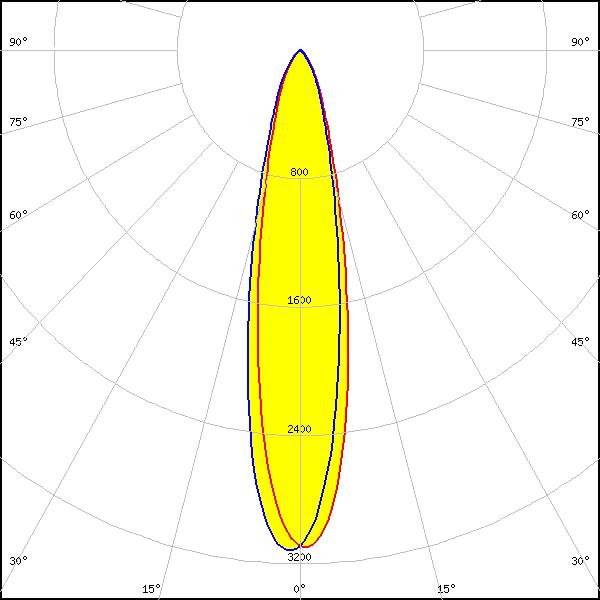

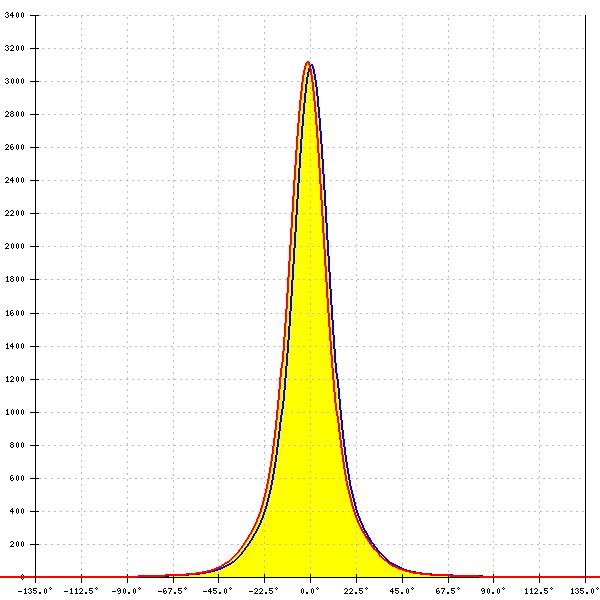

LED:
LUXEON C
Required components:
FWHM:
22°
FWTM:
51°
Peak intensity:
3.130 cd/lm
Efficiency:
81 %
LEDs/each optic:
4
Light colour/type:
RGBW

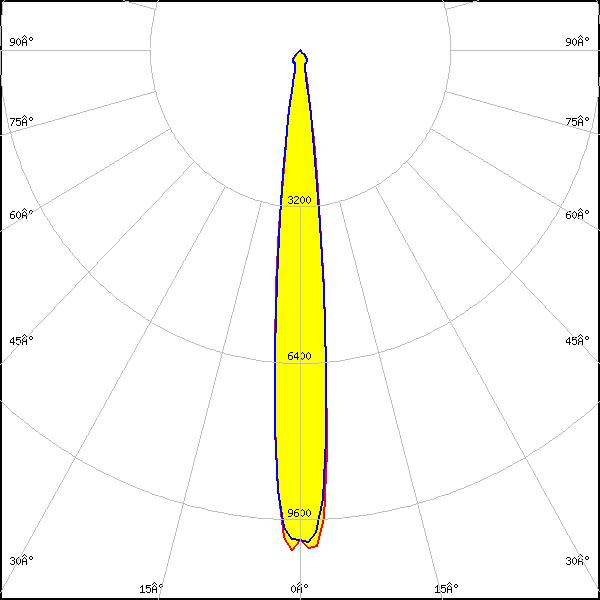

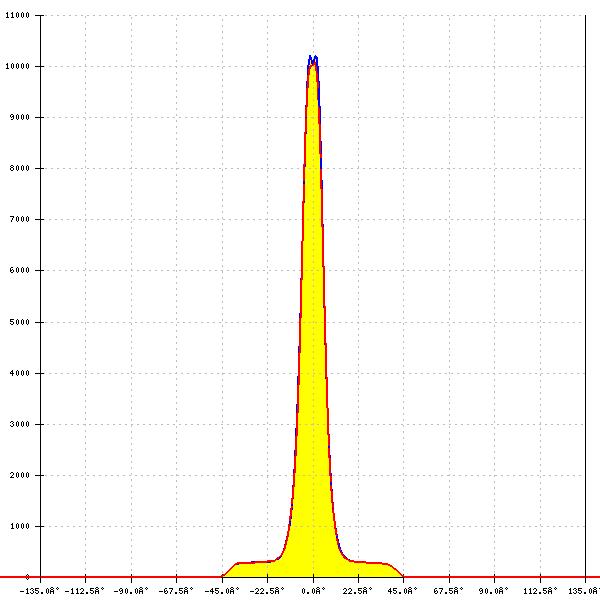

LED:
LUXEON M/MX
Required components:
FWHM:
15°
FWTM:
34°
Peak intensity:
5.880 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
FWHM:
12°
FWTM:
26°
Peak intensity:
10.310 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
Required components:
FWHM:
15°
FWTM:
30°
Peak intensity:
7.240 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON MZ
Required components:
FWHM:
11°
FWTM:
26°
Peak intensity:
9.250 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON MZ
FWHM:
9°
FWTM:
18°
Peak intensity:
19.280 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

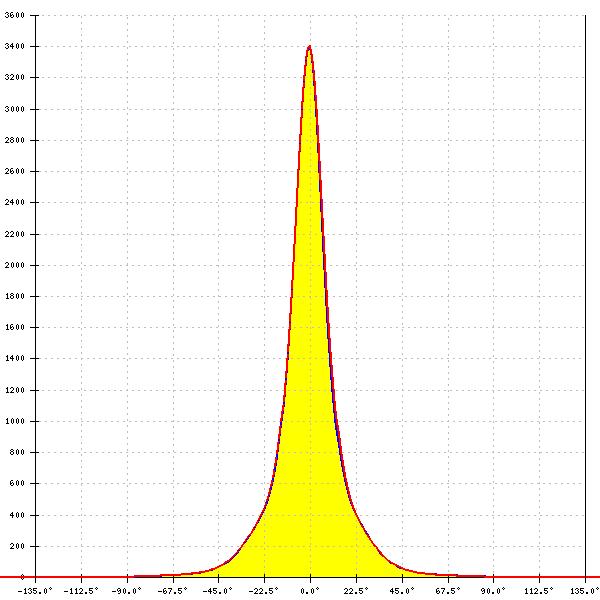

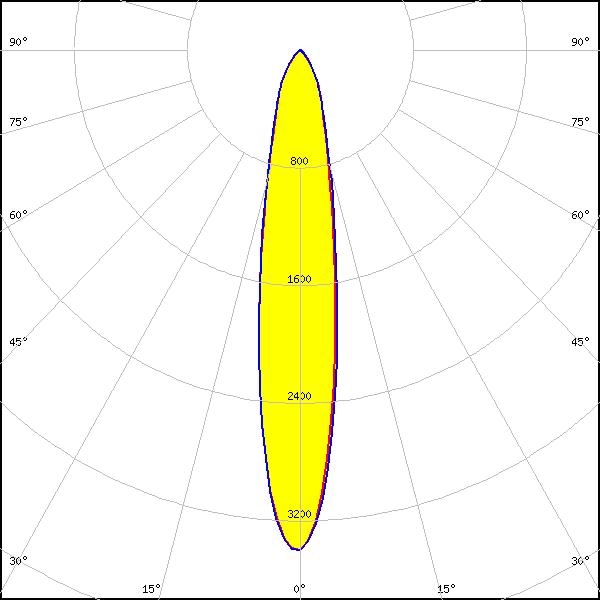

LED:
LUXEON Z
Required components:
FWHM:
18°
FWTM:
51°
Peak intensity:
3.400 cd/lm
Efficiency:
82 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
NS9x383
Required components:
FWHM:
12°
FWTM:
28°
Peak intensity:
8.430 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NS9x383
FWHM:
9°
FWTM:
15°
Peak intensity:
17.740 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

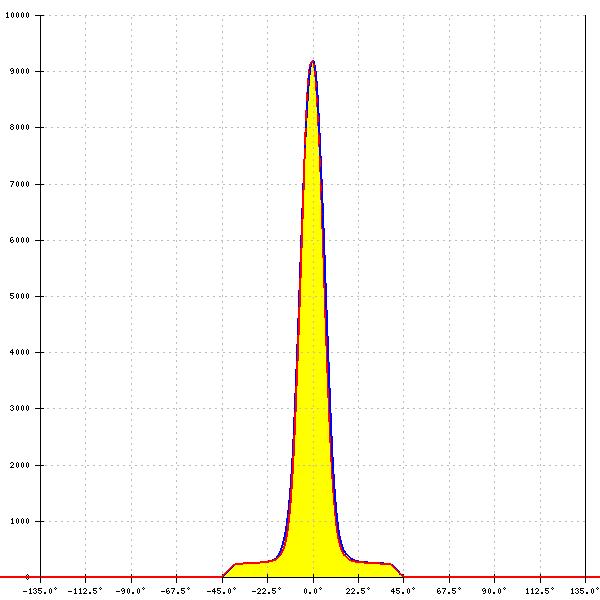

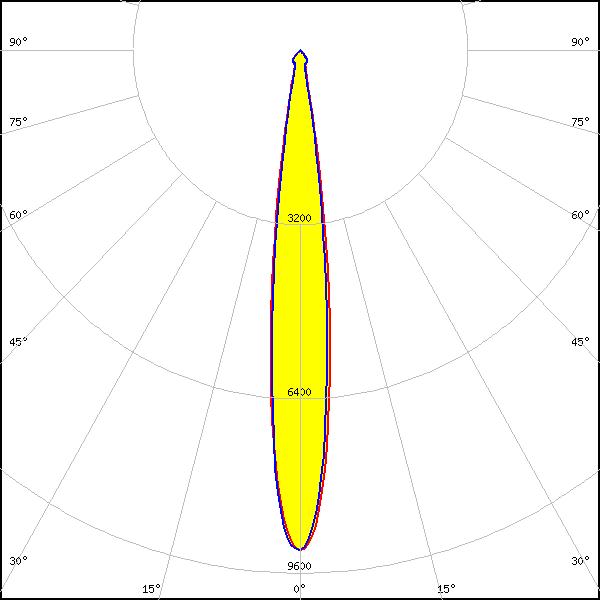

LED:
NV4x144A
FWHM:
13°
FWTM:
24°
Peak intensity:
9.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
Required components:
FWHM:
12°
FWTM:
28°
Peak intensity:
8.300 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
Required components:
FWHM:
11°
FWTM:
22°
Peak intensity:
11.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
FWHM:
10°
FWTM:
20°
Peak intensity:
16.040 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
10°
FWTM:
21°
Peak intensity:
11.600 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
Required components:
FWHM:
11°
FWTM:
22°
Peak intensity:
10.410 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
Required components:
FWHM:
11°
FWTM:
26°
Peak intensity:
9.700 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
FWHM:
8°
FWTM:
16°
Peak intensity:
23.550 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
Required components:
FWHM:
9°
FWTM:
20°
Peak intensity:
15.380 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Ostar-SMT RGB
Required components:
FWHM:
19°
FWTM:
56°
Peak intensity:
3.710 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

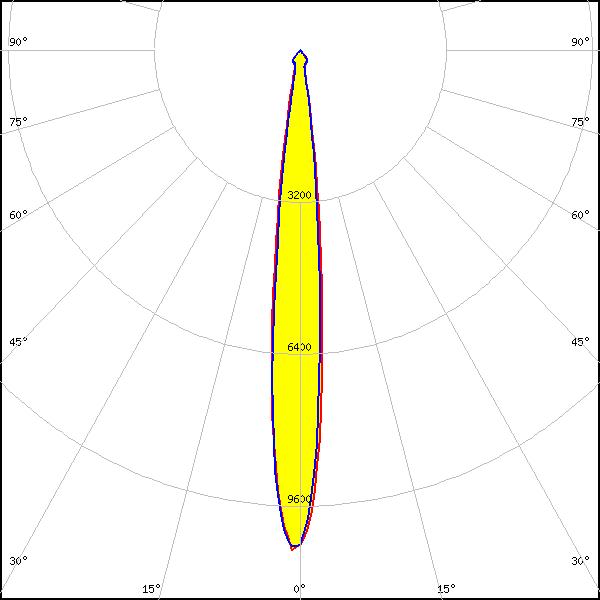

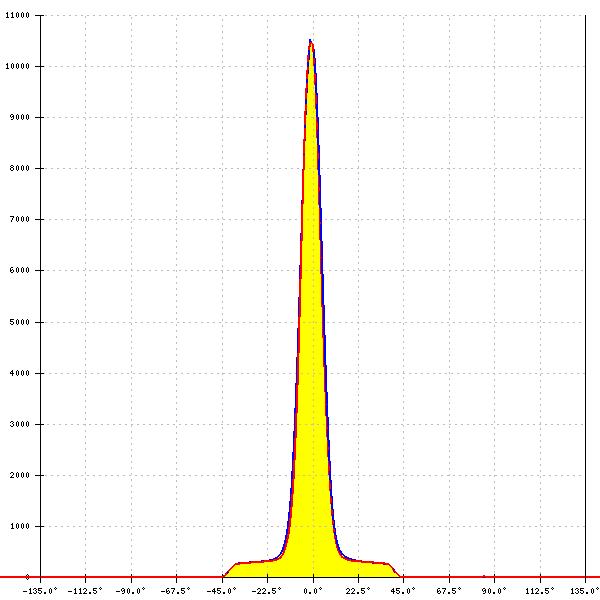

LED:
LH508A
FWHM:
12°
FWTM:
22°
Peak intensity:
10.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

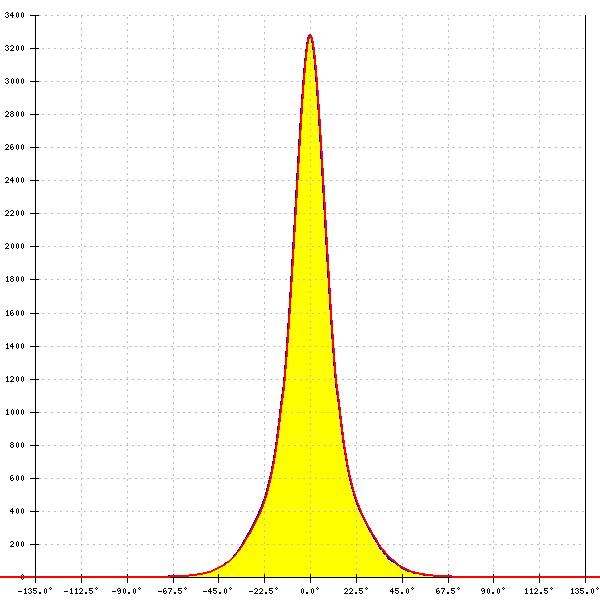

LED:

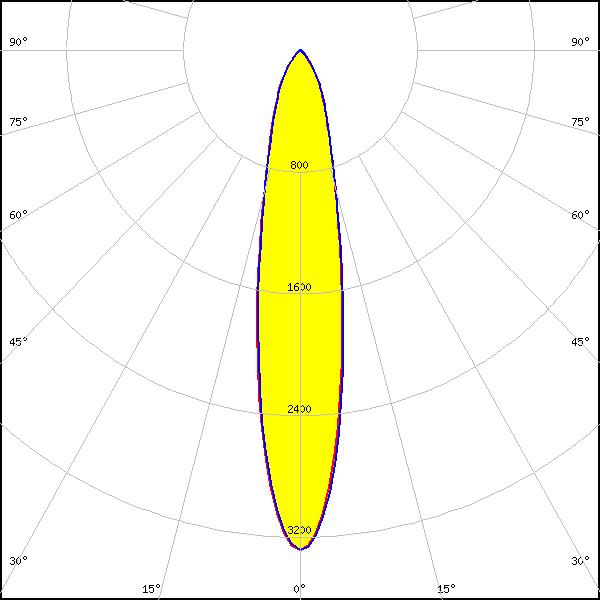

F50360 (RGB)
Required components:
FWHM:
19°
FWTM:
56°
Peak intensity:
3.750 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
F50360 (RGB)
Required components:
FWHM:
21°
FWTM:
55°
Peak intensity:
3.300 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

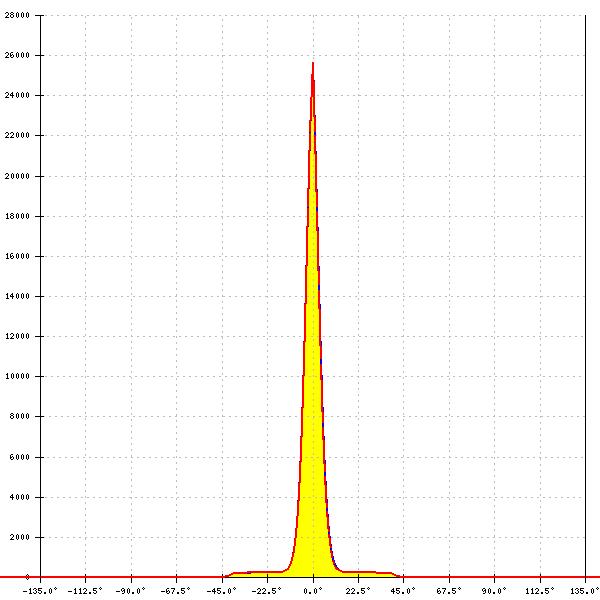

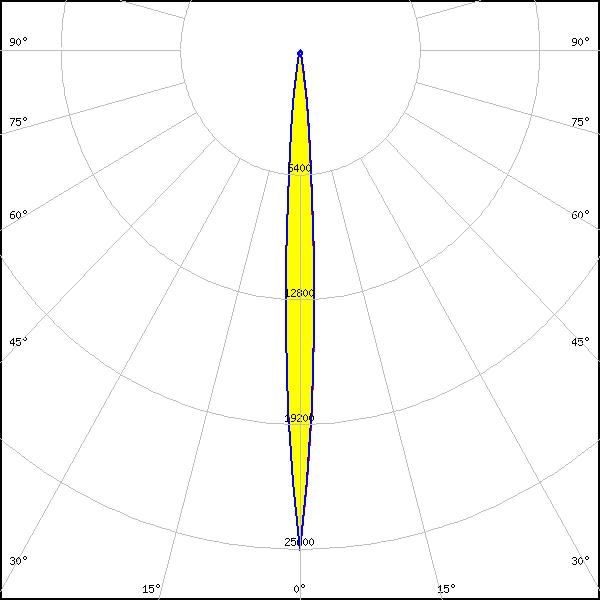

LED:
Z8Y22P
FWHM:
7°
FWTM:
16°
Peak intensity:
25.670 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
