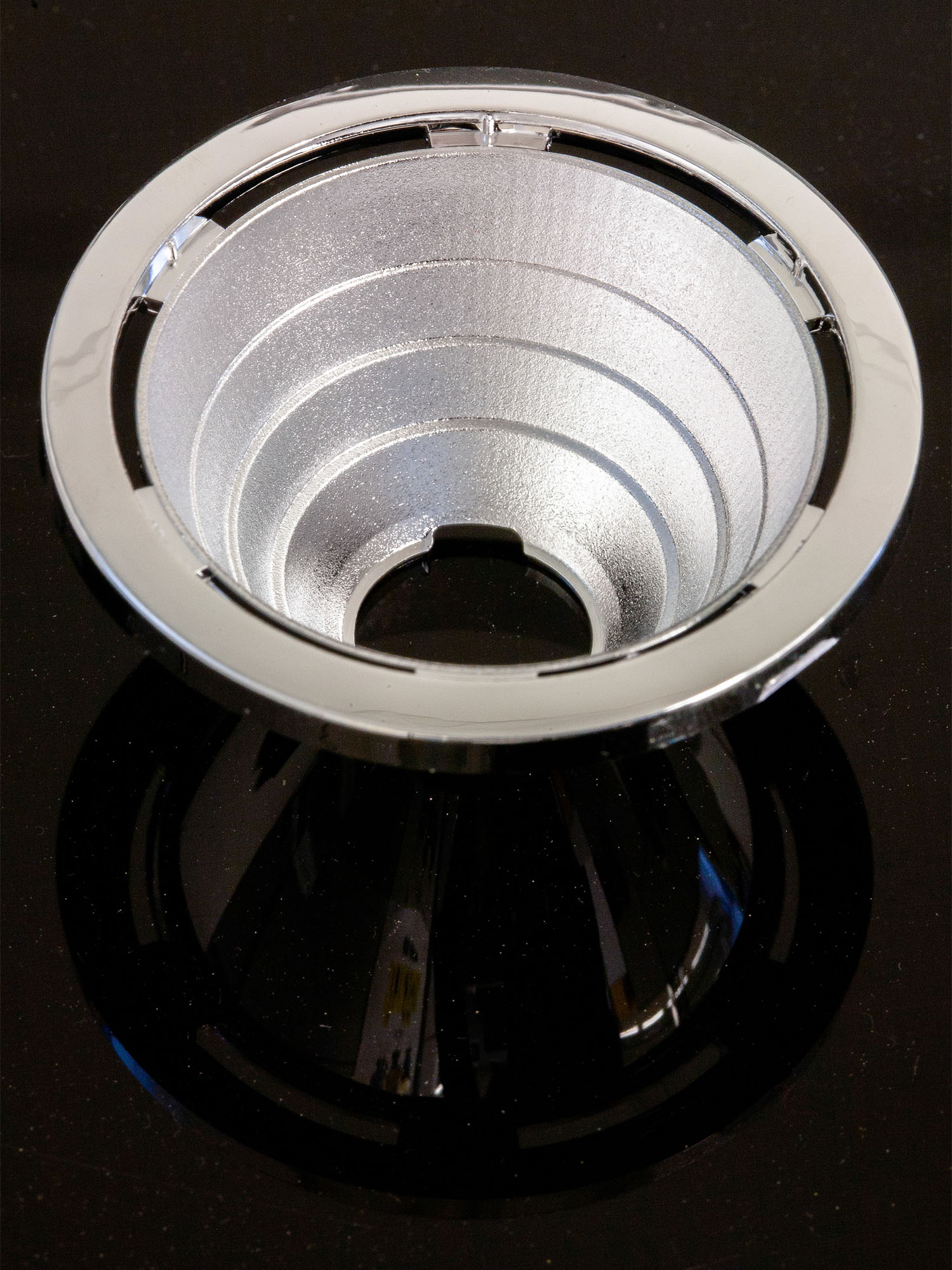

    C12477_MIRELLA-50-M

    Print

    ~30° medium beam

    Specification
    • Dimensions:
      50 mm
    • Height:
      23.90 mm
    • Fastening:
      glue
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      336 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      2.8 kg
    • MPQ:
      28 pcs
    • MOQ:
      112 pcs
    • MOQ size:
      480 x 280 x 120 mm
    • MOQ weight:
      1.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C12477_MIRELLA-50-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - MIRELLA

    News

    PRODUCT NEWS - MIRELLA

    Application area

    Indoor Architectural Lighting

    Case story

    The Luneur amusement park

    Case story

    The Basilica of San Francesco

    AVAILABLE LEDiL ACCESSORIES

    MIRELLA-DL

    Diffusing sublens for MIRELLA reflectors.

    MIRELLA-CL

    Clear sublens for MIRELLA reflectors

    MIRELLA-RZL

    Colour mixing sublens compatible with MIRELLA reflectors

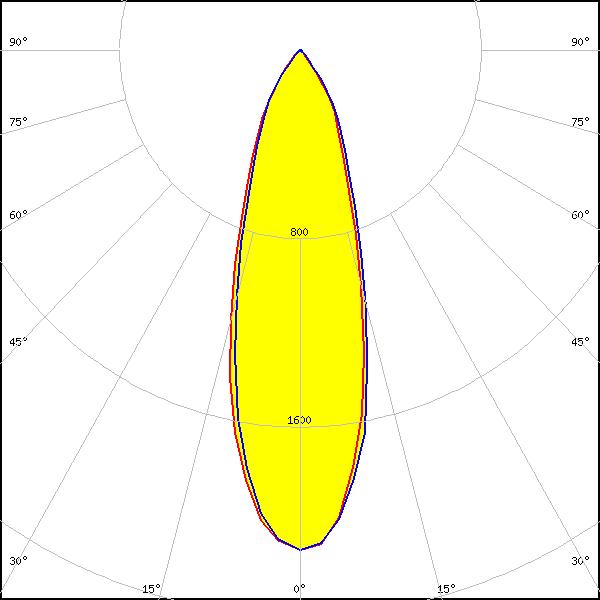

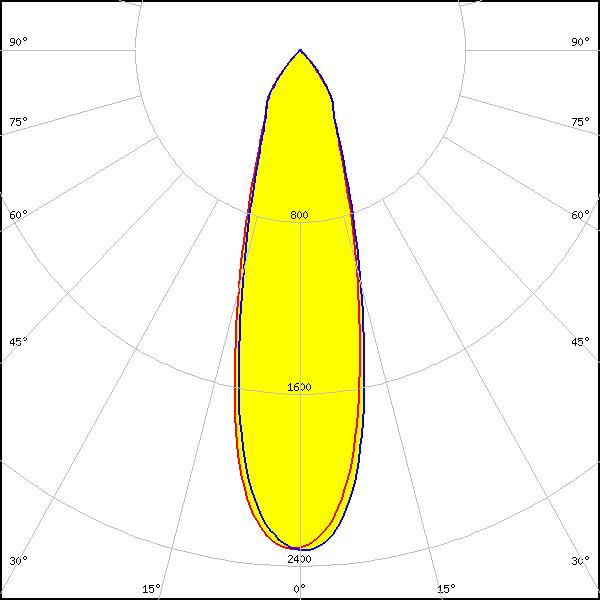

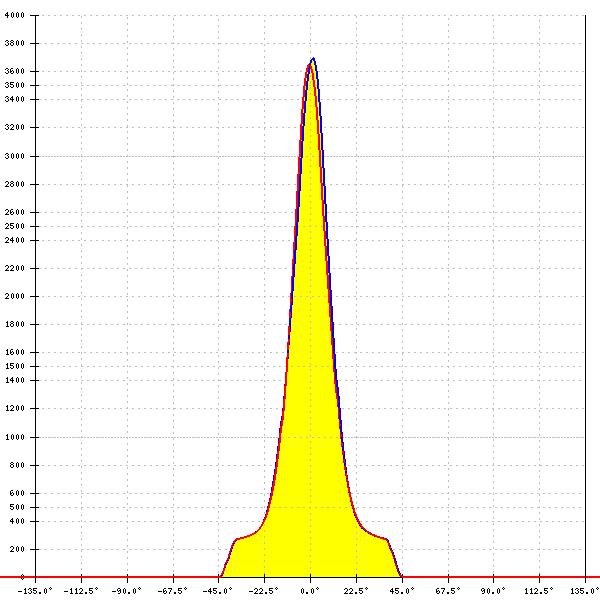

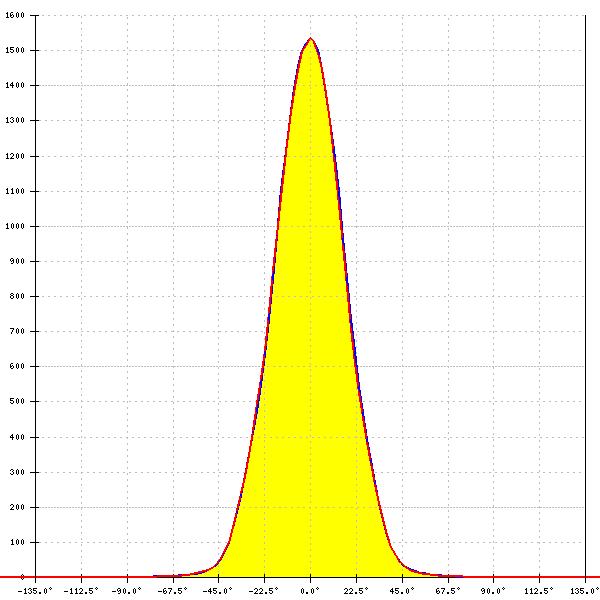

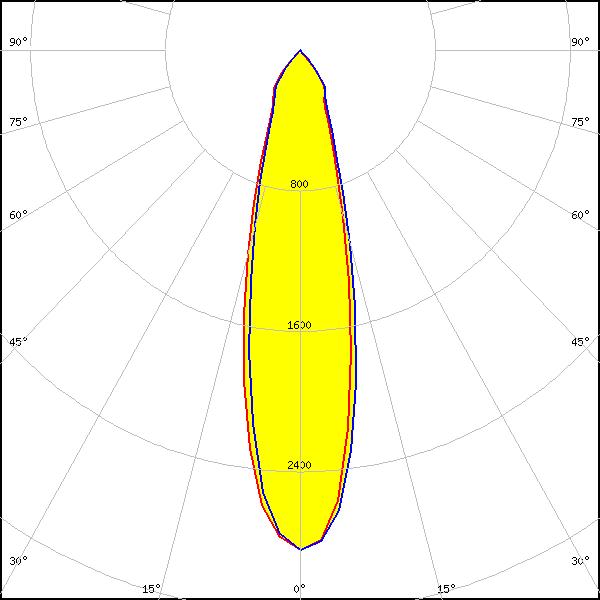

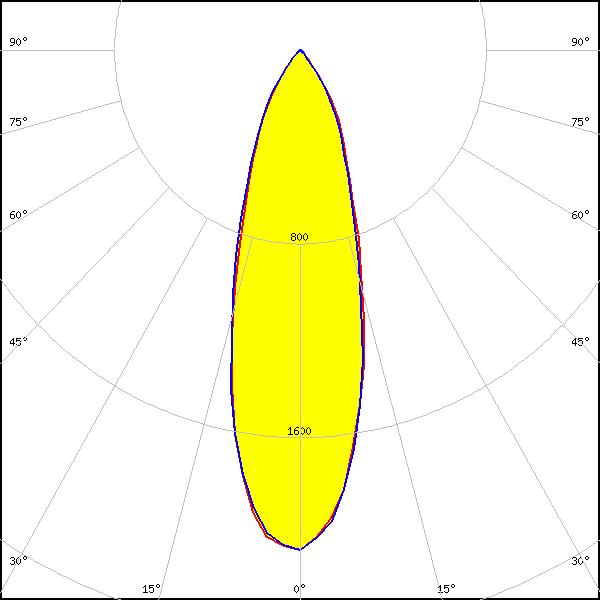

    Optical results

    LED: BXRA LS
    LES size: 6.7 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 27°
    FWTM: 69°
    Peak intensity: 2.400 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

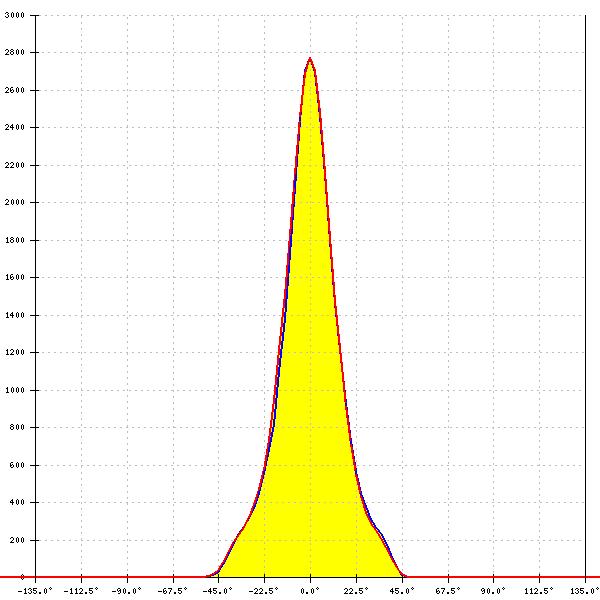

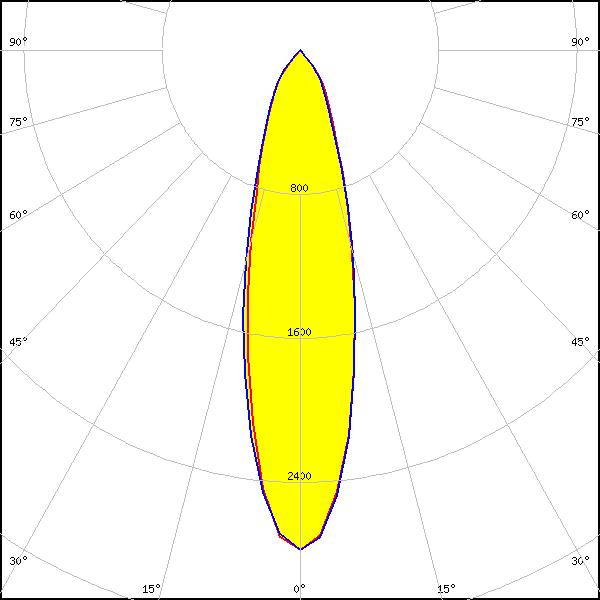

    LED: BXRA LS
    LES size: 6.7 mm
    FWHM: 27°
    FWTM: 64°
    Peak intensity: 2.800 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

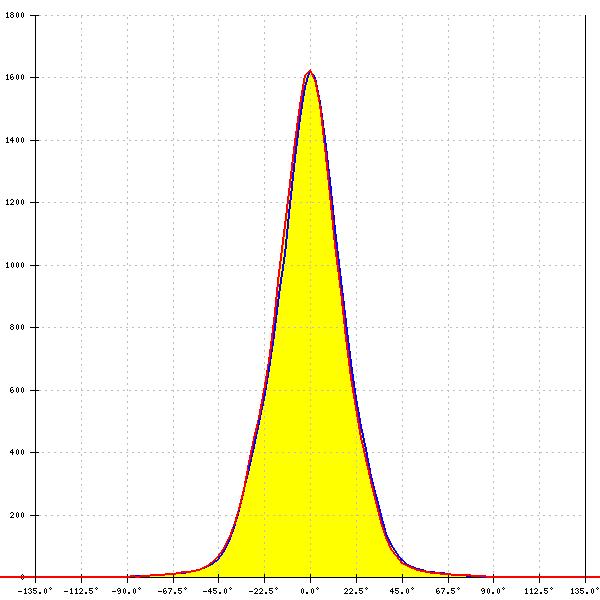

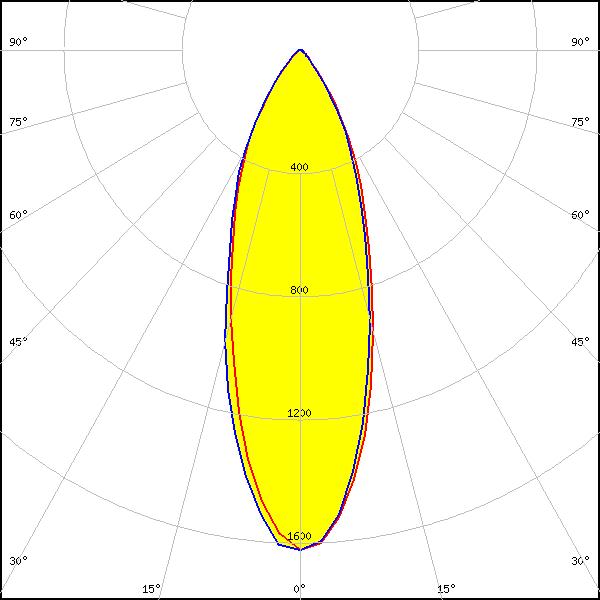

    LED: BXRA LS
    LES size: 6.7 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 35°
    FWTM: 73°
    Peak intensity: 1.600 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Vero SE 10
    LES size: 9.9 mm
    FWHM: 22°
    FWTM: 64°
    Peak intensity: 3.147 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL01x
    LES size: 6.0 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 35°
    FWTM: 76°
    Peak intensity: 1.700 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

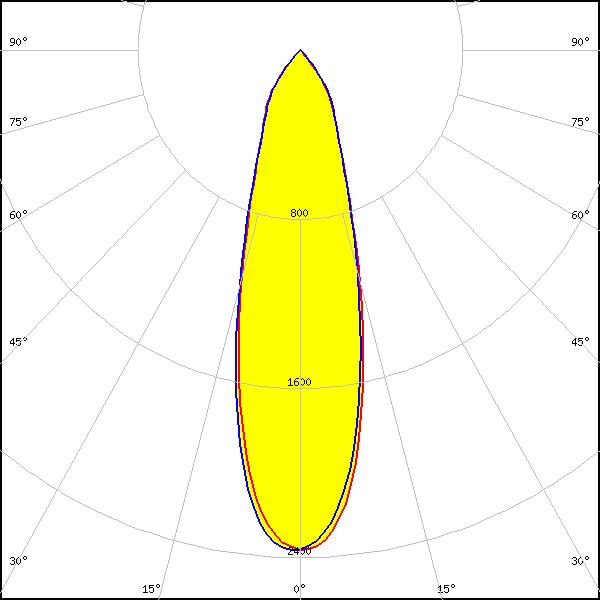

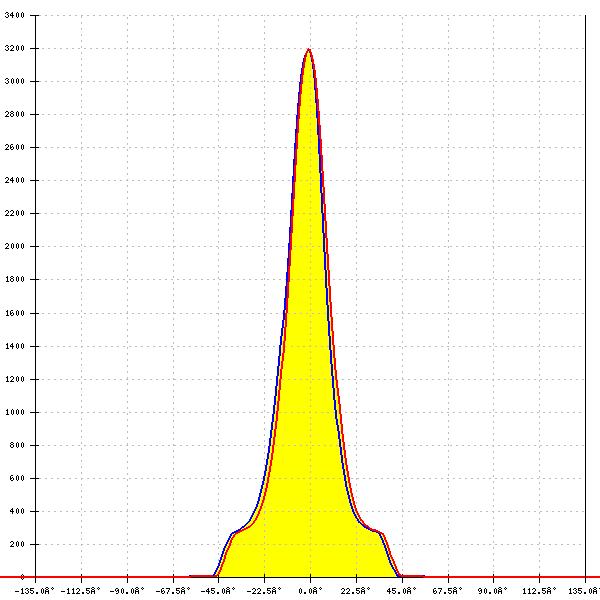

    LED: CLL01x
    LES size: 6.0 mm
    FWHM: 29°
    FWTM: 77°
    Peak intensity: 3.200 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL01x
    LES size: 6.0 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 39°
    FWTM: 77°
    LEDs/each optic: 1
    Light colour/type: White

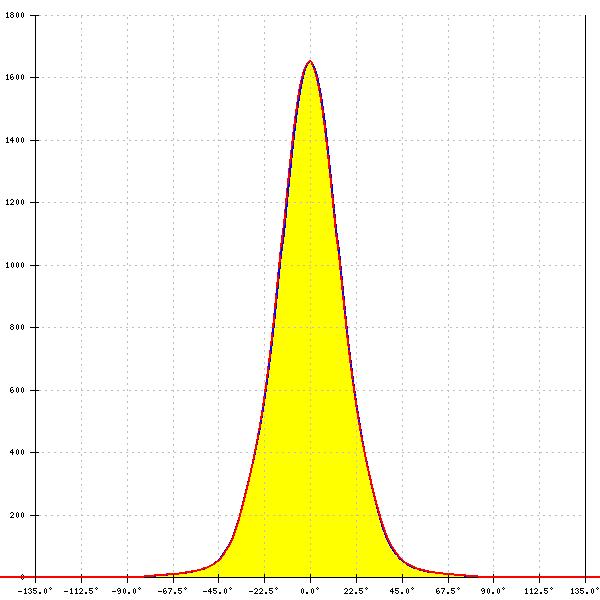

    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 35°
    FWTM: 73°
    Peak intensity: 1.650 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 30°
    FWTM: 71°
    Peak intensity: 2.200 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

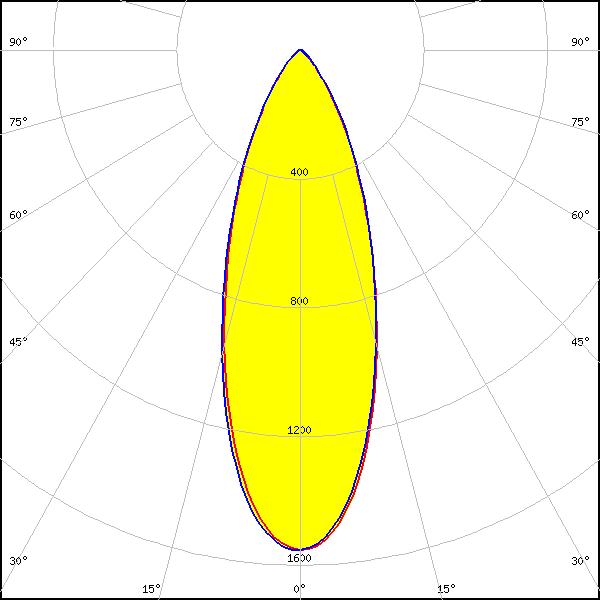

    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    Required components:
    C13723_MIRELLA-RZL
    FWHM: 37°
    FWTM: 75°
    Peak intensity: 1.550 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

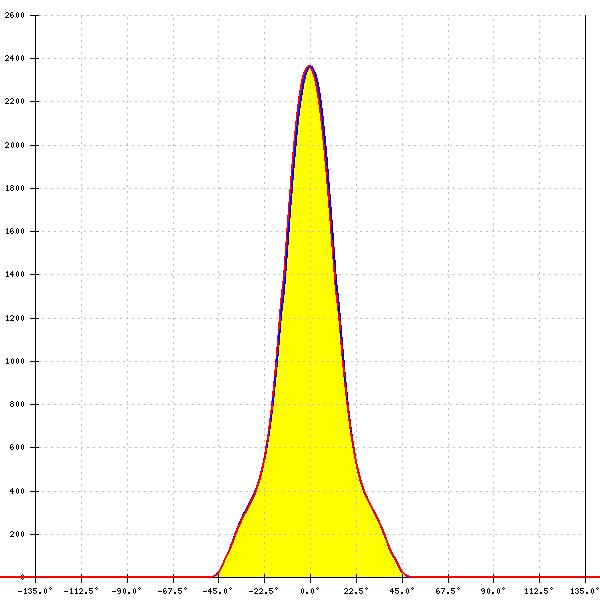

    LED: CLL02x/CLU02x (LES10)
    LES size: 9.8 mm
    FWHM: 30°
    FWTM: 71°
    Peak intensity: 2.370 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

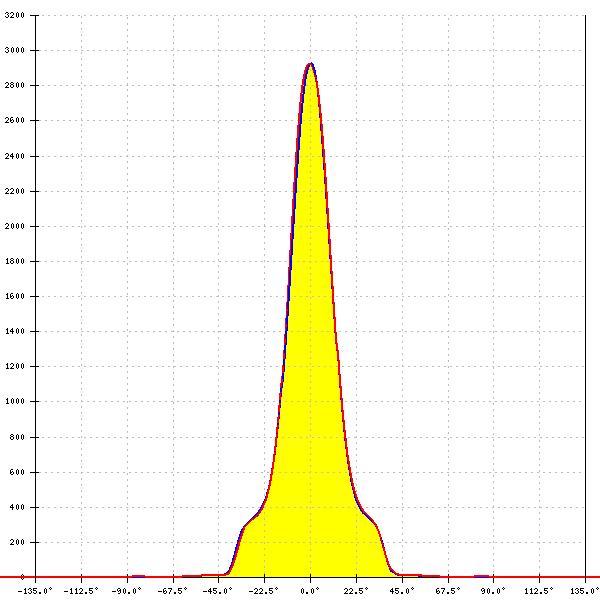

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 24°
    FWTM: 64°
    Peak intensity: 2.900 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

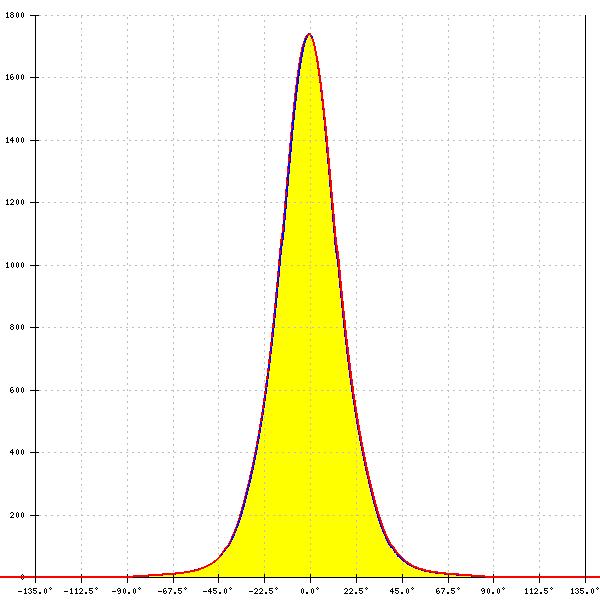

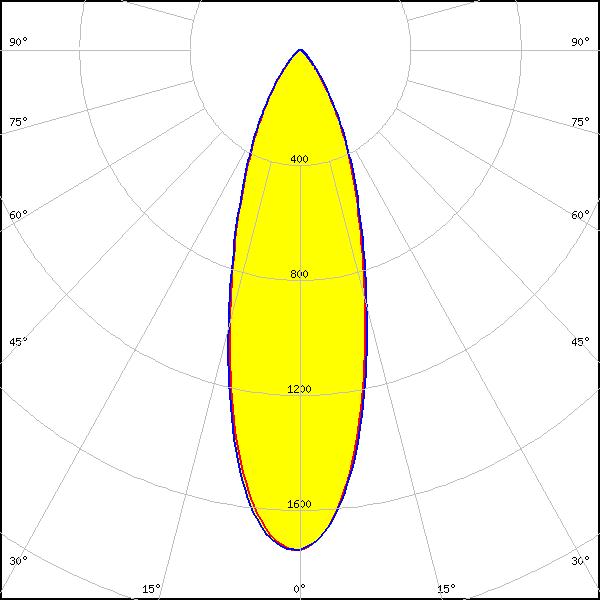

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    C13723_MIRELLA-RZL
    FWHM: 33°
    FWTM: 70°
    Peak intensity: 1.700 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

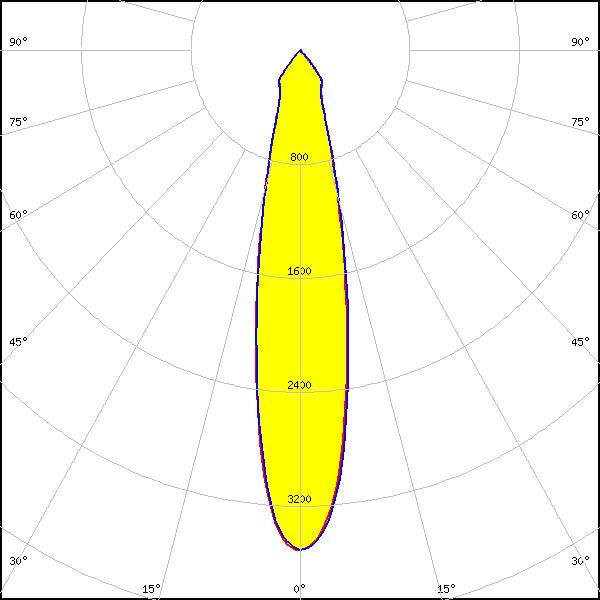

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    FWHM: 22°
    FWTM: 51°
    Peak intensity: 3.500 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

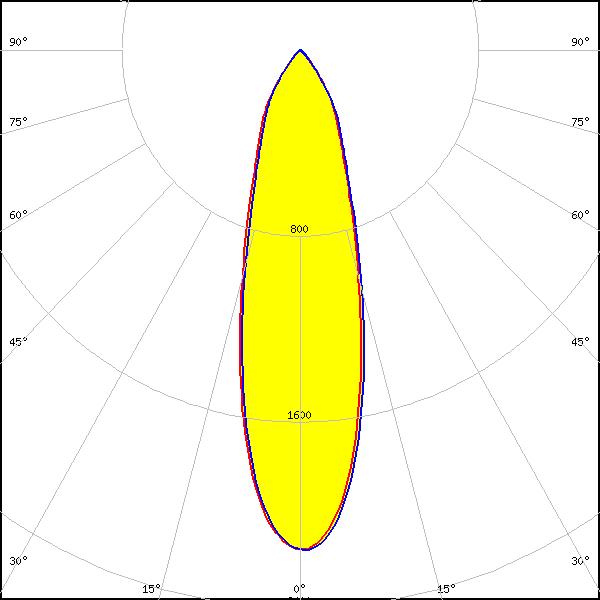

    LED: CLU700/701/702/703
    LES size: 6.0 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 29°
    FWTM: 69°
    Peak intensity: 2.200 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

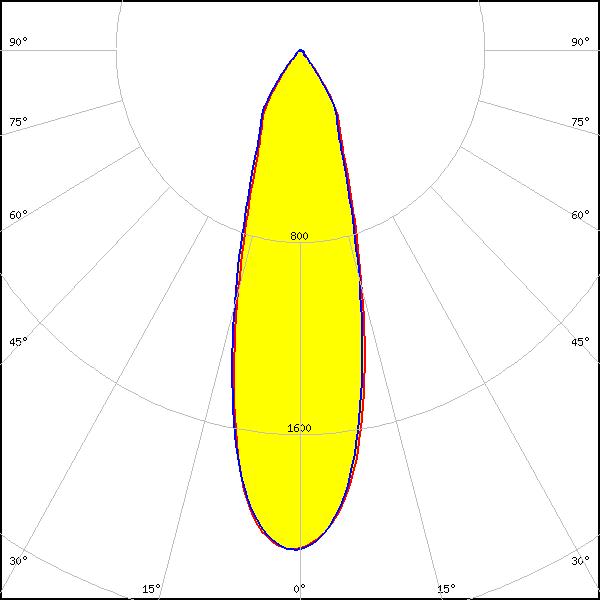

    LED: CLU710/711
    LES size: 8.5 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 30°
    FWTM: 70°
    Peak intensity: 2.100 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

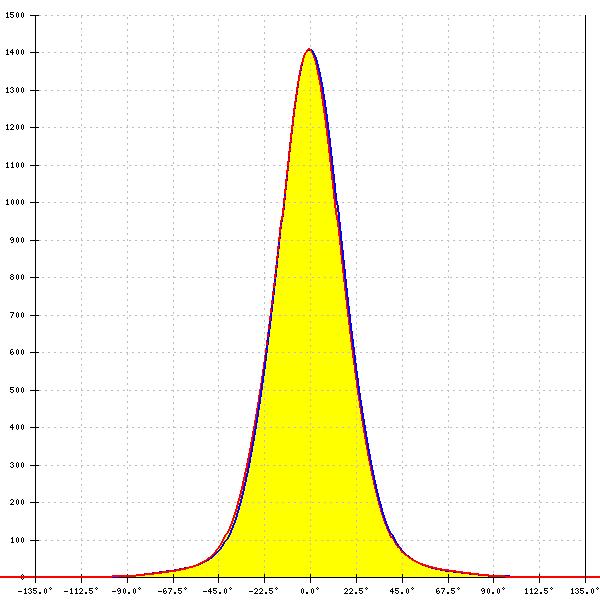

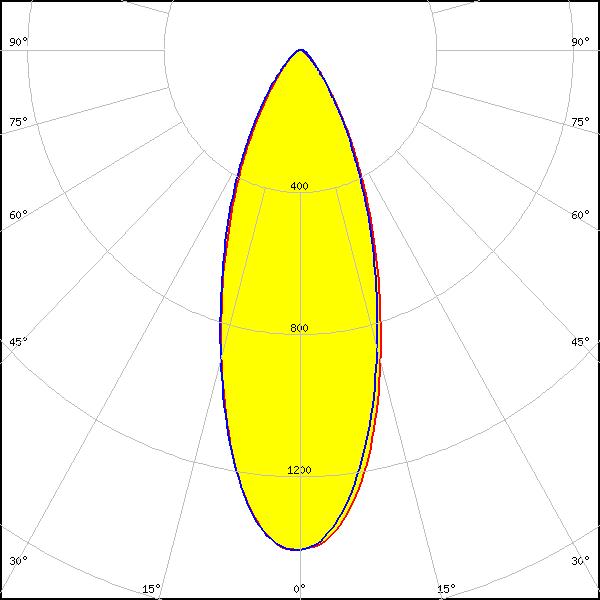

    LED: CLU710/711
    LES size: 8.5 mm
    Required components:
    C13723_MIRELLA-RZL
    FWHM: 38°
    FWTM: 76°
    Peak intensity: 1.400 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

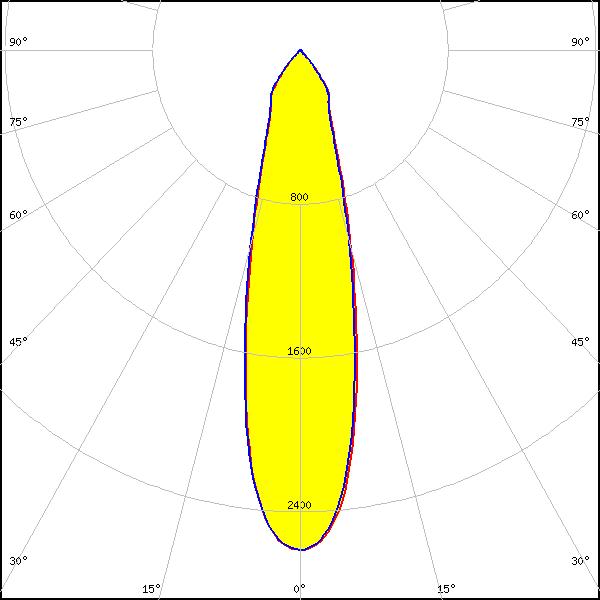

    LED: CLU710/711
    LES size: 8.5 mm
    FWHM: 26°
    FWTM: 70°
    Peak intensity: 2.600 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

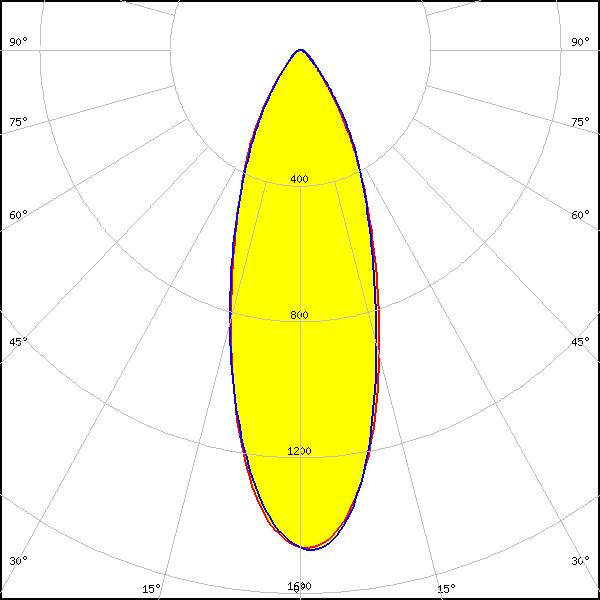

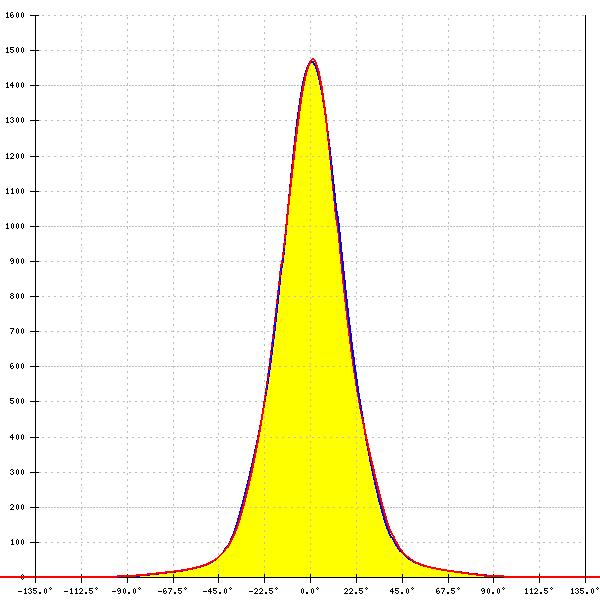

    LED: CLU710/711
    LES size: 8.5 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 35°
    FWTM: 74°
    Peak intensity: 1.500 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

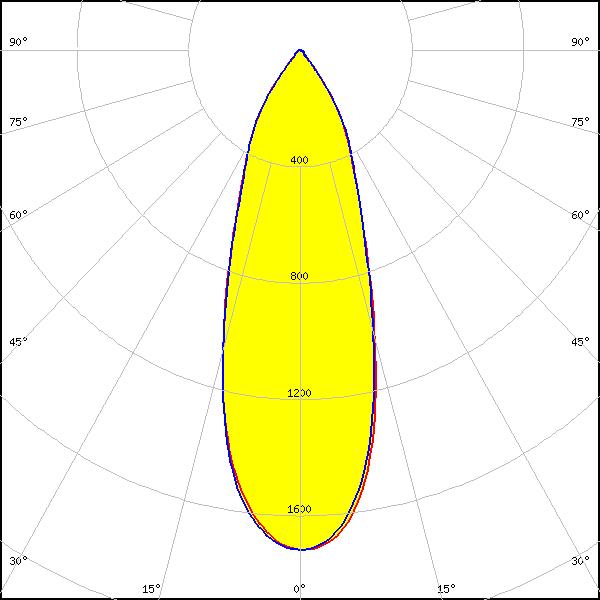

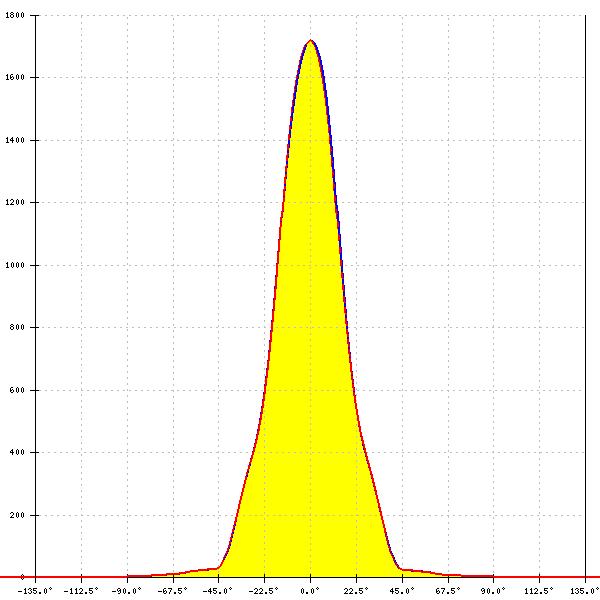

    LED: CLU720/721/723
    LES size: 11.0 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 35°
    FWTM: 73°
    Peak intensity: 1.700 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

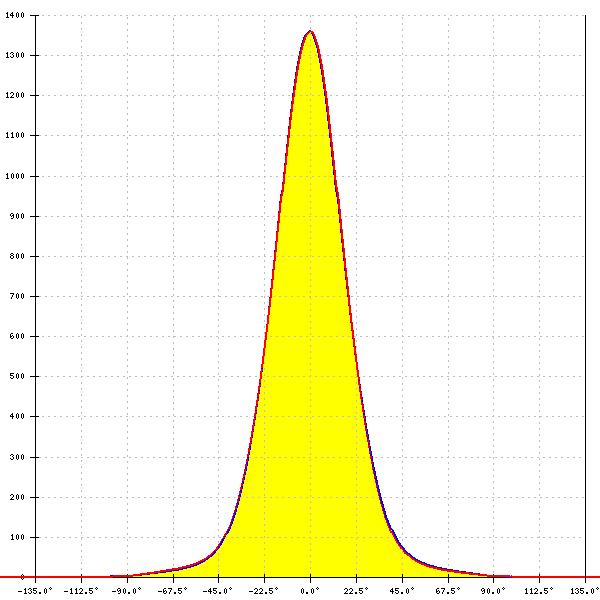

    LED: CLU720/721/723
    LES size: 11.0 mm
    Required components:
    C13723_MIRELLA-RZL
    FWHM: 39°
    FWTM: 77°
    Peak intensity: 1.400 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CLU720/721/723
    LES size: 11.0 mm
    FWHM: 31°
    FWTM: 75°
    Peak intensity: 2.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

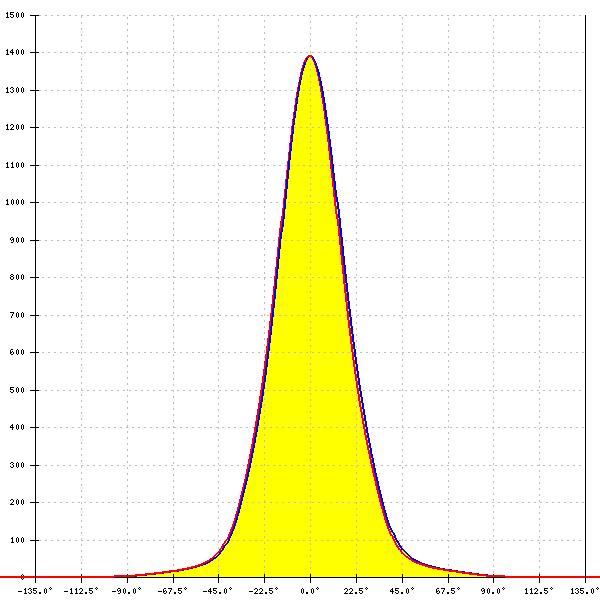

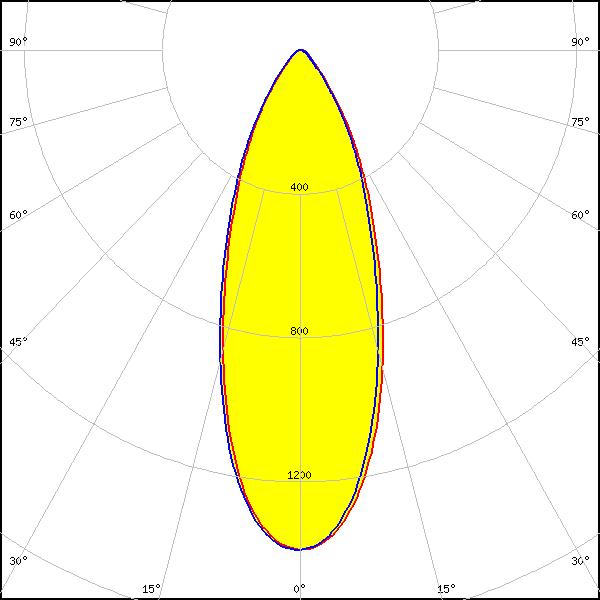

    LED: CLU720/721/723
    LES size: 11.0 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 38°
    FWTM: 76°
    Peak intensity: 1.400 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 13xx
    LES size: 6.0 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 23°
    FWTM: 68°
    Peak intensity: 2.900 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 13xx
    LES size: 6.0 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 26°
    FWTM: 67°
    Peak intensity: 2.400 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 13xx
    LES size: 6.0 mm
    FWHM: 20°
    FWTM: 55°
    Peak intensity: 3.700 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

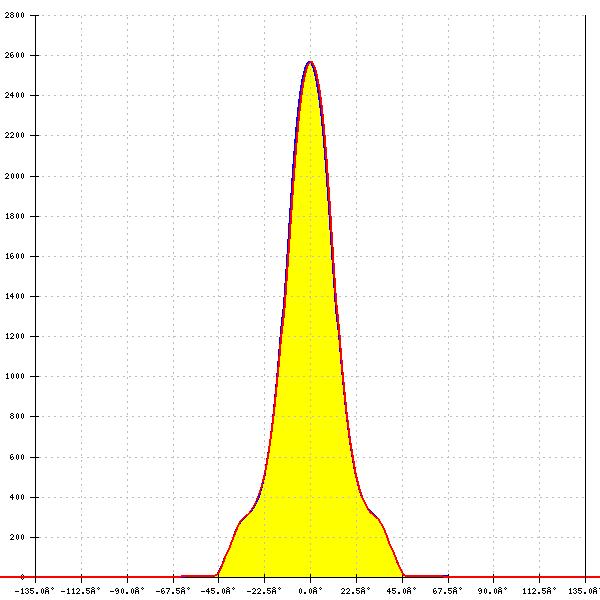

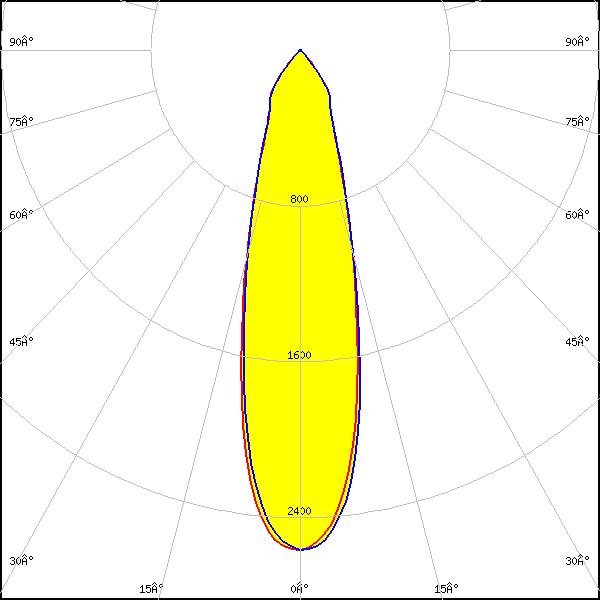

    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 30°
    FWTM: 71°
    Peak intensity: 2.400 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 15xx
    LES size: 8.9 mm
    FWHM: 28°
    FWTM: 72°
    Peak intensity: 2.500 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

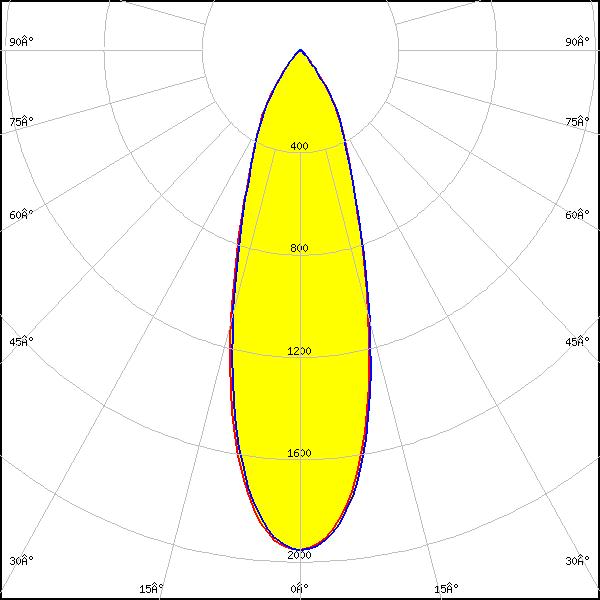

    LED: CXA/B 15xx
    LES size: 8.9 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 34°
    FWTM: 72°
    Peak intensity: 1.700 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 37°
    FWTM: 76°
    Peak intensity: 1.800 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    FWHM: 34°
    FWTM: 78°
    Peak intensity: 2.000 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
    LES size: 12.0 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 39°
    FWTM: 76°
    Peak intensity: 1.600 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

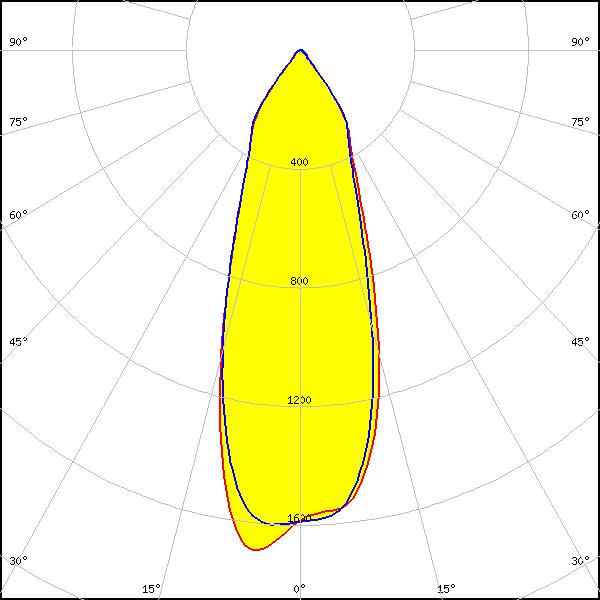

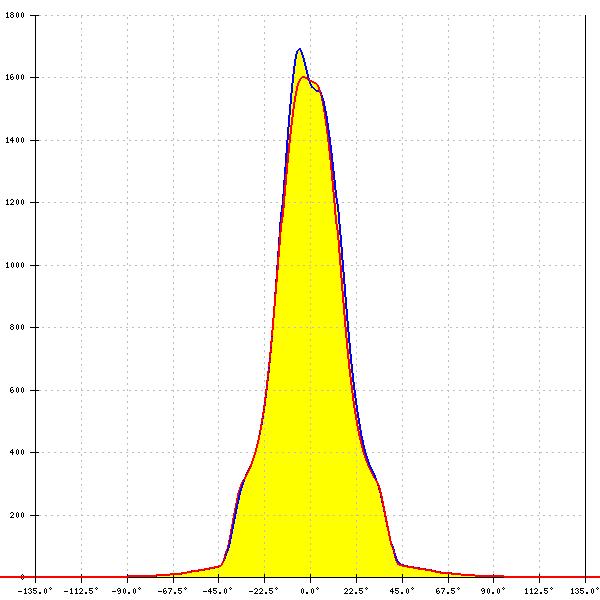

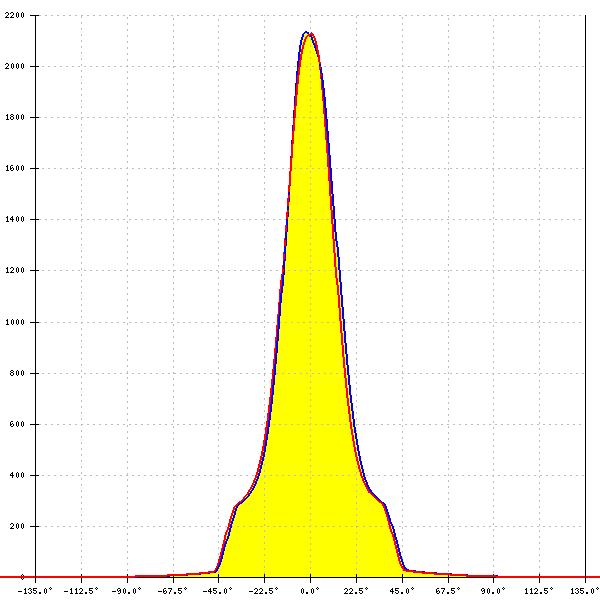

    LED: MHD-E/G
    LES size: 0.0 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 35°
    FWTM: 76°
    Peak intensity: 1.700 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

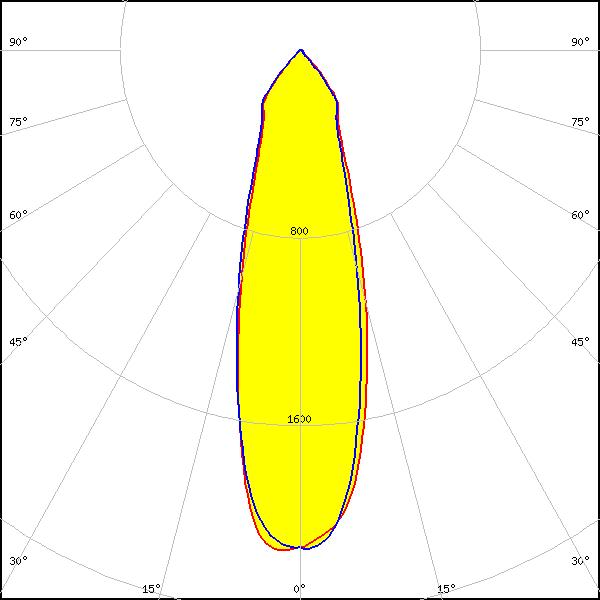

    LED: MHD-E/G
    LES size: 0.0 mm
    FWHM: 30°
    FWTM: 79°
    Peak intensity: 2.100 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

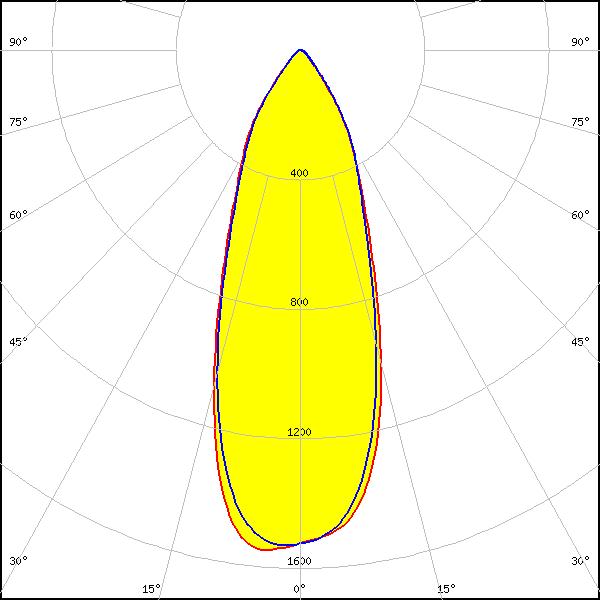

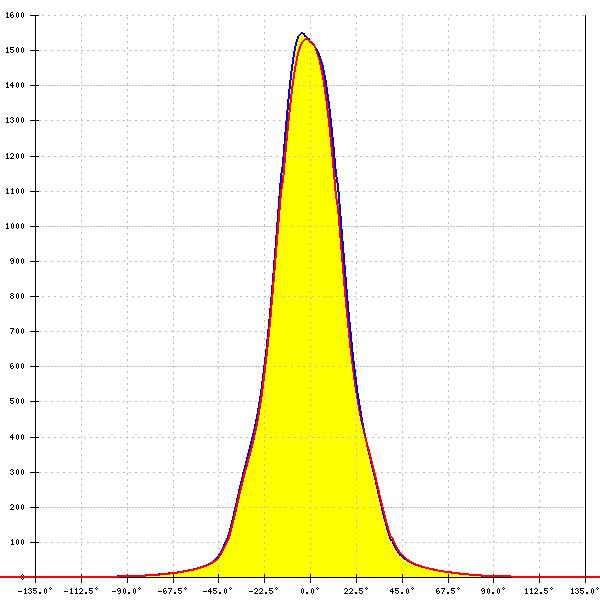

    LED: MHD-E/G
    LES size: 0.0 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 37°
    FWTM: 76°
    Peak intensity: 1.500 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

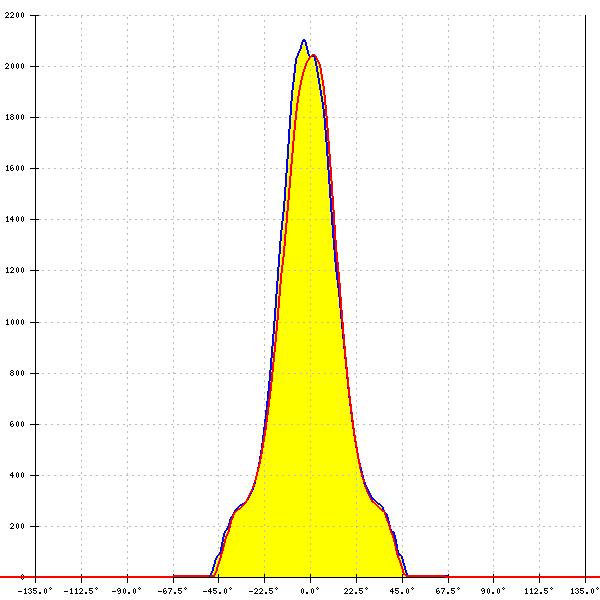

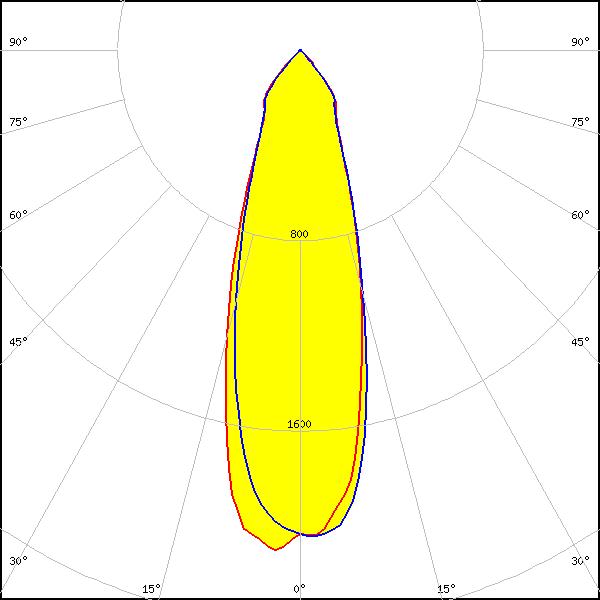

    LED: MT-G
    LES size: 0.0 mm
    FWHM: 31°
    FWTM: 79°
    Peak intensity: 2.122 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MT-G2
    LES size: 0.0 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 35°
    FWTM: 77°
    Peak intensity: 1.800 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: MT-G2
    LES size: 0.0 mm
    FWHM: 30°
    FWTM: 78°
    Peak intensity: 2.300 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

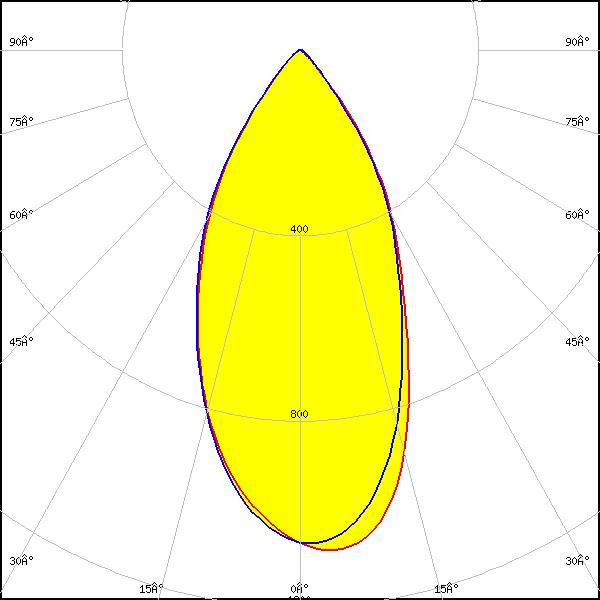

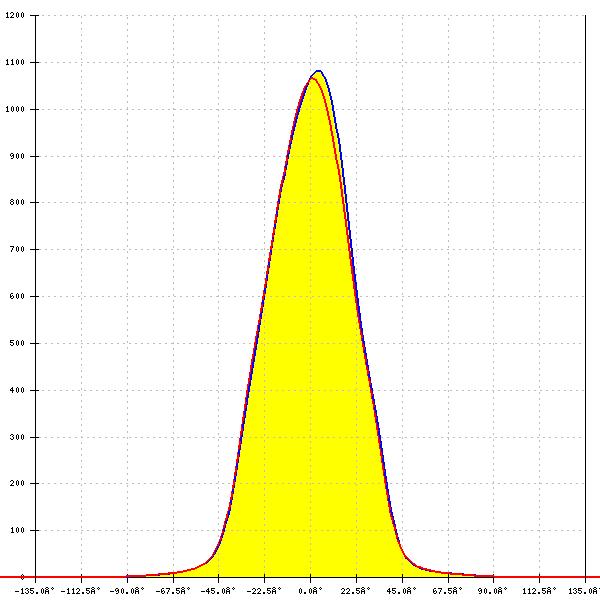

    LED: MT-G2
    LES size: 0.0 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 38°
    FWTM: 77°
    Peak intensity: 1.700 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

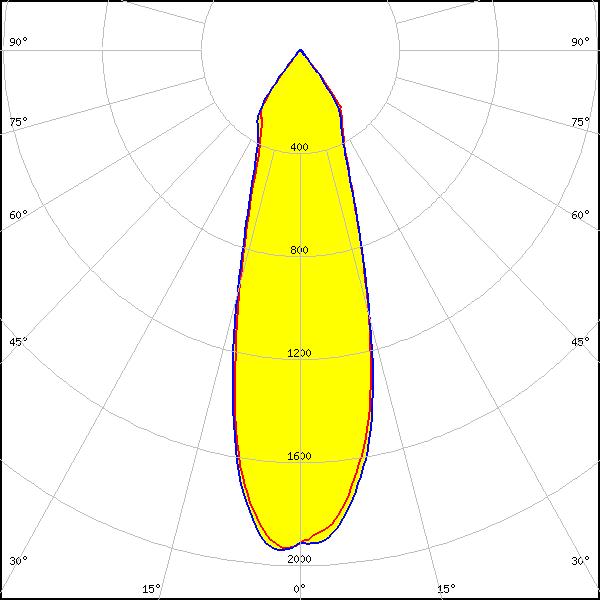

    LED: XHP50
    LES size: 0.0 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 31°
    FWTM: 75°
    Peak intensity: 2.000 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

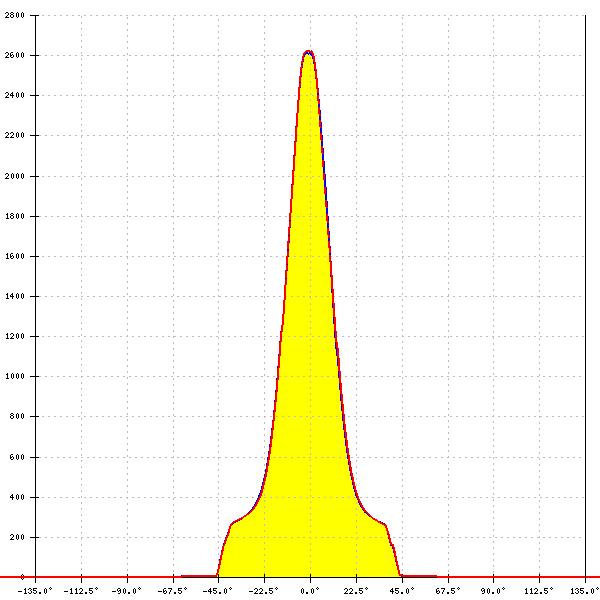

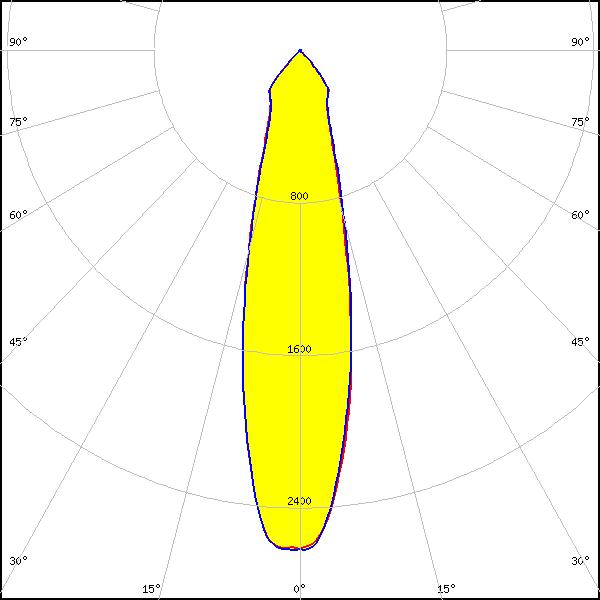

    LED: XHP50
    LES size: 0.0 mm
    FWHM: 25°
    FWTM: 76°
    Peak intensity: 2.600 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

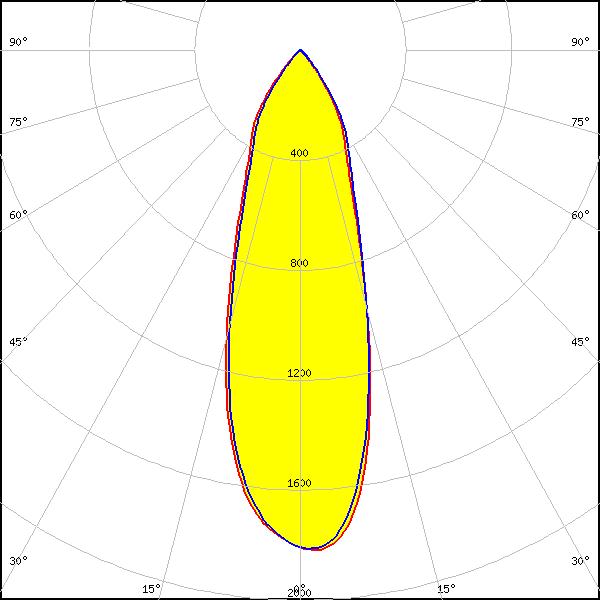

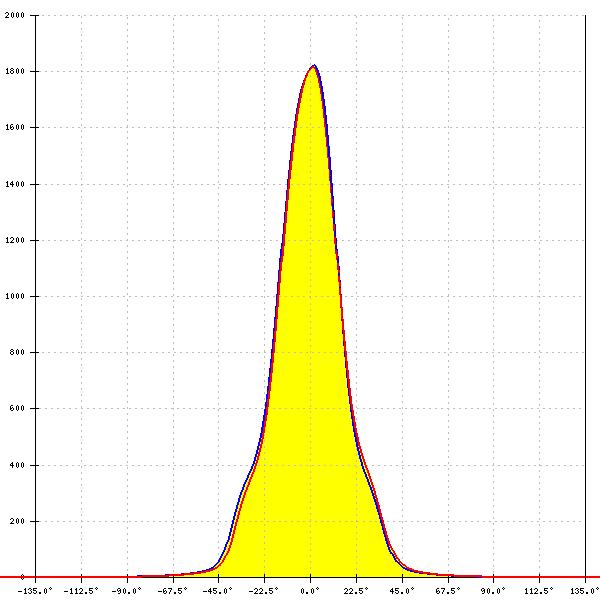

    LED: XHP50
    LES size: 0.0 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 33°
    FWTM: 74°
    Peak intensity: 1.800 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

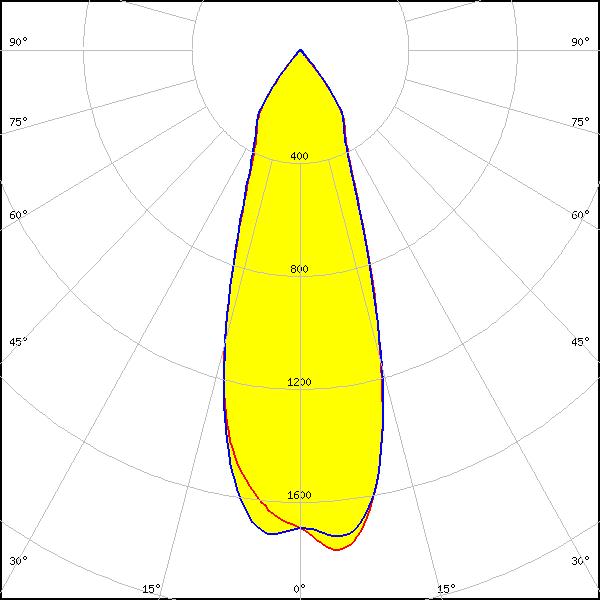

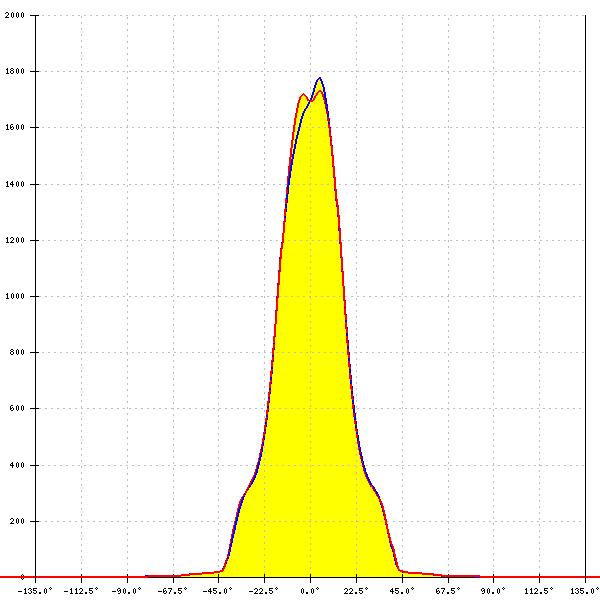

    LED: XHP70
    LES size: 0.0 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 35°
    FWTM: 76°
    Peak intensity: 1.800 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

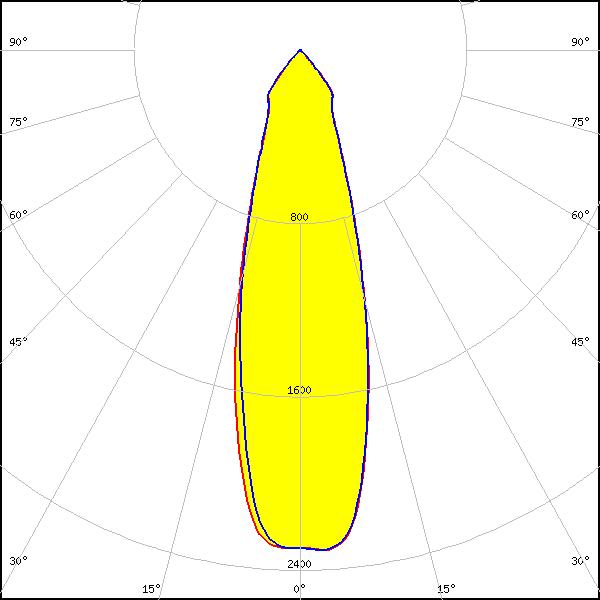

    LED: XHP70
    LES size: 0.0 mm
    FWHM: 30°
    FWTM: 77°
    Peak intensity: 2.300 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

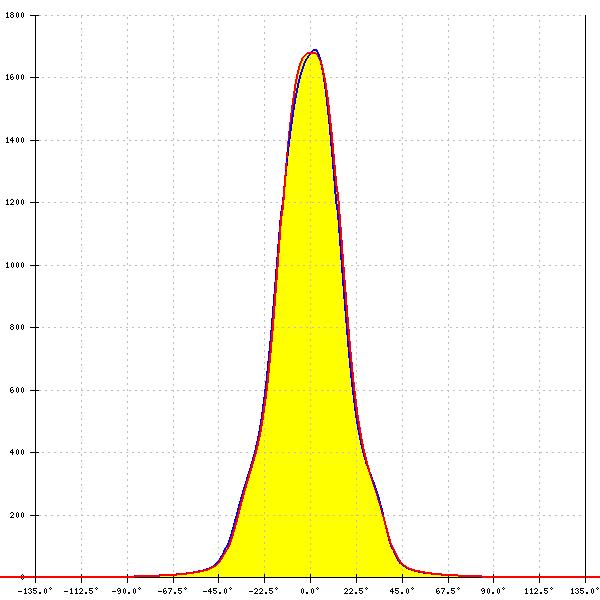

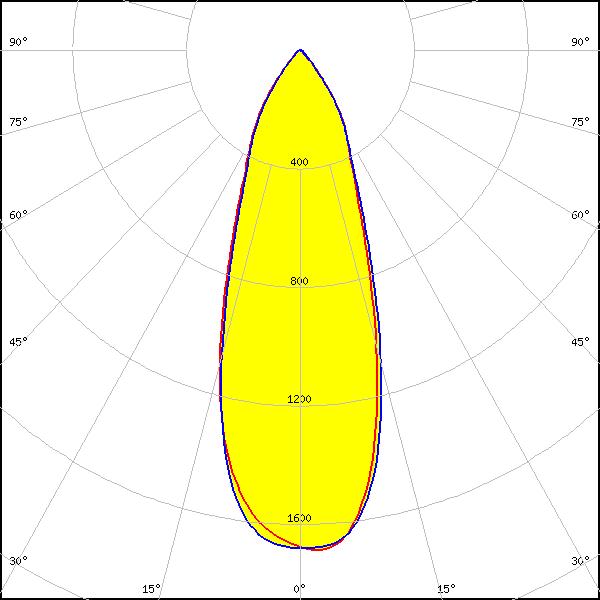

    LED: XHP70
    LES size: 0.0 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 36°
    FWTM: 74°
    Peak intensity: 1.700 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

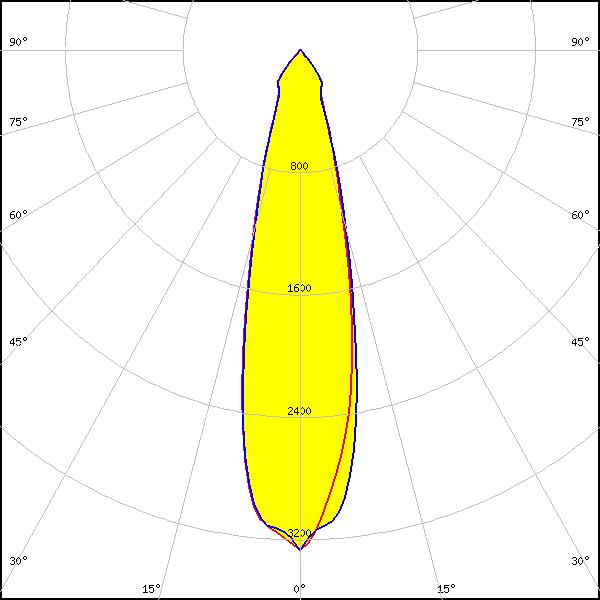

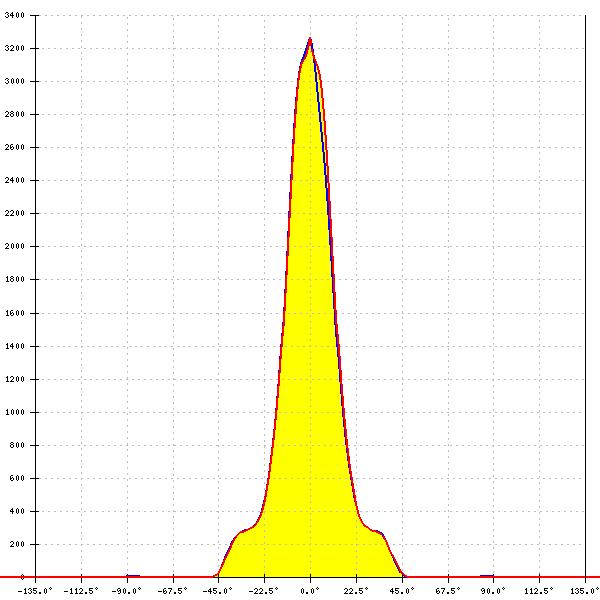

    LED: LUXEON 7070
    LES size: 0.0 mm
    FWHM: 26°
    FWTM: 52°
    Peak intensity: 3.289 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

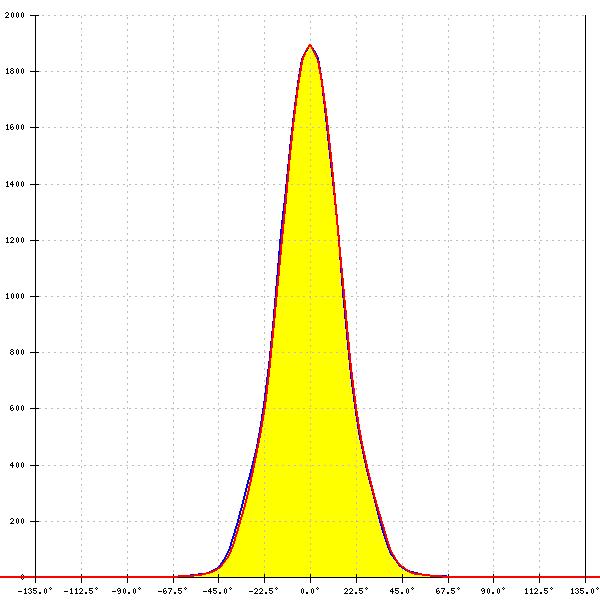

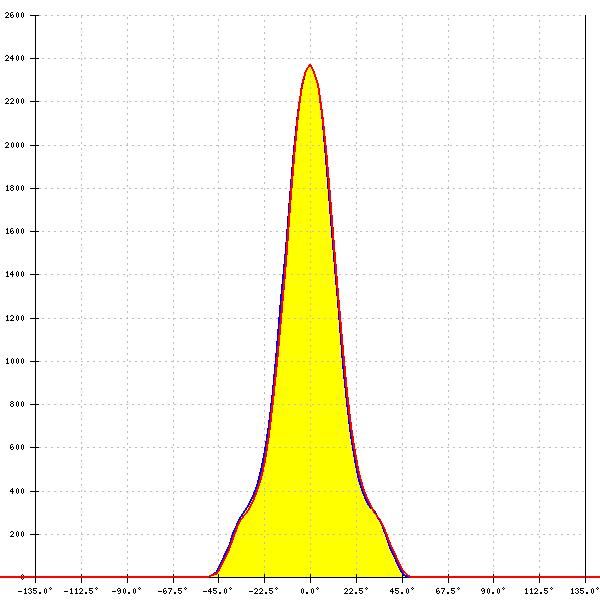

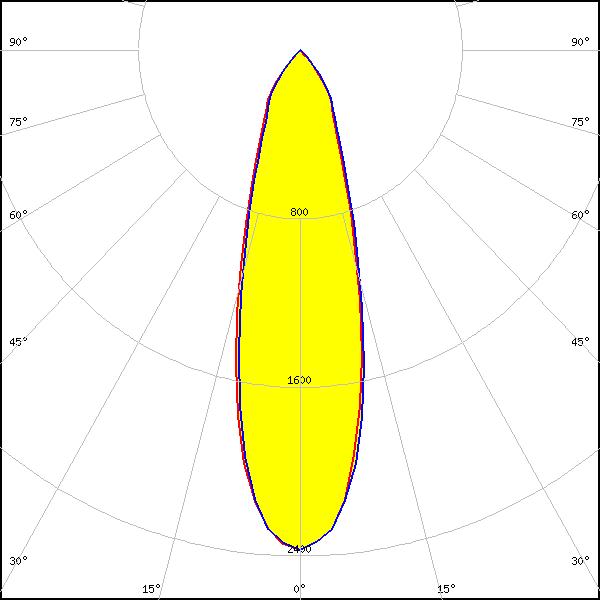

    LED: LUXEON CoB 1202/1203
    LES size: 9.0 mm
    FWHM: 29°
    FWTM: 72°
    Peak intensity: 2.400 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

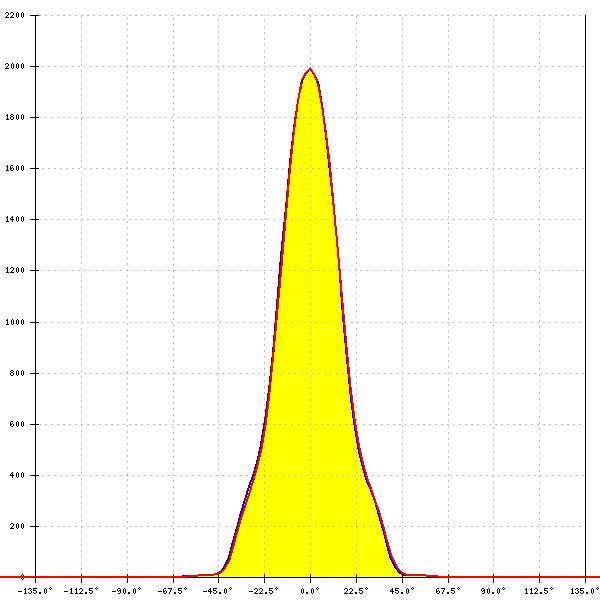

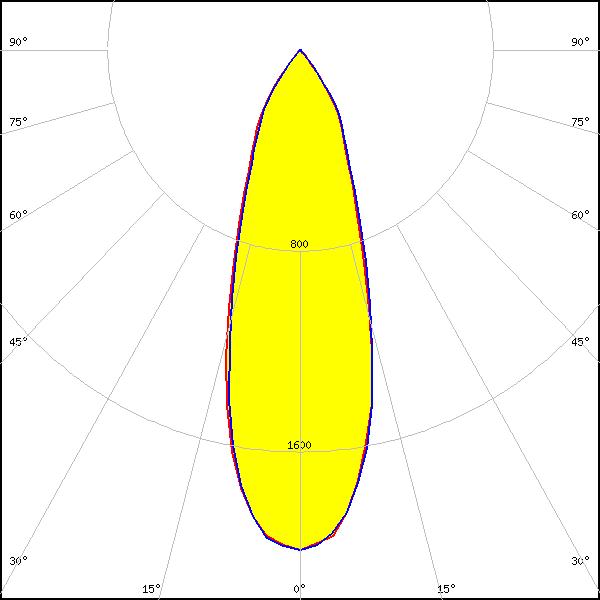

    LED: LUXEON CoB 1202/1203
    LES size: 9.0 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 33°
    FWTM: 72°
    Peak intensity: 2.000 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON CoB 1202/1203
    LES size: 9.0 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 35°
    FWTM: 71°
    Peak intensity: 1.900 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON S1000
    LES size: 0.0 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 22°
    FWTM: 64°
    Peak intensity: 3.400 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON S1000
    LES size: 0.0 mm
    FWHM: 22°
    FWTM: 66°
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON S1000
    LES size: 0.0 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 28°
    FWTM: 68°
    LEDs/each optic: 1
    Light colour/type: White

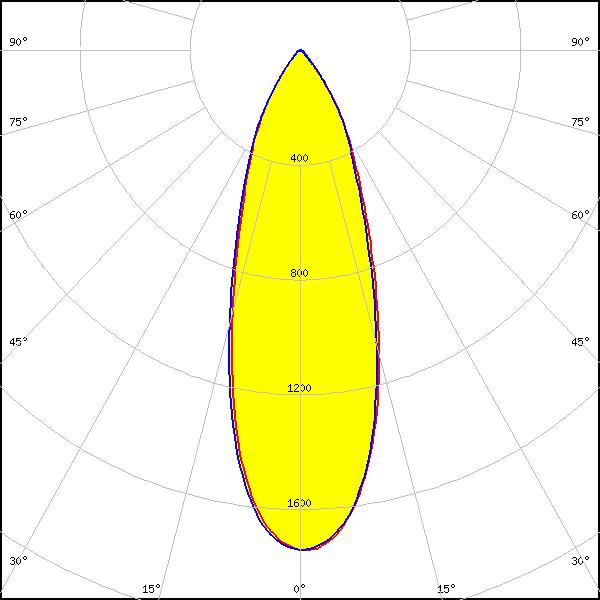

    LED: CxM-9 (13.5x13.5)
    LES size: 9.8 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 33°
    FWTM: 72°
    Peak intensity: 1.900 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

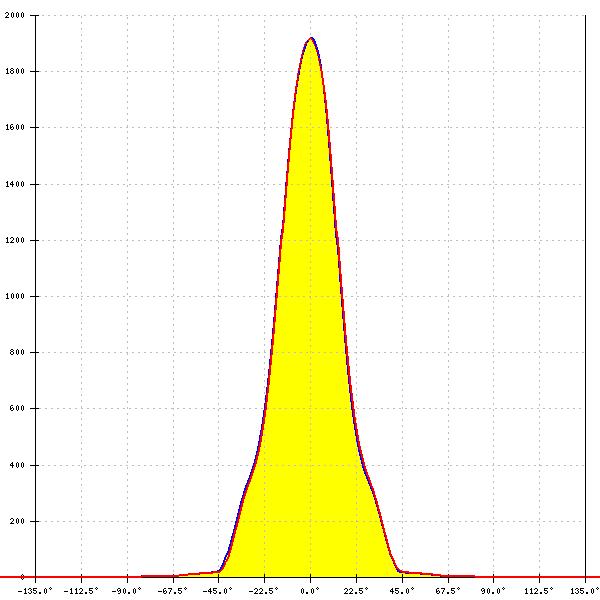

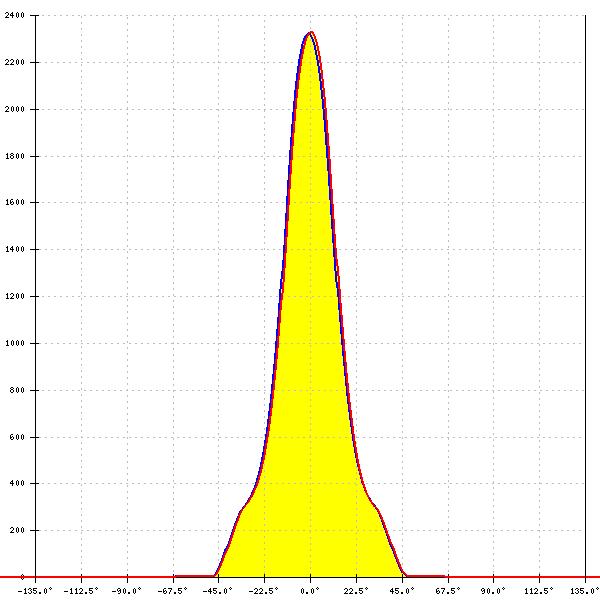

    LED: CxM-9 (13.5x13.5)
    LES size: 9.8 mm
    FWHM: 29°
    FWTM: 73°
    Peak intensity: 2.300 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

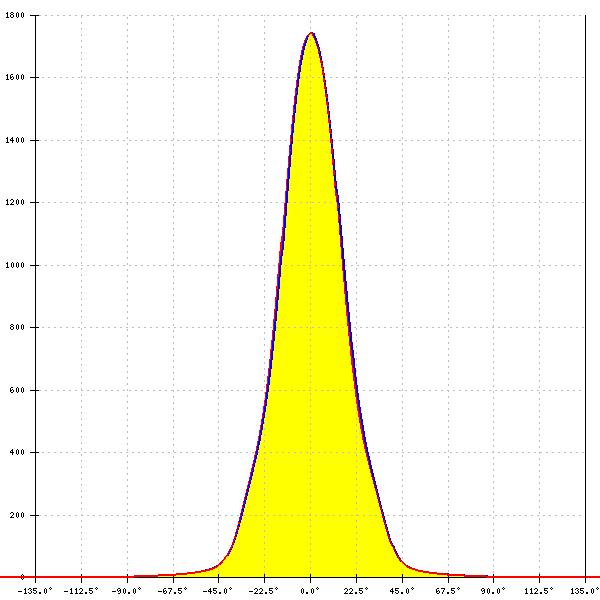

    LED: CxM-9 (13.5x13.5)
    LES size: 9.8 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 34°
    FWTM: 72°
    Peak intensity: 1.700 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 9)
    LES size: 8.7 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 33°
    FWTM: 71°
    Peak intensity: 2.100 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 9)
    LES size: 8.7 mm
    FWHM: 29°
    FWTM: 72°
    Peak intensity: 2.400 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: COB L-Type (LES 9)
    LES size: 8.7 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 34°
    FWTM: 71°
    Peak intensity: 1.900 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

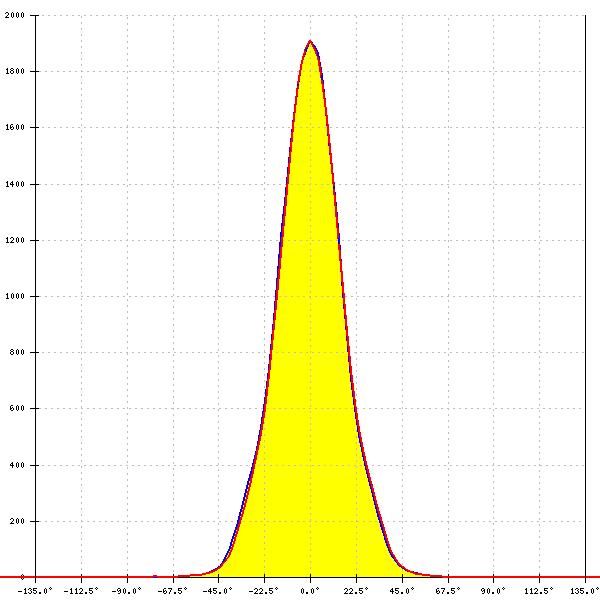

    LED: NFMW48xA
    LES size: 0.0 mm
    FWHM: 21°
    FWTM: 53°
    Peak intensity: 3.300 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NSCxL036A
    LES size: 7.0 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 30°
    FWTM: 70°
    Peak intensity: 2.300 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

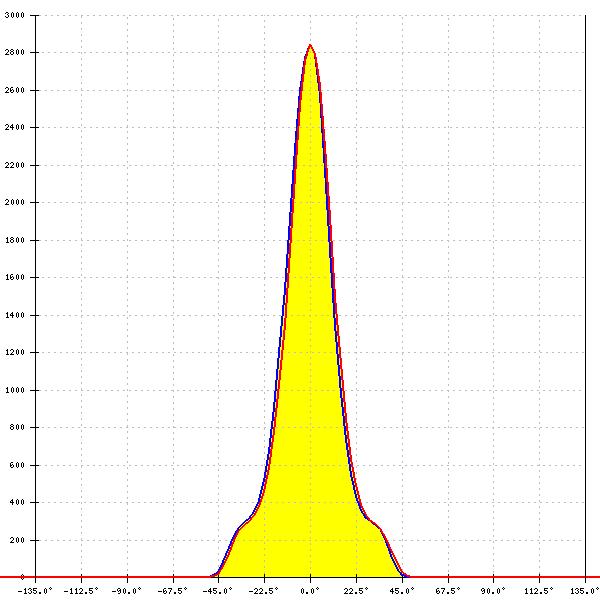

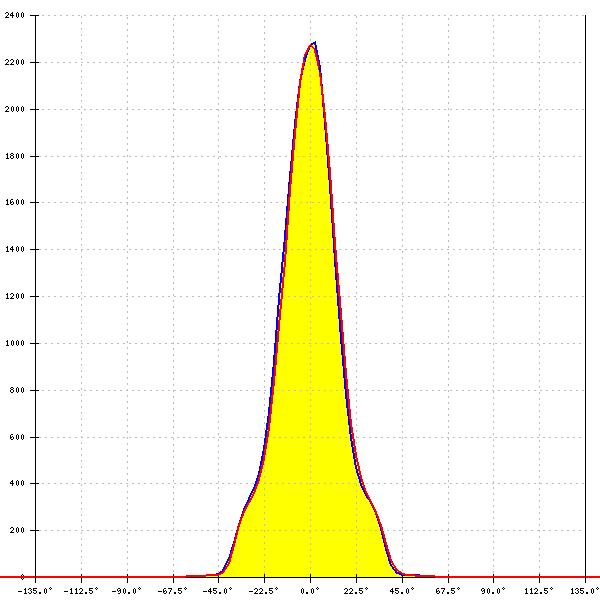

    LED: NSCxL036A
    LES size: 7.0 mm
    FWHM: 26°
    FWTM: 64°
    Peak intensity: 2.800 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NSCxL036A
    LES size: 7.0 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 32°
    FWTM: 70°
    Peak intensity: 2.100 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S10
    LES size: 0.0 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 29°
    FWTM: 71°
    Peak intensity: 2.500 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S10
    LES size: 0.0 mm
    FWHM: 24°
    FWTM: 63°
    Peak intensity: 3.300 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Duris S10
    LES size: 0.0 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 32°
    FWTM: 72°
    Peak intensity: 1.900 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 7070
    LES size: 0.0 mm
    FWHM: 25°
    FWTM: 59°
    Peak intensity: 3.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

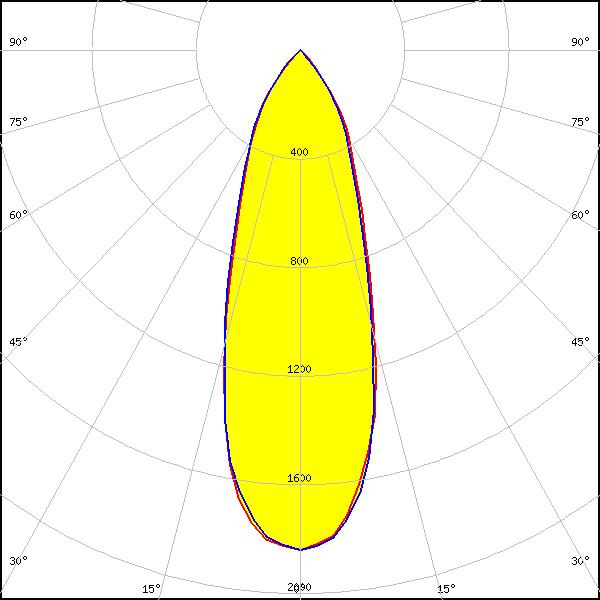

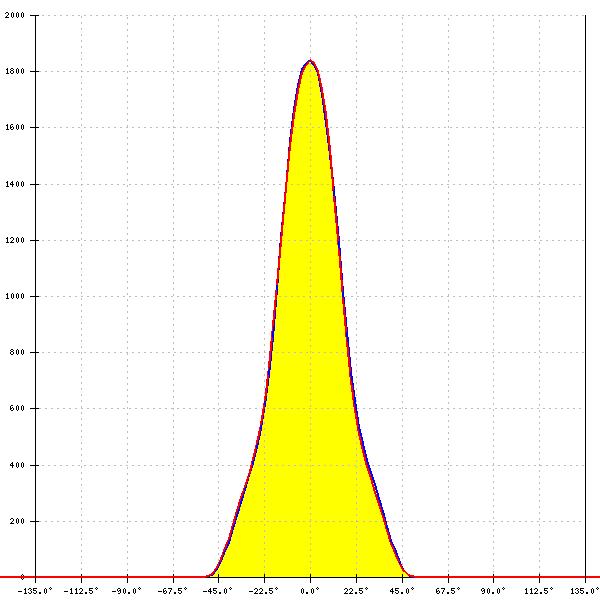

    LED: Soleriq S13
    LES size: 13.2 mm
    FWHM: 35°
    FWTM: 76°
    Peak intensity: 1.800 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

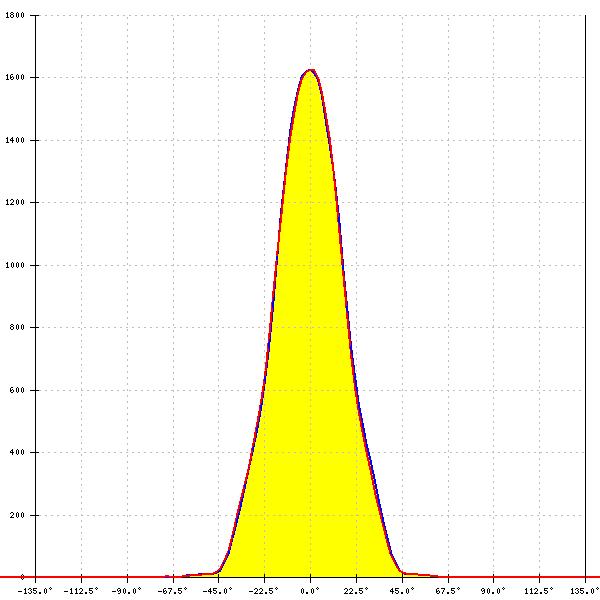

    LED: Soleriq S13
    LES size: 13.2 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 38°
    FWTM: 74°
    Peak intensity: 1.600 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

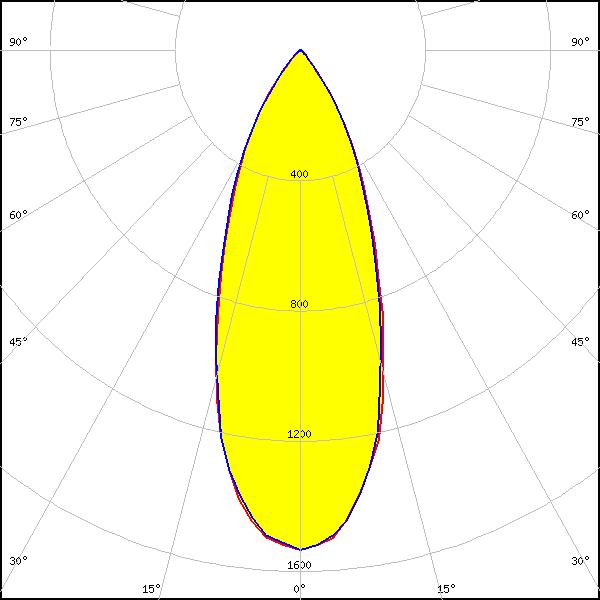

    LED: Soleriq S13
    LES size: 13.2 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 39°
    FWTM: 75°
    Peak intensity: 1.500 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

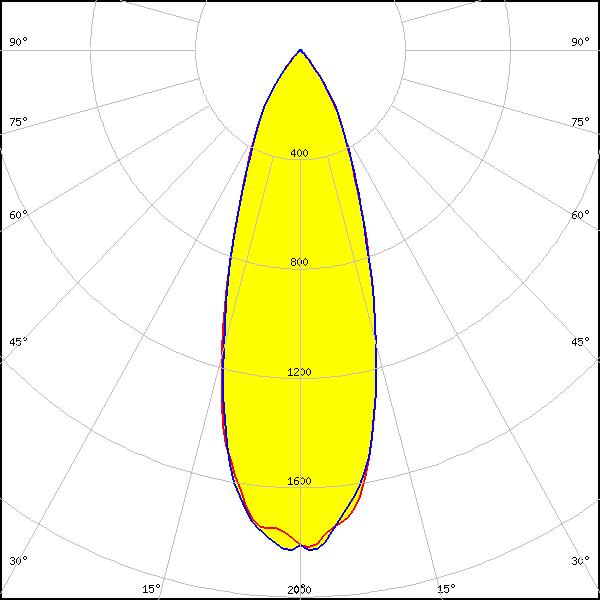

    LED: Soleriq S9
    LES size: 9.8 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 35°
    FWTM: 71°
    Peak intensity: 1.900 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

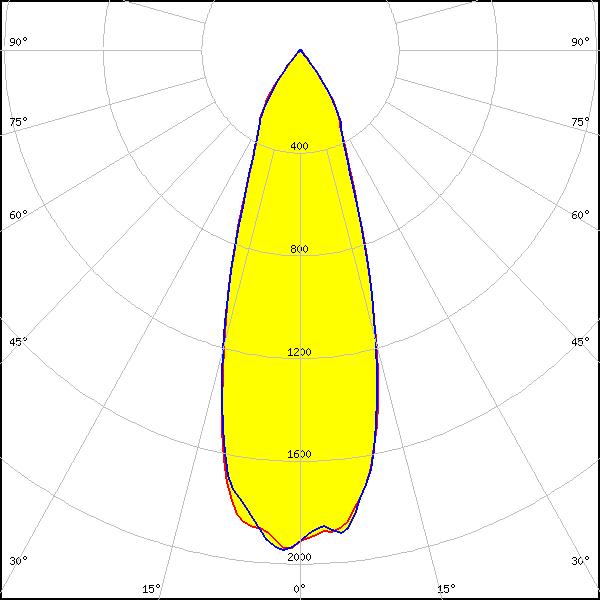

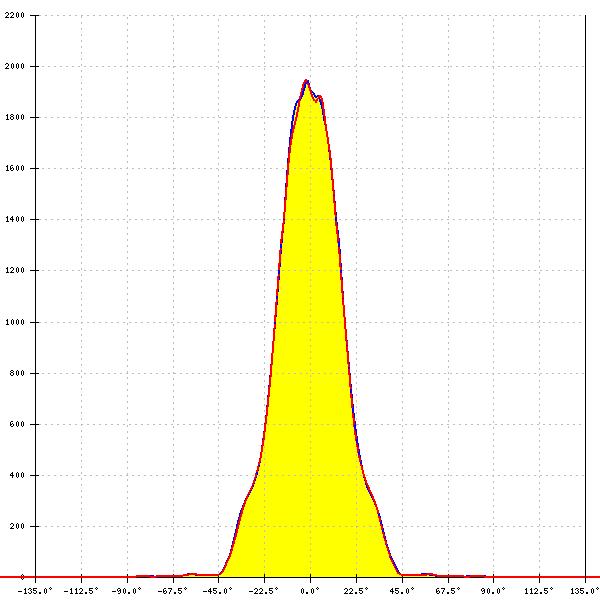

    LED: Soleriq S9
    LES size: 9.8 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 34°
    FWTM: 71°
    Peak intensity: 2.000 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

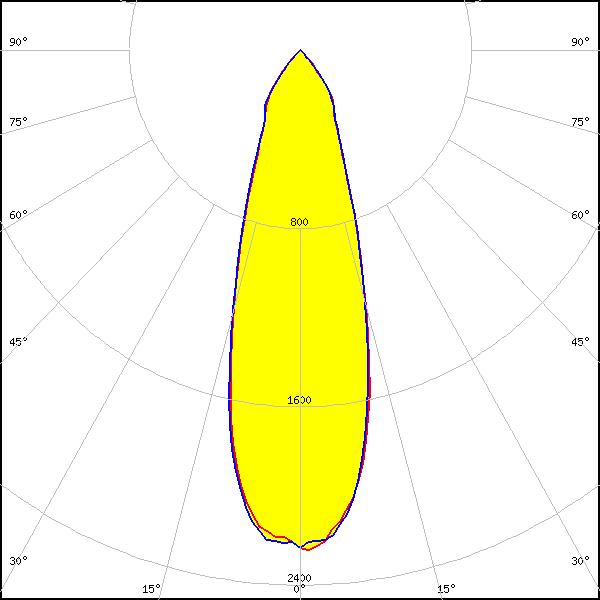

    LED: Soleriq S9
    LES size: 9.8 mm
    FWHM: 31°
    FWTM: 73°
    Peak intensity: 2.300 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

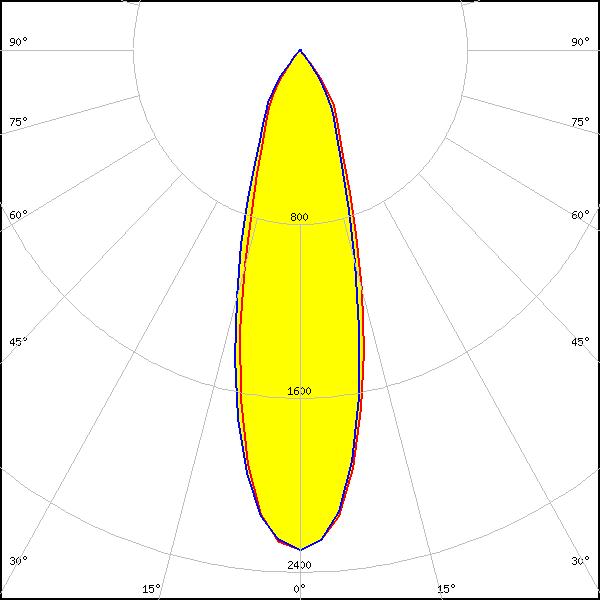

    LED: ZC4/6
    LES size: 8.6 mm
    Required components:
    C13333_MIRELLA-CL
    FWHM: 30°
    FWTM: 69°
    Peak intensity: 2.300 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

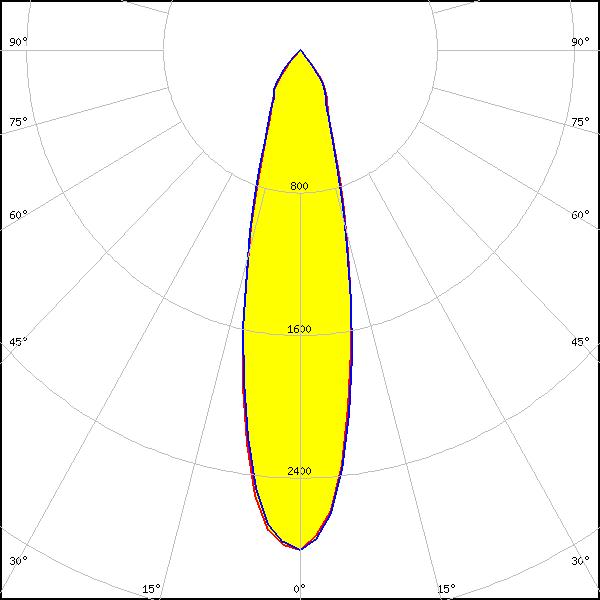

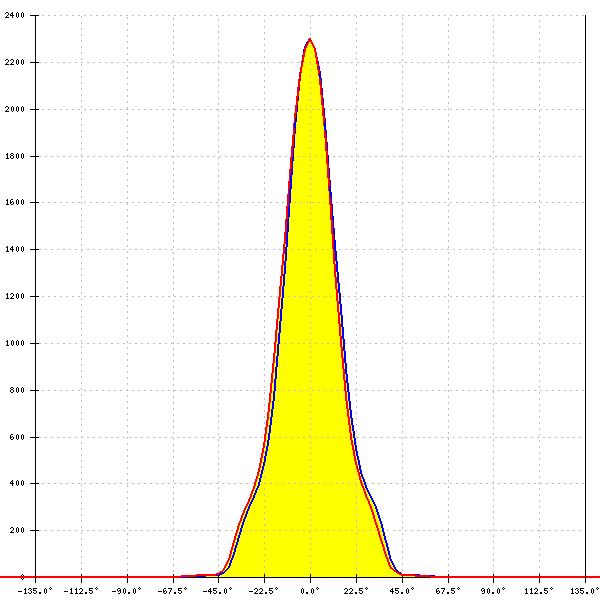

    LED: ZC4/6
    LES size: 8.6 mm
    FWHM: 26°
    FWTM: 66°
    Peak intensity: 2.800 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: ZC4/6
    LES size: 8.6 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 32°
    FWTM: 70°
    Peak intensity: 2.100 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

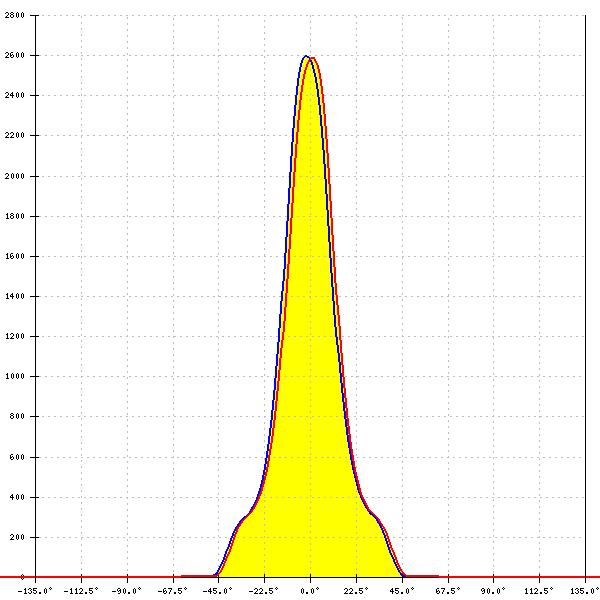

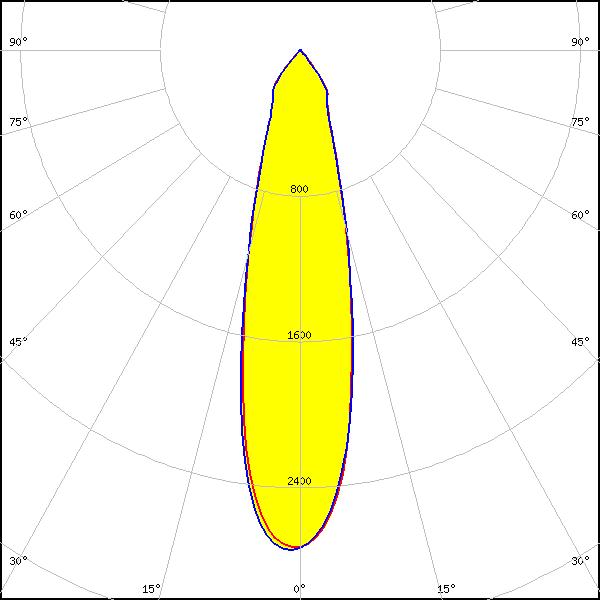

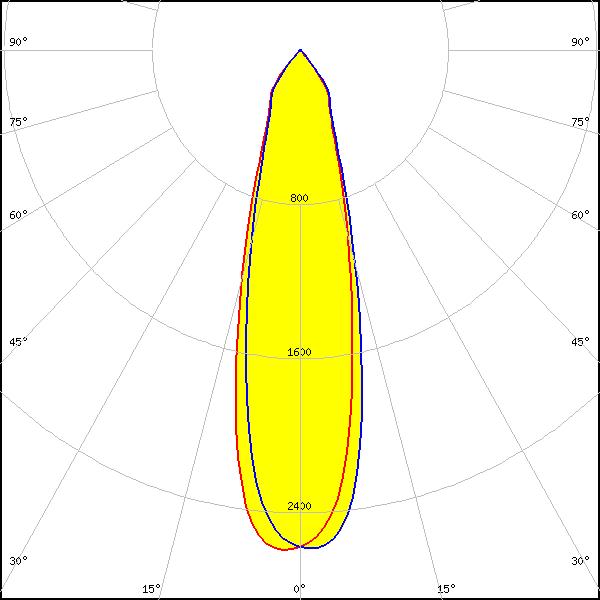

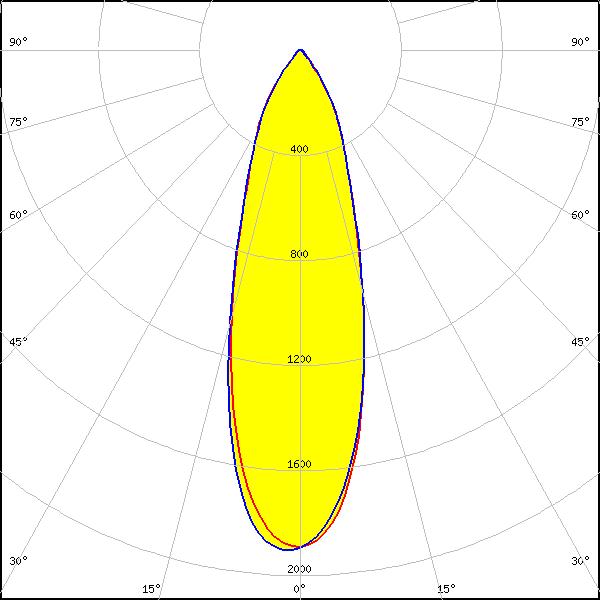

    LED: Mini Zenigata (GW5BM)
    LES size: 10.0 mm
    FWHM: 29°
    FWTM: 71°
    Peak intensity: 2.700 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Mini Zenigata (GW6BM)
    LES size: 8.6 mm
    FWHM: 25°
    FWTM: 73°
    Peak intensity: 2.700 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

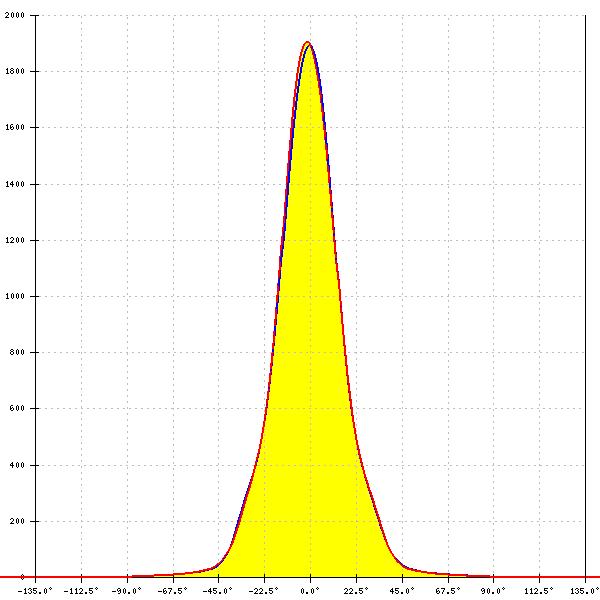

    LED: Mini Zenigata (GW6BM)
    LES size: 8.6 mm
    Required components:
    C12479_MIRELLA-DL
    FWHM: 30°
    FWTM: 70°
    Peak intensity: 1.900 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
