C12154_LENA-M
Print
~20° medium beam
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

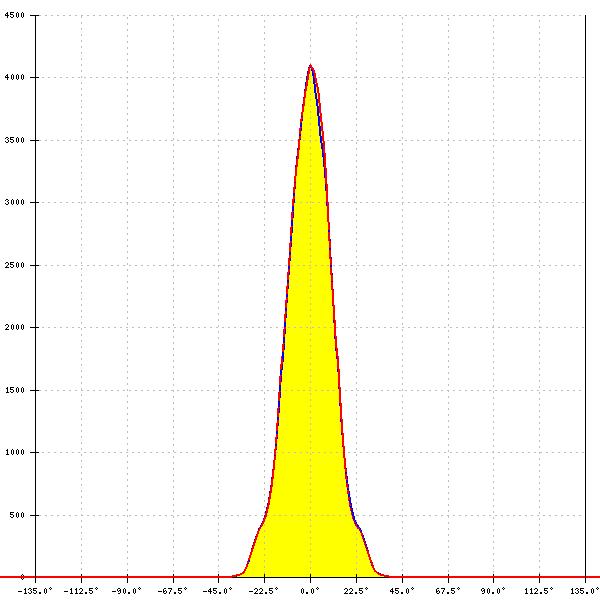

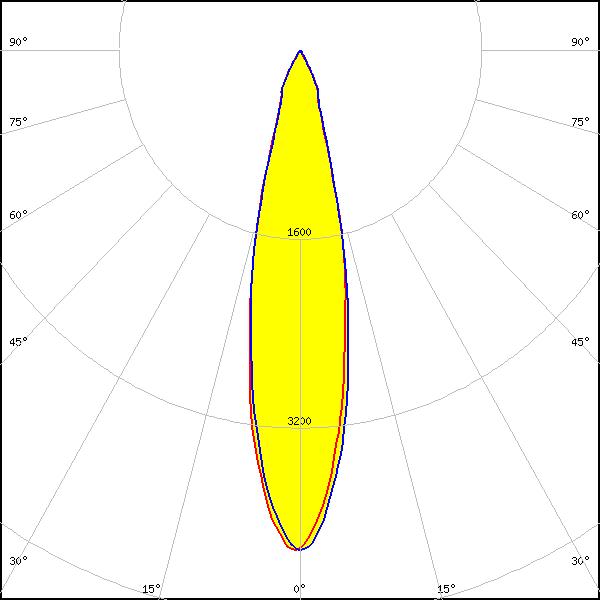

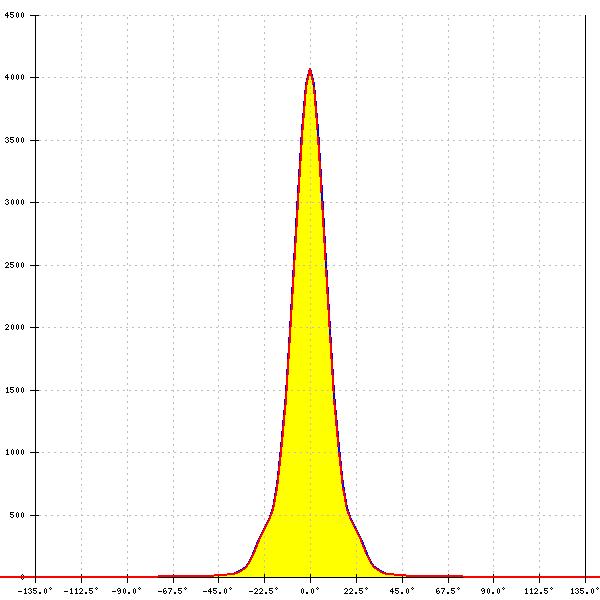

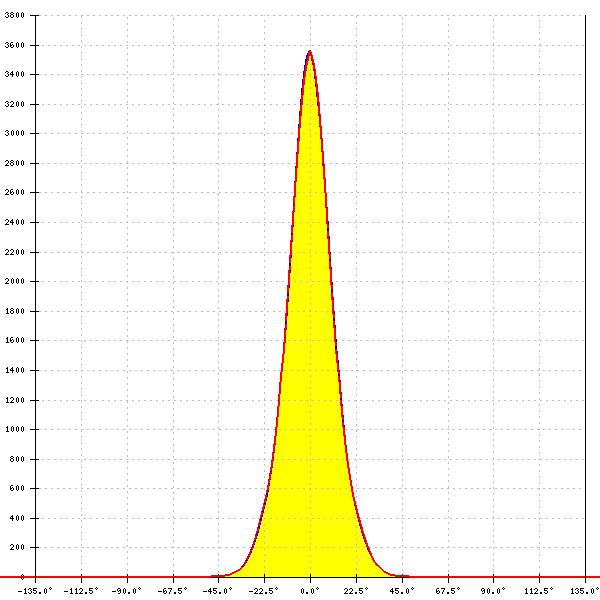

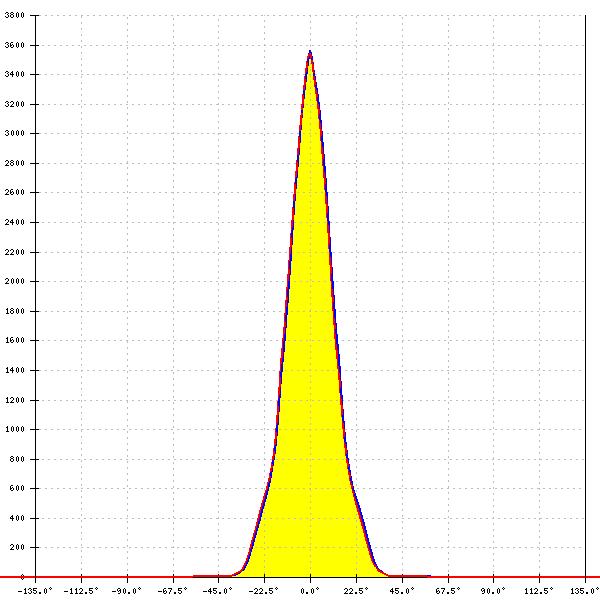

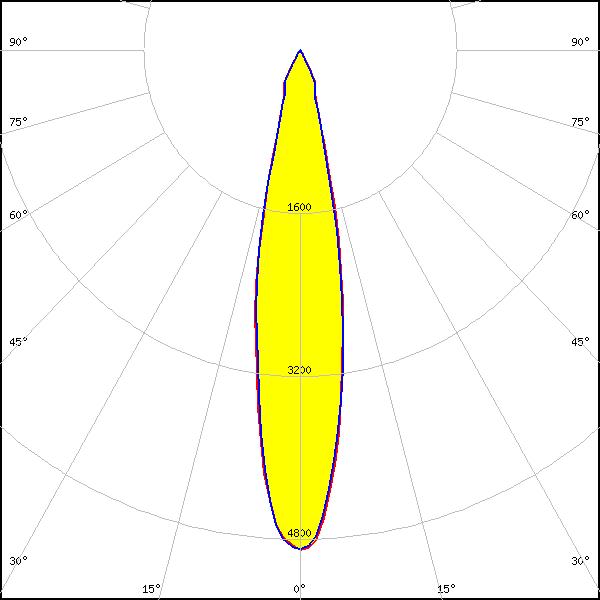

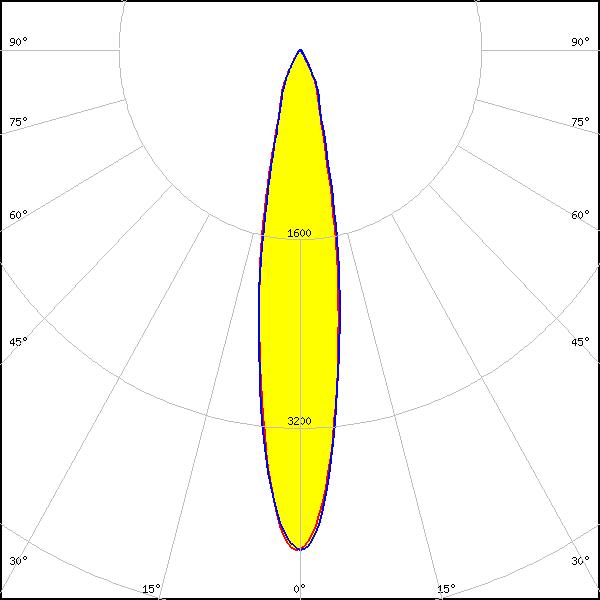

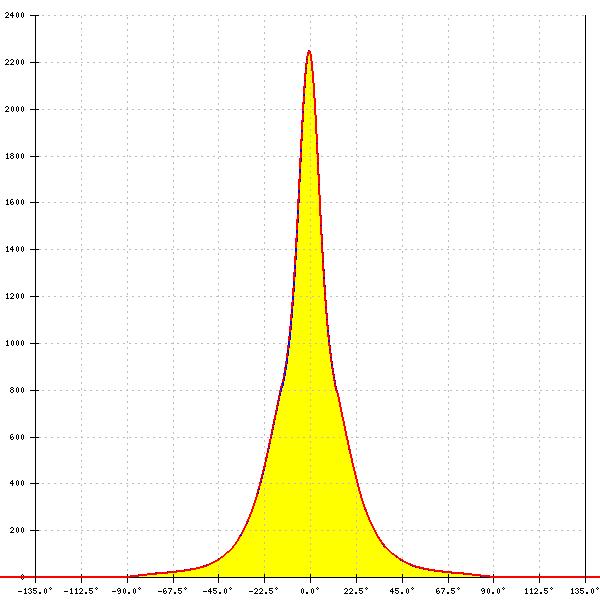

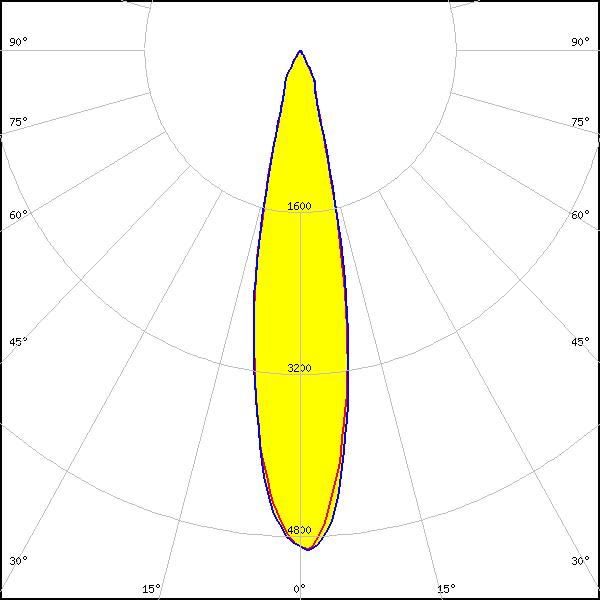

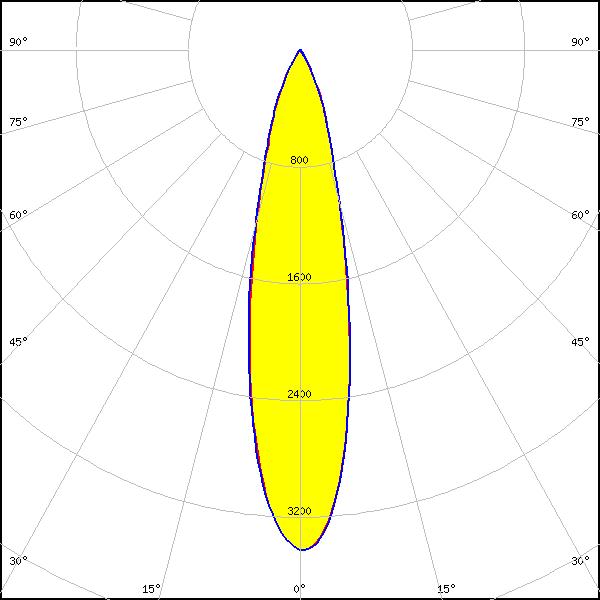

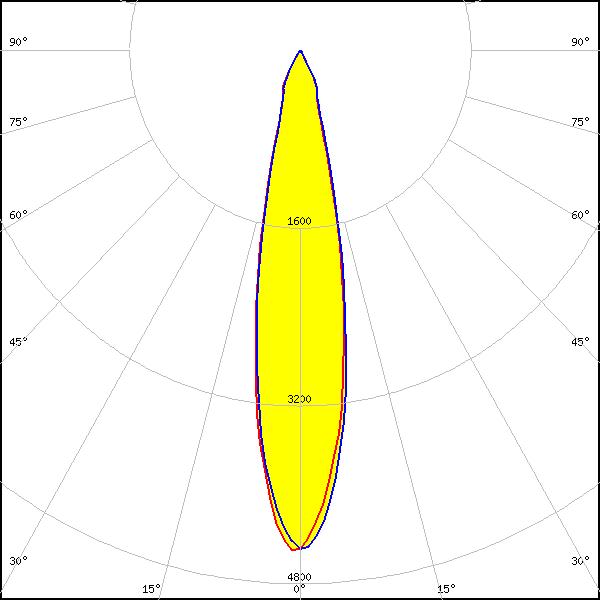

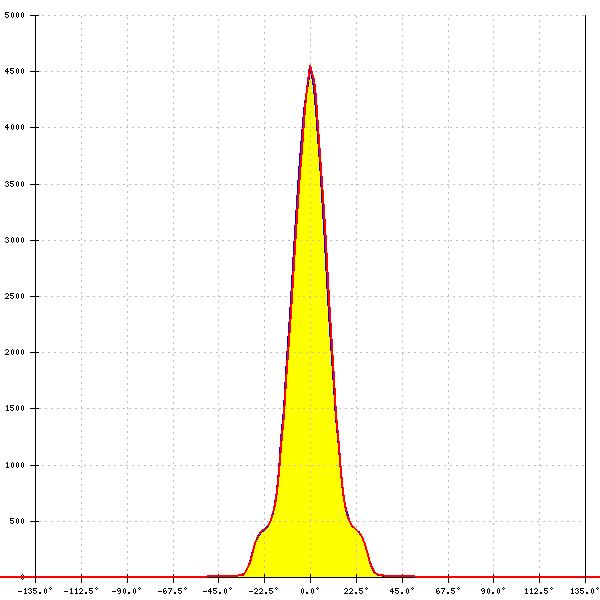

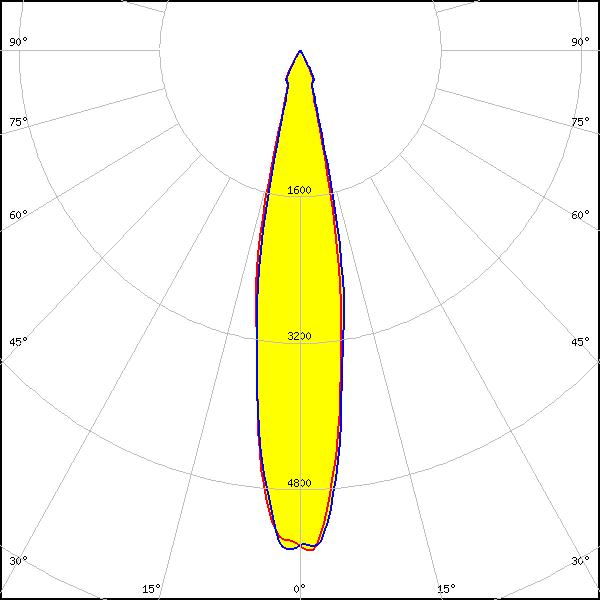

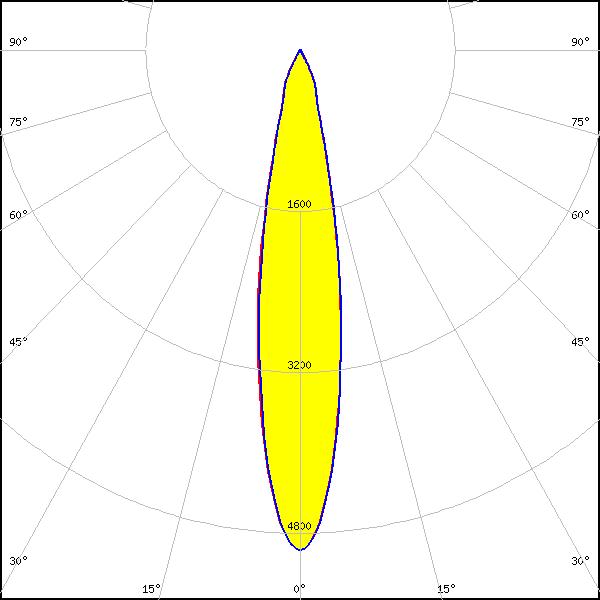

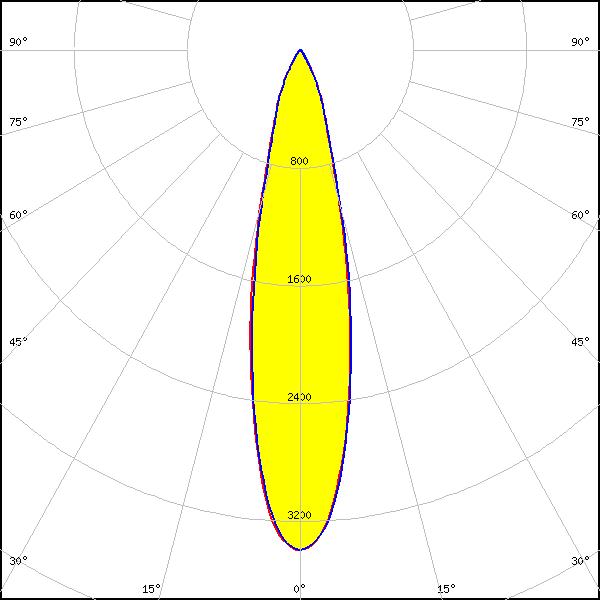

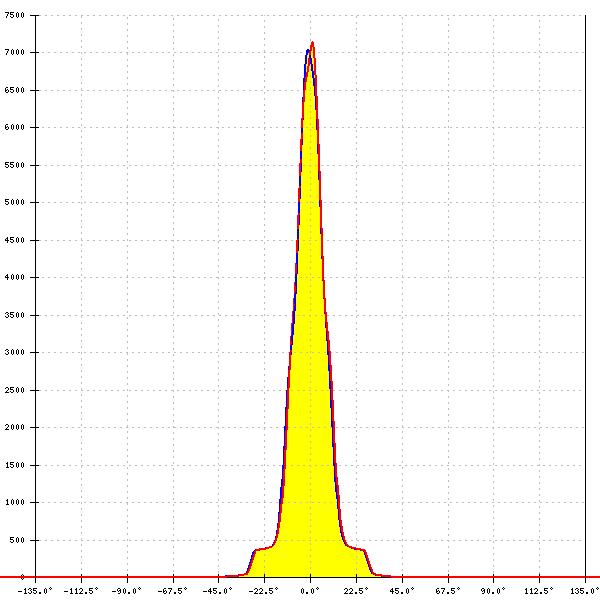

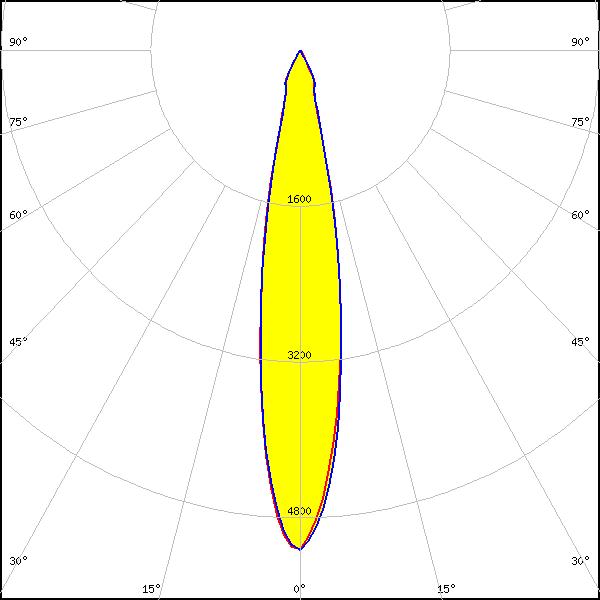

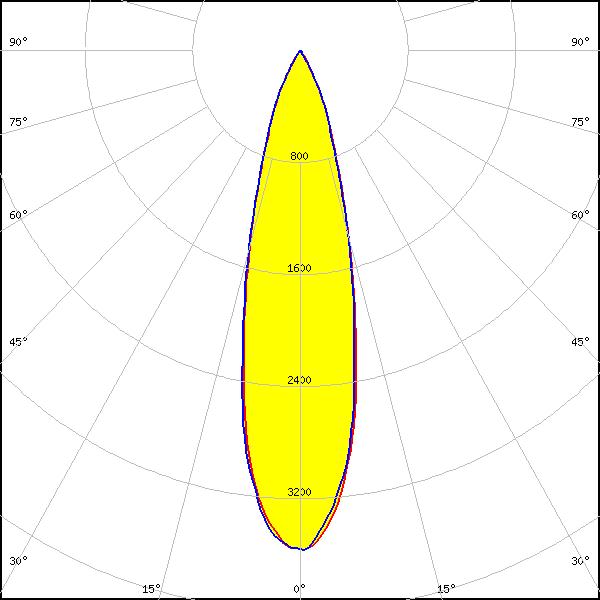

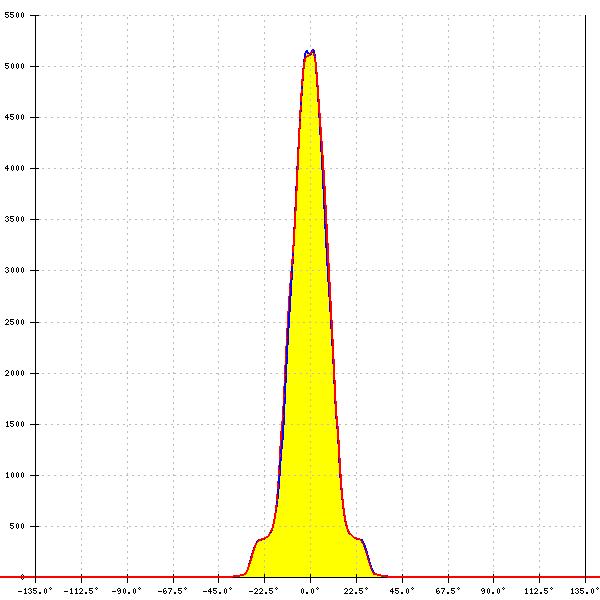

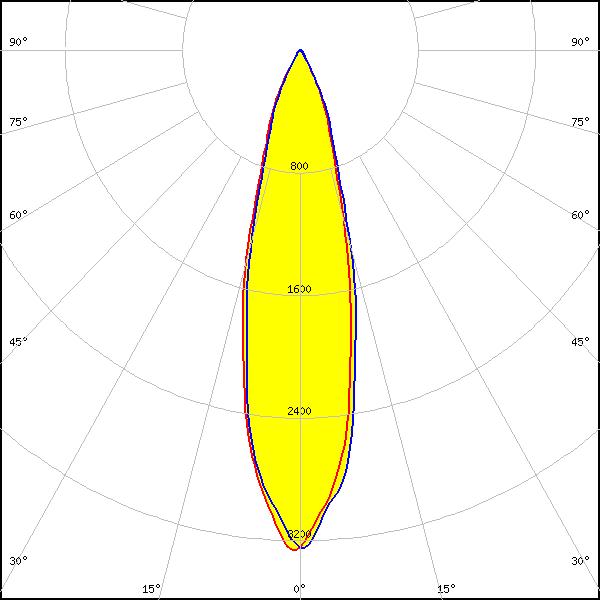

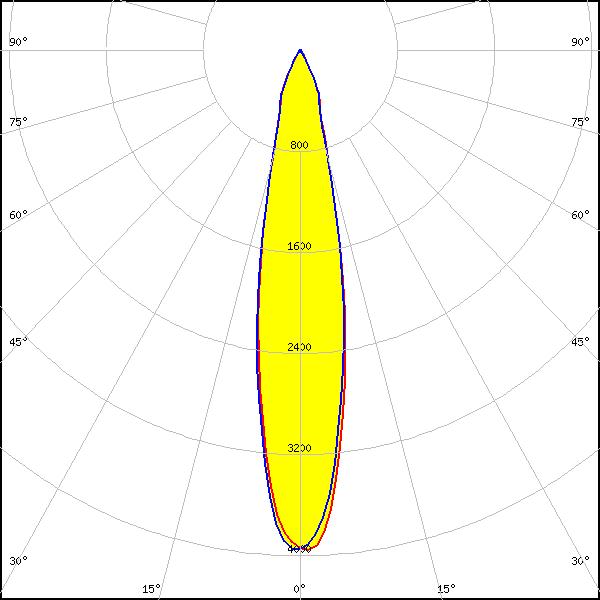

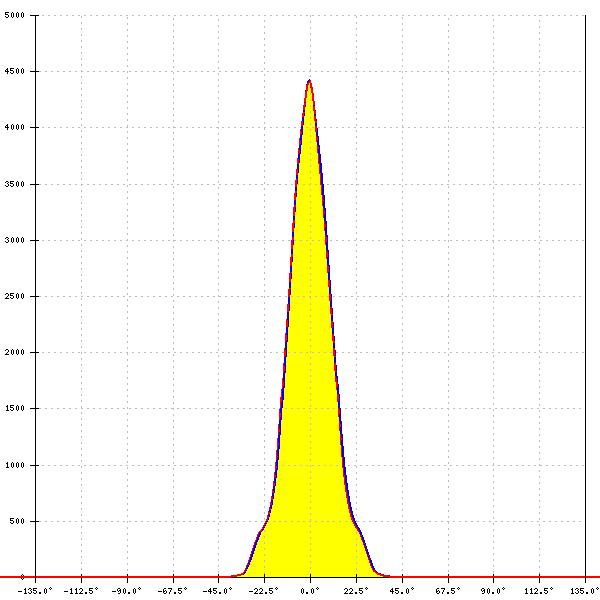

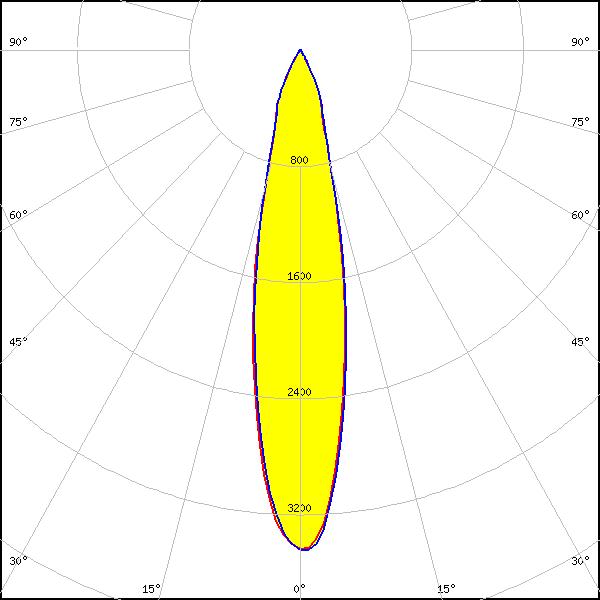

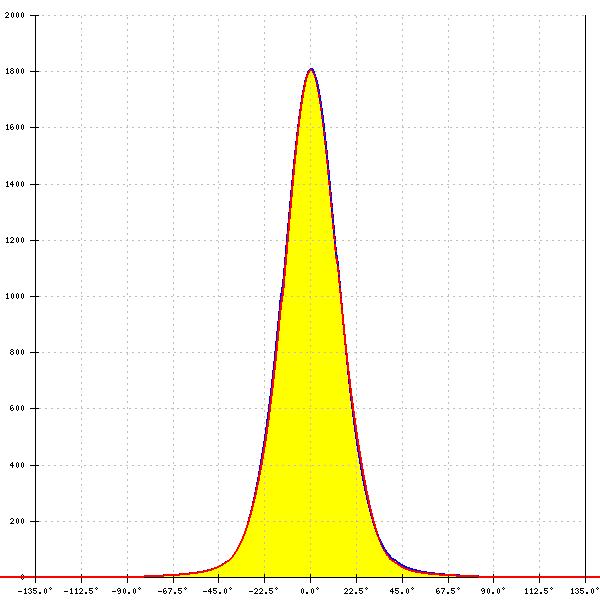

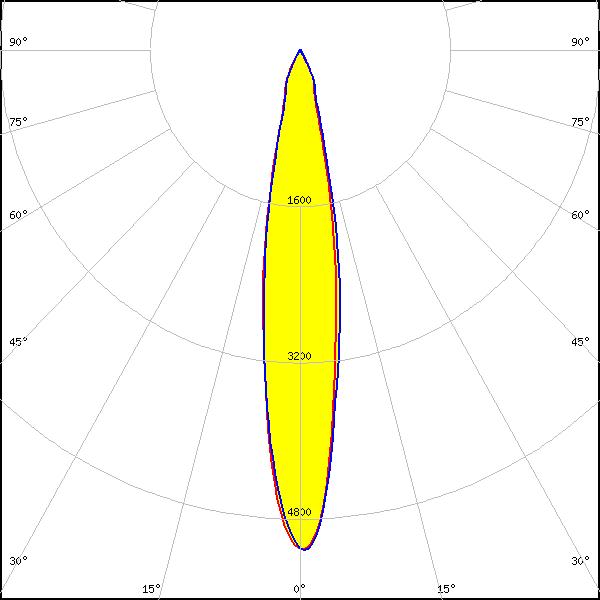

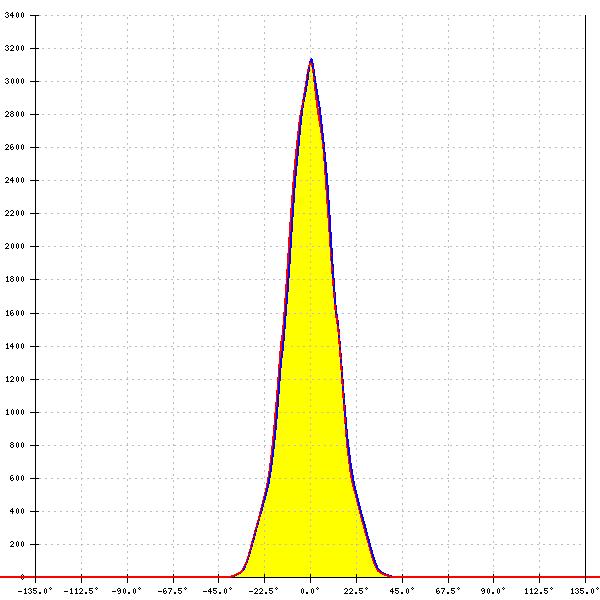

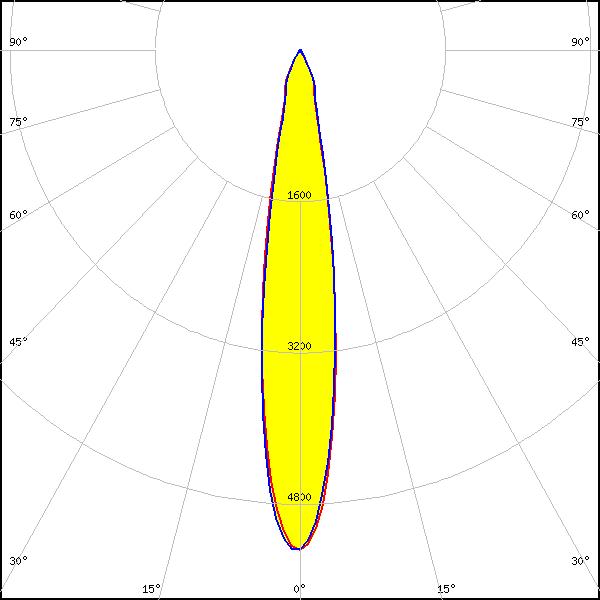

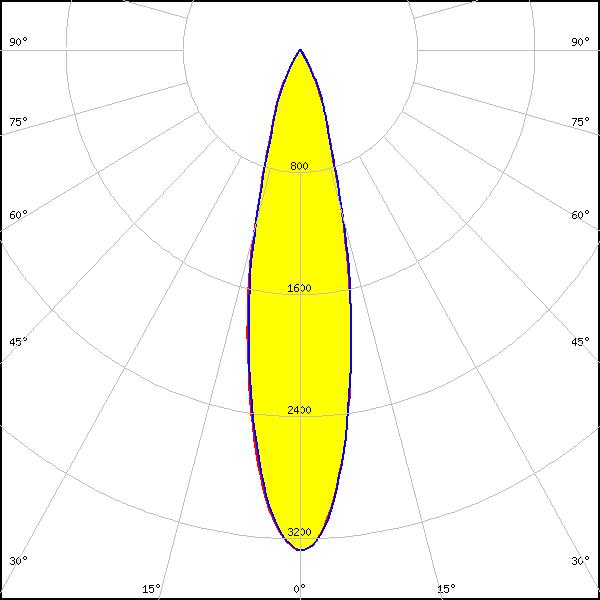

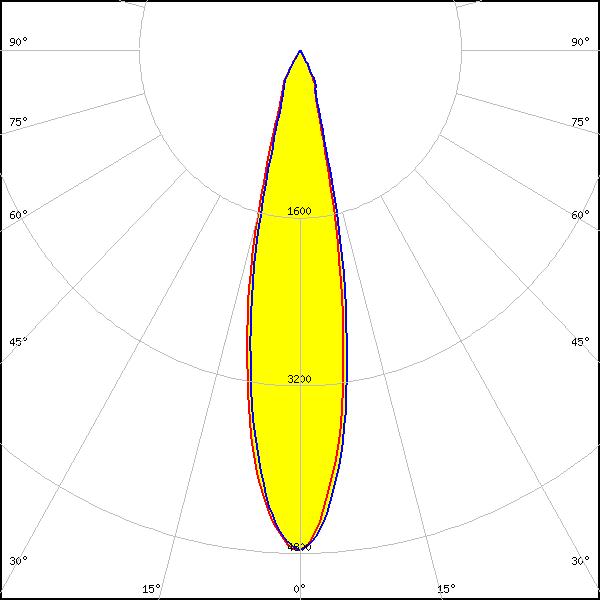

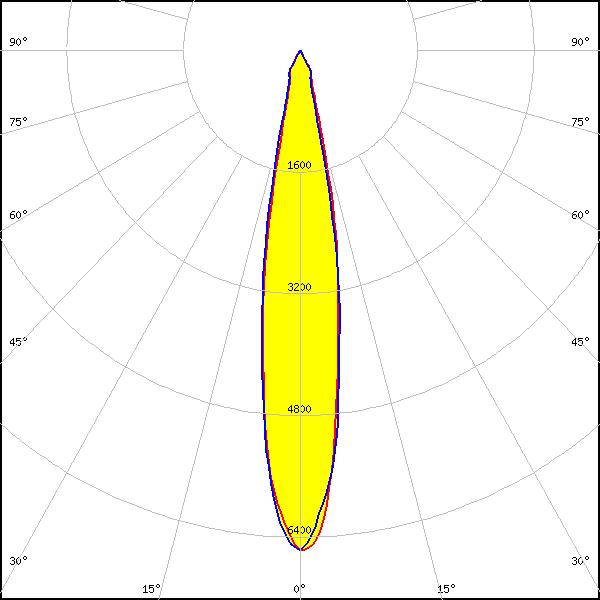

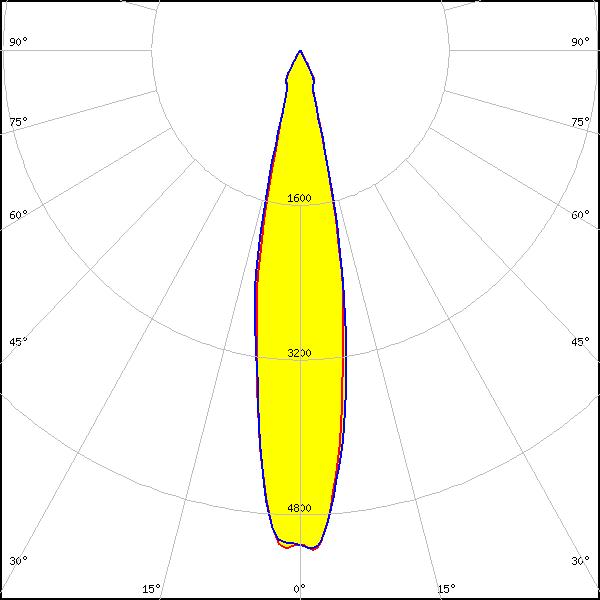

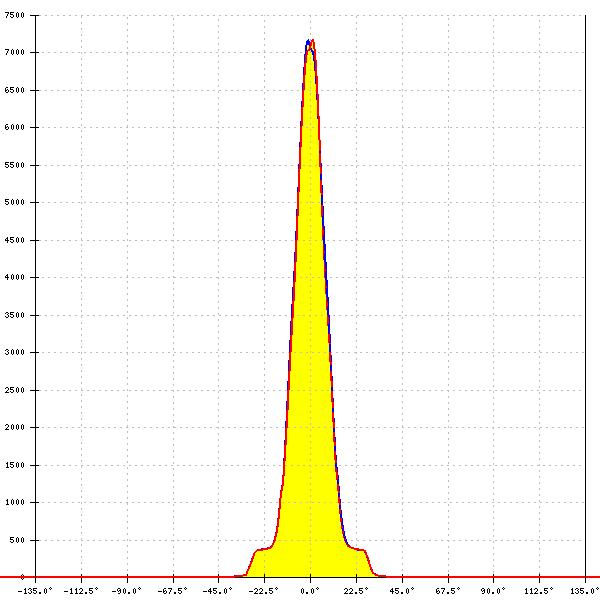

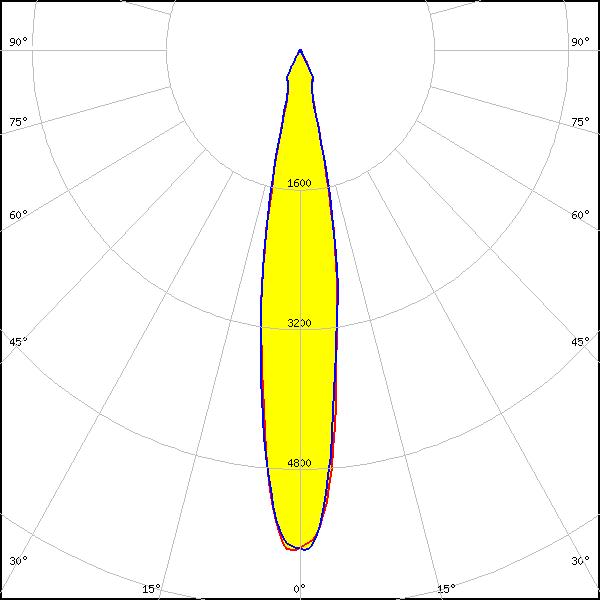

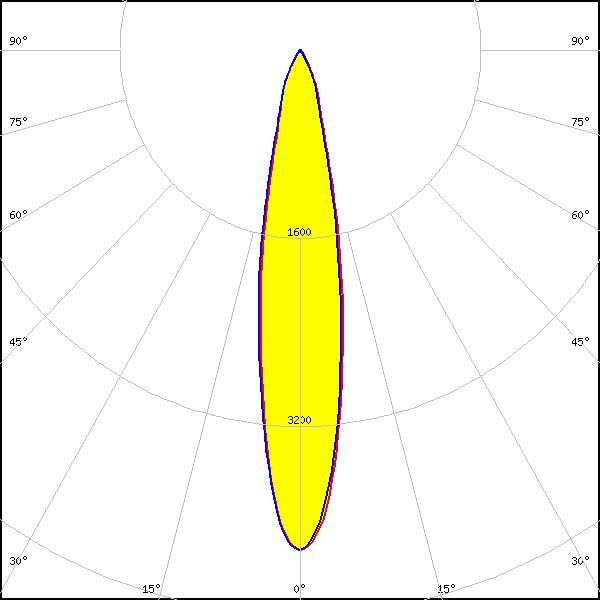

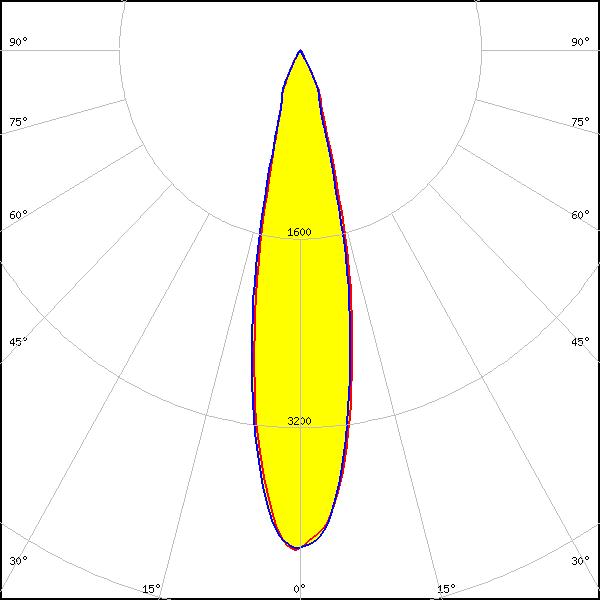

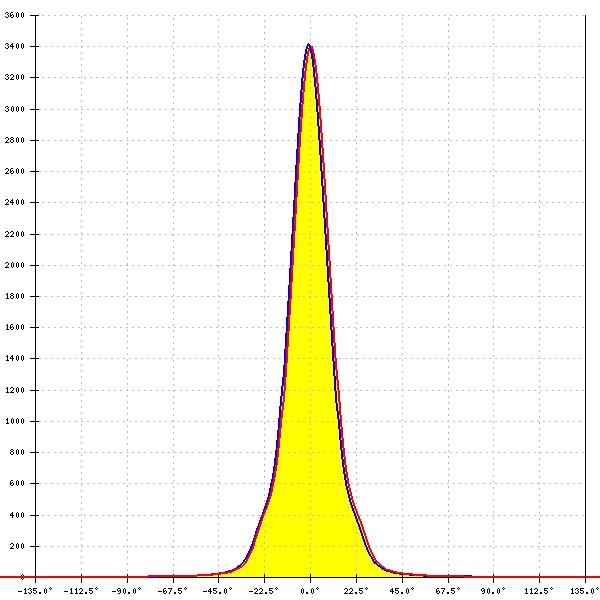

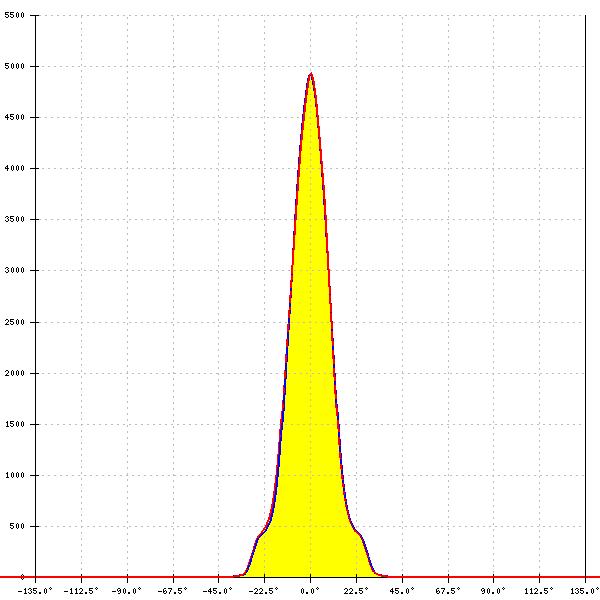

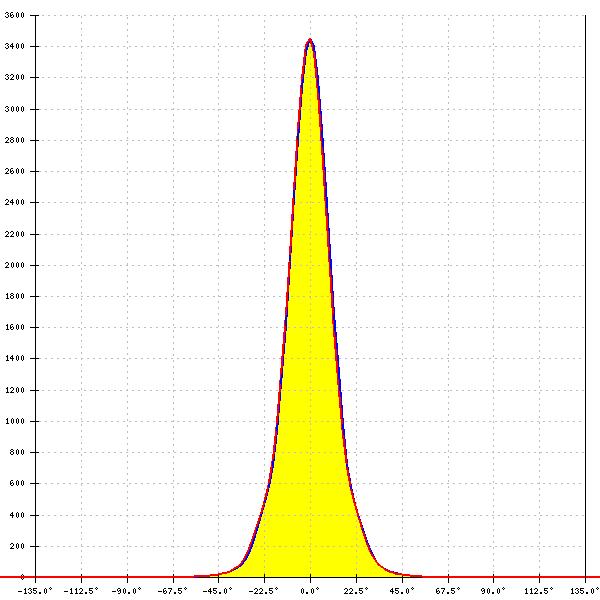

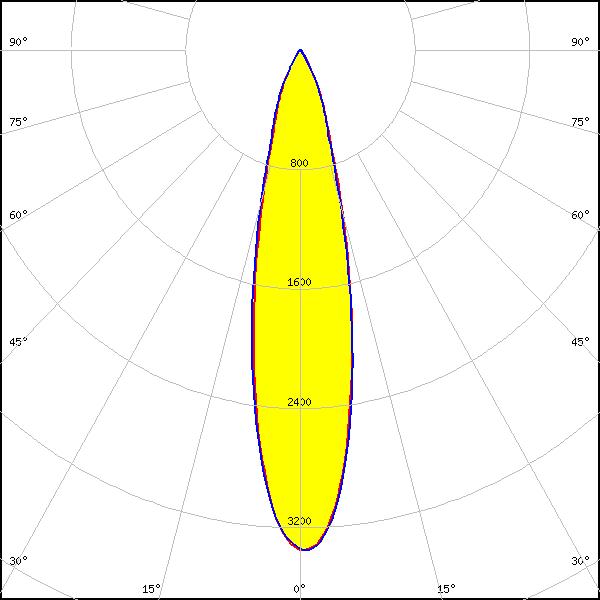

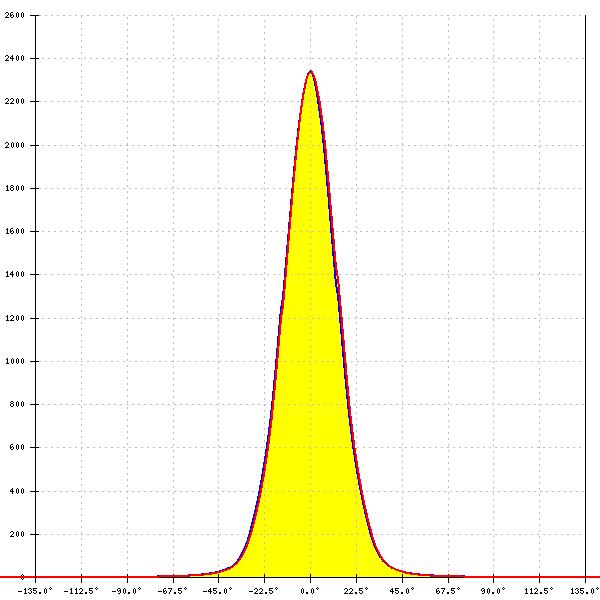

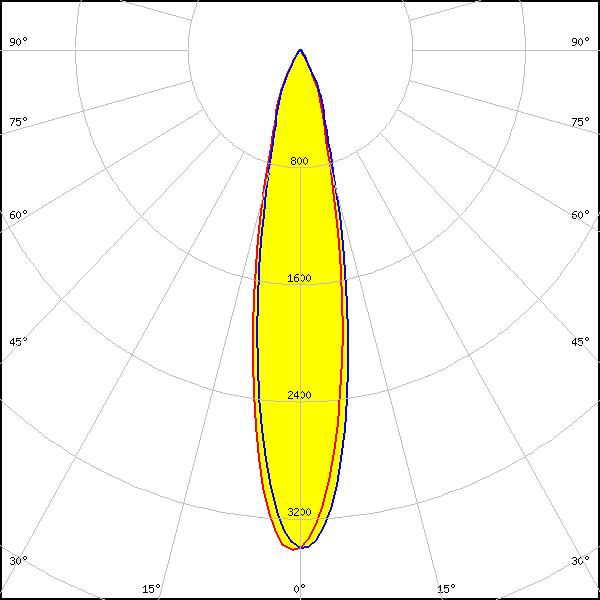

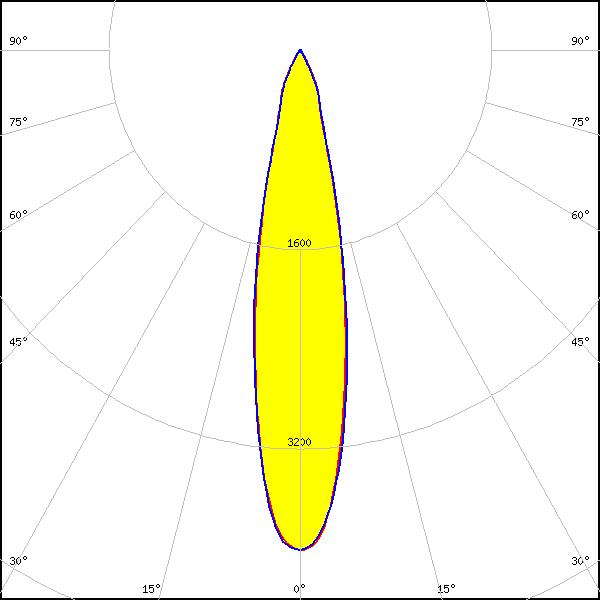

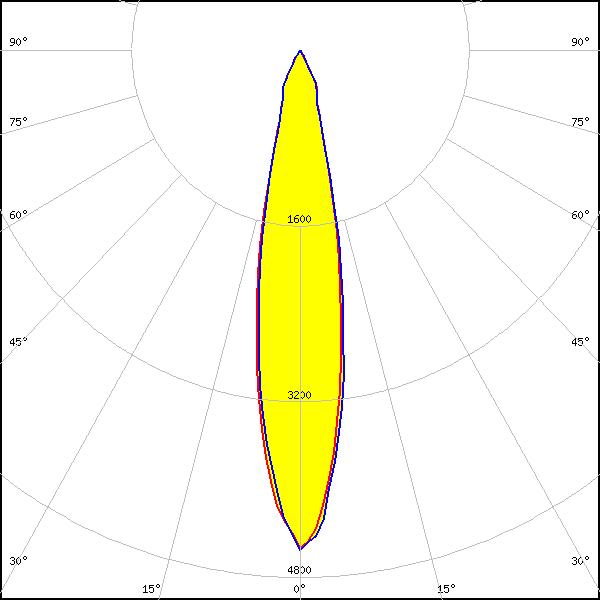

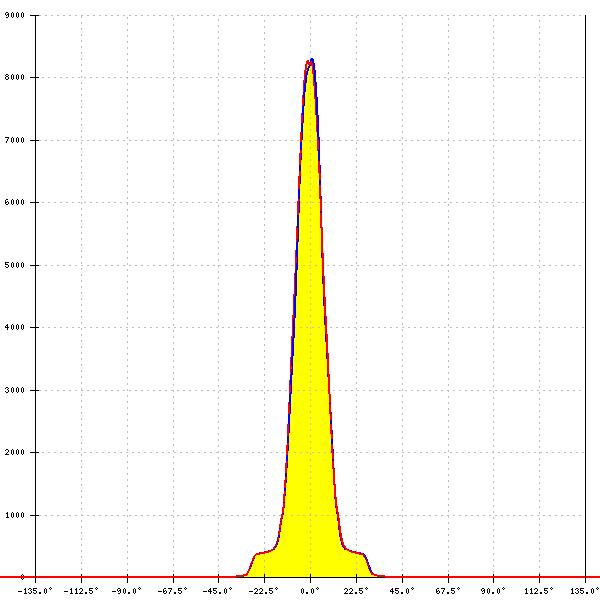

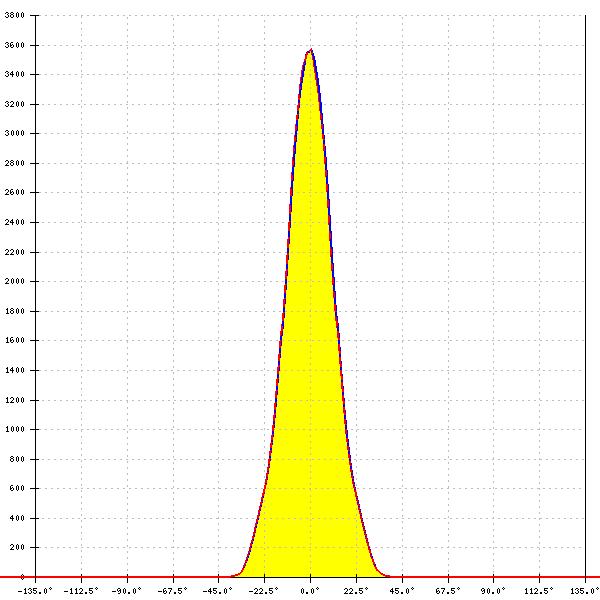

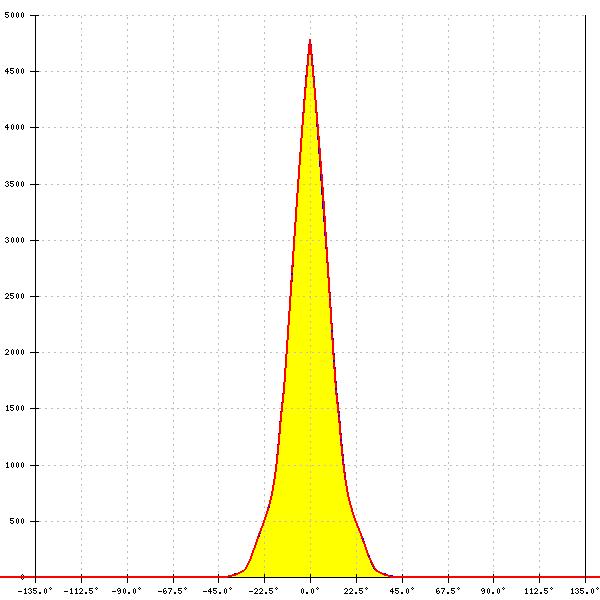

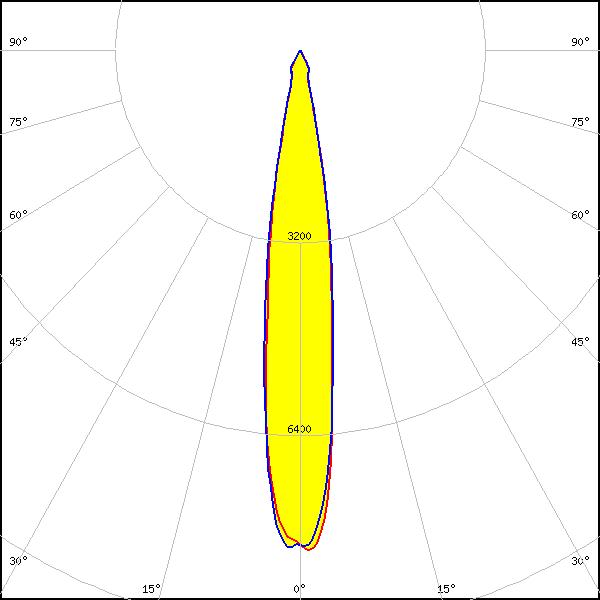

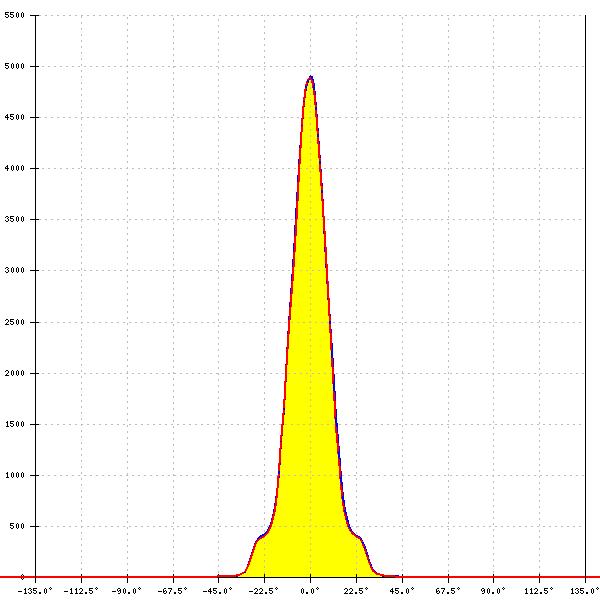

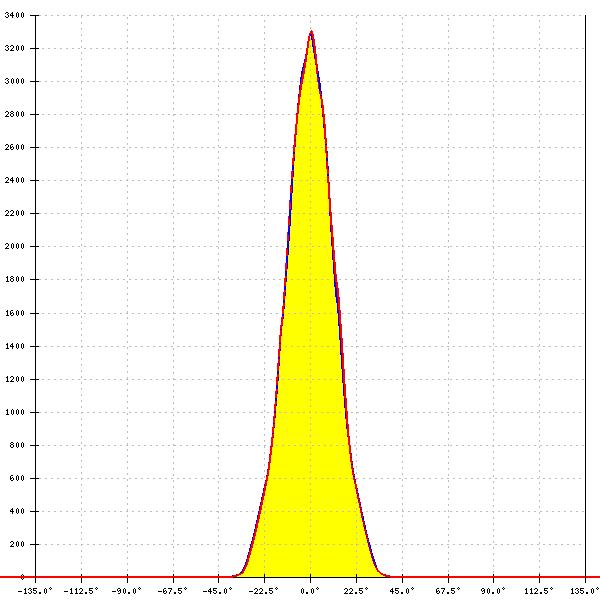

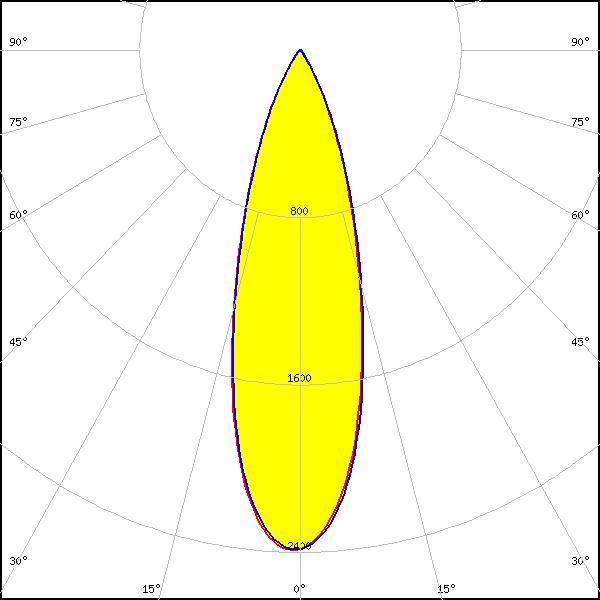

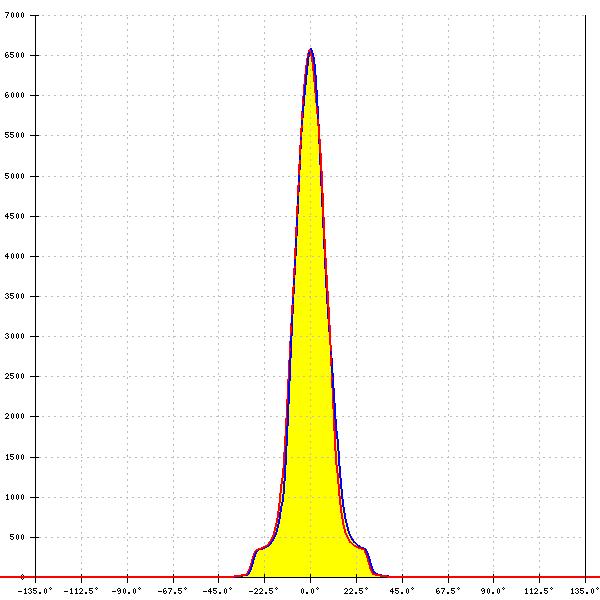

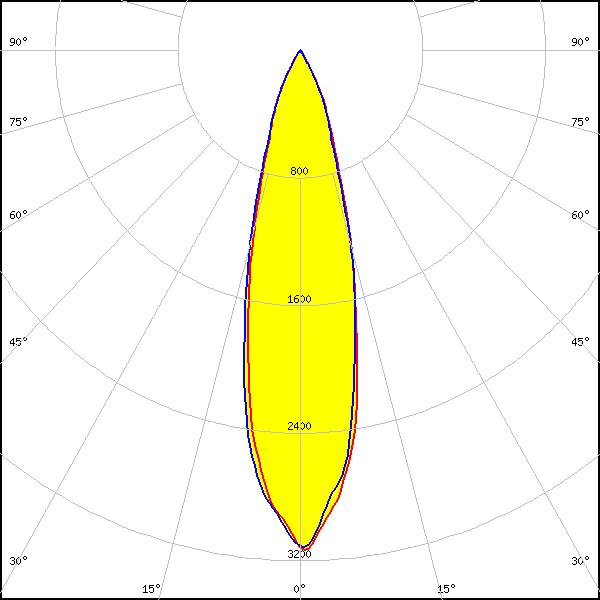

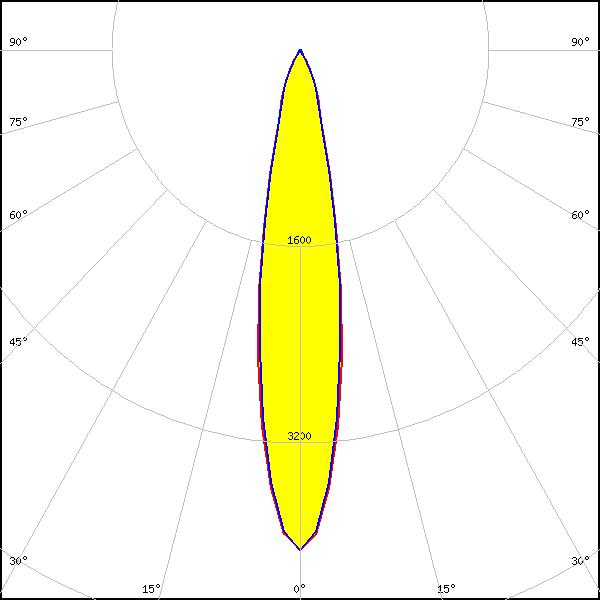

Optical results
LED:
BXRA ES Rectangle
LES size: 19.2 mm
Required components:
FWHM:
19°
FWTM:
36°
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
BXRA ES Rectangle
LES size: 19.2 mm
Required components:
FWHM:
20°
FWTM:
44°
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
BXRA RS
LES size: 35.3 mm
Required components:
FWHM:
28°
FWTM:
-
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
BXRA RS
LES size: 35.3 mm
Required components:
FWHM:
29°
FWTM:
-
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen6
LES size: 9.9 mm
Required components:
FWHM:
18°
FWTM:
40°
Peak intensity:
5.230 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
19°
FWTM:
33°
Peak intensity:
6.610 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
22°
FWTM:
39°
Peak intensity:
4.650 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM:
23°
FWTM:
40°
Peak intensity:
4.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM:
24°
FWTM:
44°
Peak intensity:
4.090 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM:
20°
FWTM:
42°
Peak intensity:
4.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

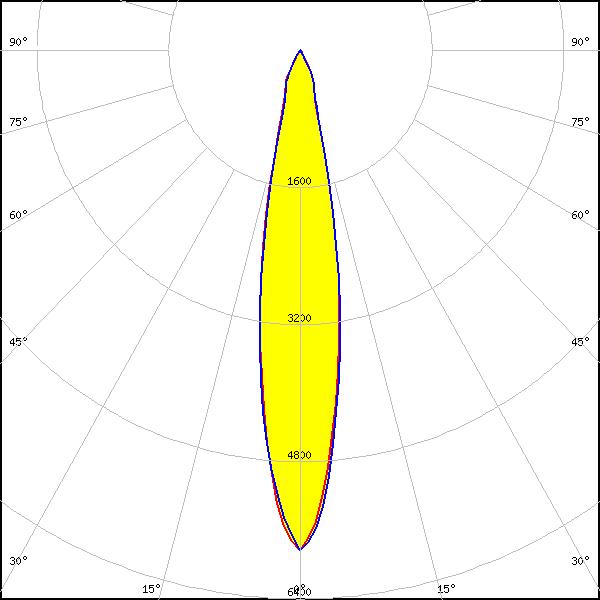

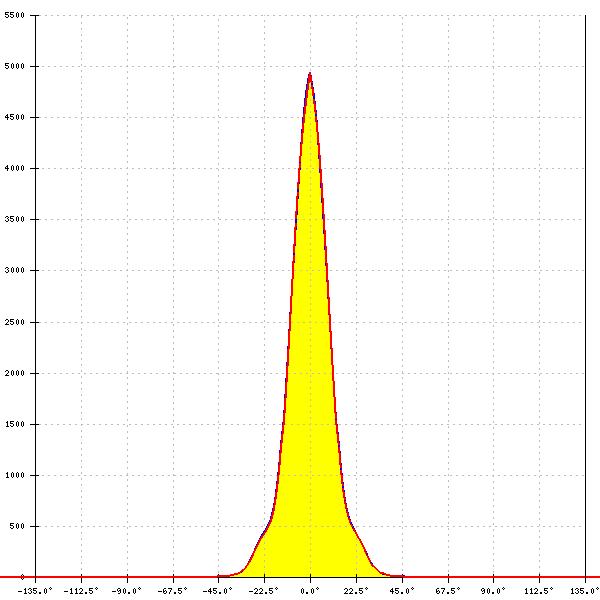

LED:

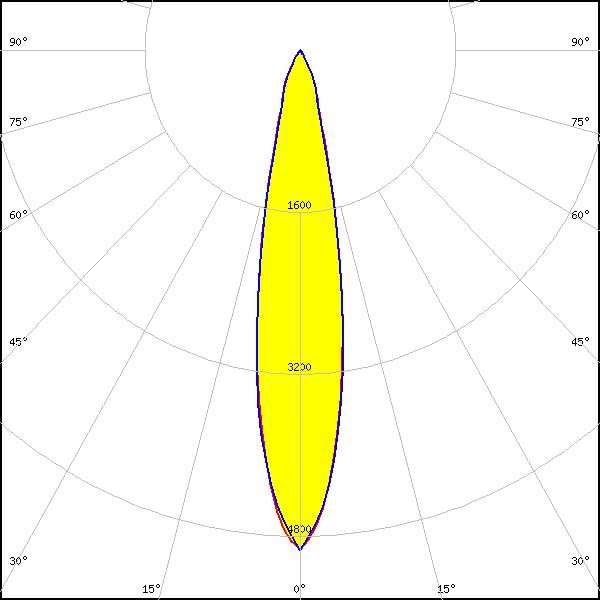

V13 Gen7
LES size: 14.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100LN
IDEAL: 50-2100LN
FWHM:
18°
FWTM:
36°
Peak intensity:
5.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

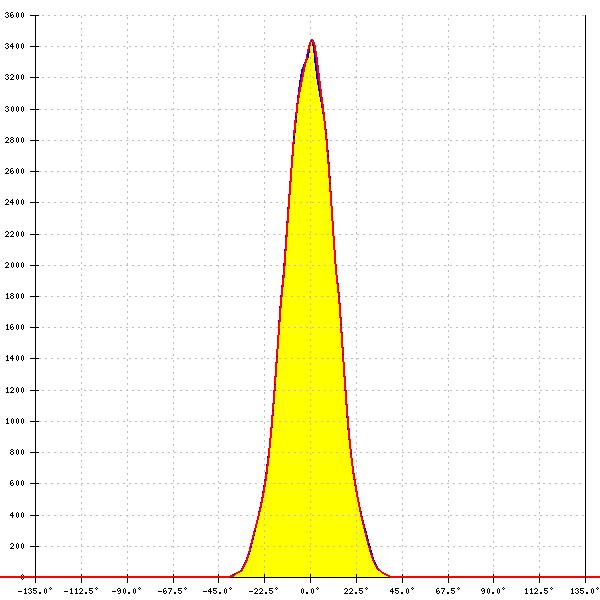

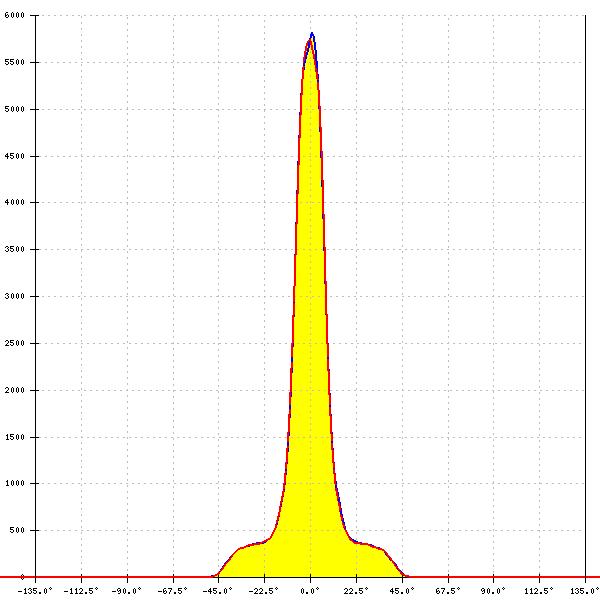

LED:
V22 Gen7
LES size: 22.6 mm
Required components:
FWHM:
28°
FWTM:
52°
Peak intensity:
5.815 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen7
LES size: 22.6 mm
Required components:
FWHM:
28°
FWTM:
52°
Peak intensity:
3.542 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vero SE 29
LES size: 29.2 mm
Required components:
FWHM:
36°
FWTM:
59°
Peak intensity:
2.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

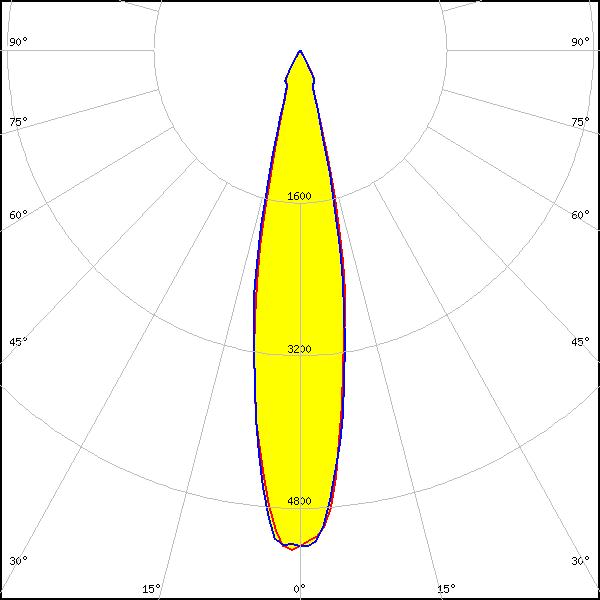

LED:

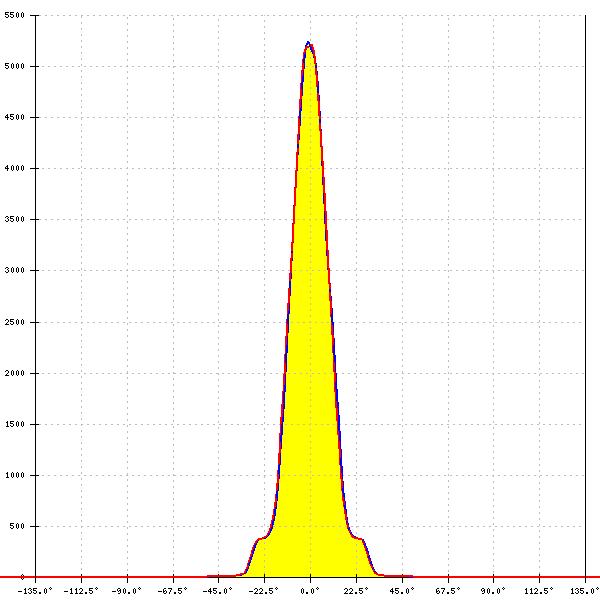

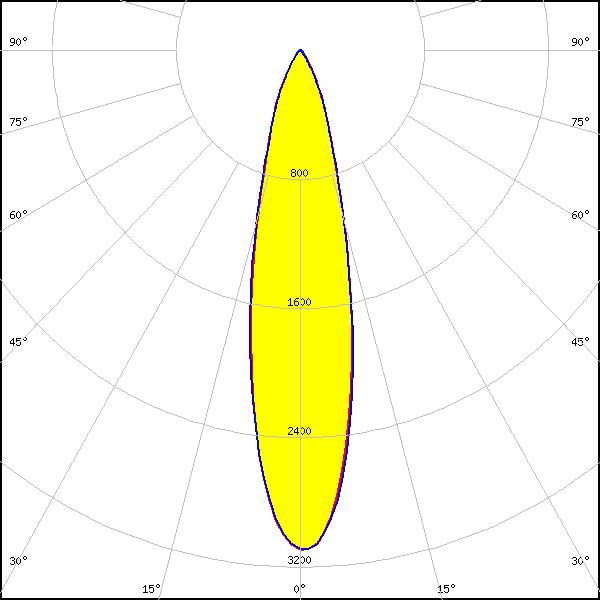

VERO13
LES size: 13.4 mm
Required components:
FWHM:
21°
FWTM:
36°
Peak intensity:
5.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
24°
FWTM:
53°
Peak intensity:
3.100 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

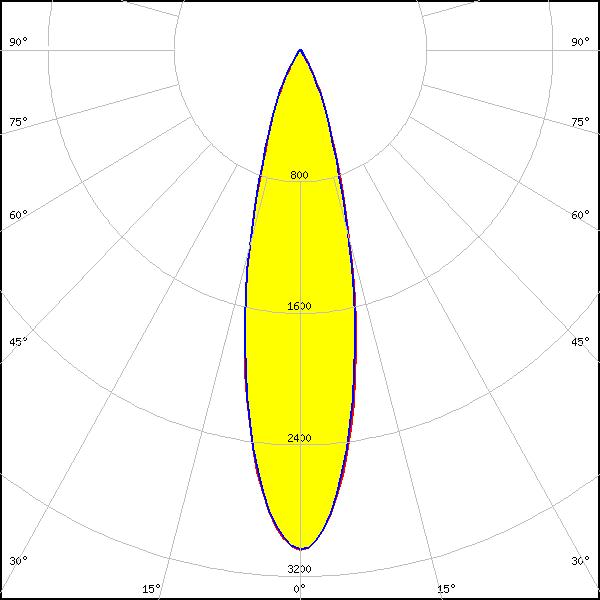

LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM:
24°
FWTM:
59°
Peak intensity:
3.960 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM:
26°
FWTM:
52°
Peak intensity:
3.040 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

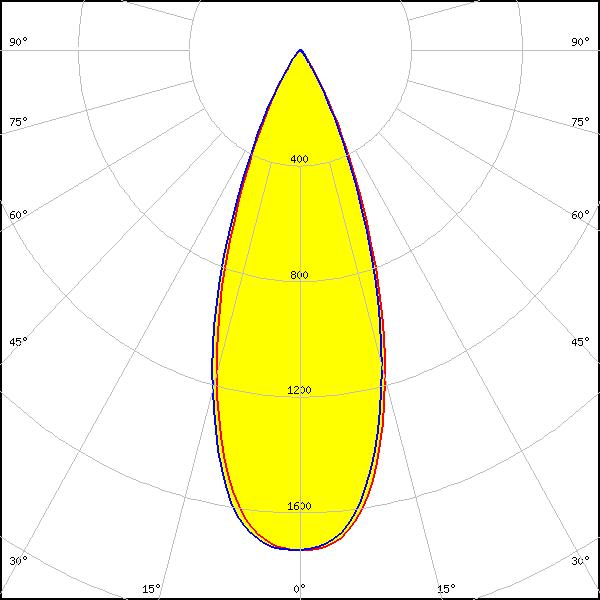

LED:
VERO29
LES size: 29.2 mm
Required components:
FWHM:
38°
FWTM:
60°
Peak intensity:
2.030 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO29
LES size: 29.2 mm
Required components:
FWHM:
38°
FWTM:
62°
Peak intensity:
1.730 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CL-L340
LES size: 20.0 mm
Required components:
FWHM:
22°
FWTM:
44°
Peak intensity:
4.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CL-L340
LES size: 20.0 mm
Required components:
FWHM:
24°
FWTM:
50°
Peak intensity:
3.800 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
17°
FWTM:
31°
Peak intensity:
6.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
20°
FWTM:
44°
Peak intensity:
4.300 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:

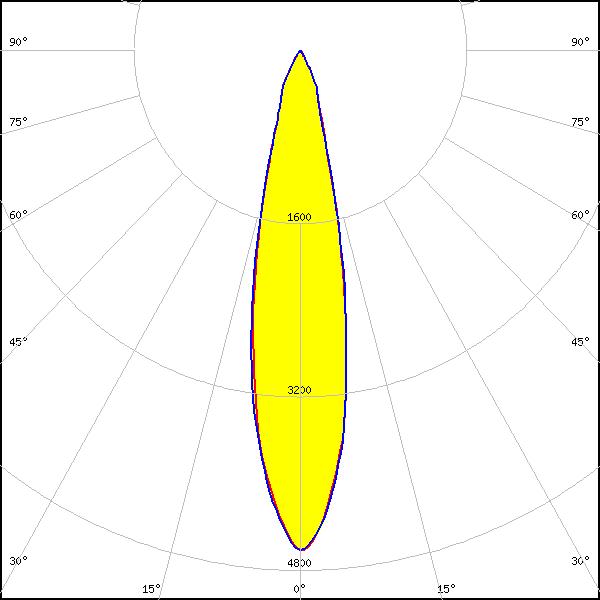

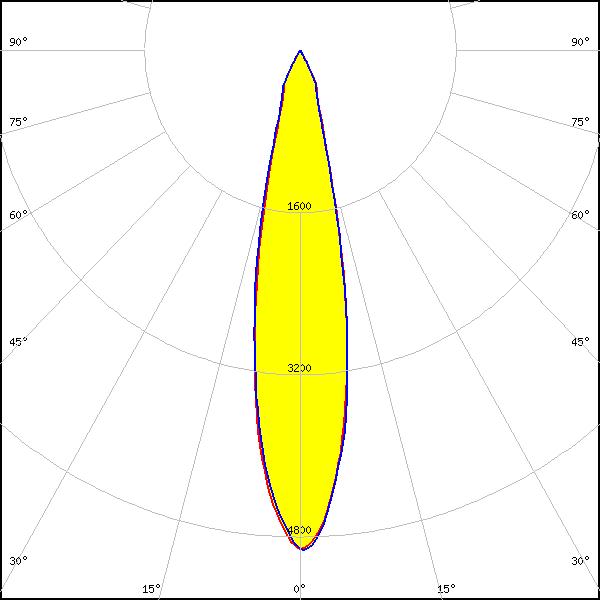

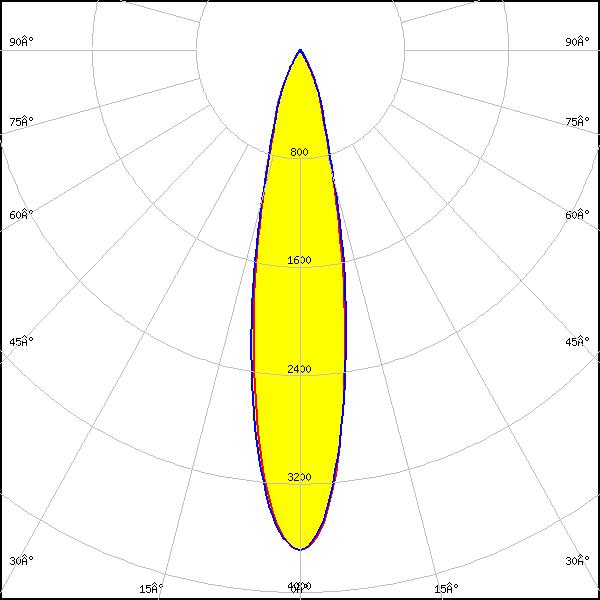

CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
20°
FWTM:
38°
Peak intensity:
5.100 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
22°
FWTM:
48°
Peak intensity:
3.700 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
22°
FWTM:
39°
Peak intensity:
4.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
23°
FWTM:
50°
Peak intensity:
3.400 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
22°
FWTM:
49°
Peak intensity:
3.500 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

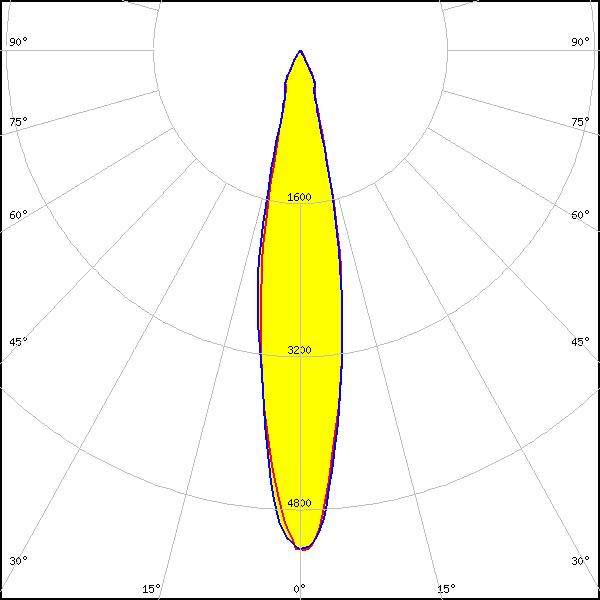

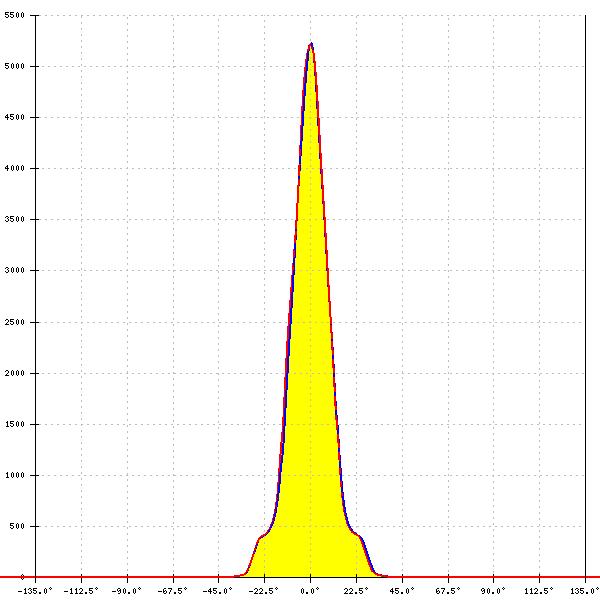

LED:

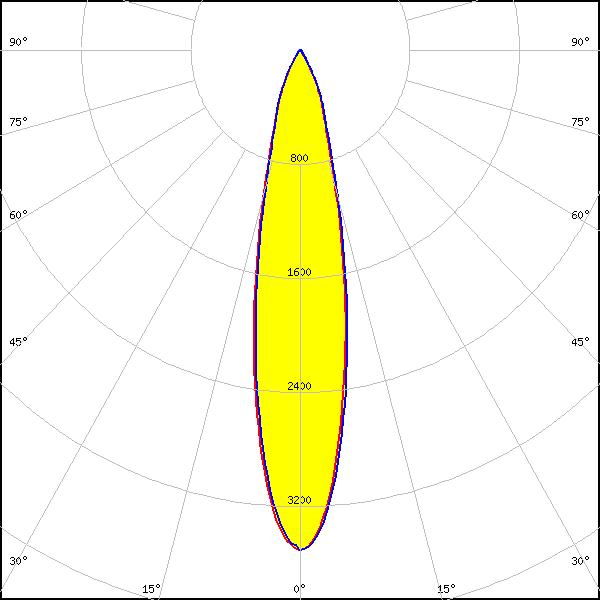

CLL03x/CLU03x
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
A.A.G. STUCCHI: S-8000-11
A.A.G. STUCCHI: S-8000-11
FWHM:
20°
FWTM:
37°
Peak intensity:
5.200 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

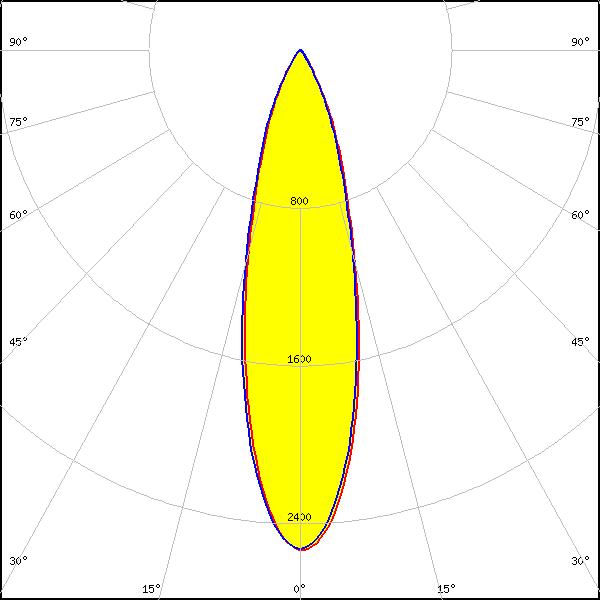

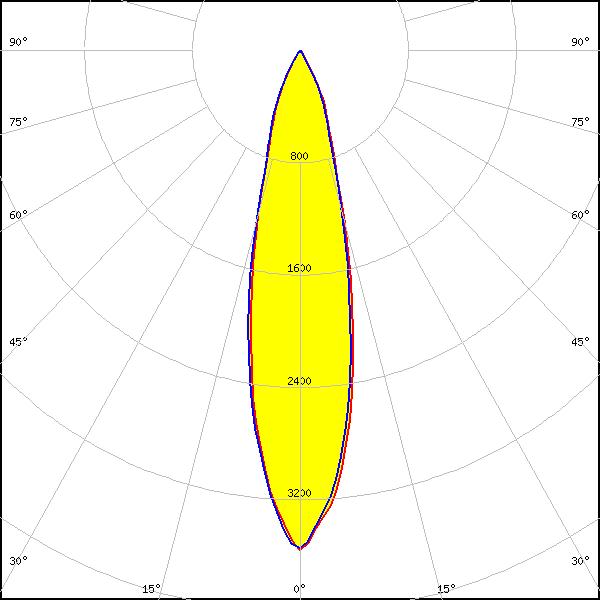

LED:

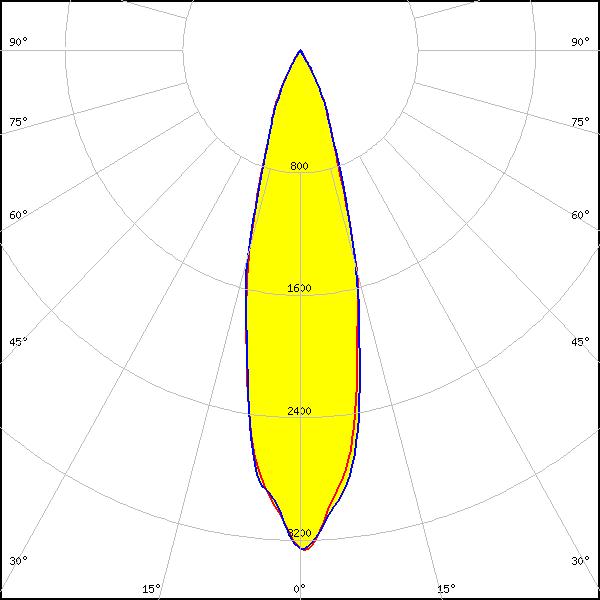

CLL04x/CLU04x
LES size: 22.0 mm
Required components:
IDEAL: 50-2204CT
IDEAL: 50-2100LN
IDEAL: 50-2100LN
FWHM:
24°
FWTM:
52°
Peak intensity:
3.600 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
26°
FWTM:
53°
Peak intensity:
3.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
24°
FWTM:
52°
Peak intensity:
2.670 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
27°
FWTM:
53°
Peak intensity:
3.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
30°
FWTM:
51°
Peak intensity:
2.300 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
27°
FWTM:
56°
Peak intensity:
2.500 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
30°
FWTM:
62°
Peak intensity:
1.800 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

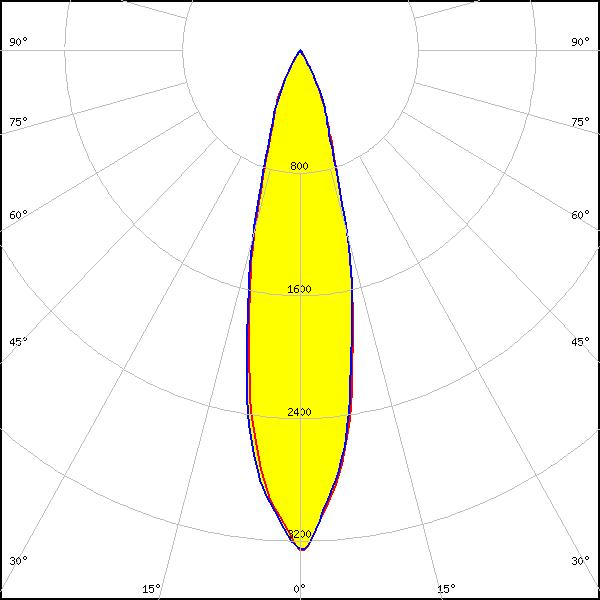

LED:

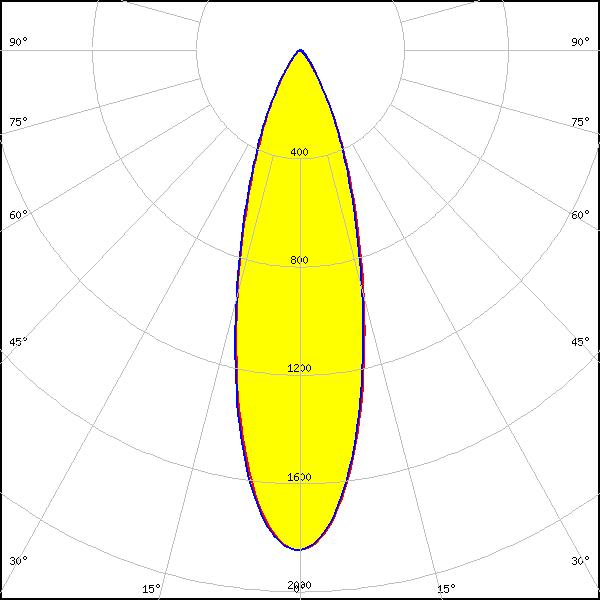

CLL04x/CLU04x
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
A.A.G. STUCCHI: S-8000-12
A.A.G. STUCCHI: S-8000-12
FWHM:
25°
FWTM:
52°
Peak intensity:
3.300 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
16°
FWTM:
37°
Peak intensity:
5.500 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

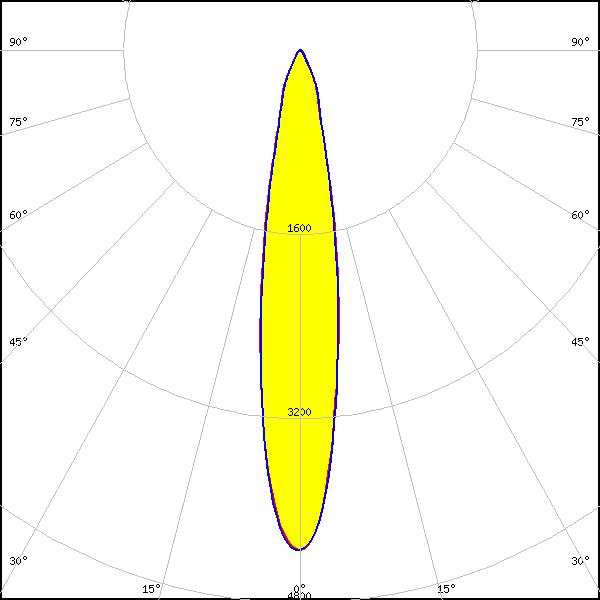

LED:

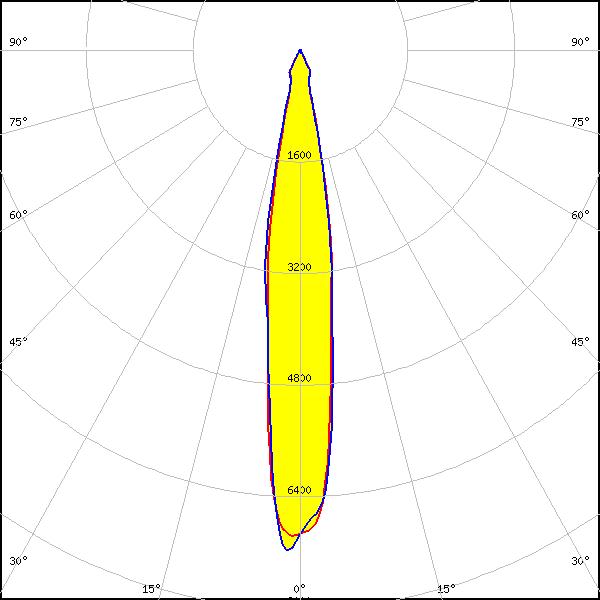

CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
16°
FWTM:
29°
Peak intensity:
7.200 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
18°
FWTM:
43°
Peak intensity:
4.300 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
18°
FWTM:
32°
Peak intensity:
5.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
20°
FWTM:
48°
Peak intensity:
3.700 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

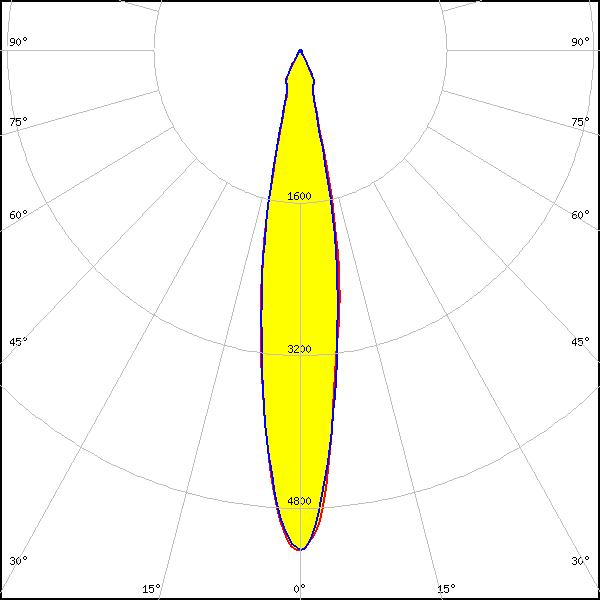

LED:
CLU730/731/733
LES size: 13.0 mm
Required components:
FWHM:
19°
FWTM:
34°
Peak intensity:
5.200 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

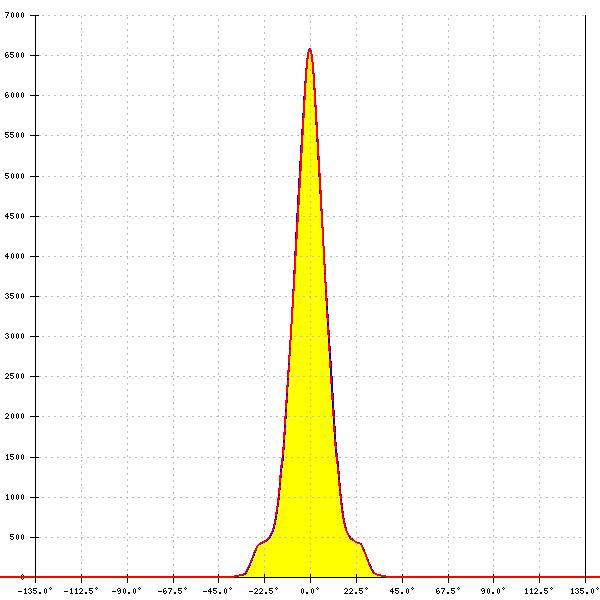

CMA1840
LES size: 14.0 mm
Required components:
FWHM:
18°
FWTM:
34°
Peak intensity:
6.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

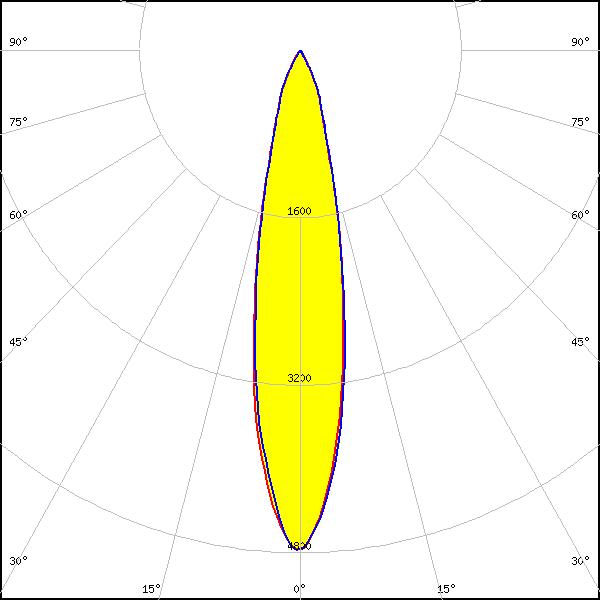

LED:
CMA2550
LES size: 19.0 mm
Required components:
FWHM:
21°
FWTM:
47°
Peak intensity:
4.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

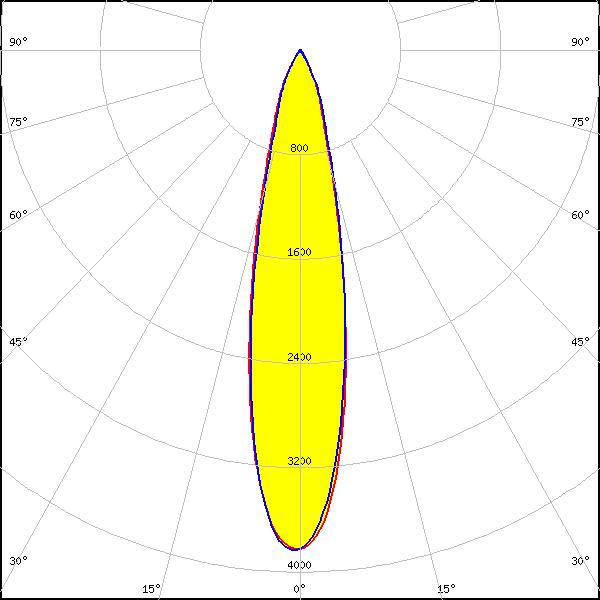

LED:
CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
17°
FWTM:
31°
Peak intensity:
7.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

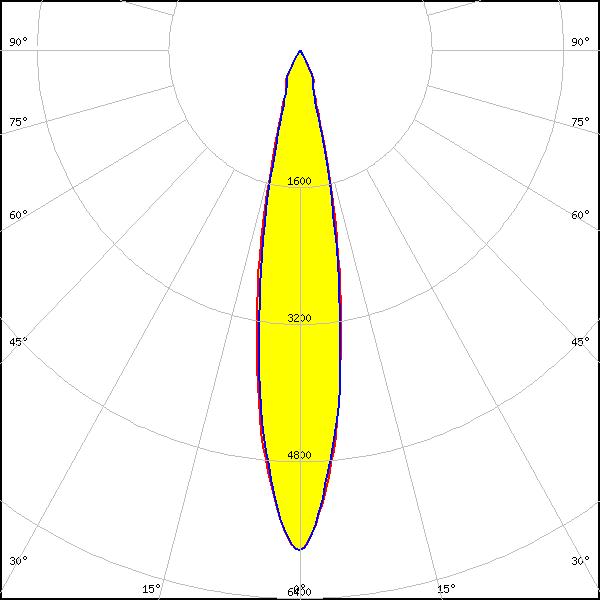

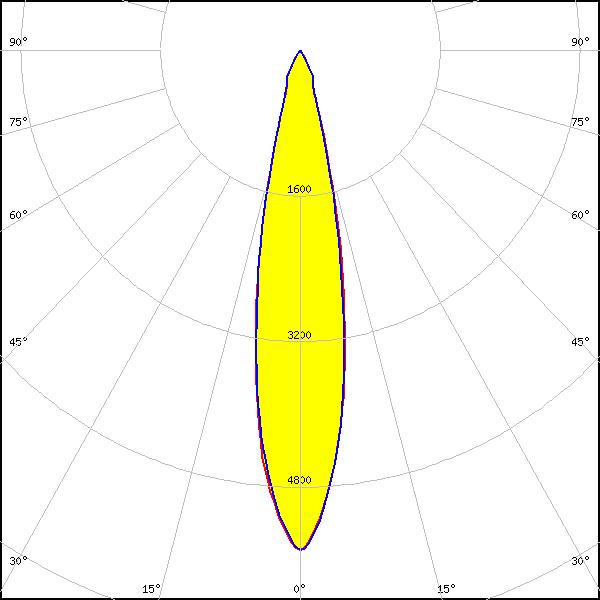

LED:
CMT19xx
LES size: 14.5 mm
Required components:
FWHM:
21°
FWTM:
38°
Peak intensity:
5.495 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT19xx
LES size: 14.5 mm
Required components:
FWHM:
20°
FWTM:
37°
Peak intensity:
5.838 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

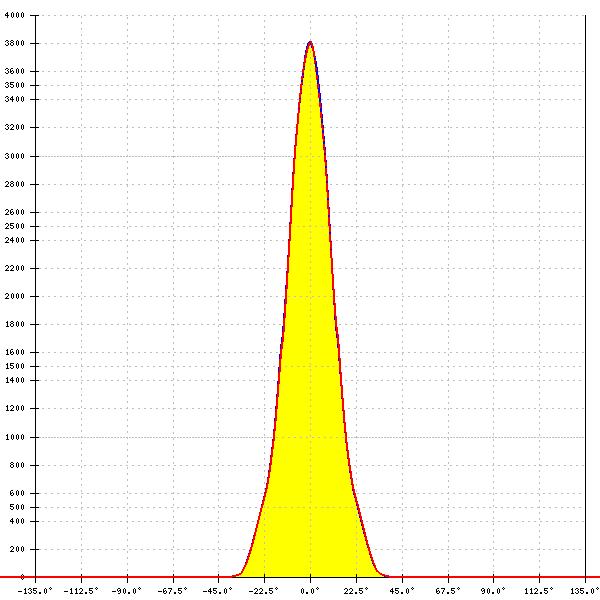

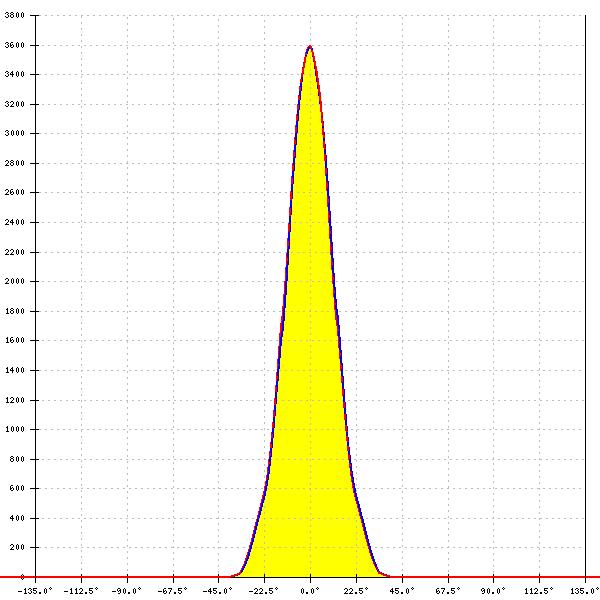

LED:

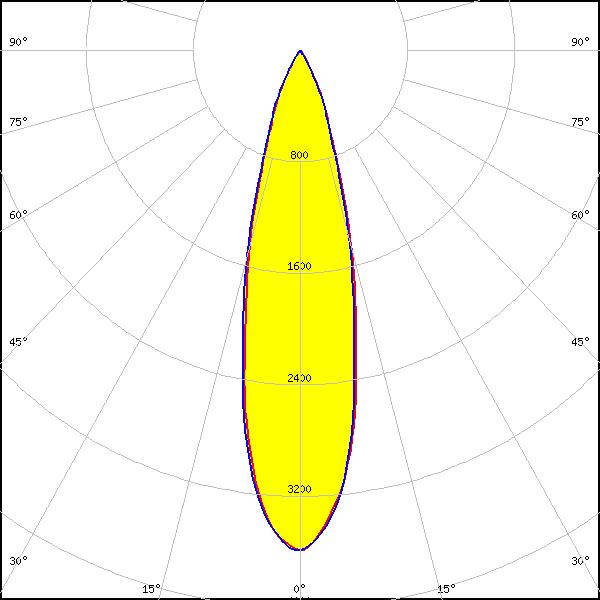

CMT28xx
LES size: 22.0 mm
Required components:
FWHM:
25°
FWTM:
51°
Peak intensity:
3.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

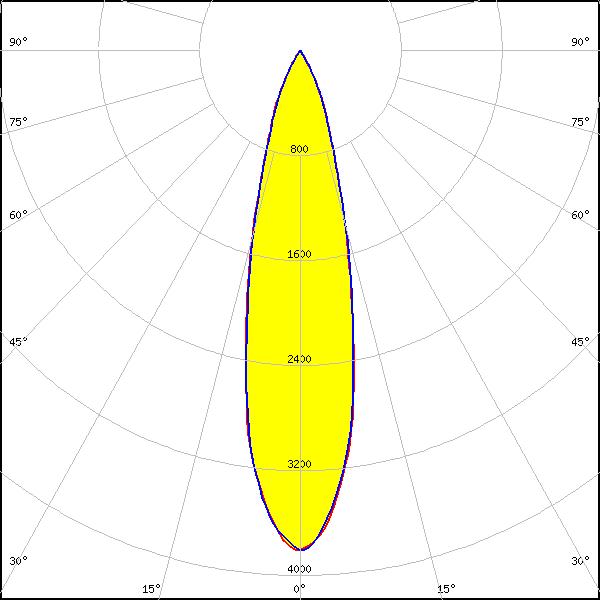

LED:
CMT28xx
LES size: 22.0 mm
Required components:
FWHM:
26°
FWTM:
52°
Peak intensity:
3.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

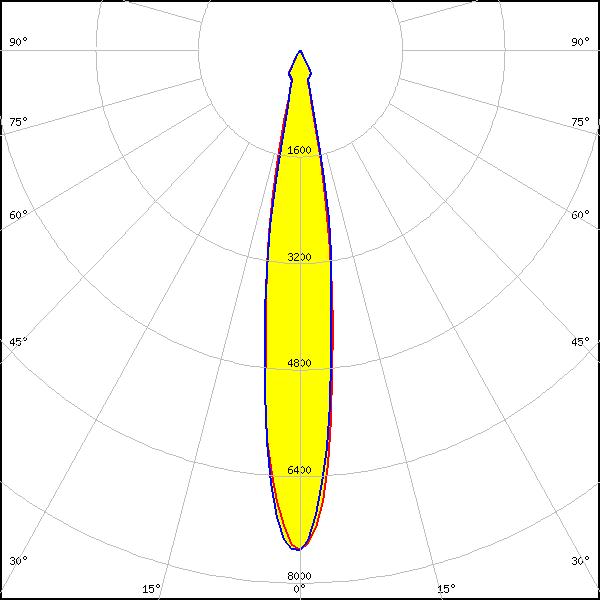

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
16°
FWTM:
27°
Peak intensity:
7.510 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
17°
FWTM:
36°
Peak intensity:
5.290 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
18°
FWTM:
37°
Peak intensity:
5.100 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
21°
FWTM:
35°
Peak intensity:
5.300 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
22°
FWTM:
49°
Peak intensity:
3.700 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
17°
FWTM:
32°
Peak intensity:
7.880 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM:
23°
FWTM:
42°
Peak intensity:
4.800 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM:
17°
FWTM:
62°
Peak intensity:
2.250 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM:
23°
FWTM:
47°
Peak intensity:
4.260 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM:
20°
FWTM:
48°
Peak intensity:
4.400 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM:
21°
FWTM:
49°
Peak intensity:
3.400 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
IDEAL: 50-2234C
IDEAL: 50-2100LN
IDEAL: 50-2100LN
FWHM:
20°
FWTM:
46°
Peak intensity:
4.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
FWHM:
24°
FWTM:
50°
Peak intensity:
3.600 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA2011
LES size: 14.5 mm
Required components:
FWHM:
19°
FWTM:
44°
Peak intensity:
4.100 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHI3030 19W
LES size: 20.0 mm
Required components:
FWHM:
27°
FWTM:
55°
Peak intensity:
2.900 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHI3030 29W
LES size: 26.0 mm
Required components:
FWHM:
34°
FWTM:
62°
Peak intensity:
1.900 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
FWHM:
19°
FWTM:
36°
Peak intensity:
5.100 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
FWHM:
21°
FWTM:
49°
Peak intensity:
3.400 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM:
15°
FWTM:
28°
Peak intensity:
8.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM:
17°
FWTM:
31°
Peak intensity:
7.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM:
21°
FWTM:
41°
Peak intensity:
4.500 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM:
23°
FWTM:
52°
Peak intensity:
3.100 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
FWHM:
24°
FWTM:
50°
Peak intensity:
3.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
FWHM:
26°
FWTM:
53°
Peak intensity:
3.000 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
27°
FWTM:
52°
Peak intensity:
3.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
29°
FWTM:
55°
Peak intensity:
3.600 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
31°
FWTM:
63°
Peak intensity:
1.800 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
A.A.G. STUCCHI: S-8000-12
A.A.G. STUCCHI: S-8000-12
FWHM:
26°
FWTM:
52°
Peak intensity:
3.140 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:

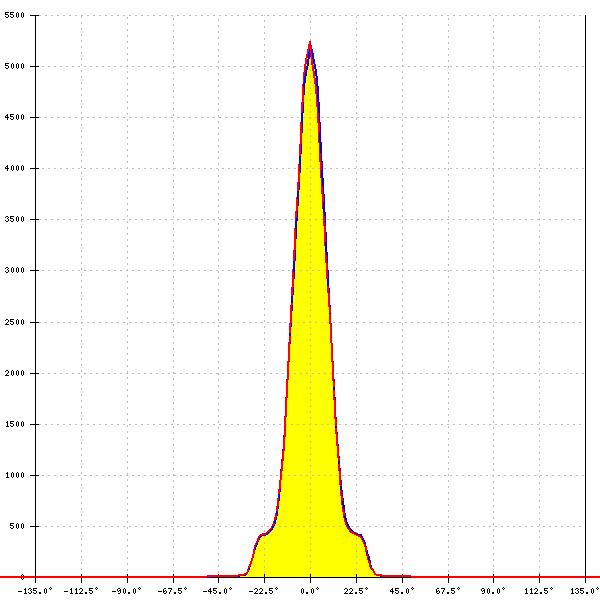

LUXEON K12
LES size: 13.5 mm
Required components:
FWHM:
19°
FWTM:
36°
Peak intensity:
0.530 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K12
LES size: 13.5 mm
Required components:
FWHM:
21°
FWTM:
47°
Peak intensity:
4.000 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K16
LES size: 17.0 mm
Required components:
FWHM:
20°
FWTM:
40°
Peak intensity:
0.460 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K16
LES size: 17.0 mm
Required components:
FWHM:
22°
FWTM:
48°
Peak intensity:
3.450 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:

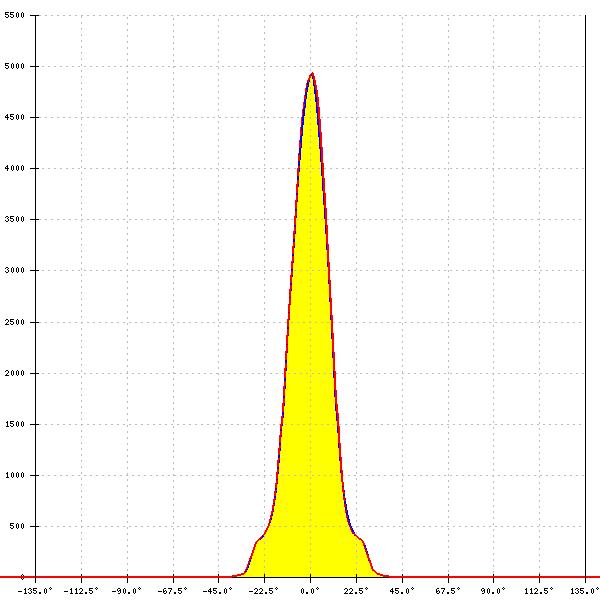

CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM:
22°
FWTM:
40°
Peak intensity:
4.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM:
23°
FWTM:
49°
Peak intensity:
3.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

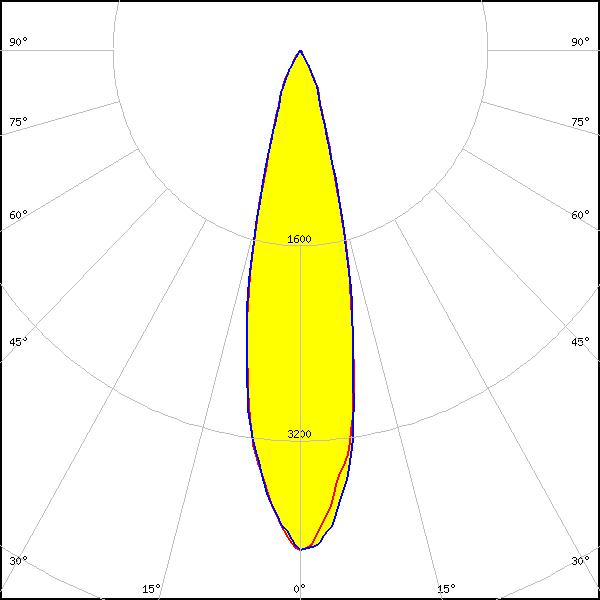

CDM-18 (Dim-To-Warm)
LES size: 16.8 mm
Required components:
FWHM:
25°
FWTM:
47°
Peak intensity:
4.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-18 (Dim-To-Warm)
LES size: 16.8 mm
Required components:
FWHM:
26°
FWTM:
53°
Peak intensity:
3.000 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
18°
FWTM:
33°
Peak intensity:
6.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
20°
FWTM:
43°
Peak intensity:
4.600 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM:
21°
FWTM:
39°
Peak intensity:
5.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM:
22°
FWTM:
48°
Peak intensity:
3.800 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-18 (Tunable White)
LES size: 17.5 mm
Required components:
FWHM:
24°
FWTM:
45°
Peak intensity:
4.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-18 (Tunable White)
LES size: 17.5 mm
Required components:
FWHM:
25°
FWTM:
53°
Peak intensity:
3.100 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

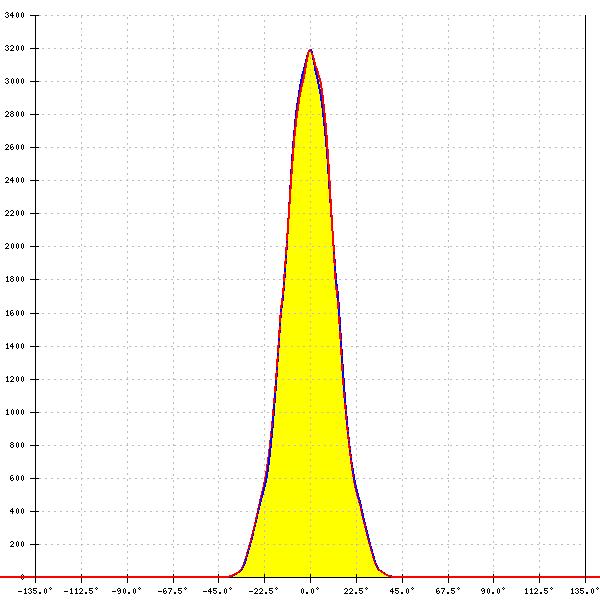

CTM-22 (Tunable White)
LES size: 22.0 mm
Required components:
FWHM:
28°
FWTM:
54°
Peak intensity:
3.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-22 (Tunable White)
LES size: 22.0 mm
Required components:
FWHM:
29°
FWTM:
56°
Peak intensity:
2.570 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

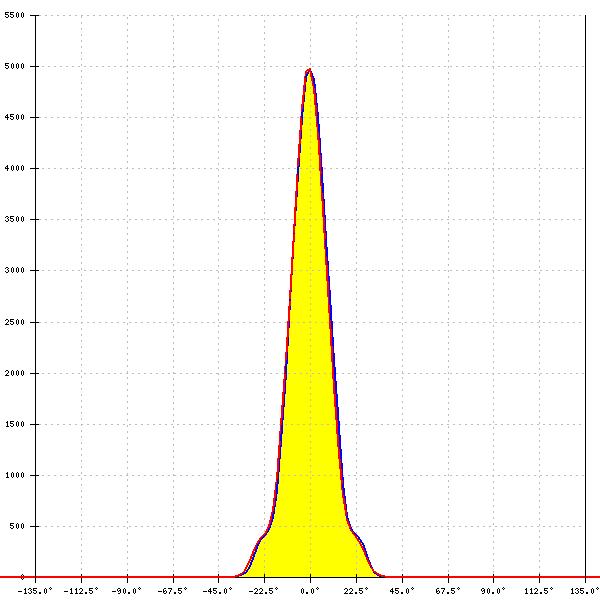

CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
22°
FWTM:
39°
Peak intensity:
4.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
23°
FWTM:
50°
Peak intensity:
3.400 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
22°
FWTM:
40°
Peak intensity:
5.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
24°
FWTM:
51°
Peak intensity:
3.500 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-22 (28x28)
LES size: 22.0 mm
Required components:
FWHM:
27°
FWTM:
56°
Peak intensity:
3.500 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-22 (28x28)
LES size: 22.0 mm
Required components:
FWHM:
29°
FWTM:
58°
Peak intensity:
2.700 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
17°
FWTM:
31°
Peak intensity:
6.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
20°
FWTM:
44°
Peak intensity:
4.300 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
24°
FWTM:
52°
Peak intensity:
3.300 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
20°
FWTM:
34°
Peak intensity:
5.700 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
21°
FWTM:
47°
Peak intensity:
4.000 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
16°
FWTM:
30°
Peak intensity:
7.200 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
19°
FWTM:
45°
Peak intensity:
4.200 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
21°
FWTM:
48°
Peak intensity:
4.000 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
20°
FWTM:
36°
Peak intensity:
5.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM:
21°
FWTM:
36°
Peak intensity:
5.200 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM:
23°
FWTM:
50°
Peak intensity:
3.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM:
22°
FWTM:
46°
Peak intensity:
4.000 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
Required components:
FWHM:
23°
FWTM:
45°
Peak intensity:
4.200 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
Required components:
FWHM:
24°
FWTM:
51°
Peak intensity:
3.300 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
18°
FWTM:
34°
Peak intensity:
6.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
19°
FWTM:
40°
Peak intensity:
5.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

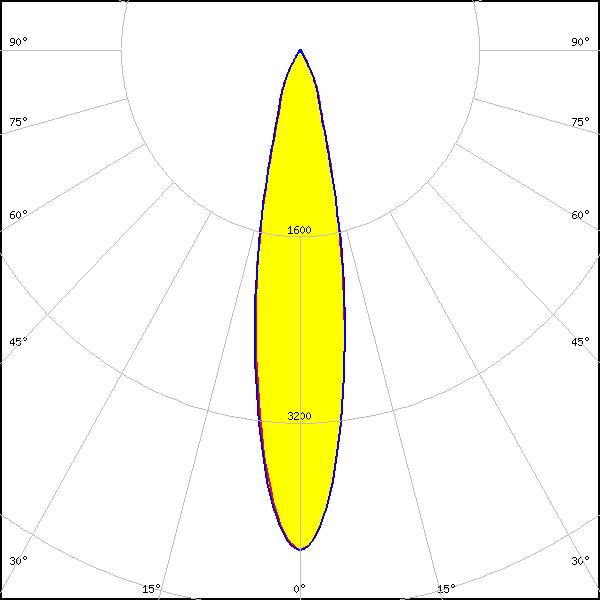

LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
FWHM:
20°
FWTM:
38°
Peak intensity:
5.650 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
FWHM:
21°
FWTM:
46°
Peak intensity:
4.300 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM:
22°
FWTM:
48°
Peak intensity:
4.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM:
24°
FWTM:
51°
Peak intensity:
3.500 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM:
27°
FWTM:
54°
Peak intensity:
2.900 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM:
26°
FWTM:
52°
Peak intensity:
3.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
22°
FWTM:
44°
Peak intensity:
4.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
23°
FWTM:
51°
Peak intensity:
3.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

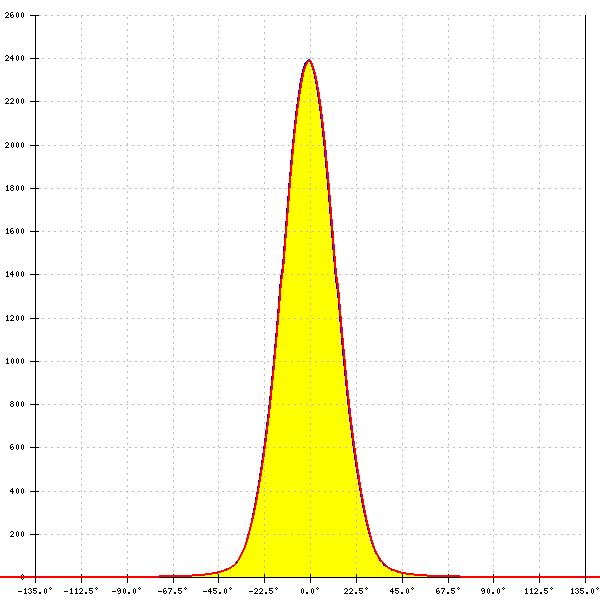

LED:
LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
FWHM:
30°
FWTM:
57°
Peak intensity:
2.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

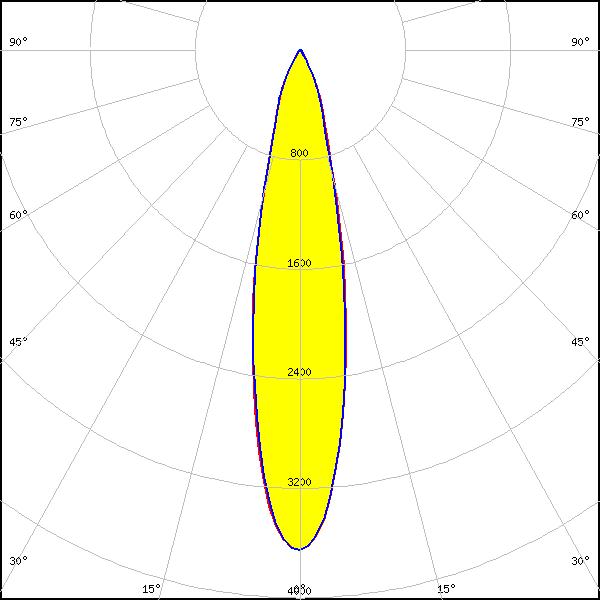

LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
22°
FWTM:
39°
Peak intensity:
4.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
23°
FWTM:
50°
Peak intensity:
3.400 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
21°
FWTM:
39°
Peak intensity:
4.910 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
22°
FWTM:
49°
Peak intensity:
3.650 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
17°
FWTM:
31°
Peak intensity:
6.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
20°
FWTM:
44°
Peak intensity:
4.300 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
FWHM:
21°
FWTM:
46°
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
FWHM:
23°
FWTM:
52°
Peak intensity:
3.040 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES15
LES size: 15.0 mm
Required components:
FWHM:
22°
FWTM:
43°
Peak intensity:
4.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

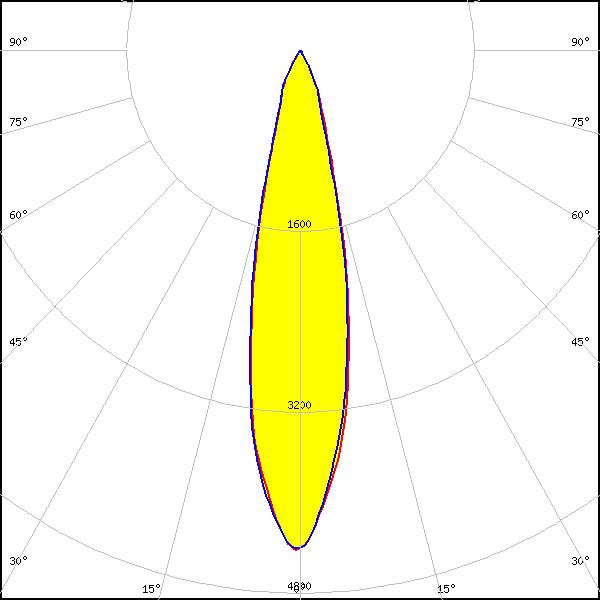

LED:
SLE G7 LES17 H
Required components:
FWHM:
23°
FWTM:
46°
Peak intensity:
4.400 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

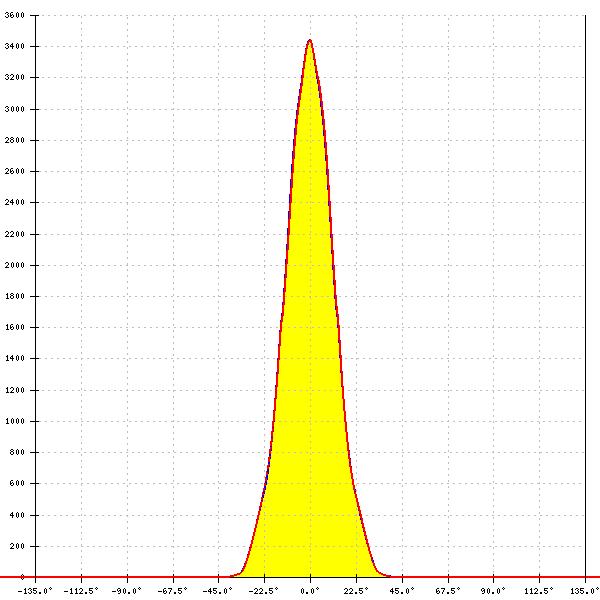

LED:
SLE G7 LES21 H
Required components:
FWHM:
27°
FWTM:
52°
Peak intensity:
3.400 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM:
22°
FWTM:
42°
Peak intensity:
4.936 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
