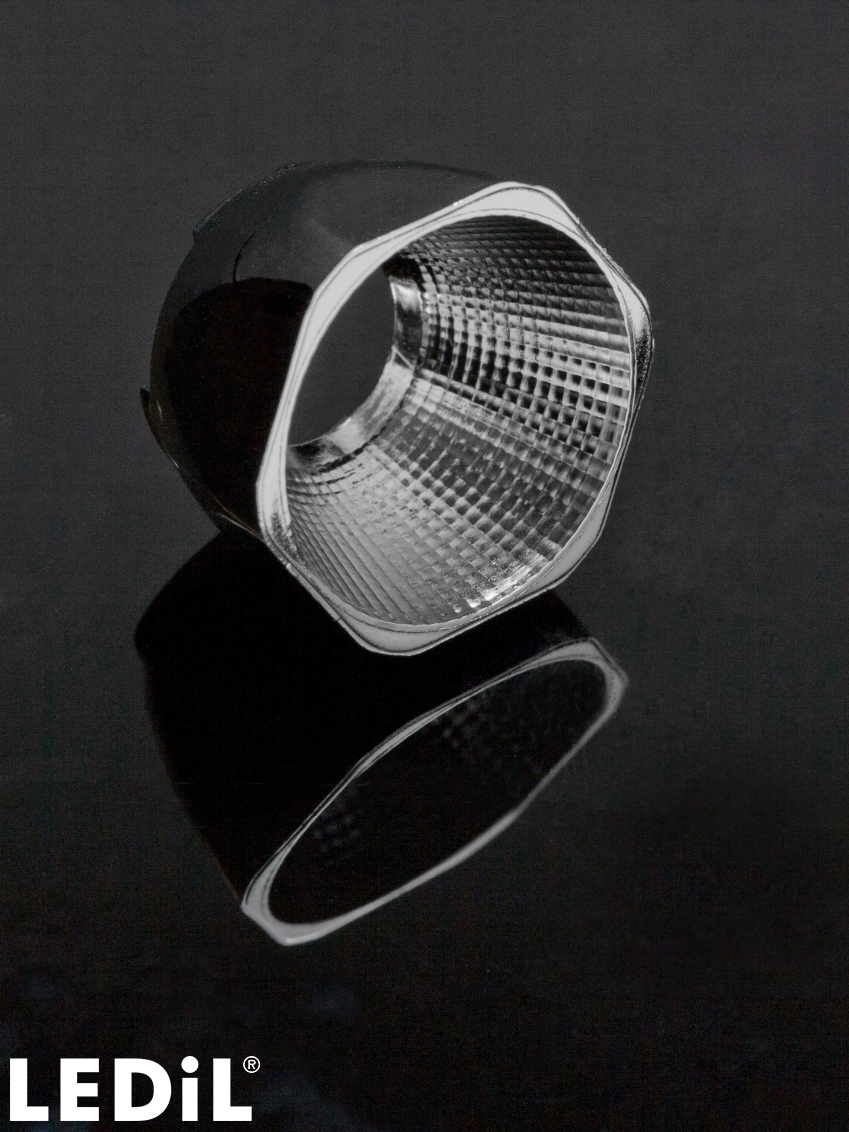

    C10589_BOOM-M

    Print

    ~30° medium beam

    Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

    Specification
    • Dimensions:
      22 x  22 mm
    • Height:
      13.60 mm
    • Fastening:
      tape
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1680 pcs
    • Box size:
      480 x 280 x 300 mm
    • MPQ:
      1680 pcs
    • MOQ:
      1680 pcs
    • MOQ size:
      480 x 280 x 300 mm
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C10589_BOOM-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
    WHERE TO BUY

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR184 - Change of minimum order quantities of specific products (002)

    Case story

    Zandarti park in Riga

    Application area

    Indoor Architectural Lighting

    Optical results

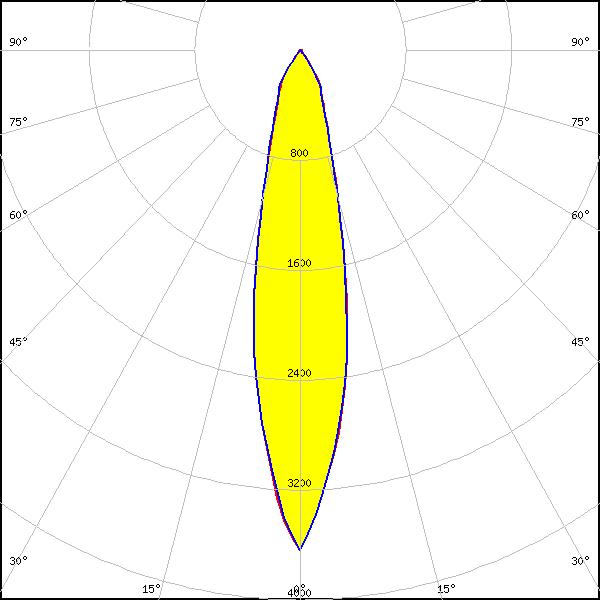

    LED: CMA1303
    FWHM: 22°
    FWTM: 54°
    Peak intensity: 3.639 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

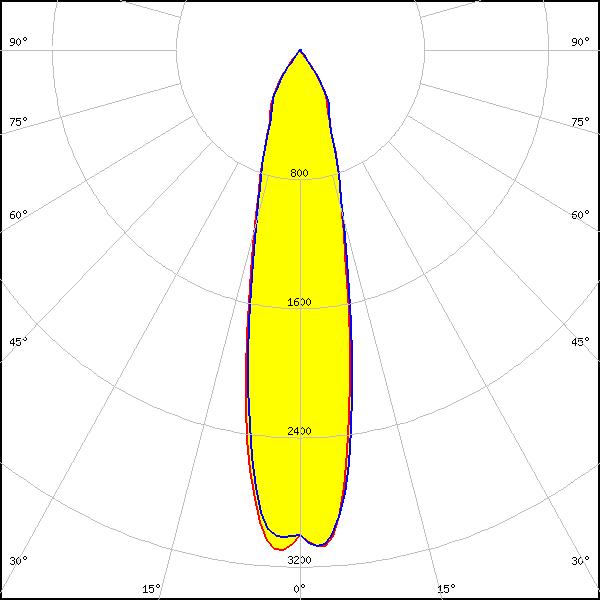

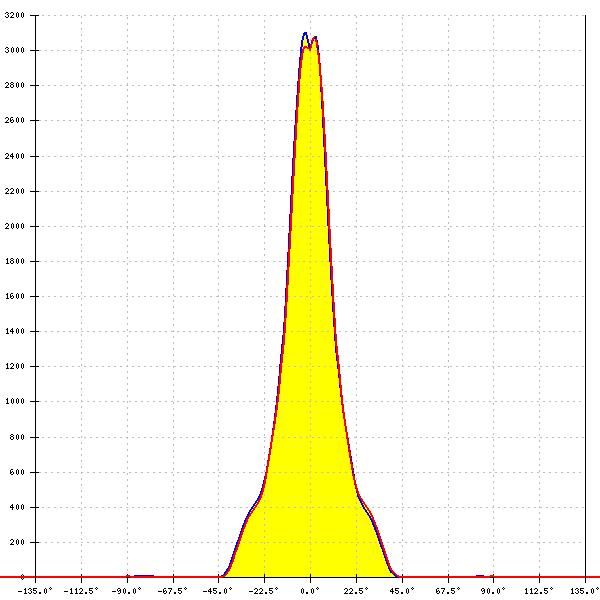

    LED: MC-E
    FWHM: 24°
    FWTM: 64°
    Peak intensity: 3.132 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

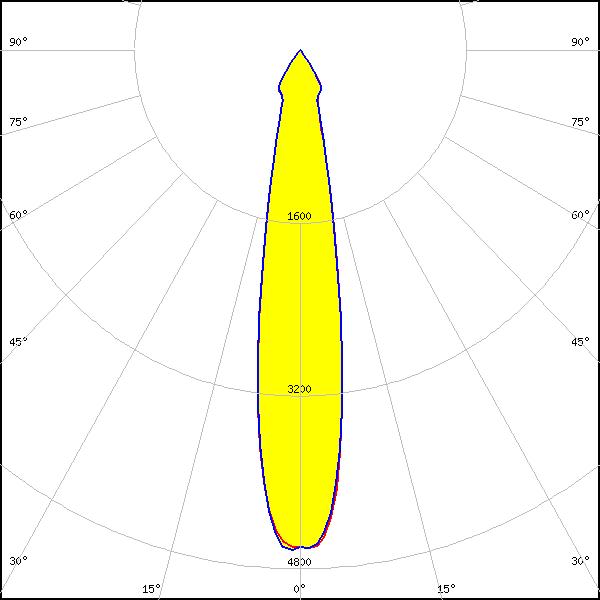

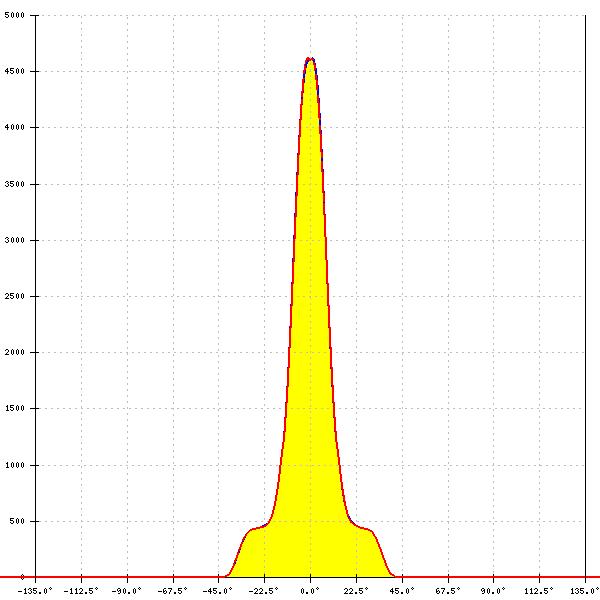

    LED: LZ4-00XX08
    FWHM: 20°
    FWTM: 44°
    Peak intensity: 4.672 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: Blue

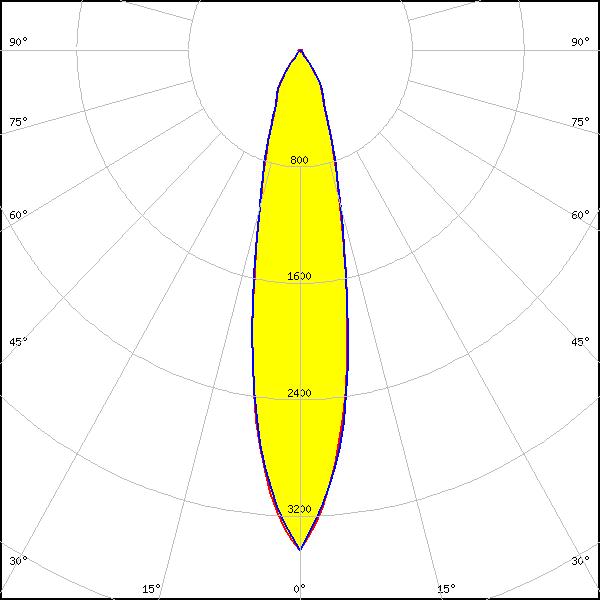

    LED: LUXEON 5050 Round LES
    FWHM: 22°
    FWTM: 56°
    Peak intensity: 3.435 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

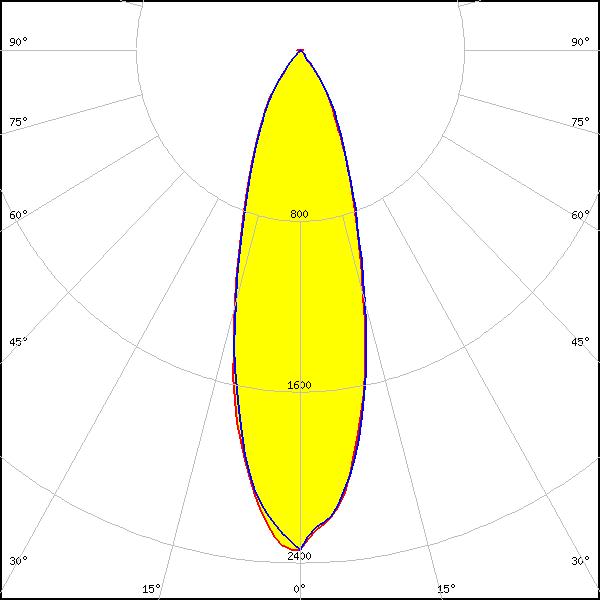

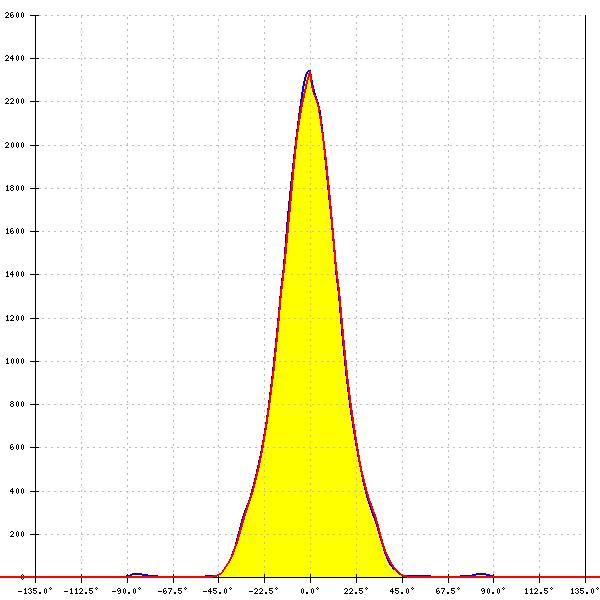

    LED: LUXEON 7070
    FWHM: 31°
    FWTM: 67°
    Peak intensity: 2.352 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

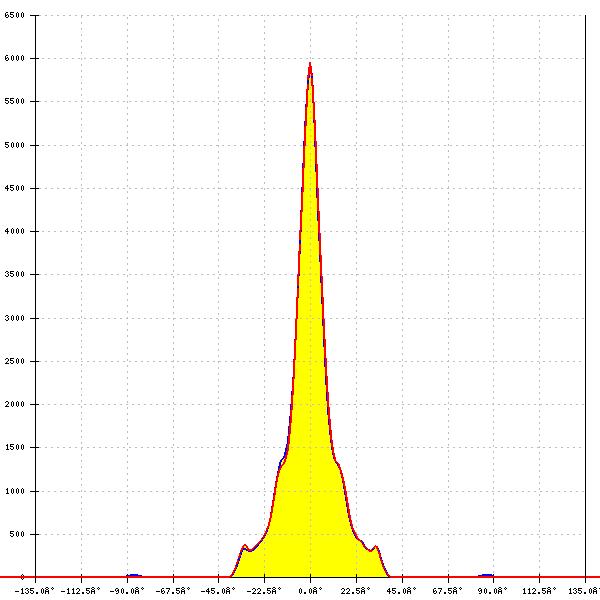

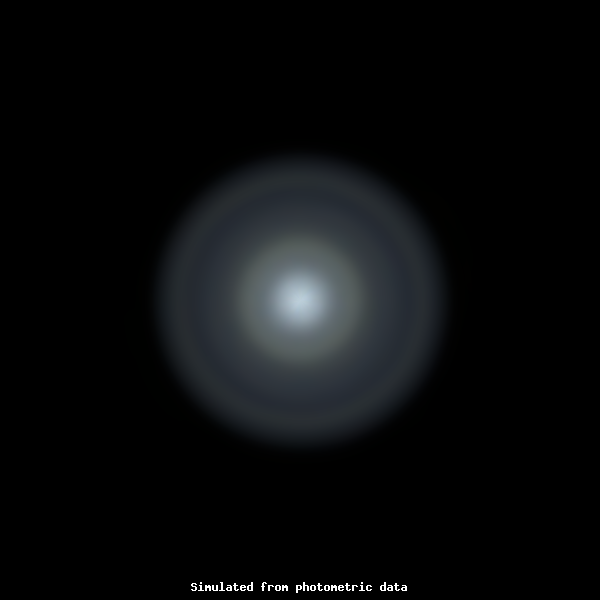

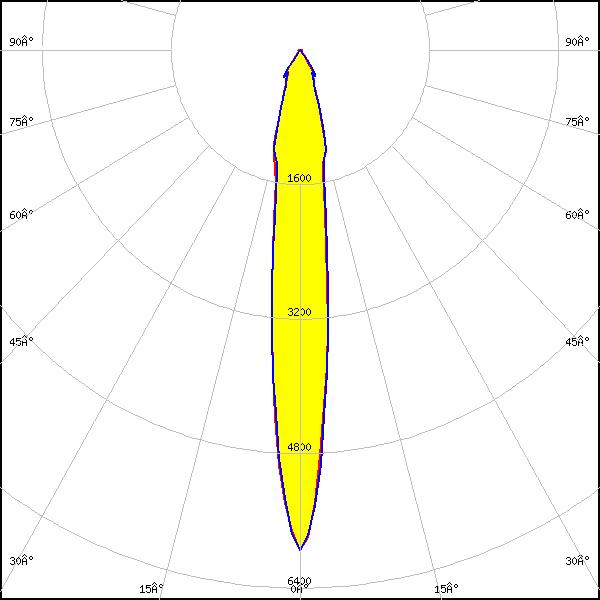

    LED: SST-12 Gen2
    FWHM: 14°
    FWTM: 40°
    Peak intensity: 5.952 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-12 Gen2
    FWHM: 14°
    FWTM: 40°
    Peak intensity: 5.952 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

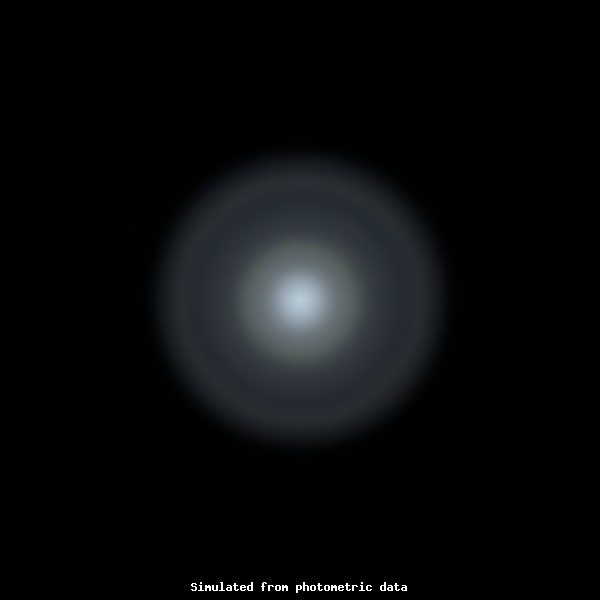

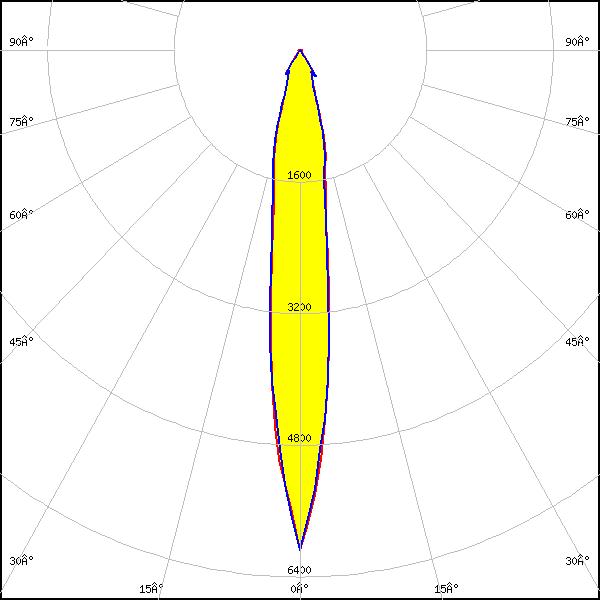

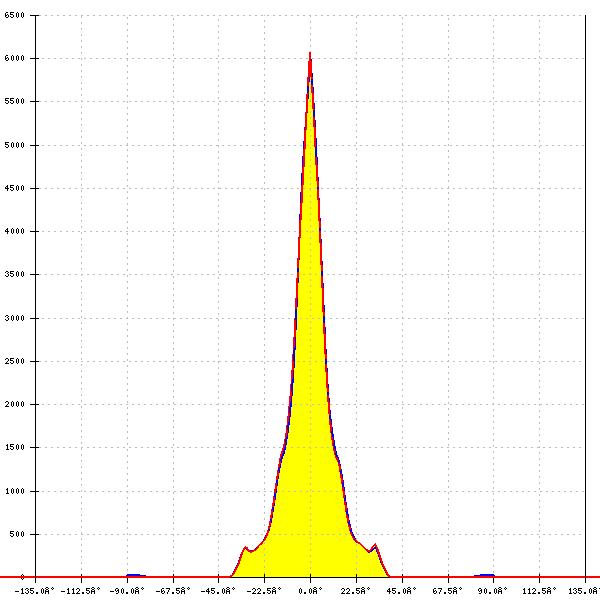

    LED: SST-20 Gen2
    FWHM: 14°
    FWTM: 39°
    Peak intensity: 6.078 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

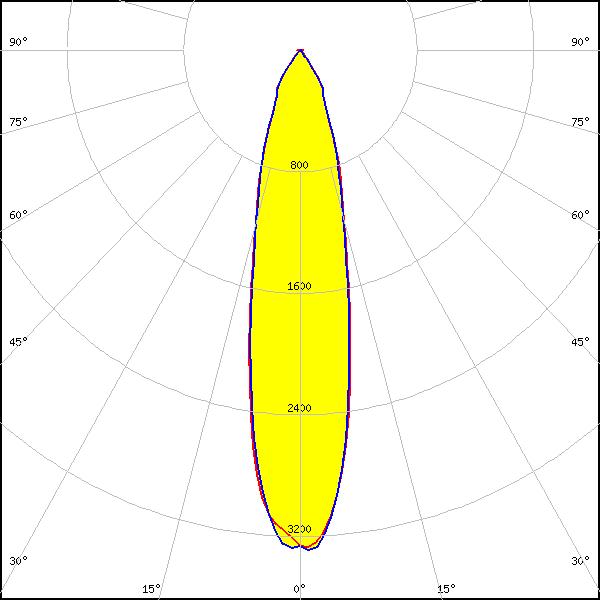

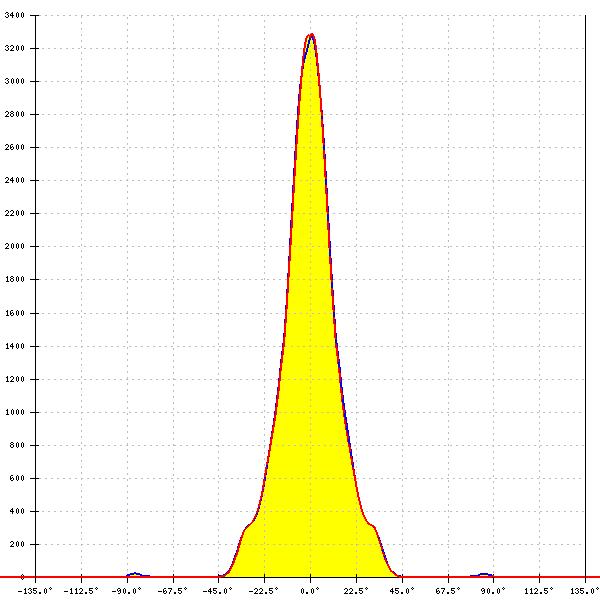

    LED: SST-70X-WCS
    FWHM: 24°
    FWTM: 58°
    Peak intensity: 3.293 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: P7
    FWHM: 39°
    FWTM: -
    LEDs/each optic: 1
    Light colour/type: White
