LINEAR LIGHTING SOLUTIONS - LEDiL OPTICS FOR CONTINUOUS LUMINAIRES

  Linear lighting is an obvious choice for larger indoor areas and efficient general lighting. Industrial, retail or any other heavily used large space requires regular maintenance that should be as effortless as possible. Furthermore, low system and lifetime cost, together with high lumen output, are a necessity. Over the years LEDiL has released a successful and diverse range of linear solutions to meet different lighting requirements. These solutions offer a variety of beam angles from mechanically different product families that follow industry trends and specifications. Optics can be used to control cutoff, colour uniformity, uniform illumination in the target area, and minimal glare according to application. Aesthetics are important, and what the lens looks like when the lights are on also needs to be considered. What linear optics do we offer? Find the right one for you and get in touch.

LINNEA-GC

  Great aesthetics when the lights are on. Excellent optical performance and glare control with fixed LED pitch. Fast to install with integrated clips.

SPECIFICATION:

Dimensions	285 mm x 40 mm (~1 ft)
Beams	90 / 60 (coming)
Compatibility	20 and 24 mm wide Zhaga mid-power PCBs
Material	PMMA
Mounting	Clips or by sliding into profile
Related content	Warehouse lighting with LINNEA-GC-90



LINNEA

  Versatile solution with many light distributions. Fast to install with two different integrated clip types. Free pitch design with wide LED board compatibility.

SPECIFICATION:

Dimensions	285 mm x 40 mm (~1 ft)
Beams	60 / 90 / O / ZT25 / Z2T25 / UP
Compatibility	20 and 24 mm wide Zhaga mid-power PCBs
Material	PMMA or PC
Mounting	Clips or by sliding into profile
Accessories	Short and long end caps
Related content	DIY Store lighting with LINNEA-60-PMMA and WINNIE-O
	Linear hallway lighting with LINNEA-90
	Troffer hallway lighting with LINNEA-90
	Office lighting with LINNEA-90 and FLORENCE-1R-GC-ZT25
	Warehouse lighting with LINNEA-90
	Industrial lighting with FLORENCE2-Z90 and LINNEA-UP



FLORENCE-1R-GC

  Our narrowest linear optic with fixed LED pitch for good light control.

SPECIFICATION:

Dimensions	286 mm x 20 mm (~1 ft)
Beams	Z60 / Z90 / O / ZT25
Compatibility	Up to 5630 size mid-power LED packages
Material	PMMA
Mounting	Clips, profile or screws with additional accessories.
Related content	Office lighting with LINNEA-90 and FLORENCE-1R-GC-ZT25
	Supermarket lighting with FLORENCE-1R and 1R-GC



FLORENCE-1R

  Our narrowest linear optic with free LED pitch for wide PCB compatibility. Many light distributions available.

SPECIFICATION:

Dimensions	286 mm x 20 mm (~1 ft)
Beams	Z60 / Z90 / O / ZT25 / MAXI-WG / UP / Z2T25
Compatibility	Up to 5630 size mid-power LED packages
Material	PMMA
Mounting	Sliding into profile and fastening with additional accessories
Accessories	Clips, shades
Related content	Wall grazing with FLORENCE-1R-MAXI-WG
	Supermarket lighting with FLORENCE-1R and 1R-GC



CLAUDIA

  Our most affordable linear solution with good light control and fixed LED pitch.

SPECIFICATION:

Dimensions	279 mm x 29 mm (~1 ft)
Beams	60 / 90
Compatibility	Optimized for 2835 and compatible with up to 5630 size mid-power LED packages
Material	PMMA
Mounting	Clips or by sliding into profile

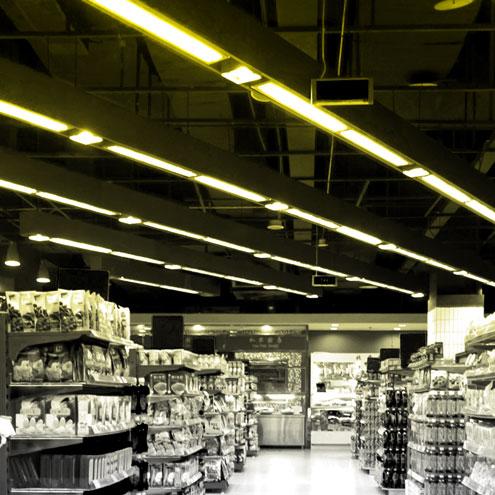

Related content	Supermarket lighting with CLAUDIA



FLORENCE

  The original and the best 3-row lens family. Uniform lighting surface and market leading colour uniformity. Also available with ingress protection.

SPECIFICATION:

Dimensions	3R: 286 mm x 61 mm (~1 ft) 3R-IP: 321 mm x 79 mm )
Beams	Z30 / Z60 / Z90 / O / ZT25 / ZT25-S / IP-Z60 / IP-Z90 / IP-O
Compatibility	Up to 5630 size mid-power LED packages
Material	PMMA and PC
Mounting	Screws
Accessories	Shades, press-fit plugs
Related content	Industrial lighting with FLORENCE-3R
	Wall-washing with FLORENCE-ZT25-S
	Store aisle lighting with FLORENCE-ZT25
	Warehouse aisle lighting with FLORENCE-O
	Fuel station lighting with FLORENCE-3R-IP and FLORENCE2



FLORENCE2

  Our most affordable 3-row linear lens solution with an excellent optical control.

SPECIFICATION:

Dimensions	286 mm x 20 mm (~1 ft)
Beams	Z60 / Z90
Compatibility	Up to 5630 size mid-power LED packages
Material	PMMA
Mounting	Screws
Related content	Industrial lighting with FLORENCE2-Z90 and LINNEA-UP
	Fuel station lighting with FLORENCE-3R-IP and FLORENCE2

Contact us about your linear lighting, or any other project.
