Application example

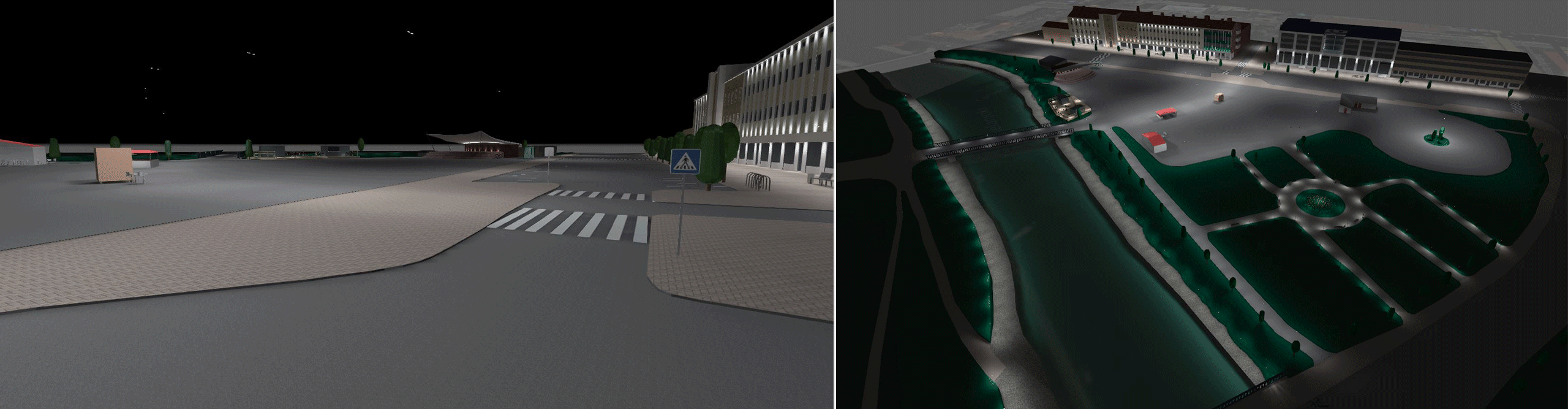

Urban lighting with LEDiL optics
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Related content
Urban lighting insights
Overview
NOTE: All streets and paths are accurately calculated also in individual setups.
Setup & Results
| Application: | Urban lighting |
| Bicycle lanes (P2) | |
| Optics: | THEIA-IP-32-T2 |
| Luminous flux: | 2000 lm |
| Power: | 13 W |
| Installation height: | 4 m |
| Spacing: | 20 m |
| Average: | 13 lx |
| Min: | 2 lx |
| Bridge (P1) | |
| Optics: | BELLA-SQ-HVSM |
| Luminous flux: | 625 lm |
| Power: | 4.7 W |
| Installation height: | 1 m |
| Spacing: | 8 m |
| Average: | 15 lx |
| Min: | 3 lx |
| Park (Pathway - P1) | |
| Optics: | BELLA-SQ-HVSM |
| Luminous flux: | 600 lm |
| Power: | 4.4 W |
| Installation height: | 1 m |
| Spacing: | 7 m |
| Average: | 18 lx |
| Min: | 3 lx |
| Park (The middle area) | |
| Optics: | BELLA-SQ-HC |
| Luminous flux: | 300 lm /600 lm |
| Power: | 2.2 W / 4.4 W |
| Installation height: | 1 m |
| Average: | 19 lx |
| Min: | 5 lx |
| Uniformity: | 0.28 |
| Walkway (P1) | |
| Optics: | THEIA-IP-32-T2 |
| Luminous flux: | 2300 lm |
| Power: | 15 W |
| Installation height: | 4 m |
| Spacing: | 20 m |
| Average: | 21 lx |
| Min: | 3 lx |
| Façade lighting | |
| Optics: | VERONICA-MAXI50-RZ-O |
| Luminous flux: | 640 lm |
| Power: | 9.0 W |
| Road lighting | |
| Optics: | STRADA-2X2-LW1 |
| Luminous flux: | 10 800 lm |
| Power: | 85 W |
| Installation height: | 4 m |
| Spacing: | 20 m |
| Average: | 14 lx |
| Min: | 2.7 lx |
| Centre area | |
| Optics: | STRADA-IP-24-T4-B |
| Luminous flux: | 13 500 lm |
| Power: | 113 W |
| Installation height: | 8 m |
| Spacing: | 25 m |
