Application example
Tennis court lighting with SPORT-2X2-FT4W
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
Tennis court lighting with SPORT-2X2-FT4W
| Application: | Tennis court lighting |
| Requirements: | EN 12193 “Light and lighting – Sports lighting” |
| Area for calculations: | 36 m x 18 m |

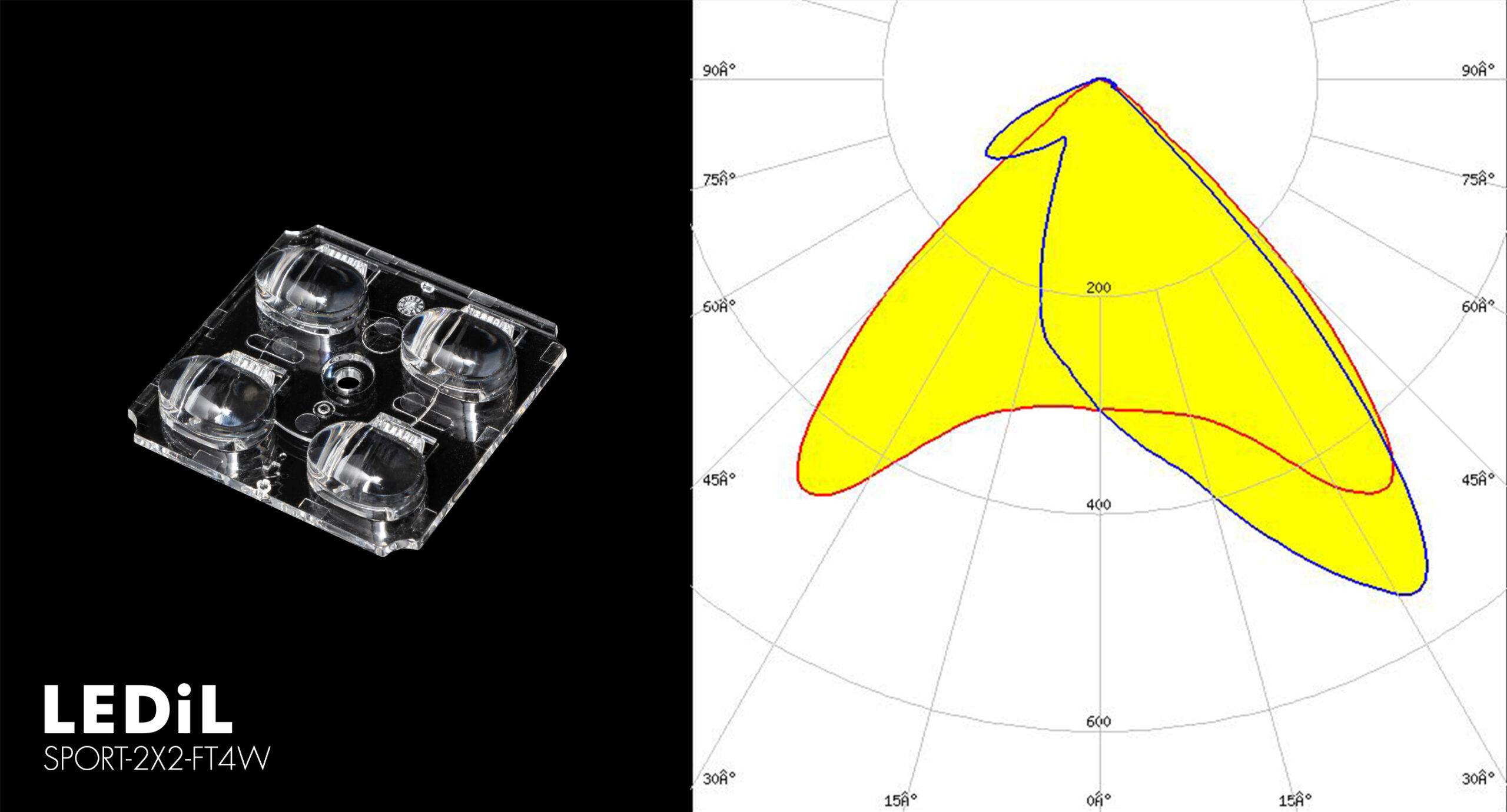

| Optics: | SPORT-2X2-FT4W |
| LEDs: | 5050 |
| Number of poles: | 6 pcs |
| Installation heigth: | 9 m |
| Luminous flux per pole: | 127 350 lm |
| Power per pole: | 796 W |
| Total output: | 649 klm |
Results:
| Average: | 500 lx |
| Uniformity: | 0.71 |
| GR max (CIE112): | 41 |
| Max cd at 10 m: | 4222 (Qualifies for Pre-curfew E2 - CIE 1917, IESNA 1999) |
Tennis court lighting with SPORT-2X2-FT4W
